Volvo V40 2012-2019 NSR Rear Left Passenger Seat Belt - Part Number 31292072
Premium used original manufacturer-marked Volvo part, removed from a 5-door V40 and photographed so you can compare before ordering.

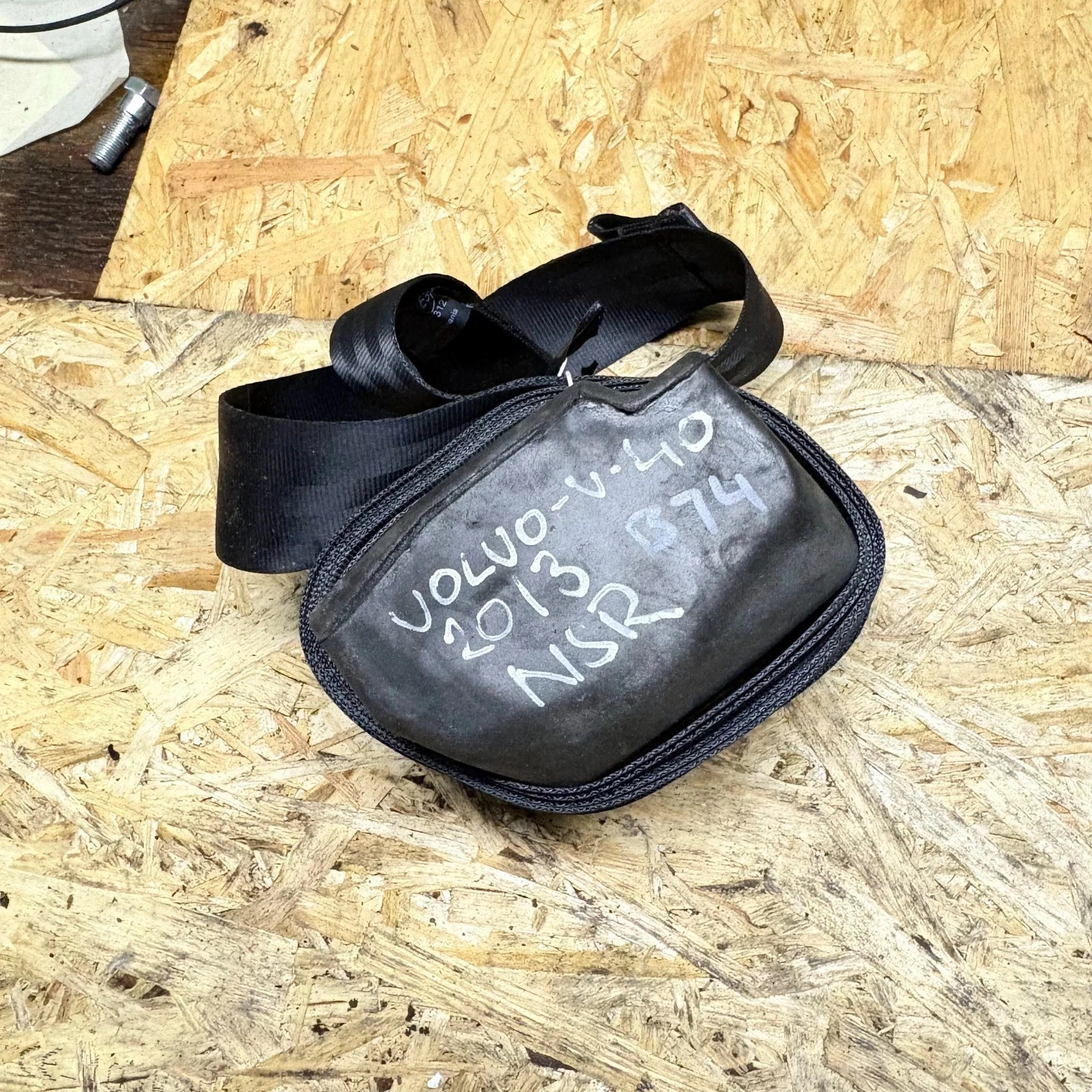

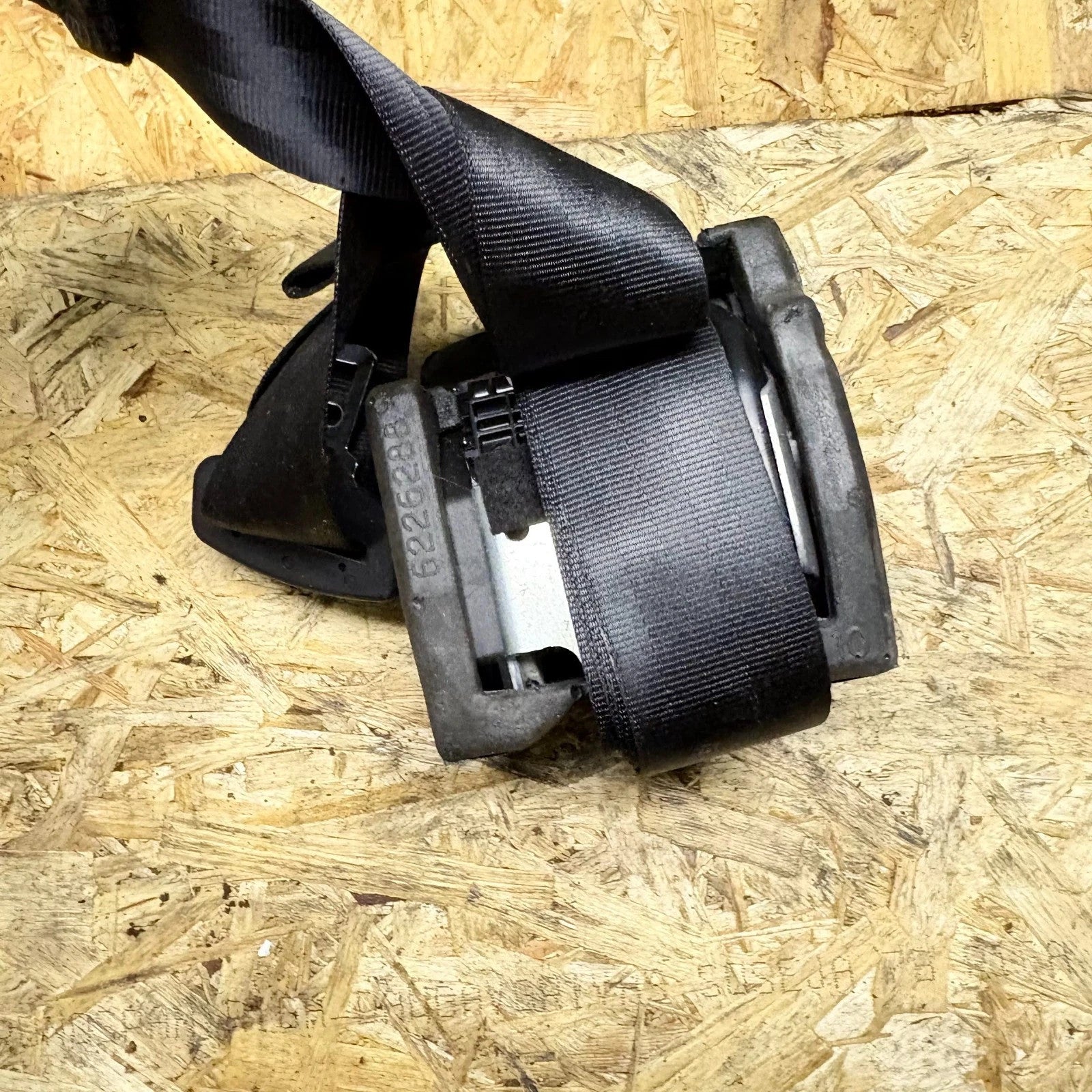

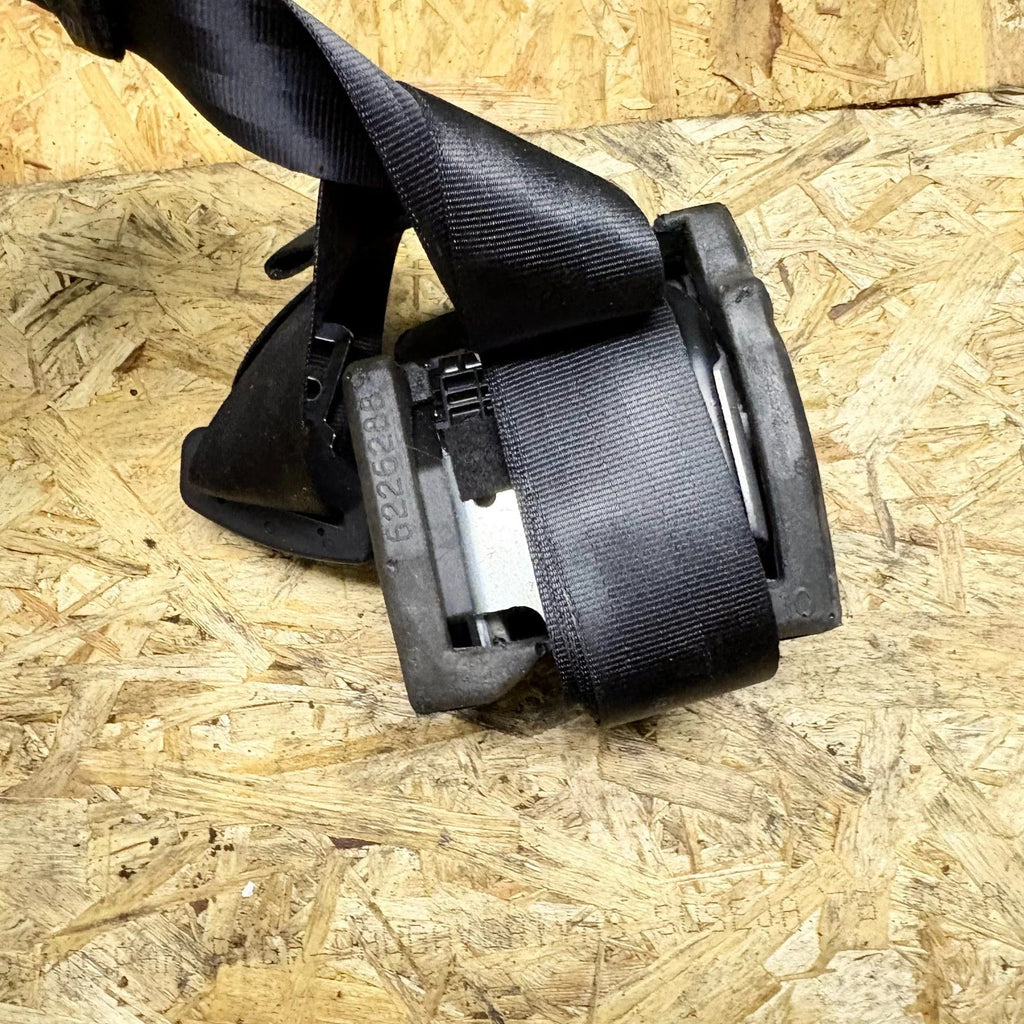

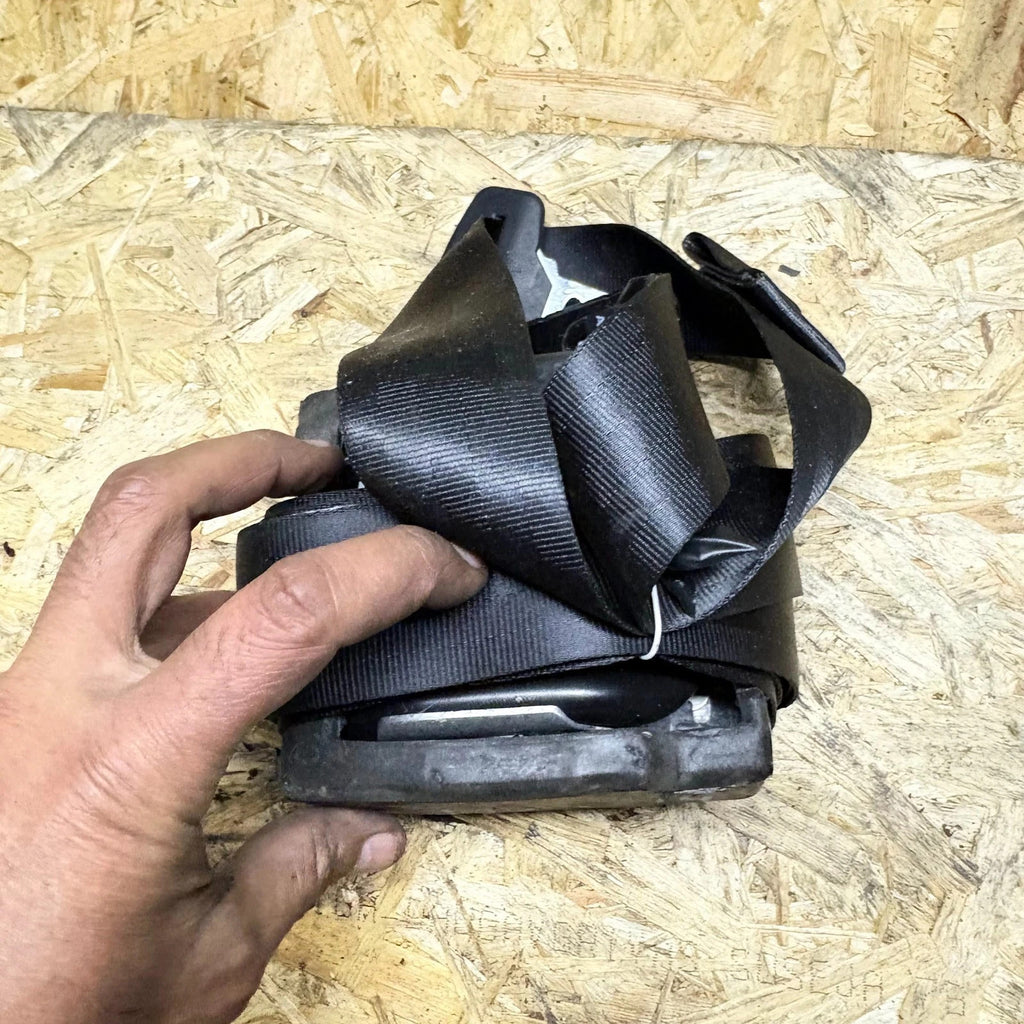

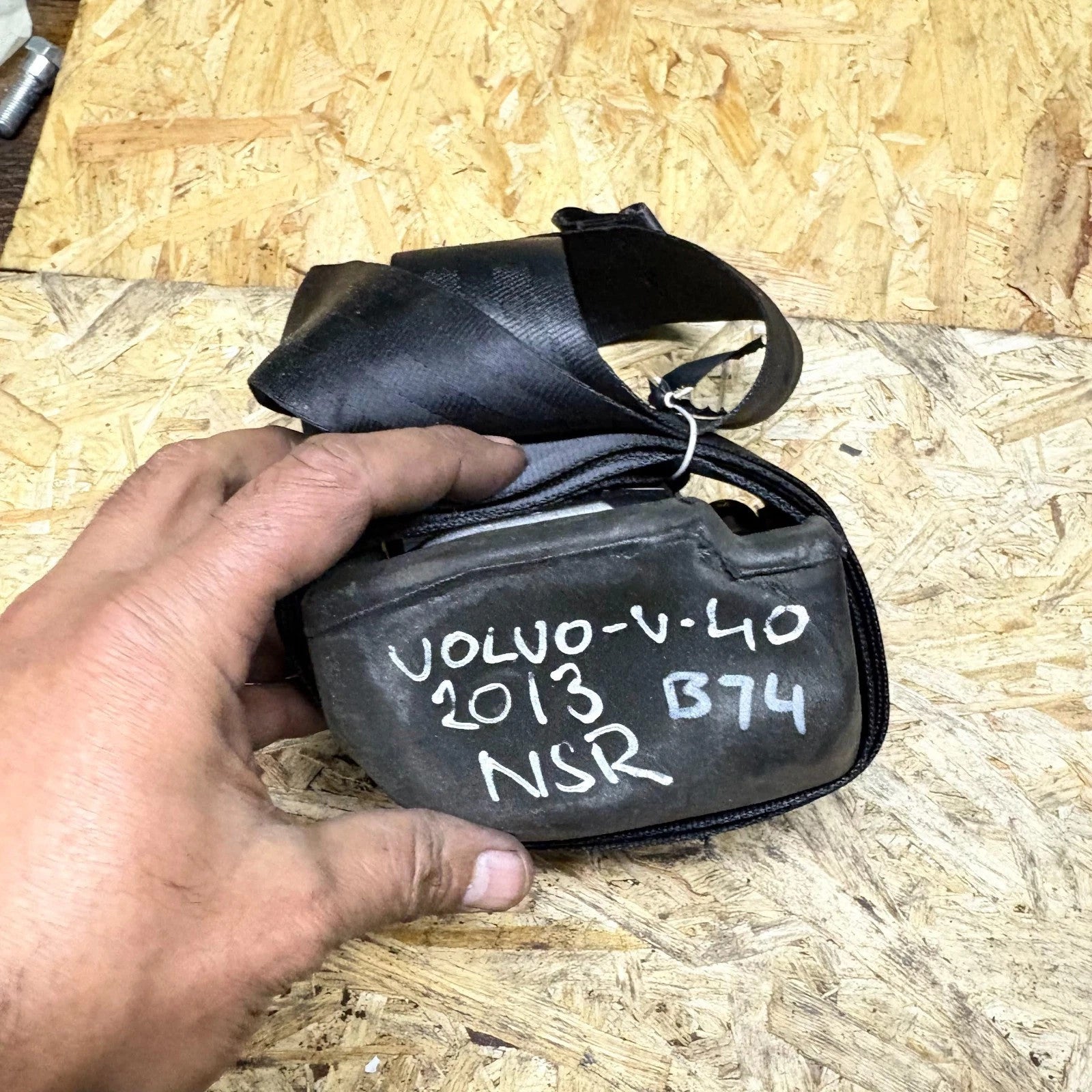

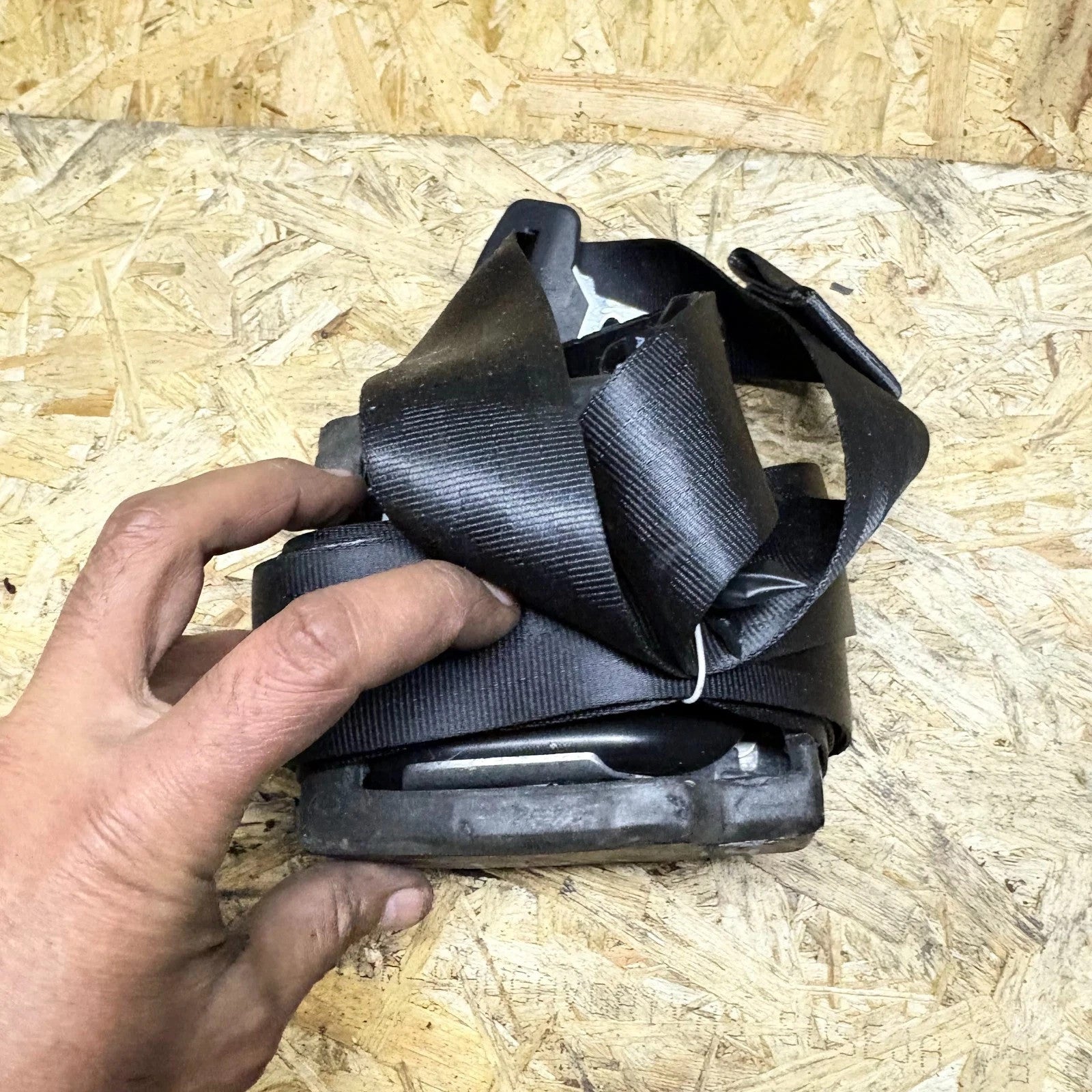

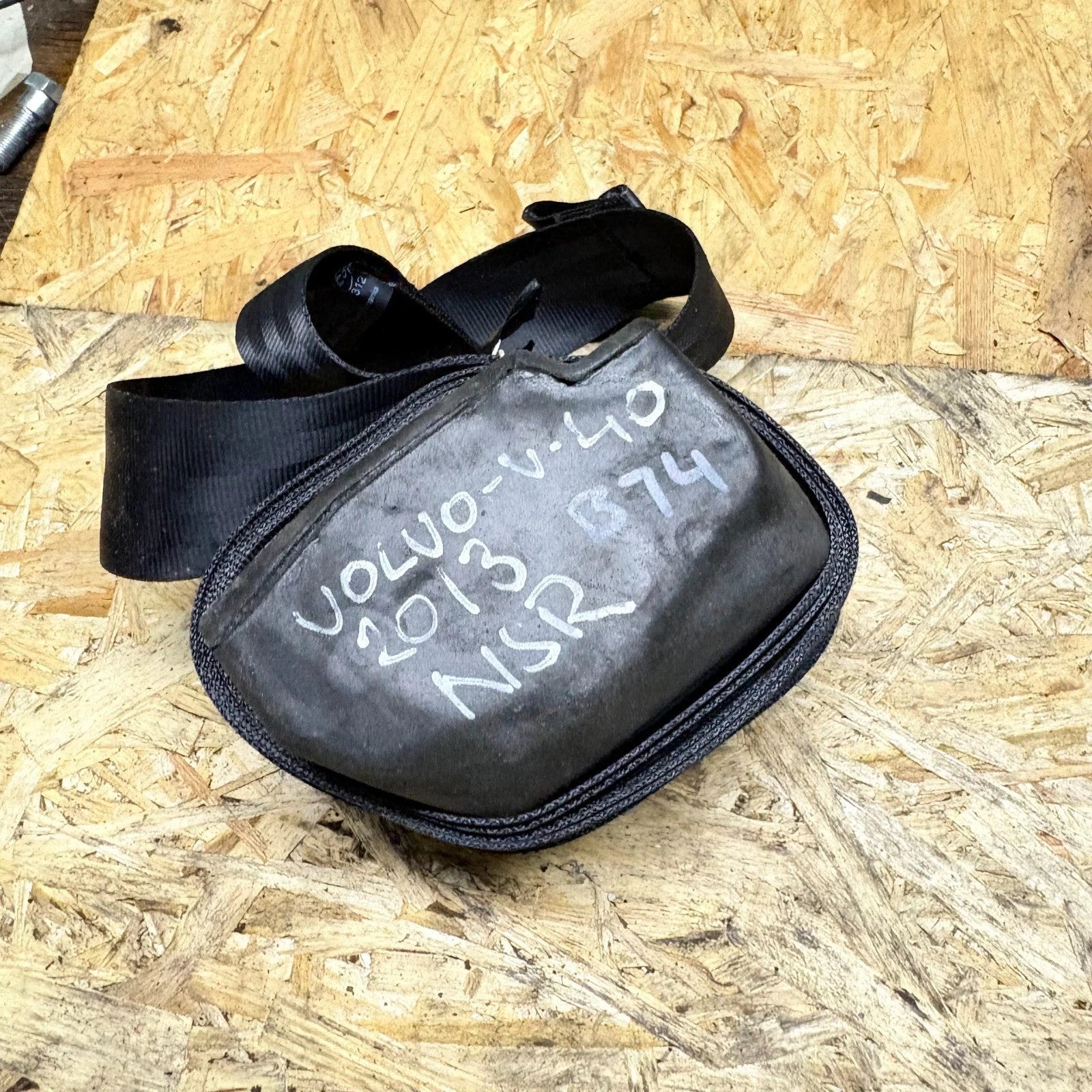

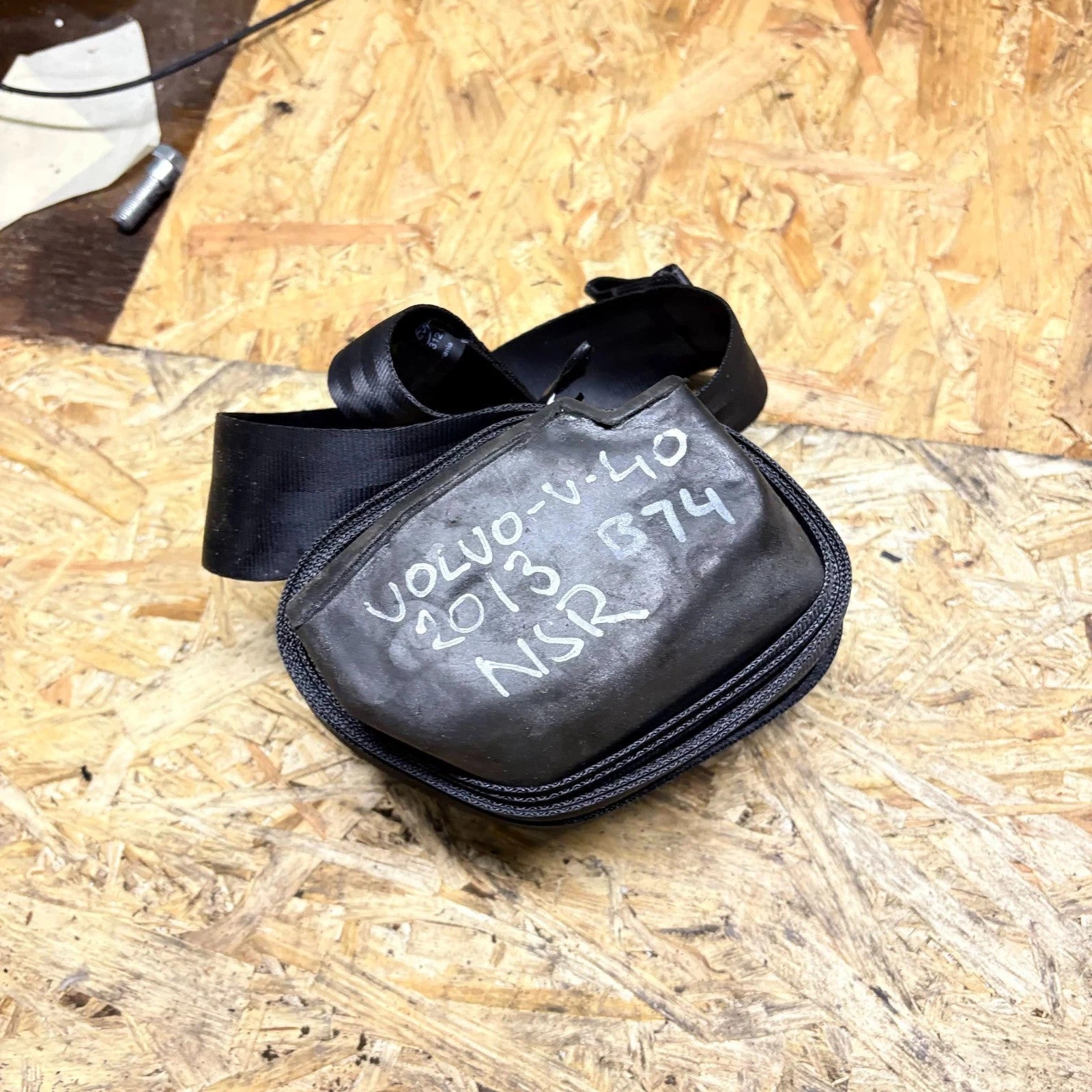

Item Photos - Exact Part Supplied
Reference Vehicle & Fitting Position
Rear Left / NSR Belt Area
What This Part Does
This is the rear-left passenger seat belt assembly for the Volvo V40. It restrains the rear-left occupant and forms part of the vehicle safety restraint system. The unit includes the belt webbing, reel/retractor mechanism, bracketry and electrical pretensioner connector.
Part Details
Part type: Rear-left passenger seat belt assembly / belt tensioner unit.

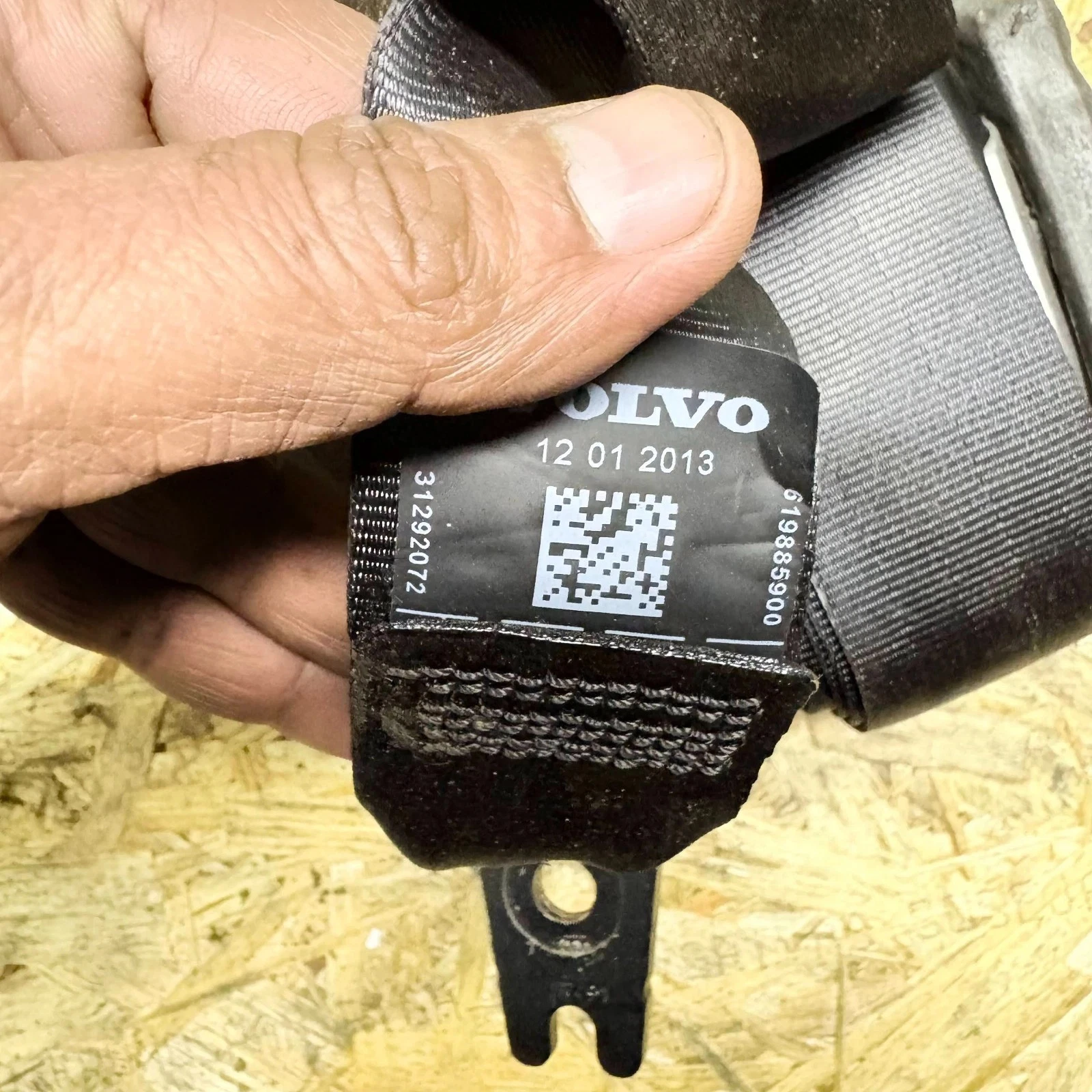

Main part number: 31292072.
Secondary visible marking: 619885900.

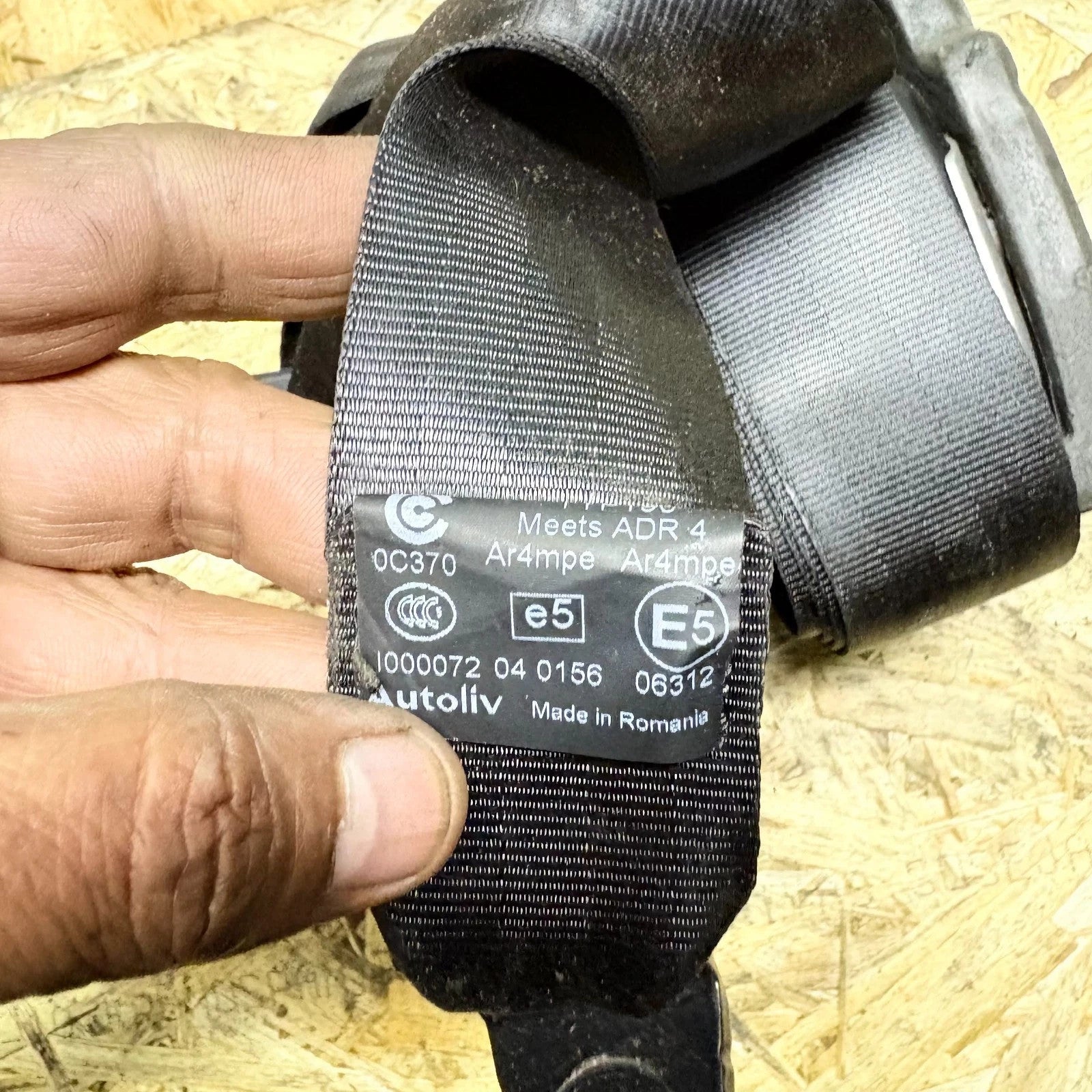

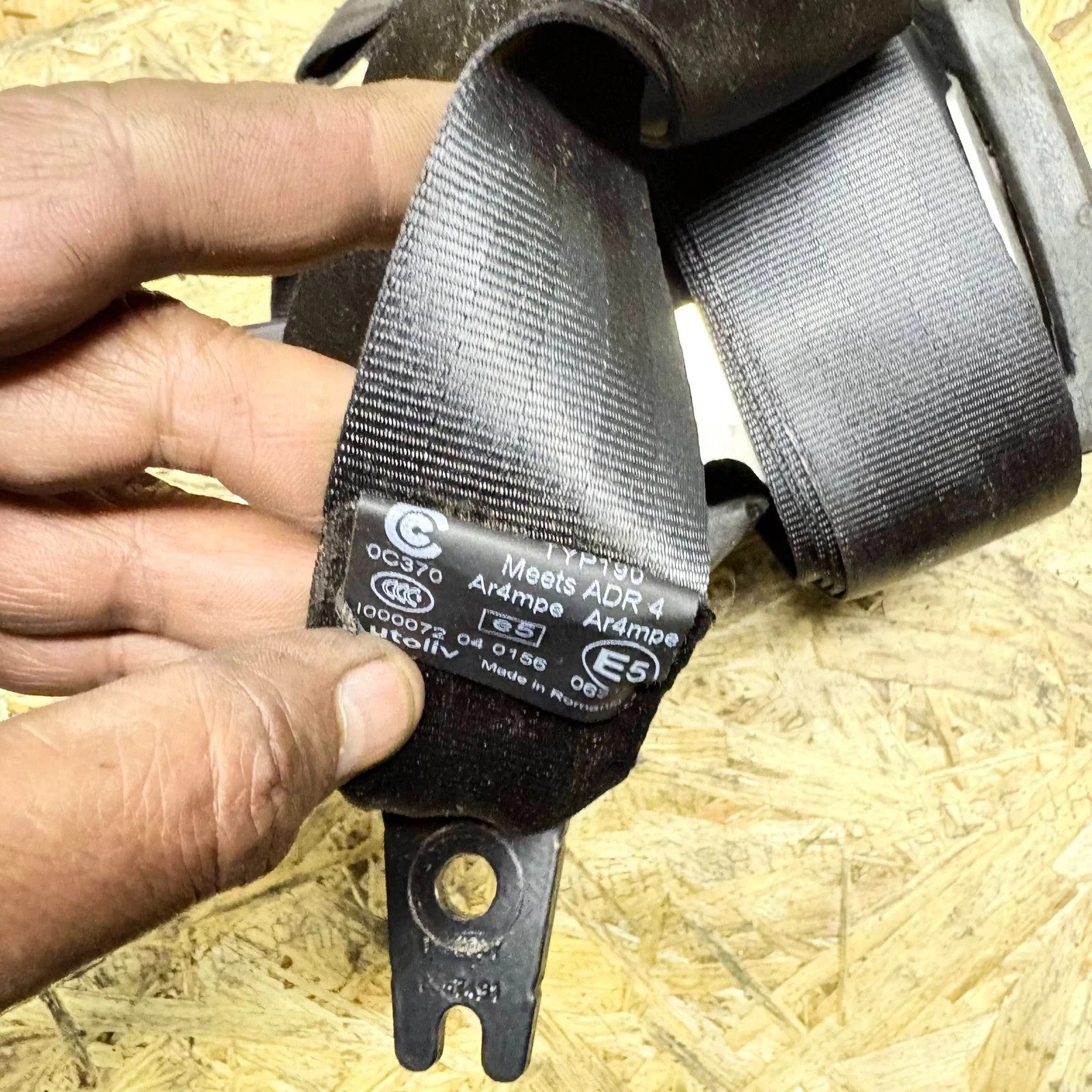

Label markings visible in photos: Volvo, Autoliv, ADR 4, E5 and Made in Romania.

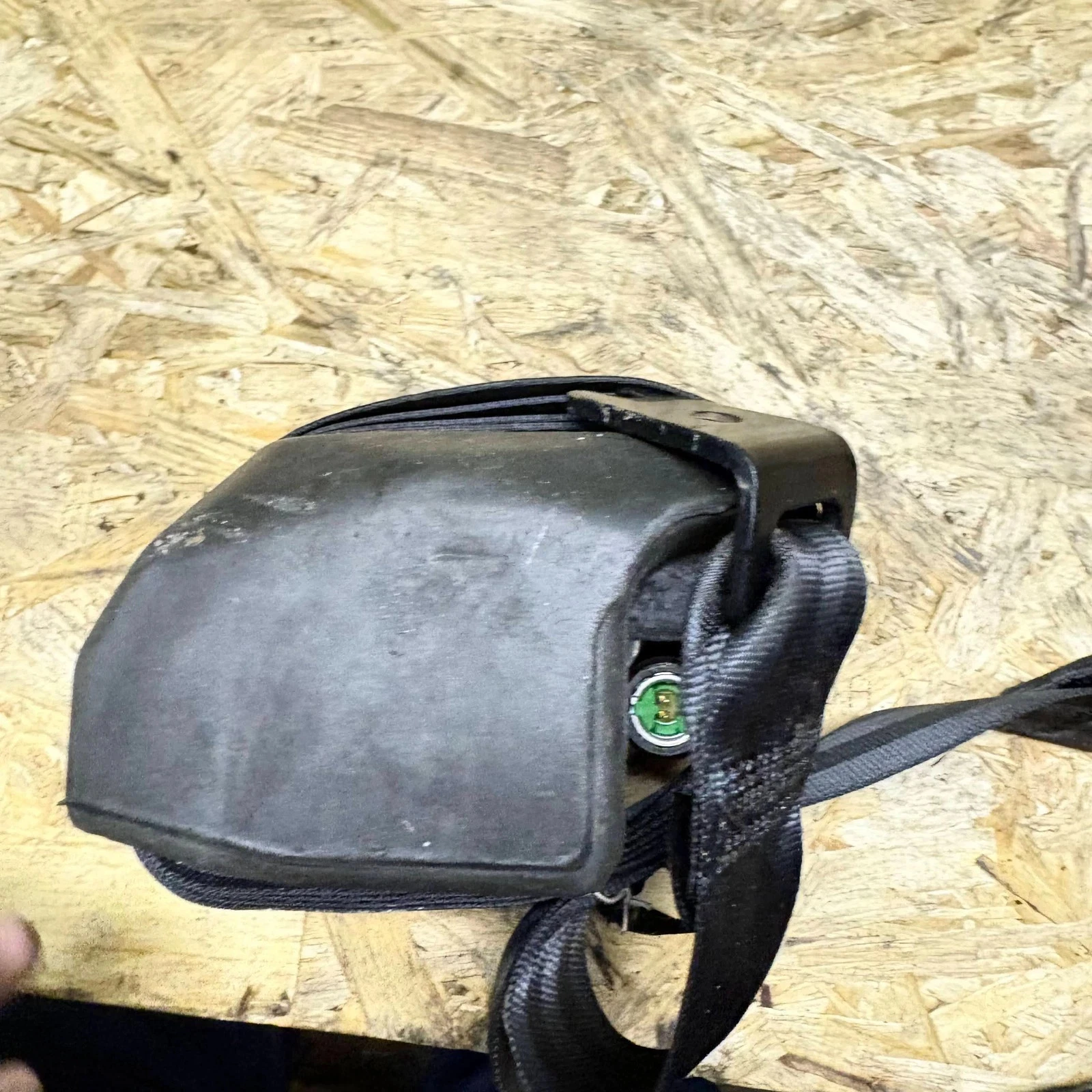

Material and construction: black woven seat belt webbing, steel mounting bracket, plastic retractor housing and electrical pretensioner connector.
Why Buy a Used Original Manufacturer-Marked Part?
- Designed to match the vehicle’s mounting points, connector style and trim layout.
- Helps avoid poor fit, warning lights or installation problems that can happen with low-cost copy parts.
- Can save up to 70% compared with buying brand new from a main dealer.
- Supports vehicle recycling and keeps usable parts in circulation.
- Every buyer can compare the actual item photos before purchase.
Compatibility & Fitment Table
| Status | Vehicle | Years | Body Style | Fitment Notes |
|---|---|---|---|---|
| Fits | Volvo V40 525 / Mk2 | 2012-2019 | 5-door hatchback | Rear-left / NSR / passenger side seat belt. Must match part number 31292072, connector, bracket and reel orientation. |
| Part-number reference | Volvo V40 Cross Country 526 | 2015-2019 reference found | 5-door hatchback / crossover-style V40 | 31292072 is referenced for rear-left belt/tensioner on V40 Cross Country. Buyer must verify by old part number, plug, mountings and photos before ordering. |
| Will not fit | Volvo V40 first generation | 1996-2004 | Estate | Different model generation and body structure. Do not order for the older V40 estate. |
| Will not fit | Volvo S40, V50, C30, C70, XC40, V60, S60 or other Volvo models | All years unless verified separately | Various | Not confirmed for these models. Only order if your existing part number and physical design match exactly. |
| Will not fit | Front seat belt positions | All | Any | This is a rear-left passenger belt, not a driver front or passenger front belt. |
| Will not fit | Rear-right / offside rear position | All | Any | Left and right belts are handed. Do not buy this for rear-right unless your old part number and photos match exactly. |
| Will not fit | 3-door vehicles | All | 3-door | This listing is prepared for the 5-door Volvo V40 body shape. Do not order for a 3-door conversion or a different body type. |
- Your old part number should match 31292072.
- Compare the connector shape and pin layout with the listing photos.
- Compare the metal mounting bracket and reel position.
- Check that you need the rear-left / NSR / passenger side belt.
- Confirm your vehicle is a Volvo V40 5-door hatchback from 2012-2019.
- Message through eBay before ordering if you want us to help verify fitment.
Common Fault Symptoms
Replace This Part If You Have:
- Rear passenger seat belt locked and will not pull out.
- Seat belt does not retract properly.
- Frayed, cut, twisted or damaged belt webbing.
- SRS / airbag warning light after accident damage or belt tensioner fault.
- Rear-left belt tensioner fault code after diagnostic scan.
- Crash-deployed pretensioner or damaged rear quarter trim area.
- MOT failure, safety inspection issue or advisory relating to rear seat belt operation.
Why Replacement Matters
The seat belt is a safety-critical part. A damaged, deployed, jammed or incorrect belt can fail to restrain the passenger correctly and may keep the vehicle warning system active.
Using the correct Volvo-marked part number helps keep the connector, mounting points, belt length and retractor position matched to the vehicle.
Fitting Instructions, Tools & Repair Time
Required Tools
- Trim removal tools.
- Torx bit/socket set.
- Ratchet and extension bar.
- Socket/spanner set.
- Torque wrench.
- Clip remover.
- Gloves and eye protection.
- Battery terminal spanner.
- SRS-capable diagnostic scanner for fault code checks where needed.
Estimated Repair Time
Typical fitting time: 45-90 minutes for a competent technician.
Allow: 1-2 hours if trim clips are tight, the rear seat/side bolster needs extra removal, or diagnostic scanning is required.
Fitting service: We can offer fitting subject to availability. Please message through eBay after purchase or before collection to check availability.
General Installation Guide
- Park the vehicle safely, switch ignition off and remove the key.
- Disconnect the negative battery terminal and wait at least 10-15 minutes before working on SRS-related connectors.
- Remove left rear interior trim carefully using trim tools to avoid broken clips.
- Remove any rear seat side bolster or lower trim panels needed for access.
- Unbolt the old rear-left belt retractor and anchor points.
- Disconnect the electrical pretensioner connector carefully. Do not force or probe the connector.
- Install the replacement belt in the same orientation as the removed unit.
- Torque all seat belt bolts to the manufacturer’s specification.
- Refit trim panels, making sure the belt webbing runs cleanly and is not twisted.
- Reconnect the battery, test belt pull/retract/lock function, then scan and clear SRS codes where required.
Garage Labour Estimate Table
Use this static estimate table to understand possible garage labour costs. Prices are examples only and do not include diagnostic charges, broken trim clips, new bolts, VAT treatment by your chosen garage, or additional faults.
| Garage Hourly Rate | 45 Minutes | 1 Hour | 1.5 Hours |
|---|---|---|---|
| £50 per hour | £37.50 | £50.00 | £75.00 |
| £60 per hour | £45.00 | £60.00 | £90.00 |
| £75 per hour | £56.25 | £75.00 | £112.50 |
| £90 per hour | £67.50 | £90.00 | £135.00 |
| £110 per hour | £82.50 | £110.00 | £165.00 |
No live calculator is used in this description, keeping the listing static and eBay-safe.
