AUDI A4 B9 8W 2015-2019 REAR BOOT FUSE RELAY BOX BOARD CARRIER CUT WIRE
£24.45
Skip to product information
For faster fitment help, send your vehicle registration, VIN if available, and clear photos of your existing part, connector and part number.
AUDI A4 B9 8W 2015-2019 REAR BOOT FUSE RELAY BOX BOARD CARRIER CUT WIRE
£24.45
IMPORTANT FITMENT CORRECTION
Correct advertised year range: Audi A4 B9 / 8W 2015-2019, with the donor year confirmed as 2019. The original live title incorrectly states B8. Please note that 2015 is a crossover registration year: this will not fit an earlier A4 B8 / 8K simply because it is registered in 2015. Exact electrical compatibility still requires the carrier number, fuse and relay layout, connectors and wiring configuration to match.
THEPARTPILOT

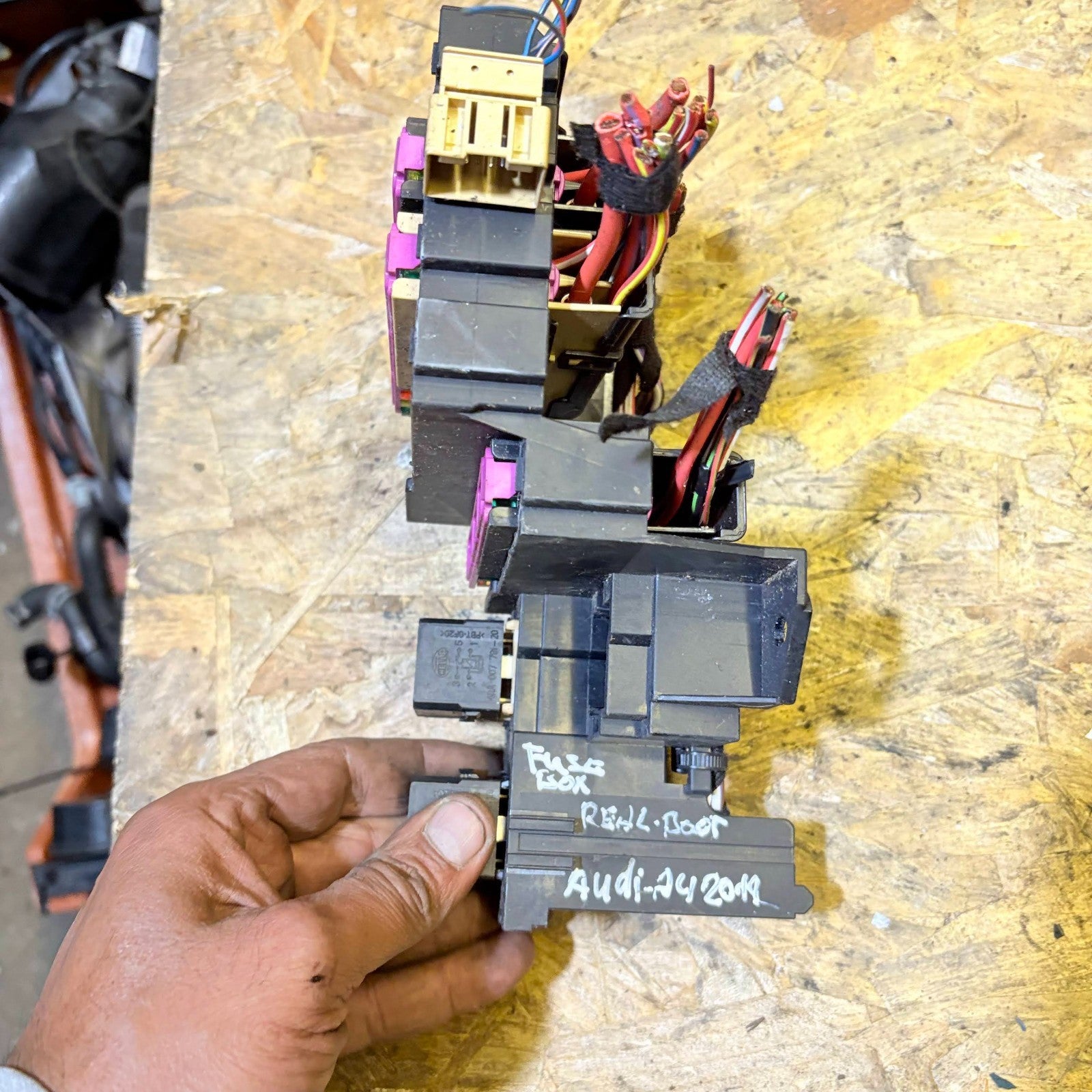

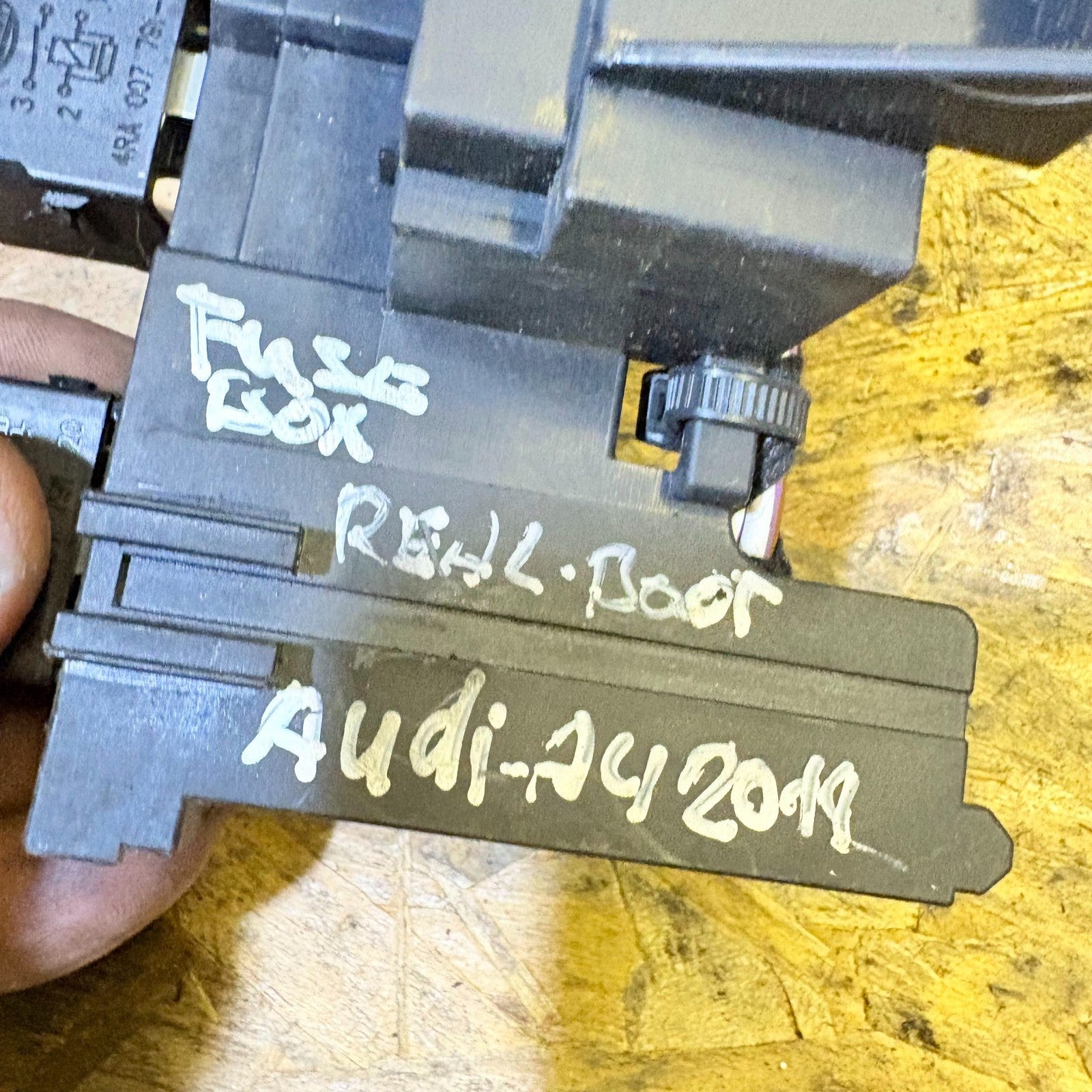

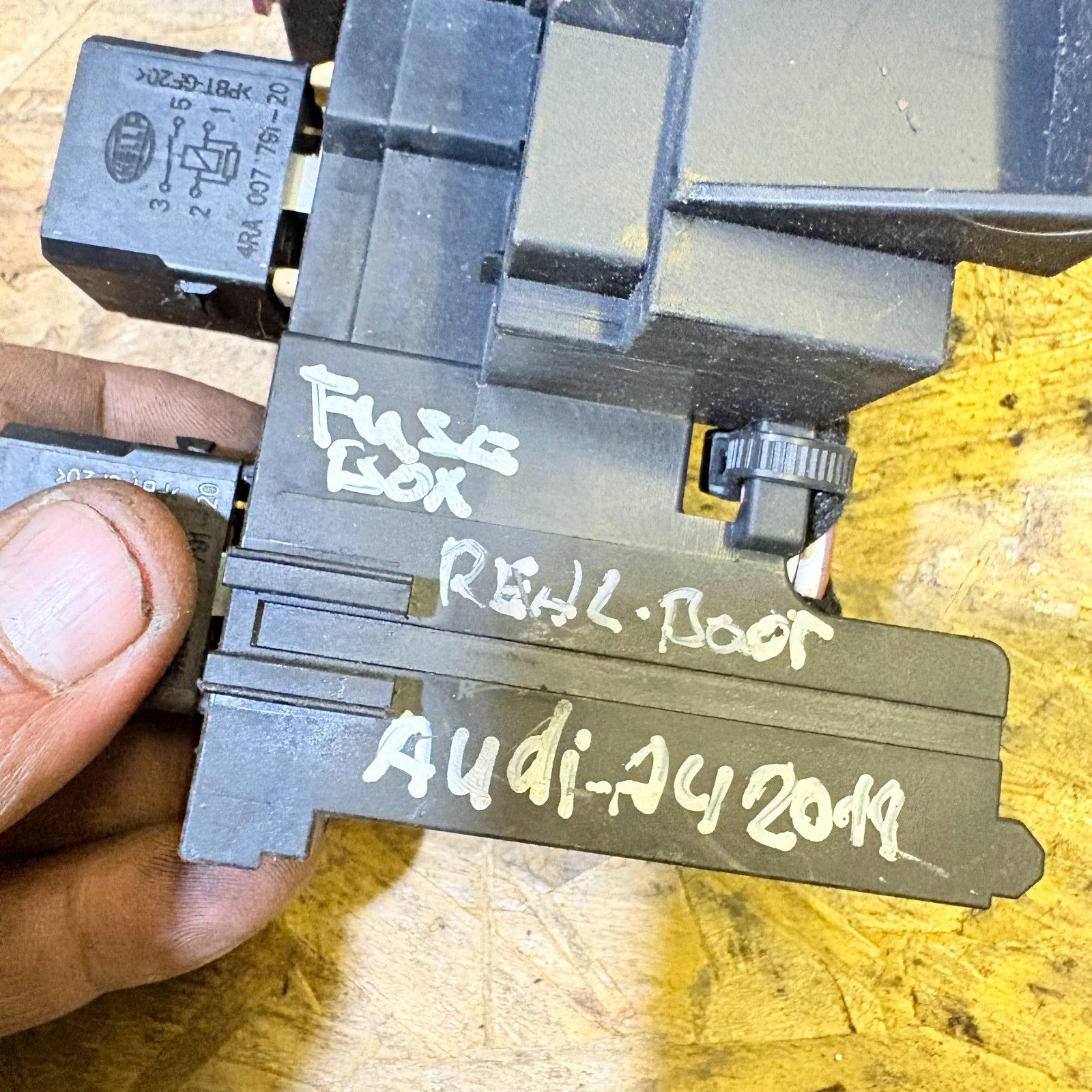

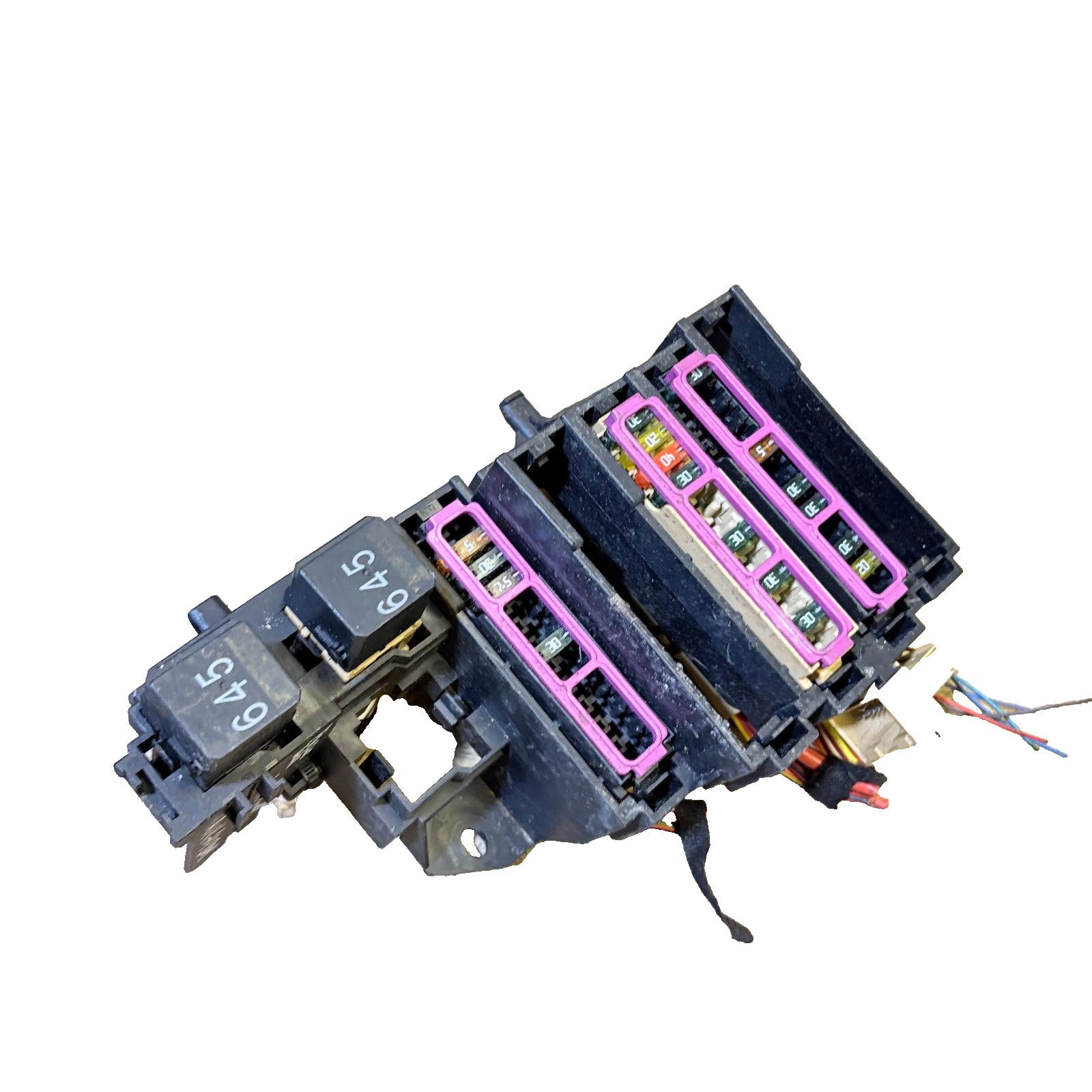

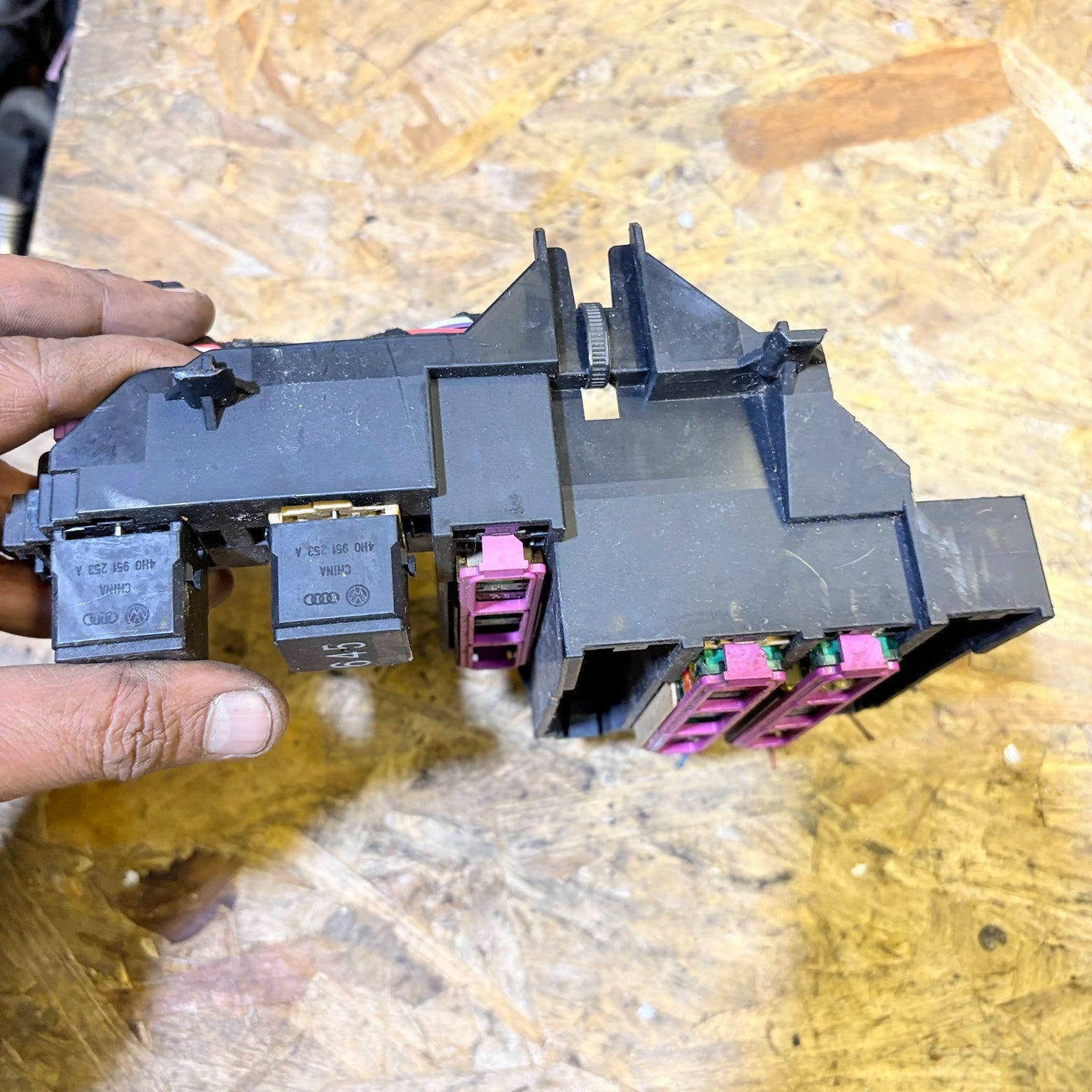

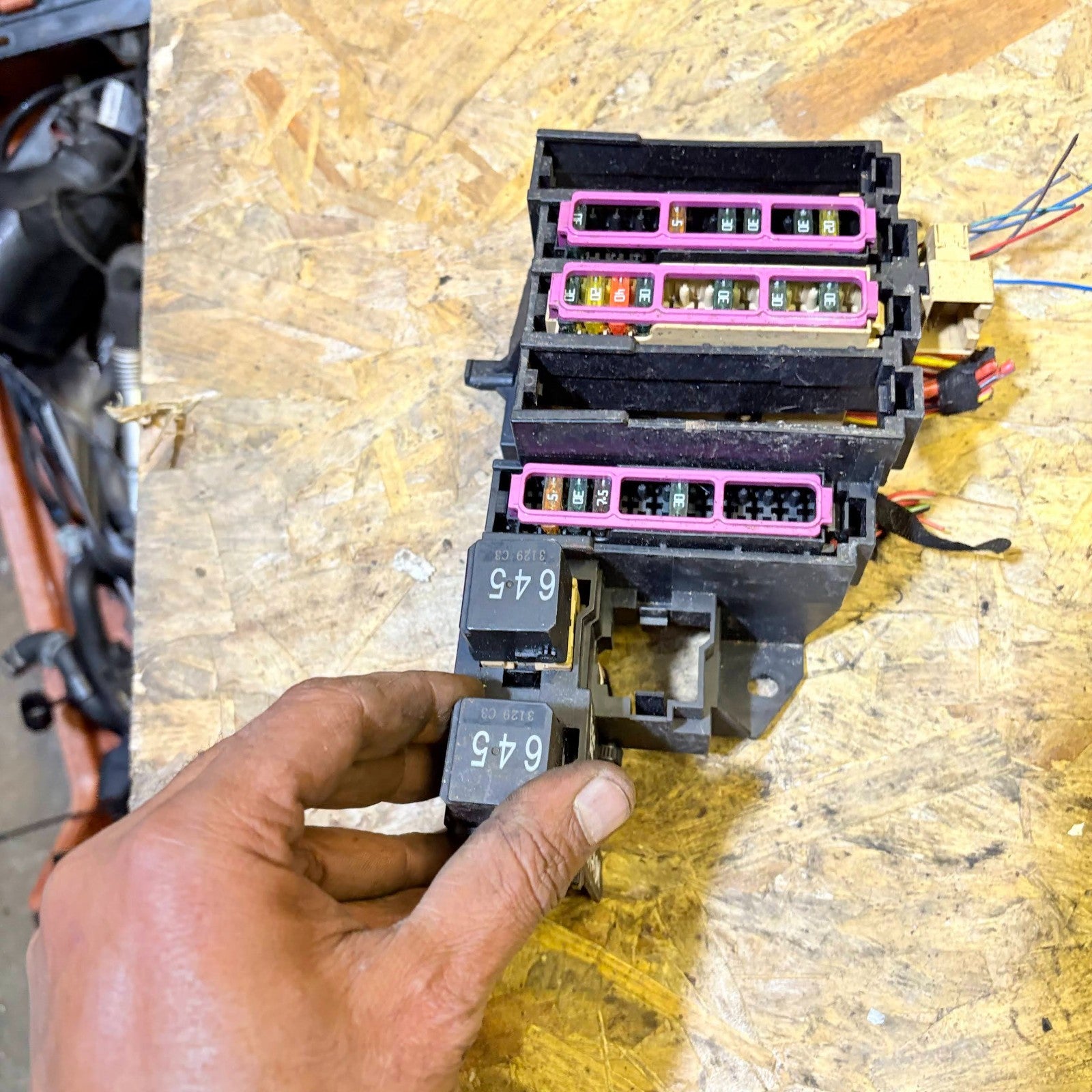

ACTUAL ITEM — FRONT / FUSE LAYOUT
|
THEPARTPILOT

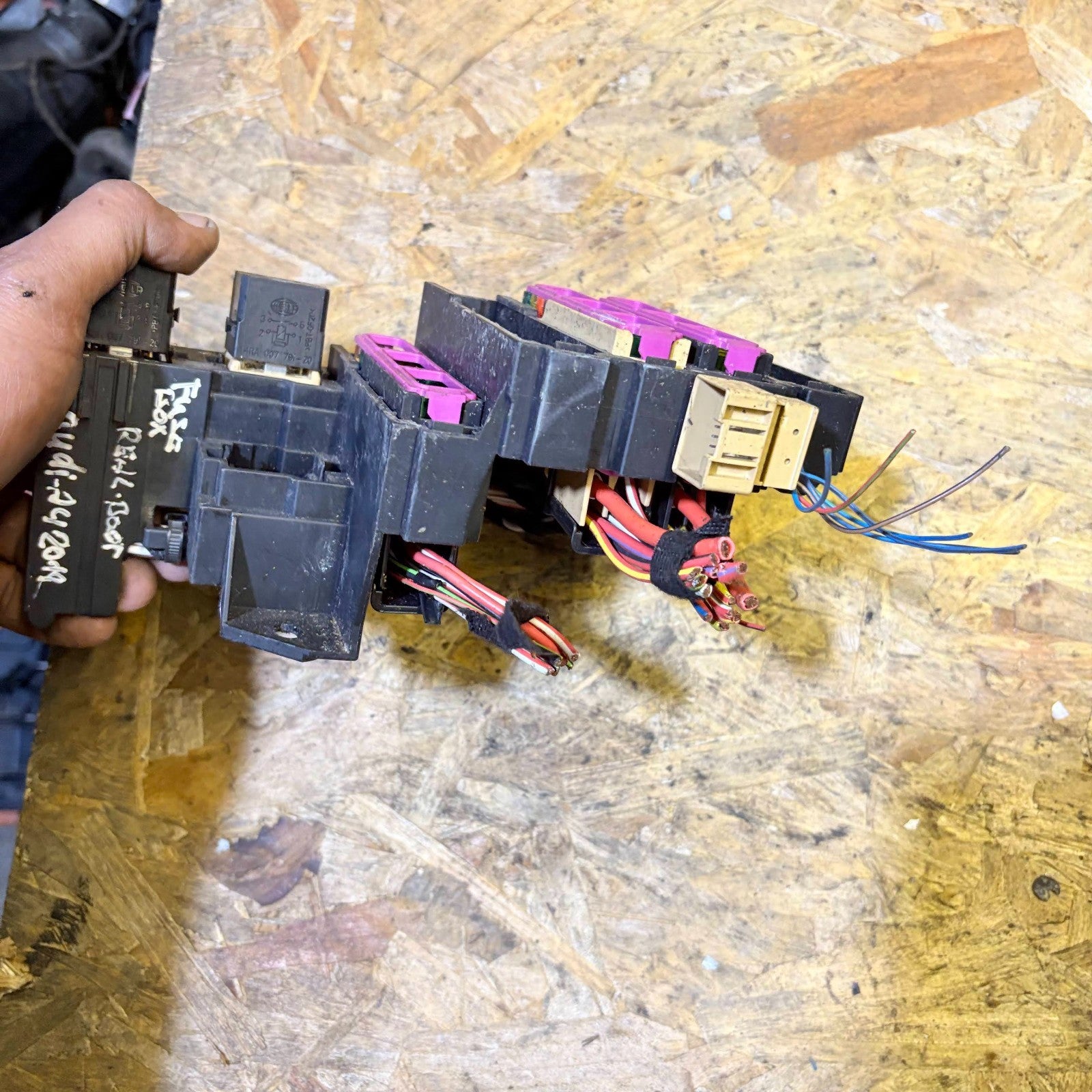

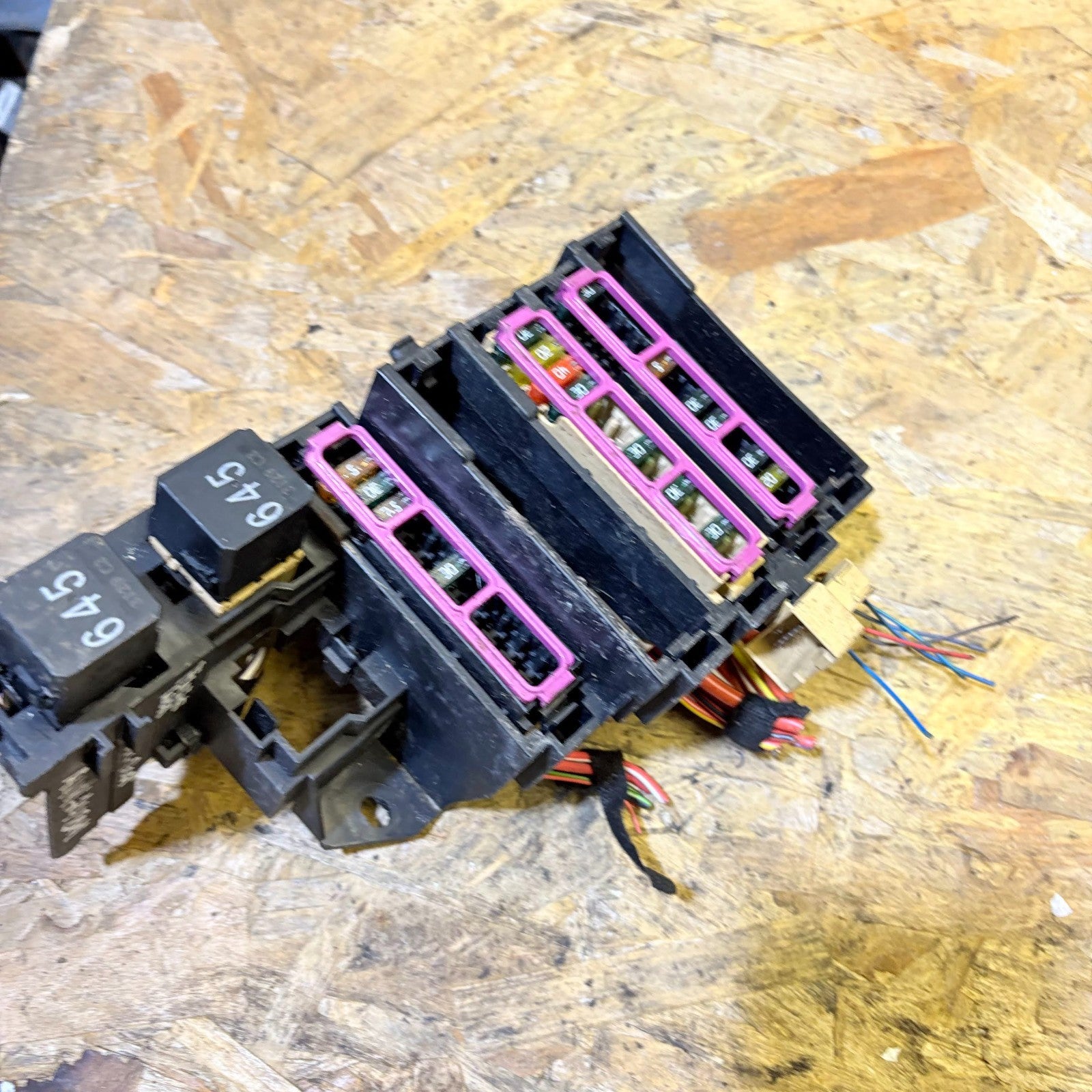

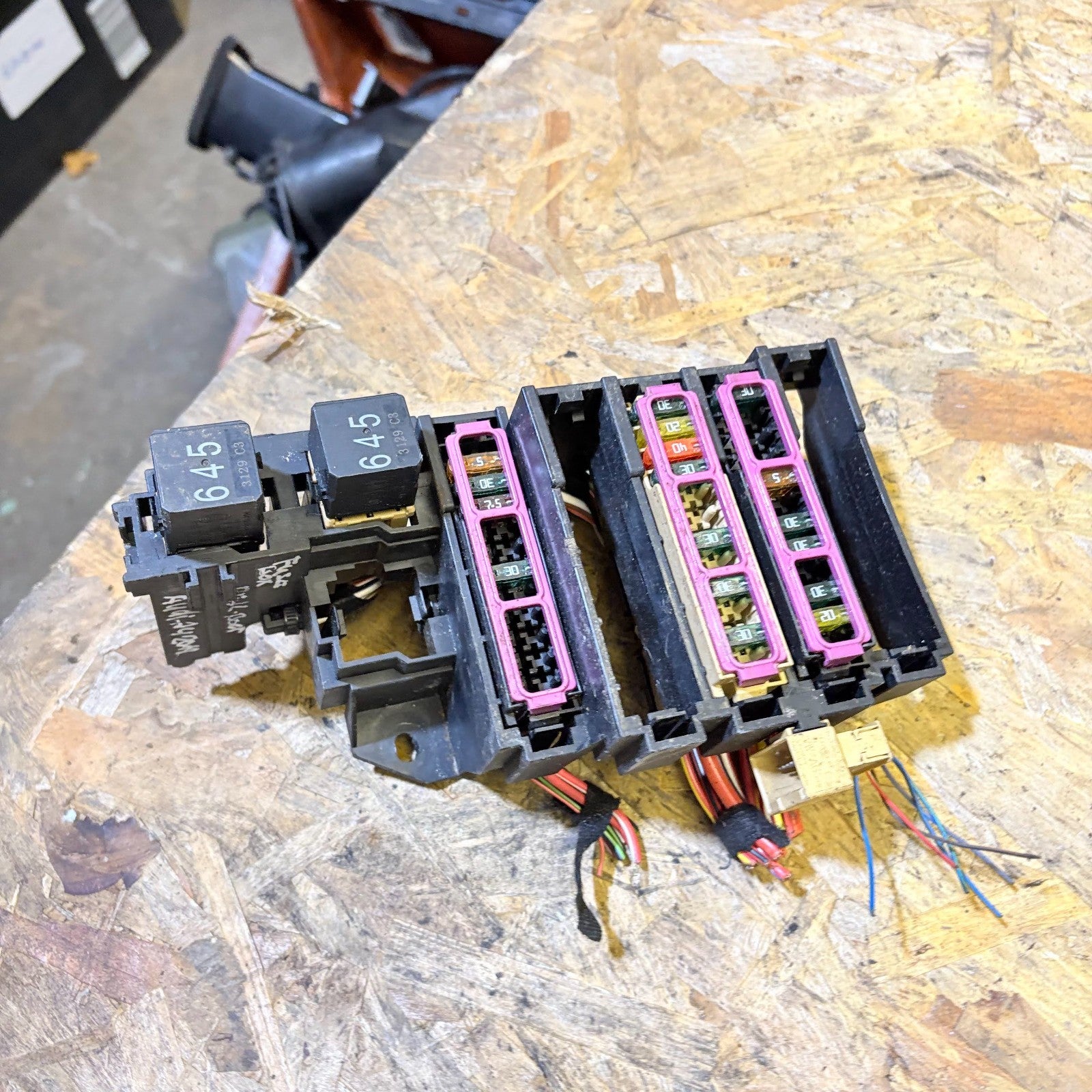

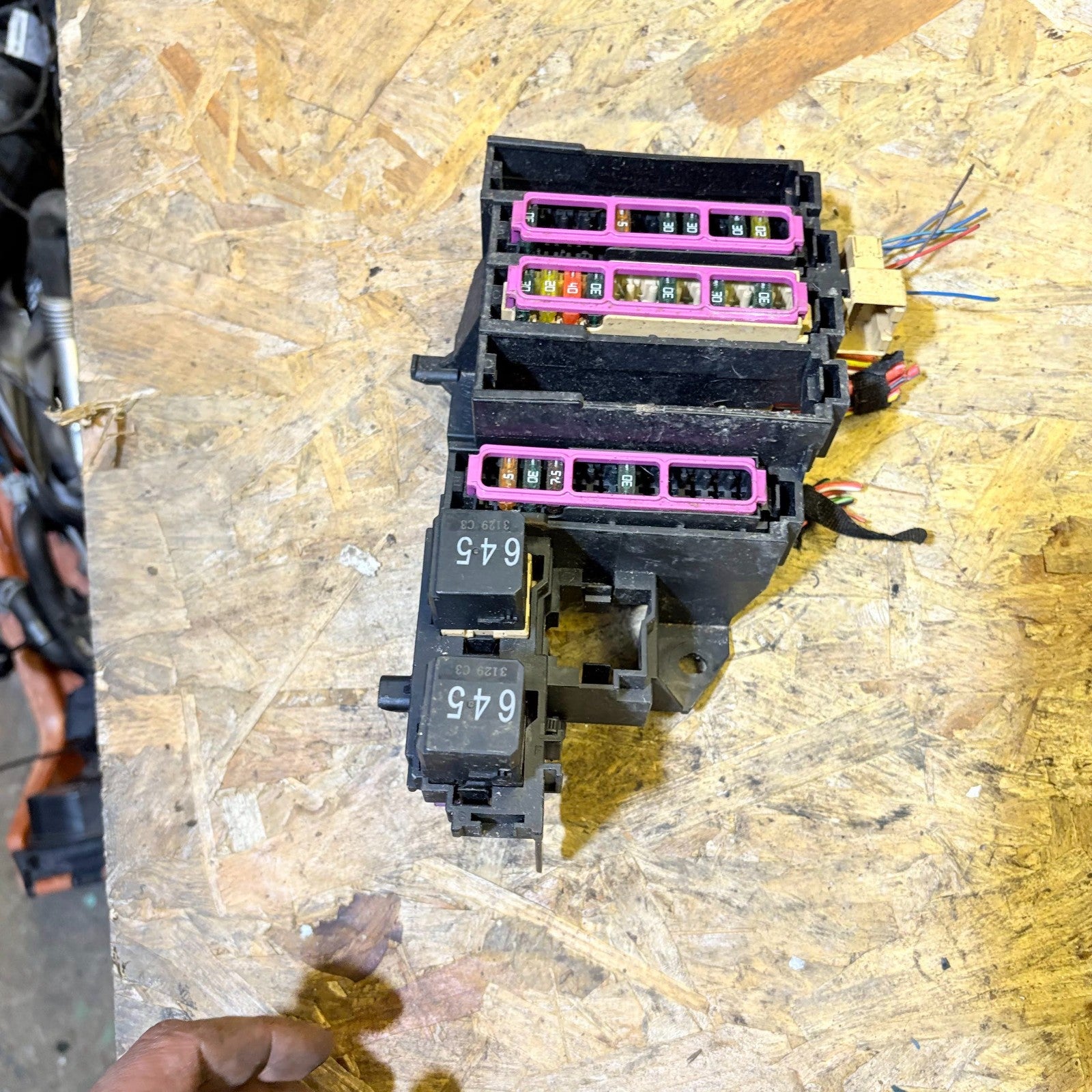

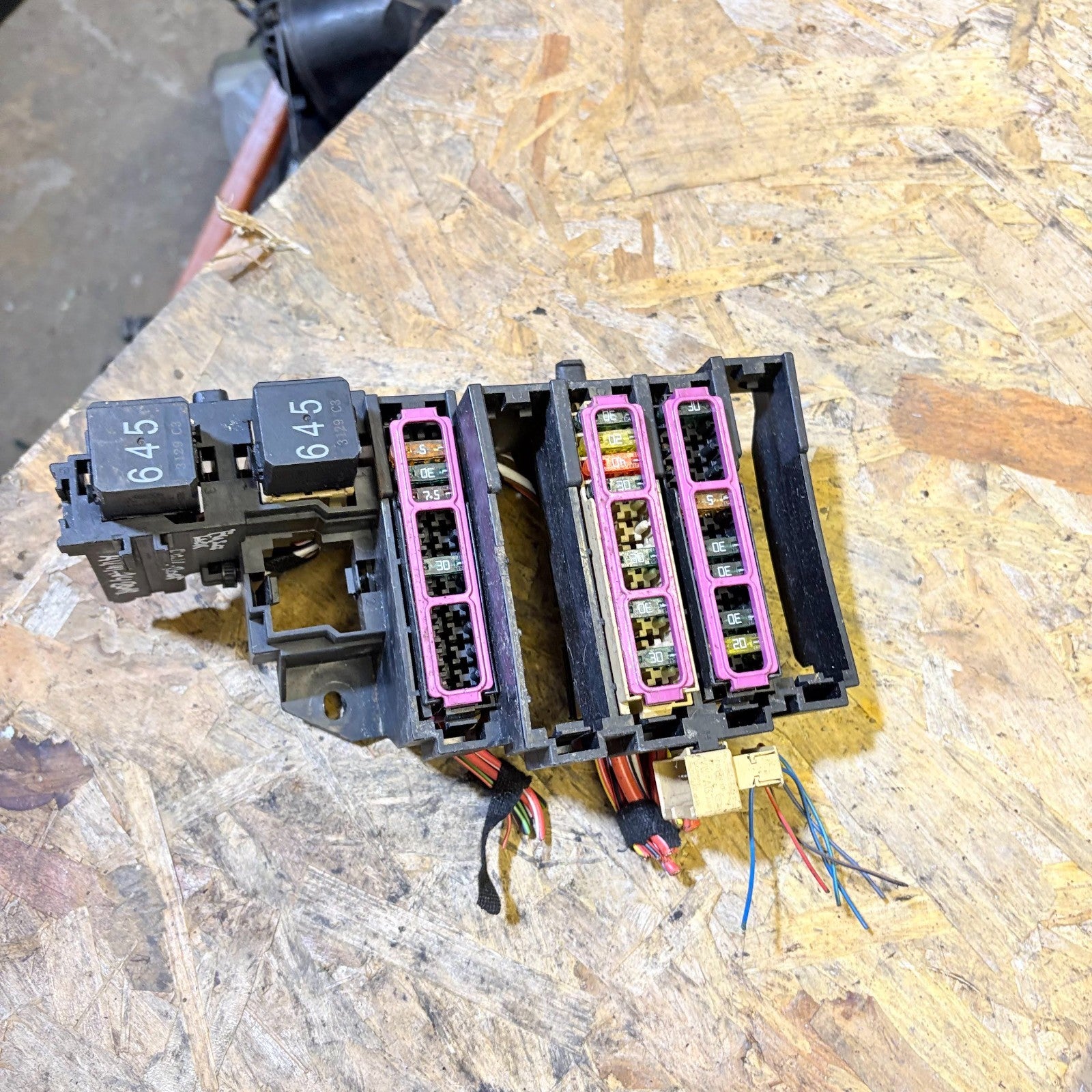

ACTUAL ITEM — REAR / CUT WIRING TAILS
|
What is included?
The used fuse and relay carrier, the fuses fitted in the photographed positions, two relays marked 645, connectors and the short cut wiring tails shown in the pictures. Nothing not photographed is included. This is not a complete uncut vehicle loom and should not be advertised as a plug-and-play complete wiring harness.
The used fuse and relay carrier, the fuses fitted in the photographed positions, two relays marked 645, connectors and the short cut wiring tails shown in the pictures. Nothing not photographed is included. This is not a complete uncut vehicle loom and should not be advertised as a plug-and-play complete wiring harness.
Verified Product Details
| Part type | Rear luggage-compartment fuse and relay carrier / fuse board / mounting panel |
| Advertised vehicle years | 2015-2019 Audi A4 B9 / 8W — late-2015 B9 vehicles onward; exact layout match required |
| Confirmed donor | Audi A4 B9 / 8W, model year 2019 |
| Fitting position | Rear boot / luggage-compartment fuse-carrier area behind the side trim; compare your original location and mounting points |
| Visible relay number | 645 |
| Visible relay part number | 4H0 951 253 A / 4H0951253A — this number identifies the visible relay, not the complete fuse carrier |
| Complete carrier MPN | Not readable in the supplied photographs. Do not enter or advertise a complete-carrier part number until it has been physically found on this item. The visible 4H0951253A number belongs to a relay, not the complete fuse box. |
| Materials | Moulded automotive plastic carrier, metal terminals, copper wiring, fuses and electromechanical relays |
| Condition | Used donor part with age-related marks. Wiring has been cut during removal. Study every actual-item photograph before ordering. |
Where It Fits in the Vehicle
THEPARTPILOT

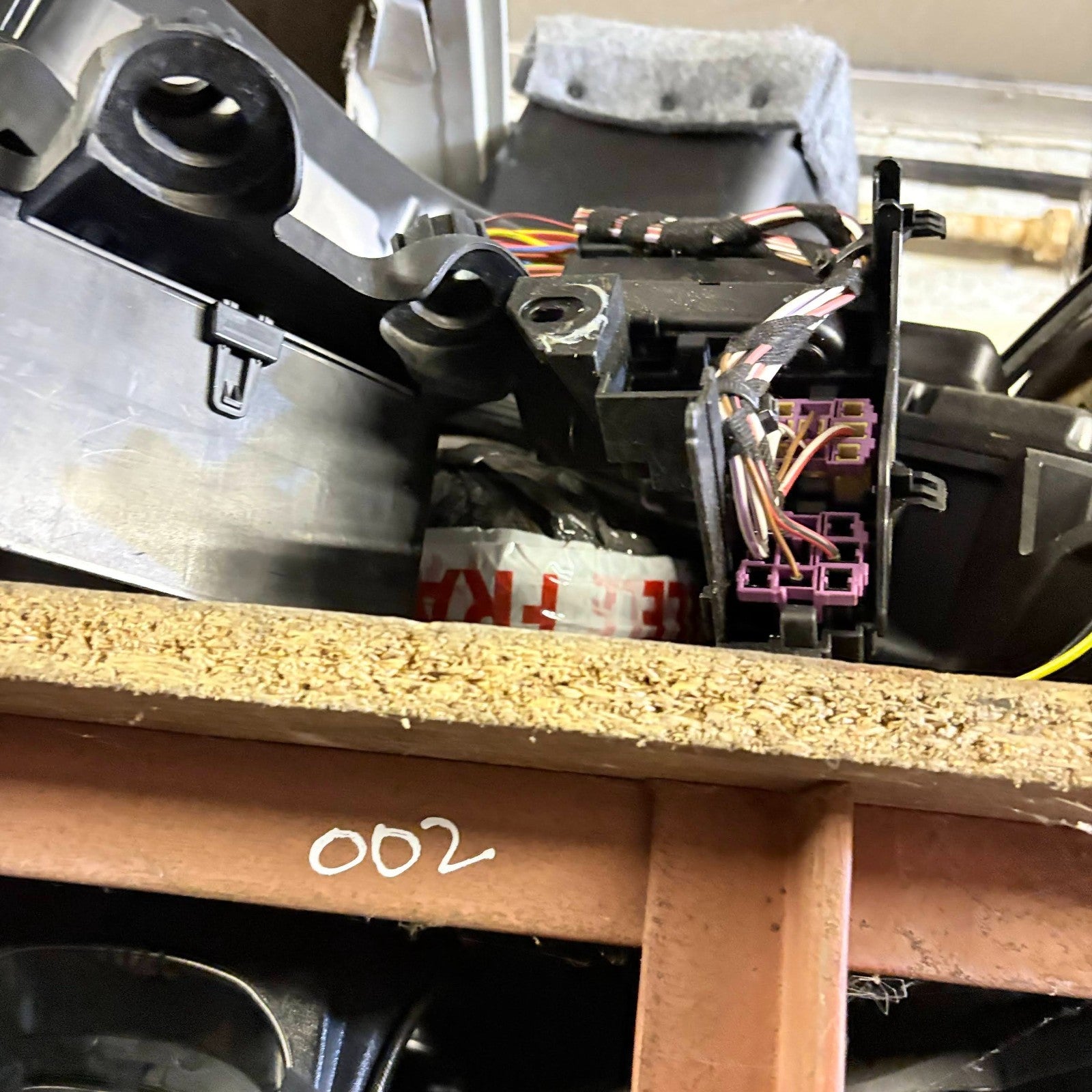

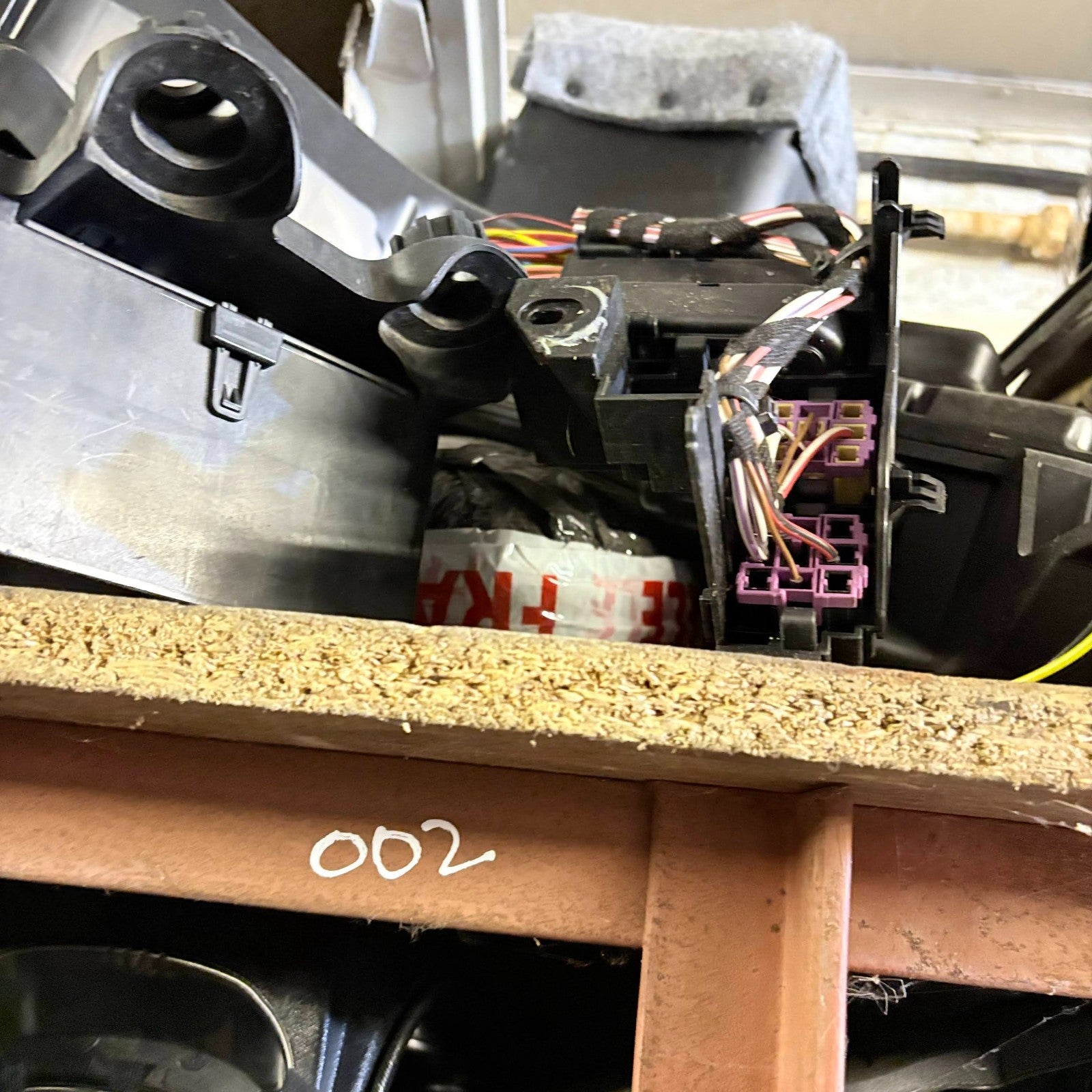

ACTUAL DONOR LOCATION PHOTO — rear luggage area behind side trim
|
