BMW 1 Series 116i E81 E87 2004-Mar 2009 Rear Diversity Antenna Amp 65206958900

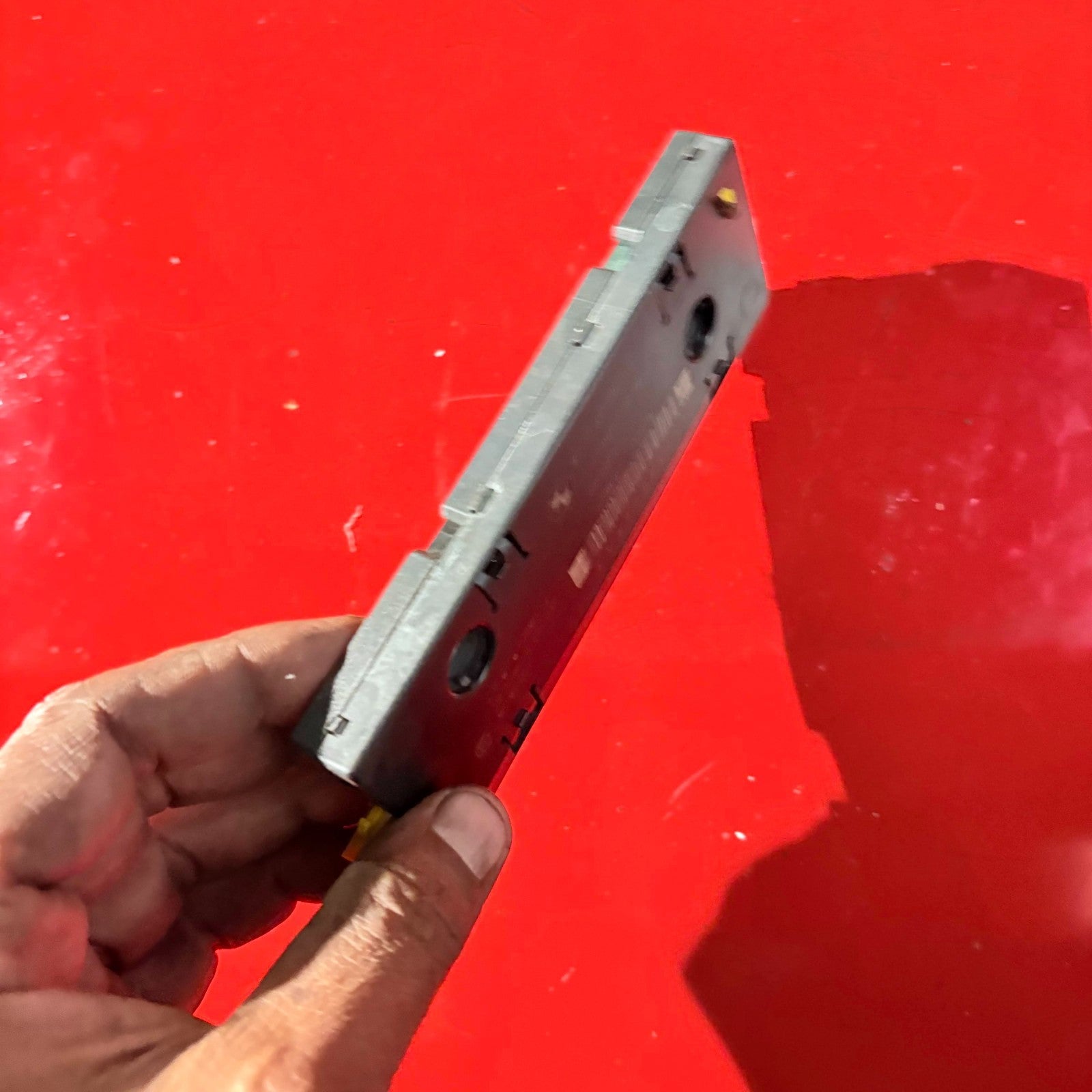

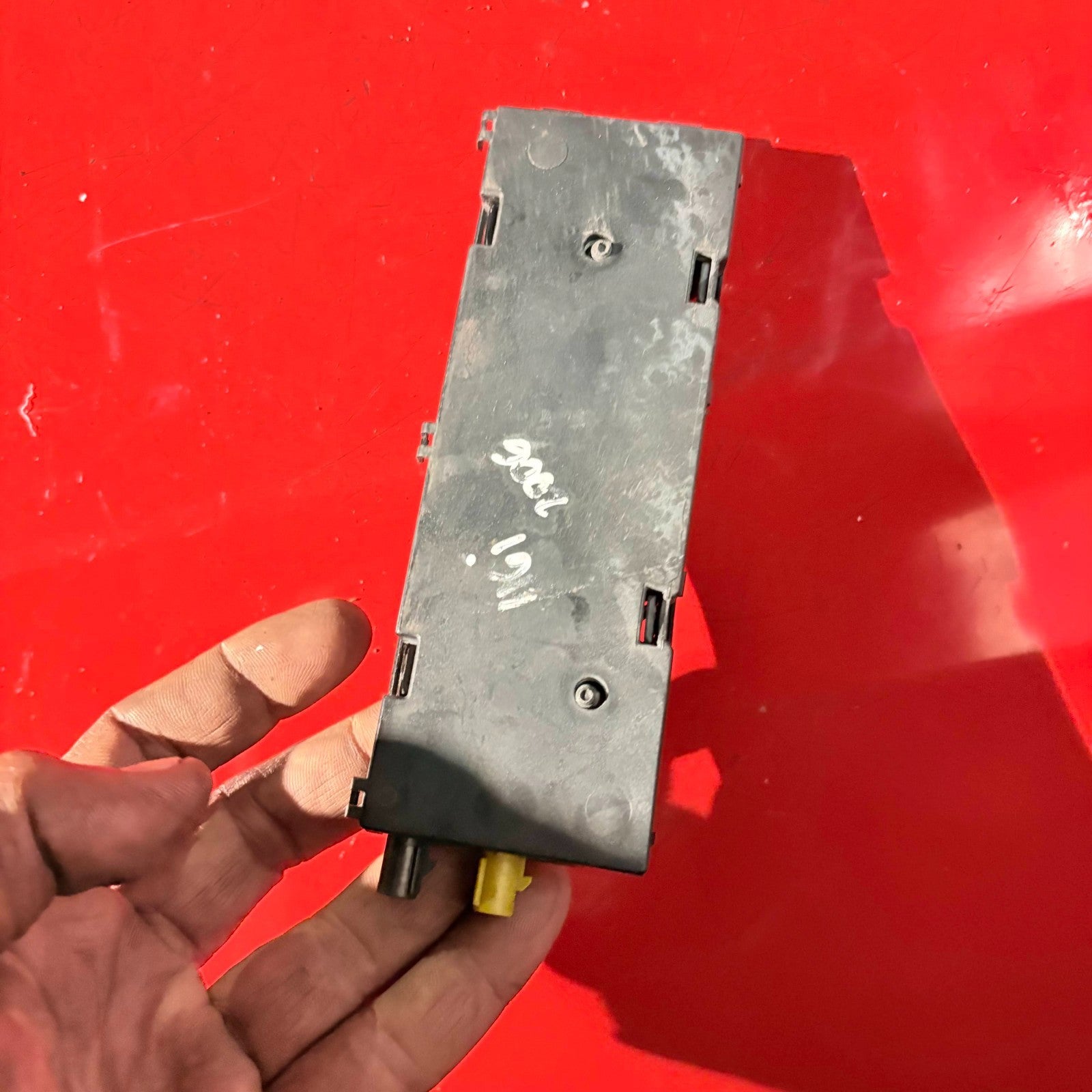

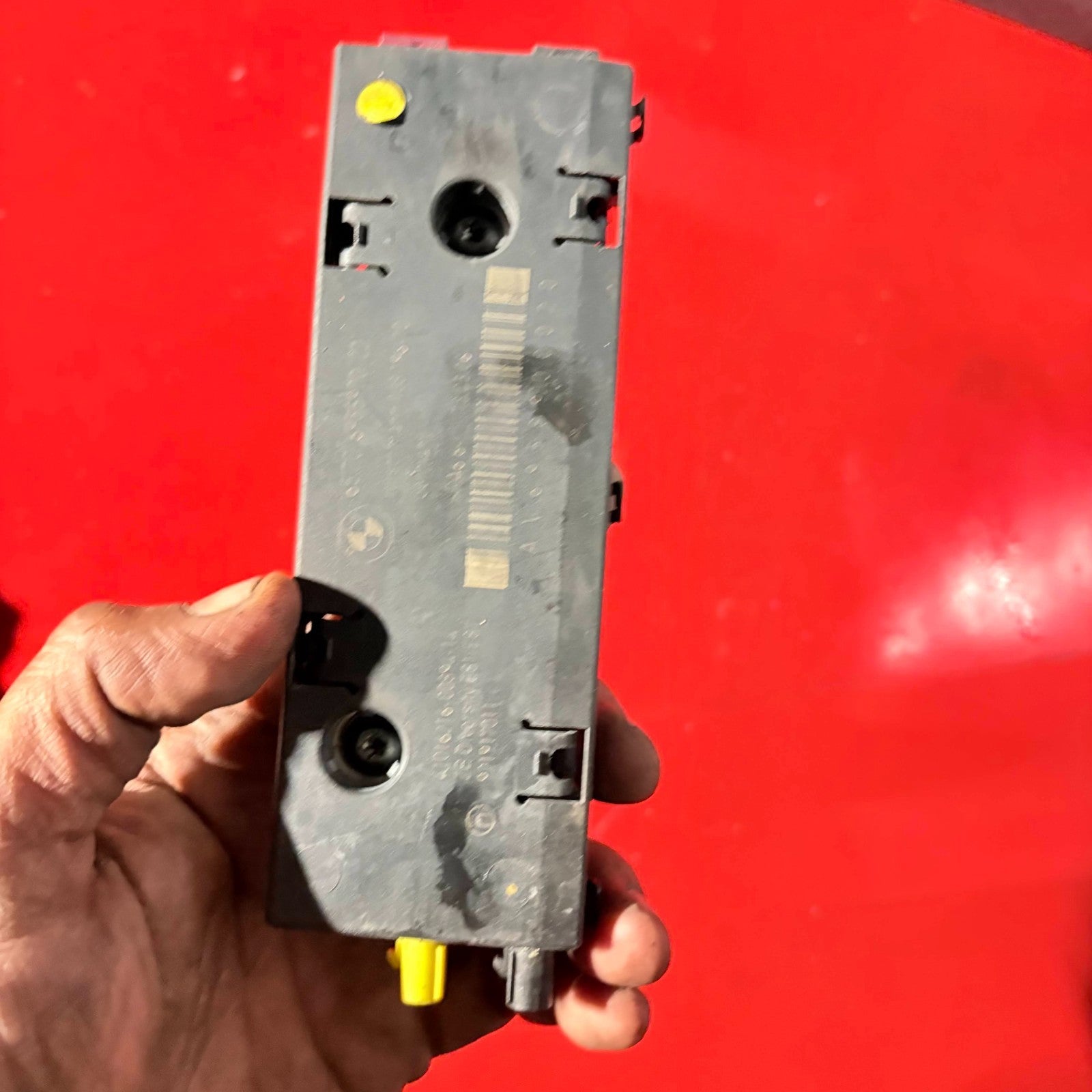

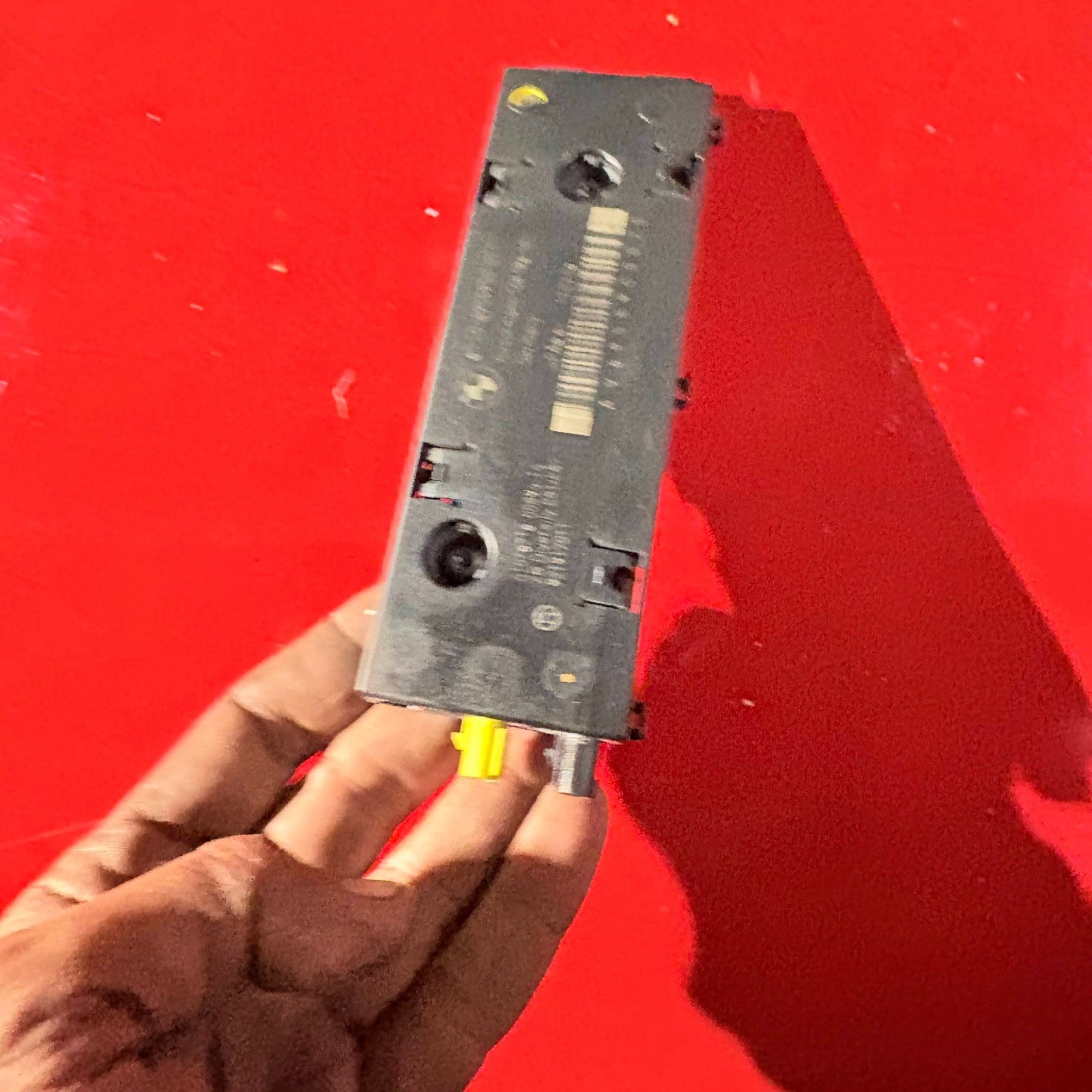

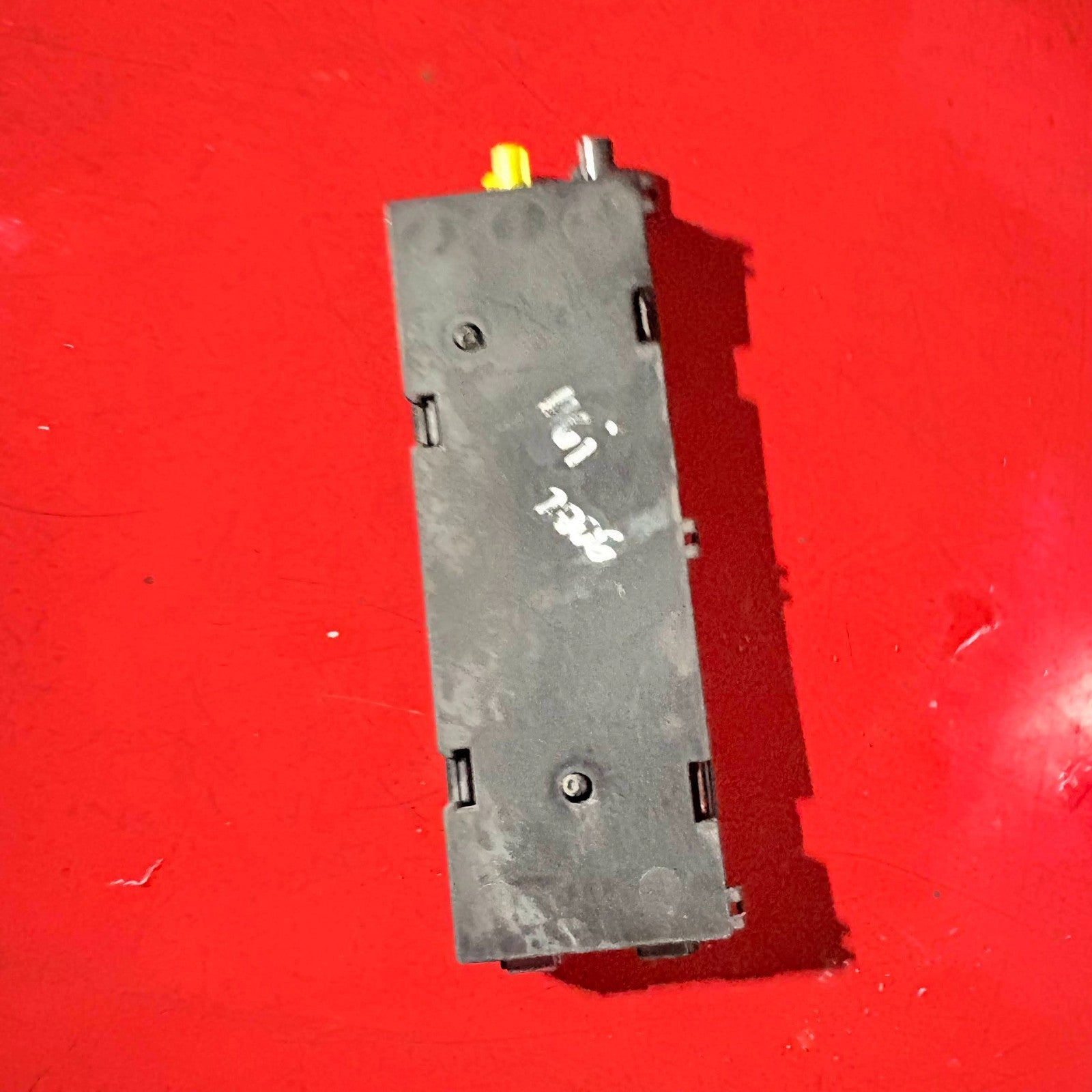

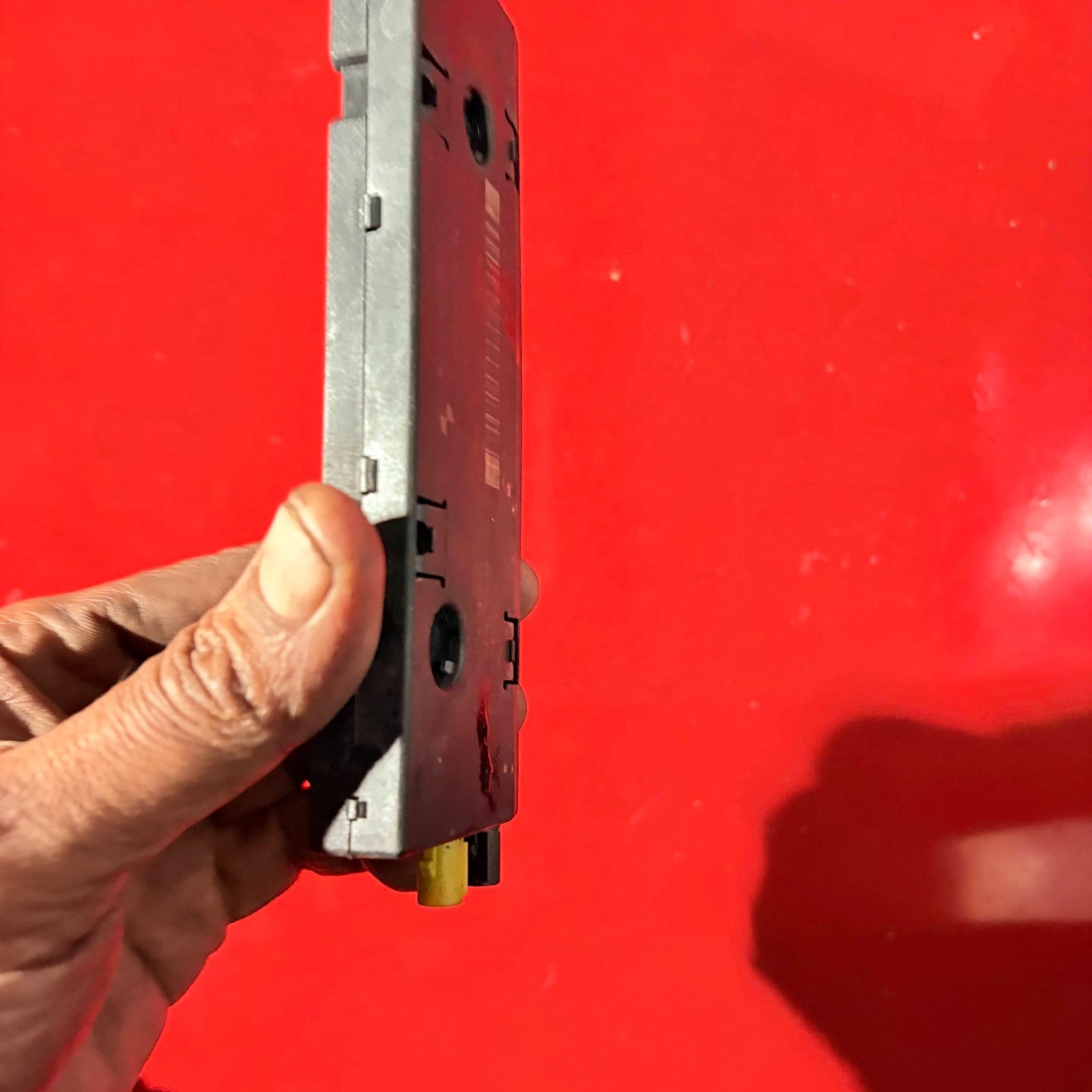

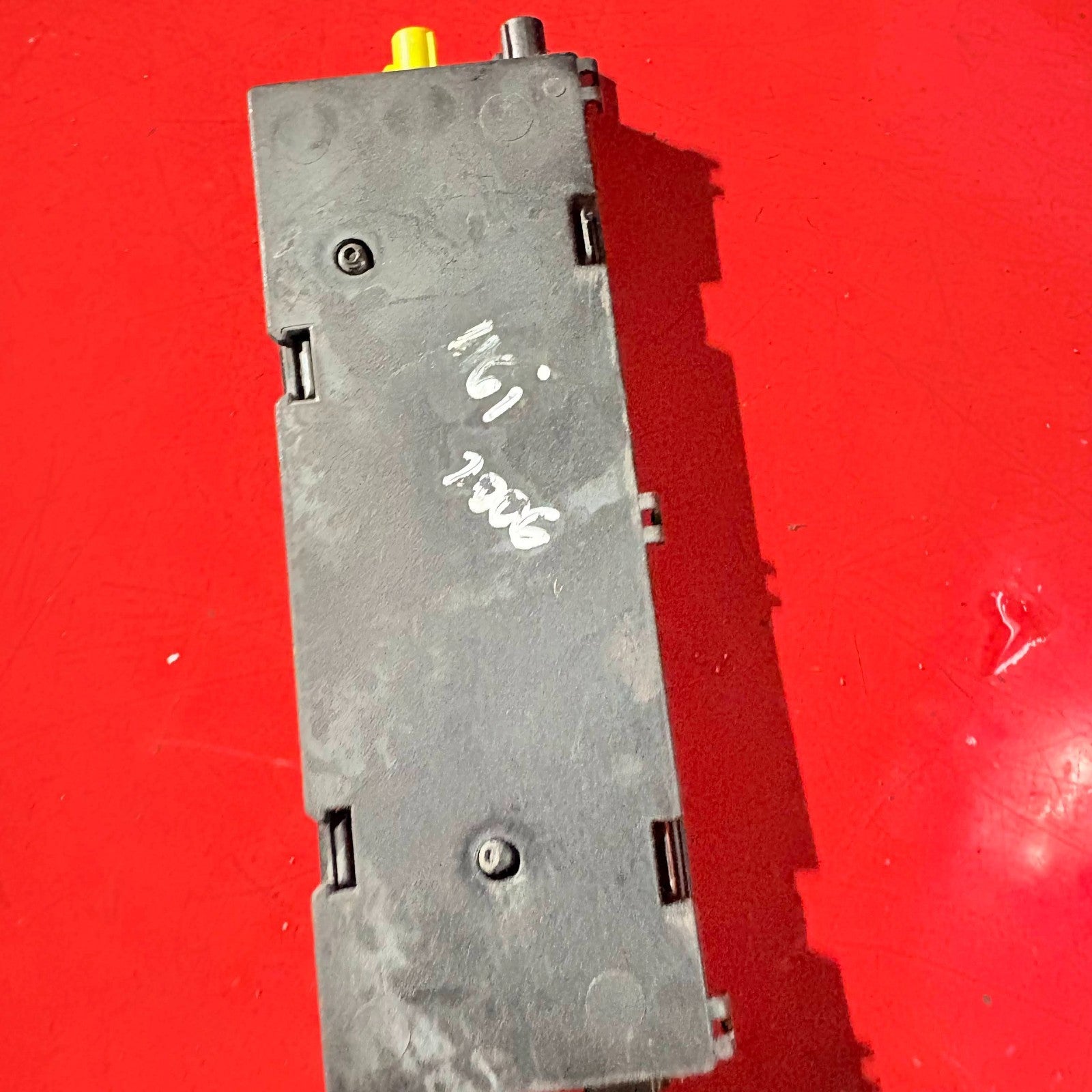

ACTUAL ITEM REFERENCE PHOTOS

All photographs above show the actual used part in this listing. Cosmetic marks are visible and form part of the condition description.

WHERE THIS PART IS FITTED

The trim shape differs between the E81 3-door and E87 5-door, but the unit is located in the upper rear tailgate area beside the rear-window aerial system.

PART IDENTIFICATION

Part Type	Rear FM diversity antenna amplifier / aerial signal module
Main BMW Number	65206958900 / 65 20 6 958 900
Label Revision	65.20-6758900-02

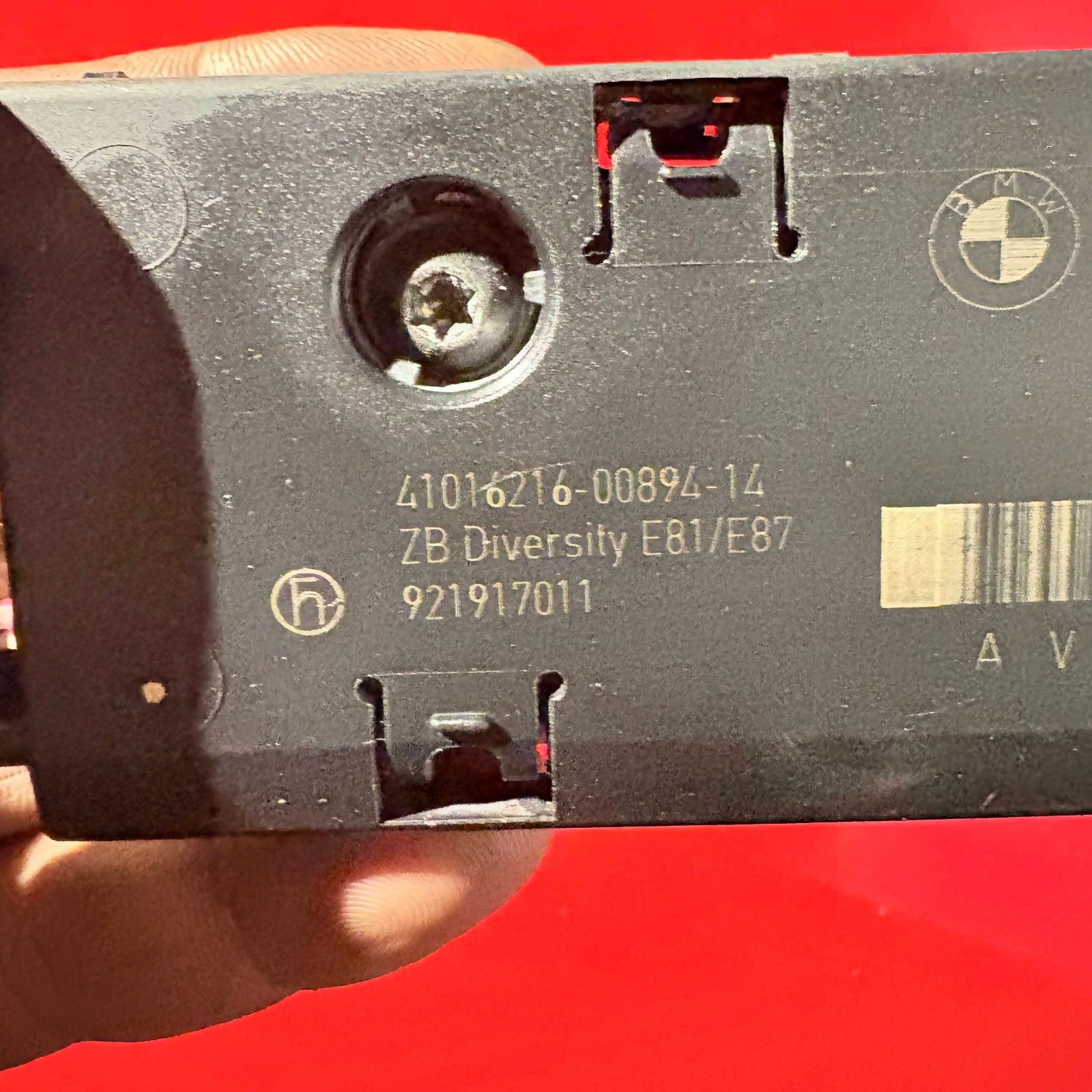

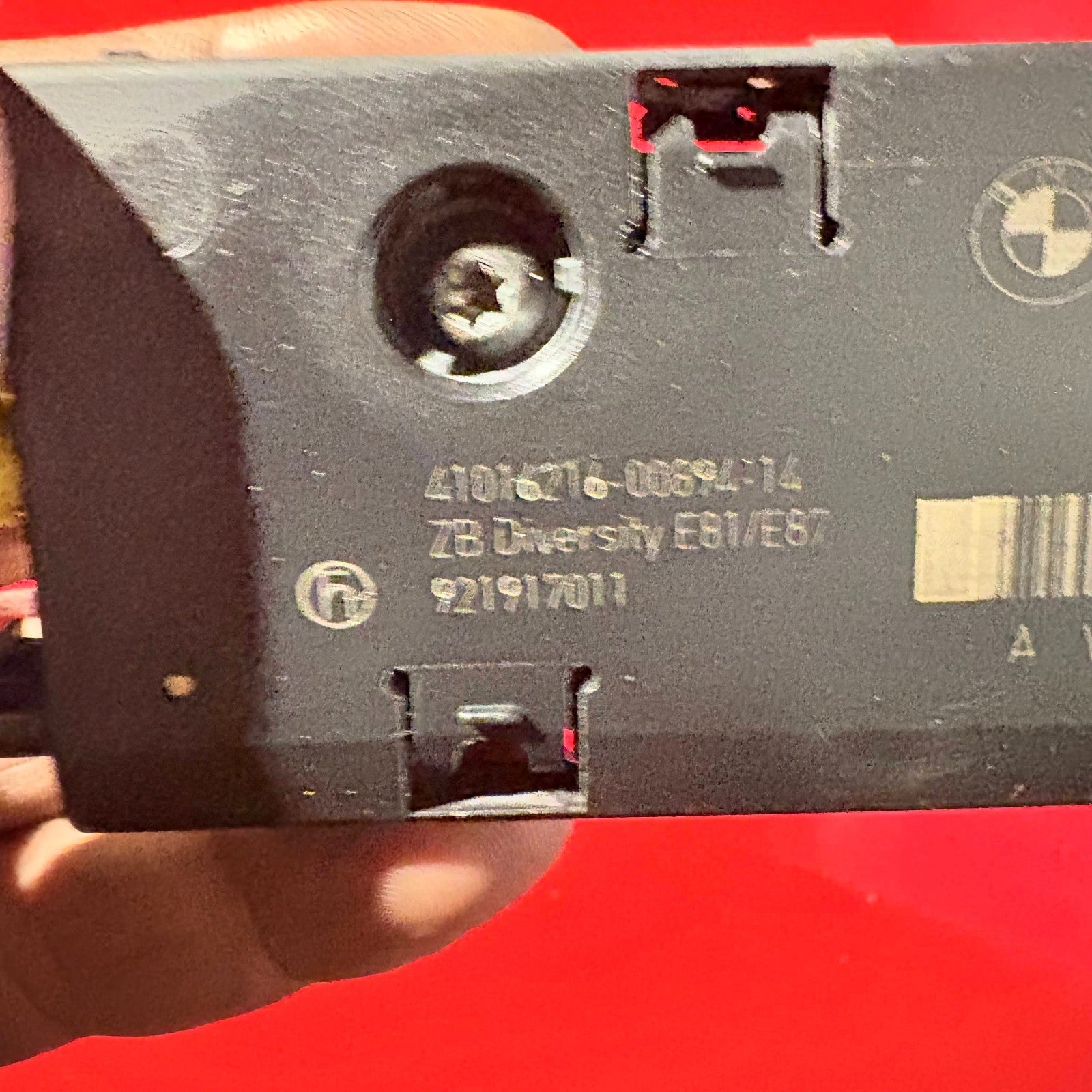

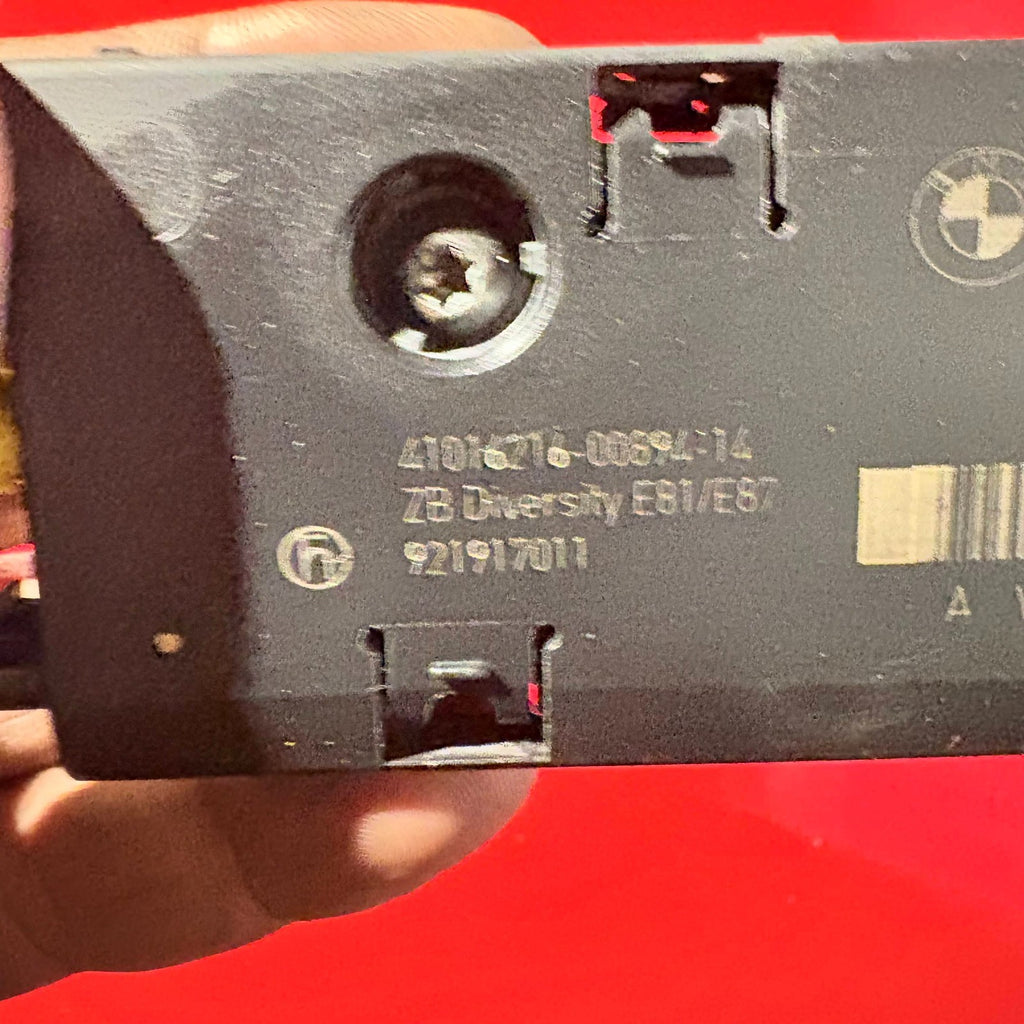

Assembly Marking	921917011
Supplier Marking	Hirschmann 108 196-10
Catalogue Number Chain	65204142335 → 65206925352 → 65206958900 → 65209204421. A later number may replace an earlier unit, but interchange must still be checked by VIN and connector layout.
Material	PA6.6 polyamide outer housing with internal electronic circuitry and coaxial/electrical connections
Colour / Manufacture	Black housing / Germany
Condition	Used. The actual item is shown. Expect normal storage, removal and cosmetic marks.
Items Supplied	Module and attached fittings exactly as pictured. No additional loom, trim or aerial components are included unless visible.

EXACT COMPATIBILITY GUIDE

This chart is based on the BMW number visible in the photographs. It is a part-number guide, not a substitute for VIN confirmation. Production month is more important than registration year.

Chassis and Body	Production Period	Models / Engines Listed	Required Check
E87 5-Door Hatchback, Pre-Facelift	2004-2007, depending on model	116i N45 118d M47N2 118i N46 120d M47N2 120i N46 130i N52 from 2005	Match 65206958900 or confirmed replacement chain and identical plugs
E87 LCI 5-Door Hatchback	2007-March 2009	116i 1.6 N45N / N43 118d N47 118i N46N / N43 120d N47 120i N46N / N43 123d N47S 130i N52N Early-2009 116d N47 and 116i 2.0 N43 require strict VIN confirmation	Vehicle must be built no later than 03/2009 for this photographed revision
E81 3-Door Hatchback	2007-March 2009	116i 1.6 N45N / N43 118d N47 118i N46N / N43 120d N47 120i N46N / N43 123d N47S 130i N52N Early-2009 116d N47 and 116i 2.0 N43 require strict VIN confirmation	Match body style, build month, part number and connector arrangement

BUY WHEN: Your existing unit carries 65206958900 / 65 20 6 958 900, or BMW catalogue confirmation shows this exact unit or an approved number in its replacement chain for your VIN.

DO NOT BUY BASED ONLY ON “BMW 1 SERIES”.
Not confirmed for E82 coupe, E88 convertible, E90 3 Series, F20/F21, vehicles built after March 2009, a unit with different plugs, a different frequency or market version, or a separate DAB amplifier. Later replacement number 65209204421 does not automatically prove that this earlier used revision is suitable for a later vehicle.

HOW TO CONFIRM BEFORE ORDERING:
1. Find the production month on the VIN or vehicle build label.
2. Remove enough upper tailgate trim to read the current amplifier label safely.
3. Compare every digit of the BMW number and compare all plugs, sockets and mounting points with the listing photographs.
4. Send the VIN, registration, existing number and clear connector photographs through eBay Messages when verification is required.

The module amplifies the rear-window FM aerial signals and uses diversity switching to provide the radio with the aerial signal offering the best reception. It helps compensate for signal loss in the aerial wiring.

On E81/E87 vehicles, this rear diversity unit should not be purchased as a first-line cure for remote-key or central-locking range faults because those systems use a separate receiver arrangement.

Similar symptoms can also be caused by broken tailgate wiring, poor earth connections, damaged rear-window aerial tracks, water ingress, a roof-aerial base fault or the radio itself. Diagnose the system before replacing parts.

WHY CHOOSE A USED ORIGINAL FACTORY PART?

FITTING GUIDE

General guidance only. Vehicle trim and electrical procedures vary. Use a competent vehicle electrician or technician when unsure.

Suggested Tools

Plastic trim-removal tools, suitable Torx bits, small ratchet or bit driver, 10 mm battery-terminal tool, torch, gloves, electrical-contact cleaner and a multimeter for diagnosis.

Typical Replacement Sequence

1. Park safely, switch off the ignition, remove the key and allow vehicle systems to power down.
2. Disconnect the battery negative terminal only when you understand the vehicle’s battery and memory procedures.
3. Open and support the tailgate. Carefully release the upper inner trim near the high-level brake light.
4. Photograph and label the coaxial and electrical connections before removal.
5. Release connector locks without pulling on the cables, then remove the module fasteners.
6. Inspect the loom, aerial tracks, earth points and surrounding area for moisture, corrosion or broken wires.
7. Fit the matching replacement, lock every connector fully and refit the trim without trapping cables.
8. Reconnect the battery where disconnected, then test several FM stations with the tailgate open and closed.

STATIC GARAGE LABOUR ESTIMATOR

Formula: hourly rate × 0.5 to 1.0 hour. Parts, diagnosis, VAT and additional repairs are not included.

Garage Rate	30-Minute Estimate	60-Minute Estimate
£50 per hour	£25	£50
£75 per hour	£37.50	£75
£100 per hour	£50	£100
£125 per hour	£62.50	£125
£150 per hour	£75	£150

THEPARTPILOT holds more than 25,000 parts in stock at any one time. This listing identifies the module from its photographed label and connector layout. The part will be packed to help protect its housing and connectors in transit.

Postage service, charge, handling time and delivery estimate are exactly as shown in the eBay postage section. This description makes no separate postage-price promise.

Collection may be available by appointment where offered. Arrange only through eBay Messages and follow the collection instructions supplied with the order.

Check the delivery address before paying. Once checkout is completed, the address cannot be changed by the seller.

INTERNATIONAL DELIVERY THROUGH EBAY GSP

EU destinations currently listed by eBay:
Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain and Sweden.

Non-EU destinations currently listed by eBay:
Antigua and Barbuda, Aruba, Australia, Bahamas, Bahrain, Bangladesh, Barbados, Belize, Bermuda, Bolivia, Brazil, Brunei Darussalam, Cambodia, Canada, Cayman Islands, Chile, China, Colombia, Costa Rica, Dominica, Dominican Republic, Ecuador, Egypt, El Salvador, French Guiana, Grenada, Guadeloupe, Guatemala, Guernsey, Honduras, Hong Kong, Iceland, Indonesia, Israel, Jamaica, Japan, Jersey, Jordan, Kuwait, Liechtenstein, Macau, Malaysia, Maldives, Martinique, Mexico, Monaco, Montserrat, New Zealand, Nicaragua, Norway, Oman, Pakistan, Panama, Paraguay, Peru, Philippines, Qatar, Reunion, Saint Kitts and Nevis, Saint Lucia, Saudi Arabia, Singapore, South Africa, South Korea, Sri Lanka, Switzerland, Taiwan, Thailand, Trinidad and Tobago, Turks and Caicos Islands, United Arab Emirates, Ukraine, Uruguay, United States and Vietnam.

Country eligibility, item limits and services can change. The checkout result is final for the buyer’s address.

Sold under the Global Accounting VAT Margin Scheme where applicable. VAT is not shown separately on the sales invoice.

The current listing provides a 30-day seller warranty and 30-day returns. Please use eBay’s return process and return the exact part in the condition received, with all supplied components.

Where a returned part has been installed, altered, damaged, is incomplete or is not the item supplied, any refund adjustment will be made only where permitted by eBay policy and applicable consumer law. There is no automatic fitment restocking deduction.
