BMW 3 Series E46 320d Airbag Slip Ring Clock Spring Steering Wheel 2001-2006
BMW 3 Series E46 320d Airbag Slip Ring Clock Spring Steering Wheel 2001-2006
BMW 3 Series E46 320d

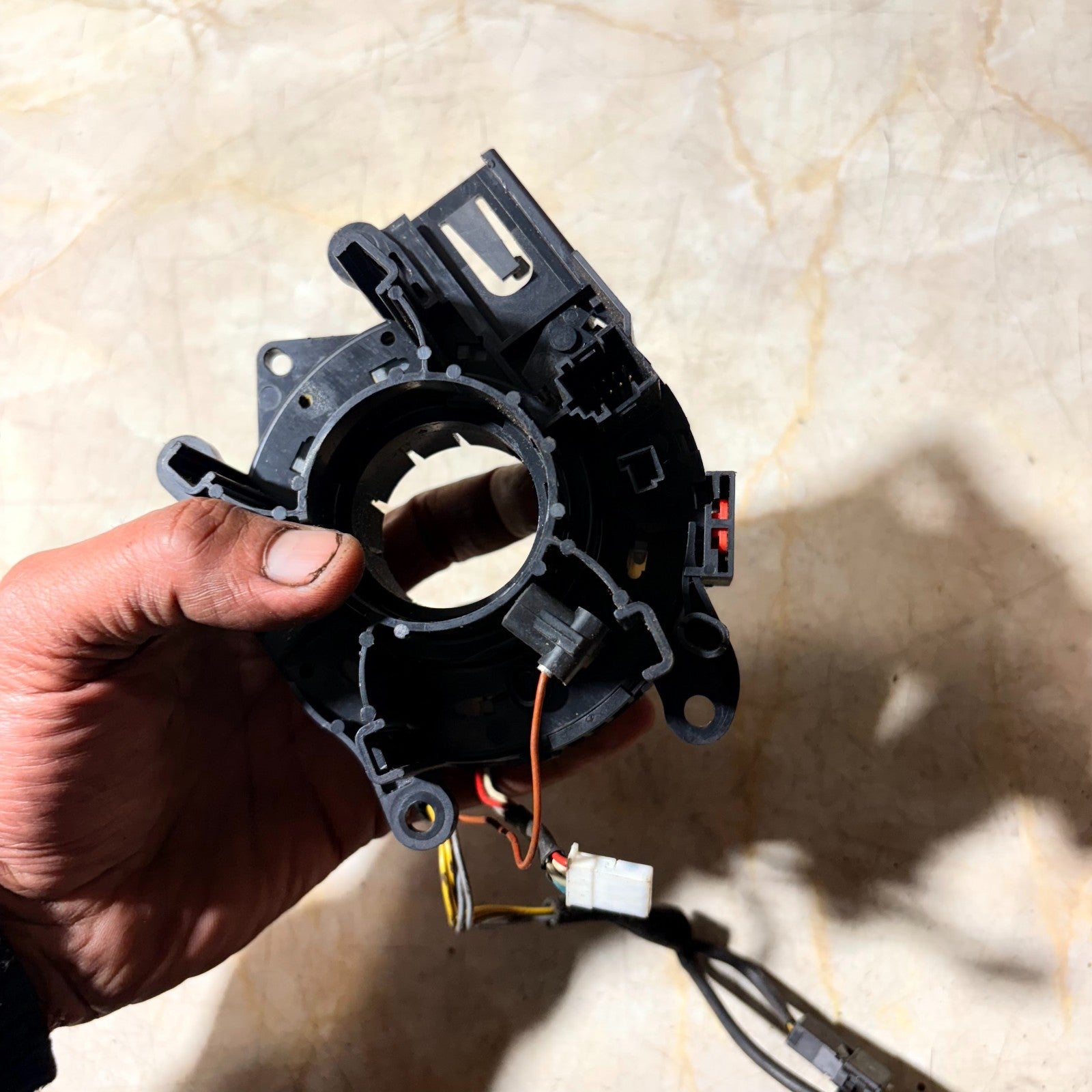

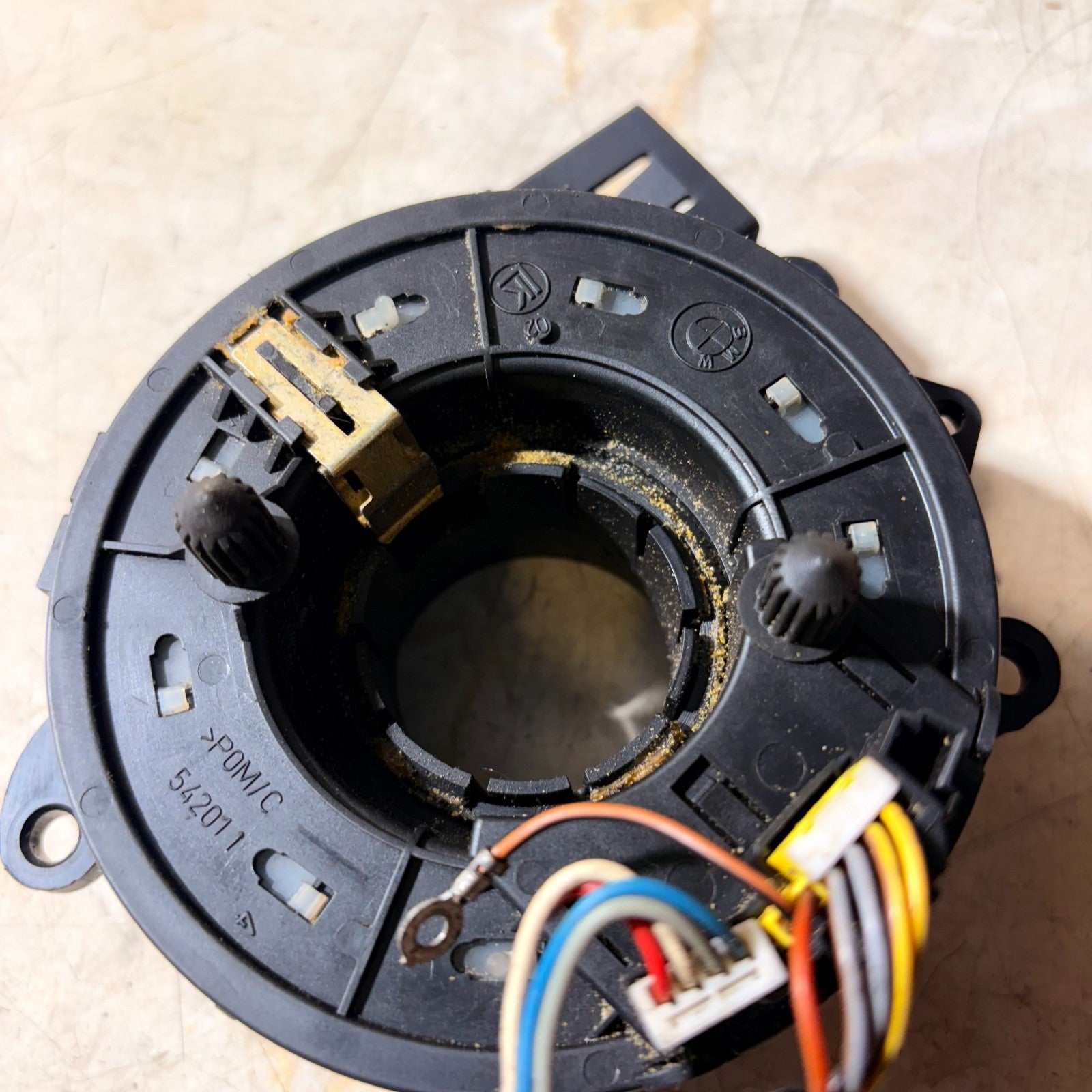

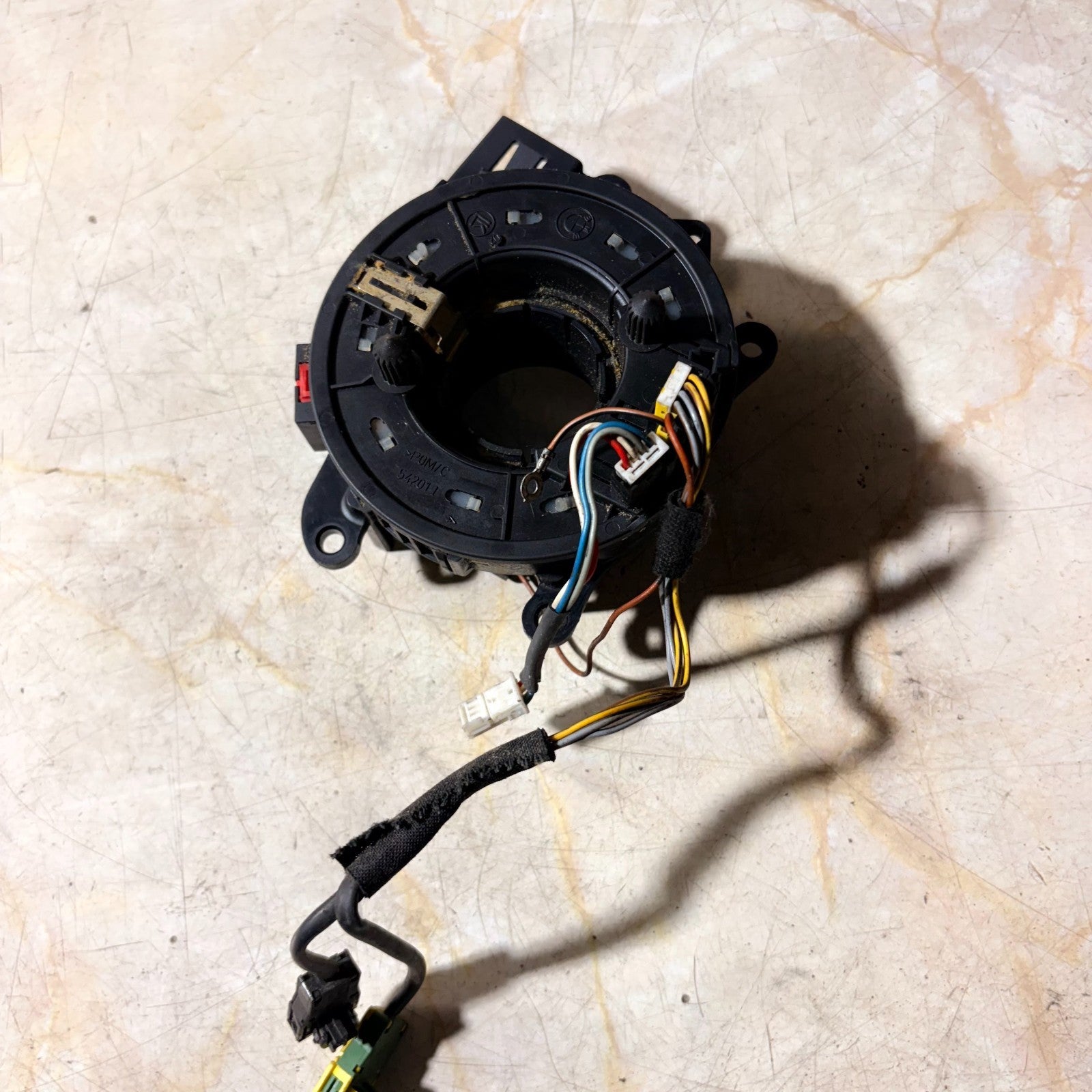

Airbag Slip Ring / Clock Spring
BMW used multiple steering-column, steering-wheel and slip-ring configurations. Do not purchase purely because your vehicle is described as a BMW 320d or E46.

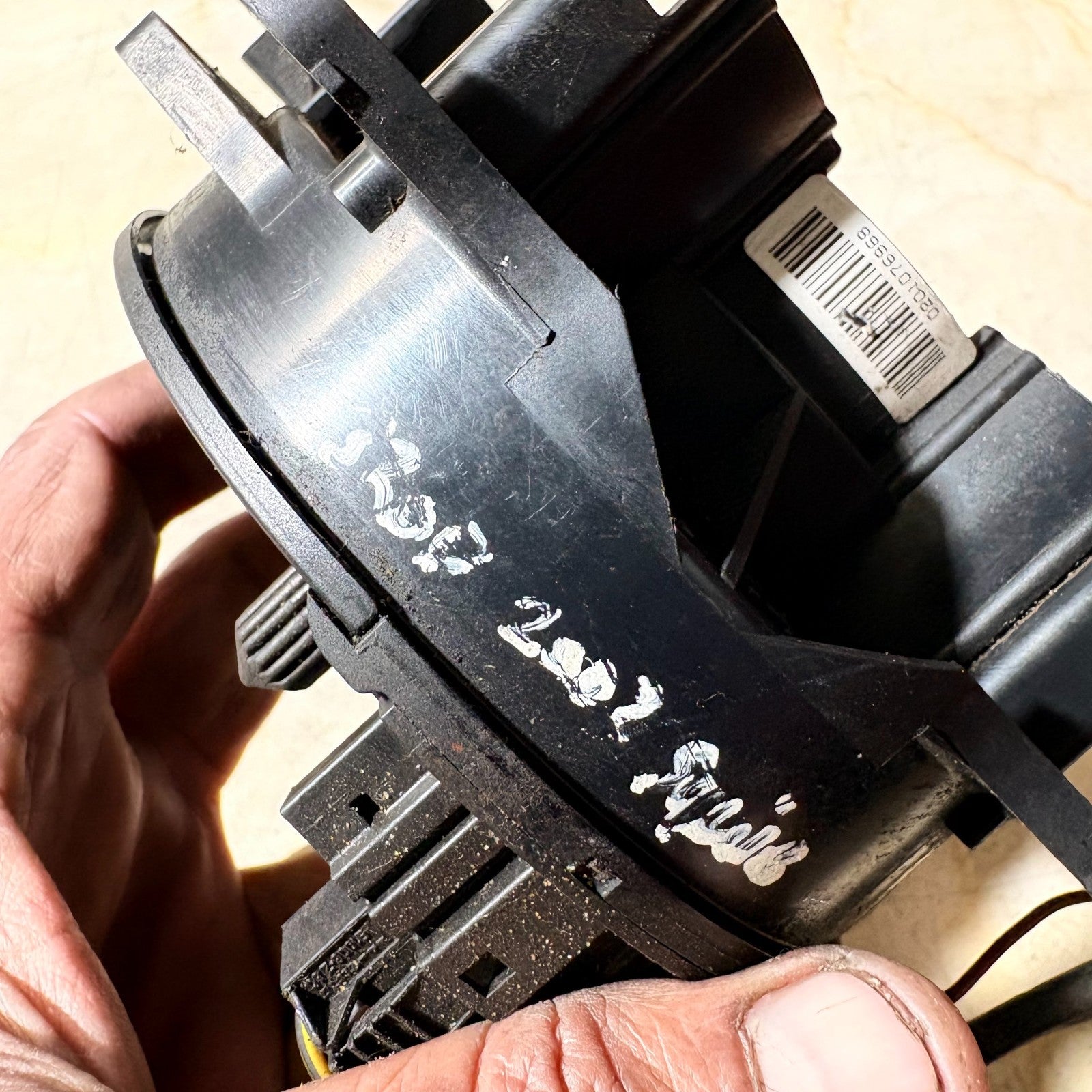

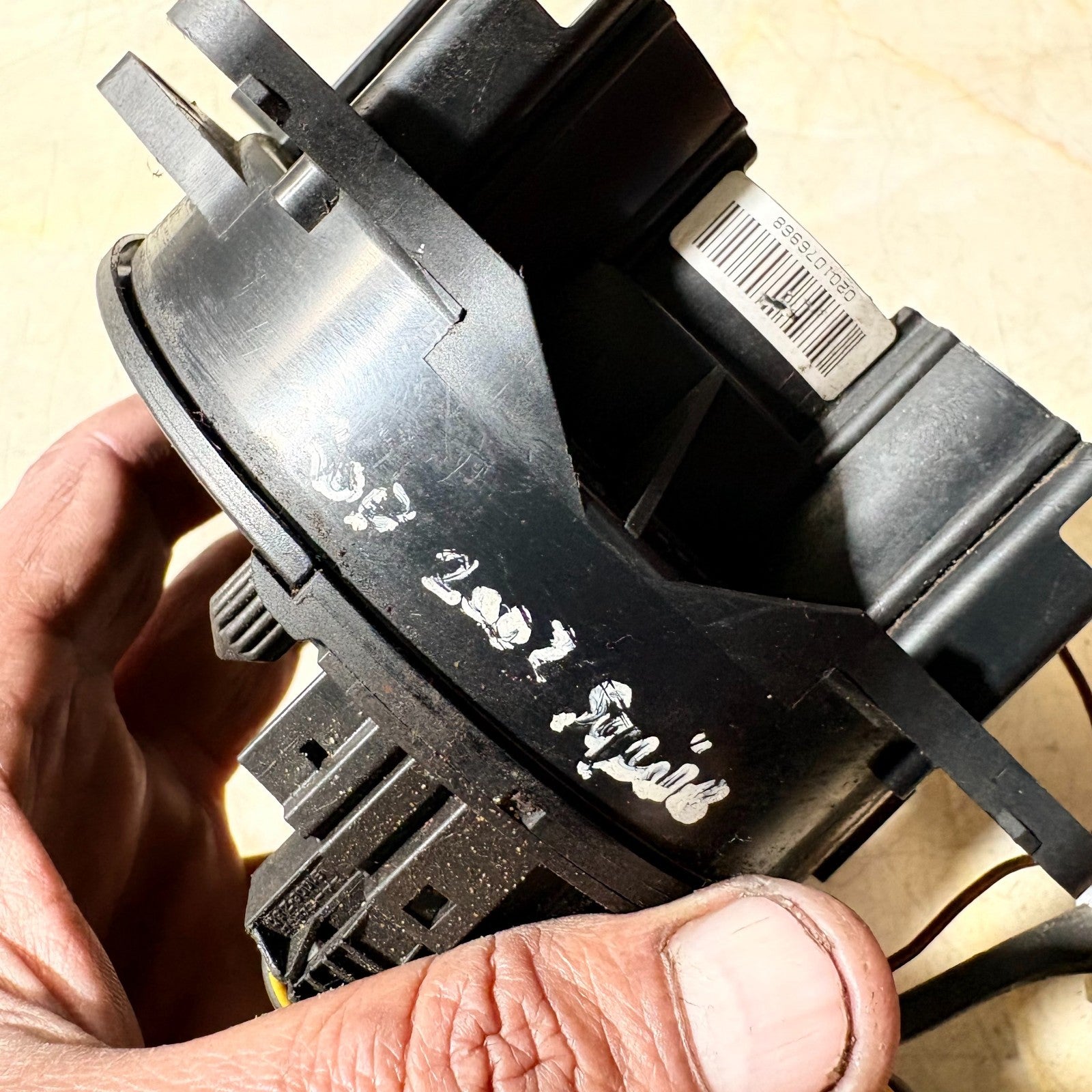

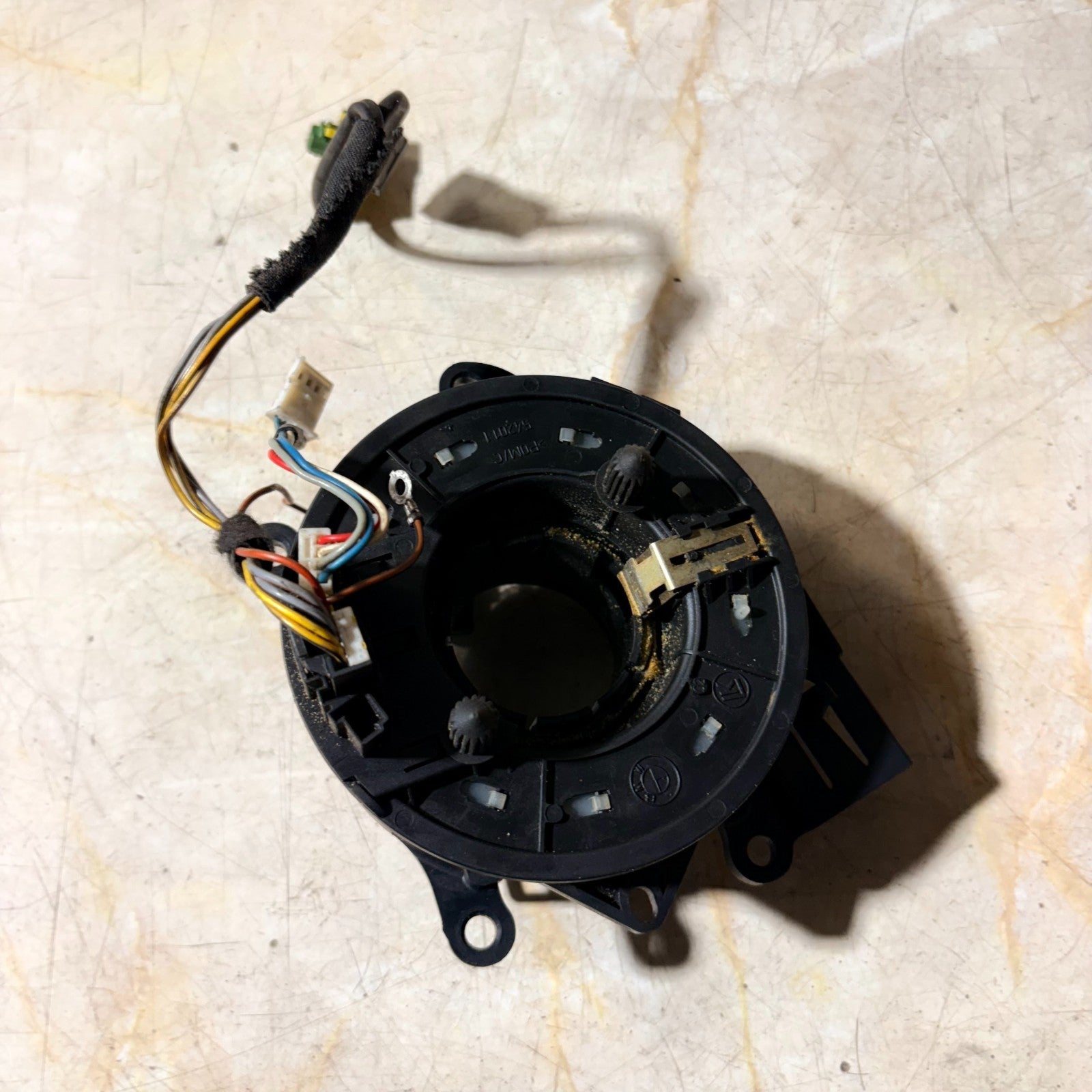

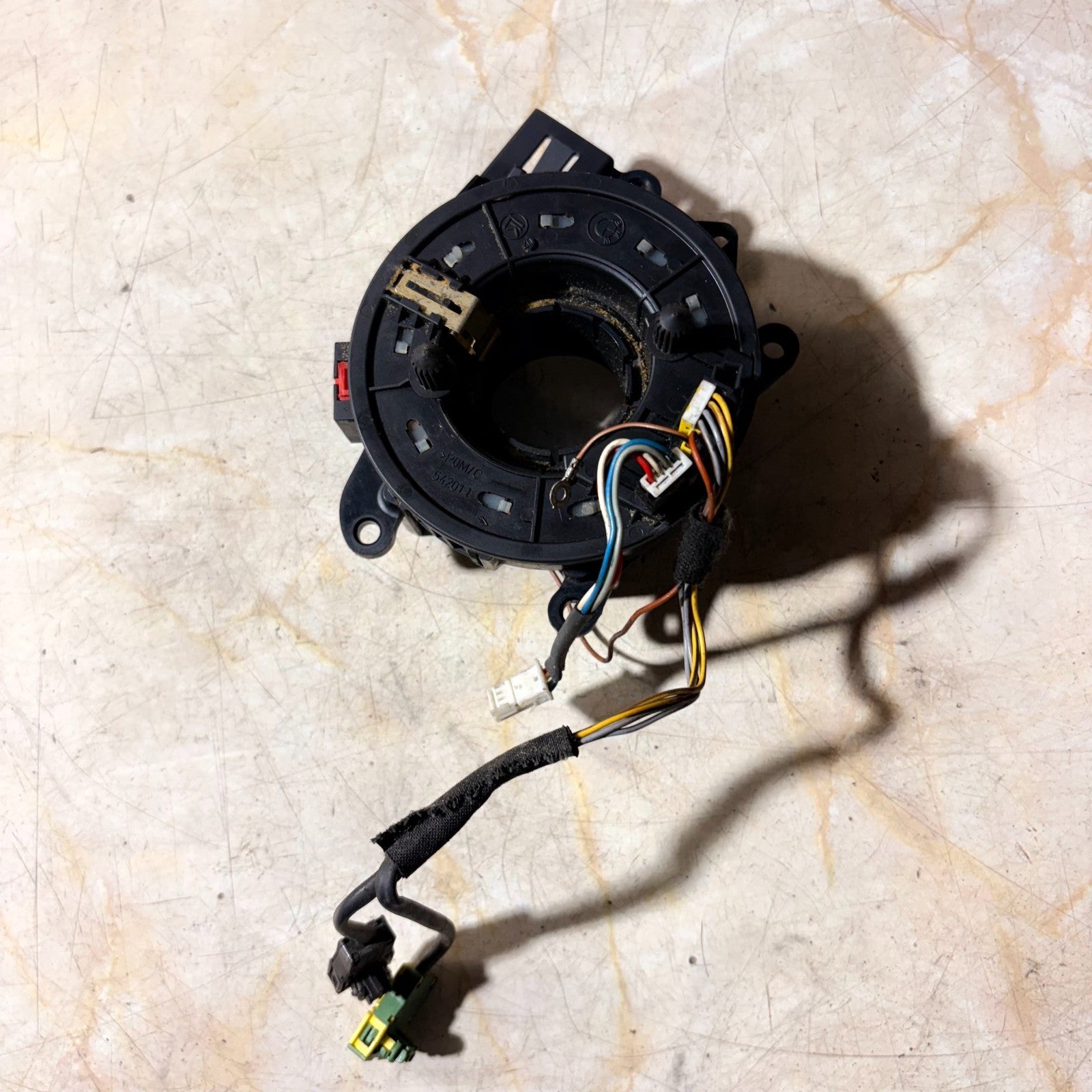

Compare the physical unit, electrical connectors and the complete number printed on your existing component with the item photographs before purchasing.
If you are unsure, contact ThePartPilot before ordering. We can assist with compatibility verification where sufficient vehicle and part information is supplied.
BMW E46 VEHICLE REFERENCE
Vehicle image is for chassis/model-family identification reference only. Exact body style and equipment must be verified against your vehicle.
📍 WHERE IS THE SLIP RING FITTED?
The clock spring / slip ring sits on the steering column directly behind the steering wheel. It maintains electrical continuity while the steering wheel rotates.
WHAT DOES THIS PART DO?
The airbag slip ring, commonly called a clock spring, spiral cable or steering wheel contact ring, provides a rotating electrical connection between the stationary steering-column wiring and electrical components fitted to the steering wheel.
Depending on vehicle specification, circuits passing through this area can include:
- Driver airbag / SRS circuit
- Horn circuit
- Multi-function steering-wheel controls where equipped
- Audio controls where equipped
- Cruise-control functions where equipped
🔧 POSSIBLE SYMPTOMS OF A FAILED CLOCK SPRING
- Airbag / SRS warning lamp illuminated
- Horn intermittently or permanently inoperative
- Steering-wheel buttons stop operating
- Functions fail only at particular steering-wheel positions
- Intermittent electrical connection while turning the steering wheel
- Relevant SRS or steering-wheel circuit fault codes
These symptoms can have other causes. Diagnostic testing should be carried out before replacing safety-related components.
VEHICLE COMPATIBILITY CHART
| Make | Platform | Model | Status |
|---|---|---|---|
| BMW | 3 Series E46 | 320d | Listed application – exact unit must be matched |
Similar-looking E46, E39, E38, E53, E83 and Z4 steering components exist. We will not claim additional vehicle compatibility until the exact identifying number on this unit has been verified.
🔍 PART NUMBER CHECK
Part number for this individual item: Not confirmed from the currently available listing data.

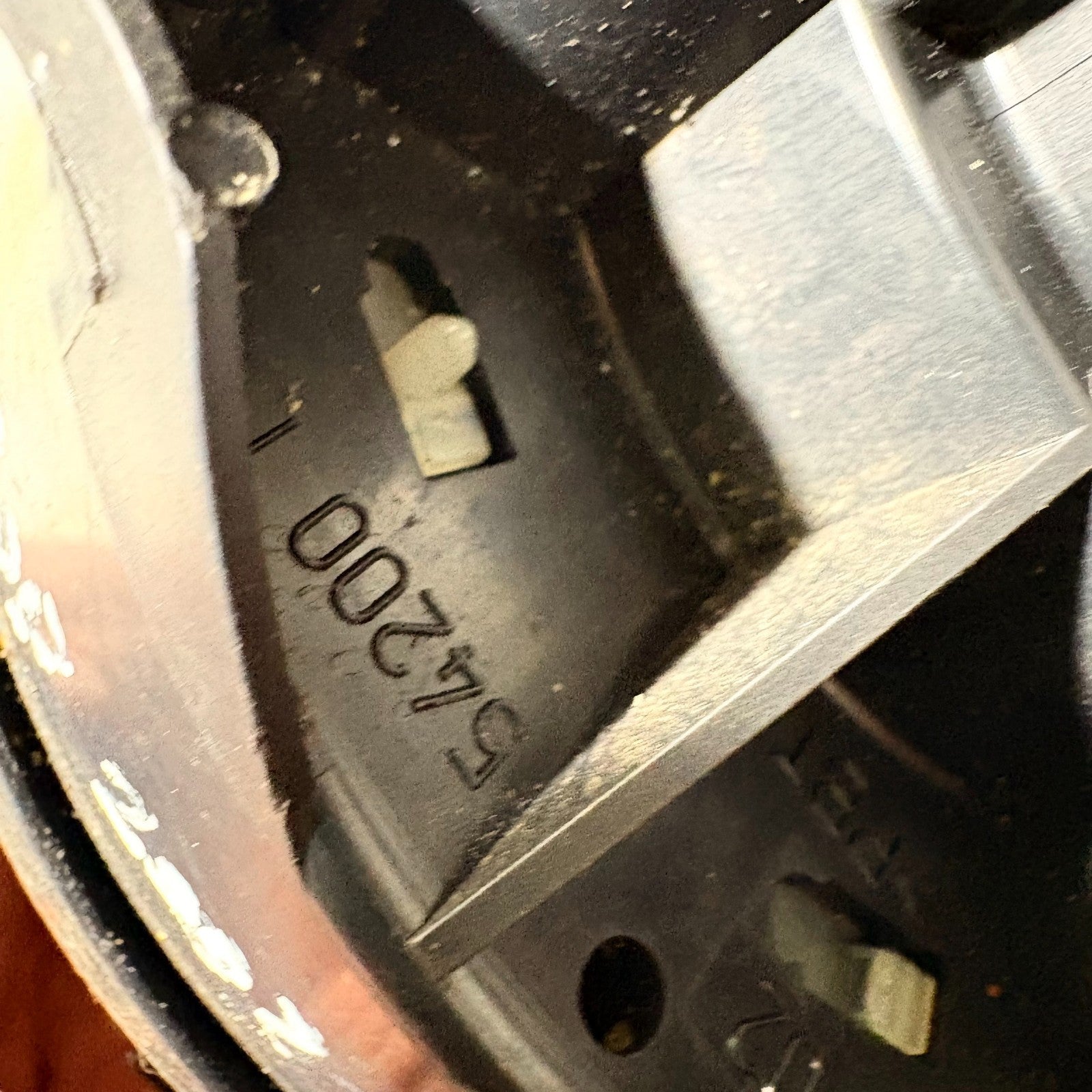

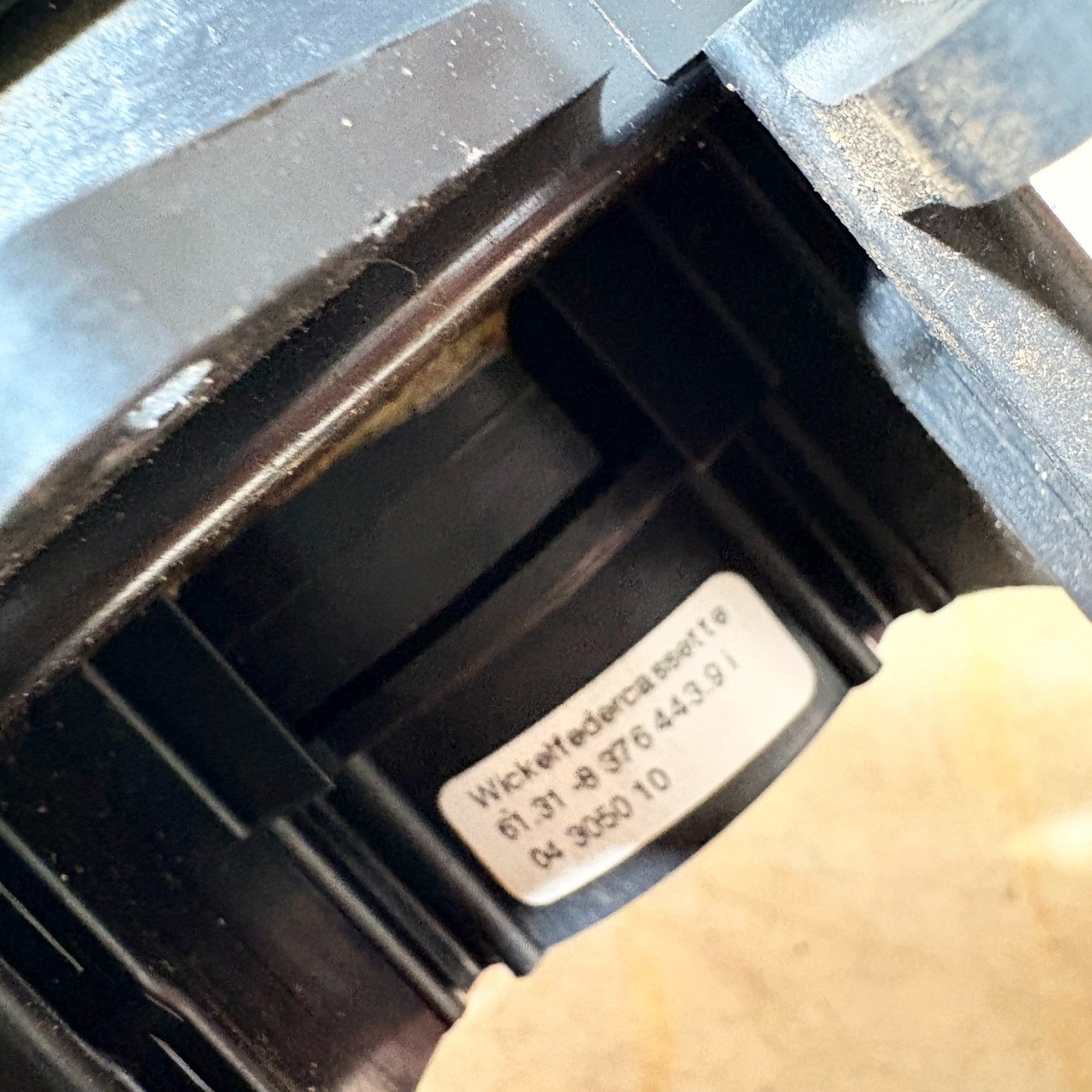

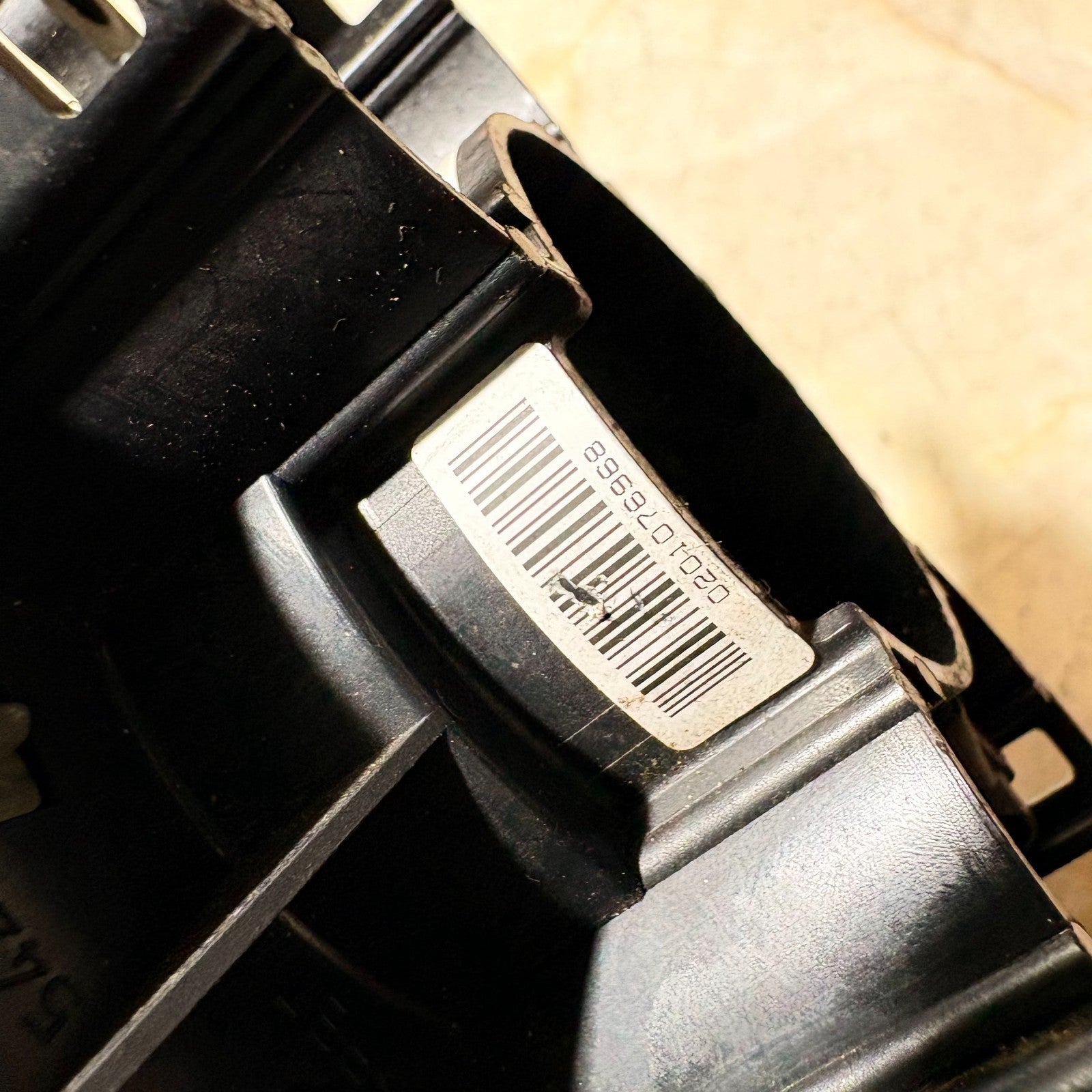

The safest compatibility check is to compare the COMPLETE number on your original component with the number visible on the replacement component. Do not match only the final few digits.
A VIN-based parts catalogue check is recommended where the printed number cannot be confidently identified.
WHY CHOOSE AN ORIGINAL-MANUFACTURER USED PART?
Original-manufacturer components were designed around the vehicle's original connector geometry, mounting points, electrical architecture and steering-column installation. With safety-related electrical parts, correct specification matters.
A quality used original-manufacturer component can also represent a substantial saving compared with buying the equivalent component new. Depending on the individual component and current new retail price, used vehicle parts can offer savings of as much as 70%.
Compatibility must nevertheless be established before ordering. A lower purchase price has little value if the component is the wrong variant.
🛠 FITTING OVERVIEW
Typical Workshop Procedure
- Record relevant diagnostic fault codes before dismantling.
- Position the steering wheel correctly before commencing work.
- Isolate the electrical system according to the manufacturer's SRS procedure.
- Remove the driver's airbag using the prescribed safe handling procedure.
- Disconnect steering-wheel electrical connectors.
- Mark steering-wheel position where required.
- Remove the steering wheel using the correct tools and procedure.
- Access the steering-column slip-ring assembly.
- Compare replacement and removed components before installation.
- Ensure the replacement slip ring is correctly centred before fitting.
- Reassemble using manufacturer-specified fastener torques.
- Reconnect the vehicle and perform a diagnostic scan.
- Clear appropriate fault codes and confirm correct SRS operation.
- Carry out any required steering-angle calibration applicable to the vehicle.
Typical Tools
- Professional diagnostic scanner
- Socket and ratchet set
- Torx / driver set appropriate to the vehicle
- Torque wrench
- Trim tools
- Suitable steering-wheel removal tools where required
- Manufacturer repair information
⏱ WORKSHOP TIME & LABOUR COST GUIDE
Allow approximately 1–2 hours as a general workshop planning allowance. Actual labour time varies with vehicle specification, diagnosis, corrosion, equipment and whether calibration or additional repairs are required.
| Garage Rate | 1 Hour | 1.5 Hours | 2 Hours |
|---|---|---|---|
| £50/hr | £50 | £75 | £100 |
| £75/hr | £75 | £112.50 | £150 |
| £100/hr | £100 | £150 | £200 |
| £125/hr | £125 | £187.50 | £250 |
Formula: garage hourly rate × actual labour hours = estimated labour charge. Parts, diagnostics, coding/calibration and consumables may be additional.
ThePartPilot can also provide fitting and repair services subject to workshop availability. Contact us before travelling to arrange availability and obtain a quotation.
