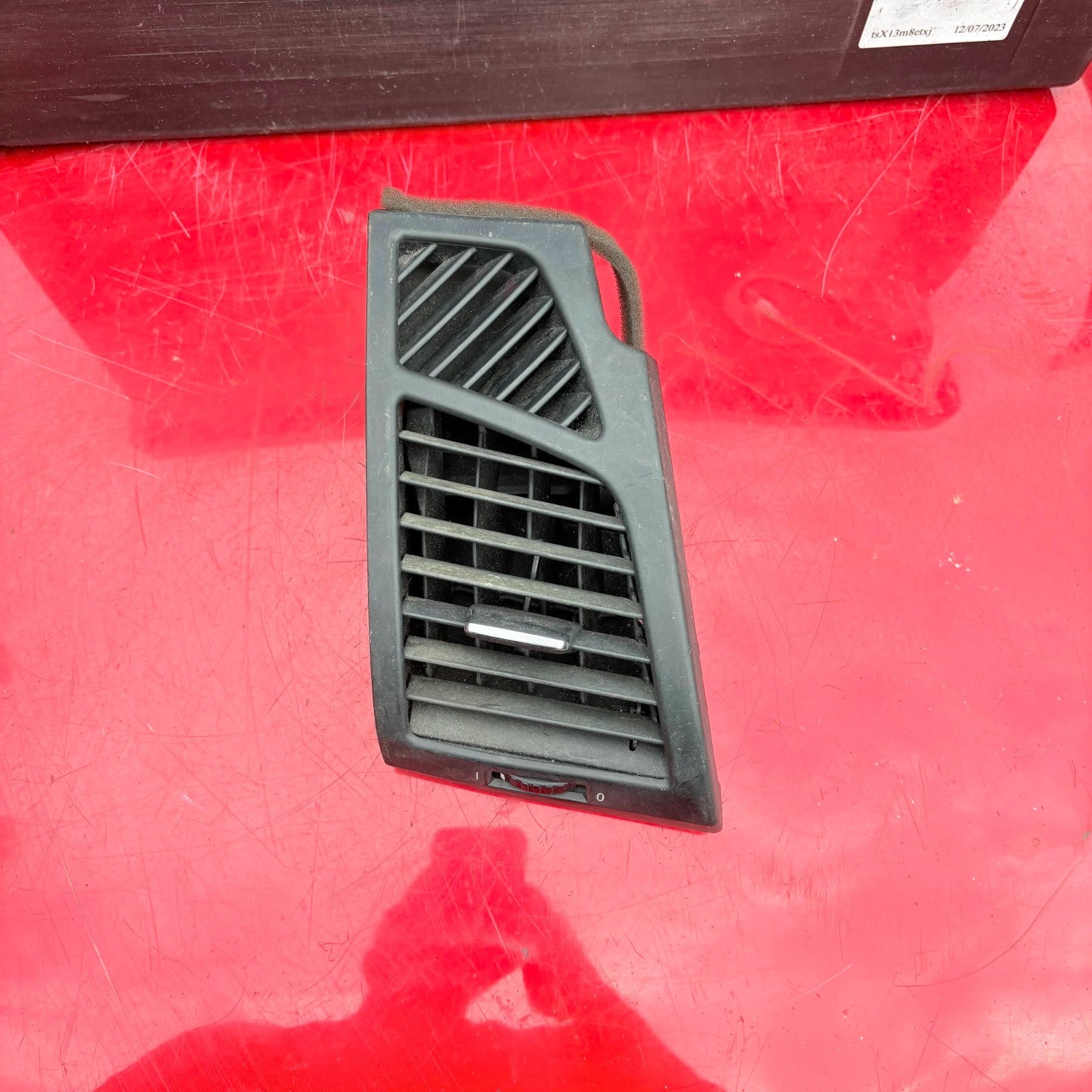

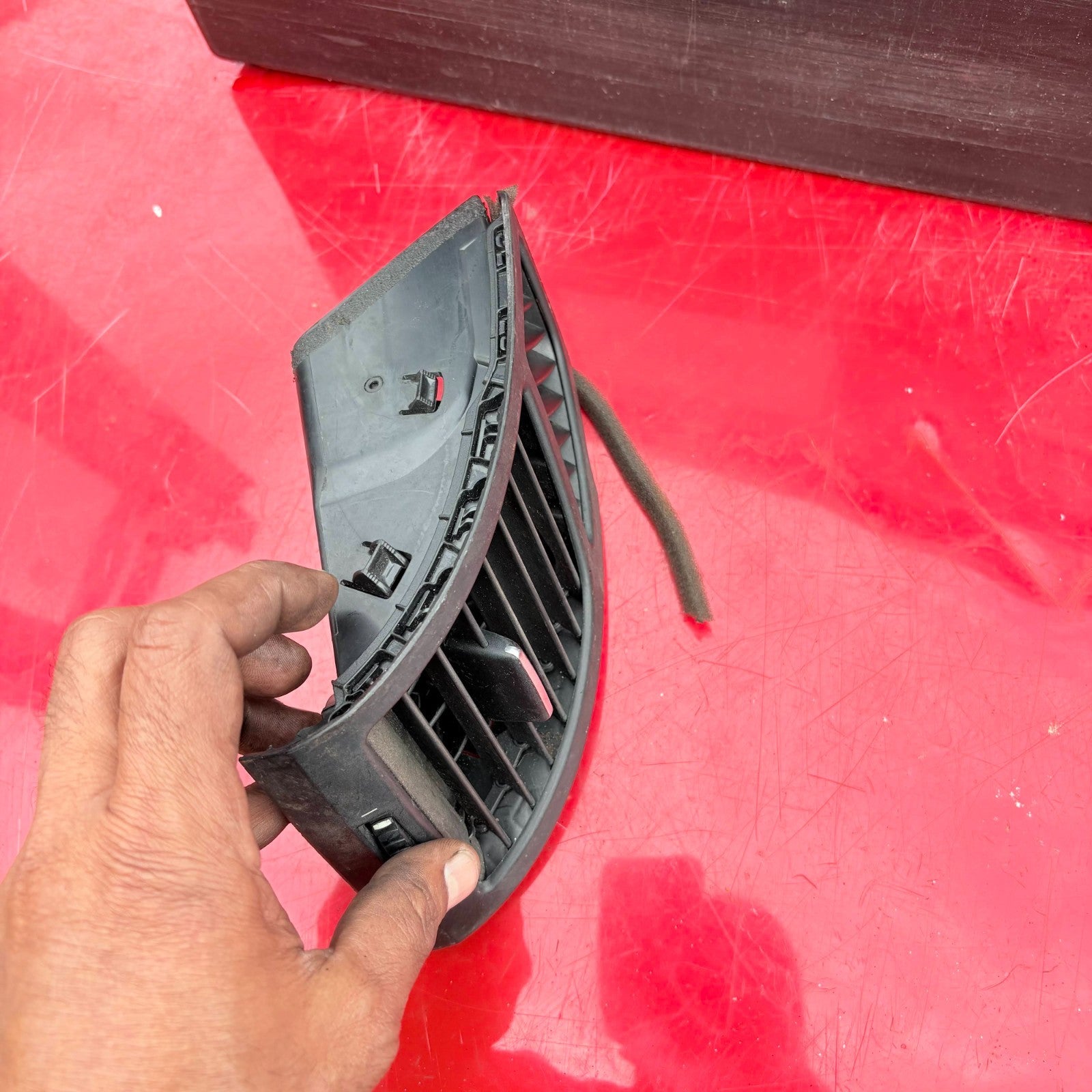

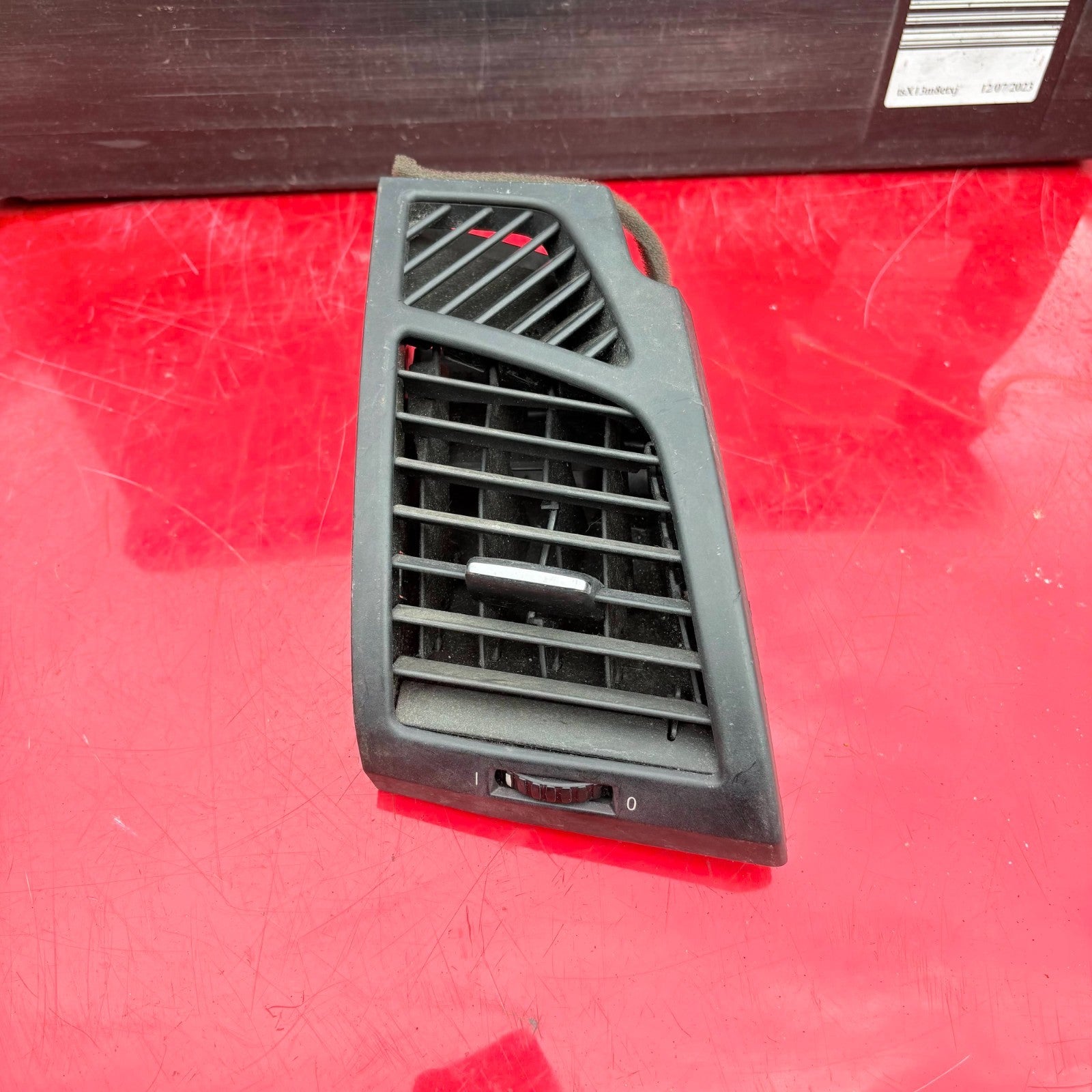

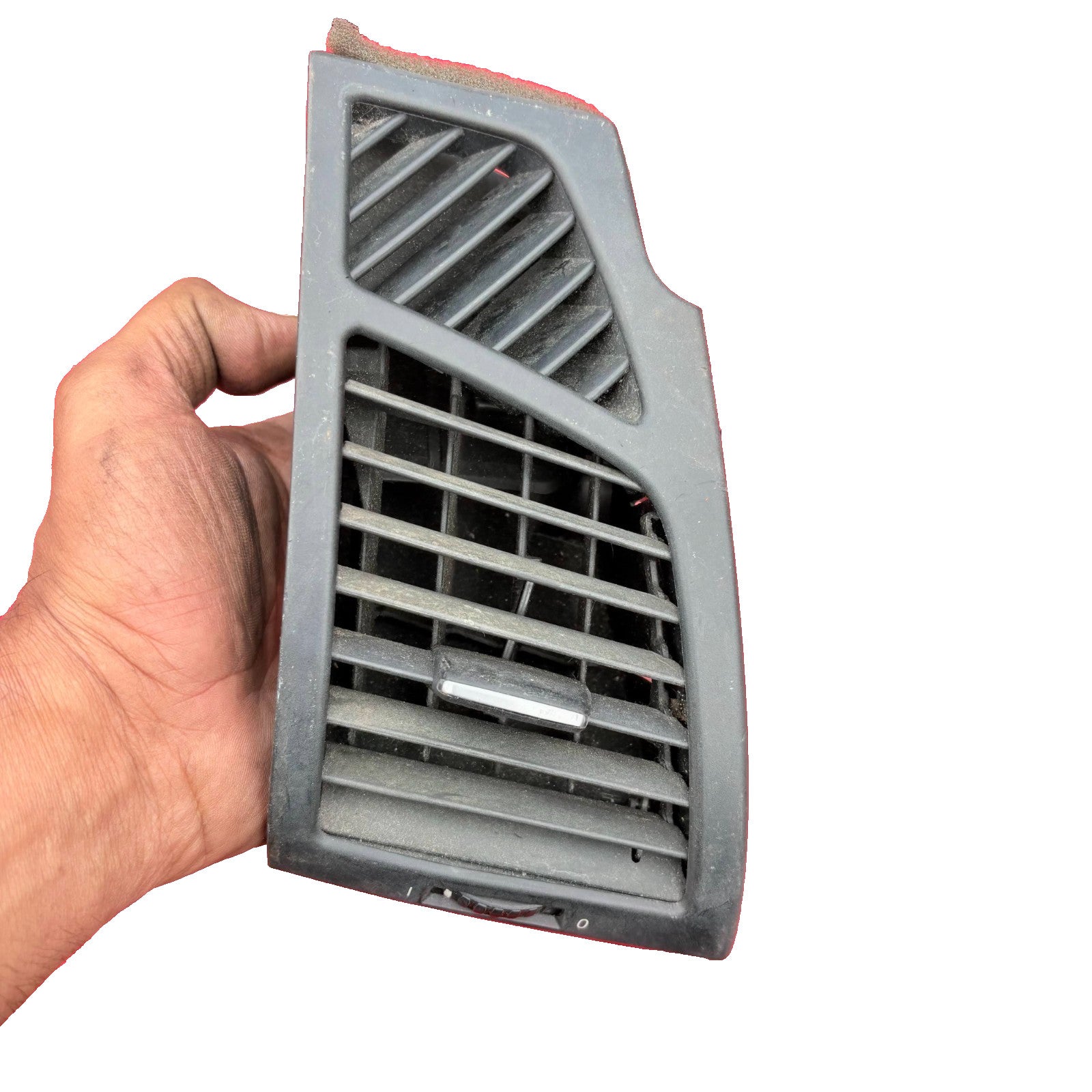

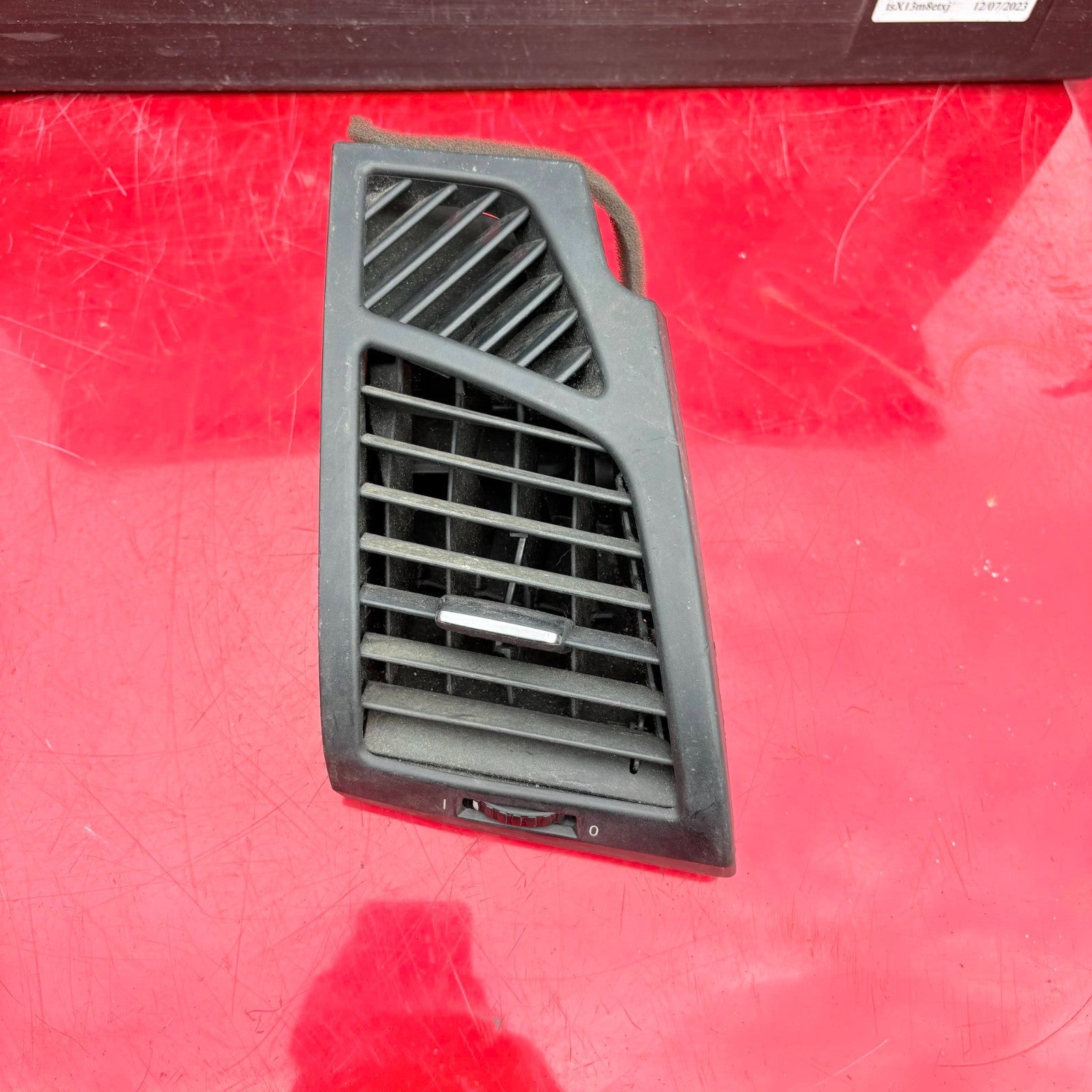

BMW E81 E82 E87 E88 1 Series 2004-2013 Right Driver Dashboard Air Vent Grille 7059188 / 64227059188

This vent assembly is installed into the outer right-hand section of the dashboard and forms the final cabin outlet for air travelling through the heater and air-conditioning ducting.

• Broken, cracked or missing vent louvres.
• Vent no longer stays in the selected airflow position.
• Broken adjustment mechanism or stiff movement.
• Damaged trim face caused by impact or previous removal.
• Loose housing or rattling around the dashboard aperture.
• Damaged mounting or locating points on the original vent.
• Poor air direction because the original louvre mechanism is damaged.

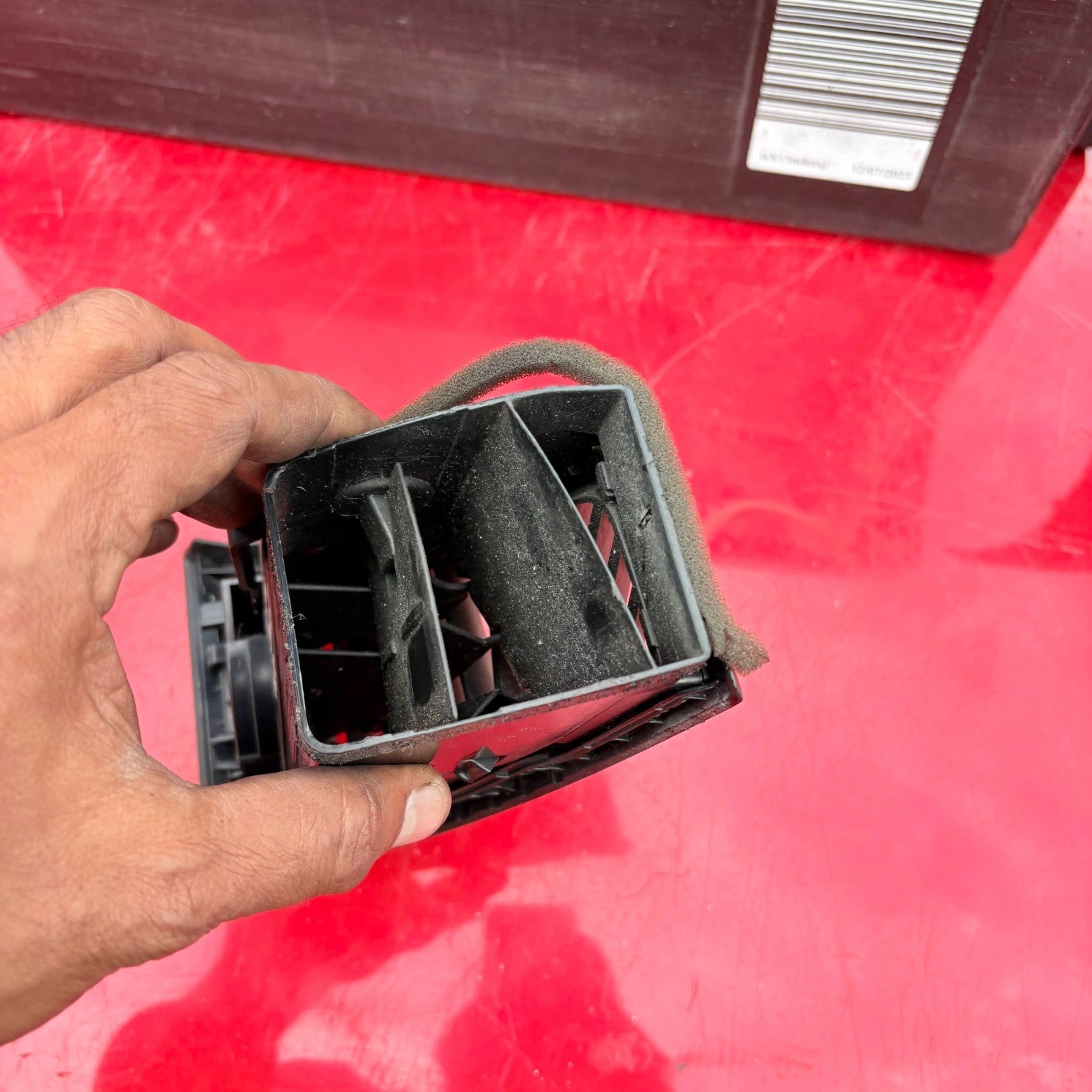

This component fits into the outer right-hand side of the dashboard fascia and connects directly with the corresponding dashboard ventilation duct behind it.

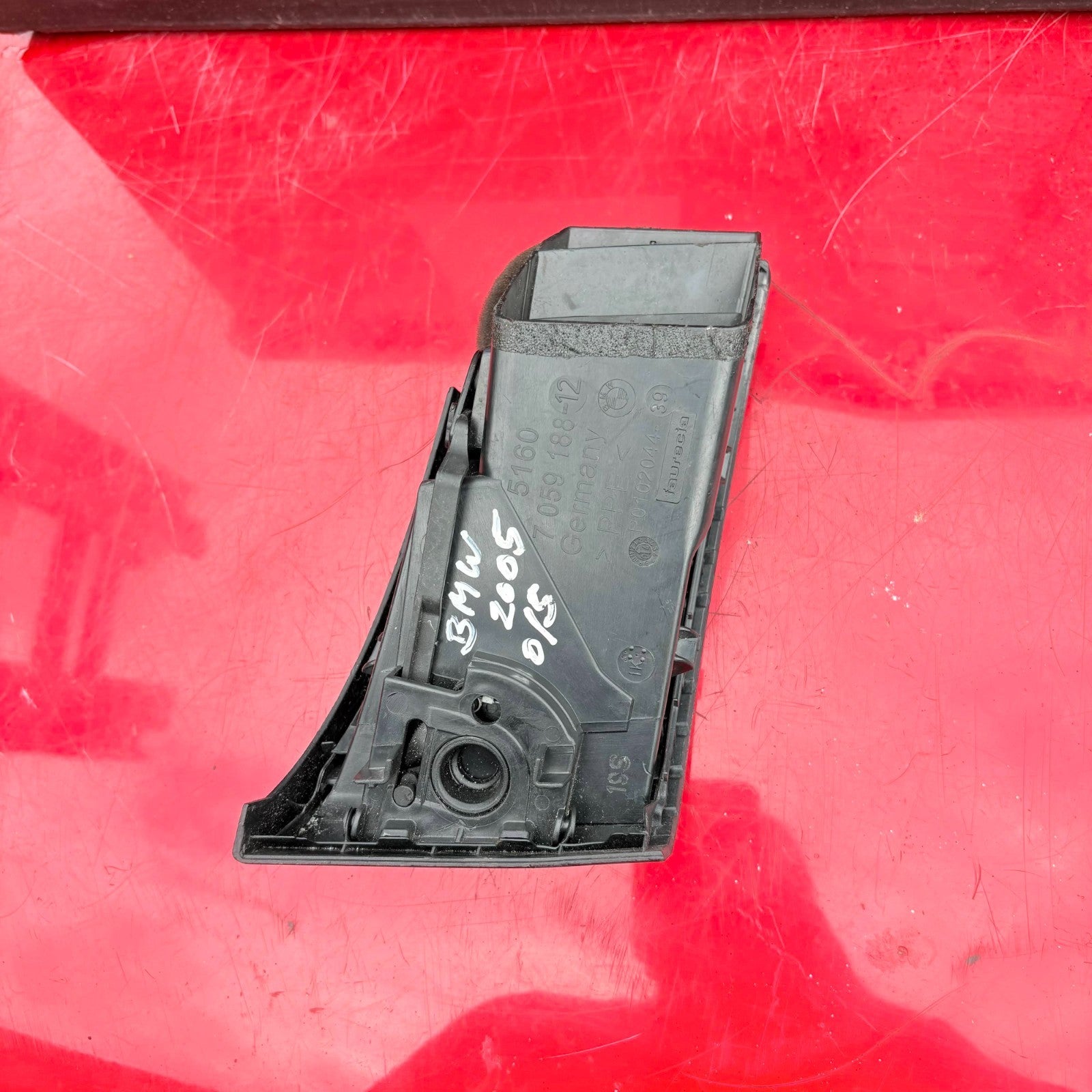

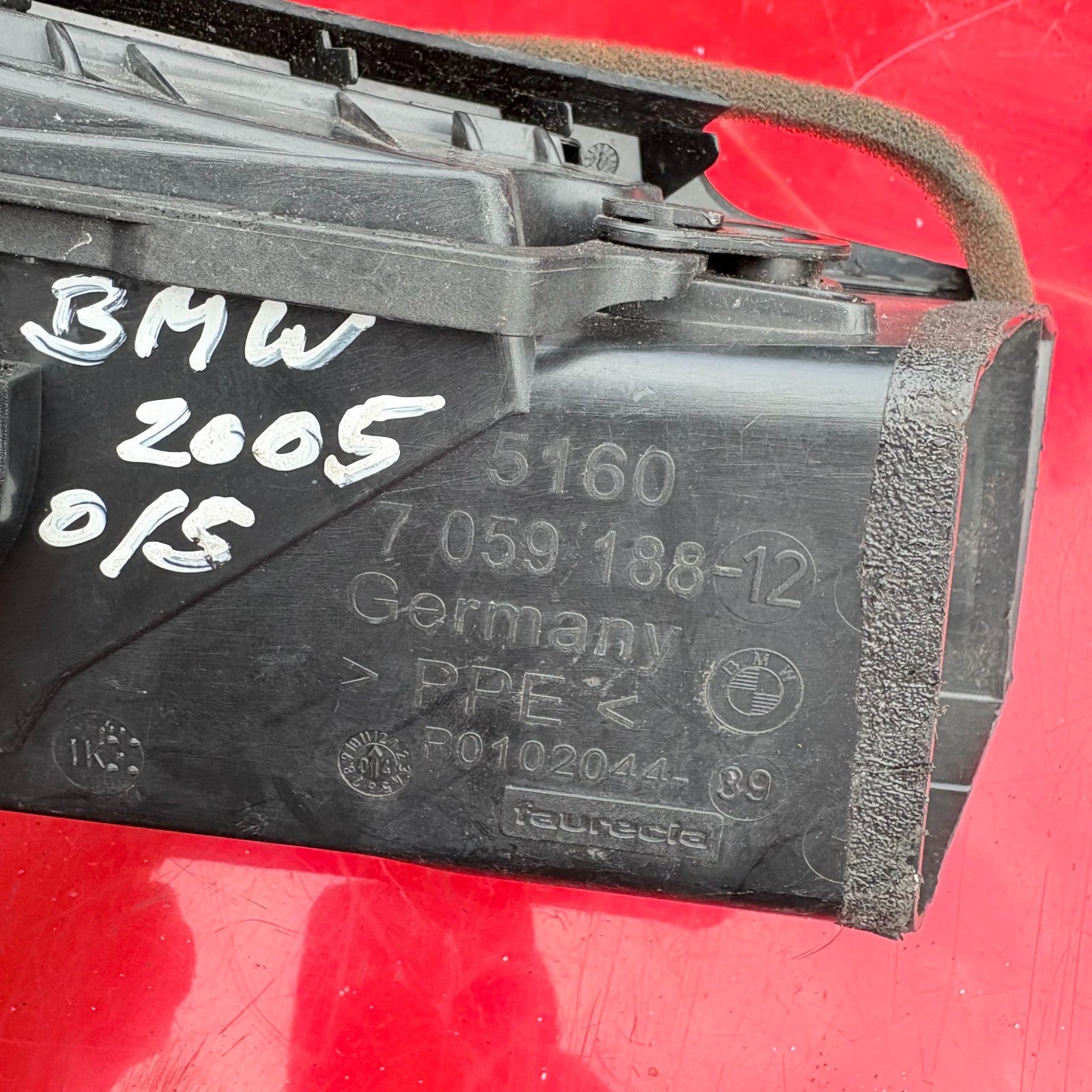

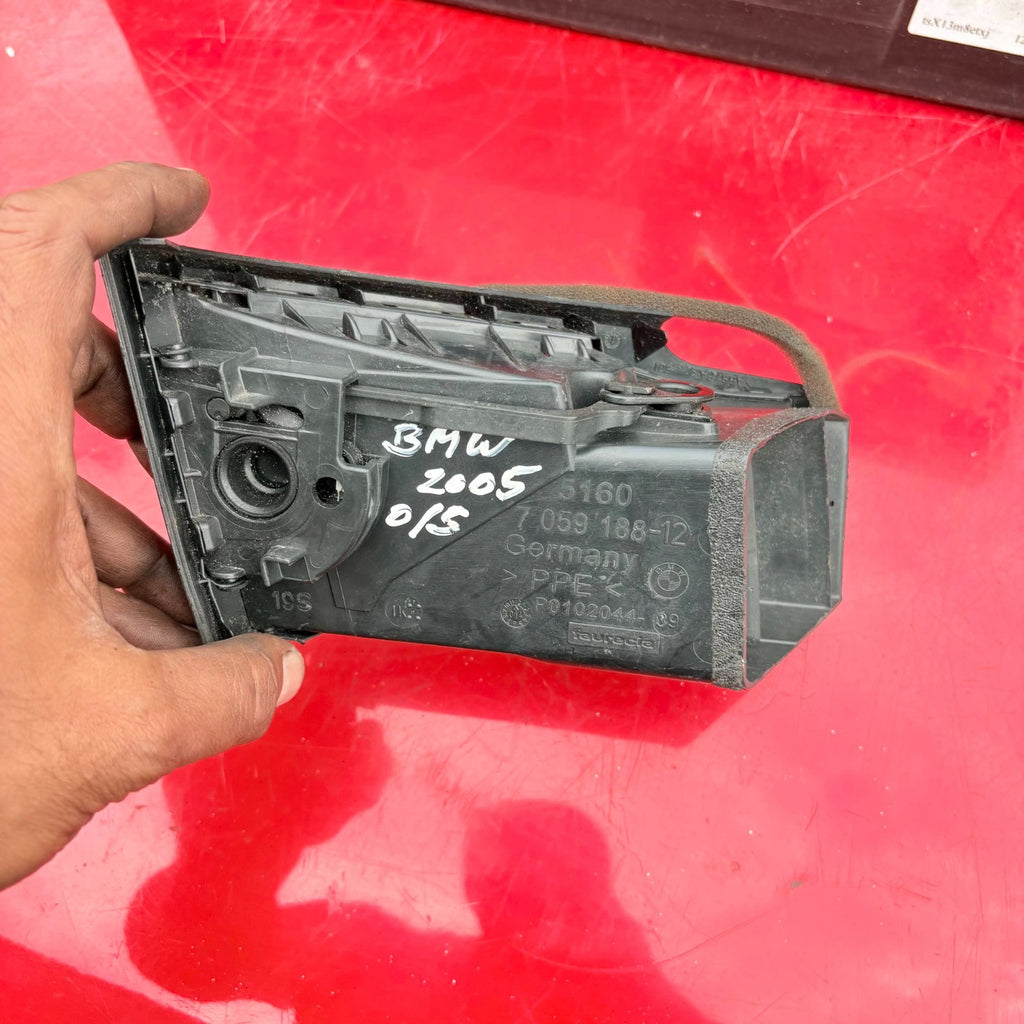

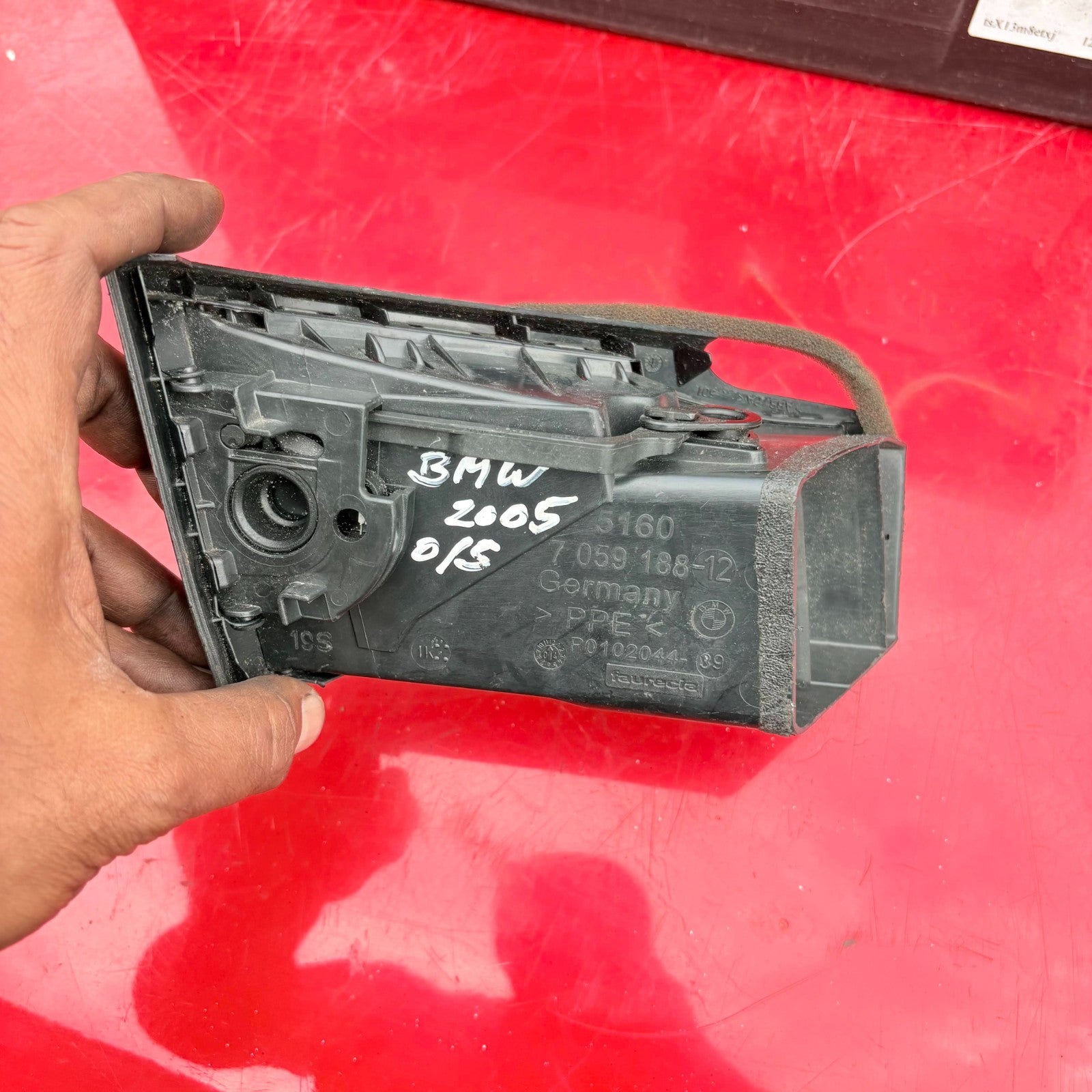

TECHNICAL LOCATION REFERENCE ONLY — use the actual product photographs and stamped numbers above for final identification.

• BMW F20 / F21 1 Series — later-generation dashboard architecture.
• Left-hand outer dashboard vent — this listing is for the physical RIGHT side.
• Centre dashboard ventilation assembly — this is not the centre vent unit.
• Similar-looking BMW dashboard vents carrying a different identification number should not be assumed compatible.
• Do not order where the rear duct profile or retaining geometry differs from the photographs.
• Do not assume that a generic automated vehicle compatibility result overrides a different number stamped on your existing component.

1. Switch the vehicle off and remove the key before beginning.
2. Protect the surrounding dashboard trim with a clean cloth or appropriate trim-safe protective tape.
3. Inspect the existing vent and identify the accessible retaining edges before applying leverage.
4. Insert a non-marring trim tool carefully around the edge of the existing vent housing.
5. Release the vent gradually around its perimeter rather than forcing one corner.
6. Withdraw the original vent squarely from the dashboard ventilation duct.

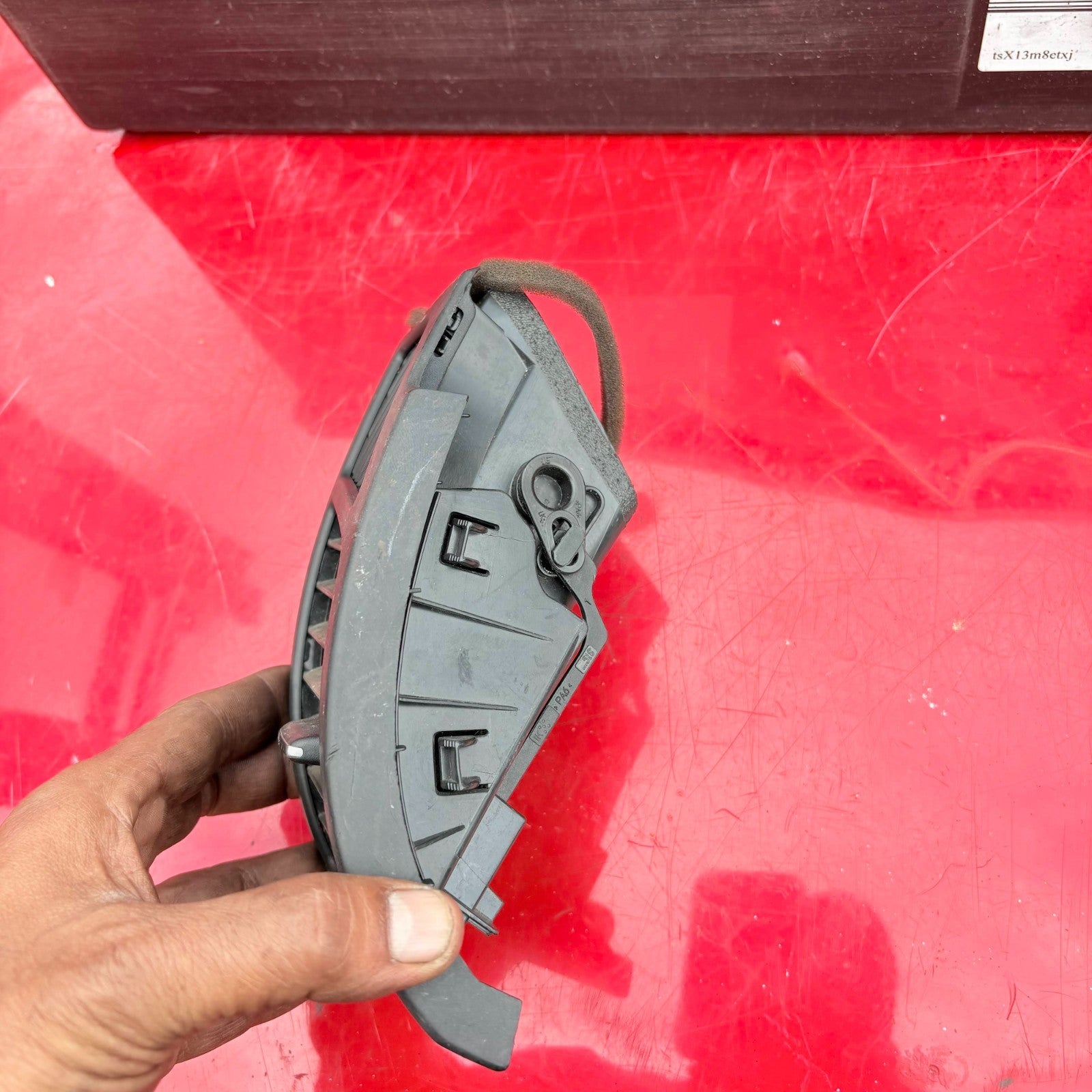

7. Compare the removed component directly against the replacement, including the rear housing, locating tabs, duct interface and identification number.
8. Confirm that the replacement perimeter seal is correctly positioned and has not folded underneath the housing.
9. Align the replacement vent squarely with the dashboard aperture and rear HVAC duct.
10. Apply even pressure around the assembly until all locating points are correctly seated.
11. Check that the trim gaps around the vent are even and that the housing feels secure.
12. Operate the louvres and manual airflow control, then run the cabin blower to confirm satisfactory operation.

Based on an illustrative 0.5-hour installation allowance:

Please inspect the photographs and compare the exact numbers before installation. Where possible, retain your original component until you have confirmed that the replacement is correct.

Returns are handled according to the return terms displayed by eBay for the listing.

If an eligible return comes back in a different condition, including where a component has been installed, altered, damaged or otherwise lost value, applicable eBay seller protections may permit a deduction of up to 50% from the refund to reflect the actual loss in value.

This is not an automatic restocking fee and any deduction is subject to the circumstances of the return and applicable eBay rules.
