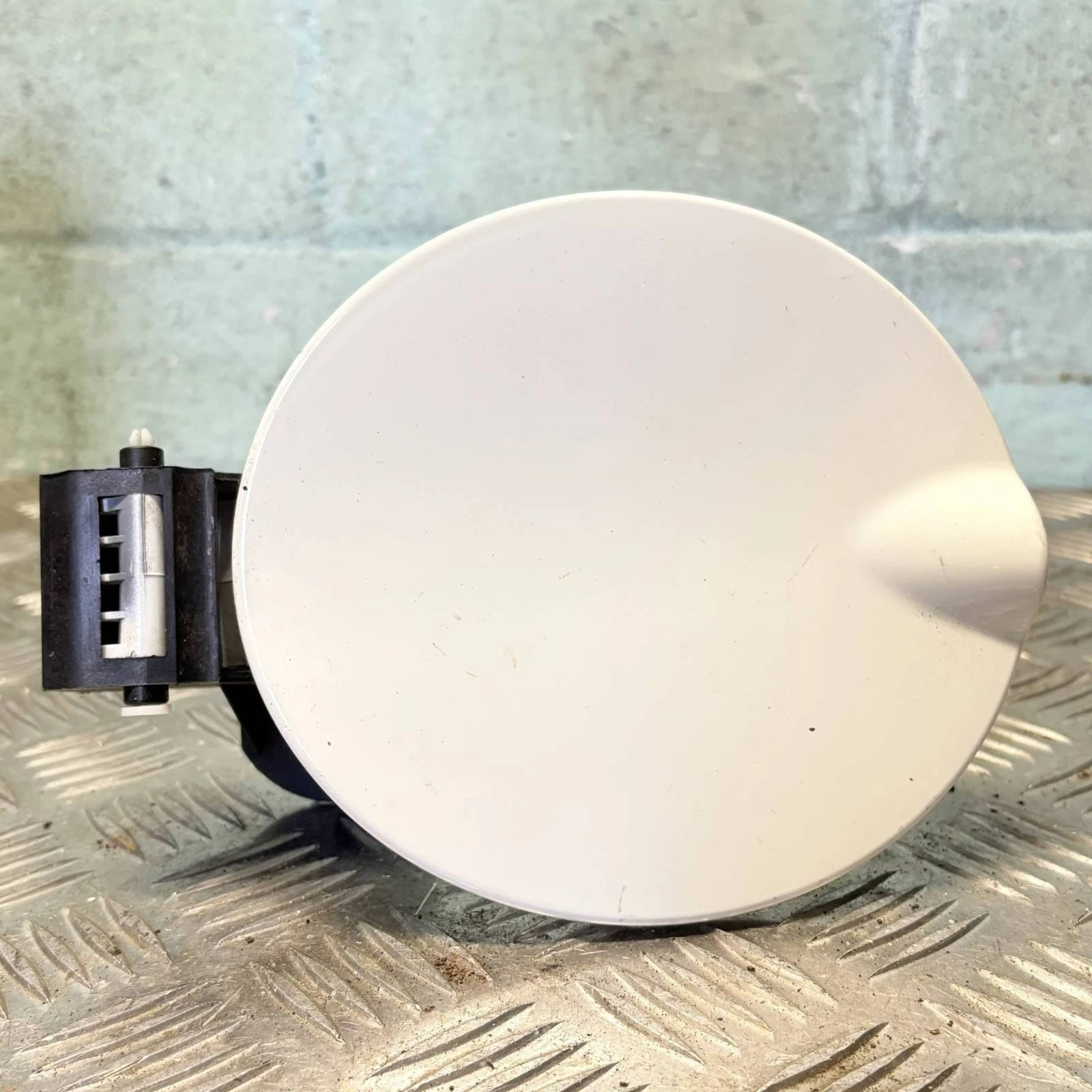

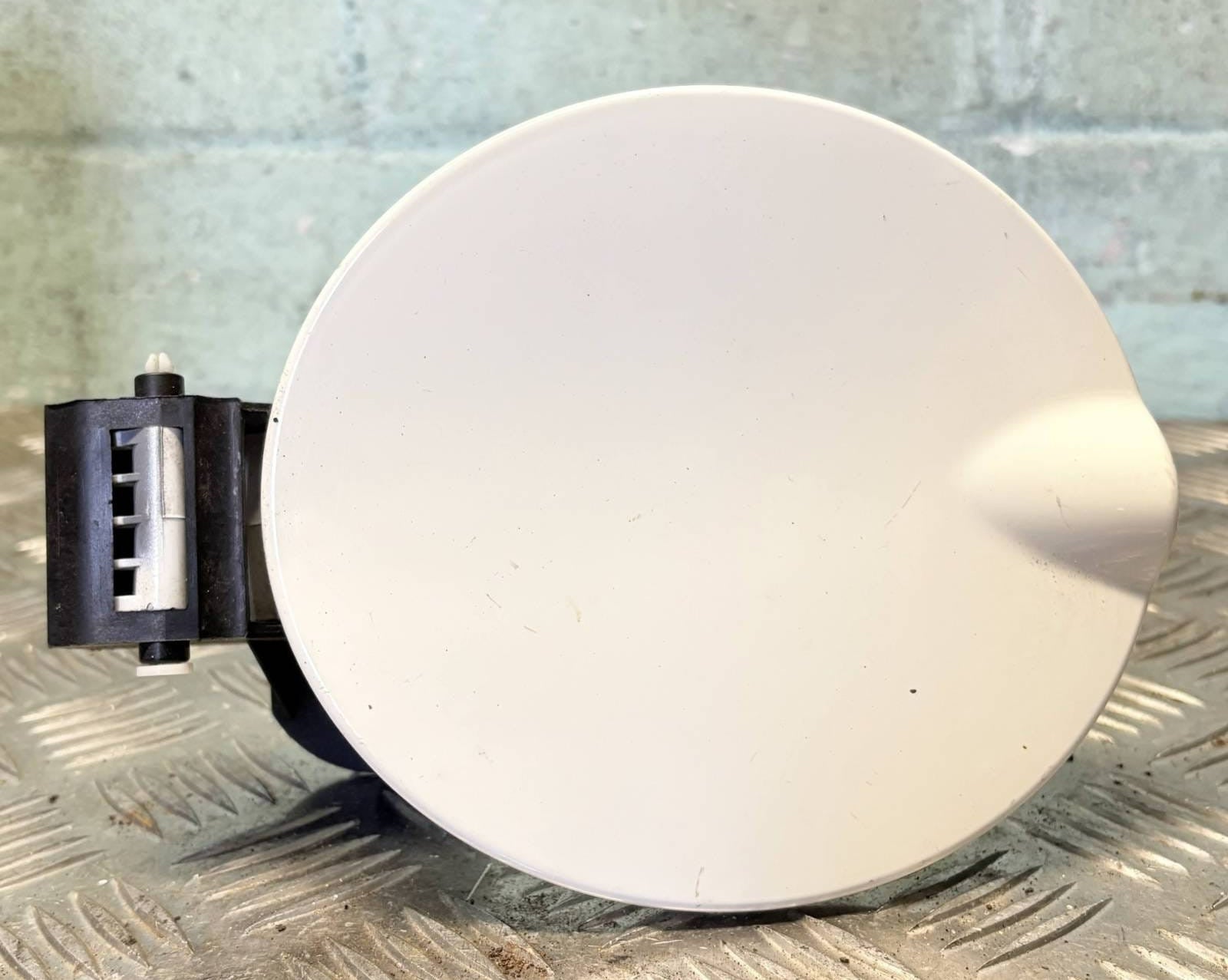

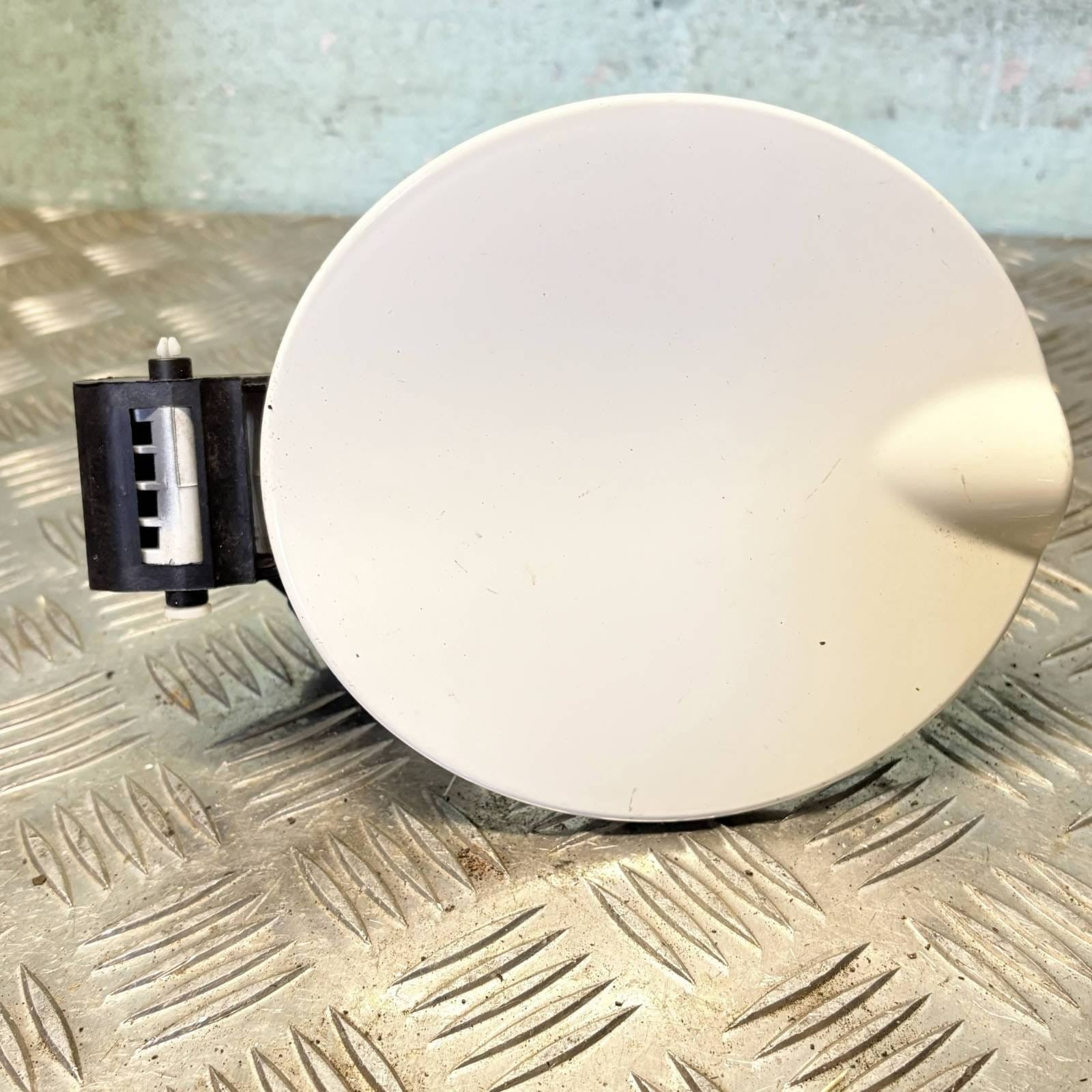

Actual Item Photographs

These photographs show the used part included in this listing.

THEPARTPILOT

THEPARTPILOT

THEPARTPILOT

Part Specification

Vehicle Compatibility

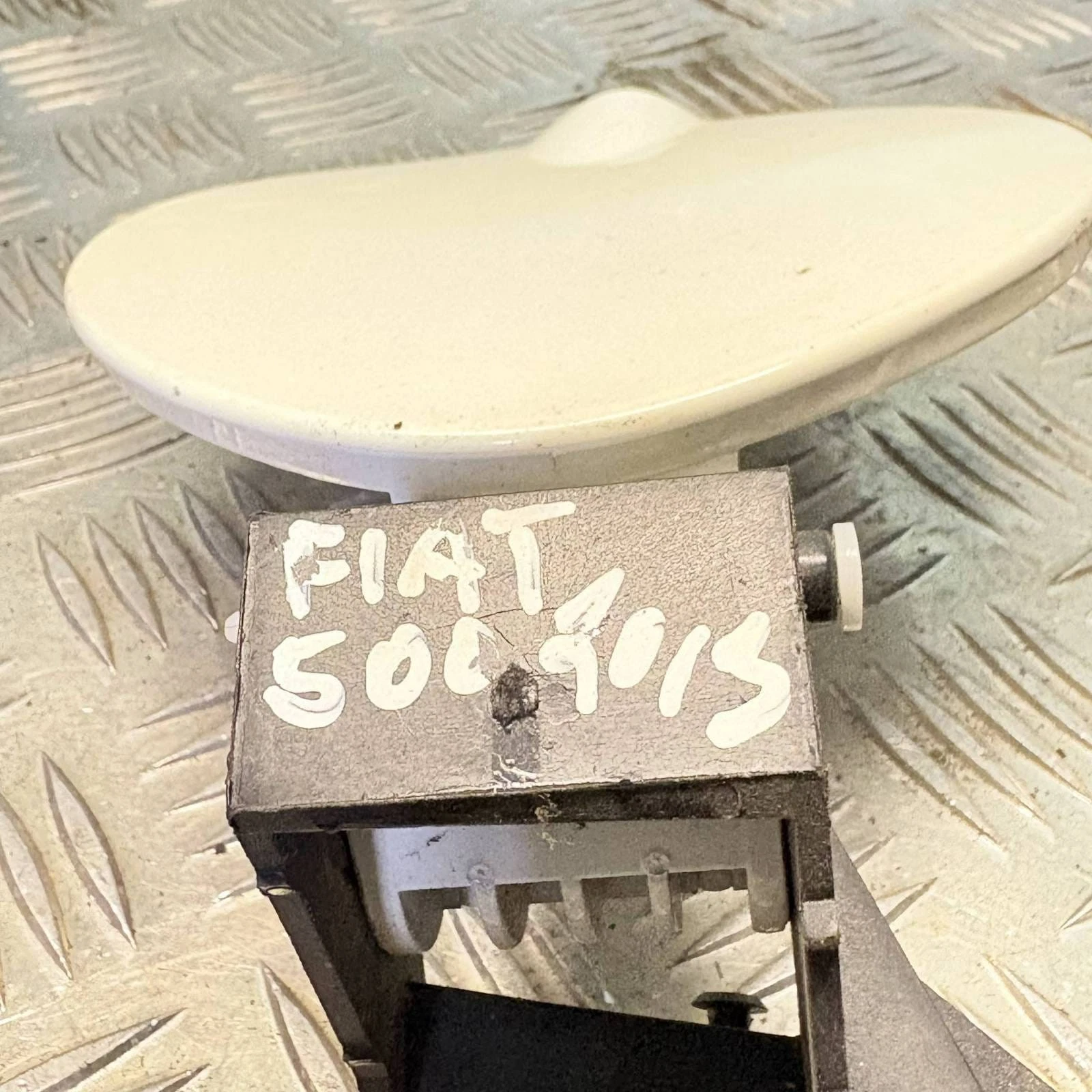

The part number and reverse hinge profile are the primary fitment checks. Model year alone is not sufficient.

This Part Will Not Fit

• New-shape electric Fiat 500 / 500e Type 332 introduced from 2020
• Fiat 500L
• Fiat 500X
• Classic rear-engined Fiat 500 models
• Any vehicle with a different hinge, latch, curvature or manufacturer reference
• A different paint colour unless the buyer intends to have the flap professionally repainted
• Left-side fuel-filler arrangements or unrelated vehicles where the flap merely looks similar

Confirm Fitment Before Ordering

Reference Vehicle and Fitting Location

Reference 3-door Fiat 500 Type 312 shown. The fuel flap is positioned on the vehicle’s right rear quarter panel.

Reference vehicle only — 3-door Fiat 500 Type 312

Right rear quarter / UK offside fuel-flap location

Reference vehicle photography: Pava, Milano / Wikimedia Commons — CC BY-SA 3.0 IT. Reference vehicle is not the donor vehicle.

What the Part Does

The fuel-filler flap provides the finished exterior cover over the fuel-cap and filler-neck opening. It helps protect the area from dirt, road spray and accidental contact while maintaining the correct body-panel appearance.

The outer flap itself does not pump fuel and normally does not create an engine warning light. The separate screw-on fuel cap provides the tank seal.

Common Reasons for Replacement

• Missing, cracked or impact-damaged outer flap
• Broken or worn hinge carrier
• Flap hangs loose, rattles or will not remain aligned
• Panel sits proud or catches when opened
• Paint is badly scratched, chipped or discoloured
• Previous repair has left the incorrect flap or hinge fitted

Why Choose an Original-Manufacturer Used Part?

Fitting Guidance

1. Park safely on level ground, switch off the ignition and secure the vehicle.
2. Protect the painted quarter-panel edge with low-tack masking tape.
3. Open the flap and inspect the hinge and fastener arrangement before dismantling.
4. Where rear access is restricted, remove the right rear wheel and loosen or remove the relevant wheel-arch liner section.
5. Release the hinge or retaining fasteners using the correct Torx bit or socket. Do not force an incorrect tool size.
6. Remove the old assembly carefully and retain reusable original fixings if replacements are not supplied.
7. Place both parts side by side and compare the hinge, latch, curvature and mounting points.
8. Install the replacement, initially leaving fasteners slightly loose so the flap can be aligned flush with the body.
9. Tighten evenly without overtightening plastic components.
10. Open and close the flap several times, check clearance and refit the liner and wheel correctly.

Suggested Tools

• Vehicle lift or jack and correctly positioned axle stand
• Wheel brace and locking-wheel-nut key where fitted
• Torx bit set and small socket/ratchet set
• Plastic trim-removal tool
• Small screwdriver and inspection light
• Low-tack masking tape
• Protective gloves and eye protection

Estimated fitting time: approximately 20–45 minutes for an experienced technician, depending on access, liner removal, corrosion and previous repairs.

Static Garage Labour Calculator

Multiply the garage hourly rate by the actual labour time. This table works without JavaScript or other active content.

Estimates exclude the part, paintwork, diagnostics, seized fixings, additional repairs, taxes and any garage minimum-charge policy.

Fitting Service

A professional fitting service may be available subject to workshop capacity, vehicle inspection and prior arrangement. Contact us through eBay Messages before travelling or purchasing fitting.

Dispatch, Delivery and Address Information

• Tracked dispatch service according to the delivery option shown in the listing
• International delivery through eBay’s Global Shipping Programme to eligible destinations displayed at checkout
• International postage, import charges and destination availability are calculated or controlled by eBay where applicable
• Collections may be available by appointment through eBay Messages
• We can only dispatch to the address supplied at eBay checkout. The address cannot be changed after purchase.

Returns and Condition

Please confirm fitment before purchase and do not paint, modify, dismantle or force-fit the item until compatibility has been established.

Returns are handled in accordance with the return settings shown on the listing and eBay’s applicable buyer and seller policies. Any permitted deduction can only be considered where an item is returned in a materially different condition—for example used, damaged, incomplete, altered or missing supplied components.

Selecting a return reason does not replace the need to return the correct supplied item securely packaged and in its received condition.

Supporting a Local Small Business 🌍♻️

Purchasing a quality used vehicle part supports a local independent business while helping extend the useful life of an existing component. Reusing serviceable parts reduces avoidable manufacturing demand, packaging waste and the number of usable components sent for recycling or disposal.

Buy by part number, photographs and confirmed vehicle details—not appearance alone.

THEPARTPILOT branding is displayed for listing identification and image protection. Vehicle manufacturer names are used only to describe compatibility.
