FIAT PANDA MK2 / TYPE 169
Front Right Electric Window Switch
Catalogue cross-reference: 735360837 | UK RHD: Driver / OSF
⚠️ CHECK BEFORE ORDERING
This is the RIGHT-HAND front window switch for the old-shape Fiat Panda Mk2 / Type 169. On a UK right-hand-drive car, it controls the driver-side / offside-front window. Match your old switch to the actual-item photographs, the single-rocker face, clipped casing and connector before purchase.
Do not order by registration year alone: during 2012, both old-shape Panda 169 vehicles and new-shape Panda 312/319 vehicles may be registered. This listing is for the old-shape 169 / Panda Classic only.

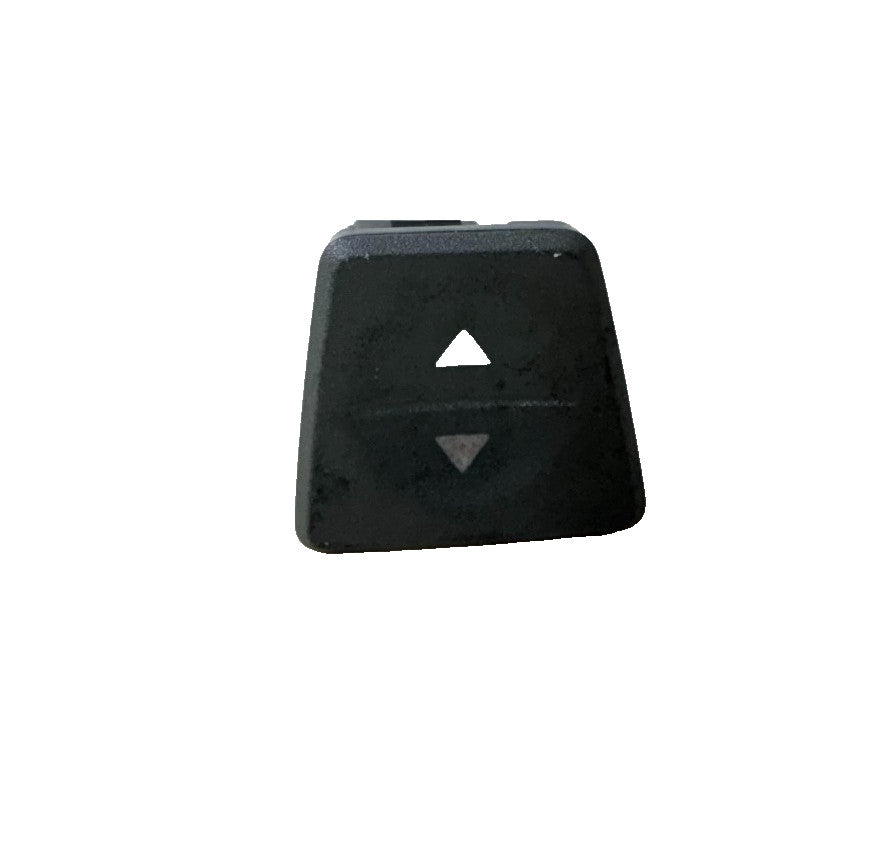

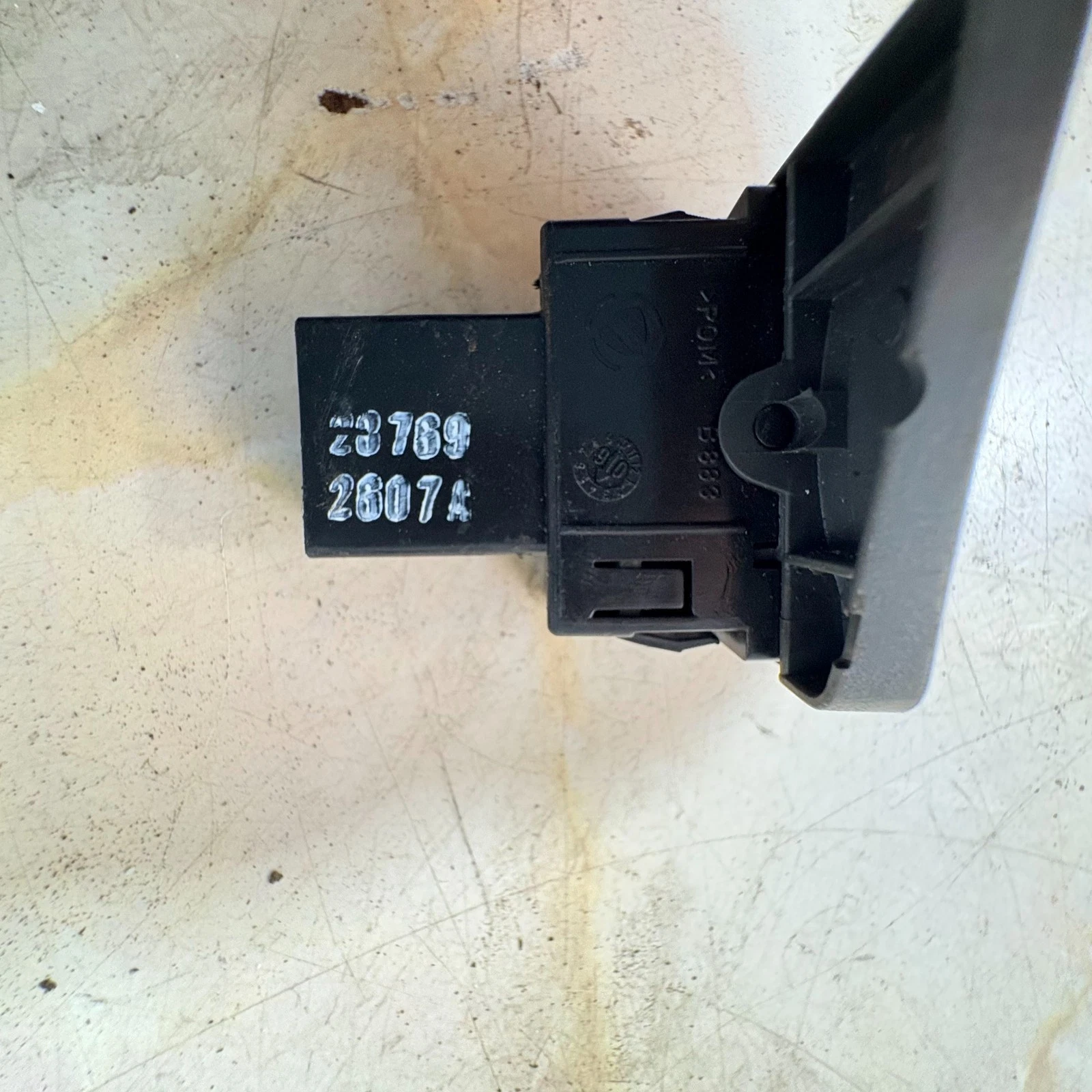

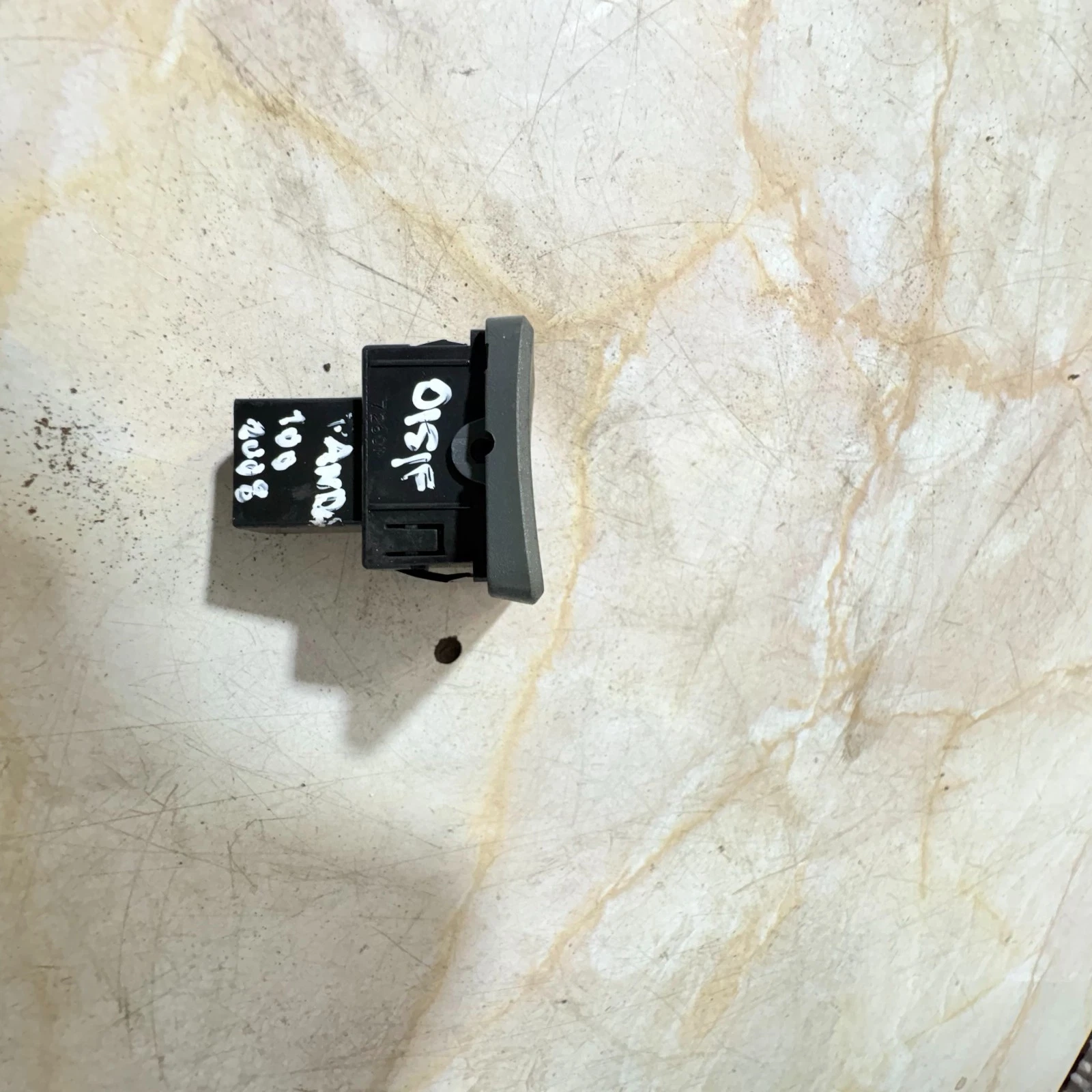

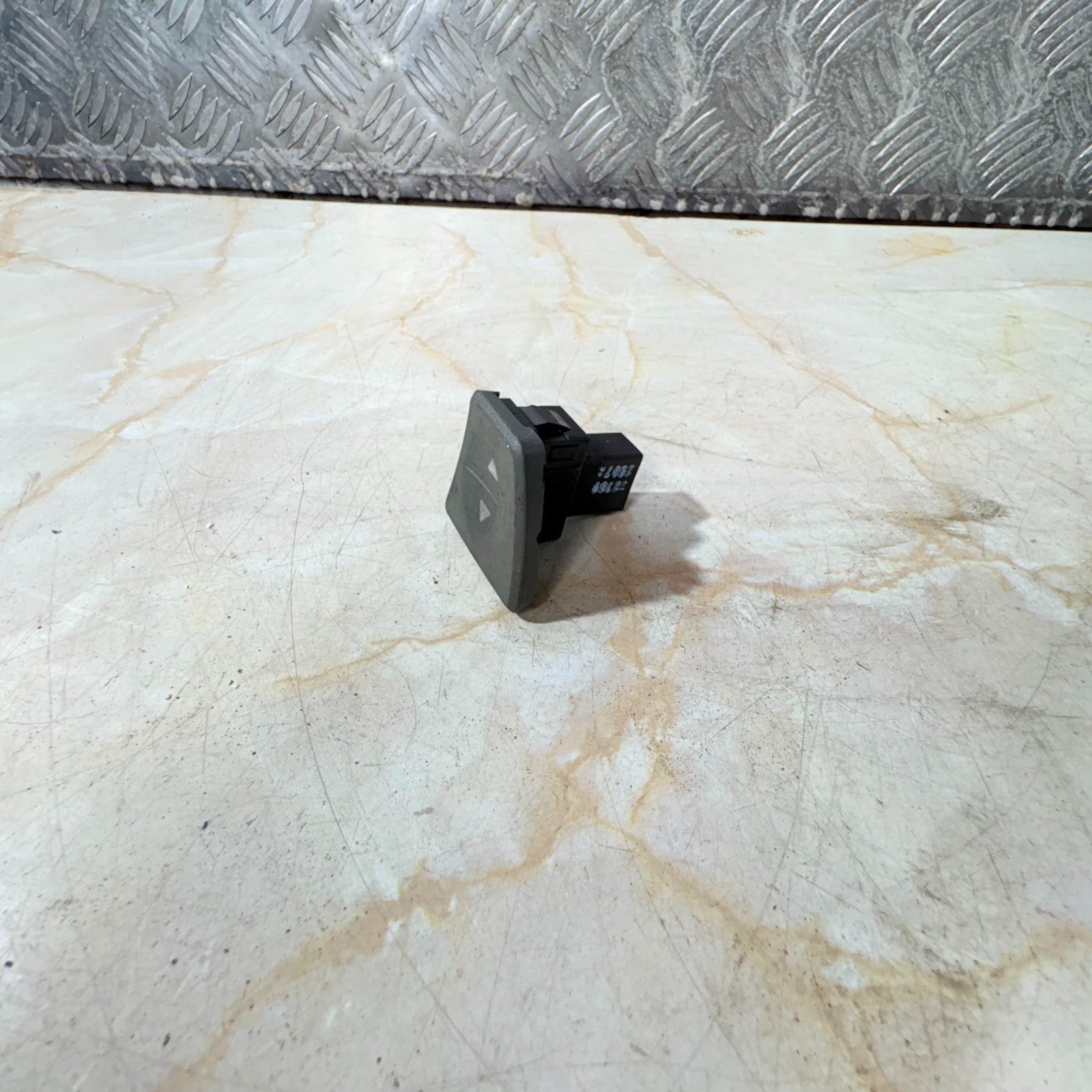

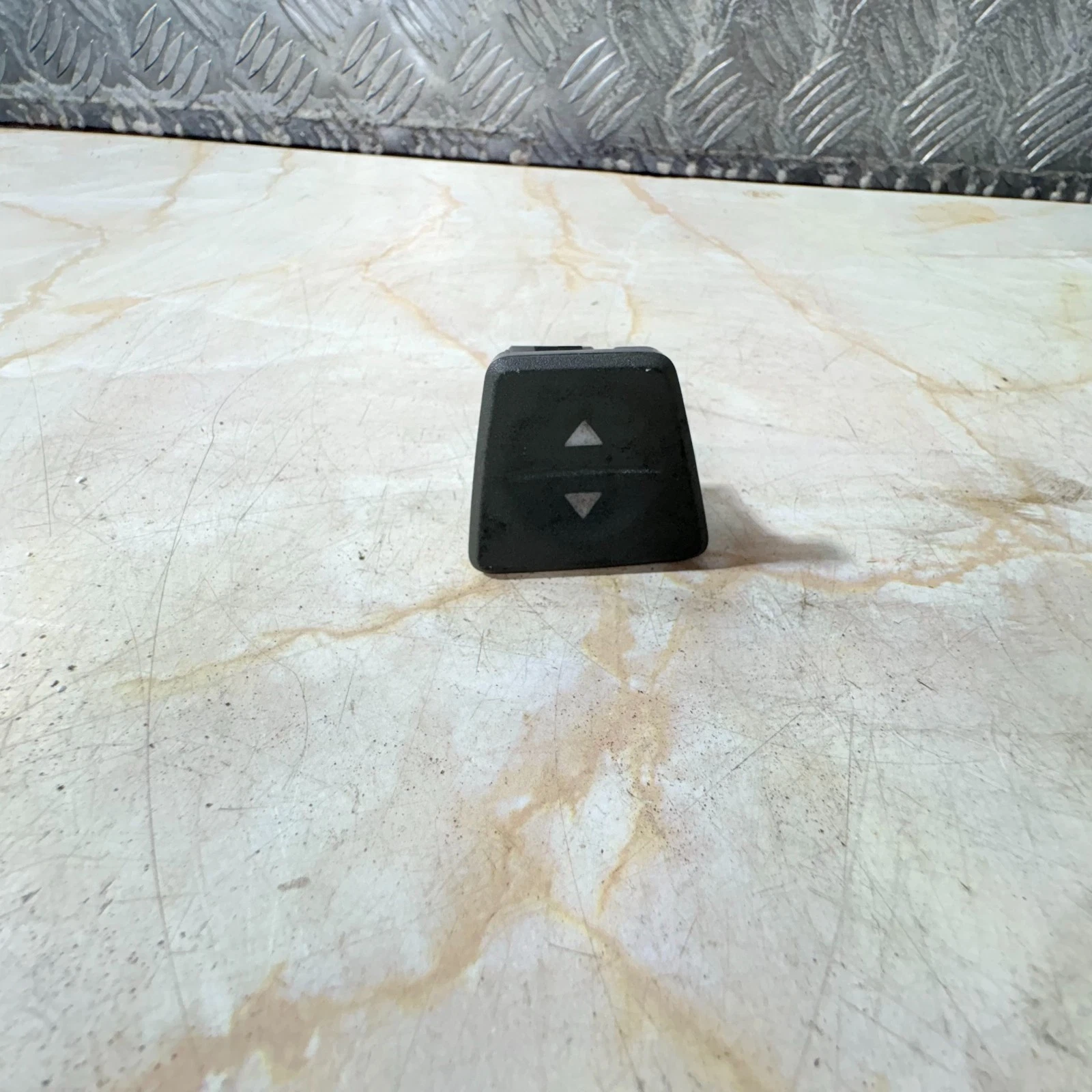

ACTUAL ITEM PHOTOGRAPHS
THEPARTPILOT
THEPARTPILOT
THEPARTPILOT
THEPARTPILOT
The photographs above show the used item supplied. Expect normal age-related marks consistent with a used interior electrical component.
PART SPECIFICATION
| Part type |
Electric window control switch |
| Catalogue number |
735360837 — right-hand switch |
| Opposite-side number |
735360836 — left-hand switch; not supplied |
| Vehicle position |
Front right window control; lower centre console / dashboard |
| UK side description |
Driver side / offside front / OSF on UK RHD vehicles |
| Connector specification |
4-pin electrical specification — compare connector shape and locking tab |
| Controls |
Front-right electric window up/down command |
| Mounting |
Clipped / push-fit into trim panel |
| Housing material |
Moulded automotive plastic |
| Colour |
Black / dark grey; check photographs for exact shade and wear |
| Electrical system |
12-volt vehicle system |
| Condition |
Used — actual item shown |
| Universal fitment |
No |
The catalogue number is a researched cross-reference for this switch type. The original listing photographs do not display a clearly readable full catalogue number, so buyers must also match the face, connector, clip arrangement and fitted position.
EXACT VEHICLE COMPATIBILITY
| Make / model |
Generation / body |
Years |
Fitment requirement |
| Fiat Panda |
Mk2 / Type 169, 5-door hatchback |
2003-2008 |
Front electric windows; right-hand single switch; matching connector |
| Fiat Panda |
Type 169 MY2009, 5-door hatchback |
2009-2010 |
Front electric windows; right-hand single switch; matching connector |
| Fiat Panda |
Type 169 MY2011, 5-door hatchback |
2010-2011 |
Front electric windows; right-hand single switch; matching connector |
| Fiat Panda Classic |
Type 169 old-shape, 5-door hatchback |
2012 |
Old-shape 169 only; front electric windows; matching right-hand switch |
Compatible engine and trim families may include 1.1 petrol, 1.2 petrol, 1.3 Multijet diesel, 1.4 100HP, 4x4, Cross and Natural Power variants, but only where the vehicle has factory front electric windows and the same right-hand switch and connector. Engine size alone does not confirm fitment.
No separate vehicle model outside the Fiat Panda Type 169 family has been safely confirmed for this exact switch. It is better to exclude uncertain cross-fitment than create a wrong order.
THIS PART WILL NOT FIT
| Fiat Panda III / Type 312 or 319 |
New-shape model introduced around 2012 onward — different switch family |
| Fiat Panda I / Type 141 |
Earlier-generation vehicle |
| Left-hand front switch |
Left switch is catalogue number 735360836 |
| Manual-window vehicles |
No electric switch circuit fitted |
| Different plug or switch face |
Do not modify wiring or force the switch into the trim |
| Fiat 500, Punto or Grande Punto |
Not confirmed for this exact switch; do not buy by visual similarity |
CORRECT VEHICLE & FITTED LOCATION
Reference vehicle: Fiat Panda 100HP, Type 169, 5-door. Photo: Rutger van der Maar, CC BY 2.0, via Wikimedia Commons.
Reference location: switches sit low on the centre console beside the gear lever. This reference interior is LHD. Photo: Rudolf Stricker, via Wikimedia Commons.
The switch sends the up/down command for the front-right electric window. On UK RHD cars, the right-hand switch operates the driver-side / OSF window. The same right-front component specification is catalogued for both left-hand-drive and right-hand-drive applications.
COMMON FAULT SYMPTOMS
• Front-right window works intermittently
• Window responds only when the rocker is pressed hard or moved
• One direction works but the other does not
• Rocker is sticky, cracked, loose or physically worn
• No up/down command from the right-hand switch
• Electrical contact is inconsistent after repeated use
Diagnostic note: a blown fuse, damaged wiring, corroded connector, failed window motor or faulty regulator can cause similar symptoms. Confirm the switch is the fault before replacing parts.
WHY CHOOSE A MATCHED USED FACTORY-FIT COMPONENT?
A correctly matched factory-fit component is designed around the vehicle's existing connector, clip position, trim opening and electrical command system. Confirming the catalogue number and physical layout reduces the risk of loose mounting, connector mismatch, poor switch feel or unnecessary wiring alterations.
Buying a serviceable used component can also cost substantially less than buying new while keeping an existing part in useful circulation. The exact saving varies by part, availability and current new-retail price. As this is used, cosmetic wear and previous service life should be expected and assessed from the actual photographs.
FITTING GUIDE
Required tools
• Plastic trim-removal tool
• Small non-marring pick or flat trim tool
• Torch
• Optional multimeter for diagnosis
• Optional 10 mm spanner if battery isolation is required
Estimated replacement time
15-30 MINUTES
Approximate labour allowance: 0.25-0.50 hour. Diagnosis, seized trim, damaged wiring or previous repairs can increase the time.
1. Park safely, switch the ignition off and remove the key.
2. Follow the vehicle workshop procedure. Disconnect the negative battery terminal only where required, allowing for radio codes and stored settings.
3. Protect the surrounding centre-console trim with a clean cloth or tape.
4. Use a plastic trim tool to release the right-hand switch from the lower centre-console aperture. Do not lever aggressively against brittle trim.
5. Depress the connector locking tab and unplug the old switch without pulling on the wires.
6. Compare the old and replacement switch: right-hand position, face shape, clip profile, connector body and 4-pin specification.
7. Connect the replacement, test both up and down functions, then press the switch evenly into the trim until the clips seat.
8. Reconnect the battery where applicable and confirm normal window operation.
Safety: this guide is general information, not a substitute for manufacturer workshop instructions. Use a competent automotive technician where diagnosis or fitting is uncertain.
STATIC GARAGE LABOUR ESTIMATOR
Estimated labour cost = garage hourly rate × 0.25 to 0.50 hour. This table is static and uses no active content.
| Garage rate |
15 minutes |
30 minutes |
Estimated range |
| £40/hour |
£10.00 |
£20.00 |
£10.00-£20.00 |
| £50/hour |
£12.50 |
£25.00 |
£12.50-£25.00 |
| £60/hour |
£15.00 |
£30.00 |
£15.00-£30.00 |
| £75/hour |
£18.75 |
£37.50 |
£18.75-£37.50 |
| £90/hour |
£22.50 |
£45.00 |
£22.50-£45.00 |
| £120/hour |
£30.00 |
£60.00 |
£30.00-£60.00 |
Illustrative labour only. Garage minimum charges, diagnosis, VAT, extra repairs and local rates may alter the final cost.
FITTING & REPAIR SUPPORT
Illustrative stock image — not ThePartPilot's premises. Photo: Artem Podrez / Pexels.
Fitting service available subject to availability
Fitting may be available by prior arrangement. Please contact us through eBay Messages before travelling or purchasing fitting-related services so availability, vehicle details and expected labour can be confirmed.
Collections may be available by appointment. Use eBay Messages for collection instructions and confirmation before setting off.
HOW TO CONFIRM FITMENT FIRST TIME
1. Vehicle: confirm it is the old-shape Fiat Panda Mk2 / Type 169, 5-door.
2. Position: confirm you need the right-hand switch — UK driver / OSF.
3. Number: compare catalogue number 735360837 where available. Do not confuse it with left switch 735360836.
4. Connector: compare the plug body, 4-pin specification, locking tab and wire-side socket.
5. Face and clips: compare the single rocker, outer trim shape and mounting clips with the actual-item photos.
Still unsure? Send your registration, VIN and a clear photo of the old switch and connector through eBay Messages before ordering. Fitment assistance is based on the information and images supplied.
