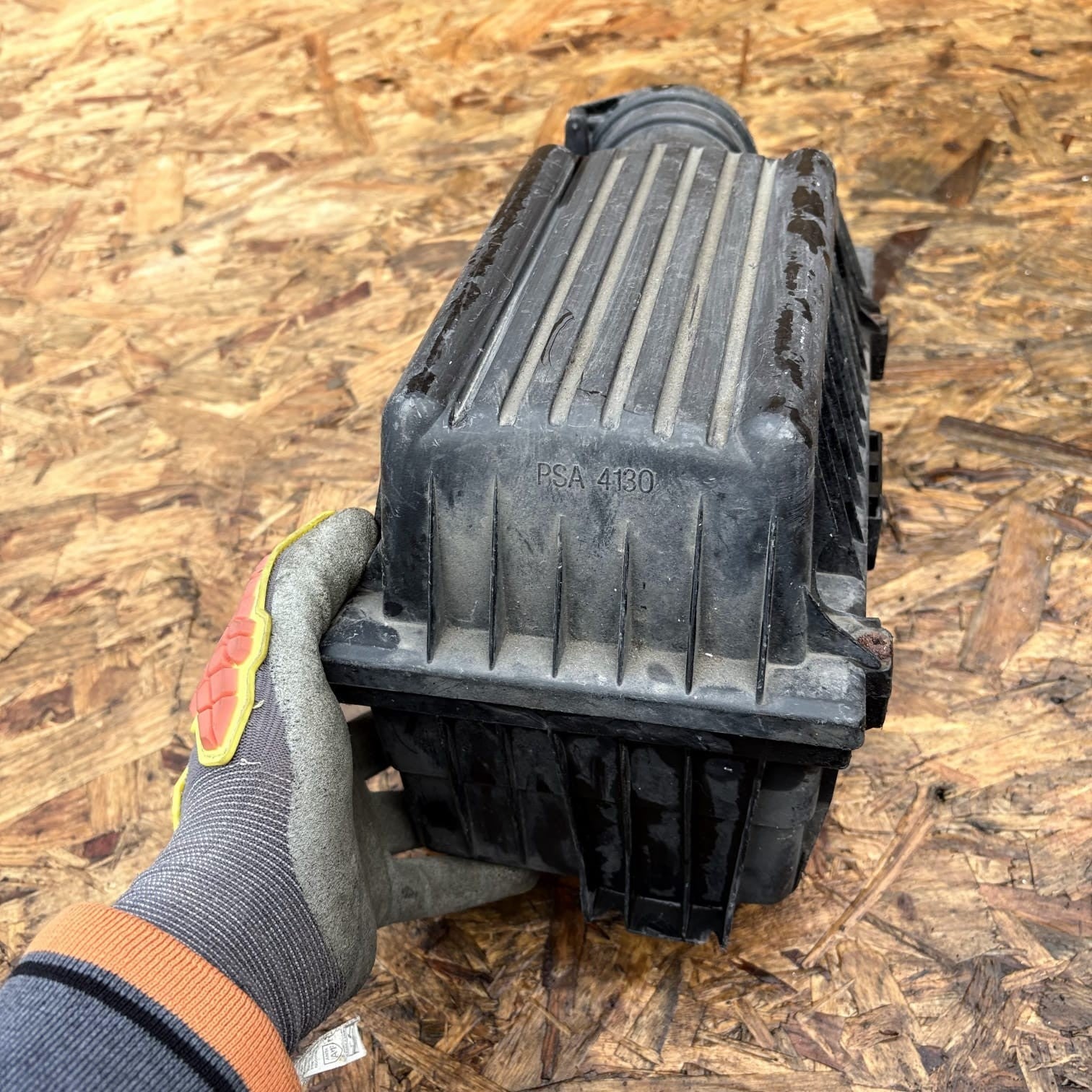

Fiat Scudo 220 2.0 JTD Air Filter Box 9632144780 9629899480 DW10TED
Fiat Scudo 220 2.0 JTD Air Filter Box 9632144780 9629899480 DW10TED

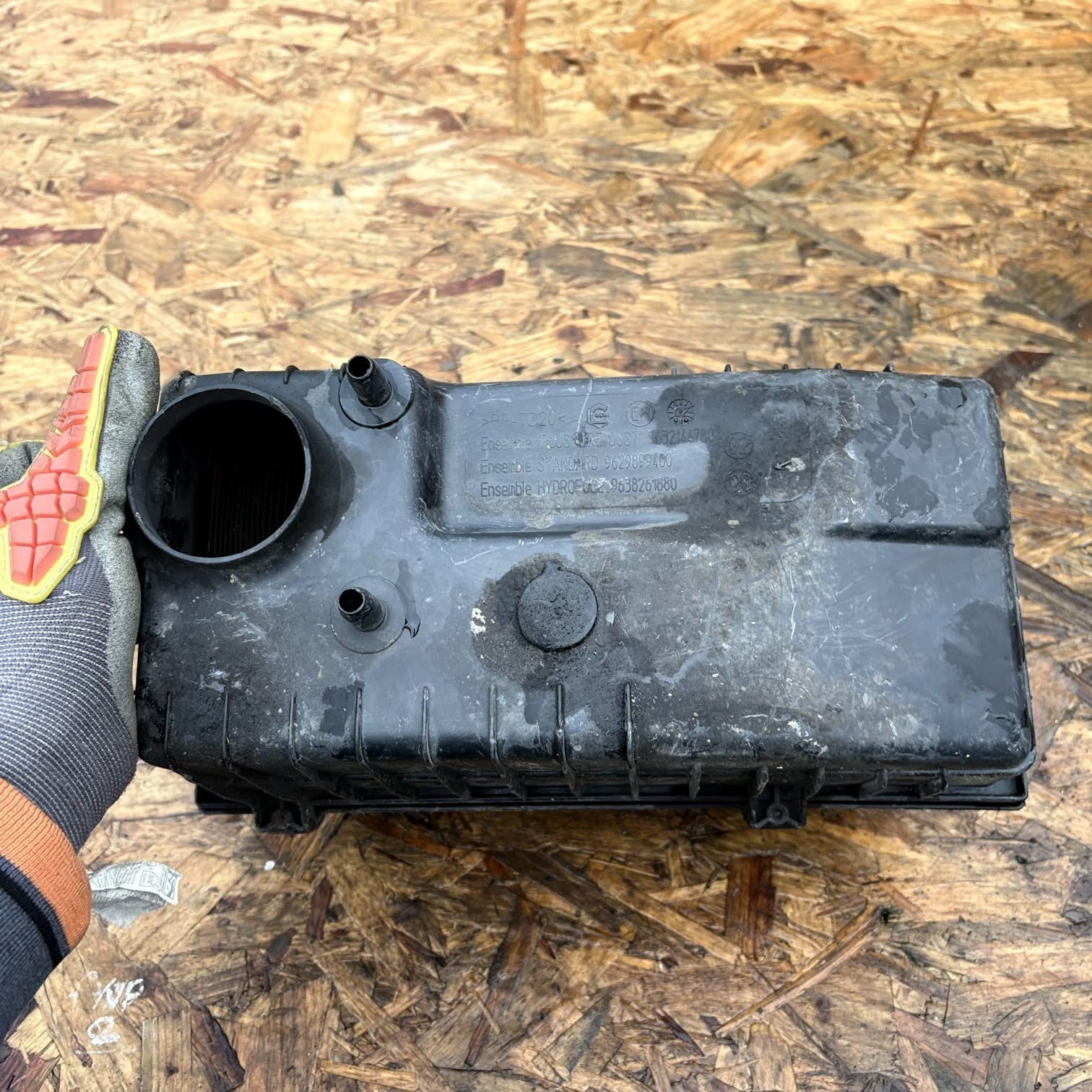

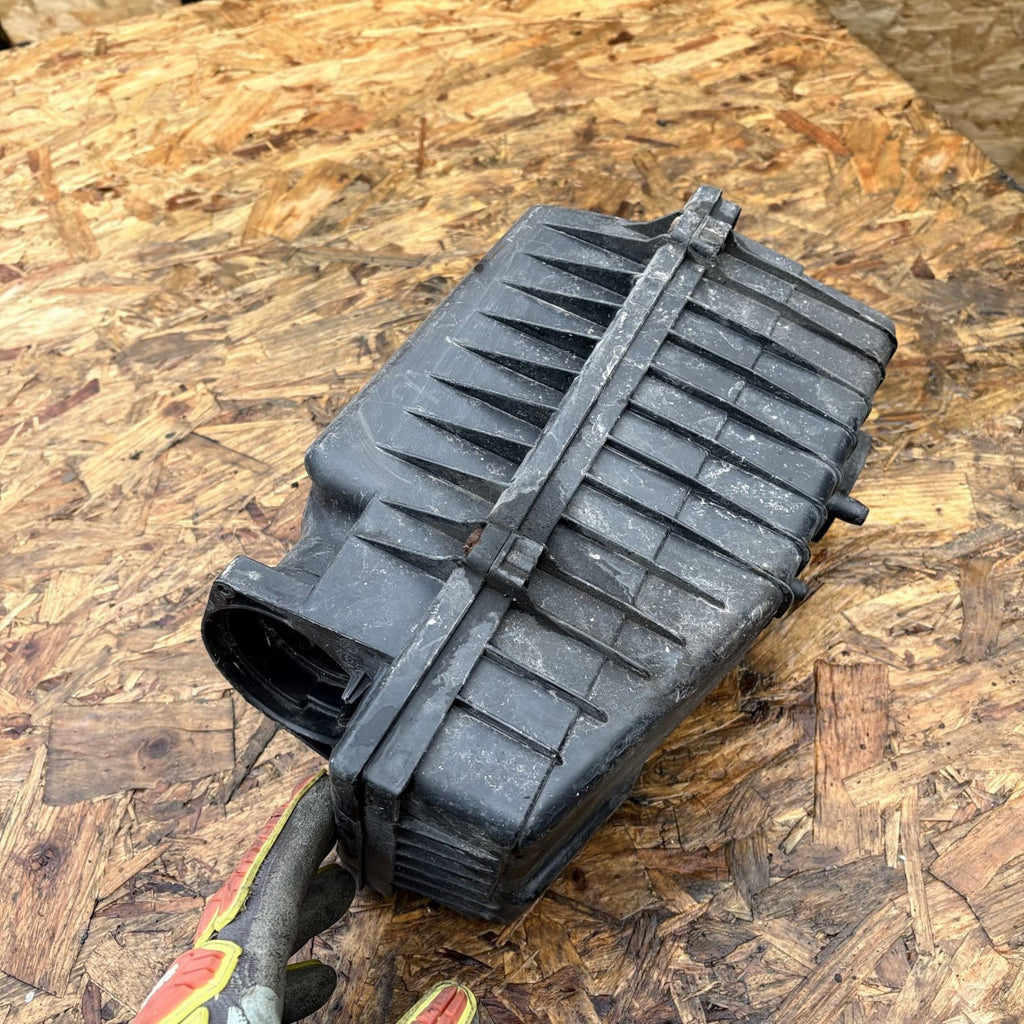

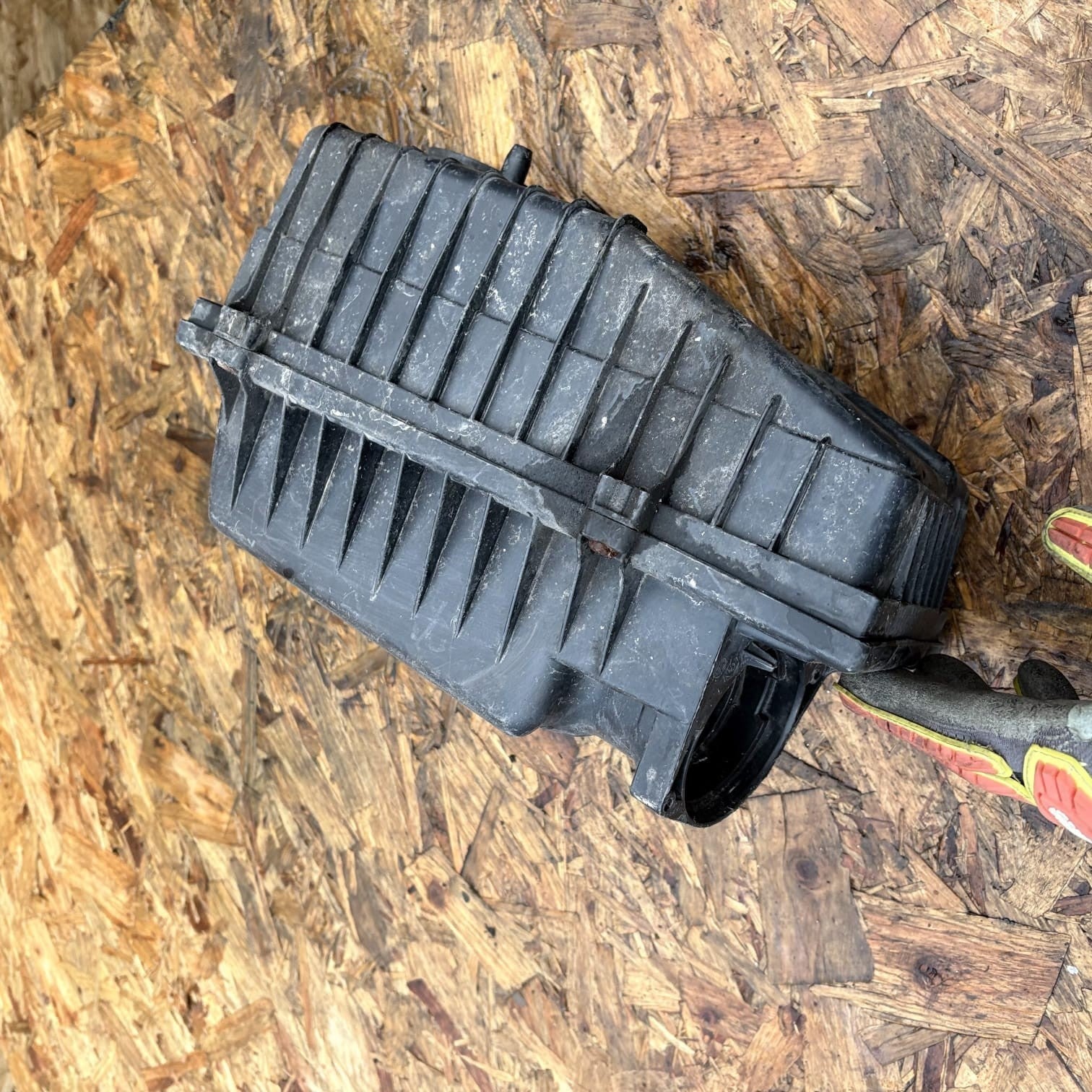

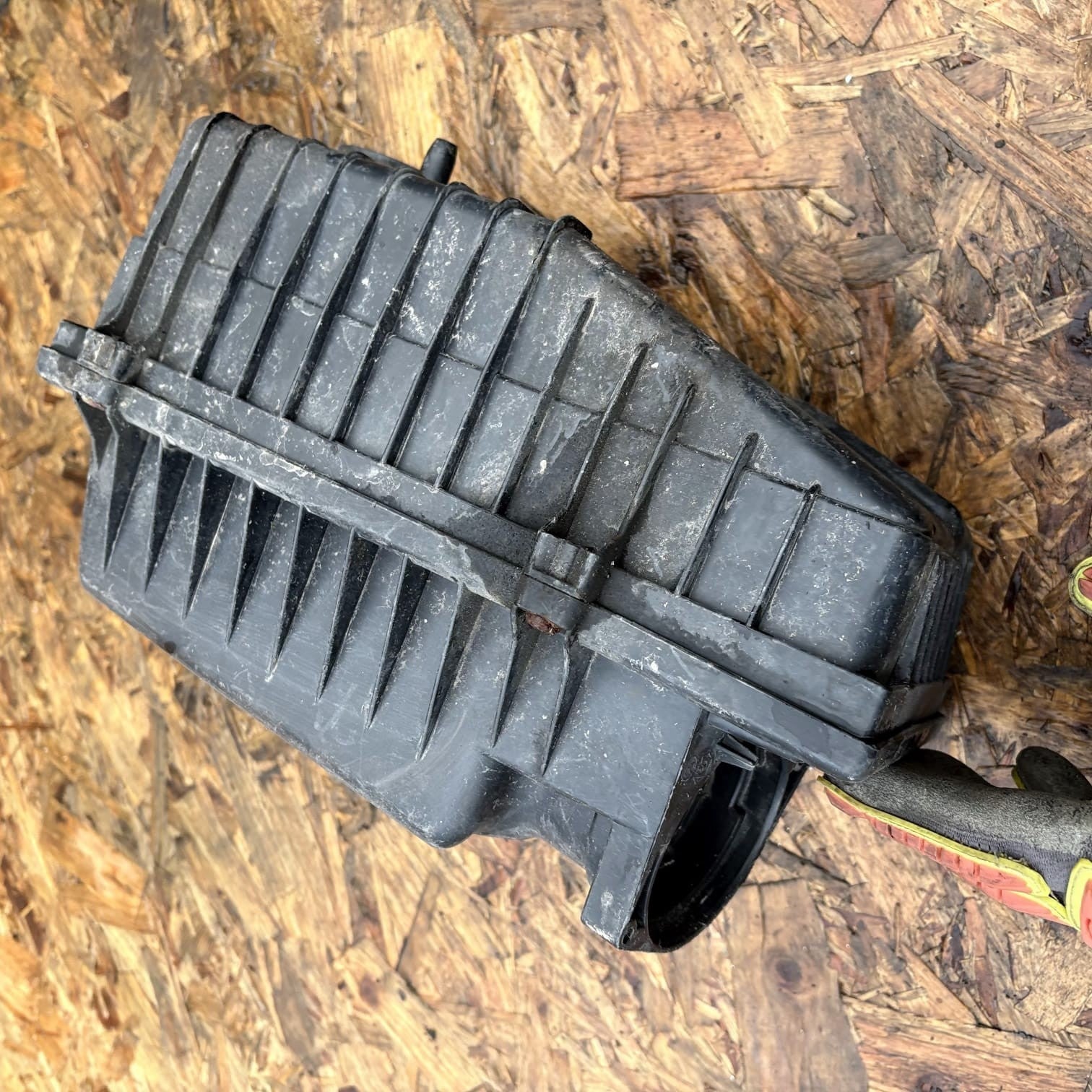

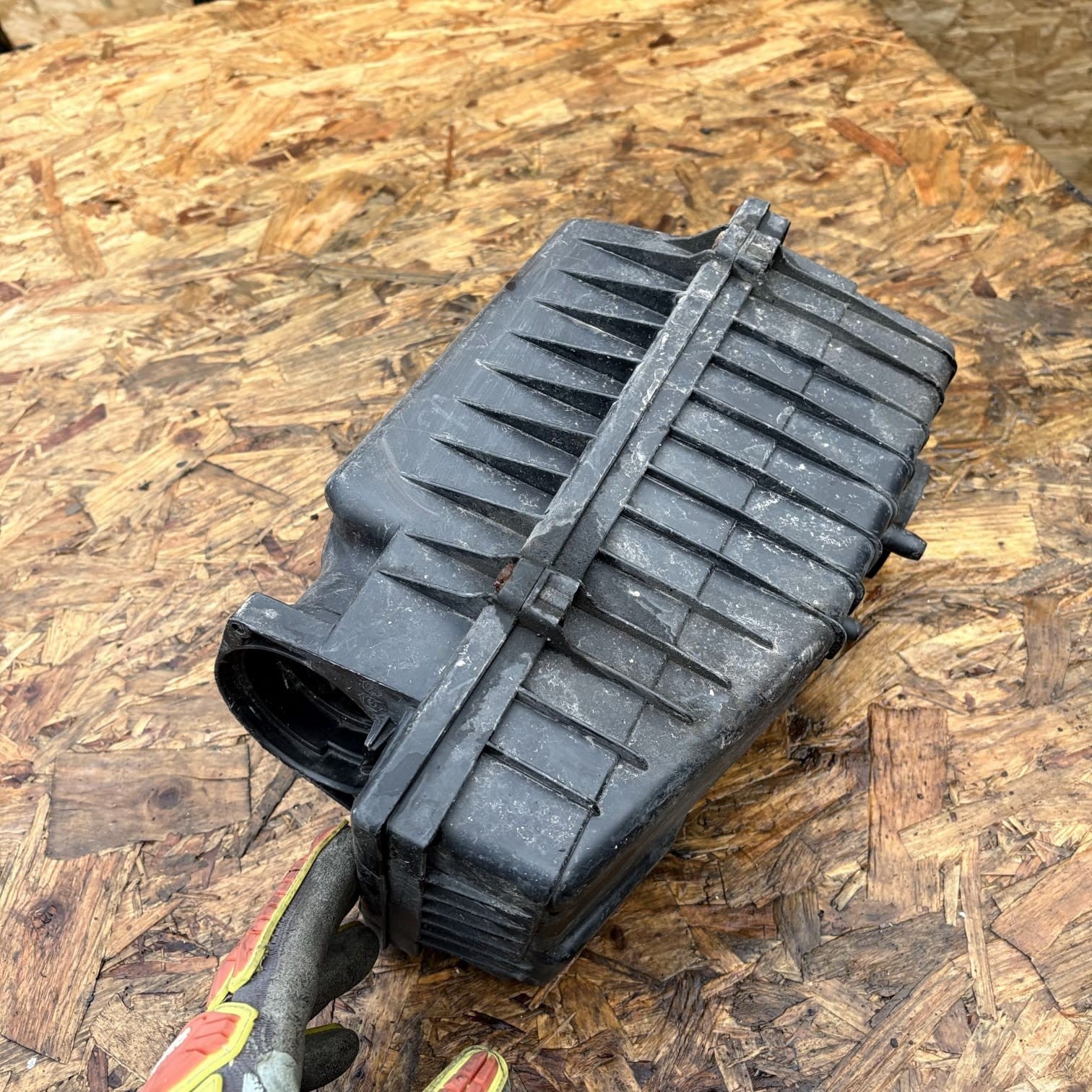

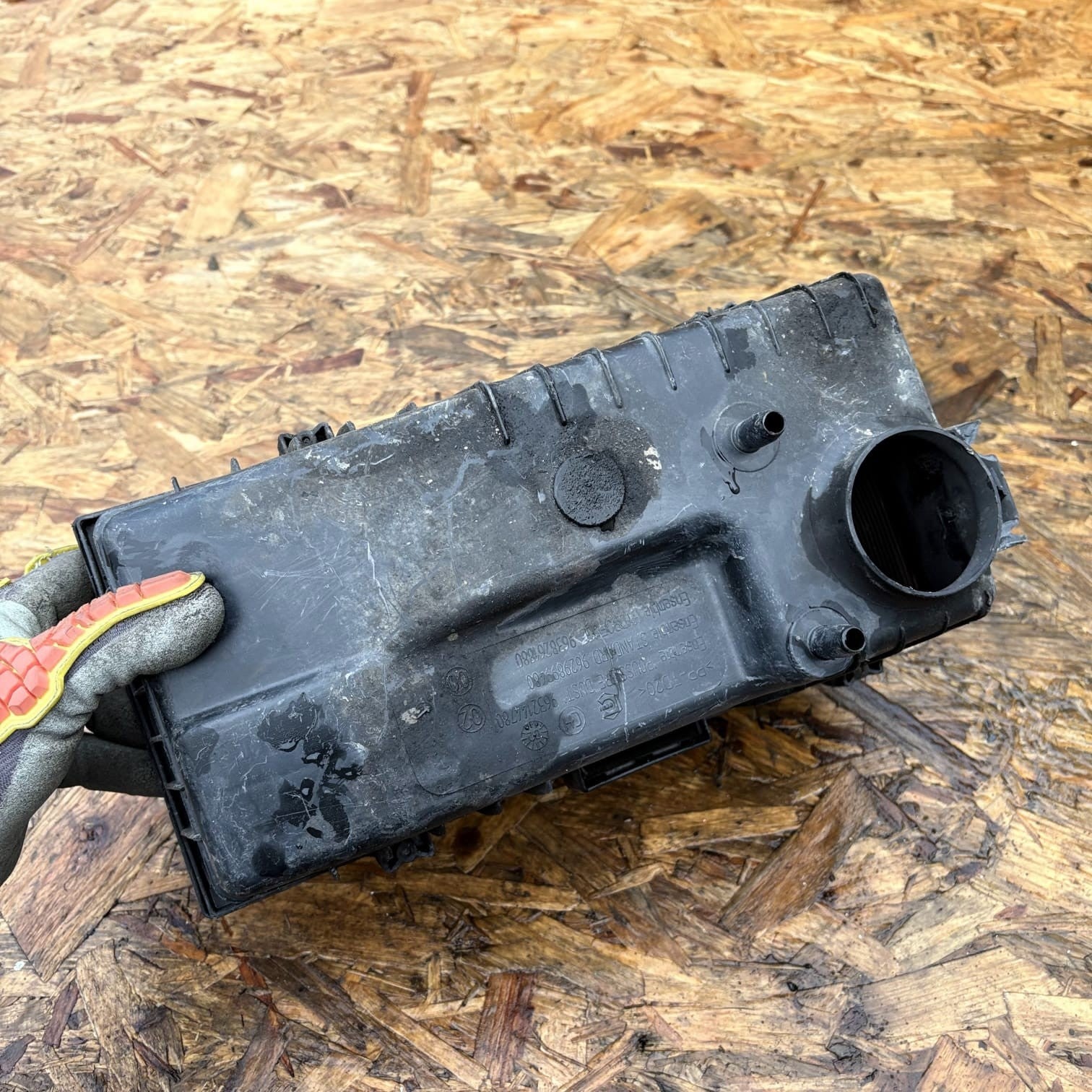

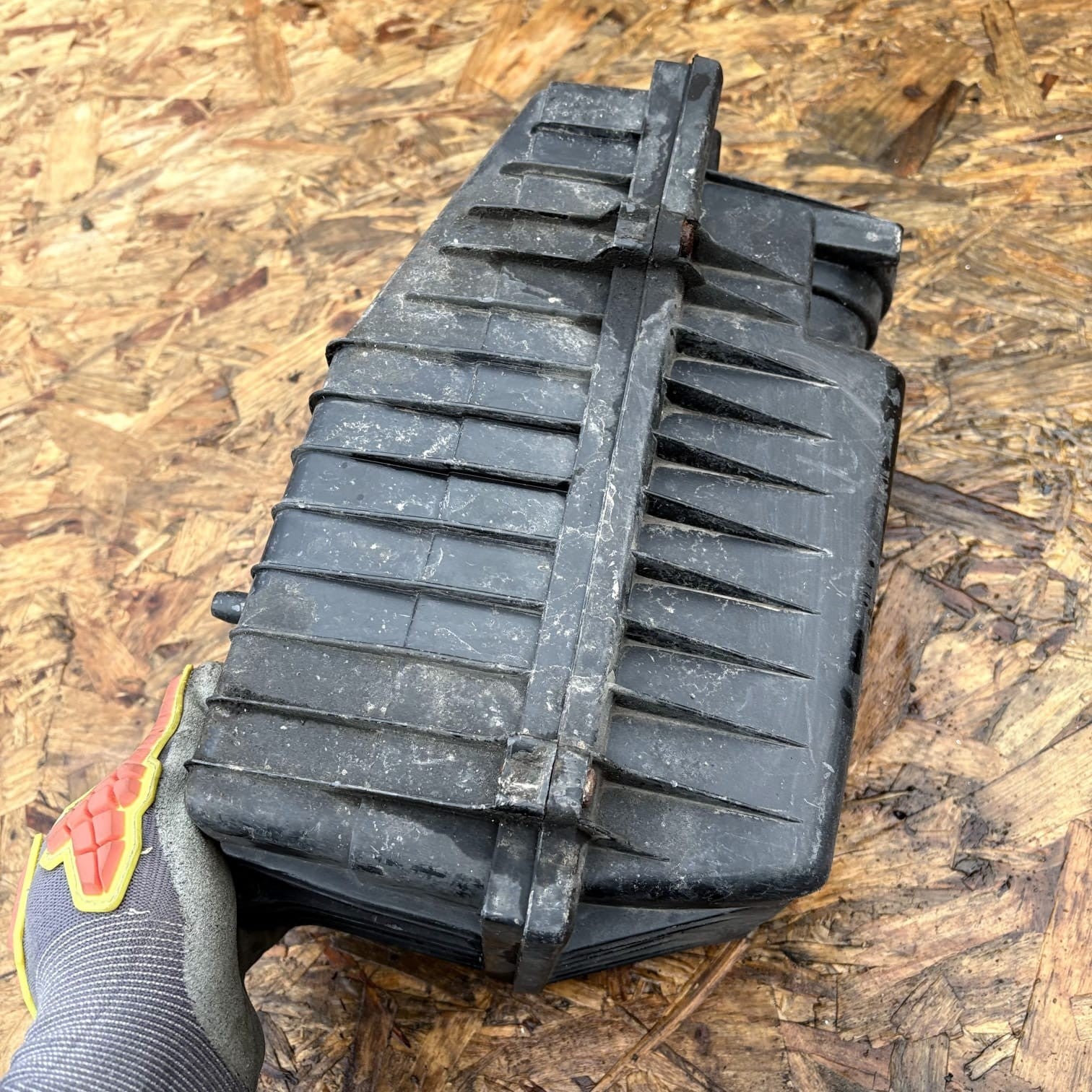

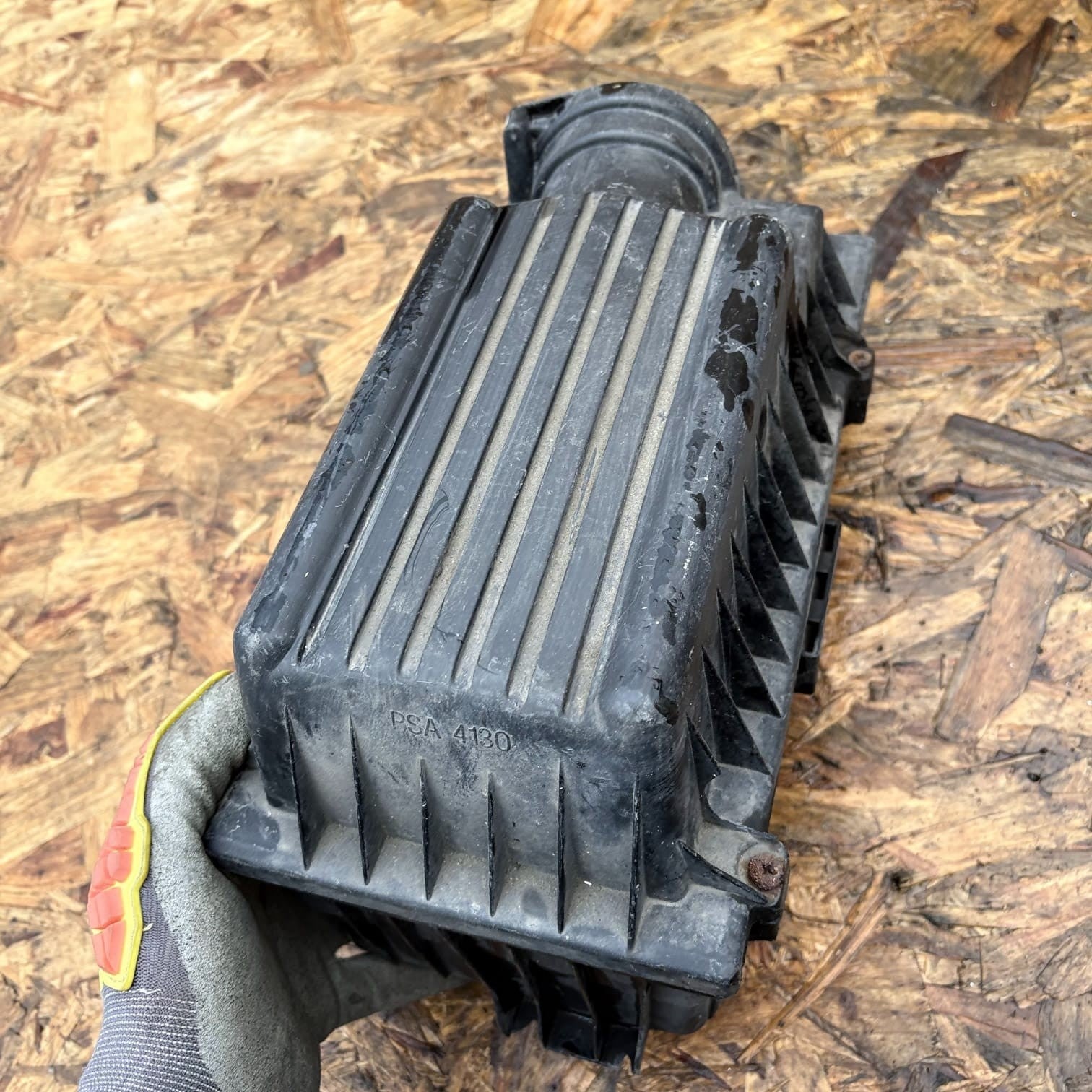

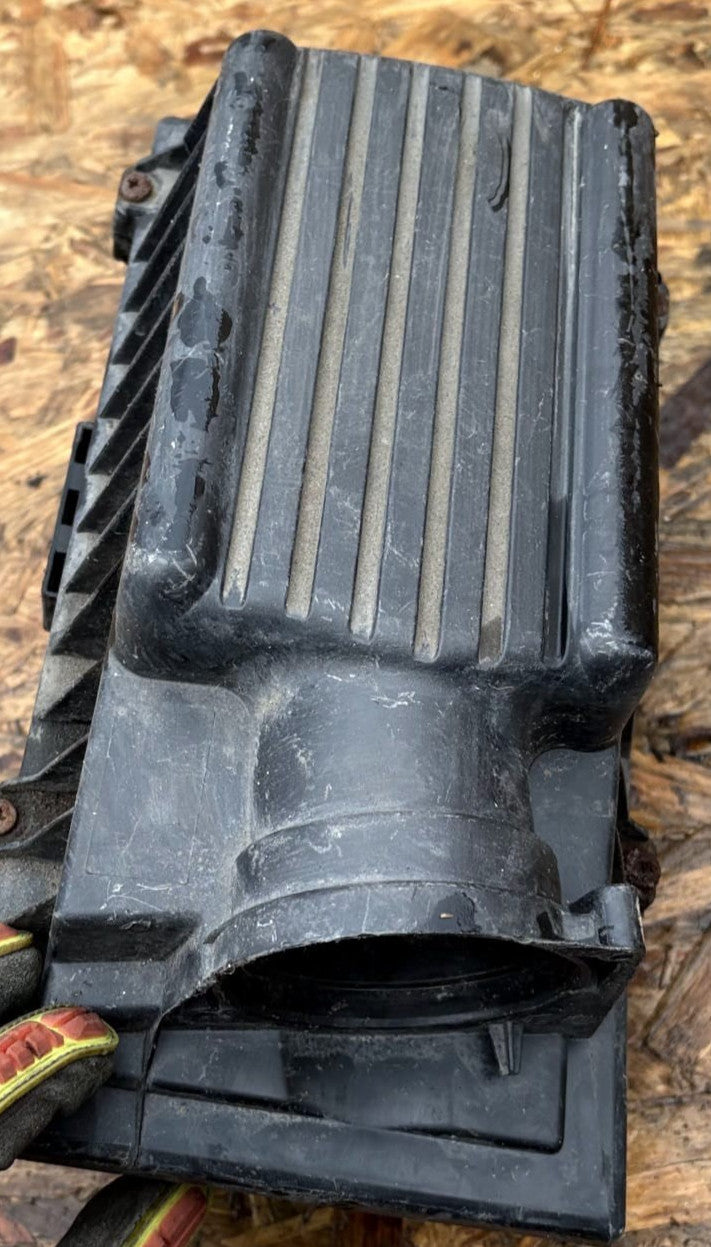

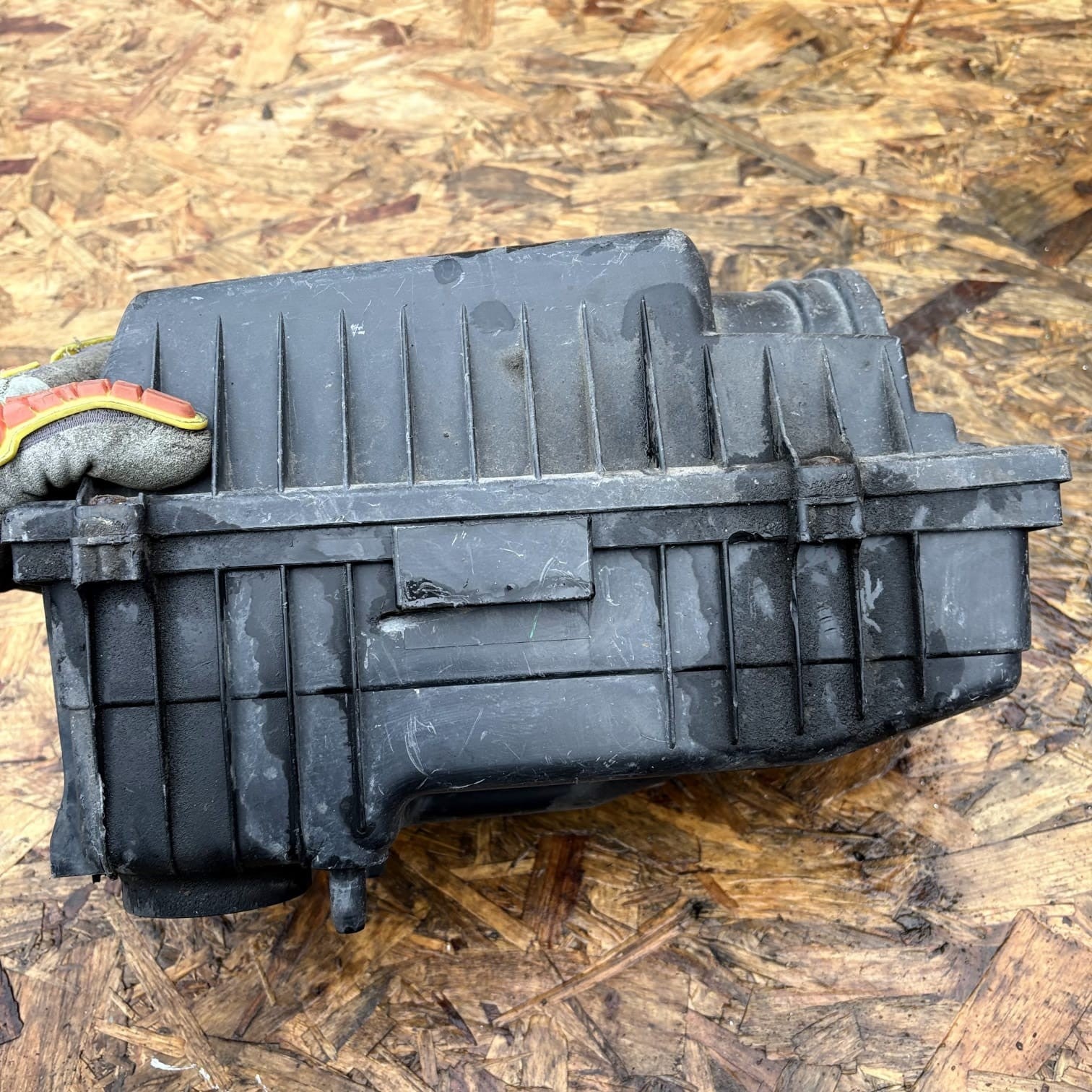

FIAT SCUDO 220 2.0 JTD AIR FILTER BOX
Premium Factory Component. Serious Value.
Factory-engineered components are manufactured around the vehicle's original packaging, mounting geometry and operating requirements. Choosing a quality used factory component can avoid the inconsistent moulding, weak mounting points and poor dimensional tolerances sometimes encountered with low-cost reproduction parts.
Part Identification
| Component | Engine air-filter housing / air-filter box |
|---|---|
| Brand Application | Fiat |
| Model | Scudo – first-generation 220 family reference application |

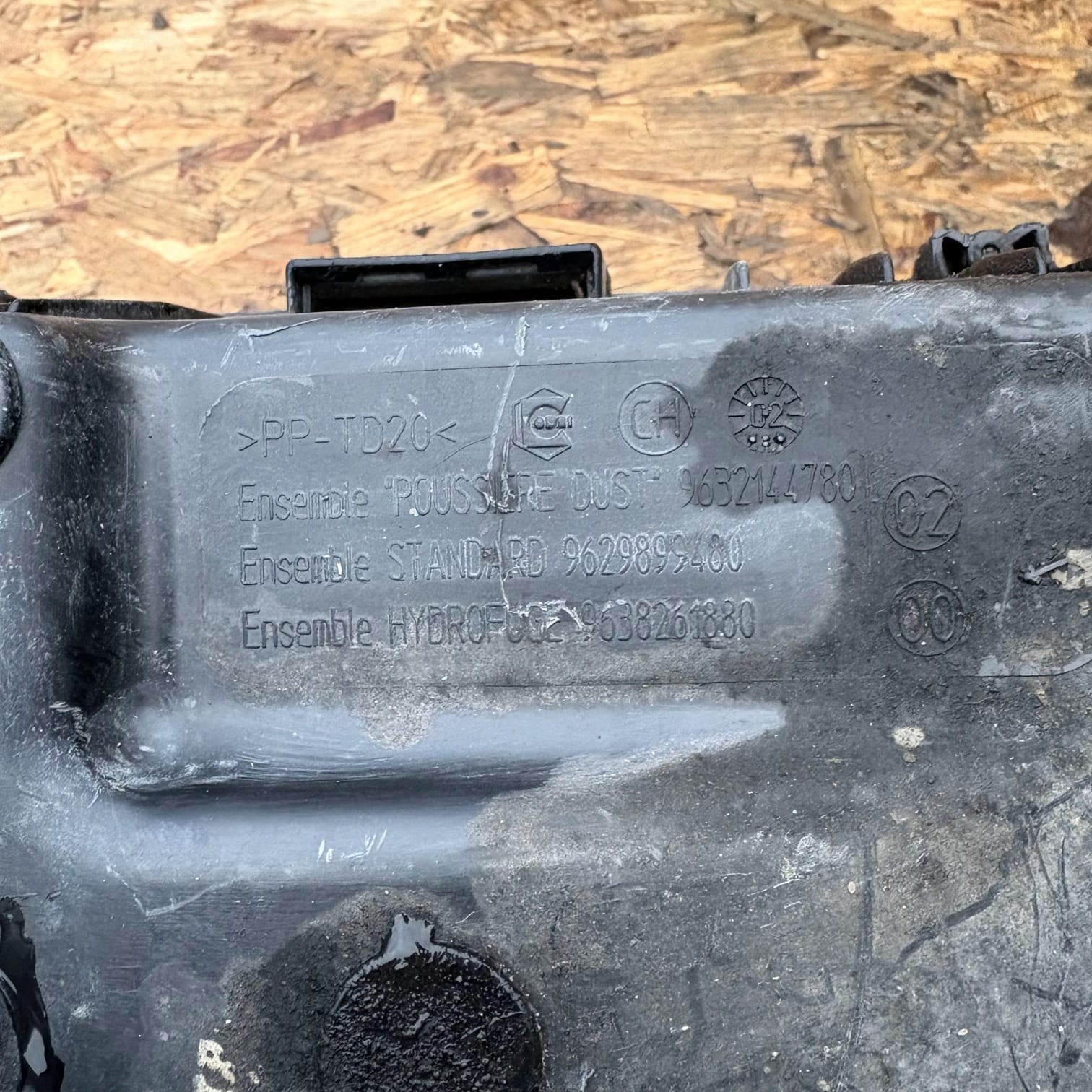

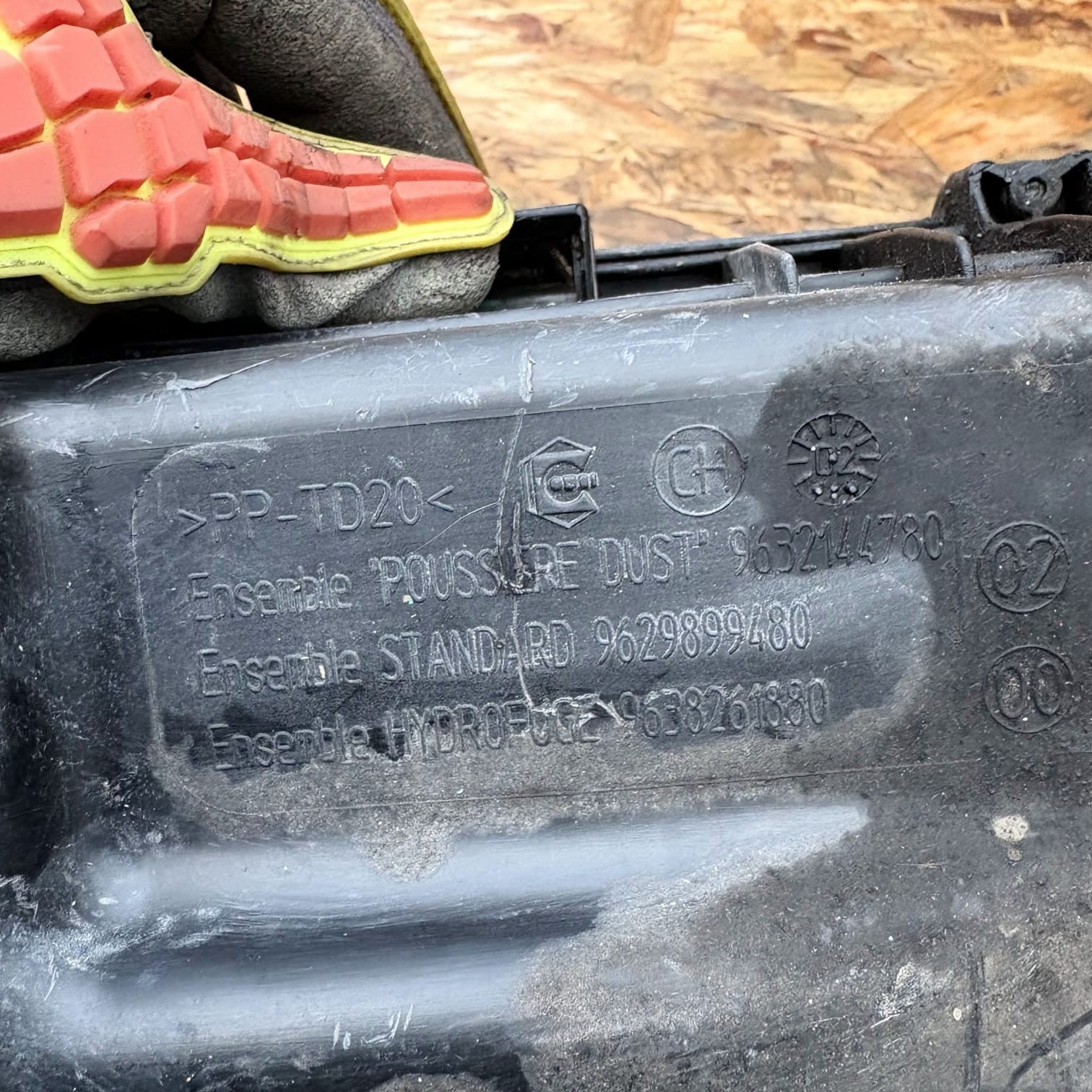

| Stamped / Reference Numbers | 9632144780 / 9629899480 |
| Engine Reference | 2.0 JTD applications; DW10TED / RHX appears in documented part-number references |
| Fuel | Diesel reference application |
| Condition | Used |
| Material | Automotive moulded polymer air-box construction with associated mounting/interface points |

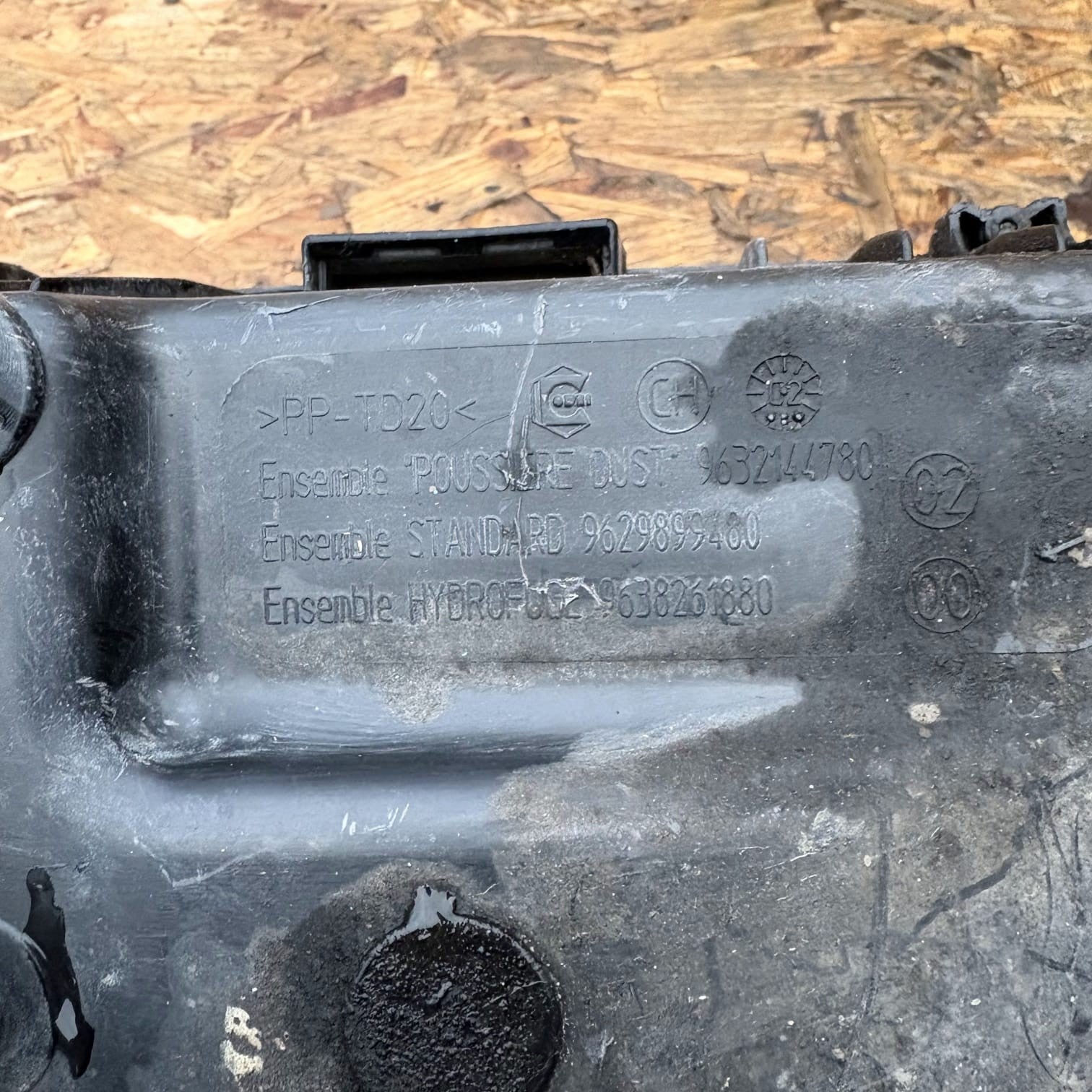

Please compare 9632144780 / 9629899480 against the number on your existing component and compare every mounting point, intake/outlet connection and overall housing shape against the listing photographs before ordering.
What Does This Part Do?
The air-filter housing sits within the engine's intake tract and provides the enclosure for the replaceable engine air-filter element. Its job is to provide a sealed, correctly routed path for incoming air while supporting the filter element and connecting the vehicle's intake ducting.
Correct housing geometry matters. Cracked housings, damaged clips, distorted sealing surfaces or incorrect connections can compromise filtration and intake integrity. This is why matching the physical component and stamped reference numbers is significantly safer than ordering solely from a generic model dropdown.
Compatibility — Verified Reference Data
The donor VIN is not published in the source listing, so THEPARTPILOT will not invent or imply VIN-level compatibility. Send your vehicle VIN through eBay Messages if you require assistance checking the application before ordering.
| Vehicle Family | Reference Years | Engine Reference | Part Numbers |
|---|---|---|---|
| Fiat Scudo 220 / 220Z family | 1999–2006 documented 2.0 JTD reference application | 2.0 JTD DW10TED / RHX reference |
9632144780 9629899480 |
Body Variant Warning
Do not assume compatibility from door count or body silhouette. Published references exist for these numbers on different Scudo 220 configurations. The source listing does not provide sufficient donor-VIN information to certify one exact body variant. Match the stamped number and photographs, or request a VIN-based check before purchase.
Will Not Fit / Exclusion List
- Do not assume fitment to later-generation Scudo models.
- Do not assume fitment to a different engine capacity or engine family.
- Do not assume a visually similar air box has identical mounting points.
- Do not assume pre-facelift and facelift components interchange without verification.
- Do not assume compatibility because an automated eBay vehicle selector reports a match.
- Do not substitute a different stamped number unless its interchange has been independently confirmed.
The safest purchasing method: match your existing stamped number to 9632144780 / 9629899480, compare the photographs carefully, and request a VIN-based check where any uncertainty remains.
Installation Guide
Typical Tools
- Metric socket set and ratchet
- Suitable screwdriver / bit set
- Hose-clamp pliers where applicable
- Trim or clip removal tool where applicable
- Inspection lamp
- Torque information appropriate to the exact vehicle configuration
Typical Procedure
- Allow the engine to cool and secure the vehicle.
- Identify the existing air-filter housing and photograph hose/duct routing before removal.
- Disconnect relevant intake ducting and retaining clips carefully.
- Remove the housing fasteners/supports applicable to the vehicle.
- Lift out the old housing without stressing adjacent hoses or wiring.
- Compare both housings side-by-side, including every mounting point and connection.
- Transfer only appropriate serviceable ancillary components where required.
- Install the replacement housing and correctly seat all mounts and intake connections.
- Install/check the air-filter element and confirm that sealing surfaces close correctly.
- Start the engine and inspect the complete intake path for loose connections or abnormal intake noise.
Indicative Labour Matrix
| Estimated Time | £40/hr | £60/hr | £80/hr | £100/hr |
|---|---|---|---|---|
| 0.5 hour | £20 | £30 | £40 | £50 |
| 0.75 hour | £30 | £45 | £60 | £75 |
| 1.0 hour | £40 | £60 | £80 | £100 |
Professional fitting available: THEPARTPILOT also offers professional fitting at our repair facility, subject to workshop availability. Please contact us through eBay Messages for availability and applicable arrangements.
Shipping & Secure Dispatch
Components are carefully prepared and packed for transport from our UK stock operation. Buyers pay the calculated shipping charge displayed at checkout — postage is not represented as free in this description.
International orders may be dispatched through eBay's applicable international / Global Shipping Programme services where offered on the listing. Availability, charges, customs handling and eligible destinations are determined at checkout. Typical destinations can include the UK, Europe, USA, Canada and Australia where eBay makes the service available.
Important: Customers must ensure their checkout address is correct prior to paying. Due to strict eBay Seller Protection regulations, we are entirely unable to alter or change your delivery address after purchase.
Returns & Ordering The Correct Part
Buyers are strongly urged to verify compatibility against the high-resolution listing photographs and the exact stamped part numbers rather than relying solely on automated item-specific or vehicle-compatibility dropdowns.
Consumer return rights are handled in accordance with applicable UK law and the return terms shown on the eBay listing. Where legally applicable, any deduction for diminished value will reflect actual loss in value resulting from handling beyond what would reasonably be necessary to inspect the item. We do not apply an automatic percentage “restocking penalty”.
Please therefore check numbers and photographs before installation. Do not modify, cut, drill, paint or otherwise alter a component while determining whether it is suitable.
