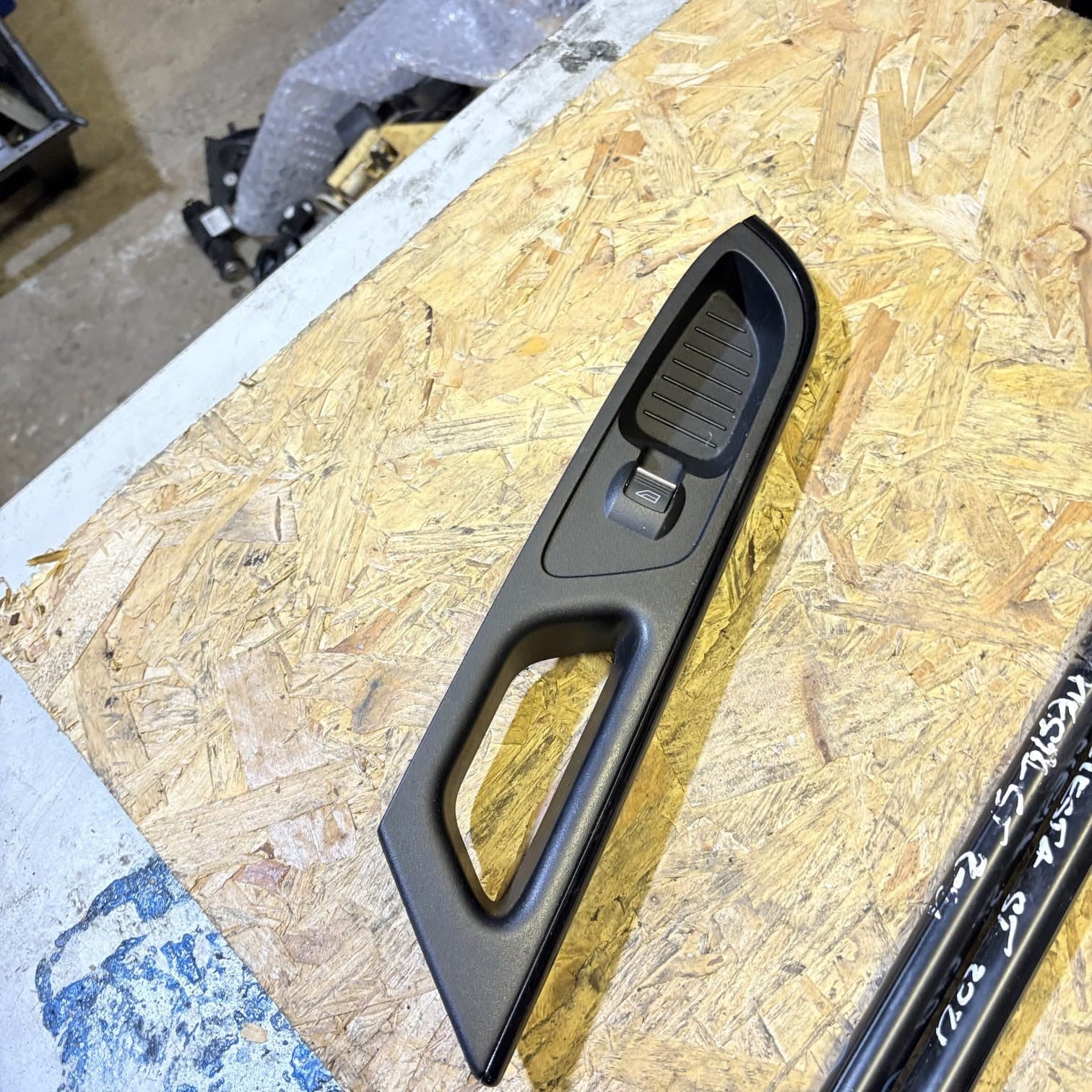

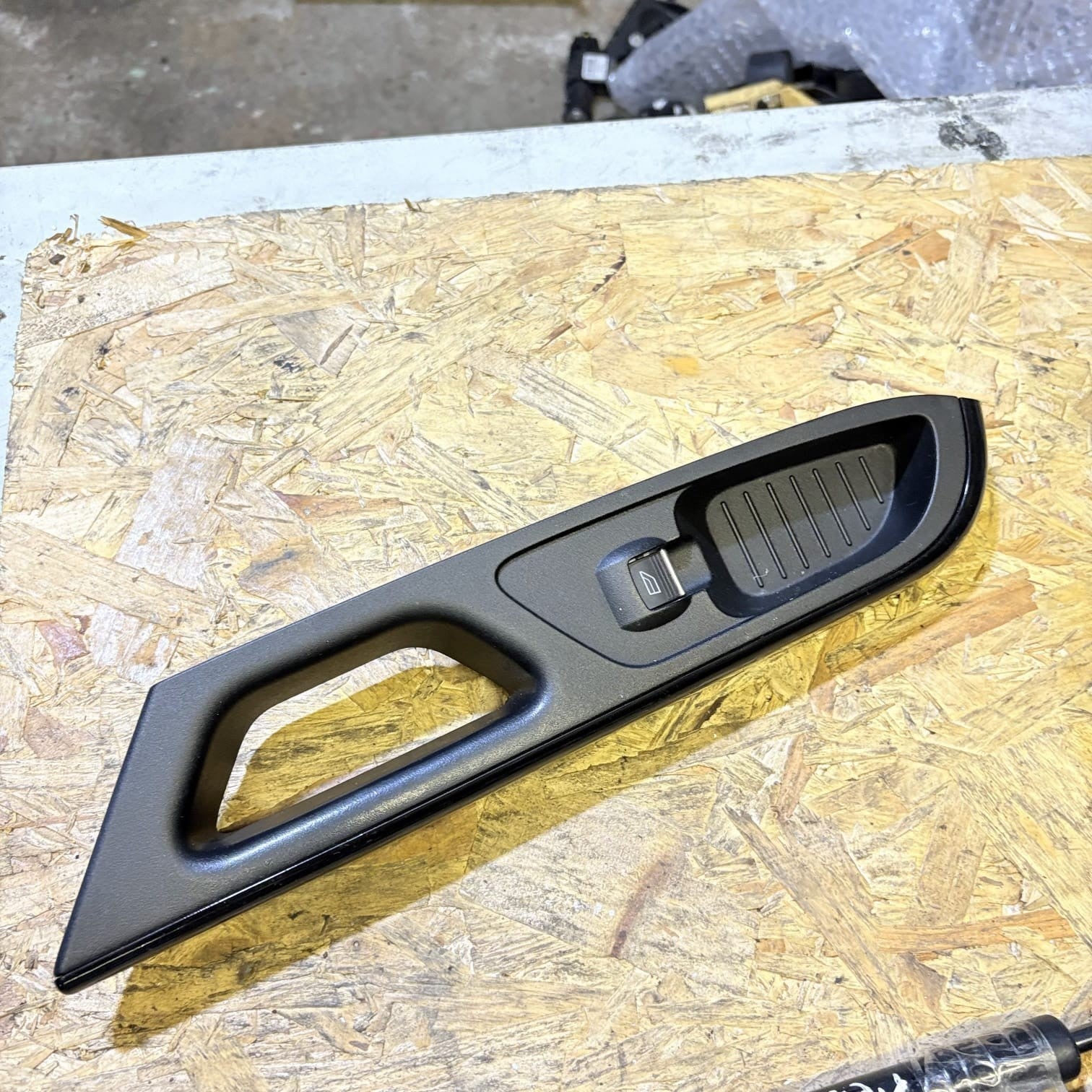

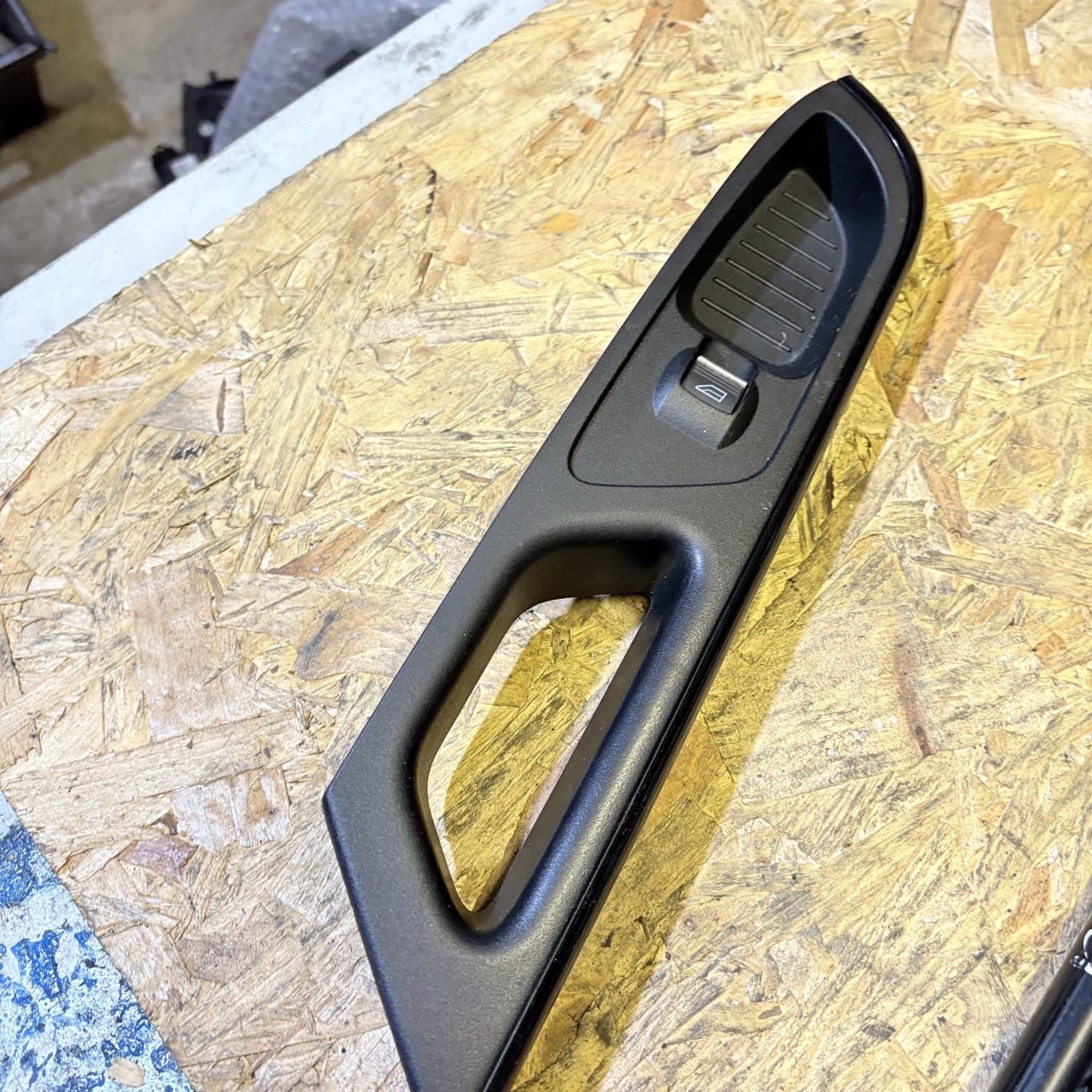

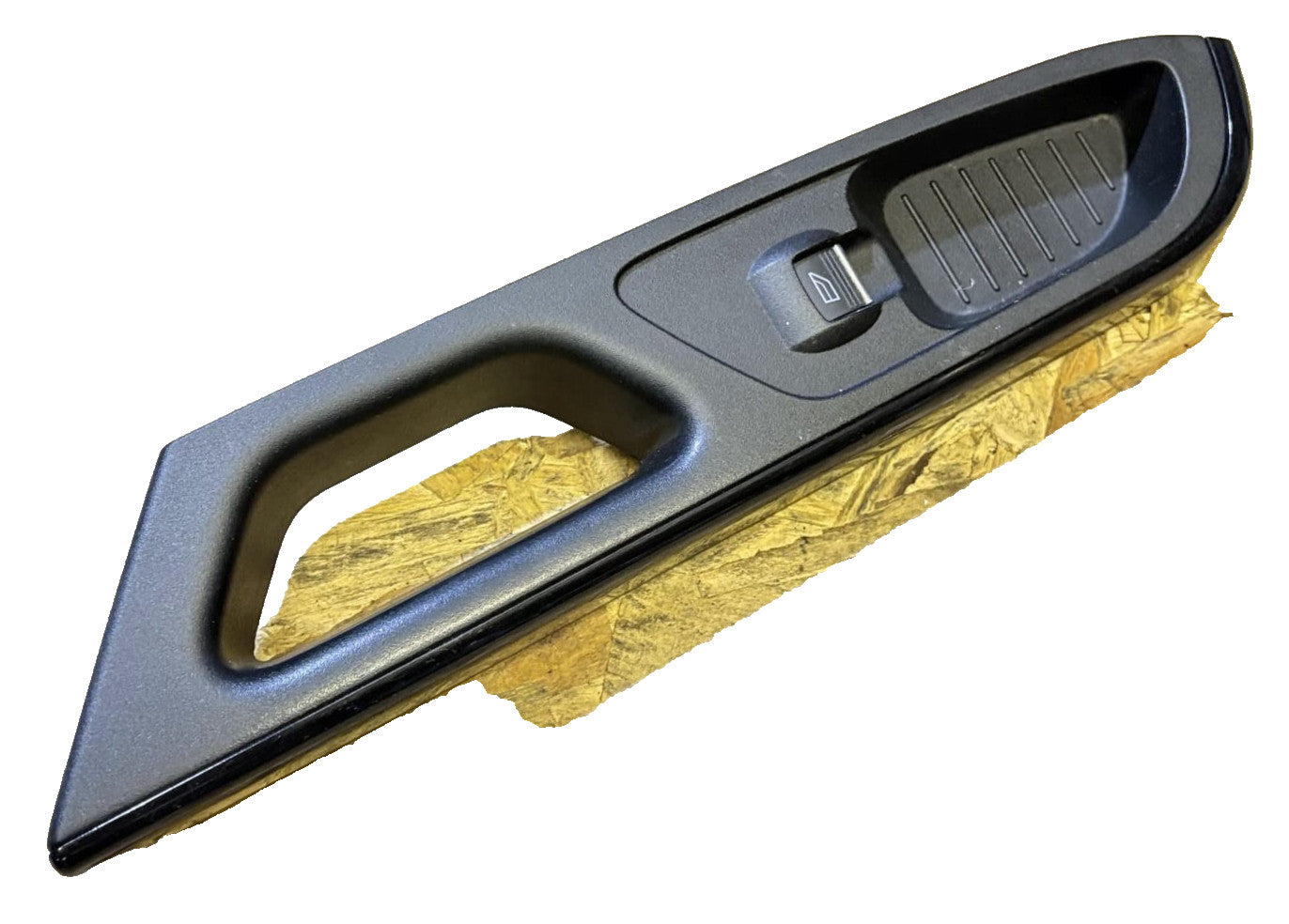

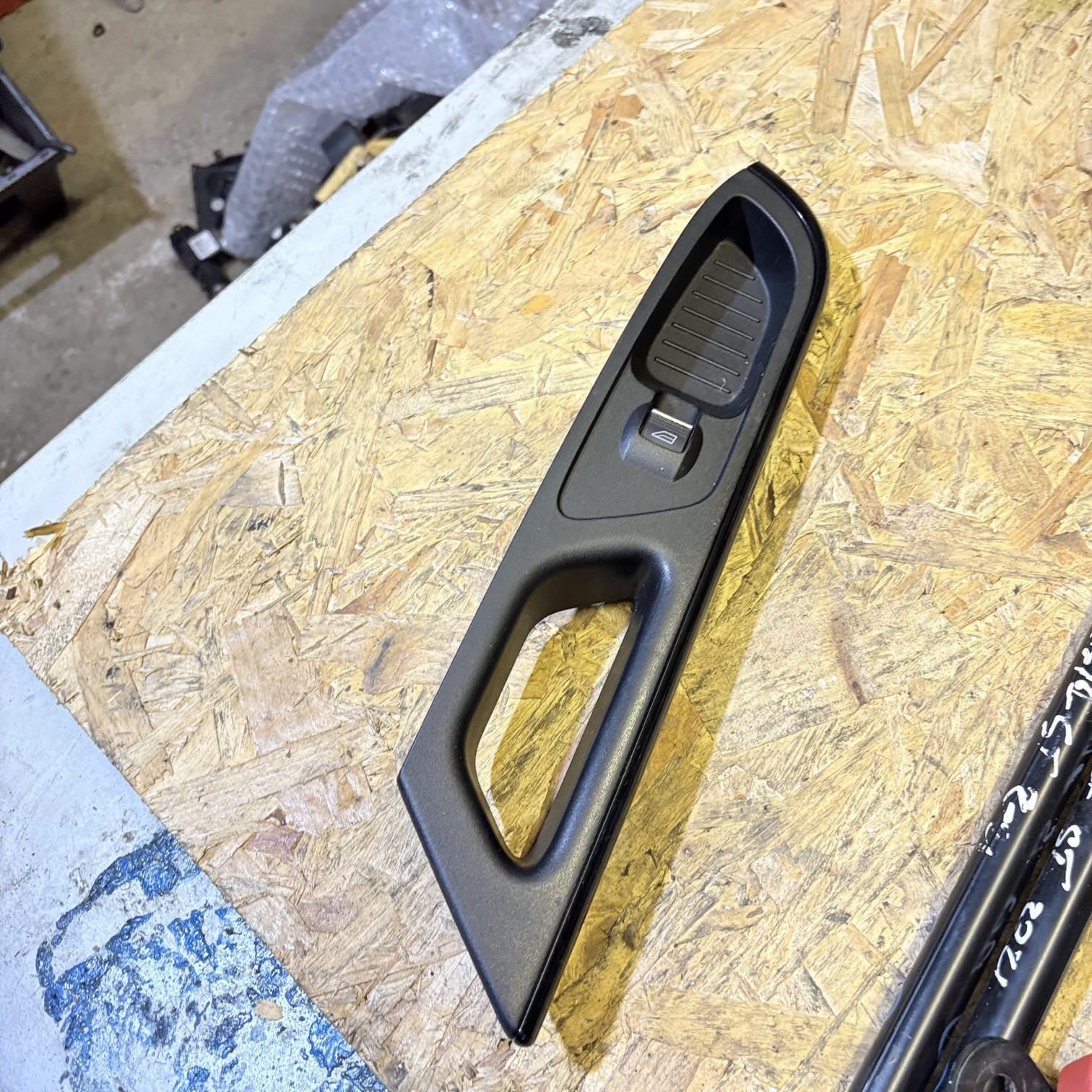

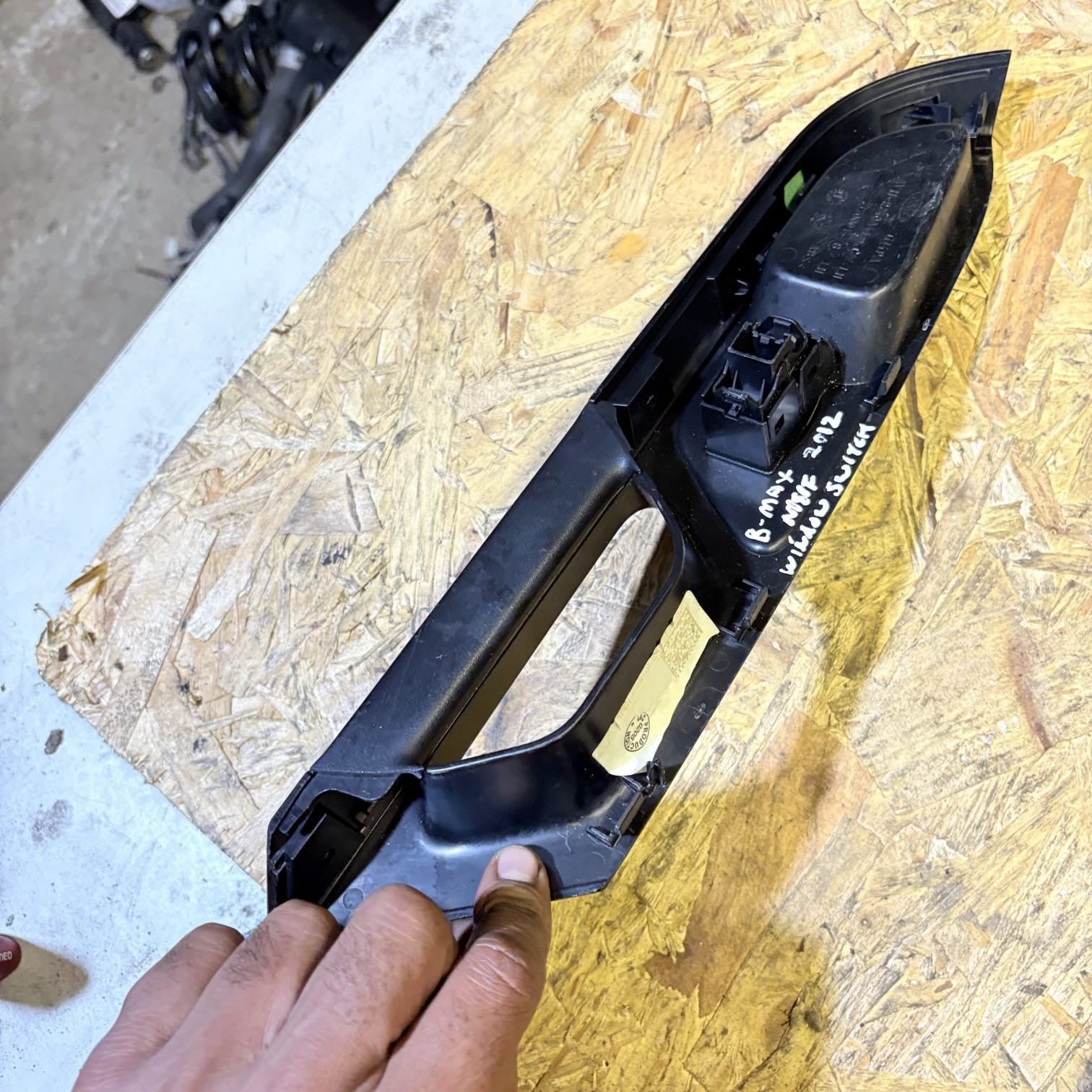

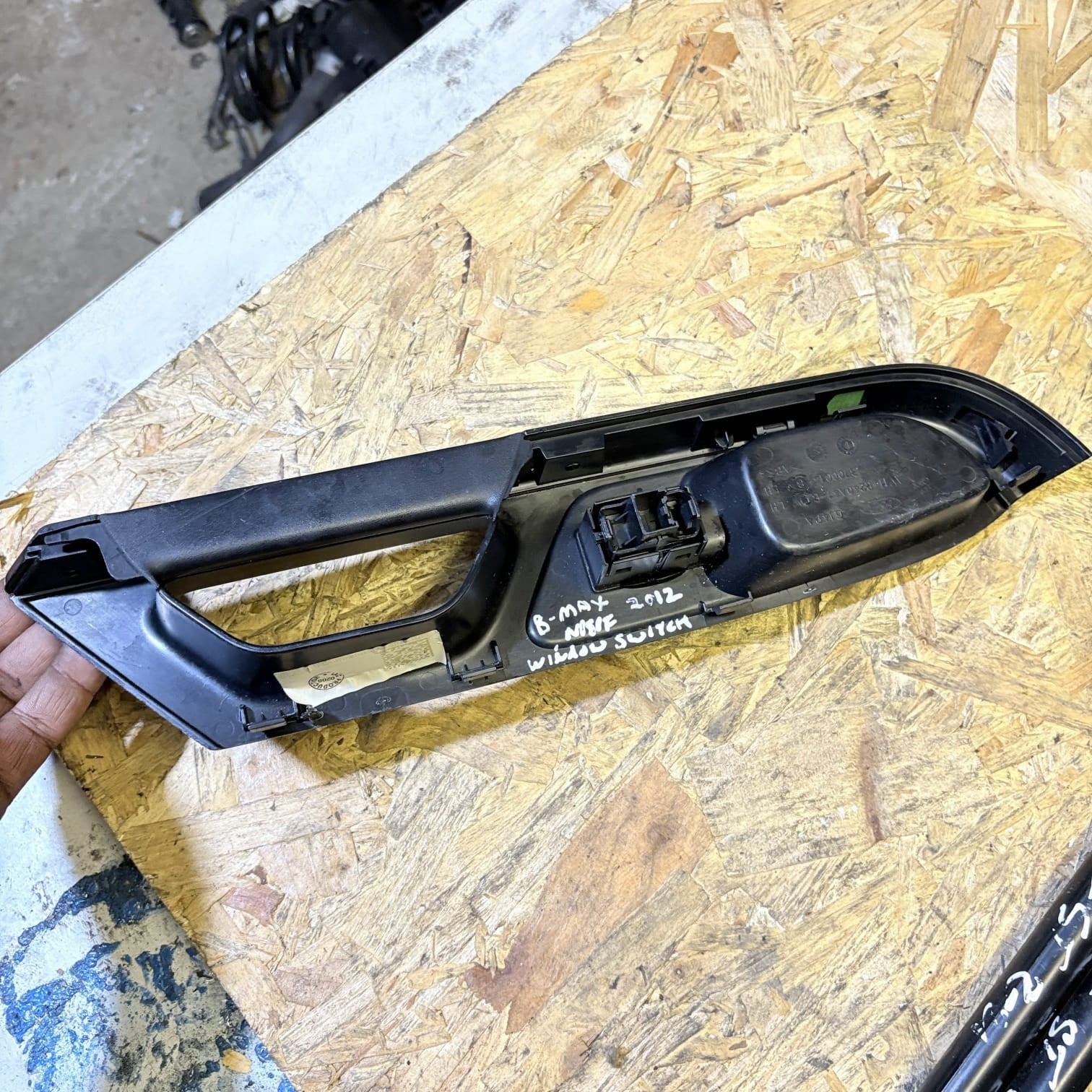

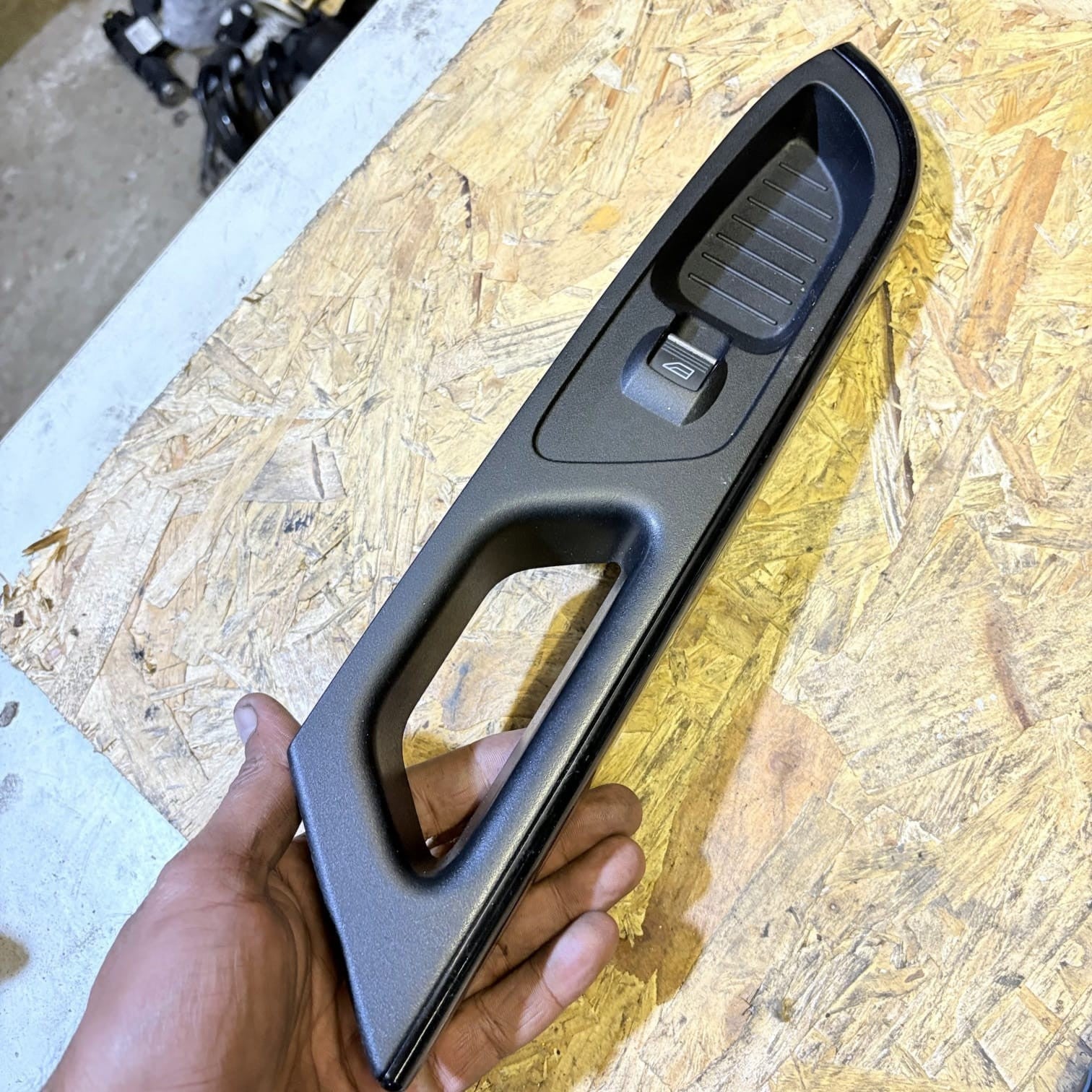

FORD B-MAX MK1 FRONT LEFT DOOR PULL HANDLE & WINDOW SWITCH
This listing is for the Ford B-Max Mk1 front-left door pull-handle / electric-window-switch assembly identified by the engineering number AV11-R240A41-BDW.
Ford produced visually similar assemblies carrying different suffixes. Please compare AV11-R240A41-BDW, the electrical connector, switch arrangement, mounting points, trim finish and all listing photographs with the component removed from your vehicle before ordering.
FACTORY COMPONENT QUALITY WITHOUT THE NEW-PART PRICE
A correctly matched factory-installed component was engineered around the vehicle's original mounting geometry, electrical connections, interior trim and operating system. Cheap reproduction components can vary in plastic quality, switch feel, connector tolerances, colour, texture and mounting accuracy.
PART IDENTIFICATION
| Manufacturer | Ford |
| Model family | B-Max Mk1 |
| Reference years | 2012–2017 |
| Engineering / stamped number | AV11-R240A41-BDW |
| Vehicle position | Front Left / UK Passenger Side |
| Component type | Interior Door Pull / Window Switch Assembly |
| Condition | Used |
WHAT DOES THIS PART DO?
This assembly is positioned in the front-left interior door area. It combines the passenger-side door pull/trim section with the electrical window-switch control fitted to the door.
The switch provides the occupant interface for operation of the applicable electric window circuit. The surrounding moulded trim forms part of the interior door furniture and provides the physical mounting location for the switch assembly.
Construction is principally moulded automotive-grade polymer with integrated switchgear, electrical terminals/connector interface and mechanical mounting features.
COMPATIBILITY & FITMENT
| Make | Model | Generation | Years | Position |
|---|---|---|---|---|
| Ford | B-Max | Mk1 / JK family | 2012–2017 | Front Left |
The year/model range identifies the vehicle family in which this component is found; it does not mean every specification automatically uses this exact switch/trim revision. Confirm the complete suffix AV11-R240A41-BDW against your removed component.
BODY STYLE — PLEASE DO NOT GUESS
Do not select this component by a generic 3-door / 5-door assumption or because another Ford door switch looks visually similar.
The exact stamped engineering number and physical configuration take priority. If your number or suffix differs, obtain confirmation before purchase.
⚠ WILL NOT FIT / EXCLUSION LIST
- Right-front / UK driver's-side door applications.
- Rear-door switch or pull-handle assemblies.
- Components with incompatible electrical connectors or switch layouts.
- Assemblies whose stamped suffix differs where the revision is not confirmed as interchangeable.
- Other Ford models merely because the switch or trim appears visually similar.
- Any vehicle where AV11-R240A41-BDW cannot be verified against the removed part or vehicle-specific parts data.
TECHNICAL FITMENT REFERENCE
Front Left Door • Interior Pull Handle / Window Switch Location

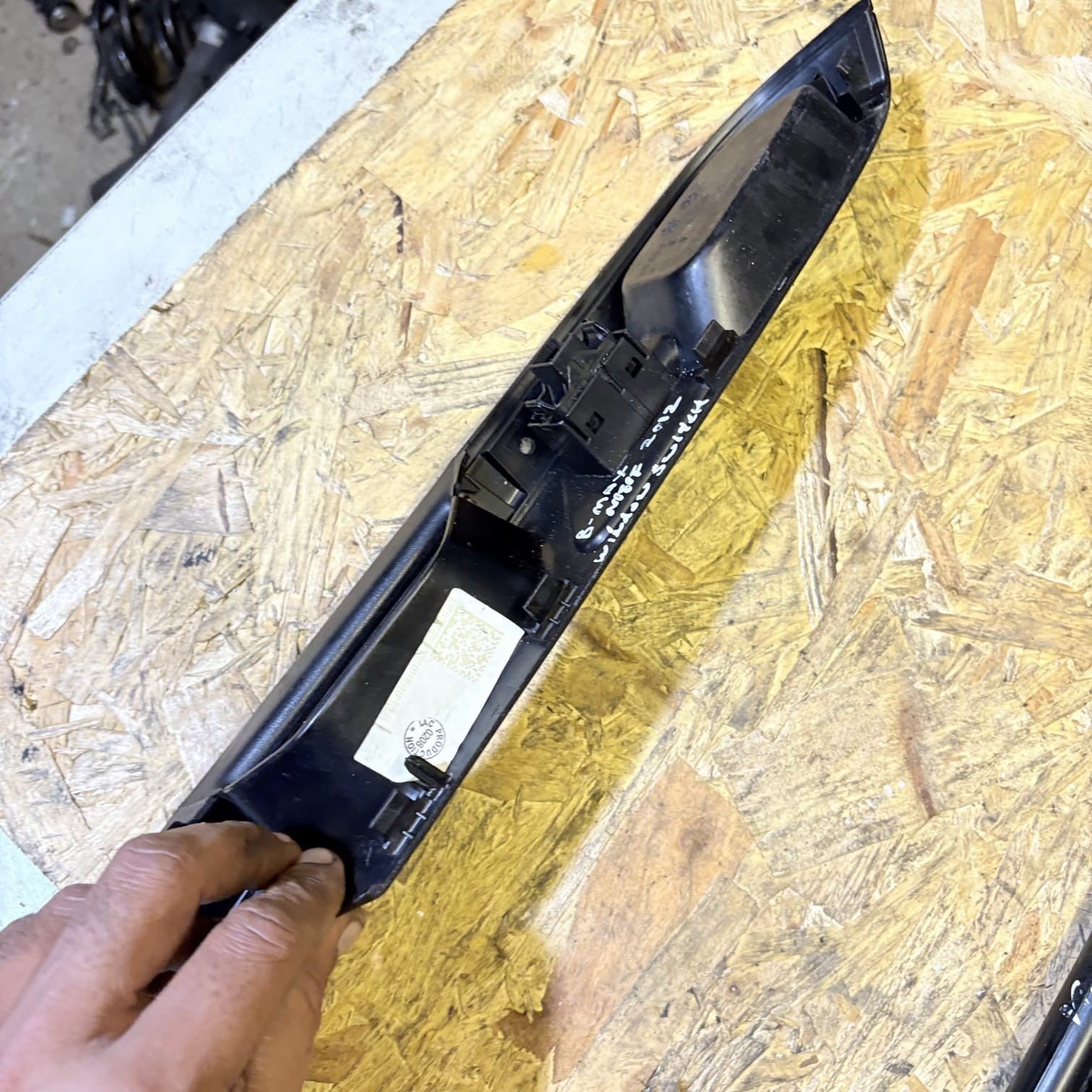

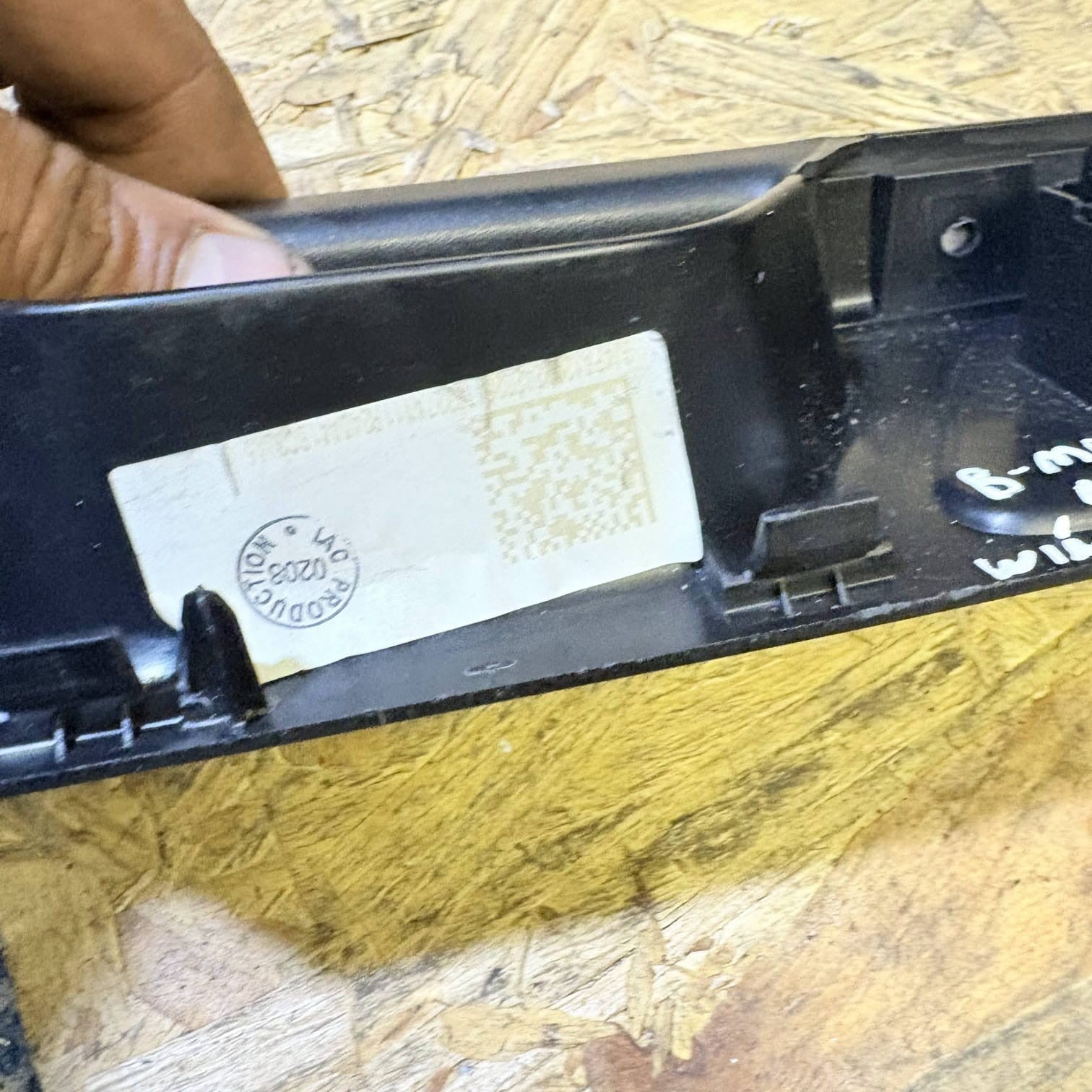

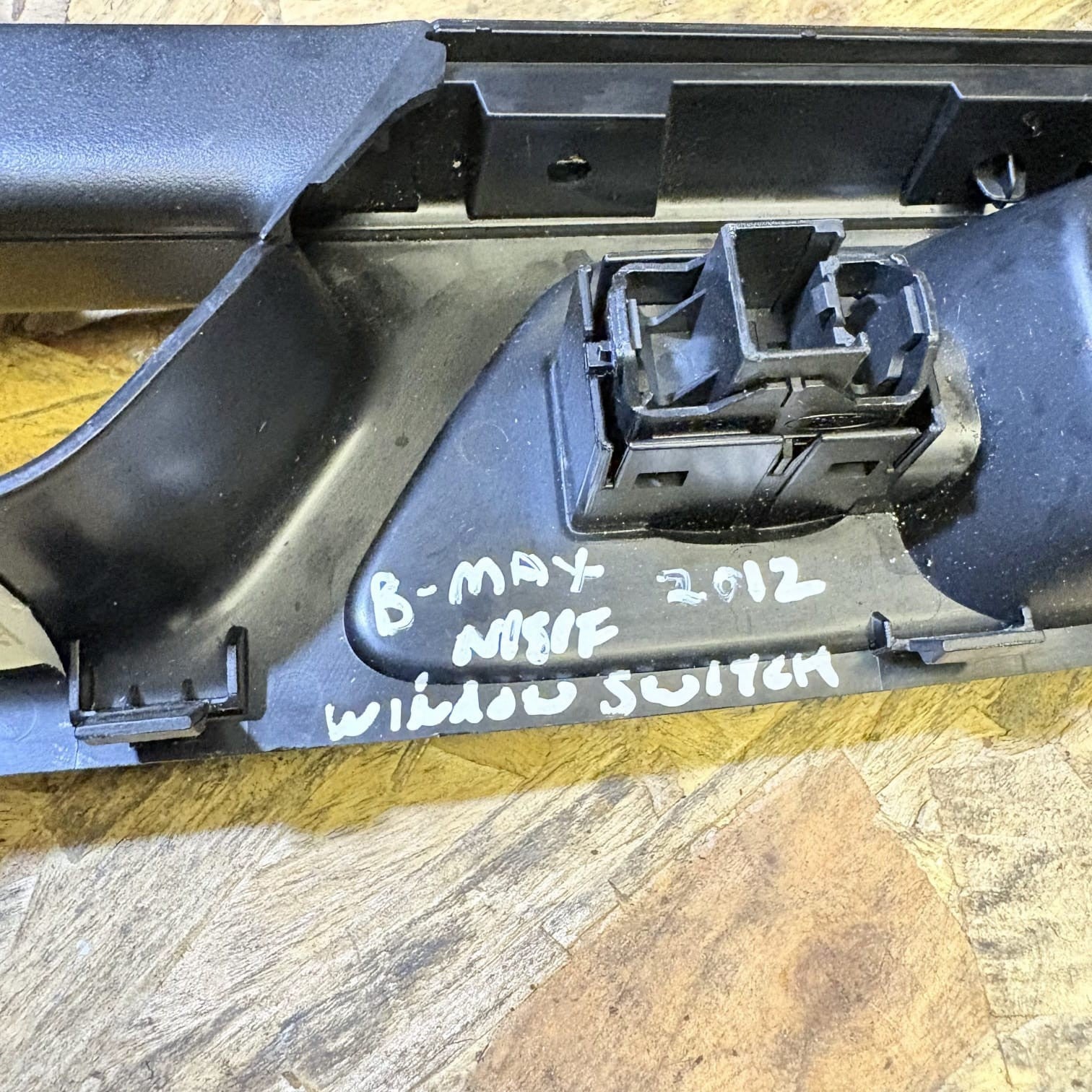

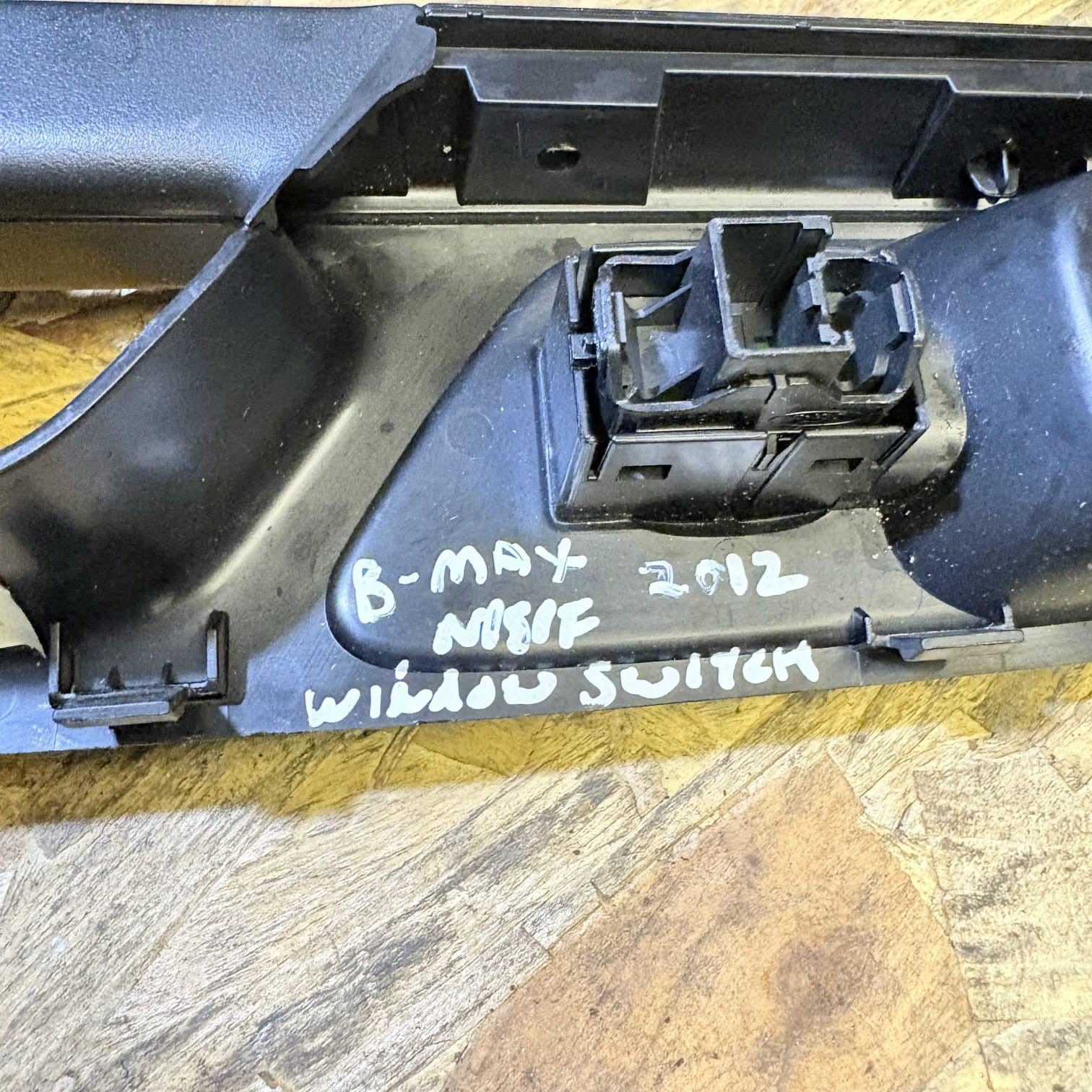

Always use photographs of the actual item being sold to verify colour, surface finish, connector, locating tabs, mounting points and stamped identifiers.
FITTING GUIDE
Typical professional installation allowance: approximately 0.5–1.0 hour. Actual labour time depends on vehicle condition, trim removal requirements and technician experience.
Typical Tools
- Automotive plastic trim-removal tools
- Suitable Torx / screwdriver set as required
- Small pick or electrical connector release tool
- Protective trim cloth
- 12V electrical test equipment where diagnosis is required
Typical Procedure
- Switch off the ignition and follow the manufacturer's electrical safety procedure.
- Protect surrounding door trim against scratches.
- Carefully release the existing pull-handle/switch trim using appropriate non-marring tools.
- Identify and release the electrical connector without pulling on the wiring.
- Compare the removed assembly directly with AV11-R240A41-BDW.
- Connect the replacement assembly and ensure the connector locks securely.
- Position all locating tabs correctly before applying pressure.
- Reassemble the trim without forcing clips or mounting points.
- Restore power as applicable and function-test the electric window.
ESTIMATED GARAGE LABOUR
| Time | £40/hr | £60/hr | £80/hr | £100/hr |
|---|---|---|---|---|
| 0.5 hr | £20 | £30 | £40 | £50 |
| 1.0 hr | £40 | £60 | £80 | £100 |
Illustrative labour estimates only. Diagnostic work, seized/damaged trim, wiring faults and regional garage rates can alter the final cost.
We also offer professional fitting at our repair facility, subject to availability. Please use eBay Messages for enquiries before making arrangements.
