Ford Ka Mk2 RU8 2008-2016 3 Door Rear Window Wiper Arm 1554050 9S51-17406-AA

Buy the correct part first time

This rear window wiper arm has been cross-checked against the current item photographs and Ford part-number data. Confirmed application is the Ford Ka Mk2 / Ka II, chassis RU8, 3-door hatchback, model years 2008 through 2016 , with the exact engine applications shown below.

Unsure? Send your registration/VIN and a clear photo of the existing rear wiper arm through eBay Messages before ordering. We can help verify the match.

Actual item photographs

These are photographs from this listing. Use the close-up shape, spindle base and arm profile as part of your fitment check.

THEPARTPILOT

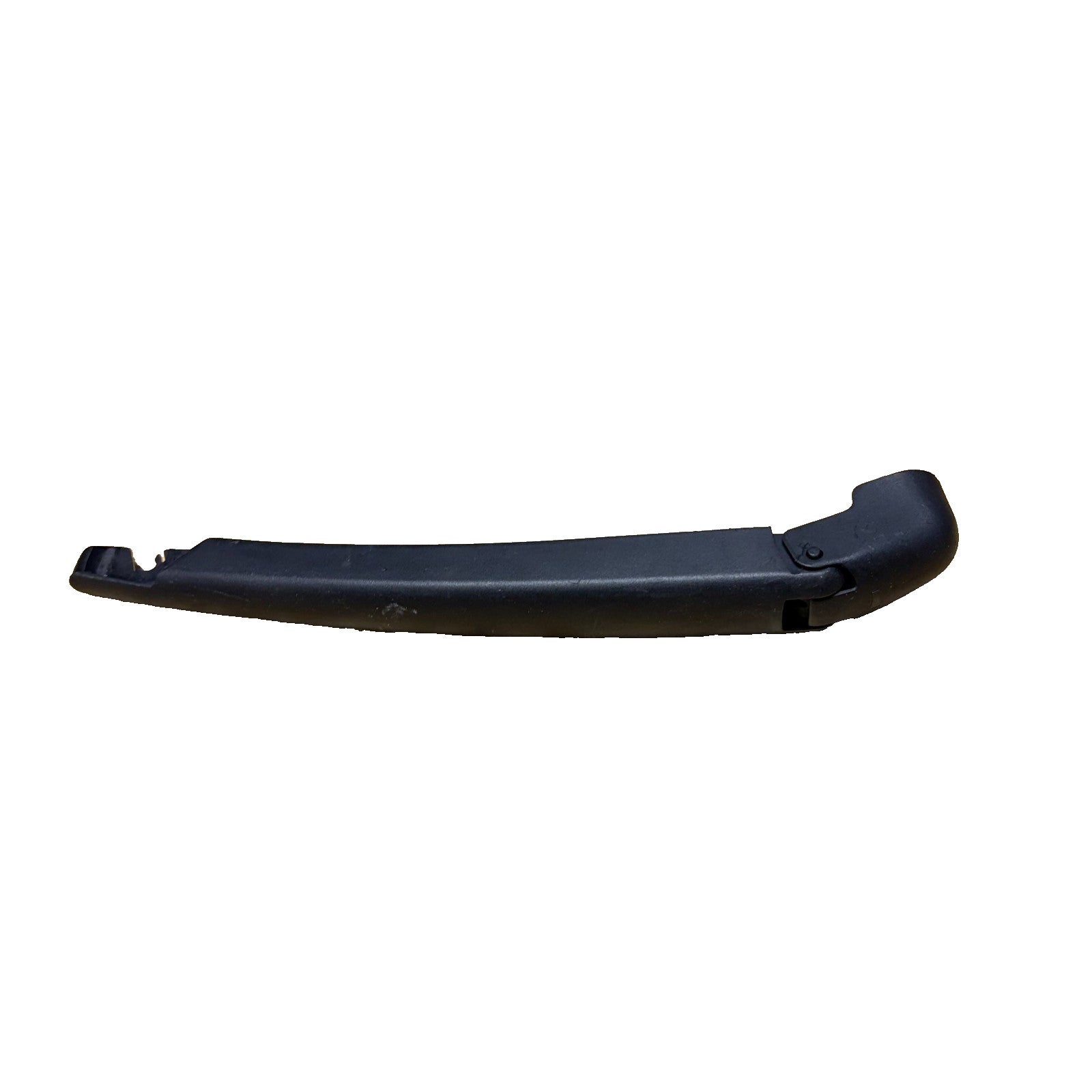

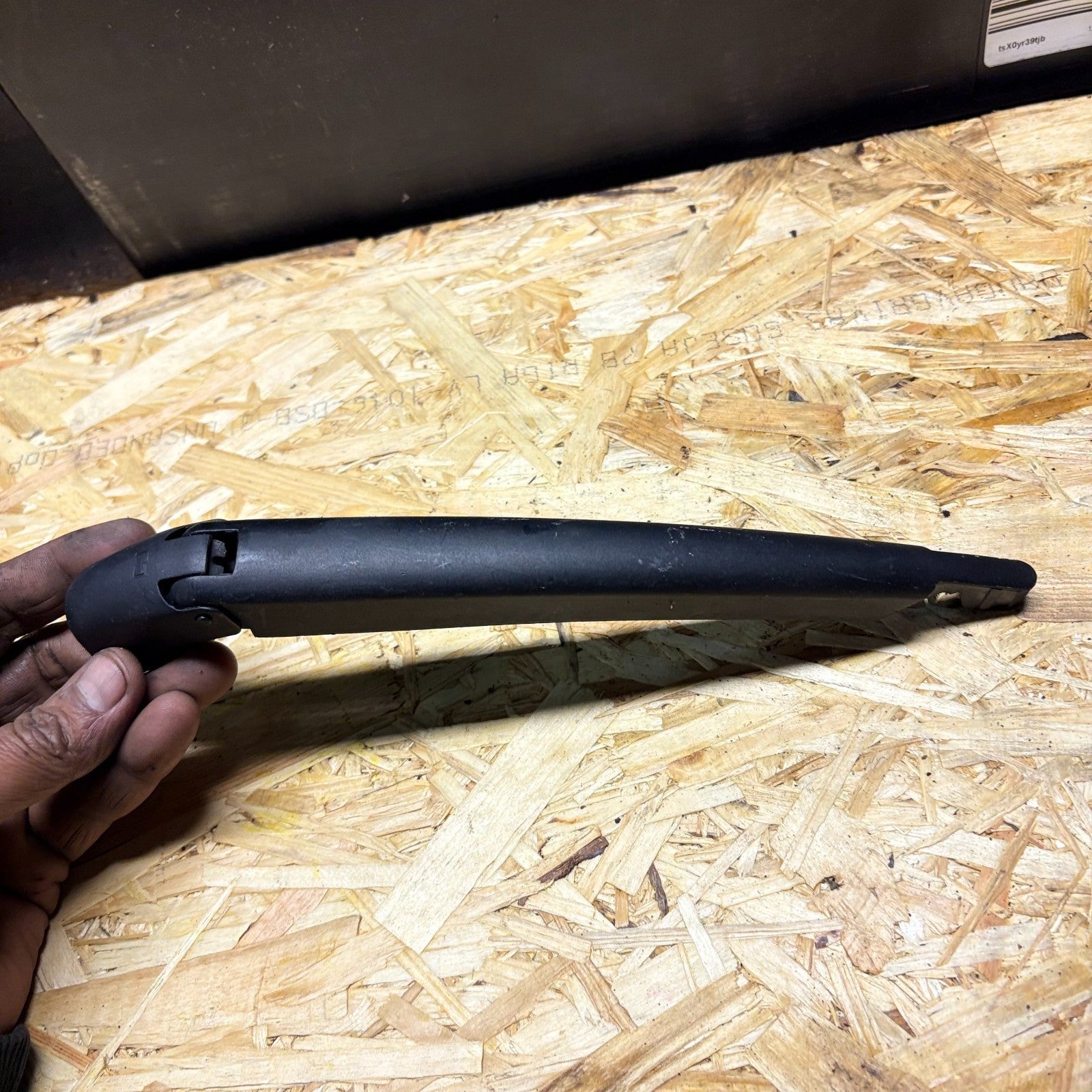

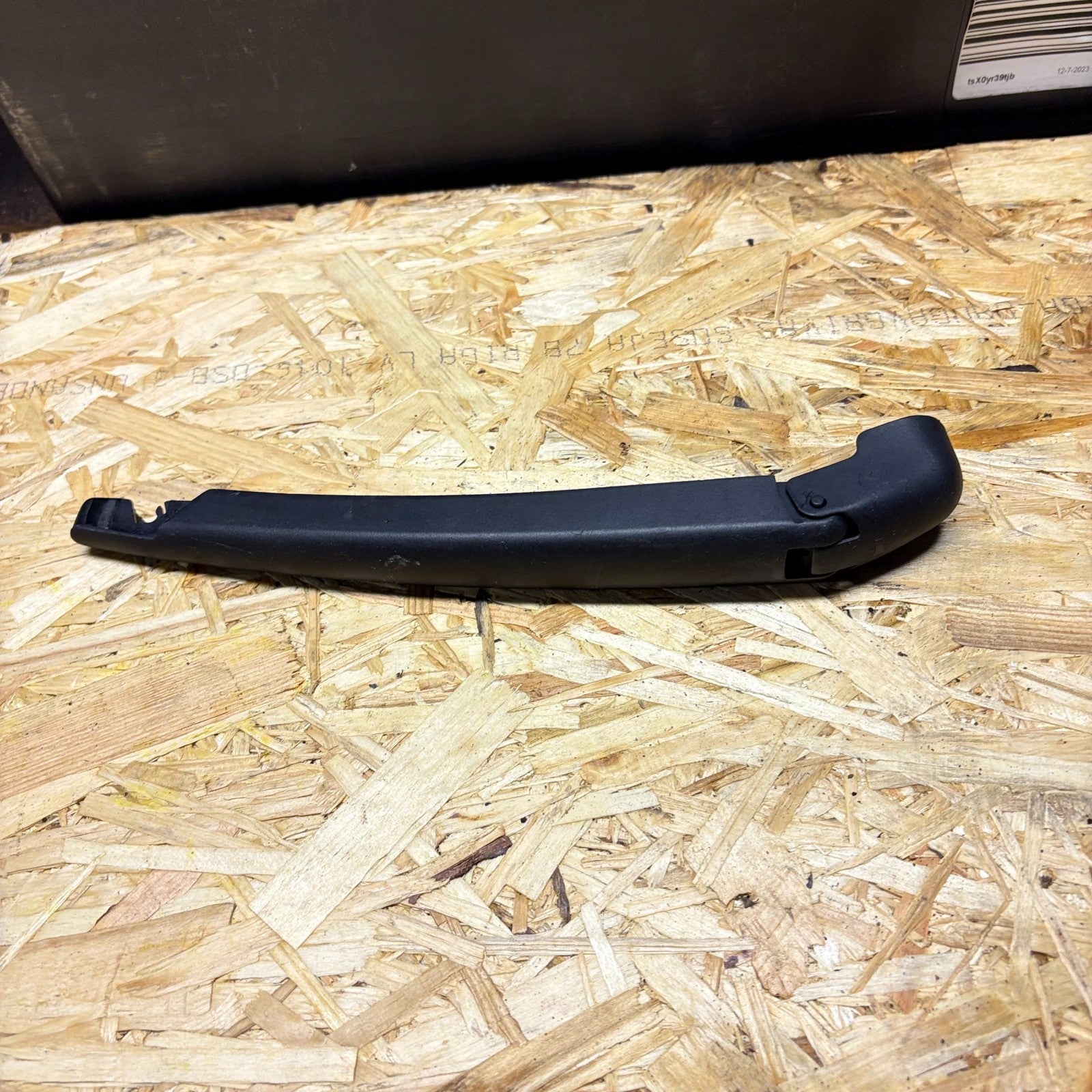

Actual item | arm profile and mounting end

THEPARTPILOT

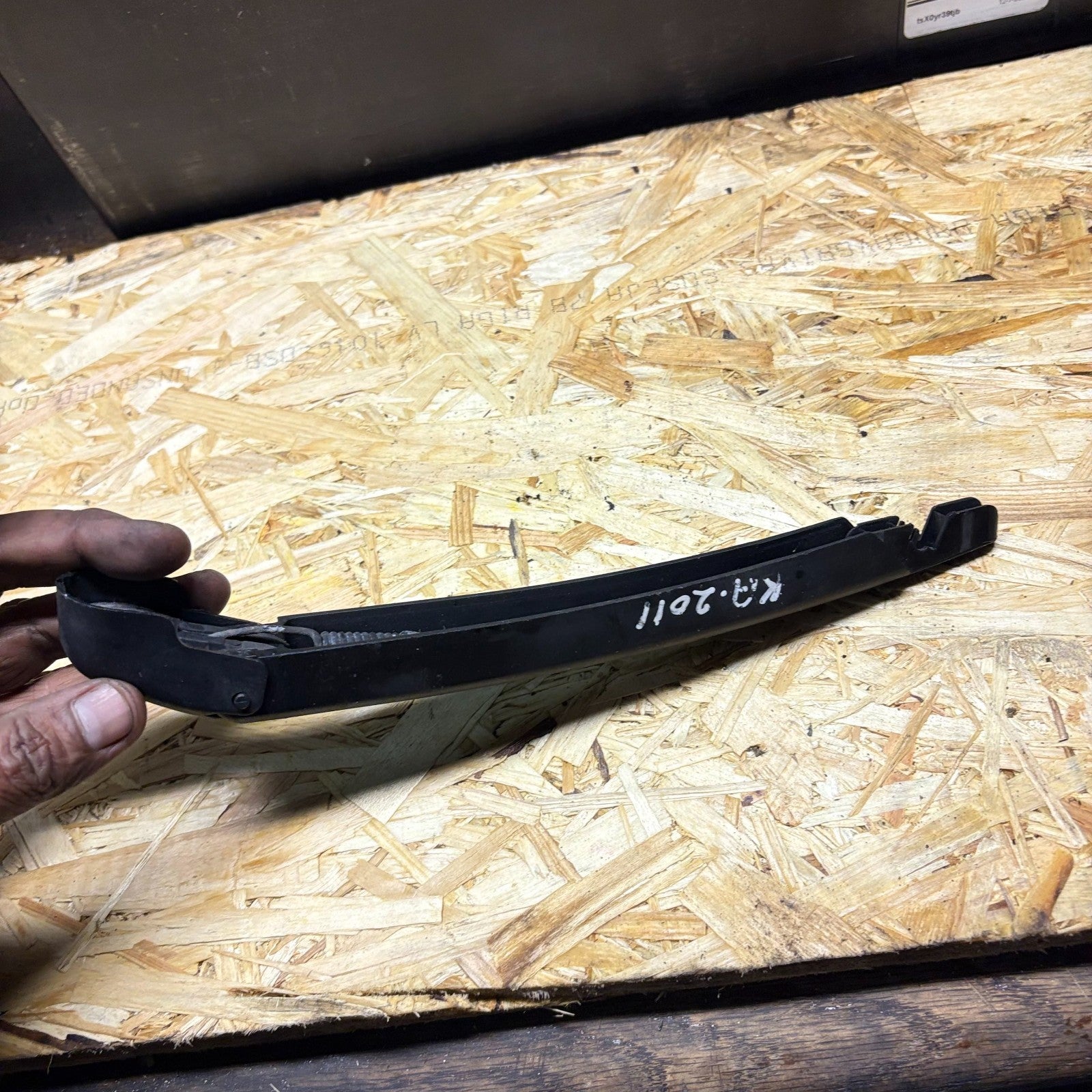

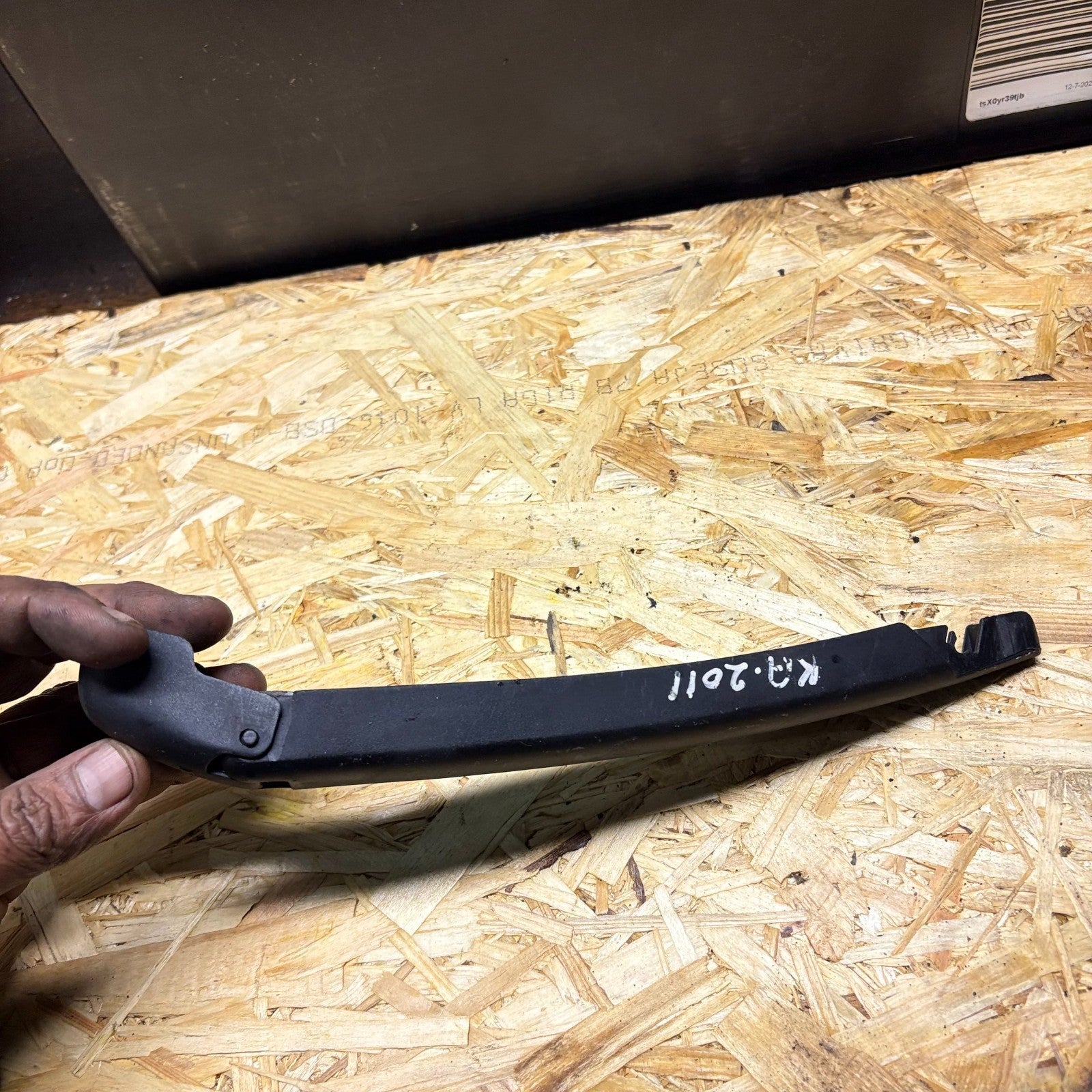

Actual item | second angle for visual matching

THEPARTPILOT

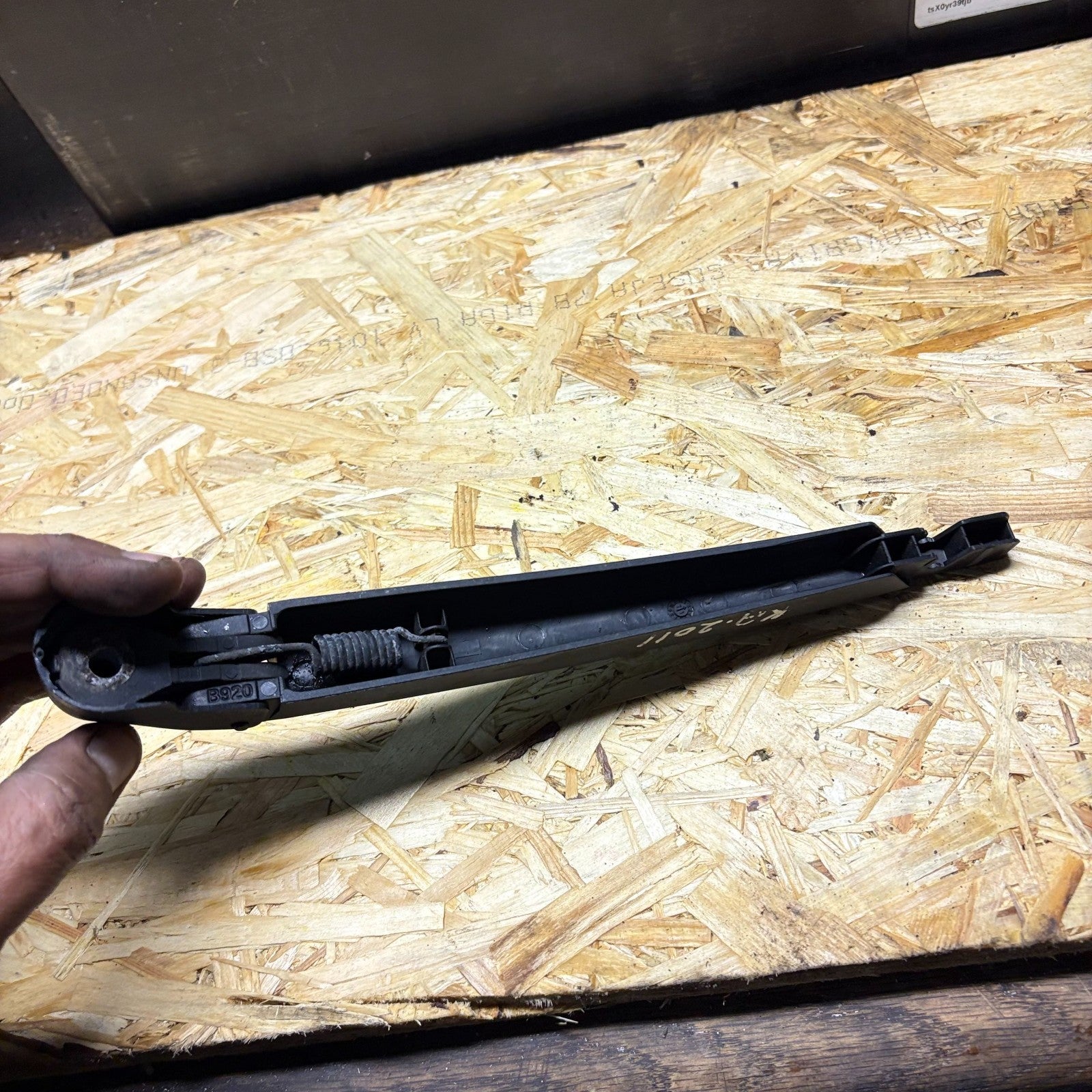

Actual item | close-up condition reference

THEPARTPILOT

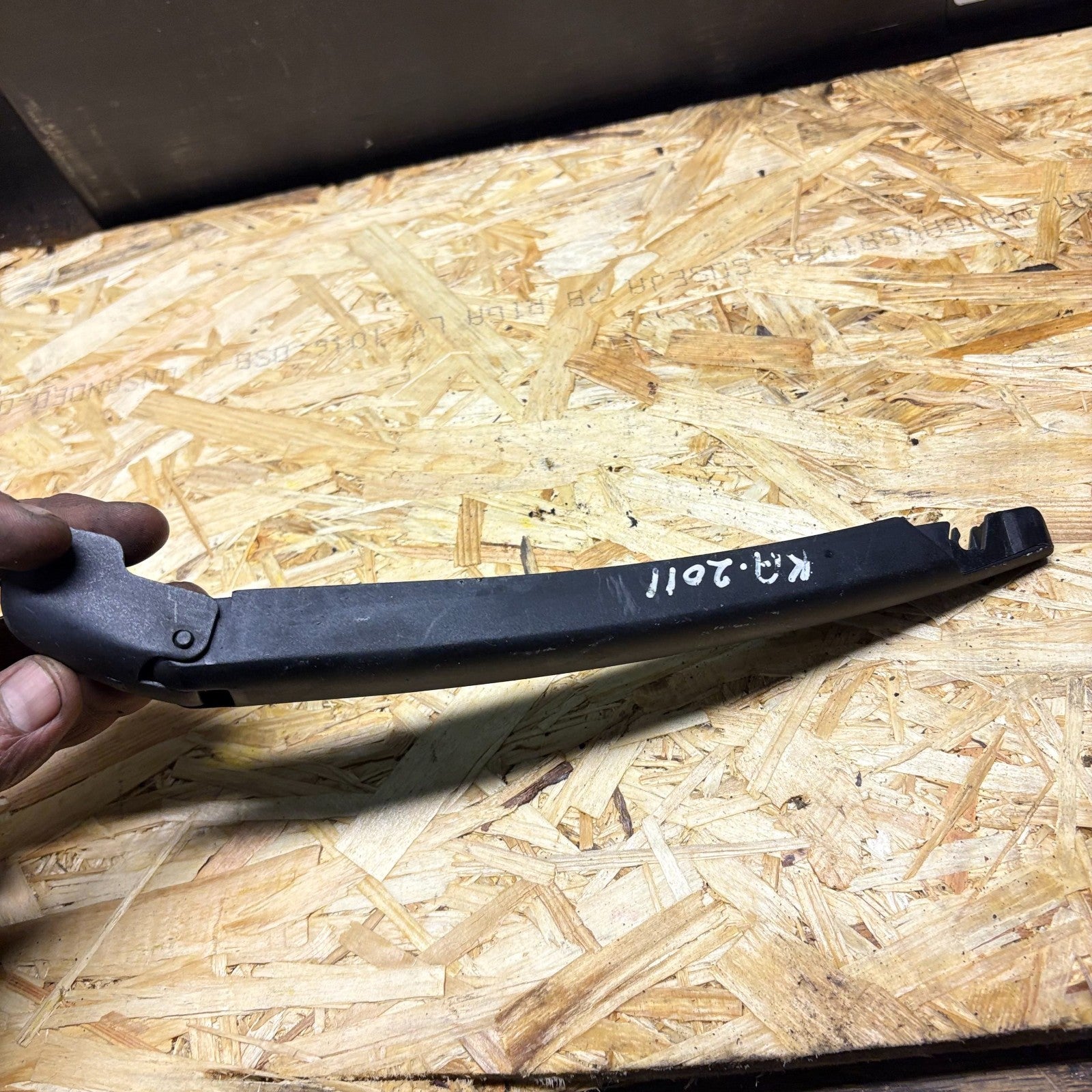

Actual item | donor/stock markings may be visible

Correct vehicle reference and fitting location

Reference photographs below show the correct Ford Ka II / Mk2 3-door body generation. They are vehicle identification references only and are not photographs of the donor vehicle.

REAR WIPER LOCATION

THEPARTPILOT REFERENCE

Correct generation/body reference | rear hatch and wiper position

THEPARTPILOT REFERENCE

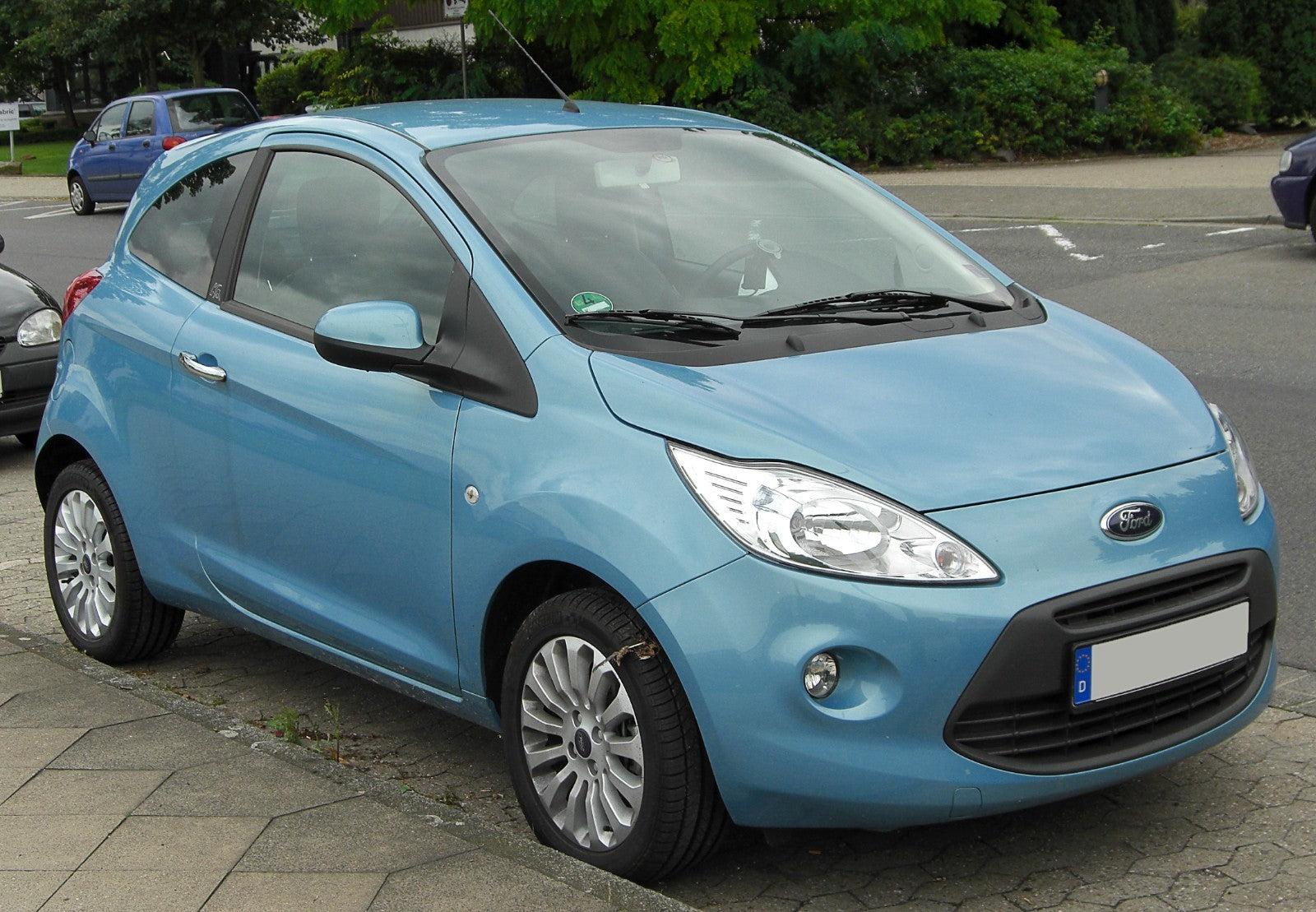

Correct generation/body reference | Ford Ka II / Mk2 3-door

Vehicle reference photos: M 93 / Wikimedia Commons, attribution licence. Reference images are used only to identify the correct model generation/body style.

Where this part is fitted

The arm mounts externally to the rear hatch/tailgate wiper-motor spindle. Its job is to carry the rear wiper blade, transfer the motor's movement across the glass, hold the blade at the correct park angle and apply spring pressure so the blade remains in contact with the rear window.

Item details and engineering references

Confirmed parts compatibility chart

The table below contains the confirmed Ford Ka RU8 applications only. No speculative cross-brand fitment has been added.

Year-by-year confirmation

What this part will not fit

• Ford Ka Mk1 / first-generation body where the chassis is not RU8.
• Ford Ka+ / Ka Plus 5-door models.
• Any Ka with a different rear-arm profile, spindle mounting arrangement or engineering/service number.
• Any vehicle being matched only because the registration year overlaps 2008 or 2016.
• Any other manufacturer/model unless the old component can be positively matched by the correct Ford number and physical fitment data.

What the rear wiper arm controls

The rear wiper motor provides the movement, but the arm determines how that movement is transferred to the blade. The arm's geometry, spindle interface and spring force affect blade contact, sweep path and parked position.

Common symptoms of a worn or damaged arm

• Rear glass remains partly unwiped even with a serviceable blade.
• Blade chatters, skips, lifts or loses even contact with the glass.
• Arm is loose on the spindle or slips while the motor is moving.
• Wiper parks too high, too low or at an incorrect angle.
• Visible cracking, distortion or damage around the mounting end.
• Weak spring pressure causes poor wiping performance.
• Incorrect arm geometry causes the blade to sweep the wrong area or approach surrounding trim.

Why choose a Ford-branded original-fit donor component?

A Ford-branded original-fit donor component was designed around the vehicle's intended mounting geometry and operating position. Low-cost pattern alternatives can vary in mould profile, spring tension, spindle interface and parked angle. Matching the correct service/engineering number helps reduce fitment uncertainty and unnecessary returns.

Savings are a general parts-reuse comparison and are not a promise that this individual listing is exactly 70% below a particular new retail price.

Fitting instructions

Required tools

• Protective towel/card to shield glass and paint.
• Masking tape for marking the original blade park position.
• Non-marring trim tool for the spindle-nut cap if required.
• Socket and ratchet correctly sized to your vehicle's retaining nut.
• Penetrating fluid if the old arm is corroded onto the splines.
• Wiper-arm puller if the arm will not release by hand.
• Torque wrench if you have access to the correct Ford workshop tightening specification.
• Gloves and eye protection.

Socket size and retaining-nut torque are intentionally not guessed. Confirm the correct specification for your exact vehicle before tightening.

Step-by-step

1. Park the rear wiper normally, switch the ignition off and remove the key/disable the vehicle as appropriate.
2. Place masking tape on the glass to mark the existing blade's parked position before removing anything.
3. Protect the surrounding glass and paintwork with a towel or suitable non-abrasive cover.
4. Carefully lift/remove the plastic spindle-nut cover without forcing brittle trim.
5. Loosen the retaining nut. Initially leave a few threads engaged so the arm cannot release suddenly.
6. Rock the old arm gently at the spindle. If seized, apply suitable penetrating fluid and use a dedicated wiper-arm puller. Do not lever against the rear glass.
7. Remove the nut and old arm, then clean dirt/corrosion from the spindle splines without damaging them.
8. Position the replacement arm on the splines so the blade sits at the masking-tape park reference.
9. Refit the original retaining hardware and tighten to the correct Ford workshop specification for the vehicle. Refit the cap.
10. Fit/transfer the correct rear blade, remove the tape and protection, then test full sweep and park position with the glass wet. Stop immediately if the blade approaches trim or sweeps incorrectly.

Estimated fitting time

Planning estimate: approximately 15-30 minutes for an experienced fitter when the old arm releases normally. Corrosion, damaged spindle splines, previous repairs or diagnosis can increase the time. This is a practical estimate, not a published Ford labour time.

Static garage labour estimator

Because eBay descriptions do not permit active calculators, use this simple formula: hourly labour rate x 0.25 to 0.50 hour.

Illustrative labour only. A garage may apply a minimum charge and may add diagnosis, consumables, seized-part time or other applicable charges.

Fitting service subject to availability

ThePartPilot can also offer vehicle-part fitting/repair support subject to workshop availability and suitability of the job. Contact us through eBay Messages before making travel arrangements.

ILLUSTRATIVE WORKSHOP IMAGE

Mechanical fitting support available subject to availability | illustrative stock image, not our premises

ILLUSTRATIVE WORKSHOP IMAGE

Workshop reference image | actual service availability must be confirmed first

Workshop images are CC0/public-domain reference imagery and are not representations of ThePartPilot's premises.

25,000+ parts held in stock

We hold more than 25,000 vehicle parts in stock/on the shelf at any one time , helping customers source replacement components while keeping serviceable parts in circulation.

ILLUSTRATIVE STOCK IMAGE

Large-stock warehouse concept | illustrative CC0 image, not ThePartPilot premises

International delivery through eBay Global Shipping Programme

International availability is controlled by eBay and shown at checkout. Eligible destinations currently listed by eBay include:

Delivery address: check before paying

Returns and fitment responsibility

We provide detailed part numbers, body/chassis information, photographs, positive fitment and non-fitment guidance to help customers order correctly. If you are uncertain, ask us to check the registration/VIN and your existing-part photo through eBay Messages before ordering.

Support a local small business and keep parts in circulation

Buying from ThePartPilot supports a local small automotive-parts business while helping useful components complete another service life. Every correctly matched pre-owned part represents an opportunity to avoid unnecessary waste, reduce replacement cost and keep repairable vehicles on the road.

Picked, checked and packed for dispatch

Orders are prepared for dispatch with part identification and safe packing in mind. Because this is a vehicle component, always inspect the actual item photos and confirm fitment before checkout.

THEPARTPILOT | DISPATCH

Boxed-goods dispatch concept | illustrative CC0 image, not ThePartPilot premises
