Correct Vehicle Reference

REFERENCE VEHICLE: 2014 FORD TRANSIT CONNECT MK2 PANEL VAN

Reference image only; the vehicle is not included. Photo: BarnCas, CC BY-SA 4.0, Wikimedia Commons.

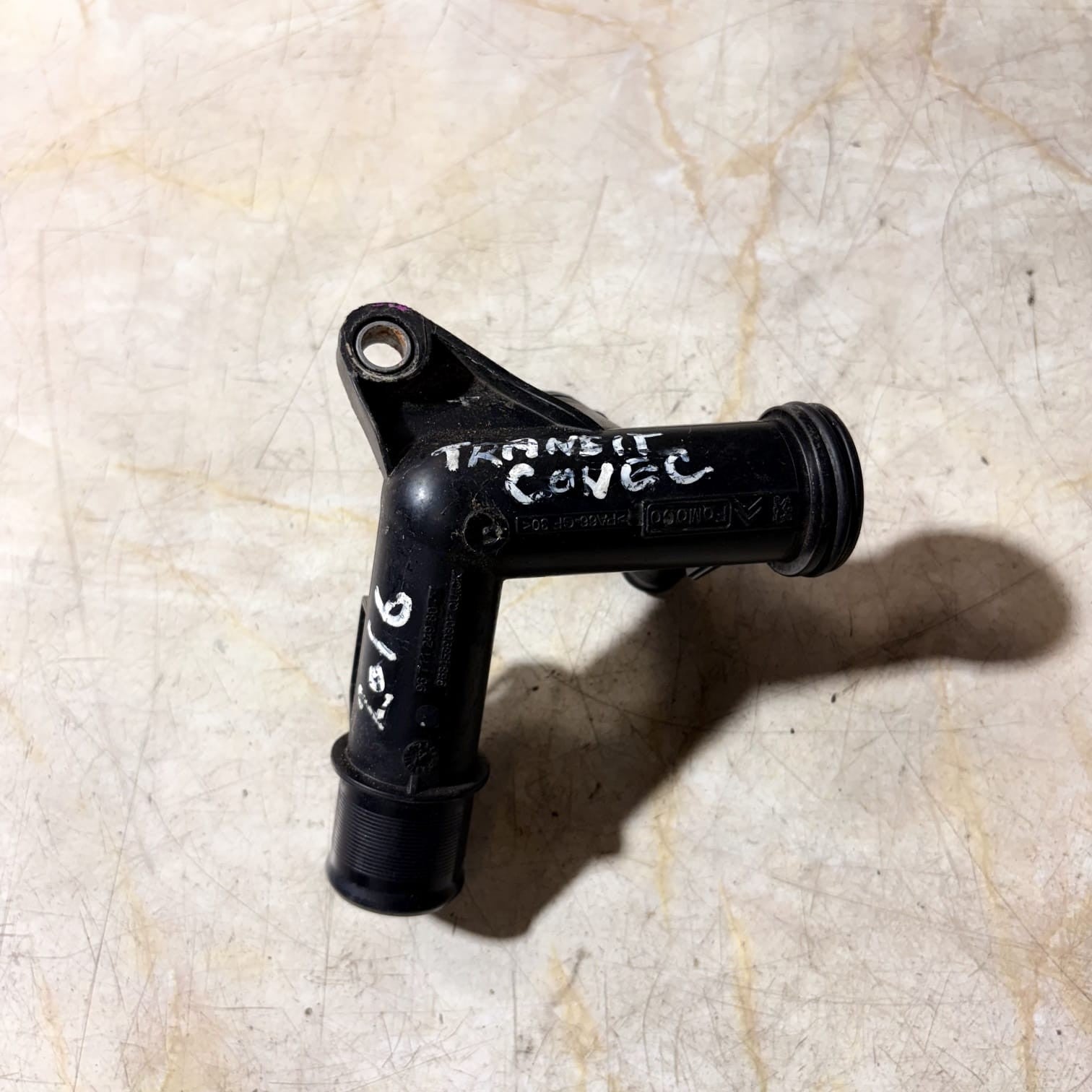

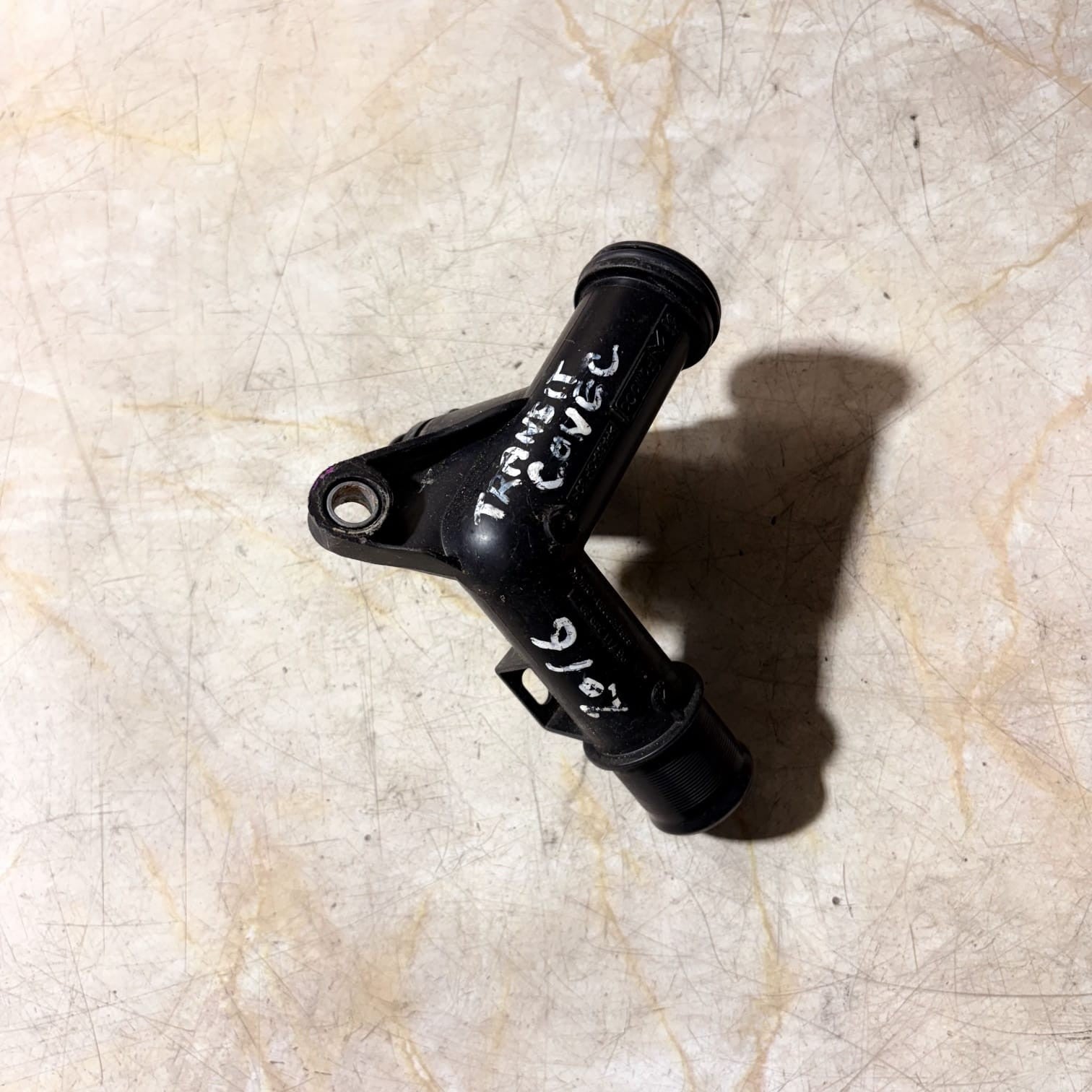

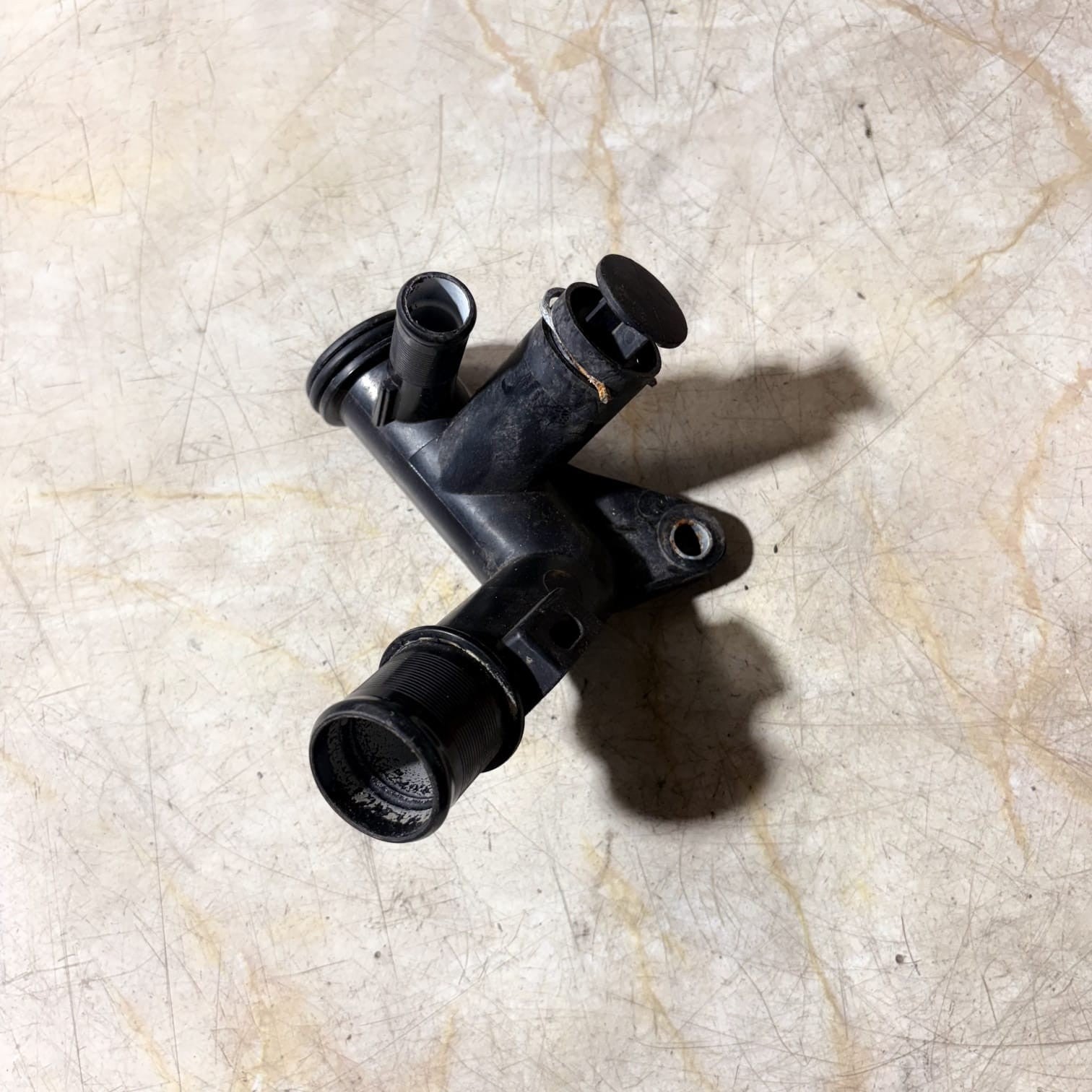

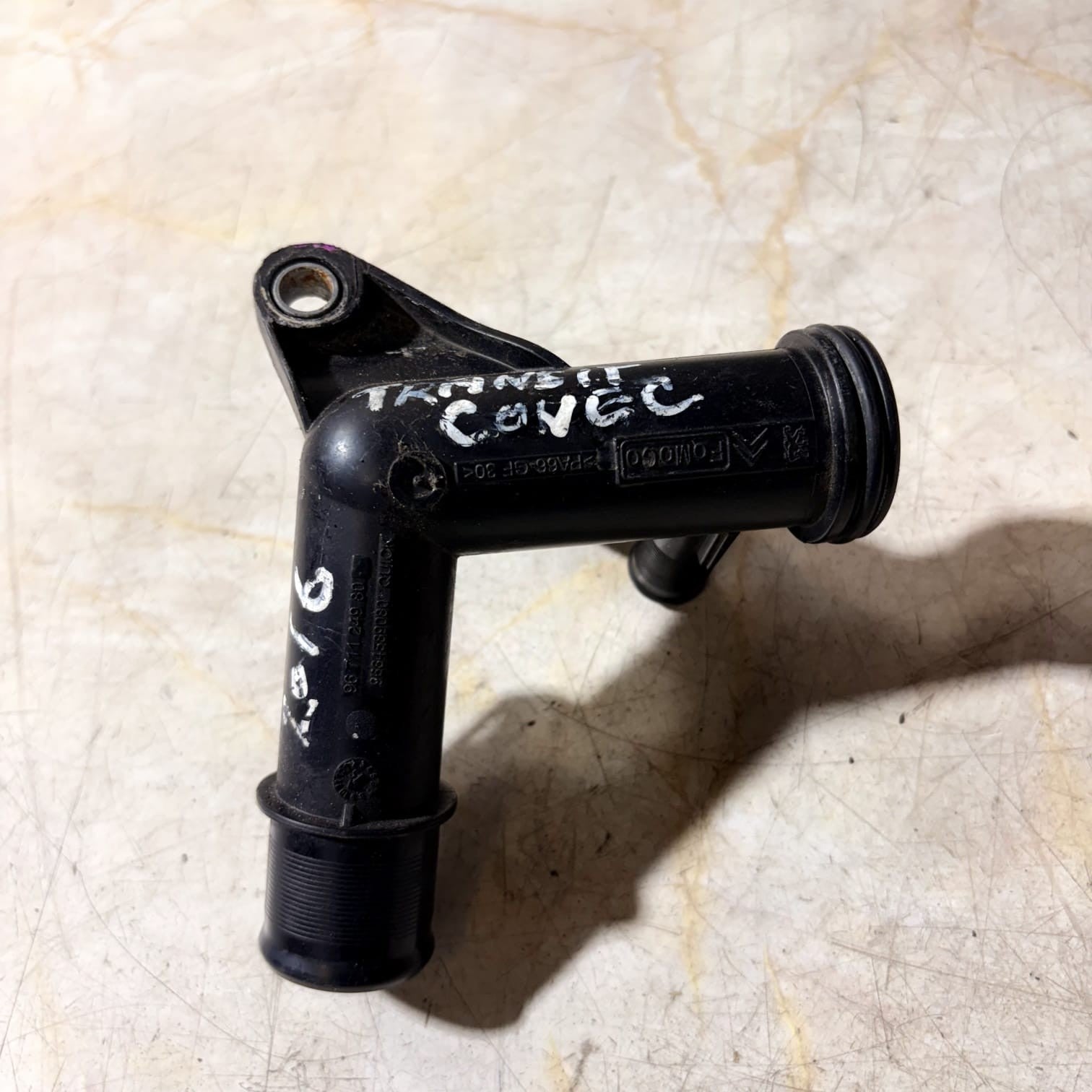

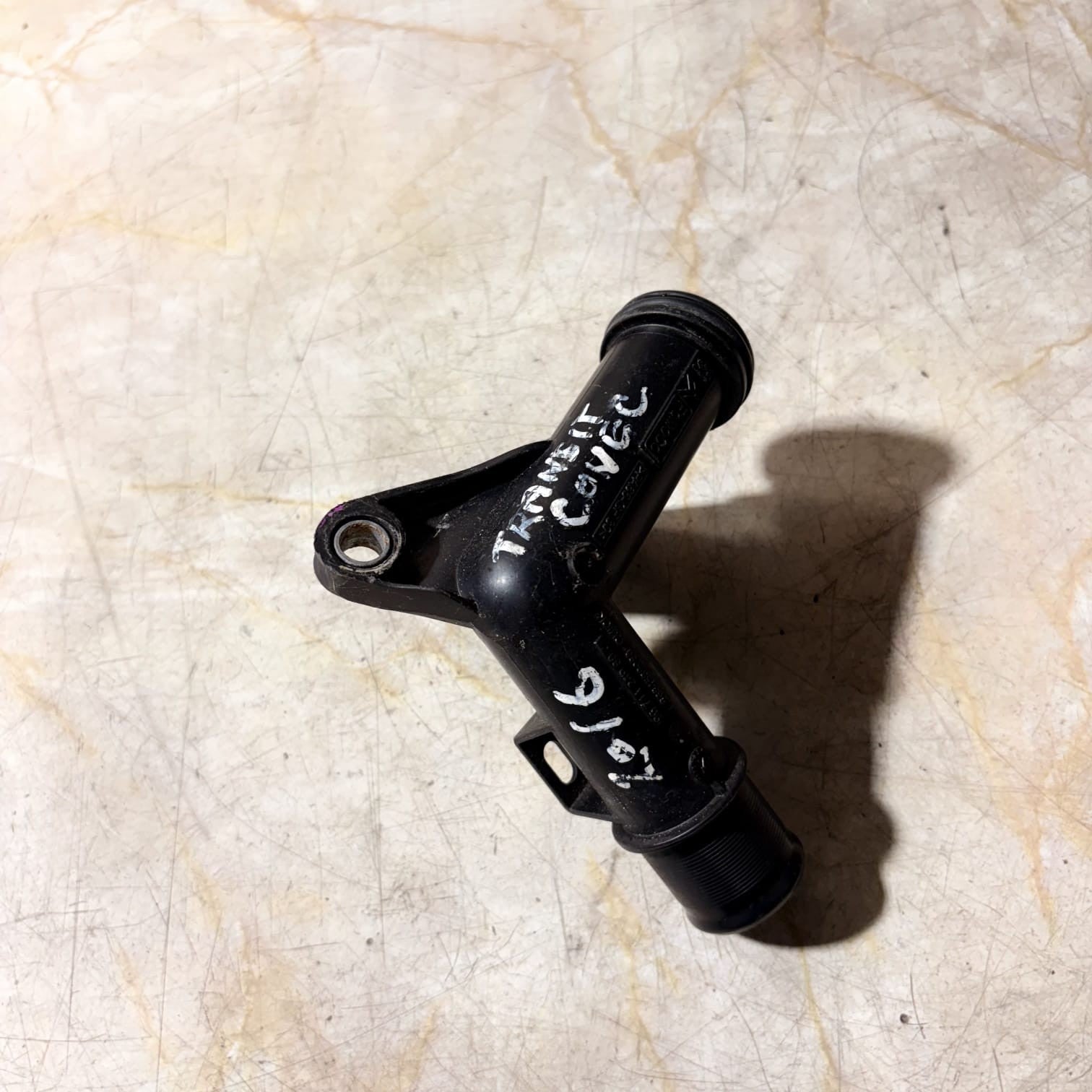

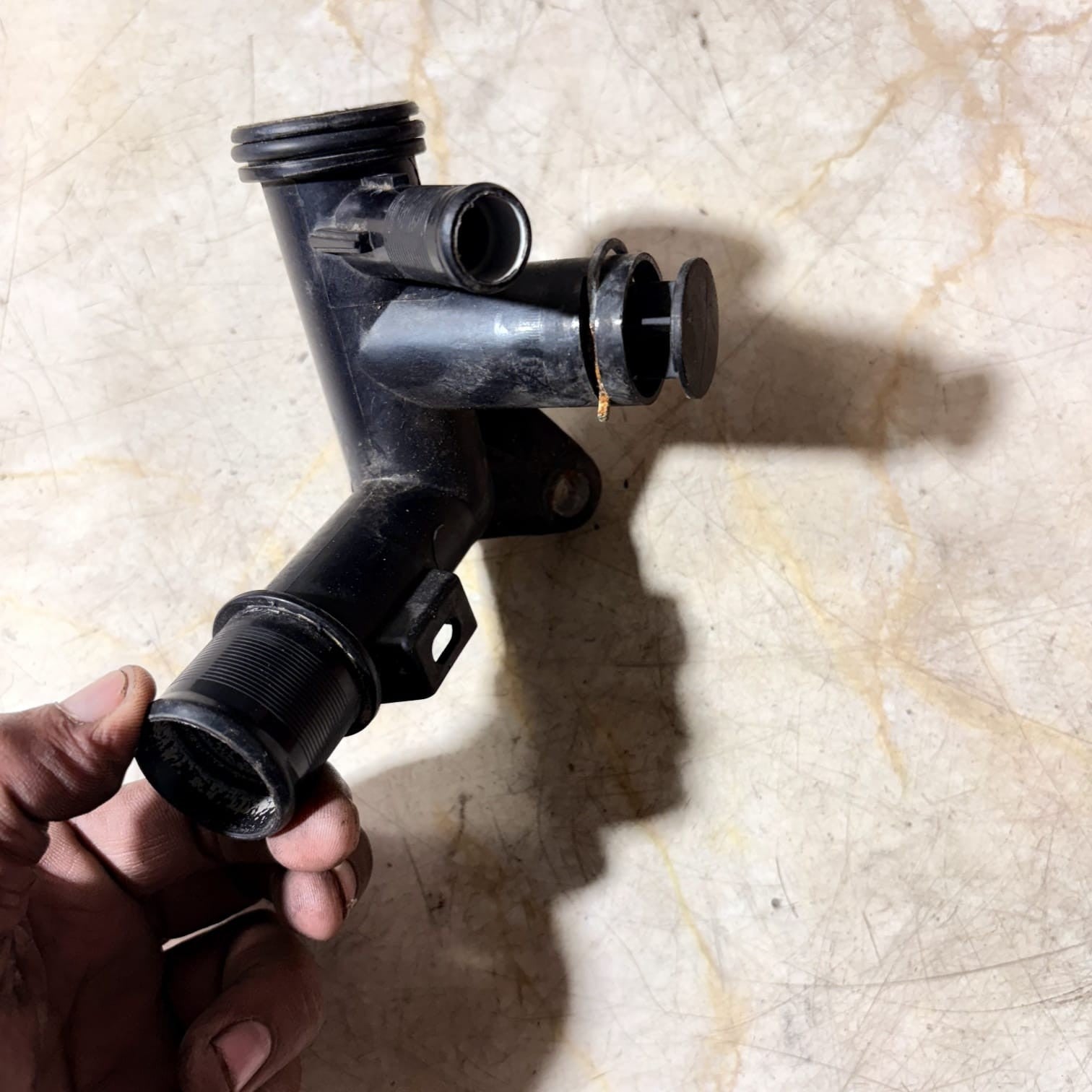

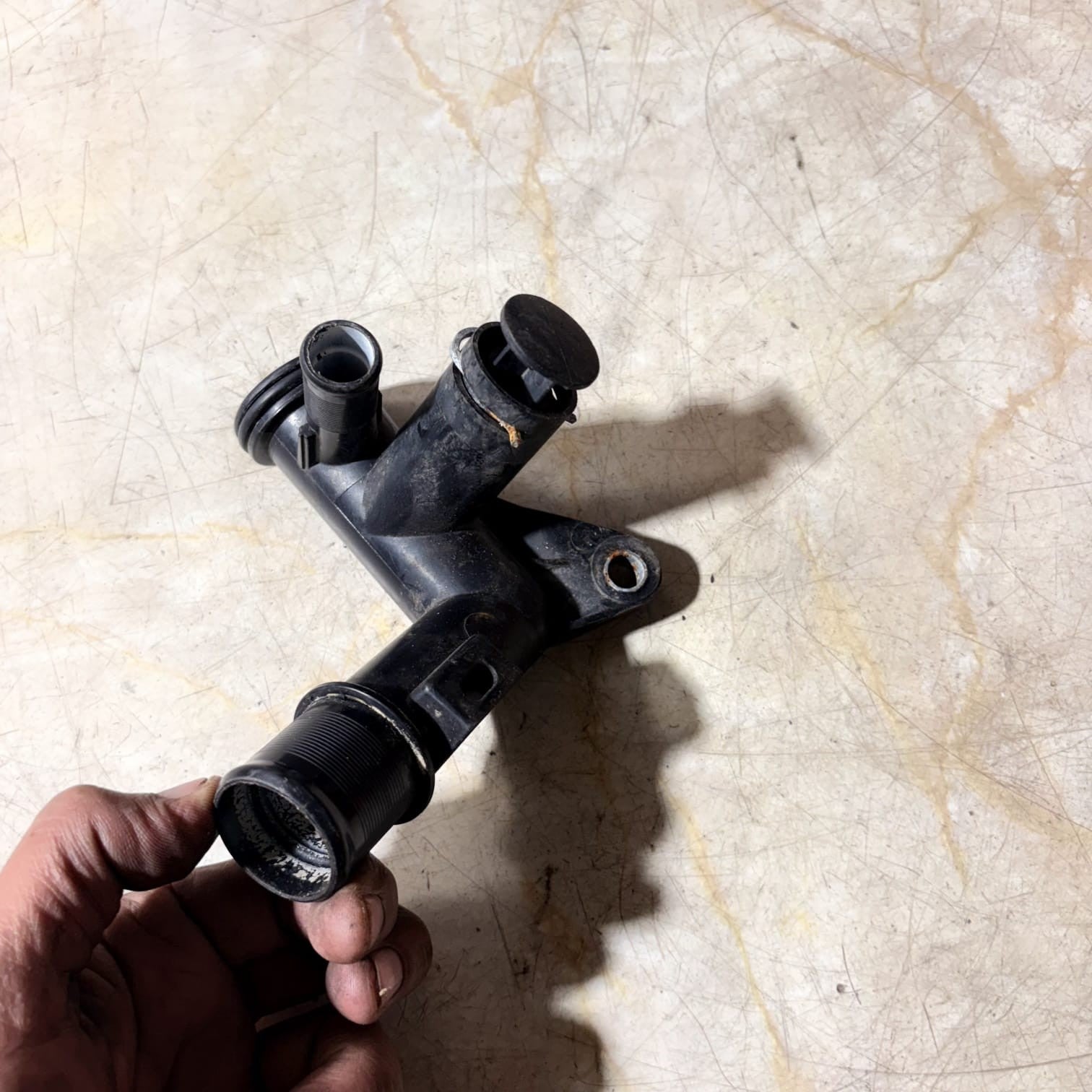

Where the part is fitted: in the engine bay as part of the 1.6 TDCi engine cooling circuit, at the moulded junction connecting coolant hosework between the engine / water-pump side of the circuit. Access and exact orientation can vary by derivative, but the moulding number and physical port layout must remain identical.

Part Identification

Confirmed Primary Fitment

Door-count note: this engine-bay component is selected by engine, cooling layout and part number rather than by a simple 3-door / 5-door description. The reference vehicle shown is the correct second-generation panel-van shape.

Other Possible Cross-Fit Applications

The Ford 1685830 / AV6Q-8K512-AA family appears in several 1.6 TDCi applications. These are not automatic fitment claims because hose lengths, outlets and complete assemblies can differ. Buy only after VIN, engineering-number and photograph comparison.

Will Not Fit

• Full-size Ford Transit Mk8 2.0 or 2.2 TDCi, despite the old listing title.
• Ford Transit Custom or Tourneo Custom.
• First-generation Transit Connect 1.8 TDDi / TDCi.
• Petrol EcoBoost variants.
• 1.5 TDCi derivatives unless the Ford number, moulded number and every connection point are identical.
• Any vehicle with a different number, outlet angle, port diameter, mounting ear or hose arrangement.

What This Part Does

This housing forms a sealed junction within the engine cooling circuit. It routes coolant between connected hose sections and the engine / water-pump side of the system while maintaining pressure and flow. Because it operates through repeated hot-cold cycles, ageing plastic, damaged sealing surfaces or stressed hose connections can eventually leak.

Common Fault Symptoms

Why Choose a Factory-Branded Used Component?

The photographed component was produced to the vehicle maker's original dimensions, connection angles and mounting layout. A correctly matched used factory-branded part can provide a better physical fit than a poorly moulded low-cost copy with inaccurate ports or sealing faces. Reusing serviceable parts can also cost substantially less than buying new — savings can reach around 70% on some vehicle parts, depending on availability and new retail price.

Important: used condition does not remove the need to renew disposable seals, O-rings or clamps where specified and to pressure-test the cooling system after installation.

Fitting Guide

1. Allow the engine to cool completely and remove the coolant reservoir cap slowly only when safe.
2. Disconnect the battery where required and remove covers or intake ducting obstructing access.
3. Position a suitable drain tray and drain coolant below the level of the connector.
4. Photograph the original hose routing. Release hose clips with the correct clamp pliers.
5. Disconnect hoses carefully without levering against brittle plastic. Remove the housing mounting fastener.
6. Clean mating areas. Inspect hoses and renew O-rings, seals or damaged clamps as required.
7. Fit the replacement in the same orientation. Ensure each hose is fully seated and correctly clamped.
8. Refill with coolant of the correct Ford specification and concentration.
9. Bleed the cooling system using the vehicle-specific procedure, run to temperature and check heater operation.
10. Pressure-test for leaks and recheck the level after a complete heat cycle and cool-down.

Tools, Time & Labour Estimate

Typical tools: socket set, ratchet and extensions, hose-clamp pliers, trim tools, pick for old seals, drain pan, funnel or vacuum-fill equipment, torque wrench, cooling-system pressure tester, correct coolant and replacement seals. Exact socket sizes and procedures vary by derivative.

Typical fitting time: approximately 0.8–1.5 hours for an experienced technician. Allow up to 2.0 hours where access is restricted, fasteners are corroded or the cooling system requires additional diagnosis.

Fitting and garage repairs: available subject to workshop capacity. Ask through eBay Messages before travelling or purchasing a fitting slot.

Buy the Correct Part First Time

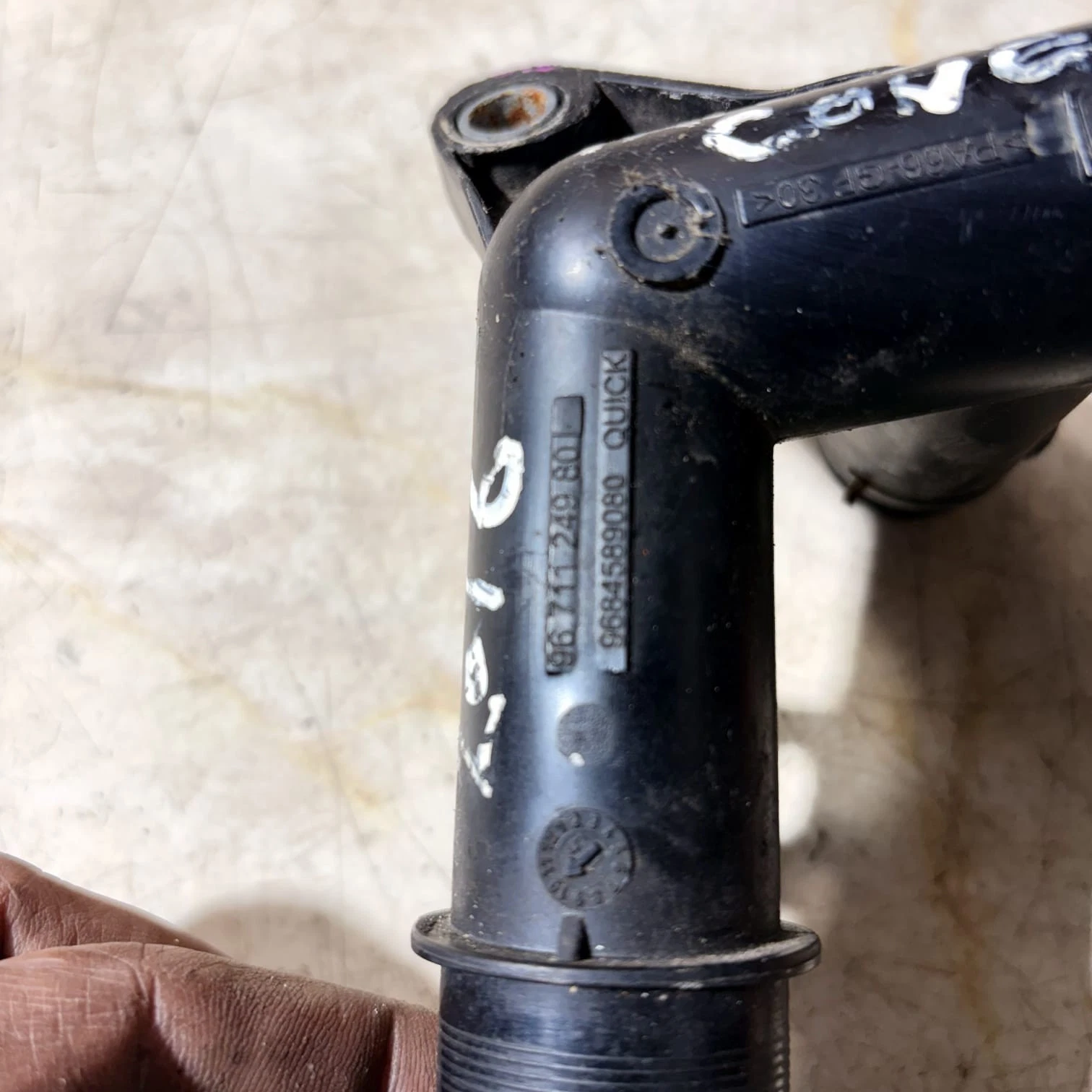

1. Compare 9671124980, 9684589080, AV6Q-8K512-AA or 1685830 with the removed part.
2. Compare the number, quantity and angle of every coolant port.
3. Compare the mounting ear, bolt hole and overall moulding shape.
4. Confirm a 1.6 TDCi Euro 5 application; do not buy for a full-size Transit.
5. When uncertain, send the VIN and a clear photograph of the removed part through eBay Messages before ordering.
