Honda CR-V Metal Hard Pipe / Multi-Line Assembly

📸 ACTUAL PART PHOTOGRAPHS

These are photographs of the actual listing item – not a generic stock component.

ITEM DETAILS & SPECIFICS

🔍 WHAT OUR PHOTO CHECK SHOWS

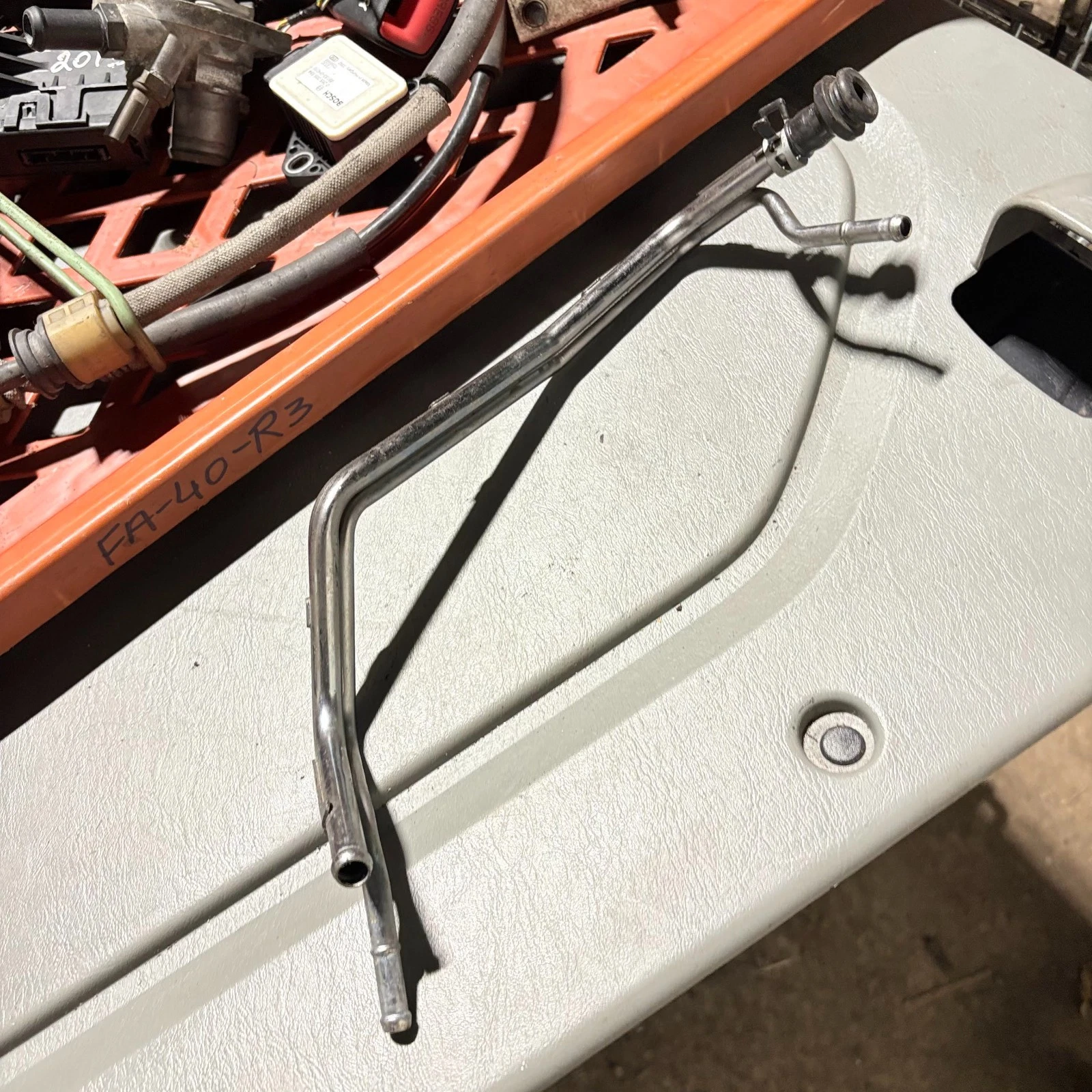

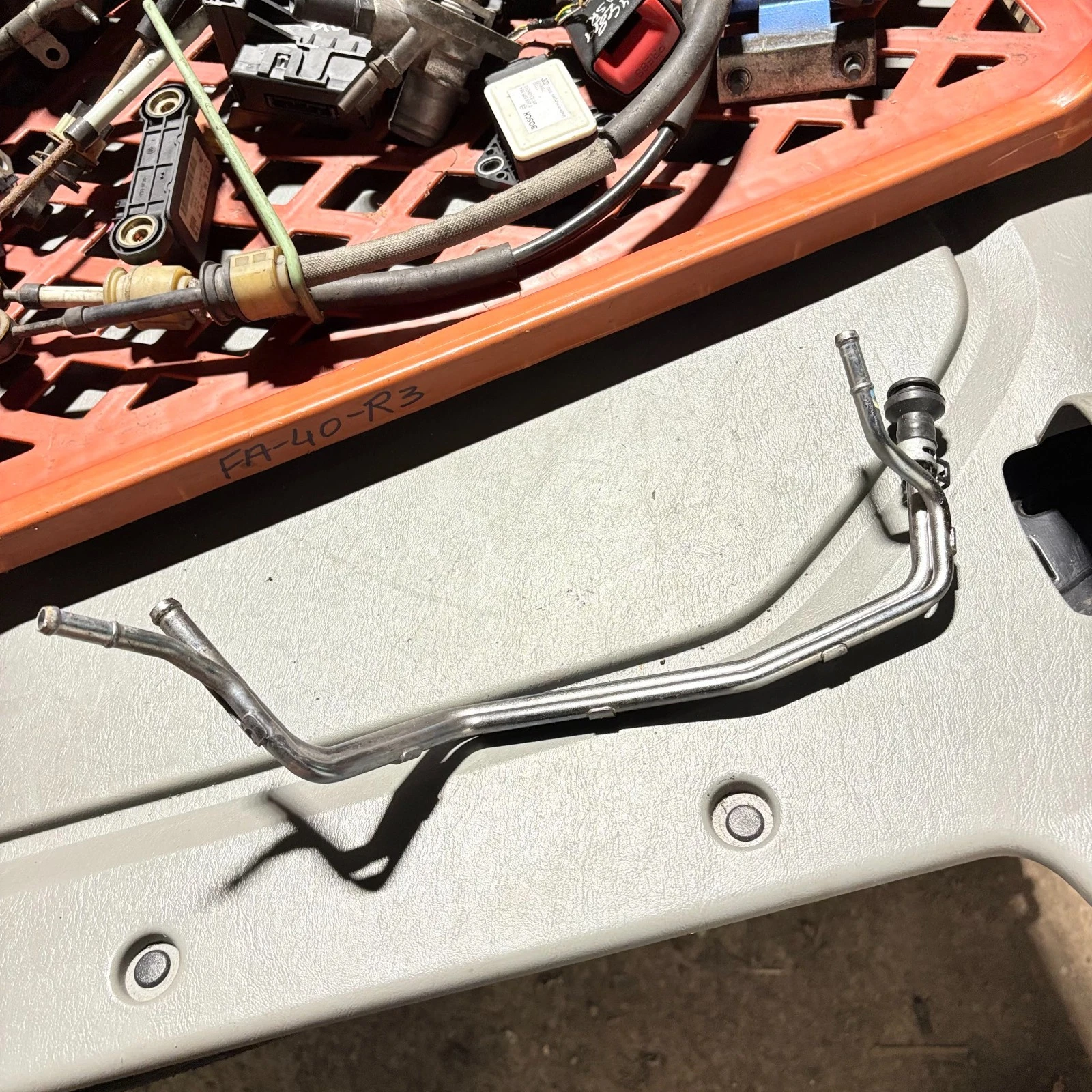

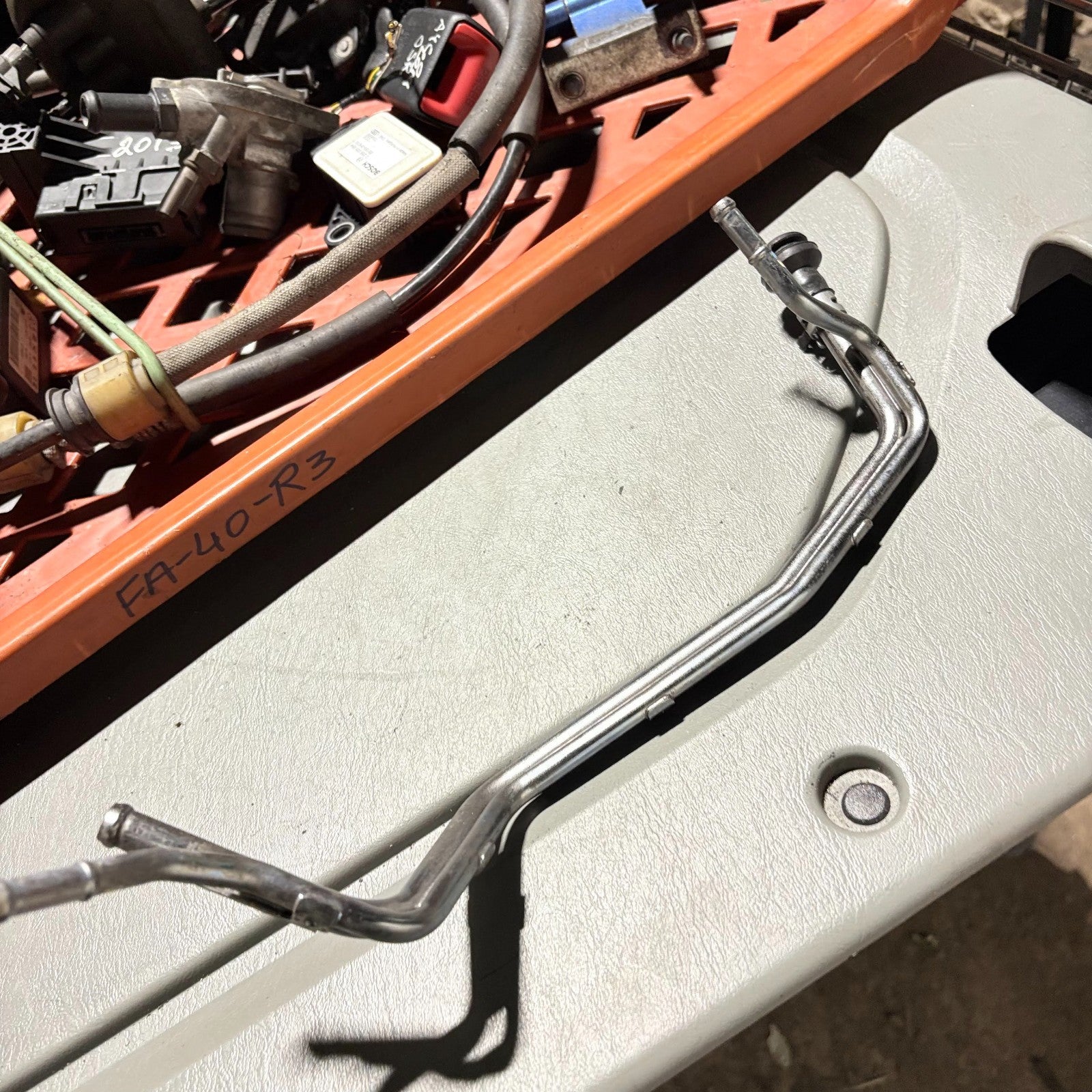

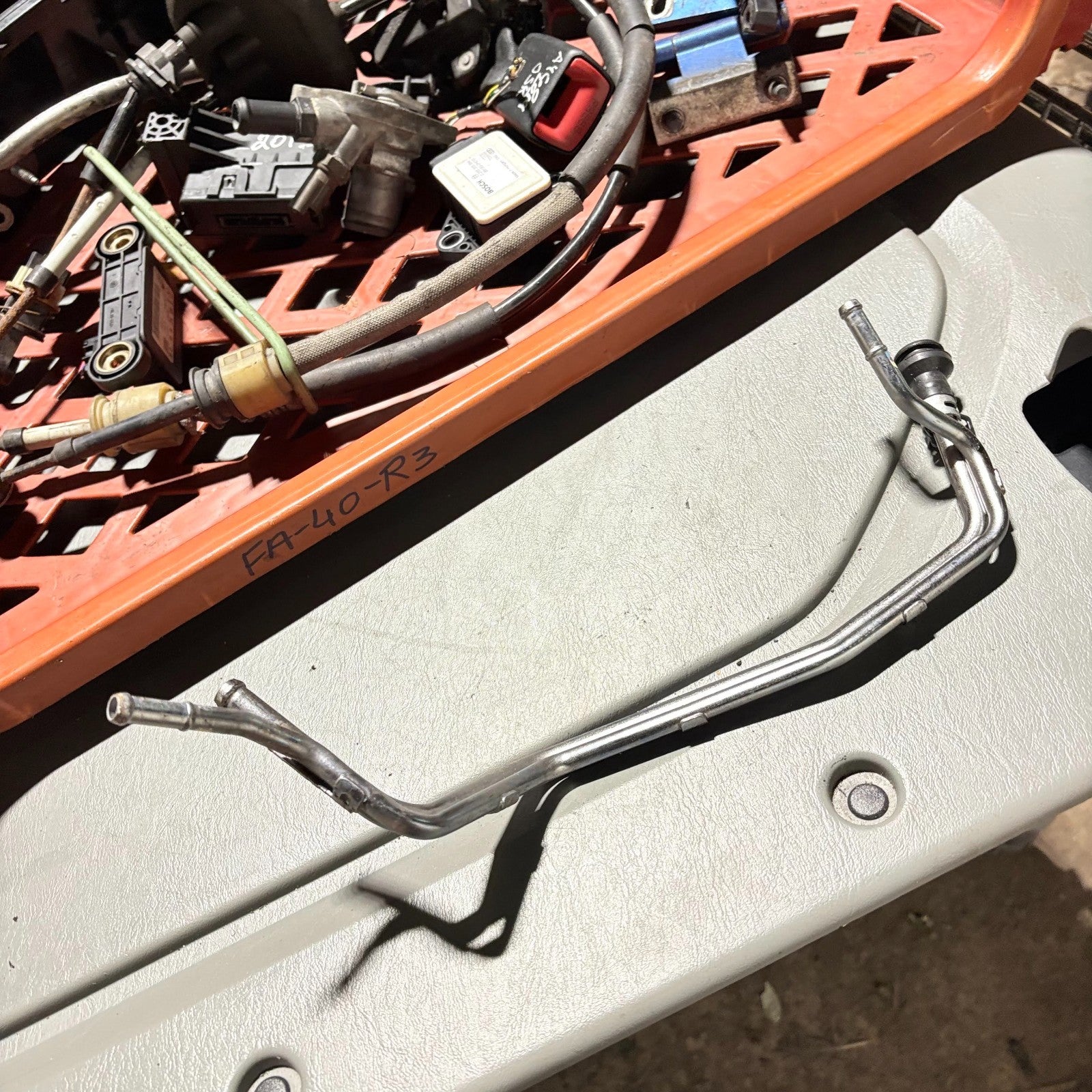

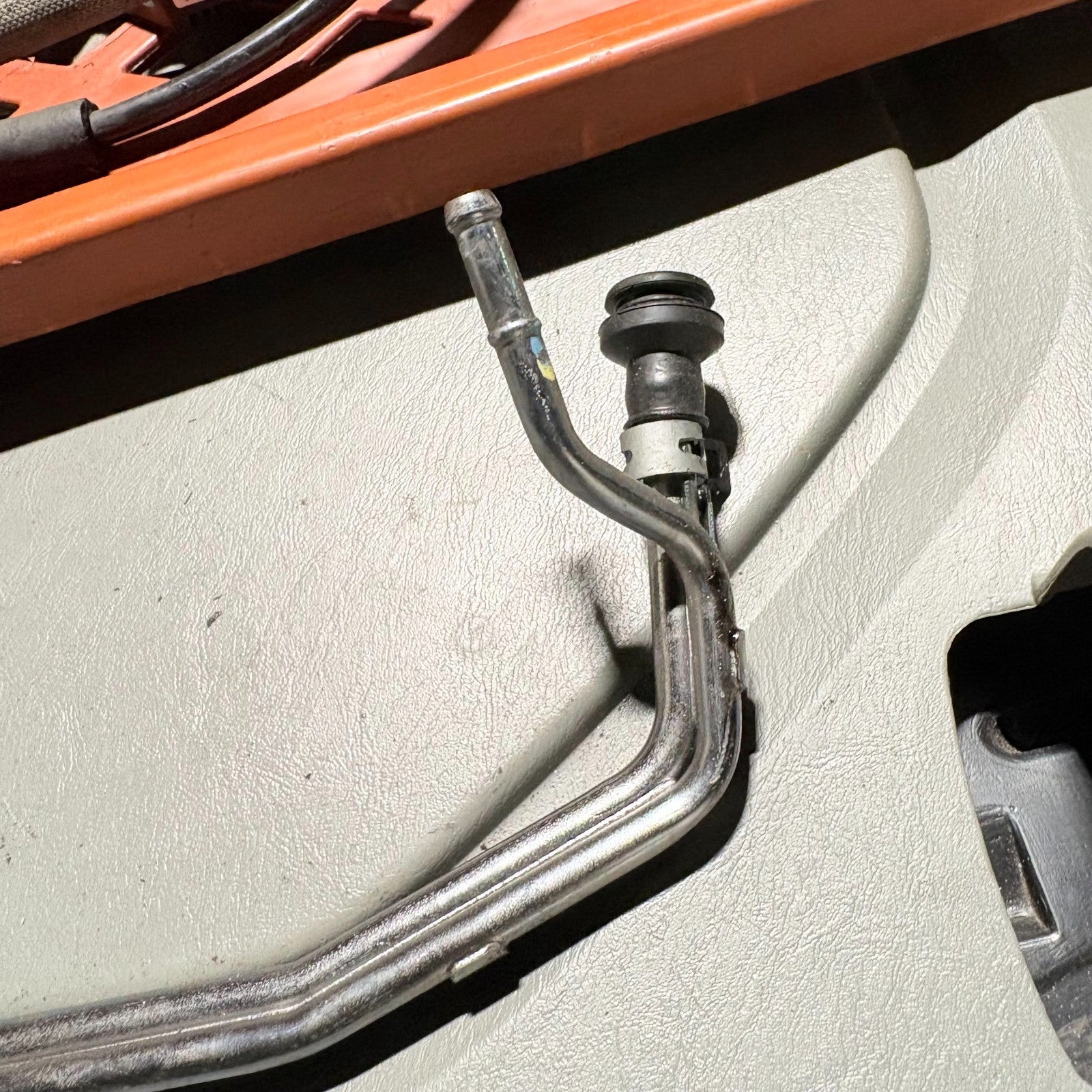

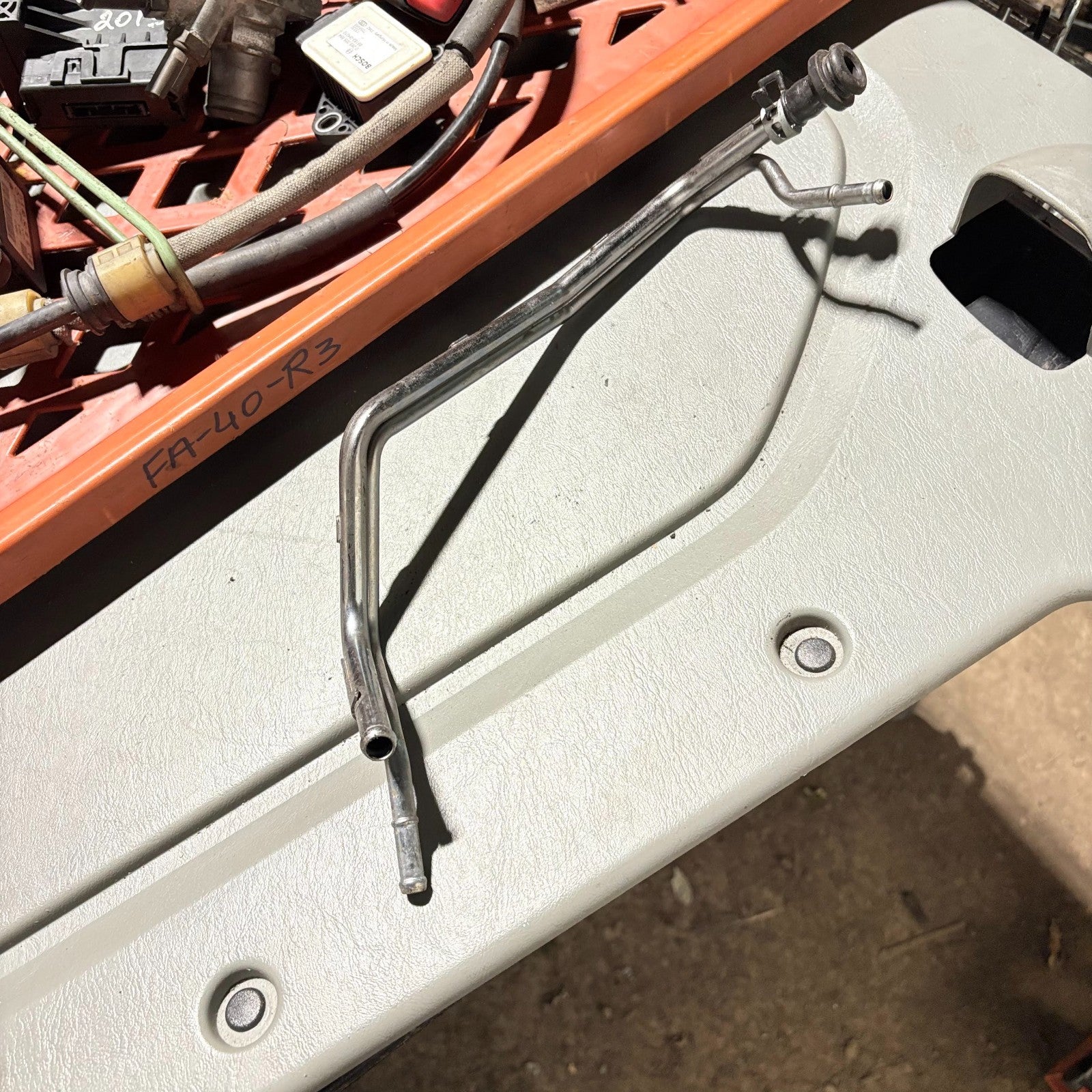

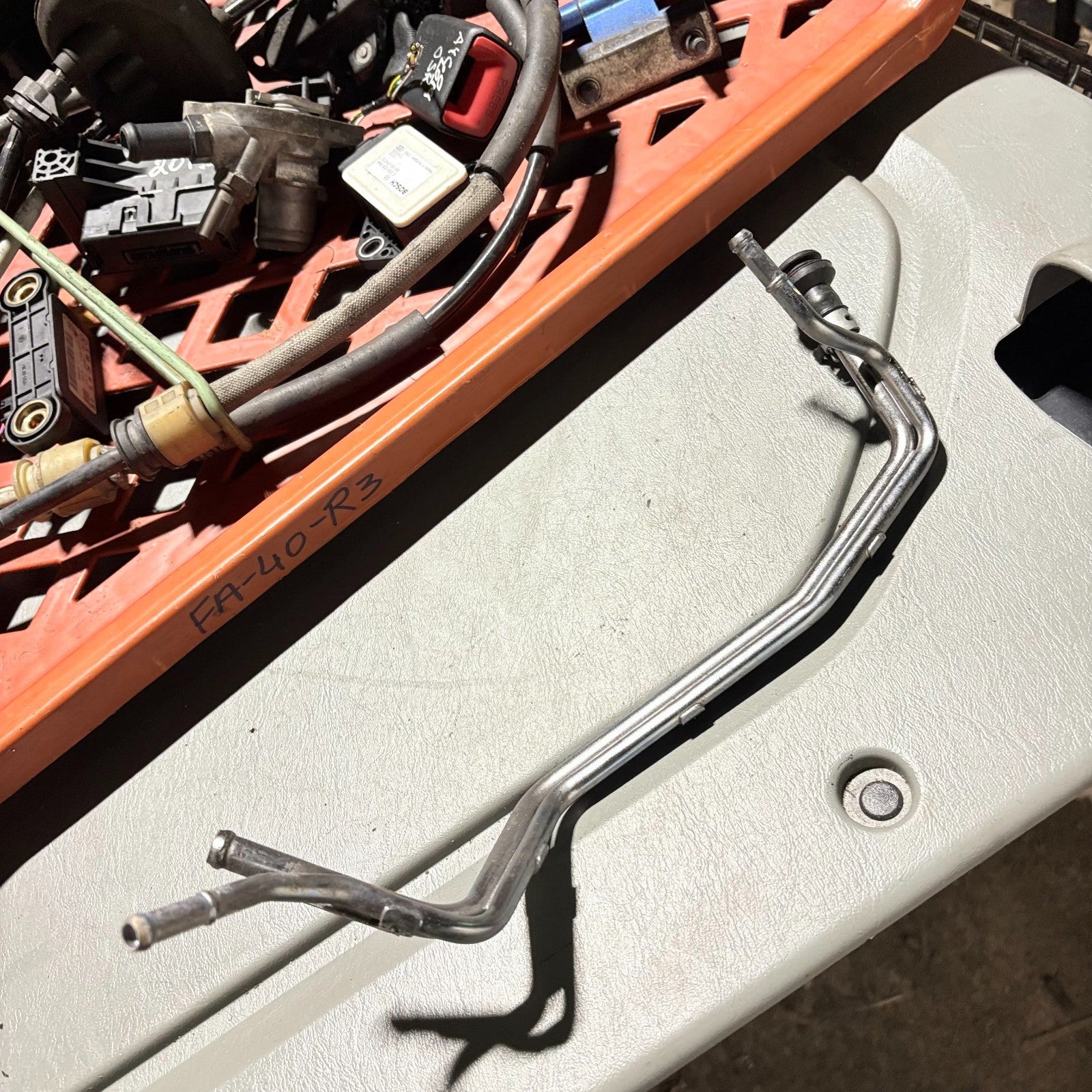

The photographed component is a long rigid multi-line assembly with several small-bore metal tubes, formed bends, mounting / retaining points and connector sections. Visual comparison is more consistent with the CR-V fuel / vapour hard-line area than a conventional large-bore radiator coolant pipe.

Important: visual similarity is not sufficient to certify an exact manufacturer number. Honda used different pipe references according to chassis, engine, transmission, market and production specification. We therefore do not invent a part number or fitment year.

🚘 PARTS COMPATIBILITY / FITMENT CHART

📍 WHERE IT FITS & WHAT IT DOES

Photograph and catalogue comparison indicates this component is most consistent with a rigid multi-line pipe group used around the Honda CR-V fuel / fuel-vapour system. Such assemblies route fuel and/or vapour circuits between system components while maintaining secure factory-style routing underneath / through the vehicle.

Exact system function and installed position must still be confirmed from the manufacturer number or donor vehicle identification before purchase. We would rather leave a specification unconfirmed than provide a false fitment claim that causes the wrong part to be ordered.

⚠️ WHY A DAMAGED HARD LINE MAY REQUIRE REPLACEMENT

Metal vehicle lines can deteriorate through corrosion, stone impact, deformation, damaged retaining points or connector wear. If this assembly is confirmed as part of the fuel / vapour circuit, possible symptoms associated with a damaged line can include:

• Visible corrosion, cracking, dents or physical pipe damage
• Fuel or vapour odour where a fuel-system line is leaking
• Fluid leakage from a damaged pressure or return circuit
• Engine-management / emissions faults where an EVAP circuit cannot remain sealed
• Failed leak or pressure testing
• Damaged connectors, clips or mounting points allowing incorrect pipe movement

WHY CORRECT ORIGINAL-SPECIFICATION PARTS MATTER

When the manufacturer reference is correctly matched, an original vehicle component provides the routing, bend geometry, connector position, mounting-point location and clearances intended for that vehicle specification.

An incorrectly shaped or poorly matched aftermarket alternative can create alignment problems, stressed connections or difficulties with brackets and neighbouring components. Part-number matching remains essential regardless of brand.

Buying a carefully selected pre-owned component can also represent a substantial saving compared with purchasing its new equivalent. On selected car parts, savings can be as much as 70%, depending on the current new-equivalent market price and availability.

🔧 FITTING INFORMATION

General Installation Sequence

1. Confirm the replacement assembly matches the removed component before dismantling the vehicle.
2. Raise and support the vehicle safely using approved lifting equipment where access requires it.
3. Identify the system and follow the manufacturer's isolation, depressurisation, draining or recovery procedure as applicable.
4. Photograph or note the original pipe routing, bracket positions and connector orientation.
5. Release retaining clips / brackets without bending neighbouring pipes.
6. Disconnect the relevant line connections using the correct release method and equipment.
7. Compare old and replacement components side-by-side, including bends, branch points, connectors and mounting locations.
8. Replace seals, retainers or clips where the manufacturer specifies one-time replacement.
9. Install without forcing or re-forming the pipe.
10. Tighten mounting hardware and connections to the vehicle manufacturer's specification.
11. Restore the system correctly and carry out the appropriate leak / pressure / function test.
12. Inspect again after the vehicle has reached normal operating condition where applicable.

Safety: Never deliberately vent automotive refrigerant. Fuel systems must be safely depressurised and handled away from ignition sources. If the exact circuit has not been identified, do not disconnect it.

Typical Workshop Equipment Required

• Vehicle lift, ramps or correctly rated axle stands as applicable
• Metric socket and spanner set
• Torque wrench
• Trim / pipe-retaining clip tools
• Appropriate hose or line release tools where required
• Pliers and suitable hand tools
• Drain / catch equipment if the confirmed system requires it
• Replacement seals, clips or retainers where required
• Eye protection, gloves and appropriate workshop PPE

💷 STATIC GARAGE LABOUR CALCULATOR

No JavaScript or active content is used. Simply find your garage's hourly rate and estimated labour time. Hourly Rate × Hours = Estimated Labour Cost.

Illustration only. Labour rates vary by garage, region and vehicle condition. Parts, fluids, seals, consumables, diagnostics and additional repairs are not included.

↩️ RETURNS & CORRECT-FITMENT RESPONSIBILITY

Our goal is to prevent wrong orders before they happen. Please compare every photograph, connector, mounting position and relevant manufacturer number before fitting the item.

If you are unsure, ask us through eBay Messages for help before ordering. Providing the vehicle VIN / chassis information and the number from your existing component gives the best chance of identifying the correct version.
