JAGUAR 2012 REAR RIGHT DOOR HINGE LOWER & FRONT LEFT HINGE UPPER AA8SA1120031
JAGUAR 2012 REAR RIGHT DOOR HINGE LOWER & FRONT LEFT HINGE UPPER AA8SA1120031
AA8SA1120031
⭐ BUY THE CORRECT PART FIRST TIME
This listing is for Jaguar XF X250 door hinge components in two specific mounting positions: Rear Right Lower (OSR / RH Lower) and Front Left Upper (NSF / LH Upper).

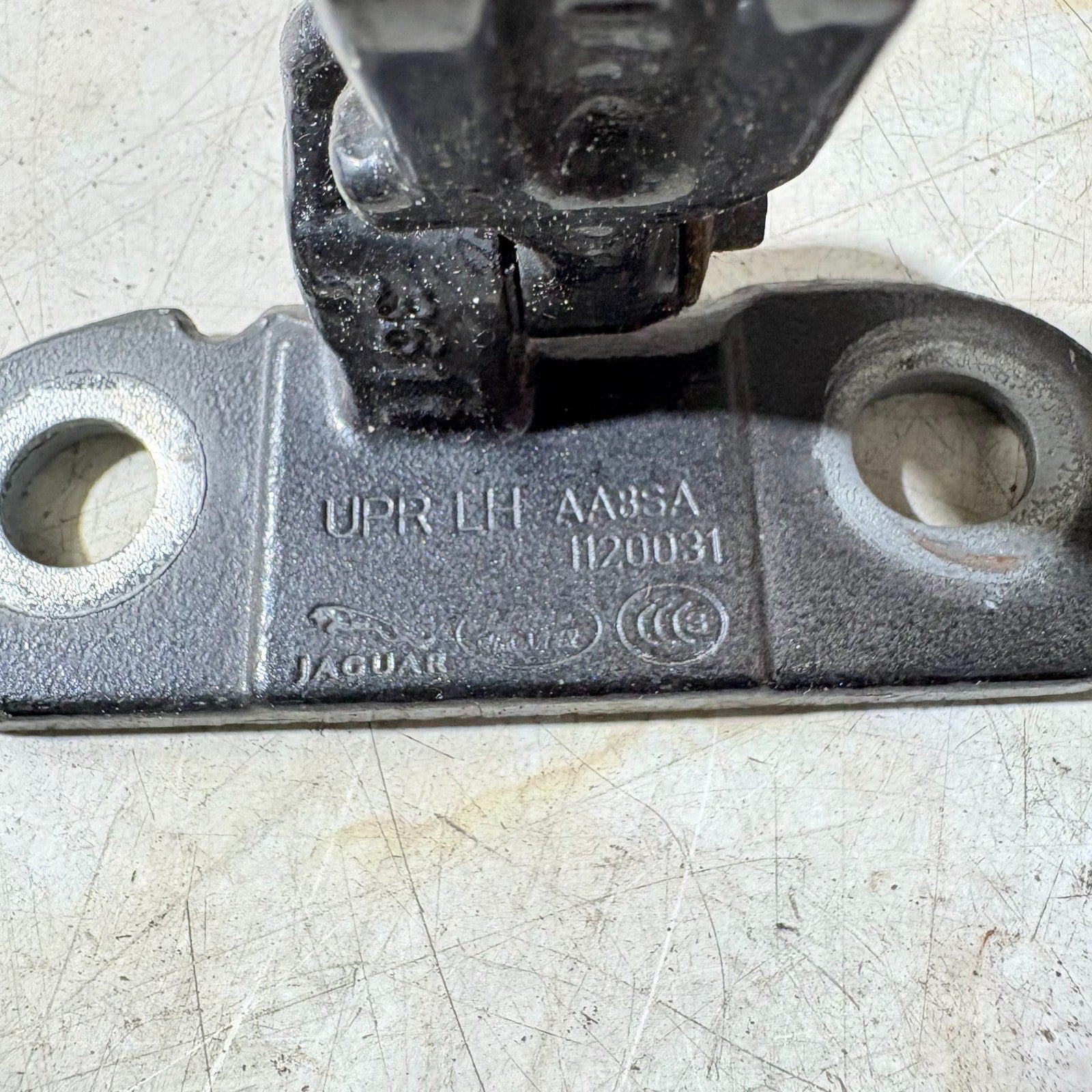

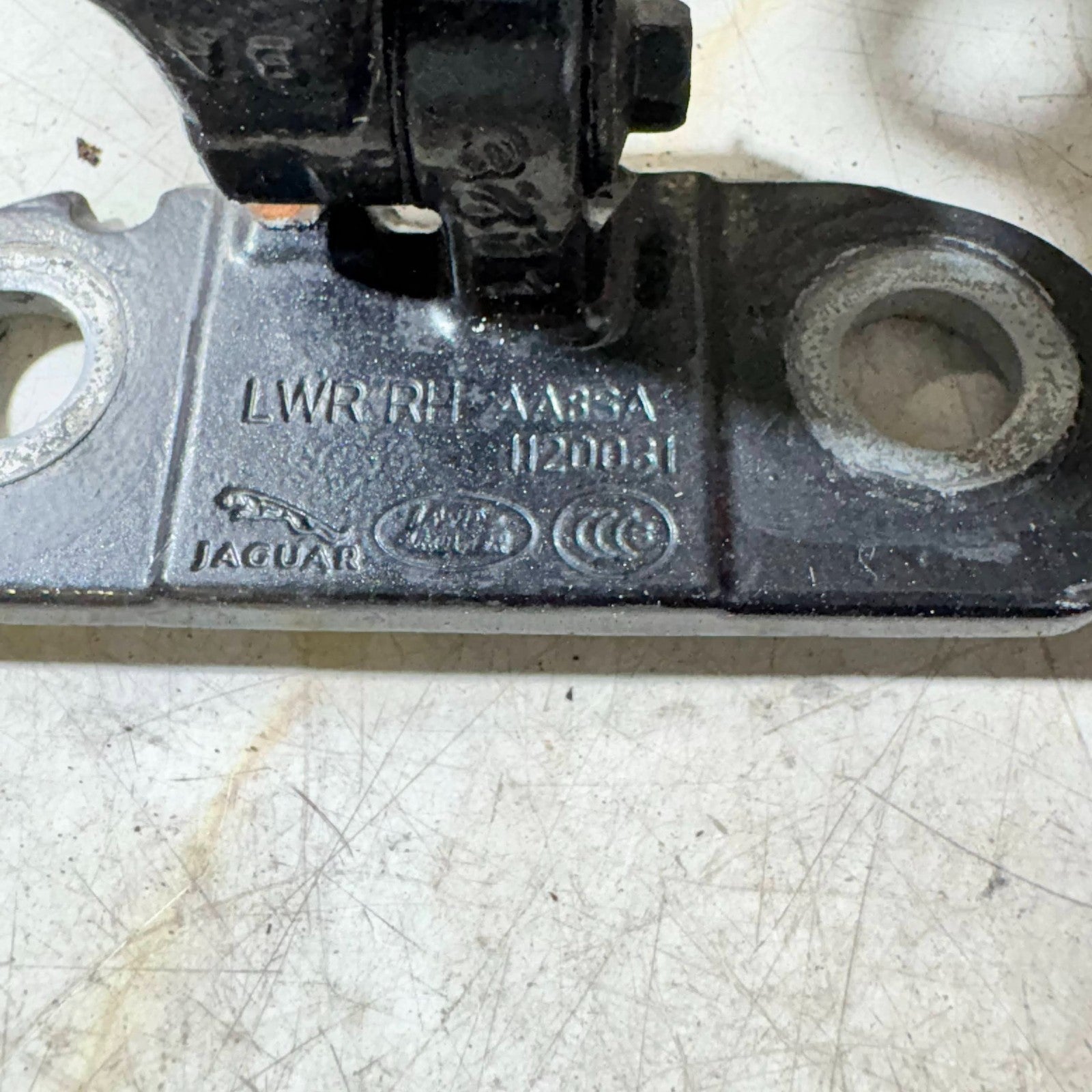

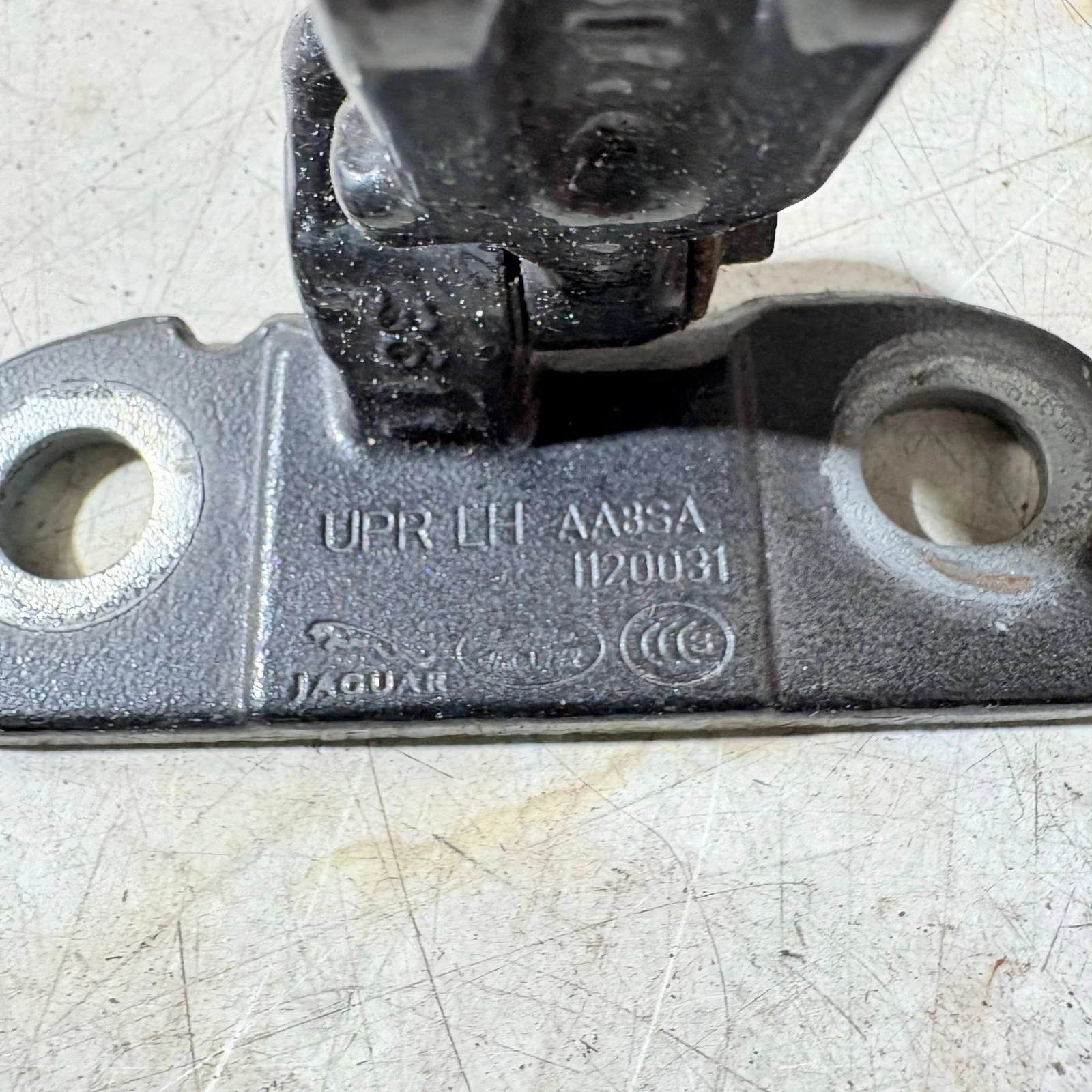

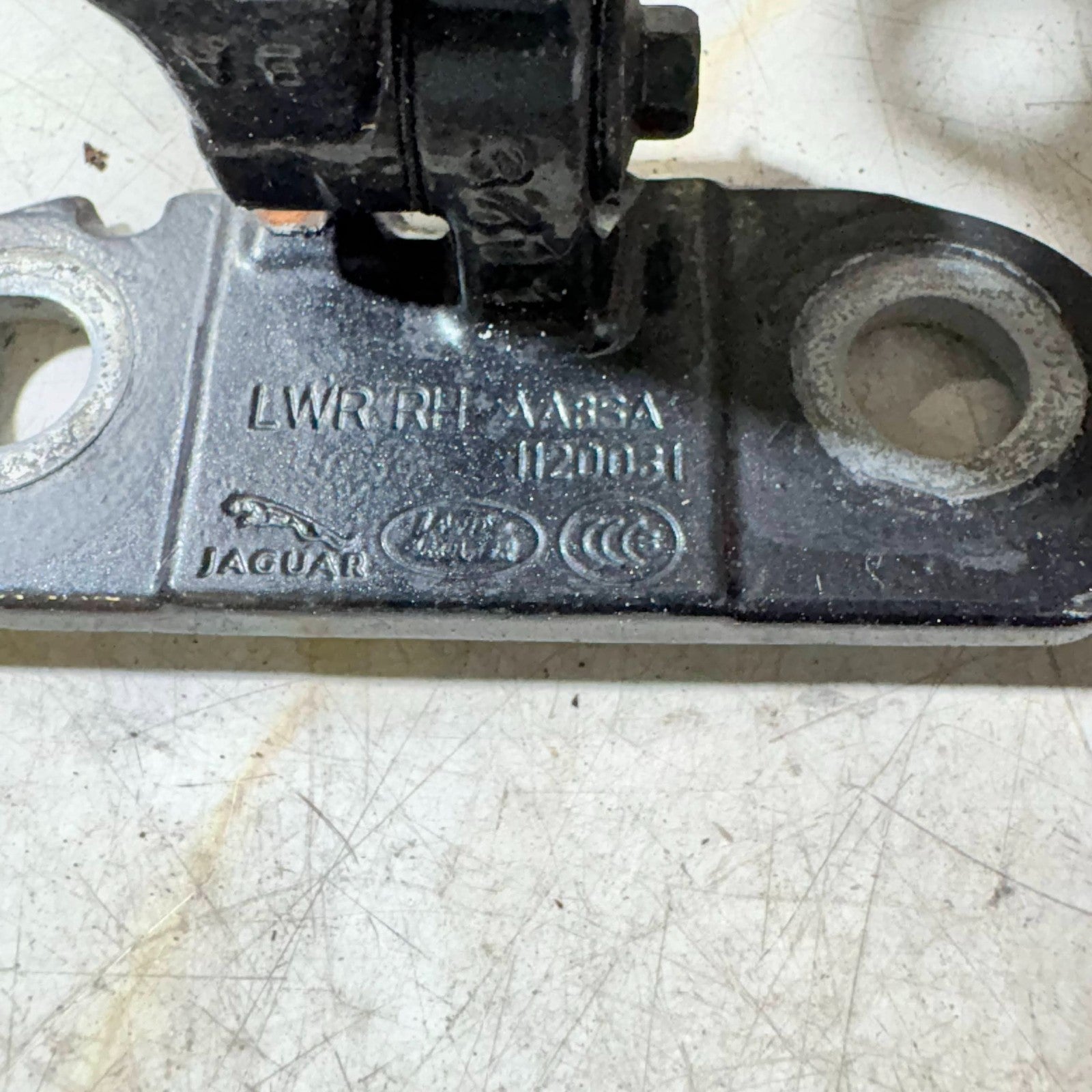

The photographed component carries the engineering marking AA8SA 1120031. Jaguar catalogue references for the X250 identify the corresponding position-specific service numbers as C2D38962 for RH Lower and C2D38968 for LH Upper.

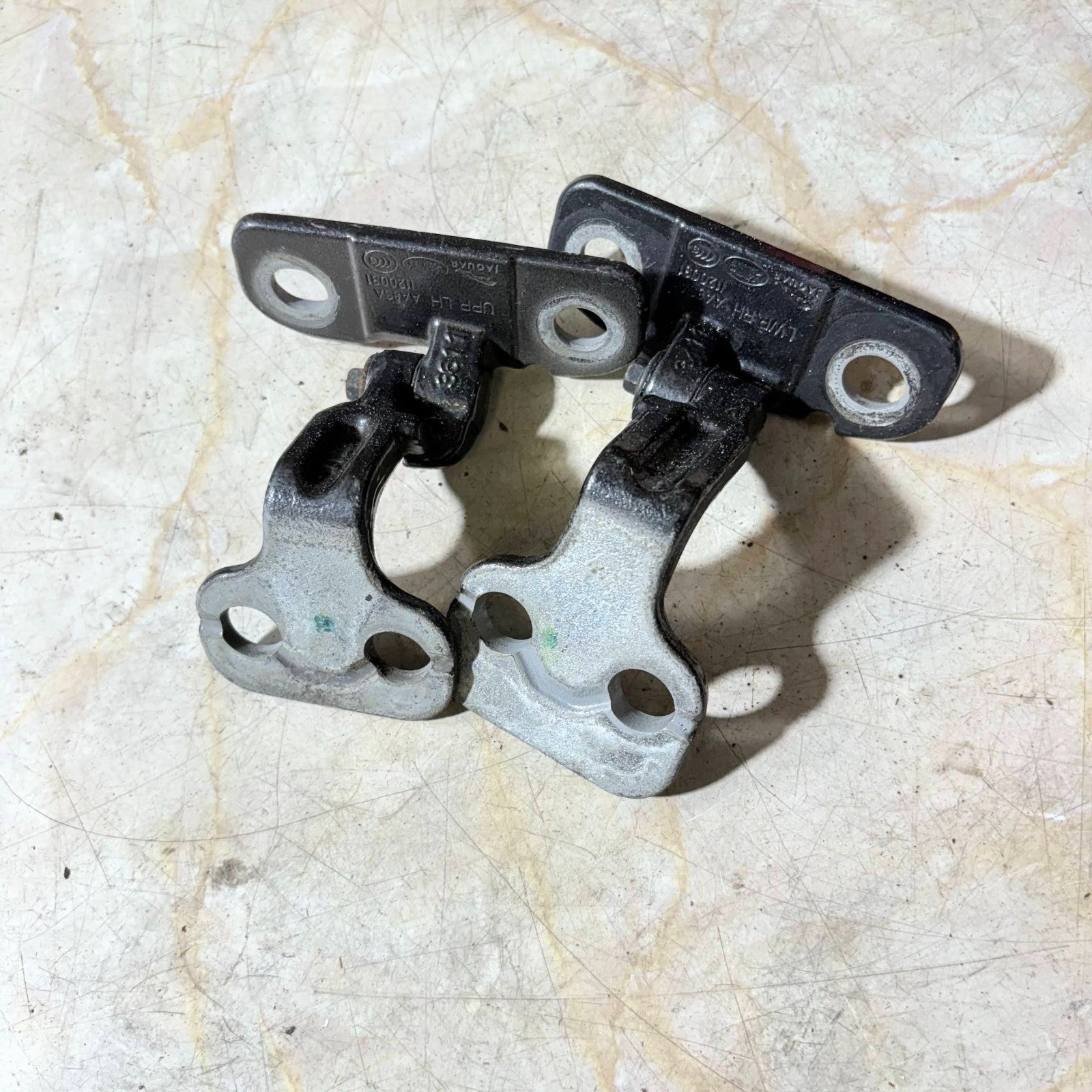

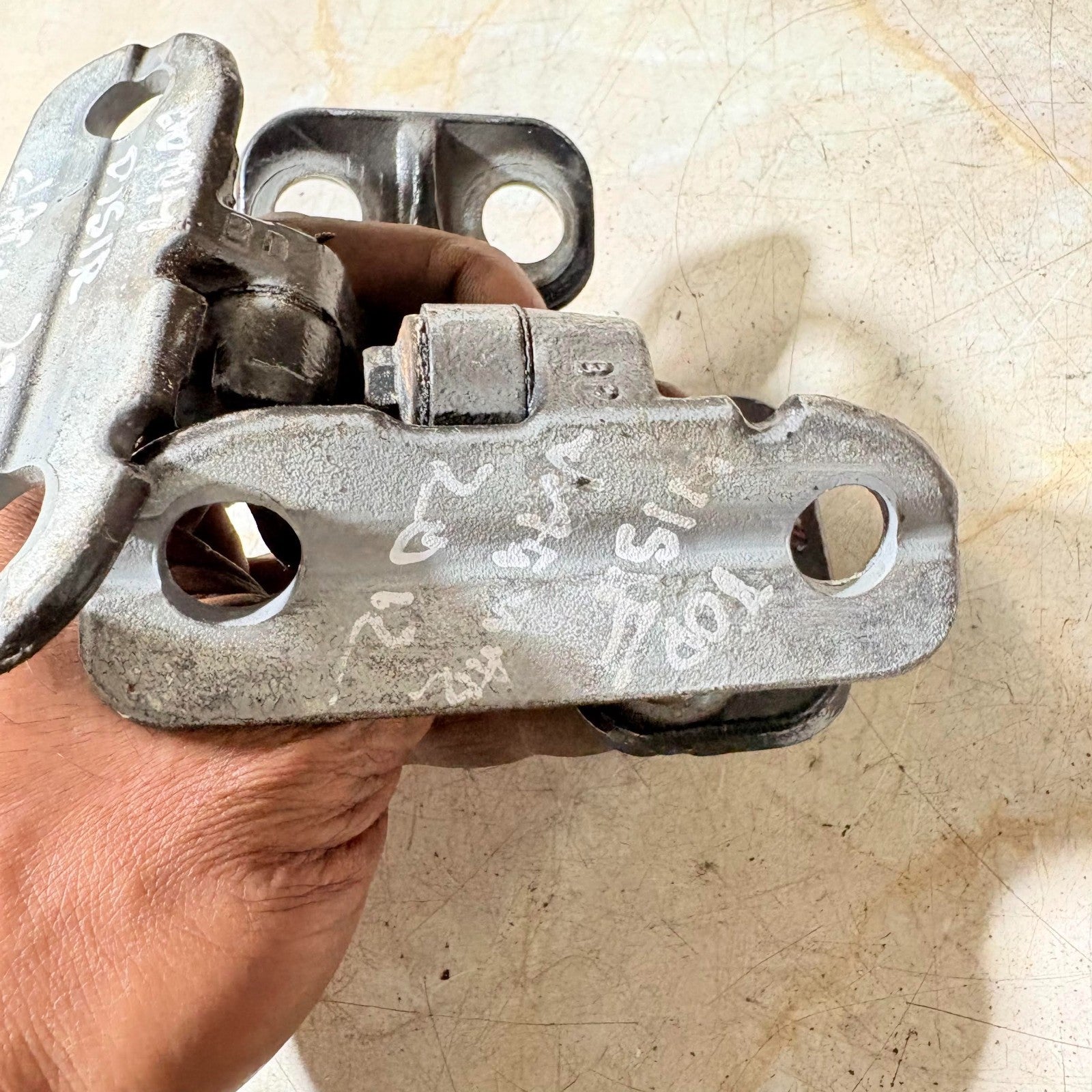

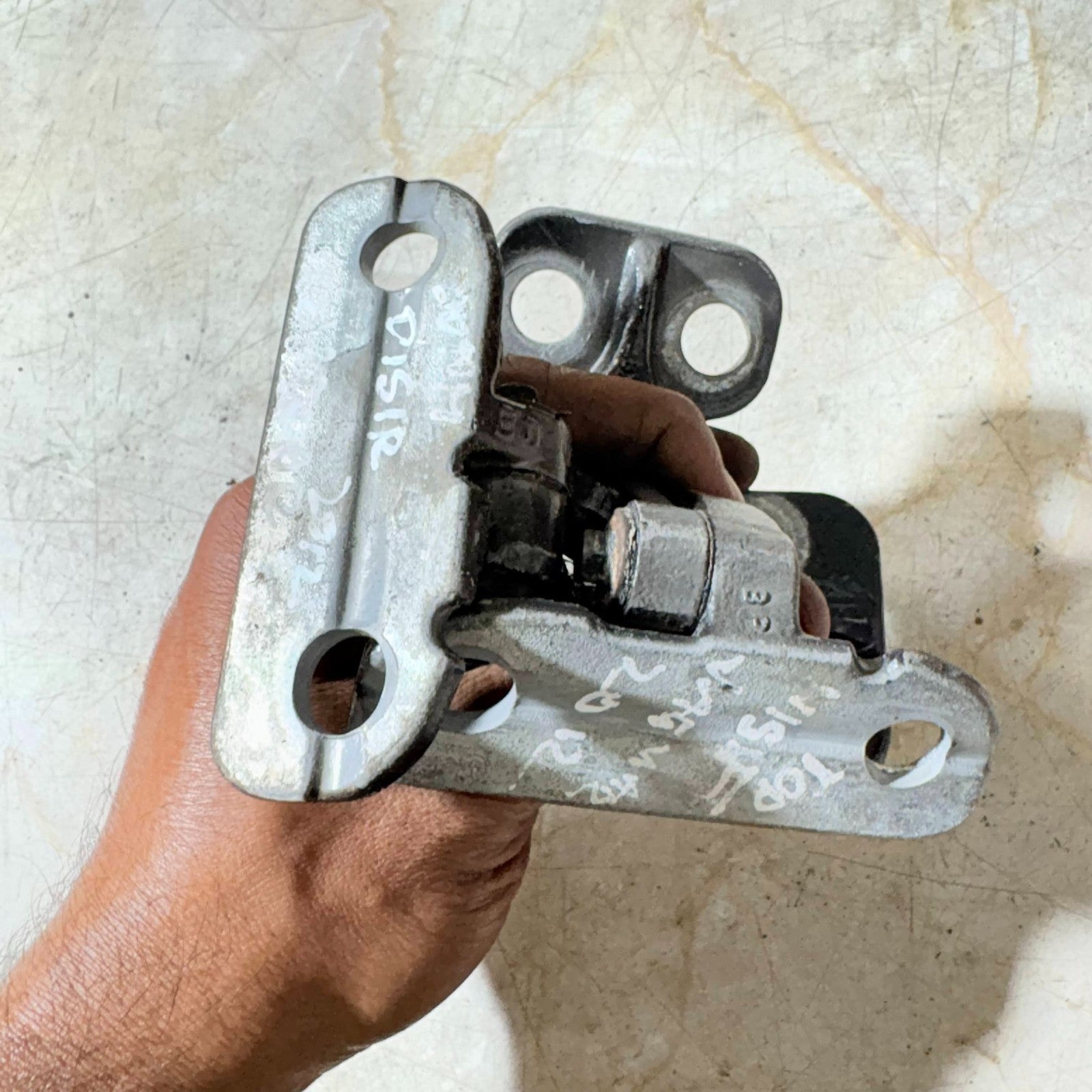

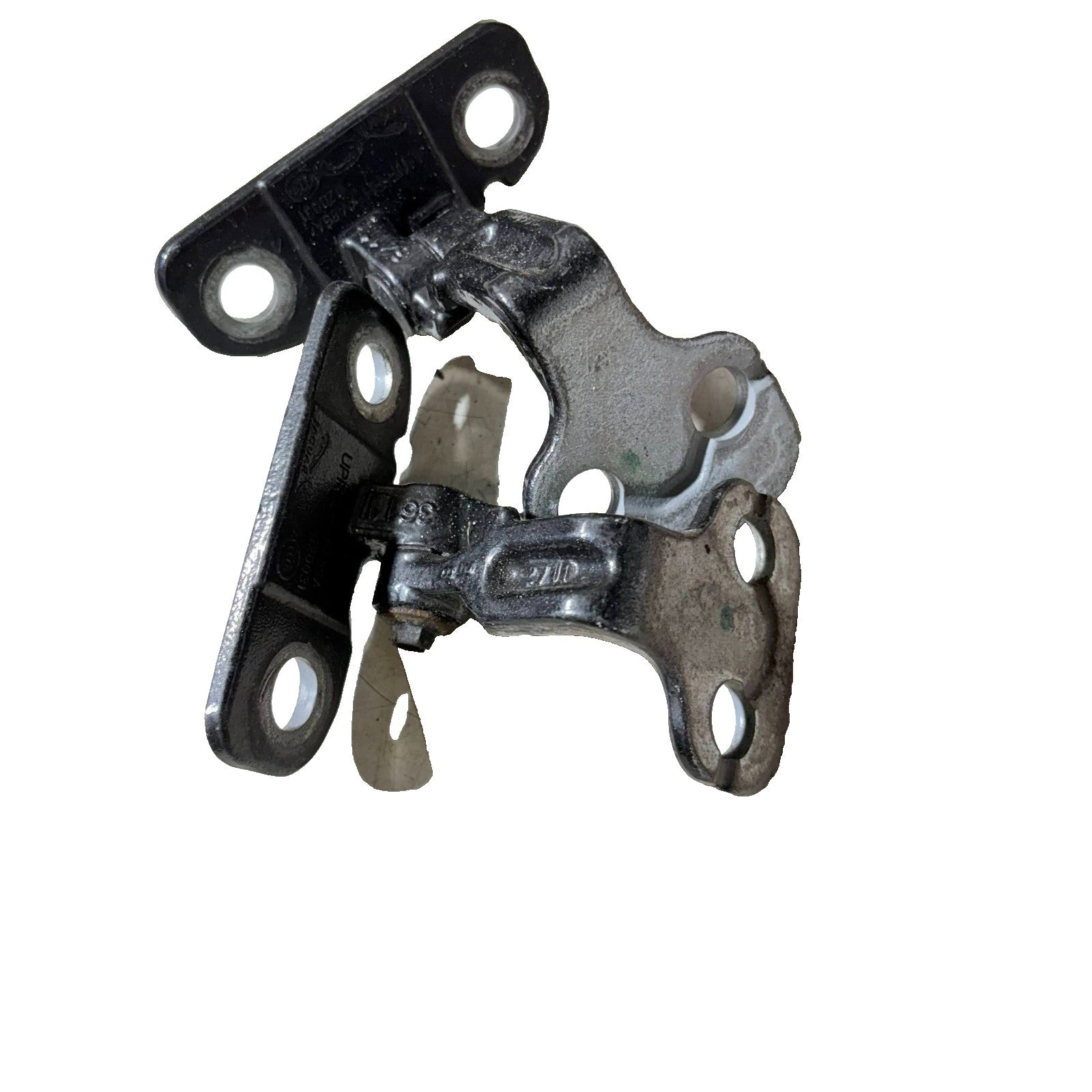

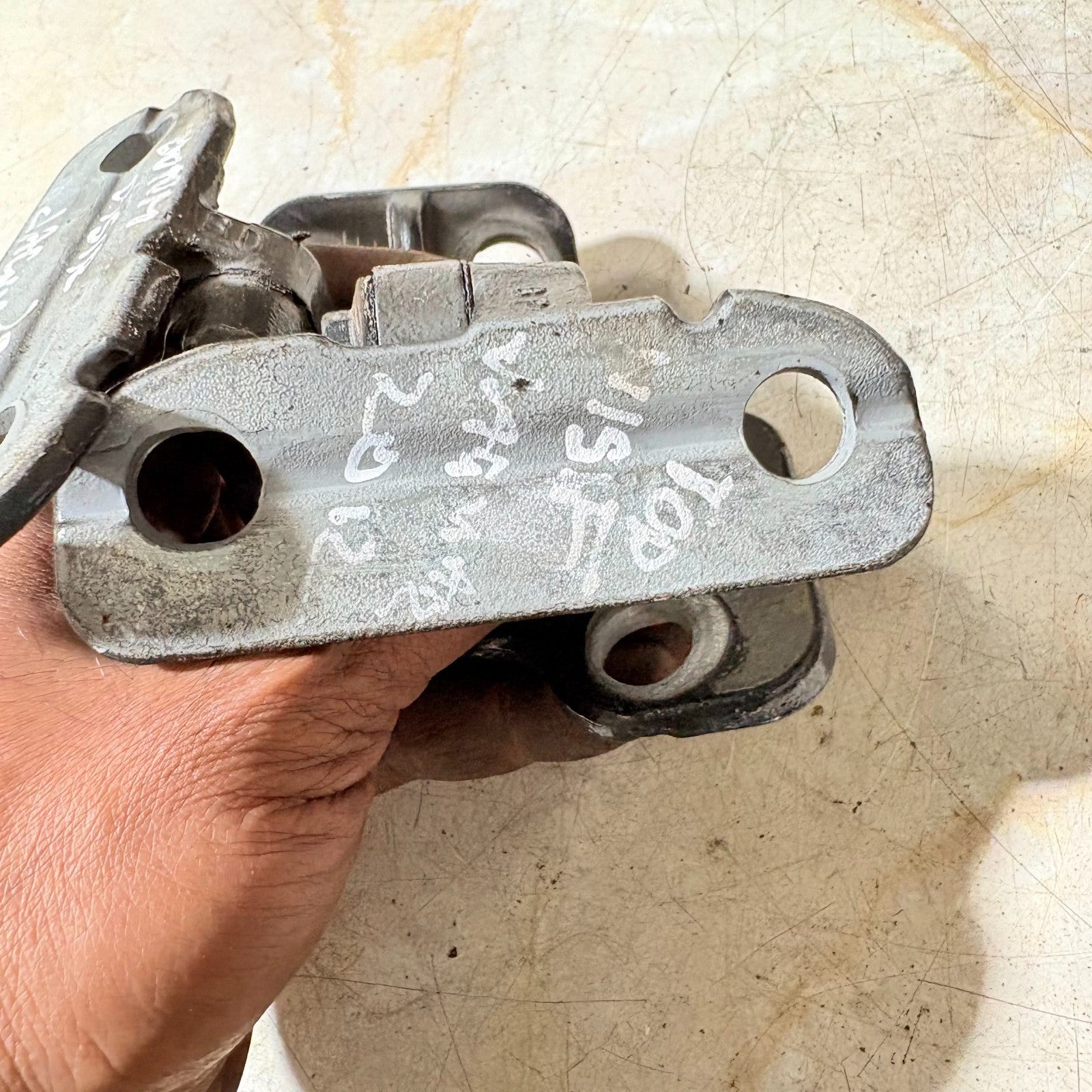

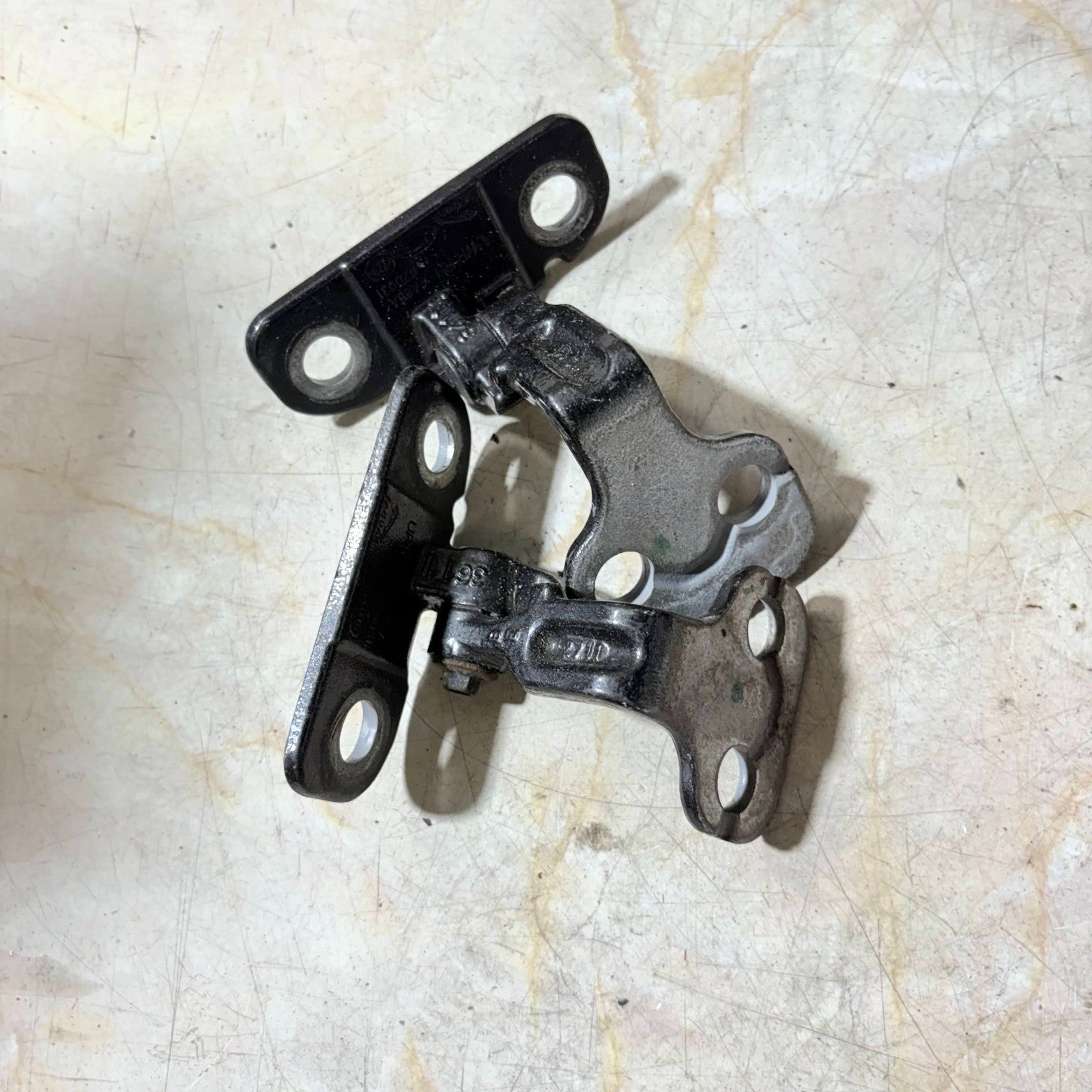

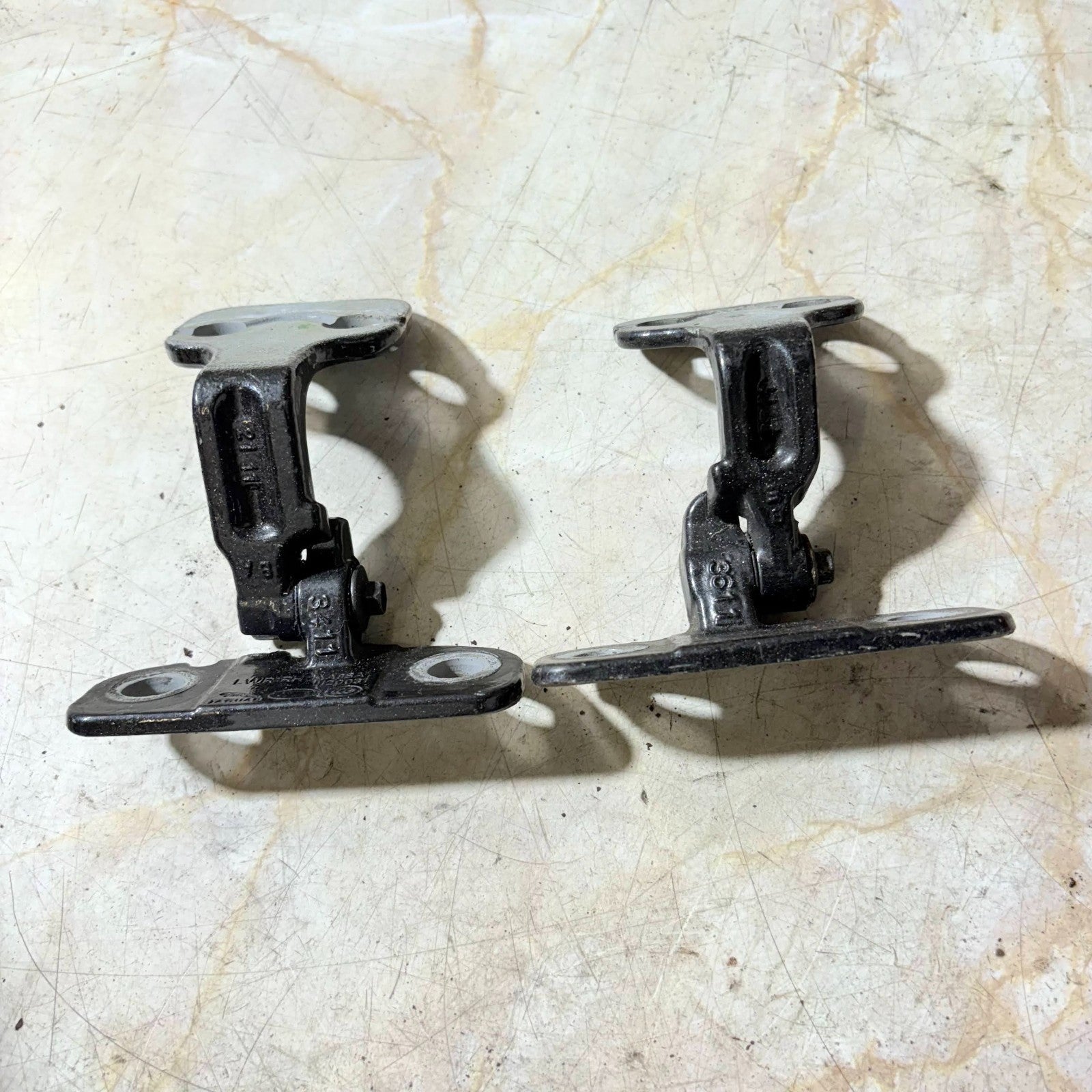

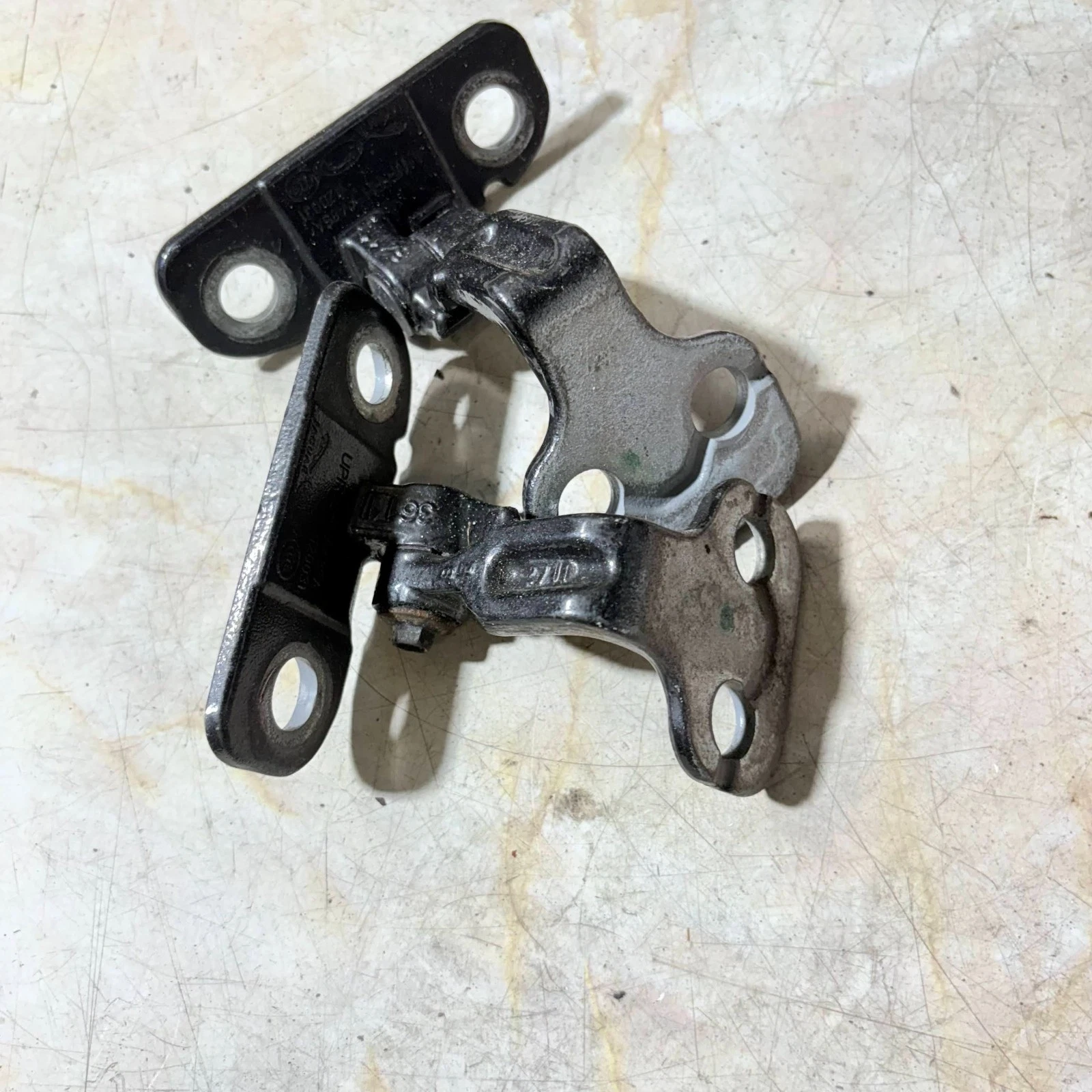

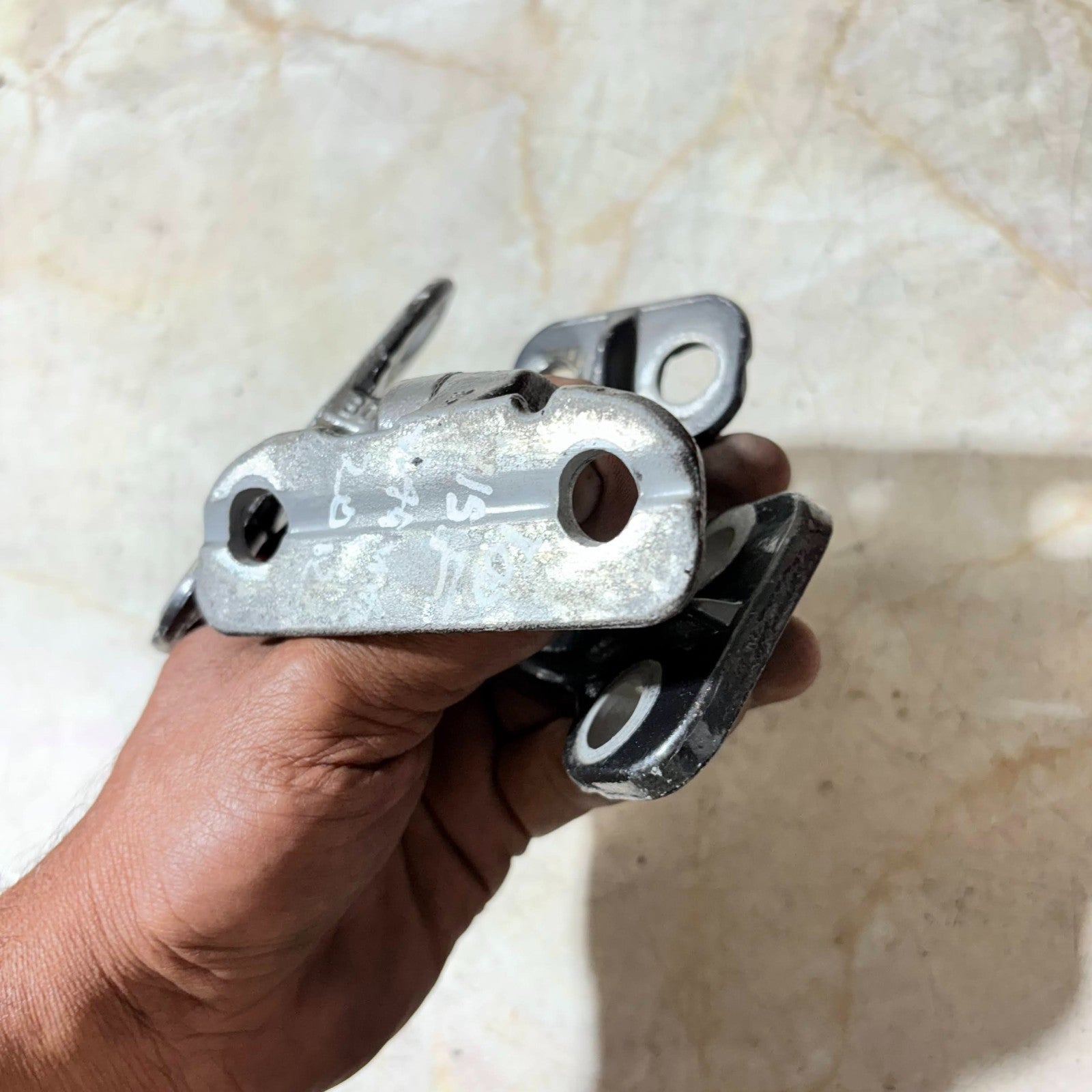

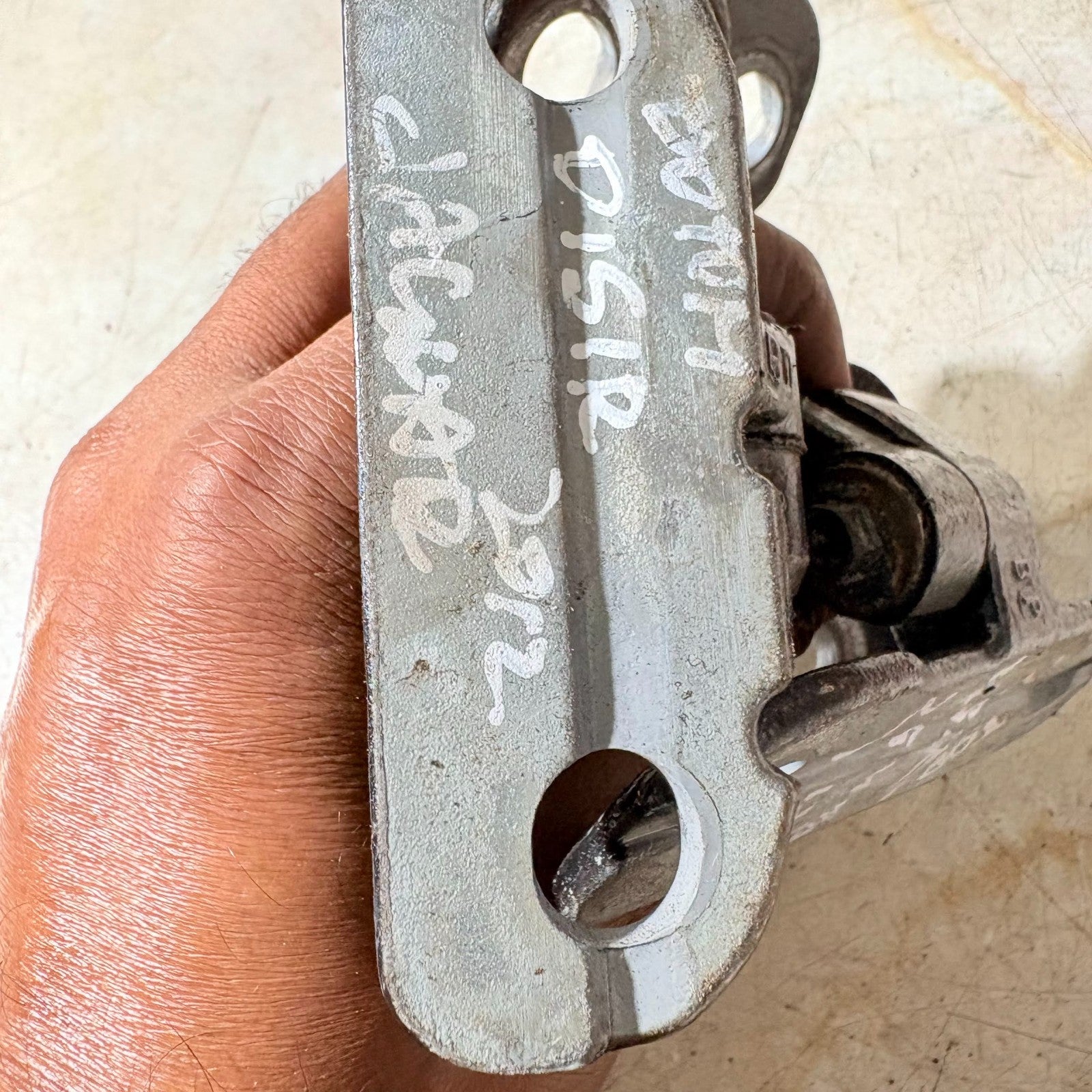

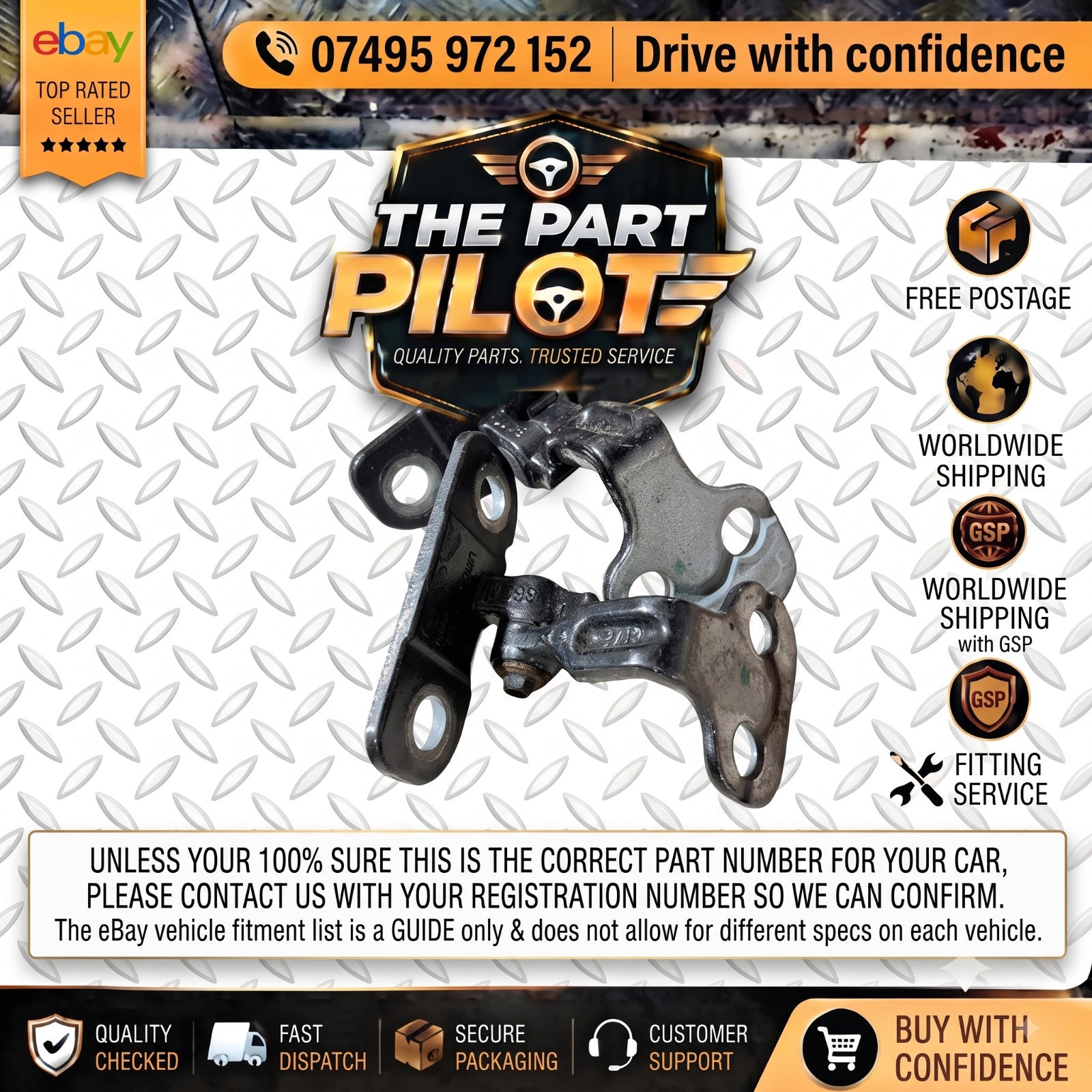

📸 ACTUAL PART – ITEM PHOTOGRAPHS
🔍 ITEM DETAILS & ENGINEERING INFORMATION
| Detail | Specification |
|---|---|
| Vehicle Manufacturer | Jaguar |
| Model | XF / XFR / XFR-S within the X250 body family where position and VIN applicability match |
| Chassis / Generation | X250 |
| Model Family Years | 2009–2015 |
| Reference / Donor Year | 2012 |
| Part Type | Door mounting hinge / pivot hinge assembly |
| Positions Included / Advertised |
Rear Right Lower – OSR / RH Lower Front Left Upper – NSF / LH Upper |
| Engineering / Casting Mark | AA8SA1120031 / AA8SA 1120031 |
| RH Lower Service Part Number | C2D38962 |
| RH Lower Superseded Numbers | C2Z2084 • C2Z3105 • C2D26926 |
| LH Upper Service Part Number | C2D38968 |
| LH Upper Superseded Numbers | C2Z2886 • C2Z3108 • C2D26932 |
| Interchange Part Numbers |
C2D38962 – RH Lower C2D38968 – LH Upper |
| Material / Construction | Heavy-duty metal hinge construction with protective factory finish. Exact metallurgical grade is not marked on the photographed component. |
| Visible Colour / Finish | Black / dark grey / metallic coated finish with normal previously-fitted cosmetic marking as pictured |
| Condition | Previously fitted vehicle component – inspect all photographs for cosmetic condition |
| Warranty | 30 days |
| eBay Item Number | 147493783024 |
| VAT Information | Where this transaction is accounted for under the VAT margin / Global Accounting scheme, VAT is not separately itemised and no reclaimable VAT amount is shown. International/export treatment can differ. |
🚘 CORRECT VEHICLE REFERENCE – 2012 JAGUAR XF X250 SALOON
These reference photographs show the correct Jaguar XF X250 MY12 4-door saloon generation. They are vehicle-identification reference photographs only; the vehicle pictured is not included in the sale.
• Front Left Upper / NSF: upper hinge between the left-hand front passenger door and the vehicle body/A-pillar area.
• Rear Right Lower / OSR: lower hinge between the right-hand rear door and the vehicle body/door-pillar area.
✅ PARTS COMPATIBILITY & FITMENT CHART
Engine size is not the primary identification point for these hinges. Chassis generation, body construction, side, upper/lower position, VIN break and physical hinge design are more important.
| Vehicle | Years | Body | Status | Fitment Note |
|---|---|---|---|---|
| Jaguar XF X250 | 2009–2015 | 4-door Saloon | ✓ CONFIRMED MODEL FAMILY | Correct X250 generation. Match RH Lower / LH Upper position, physical shape and VIN applicability. |
| Jaguar XFR X250 | Within X250 production range | 4-door Saloon | CHECK POSITION + VIN | X250 body family; catalogue hinge family applies, but buyer should verify the exact position and existing hinge before purchase. |
| Jaguar XFR-S X250 | Within X250 production range | 4-door Saloon | CHECK POSITION + VIN | Match service number, engineering mark and mounting form before ordering. |
| Jaguar XF X250 Sportbrake / Estate | Later X250 production | Estate / Sportbrake | VIN CHECK REQUIRED | Do not assume rear-door compatibility purely from the X250 name. Sportbrake body construction differs behind the B-pillar. |
Jaguar's catalogue contains VIN breakpoints and superseded hinge numbers. The safest check is:
1. Jaguar XF X250 chassis
2. Correct side – RH or LH
3. Correct position – Upper or Lower
4. Compare your removed hinge with the actual photographs
5. Compare mounting holes / pivot construction
6. Match AA8SA1120031 where present
7. If uncertain, send VIN + old-part photograph through eBay Messages
⛔ VEHICLES YOU SHOULD NOT ASSUME THIS FITS
| Vehicle Family | Guidance |
|---|---|
| Jaguar XE | Not advertised as confirmed fitment. Similar engineering markings can appear on later Jaguar hinges, but that alone does not prove interchangeability. |
| Jaguar E-PACE | Do not order solely from AA8SA1120031. |
| Jaguar I-PACE | Do not order solely from the casting-family number. |
| Jaguar XJ | Some Jaguar hinge service families can overlap by position, but this listing is advertised for the XF X250 application. VIN/part verification is required before considering another model. |
| Range Rover / Evoque / Land Rover applications | Similar AA8SA engineering markings do not constitute confirmed interchange. |
| Any vehicle with a different mounting pattern or hinge geometry | ✗ DO NOT FIT |
⚙️ WHAT THIS PART DOES
Supports Door Weight
The hinge mechanically carries the door and provides its controlled pivot point as the door opens and closes.Maintains Panel Alignment
Correct hinge geometry helps maintain consistent door gaps and prevents the door edge from contacting adjacent body panels.Maintains Latch Position
A sound hinge keeps the door correctly presented to the latch and striker, reducing the need to lift, slam or force the door closed.Maintains Seal Compression
Proper alignment helps the weather seals contact evenly, supporting reduced wind noise and water ingress.This is primarily a mechanical structural/pivot component. It does not itself electronically operate the window, locking system or central locking system.
⚠️ COMMON SYMPTOMS OF A WORN OR DAMAGED DOOR HINGE
Door Sag / Drop
Door visibly drops as it is opened or needs lifting before it will latch.Uneven Panel Gaps
Gap around the door becomes noticeably wider or narrower from top to bottom.Clunk / Creak / Squeak
Movement or wear around the hinge pivot can create abnormal noises.Difficult Closing
Door may need excessive force, may rebound or may not meet the striker cleanly.Body Contact
Door edge may catch or rub the sill, wing, quarter panel or another trim surface.Wind / Water Noise
Poor alignment may prevent even compression of weather seals.Replacement should be considered where the hinge is bent, cracked, collision-damaged, seized or has excessive pivot play. A badly aligned door can also place additional load on the latch, striker and surrounding body mounting points.
🏆 WHY CHOOSE AN ORIGINAL FACTORY-FIT JAGUAR-MARKED PART?
The photographed hinge carries Jaguar/JLR-related manufacturing markings and was designed around the vehicle's original mounting geometry, hinge movement and door alignment requirements.
✓ Correct Geometry
Original-specification mounting geometry is especially important on a hinge because even a small dimensional difference can affect panel gaps and latch alignment.✓ Factory Mounting Pattern
Reusing the correct factory-style component helps retain the original bolt pattern and installation arrangement.✓ Better Value
A quality recycled original part can provide substantial savings compared with purchasing a new dealer-supplied replacement. Exact savings vary by part, supplier and current market price.✓ Lower Environmental Impact
Reusing a serviceable component extends the useful life of an existing manufactured part and reduces demand for additional material and production.🔧 FITTING GUIDE
Recommended Tools
• Padded door stand or suitably supported trolley jack
• Ratchet and socket set
• Correct Torx / external-Torx / socket bits to match the existing fasteners
• Ratchet extensions where required
• Torque wrench
• Masking tape / paint-safe marker for original hinge position
• Protective wing / sill covers
• Penetrating fluid where fasteners are corroded
• Second person to stabilise the door
Protect the door edge, sill and adjacent panels before starting work.
Position a padded stand or jack under the door before loosening any hinge fixing. Do not allow the weight of the door to hang from one loose hinge.
Mark the outline/location of the original hinge before removal. This gives a useful starting point when setting the replacement.
Keeping the other hinge secured can help retain basic door position while the replacement is installed.
Start all fasteners by hand and leave enough movement for alignment. Never force a fixing that is not threading correctly.
Check the sill, roof, pillar and adjoining panel gaps before final tightening. Also check that the door meets the striker centrally.
Use the correct Jaguar workshop torque specification for your exact VIN and fixing. Torque figures are intentionally not guessed in this listing.
Slowly open and close the door several times. Check for rubbing, abnormal noises, excess movement, latch engagement, seal contact and even panel gaps.
Electrical note: if the complete door is removed and its wiring harness is disconnected, follow the manufacturer's electrical and battery-isolation procedure. A simple hinge replacement may not require complete door removal when the door can be safely supported.
⏱️ ESTIMATED REPAIR TIME & GARAGE LABOUR GUIDE
Planning estimate for hinge replacement/alignment: approximately 1.0–2.0 labour hours.
This is a guide rather than a manufacturer flat-rate time. Corroded fasteners, previous accident damage, difficult alignment or additional body repairs can increase the time required.
Because eBay does not permit JavaScript/active calculators in a listing, the static table below performs the same comparison safely:
| Garage Labour Rate | 1.0 Hour | 1.5 Hours | 2.0 Hours |
|---|---|---|---|
| £50/hour | £50 | £75 | £100 |
| £60/hour | £60 | £90 | £120 |
| £70/hour | £70 | £105 | £140 |
| £80/hour | £80 | £120 | £160 |
| £90/hour | £90 | £135 | £180 |
| £100/hour | £100 | £150 | £200 |
| £120/hour | £120 | £180 | £240 |
| £150/hour | £150 | £225 | £300 |
Labour only. Parts, consumables, diagnostic work, body repair, seized fastener removal, alignment corrections and any applicable taxes are not included. Garage rates vary by area and workshop.
ThePartPilot can offer fitting/repair services on selected jobs subject to workshop availability. Please use eBay Messages to enquire before travelling or making arrangements.
📦 THEPARTPILOT – 25,000+ PARTS IN STOCK
Large On-Shelf Inventory
We hold more than 25,000 vehicle parts in stock and on the shelf at any one time, helping customers source replacement components without relying solely on new dealer stock.Detailed Parts Identification
We use photographs, engineering markings, catalogue references and compatibility information to help buyers identify the correct component.Workshop Support
Fitting and selected repair work can be available subject to workshop capacity and prior arrangement through eBay.Careful Dispatch
Orders are prepared and packaged for transport with the aim of protecting mounting faces, pivots and vulnerable areas during delivery.🌍 INTERNATIONAL DELIVERY – eBay GLOBAL SHIPPING PROGRAMME
This listing may be supplied internationally through eBay's Global Shipping Programme where the item and buyer destination are eligible. eBay handles the international leg, tracking and customs process after the parcel reaches its UK shipping centre. Destination availability and charges shown by eBay at checkout take priority.
Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain and Sweden.
NON-EU DESTINATIONS CURRENTLY LISTED BY eBay:
Antigua and Barbuda, Aruba, Australia, Bahamas, Bahrain, Bangladesh, Barbados, Belize, Bermuda, Bolivia, Brazil, Brunei Darussalam, Cambodia, Canada, Cayman Islands, Chile, China, Colombia, Costa Rica, Dominica, Dominican Republic, Ecuador, Egypt, El Salvador, French Guiana, Grenada, Guadeloupe, Guatemala, Guernsey, Honduras, Hong Kong, Iceland, Indonesia, Israel, Jamaica, Japan, Jersey, Jordan, Kuwait, Liechtenstein, Macau, Malaysia, Maldives, Martinique, Mexico, Monaco, Montserrat, New Zealand, Nicaragua, Norway, Oman, Pakistan, Panama, Paraguay, Peru, Philippines, Qatar, Reunion, Saint Kitts and Nevis, Saint Lucia, Saudi Arabia, Singapore, South Africa, South Korea, Sri Lanka, Switzerland, Taiwan, Thailand, Trinidad and Tobago, Turks & Caicos Island, UAE, Ukraine, Uruguay, USA and Vietnam.
International programme eligibility and destination coverage can change. The delivery options, taxes, import charges and destination availability displayed by eBay at checkout are definitive for each transaction.
🏠 IMPORTANT – CHECK YOUR DELIVERY ADDRESS
Your order must be dispatched using the address supplied through the eBay transaction. We cannot simply redirect an order to a different address after checkout. If the address is incorrect, contact us through eBay Messages as quickly as possible so the appropriate eBay order procedure can be followed.
↩️ RETURNS & FITMENT RESPONSIBILITY
This listing is designed to give buyers significantly more fitment information than a basic used-parts listing. Please use the photographs, model/chassis, position, engineering marking and catalogue number information before fitting.
Returns are handled according to the return policy displayed by eBay on this listing and the buyer's applicable statutory/eBay rights.
♻️ SUPPORT A LOCAL SMALL BUSINESS & REUSE QUALITY PARTS
Buying a serviceable recycled vehicle component helps keep useful parts in circulation rather than treating them as waste. Reuse can reduce demand for newly manufactured replacement components, conserve material already invested in the original part and help extend the working life of existing vehicles.
By purchasing from ThePartPilot, you are also supporting an independent UK automotive parts business that photographs, identifies, stores, picks, packages and dispatches thousands of individual components.
We appreciate every order and aim to provide enough technical information for customers and garages to identify the right part before installation. Correct identification saves time, reduces unnecessary transport and helps prevent avoidable returns. ♻️
✅ FINAL 30-SECOND BUYER CHECK
| Check | Required |
|---|---|
| Make | Jaguar |
| Model / Chassis | XF X250 |
| Model Family | 2009–2015 |
| Position 1 | Rear Right Lower / OSR / RH Lower |
| Position 2 | Front Left Upper / NSF / LH Upper |
| Engineering Mark | AA8SA1120031 |
| RH Lower Catalogue Number | C2D38962 |
| LH Upper Catalogue Number | C2D38968 |
| Physical Shape | Must match the actual listing photographs |
| Still Unsure? | Send VIN + old hinge photograph through eBay Messages BEFORE ordering |
