Actual Item Photographs

These are photographs of the used handle being offered. Please inspect every image carefully for condition, shape, mounting points and colour. The item supplied is the handle shown.

THEPARTPILOT

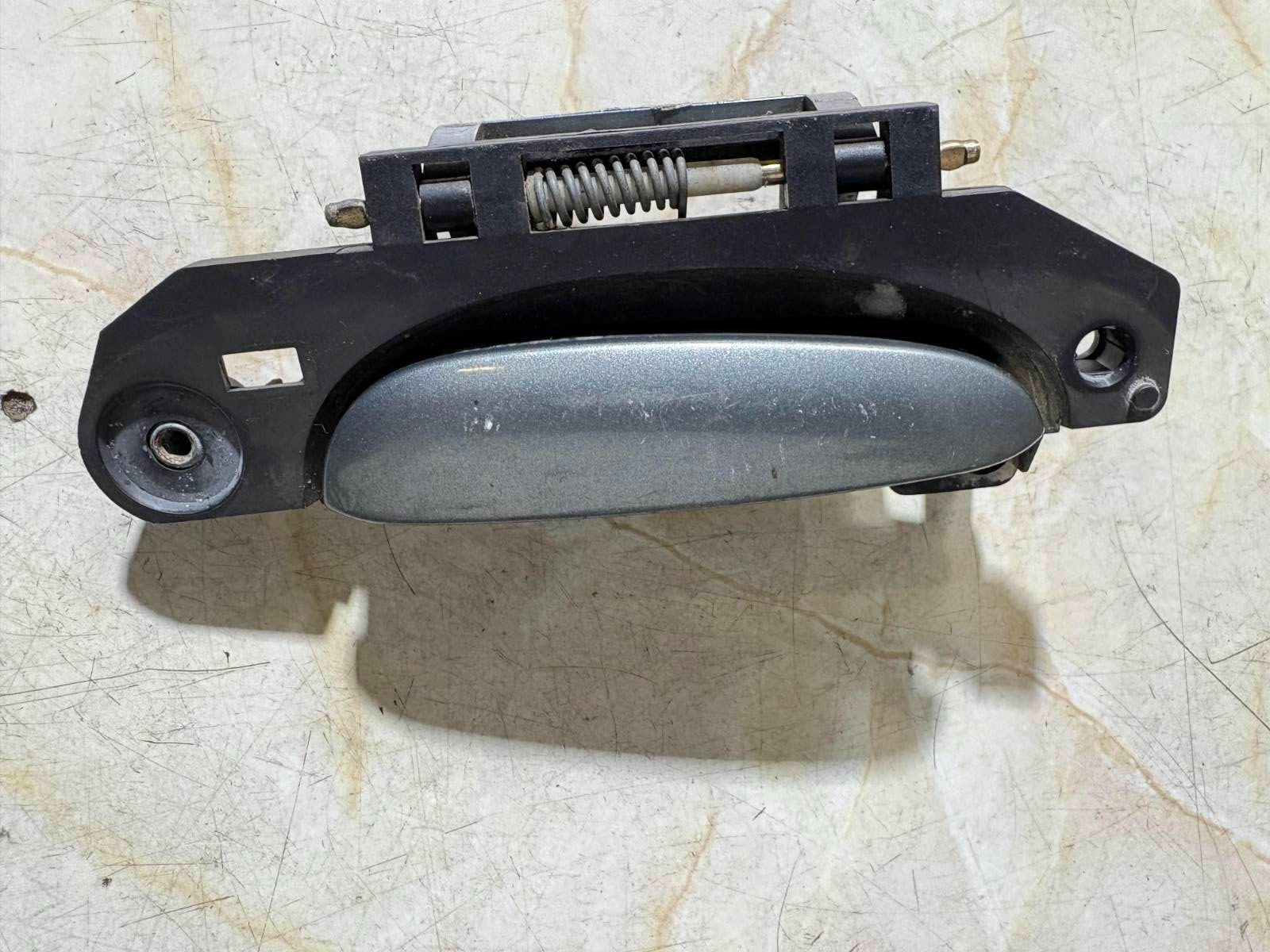

Actual handle – exterior face

THEPARTPILOT

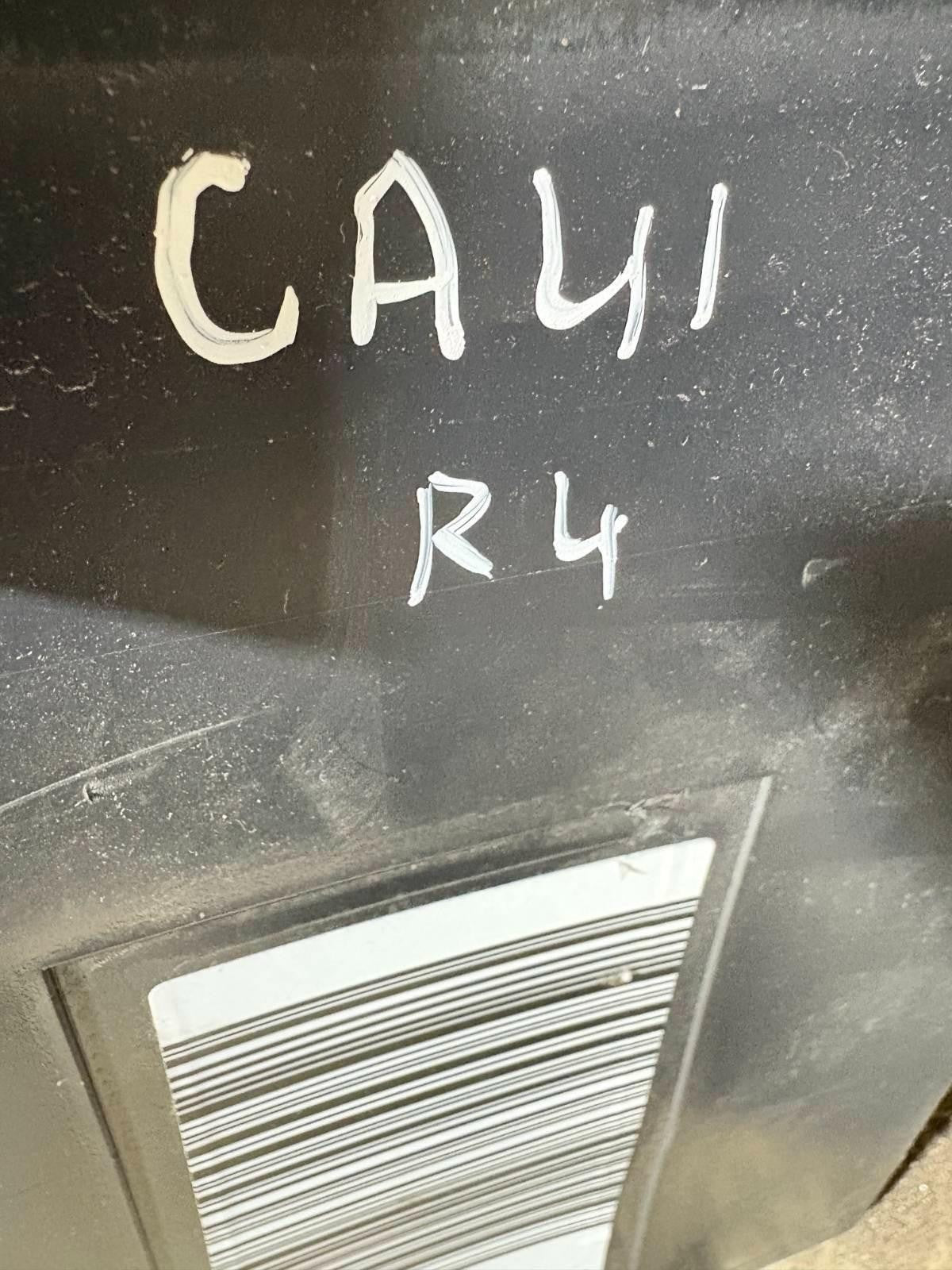

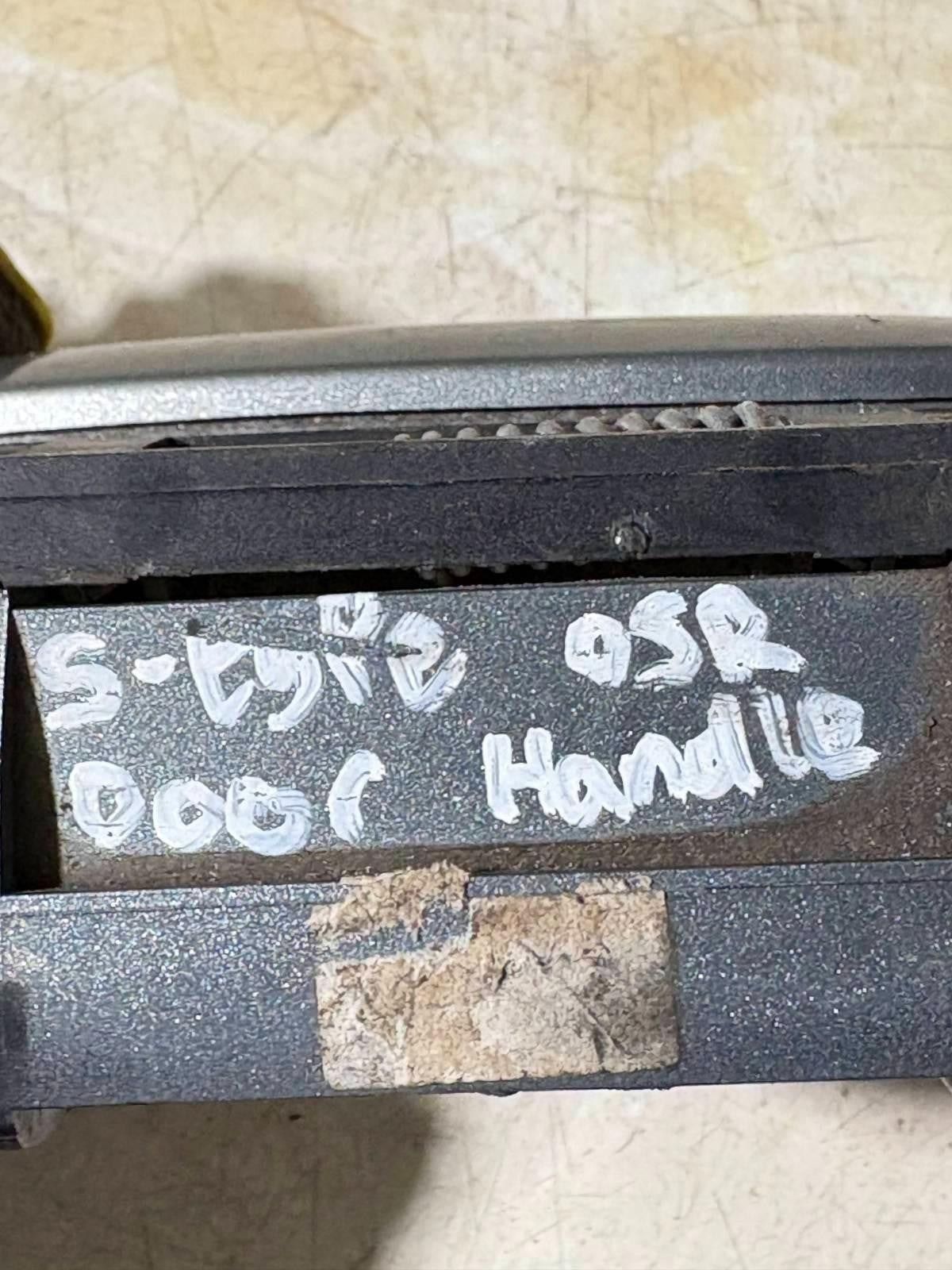

Actual stock label – S-Type OSR

THEPARTPILOT

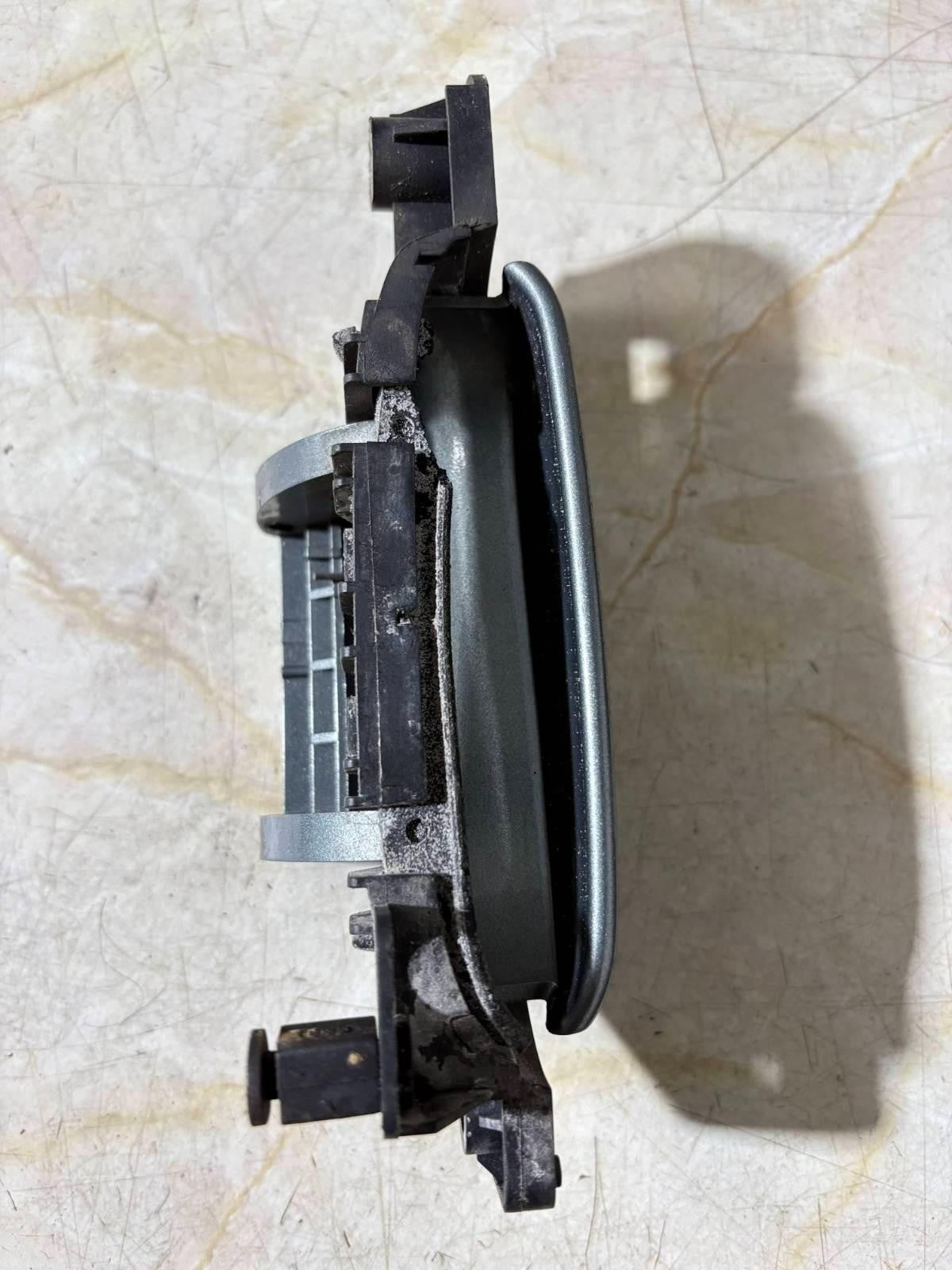

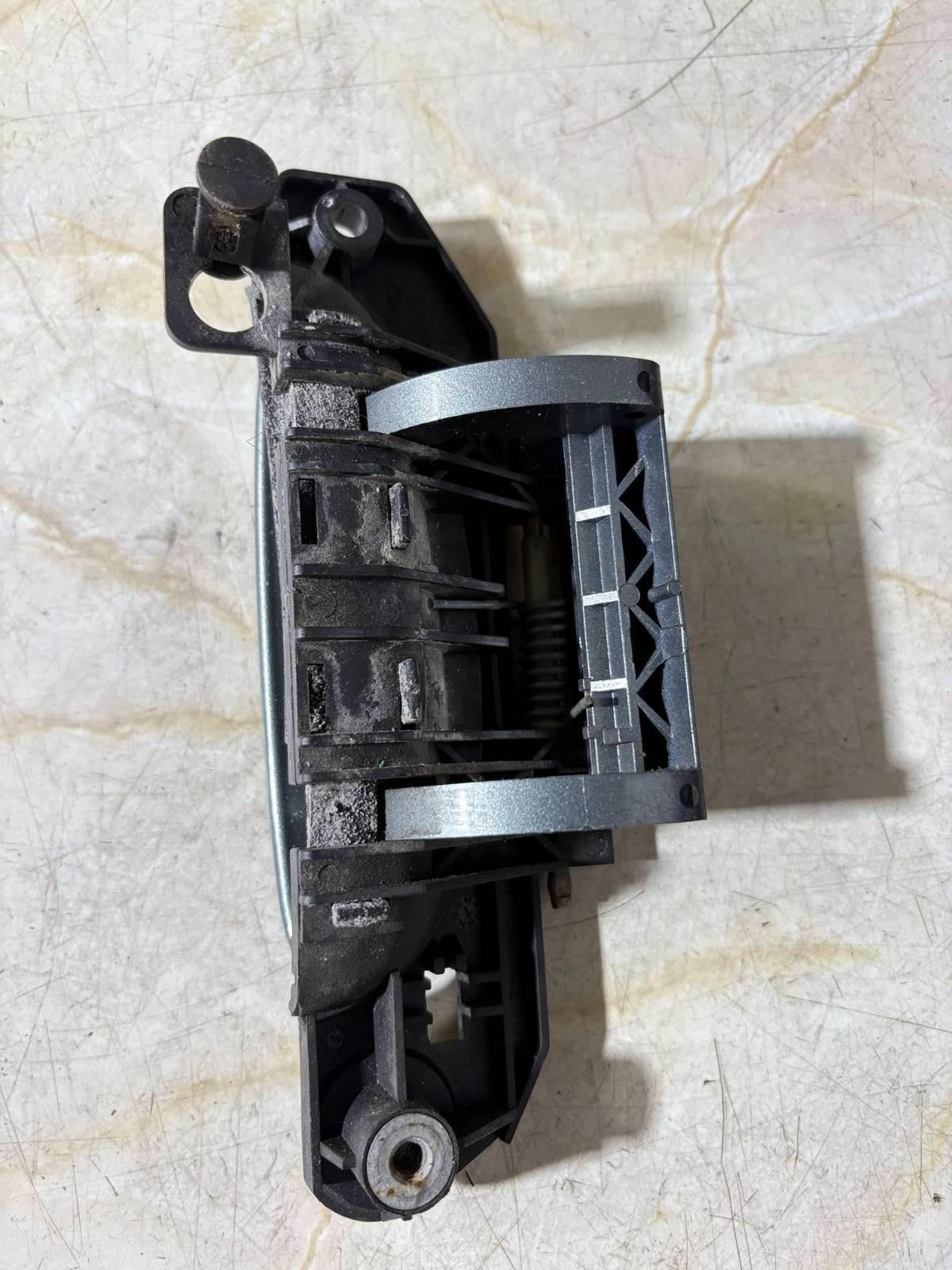

Rear carrier and mounting arrangement

THEPARTPILOT

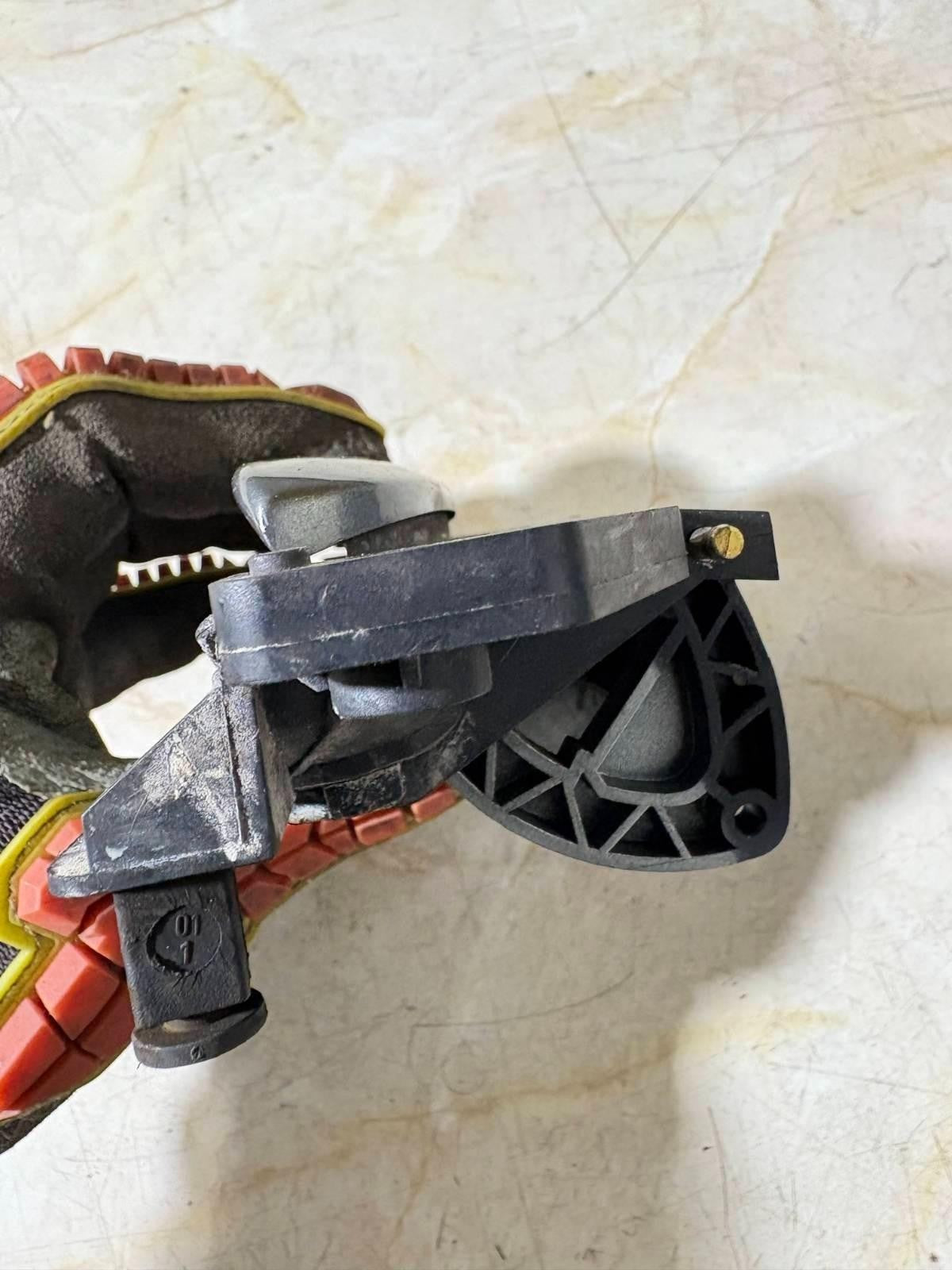

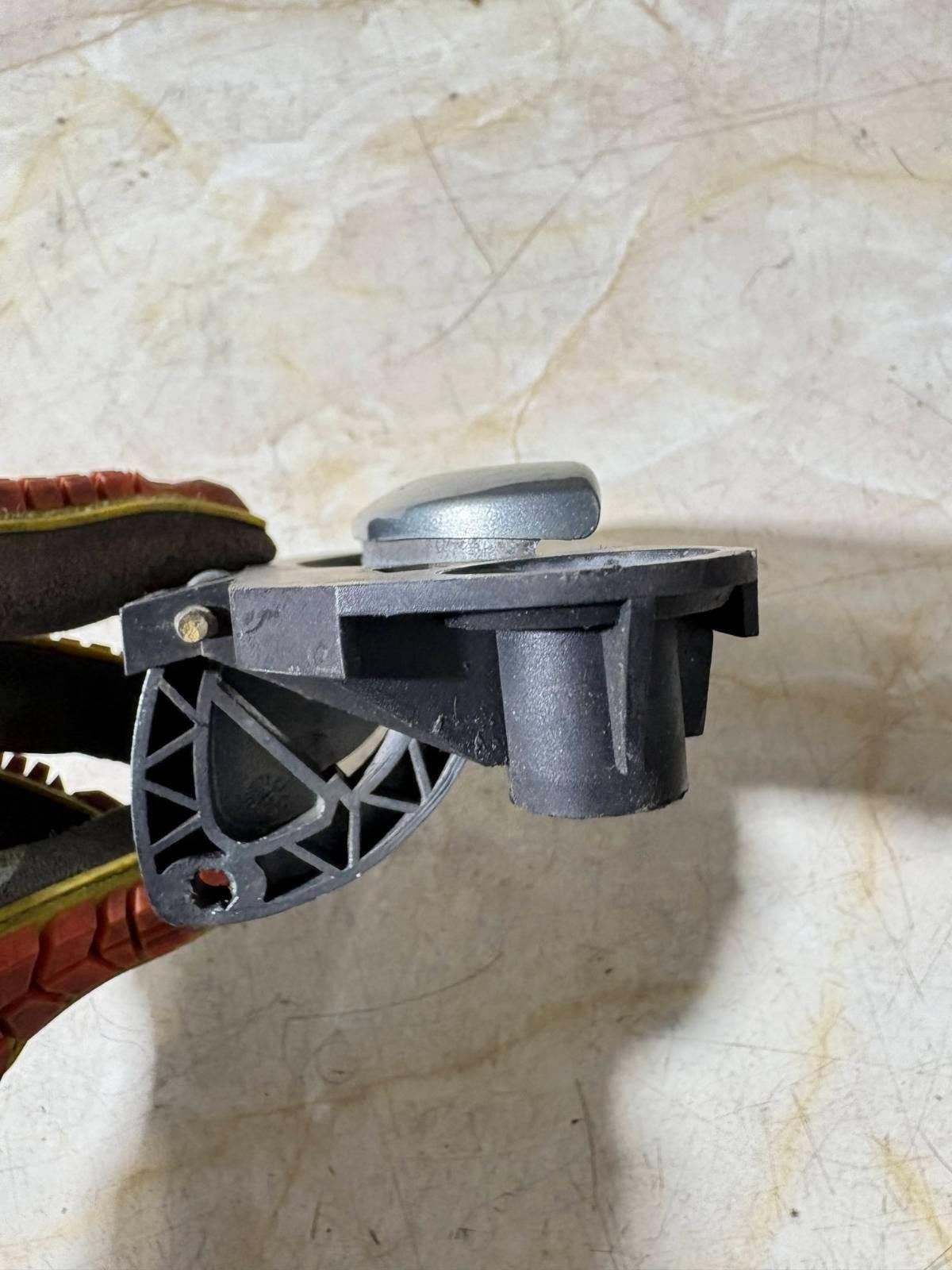

Pivot, spring and linkage area

Correct Reference Vehicle and Fitting Position

Reference vehicle – Jaguar S-Type four-door saloon

Reference only – rear-right passenger compartment door

Reference vehicle photographs are for model and fitting-location identification only. Vehicle images credited to SsmIntrigue and Vauxford, Wikimedia Commons, CC BY-SA 4.0. The vehicle itself is not included.

Confirmed Compatibility

Engine and trim compatibility

The exterior rear-door handle is not engine-dependent. It may be used across petrol and diesel S-Type X200 versions where the original handle has the same rear carrier, pivot, linkage position and mounting points. Always compare the photographs before ordering.

Known Jaguar engines within the S-Type X200 range

Applications can include 2.5 V6, 3.0 V6, 4.0 V8, 4.2 V8, 4.2 supercharged and 2.7 diesel vehicles, subject to the physical checks shown below. Engine size alone must not be used as the final fitment test.

Vehicles and Positions This Part Will Not Fit

No cross-fitment to another Jaguar model has been confirmed. Do not buy solely because another vehicle has a visually similar painted handle.

Part-Number Information

Examples of catalogue colour suffixes

These suffixes are provided to help identify the Jaguar catalogue family. They do not prove the exact paint suffix of the photographed handle. Compare the item photographs and your existing part.

Five Checks to Complete Before Ordering

1. Confirm your vehicle is a 1999–2008 Jaguar S-Type X200 four-door saloon.
2. Confirm you require the rear-right exterior handle.
3. Compare the black rear carrier, mounting tabs and screw positions.
4. Compare the pivot spring and linkage connection with your old handle.
5. Treat the grey finish as unverified unless your paint shade and the photographed handle visibly match.

What This Part Does

The exterior rear-right door handle is mounted through the outer rear door skin. Pulling the handle moves its internal lever and linkage, allowing the rear-door latch to release when the vehicle is unlocked.

The central-locking actuator and latch are separate parts and are not included unless clearly shown in the photographs. If the door will not open from either side or will not lock and unlock, diagnose the latch, actuator, linkage and wiring before assuming the exterior handle is the only fault.

Common Symptoms of a Faulty Exterior Handle

• Handle pulls outward but the rear door does not release.
• Handle feels loose, detached or has excessive movement.
• Handle sticks outward and does not return smoothly.
• Broken pivot, spring, carrier or mounting point.
• Cracked or damaged exterior pull section.
• Door opens internally but not from the outside.
• Paint peeling, corrosion staining or severe cosmetic damage.
• Rattling caused by a damaged carrier or loose mounting.

Why Choose a Used Original-Specification Part?

Depending on the component and current new-part price, buying used can save as much as 70% compared with purchasing new. Actual savings vary by part, condition, availability and supplier pricing.

Used-Part Condition

This is a used vehicle component. Normal age-related marks, scratches, paint chips, storage marks and cosmetic wear may be present. Study the high-resolution photographs before ordering because they form an important part of the condition description.

• The exact grey paint shade is not guaranteed.
• Professional repainting may be required for a perfect colour match.
• Only the components visibly shown are included.
• New clips, seals or fasteners may be required during installation.
• Do not paint, modify or force-fit the item until fitment is confirmed.

Tools Commonly Required

• Plastic interior-trim removal tools
• Suitable Torx-bit set
• Small socket set and ratchet
• Phillips and flat-blade screwdrivers
• Long-nose pliers or linkage-clip tool
• Small pick tool
• Masking tape to protect the paintwork
• Work light, protective gloves and suitable eye protection

Tool sizes can vary with previous repairs and production changes. Inspect the vehicle before beginning work.

General Fitting Instructions

The following is a general fitting guide rather than a substitute for Jaguar workshop information. Installation should be completed by a competent technician.

1 Park securely, remove the ignition key and lower the window if possible.

2 Disconnect the battery where required before unplugging electrical switches. Follow the vehicle manufacturer's battery procedures.

3 Remove the rear-door trim covers, switch trim and visible fasteners.

4 Release the door-card clips using a plastic trim tool, then lift the door card away carefully.

5 Disconnect any electrical plugs and release the interior-handle cable or linkage as required.

6 Peel back the moisture membrane carefully without tearing it.

7 Locate the exterior-handle linkage and disconnect its retaining clip. Photograph the original position first.

8 Support the exterior handle, remove its internal fixings and withdraw the handle without damaging the door paint.

9 Compare both handles side by side. Transfer any reusable gasket or clip only where appropriate.

10 Install the replacement handle, connect the linkage and tighten the fixings evenly. Do not overtighten plastic components.

11 Test outside opening, inside opening, locking and unlocking several times before resealing the membrane and replacing the door card.

12 Reassemble the trim, reconnect the battery where applicable and complete a final operational check.

Estimated Repair Time and Labour-Cost Guide

Typical estimated installation time: approximately 1.0 to 1.5 labour hours for a competent technician. Additional time may be needed for broken trim clips, corrosion, damaged linkage, previous repairs or fault diagnosis.

Calculation: garage hourly rate × 1.0 to 1.5 hours.

Labour figures are estimates only and do not include diagnosis, parts, paintwork, VAT charged by the repairer or additional repairs.
