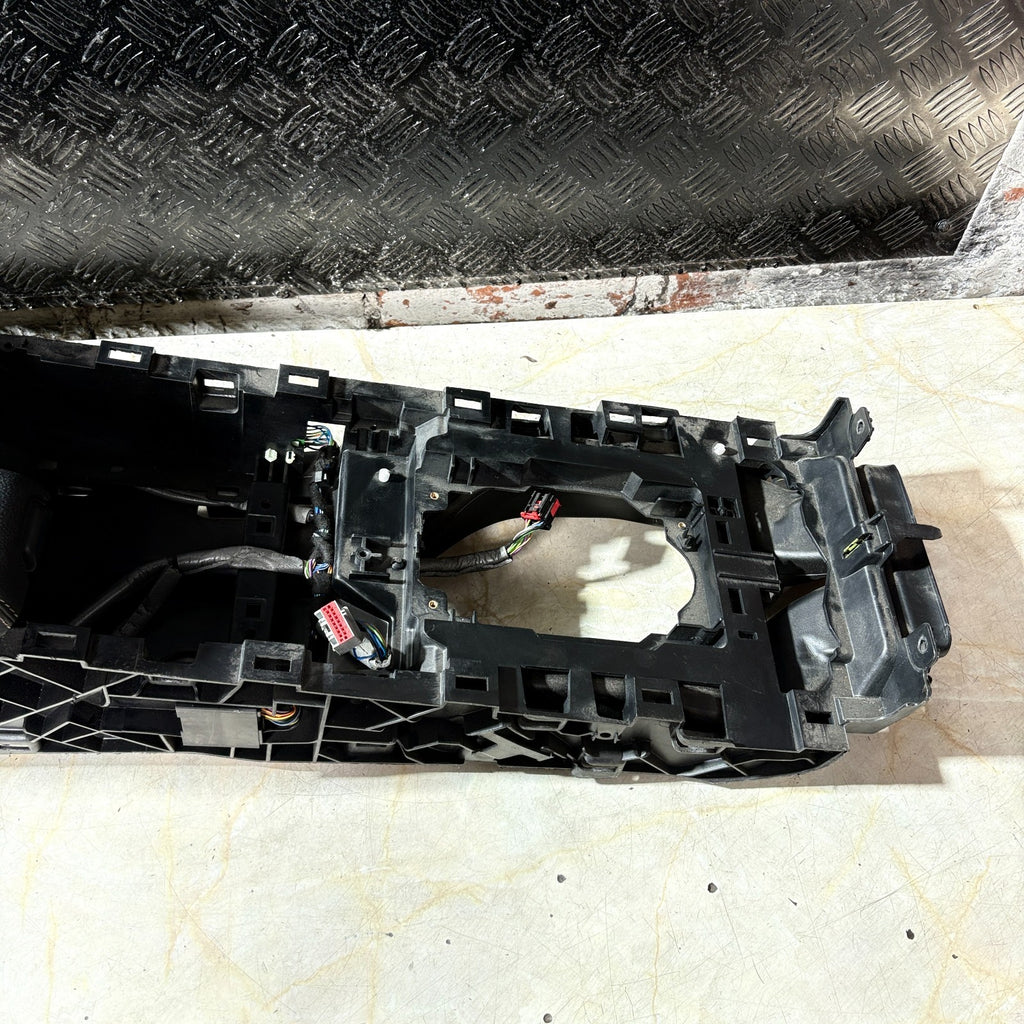

JAGUAR XE X760 2015-2019 CENTRE CONSOLE ARMREST TUNNEL SUB STRUCTURE FRAME BASE

£36.71

THEPARTPILOT THEPARTPILOT THEPARTPILOT

Name: JAGUAR XE X760 2015-2019 CENTRE CONSOLE ARMREST TUNNEL SUB STRUCTURE FRAME BASE
Brand: Jaguar
SKU: 206293462466
Price: 36.71 GBP
Availability: InStock

ThePartPilot

Premium Used Auto Parts | Over 25,000 Parts In Stock & On The Shelf

Jaguar XE (X760) 2015-2019

Centre Console Armrest Tunnel Casing Sub Structure

Original Factory Spec Framework

Item Description & Specifications

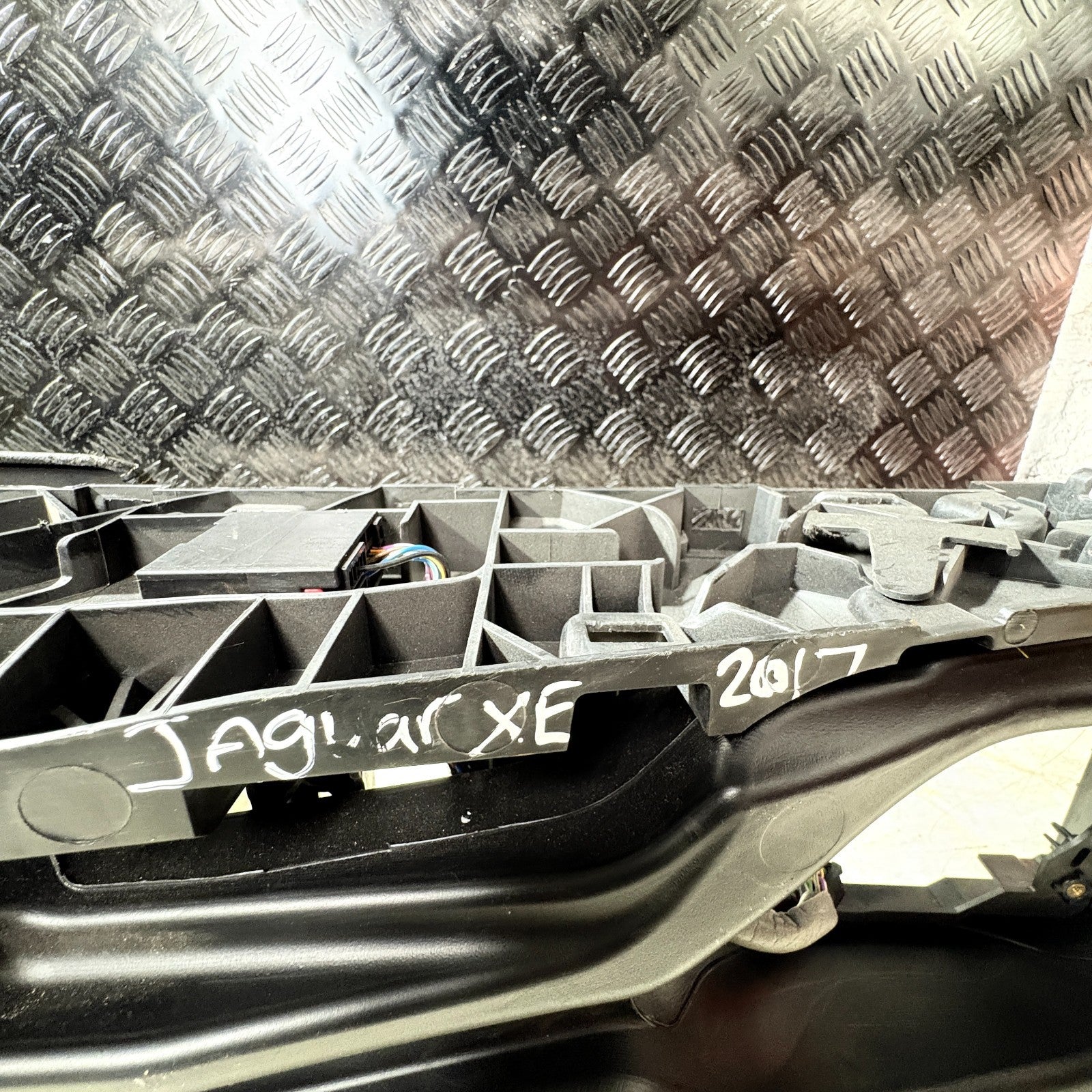

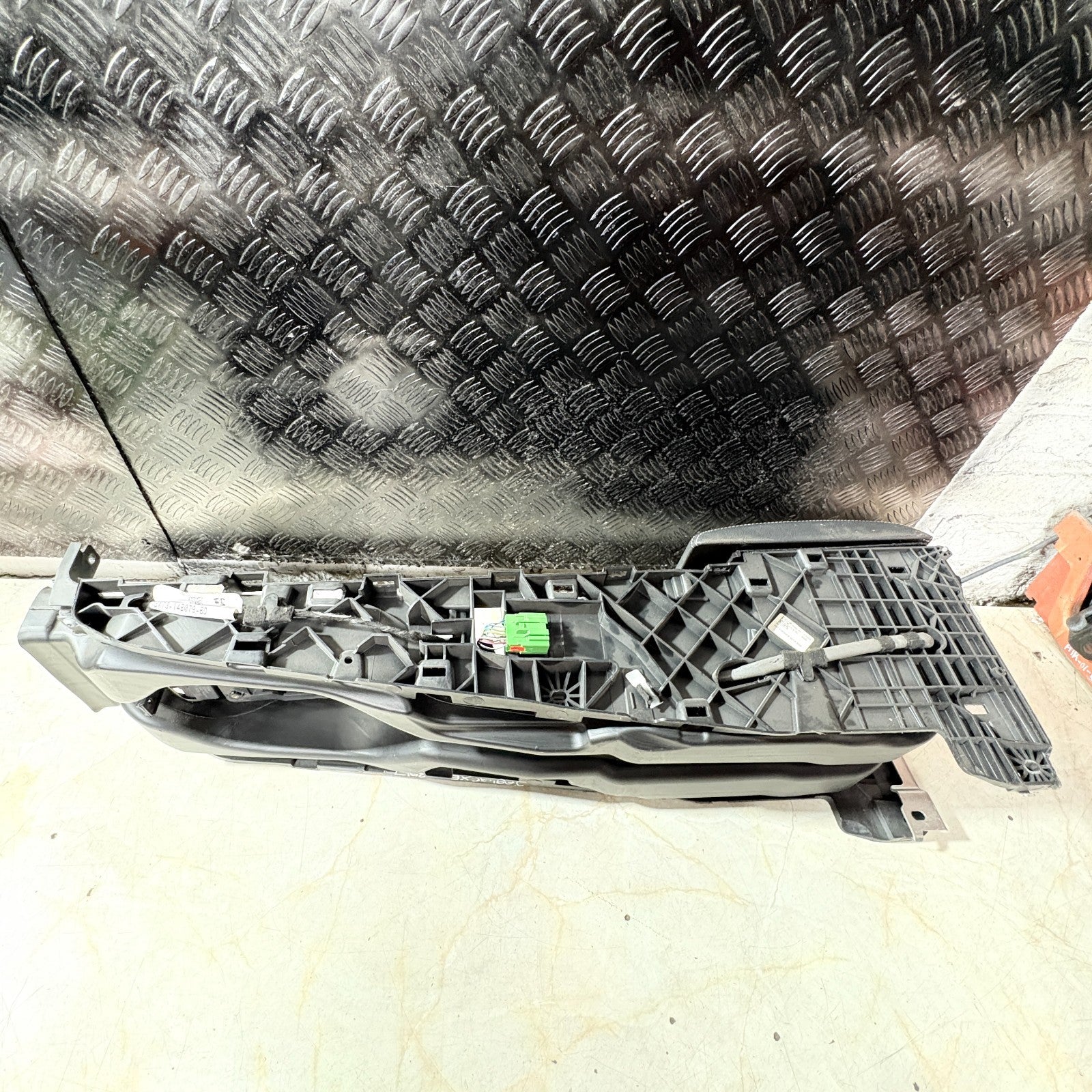

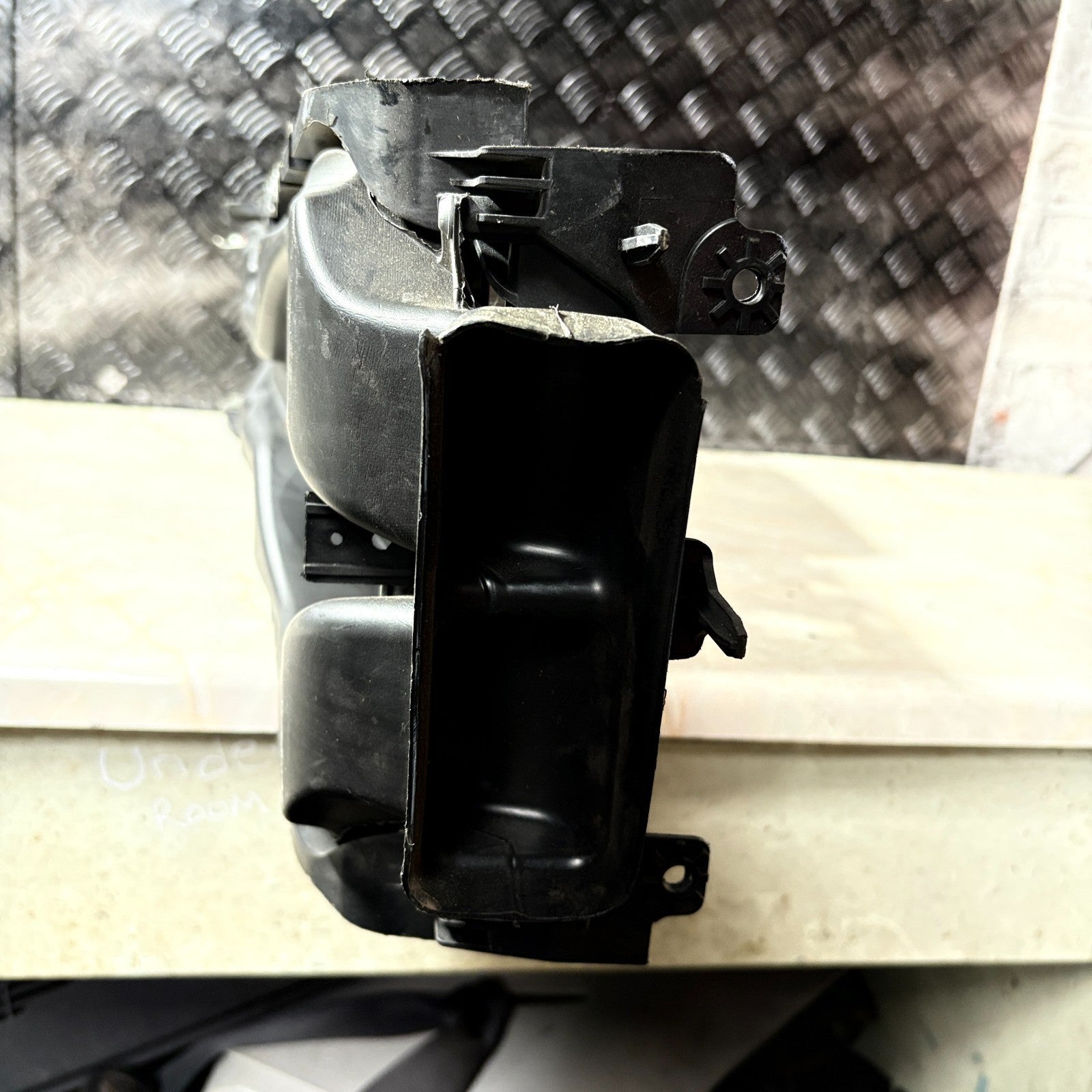

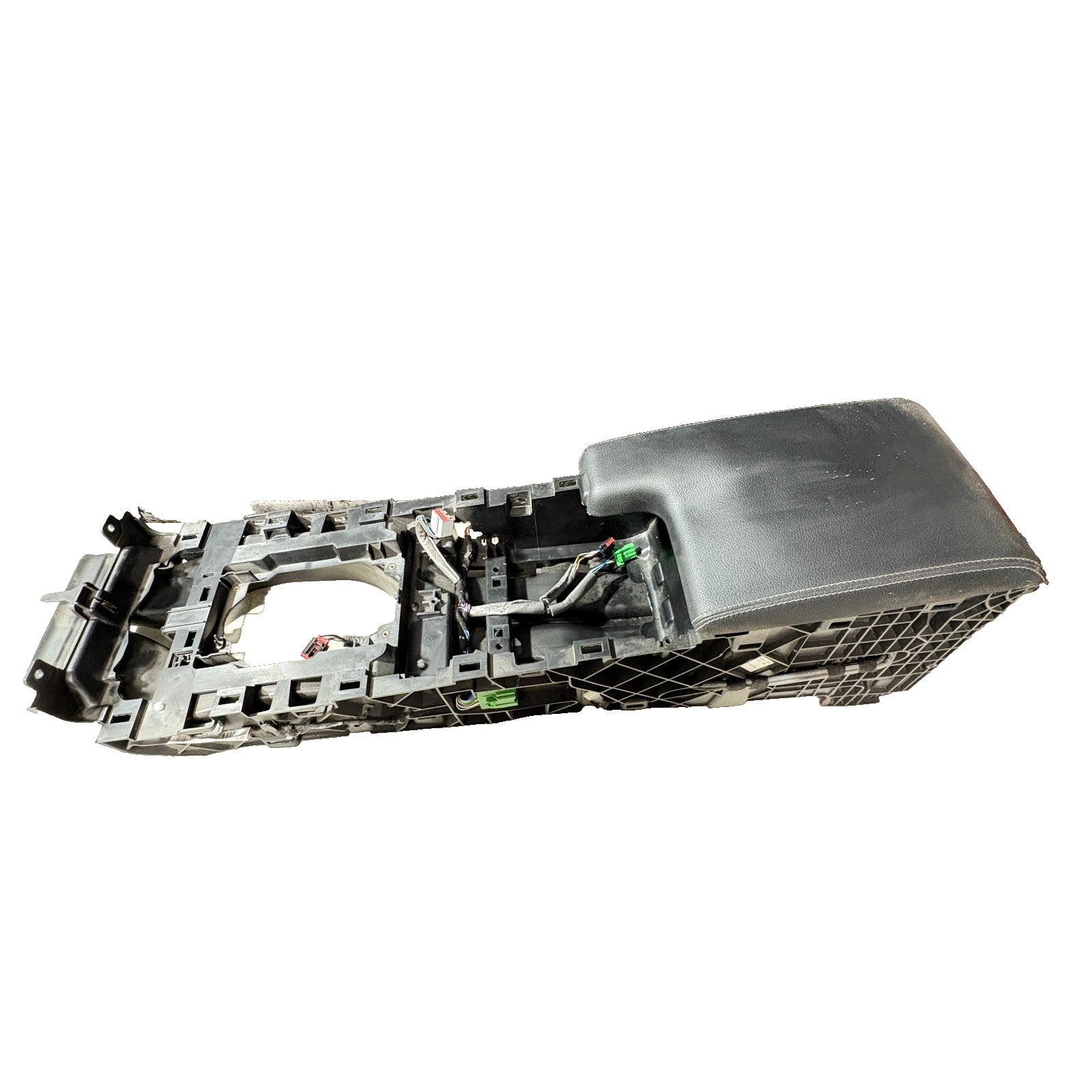

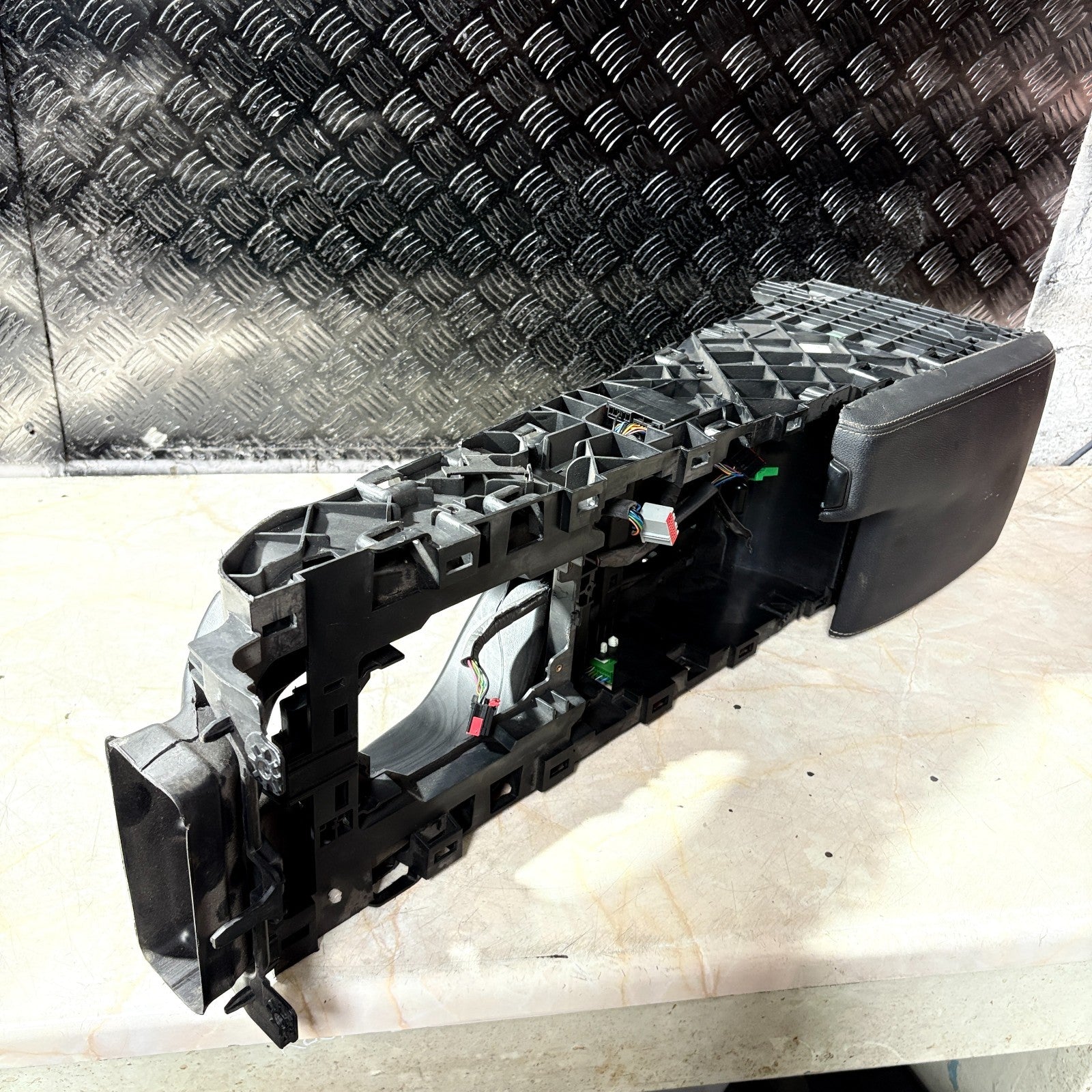

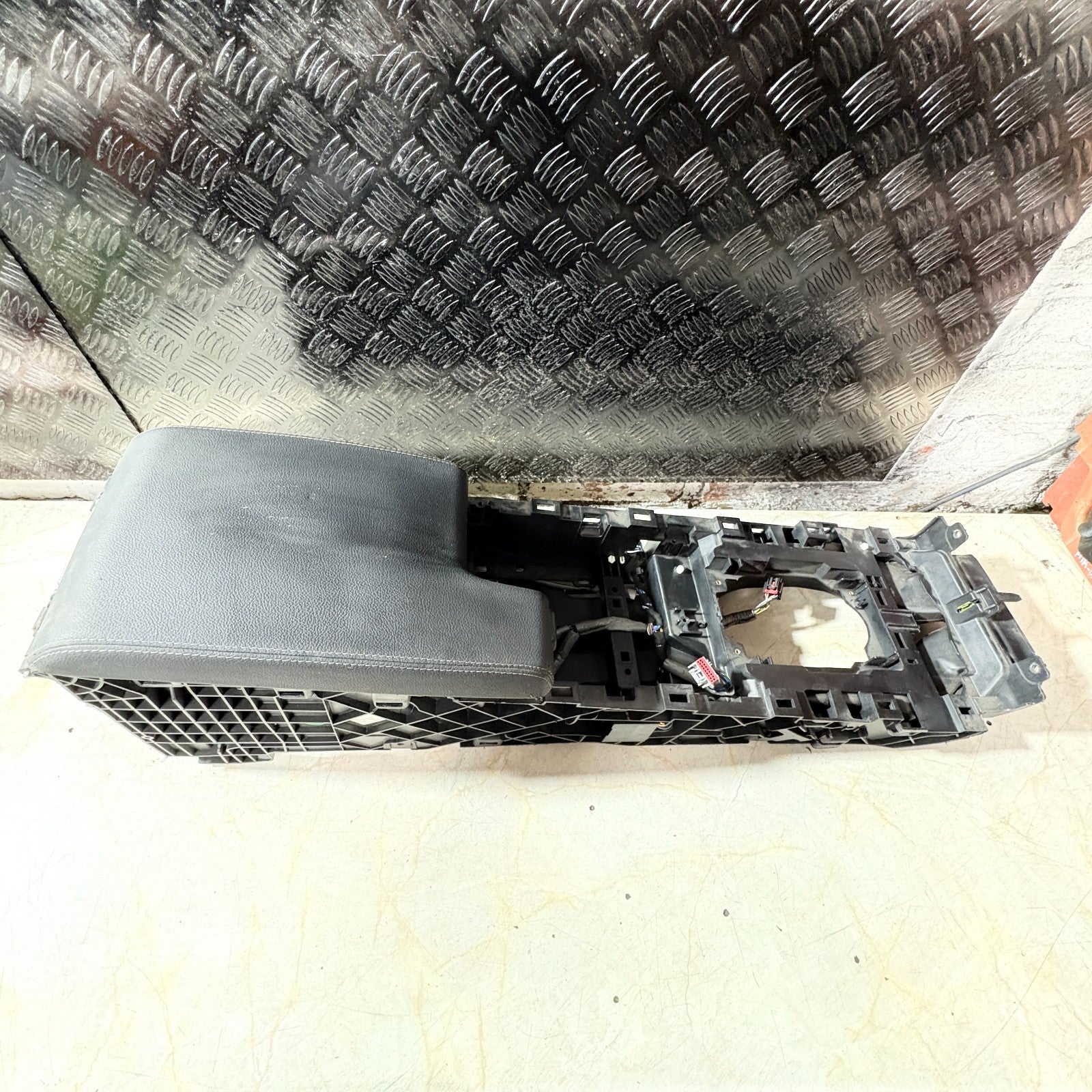

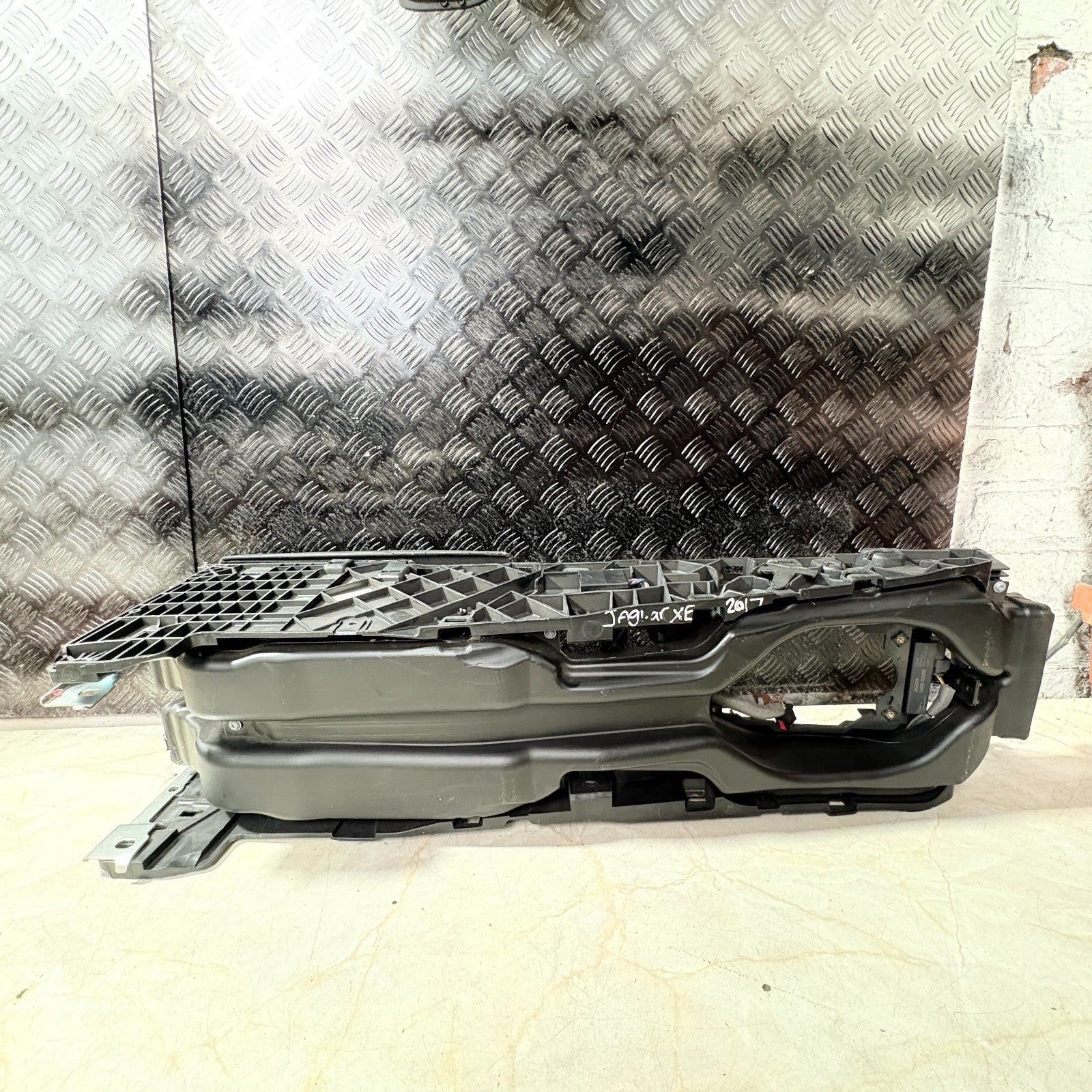

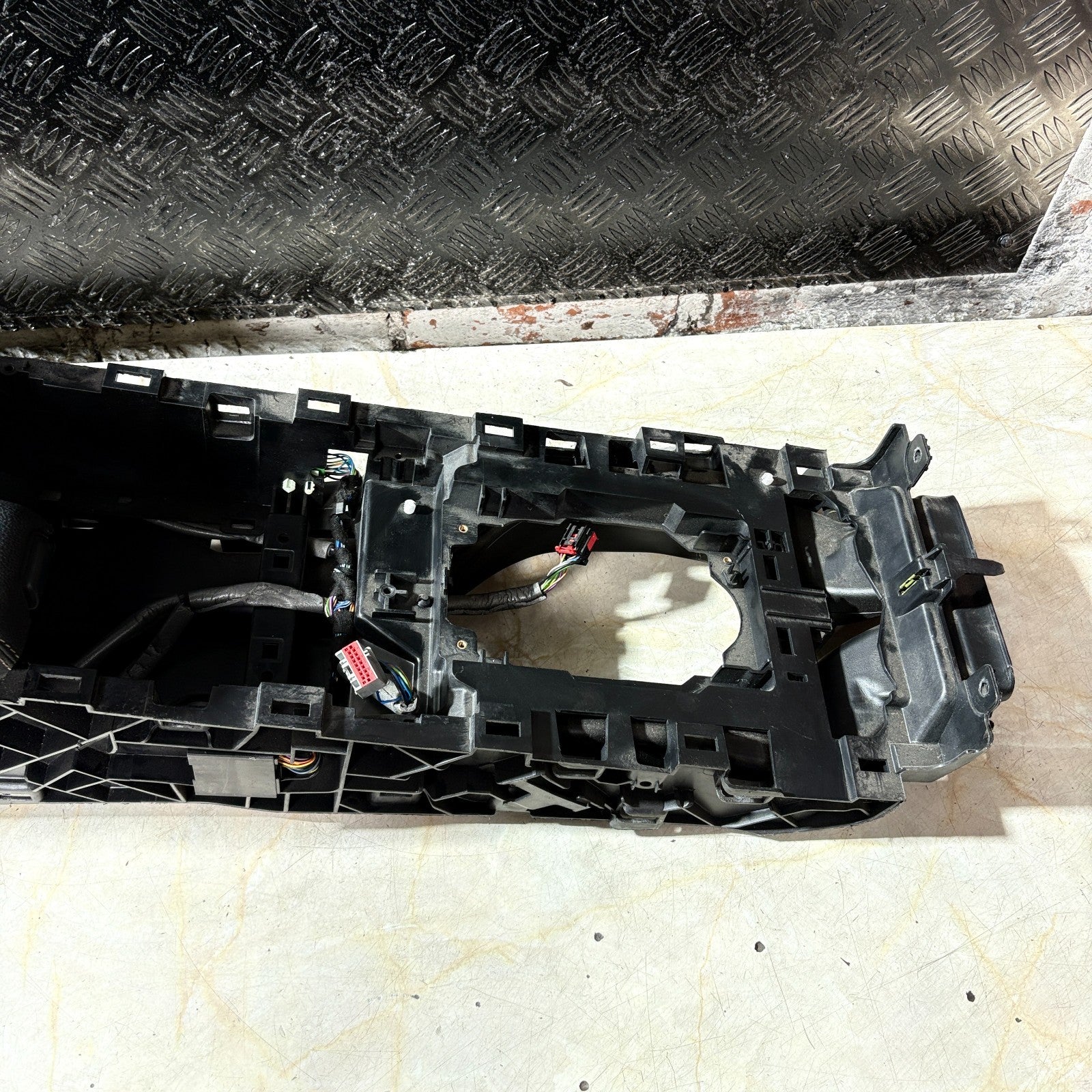

You are purchasing an original factory centre console sub-structure (tunnel casing) removed from a Jaguar XE (X760). This part acts as the foundational skeleton for your vehicle's interior centre spine. It provides the rigid mounting points for the gear selector module, cup holders, infotainment controls, and the central armrest assembly.

Material Construction: High-density injection-molded ABS and glass-filled structural polymer designed to absorb vibrations and provide a squeak-free cabin experience.

💰 Massive Savings: Buy used and save up to 70% compared to main dealer prices!

Why Replace With an Original Used Part? The interior of a modern Jaguar relies heavily on millimetre-perfect fitment to prevent cabin rattles. Cheap aftermarket or heavily repaired frames often lack the exact dimensional tolerances, leading to misaligned trim panels and intensely frustrating dashboard squeaks. An original factory used frame guarantees perfect clip alignment, structural rigidity, and seamless integration with your existing trim pieces.

Compatibility & Fitment Guide

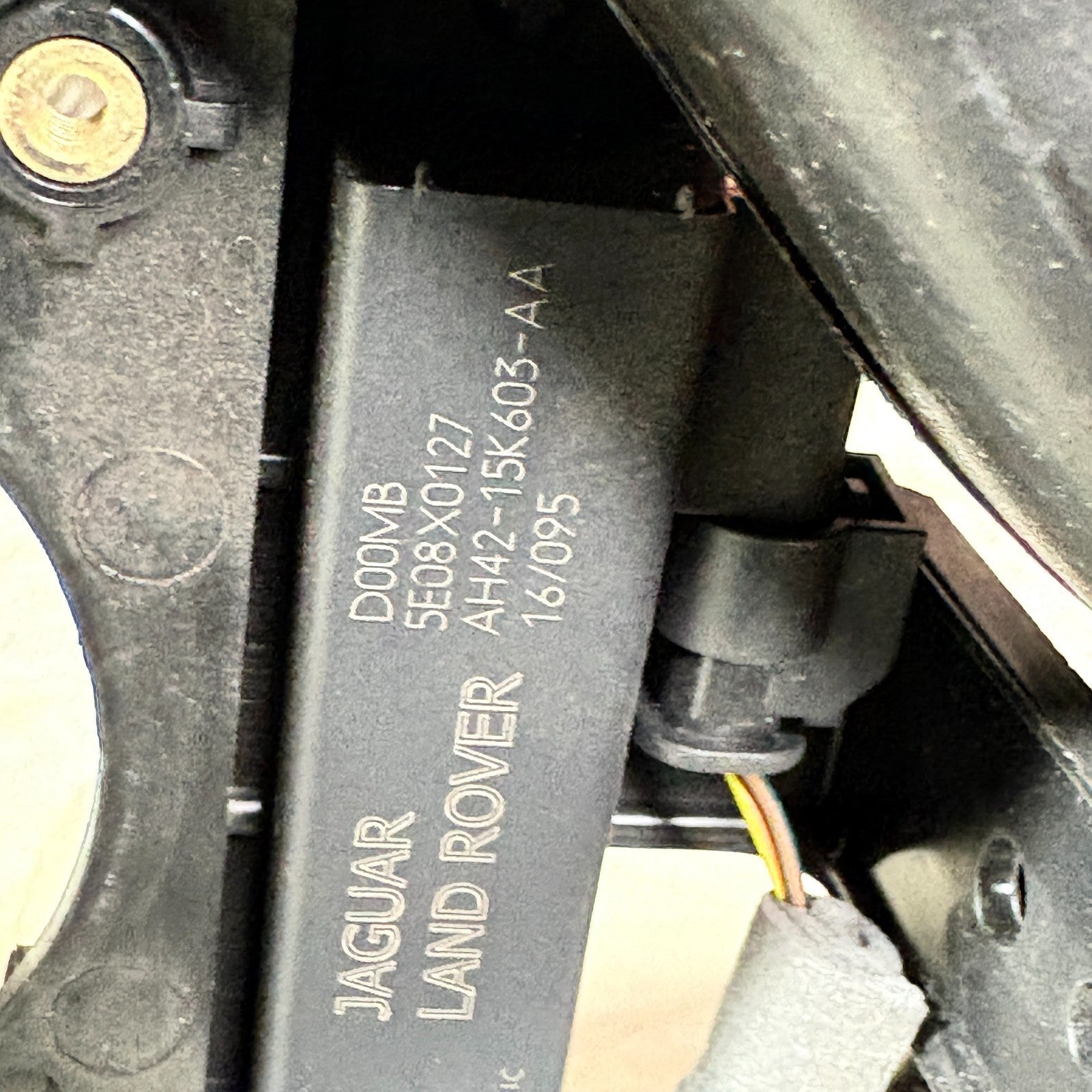

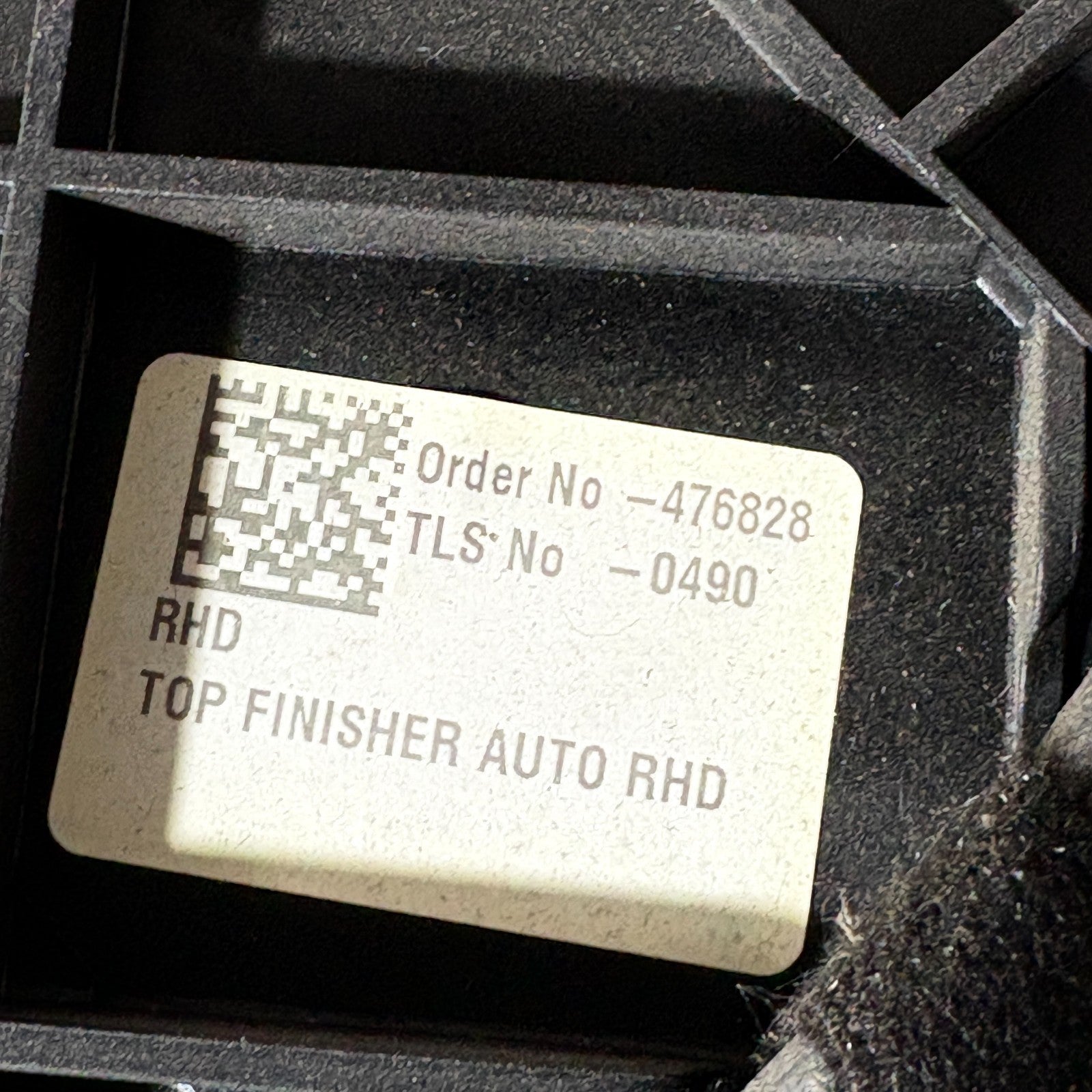

⚠️ ALWAYS VERIFY FITMENT FROM OUR PICTURES AND YOUR EXISTING PART NUMBER BEFORE BUYING. DO NOT RELY SOLELY ON EBAY ITEM SPECIFICS! ⚠️

✅ WILL FIT

❌ WILL NOT FIT

Jaguar XE (X760) 2015 - 2019
All Pre-Facelift XE Models
Fits 2.0d, 2.0t, and 3.0 V6 variants

Note: Please ensure your vehicle is the X760 chassis pre-facelift. Check mounting points for the rotary gear selector.

Jaguar XF (X260) - Wider chassis
Jaguar F-Pace (X761)
Facelift Jaguar XE (2019-Onwards)
Manual Transmission Vehicles (Unless part numbers identically match)

Symptoms of a Damaged Console Structure

Cabin Rattles & Squeaks: Broken plastic mounting tabs causing interior panels to rub together during driving.

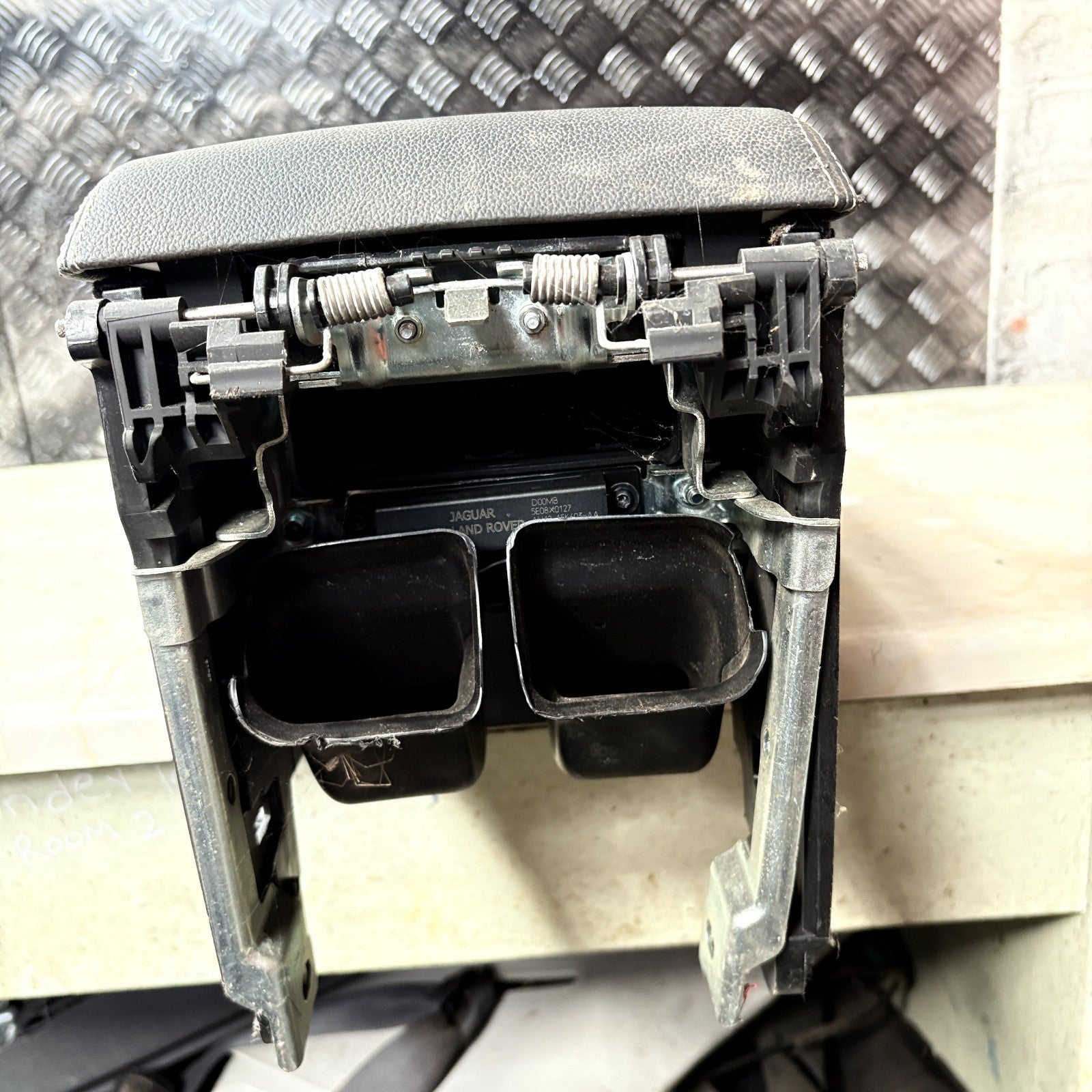

Loose Armrest: The central armrest wobbles or fails to latch due to shattered hinge mounting points.
Sunken Gear Selector: The rotary dial or shifter assembly sits unevenly or feels loose when pushed.
Accident Damage: Often cracked or warped during side-impact collisions, requiring full replacement.

🔧 Fitting Guide & Labour Calculator

Required Tools: Torx T20 & T30 screwdrivers, plastic non-marring trim removal pry tools, 10mm socket set.

Fitting Overview: Disconnect the battery. Carefully pry away the leather/veneer side trims starting from the rear. Unscrew the hidden Torx bolts securing the gear selector surround and HVAC controls. Disconnect all electrical harnesses (mark them if necessary). Unbolt the main sub-structure from the transmission tunnel and lift out. Swap your existing cup holders, armrest lid, and modules over to the new frame before reinstalling.

Estimated Repair Time:	2.5 Hours
Average UK Garage Hourly Rate:	£75.00
Estimated Garage Labour Cost:	£187.50

⭐ WE OFFER A FITTING SERVICE SUBJECT TO AVAILABILITY! Contact us today to book your vehicle in. ⭐

Target Vehicle (Jaguar XE X760)

Part Placement / Interior

The sub-structure frame sits beneath the central trim pieces, running between the driver and passenger seats.
