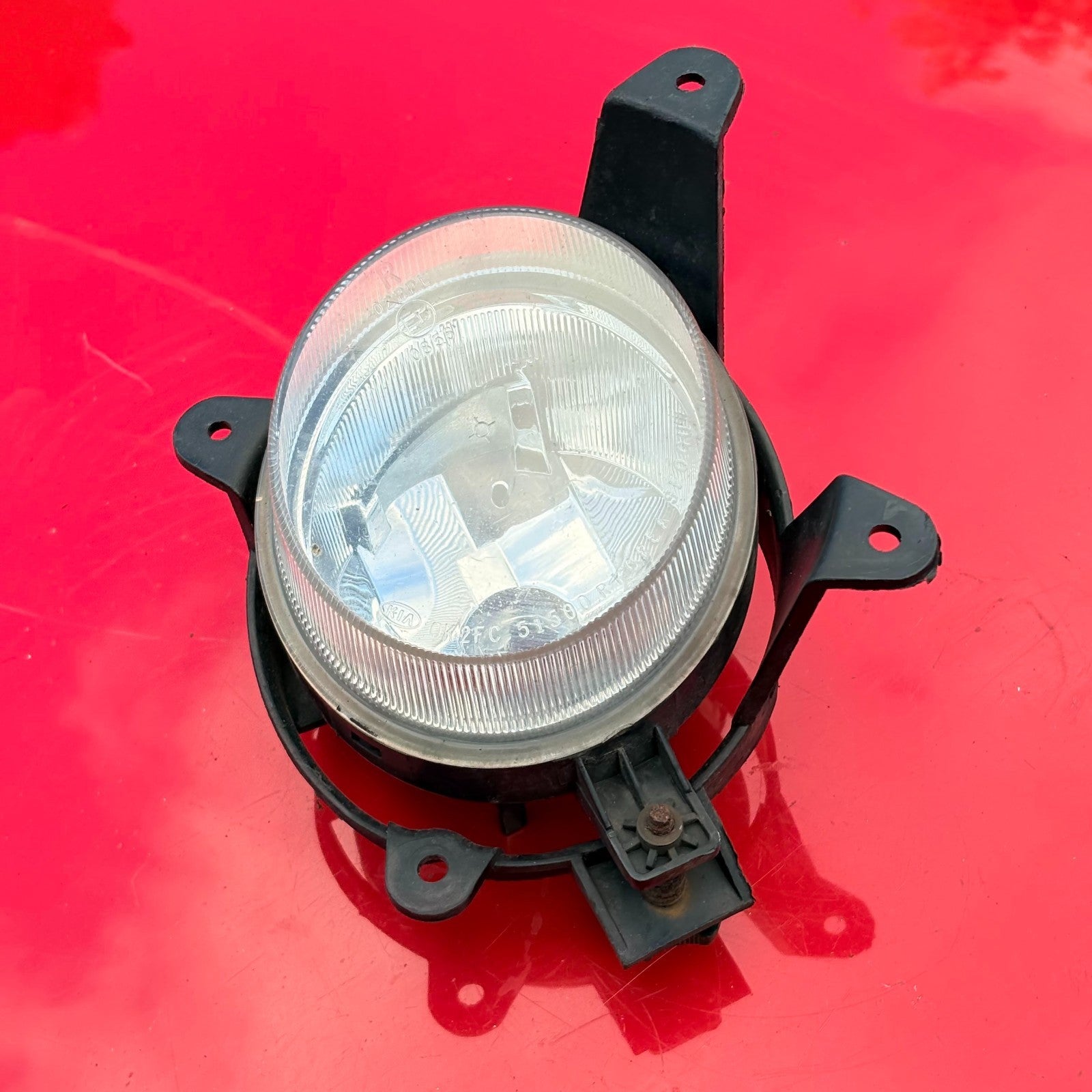

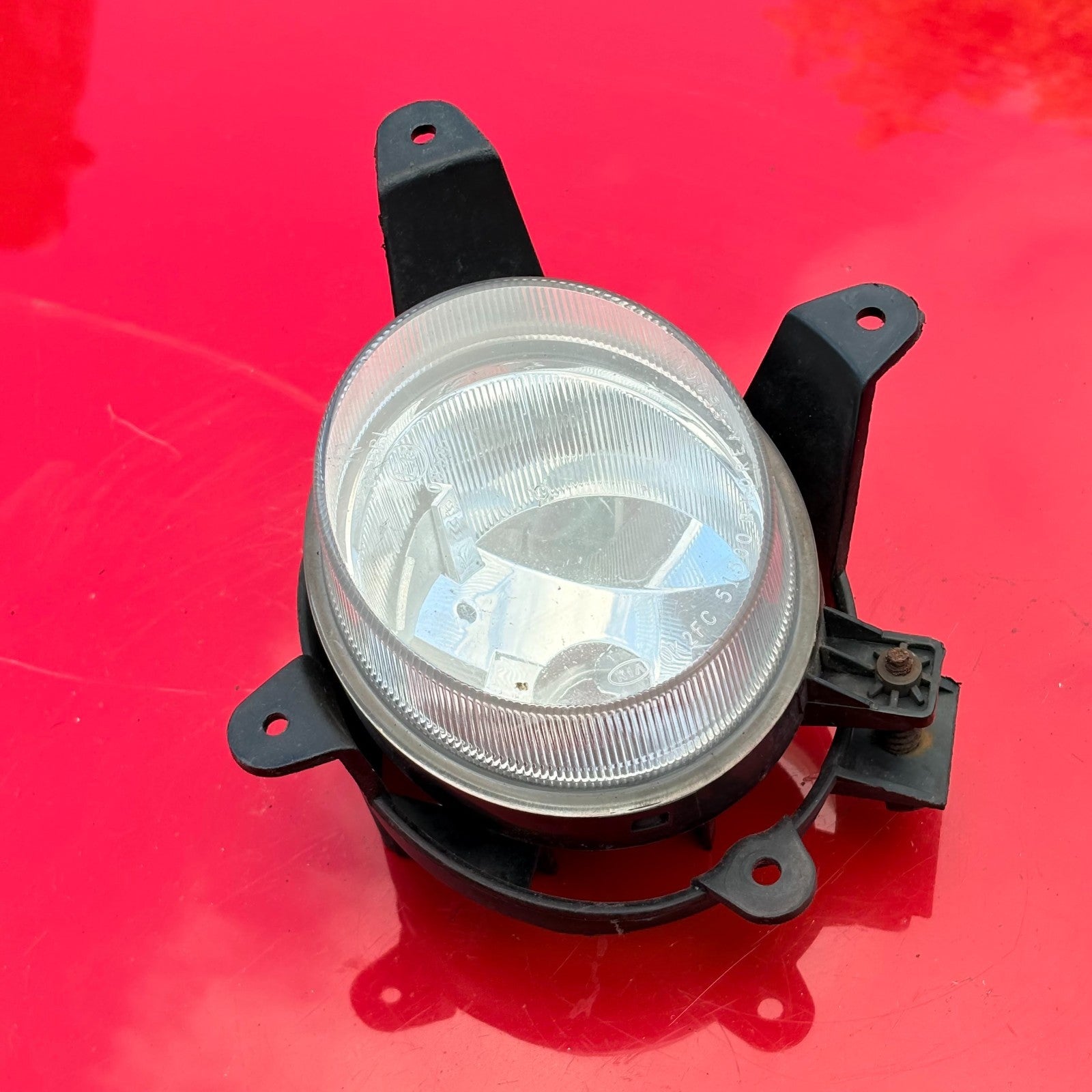

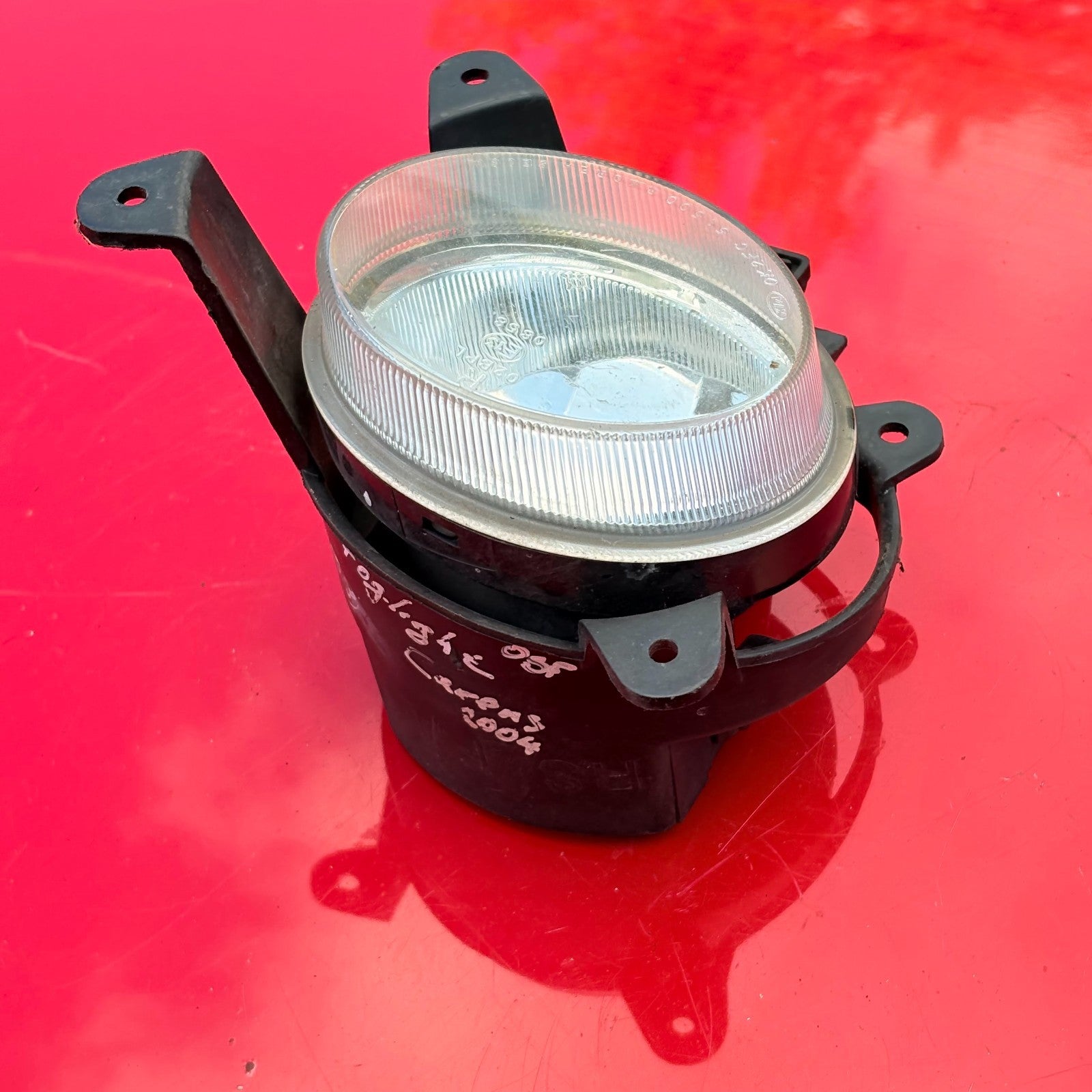

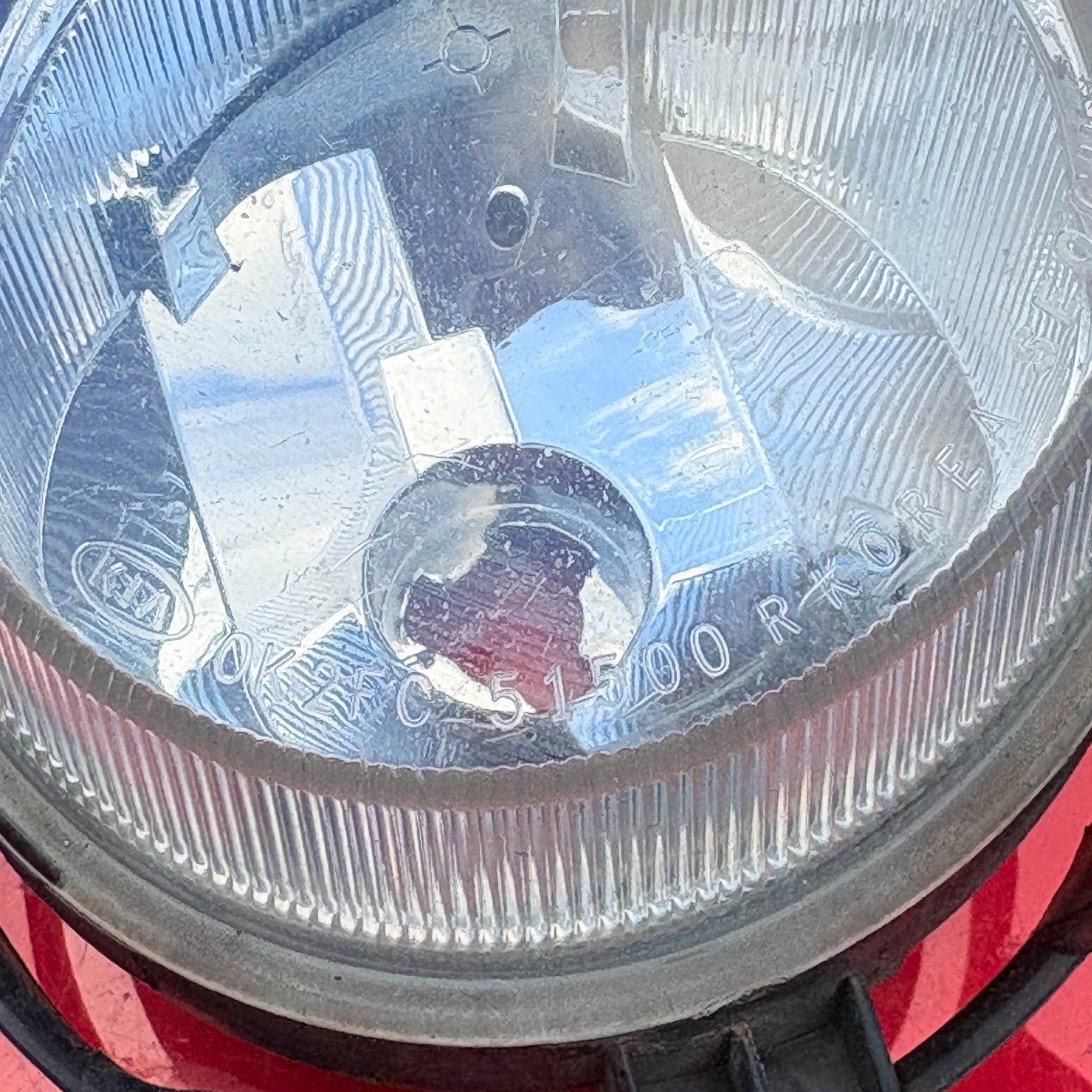

Kia Carens FJ 2002-2006 Driver RH OSF Front Bumper Fog Light 0K2FC51510
Kia Carens FJ 2002-2006 Driver RH OSF Front Bumper Fog Light 0K2FC51510
Do not order by registration year alone. Match the vehicle body, side, manufacturer part reference, mounting shape and your existing lamp. If there is any doubt, send the full 17-character VIN and a clear photo of the old lamp through eBay Messages before purchase. A donor VIN is not shown in the current listing photographs, so no wider VIN-level fitment is being claimed.
| Part | Front bumper fog light assembly |
| Manufacturer reference | 0K2FC51510 |
| Side / position | RH / right / OS / OSF / UK driver side / front lower bumper |
| Vehicle body | Kia Carens FJ / FC-FJ, 5-door MPV, front-wheel drive application |

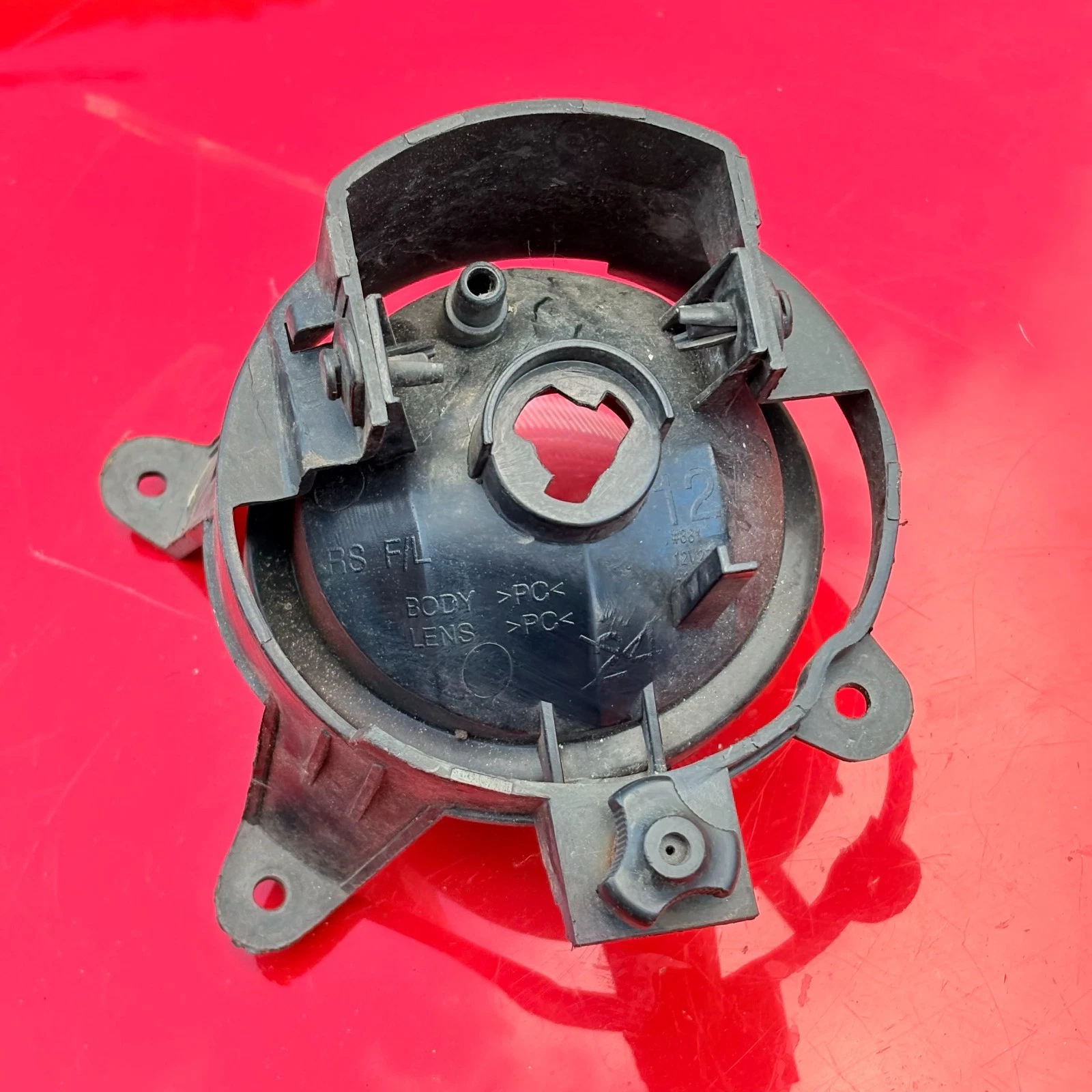

| Visible material marking | BODY >PC< and LENS >PC< - PC denotes polycarbonate |
| Mounting | Multi-point screw-mount bracket - compare every mounting tab to your old lamp |
| Bulb / holder | Not shown fitted in the listing photos. Assume bulb/holder is not included unless the seller physically confirms otherwise. Transfer the correct compatible parts only if required. |
| Condition | Used. Supplied exactly as pictured. Expect age/use-related cosmetic marks; inspect all listing photographs before purchase. |
| Country shown in listing | South Korea |
This guide is based on the 0K2FC51510 RH fog-lamp application plus the lamp geometry shown in the item photographs. Catalog naming varies: some systems call this Carens II (FJ), while others use Carens I MPV (FC/FJ). The FJ body and exact part reference matter more than the Roman numeral.
| Vehicle | Production / application | Engine | Power | Fitment note |
|---|---|---|---|---|
| Kia Carens FJ 5-door MPV | Jul 2002-Aug 2006 body | 1.6 petrol GA6D | 77 kW / 105 hp | 0K2FC51510 RH application listed |
| Kia Carens FJ 5-door MPV | Jul 2002-Aug 2006 body | 1.8 petrol TB | 93 kW / 126 hp | 0K2FC51510 RH application listed |
| Kia Carens FJ 5-door MPV | From Jul 2002, earlier-power diesel | 2.0 CRDi D4EA | 83 kW / 113 hp | 0K2FC51510 RH application listed; verify VIN where model-year split is unclear |
| Kia Carens FJ 5-door MPV | Late FJ, approx. Nov 2005-Aug 2006 | 2.0 CRDi D4EA | 103 kW / 140 hp | 0K2FC51510 RH application listed |
| Kia Carens FJ 5-door MPV | From Aug 2004 to end of FJ body production | 2.0 CVVT G4GC | 102 kW / 139 hp | 0K2FC51510 RH application listed |
Market-name note: some non-UK catalogues use Carens / Rondo wording for the same 2002-2006 application. Do not apply this listing to a later Rondo/Carens simply because the name matches; the FJ body, RH side and 0K2FC51510 reference must match.
| You need the LEFT / LH / NSF lamp | The opposite-side reference is 0K2FC51520. This listing is RH / OSF. |
| Your car is the newer-shape Carens introduced after the FJ generation | Different body generation: do not assume fitment from the Carens name alone. |
| Your old lamp has different mounting tabs or rear opening | Stop and compare photographs / part reference before purchase. |
| Your vehicle is pre-Jul 2002 | Not blanket-confirmed in this listing. A matching reference, photos and VIN are required before ordering. |
| Your vehicle is registered in 2007 | Some late-registered cars can be earlier FJ stock, but 2007 is not blanket-confirmed. Verify VIN, 0K2FC51510 and lamp geometry first. |
- Vehicle is Kia Carens FJ / FC-FJ 5-door MPV within the verified body period.
- You require RIGHT / RH / OSF front fog lamp.
- Old lamp or parts data confirms 0K2FC51510, or seller confirms it from your VIN.
- Mounting tabs and rear bulb/holder opening match the actual photos above.
- If anything conflicts, send VIN and old-part photos through eBay Messages before paying.
This lamp mounts low in the right-hand side of the front bumper. It provides the front-right fog-light beam when commanded by the vehicle lighting circuit. The lamp assembly itself is not an electronic control module. Its key jobs are to hold the reflector/lens in the correct position, protect the light source from the environment and provide the designed beam pattern and mounting geometry.
- Fog lamp does not illuminate or works intermittently.
- Cracked, chipped or heavily clouded lens.
- Water or persistent condensation inside the lamp.
- Broken mounting tabs causing movement or incorrect alignment.
- Corrosion or heat damage around the bulb/holder area.
- Poor or uneven low-level illumination after confirming the bulb and electrical supply are sound.
Important diagnosis note: a failed bulb, fuse, wiring fault, switch fault or connector issue does not automatically mean the complete lamp assembly is faulty. Diagnose before replacing parts.
The original lamp housing and bracket geometry were designed around this bumper aperture, mounting points and lighting layout. A correct used manufacturer part can preserve factory-style fit, appearance and bracket alignment while keeping a serviceable component in use.
Low-cost pattern copies can vary by maker in bracket geometry, lens finish, sealing and supplied fittings. Whatever part you choose, always compare reference, shape and mounting points.
Value: depending on the part, condition and current new retail price, buying used can cost as much as 70% less than buying new. Savings vary and are not guaranteed on every component.
Estimated workshop time: approximately 0.5-1.0 hour for a straightforward replacement. Corroded fasteners, damaged bumper trims or restricted access can extend the job.
Trim-clip remover, Phillips/flat screwdriver as required, small socket set (commonly 8 mm / 10 mm sizes may be encountered), ratchet, torch and gloves. If the vehicle must be raised, use approved lifting points and axle stands or a proper lift - never work under a vehicle supported only by a jack.
- Park on level ground, apply parking brake, switch ignition and lamps off, and allow hot components to cool.
- Gain access to the RH lower bumper area, normally through the lower splash shield and/or wheel-arch liner depending on vehicle specification.
- Remove only the necessary trim clips/screws and support any loosened liner or undertray.
- Disconnect the lamp/bulb-holder wiring carefully; do not pull on the wires.
- Remove the fog-lamp mounting screws while supporting the lamp, then withdraw it without stressing the bumper.
- Before installation, compare old and replacement lamp: RH orientation, 0K2FC51510 reference where visible, every mounting tab, rear opening and electrical interface.
- Transfer the correct compatible bulb/holder only if required and in serviceable condition. The listing photos do not show a bulb/holder fitted to this item.
- Install the replacement without forcing the bracket. Reconnect, test operation, then refit the liner/undertray and check the lamp is secure.
- Confirm final beam position and secure fit. If uncertain, use a competent repairer.
Use the row closest to your garage's hourly labour rate. Figures below are labour only and use the 0.5-1.0 hour estimated fitting time. They are examples, not a repair quotation.
| Garage rate | 0.5 hour | 1.0 hour |
|---|---|---|
| £50 / hour | £25 | £50 |
| £60 / hour | £30 | £60 |
| £75 / hour | £37.50 | £75 |
| £90 / hour | £45 | £90 |
| £100 / hour | £50 | £100 |
| £120 / hour | £60 | £120 |
For any other hourly rate: multiply the rate by 0.5 for the lower estimate and by 1.0 for the upper estimate. Consumables, diagnostics, seized fasteners and local taxes/charges may alter the final bill.
How to find us / WhatsApp
Scan the QR code to open a WhatsApp chat for collections and enquiries.
If the QR image needs refreshing, generate it again from the same WhatsApp link.
Primary manufacturer reference for this RH application: 0K2FC51510.
Aftermarket interchange references found for identification include DIEDERICHS 6536888, EQUAL QUALITY PF0373D, KLOKKERHOLM 32860282A1 and PEMEBLA K6004. These are cross-reference aids only - they do not replace VIN, side and physical-shape verification.
UK and international delivery: final postage service, destination eligibility, import charges and delivery estimate are the values shown by eBay at checkout. This listing currently displays eBay's Global Shipping Programme; eBay is migrating UK sellers to eBay International Shipping during 2026, so programme availability can change.
Current GSP eligible destinations published by eBay include: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Antigua and Barbuda, Aruba, Australia, Bahamas, Bahrain, Bangladesh, Barbados, Belize, Bermuda, Bolivia, Brazil, Brunei Darussalam, Cambodia, Canada, Cayman Islands, Chile, China, Colombia, Costa Rica, Dominica, Dominican Republic, Ecuador, Egypt, El Salvador, French Guiana, Grenada, Guadeloupe, Guatemala, Guernsey, Honduras, Hong Kong, Iceland, Indonesia, Israel, Jamaica, Japan, Jersey, Jordan, Kuwait, Liechtenstein, Macau, Malaysia, Maldives, Martinique, Mexico, Monaco, Montserrat, New Zealand, Nicaragua, Norway, Oman, Pakistan, Panama, Paraguay, Peru, Philippines, Qatar, Reunion, Saint Kitts and Nevis, Saint Lucia, Saudi Arabia, Singapore, South Africa, South Korea, Sri Lanka, Switzerland, Taiwan, Thailand, Trinidad and Tobago, Turks and Caicos Islands, United Arab Emirates, Ukraine, Uruguay, United States and Vietnam.
Address warning: please make sure the delivery address shown at checkout is correct before payment. We dispatch to the address supplied to us by eBay and cannot manually substitute a different address after checkout.
Where applicable, this used part is sold under the Global Accounting VAT margin scheme. VAT is accounted for within the margin and is not shown separately on the sales invoice, so there is no separately stated VAT amount for the buyer to reclaim.
Please use the photographs, part reference and fitment chart before ordering. If unsure, ask us to verify the VIN and your old-part photos through eBay Messages first.
Returns are handled under the return terms shown by eBay for this listing and applicable consumer law. There is no blanket restocking/admin fee. Where eBay permits an eligible deduction because an item is returned used, altered, damaged, incomplete or with reduced value, any deduction must reflect the actual loss in value and eBay's rules.
Buying a serviceable used vehicle component supports parts reuse and helps keep useful material in circulation instead of replacing an entire assembly unnecessarily. Reuse can also reduce demand for new component manufacture and avoids discarding a working part before the end of its useful life.
Thank you for supporting ThePartPilot. Our priority is accurate identification, clear photographs and fitment checks so the correct part is ordered first time.
