KIA SPORTAGE MK4 QL 2016-2021 16-21 REAR RIGHT COMPLETE DOOR BROWN FREE POSTAGE
KIA SPORTAGE MK4 QL 2016-2021 16-21 REAR RIGHT COMPLETE DOOR BROWN FREE POSTAGE
Kia Sportage Mk4 QL 2016-2021 Rear Right Offside Complete-Style Door Assembly — Brown Metallic
Photo-verified 2017 donor door for the five-door Sportage QL body family. Supplied exactly as shown in the six detailed product photographs below, with free standard UK mainland postage included for eligible checkout addresses.
The Actual Item You Will Receive
These are the source listing photographs, not generic catalogue pictures. The exterior panel, inner trim, glazing, switch pack, wiring connector, seals and visible cosmetic condition can all be checked before purchase.

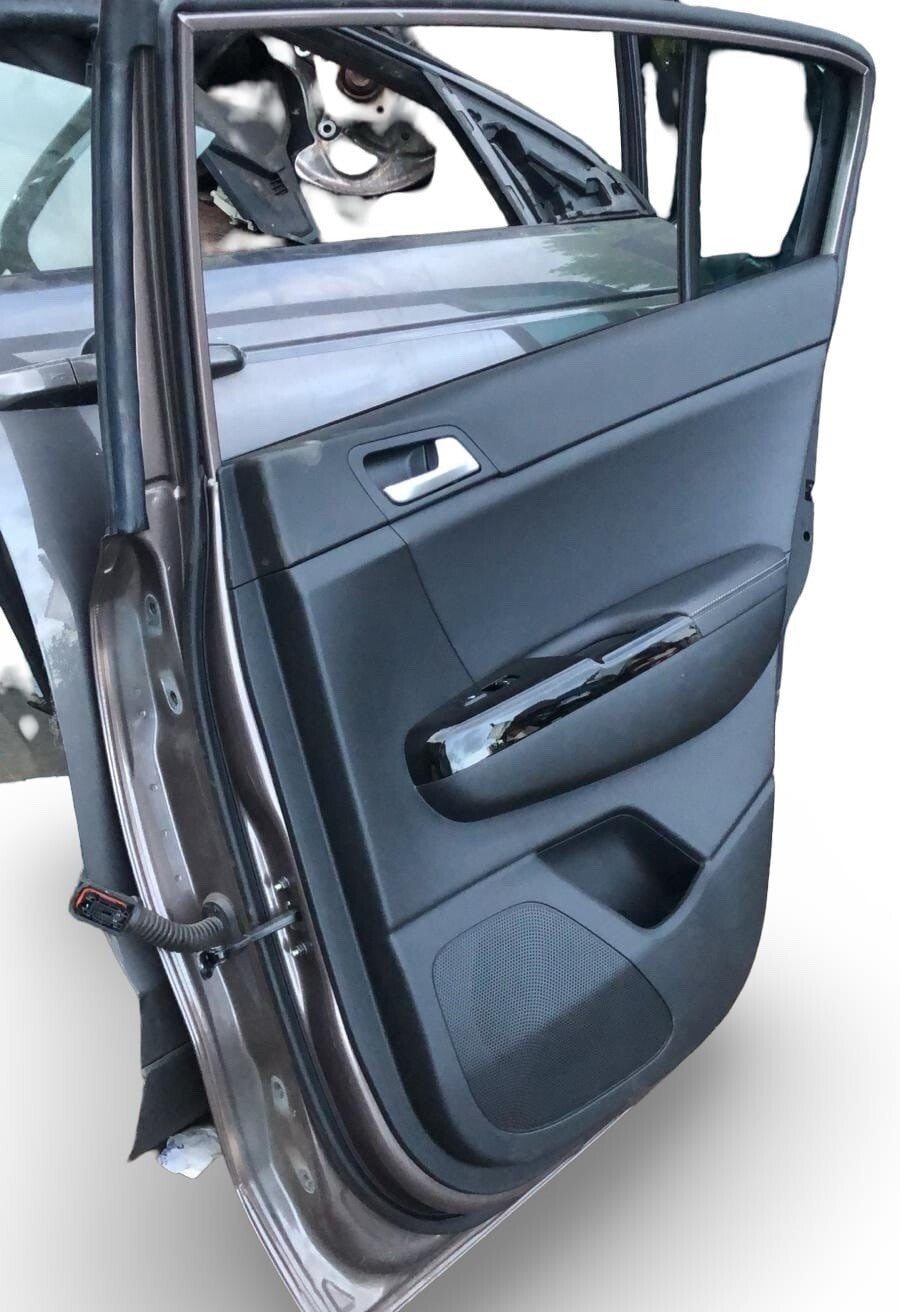

Interior trim, inner handle, speaker grille, seals, loom connector and door-mounted switch panel visible.

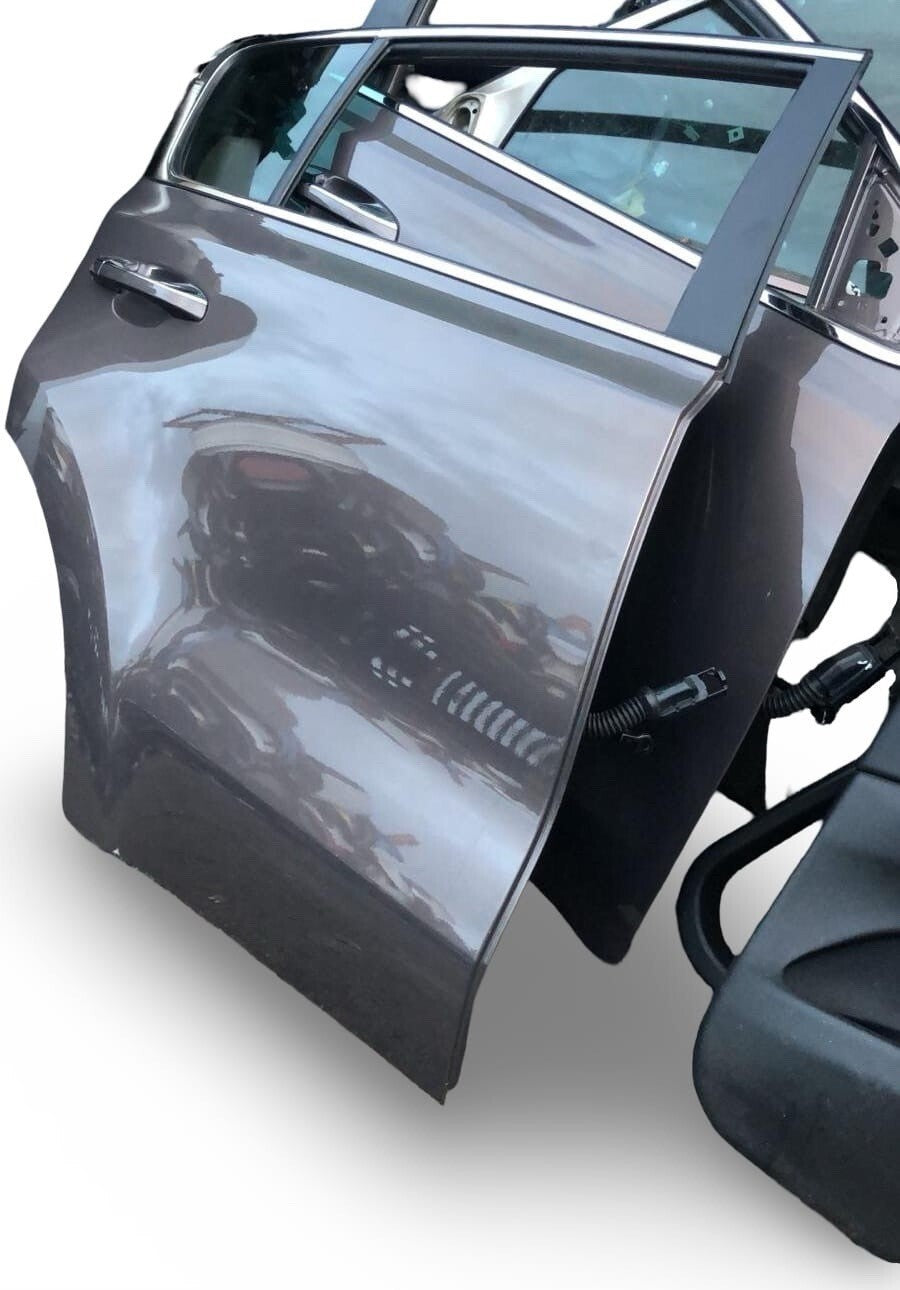

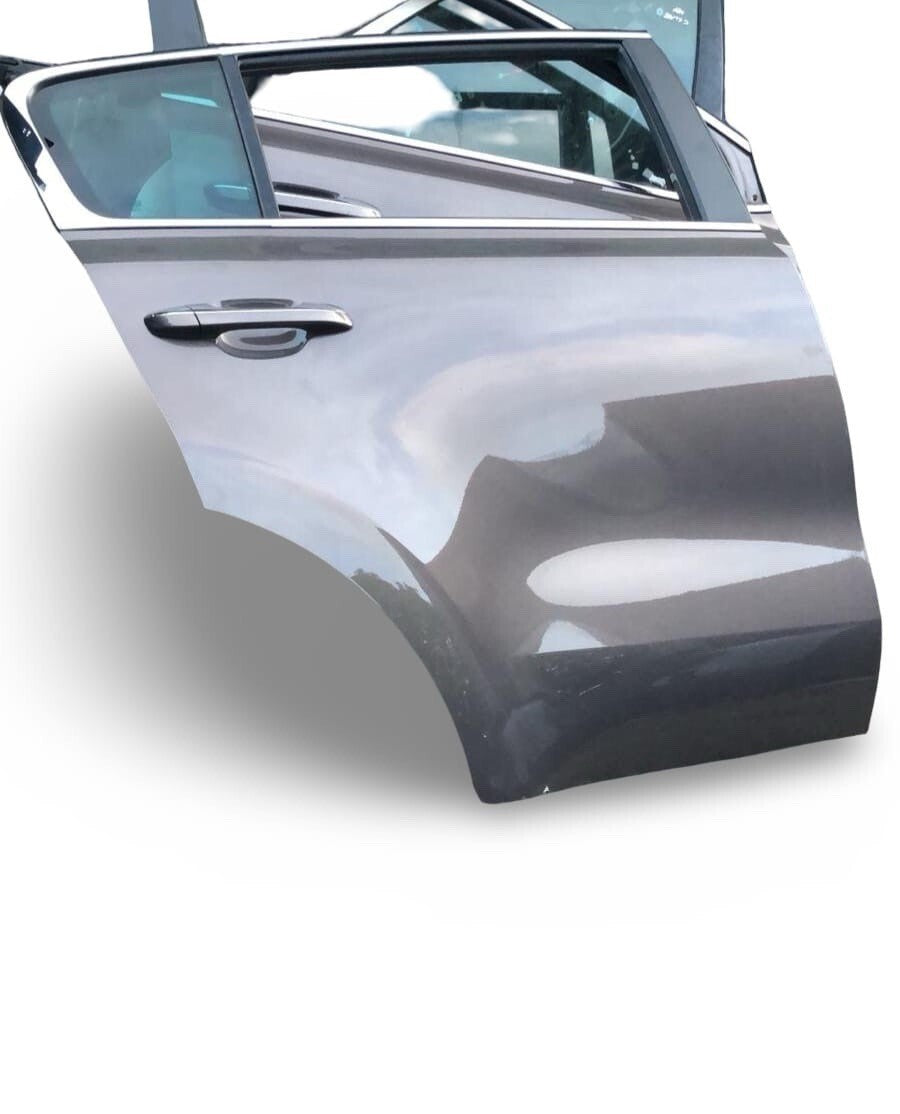

Outer skin profile, handle, window frame, fixed quarter glass and main drop glass shown.

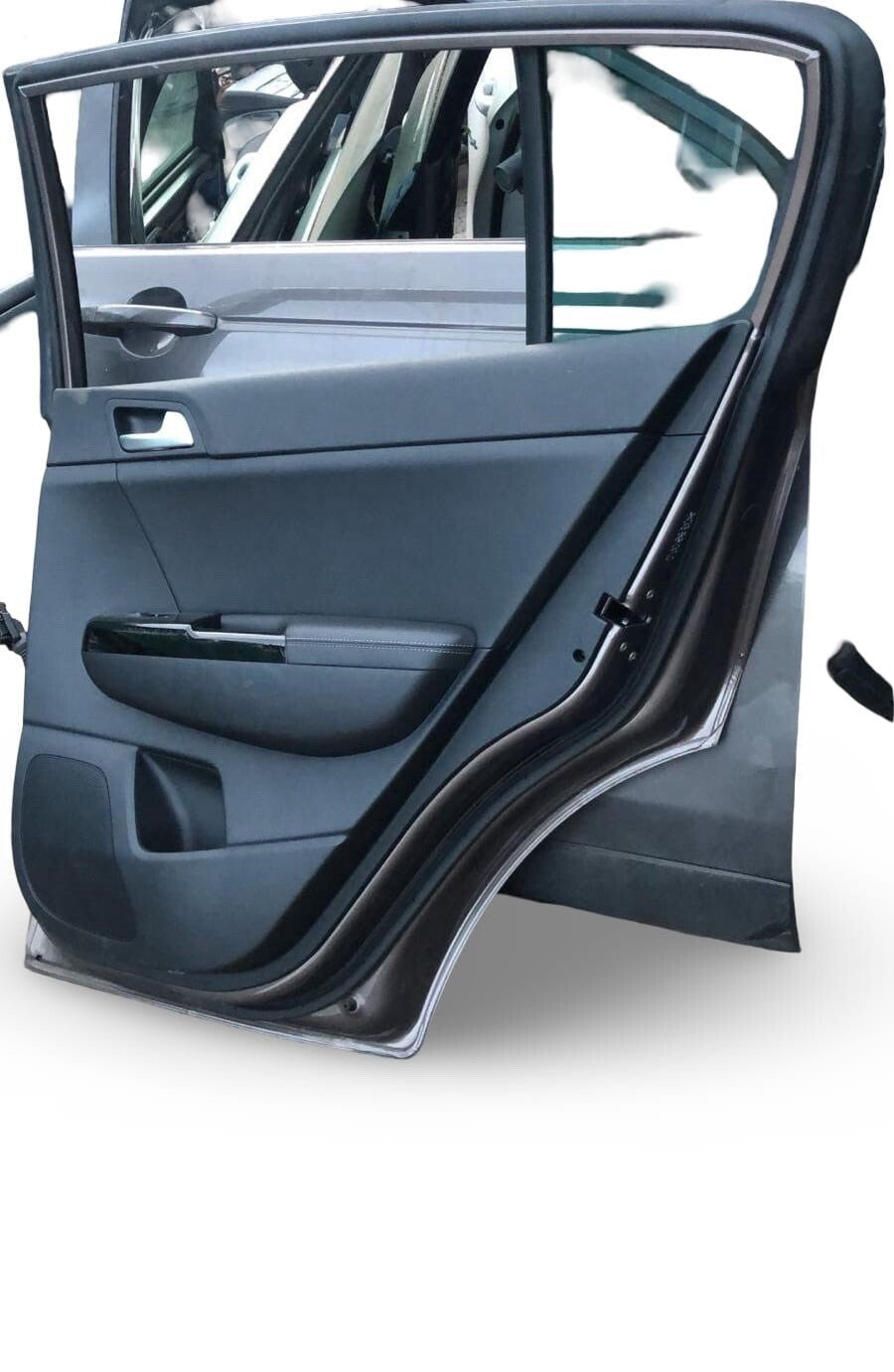

Rear edge, weather sealing, trim-card profile and glass-frame geometry shown.

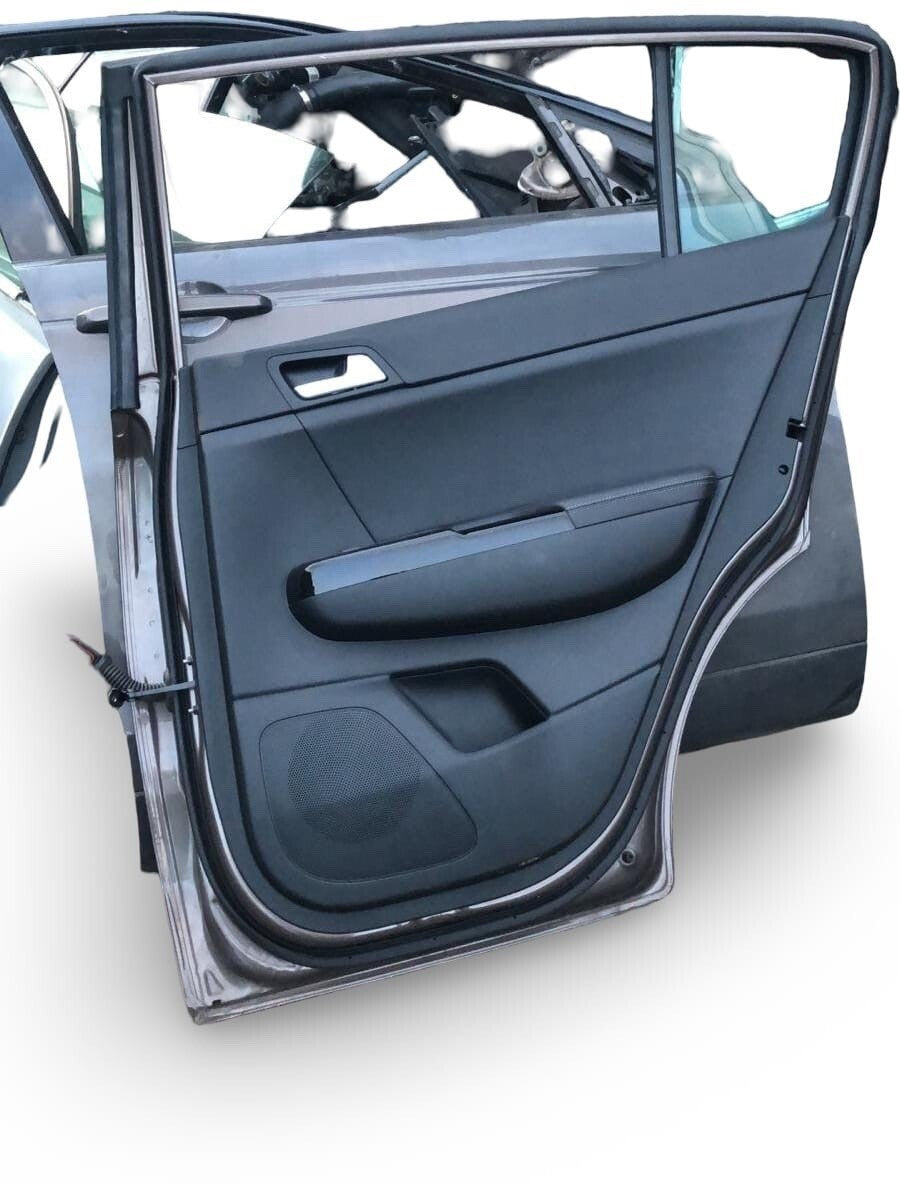

Full interior view for matching trim shape, switch location, speaker grille and mounting edge.

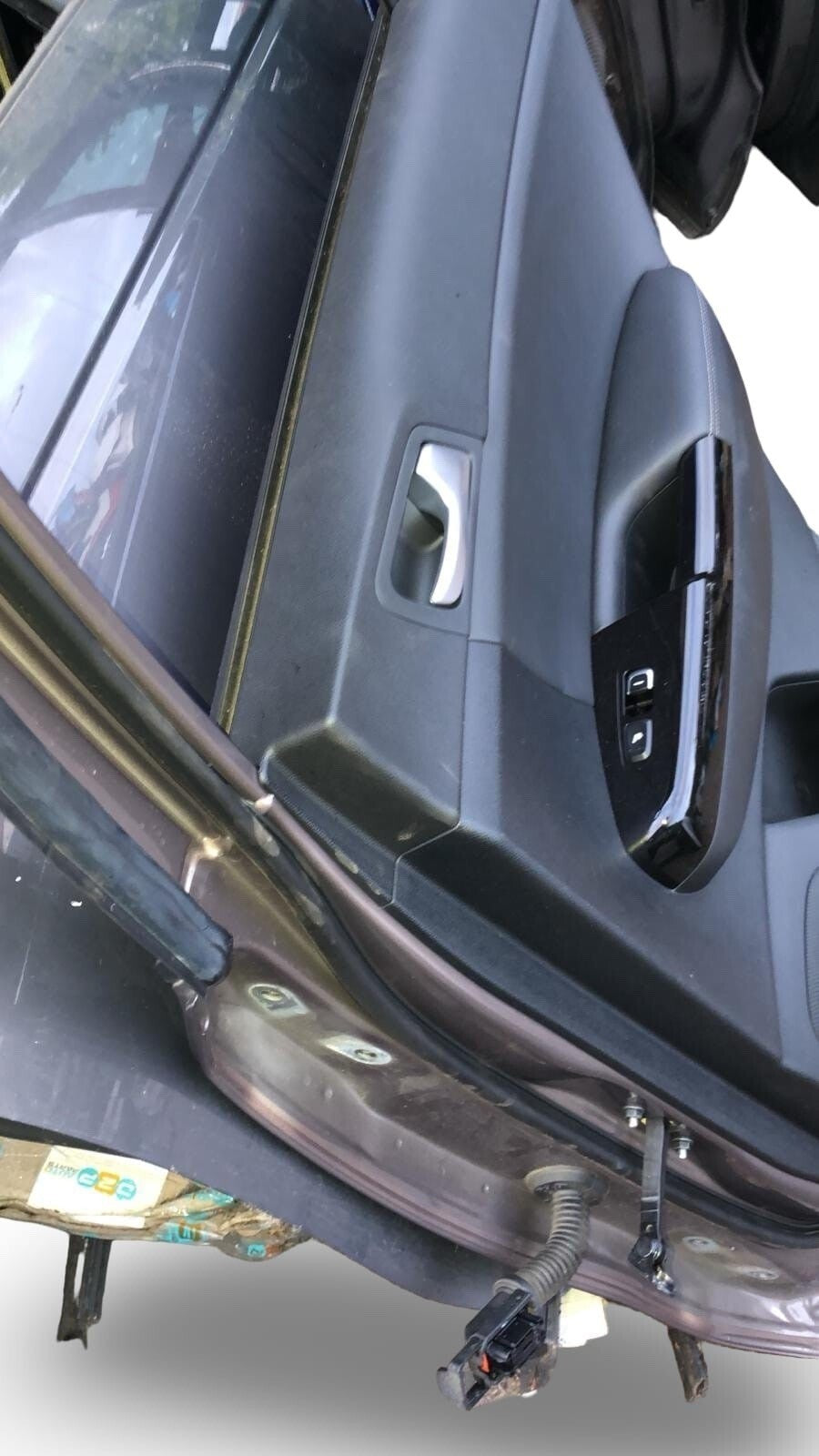

Close reference for the switch pack, wiring plug, aperture edge and visible fixings.
Inspect every image at full size
Pre-owned panels can show storage marks, stone chips, scratches, edge wear, small dents or previous paintwork. Marks are visible around the lower exterior area and normal handling wear is visible on trim. Budget for preparation or refinishing where a perfect colour and cosmetic finish is required.
Exact Vehicle Family Reference
The sale item is for the five-door Kia Sportage Mk4 QL body family. The two reference photographs below show both the original QL front styling and the later facelift styling so buyers can avoid confusing this generation with the earlier SL or later NQ5.
2016-2018 QL pre-facelift reference: five-door SUV body, matching the source listing's 2017 donor-year description.
2019-2021 QL facelift reference: later front styling, while the catalogue rear-right door shell reference spans the QL facelift family.
Vehicle-reference image credits: Peterolthof and Vauxford, CC BY-SA 4.0, via Wikimedia Commons. Reference vehicles are not included. Colour, trim and market equipment shown may differ from the sale item.
THEPARTPILOTVerified Item Details
| Vehicle | Kia Sportage Mk4, QL / QLE body family |
| Source donor year | 2017, as stated in the source listing |
| Headline fitment years | 2016-2021 (16-21) UK QL five-door; see the compatibility and exclusion sections before ordering |
| Part type | Complete-style conventional hinged rear door assembly, supplied exactly as photographed |
| Position | Rear right / offside rear / UK driver-side rear |
| Body style | Five-door SUV |
| Colour | Brown metallic; photographs show a dark brown / bronze-grey appearance. Exact paint code is not visible. |
| Material | Pressed metal door structure and outer skin, glass, plastic interior trim and rubber weather seals |
| Finish | Painted metallic exterior with dark interior trim |
| Visible equipment | Main drop glass, fixed quarter glass, outer handle, inner handle, trim panel, switch pack, wiring connector, seals, beltline trim and speaker grille |
| Part-number status | No stamped or printed service number is visible in the six published photographs. Catalogue shell references are listed separately and must be physically confirmed. |
| Country marking | The current source listing states South Korea, but no country-of-origin mark is visible in the photographs. Confirm the physical marking before using this field for customs declarations. |
| Seller warranty | 30 days, in line with the current source listing |
| eBay item number | 147491986666 |
Compatibility — Exact Years and Chassis Guidance
The rear door shell catalogue family spans the fourth-generation Sportage QL before and after facelift. Complete-door compatibility still depends on trim, connector, loom, glass, handle and fitted equipment, so the table below is deliberately more cautious than a simple model-year dropdown.
| Vehicle | Years | Body / Chassis | Compatibility status |
|---|---|---|---|
| Kia Sportage Mk4 | 2016-2018 16-18 |
QL / QLE five-door, pre-facelift | Body aperture and catalogue shell family match. Compare the complete assembly's connector, trim, glass tint, handle and equipment before purchase. |
| Kia Sportage Mk4 facelift | 2019-2021 19-21 |
QL / QLE five-door, facelift | Catalogue shell family spans the facelift. Do not assume every complete assembly is plug-and-play; equipment and wiring can vary by trim and market. |
| Late-registered QL | 2022 | QL only, where a market retained the outgoing body | VIN and body-shape confirmation required. Not included in the headline years because UK 2022-on searches commonly refer to the later NQ5 generation. |
Part Numbers — Catalogue Cross-Reference, Not Photo Confirmation
77004F1000
Catalogued as a rear-right door panel assembly for Slovakia-built European Sportage QL model families. This number is not visible on the source item, so do not enter it as the confirmed manufacturer number until the physical door or donor VIN verifies it.
77004D9000
Listed by catalogue sources as an alternate or substitution within the Sportage rear-right door-shell family. A substitution listing does not prove chronological supersession or that every complete trim-and-loom assembly is interchangeable.
Why Choose a Factory-Engineered Pre-Owned Assembly?
Correct geometry
Factory stamping datums help preserve hinge alignment, latch position, glass-frame shape, seal channels, swage lines and panel-gap accuracy.
Integrated fit
A photographed assembly can retain compatible glass, trim, wiring and hardware, reducing the number of separate components that may need sourcing.
Better value
Depending on specification, condition and current new-part pricing, a quality pre-owned component may reduce replacement cost by up to 70%.
What This Door Assembly Does
Structural location and closure function
- Closes the rear-right passenger aperture between the B-pillar hinge area and the C-pillar latch area.
- Supports the movable door glass, fixed quarter glass, beltline seals and window-frame weather seals.
- Provides mounting geometry for the latch, inner and outer handles, child-lock mechanism and check strap.
- Maintains exterior body-line continuity, panel gaps and the primary weather barrier around the rear passenger opening.
Electrical and comfort systems
- Carries the visible door wiring connector and door-mounted switch pack.
- Can house central-locking, window-regulator, speaker, courtesy-light or heated-seat functions depending on the vehicle's trim and market specification.
- Connector shape and pin population must match; body-shape compatibility alone does not guarantee electrical compatibility.
- No individual bench-test results for the internal electrical components are stated in the source listing.
Technical Mounting Reference
This simplified static diagram shows the physical mounting zone. It is a fitment aid, not a substitute for the current Kia workshop procedure or model-specific torque data.
Actual item reference: hinge-side aperture edge, loom connector, seals and trim geometry.
DOOR ZONE
Professional Fitting Guidance
A complete door is bulky, heavy and alignment-sensitive. Two-person handling and professional installation are strongly recommended. Always follow the current workshop information for the exact VIN.
Recommended tools
- Padded door stand or suitably rated support jack
- Second person for controlled lifting and alignment
- Metric socket set, ratchet and extensions
- Torx and trim-removal tools as required
- Torque wrench covering the workshop-manual range
- Masking tape, wing covers and sill protection
- Marker pen or low-tack alignment tape
- Electrical-contact cleaner and inspection light
- Multimeter or diagnostic tool where electrical faults are being investigated
- Panel-gap gauge or measuring rule
Estimated repair duration
- 1.5-3.0 hours: straightforward complete-door change where equipment, connector and trim already match.
- 3.0-5.0+ hours: where glass, lock, regulator, loom, trim or other equipment must be transferred.
- Body preparation, paint blending, corrosion treatment, diagnostic work and rectification of a distorted aperture are additional.
- Professional fitting is available at our repair facility, subject to availability and advance booking through eBay Messages.
Step-by-step fitting sequence
- Before dismantling, compare every photograph, body edge, connector, trim panel, switch pack, glass tint and handle with the vehicle.
- Record the existing panel gaps and flushness at the sill, rear quarter, roof line and front door. Protect adjacent panels and the sill.
- Follow the vehicle-specific battery isolation procedure and preserve any required settings or security codes.
- Disconnect the body-to-door electrical plug and release the rubber conduit without pulling on the wires.
- Support the door securely with a padded stand and a second person before loosening any hinge or check-strap fasteners.
- Mark the original hinge positions. Release the check strap and hinge fasteners in the sequence specified by the workshop information.
- Remove the old door under full support. Transfer only verified compatible components where the replacement equipment differs.
- Offer the replacement door to the aperture, install fasteners finger-tight and align the body lines, panel gaps and surface flushness.
- Confirm smooth latch engagement without lifting, slamming or forcing the door. Torque fasteners to the current Kia workshop specification; do not guess torque values.
- Reconnect the loom and battery, then test the latch, child lock, central locking, window, switch pack, speaker or courtesy functions fitted to the vehicle.
- Check weather seals, drain holes and water tightness. Confirm the glass runs smoothly and does not bind in the frame.
- Complete any required body preparation, corrosion protection, paint matching and blending before final handover.
Static Garage Labour Cost Matrix
Hardcoded guide only. Multiply the workshop's hourly rate by the actual booked time. Parts, paint, materials, diagnostics, VAT treatment and any additional repairs are not included.
| Labour time | £40 per hour | £60 per hour | £80 per hour | £100 per hour |
|---|---|---|---|---|
| 1.5 hours — quick matched swap | £60 | £90 | £120 | £150 |
| 2.5 hours — typical complete-door change | £100 | £150 | £200 | £250 |
| 3.0 hours — alignment / minor transfer | £120 | £180 | £240 | £300 |
| 4.0 hours — equipment transfer required | £160 | £240 | £320 | £400 |
| 5.0 hours — extensive transfer / rectification | £200 | £300 | £400 | £500 |
