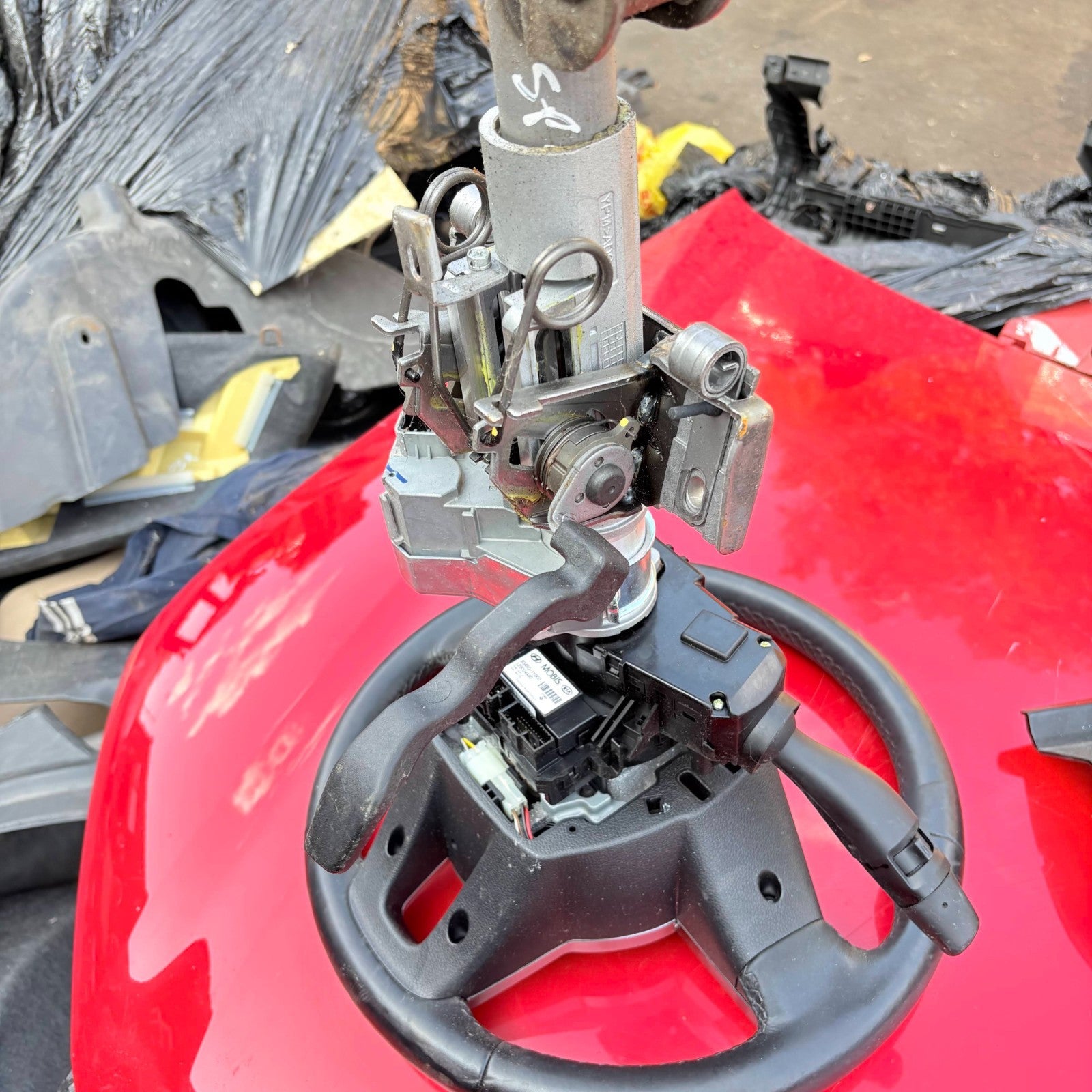

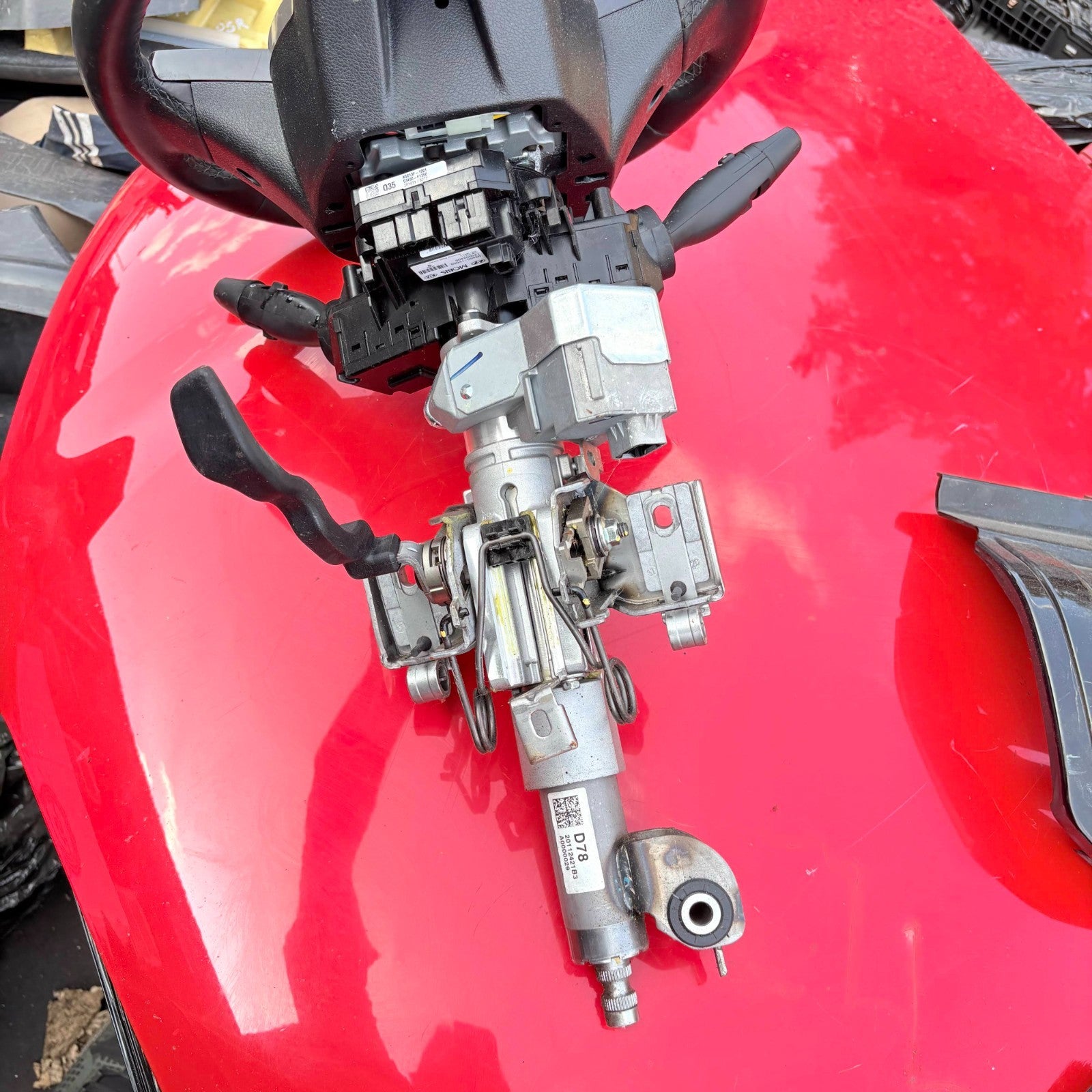

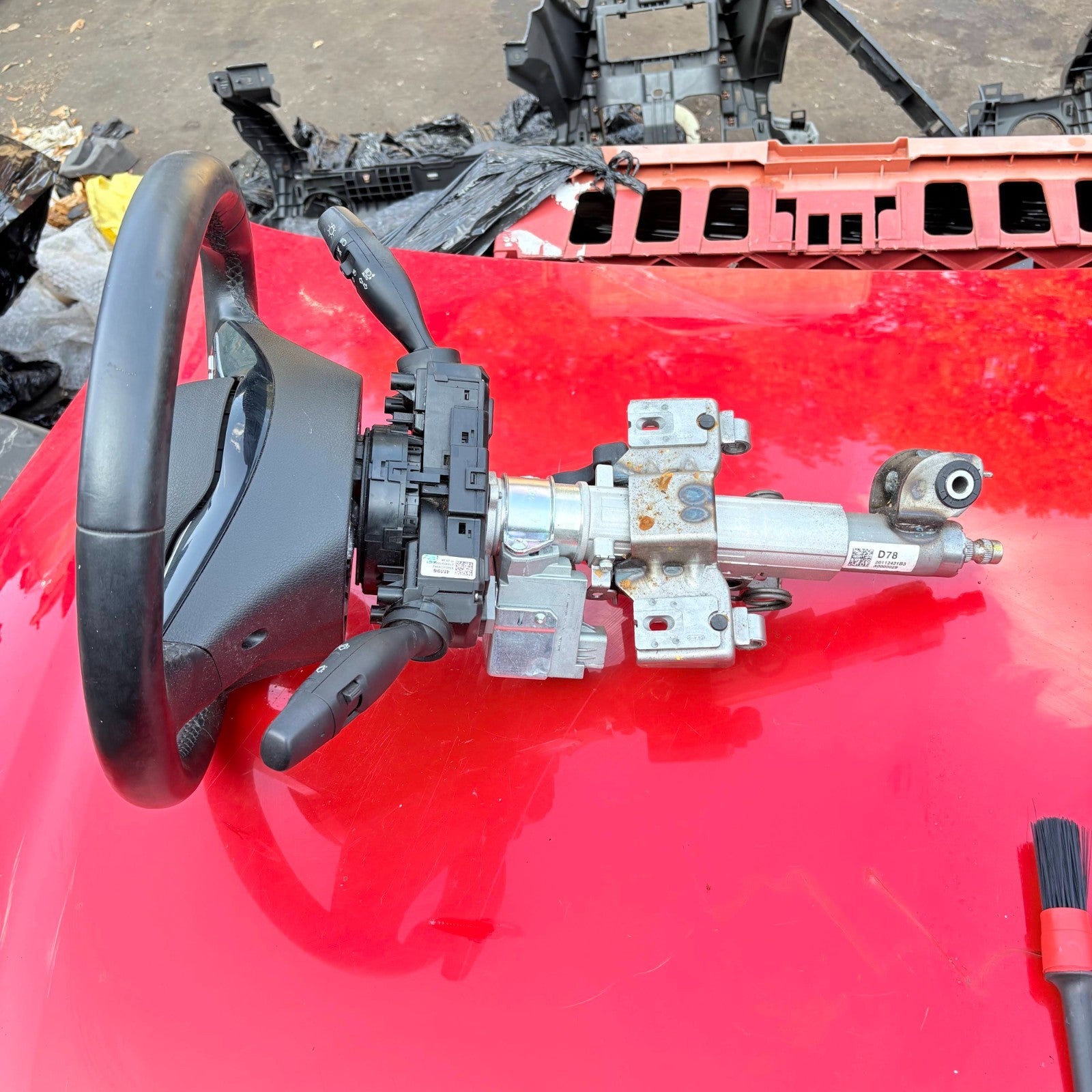

STEERING COLUMN + STEERING WHEEL ASSEMBLY

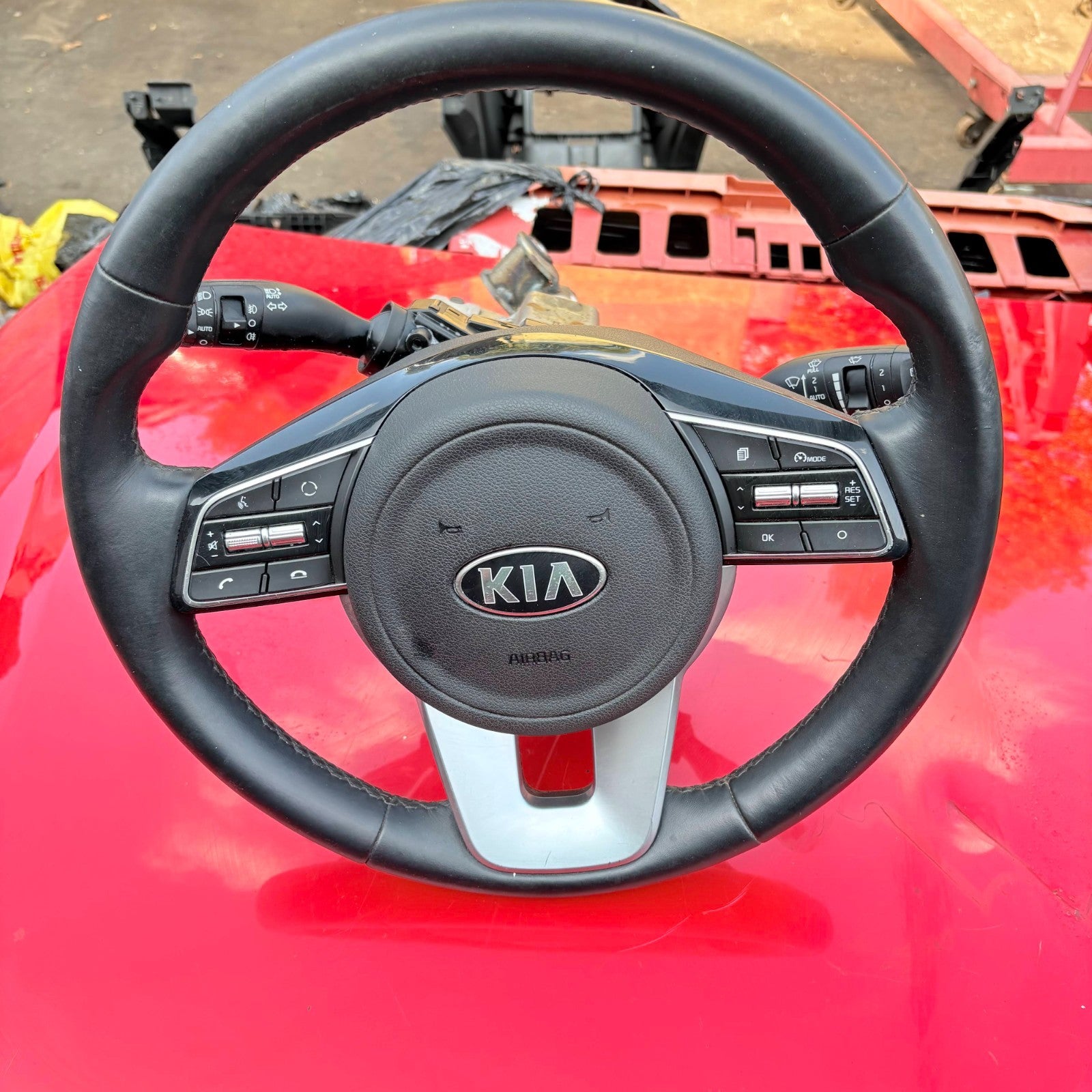

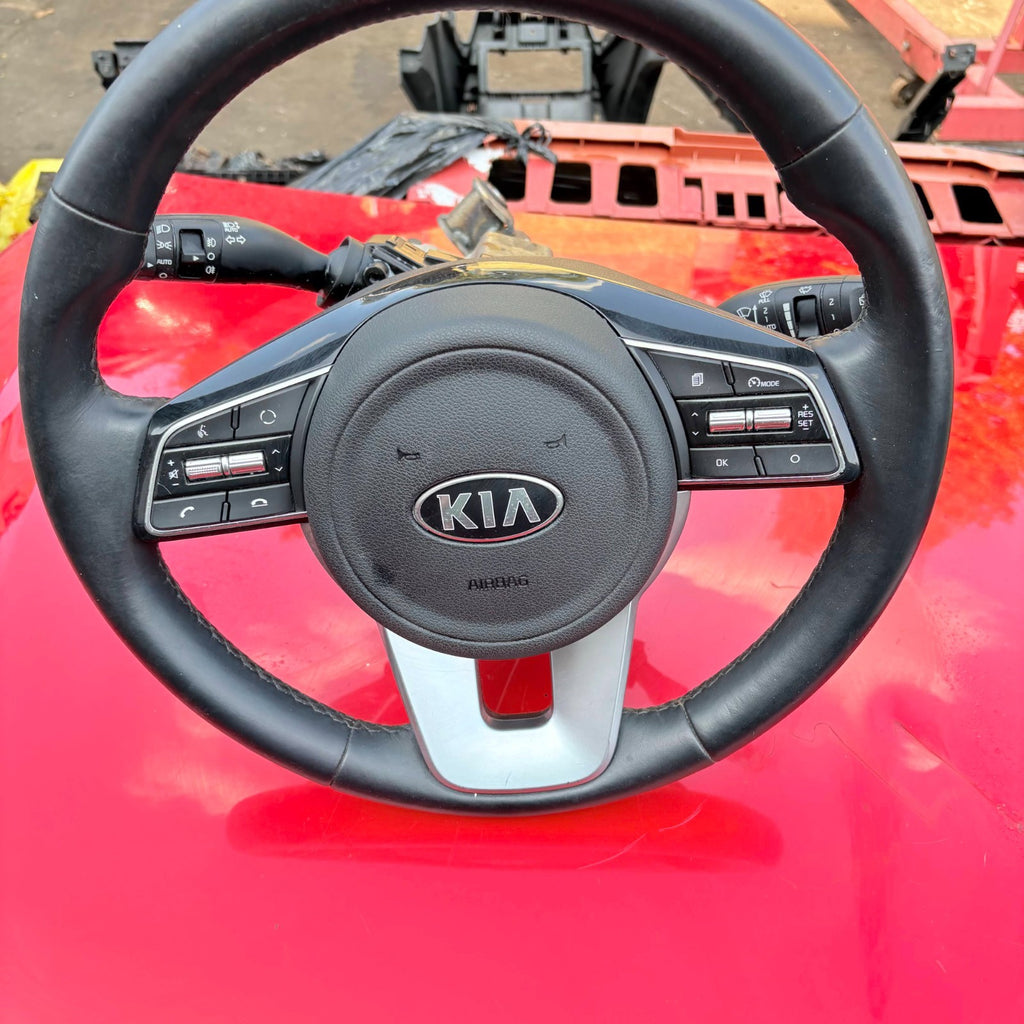

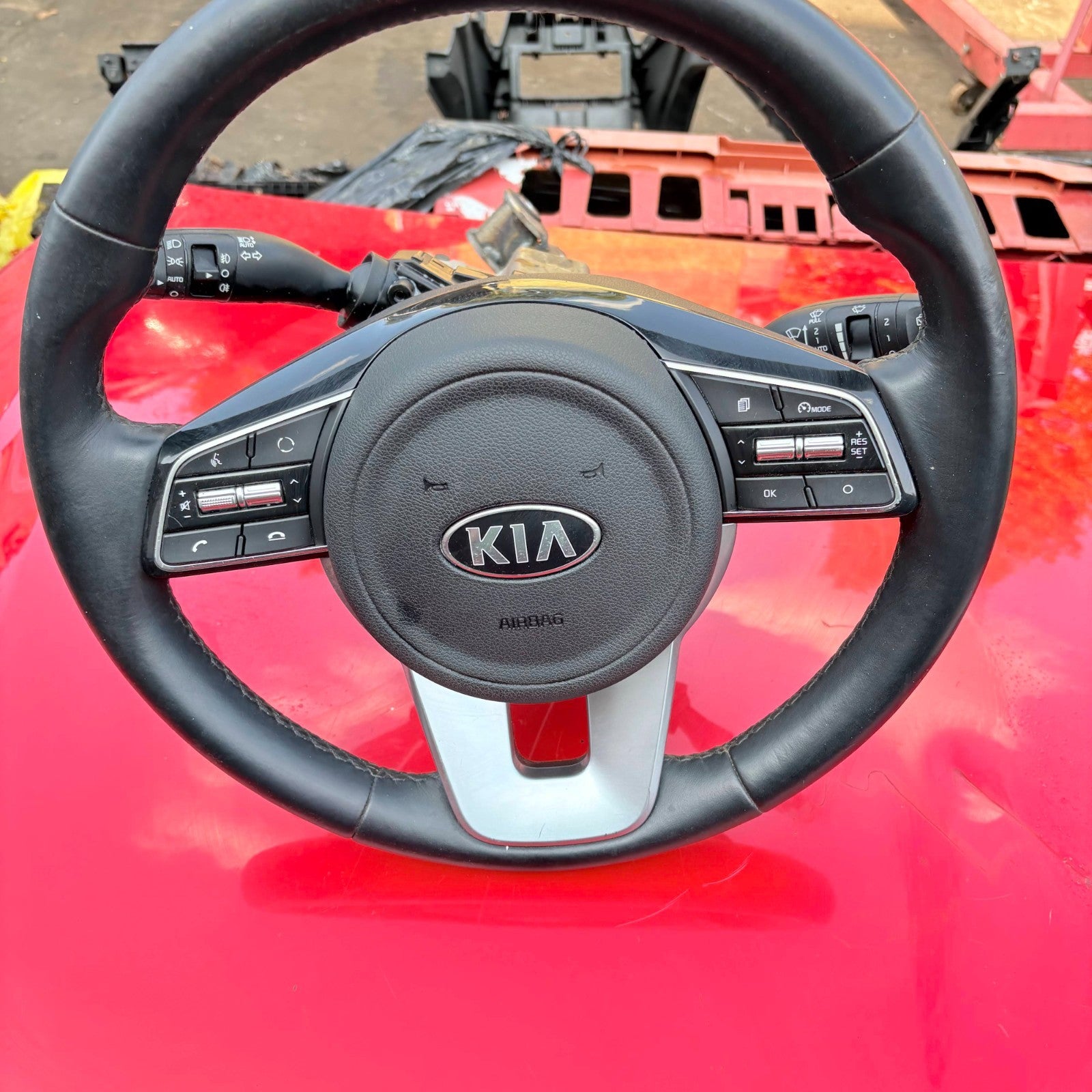

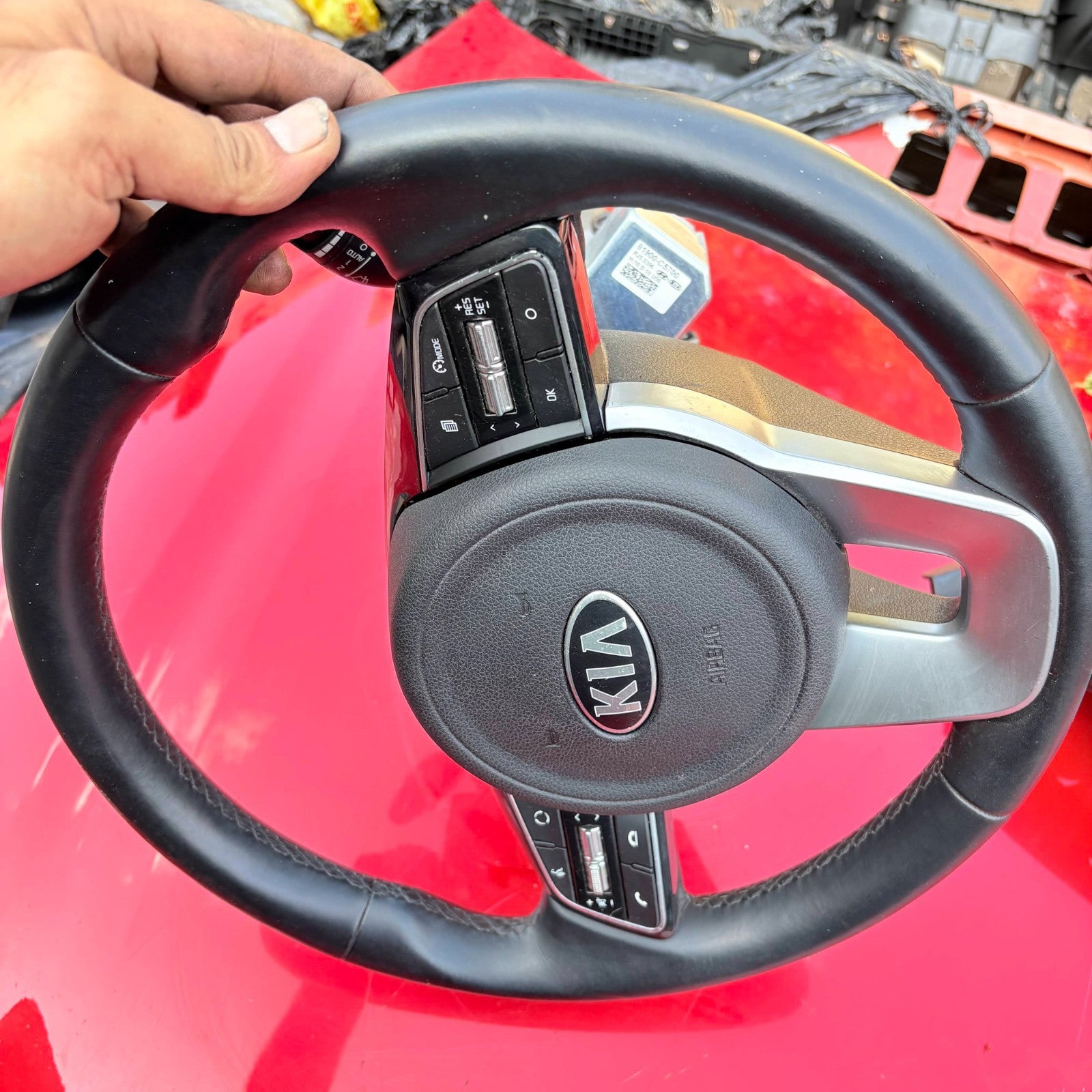

Actual Part You Are Buying

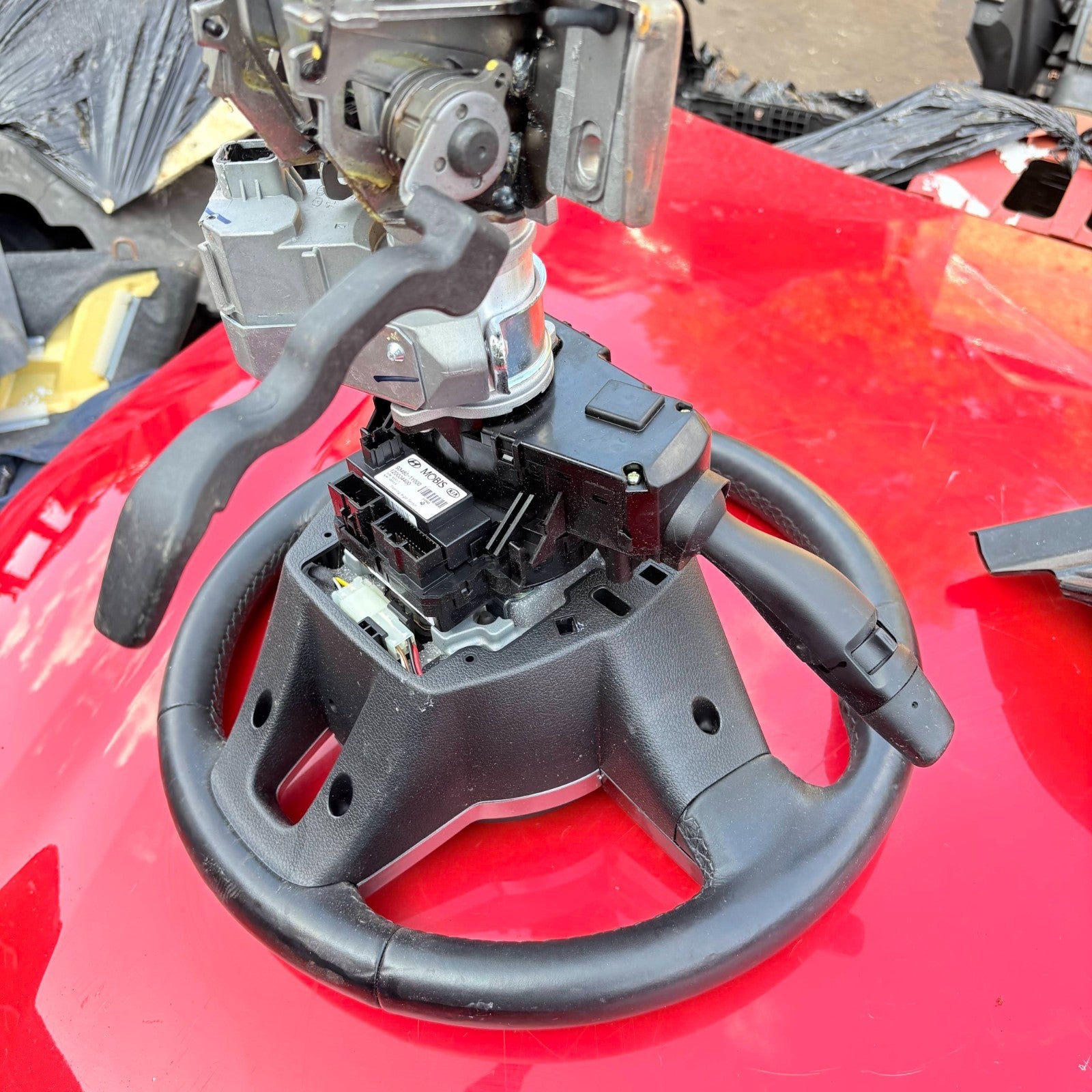

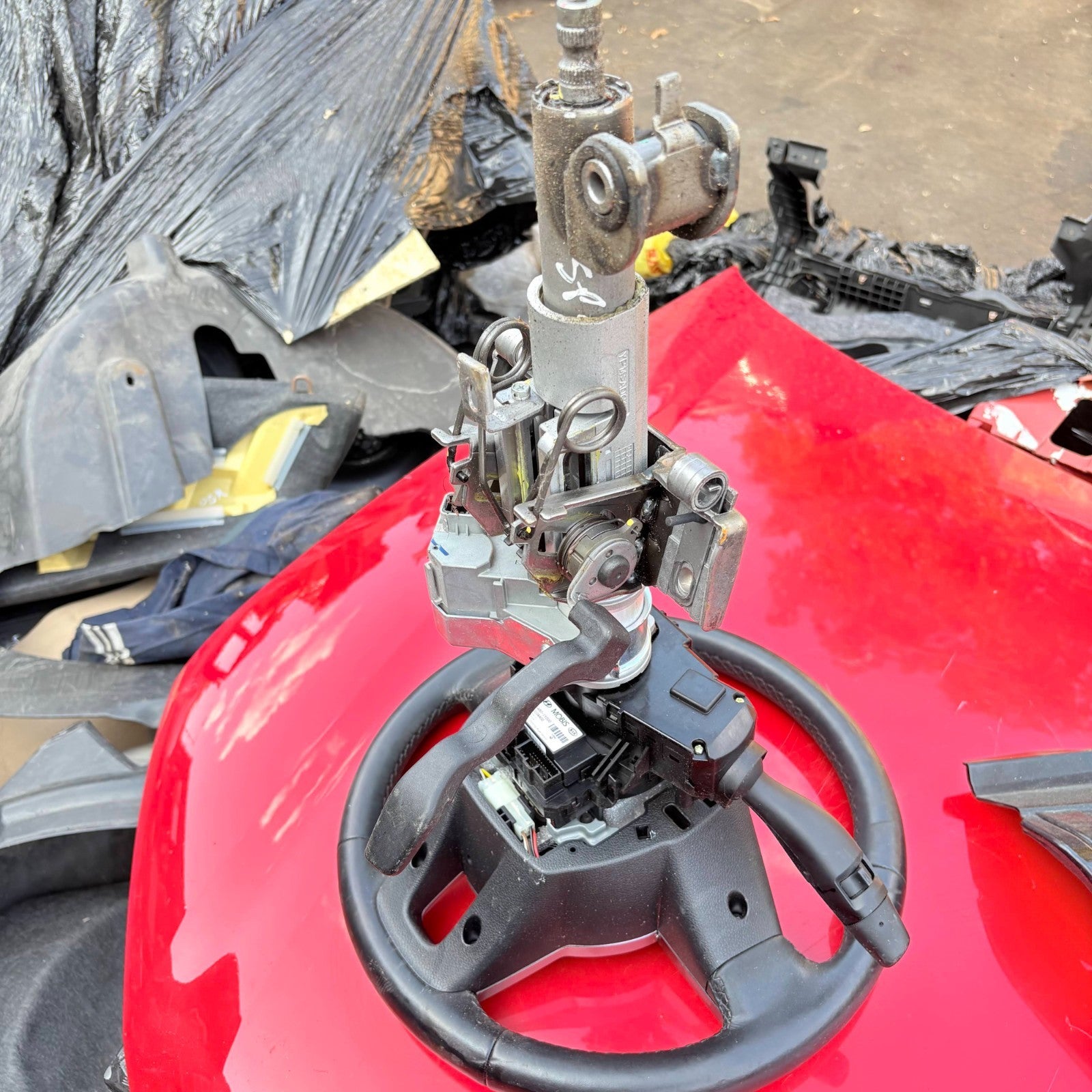

These are photographs of the actual steering-column and steering-wheel assembly. Please use the photographs, printed labels, electrical connectors, stalk markings and steering-wheel button layout as your primary matching guide.
Steering-column assemblies can vary by production date, market, steering position, steering-wheel controls, stalk functions, electrical connectors, steering lock, clock spring and steering-angle sensor. Match the photographs and labels below.
Exact Fitment Guide
Kia Sportage Mk4 / QL facelift • 5-door SUV • RHD configuration matching the photographed assembly • late-2018 through 2021.
| Vehicle | Generation | Body | Year | Fitment Status | Buyer Check |
|---|---|---|---|---|---|
| Kia Sportage | QL / Mk4 FACELIFT | 5-door SUV | Late 2018 | CONDITIONAL MATCH | 2018 is a transition year. Order only if your vehicle is the facelift QL version and the labels, connectors and controls match. |
| Kia Sportage | QL / Mk4 FACELIFT | 5-door SUV | 2019 | MATCH RANGE | Match 93404D9962 and the remaining photographed modules/connectors. |
| Kia Sportage | QL / Mk4 FACELIFT | 5-door SUV | 2020 | MATCH RANGE | Match physical layout, stalk icons, wheel controls and labels. |
| Kia Sportage | QL / Mk4 FACELIFT | 5-door SUV | 2021 | MATCH RANGE | Match your original assembly before purchase. |
| Kia Sportage | QL / Mk4 earlier configuration | 5-door SUV | 2016–2017 / early 2018 | NOT CONFIRMED | Do not assume fitment because one clock-spring or stalk number happens to cross over. Complete assembly fitment is not confirmed. |
| Kia Sportage | NQ5 / Mk5 | 5-door SUV | 2022 onward | DOES NOT MATCH THIS GENERATION | NQ5 is the later fifth-generation vehicle. Do not order this QL assembly for an NQ5. |
| Other Kia / Hyundai models | Various | Various | Various | COMPLETE ASSEMBLY NOT CONFIRMED | Some individual modules may appear on other vehicles. This does NOT prove that the complete steering-column assembly interchanges. |
Part Numbers Verified From The Actual Photographs
| Visible Number | Component / Identification | Matching Importance |
|---|---|---|
| 93404-D9962 93404D9962 |
Steering-column multifunction / combination switch assembly associated with the indicator, lighting and wiper stalk unit. | HIGH — match this label and stalk configuration. |

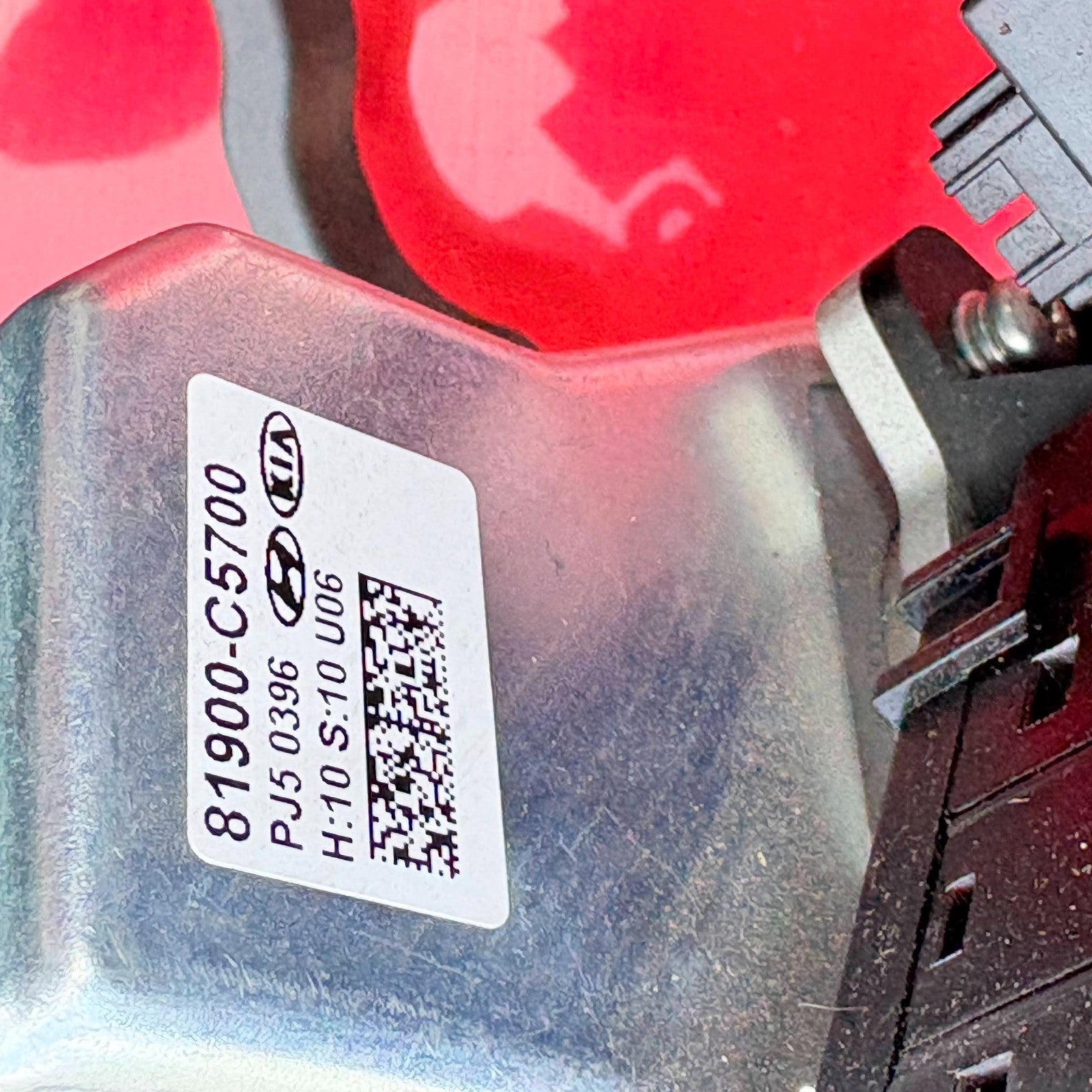

| 81900-C5700 | Steering-lock related module visible on the photographed assembly. | HIGH — compare number, plug and mounting arrangement. |

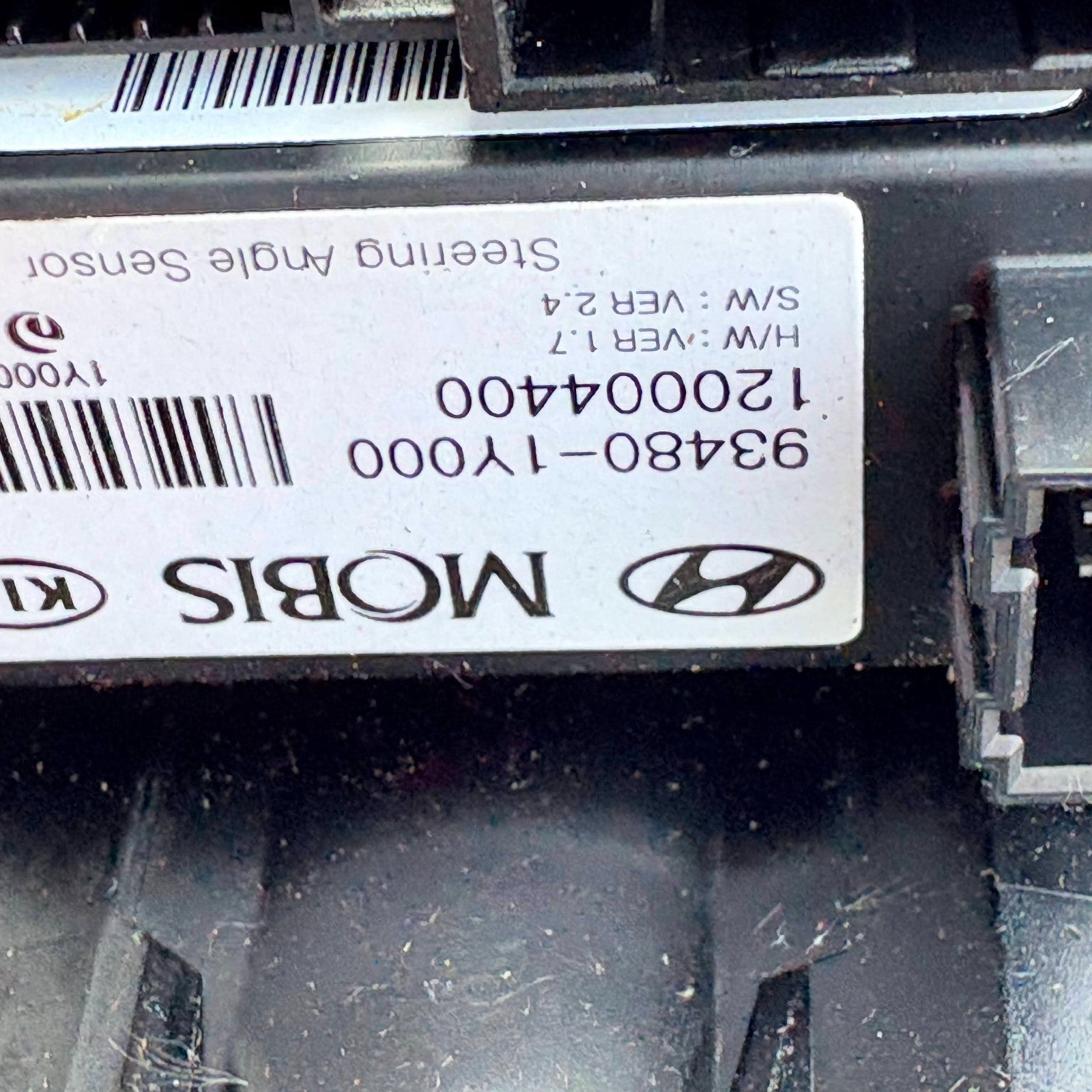

| 93480-1Y000 120004400 |
MOBIS steering-angle-sensor identification visible in the item photograph. | Important when matching steering-angle / stability-control interface. |

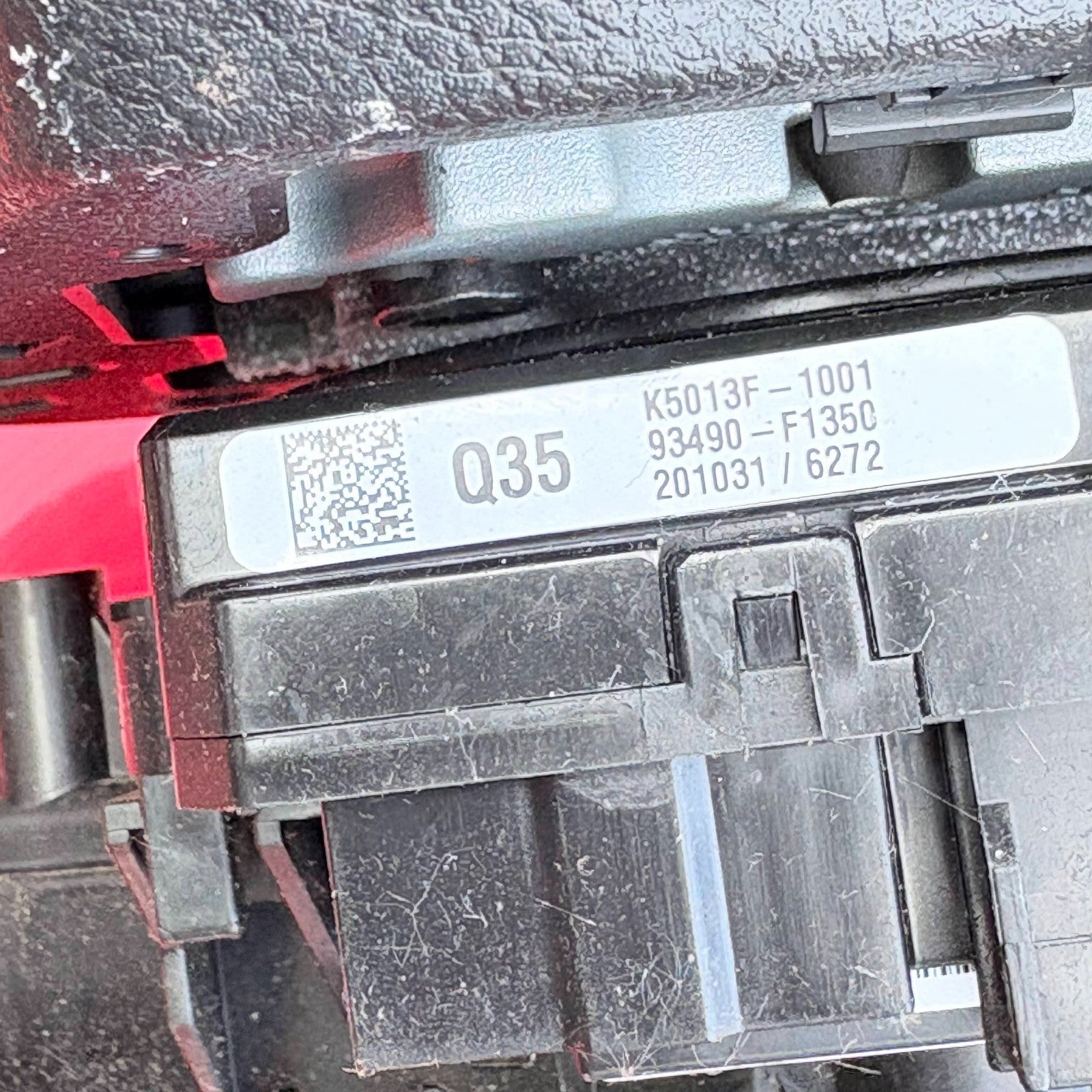

| K5013F-1001 93490-F1350 |
Clock-spring / steering contact assembly identification visible on the part. | Important for SRS, horn and steering-wheel electrical circuits. |

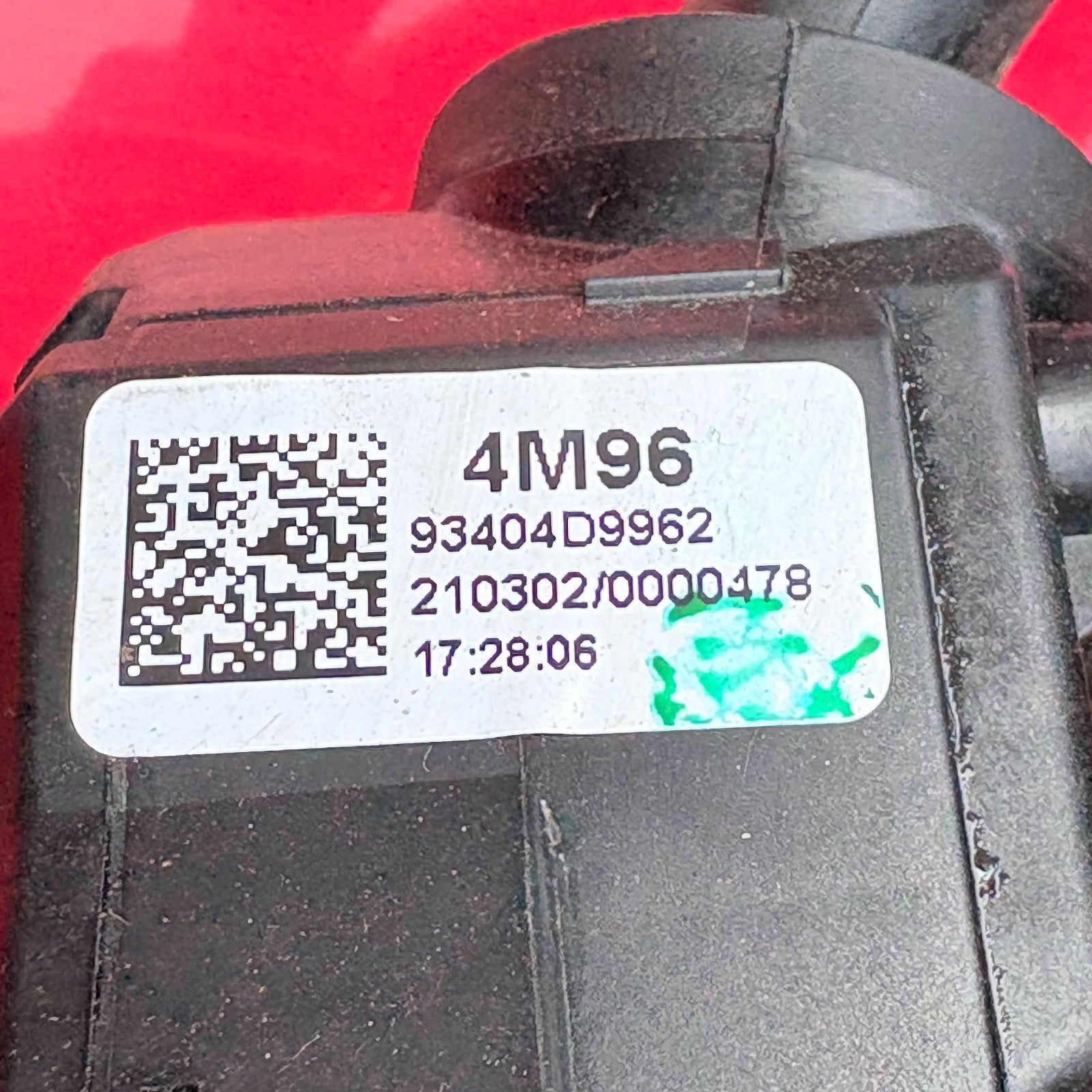

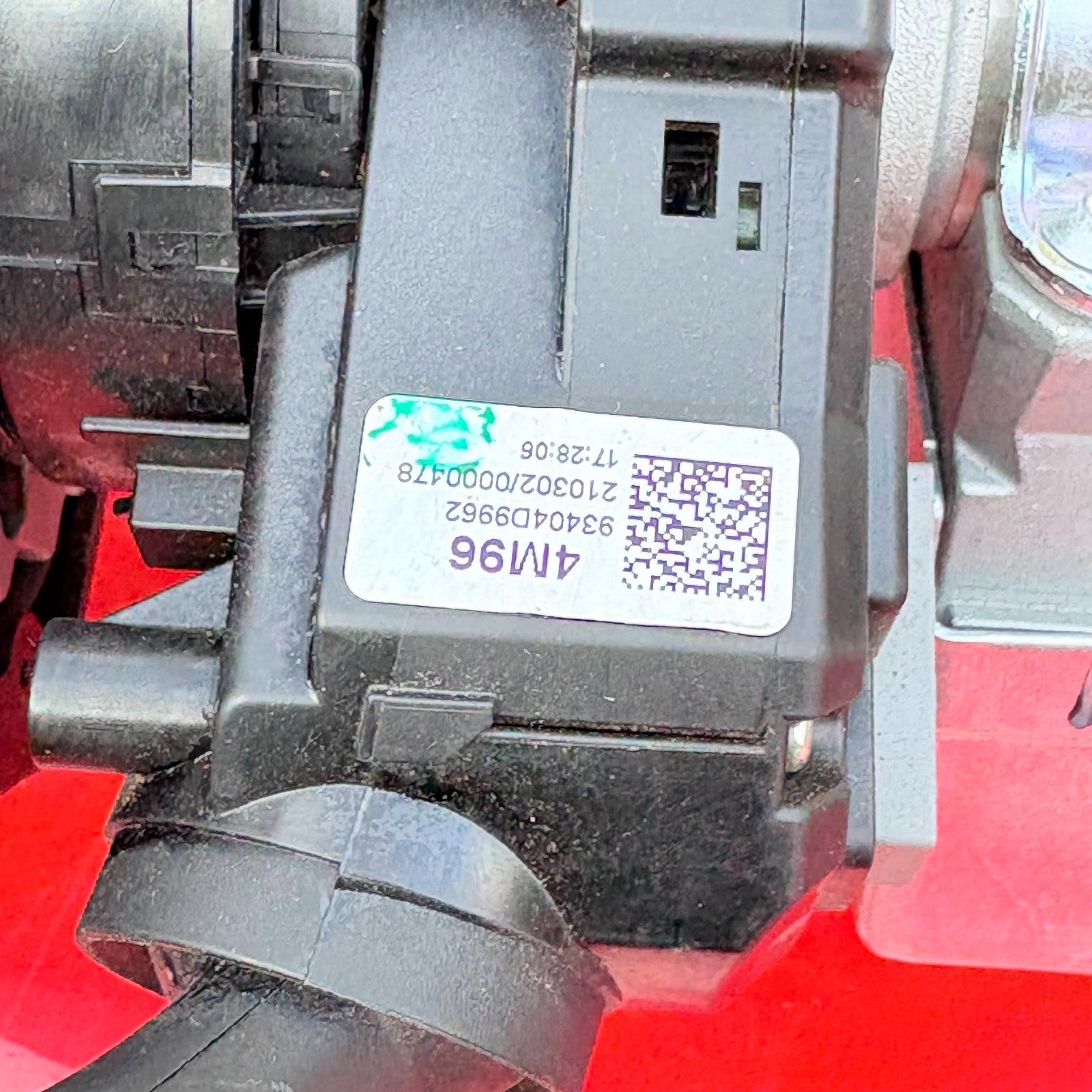

| 4M96 | Additional label / production identification shown with 93404D9962. | Useful secondary visual check. |
| Interchange Part Number | No complete-assembly cross-model interchange has been confirmed. Do not infer full fitment from one shared subcomponent. | |
| Superseded Part Number | No complete-assembly supersession has been independently verified. Match the assembly supplied rather than substituting an unverified suffix. | |
Buy Correctly The First Time
Before pressing Buy It Now, complete all of the following checks:
1 — VEHICLE
Confirm Kia Sportage QL / Mk4 facelift, 5-door SUV, late-2018–2021.
2 — STEERING POSITION
Confirm your vehicle is the RHD configuration or obtain specific confirmation before ordering.
3 — LABELS
Compare 93404D9962, 81900-C5700, 93480-1Y000 / 120004400 and K5013F-1001 / 93490-F1350 where applicable.
4 — PHYSICAL MATCH
Compare every plug, bracket, stalk symbol, wheel button and mounting point.
Vehicle & Installation Location Reference
The photographs below are reference images only. They are not photographs of the donor vehicle and do not indicate the exact trim level of the vehicle from which this particular part was removed.
Where The Part Fits & What It Controls
🛞 Steering Column

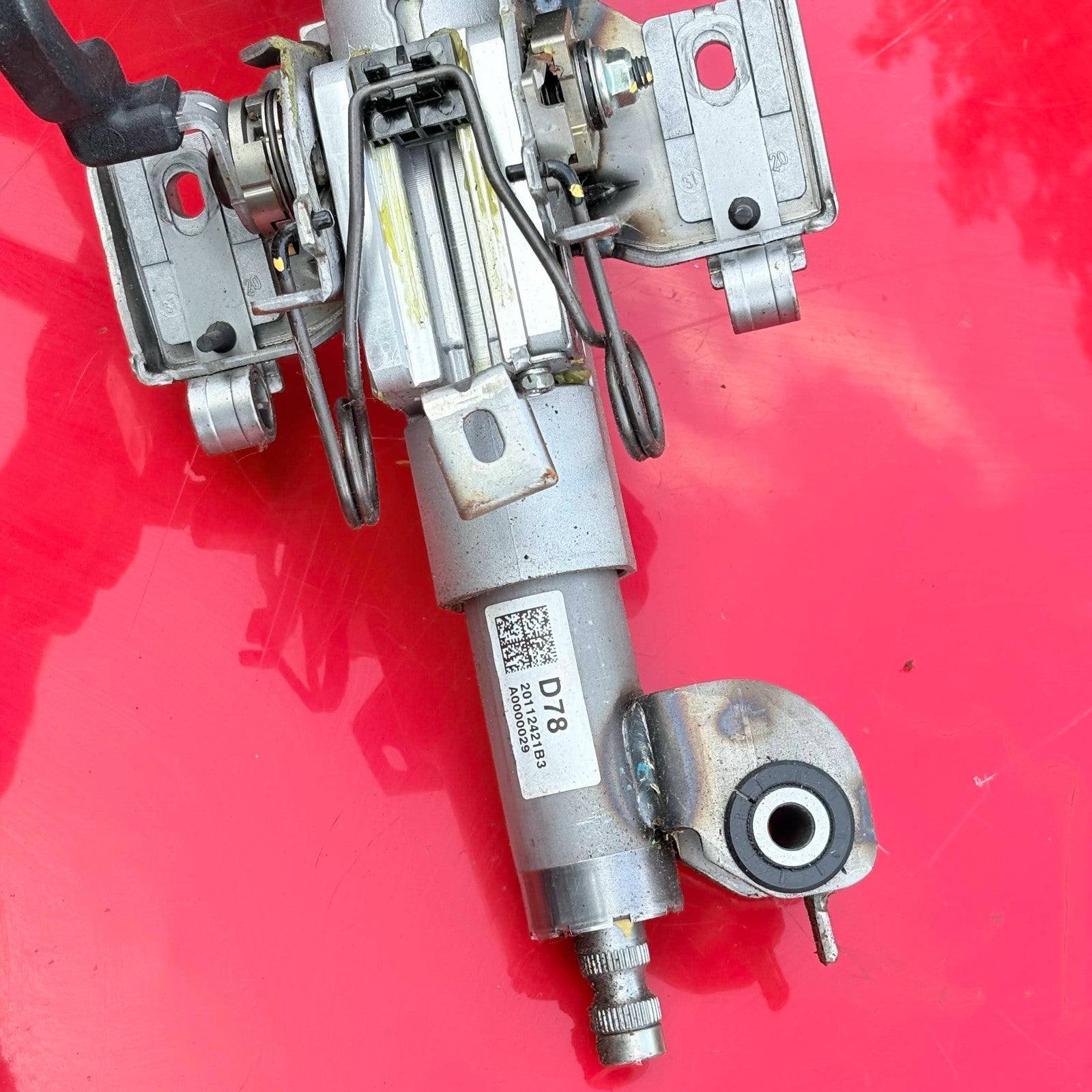

Mounted beneath and behind the driver's steering wheel. It supports the steering-wheel assembly and links the driver's steering input to the lower steering mechanism.

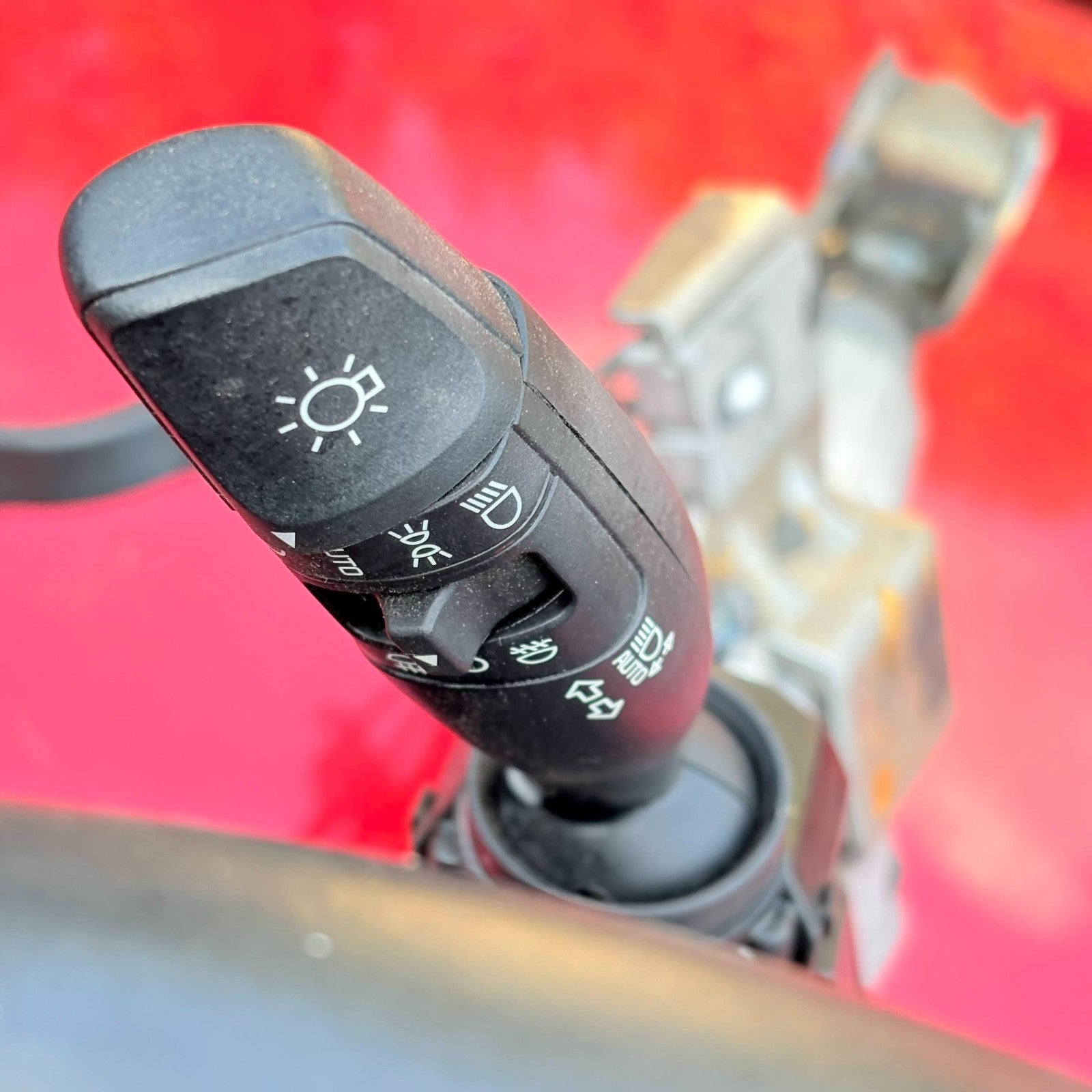

💡 Stalk Controls

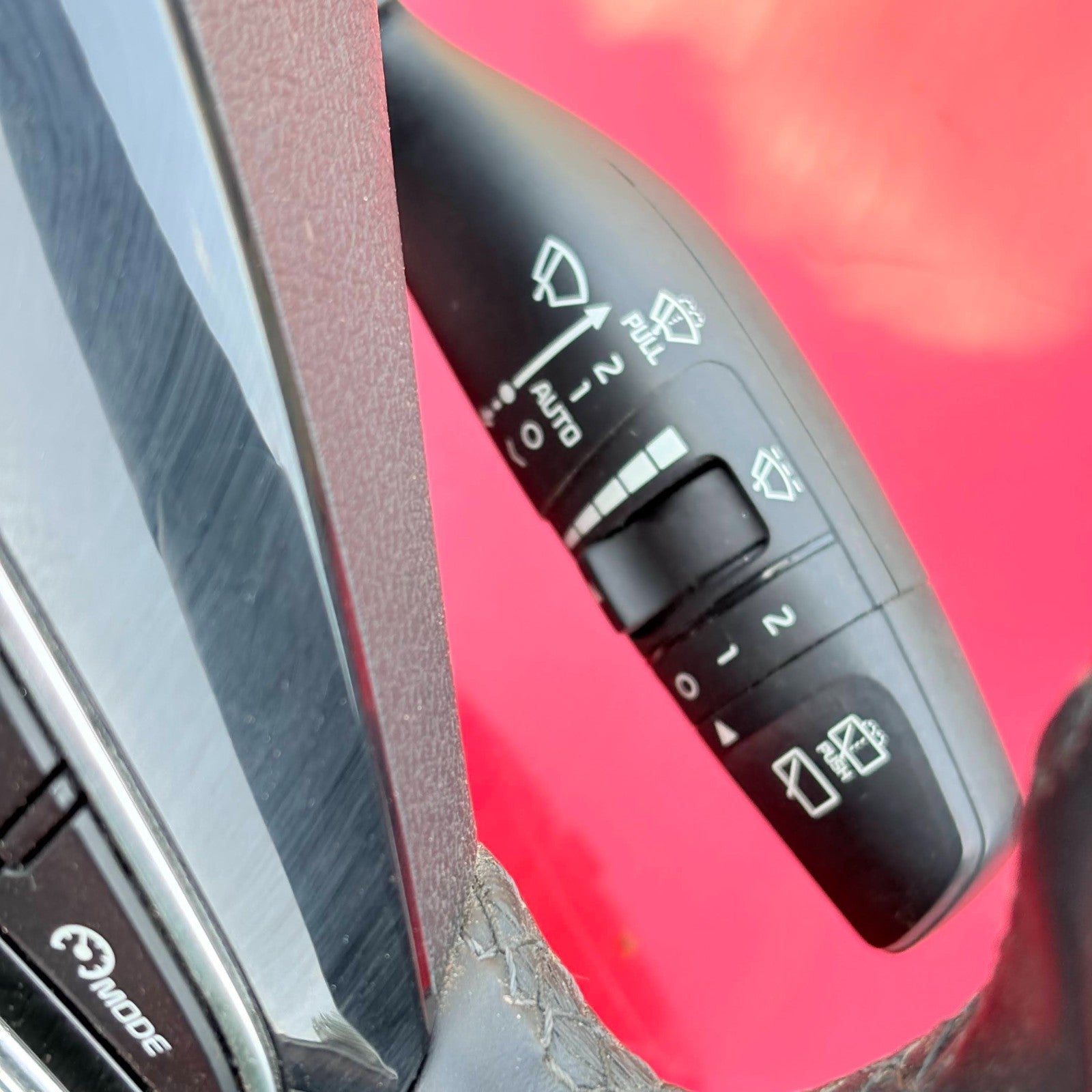

The photographed combination-switch assembly carries the steering-column stalk controls. Match the indicator, lighting, wiper and washer markings to your existing vehicle.
🔄 Clock Spring
Allows the steering wheel to turn while maintaining the electrical connection for steering-wheel circuits such as the horn, buttons and SRS system.
📐 Steering Angle
The steering-angle sensor reports steering position to relevant vehicle control systems and may require calibration after installation.
🔐 Steering Lock
The attached steering-lock related module forms part of the vehicle's steering/security arrangement. Exact electrical configuration must match.
🎛️ Wheel Controls

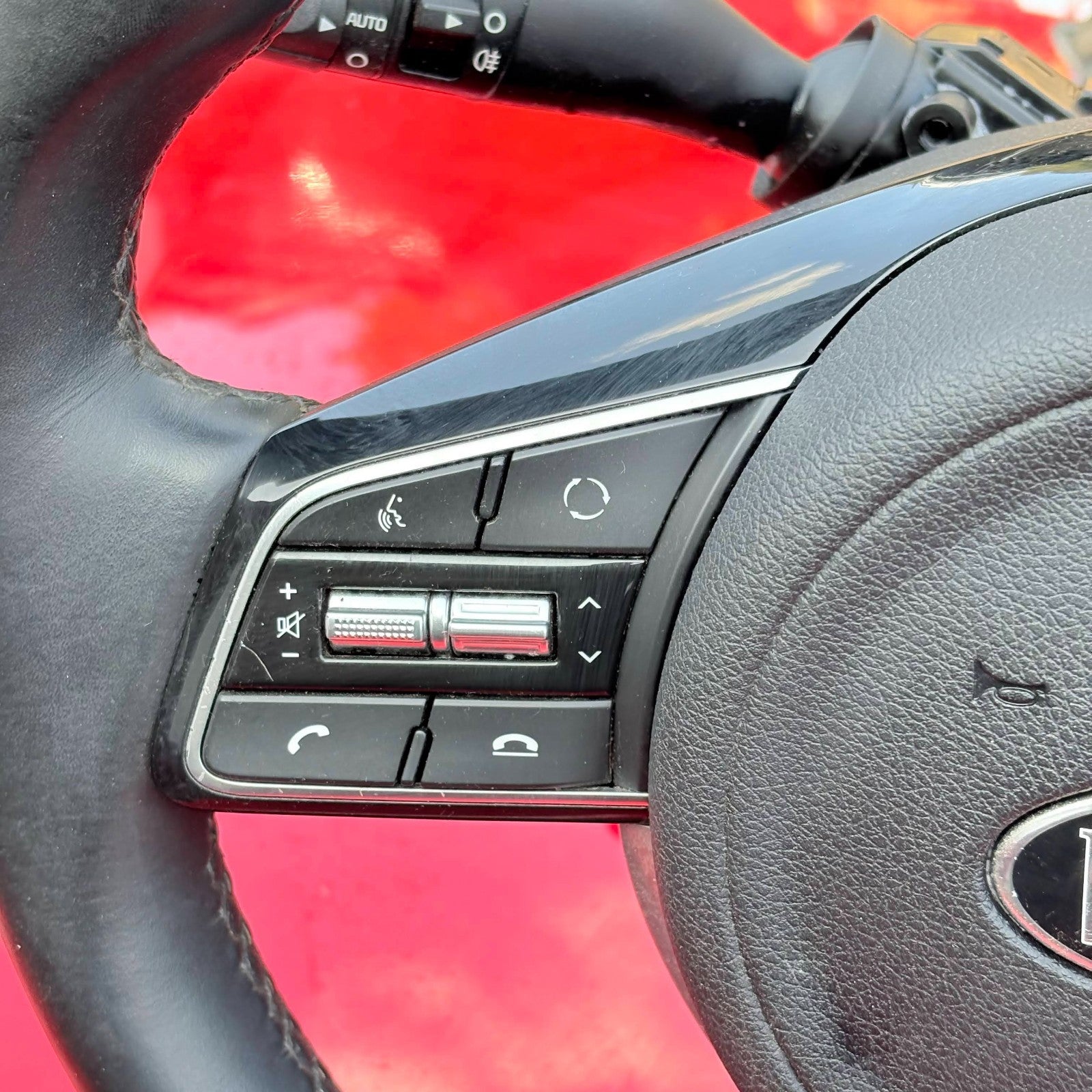

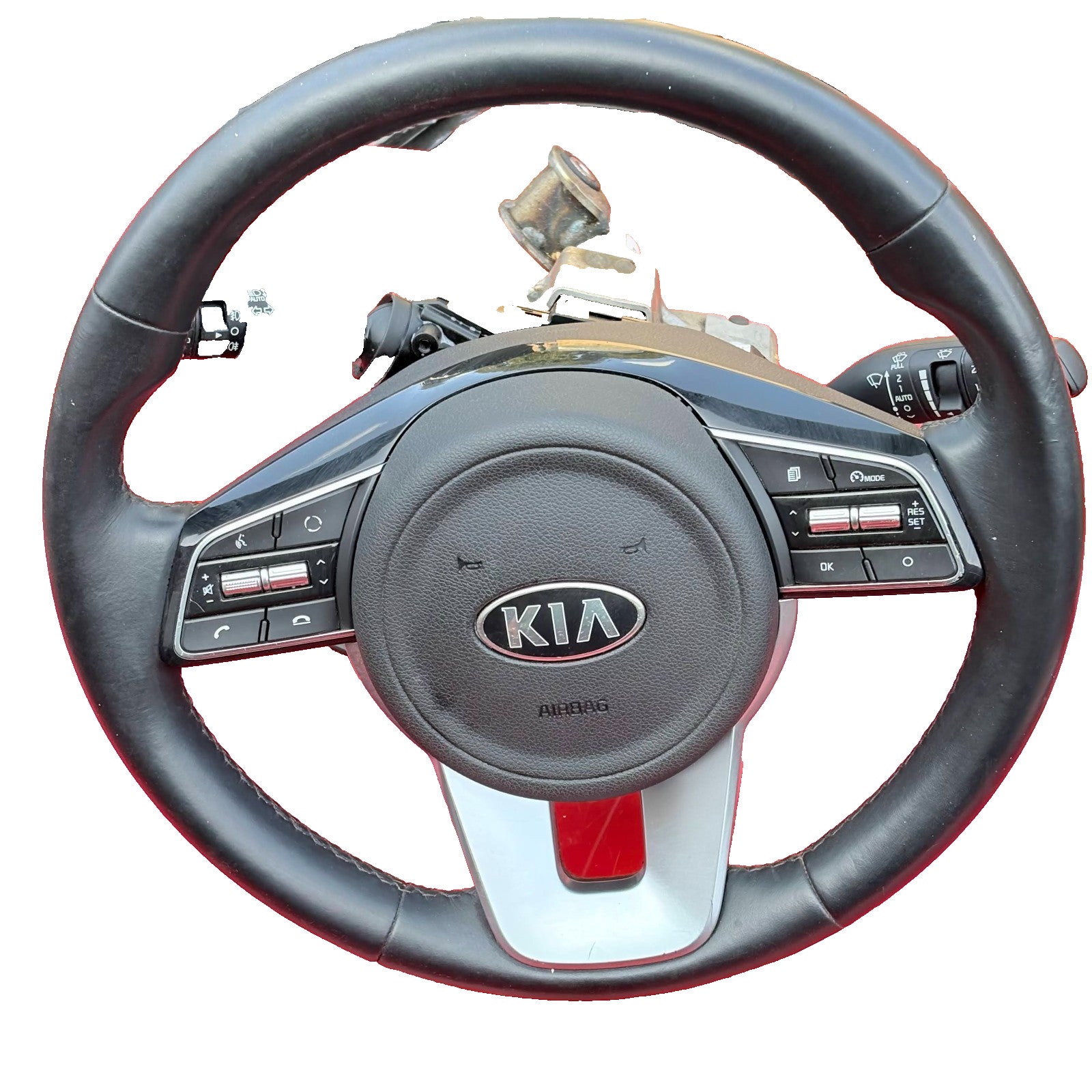

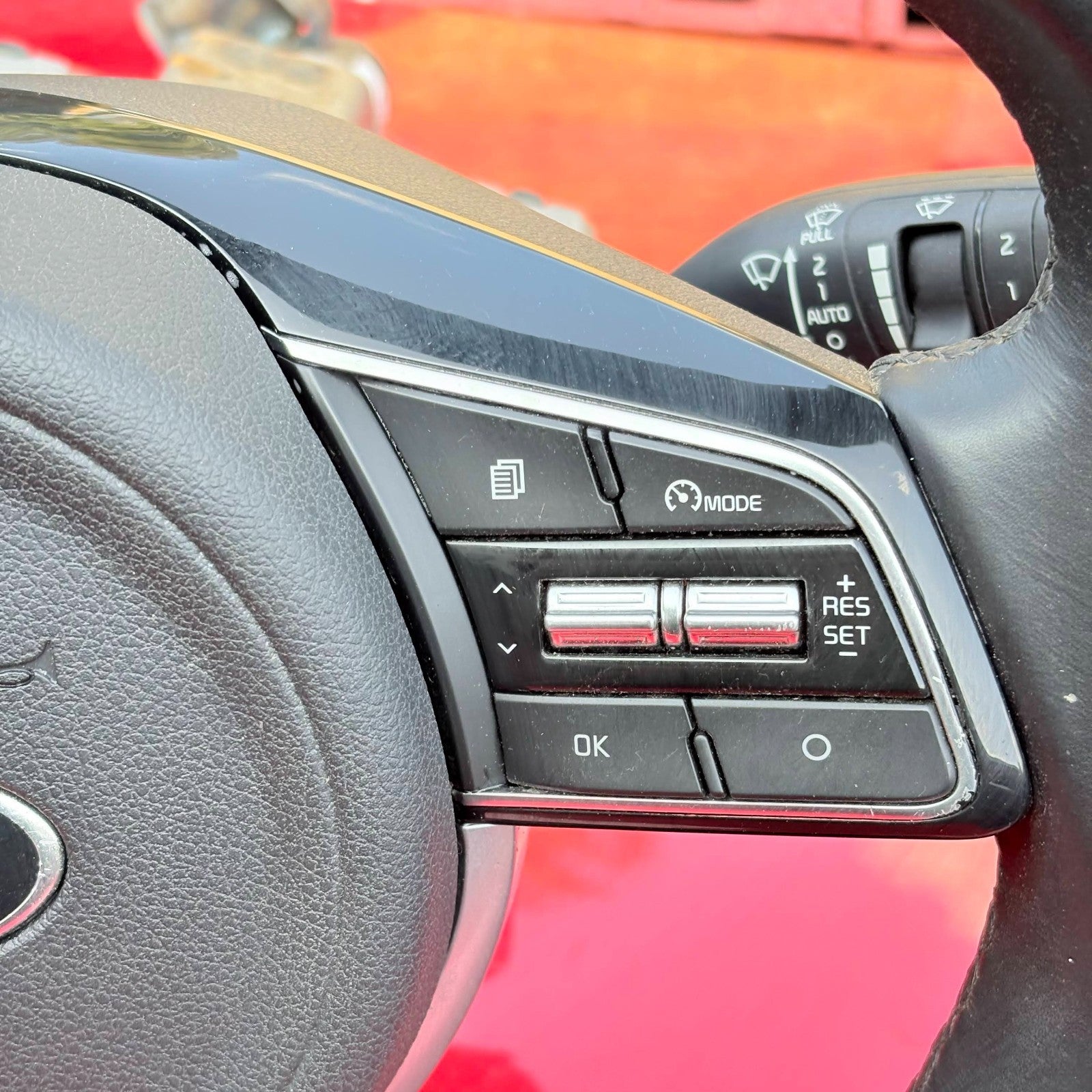

The actual wheel shows audio/telephone/mode and cruise-related buttons. Your original button layout should visually match before ordering.
Possible Symptoms Of A Fault In This Area
A fault in one of the steering-column components can produce different symptoms. A single symptom does not prove that the complete column requires replacement, so proper diagnosis is recommended.
Column / Mechanical
- Excessive steering-column play or movement
- Knocking, clicking or abnormal noise around the column
- Binding or stiffness through steering movement
- Fault with tilt / adjustment mechanism
- Damaged mounting or shaft components
Indicator / Wiper / Lighting Controls
- Indicator function intermittent or inoperative
- Headlamp / lighting stalk function incorrect
- Front or rear wipers not responding correctly
- Washer or automatic-wiper functions behaving incorrectly
- Stalk physically loose or damaged
Clock Spring / Wheel Circuits
- SRS / airbag warning lamp
- Horn intermittent or inoperative
- Steering-wheel buttons stop working
- Electrical fault changes as the steering wheel turns
- Internal clock-spring noise or damaged ribbon circuit
Sensor / Steering Lock
- Steering-angle sensor fault code
- ESC / stability or traction warning
- Steering-angle calibration issue
- Steering-lock warning or lock/unlock fault
- Starting/security issue associated with steering lock
Why Matching An Original-Fit Assembly Matters
Steering columns combine mechanical mountings, electrical connectors, control switches, sensors and safety-related interfaces. Correct matching matters far more than simply finding something that looks similar.
Exact Physical Interface
Correct spline, brackets, mounting points, switch housings and plug positions reduce the risk of modification being required during installation.
Correct Electronics
Matching manufacturer-labelled modules improves the chance that steering-wheel controls, stalks, clock spring, angle sensor and steering-lock interfaces are the correct specification.
Less Fitment Guesswork
Bargain pattern replacements can vary in connector layout, switch specification and included modules. Matching the original-fit numbers and photographs removes much of that uncertainty.
Reuse & Value
A serviceable recycled vehicle component can represent substantial savings compared with purchasing an equivalent brand-new assembly while also keeping a usable part in circulation.
Condition, Construction & What's Shown
| Detail | Information |
|---|---|
| Condition | Pre-owned / recycled vehicle component. Expect normal cosmetic marks consistent with previous fitment, removal, storage and handling. Inspect all actual photographs. |
| Colour / Finish | Black steering wheel and controls; silver/grey structural metalwork; inspection/production markings visible in photographs. |
| Construction | Mixed metal steering-column structure and brackets with moulded engineering plastic switch, sensor and electrical housings. Black stitched wheel trim as photographed. |
| Included | Steering-column / steering-wheel assembly and attached components shown in the actual listing photographs. Always use the photographs as the final supplied-content reference. |
| Warranty | 30 days, subject to the live eBay listing terms. |

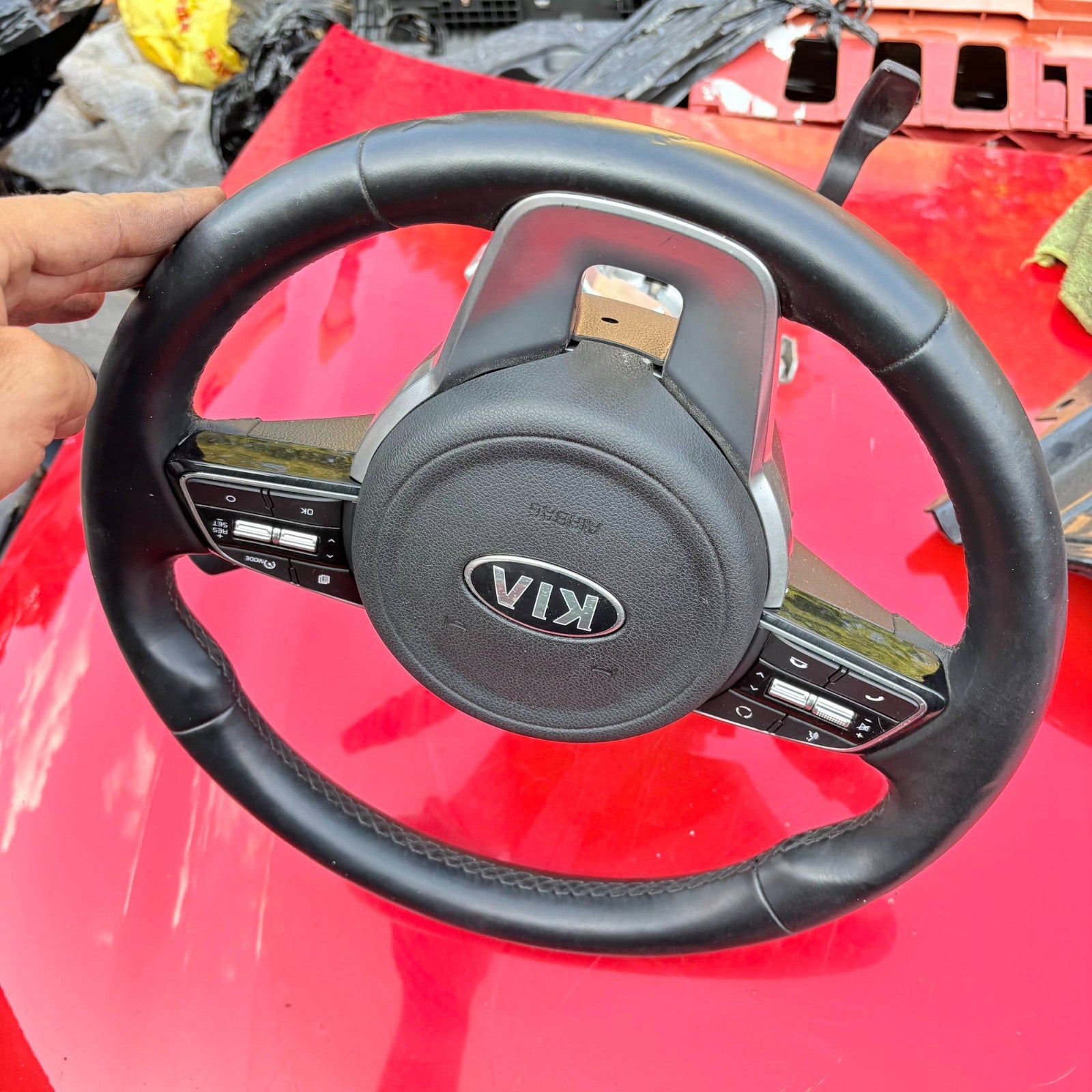

The steering-wheel centre marked AIRBAG is visible in the actual item photograph. Airbag/SRS components are regulated safety items and may be subject to recall checks, carrier restrictions and hazardous-goods postage rules. If your purchase specifically depends on the centre SRS module being supplied, confirm inclusion and permitted delivery through eBay Messages before purchase.
Fitting Guide
1 Park the vehicle securely with the road wheels and steering wheel centred.
2 Isolate the 12V battery and follow the manufacturer's specified SRS discharge/waiting procedure before working around the steering wheel or airbag circuits.
3 Remove the required steering-column shrouds and lower dashboard trim using the appropriate trim-removal procedure.
4 Photograph and identify every electrical connector before disconnection. Never force SRS, clock-spring, steering-angle-sensor or steering-lock connectors.
5 Mark the steering-shaft alignment before separation. Support the column and remove the relevant column mounts and intermediate-shaft connection following workshop procedure.
6 Keep the clock spring correctly centred. Do not rotate an unrestrained clock spring away from its centre position.
7 Install the replacement assembly in the correct alignment and tighten all steering and mounting fasteners to manufacturer-specified torque values.
8 Reconnect the vehicle only after all connectors and safety components are correctly installed. Carry out a diagnostic scan and any required steering-angle calibration, SRS check, steering-lock adaptation or related procedure.
9 Before road use, verify steering movement and alignment plus horn, wheel buttons, indicators, lighting controls, front/rear wipers, washers, cruise controls and all relevant warning lamps.
Recommended Tools
- Vehicle trim-removal tools
- Metric socket and ratchet set
- Extensions and suitable spanners
- Torx / hex bits as required by the vehicle
- Calibrated torque wrench
- Steering-wheel removal equipment if specified by workshop procedure
- Kia-capable diagnostic scanner with SRS / ESC / steering-angle functions
- Appropriate PPE and safe workshop equipment
Static Garage Labour Cost Calculator
No JavaScript is used. Simply find your garage's hourly rate and estimated labour time.
| Garage Rate | 2.5 Hours | 3.0 Hours | 3.5 Hours | 4.0 Hours |
|---|---|---|---|---|
| £50/hr | £125 | £150 | £175 | £200 |
| £70/hr | £175 | £210 | £245 | £280 |
| £90/hr | £225 | £270 | £315 | £360 |
| £110/hr | £275 | £330 | £385 | £440 |
| £130/hr | £325 | £390 | £455 | £520 |
| £150/hr | £375 | £450 | £525 | £600 |
Labour table is an illustrative estimate only. Parts, diagnostics, programming, calibration, consumables and applicable taxes/fees may be additional.
Fitting may be available separately. Please contact us through eBay Messages before purchase to confirm availability and obtain the relevant information.
