LEXUS IS220d IS250 2005-2008 Aerial Antenna Amplifier Module 86300-53160 XE20
LEXUS IS220d IS250 2005-2008 Aerial Antenna Amplifier Module 86300-53160 XE20

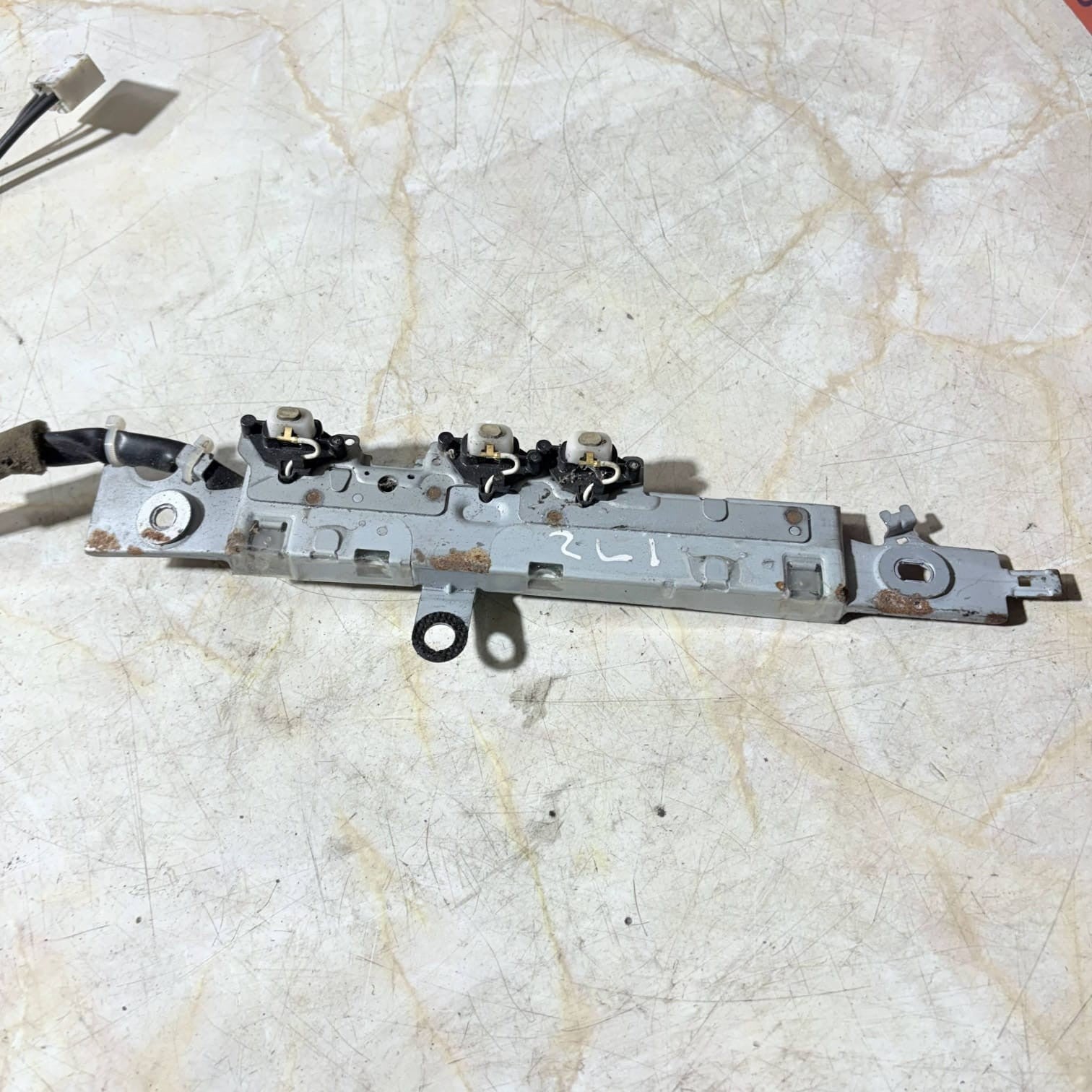

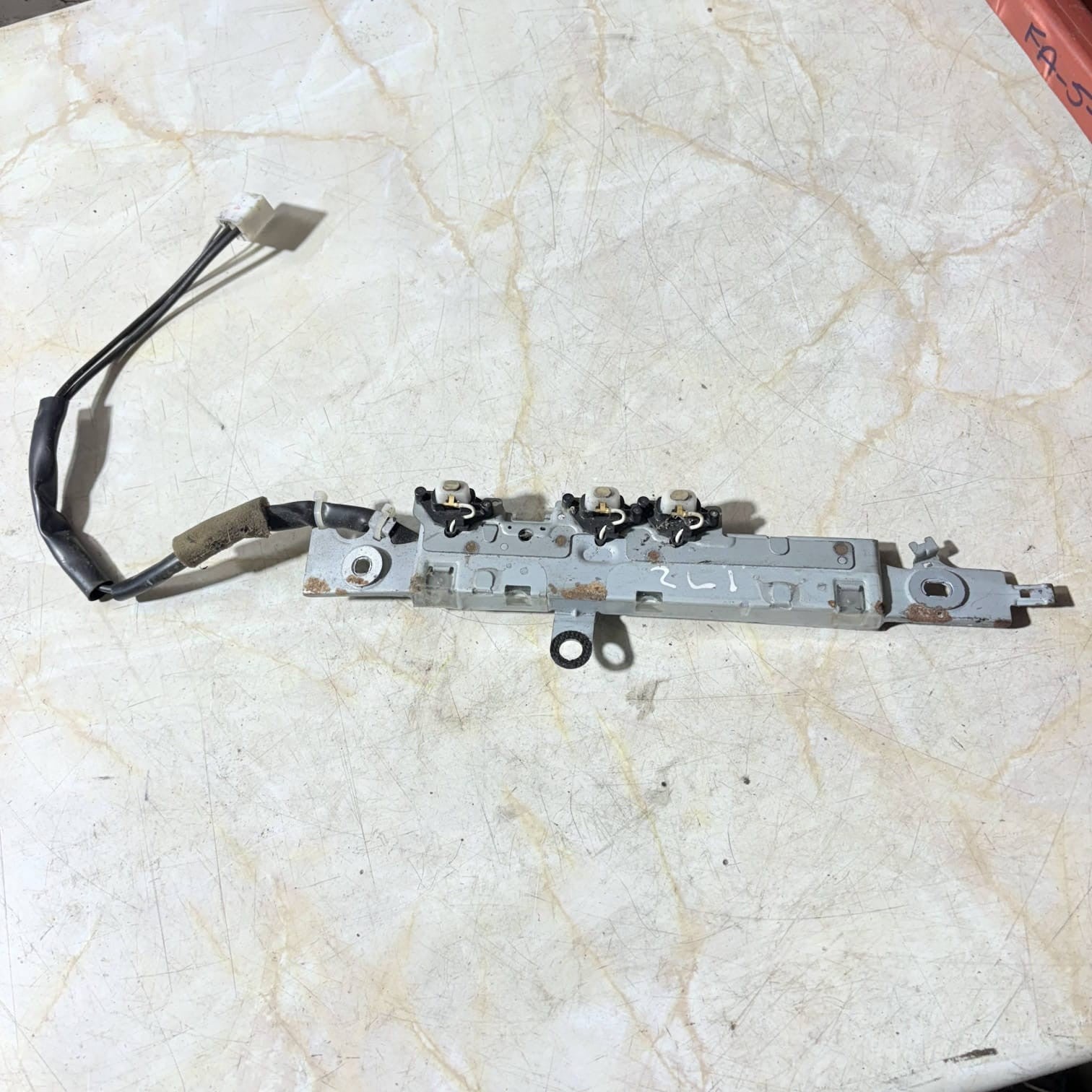

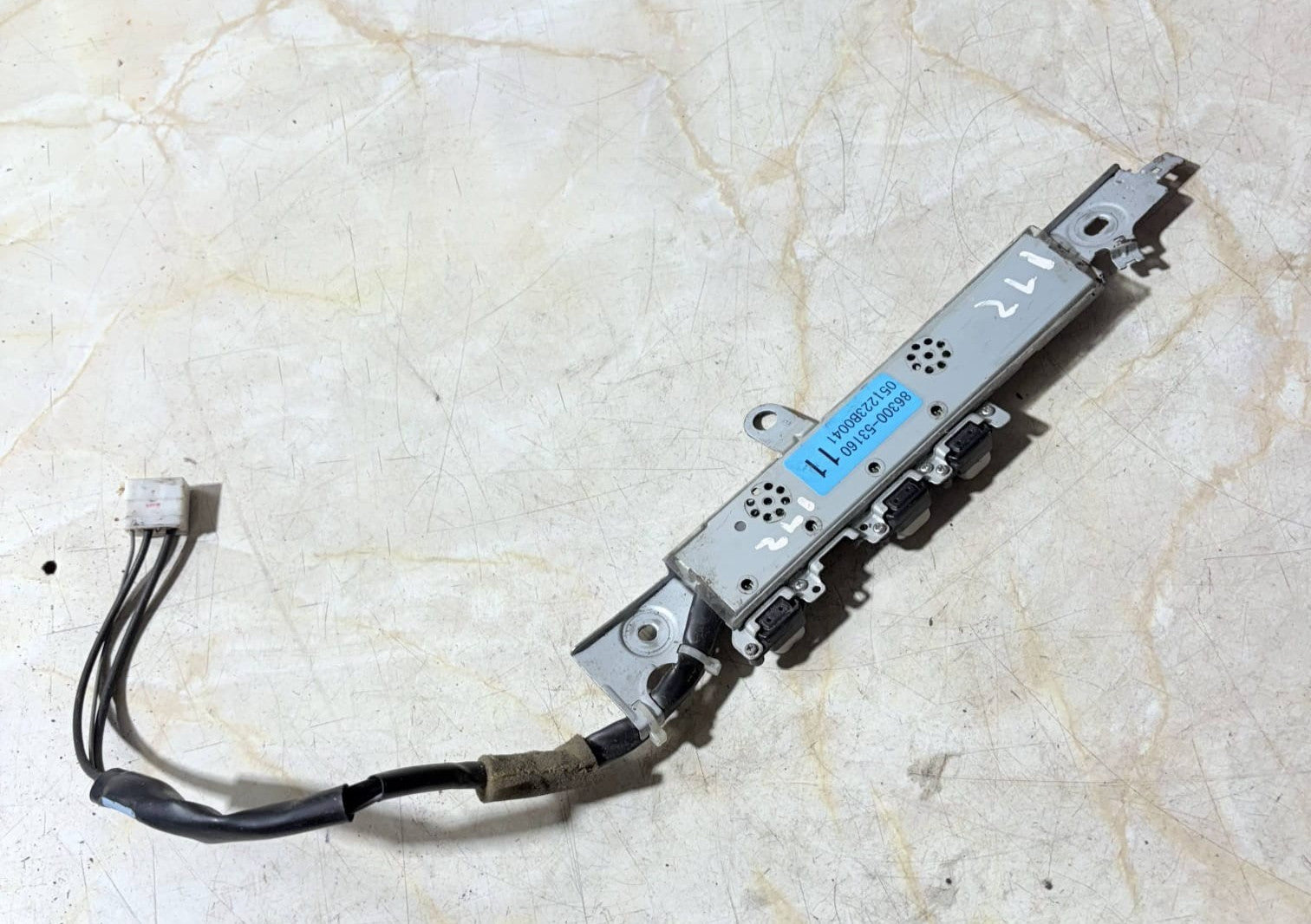

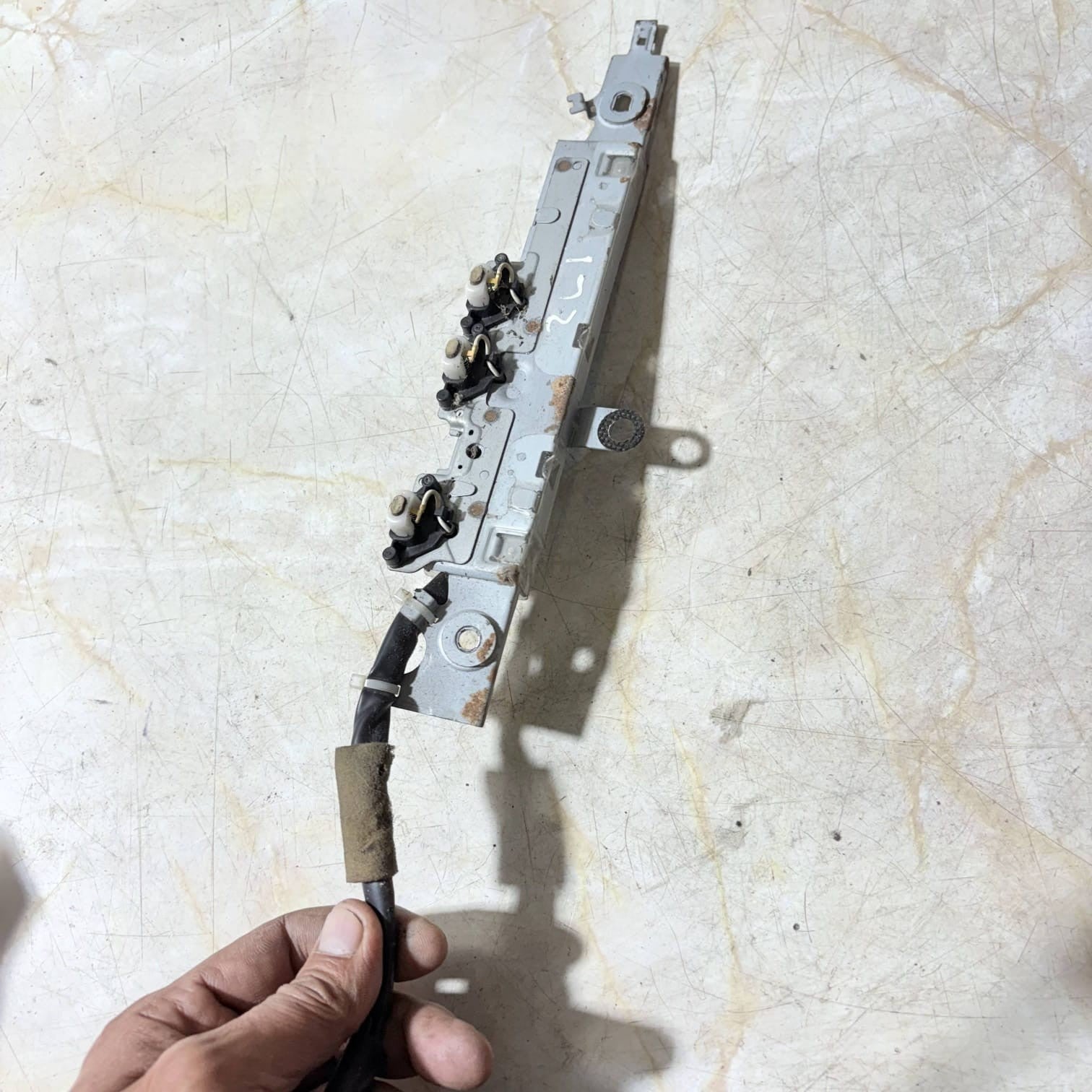

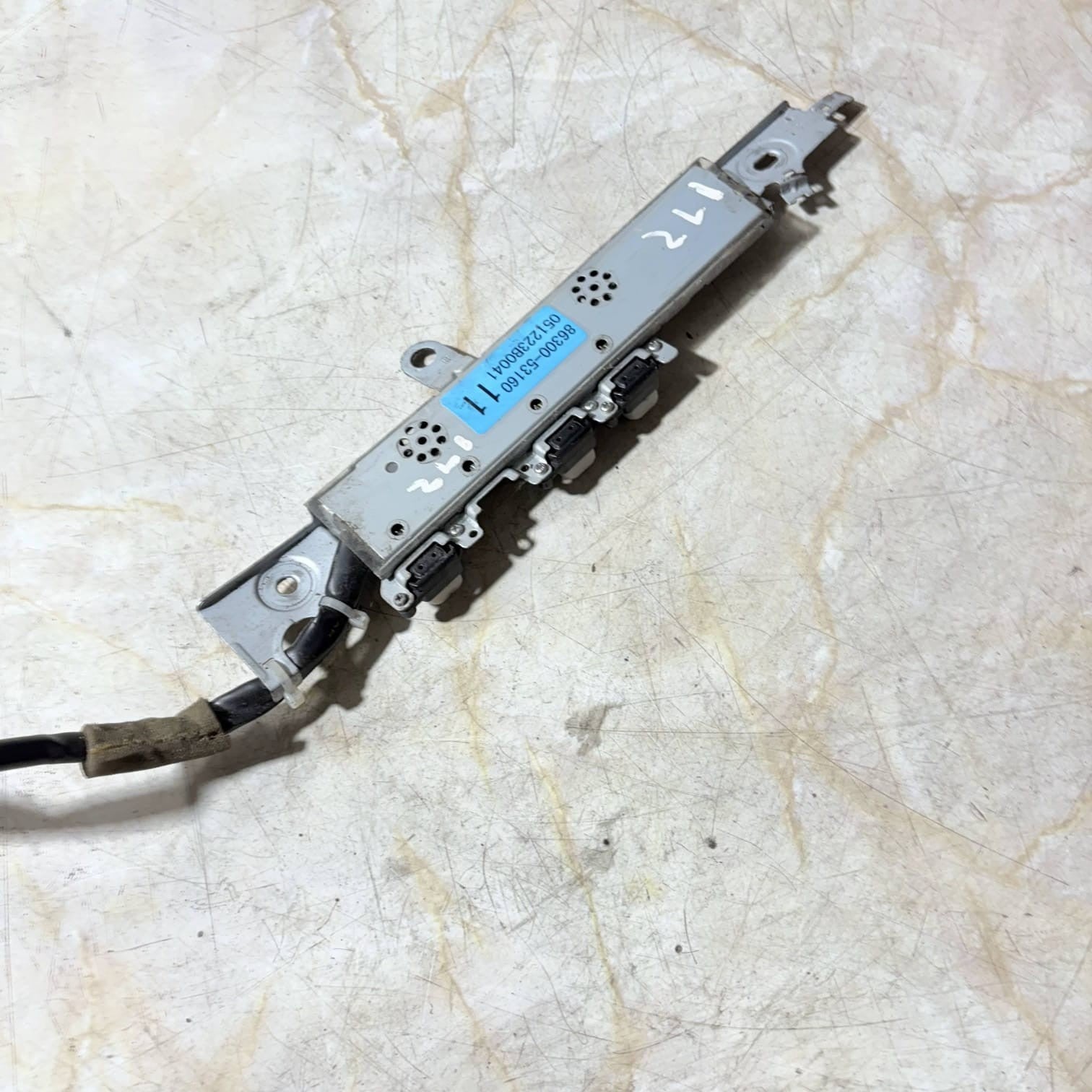

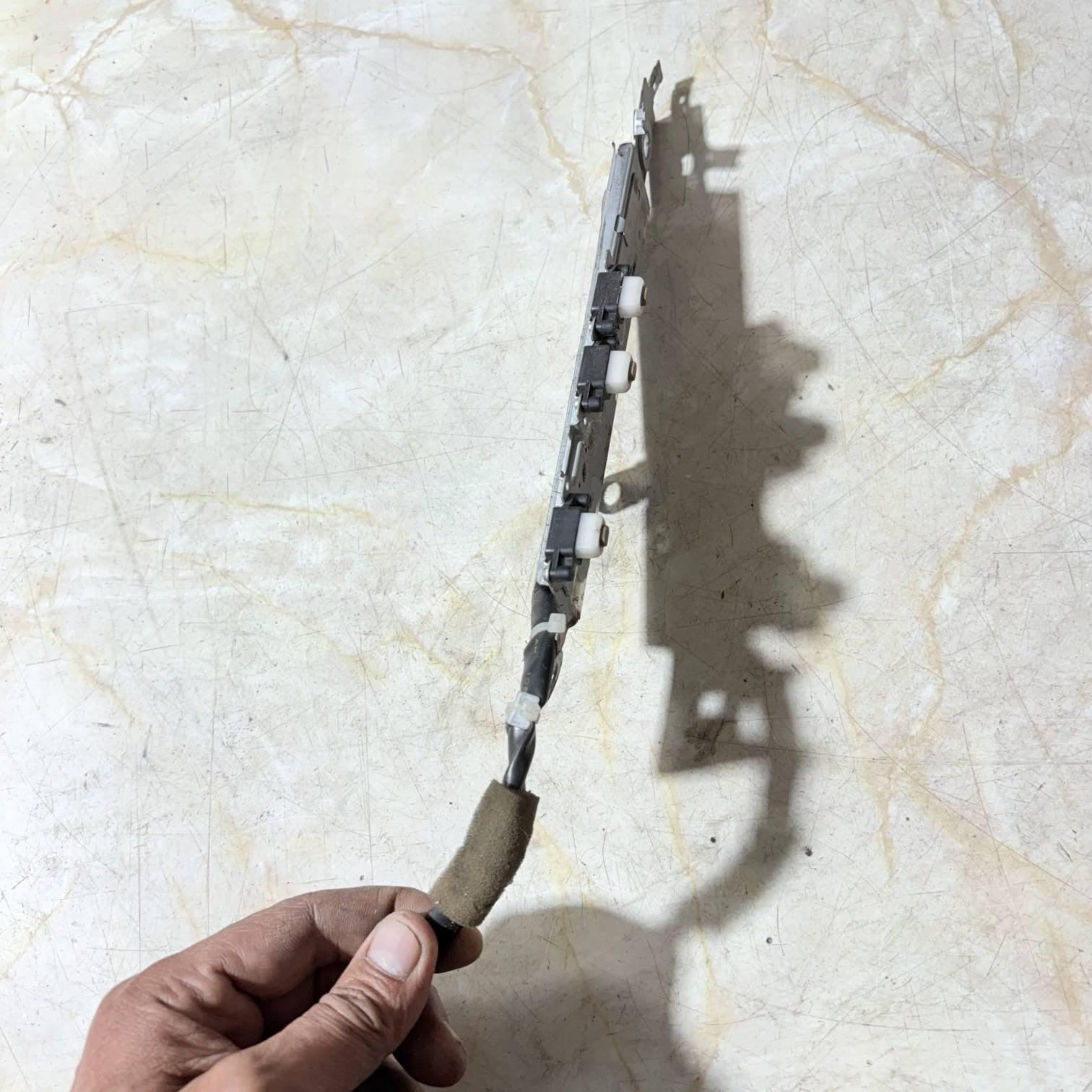

This listing is for antenna amplifier 86300-53160 / 8630053160. Lexus used different antenna equipment according to production date, market and audio specification. Do not order from model name alone.
BEST CHECK: compare 86300-53160 directly with the number printed on your original unit. If unsure, contact THEPARTPILOT with your 17-character VIN before purchasing so compatibility can be checked.
Product Details
| Manufacturer | Lexus / Toyota manufacture |
| Part Type | Aerial / Antenna Signal Amplifier Module |
| Primary Part Number | 86300-53160 |
| Search / Compact Number | 8630053160 |
| Toyota/Lexus Catalogue Description | Antenna Assy, Amplifier, No.1 |
| Vehicle Generation | Lexus IS II / XE20 |
| Body Style | 4-door saloon/sedan applications confirmed below |
| Condition | Used recycled vehicle component – please inspect listing photographs |
| Country of Manufacture | Japan |
✓ VERIFIED PART-NUMBER FITMENT
Parts-catalogue data identifies 86300-53160 against ALE20 and GSE20 applications for the antenna system during the 08/2005 to 08/2008 production period.
| Model | Chassis | Body | Engine | Verified Window |
|---|---|---|---|---|
| Lexus IS220d | ALE20 | 4-door Saloon | 2AD-FHV 2.2 Diesel | 08/2005–08/2008 part application |
| Lexus IS250 | GSE20 | 4-door Saloon | 4GR-FSE 2.5 V6 | 08/2005–08/2008 part application |
✕ DO NOT ASSUME IT FITS
| Later XE20 cars after 08/2008 | Different antenna part references/configurations may apply – verify first. |
| Lexus IS C convertible | Not confirmed by the catalogue evidence used for this listing. |
| Lexus IS F / USE20 | Do not order unless the existing module number is confirmed. |
| Third-generation XE30 | Not this application. |
REFERENCE VEHICLE TYPE
Reference illustration only. Vehicle specification, trim and colour may differ. This listing concerns the antenna amplifier, not the complete vehicle.
BODY TYPE: XE20-generation 4-door saloon/sedan. Do not use a convertible reference image to determine compatibility.
📡 WHAT DOES THIS PART DO?
The antenna amplifier forms part of the vehicle's radio aerial reception system. Its job is to amplify the relatively weak signal received by the vehicle antenna before that signal reaches the audio/radio receiver.
The module belongs to the antenna system in the rear body area of the XE20 saloon. Access can require removal or loosening of interior/rear trim depending on exact specification. Always locate and compare your existing module before dismantling further.
Common symptoms associated with an antenna-system fault
- Weak AM/FM reception
- Radio stations disappearing in areas where reception was previously good
- Excessive static or interference
- Reduced reception range
- Radio reception varying unexpectedly while driving
- No useful radio reception despite the head unit operating normally
WHY CHOOSE AN ORIGINAL-MANUFACTURE USED PART?
A used factory-manufactured component was engineered around the vehicle's original connectors, mounting arrangement and electrical system. Choosing the correct matching part number can provide a substantially better repair route than buying an unidentified low-cost copy whose connector, electronics or signal characteristics may differ.
Reusing serviceable vehicle components also avoids manufacturing another replacement unnecessarily. Depending on the component and current new-part pricing, customers can potentially save substantial amounts compared with purchasing new — in some cases savings on recycled car parts can be as high as 70%.
Always compare the actual part number: correct fitment is more important than brand name alone.
🔧 FITTING GUIDE
Indicative procedure only — trim and equipment specification can vary.
- Switch the ignition fully off and remove the key/smart key from the immediate vehicle area.
- Where appropriate for the repair procedure, isolate the 12V battery following manufacturer procedures.
- Identify the existing antenna amplifier in the rear body/interior trim area.
- Carefully remove the necessary trim using non-marring trim tools.
- Photograph connector routing before disconnecting anything.
- Check that the removed unit carries part number 86300-53160.
- Release the electrical/aerial connectors without pulling directly on the wiring.
- Remove the amplifier retaining fastener(s).
- Install the replacement module in the original orientation.
- Reconnect all plugs fully and ensure wiring follows its original route.
- Reassemble trim carefully, ensuring clips are correctly seated.
- Reconnect the battery where disconnected and test radio reception before completing the repair.
Typical tools
• Plastic trim removal tools
• Small socket/ratchet set
• Screwdriver set
• Inspection light
• Multimeter for diagnosis where required
• Protective trim cloth
Estimated labour time
Allow approximately 0.5–1.0 hour as a general workshop estimate where straightforward access is available. Actual time depends on trim specification, previous repairs, diagnosis required and technician experience.
💷 GARAGE LABOUR COST ESTIMATOR
No JavaScript is used in this listing. Use the table below to estimate labour.
| Hourly Rate | 0.5 Hour | 0.75 Hour | 1.0 Hour |
|---|---|---|---|
| £50/hr | £25.00 | £37.50 | £50.00 |
| £75/hr | £37.50 | £56.25 | £75.00 |
| £100/hr | £50.00 | £75.00 | £100.00 |
| £125/hr | £62.50 | £93.75 | £125.00 |
| £150/hr | £75.00 | £112.50 | £150.00 |
Estimates only. Diagnosis, seized fixings, damaged trim, wiring faults and local labour rates can change the final cost.
THEPARTPILOT also offers a fitting and repair service subject to workshop availability. Contact us before travelling to discuss your vehicle, diagnosis and appointment availability.
25,000+ PARTS IN STOCK
THEPARTPILOT carries more than 25,000 vehicle parts on the shelf at any one time, covering mechanical, electrical, interior and body components.
Professionally stored • Identified by part reference • Carefully packed for dispatch
📍 COLLECTION AVAILABLE
Collection is available 7 days a week until 8PM by prior appointment, including Bank Holidays where arranged in advance.
Scan the QR code to contact THEPARTPILOT on WhatsApp regarding collection or fitting availability.
🌍 INTERNATIONAL SHIPPING
International orders are available through eligible eBay international shipping services. Availability is determined by eBay according to the item and buyer's destination at checkout.
Current GSP-supported destinations include EU destinations such as Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain and Sweden, plus numerous supported destinations outside the EU.
International eligibility can change and certain items or destinations may be restricted, so the delivery options displayed by eBay checkout are definitive.
VAT / MARGIN-SCHEME INFORMATION
This used item is sold under the applicable second-hand goods margin scheme. VAT is not separately charged or shown on the item price. International buyers remain responsible for any taxes, duties or import charges applied through eBay or by their destination country.
↩️ FITMENT & RETURNS
We provide detailed part-number and vehicle information to help customers order the correct component first time. Please compare the number on your existing component before purchasing.
If you are unsure, contact us before ordering. Supplying the VIN and clear photographs of the existing component/label gives us the best opportunity to verify compatibility.
Selling a vehicle? THEPARTPILOT purchases cars with nationwide collection and same-day payment subject to agreed purchase terms.
Contact us through eBay or WhatsApp to discuss your vehicle.
SUPPORT A SMALL BUSINESS • SUPPORT REUSE
Every serviceable used component given another working life helps reduce demand for newly manufactured replacement parts and keeps usable automotive components in circulation for longer.
Buying from THEPARTPILOT supports an independent UK automotive parts business while helping build a more circular approach to vehicle repair. Thank you for choosing to repair, reuse and recycle.
CAREFULLY PACKED FOR DISPATCH
Components are prepared and packaged for transport with the aim of protecting plugs, mounting points and vulnerable surfaces during delivery.

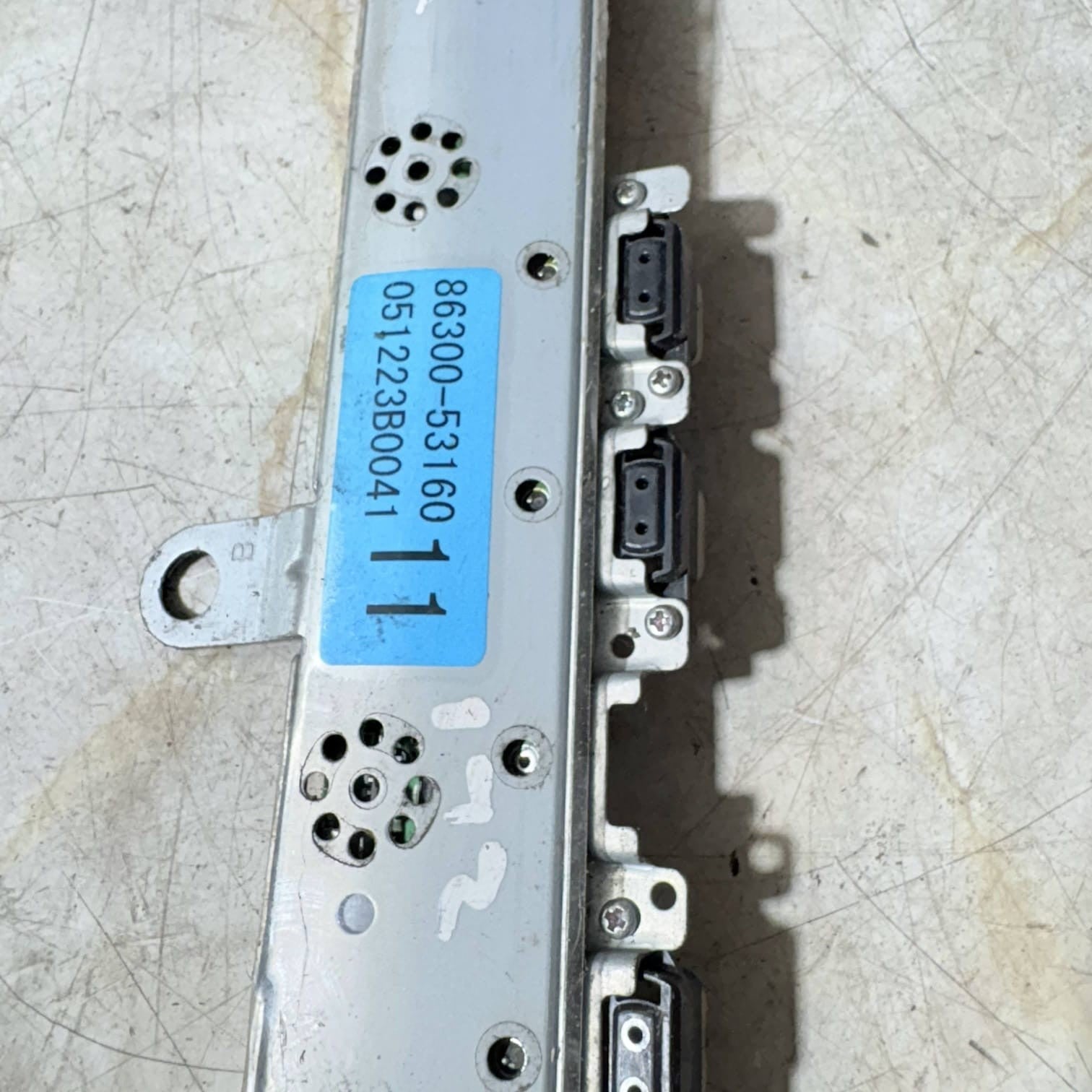

✓ Compare 86300-53160
✓ Check your production date
✓ Confirm ALE20 / GSE20 application

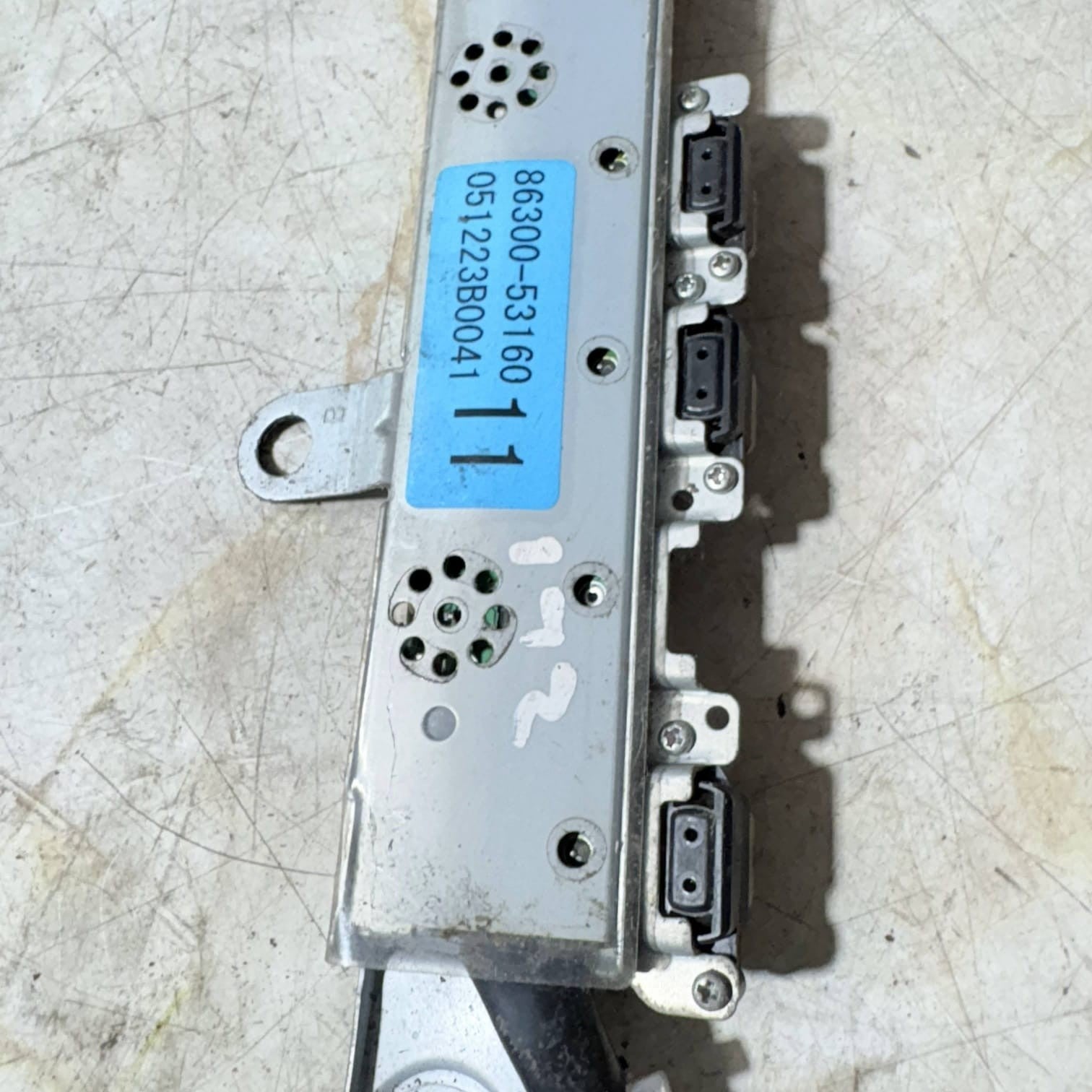

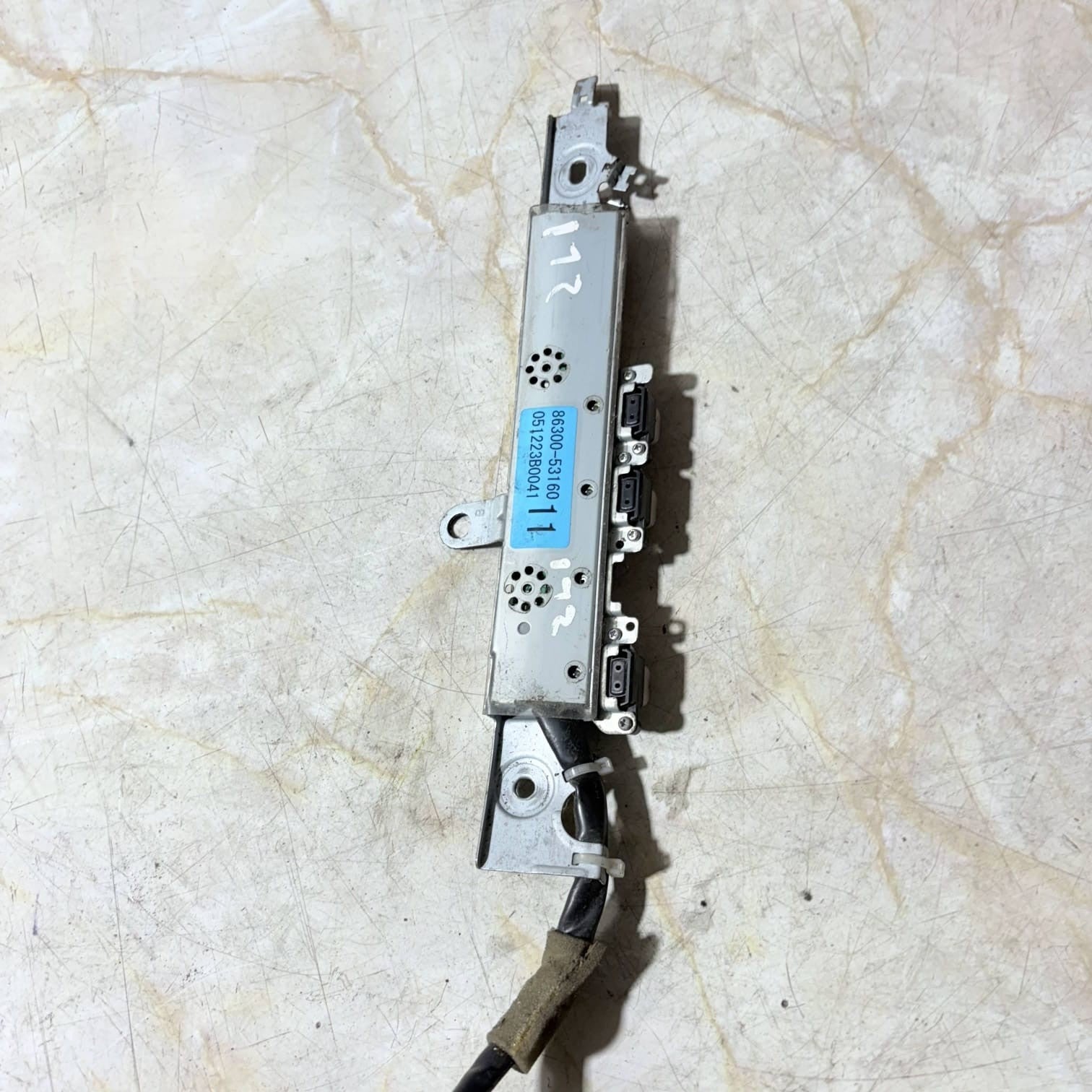

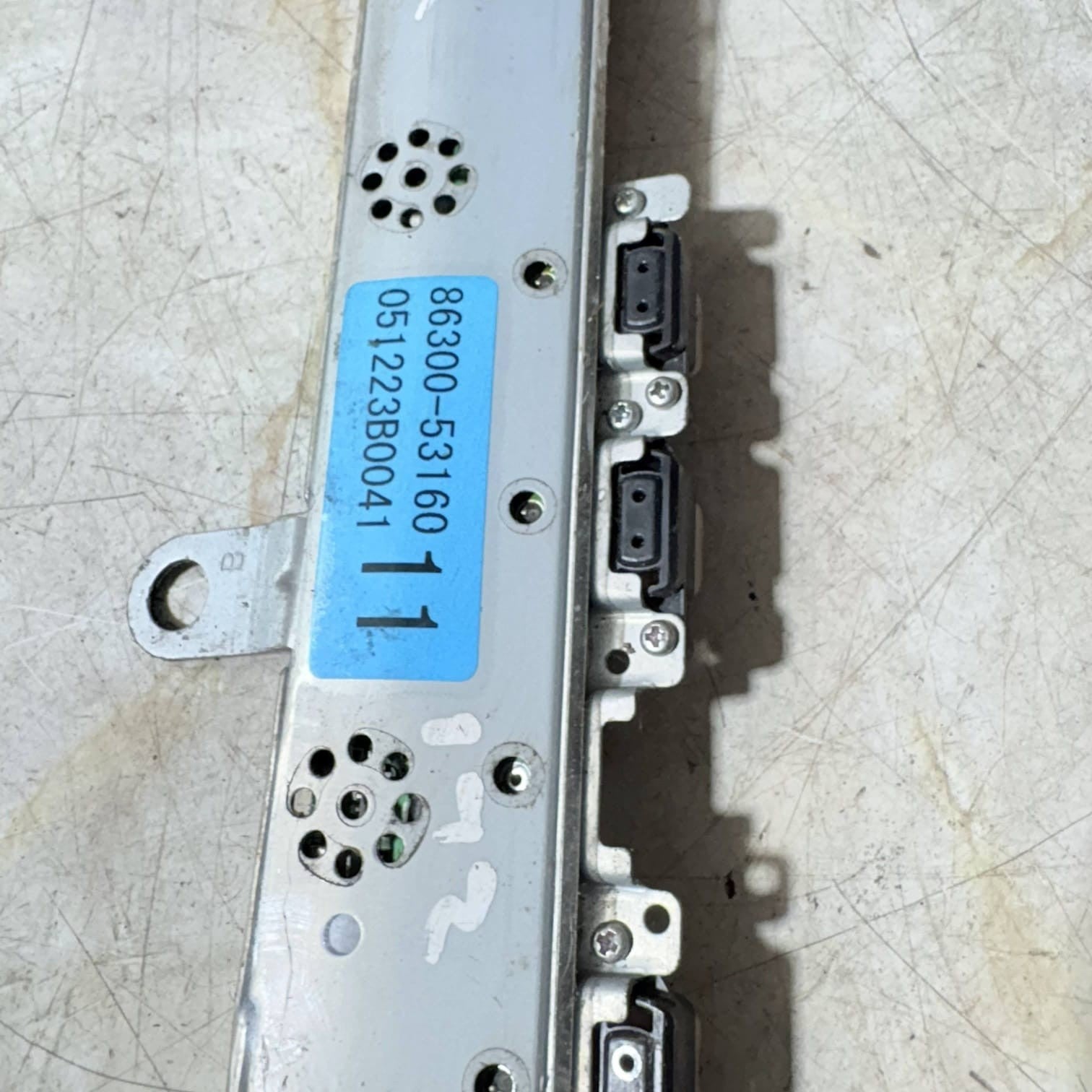

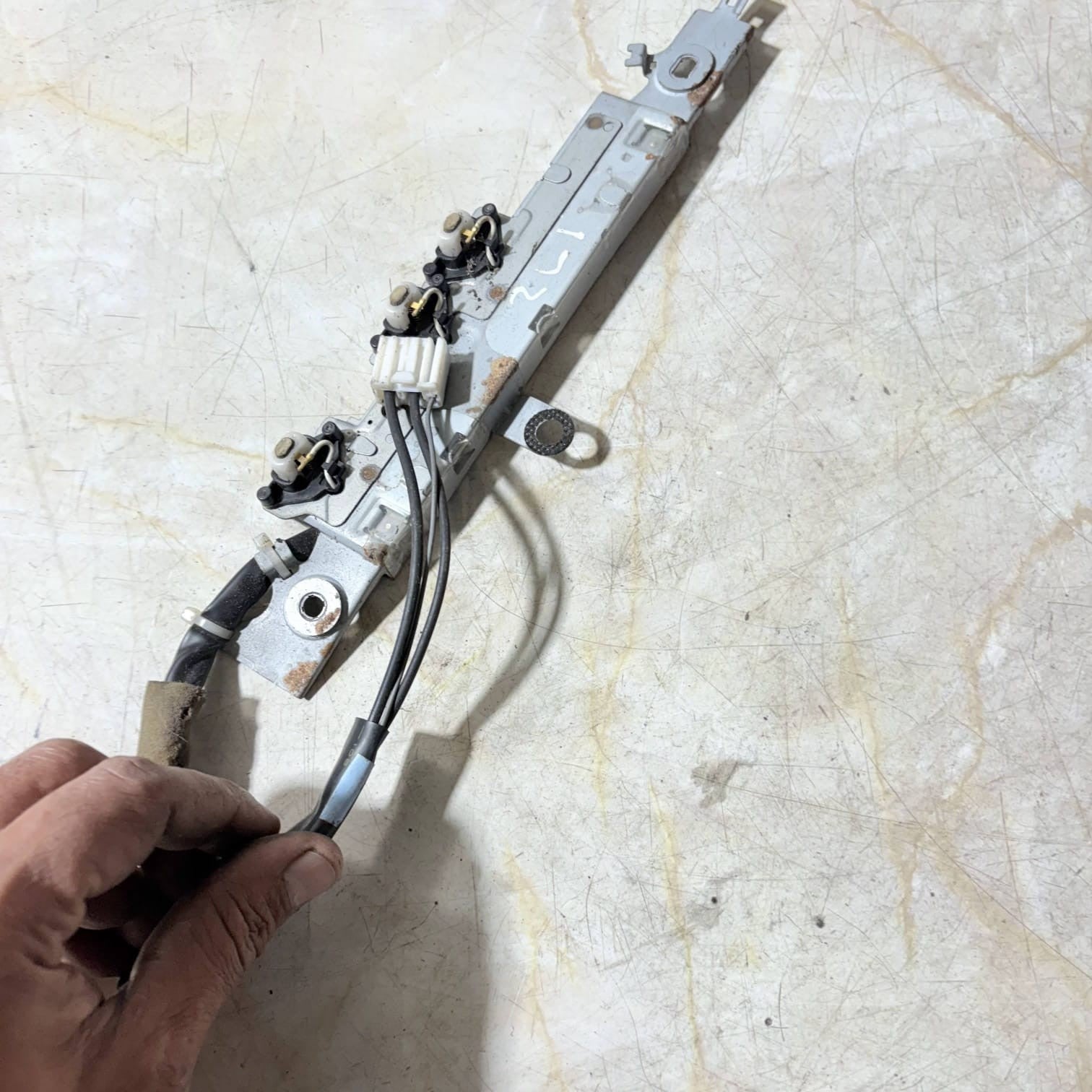

✓ Check connectors and mounting against the listing photographs
✓ Send your VIN if uncertain
