Original-manufacturer specification vacuum reservoir / vacuum chamber for confirmed Mazda 3 BK 1.6 diesel applications. Fitment information has been expanded to help buyers identify the correct component before ordering.

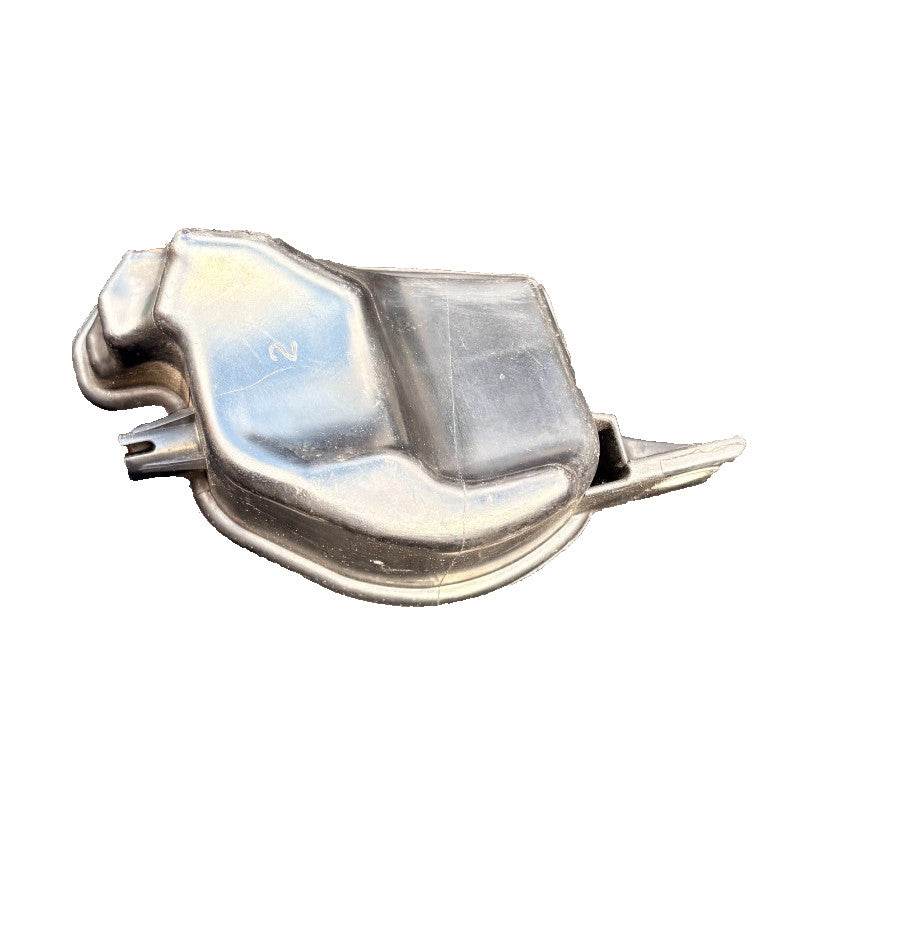

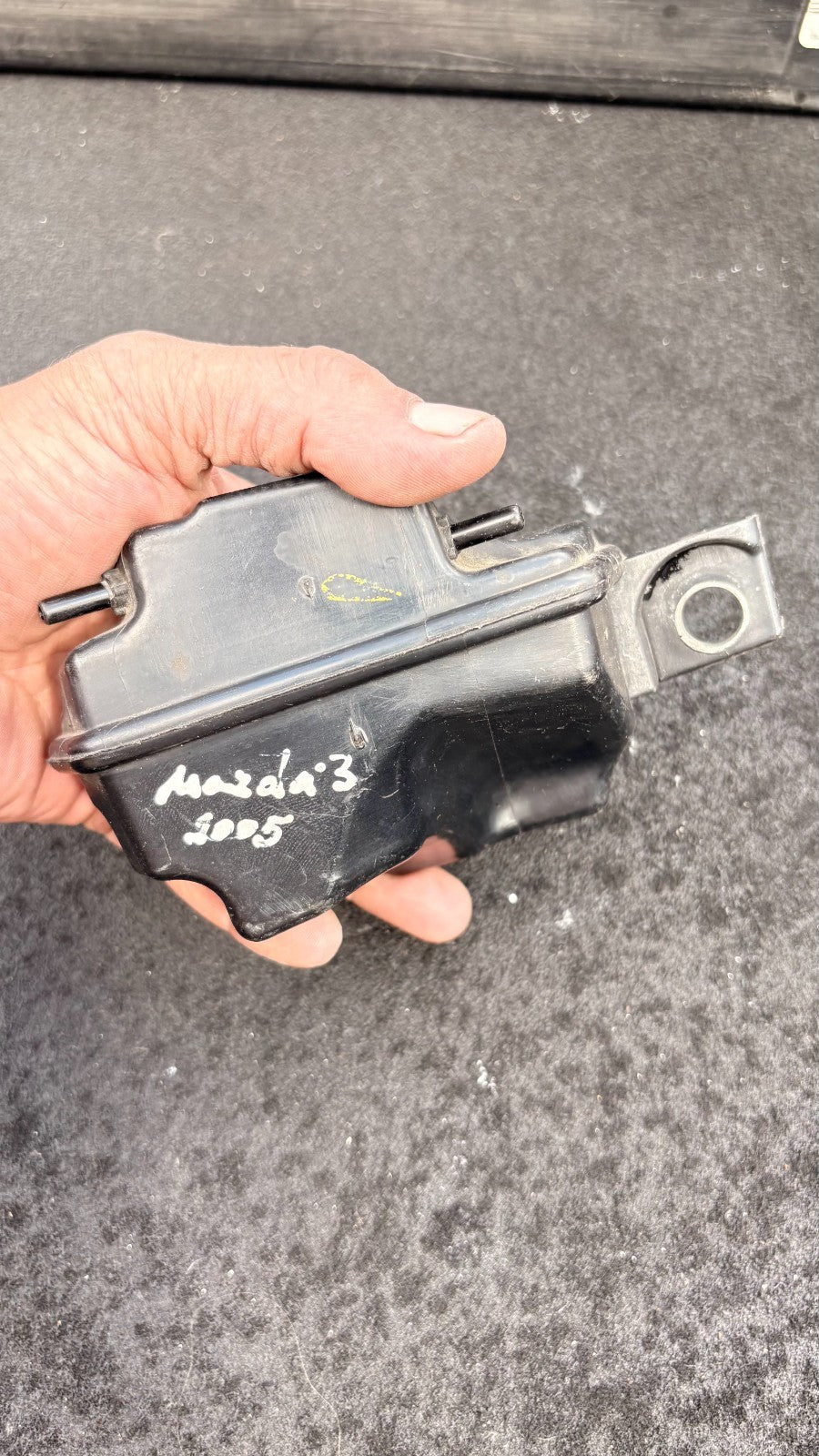

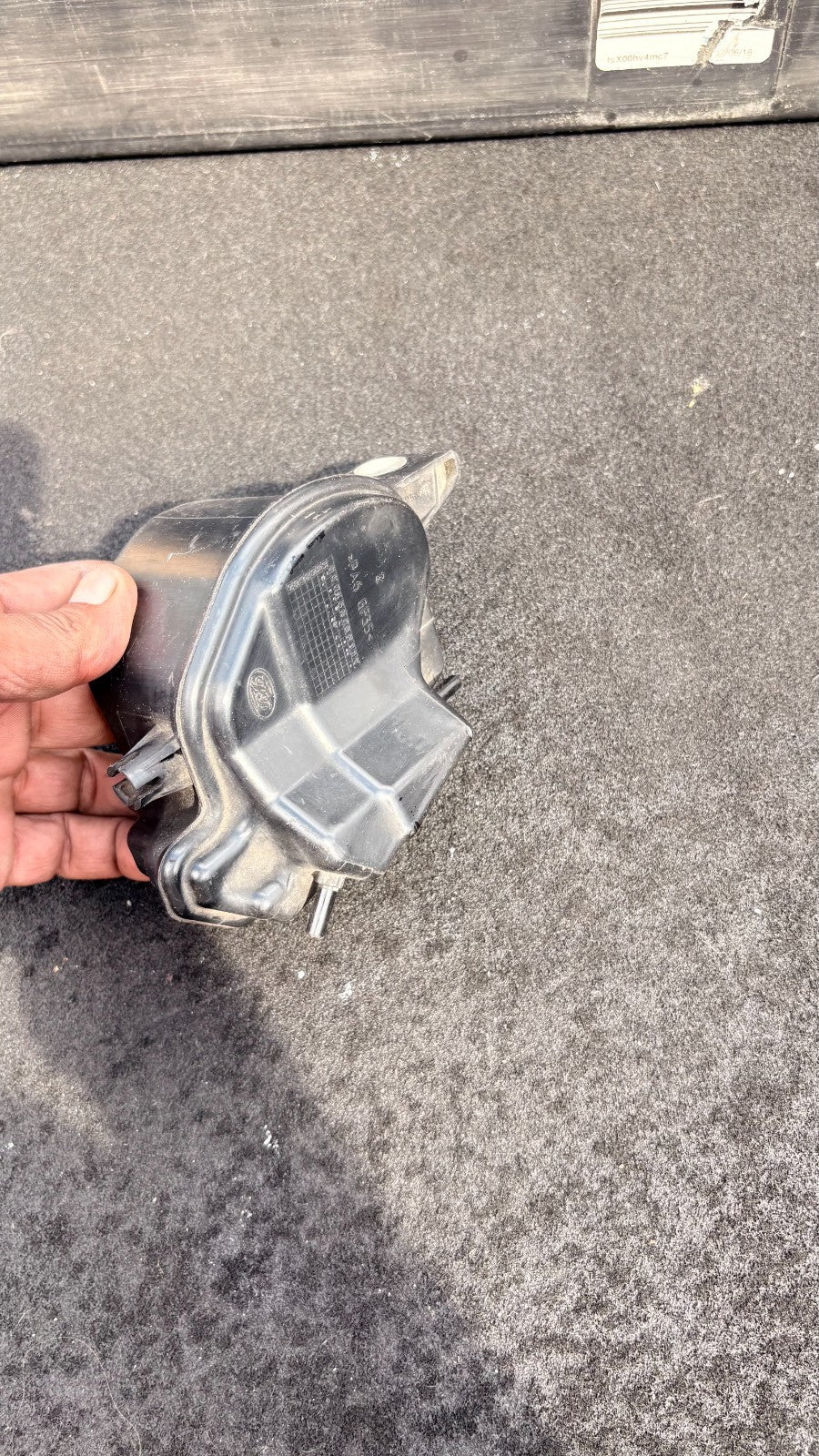

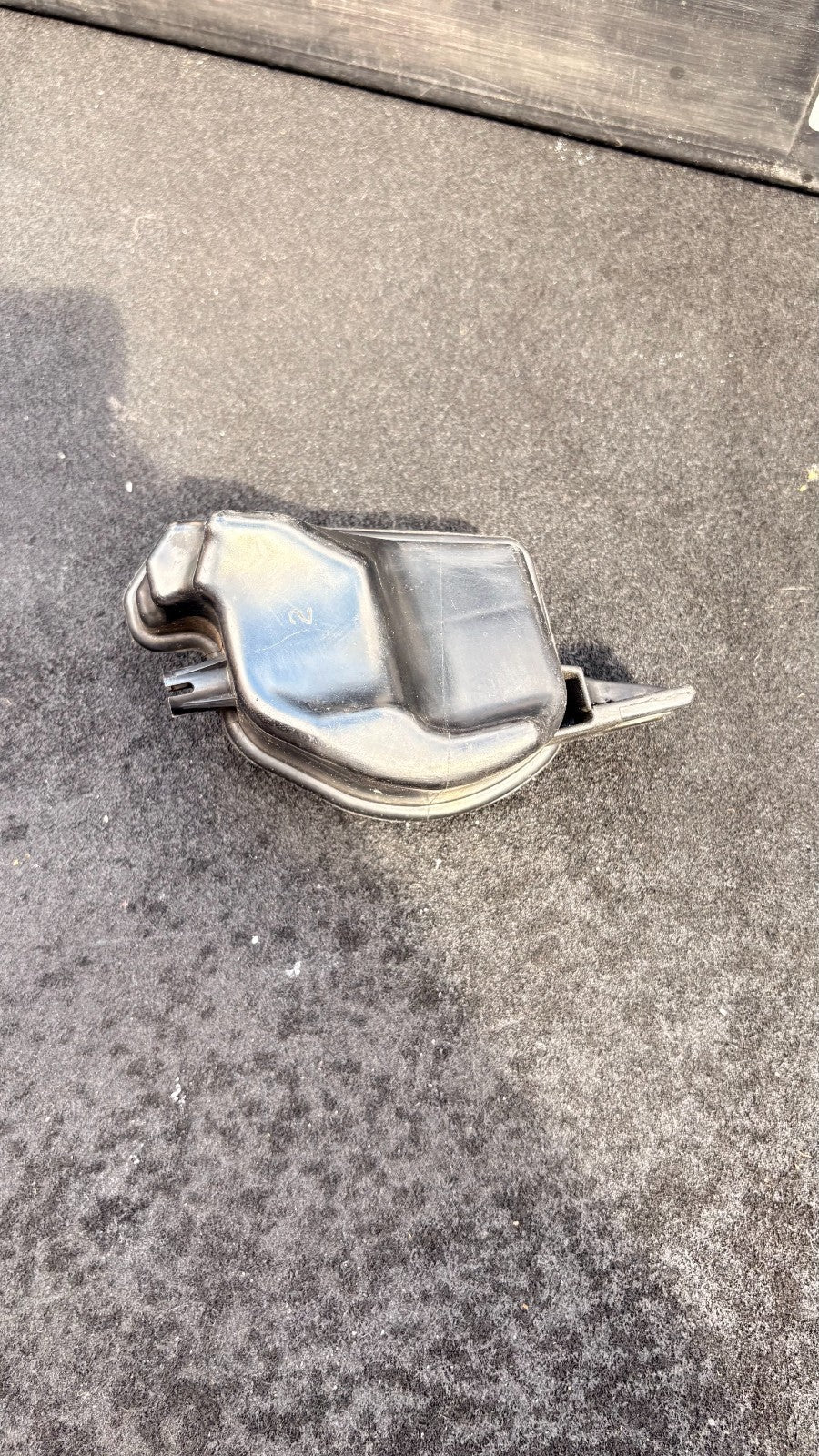

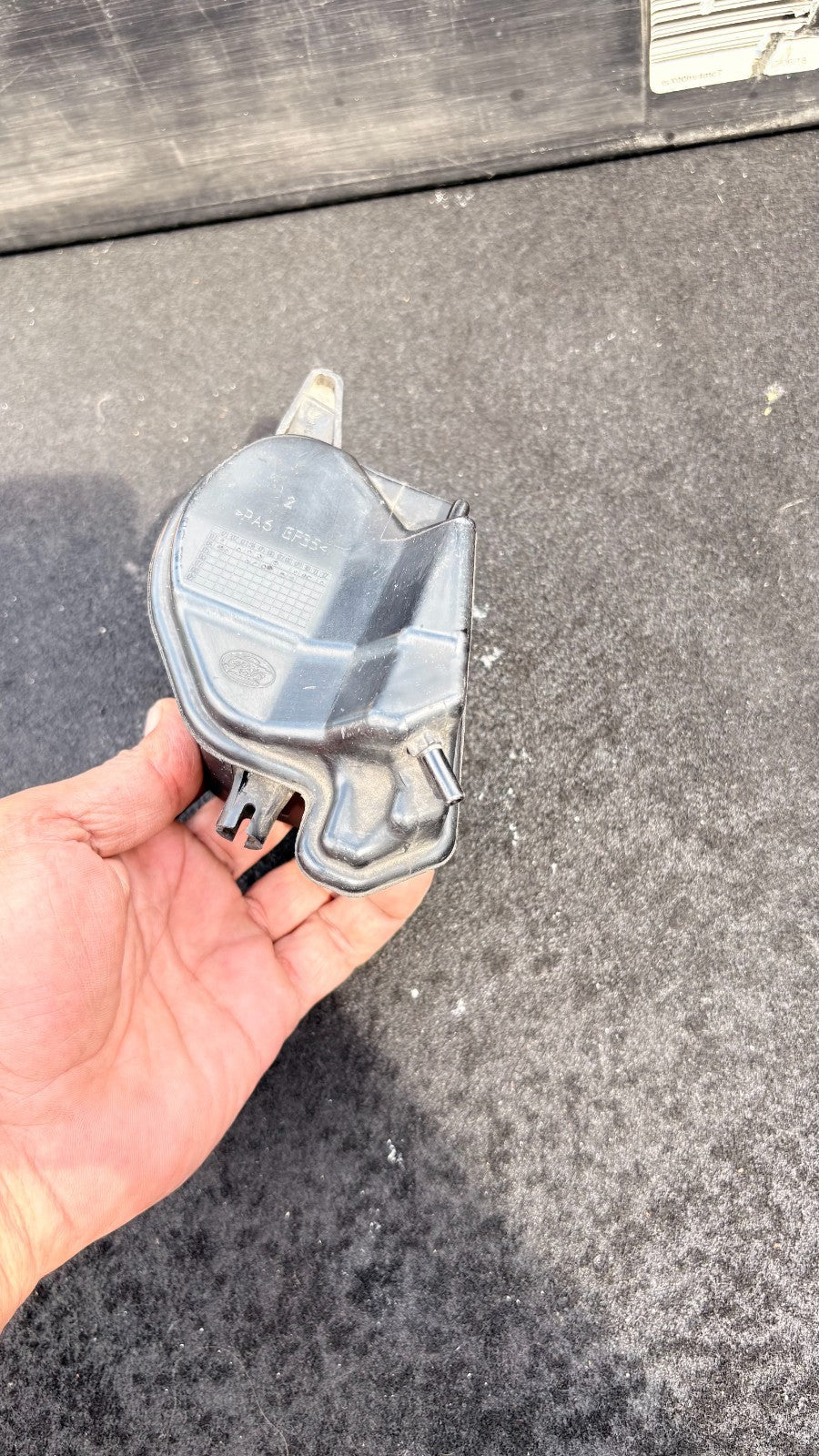

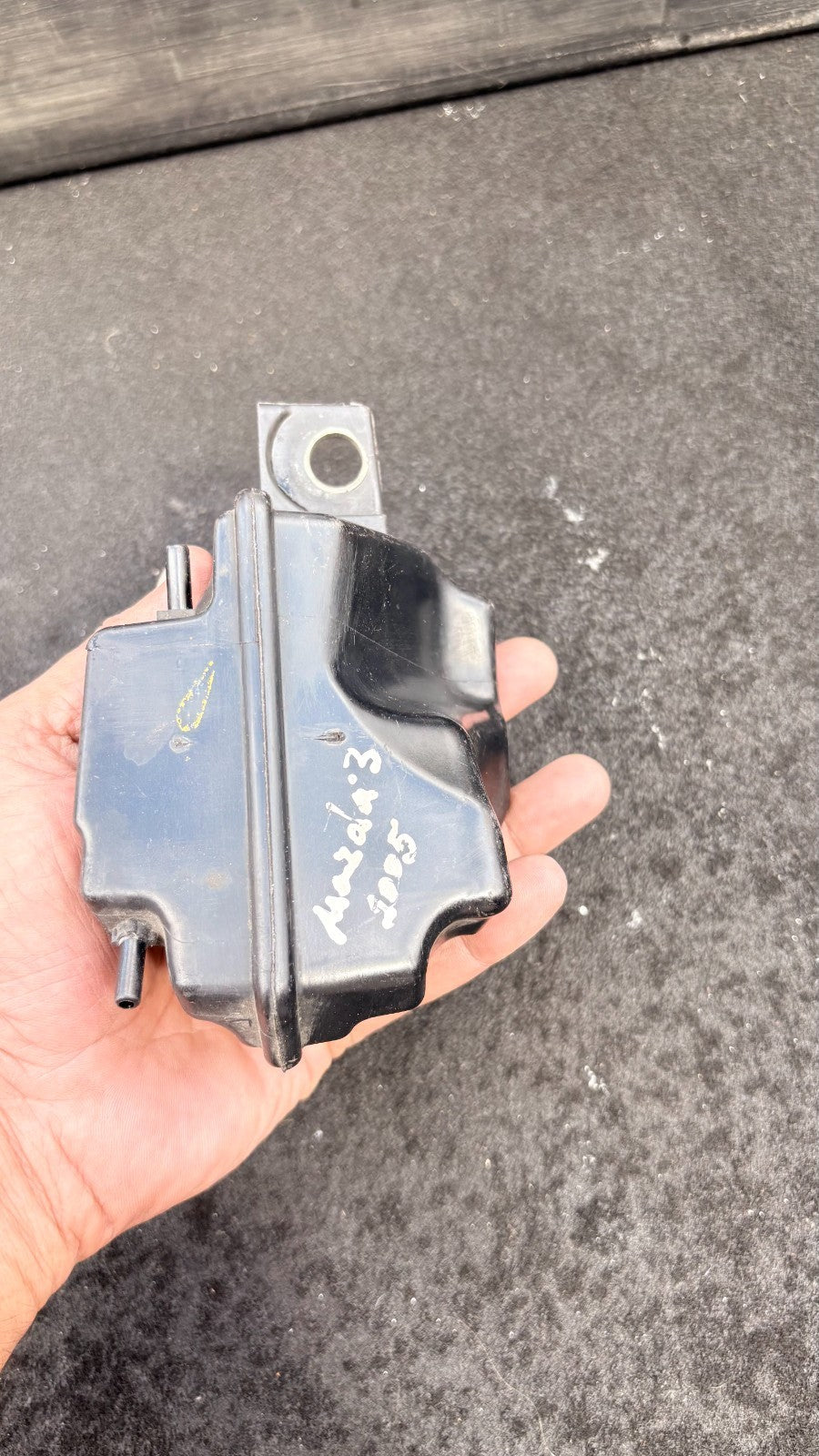

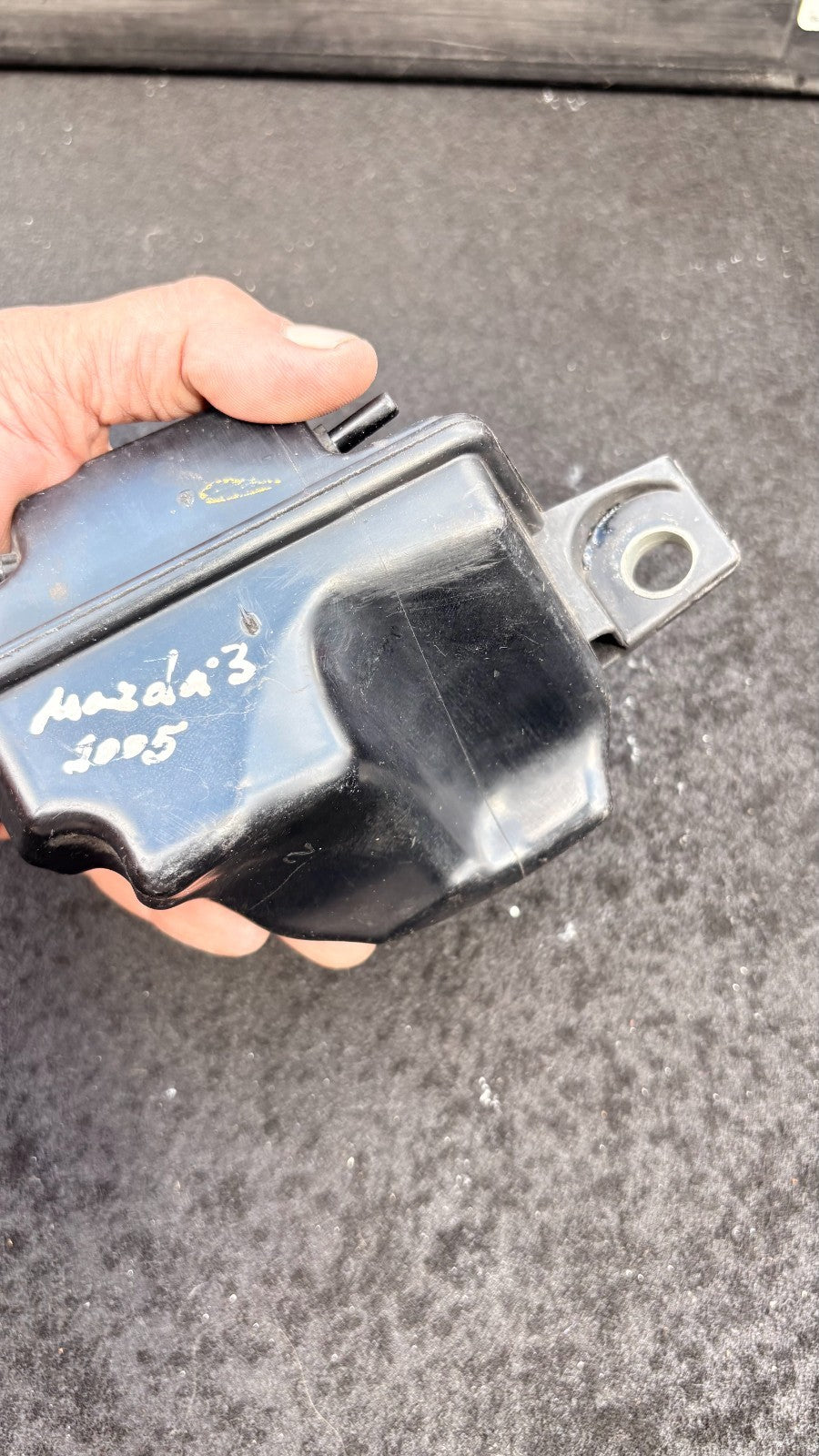

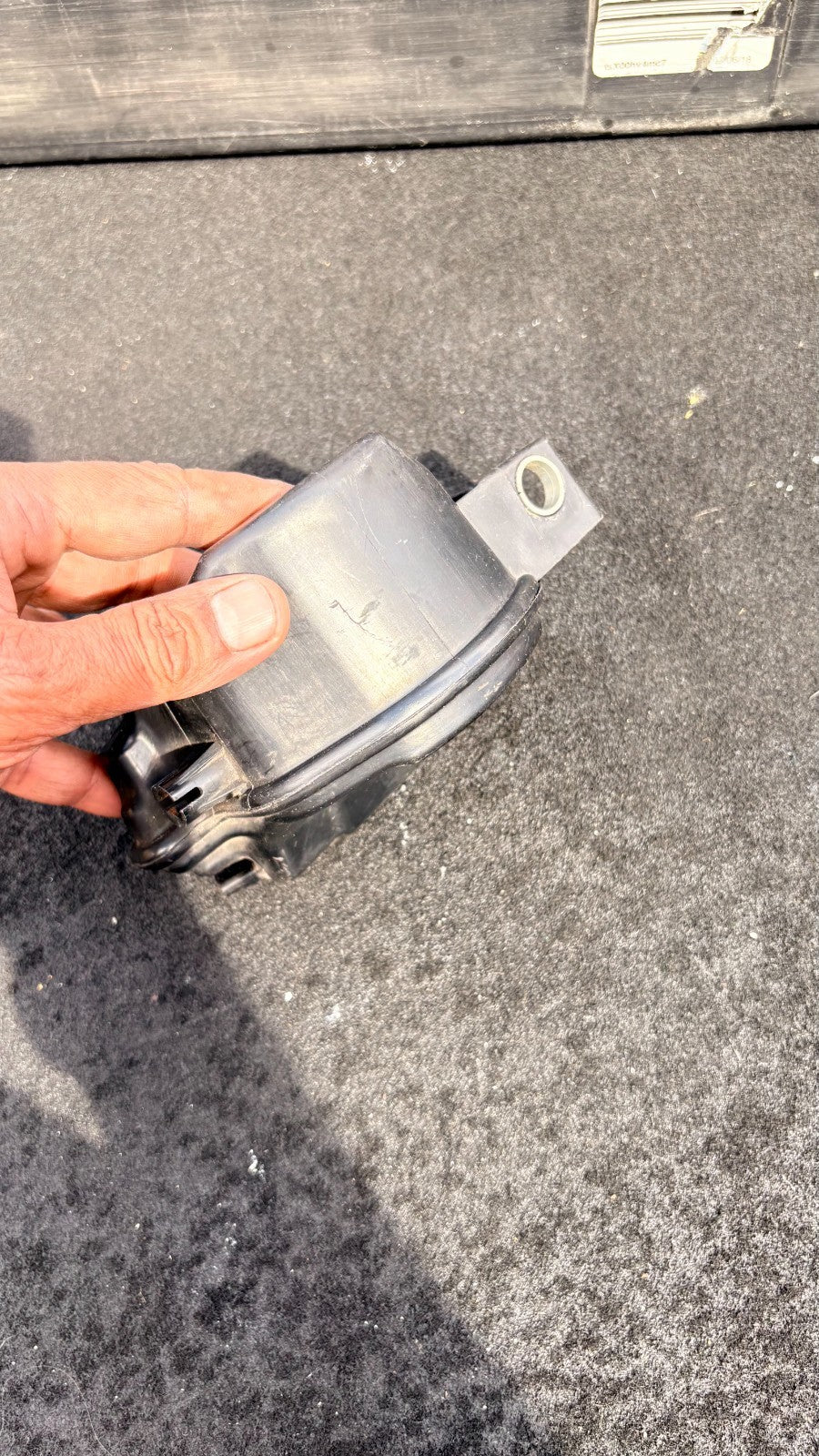

Actual Part You Are Buying
Part Identification & Technical Details
Correct Vehicle Body-Style Reference
The photographs below are provided to help identify the Mazda 3 BK 5-door hatchback body generation. They are reference vehicles only and are not the donor vehicle for this component. Colour, trim, wheels and engine appearance can differ. Final fitment must still be confirmed using the chassis, diesel engine specification and physical component.
Compatibility Chart — Confirmed Application Family
| Year | Vehicle | Body | Engine | Power | Chassis | Status |
|---|---|---|---|---|---|---|
| 2004 | Mazda 3 | 5 Door Hatch | 1.6 DI Turbo / MZ-CD Diesel | 80kW / 109HP | BK | ✓ APPLICATION |
| 2005 | Mazda 3 | 5 Door Hatch | 1.6 DI Turbo / MZ-CD Diesel | 80kW / 109HP | BK | ✓ APPLICATION |
| 2006 | Mazda 3 | 5 Door Hatch | 1.6 DI Turbo / MZ-CD Diesel | 80kW / 109HP | BK | ✓ APPLICATION |
| 2007 | Mazda 3 | 5 Door Hatch | 1.6 DI Turbo / MZ-CD Diesel | 80kW / 109HP | BK | ✓ APPLICATION |
| 2008 | Mazda 3 | 5 Door Hatch | 1.6 DI Turbo / MZ-CD Diesel | 80kW / 109HP | BK | ✓ APPLICATION |
| 2009 | Mazda 3 | 5 Door Hatch | 1.6 DI Turbo / MZ-CD Diesel | 80kW / 109HP | BK ONLY | ⚠ CHECK BK CHASSIS |
- Mazda 3 1.6 petrol Z601 / Z627 — this is a diesel-component listing.
- Mazda 3 1.6 diesel 90HP / alternative engine specification — not confirmed from the supplied item evidence.
- Mazda 3 2.0 diesel — not confirmed.
- Mazda 3 4-door saloon — not confirmed from this photographed application.
- Mazda 3 BL generation — do not assume fitment just because the registration year is 2009 or later.

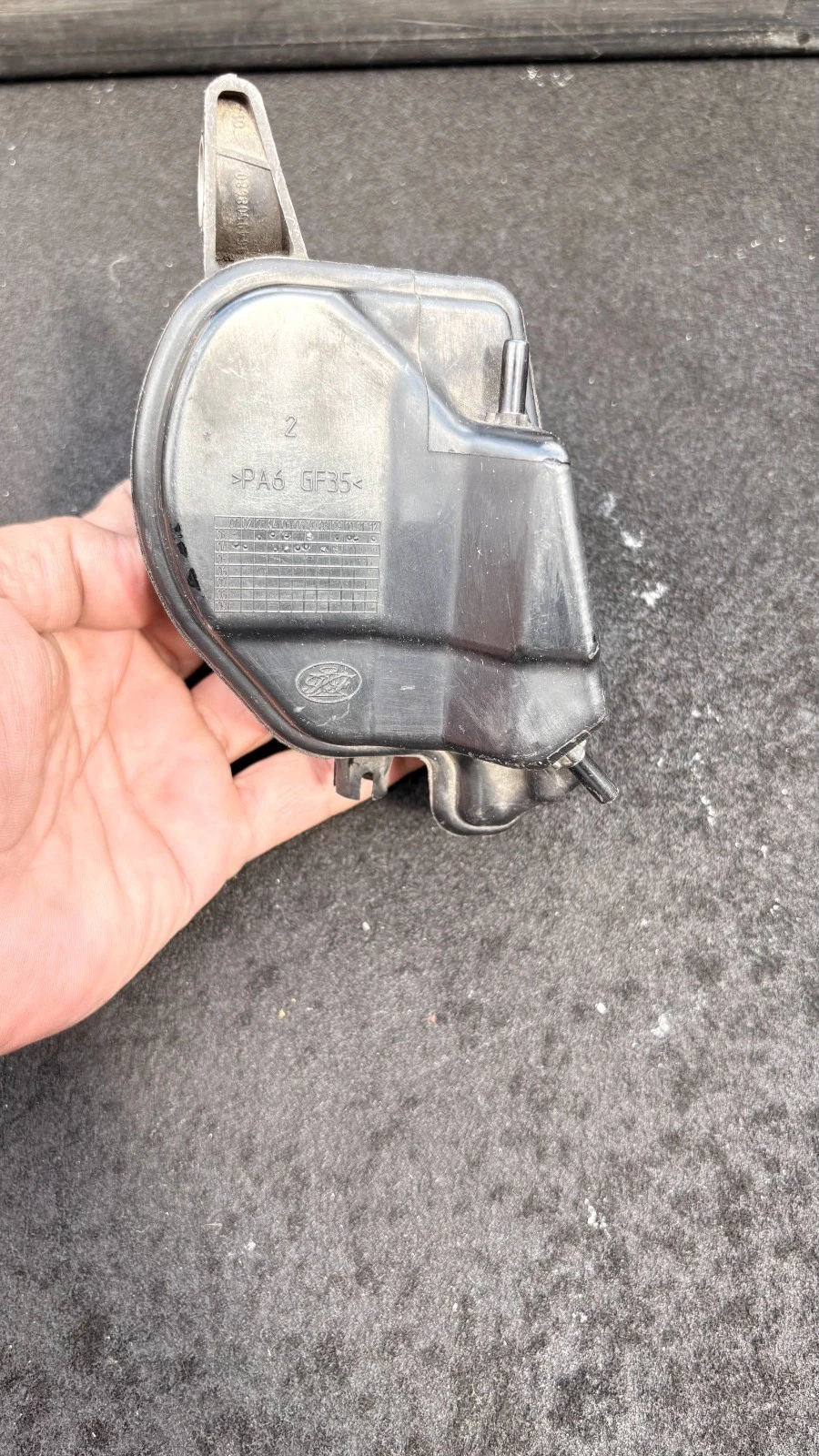

- Ford, Volvo, Peugeot or Citroën models — the visible Ford mould mark does not establish vehicle compatibility.
- Any vehicle where the hose connections, mounting tab or reservoir shape differ from the photographs.
Buy The Correct Part First Time
Before clicking Buy It Now, please check ALL of the following:
- ✓ Your vehicle is a Mazda 3 BK, not the later BL generation.
- ✓ Your vehicle has the 1.6 MZ-CD / DI Turbo diesel engine.
- ✓ Your existing reservoir has the same overall moulded shape.
- ✓ Both vacuum-hose connection positions match.
- ✓ The mounting tab / fixing arrangement matches.
- ✓ Any readable number on your original component is compatible with the replacement.
- ✓ For a 2009 vehicle, confirm the BK chassis rather than relying on registration year alone.
What This Part Does
The vacuum reservoir — also described as a vacuum chamber or vacuum tank — forms part of the diesel engine's vacuum-control system. It does not electrically control the vehicle itself. Its role is to provide a stored/buffered vacuum supply so connected vacuum hoses, solenoids and vacuum-operated control components can receive a more stable vacuum source.
Service access: Mazda service information for the MZ-CD 1.6 Y6 reaches the vacuum chamber after battery/battery-tray removal, moving the fuel-filter assembly aside and removing the under-cover. This is more useful than guessing a left/right location from a generic engine-bay photograph.
