Mercedes C E Class W202 W210 1994-2002 Rear Right Door Lock 2027330408

Mercedes C E Class W202 W210 1994-2002 Rear Right Door Lock 2027330408

£24.58
THEPARTPILOT
PREMIUM RECYCLED ORIGINAL VEHICLE PARTS
25,000+ PARTS IN STOCK   •   30 DAY WARRANTY   •   FITTING SERVICE SUBJECT TO AVAILABILITY
✓ PHOTO-VERIFIED NUMBER ✓ EXACT FITMENT GUIDANCE ✓ WORLDWIDE eBAY SHIPPING
MERCEDES-BENZ • REAR RIGHT

W202 / W210 REAR RIGHT DOOR LOCK LATCH MECHANISM

2027330408 • A2027330408 • 202 733 04 08

Pre-owned original Mercedes-Benz factory door-lock mechanism as shown in the actual item photographs. This is the REAR RIGHT assembly and should only be ordered after matching the original mechanism, position and visible moulded number.

⚠ CRITICAL FITMENT INFORMATION — PLEASE READ BEFORE ORDERING

The actual item photographs clearly show the moulded Mercedes-Benz number 202 733 04 08. Catalogue information identifies this number as the rear-right lock covering / lock-cover component used within this family of mechanisms. The item being sold here is the complete pre-owned mechanism visible in the photographs.

A separate complete-lock service number is not clearly visible on this particular item. For that reason, do not purchase only because your car is a W202 or W210. Compare your original mechanism against our photographs, confirm REAR RIGHT, and match the moulded number and linkage/housing design. If unsure, contact us through eBay Messages before ordering and provide your VIN plus a clear photo of your existing part.

ITEM DETAILS & SPECIFICS
Manufacturer Mercedes-Benz
Product Rear Right Door Lock / Latch Mechanism
Placement Rear Right — right-hand rear passenger door / UK driver-side rear on RHD vehicles
Visible Part Number 2027330408 / A2027330408 / 202 733 04 08
Superseded Part Number 2027330208 / A2027330208 — catalogue predecessor of the visible cover number
Interchange Part Number No separate complete-assembly interchange number is confirmed from the photographs — match the actual item shown
eBay Item Number 147493783047
Condition Pre-owned original factory component. Expect age-related cosmetic marks consistent with previous service. See actual photographs.
Visible Construction Black/charcoal moulded polymer housing with plated steel latch, linkage and mechanical components
Colour / Markings Dark grey / black housing, metallic mechanism and white dismantler stock markings visible in photographs
Country of Origin Germany
Seller Warranty 30 Days
VAT Sold under the VAT Global Accounting / second-hand margin scheme where applicable. VAT is not separately itemised and no reclaimable VAT invoice is available.
ACTUAL ITEM PHOTOGRAPHS
These photographs are loaded directly from the current eBay image host and show the actual part offered.

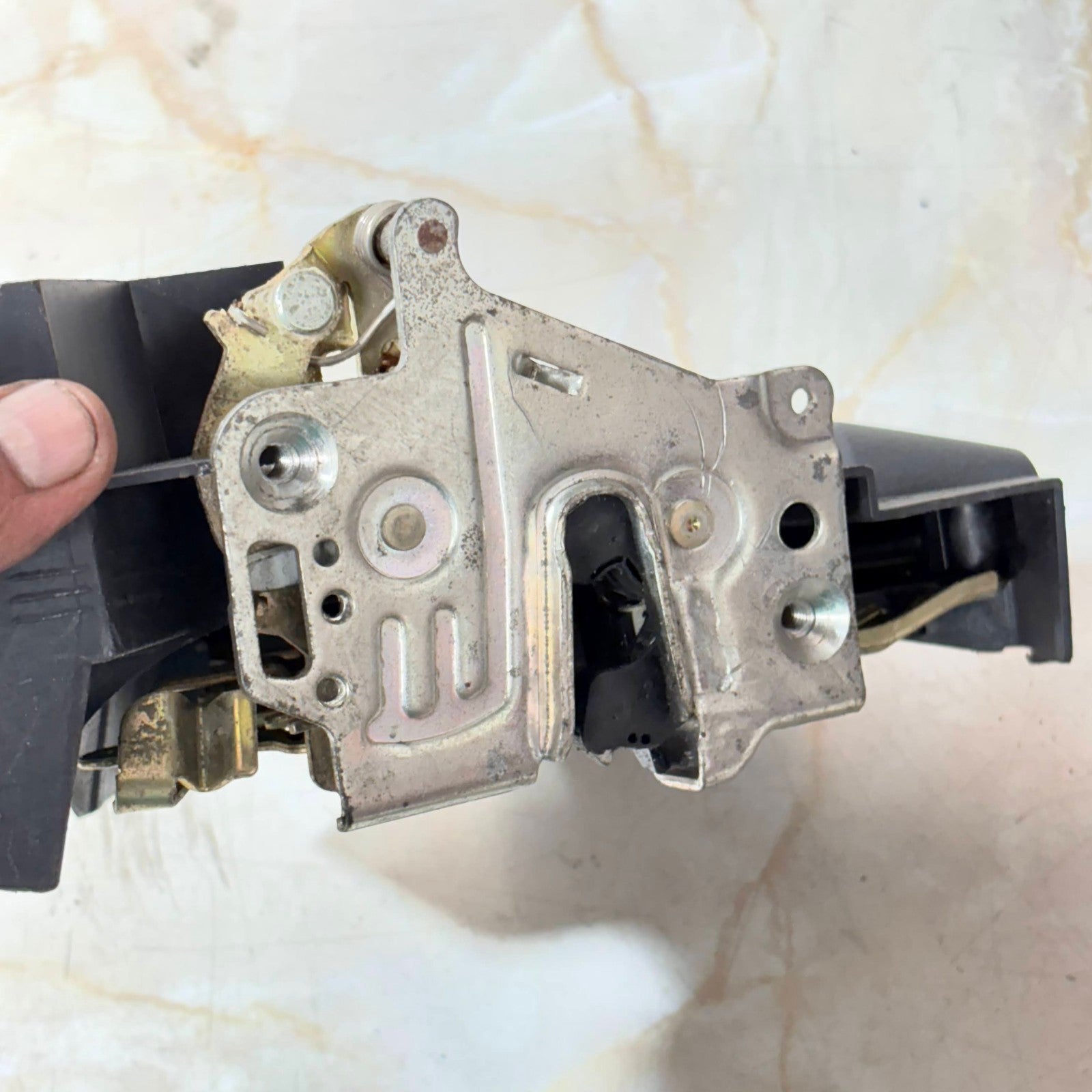

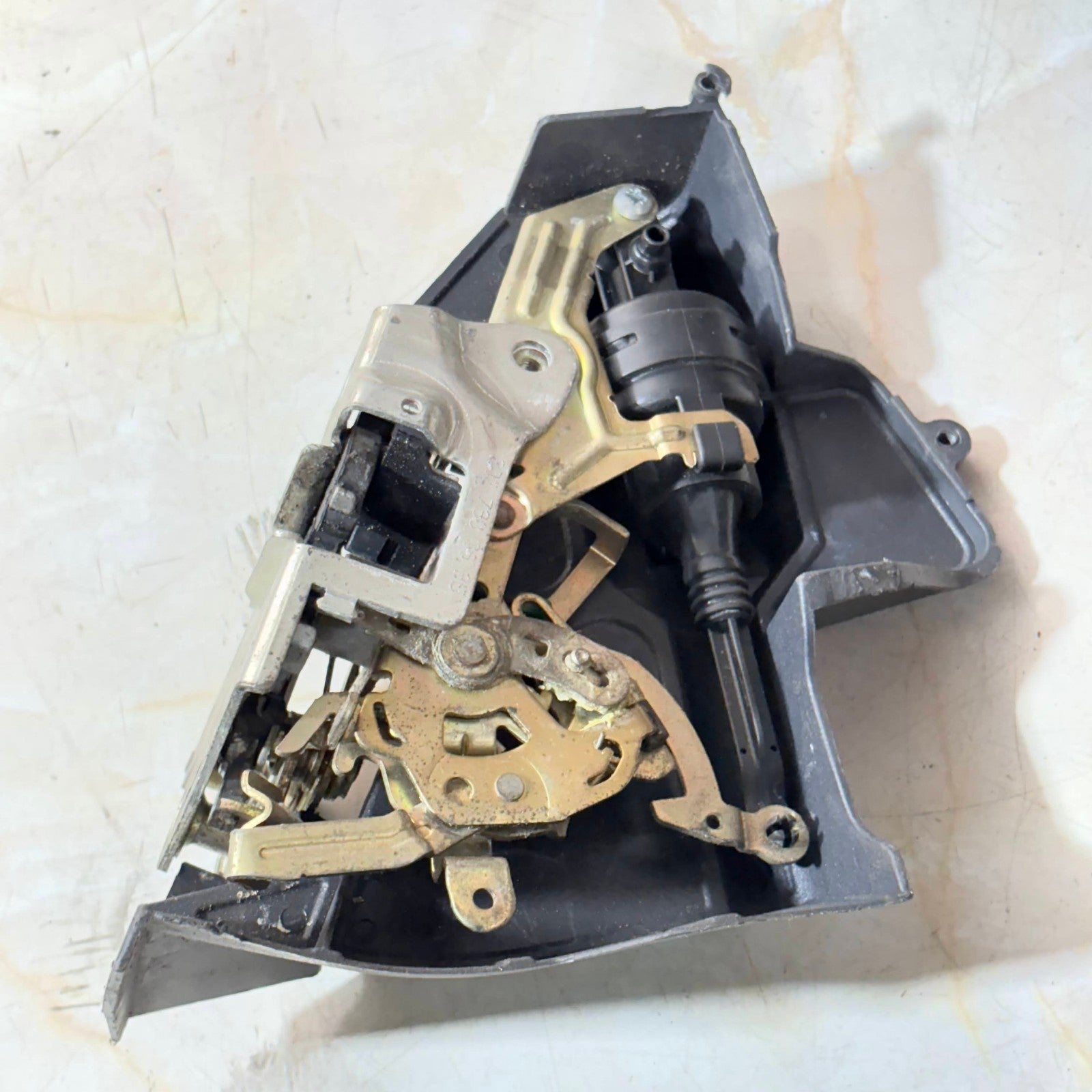

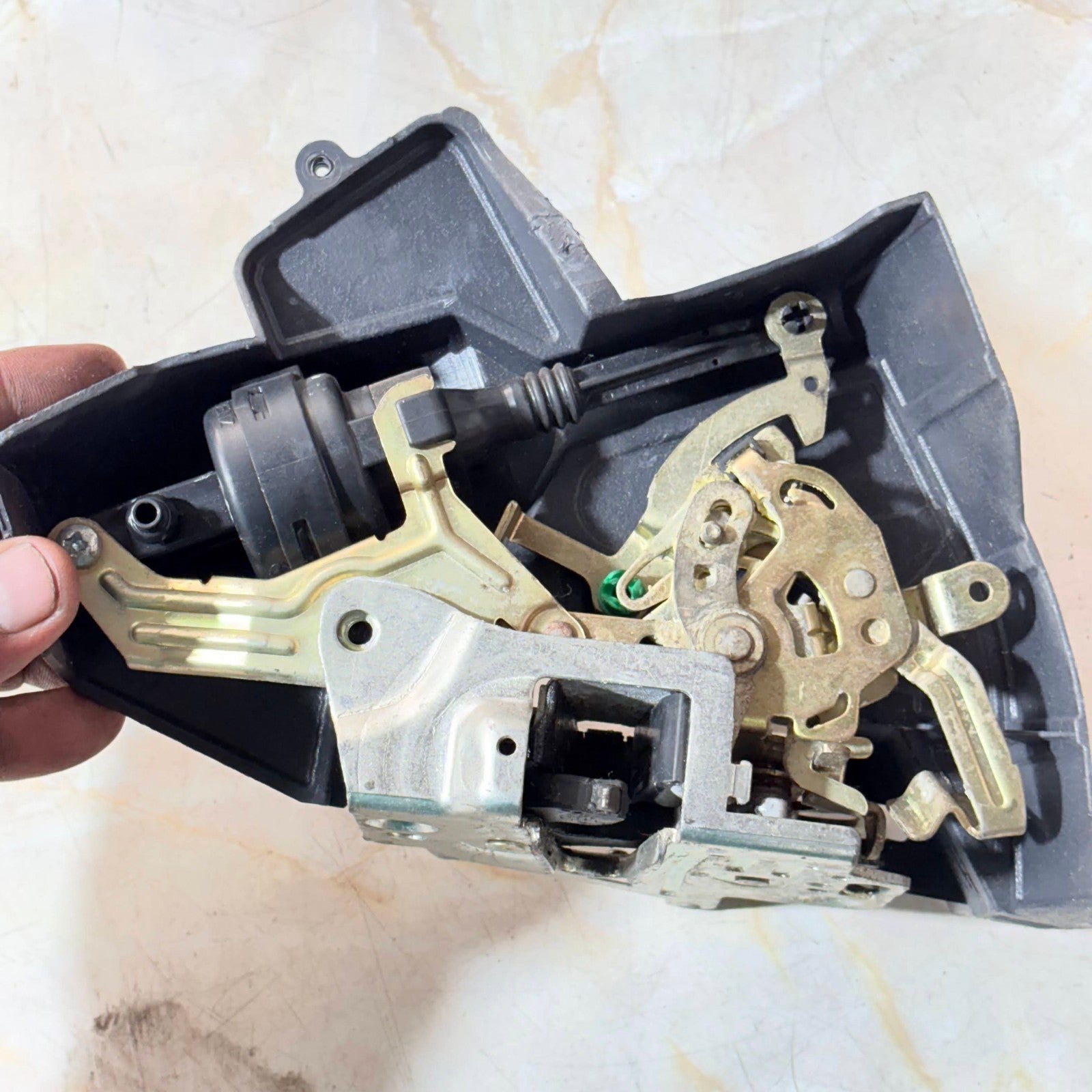

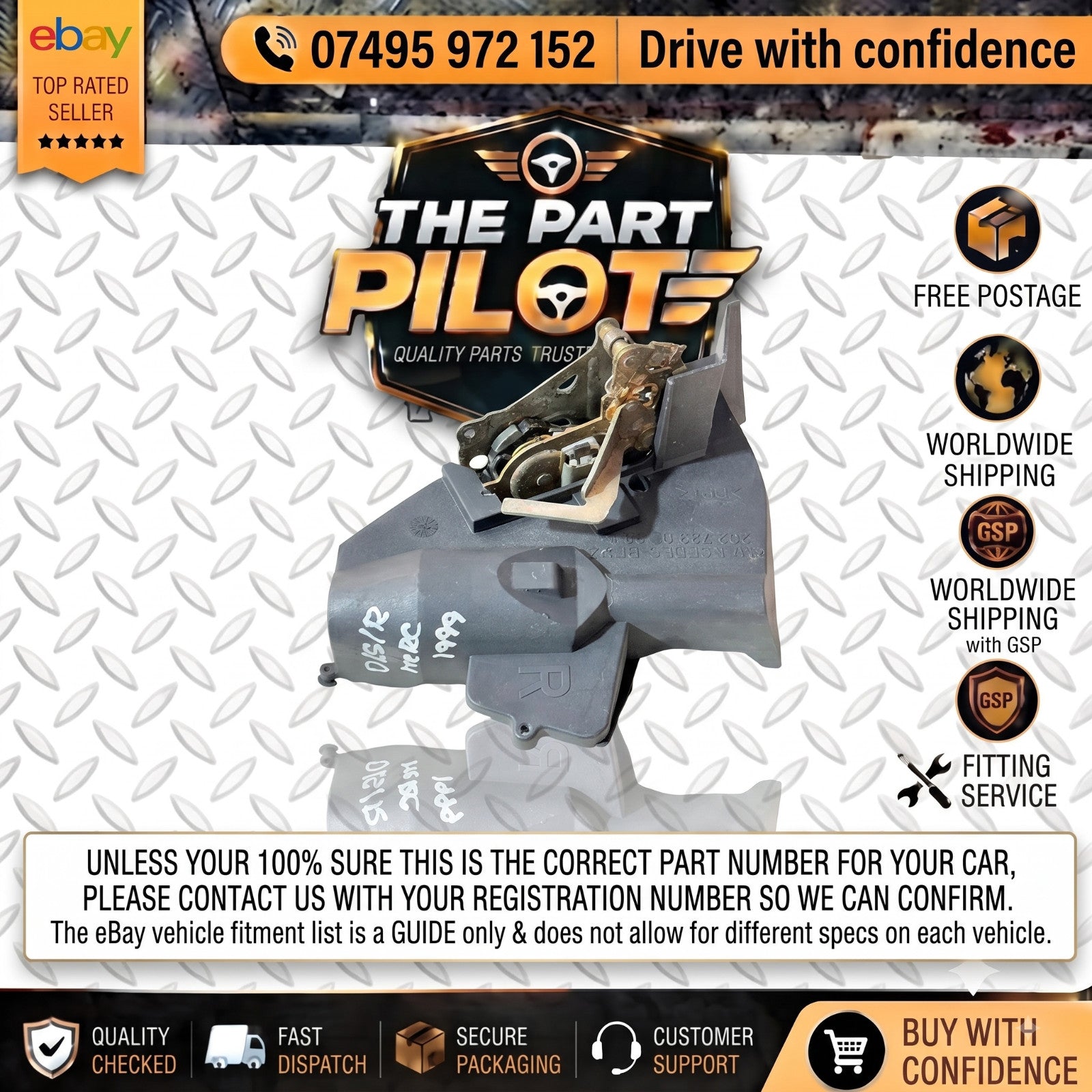

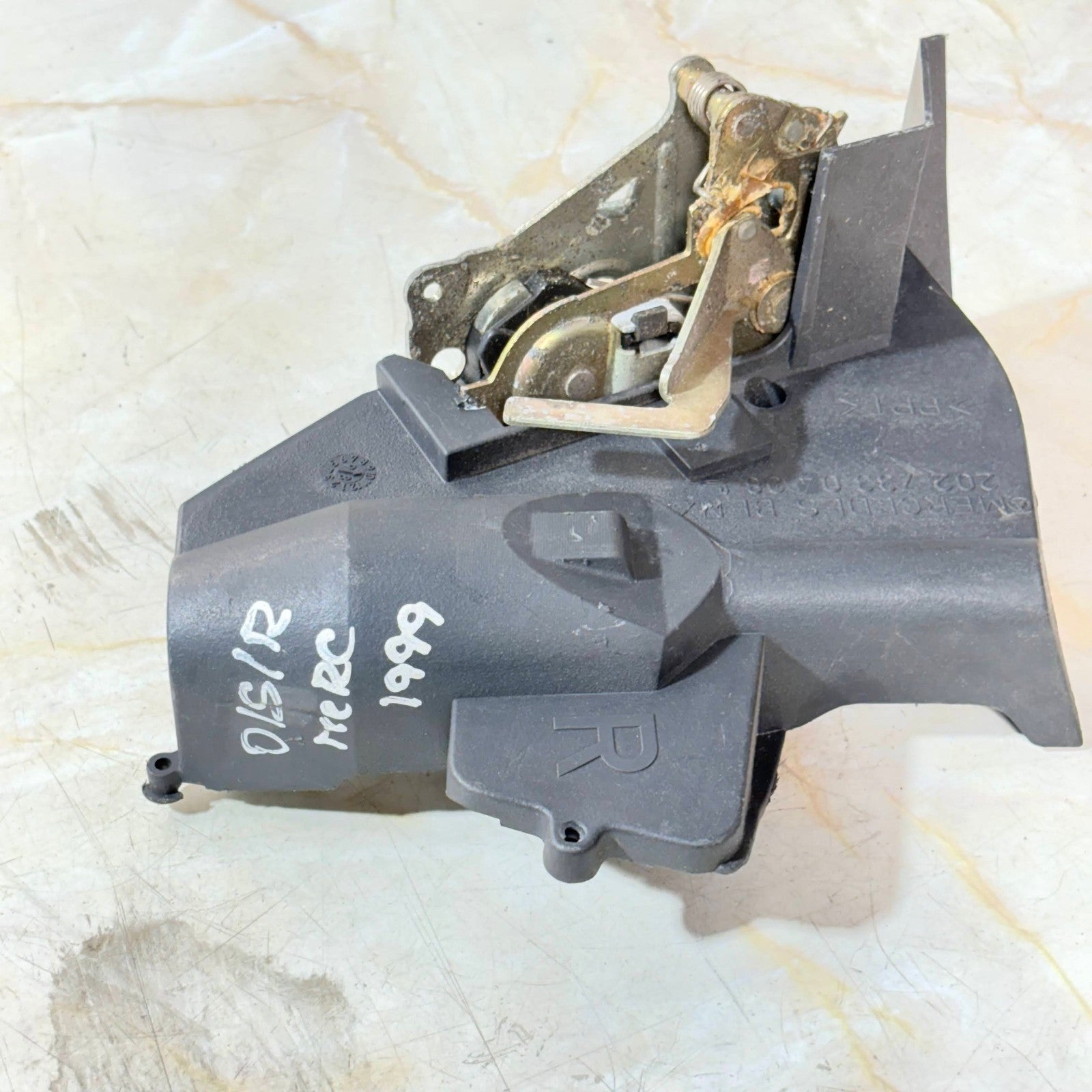

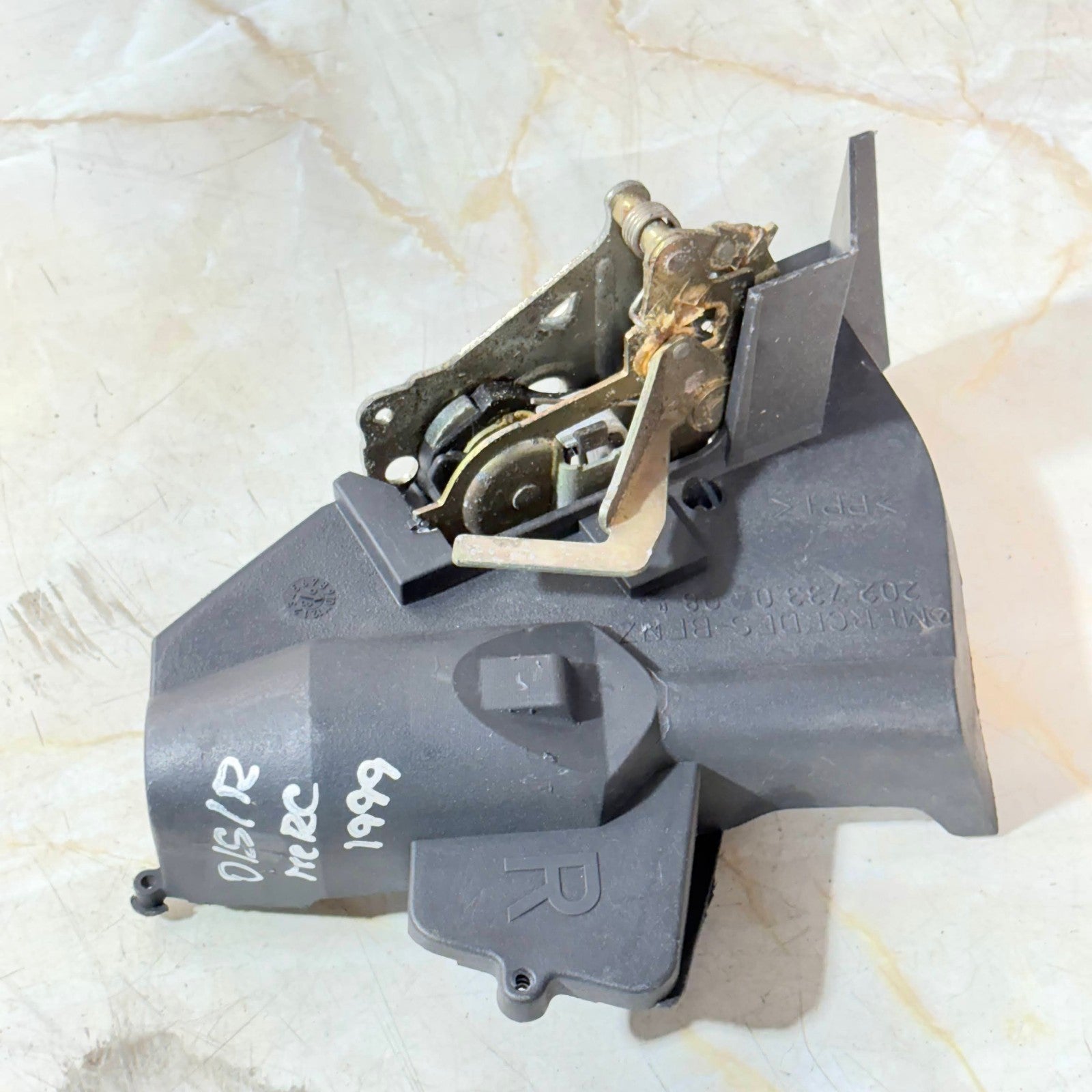

Mercedes rear right door lock latch mechanism 2027330408 actual item
THEPARTPILOT™

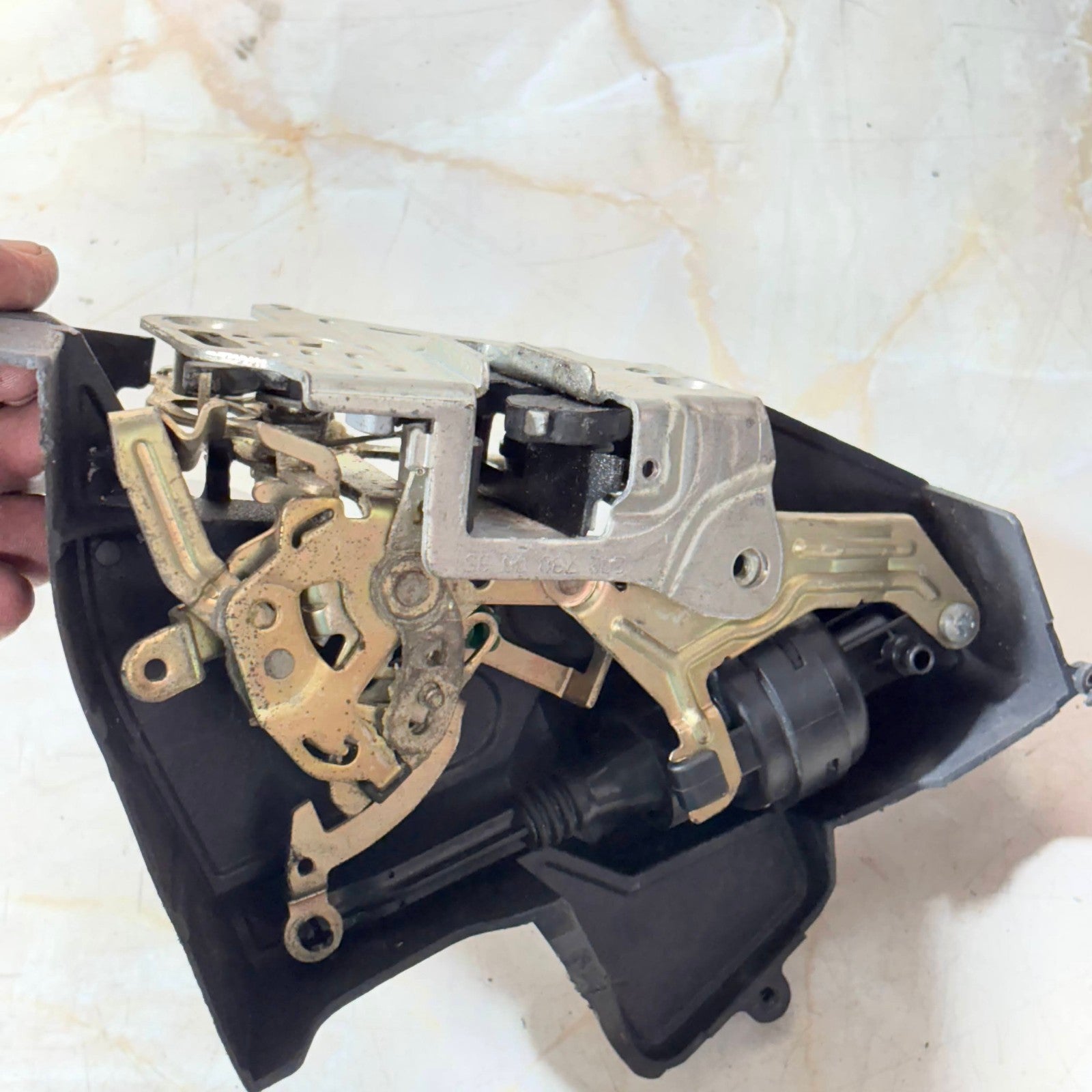

Actual complete mechanism supplied

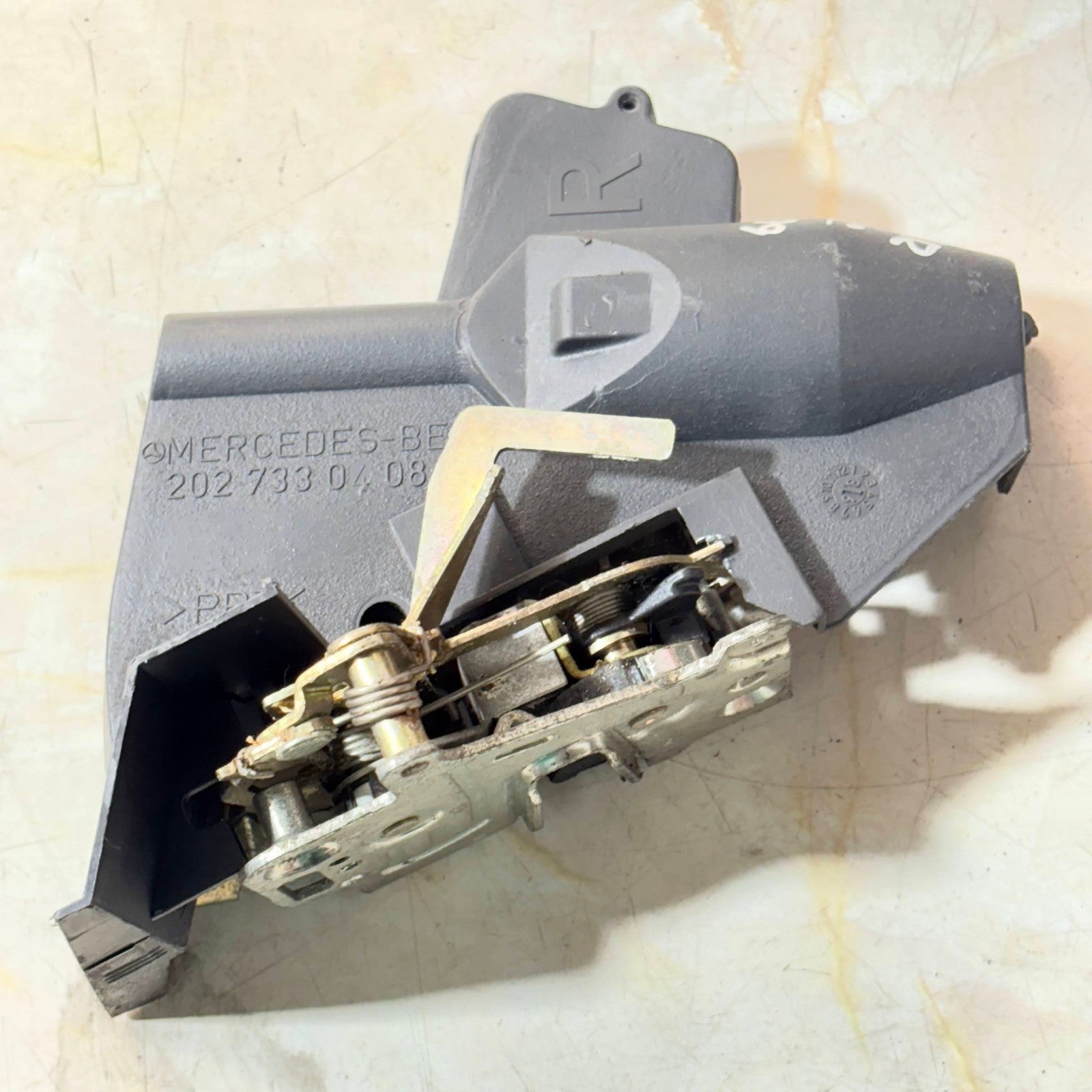

Mercedes 202 733 04 08 part number marking
THEPARTPILOT™
Number verified from photograph: 202 733 04 08

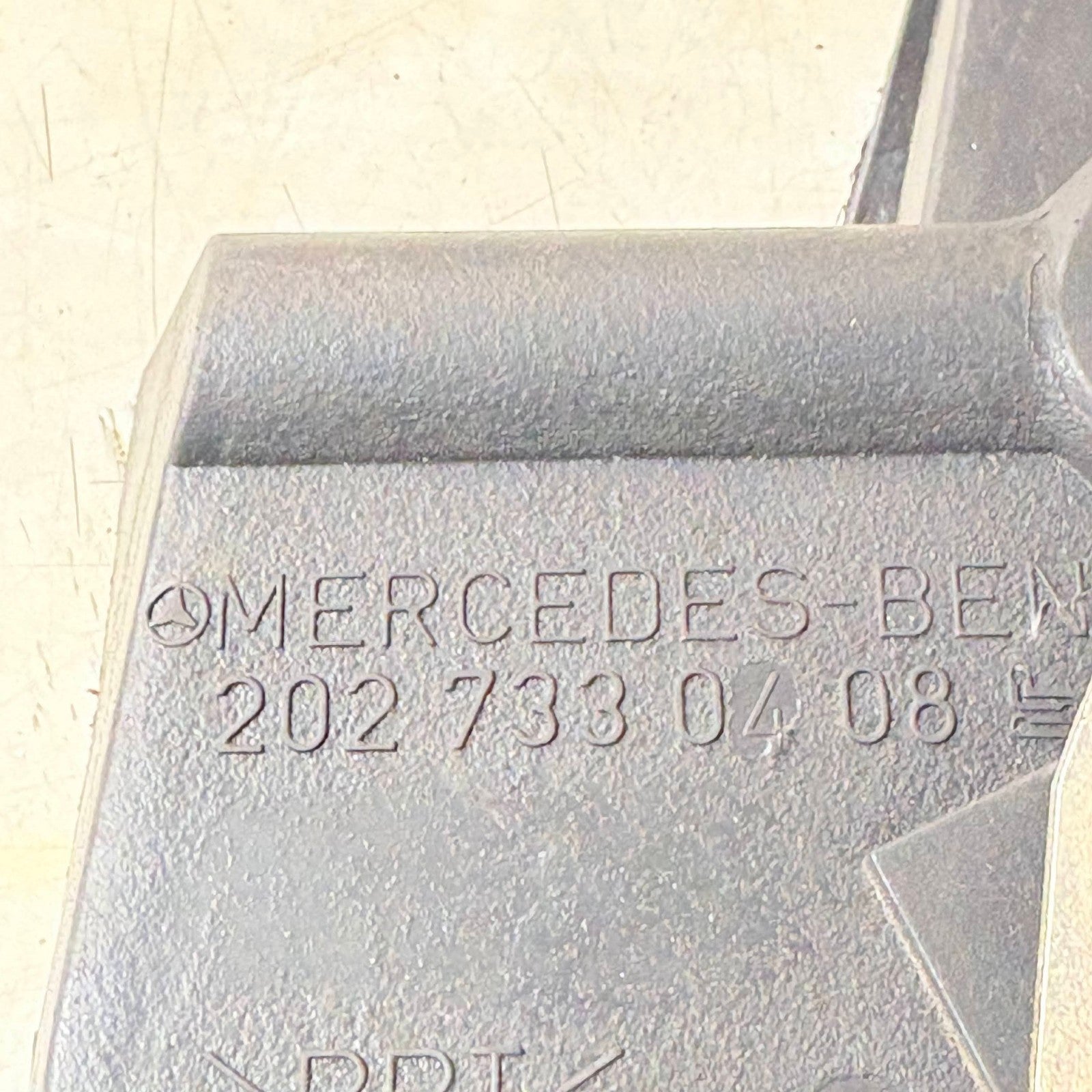

Close view of Mercedes 2027330408 marking

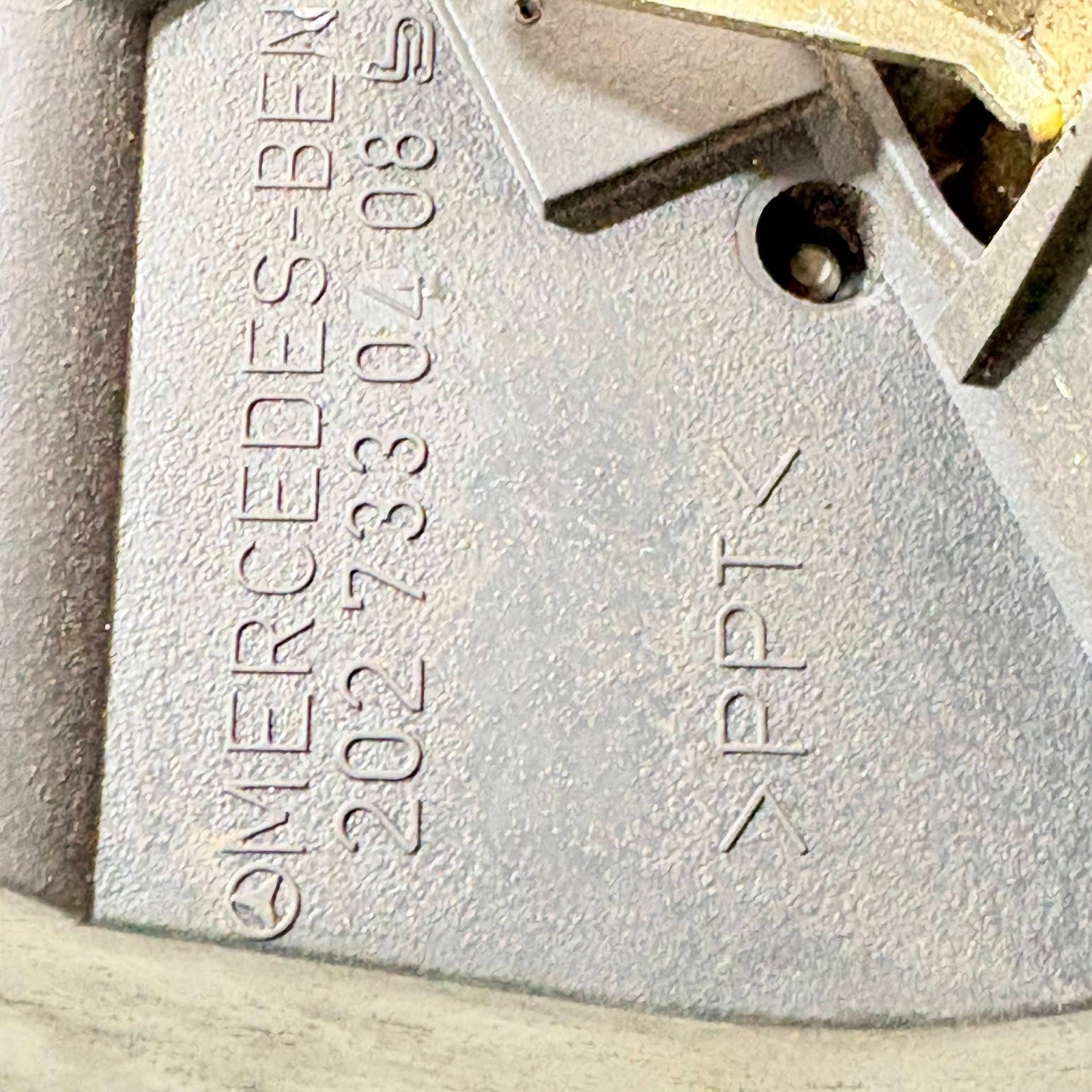

Second close-up confirming the moulded number

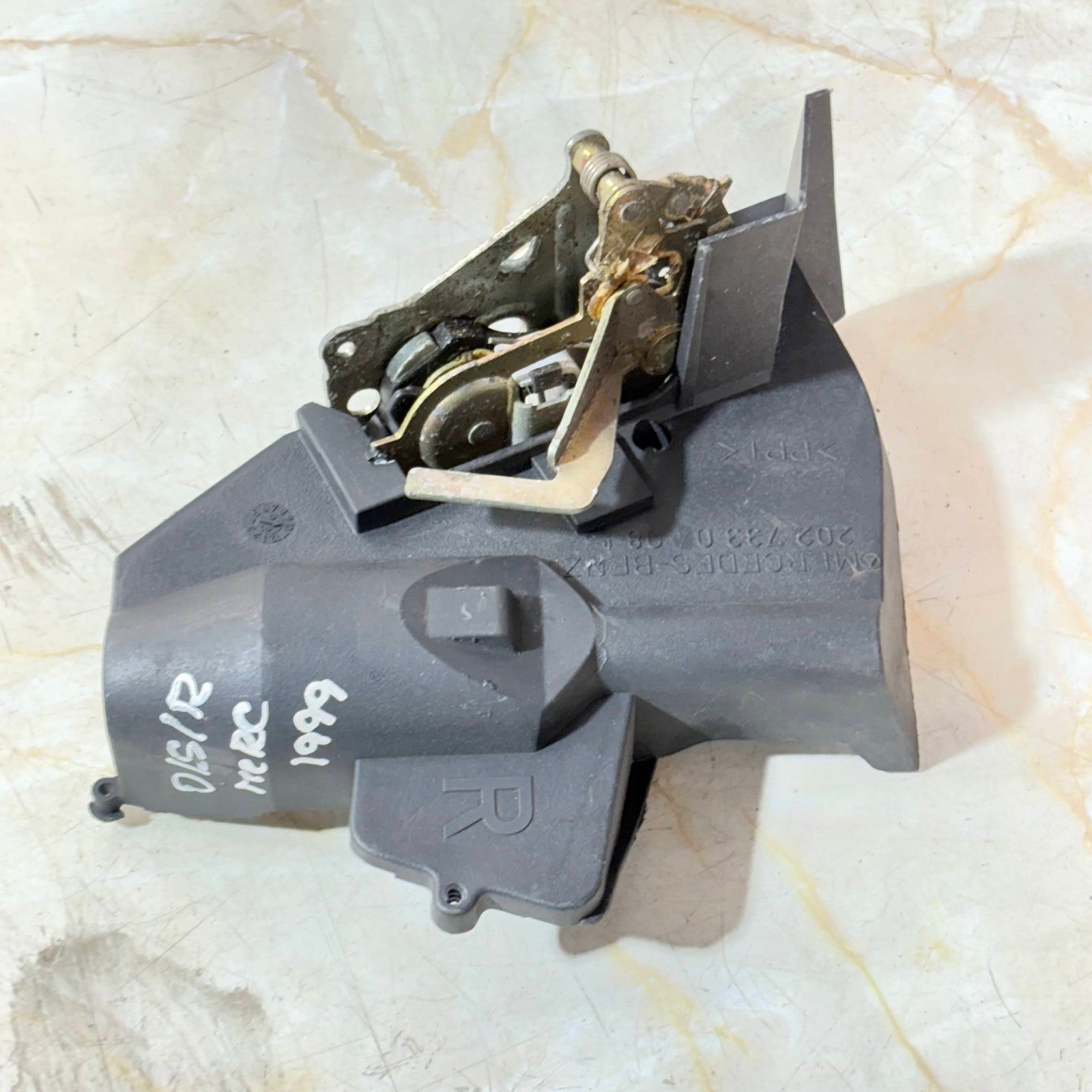

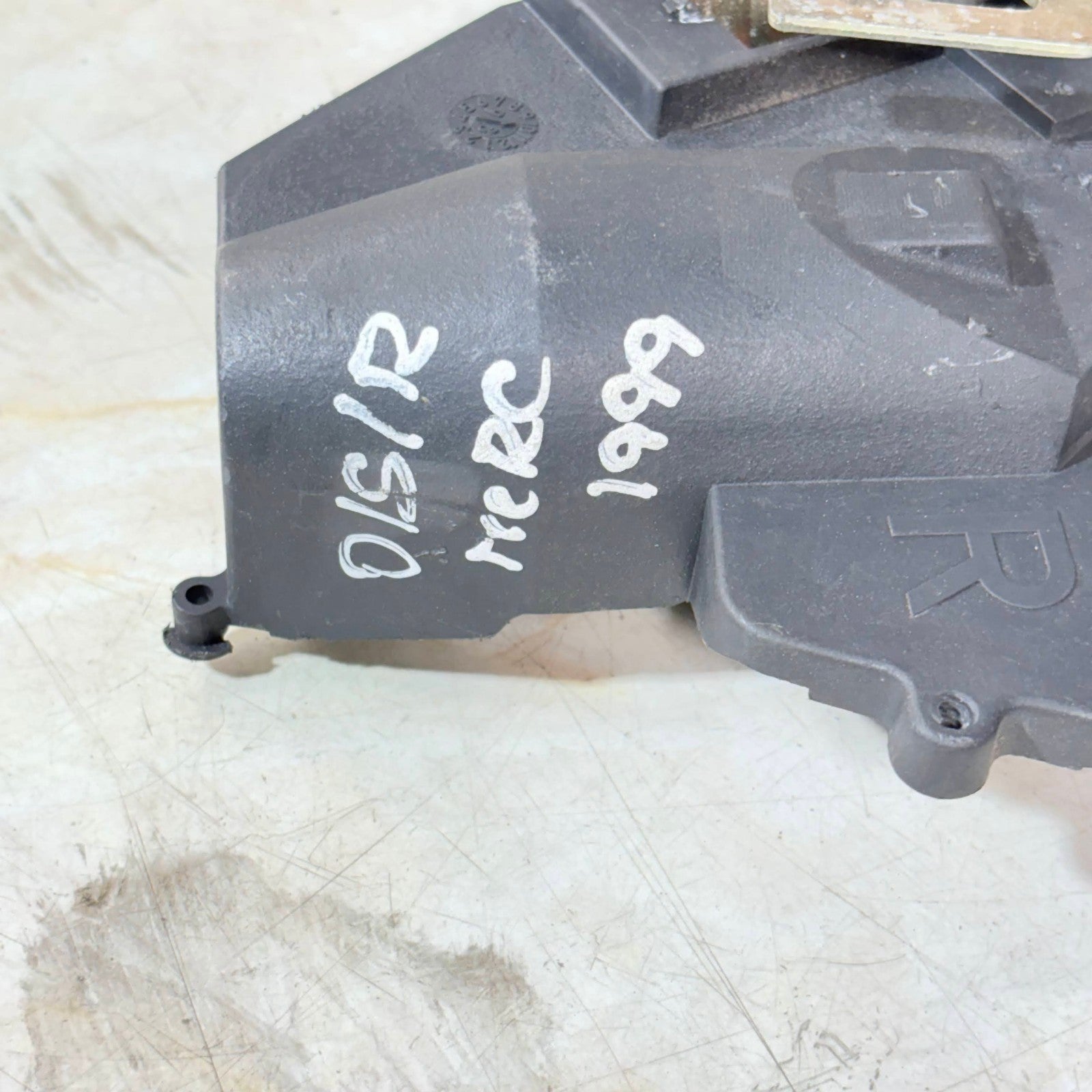

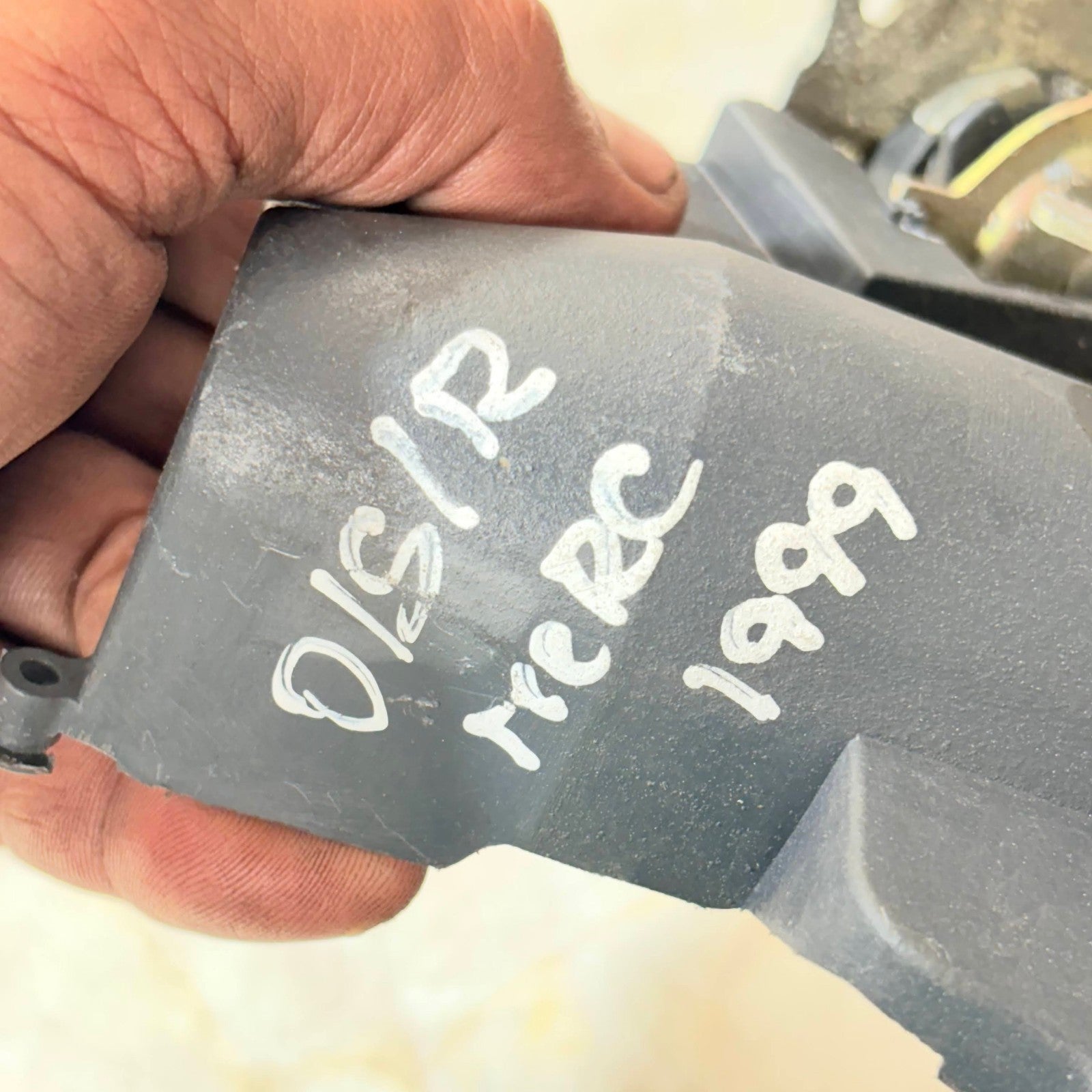

 Mercedes rear right 1999 dismantler stock marking
Original dismantler marking visible on the housing
REFERENCE VEHICLES — CORRECT 4-DOOR BODY FAMILY
Reference photographs only — not the donor vehicle and not the actual vehicle being sold. Both examples have rear passenger doors, matching the location of this component.
Mercedes-Benz C-Class W202 four door saloon reference vehicle
Mercedes-Benz C-Class W202
Four-door saloon reference example
 Mercedes-Benz E-Class W210 four door saloon reference vehicle
Mercedes-Benz E-Class W210
Four-door saloon reference example
📍 WHERE IS THE PART FITTED?
The mechanism sits inside the rear-right door, behind the interior door card and moisture barrier, close to the rear edge of the door where the latch engages with the body striker.
PARTS COMPATIBILITY — VERIFIED PART-NUMBER APPLICATIONS
Important: The following applications are catalogue references for the visible A2027330408 / 2027330408 component family. Because this listing contains a complete pre-owned latch mechanism and its separate full-assembly service number is not visible, the photographs and your original mechanism must still be matched before ordering.
Chassis / Body Model Exact Catalogue Years Engine / Notes
W202 Saloon C180 1993-2000 1.8 petrol • model code 202018
W202 Saloon C200 1994-1996 2.0 petrol • 202020
W202 Saloon C200 Diesel 1993-1995 OM601 • 202120
W202 Saloon C200 Diesel 1996-1998 OM604 • 202122
W202 Saloon C200 CDI 1998-2000 OM611 • 202134
W202 Saloon C200 Kompressor 1995-2000 2.0 supercharged petrol • 202025
W202 Saloon C220 1993-1996 2.2 petrol • 202022
W202 Saloon C220 Diesel 1993-1999 OM604 • 202121
W202 Saloon C220 CDI 1997-2000 OM611 • 202133
W202 Saloon C230 1996-1997 2.3 petrol • 202023
W202 Saloon C230 Kompressor 1995-2000 2.3 supercharged petrol • 202024
W202 Saloon C240 1997-2000 M112 2.4 petrol • 202026
W202 Saloon C250 Diesel 1993-1996 OM605 • 202125
W202 Saloon C250 Turbodiesel 1995-1998 OM605 turbo diesel • 202128
W202 Saloon C280 1993-1997 M104 petrol • 202028
W202 Saloon C280 1997-2000 M112 petrol • 202029
W202 Saloon C43 AMG 1997-2000 M113 4.3 petrol • 202033
W210 Saloon E300 D 1995-1997 OM606 diesel • 210020
W210 Saloon E230 1995-1997 2.3 petrol • 210037
W210 Saloon E300 Turbodiesel 1996-1999 OM606 turbo diesel • 210025
W210 Saloon E240 1997-2000 M112 2.4 petrol • 210061
W210 Saloon E250 Turbodiesel 1997-1999 OM605 turbo diesel • 210015
W210 Saloon E420 1997 4.2 petrol
W210 Saloon E200 CDI 1998-2002 OM611 diesel • 210007
W210 Saloon E220 CDI 1998-2002 OM611 diesel • 210006
W210 Saloon E430 1997-2002 M113 4.3 petrol • 210070
W210 Saloon E320 1996-2002 3.2 petrol — check exact mechanism photograph
W210 Saloon E320 CDI 1999-2002 OM613 diesel • 210026
W210 Saloon E200 Kompressor 2000-2002 2.0 supercharged petrol • 210048
W210 Saloon E55 AMG 1999-2002 5.5 petrol
✗ DO NOT ORDER THIS PART FOR
Front left or front right doors — this is a rear mechanism.
Rear left door — the opposite side uses a different handed component.
W203 C-Class, W211 E-Class, W204, W212 or later platforms unless your original mechanism and numbers are independently confirmed as identical.
Two-door coupés or convertibles without a rear passenger door.
Any vehicle where your original lock housing, rods, actuator arrangement, mounting points or number differ from the photographs.
S202 / S210 estate models should not be assumed solely from the chassis family. Some catalogue applications share this number family, but match the original complete mechanism before purchase.
✓ BUY THE CORRECT PART FIRST TIME
1. Confirm your required position is REAR RIGHT.
2. Compare your existing lock mechanism directly with every actual-item photograph above.
3. Look for 2027330408 / 202 733 04 08 on the corresponding cover/housing.
4. Compare the metal latch arrangement, linkage arms, mounting points and actuator layout.
5. Do not rely on registration year alone.
6. If anything differs, message us through eBay before purchasing with your VIN and a clear photograph of your original component.
WHAT THIS PART DOES

This mechanism is mounted inside the rear-right door and forms part of the system that physically catches the door onto the body striker, releases it when a handle is operated and works with the vehicle's rear-door locking / central-locking actuation system.

Possible symptoms of a faulty lock mechanism or associated actuator

• Rear-right door will not latch securely.
• Door remains locked or unlocked when the rest of the vehicle changes state.
• Central locking operation on the rear-right door becomes slow or inconsistent.
• Interior or exterior handle movement does not release the latch correctly.
• Door becomes difficult to open after unlocking.
• Latch feels stiff, intermittent or fails to return normally.
• On pneumatic-equipped systems, slow operation or a leak in the connected actuator/line can give similar symptoms.

Diagnosis note: A door-locking fault may also be caused by linkage rods, handle components, child-lock parts, wiring, pneumatic hoses/actuator components or adjustment. Diagnose the fault and compare your original mechanism before buying rather than replacing parts by guesswork.
WHY CHOOSE AN ORIGINAL FACTORY COMPONENT?

Older Mercedes door mechanisms depend on the correct mounting geometry, latch travel, linkage positions, housing shape and interaction with the surrounding door hardware. A correctly matched original factory component preserves the design and dimensions used when the vehicle was built.

Cheap replacement copies can vary in construction, tolerances and linkage design. Buying a serviceable pre-owned original part can therefore be a cost-effective alternative where exact fit and original mechanical geometry are important.

💷 On selected vehicle parts, buying pre-owned rather than new can save up to 70% compared with new-part pricing. Actual saving varies by part and current new retail price.
FITTING GUIDE
This guide is for general information. Fasteners and trim details can vary by model/year. If you are not experienced with door trim and locking systems, professional installation is recommended.
Typical tools required

• Trim-removal levers
• Torx and Phillips screwdrivers / bits
• Small socket and ratchet set
• Needle-nose pliers or suitable linkage-clip tool
• Small pick / flat trim tool
• Torch / inspection light
• Protective gloves
• Suitable tape or clips for protecting/refitting the moisture barrier

Typical fitting sequence

1. Switch the ignition off and follow the vehicle manufacturer's electrical-safety precautions before disconnecting door electrical connectors.

2. Remove the rear-right interior door trim carefully, releasing handle trim, screws and perimeter clips without damaging the panel.

3. Disconnect any window-switch or associated electrical connector required to free the trim panel.

4. Carefully peel the moisture barrier back far enough to reach the latch area without tearing it.

5. Photograph or label the existing linkage positions before disturbing them.

6. Unclip the relevant handle/locking rods and disconnect the associated central-locking/pneumatic actuator connection where fitted.

7. Remove the lock fasteners at the rear edge of the door and manoeuvre the mechanism out of the door cavity.

8. Place your original mechanism beside this replacement and verify housing shape, linkage points, mounting holes and part markings before installation.

9. Fit the replacement in reverse order, making sure every rod/clip is positively secured.

10. Before refitting the trim completely, test inner handle, outer handle, central locking, manual lock operation and child-lock operation as applicable.

11. Confirm the latch releases correctly before closing the door fully. Refit and reseal the moisture barrier, then reinstall the door card.

Estimated repair time: approximately 1.0-2.0 labour hours for an experienced technician. Corroded fasteners, damaged trim clips, diagnosis or previous repairs can increase the time.
STATIC GARAGE LABOUR COST CALCULATOR
Calculation: garage hourly rate × estimated 1.0-2.0 hours. These figures are labour-only estimates and are not a quotation.
Garage Rate Approx. 1 Hour Approx. 2 Hours
£50/hour £50 £100
£60/hour £60 £120
£70/hour £70 £140
£80/hour £80 £160
£90/hour £90 £180
£100/hour £100 £200
£120/hour £120 £240
£150/hour £150 £300
Reference mechanic workshop image
🔧 FITTING SERVICE AVAILABLE SUBJECT TO AVAILABILITY

We may be able to provide a fitting / repair service subject to workshop capacity, vehicle condition and appointment availability. Contact us through eBay Messages before purchasing if you would like to enquire.

Reference workshop image for illustration only; not a photograph of our premises.
🌍 INTERNATIONAL DELIVERY THROUGH eBAY

This listing is currently enabled for eBay's Global Shipping Programme where the item and destination are eligible. International tracking, customs processing and destination postage are managed through eBay. The countries displayed at checkout always take priority because eBay can change programme eligibility and migrate services over time.

Current eligible EU destinations

Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain and Sweden.

Current eligible non-EU destinations

Antigua and Barbuda, Aruba, Australia, Bahamas, Bahrain, Bangladesh, Barbados, Belize, Bermuda, Bolivia, Brazil, Brunei Darussalam, Cambodia, Canada, Cayman Islands, Chile, China, Colombia, Costa Rica, Dominica, Dominican Republic, Ecuador, Egypt, El Salvador, French Guiana, Grenada, Guadeloupe, Guatemala, Guernsey, Honduras, Hong Kong, Iceland, Indonesia, Israel, Jamaica, Japan, Jersey, Jordan, Kuwait, Liechtenstein, Macau, Malaysia, Maldives, Martinique, Mexico, Monaco, Montserrat, New Zealand, Nicaragua, Norway, Oman, Pakistan, Panama, Paraguay, Peru, Philippines, Qatar, Reunion, Saint Kitts and Nevis, Saint Lucia, Saudi Arabia, Singapore, South Africa, South Korea, Sri Lanka, Switzerland, Taiwan, Thailand, Trinidad and Tobago, Turks & Caicos Island, UAE, Ukraine, Uruguay, USA and Vietnam.

📦 PLEASE CHECK YOUR DELIVERY ADDRESS BEFORE CHECKOUT

Orders can only be dispatched using the delivery address supplied to us by eBay for the transaction. Please make sure your house number, street, postcode and country are correct before completing checkout. We cannot manually redirect an order to a different address after purchase.

RETURNS & FITMENT RESPONSIBILITY

We provide detailed photographs, the visible part number and compatibility guidance to help buyers identify the correct component first time. Please use that information before fitting the part.

Returned items should be returned in the same condition and with all components supplied. Where permitted by eBay and applicable law, if a returned item has been installed, altered, damaged, incompletely returned or otherwise suffered an actual loss in value beyond what was necessary to inspect it, a deduction of up to 50% may be made to reflect that actual loss in value.

This is not an automatic restocking fee and does not override the eBay Money Back Guarantee or applicable statutory consumer rights.

Unsure about compatibility? Message us through eBay before ordering. A VIN and photograph of your existing part can greatly reduce the risk of ordering the wrong component.
Reference warehouse with boxed stock
📦 25,000+ PARTS IN STOCK

THEPARTPILOT carries more than 25,000 vehicle parts across our stockholding at any one time. Parts are identified, stored, picked and packed for dispatch with the goal of supplying the correct component quickly and reducing unnecessary vehicle downtime.

CC0 reference warehouse image for illustration; not a photograph of THEPARTPILOT premises.
🌱 SUPPORT A LOCAL SMALL BUSINESS • REUSE • REPAIR • RECYCLE

Choosing a serviceable pre-owned component keeps an existing part in productive use instead of discarding it prematurely. Reusing vehicle parts can reduce waste and reduce the need to manufacture a replacement component where a suitable original part is already available.

Every order helps support an independent UK parts business focused on recovering, identifying and putting usable vehicle components back into circulation. Thank you for choosing THEPARTPILOT. 🚗♻️📦

BEFORE YOU CLICK BUY
REAR RIGHT ✓    2027330408 ✓    PHOTOS MATCH ✓    VEHICLE APPLICATION CHECKED ✓
If you cannot confirm all four points, contact us through eBay Messages before ordering.

WhatsApp QR for Fitment Help / Appointment Enquiries

Scan the QR code to contact ThePartPilot on WhatsApp for fitment checks, appointments or fitting service availability.

For faster fitment help, send your vehicle registration, VIN if available, and clear photos of your existing part, connector and part number.
THEPARTPILOT
PART NUMBER VERIFIED • DETAILED FITMENT • RESPONSIBLE REUSE
THEPARTPILOT™ branding displayed for listing identification and brand protection. Reference vehicle/workshop/warehouse imagery is public-domain or CC0 illustrative material.

You may also like
