MINI R56 06-13 R55 07-14 One Cooper Petrol Diesel Red Fuel Flap 51177148884
£22.42
THE PART PILOT
PREMIUM RECYCLED VEHICLE PARTS • FITMENT-FIRST LISTING
MINI R56 06-13 R55 07-14 One Cooper Petrol Diesel Red Fuel Flap 51177148884
Critical fitment point: the pictured red, body-colour fuel flap assembly should be matched to full part number 51 17 7 148 884 / 51177148884 and short number 7 148 884 / 7148884. The mould also displays 7 148 886, which is associated with the different Cooper S/JCW-style assembly. Do not order from the mould number alone.
This listing is for the round red exterior fuel filler flap/door with its black hinge and filler-pocket housing, exactly as shown. It is fitted around the fuel filler neck in the right rear quarter panel and provides the exterior access door, hinge support and protective recess around the filler opening.
Actual item photographs

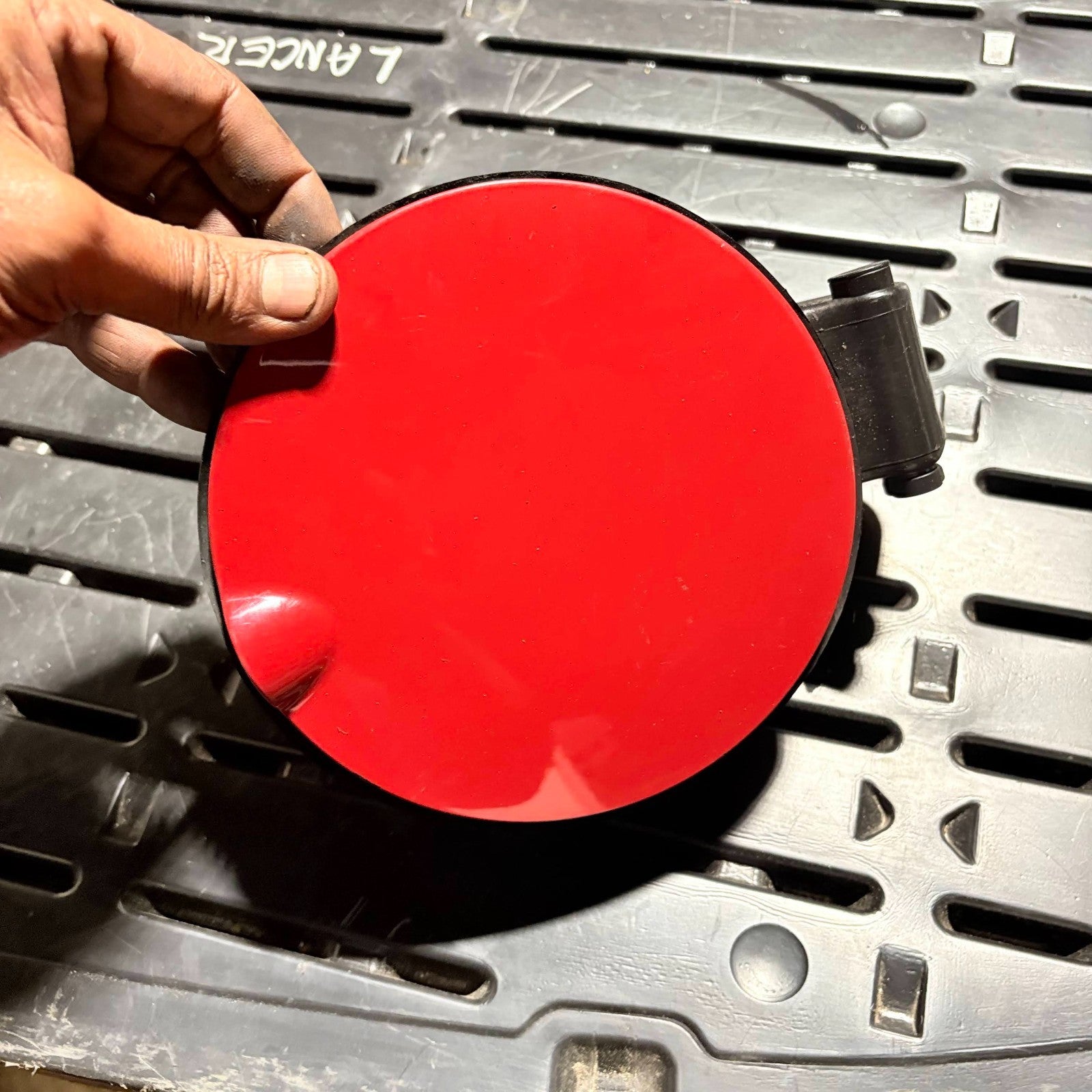

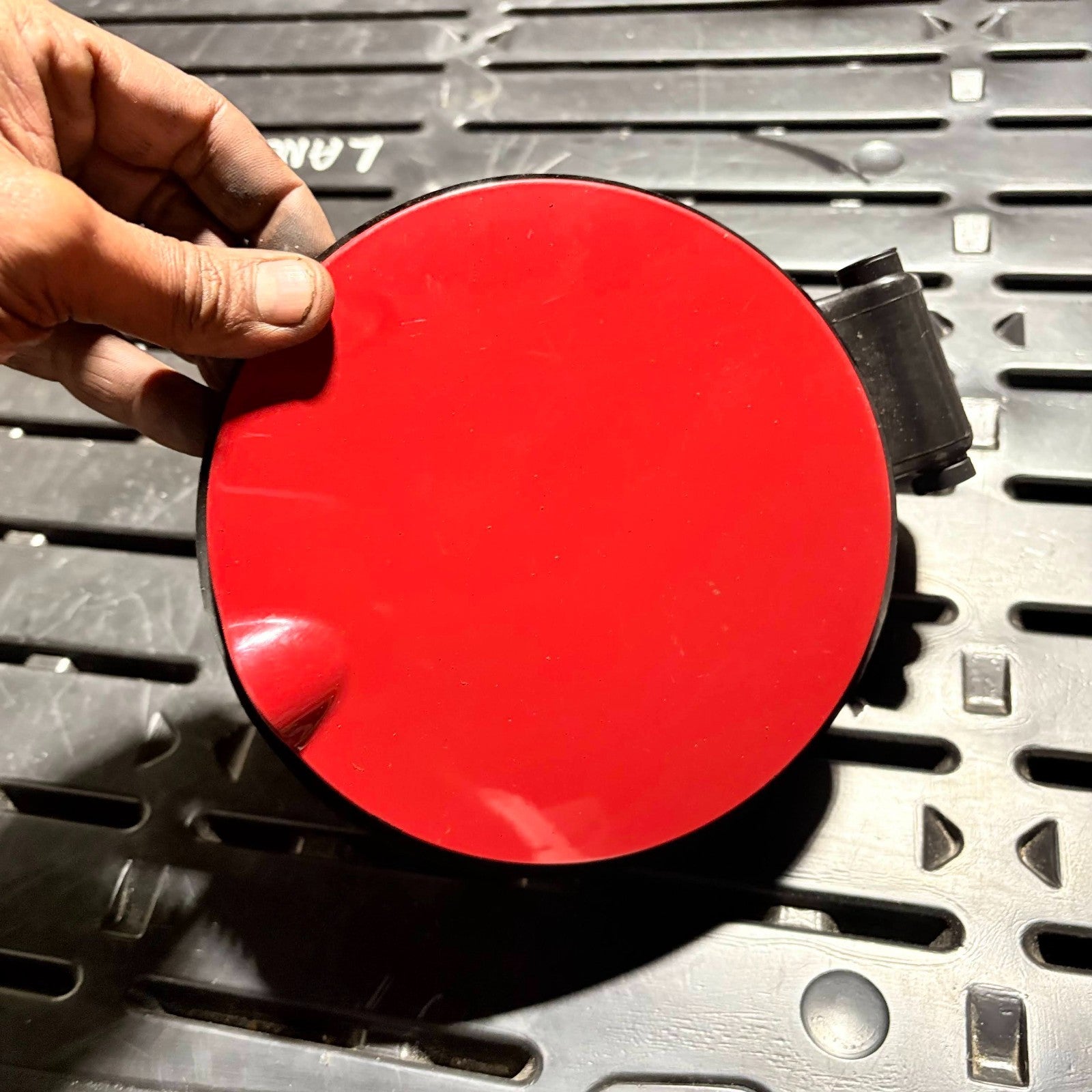

THEPARTPILOT • 147479020777Front view of the actual red round fuel flap supplied.

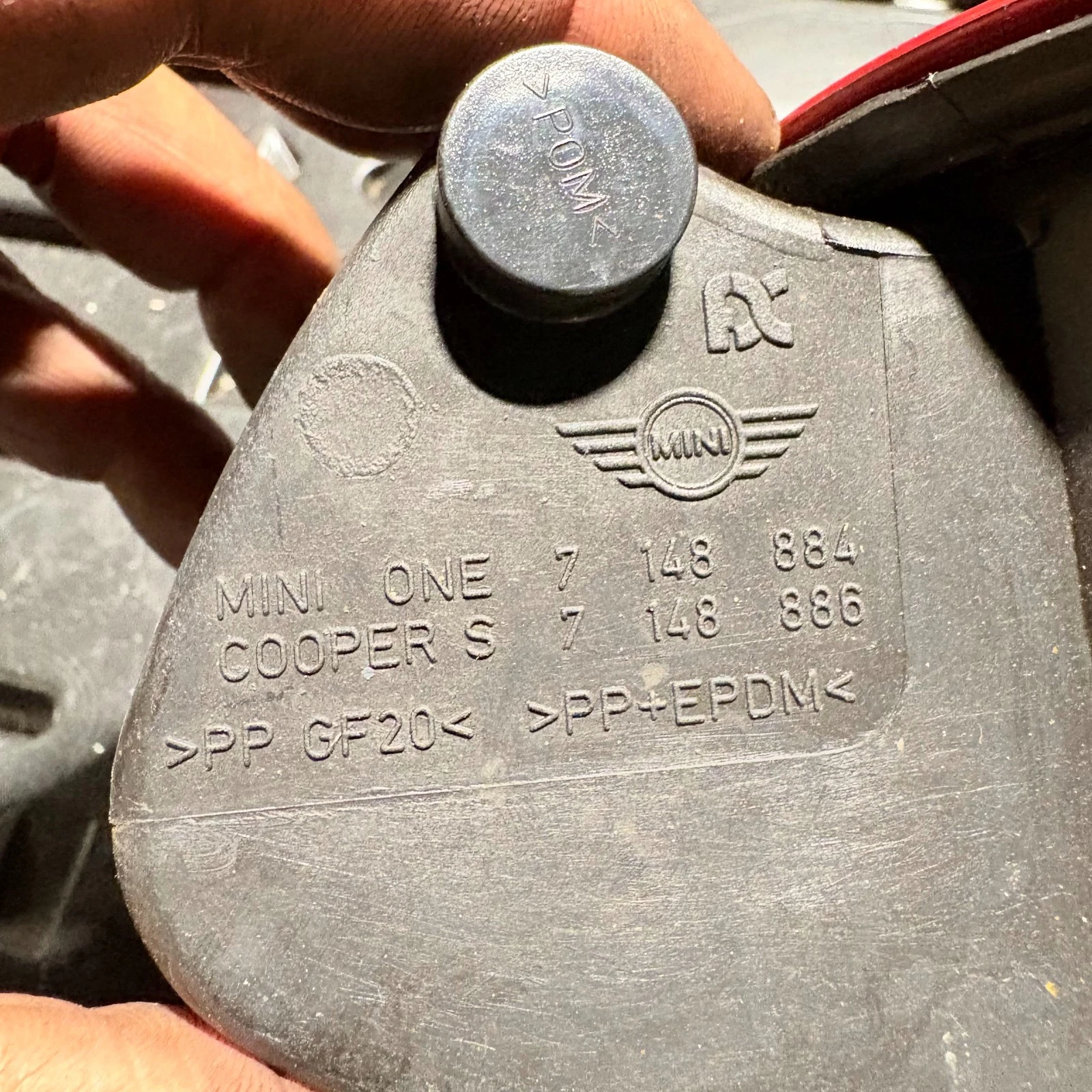

THEPARTPILOT • PART NUMBER IMAGERear view showing the moulded numbers and material markings. Use 51177148884 / 7148884 as the main matching number for this red base-style flap.

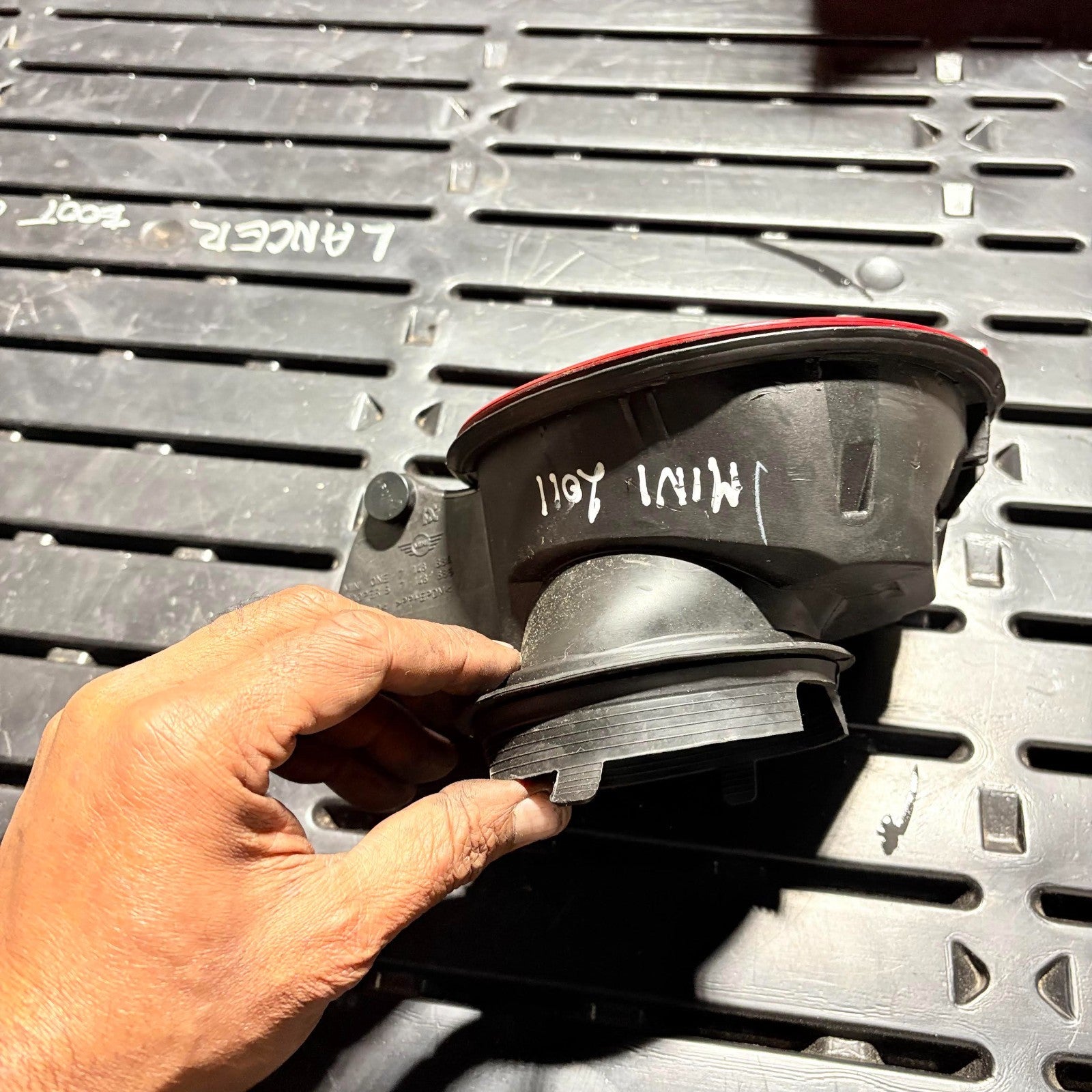

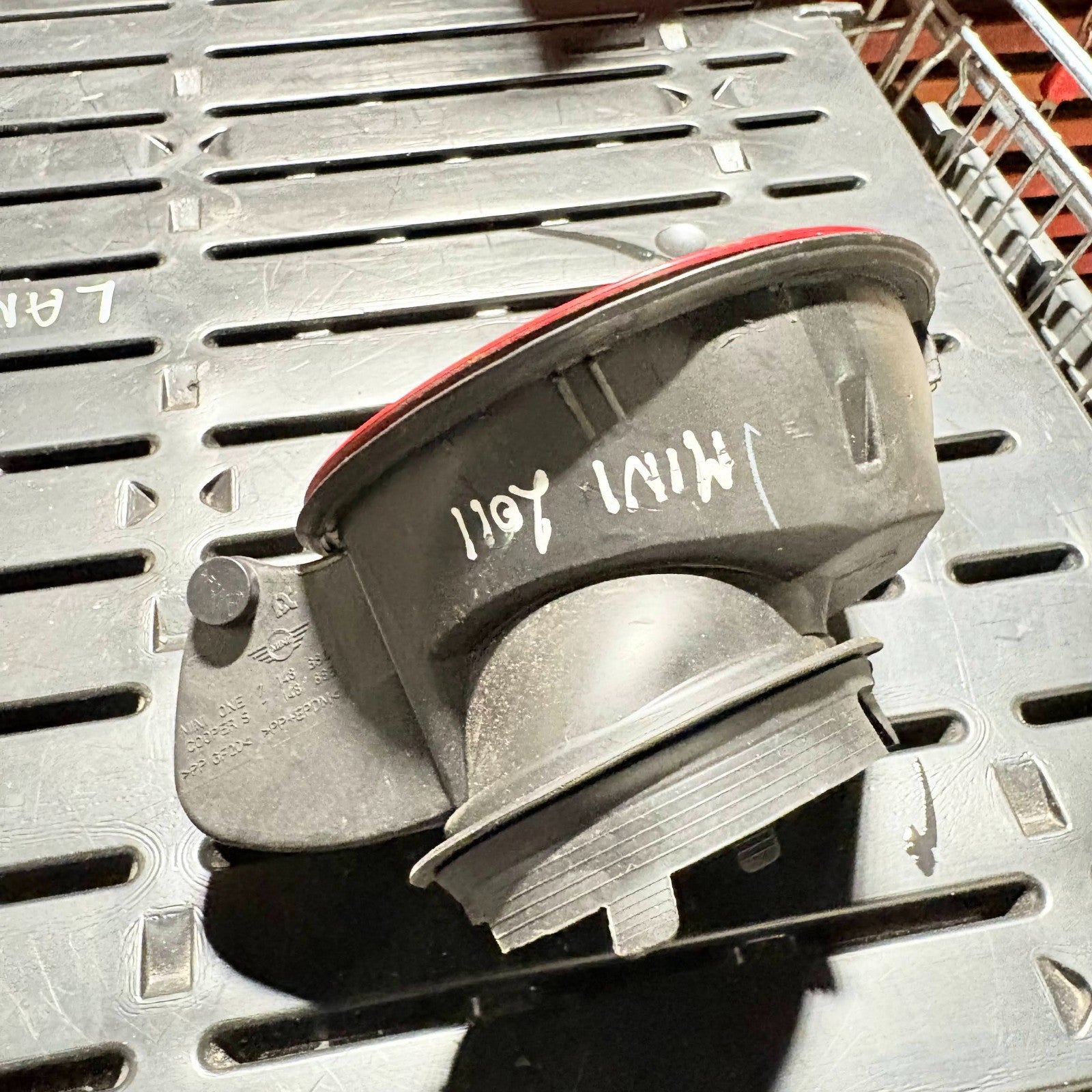

THEPARTPILOT • ACTUAL ITEMRear of the filler-pocket housing and hinge area. Compare every fixing point with your original part.

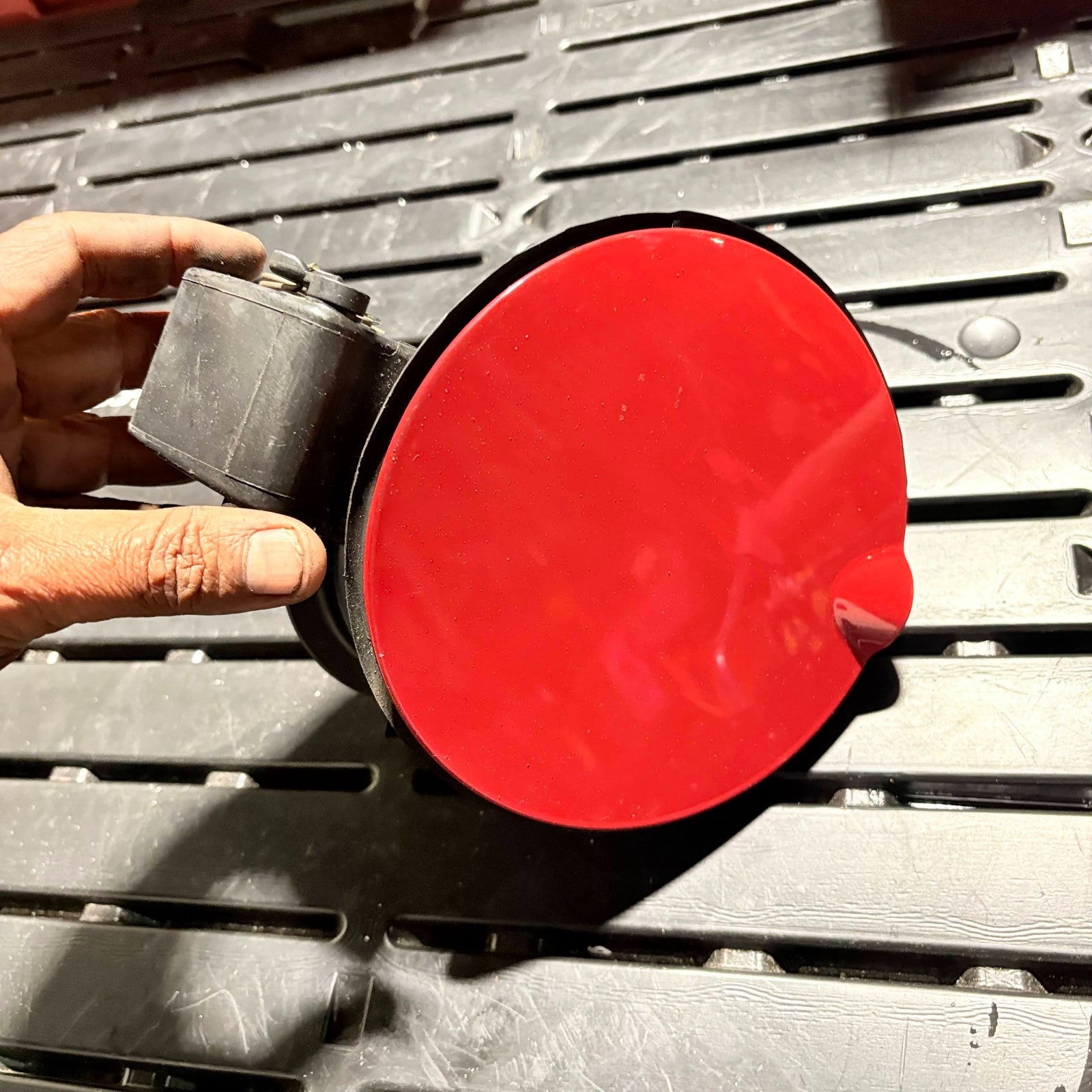

THEPARTPILOT • ACTUAL ITEMAdditional condition and colour reference. Paint code is not verified; colour variation is possible.
Item details & engineering information
| Vehicle manufacturer | MINI |
| Part type | Exterior fuel filler flap / fuel door with hinge and filler-pocket housing |
| Primary full part number | 51177148884 (formatted 51 17 7 148 884) |
| Short / casting number | 7148884 / 7 148 884 |
| Other moulded number | 7148886 / 7 148 886 is visible on the shared mould. It is not automatic confirmation for the Cooper S/JCW application. |
| Interchange Part Number | 51 17 7 148 884; 51177148884; 7 148 884; 7148884 |
| Superseded Part Number | No separate superseded number has been confirmed for this exact red assembly. |
| Colour marking | Red outer flap; exact MINI paint name/code is unverified. Compare the photographs closely and allow for age, sunlight and camera-screen variation. |
| Material markings | PP-GF20 and PP+EPDM are visible on the moulded component, indicating reinforced polypropylene and impact-modified polypropylene/rubber material areas. |
| Fitted position | Right rear quarter panel, surrounding the fuel filler neck |
| What it controls / protects | Provides exterior access to the fuel filler, supports the flap hinge, helps shield the filler recess from road dirt and water, and provides the interface for the locking pin where fitted. |
| Included | The components visible in the actual listing photographs only. |
| Not confirmed / normally separate | Fuel tank cap, electric locking actuator, wiring, drain hose, clips, screws and seals are not included unless visibly attached in the photographs. |
| Condition | Pre-owned recycled component. Expect normal storage, road-use and cosmetic marks. Inspect every image before ordering. |
| Warranty | 30 days, subject to the listing terms and correct installation. |
| eBay Item Number | 147479020777 |
| VAT information | Sold under the VAT Margin Scheme / Global Accounting. VAT is not shown separately and is not reclaimable. |
Vehicle compatibility table
Compatibility basis: visible red base-style flap, photographed mould markings, and primary part number 51177148884. Registration year by itself is not enough; match the old part number, body style, flap finish and hinge/pocket shape.
| Fitment status | Vehicle / chassis | Production generation | Models covered when number and shape match | Body-style check |
|---|---|---|---|---|
| CONFIRMED FAMILY | MINI Hatch R56 / R56 LCI | 2006-2013 | One, One D, Cooper and Cooper D within their respective production runs | 3-door hatch only. Round body-colour flap in the right rear quarter. |
| CONFIRMED FAMILY | MINI Clubman R55 / R55 LCI | 2007-2014 | One, One D, Cooper and Cooper D within their respective production runs | First-generation Clubman with rear split doors. Match the round body-colour flap and 51177148884. |
| DO NOT ASSUME | R55 / R56 Cooper S, Cooper SD or John Cooper Works | 2006-2014 | Performance variants commonly use the different 51177148886 / 7148886 chrome-style configuration. | Do not buy this red flap because both short numbers appear on the plastic mould. |
| NOT LISTED AS FITTING | R57 Convertible, R58 Coupe, R59 Roadster, R60 Countryman, R61 Paceman | All years | Different body or filler-flap arrangement. | Must not be purchased without independent part-number confirmation. |
| NOT FOR THIS GENERATION | F55 5-door Hatch, F56 3-door Hatch and later MINI models | 2014 onward | Later-generation body and fittings. | An F55 5-door photograph or vehicle is not a match for this R56/R55 part. |
Production-year note: first registration can be later than build date, and parts can change within a model year. The safest check is the complete 11-digit number on the removed component together with a visual comparison of the hinge, pocket, locking-pin opening and outer finish.
Reference vehicles & fitting location
R56 3-door Hatch reference. The fuel flap sits in the right rear quarter panel. Reference image only; it is not the donor vehicle.
R55 Clubman reference. Confirm the first-generation Clubman body with rear split doors. Reference image only; it is not the donor vehicle.
Check before ordering
Match 51177148884Match 7148884Confirm R56 or R55Confirm non-S / non-JCW flapCompare hinge and pocketCheck red colour carefully
- Read the complete number from your removed part; do not rely only on the vehicle registration or the two moulded short numbers.
- Confirm that your car is an R56 3-door Hatch or first-generation R55 Clubman, not an F55 5-door Hatch or another MINI body.
- Compare the round outer flap, hinge, retaining points, drain provision and locking-pin opening with every listing photograph.
- Check that you need the body-colour red version rather than a chrome-style Cooper S/JCW arrangement.
- Paint code is unknown. A repaint may be required where an exact colour match is essential.
- For help, contact us through eBay Messages before purchase with the vehicle registration, VIN last seven characters and a clear photograph of the old part.
Symptoms of a damaged fuel flap assembly
- Outer flap sits proud, crooked or will not close flush.
- Cracked hinge, broken retaining tabs or excessive movement.
- Flap will not open cleanly or catches the body aperture.
- Water, grit or road dirt collecting excessively around the filler neck.
- Rattling from the rear quarter area while driving.
- Visible impact, paint or corrosion-related cosmetic damage around the filler opening.
- Locking pin fails to engage because the pocket is damaged or misaligned.
- Missing flap leaves the filler recess exposed and reduces the vehicle's finished appearance.
A locking fault can also be caused by the separate actuator, wiring or central-locking system. Diagnose those items before replacing the housing.
Why choose a manufacturer-branded factory-fit recycled part?
A correctly matched original factory-specification component is designed around the vehicle's body aperture, hinge geometry, locking-pin position and drainage layout. That can reduce alignment problems, poor closing action and time spent modifying a low-cost copy.
Fit & alignmentFactory moulding and mounting geometry when the number is matched correctly.
Material qualityVisible PP-GF20 and PP+EPDM material markings on the photographed component.
Lower wasteReusing a serviceable part keeps an existing component in circulation and can cost substantially less than buying new.
General fitting guide
Safety: this is general guidance, not a model-specific workshop procedure. Use the correct MINI repair information for the VIN. If the lock actuator, wiring, filler neck or interior trim must be disturbed, use a qualified technician.
Suggested tools
Plastic trim toolsTorx T20/T25 driversSmall pick / flat trim tool8 mm socket where fittedRatchet and extensionTorchMasking tapeProtective gloves
Typical replacement sequence
- Park safely, switch the ignition off and protect the surrounding paintwork with low-tack masking tape.
- Open the existing flap, remove the fuel cap and identify all visible fasteners, clips and retaining tabs.
- Where required, carefully release the right rear interior trim to access the lock actuator, retaining clip or rear fixing.
- Disconnect the locking-pin linkage/actuator and drain hose only where fitted to the vehicle.
- Release the pocket fasteners and pull the old assembly outward without levering against painted metal.
- Transfer any separate actuator, seal, drain hose, clips or cap tether that are not included with the replacement.
- Clean the aperture and check the drain route, seal and filler-neck area for damage or trapped debris.
- Install the replacement evenly, reconnect the lock/drain components and refit all original fasteners.
- Check panel alignment, opening/closing action, central locking and water drainage before final trim reassembly.
- Refit the fuel cap securely and carry out a final visual check for gaps, trapped seals or loose components.
Estimated repair time
| Installer | Typical time allowance | What may increase the time |
|---|---|---|
| Experienced technician | Approximately 0.5-1.0 labour hour | Seized clips, interior trim access, actuator transfer, damaged aperture or paint correction |
| Competent DIY installer | Approximately 1-2 hours | Limited access, unfamiliar trim clips, missing tools or further diagnosis |
Static garage labour estimator
eBay descriptions cannot use a live JavaScript calculator. Use the table below: garage hourly rate × labour hours = estimated labour charge. Parts, VAT charged by the garage, diagnostics and additional repairs are extra.
| Time | £50/hour | £75/hour | £100/hour | £125/hour |
|---|---|---|---|---|
| 0.5 hour | £25.00 | £37.50 | £50.00 | £62.50 |
| 1.0 hour | £50.00 | £75.00 | £100.00 | £125.00 |
| 1.5 hours | £75.00 | £112.50 | £150.00 | £187.50 |
| 2.0 hours | £100.00 | £150.00 | £200.00 | £250.00 |
These figures are examples only, not a quotation. Ask your chosen garage to inspect the vehicle and confirm its rate.
Fitting service & workshop support
ThePartPilot can offer fitting and repair support subject to workshop availability, vehicle inspection, part suitability and location. Arrange all questions through eBay Messages before travelling or purchasing fitting services.
- Part-number and photograph matching support before purchase.
- Fitting service subject to availability and prior agreement.
- Any extra faults or required parts are quoted separately after inspection.
- The vehicle must be safe, accessible and accurately described.
Representative workshop image for service illustration; not a photograph of ThePartPilot premises.
Delivery, address & returns
| UK delivery | Delivery services and charges are shown in the eBay postage section for this listing. No free-postage promise is made in this description. |
| International delivery | Available only to destinations that eBay confirms as eligible at checkout through its international shipping programme. Destination availability, charges, duties, taxes and exclusions can change and are controlled by eBay. |
| Checkout address | Please select the correct delivery address before completing payment. We can dispatch only to the address supplied by eBay and cannot change it after checkout. |
| Fitment questions | Ask through eBay Messages before purchase. Supply registration, VIN last seven characters, old part number and clear photographs. |
| Returns | Returns are handled under the listing's return terms and eBay rules. The item should be returned complete and in the same condition received. Any permitted deduction is based on actual loss of value where a returned item has been fitted, damaged, altered or is incomplete; no fixed-percentage restocking charge is stated. |
Stock, careful dispatch & ThePartPilot

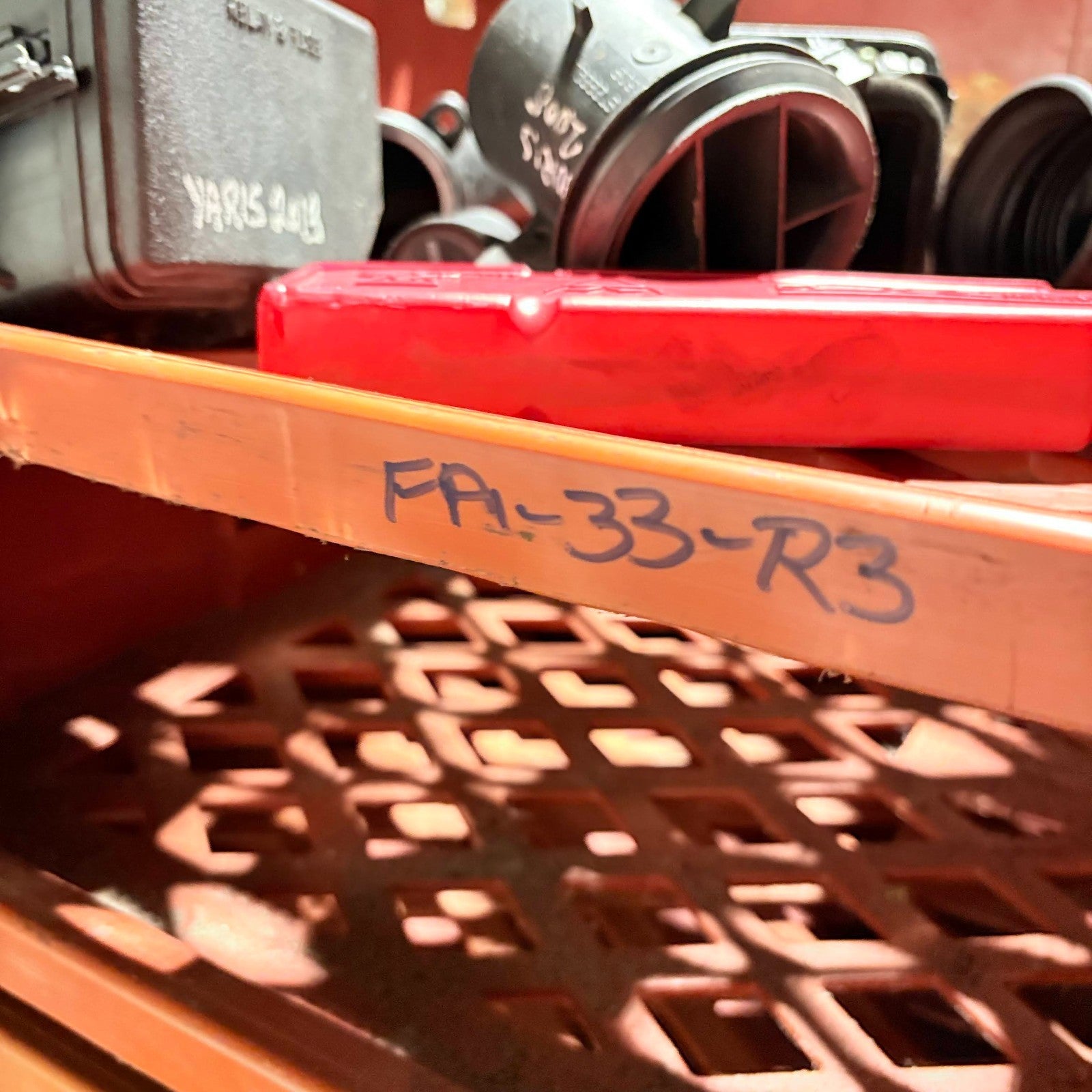

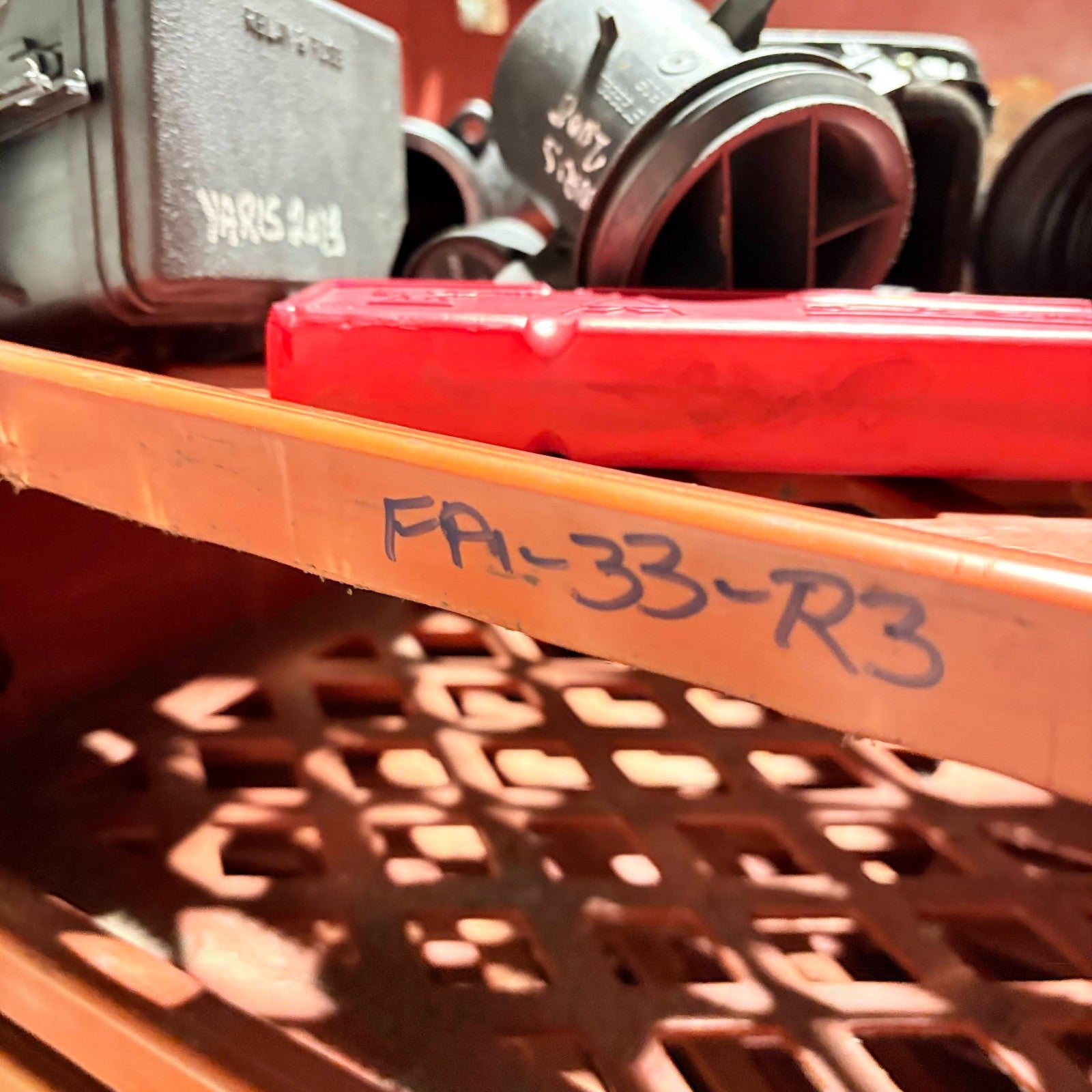

THEPARTPILOT • STOCK SHELFActual listing stock-location photograph showing the part in storage.
