Mitsubishi Outlander II 2009-2012 SRS Airbag ECU Control Module P8635A053
Mitsubishi Outlander II 2009-2012 SRS Airbag ECU Control Module P8635A053
| ✓ 30 DAY WARRANTY | ✓ EXACT PART-NUMBER CHECK | ✓ FITTING AVAILABLE* |

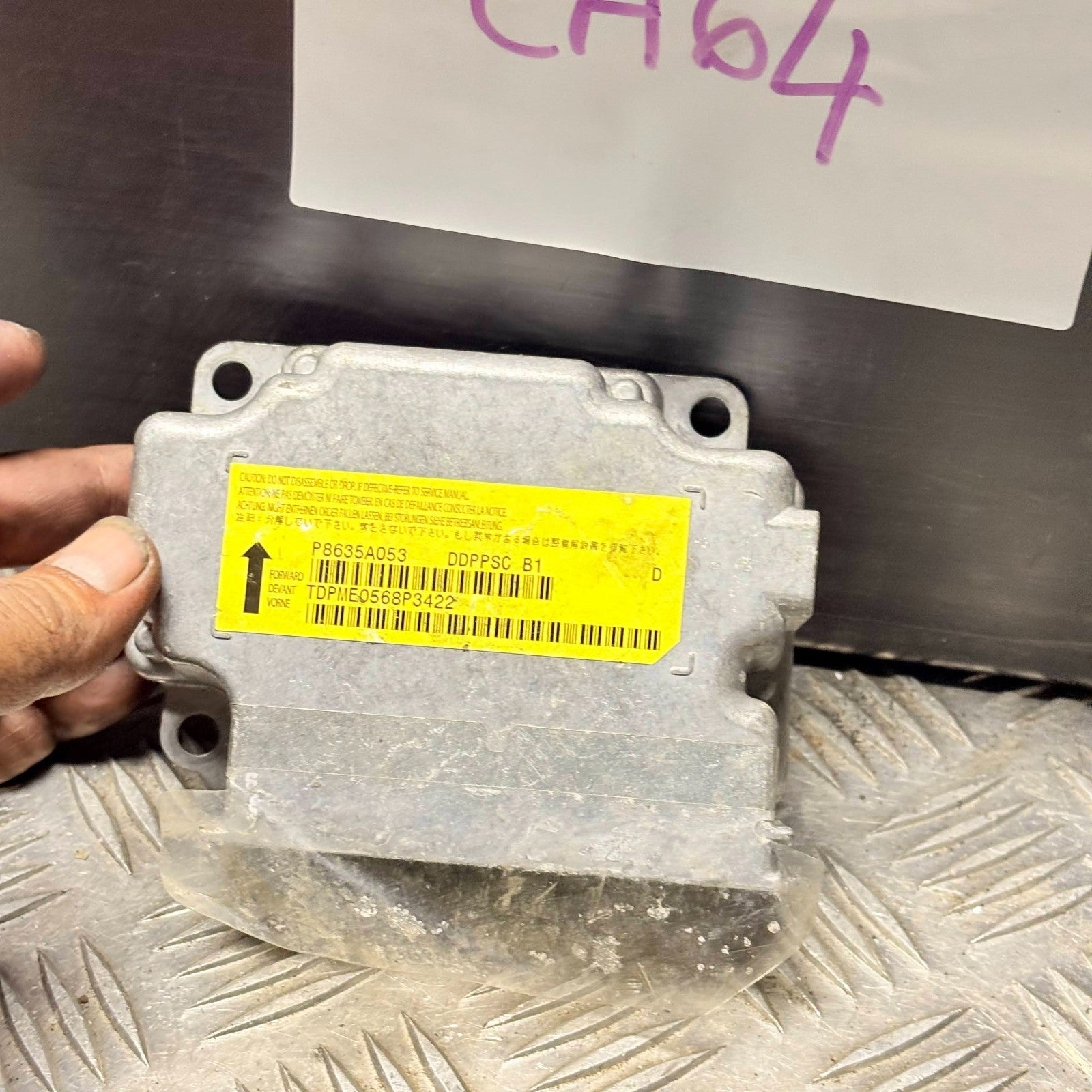

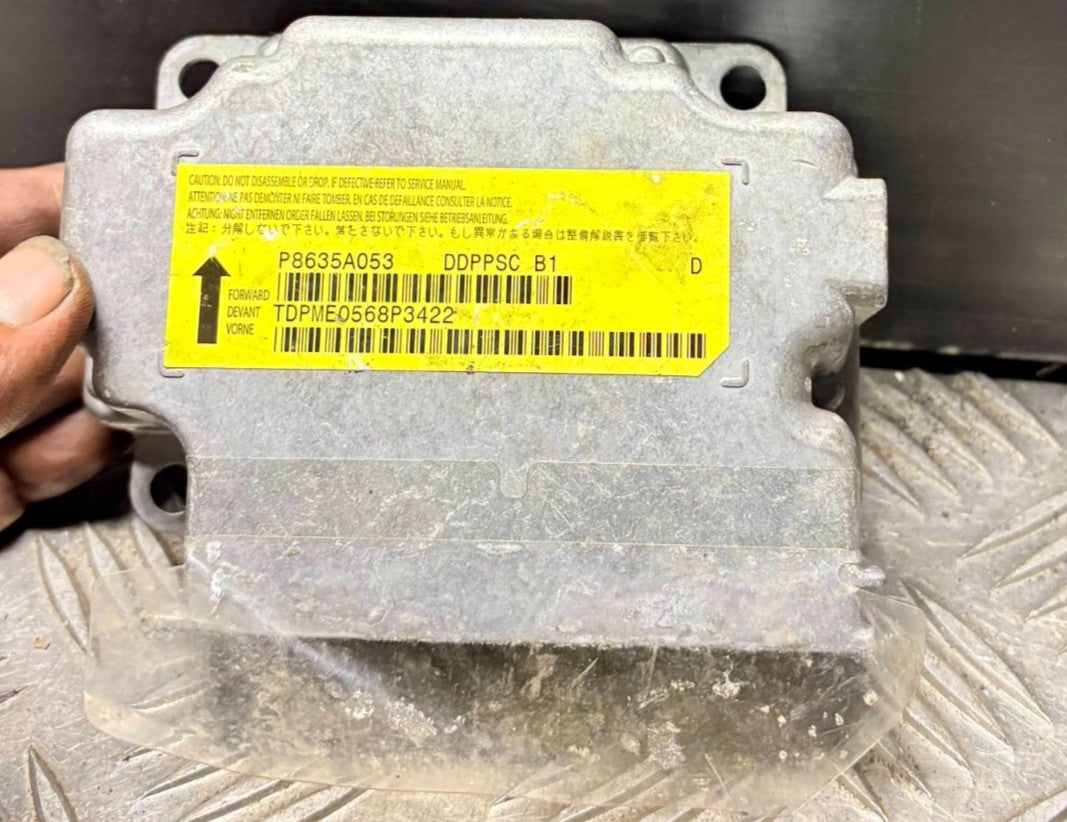

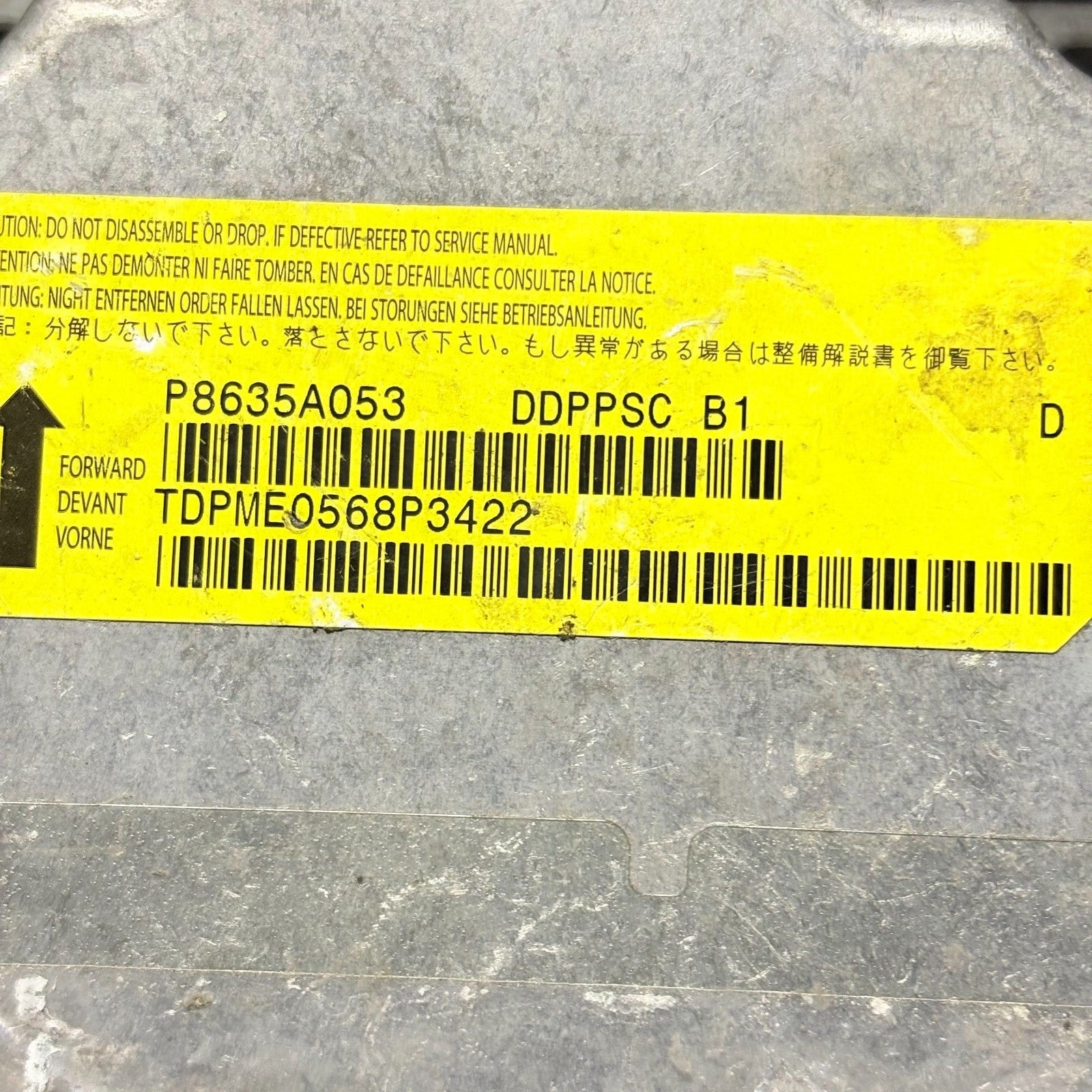

The photographed identification number on this module is P8635A053.
Your existing module should show P8635A053 before purchase. A similar-looking casing or connector is not enough to confirm compatibility.
If you are unsure, send THEPARTPILOT a clear photograph of your original module label plus your registration/VIN through eBay Messages before ordering.
Mitsubishi Outlander II 2009-2012
SRS Airbag ECU Control Module P8635A053
| Vehicle Manufacturer | Mitsubishi |
| Vehicle Model | Outlander II |
| Chassis / Platform | CW_W / ZG / ZH applications listed below |
| Part Type | SRS Airbag Control Module / SRS ECU |
| Main Fitment Part Number | P8635A053 |
| Additional Label Code | DDPPSC B1 |
| Production / Label Reference | TDPME0568P3422 — shown for identification only; do not use as the main fitment number |
| Interchange Part Number | No alternative interchange number has been sufficiently verified — match P8635A053 |
| Superseded Part Number | No confirmed superseded number verified |

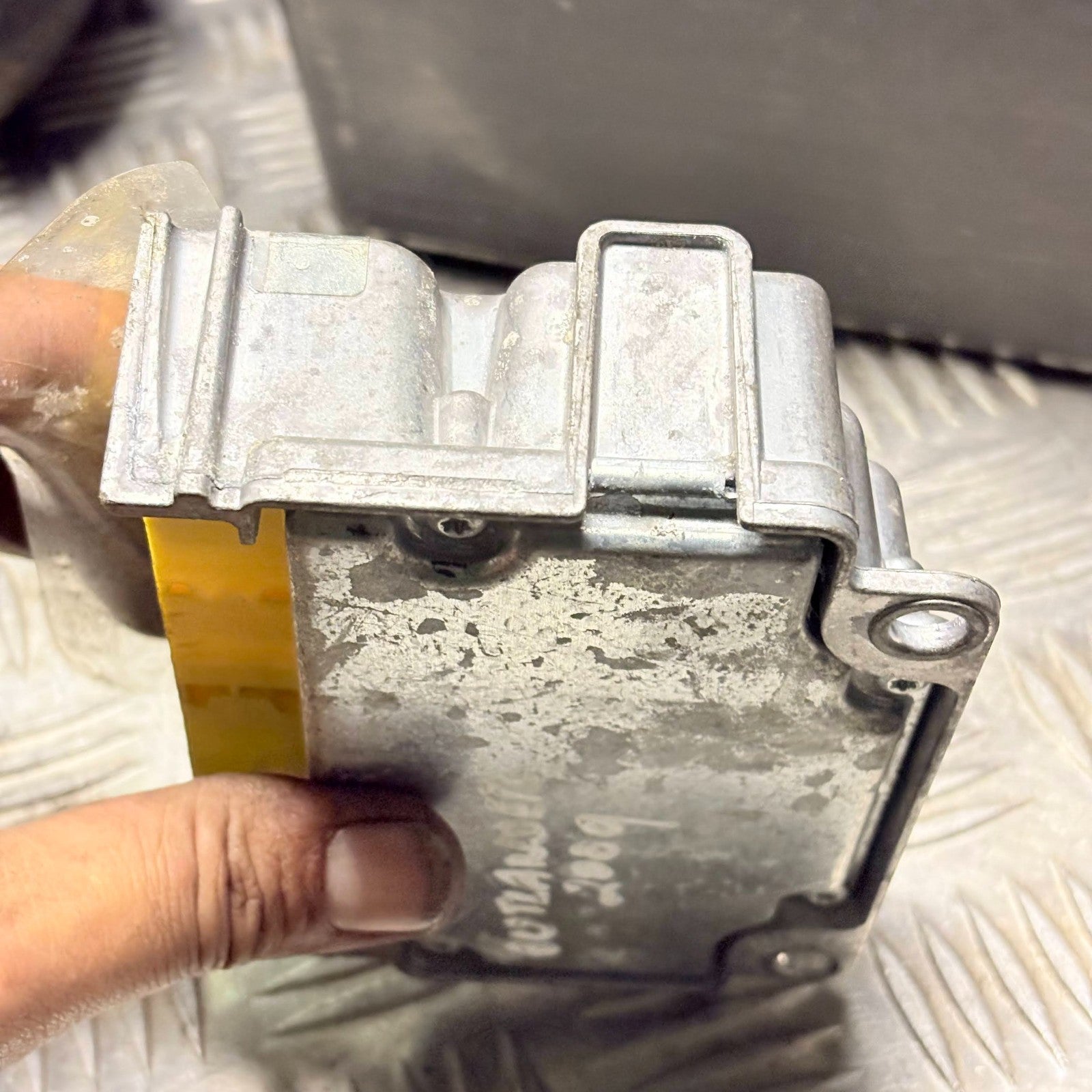

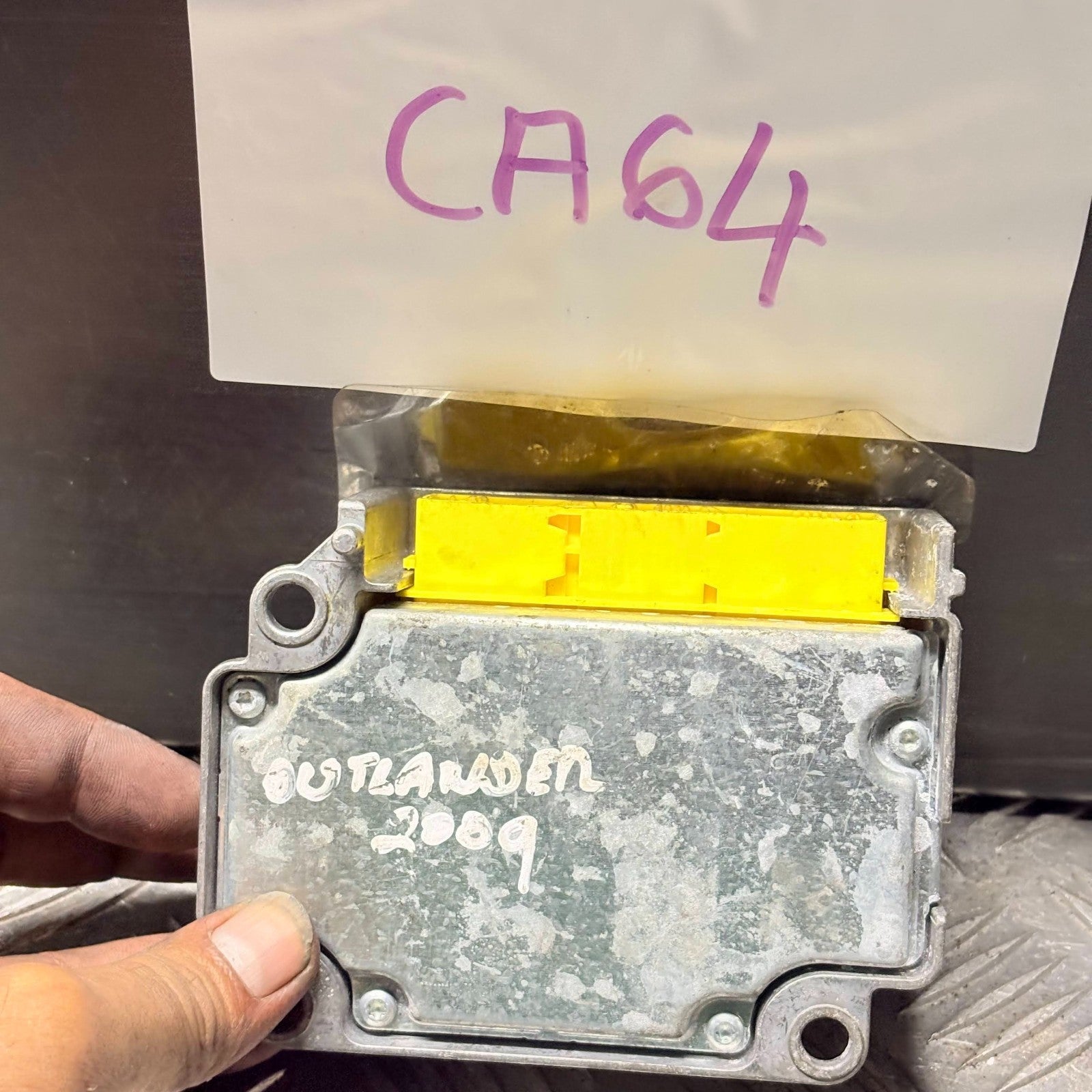

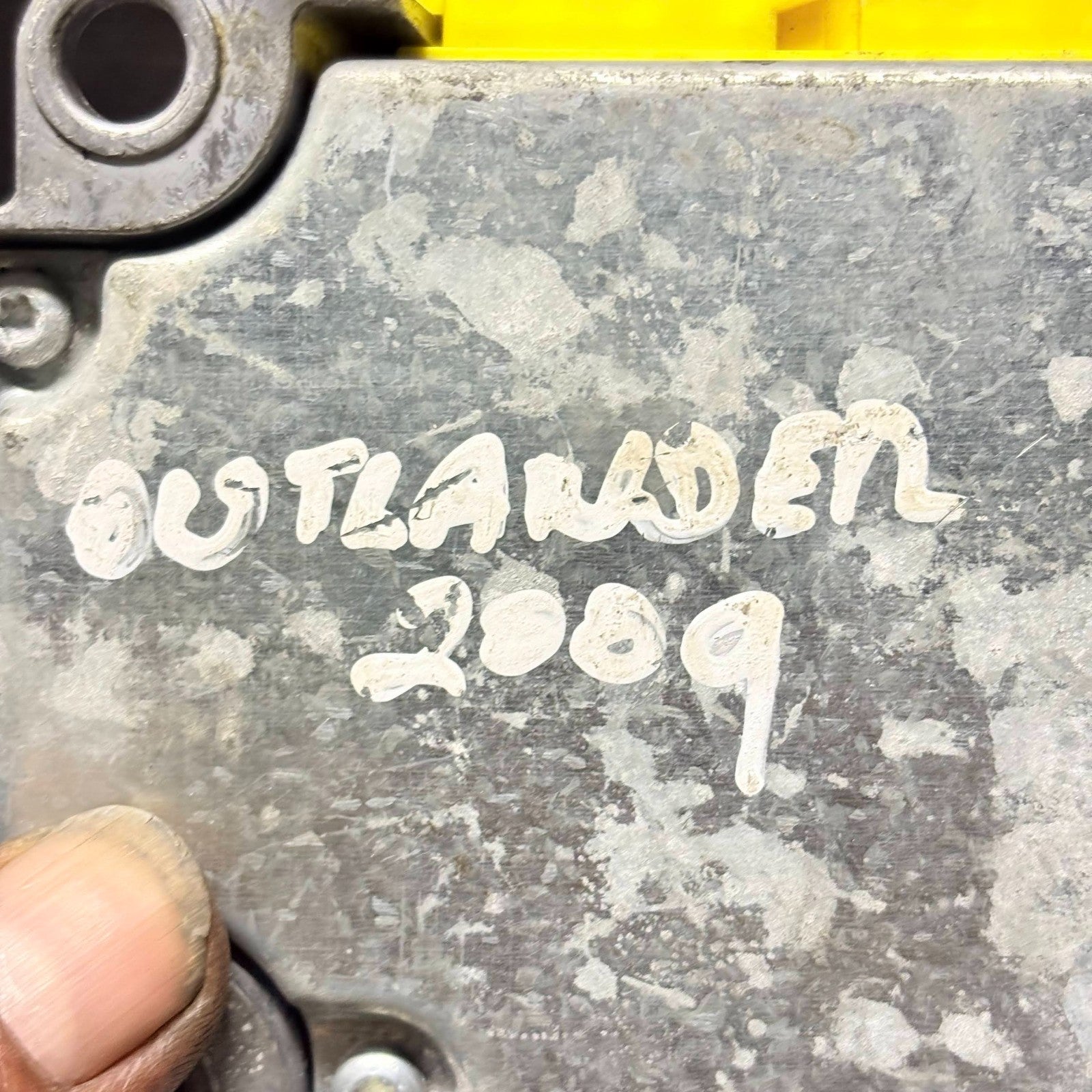

| Donor Marking Visible | OUTLANDER 2009 |

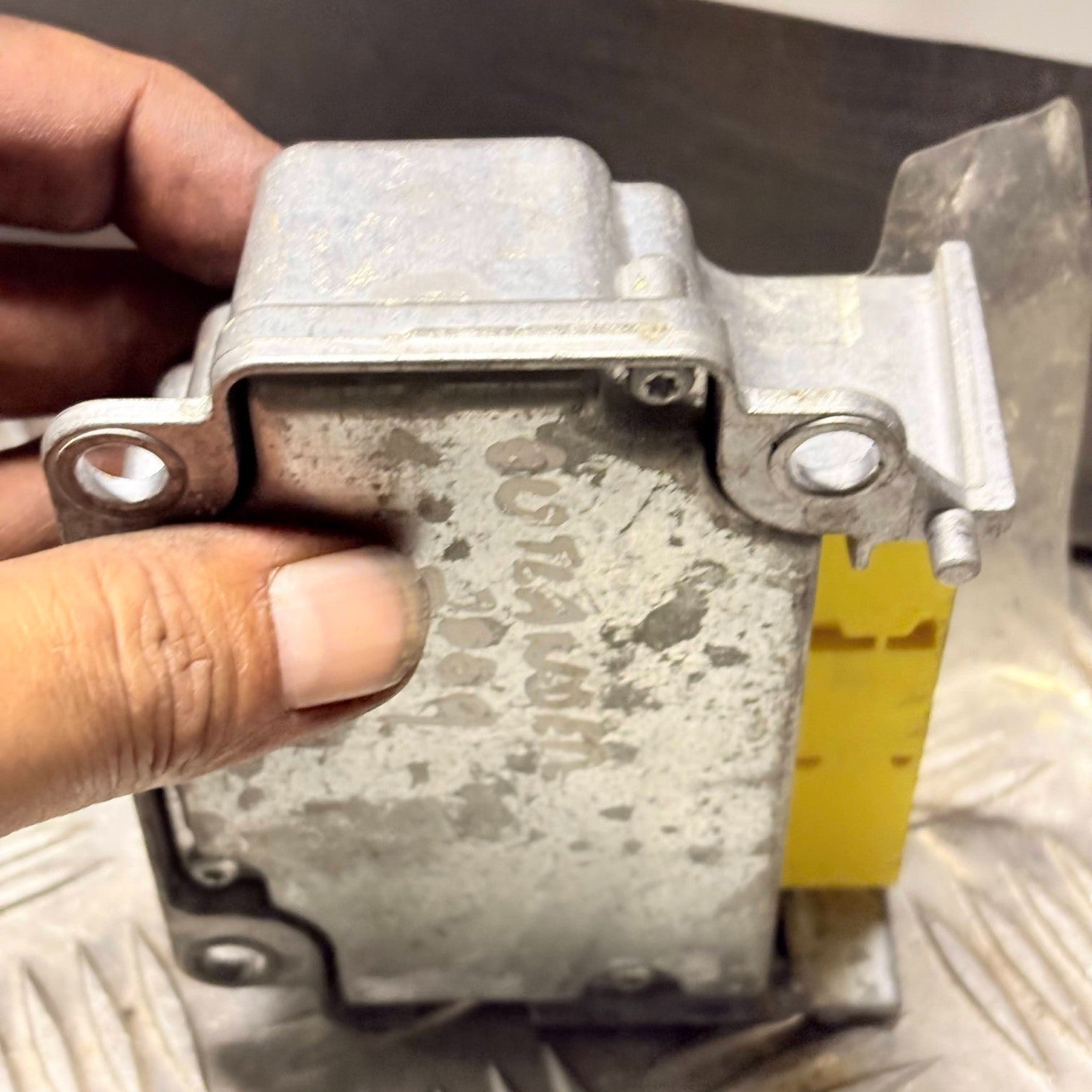

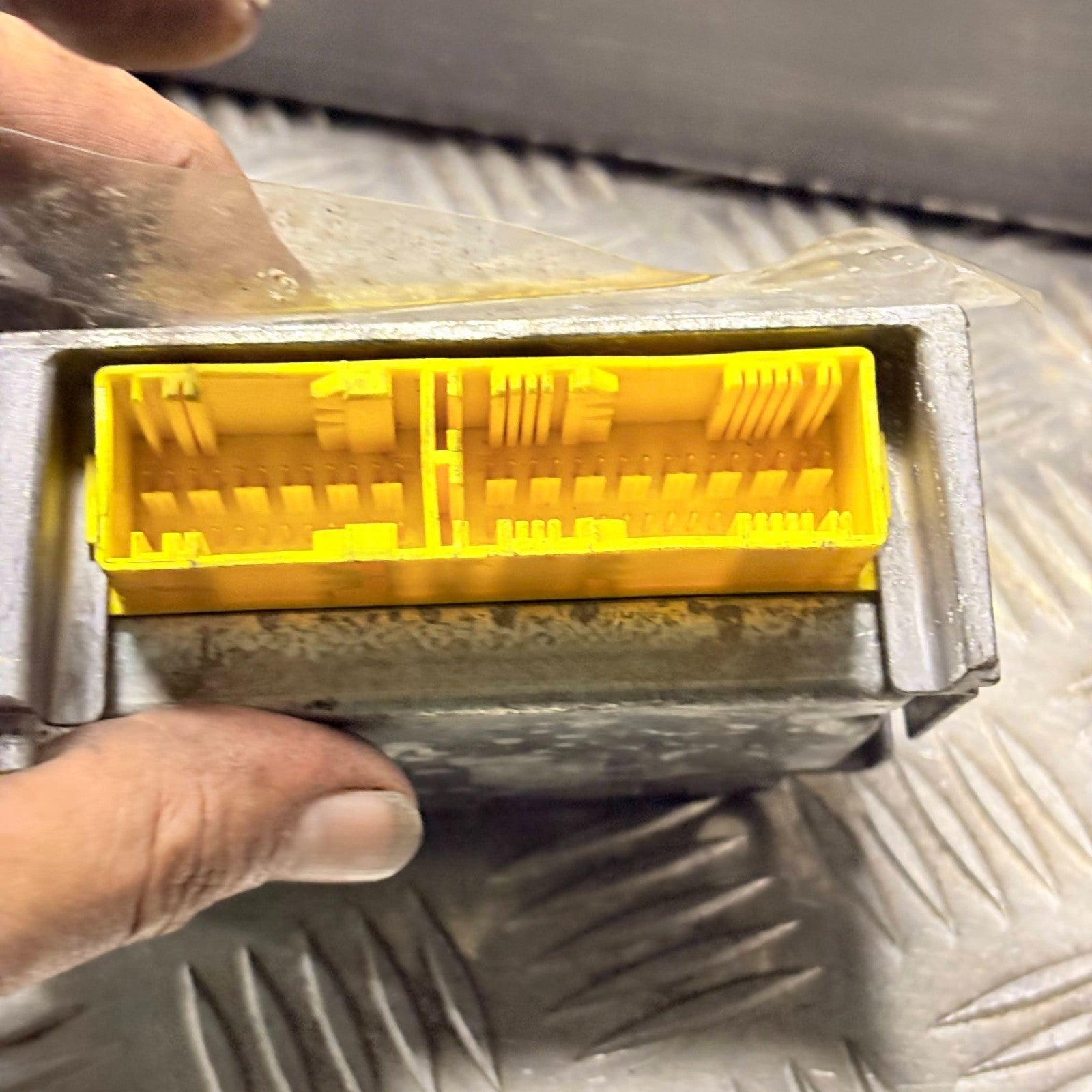

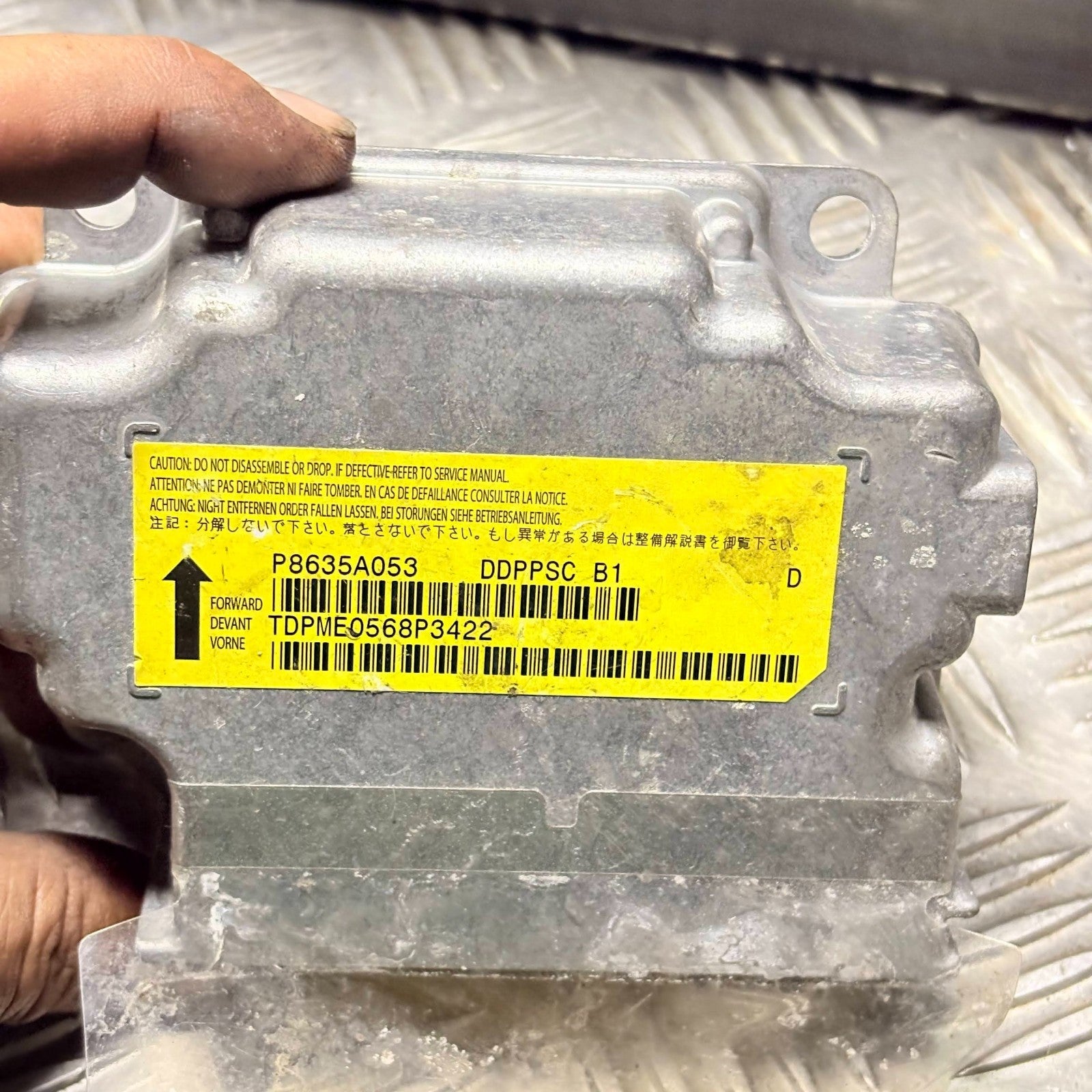

| Housing / Construction | Cast-metal electronic module housing with multi-pin SRS connector assembly |
| Colour / Identification Markings | Silver/grey metal housing with yellow SRS identification/connector area and printed identification label |
| Condition | Pre-owned component. Please inspect all actual item photographs for cosmetic condition and identifiers. |
| Warranty | 30 days, subject to the listing and eBay terms |
The SRS ECU is a central electronic control unit for the Supplemental Restraint System. It monitors the SRS system, stores detected faults and forms part of the control strategy used for airbag and restraint deployment.
Because this is a safety-system component, correct part-number matching, correct mounting direction, secure electrical connections and a professional diagnostic check after fitting are particularly important.
Do not assume this is a normal engine ECU. This listing is specifically for an SRS / AIRBAG CONTROL MODULE.
On the applicable Outlander II, access to the SRS ECU is through the front/centre floor-console and centre-tunnel area. Mitsubishi's service procedure references removal of surrounding console/under-cover components and the rear heater duct to gain access.
| FRONT OF VEHICLE ↑ | ||
| FRONT SEAT |
CENTRE CONSOLE / FLOOR TUNNEL SRS ECU ACCESS AREA |
FRONT SEAT |
Static location guide only — trim and equipment layout can vary by specification.
The current eBay compatibility data for this listing covers the following Mitsubishi Outlander II petrol SUV applications. The exact module number P8635A053 remains the primary physical check.
| Exact Years | Model / Chassis | Engine | Drive | Power |
|---|---|---|---|---|
| 2009 / 2010 / 2011 / 2012 | Outlander II CW_W / ZG / ZH | 2.0 Petrol • 4B11 • 1998cc | FWD | 118kW / 160HP |
| 2009 / 2010 / 2011 / 2012 | Outlander II CW_W / ZG / ZH | 3.0 Petrol • 6B31 • 2998cc | FWD | 172kW / 234HP |
| 2009 / 2010 / 2011 / 2012 | Outlander II CW_W / ZG / ZH | 3.0 Petrol • 6B31 • 2998cc | AWD | 172kW / 234HP |
| 2009 / 2010 / 2011 / 2012 | Outlander II CW_W / ZG / ZH | 3.0 Petrol • 6B31 • 2998cc | 4WD | 177kW / 241HP |
The years above apply only to the listed configurations. A 2009–2012 registration date alone does not prove compatibility. Compare P8635A053, connector configuration and vehicle specification.
Compatibility is not confirmed in this listing for:
- Vehicles carrying a different SRS ECU identification number
- Diesel Outlander variants not shown in the compatibility table above
- PHEV applications not shown above
- Later-generation Outlander applications not shown above
- ASX / Outlander Sport applications not shown above
- Peugeot or Citroën applications unless independently verified for your exact VIN and module number
- Any vehicle where the original module connector/configuration differs
Similar external housings are used across different SRS configurations. Always compare the identification label before purchase.
| 1 | Find your existing SRS control module and photograph its identification label. |
| 2 | Confirm the main number reads P8635A053. |
| 3 | Compare the connector housing, mounting points and FORWARD orientation shown in our photographs. |
| 4 | Check your exact model year, engine code and drivetrain against the table above. |
| 5 | If anything differs, message THEPARTPILOT through eBay with your VIN/registration and a photograph before ordering. |
The SRS ECU monitors the restraint system and records detected faults. Symptoms that require proper SRS diagnosis can include:
⚠ SRS/airbag warning lamp remains illuminated beyond the normal self-check period
⚠ SRS/airbag warning lamp illuminates while driving
⚠ SRS diagnostic trouble codes are stored
⚠ Deployment/collision data has been recorded after an impact
These symptoms do not automatically prove the ECU itself is defective. Wiring, sensors, connectors, pretensioners and other restraint-system components can also create SRS faults, so professional diagnosis is recommended before replacing parts.
The SRS system is vehicle-configuration dependent. Matching the manufacturer part number, connector design and intended vehicle application reduces the uncertainty associated with installing an unverified substitute.
A correctly matched pre-owned manufacturer-branded component can also offer a substantial saving compared with purchasing the equivalent part new. The actual saving varies by part, dealer price and availability, so we do not make a fixed percentage claim.
For a safety-system component, buying on part number and verified application is more important than buying on appearance alone.
| 1 | Switch the ignition fully OFF / LOCK and remove the key where applicable. |
| 2 | Disconnect the negative battery terminal and isolate it so accidental reconnection cannot occur. |
| 3 | Wait at least 60 seconds after battery disconnection before beginning SRS work. |
| 4 | Remove the necessary centre/floor-console trim, under-cover and access components for your vehicle specification. |
| 5 | Release the SRS ECU electrical connector using its locking/release mechanism. Do not pull directly on the wiring. |
| 6 | Remove the module mounting fasteners and remove the SRS ECU carefully. |
| 7 | Install the correct replacement securely and in the correct orientation. Observe the FORWARD direction marked on the module. |
| 8 | Reconnect the SRS connector correctly and refit all removed trim/components. |
| 9 | Reconnect the battery only after the system has been fully reassembled. |
| 10 | Carry out an SRS diagnostic scan and verify the warning lamp performs its normal self-check and then extinguishes if no fault remains. |
| Trim removal tools | For console and interior access panels |
| Socket / ratchet set | For battery, trim and module mounting fasteners |
| Torque wrench | For refitting fasteners to the correct workshop specification |
| Battery-terminal insulation / tape | Helps prevent accidental reconnection while SRS work is underway |
| SRS-capable diagnostic equipment | For fault-code diagnosis and post-installation checks |
Planning allowance only: approximately 1.0–1.5 labour hours for access, module removal/refitting and basic diagnostic checks. This is not an official Mitsubishi book time.
ESTIMATE FORMULA = GARAGE HOURLY RATE × 1.0 TO 1.5 HOURS
| Garage Rate | 1.0 Hour | 1.5 Hours |
|---|---|---|
| £50/hour | £50 | £75 |
| £60/hour | £60 | £90 |
| £70/hour | £70 | £105 |
| £80/hour | £80 | £120 |
| £90/hour | £90 | £135 |
| £100/hour | £100 | £150 |
| £110/hour | £110 | £165 |
| £120/hour | £120 | £180 |
Diagnostic investigation, additional faults, trim condition, consumables and other required repairs can increase labour time and cost.
