Engine-compartment electrical power distribution assembly

Mopar P04795855AG / 4795855AG Relay Fuse Box With Cut Wiring Tails

Previously fitted component supplied exactly as photographed. Strong identification is provided below so the buyer can match the label, fuse/relay layout, mounting features and wiring before ordering.
⚠ Critical fitment notice — read before purchase
The exact donor vehicle, model year, body style, engine and gearbox have not been reliably verified from the available listing evidence. Do not order by make/model, eBay vehicle checker or the current Volkswagen item specific alone.
Order only when your existing unit is marked P04795855AG (also read as 04795855AG / 4795855AG), carries the large 855AG identifier, and matches every photographed physical feature. No vehicle photo is shown because using an unverified car image could cause an incorrect order.
CUT WIRING TAILS — NOT A DIRECT PLUG-IN UNIT
The wires have been cut as clearly shown. Professional identification, splicing, insulation, circuit testing and secure mounting are required. Installation by a competent auto electrician is strongly recommended.
Item details & identification
Brand / part family Mopar electrical part family
Part number printed on item P04795855AG
Search / normalised numbers 04795855AG • 4795855AG • 855AG
Additional label markings T-AWE1016A0072 • T-3 • 17778AB
Type Engine-bay relay / strip-fuse / wiring power-distribution assembly
Visible relay markings 56006709 shown on multiple fitted relays — relay number alone does not prove vehicle fitment
Visible strip-fuse ratings 50A • 25A • 50A, as photographed
Wiring condition Cut wiring tails; repair/splicing required
Colour marking Black housing, red carrier, blue identification tape and multi-colour wiring
Visible construction Moulded thermoplastic housing/carrier, metal terminals and fuse links, relays and insulated vehicle wiring
Production label Assembled in Mexico
Condition Previously fitted; visible age, storage and handling marks; inspect all photographs
Included The photographed assembly, fitted relays/fuses and cut wiring tails only
Interchange Part Number No confirmed interchange number verified
Superseded Part Number Catalogue family reference: 4795855AF is listed as replaced by 4795855AH. Interchange with this AG revision is not confirmed and must not be assumed.
eBay Item Number 147493783016
VAT information Sold under the VAT Global Accounting Margin Scheme. VAT is not separately itemised and no reclaimable VAT invoice is available.
Actual item reference photographs
Hosted on eBay's image network. These are the strongest fitment references for this listing.

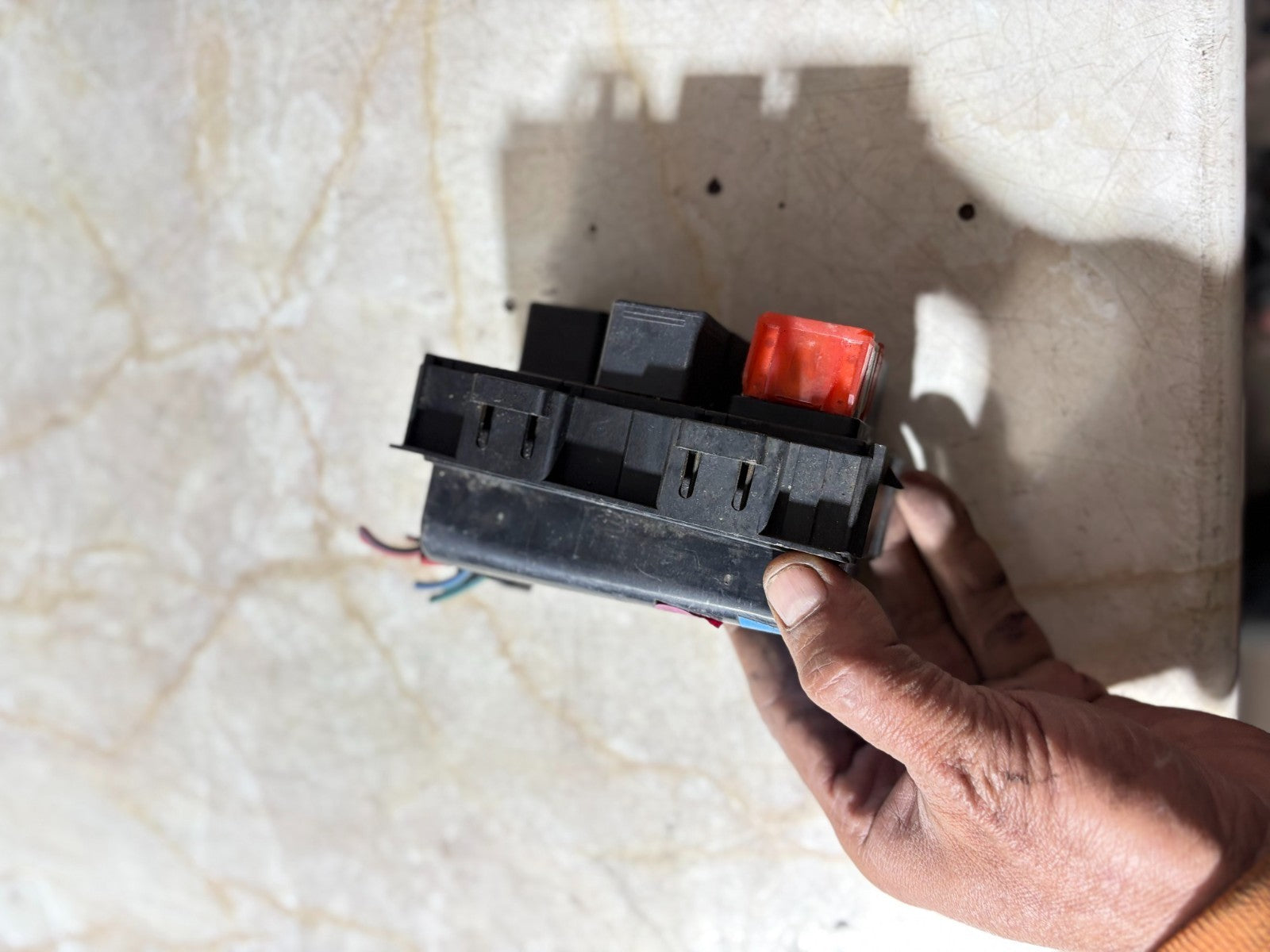

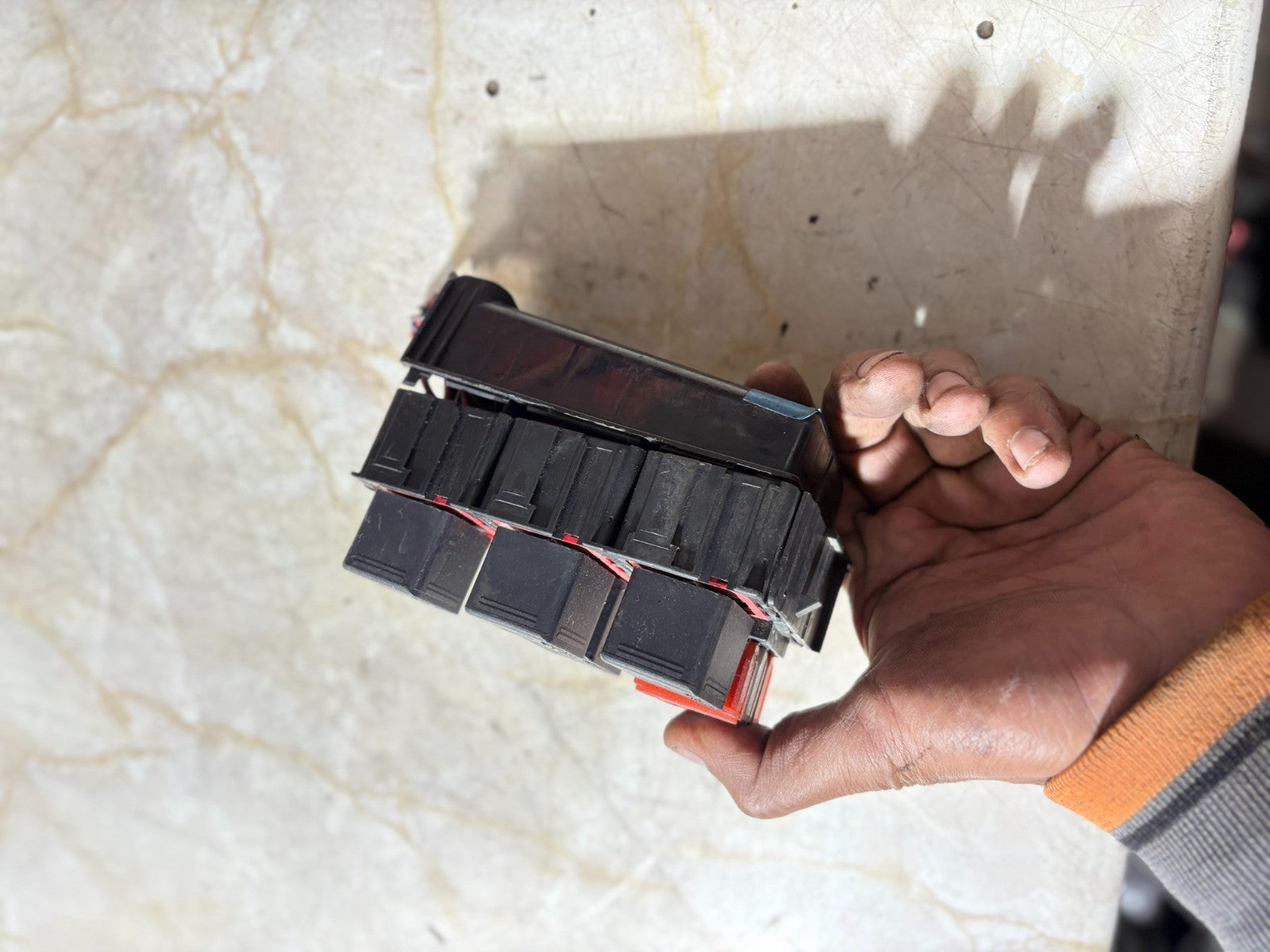

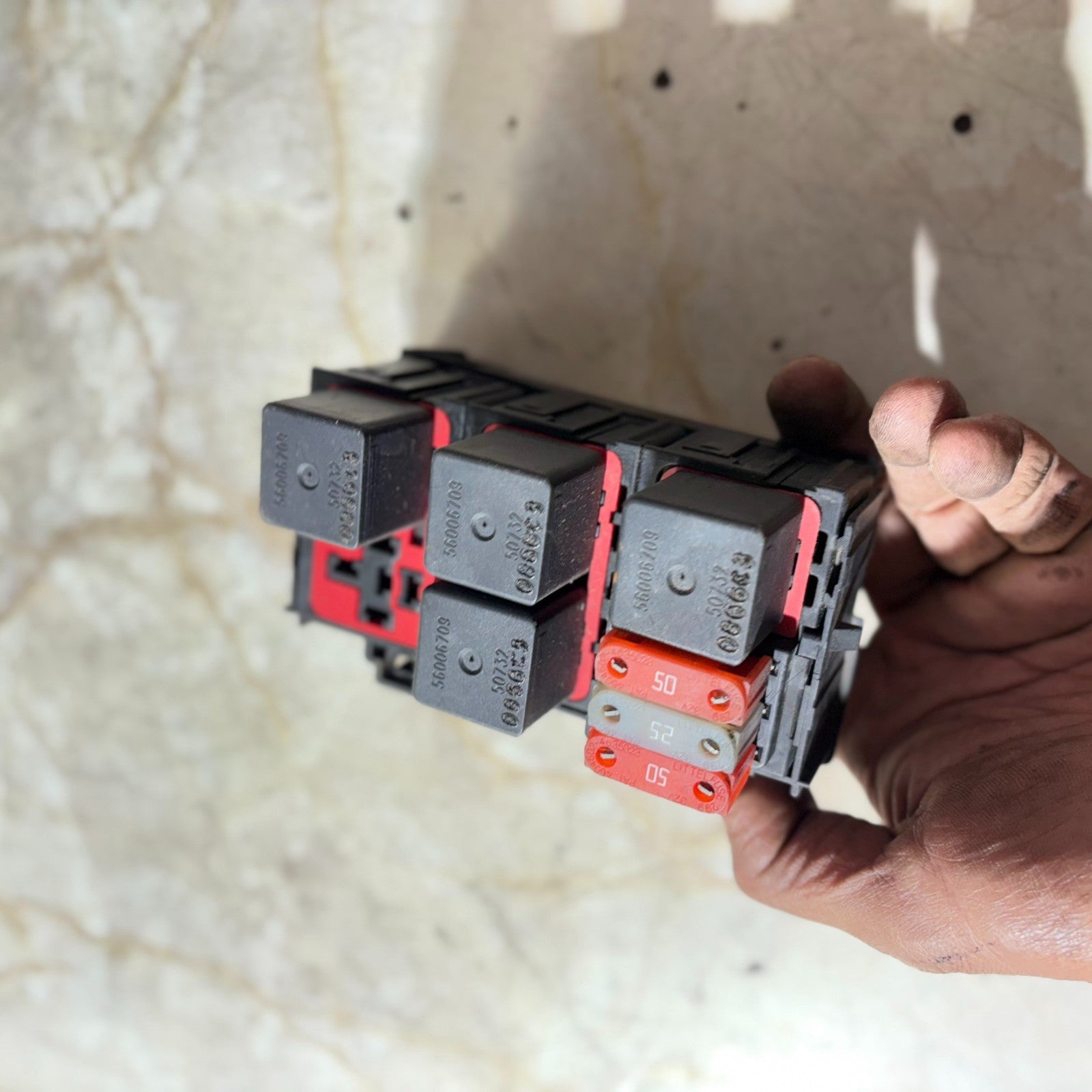

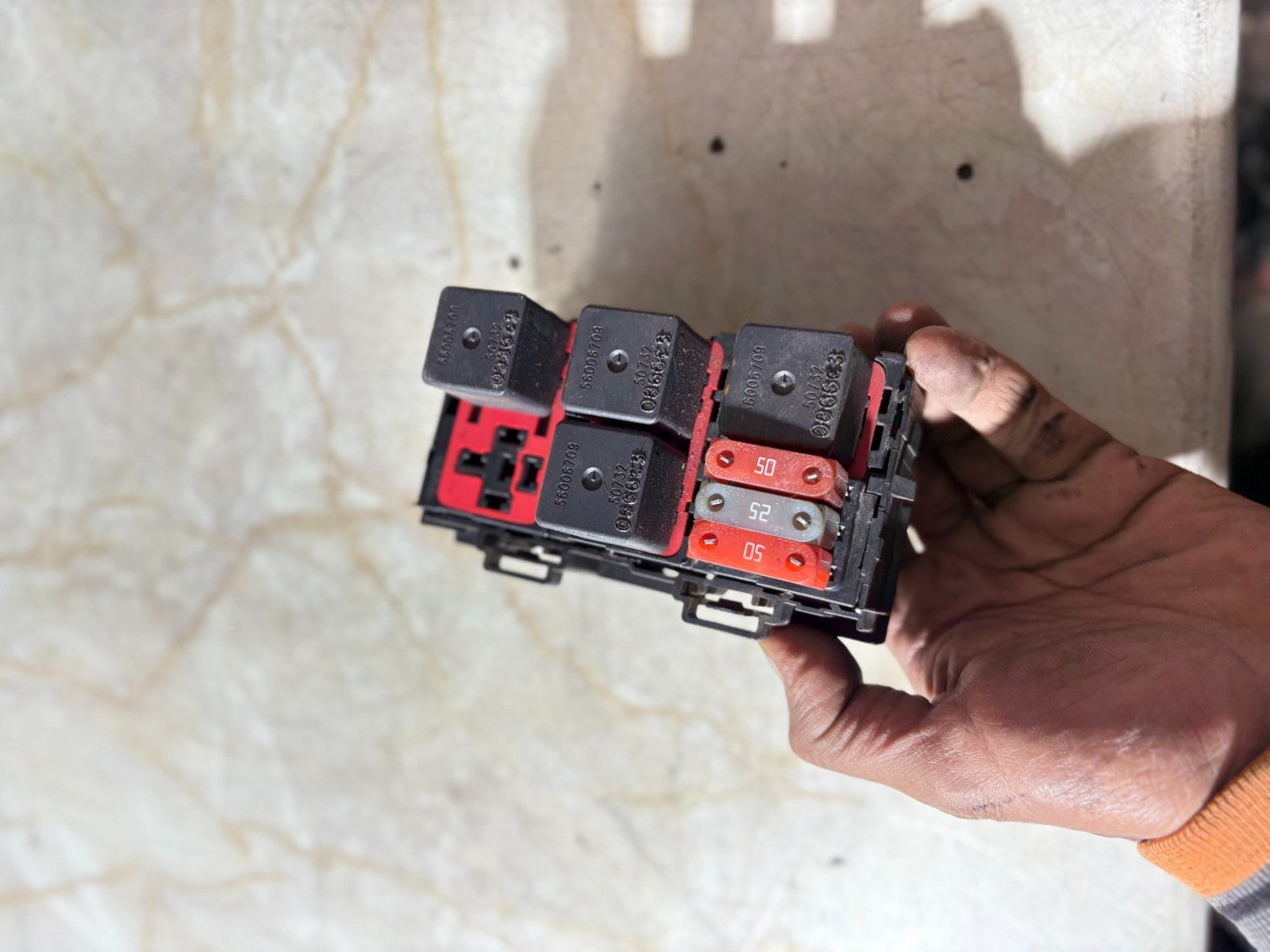

P04795855AG engine bay relay fuse box relay and strip fuse layout
THEPARTPILOT • ACTUAL ITEM

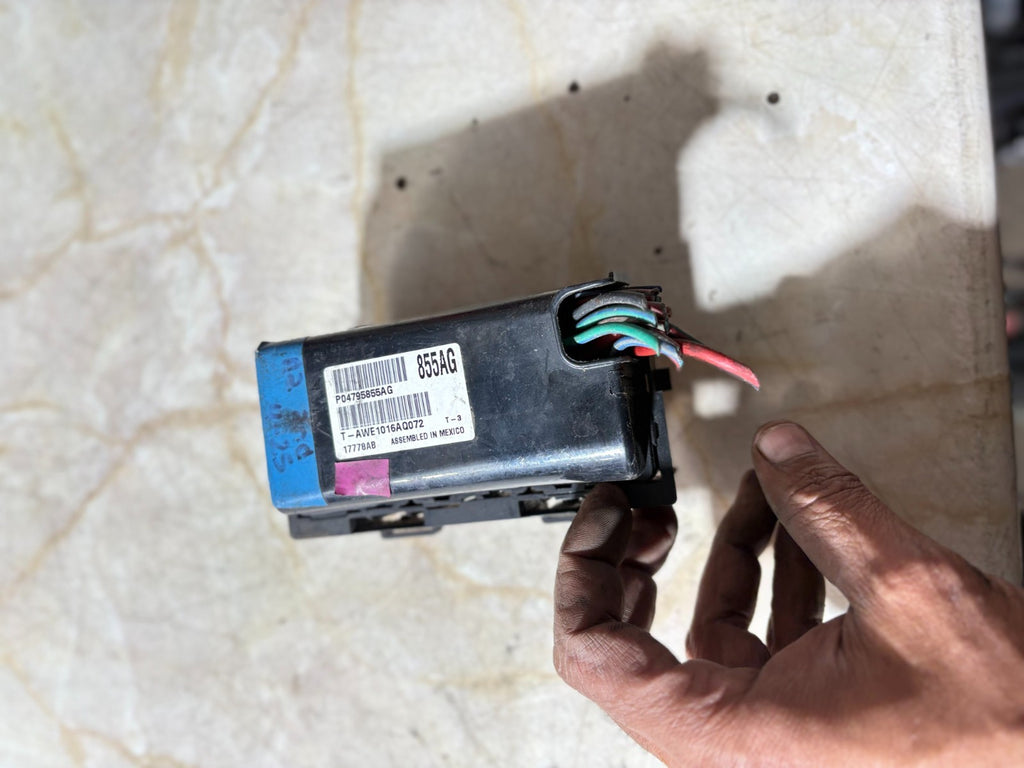

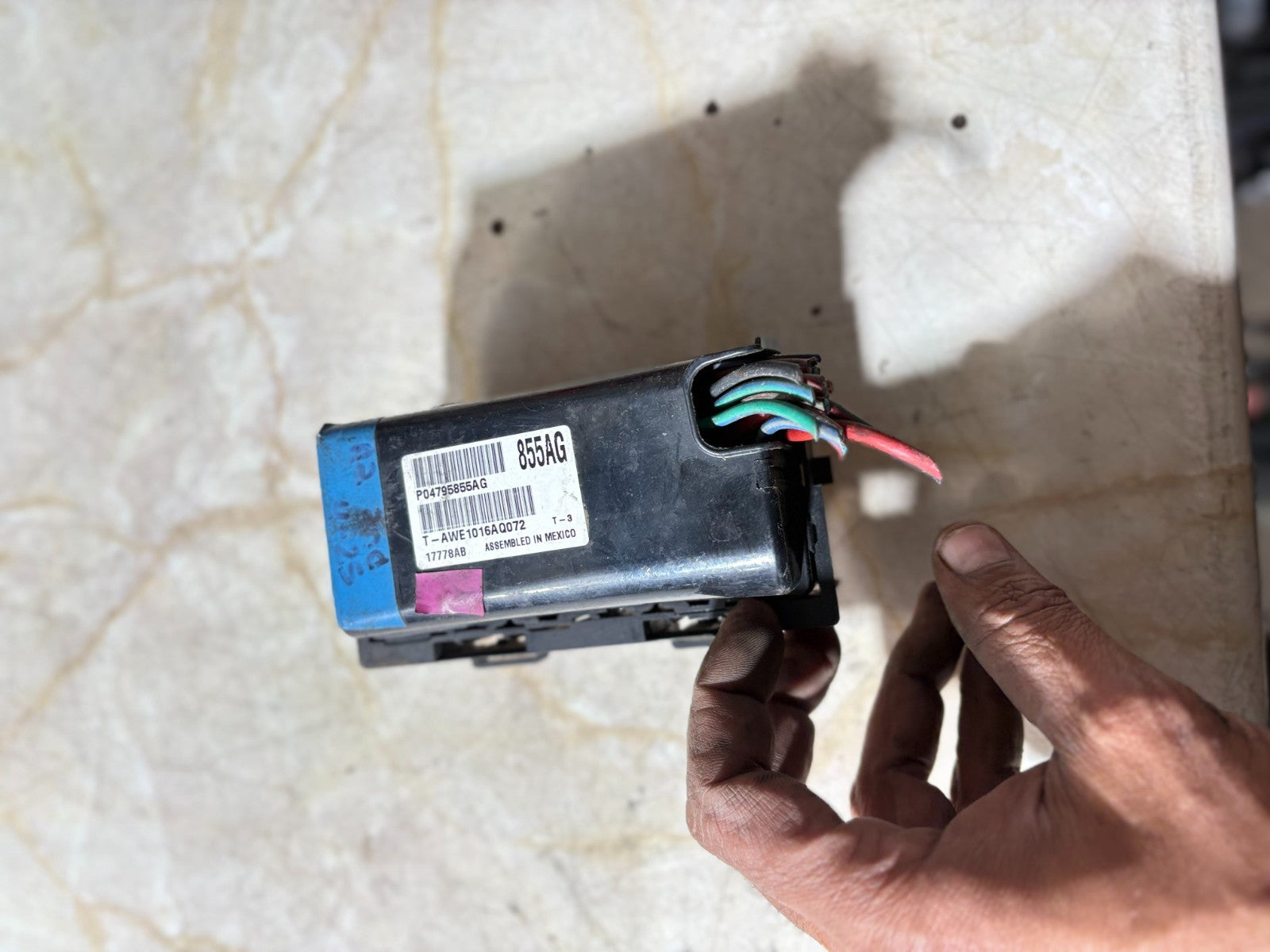

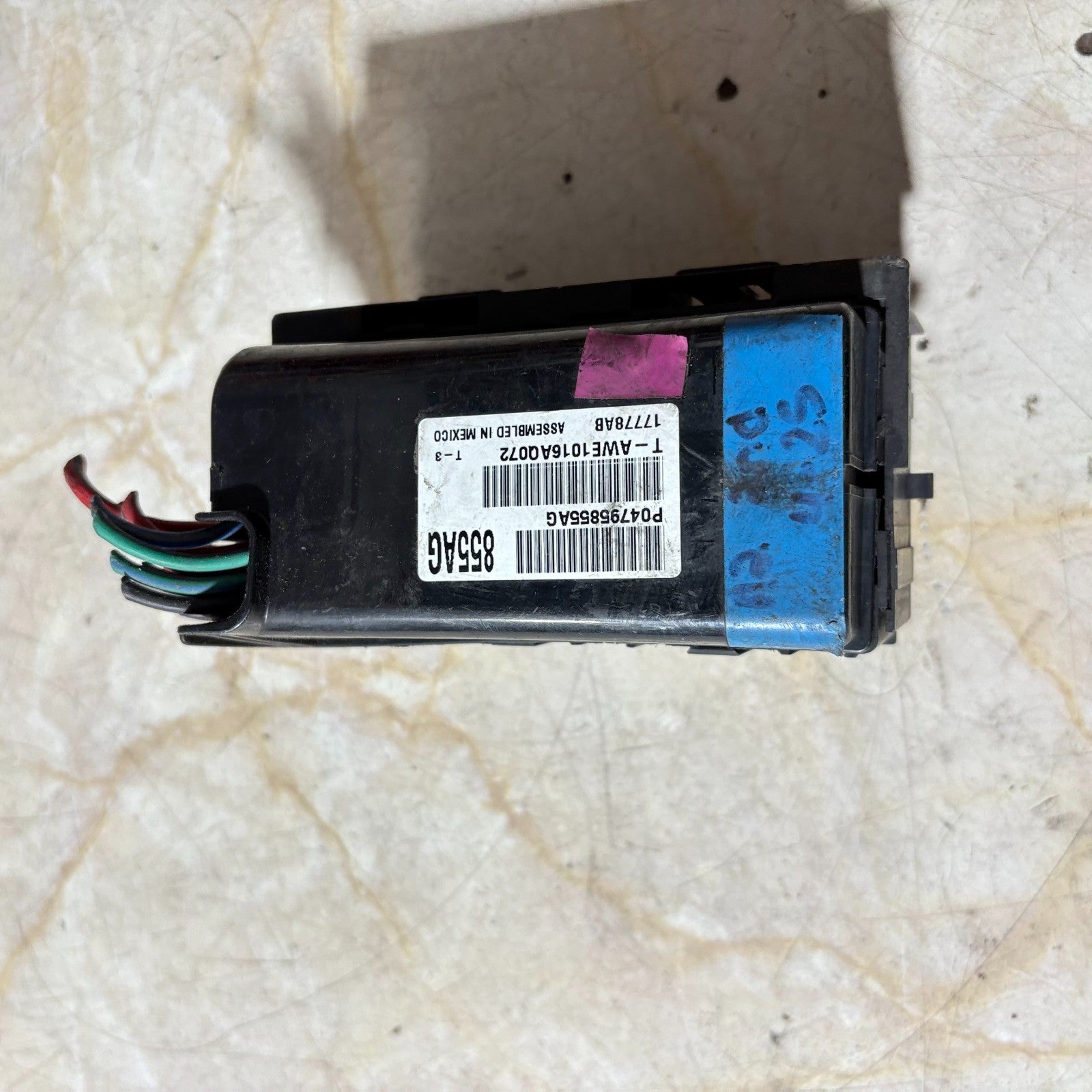

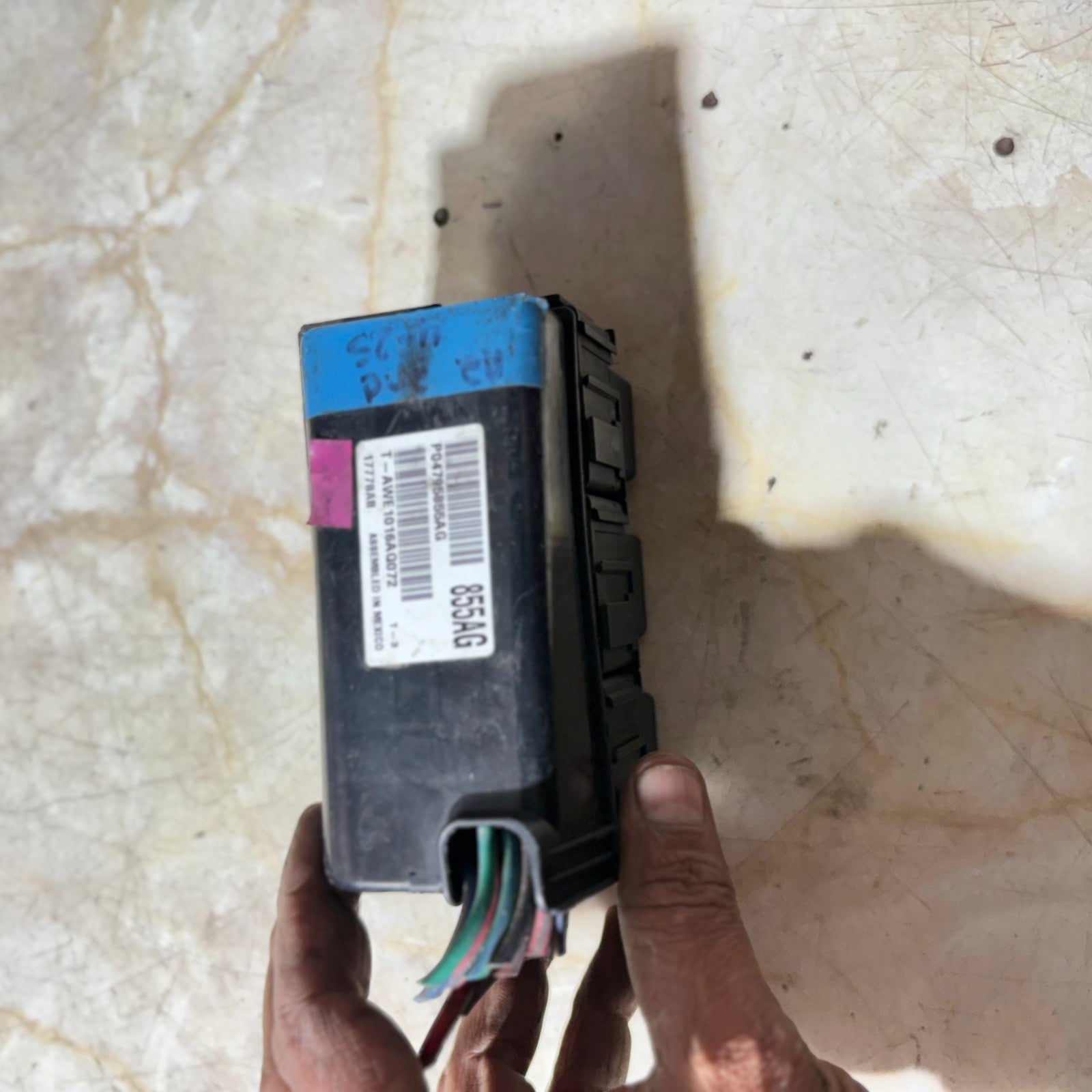

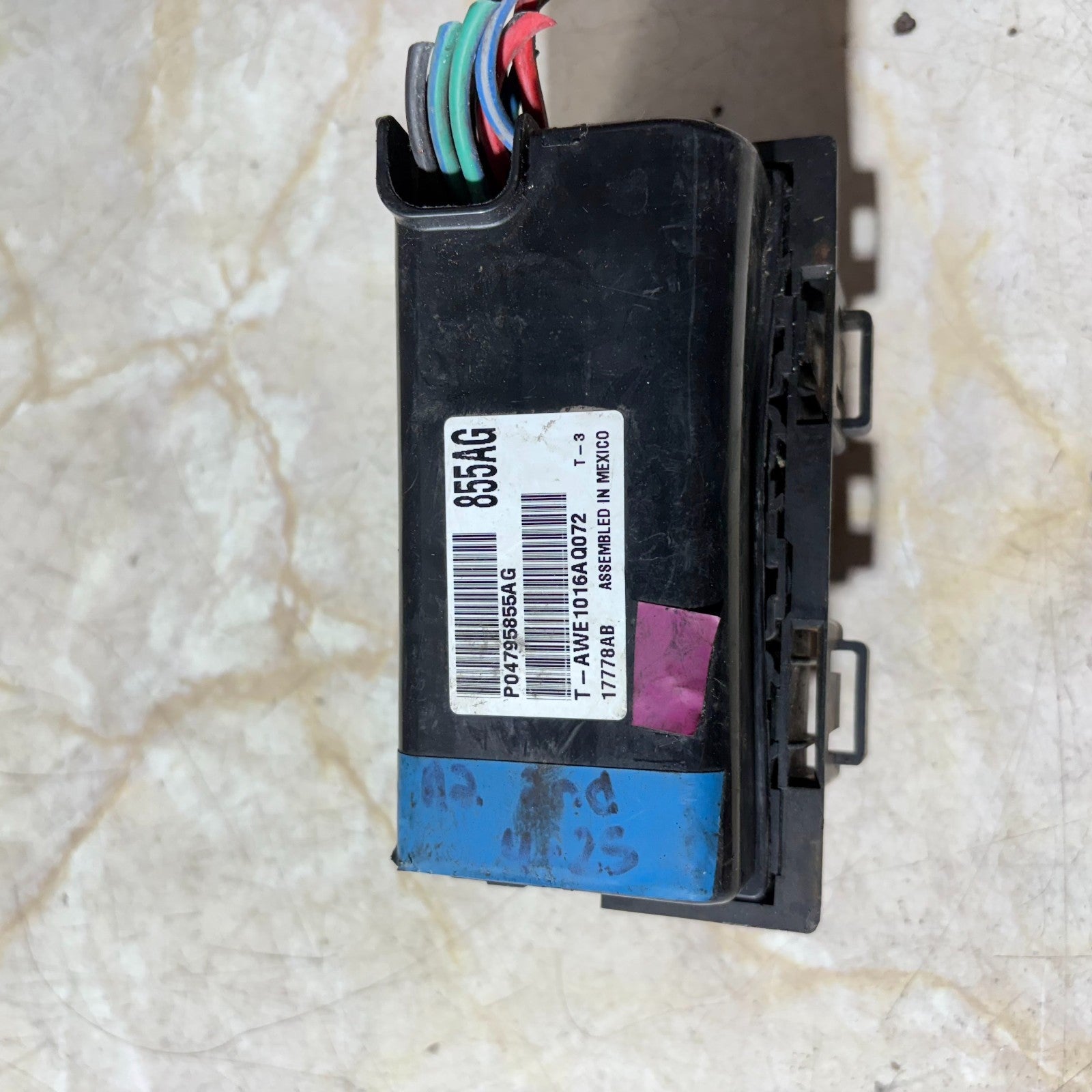

P04795855AG 855AG identification label assembled in Mexico
THEPARTPILOT • MATCH THIS LABEL

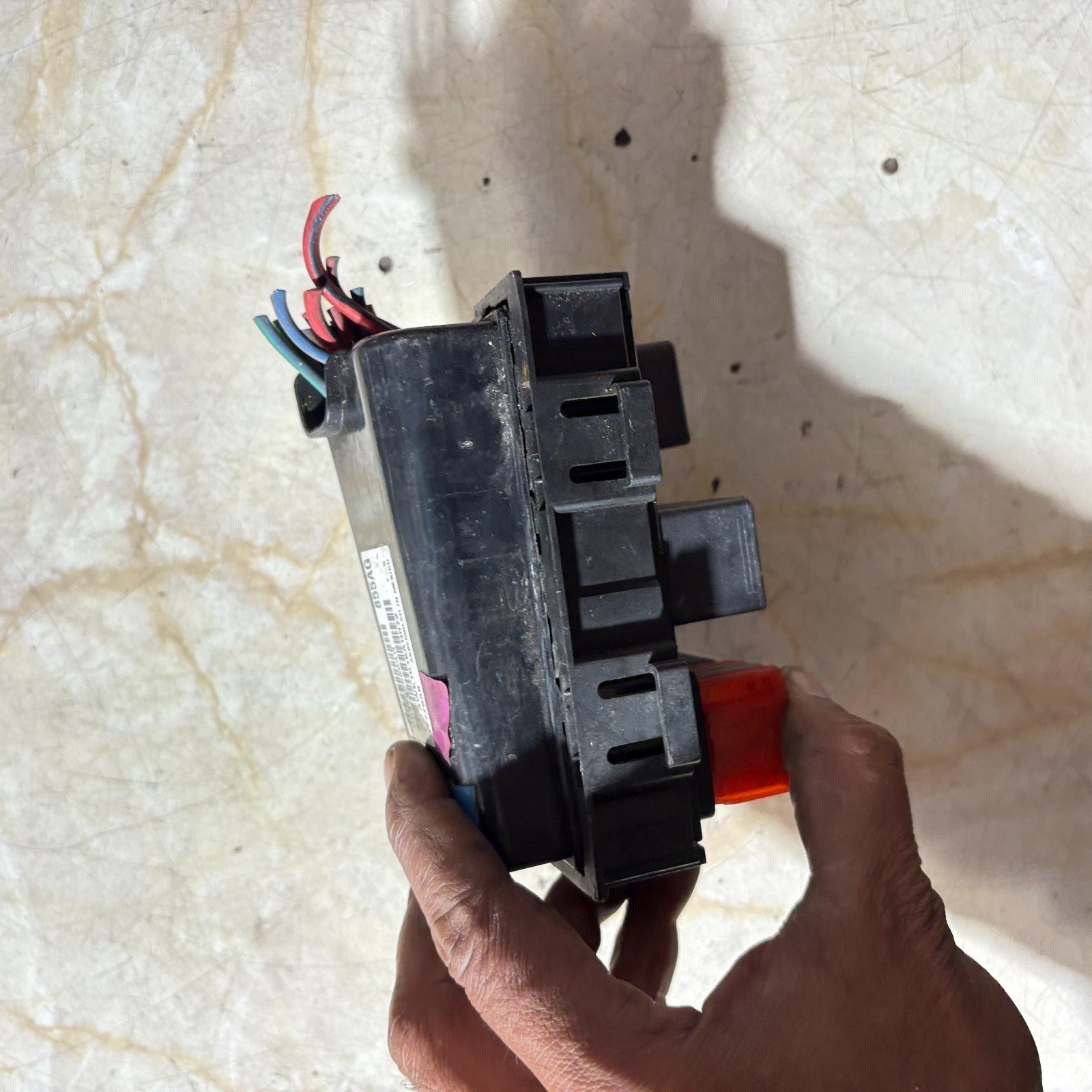

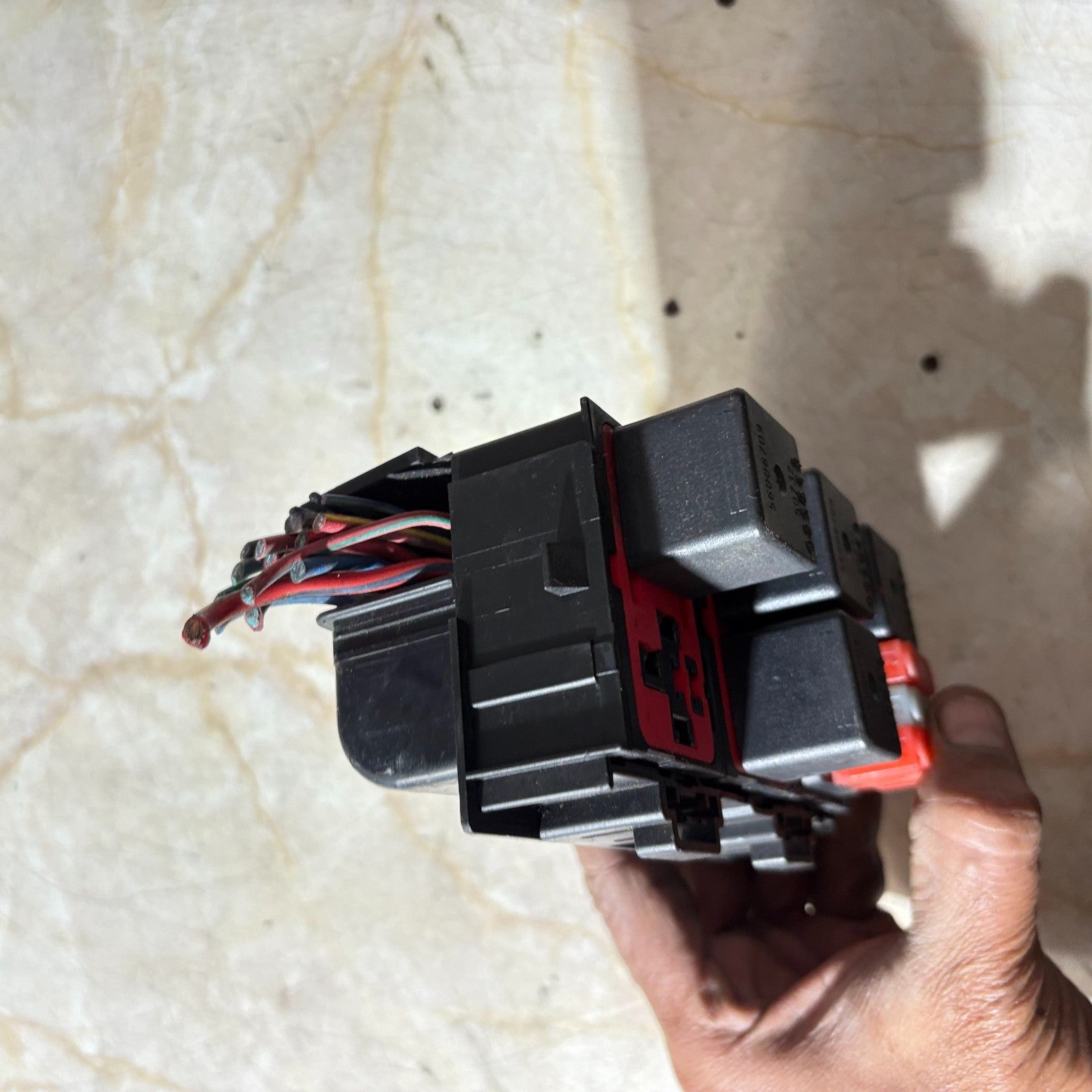

P04795855AG fuse relay box cut wiring tails condition reference
THEPARTPILOT • CUT WIRES

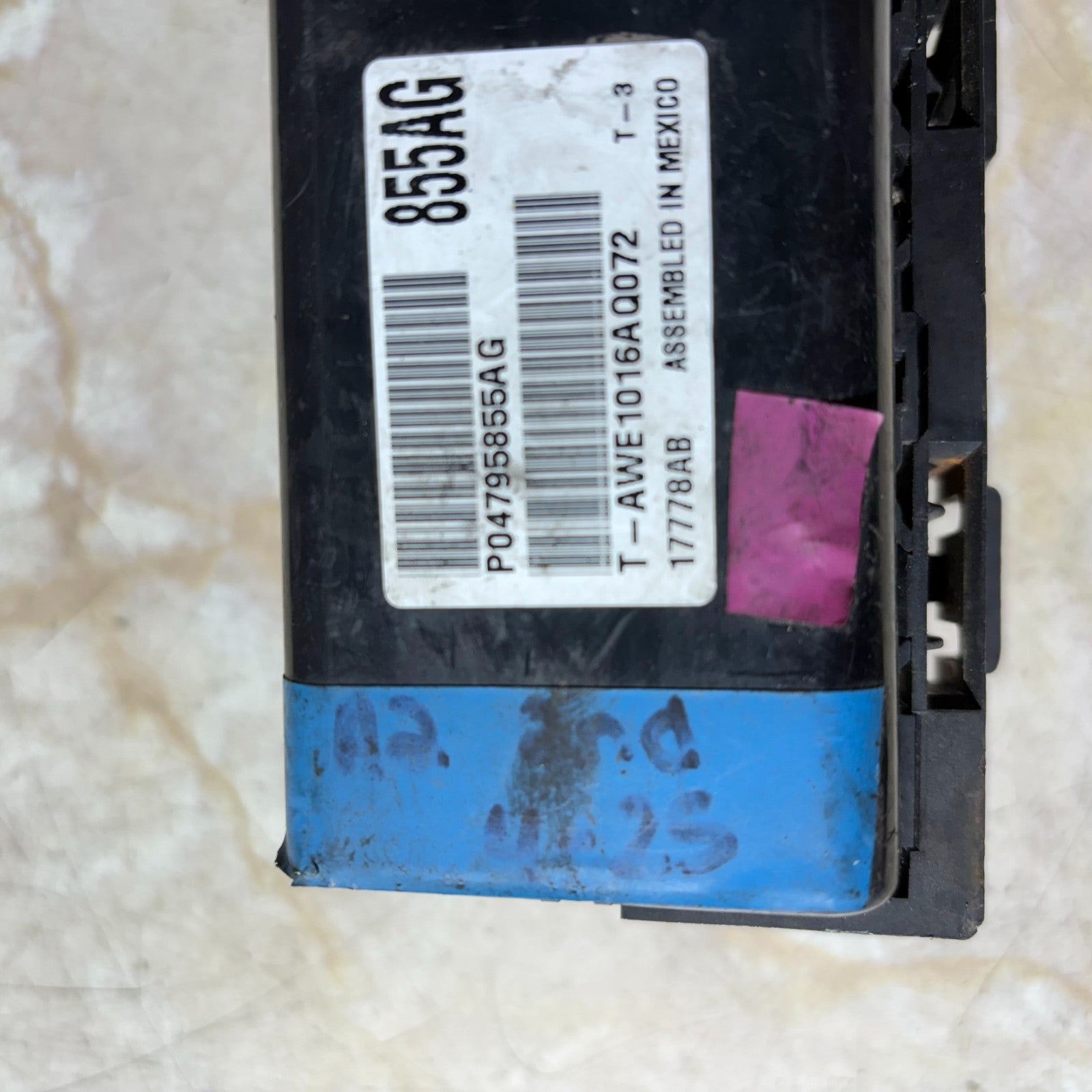

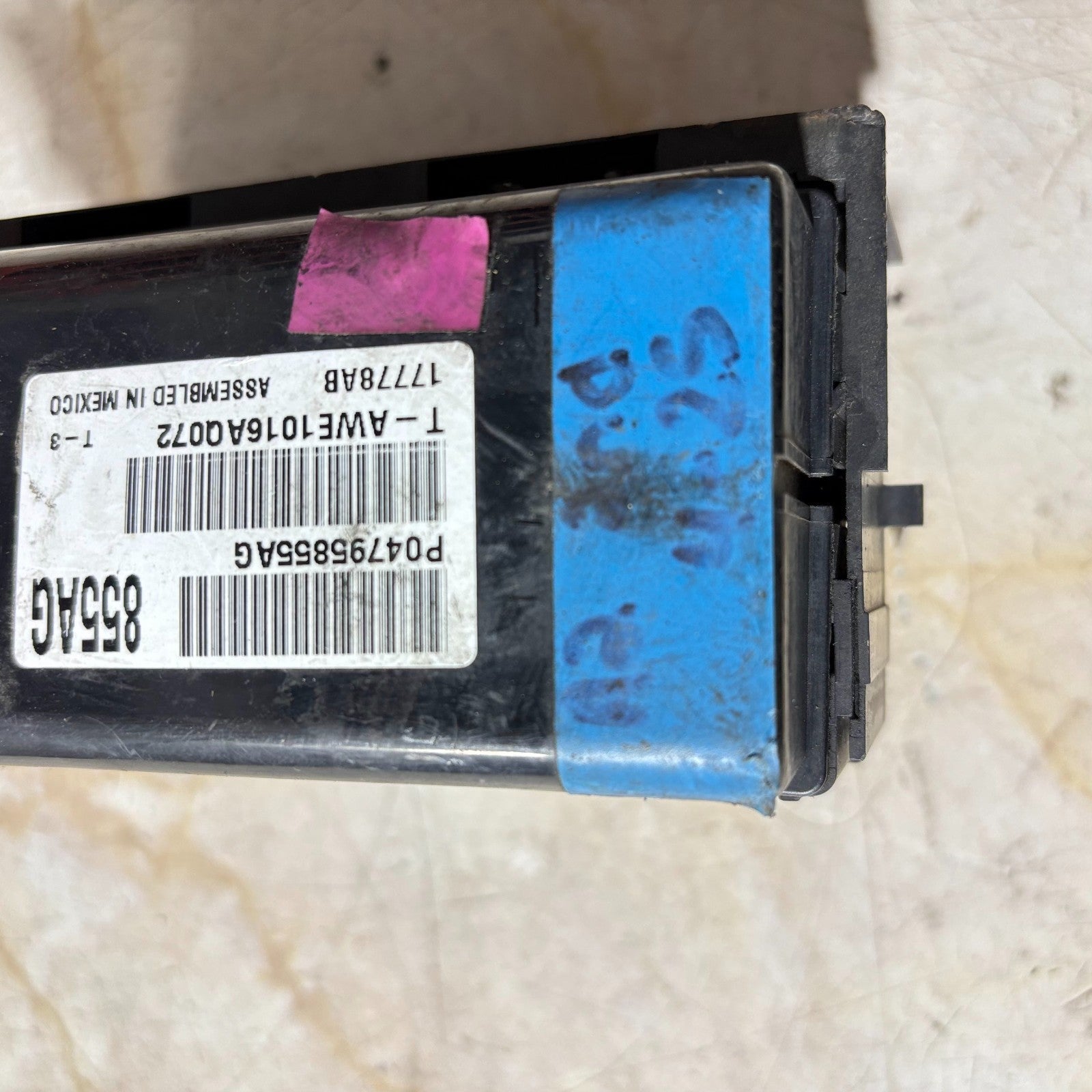

Close-up of P04795855AG 855AG T-AWE1016A0072 17778AB label
THEPARTPILOT • IDENTIFICATION DETAIL
Compatibility & parts matching chart
This table deliberately separates what is verified from what is not verified. A neighbouring part number or visually similar fuse box is not sufficient proof of compatibility.
Vehicle / application Years Status Required check
Vehicle already carrying P04795855AG / 04795855AG / 4795855AG Not safely established PHOTO & NUMBER MATCH ONLY Match full suffix, 855AG label, casing, clips, relay/fuse pattern, wire count, wire positions and wire gauges.
Mopar 4795855AF / 4795855AH catalogue family Not shown publicly for this AG unit FAMILY REFERENCE — NOT CONFIRMED INTERCHANGE Dealer catalogue/VIN confirmation plus direct physical comparison is required.
Volkswagen applications None verified NOT CONFIRMED Do not order solely because the current listing item specific says Volkswagen.
2007 Dodge Caliber / related platform vehicles Not confirmed for P04795855AG DO NOT CLAIM FITMENT Adjacent catalogue numbers exist, but adjacent numbering is not proof that this exact AG assembly fits.
Any other Chrysler / Dodge / Jeep / Ram vehicle None verified NOT CONFIRMED Exact part number, suffix, label and physical configuration must all match before purchase.
✓ BUY ONLY WHEN ALL MATCH
• P04795855AG / 04795855AG / 4795855AG
• Large 855AG identifier
• T-AWE1016A0072 and visible label details
• Same red/black relay and strip-fuse arrangement
• Same casing, mounting clips and connector orientation
• Same wire count, colours, positions and cable gauges
• You accept that the supplied wires are cut
✕ DO NOT BUY WHEN ANY DIFFER
• Your suffix is not AG
• Your existing number is merely similar
• Relay/fuse ratings or positions differ
• Mounting tabs, plug body or wiring positions differ
• You require a complete uncut harness
• You require a direct plug-and-play repair
• You are relying only on registration or vehicle checker data
What this part does & where it is fitted

This assembly forms part of an engine-compartment electrical wiring and power-distribution system. The fitted relays switch higher-current loads, while the bolted strip fuses protect major supply circuits. The precise circuits served depend on the vehicle specification and have not been verified for this individual item.

It is intended for the engine bay, normally within or adjacent to the vehicle's power-distribution wiring. Exact mounting position and orientation vary by application. Use the correct factory wiring information for the donor vehicle and the receiving vehicle before making any connection.

Possible symptoms of a faulty relay / fuse distribution assembly
Intermittent or completely inoperative electrical circuits
No-crank, no-start or intermittent starting symptoms
Repeated fuse failure or overheated fuse links
Relay chatter, clicking or unstable power supply
Warning lamps or accessories failing together
Corrosion, heat damage, melted plastic or burning smell
Diagnosis warning: these symptoms can also be caused by a weak battery, charging fault, poor earth, damaged wiring, failed control module or shorted load. Diagnose the circuit before replacing parts.
Why correct factory-spec matching matters

Electrical distribution parts are defined by internal terminal routing, fuse ratings, relay logic, connector keying and vehicle option codes. A cheap lookalike or a unit with a nearly matching number can route power differently and may create faults or damage. Matching the complete printed number and every physical detail gives the best chance of correct operation.

A correctly matched previously fitted component can also provide substantial value compared with buying new. Actual savings vary by part, availability and current new-part price; no fixed percentage is guaranteed.

Fitting instructions — professional wiring repair
  1. Confirm compatibility first. Match the full number, suffix, label, housing, relay/fuse layout, mounting points, wire count, wire positions and cable gauges.
  2. Obtain the exact wiring diagram. Use vehicle-specific technical data. Never connect wires by colour alone because colours can repeat across unrelated circuits.
  3. Make the vehicle safe. Switch off the ignition, keep keys away from the vehicle, follow any module sleep procedure, disconnect the negative battery terminal and wait for the period stated in the vehicle repair information.
  4. Record every connection. Photograph and label the old assembly and each circuit before cutting or removing anything.
  5. Inspect the root cause. Check for water ingress, overheating, short circuits, loose terminals, corrosion, damaged cable insulation and failed loads before fitting the replacement.
  6. Prepare the wiring. Cut back to clean copper, maintain the correct conductor size and current rating, stagger joints and leave adequate strain relief.
  7. Make sealed automotive joints. Use professional ratchet-crimped sealed connectors or the repair method specified by the manufacturer, then protect with adhesive-lined heat-shrink. Do not use household connectors.
  8. Verify fuses and relays. Transfer or replace only where part numbers, terminal patterns and ratings are confirmed. Never fit a higher-rated fuse to stop repeated blowing.
  9. Mount and protect. Secure the housing in the correct orientation, restore covers/seals, keep wiring away from heat and moving parts, and prevent water traps.
  10. Test before handover. Check continuity, insulation, supply voltage and voltage drop; reconnect the battery safely; scan for diagnostic codes; then verify starting, charging and all affected circuits.
Safety: this unit can carry high current. Incorrect wiring may cause component damage, overheating or fire. Use a qualified auto electrician when the circuit identity or repair method is uncertain.
Required tools & materials
🔧 Insulated 10 mm socket/spanner and suitable hand tools
🧰 Trim tools and vehicle-specific removal tools
📘 Exact wiring diagram / technical information
⚡ Digital multimeter and appropriate test leads
✂ Quality wire strippers and cable cutters
🗜 Professional ratchet crimping tool
🧷 Correct sealed automotive terminals/connectors
🔥 Adhesive-lined heat-shrink and protected heat source
🔍 Fuse puller, inspection light and magnification
🖥 Diagnostic scan tool; torque wrench where specified
Estimated repair time
Identification and diagnosis: approximately 0.5–1.0 hour
Professional splice, refit and test: approximately 1.0–2.5 hours
Typical total: approximately 1.5–3.5 hours
Time can increase substantially where circuits must be traced, wiring is burnt/corroded, access is restricted, terminals need repinning or an underlying fault remains.
Fitting service available subject to availability. Please message us through eBay before purchase with the part number and vehicle details.
Static garage labour estimator
eBay descriptions cannot use an interactive active-content calculator. Use the static table below: hourly rate × labour hours = estimated labour charge. Parts, diagnostics, VAT where applicable, consumables and additional repairs are not included.
Estimated time £60/hour £80/hour £100/hour £120/hour
0.5 hour £30 £40 £50 £60
1.0 hour £60 £80 £100 £120
1.5 hours £90 £120 £150 £180
2.0 hours £120 £160 £200 £240
2.5 hours £150 £200 £250 £300
3.5 hours £210 £280 £350 £420
