Nissan Micra C+C CK12 2005-2009 Driver Door Wiring Loom Harness 24124-BC001
£23.20
Skip to product information
For faster fitment help, send your vehicle registration, VIN if available, and clear photos of your existing part, connector and part number.
Nissan Micra C+C CK12 2005-2009 Driver Door Wiring Loom Harness 24124-BC001
£23.20
IMPORTANT CORRECTION: THIS IS A RIGHT FRONT DOOR HARNESS. IT IS NOT AN ENGINE WIRING LOOM.
| 30 DAY WARRANTY | FITTING AVAILABLE | 25,000+ PARTS STOCKED | WORLDWIDE ELIGIBILITY AT CHECKOUT |

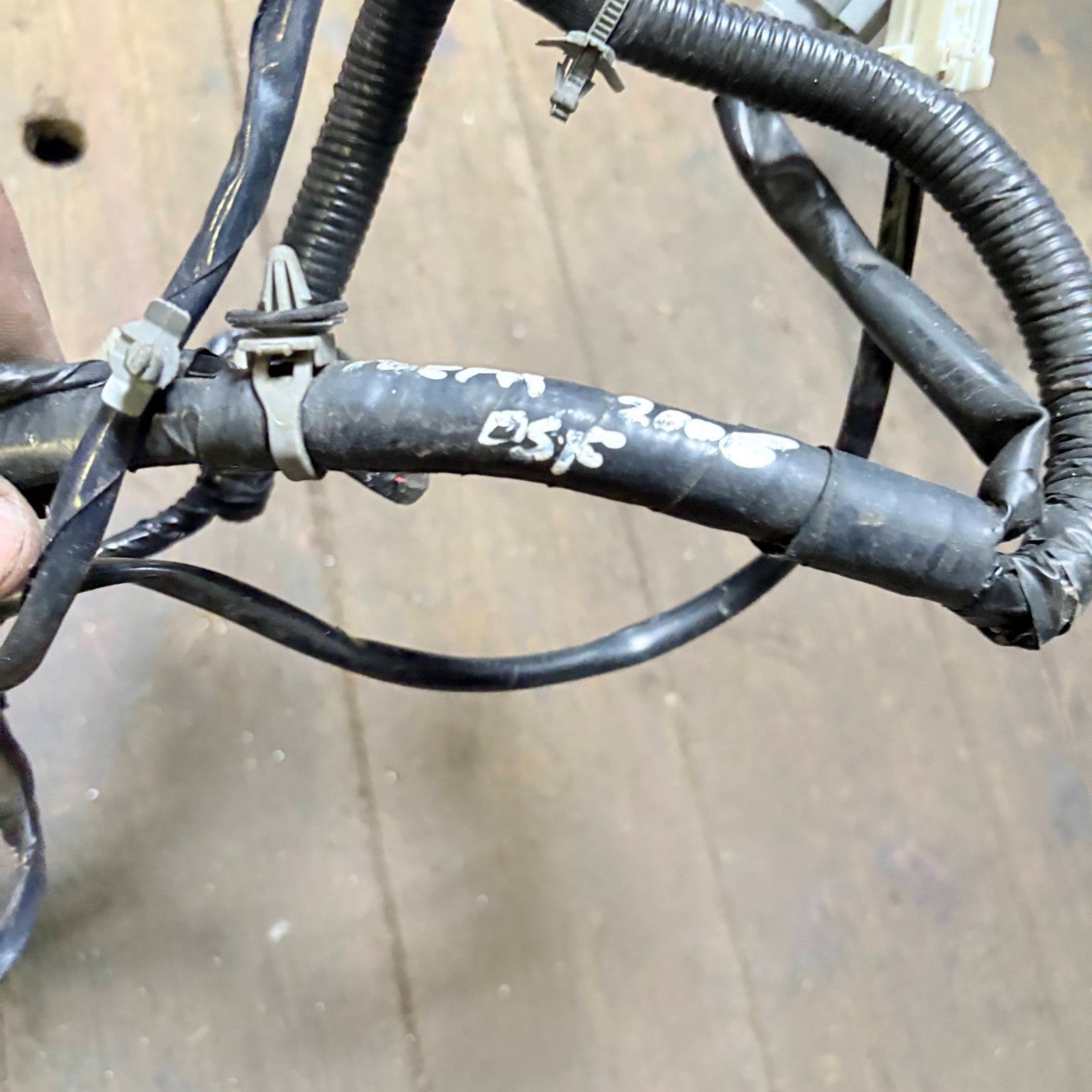

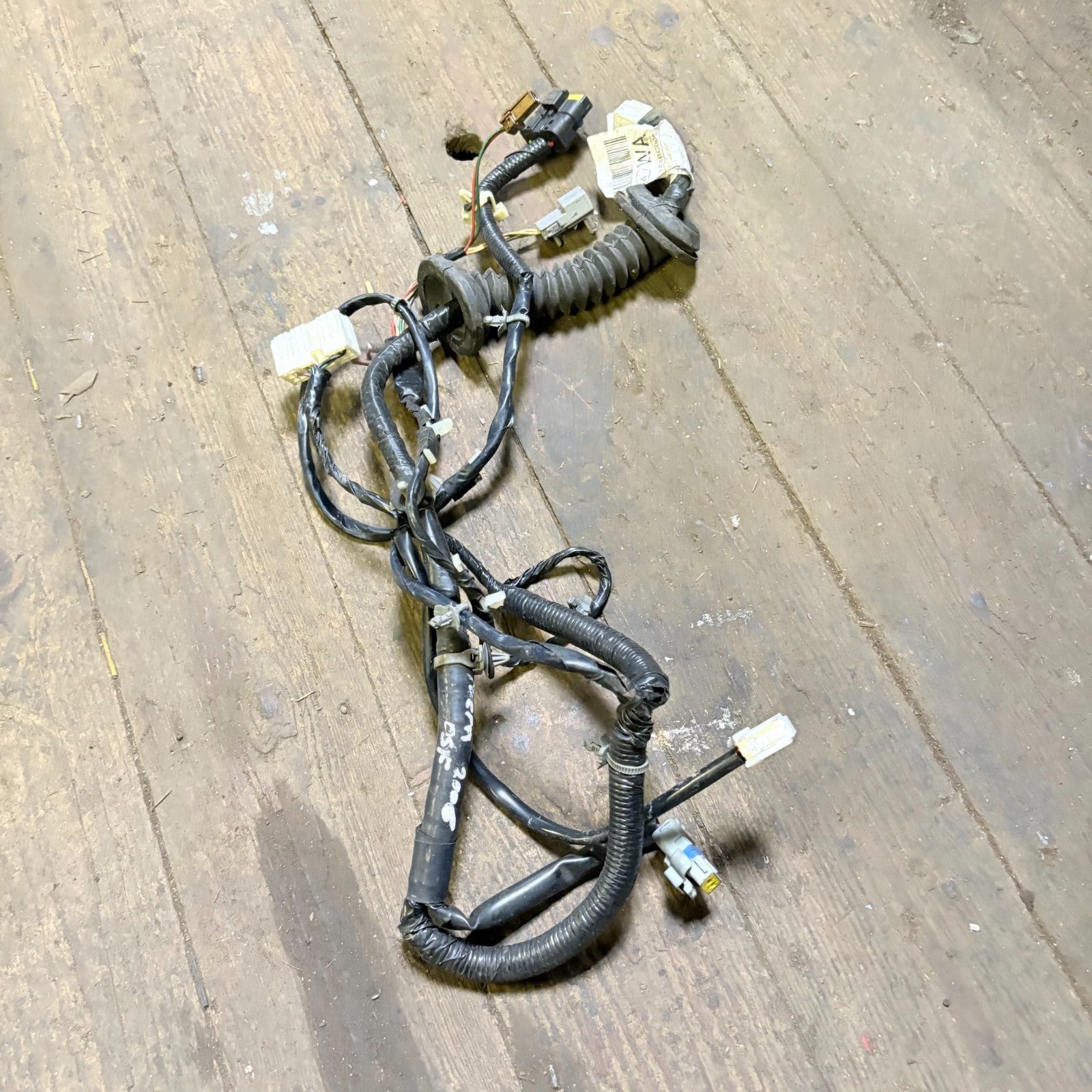

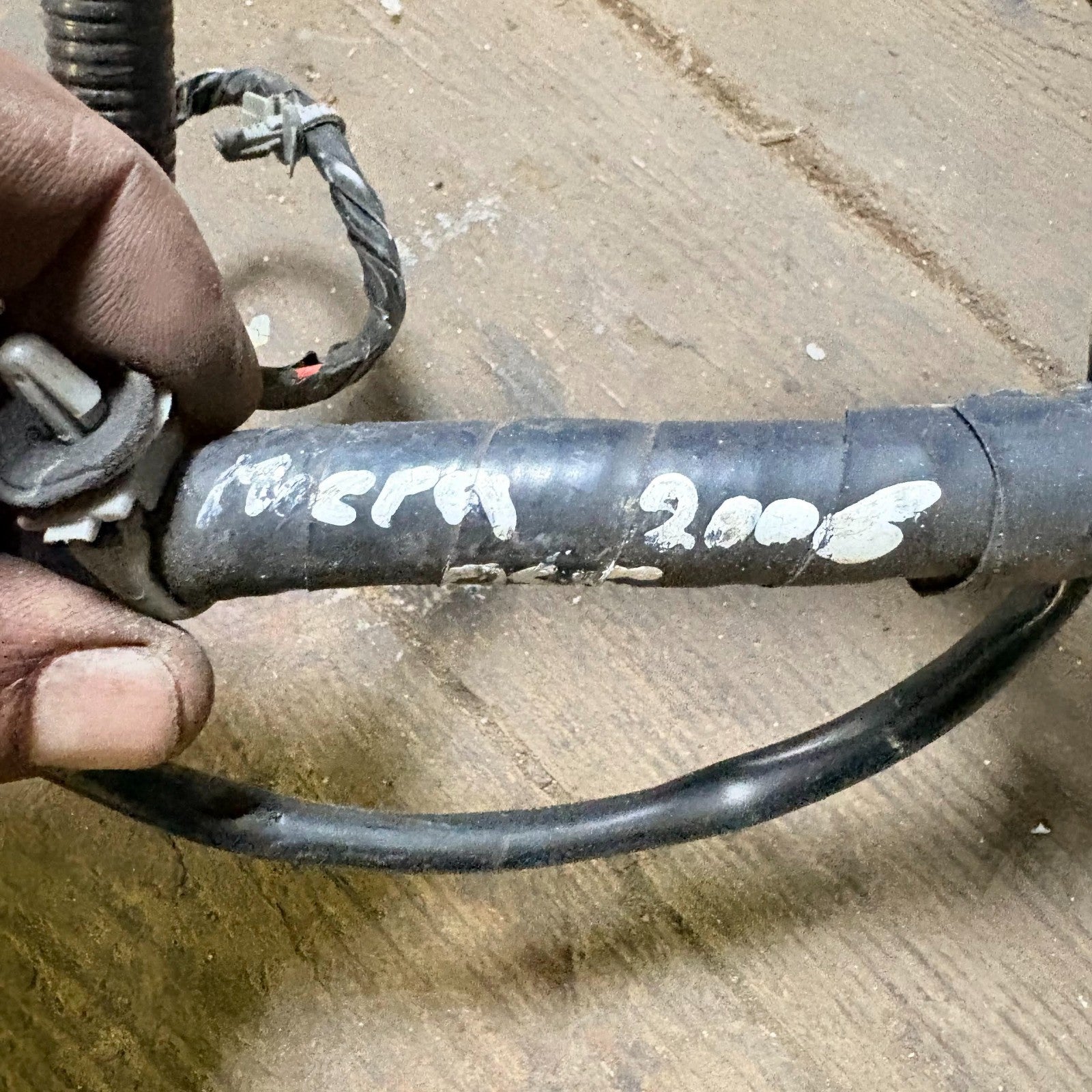

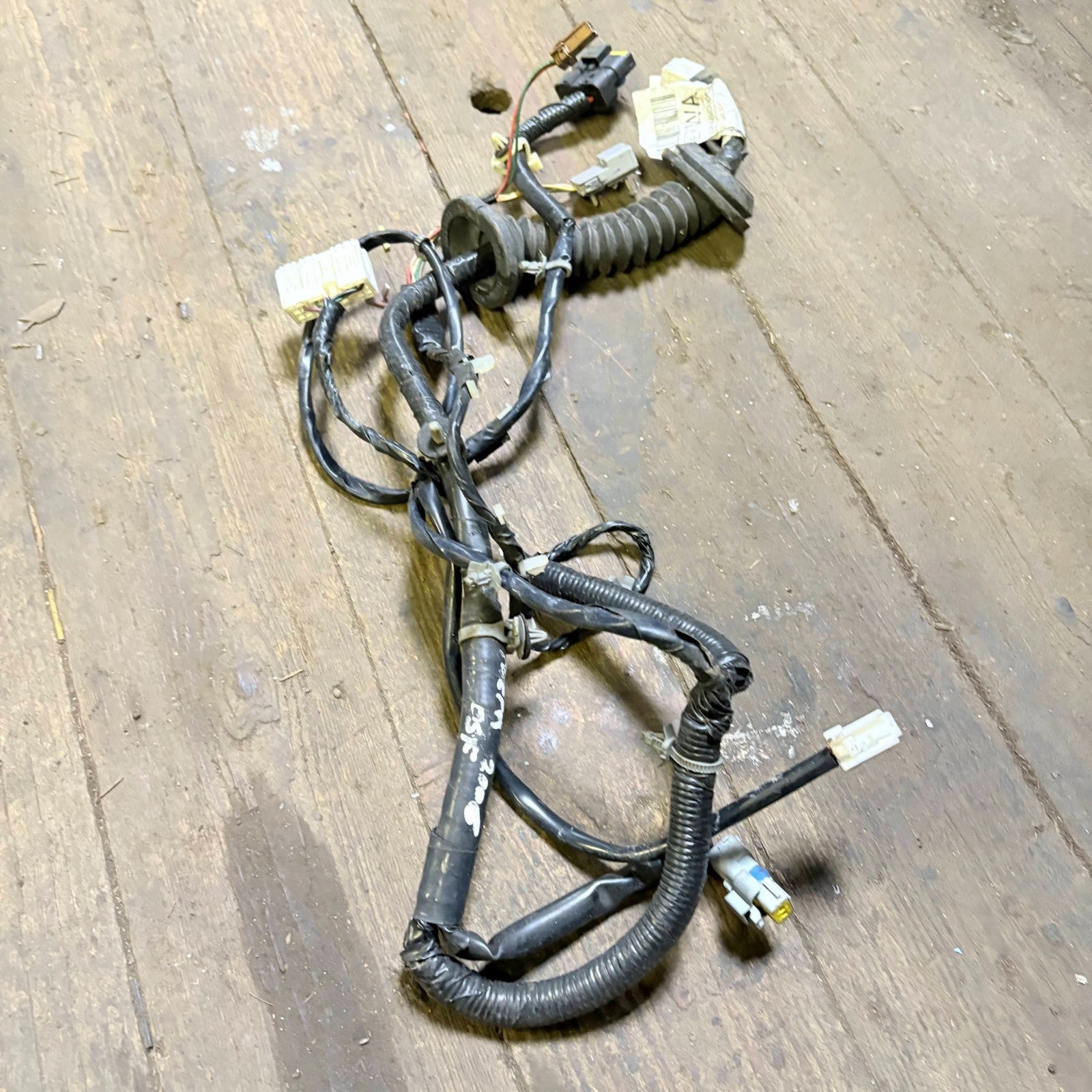

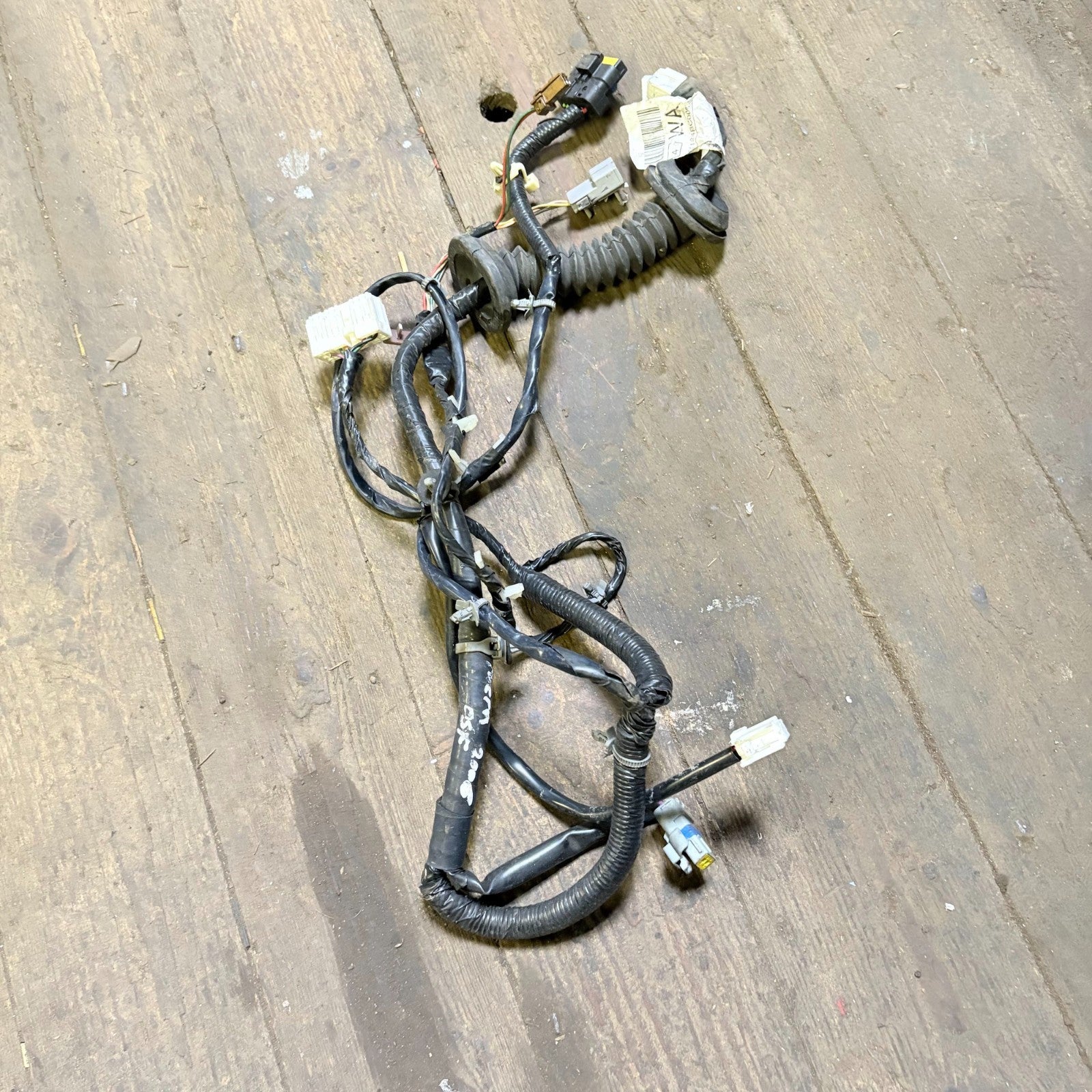

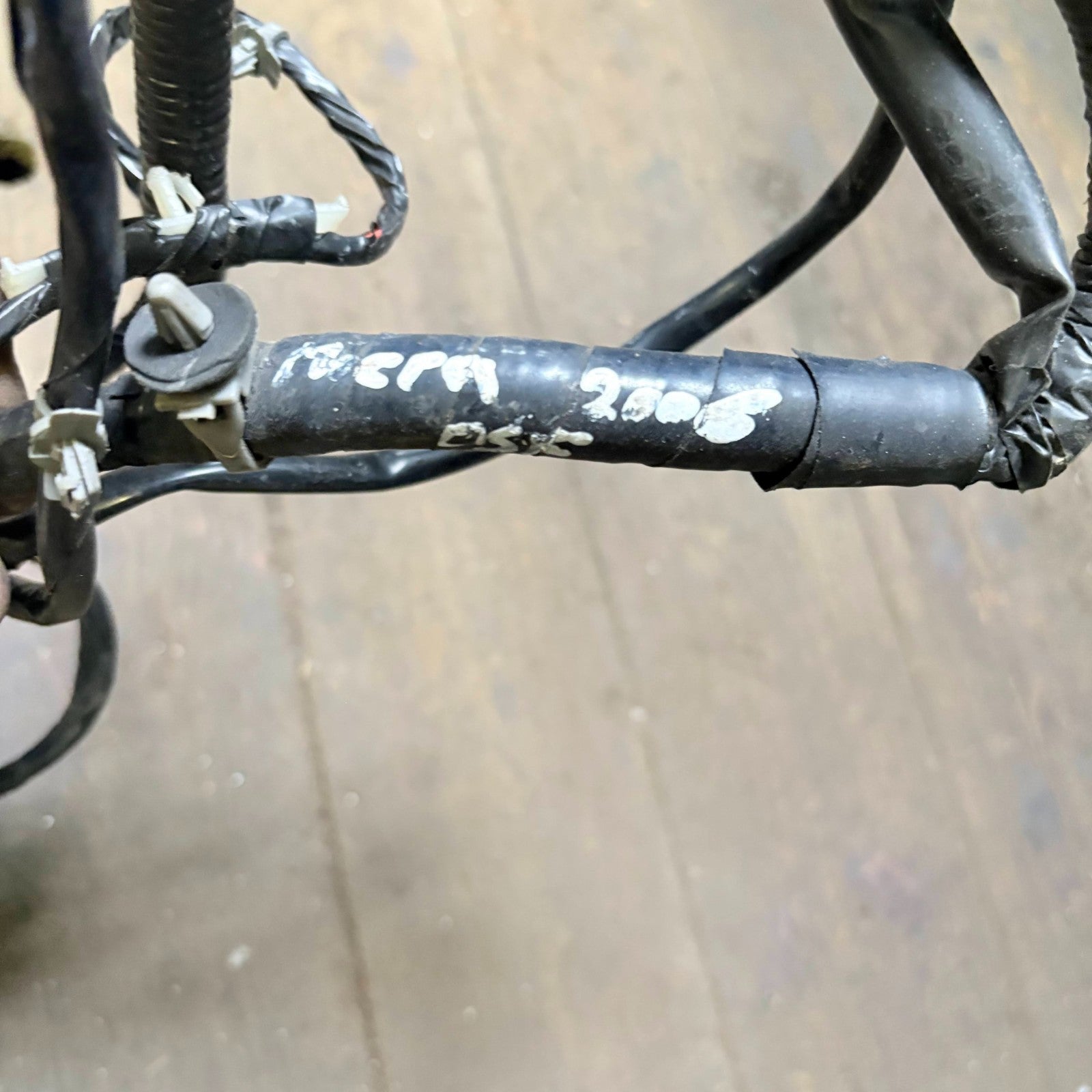

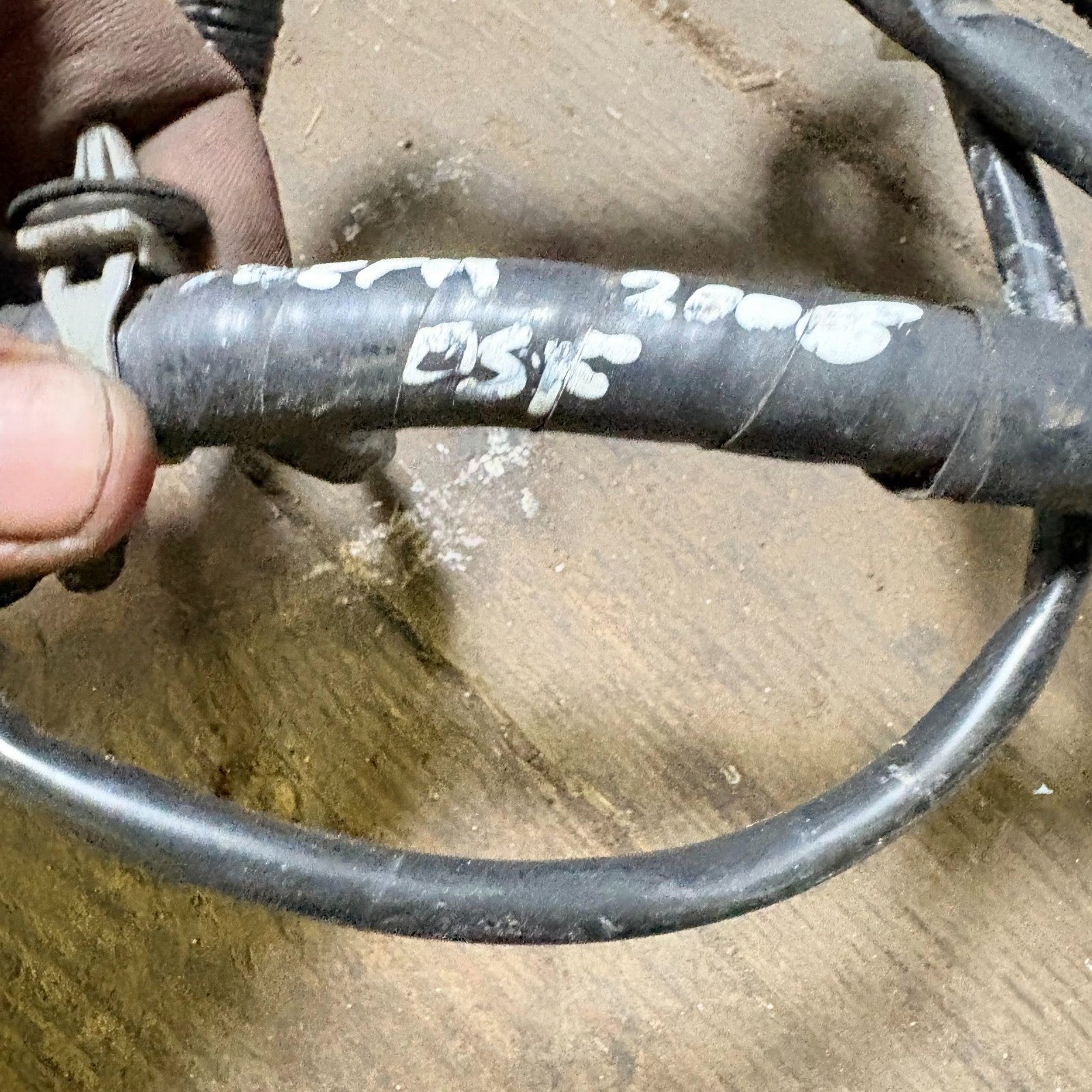

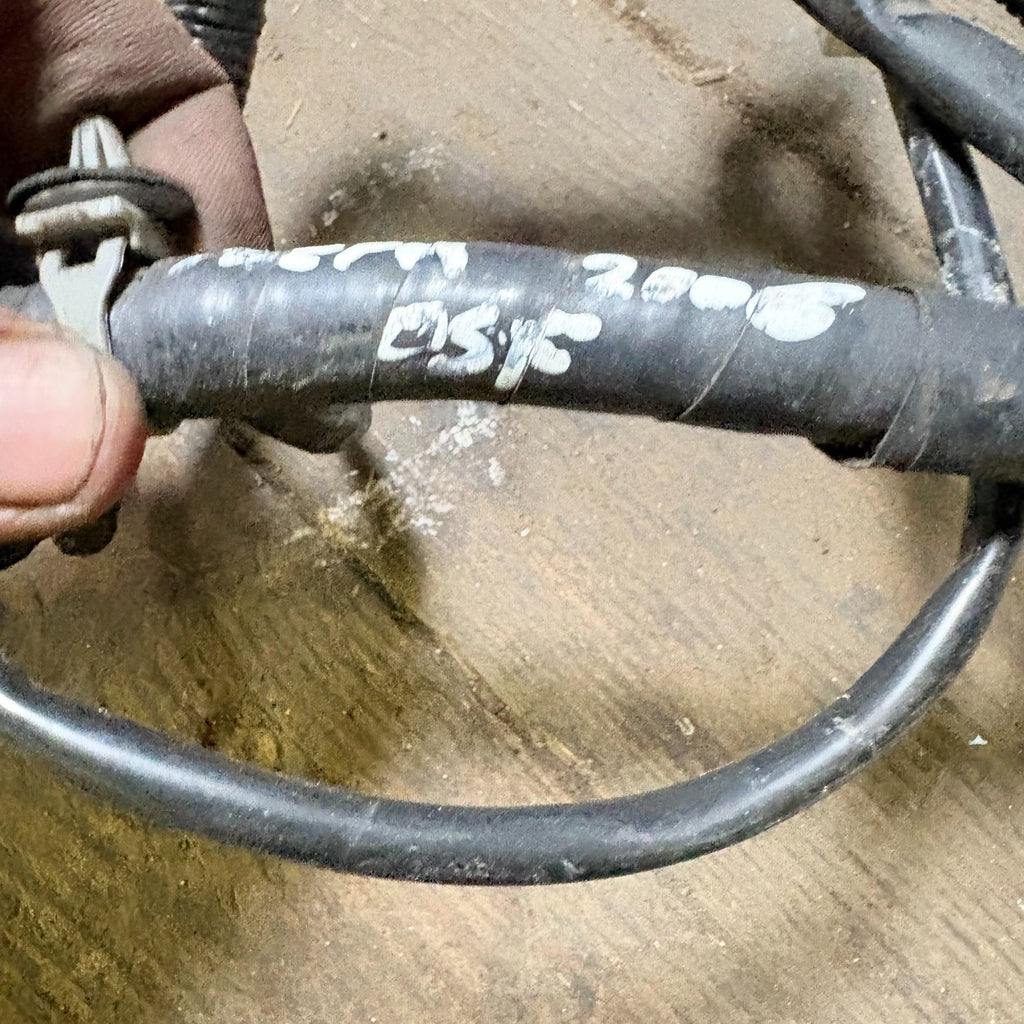

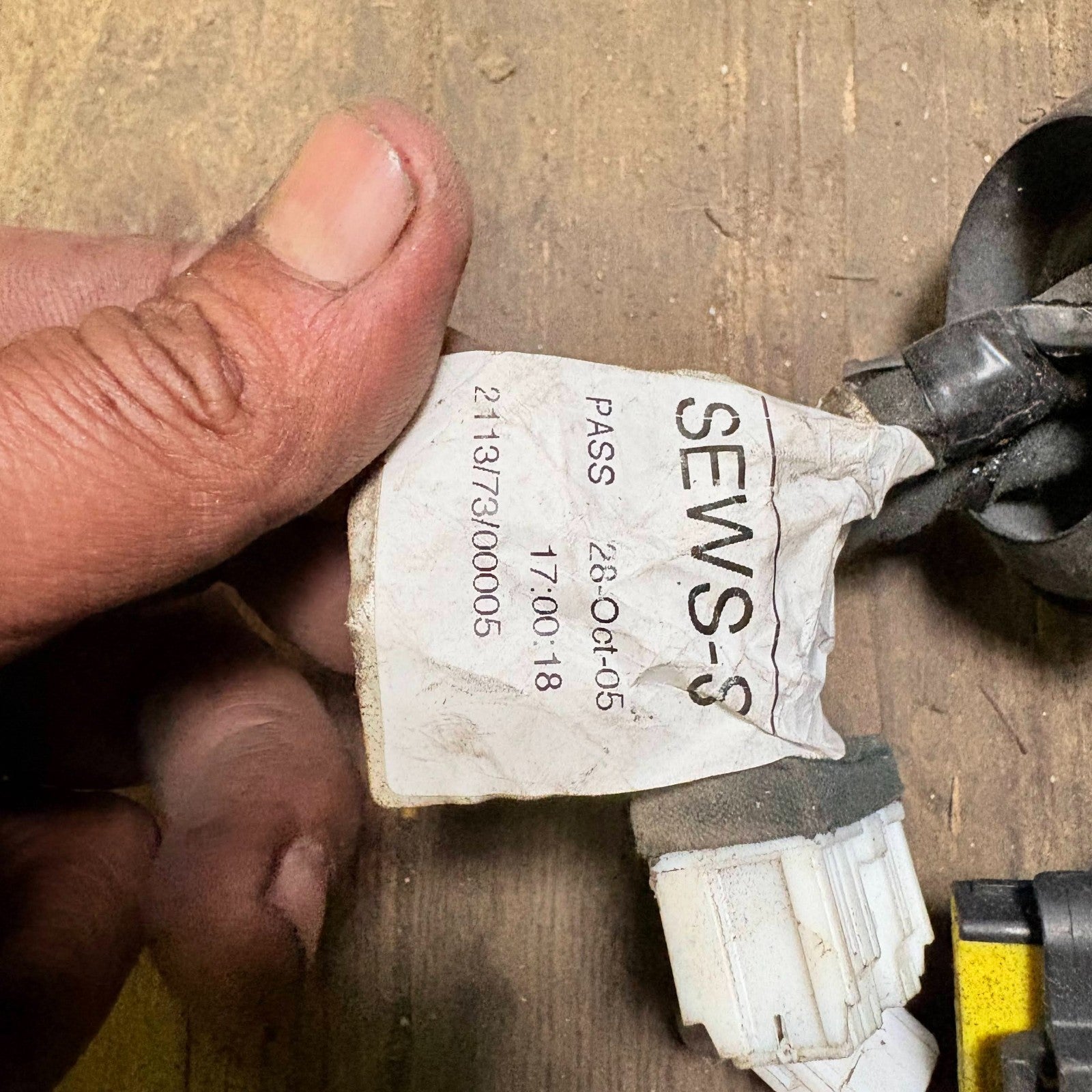

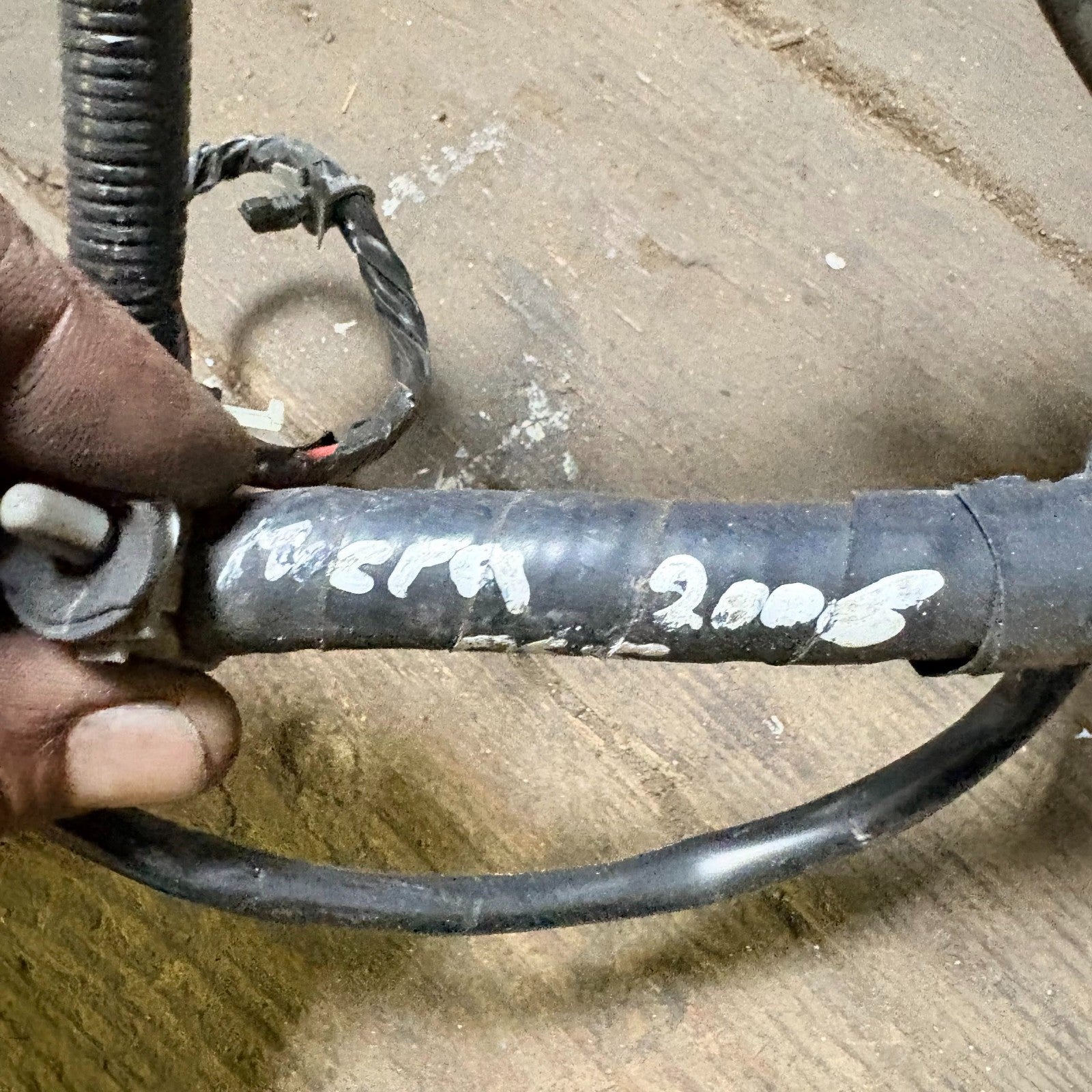

ACTUAL ITEM PHOTOGRAPHS
THEPARTPILOT - 147479020778
THEPARTPILOT - 24124-BC001

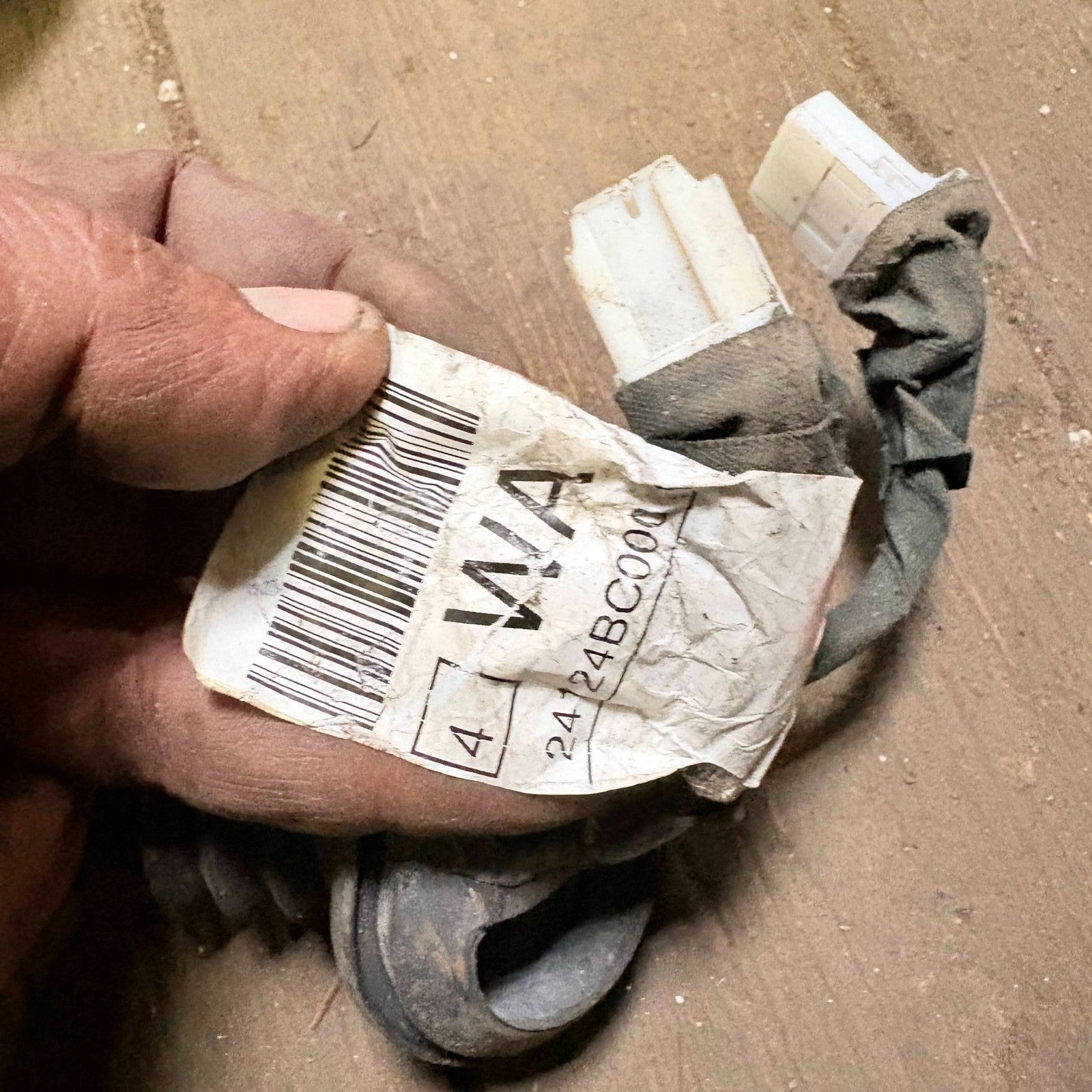

LABEL VERIFIED: 24124-BC001

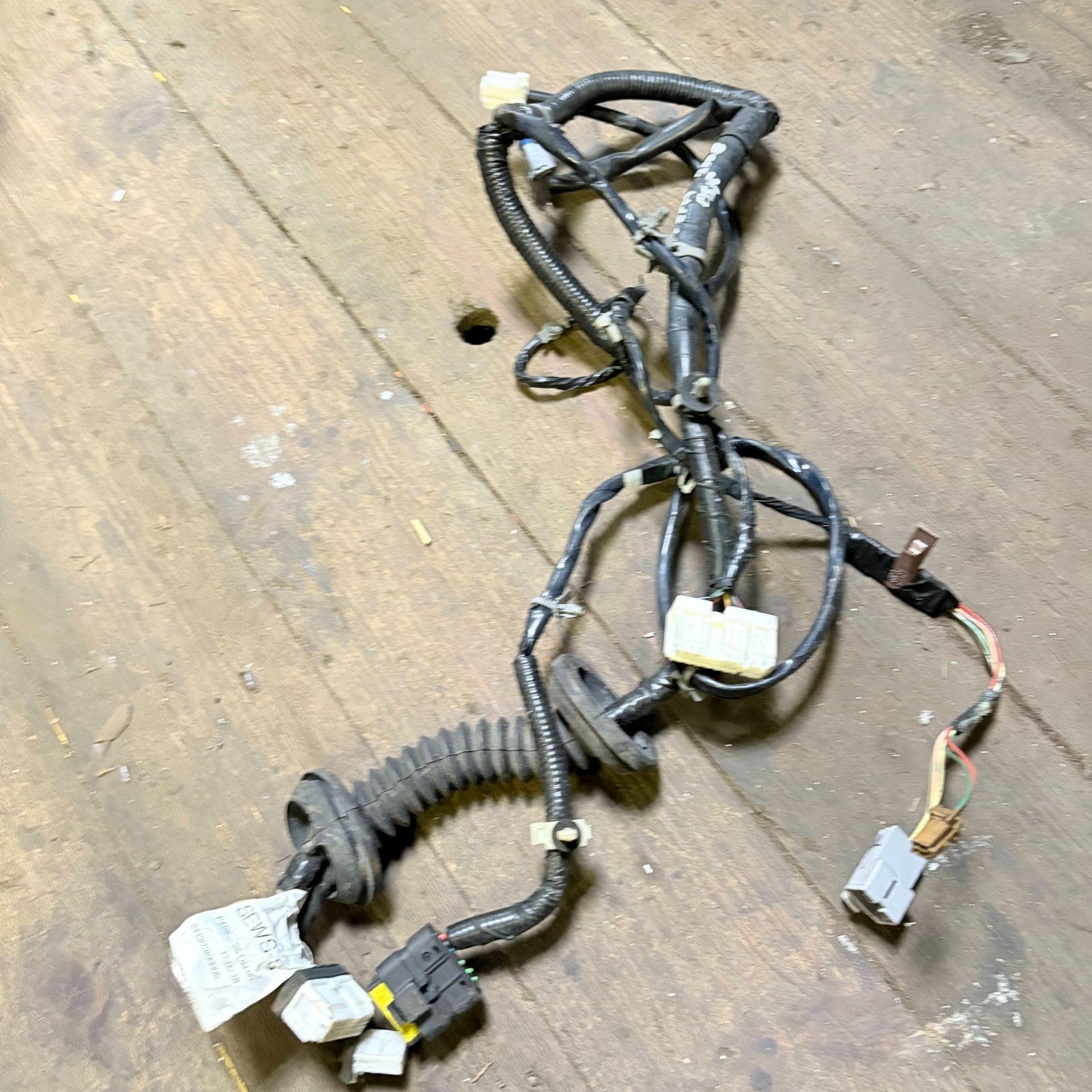

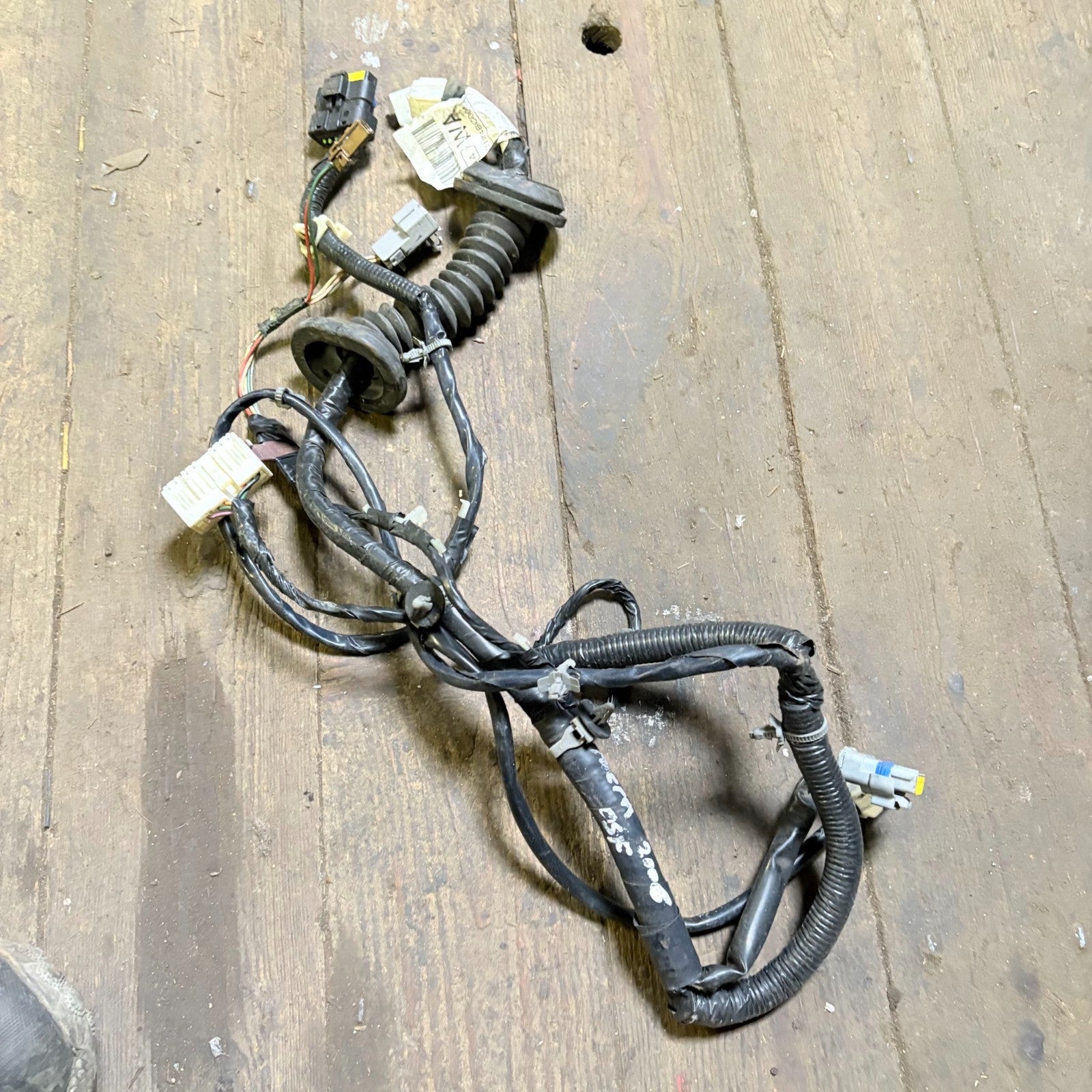

The loom shown in these photographs is the item supplied. Compare every plug, branch, clip and rubber gaiter with your original before ordering.
REFERENCE VEHICLE AND FITTING LOCATION
Reference vehicle only: Nissan Micra C+C K12 two-door coupe-cabriolet. Image: Tokumeigakarinoaoshima, CC0, Wikimedia Commons.
|
WHERE THIS PART FITS
The harness is routed inside the UK driver's right-front door and passes through the rubber gaiter between the door and the body/A-pillar.
Vehicle body required: Micra C+C two-door hardtop convertible. This is not the three-door or five-door Micra hatchback.
|
ITEM DETAILS AND SPECIFICS
| Brand / vehicle marque | Nissan |
| Manufacturer part number | 24124-BC001 |
| Part type | Harness assembly - front door wiring loom |
| Placement on vehicle | Front right / driver's door on UK right-hand-drive vehicles |
| Vehicle platform | Nissan Micra C+C CK12E / K12, two-door coupe-cabriolet |
| Verified catalogue period | September 2005 to March 2009, subject to engine and equipment checks below |
| Visible construction | Insulated copper wiring, moulded polymer connectors, protective loom tape, rubber door-jamb gaiter and retaining clips |
| Colour / identification | Dark loom wrapping with blue, white and yellow connector housings; white identification label |
| Interchange part number | No separate confirmed interchange number verified |
| Superseded part number | No confirmed superseded number verified |
| Condition | Pre-owned recycled vehicle part. Expect normal storage and service marks. Supplied exactly as photographed. |
| Included | One right-front door wiring harness assembly with the attached plugs, gaiter and clips shown |
| eBay item number | 147479020778 |
| VAT information | VAT margin scheme - second-hand goods. VAT is not shown separately and is not reclaimable. |
VERIFIED COMPATIBILITY TABLE
| Make / model | Body / drive | Engine | Verified period | Grade / equipment requirement |
|---|---|---|---|---|
| Nissan Micra C+C CK12E | Two-door coupe-cabriolet, RHD | 1.4 petrol CR14DE, 5-speed manual | 09/2005-09/2007 | Sport Premium catalogue application; exact number 24124-BC001 required |
| Nissan Micra C+C CK12E | Two-door coupe-cabriolet, RHD | 1.6 petrol HR16DE, manual or automatic | 09/2005-09/2007 | Sport / Sport Premium with Intelligent Key Card specification KYLS4 only |
| Nissan Micra C+C CK12E | Two-door coupe-cabriolet, RHD | 1.6 petrol HR16DE, 5-speed manual or automatic | 09/2007-03/2009 catalogue | Active with Intelligent Key Card specification KYLS4 only |
Year, model and engine alone are not enough. The buyer must match part number 24124-BC001 and compare all plugs, wire branches, clips and the rubber gaiter. Send your registration or VIN through eBay Messages if you need a compatibility check before purchase.
THIS PART WILL NOT FIT
| Standard Micra K12 hatchback | Not verified for the three-door or five-door hatchback. The body and door harness layout differ. |
| Other Micra generations | Not for Micra K11, K13 or later models. |
| Passenger / left front door | The front-assist / passenger-side catalogue number is 24125-BC001, not this part. |
| 1.6 without Intelligent Key | The catalogue lists 24124-BC000 for non-KYLS4 vehicles. Do not substitute this loom unless your original number and connectors match. |
| Engine bay application | This is not an engine, engine-room, main-body or EGI harness. |
| Left-hand-drive vehicle | Fitment was verified in the CK12E right-hand-drive catalogue. Do not assume left-hand-drive compatibility. |
WHAT THE DOOR HARNESS DOES
This loom carries electrical circuits between the vehicle body and the driver's door. Depending on the exact specification, it may serve the electric window switch and motor, door lock and latch, electric mirror, speaker, door-open signal, courtesy functions and Intelligent Key door equipment.
Using the correct manufacturer-numbered harness helps preserve the intended connector keying, cable lengths, wire routing, clip positions and moisture sealing. A poorly matched copy or modified loom can create unreliable connections, trapped wiring, water entry or features that do not operate correctly.
COMMON FAULT SYMPTOMS
| Intermittent door electrics: windows, mirrors or locks work only when the door is moved. | Central-locking or keyless faults: the driver's door does not respond consistently. |
| Audio or warning faults: the door speaker, door-open signal or courtesy function becomes intermittent. | Visible cable damage: split insulation, corrosion, broken conductors or damaged plugs near the door gaiter. |
These symptoms can also be caused by switches, motors, locks, fuses, control units or poor earths. Diagnose the fault before replacing parts.
FITTING GUIDE, TOOLS AND ESTIMATED TIME
| Planning time | Approximately 1.0 to 2.0 labour hours, depending on trim condition, seized fasteners, diagnostic work and installer experience. This is a planning estimate, not a manufacturer flat-rate time. |
| Suggested tools | Plastic trim tools, Phillips screwdriver, Torx T20/T30 bits, 10 mm socket and ratchet, small pick, electrical contact cleaner, multimeter, masking tape, gloves and suitable workshop lighting. |
| Skill level | Intermediate automotive electrical and trim-removal experience. Professional fitting is recommended. |
GENERAL INSTALLATION SEQUENCE
- Before dismantling, verify the original label is 24124-BC001 and photograph the routing, clips and connector positions.
- Raise the window, switch the ignition off and disconnect the negative battery terminal in accordance with the vehicle repair information.
- Remove the inner handle trim, switch pack, fixings and door card using non-marking trim tools.
- Disconnect the relevant window, mirror, speaker, latch/lock and keyless connectors fitted to your vehicle.
- Release the harness clips, carefully unseat the rubber gaiter and disconnect the body-side plug without pulling on the wires.
- Route the replacement loom exactly as the original so no branch is stretched, twisted, trapped or exposed to the window mechanism.
- Seat every clip and weather seal fully, reconnect the plugs, refit the trim and reconnect the battery.
- Test the window, lock, mirror, speaker, door-open signal and keyless functions before final handover.
Safety: door assemblies can contain side-airbag wiring and sharp metal edges. Do not probe airbag circuits. Follow suitable workshop information and use a qualified technician where required.
GARAGE LABOUR ESTIMATE TABLE
Use the table as a quick labour-only estimate. Formula: hourly rate multiplied by booked labour time.
| Garage hourly rate | 1.0 hour | 1.5 hours | 2.0 hours |
|---|---|---|---|
| £50 per hour | £50 | £75 | £100 |
| £70 per hour | £70 | £105 | £140 |
| £90 per hour | £90 | £135 | £180 |
| £110 per hour | £110 | £165 | £220 |
| £130 per hour | £130 | £195 | £260 |
Figures exclude diagnostics, consumables, additional damaged parts and any tax charged by the fitting garage. ThePartPilot fitting service is available subject to workshop capacity and prior arrangement through eBay Messages.
BUYER MATCHING CHECKLIST
| 1. Part number: your original must read 24124-BC001. | 2. Body style: Micra C+C two-door hardtop convertible only. |
| 3. Side: UK driver's right-front door, not passenger side. | 4. Equipment: 1.6 vehicles require Intelligent Key Card specification. |
| 5. Physical match: compare every connector colour, keyway, branch and clip. | 6. Ask before purchase: send registration/VIN and clear original-part photos through eBay Messages. |
DELIVERY, ADDRESS AND RETURNS
| UK and international delivery | Postage services, charges and delivery estimates are shown by eBay. International delivery may be available to eligible destinations through eBay's programme; destination eligibility, import charges and restrictions are confirmed at checkout. |
| Checkout address | We can dispatch only to the address shown on the completed eBay order. Check the full delivery address before payment because it cannot be changed by us after checkout. |
| Before fitting | Do not cut, splice, modify or install the loom until the part number, connectors and application have been confirmed. |
| Returns | Returns are handled under the returns terms displayed on the eBay listing and applicable statutory rights. Returned items must be in the condition supplied, unmodified and with identification/security markings intact. |
WhatsApp QR for Fitment Help / Appointment Enquiries
Scan the QR code to contact ThePartPilot on WhatsApp for fitment checks, appointments or fitting service availability.For faster fitment help, send your vehicle registration, VIN if available, and clear photos of your existing part, connector and part number.
WHY BUY A MATCHING RECYCLED PART?
|
CORRECT ENGINEERING
The right manufacturer-numbered loom provides the intended plug shapes, branch lengths, routing clips and protective gaiter.
|
LOWER COST POTENTIAL
A serviceable recycled part can cost substantially less than new dealer stock. Actual savings vary by part, condition and availability.
|
RESOURCE EFFICIENCY
Reusing a serviceable component extends its useful life and reduces demand for newly manufactured replacement material.
|
SUPPORT A LOCAL PARTS SPECIALIST
ThePartPilot is a local automotive-parts business with more than 25,000 parts stocked on the shelf at any one time. Each order supports skilled parts identification, careful picking, protective packing and the reuse of serviceable components.
|
WAREHOUSE PICKED Matched to the listing stock record. |
SECURITY MARKED Identification retained for order control. |
PACKED FOR DISPATCH Protected for the selected eBay service. |
THEPARTPILOT
Part reference: 24124-BC001 | eBay item: 147479020778
Nissan and Micra C+C are used only to identify vehicle compatibility. No manufacturer logo is used in this description.
