CRITICAL FITMENT CHECK

Order only when your original loom is marked 821510H390D and its connectors, branches, clips and rubber gaiter match the photographs below.

PART NUMBER: 821510H390D

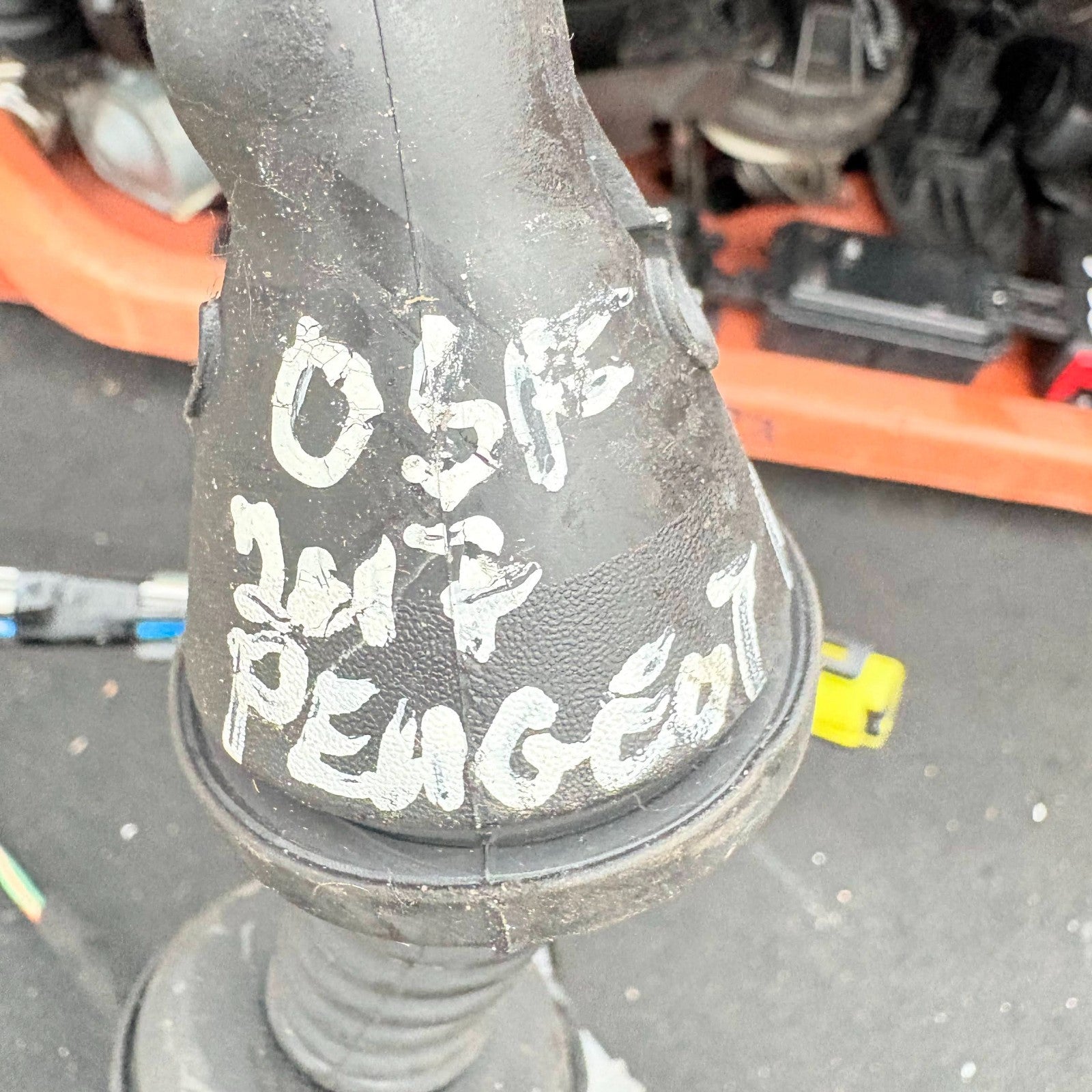

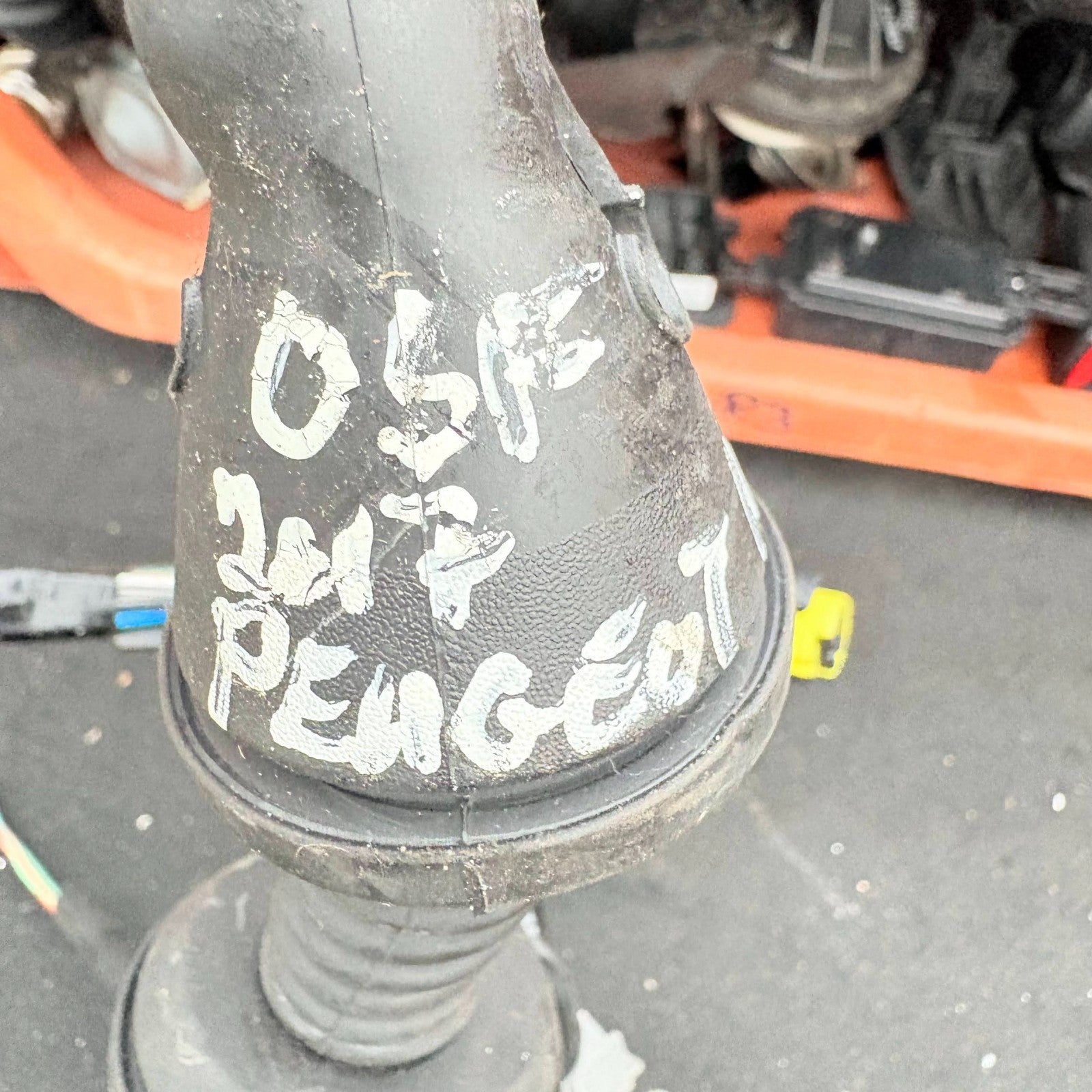

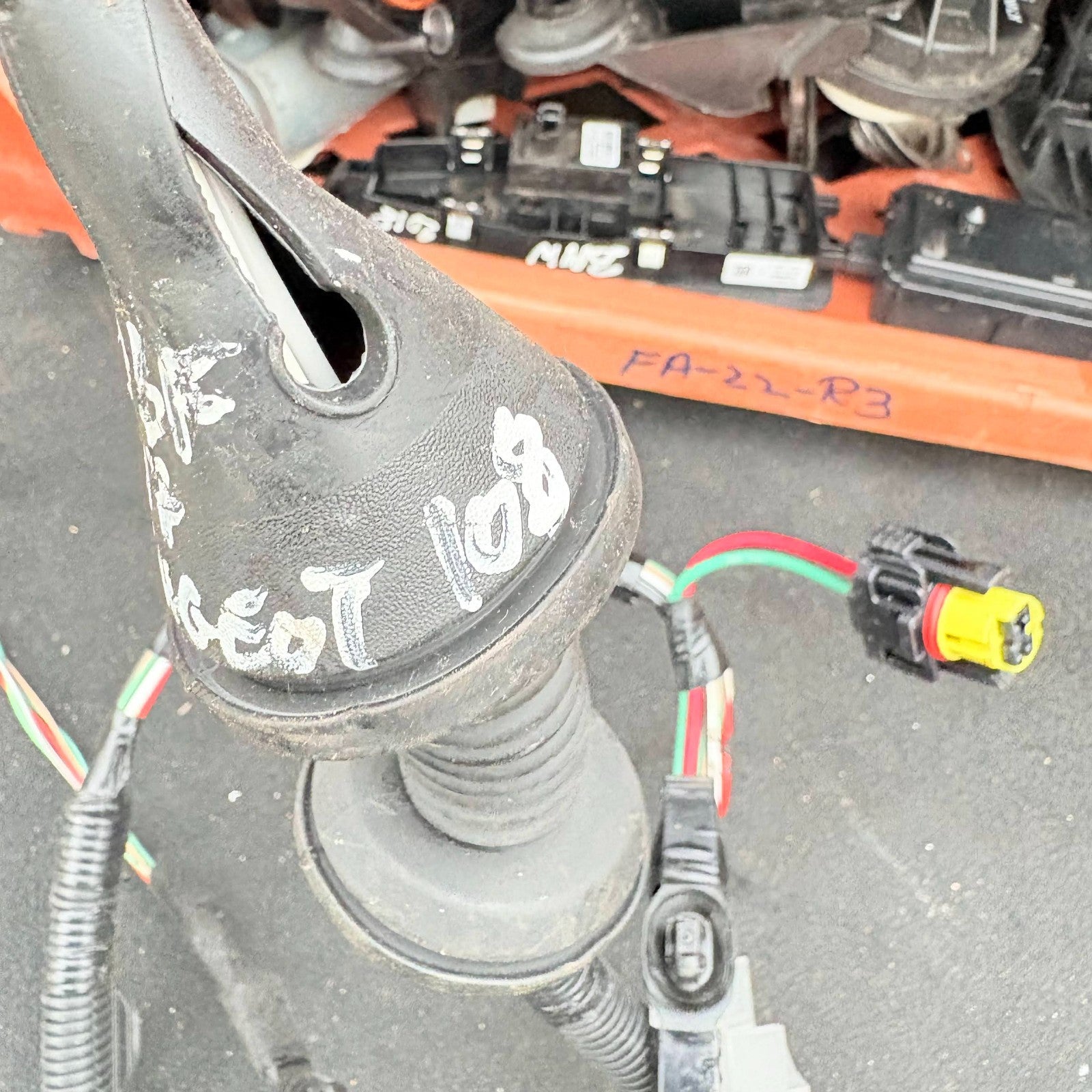

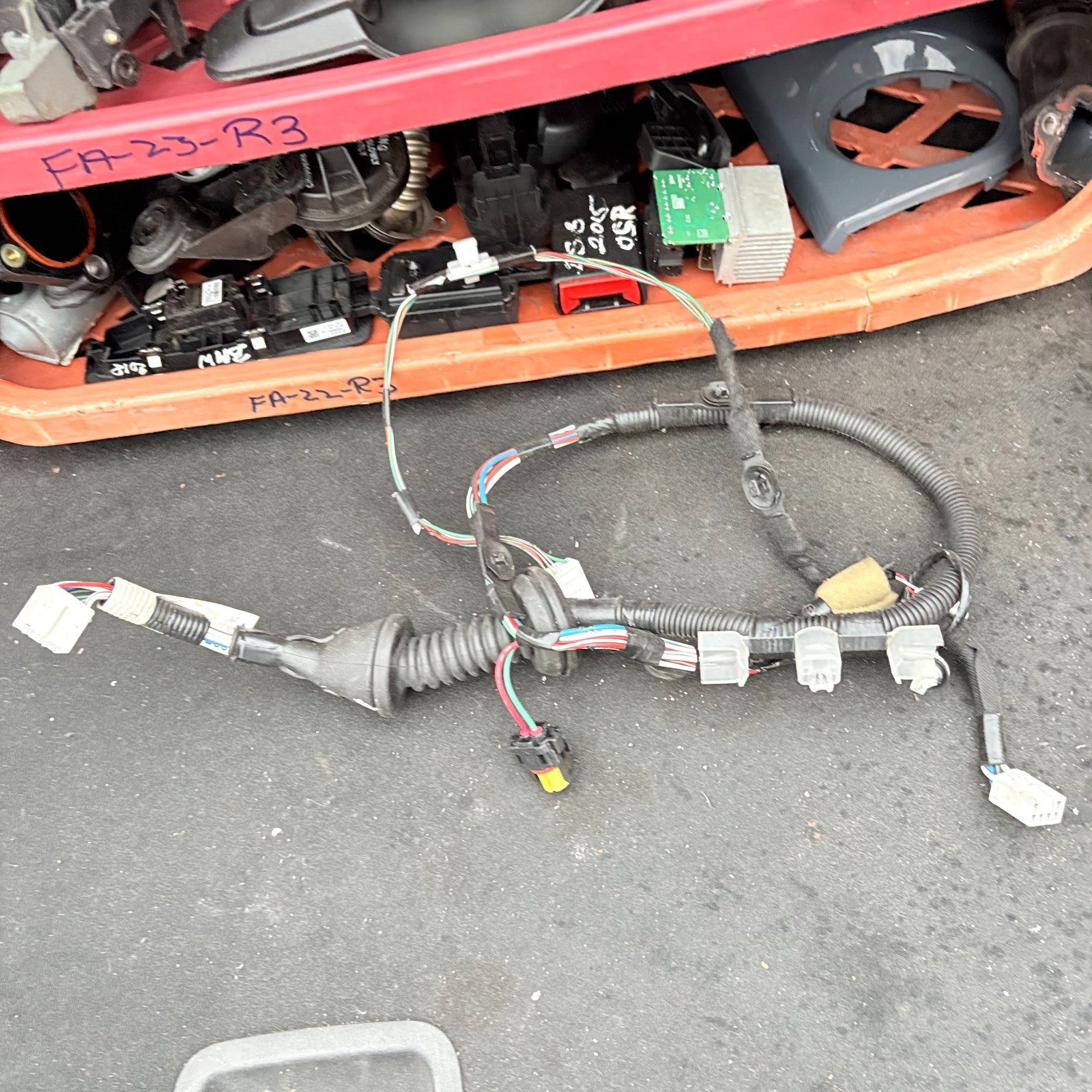

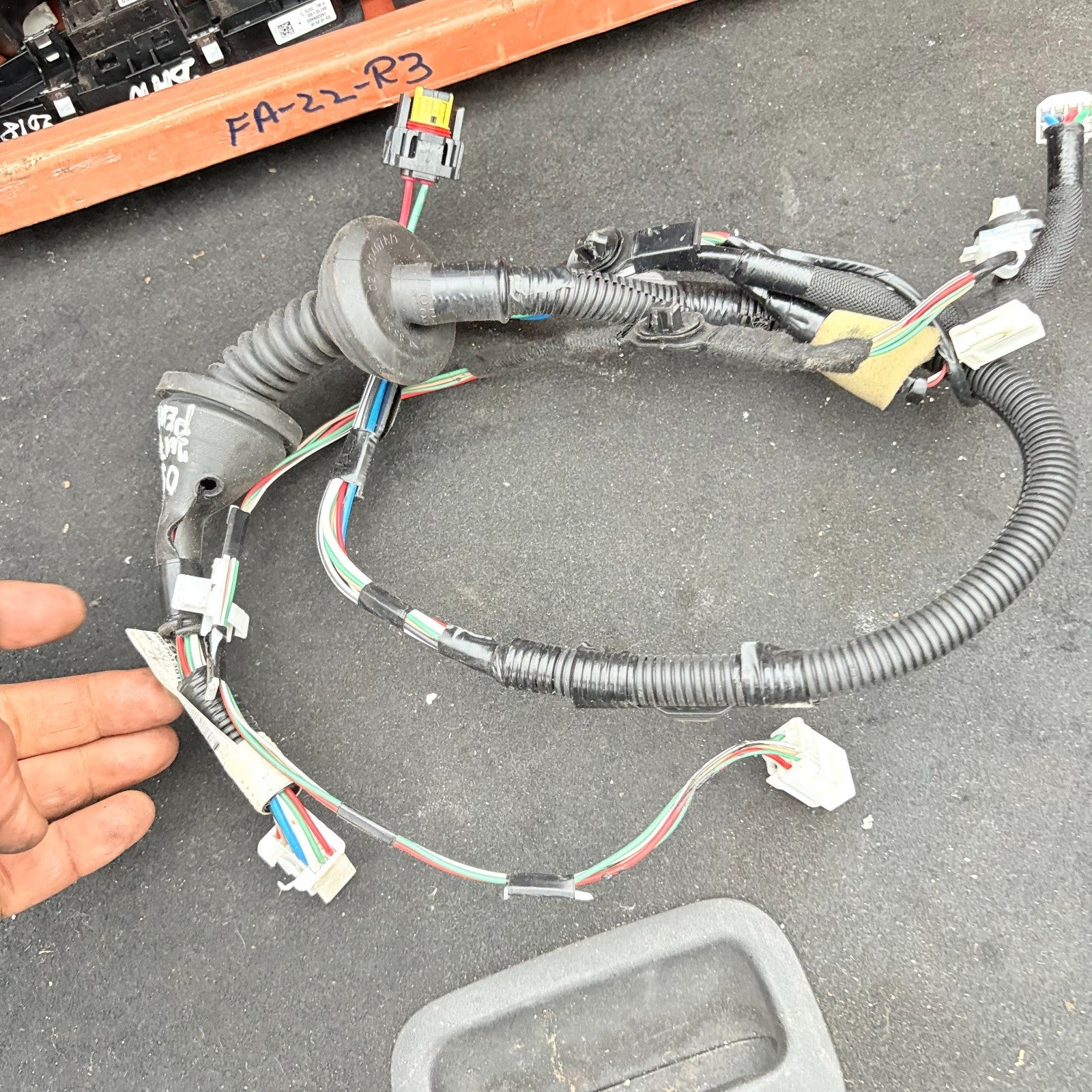

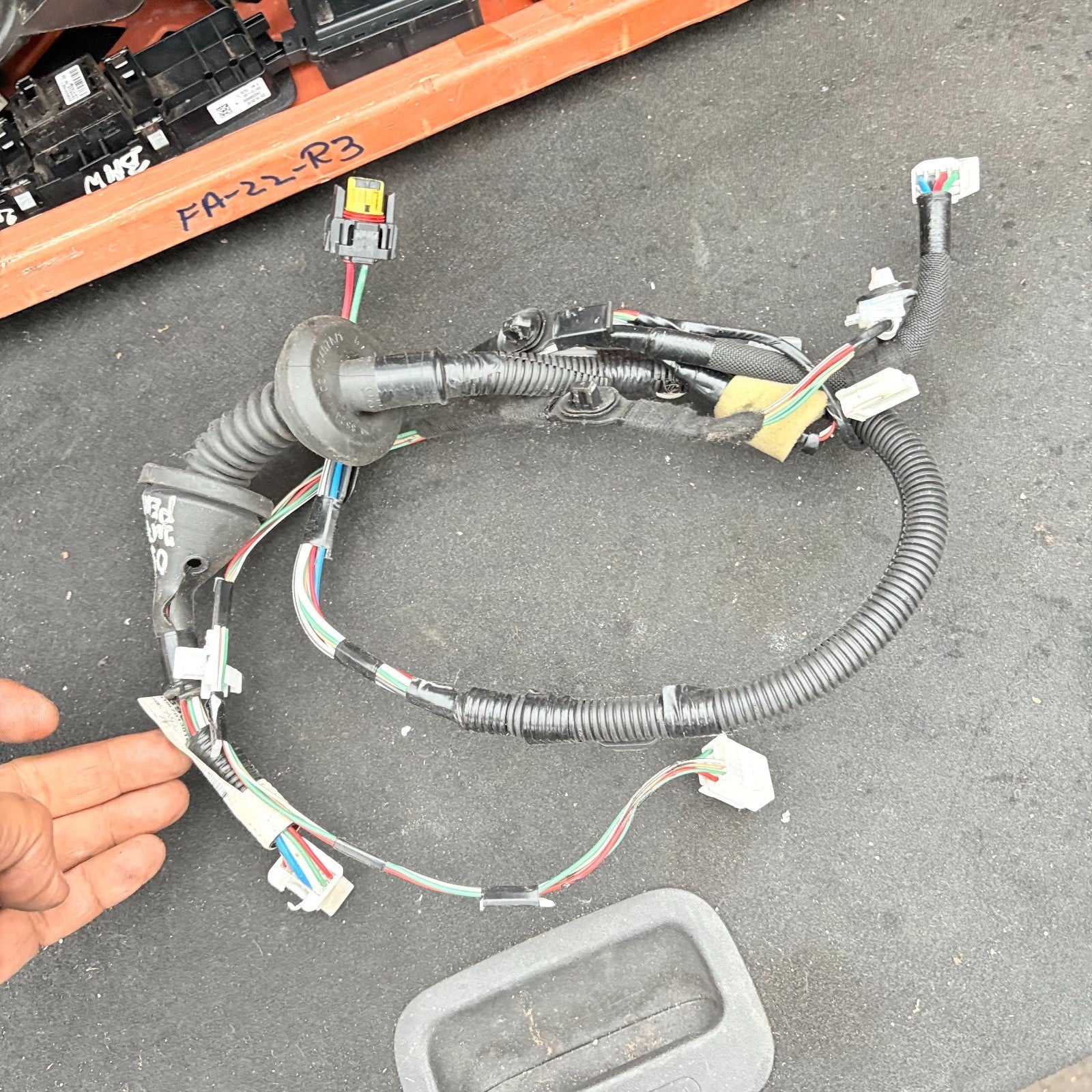

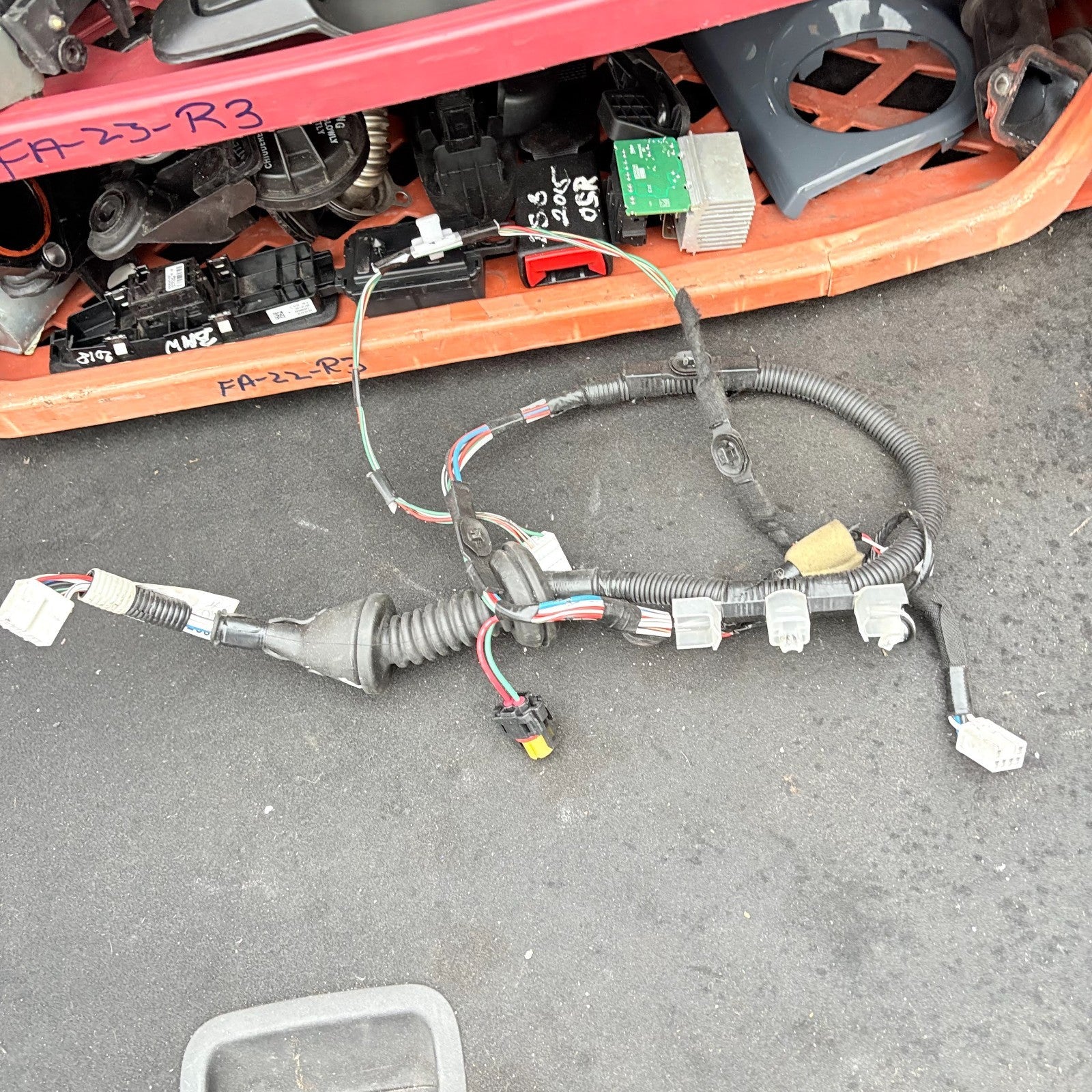

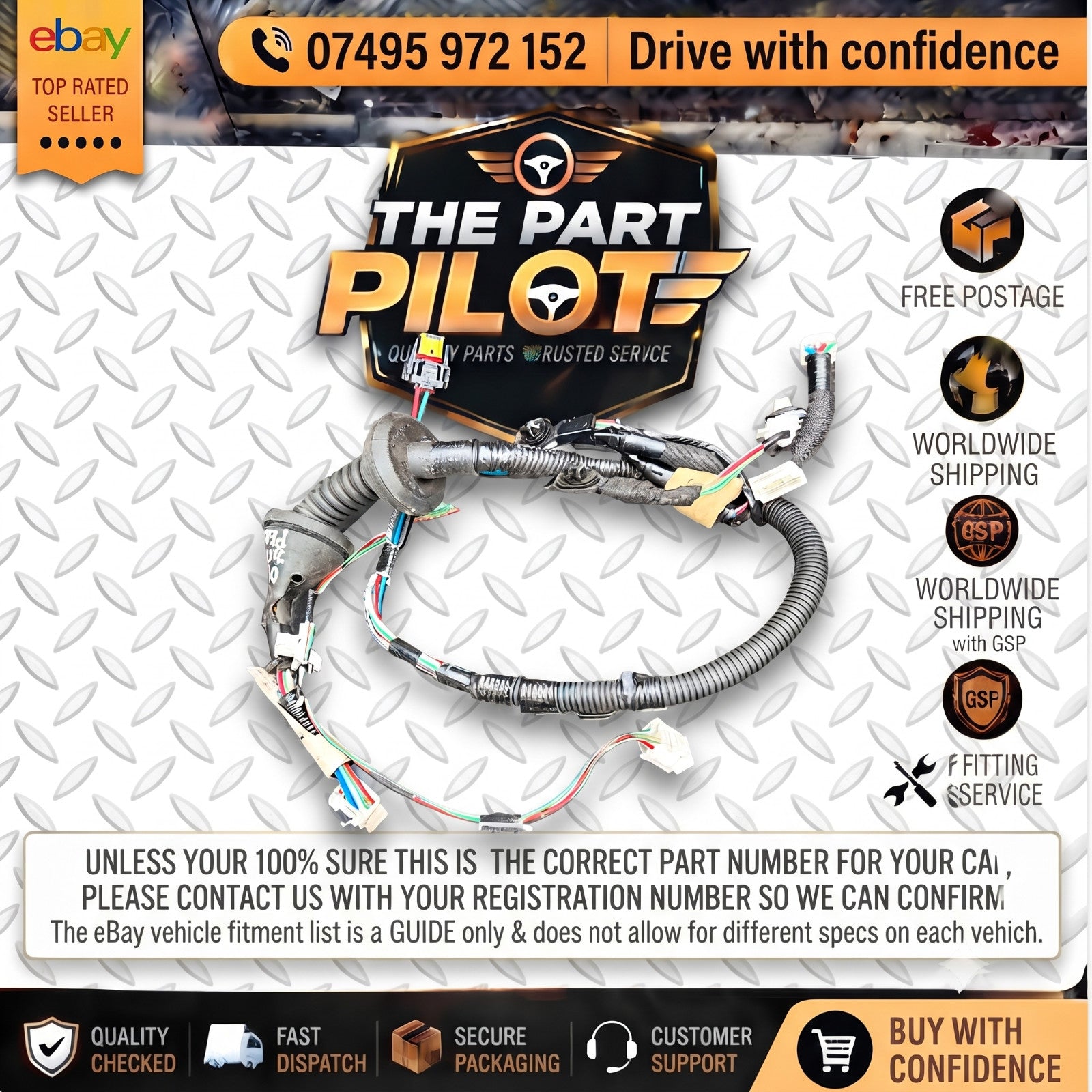

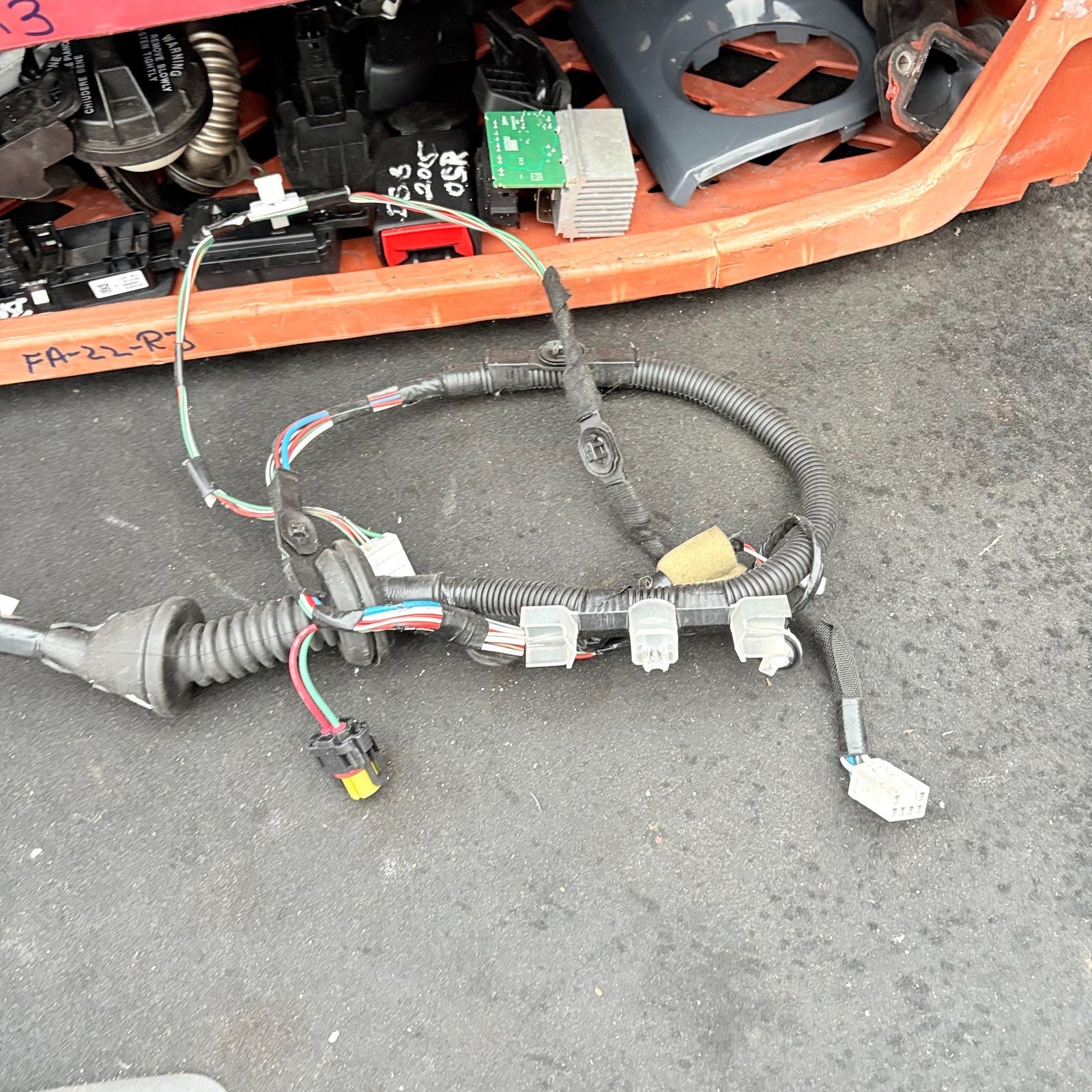

ACTUAL ITEM PHOTOGRAPHS

The item supplied is the loom shown above. Examine every photograph before ordering.

ITEM DETAILS & SPECIFICATION

FIVE-DOOR VEHICLE REFERENCE & FITMENT LOCATION

WHERE THE PART FITS & WHAT IT CONTROLS

This harness distributes electrical power and control signals between the vehicle body and equipment inside the front-right door. It is routed behind the door trim panel, secured by the original clips and passed through the flexible rubber gaiter at the hinge area.

Depending on the exact vehicle specification, circuits can include the front electric window, central locking and door latch, loudspeaker, door-open information and related door equipment. This version is associated with manual door mirrors; do not assume that it supports electric adjustment, heating or power-folding mirror equipment.

Engine size, fuel type, transmission and exterior colour are not sufficient fitment checks for a door loom. The printed number and complete connector arrangement are the key identifiers.

PARTS COMPATIBILITY CHART

THIS PART WILL NOT FIT

✗ Peugeot 108 three-door models
✗ Front-left / nearside / UK passenger door
✗ Either rear door
✗ Vehicles fitted with a different printed loom number
✗ Vehicles with a different connector count, connector colour, branch length or pin arrangement
✗ Versions whose electric mirror, folding mirror, window or locking equipment differs
✗ 2019-on vehicles unless the original loom is independently confirmed as 821510H390D
✗ Toyota Aygo or Citroën C1 based only on visual similarity or shared-platform information

BUY THE CORRECT PART FIRST TIME

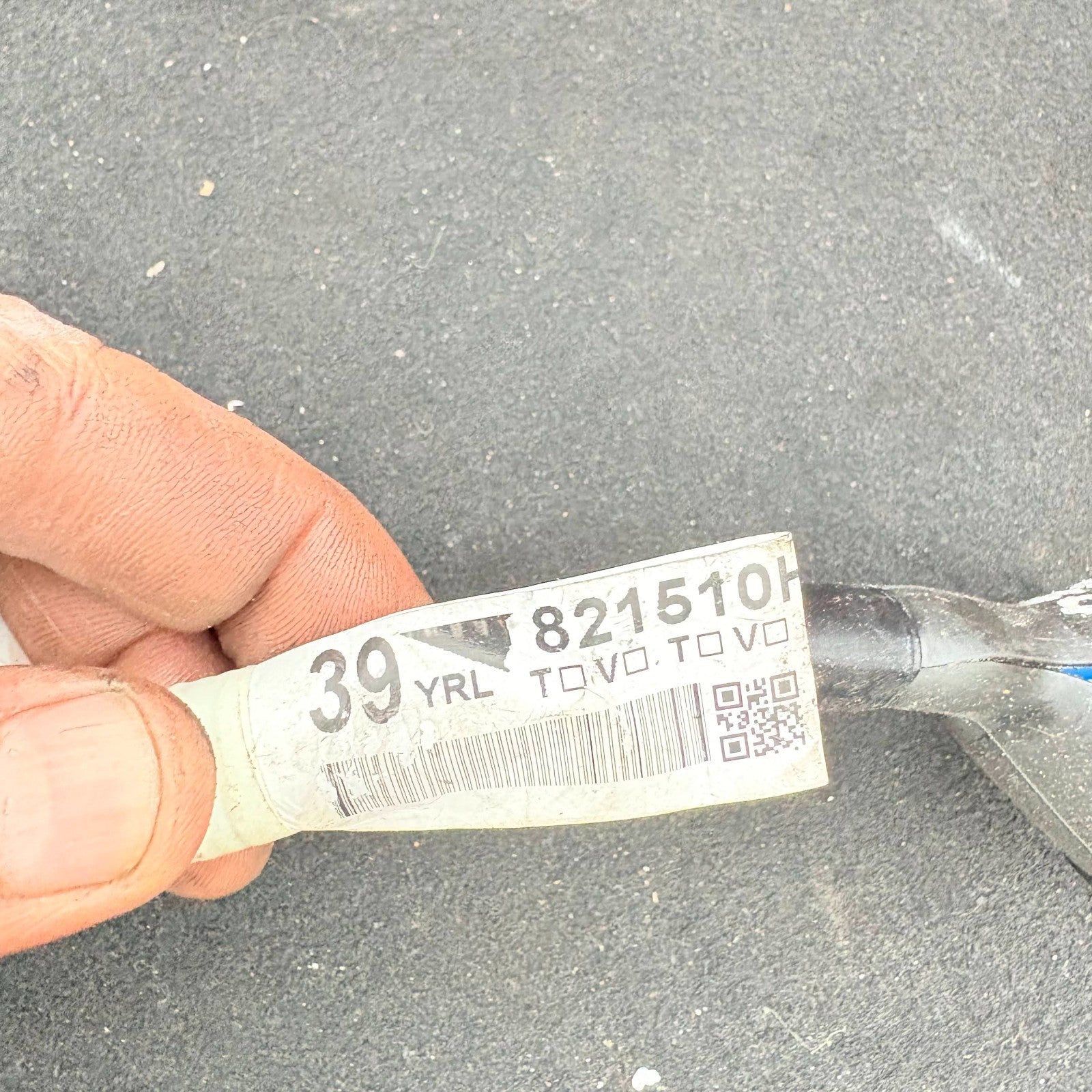

1. Remove or inspect your existing loom label and confirm 821510H390D.
2. Confirm the replacement is required for the physical front-right door.
3. Confirm that your Peugeot 108 is the five-door body style.
4. Check whether the door mirror is manually or electrically operated.
5. Compare every connector, branch, retaining clip and the rubber gaiter with the item photographs.
6. Do not rely only on registration look-up results, engine size or generic eBay compatibility data.
7. When uncertain, send the registration/VIN, original part number and clear loom photographs through eBay Messages before ordering.

POSSIBLE SYMPTOMS OF A DAMAGED DOOR LOOM

• Driver window operating intermittently or not operating
• Central locking or door latch faults
• Door speaker cutting out when the door is opened or moved
• Electrical equipment working only at certain door positions
• Broken, stretched or corroded wires inside the hinge-area gaiter
• Repeated fuse failure or an electrical short affecting the door circuit
• Door-open information or related warning functions behaving incorrectly
• Previous wiring repairs, poor joints or damaged connector housings

BENEFITS OF A MATCHED FACTORY-FIT ASSEMBLY

A correctly matched factory-fit loom is manufactured with the intended connector housings, circuit branching, wire lengths, protective gaiter, mounting clips and vehicle-specific routing. This helps preserve correct installation and reduces the need for unreliable wiring alterations.

Low-cost replacement assemblies can vary in pin arrangement, branch length, connector quality, wire protection and clip location. Even a small variation can cause difficult installation, poor sealing, warning faults or equipment that does not operate correctly.

Choosing a carefully matched pre-owned component can provide a substantial saving compared with purchasing a new dealer-supplied assembly, while also keeping a serviceable vehicle component in use.

GENERAL FITTING GUIDE

1. Park safely, switch the ignition off, remove the key and open the relevant door.
2. Follow the manufacturer’s battery isolation procedure. Disconnect the negative terminal where appropriate and allow the specified discharge time before disturbing any safety-related connectors.
3. Protect the paint, sill and trim edges with suitable covers or low-tack protective tape.
4. Remove the door-handle trim, switch trim, fasteners and door card using the correct trim tools.
5. Photograph the original routing and the position of every clip before disconnecting the old loom.
6. Disconnect the body-side plug at the door jamb/A-pillar and unplug the window motor, latch, speaker and other fitted door equipment.

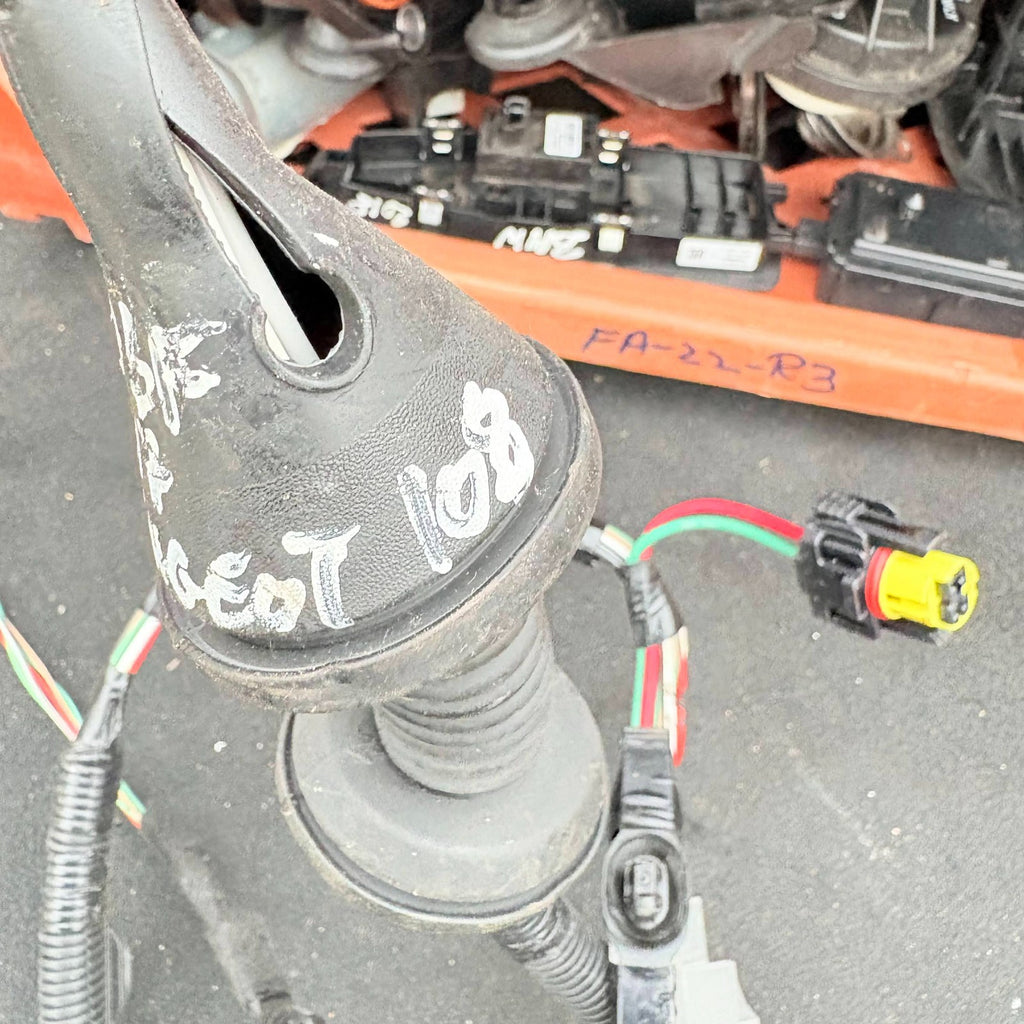

7. Release all retaining clips and carefully remove the rubber gaiter without damaging its sealing edges.
8. Place both looms side by side. Confirm 821510H390D, connector shapes, branch lengths, clip positions and wiring specification before installation.
9. Route the replacement exactly as the original, ensuring that no wiring is stretched, trapped, twisted or positioned against a sharp edge.
10. Seat the rubber gaiter and all grommets completely to reduce the risk of water entry.
11. Reconnect the electrical plugs, refit the trim and reconnect the battery using the correct procedure.
12. Test the electric window, locking, speaker, door-open information and all relevant equipment before returning the vehicle to service.

COMMONLY REQUIRED TOOLS

• Plastic trim-removal tool set
• Suitable Torx driver and socket set
• 10 mm socket, ratchet and extension where applicable
• Small pick or connector-release tool
• Inspection lamp or torch
• Digital multimeter for fault diagnosis
• Electrical contact cleaner suitable for automotive connectors
• Protective tape, gloves and trim covers

Important: fasteners can vary by production date and previous repairs. Inspect the vehicle before selecting tools. Use the workshop manual or a qualified vehicle electrician where safety-related wiring or unfamiliar connectors are present.

ESTIMATED REPAIR TIME & GARAGE LABOUR GUIDE

Estimated fitting time: approximately 1.0 to 2.0 labour hours. Around 1.5 hours may be typical where the fault has already been diagnosed and trim fasteners are in serviceable condition.

Additional time may be required for diagnosis, seized fasteners, water damage, damaged connectors, broken trim clips or previous wiring alterations.

Garage rate	1.0 hour	1.5 hours	2.0 hours
£50 per hour	£50	£75	£100
£75 per hour	£75	£112.50	£150
£100 per hour	£100	£150	£200
£125 per hour	£125	£187.50	£250

🔧 PROFESSIONAL FITTING SERVICE AVAILABLE

Fitting and vehicle repair services may be available subject to workshop capacity, prior diagnosis and appointment availability. Contact us through eBay Messages before purchasing when fitting is required.

WORKSHOP SUPPORT

DELIVERY, ADDRESS & VAT INFORMATION

UK and international delivery: available through the delivery services displayed by eBay. International availability depends on the destination, item eligibility and the options offered by eBay at checkout. Import charges and duties may be collected by eBay where applicable.

Checkout address: the order can only be dispatched to the delivery address supplied through eBay checkout. The address cannot be manually changed after payment. If an incorrect address has been entered, request cancellation and reorder using the correct checkout address.

VAT: sold under the VAT Global Accounting Scheme. VAT is accounted for within the seller’s margin and is not separately itemised or available for the buyer to reclaim.

RETURNS & FITMENT RESPONSIBILITY

STOCK, PACKING & DISPATCH

With more than 25,000 vehicle parts held in stock, our team identifies, stores and prepares components for secure dispatch. Delicate connectors, mounting points and wiring branches are protected to help the item arrive ready for inspection and installation.
