Peugeot 207 WA WC 2006-2009 Dashboard Radio Clock Display Screen 9656102380
£22.20
Skip to product information
Large on-shelf vehicle-parts inventory.
Part numbers and photographs checked to reduce incorrect orders.
Components are packed to protect plugs, screens and mounting points.
For faster fitment help, send your vehicle registration, VIN if available, and clear photos of your existing part, connector and part number.
Peugeot 207 WA WC 2006-2009 Dashboard Radio Clock Display Screen 9656102380
£22.20
THEPARTPILOT
THEPARTPILOT
Precision Parts. Clear Fitment. Confident Buying.
25,000+ vehicle parts held in stock | 30-day warranty | Fitting service subject to availability
Peugeot 207 WA / WC | Exact advertised fitment years: 2006-2009
Centre Dashboard Radio Clock Information Display Screen
FITS PEUGEOT 207: 2006 | 2007 | 2008 | 2009
Main Part Number: 9656102380
eBay Item Number: 147479020749
Important: match the original unit before ordering
Do not buy using the registration year, engine size or appearance alone. The safest match is the complete label and physical unit. Your original display should show 9656102380, and where visible should also match 503550290109-00, the software/hardware markings, brown multipin connector, mounting points and screen type.
The moulded housing number 555550290202 is visible on this component, but it is not the best number to use by itself because housings can be shared between different electronic versions.
Item details and identification
| Make | Peugeot |
| Model / chassis | 207 hatchback, WA_ / WC_ |
| Photograph-confirmed donor marking | Peugeot 207, 2006 |
| Part type | Multifunction centre-dashboard radio, clock and information display |
| Manufacturer Part Number | 9656102380 |
| Interchange / engineering number | 503550290109-00 — match the full label |
| Superseded Part Number | No confirmed superseded number verified |
| Housing moulding number | 555550290202 — housing identifier only |
| Software / hardware | SW 7.0 / HW PS2 |
| Label specification | MMSE-EMF A+ OR CEMO / 1KAWHH66 |
| Connector | Single brown multipin connector; compare shape, pin layout and locking tab |
| Placement | Upper centre dashboard, above the radio and centre air vents |
| Colour / finish | Black moulded housing with LCD display |
| Material | Moulded plastic housing containing LCD and electronic circuit assembly |
| Condition | Pre-owned component. Storage, removal and cosmetic marks may be present. Supplied exactly as photographed. |
| Warranty | 30 days, subject to the listing terms shown by eBay |
Actual item photographs
These images show the component offered for sale. Compare the label, connector, mounting points and housing with your original unit.

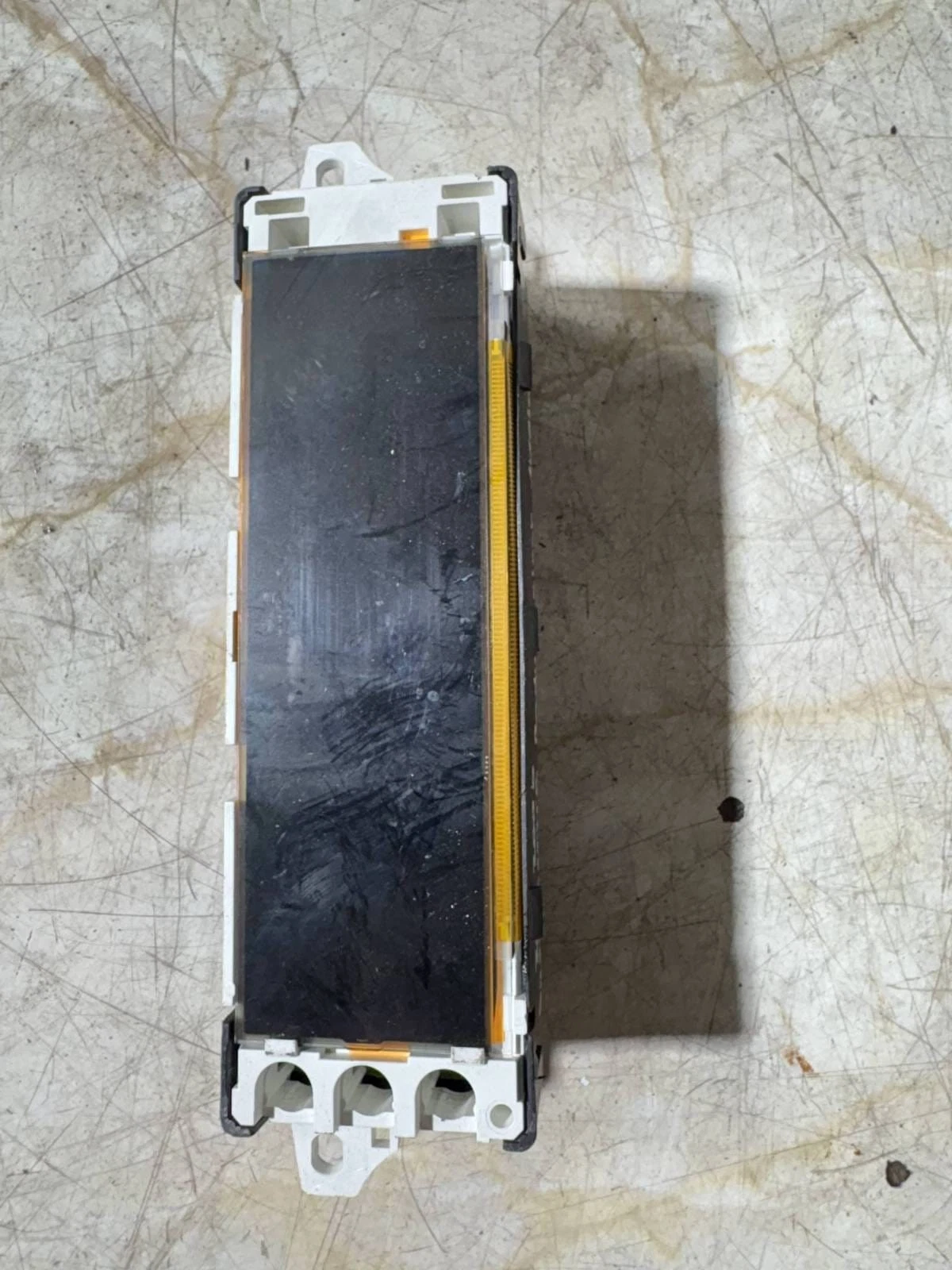

Actual front display

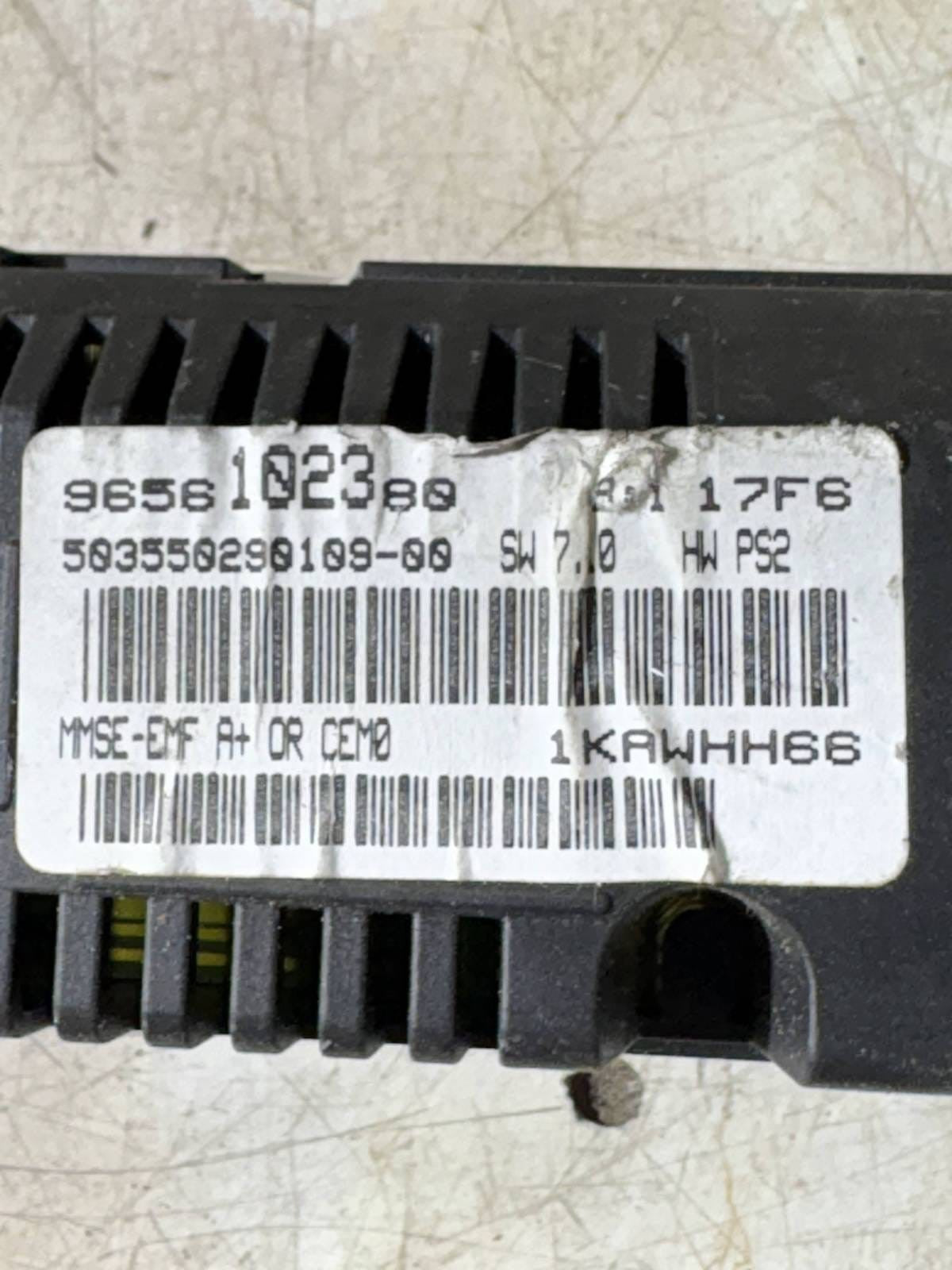

Actual identification label

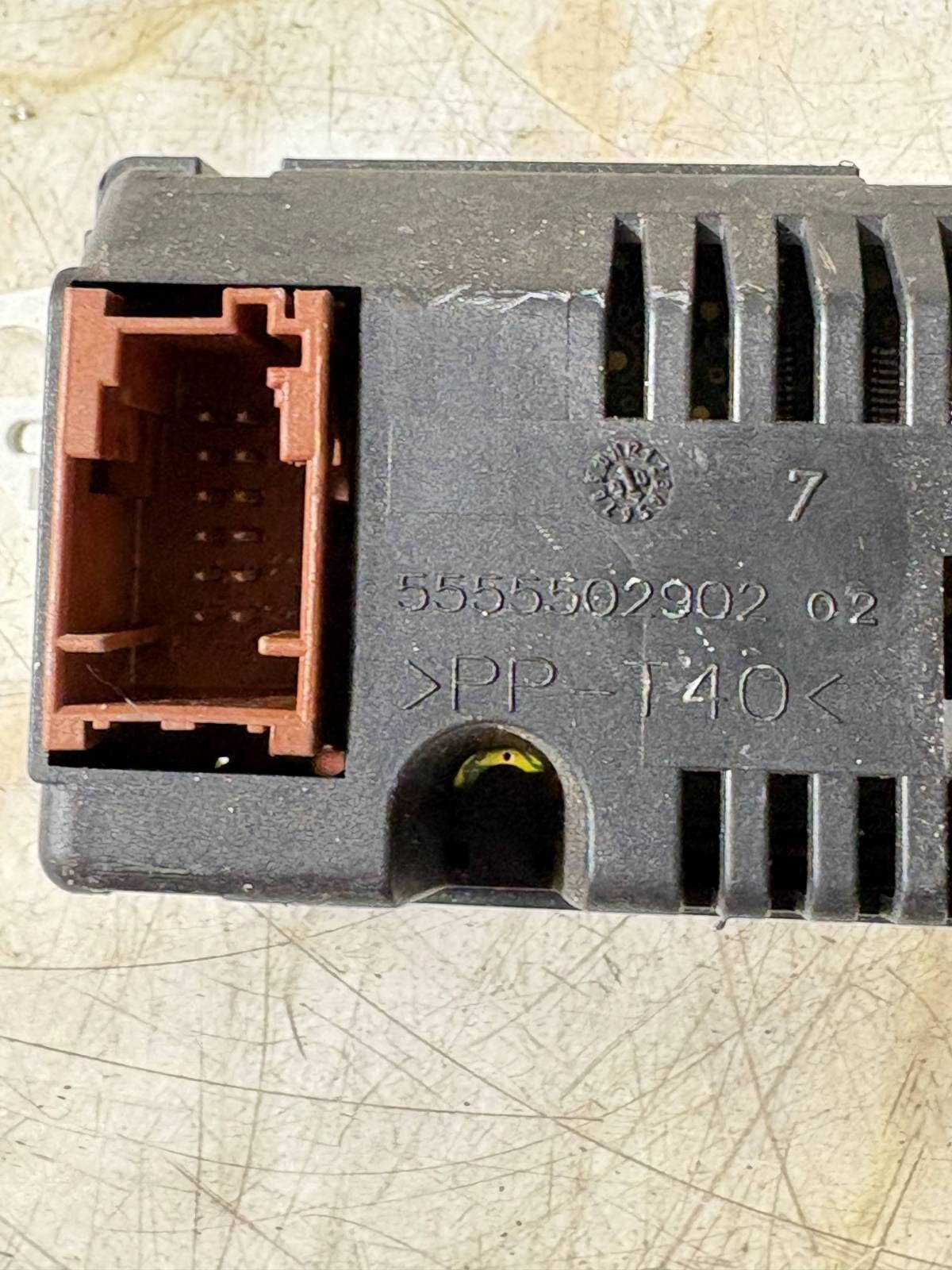

Actual connector and housing

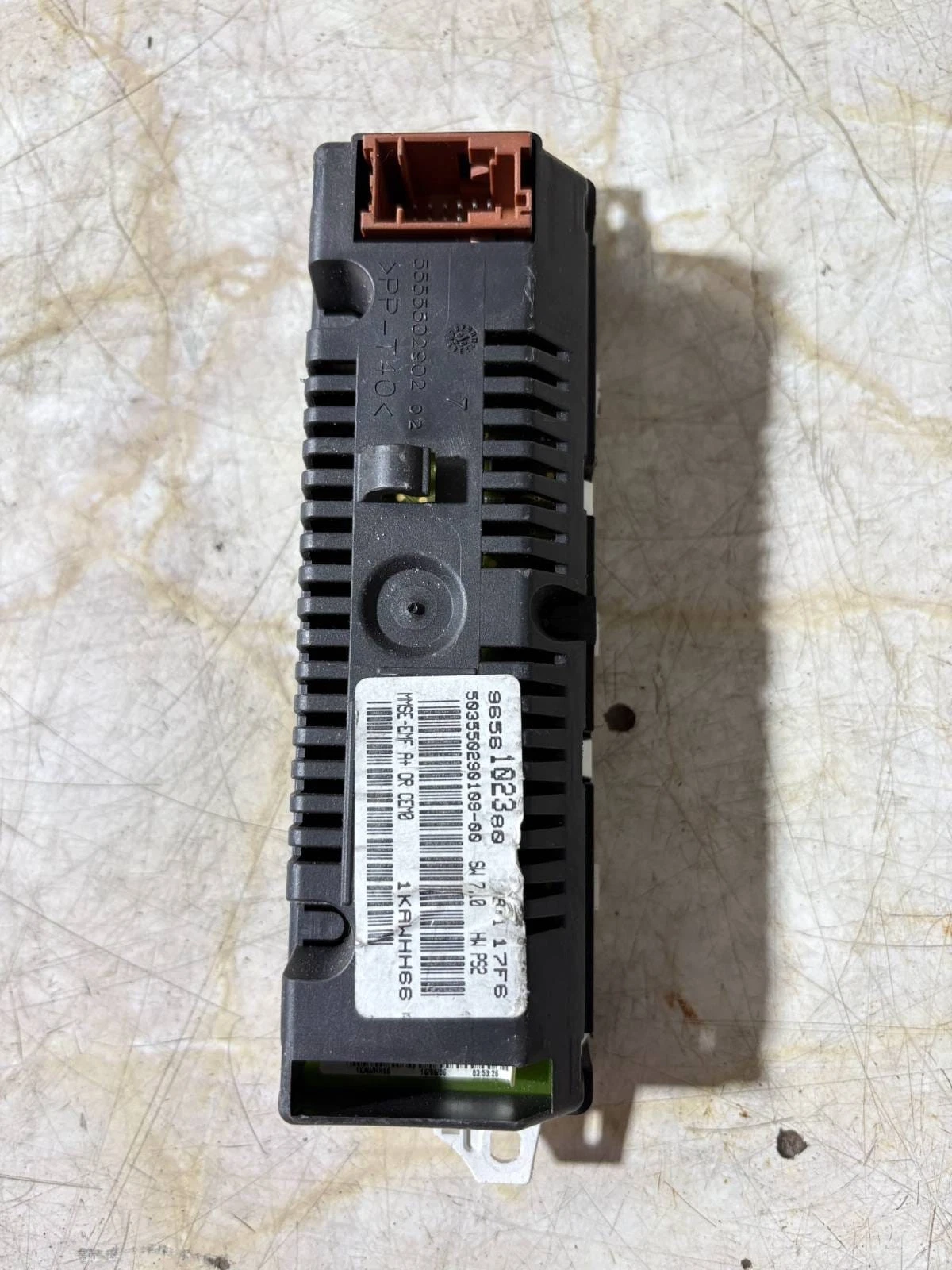

Actual rear and mounting points

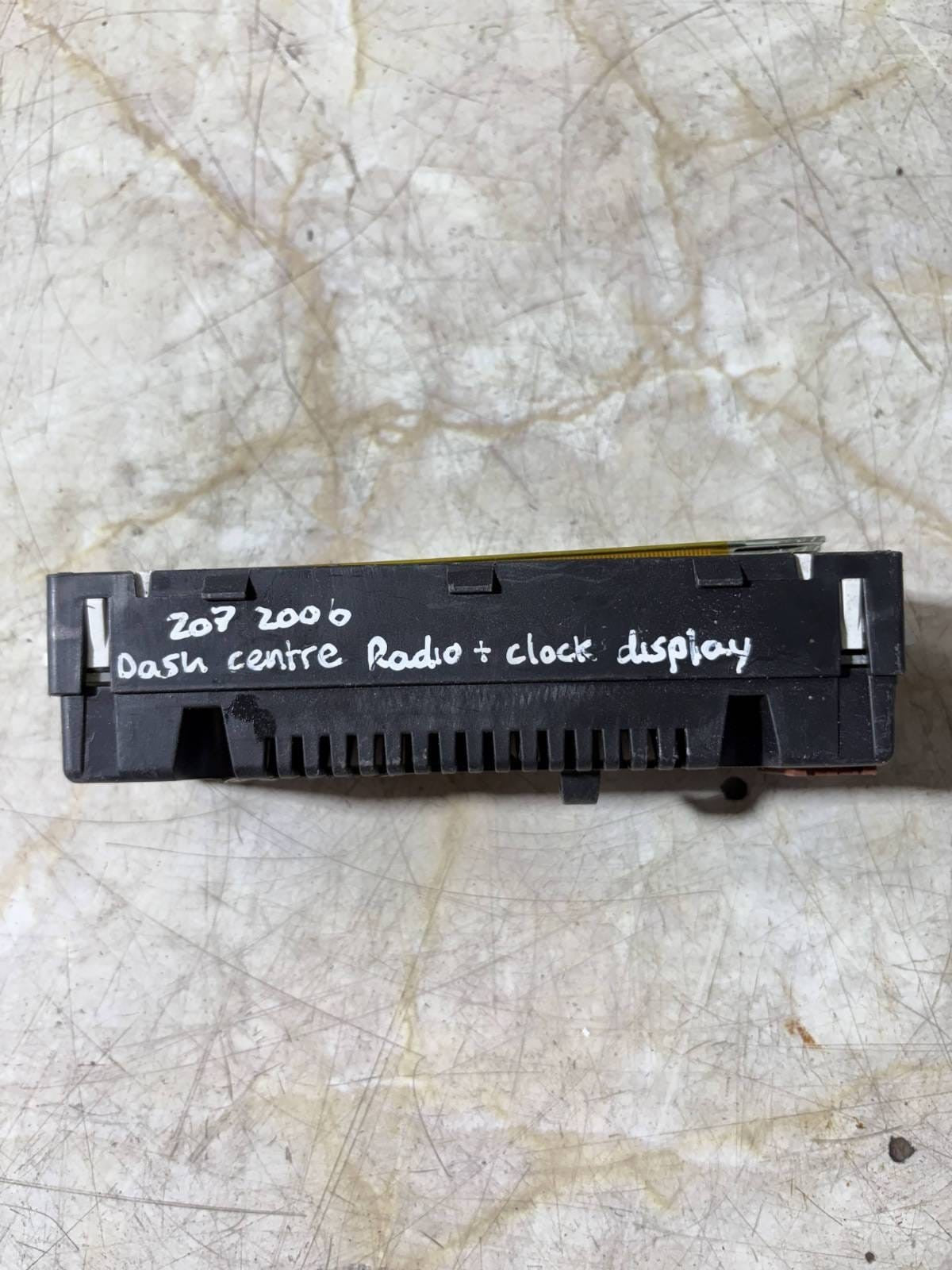

Photograph-confirmed donor marking: “207 2006 — dash centre radio + clock display”
Where it fits and what it controls
The unit is installed in the upper centre section of the dashboard, above the audio controls and centre ventilation area. It provides the visual information interface for the vehicle’s original radio and selected onboard functions.
| Clock and date information | Radio station and audio information |
| Outside temperature where equipped | Trip, menu and vehicle messages where configured |
Displayed functions depend on the vehicle’s radio, controls, BSI configuration and equipment level. A replacement screen may require configuration to match the vehicle.
Vehicle and fitting-location reference
The donor door count is not visible in the supplied photographs. Both Peugeot 207 hatchback body styles are shown below so buyers do not mistake a reference vehicle for the exact donor. Fitment is determined by the part number, label and connector rather than door count alone.
Peugeot 207 three-door hatchback reference
Reference image: M 93, CC BY-SA 3.0
Reference image: M 93, CC BY-SA 3.0
Peugeot 207 five-door hatchback reference
Reference image: Thomas doerfer, CC BY-SA 3.0
Reference image: Thomas doerfer, CC BY-SA 3.0
Centre-dashboard display location reference
Reference image: Arnaud 25, public domain
Reference image: Arnaud 25, public domain
Fitment and compatibility table
| Vehicle | Years | Body / chassis | Fitment status |
|---|---|---|---|
| Peugeot 207 | 2006 | 3-door or 5-door hatchback, WA_ / WC_ | Confirmed advertised application. Donor marking also confirms a 2006 Peugeot 207. Exact number 9656102380, matching label, connector and display type required. |
| Peugeot 207 | 2007 | 3-door or 5-door hatchback, WA_ / WC_ | Part-number application. Exact number 9656102380, matching label, connector and display type required. |
| Peugeot 207 | 2008 | 3-door or 5-door hatchback, WA_ / WC_ | Part-number application. Exact number 9656102380, matching label, connector and display type required. |
| Peugeot 207 | 2009 | 3-door or 5-door hatchback, WA_ / WC_ | Part-number application. Exact number 9656102380, matching label, connector and display type required. |
| Peugeot 207 CC | 2007-2009 | Convertible, WD_ | Not confirmed for this photographed unit. Order only after matching the complete original label and connector. |
| Peugeot 207 SW | 2007-2009 | Estate, WK_ | Not confirmed for this photographed unit. Order only after matching the complete original label and connector. |
| Later 207 / 207+ | 2010 onward | Any body style | Not advertised as compatible. Later display numbers, software and screen types can differ. |
| Other Peugeot / Citroën models | All | All | No confirmed cross-vehicle fitment. Similar-looking displays are not sufficient evidence. |
Year clarification: the advertised Peugeot 207 hatchback application for part number 9656102380 is 2006, 2007, 2008 and 2009. The supplied donor photograph specifically confirms 2006; for 2007-2009, buyers must match the complete part number, label and connector before ordering.
Engine and gearbox note: engine size, fuel type and transmission do not identify this electronic display. The part label and connector are the deciding checks.
Do not order for these applications without verification
- Any vehicle whose original display does not show 9656102380.
- Navigation, colour-screen, flip-up screen or touchscreen systems.
- Units with a different connector colour, pin arrangement, mounting pattern or screen aperture.
- Peugeot 206, 307, 308 or other models based only on visual similarity.
- Citroën models unless the complete original label and electrical specification have been independently verified.
Correct-part checklist
- Photograph the complete label on the original display.
- Confirm the main number is 9656102380.
- Compare 503550290109-00, SW 7.0 and HW PS2 where visible.
- Compare the brown connector, pin layout and locking tab.
- Compare all mounting lugs and the outer housing shape.
- Confirm the vehicle uses the same monochrome information-screen system.
- When uncertain, send the vehicle registration or VIN and clear original-unit photographs through eBay Messages before ordering.
Symptoms of a faulty display
Blank or dark screen
Faded or missing pixels
Intermittent flickering
Backlight failure
Radio or clock data missing
Corrupted characters
A screen fault can also be caused by a fuse, power or earth fault, damaged wiring, connector issue, radio fault, network communication problem or incorrect vehicle configuration. Diagnosis is recommended before replacement.
Benefits of the correct manufacturer-fitted component
|
Correct dashboard geometry Designed around the original aperture, trim and mounting points. |
Correct electrical interface Matches the intended connector and communication system when the numbers agree. |
|
Factory-style appearance Maintains the intended screen format, illumination and dashboard presentation. |
Lower environmental impact Reusing a serviceable component keeps materials in use and reduces avoidable waste. |
A correctly matched pre-owned component can cost substantially less than buying a new replacement. Actual savings depend on current new-part availability and price.
General fitting instructions
- Verify the label before dismantling. Confirm 9656102380 and compare the connector and mounting points.
- Switch off all electrical equipment, remove the key and allow the vehicle network to enter sleep mode.
- Where battery disconnection is required, follow the Peugeot handbook and correct BSI shutdown/reconnection procedure.
- Protect the dashboard and trim with a clean cloth or low-tack protective tape.
- Use plastic trim tools to release the upper display surround without marking the dashboard.
- Remove the retaining Torx screws where fitted.
- Withdraw the display carefully and release the electrical connector by its locking mechanism. Do not pull on the wiring.
- Connect the replacement unit, reinstall the fasteners and refit the trim evenly.
- Restore power using the correct vehicle procedure and test the clock, radio information, illumination and menu functions.
- If functions differ or communication faults are stored, vehicle-specific diagnostic configuration may be required.
Safety notice: This is general guidance, not a substitute for the manufacturer workshop manual. Installation should be completed by a competent person.
|
Suggested tools
|
Estimated repair time
Physical replacement: Including diagnosis or configuration: Times vary with experience, trim condition and diagnostic requirements. |
Garage labour cost estimator
Estimated labour cost = hourly rate multiplied by time charged
| Time | £60/hour | £80/hour | £100/hour | £120/hour |
|---|---|---|---|---|
| 30 min | £30 | £40 | £50 | £60 |
| 45 min | £45 | £60 | £75 | £90 |
| 60 min | £60 | £80 | £100 | £120 |
| 90 min | £90 | £120 | £150 | £180 |
Illustrative labour only. Diagnosis, programming, consumables and local garage charges may be additional.
Fitting service available
Fitting and repair assistance may be available subject to workshop capacity, vehicle condition and prior confirmation. Please enquire through eBay Messages before purchasing or travelling.
