Range Rover L322 2005-09 Early 2010 RH Harman Kardon Tweeter XH42-237W34-AB

Actual photographed engineering number: XH42-237W34-AB. For a UK right-hand-drive Range Rover this is the offside/front-right — driver's side. On a left-hand-drive vehicle it remains the front-right position.

2010 VEHICLES REQUIRE PARTICULAR CARE: catalogue application for this early RH configuration is AA000001 to AA313068. From AA313069 the RH catalogue part changes.

These are photographs from this item listing. Use the label and connector shape as part of your pre-purchase check.

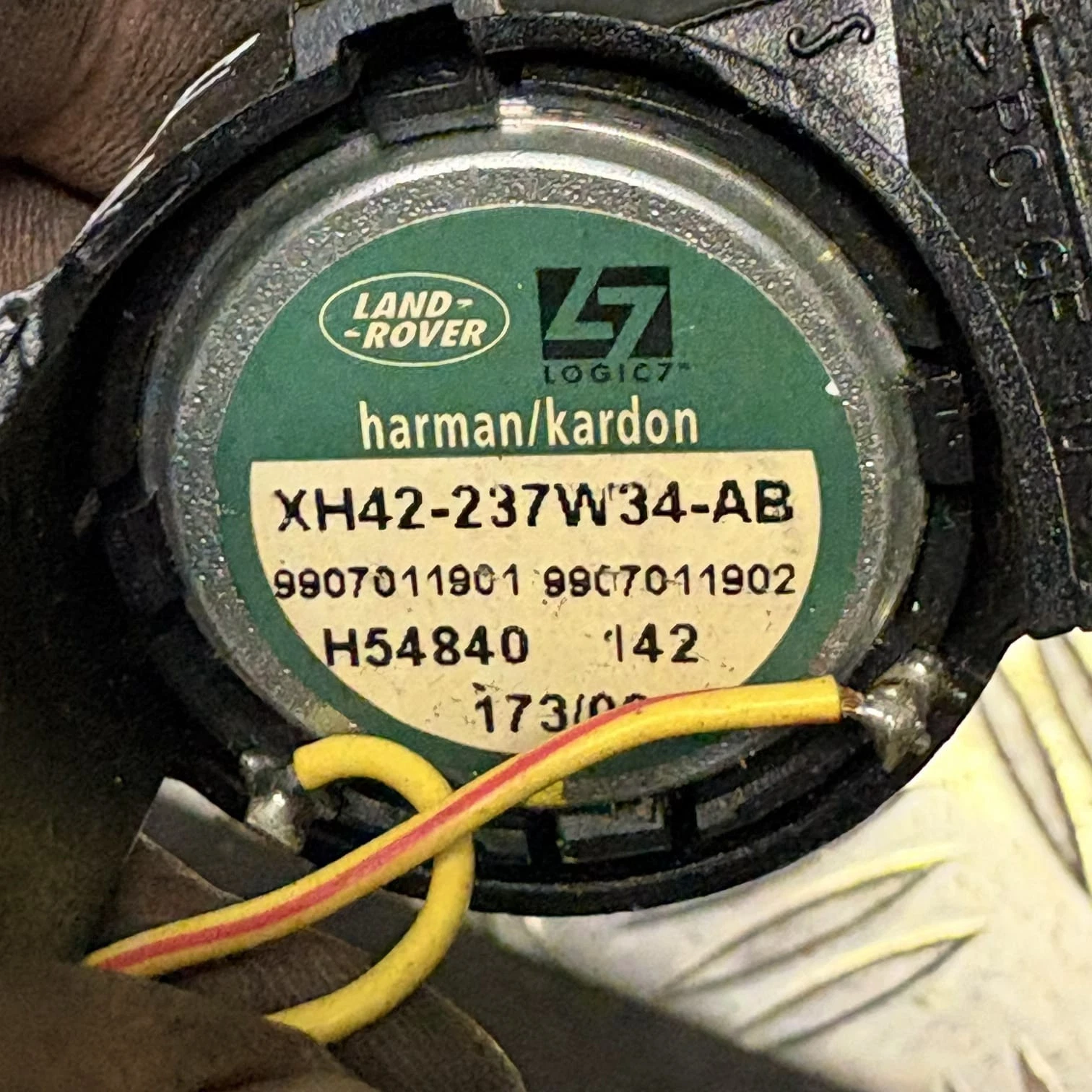

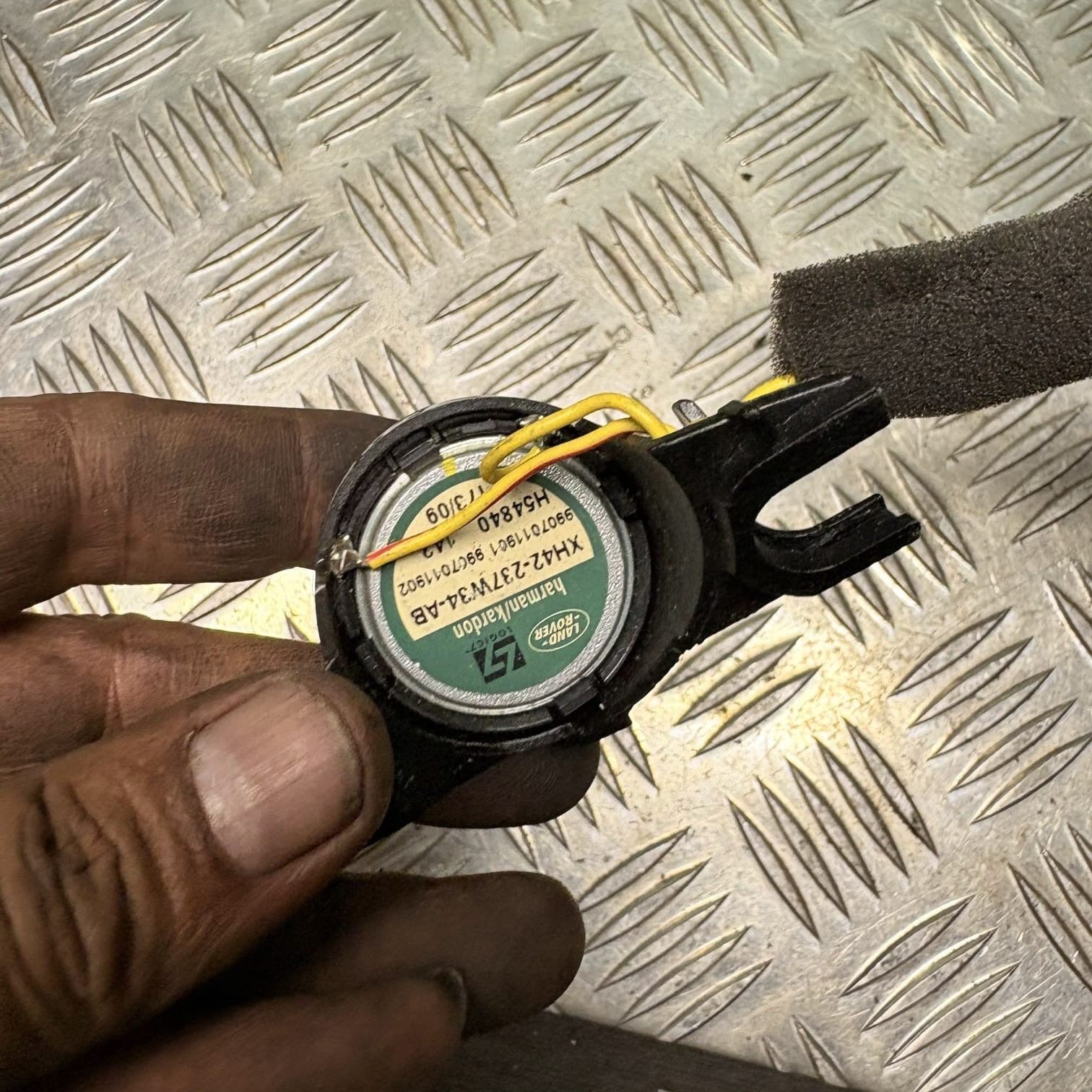

Actual label photograph — verify XH42-237W34-AB

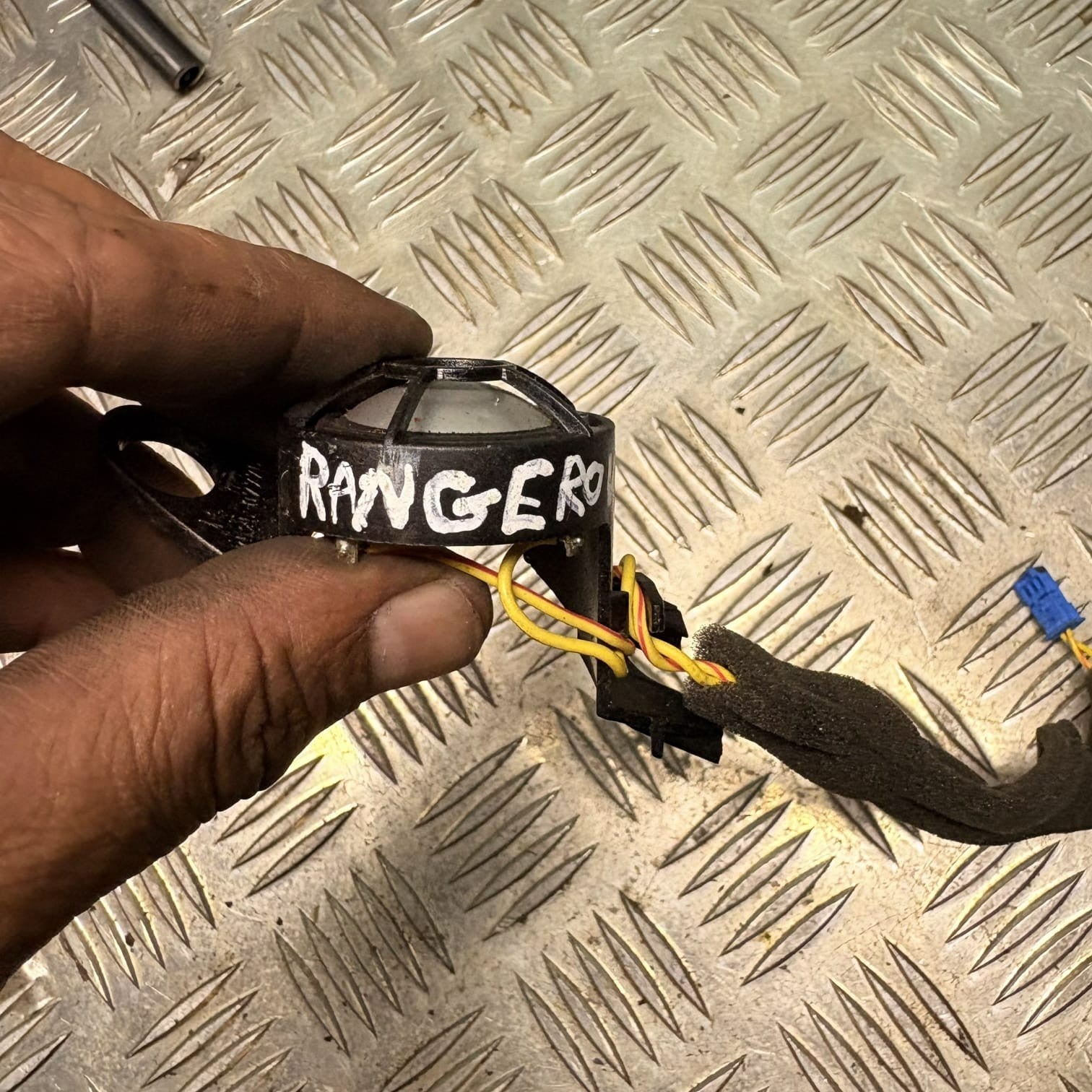

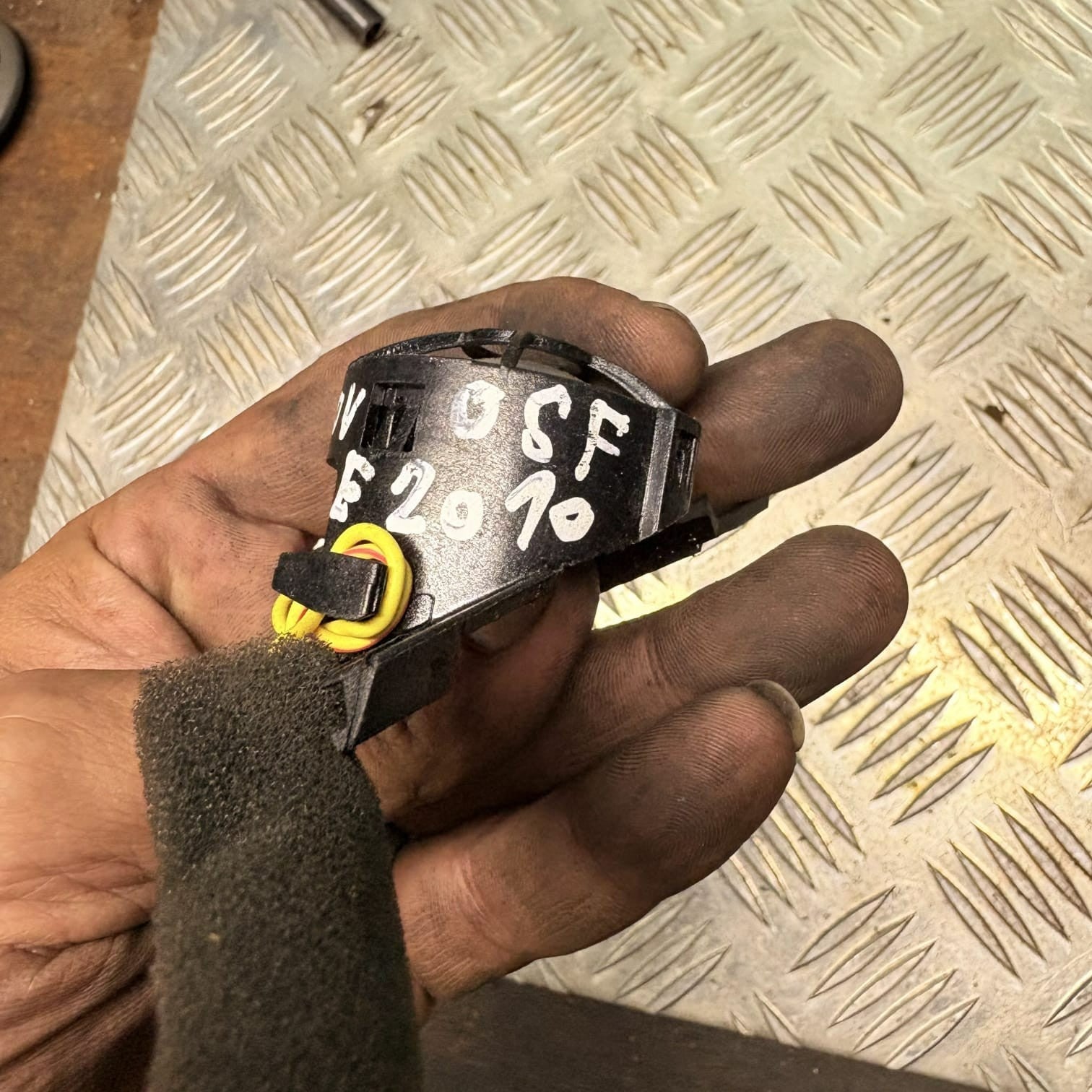

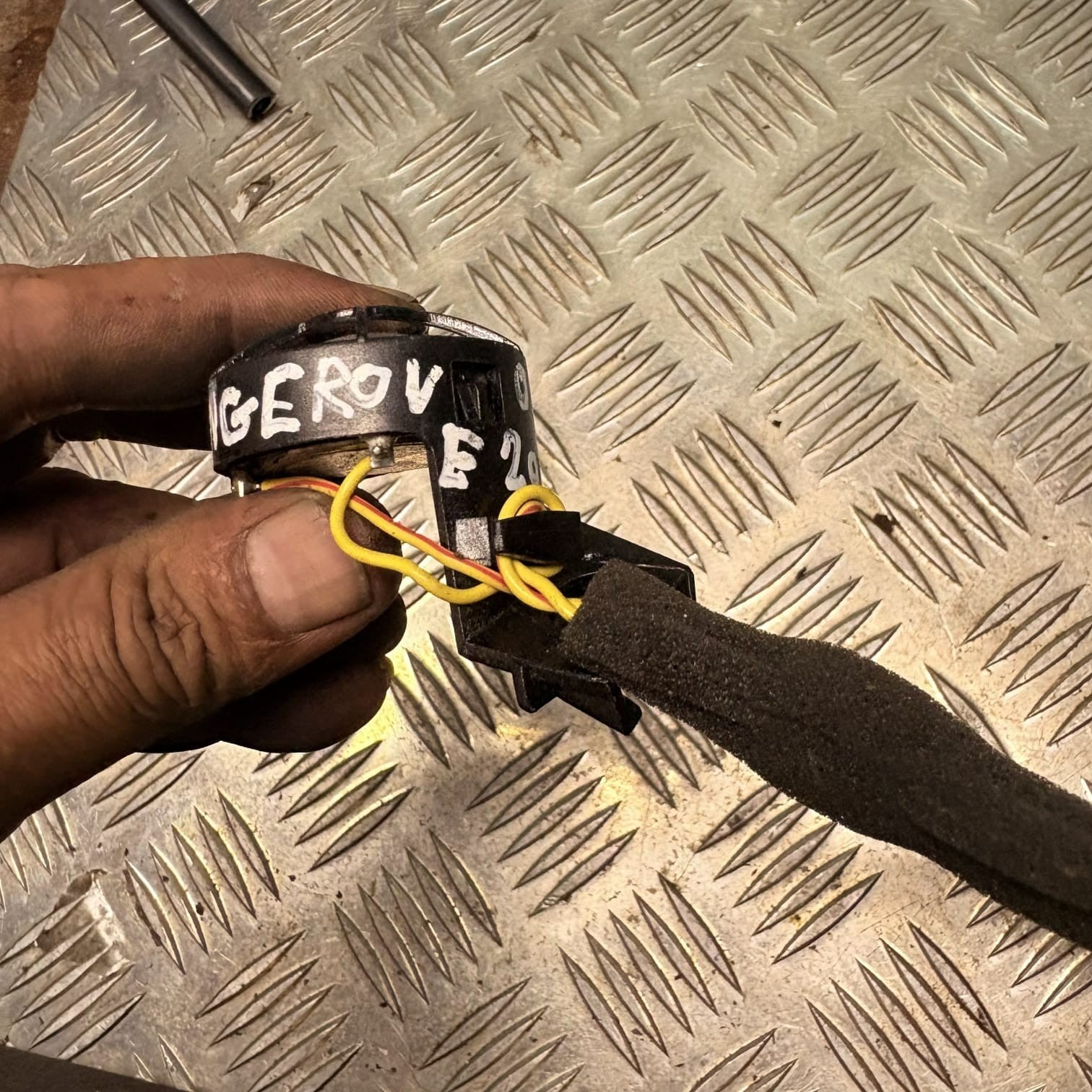

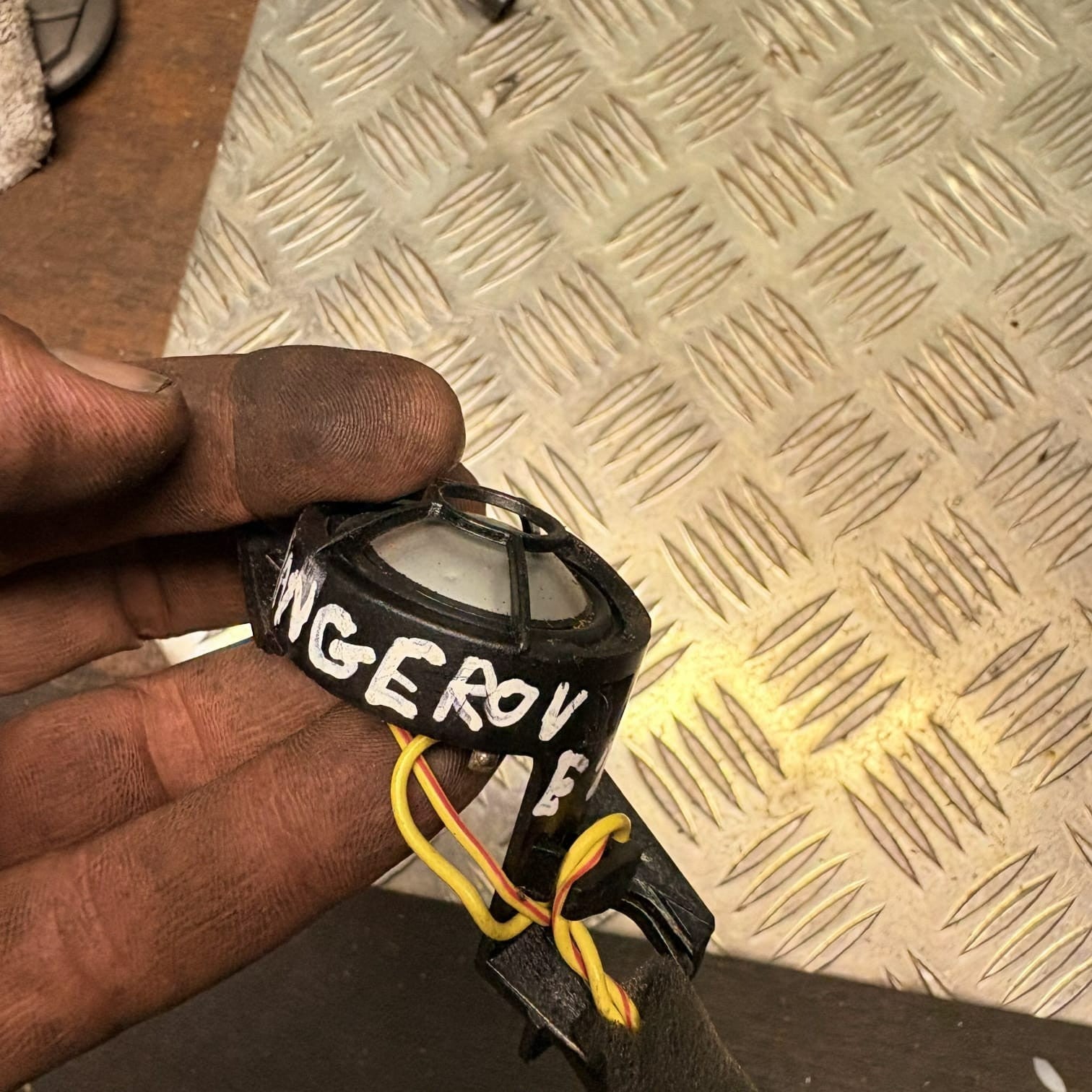

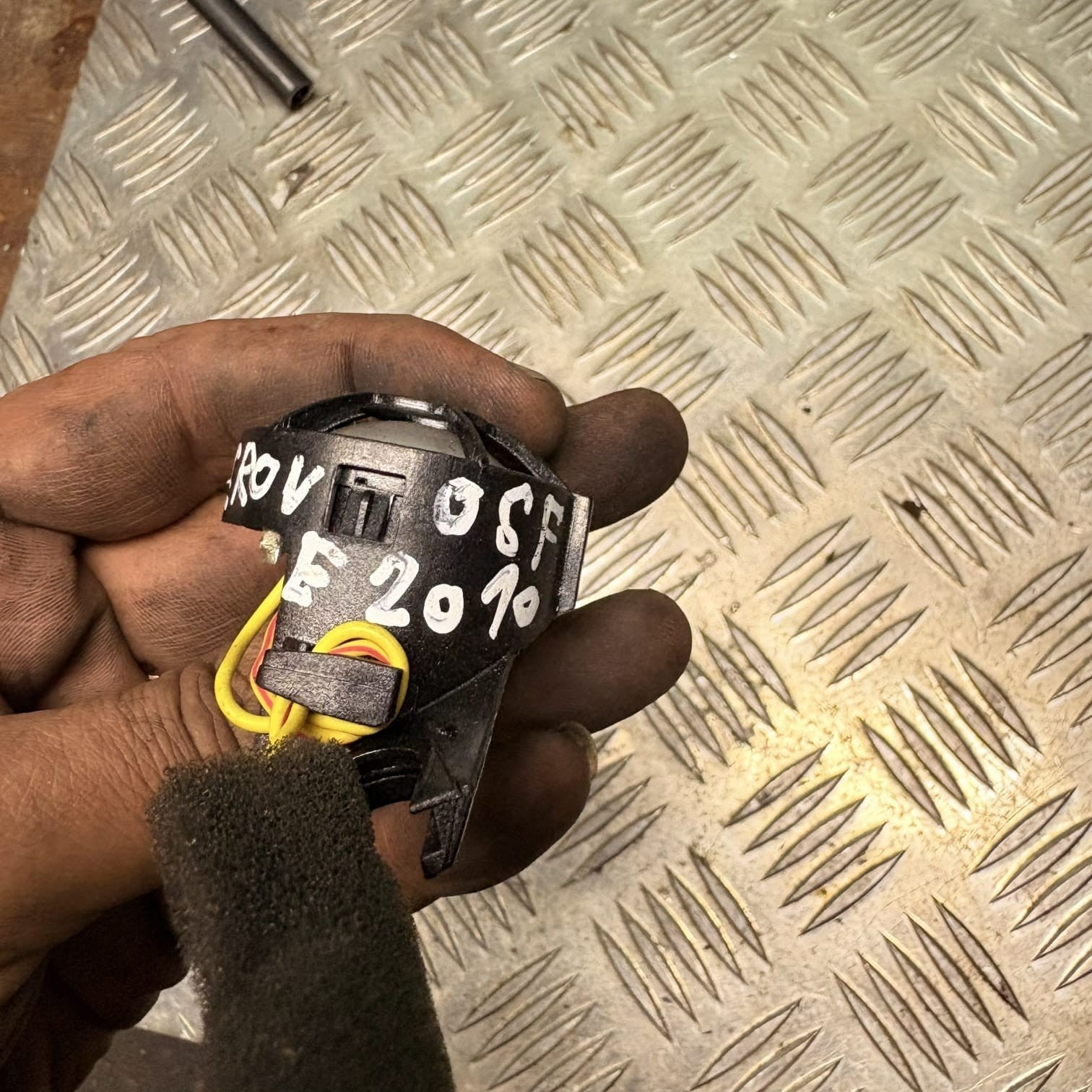

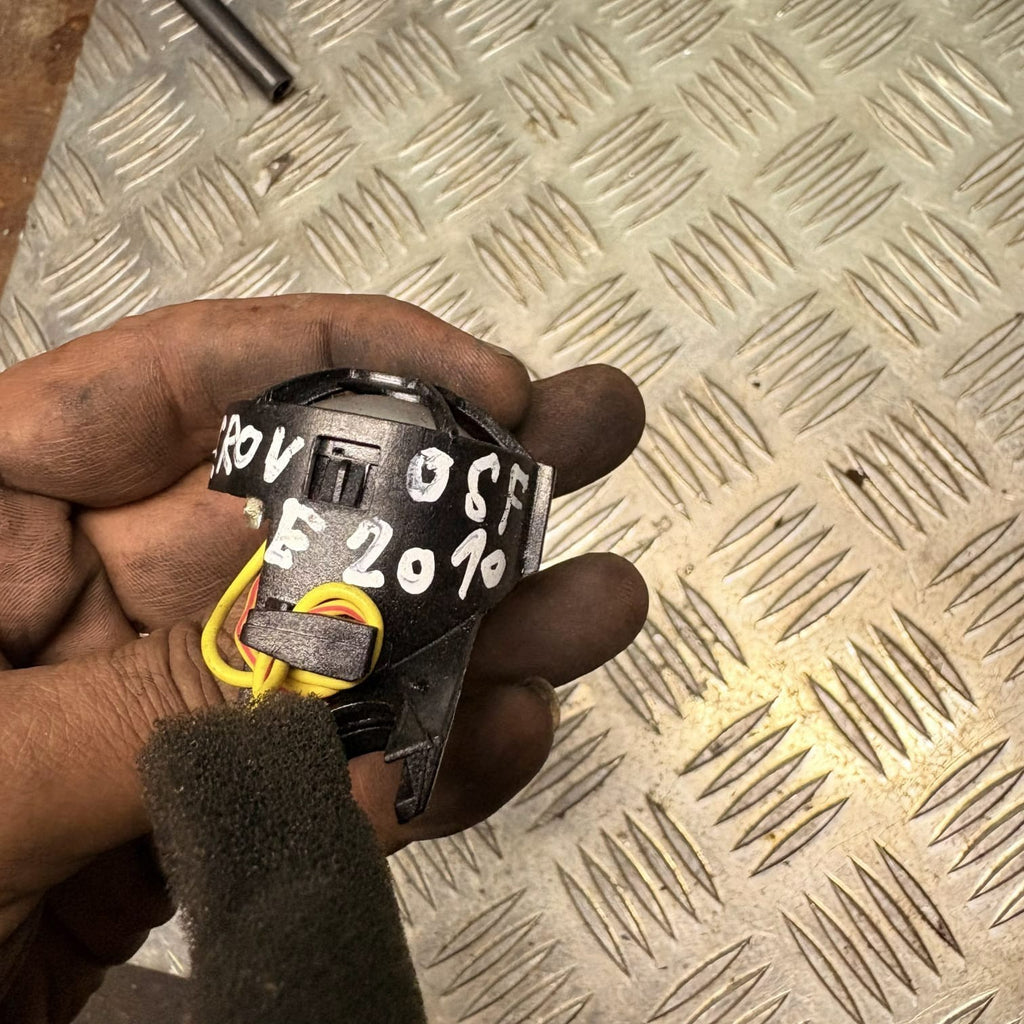

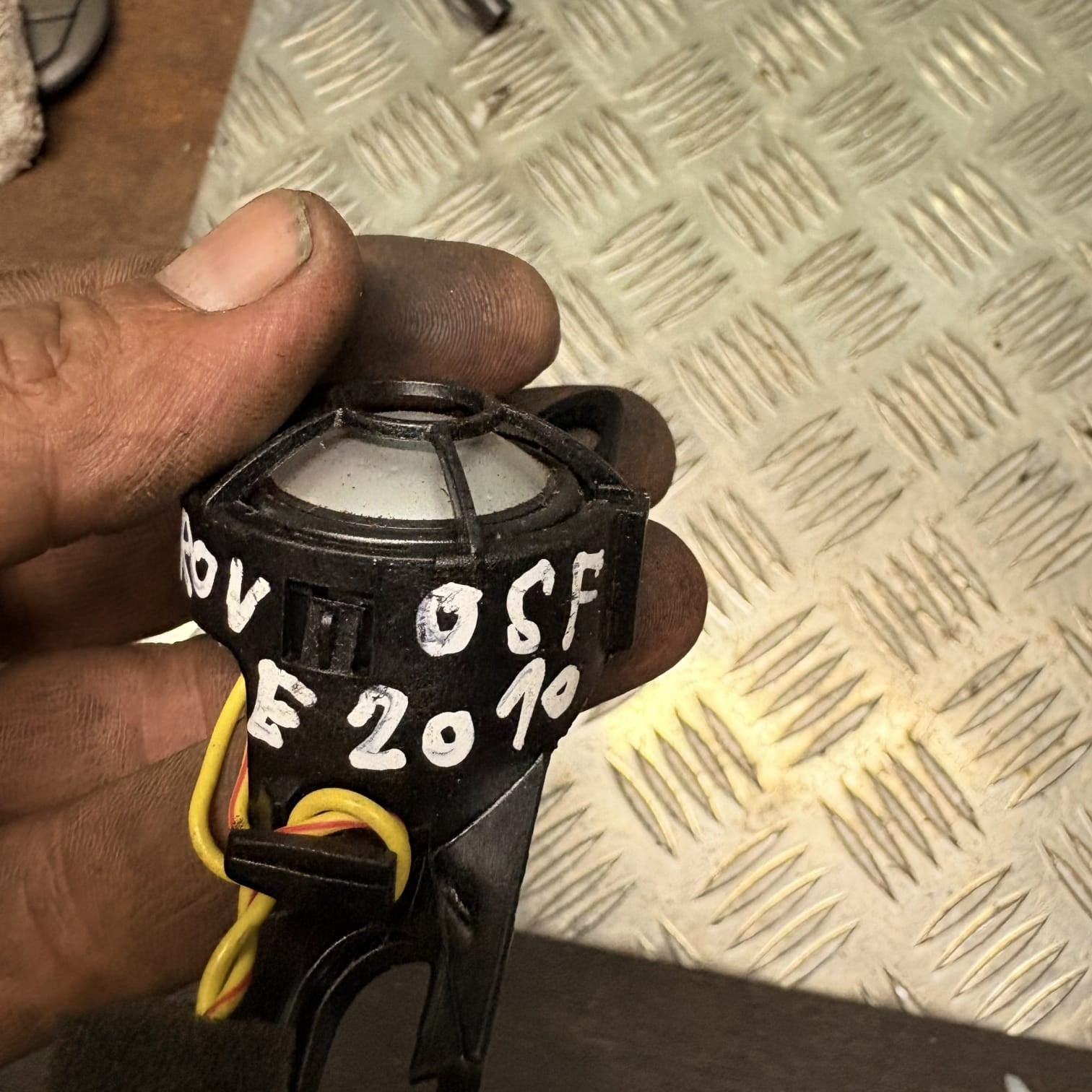

Actual item — compare housing, wiring and connector

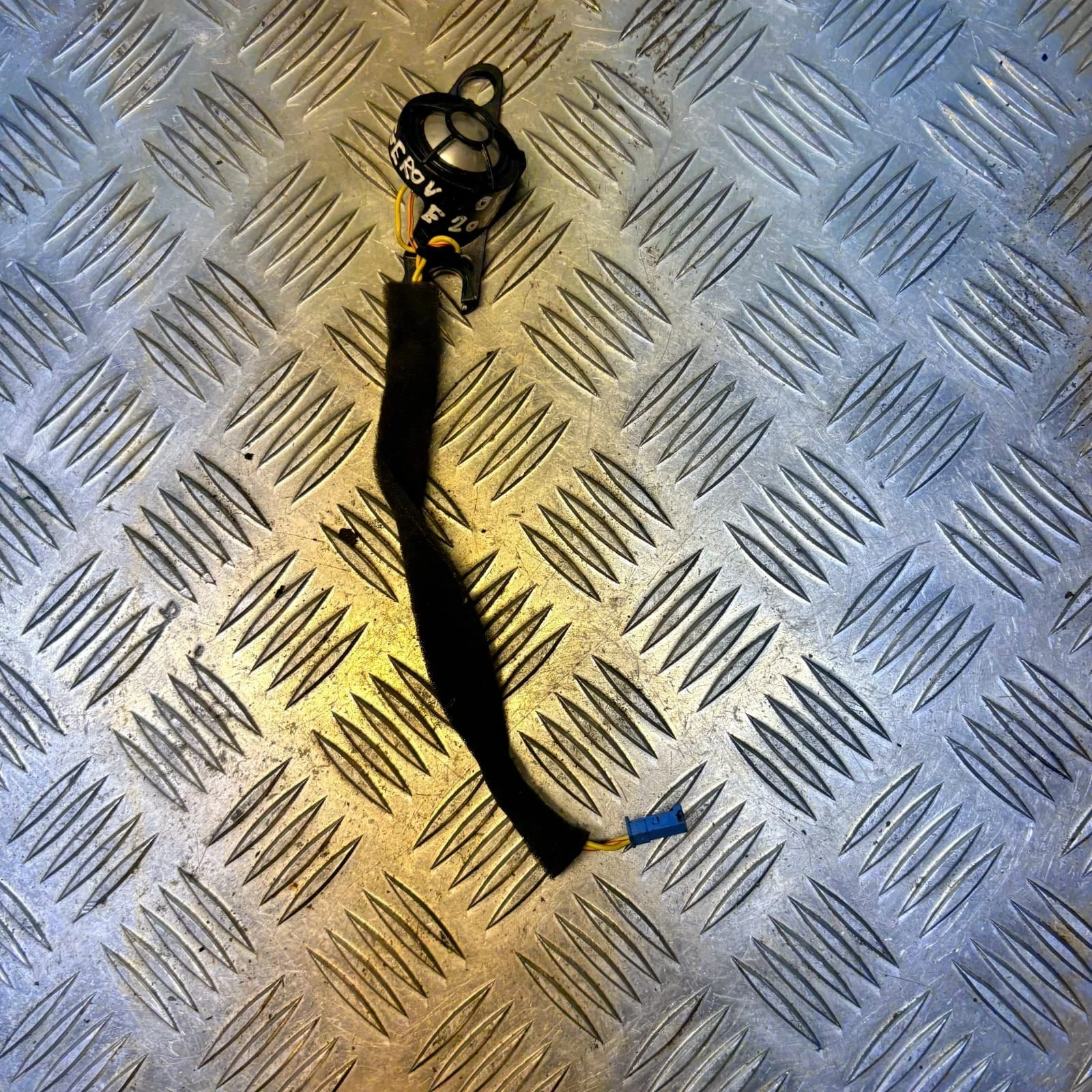

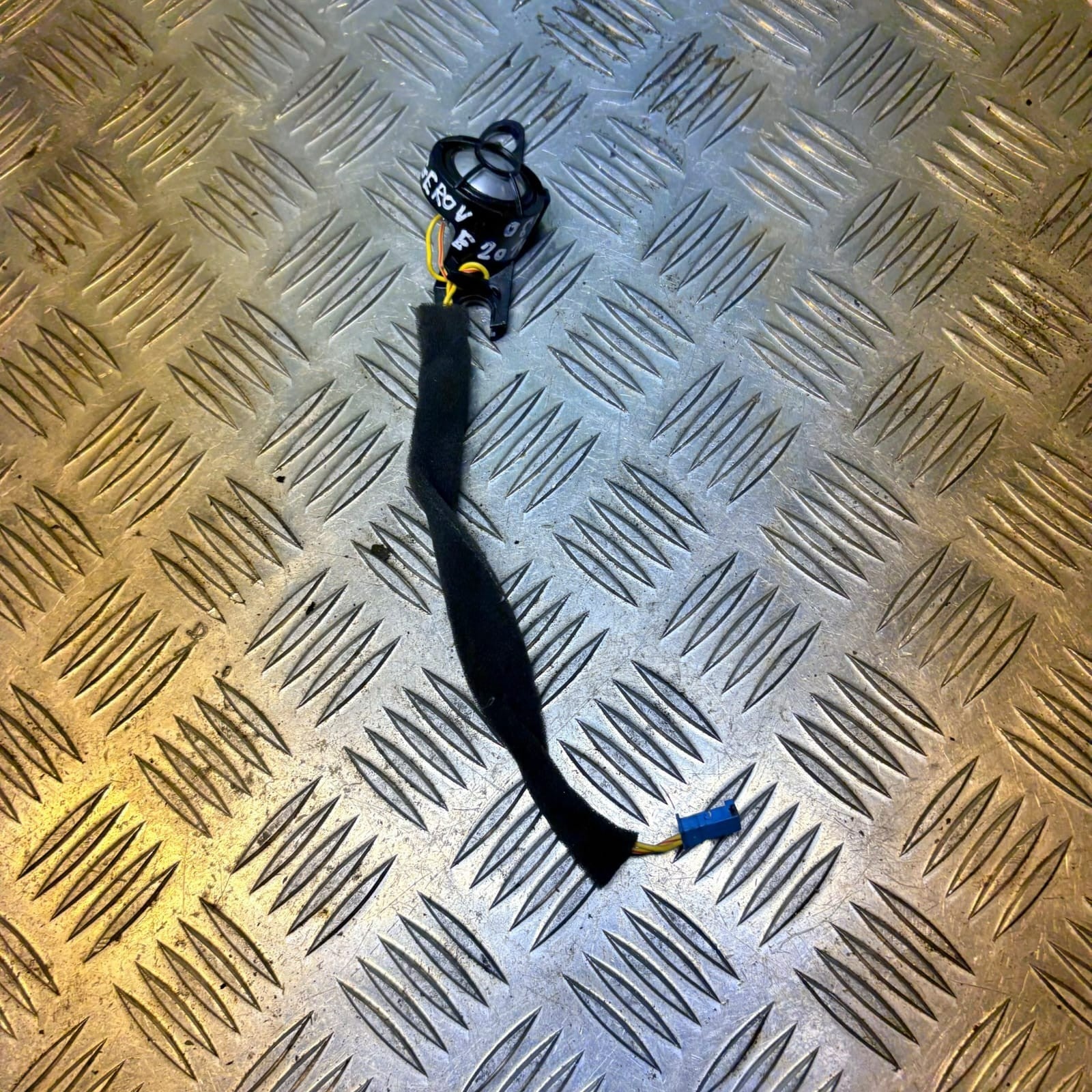

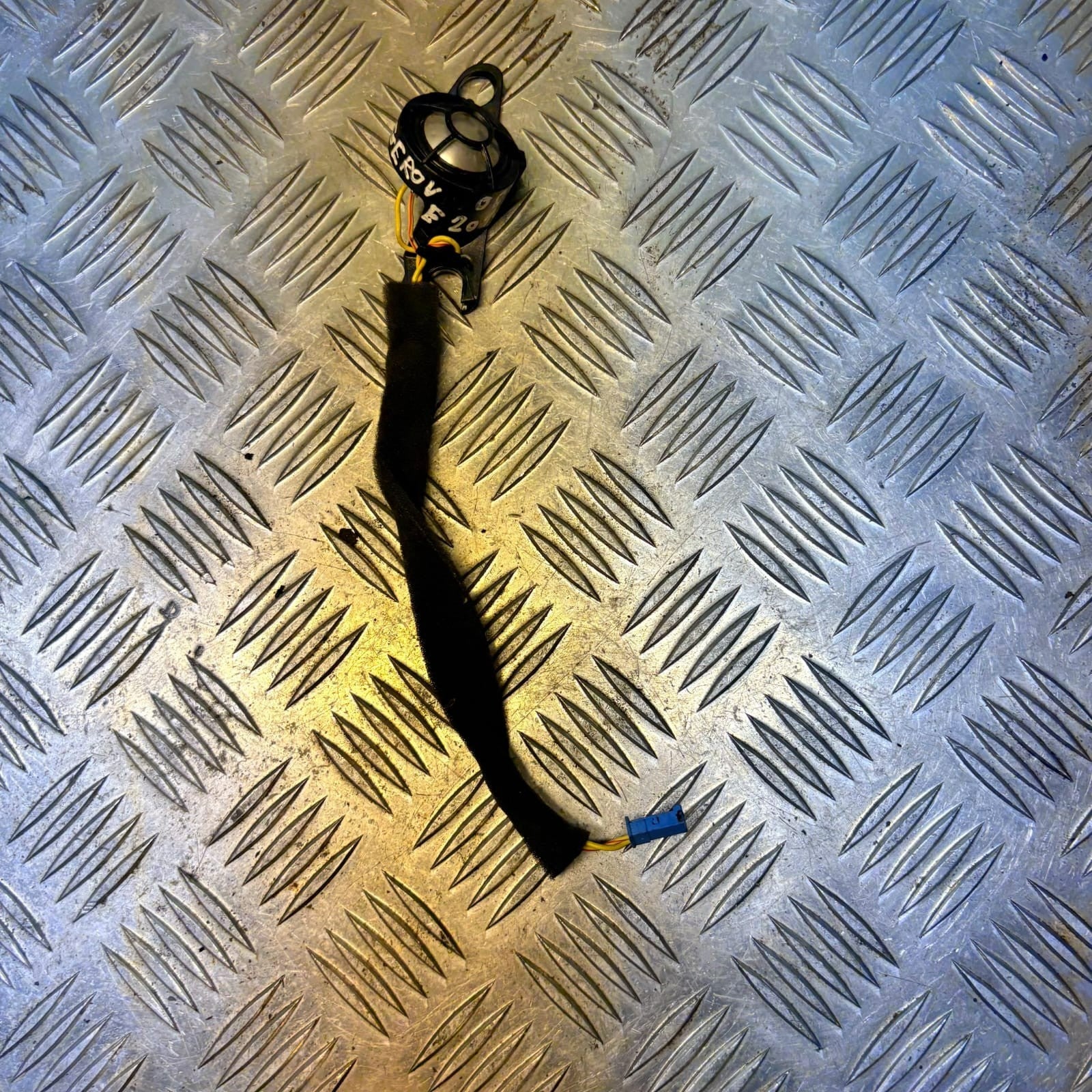

Actual complete part supplied

Reference vehicle shown below is a 2010 Range Rover Vogue L322 10MY 5-door. These photographs are for vehicle/body identification only. They are not photographs of the donor vehicle.

Fitment is determined by vehicle, VIN range, side, audio system and part number. Registration alone or visual similarity is not sufficient.

• You require the front-left / LH tweeter.
• Your original part is a different side or has an incompatible connector/housing.
• Your L322 has the standard/non-matching audio system.
• Your 2010 VIN is AA313069 or later.
• You are ordering for a 2011–2012 vehicle expecting this early RH service application.
• You are buying for Range Rover Sport, Discovery or another vehicle solely because the part looks similar.

Front-left is different: early LH catalogue references are XQN500070 / LR018563, with a later LH change to LR018044.

Unsure? Please contact us through eBay Messages before purchasing with:

1. Your full 17-character VIN.
2. A clear photograph of the label on your existing part.
3. A photograph of its connector and mounting arrangement where possible.
4. Confirmation whether you require front-right or front-left.

For borderline and 2010 enquiries we will only confirm fitment once the VIN can be decoded and compared with catalogue information.

The tweeter reproduces the high-frequency portion of the front-right audio channel. It contributes to vocal clarity, detail, stereo imaging and the intended soundstage of the Harman Kardon / Logic7 Premium Sound installation.

It is located in the front-right door-frame/upper finisher area. It is an audio component and does not operate a vehicle safety or drivetrain system.

• No high-frequency sound from the front-right side.
• Muffled or noticeably unbalanced front audio.
• Crackling, buzzing or distortion during treble-heavy music.
• Intermittent high-frequency output.
• Soundstage appears biased toward the opposite side.

The original factory configuration was engineered around a particular connector, mounting position, impedance and acoustic tuning. A cheap universal copy may physically resemble the component while differing electrically or acoustically.

• Correct factory-style connector and mounting arrangement.
• Designed for the vehicle's original premium audio architecture.
• Correct physical integration without improvised adapters where the part number matches.
• Maintains the intended tonal balance and soundstage more closely than an unknown generic unit.
• Reusing a serviceable factory part can provide substantial savings compared with buying a new replacement.
• Buying used keeps a serviceable component in circulation instead of unnecessarily discarding it.

Savings vary by component and current new-part pricing; compare like-for-like prices before purchase.

• Plastic automotive trim-removal tools.
• Suitable Torx driver/bit set.
• Small ratchet or driver.
• Protective tape or cloth for adjacent trim.
• Electrical multimeter/test equipment if diagnosis is required.

1. Switch the ignition and audio system off and protect adjacent trim surfaces.
2. Carefully release the relevant front-right door/door-frame trim as required.
3. The workshop procedure for the door-frame finisher includes releasing the inner waist seal and associated connections.
4. Disconnect the tweeter electrical connector without pulling on the wiring.
5. Release the retaining/mounting arrangement and remove the existing tweeter.
6. Compare old and replacement parts side-by-side before installation.
7. Connect the replacement unit and refit trim in reverse order.
8. Check trim seating, connector security and audio operation before completing the job.

This is a practical estimate for a competent technician including trim access, replacement and functional check. It is not a manufacturer flat-rate time and excludes separate diagnostic work, seized/broken trim hardware or unrelated faults.

No JavaScript is used. Calculate: garage hourly rate × approximately 0.5–1.0 hour.

Labour figures are estimates only and exclude diagnosis, replacement clips, additional repairs and any garage-specific charges.

We can also offer fitting and repair services subject to workshop availability and prior arrangement. Contact us through eBay Messages to check availability.

THEPARTPILOT carries more than 25,000 parts in stock and on the shelf at any one time, helping us supply replacement components quickly and provide part-number and fitment support.

International delivery is offered through eBay's Global Shipping Programme where the item and destination are eligible. eBay calculates the applicable international shipping charges, import process and destination availability at checkout.

Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain and Sweden.

Antigua and Barbuda, Aruba, Australia, Bahamas, Bahrain, Bangladesh, Barbados, Belize, Bermuda, Bolivia, Brazil, Brunei Darussalam, Cambodia, Canada, Cayman Islands, Chile, China, Colombia, Costa Rica, Dominica, Dominican Republic, Ecuador, Egypt, El Salvador, French Guiana, Grenada, Guadeloupe, Guatemala, Guernsey, Honduras, Hong Kong, Iceland, Indonesia, Israel, Jamaica, Japan, Jersey, Jordan, Kuwait, Liechtenstein, Macau, Malaysia, Maldives, Martinique, Mexico, Monaco, Montserrat, New Zealand, Nicaragua, Norway, Oman, Pakistan, Panama, Paraguay, Peru, Philippines, Qatar, Reunion, Saint Kitts and Nevis, Saint Lucia, Saudi Arabia, Singapore, South Africa, South Korea, Sri Lanka, Switzerland, Taiwan, Thailand, Trinidad and Tobago, Turks & Caicos Island, United Arab Emirates, Ukraine, Uruguay, United States and Vietnam.

Customers must ensure the correct delivery address is selected during eBay checkout. We cannot manually substitute a different shipping address after an order has been placed.

Where applicable, qualifying second-hand goods are sold using the VAT Margin Scheme / Global Accounting method. VAT is not separately stated and is not reclaimable from the displayed selling price.

Detailed fitment information is supplied to help customers order correctly first time. Before purchasing, compare the actual number on your existing part, side/position, connector, audio system and VIN range.

If you are uncertain, contact us through eBay Messages with your full VIN and a photograph of your existing part before ordering.
