Renault Clio Mk3 2005-12 Headlight Level Dimmer Switch 8200407756 8200407757

£18.86

THEPARTPILOT

THEPARTPILOT ACTUAL ITEM PHOTOGRAPHED USED FACTORY-FITTED COMPONENT

Renault Clio Mk3 2005–2012 Headlight Level & Instrument Dimmer Switch Panel

Name: Renault Clio Mk3 2005-12 Headlight Level Dimmer Switch 8200407756 8200407757
Brand: Renault
SKU: 206291822666
Price: 18.86 GBP
Availability: InStock

Moulded references: 8200407756 / 8200407757

Lower driver-dashboard control panel with a manual headlamp beam-level wheel, instrument-panel illumination dimmer and two blank switch positions. Supplied as the exact used component shown in the photographs.

🔍 Do not order from registration year or engine size alone. Match the number, front switch arrangement, rear connector and mounting clips—or request a 17-character VIN check through eBay Messages before purchase.

📸 Actual item supplied

These are photographs of the sale item, not catalogue photographs. Inspect every image carefully for condition, switch layout, connector design, mounting clips and identification markings.

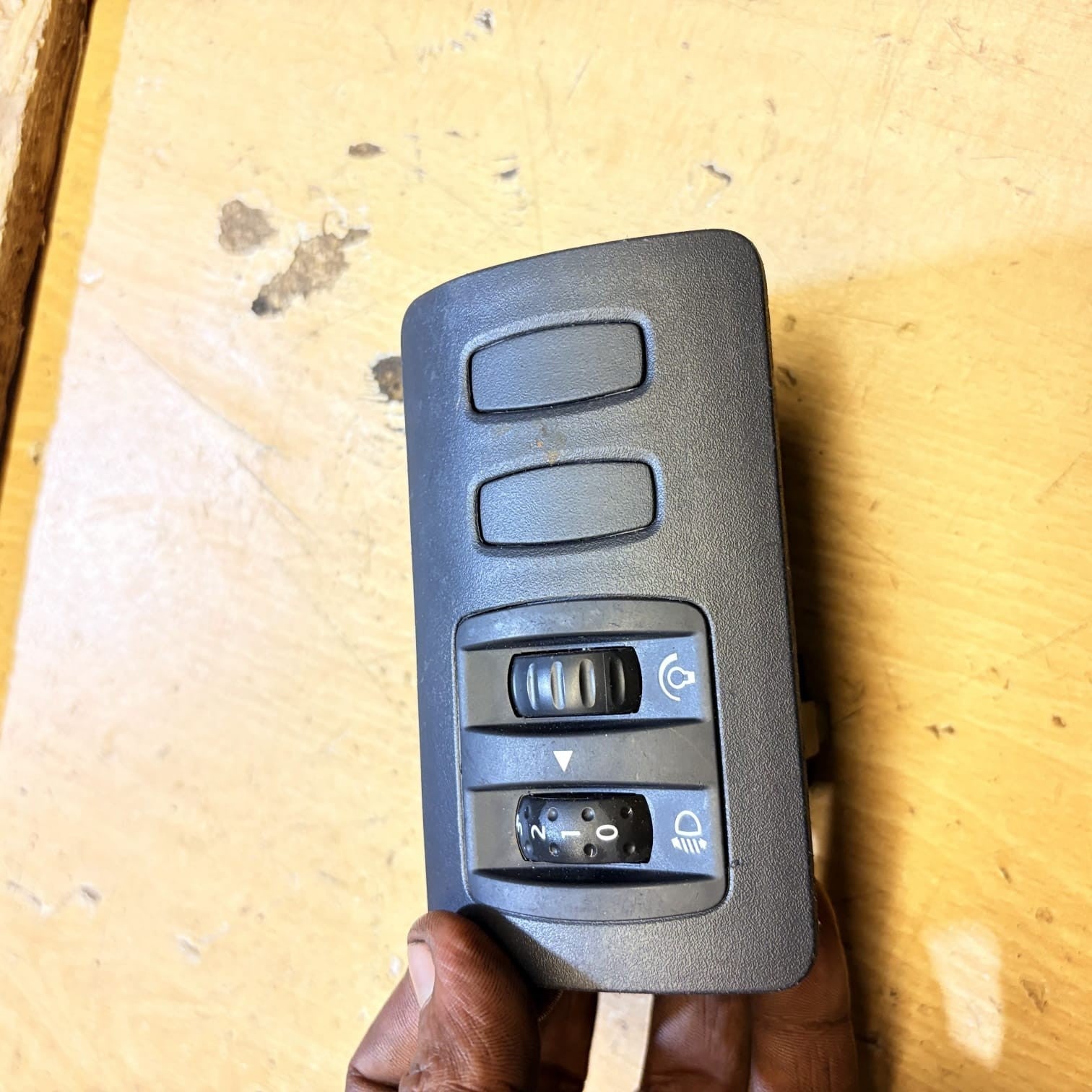

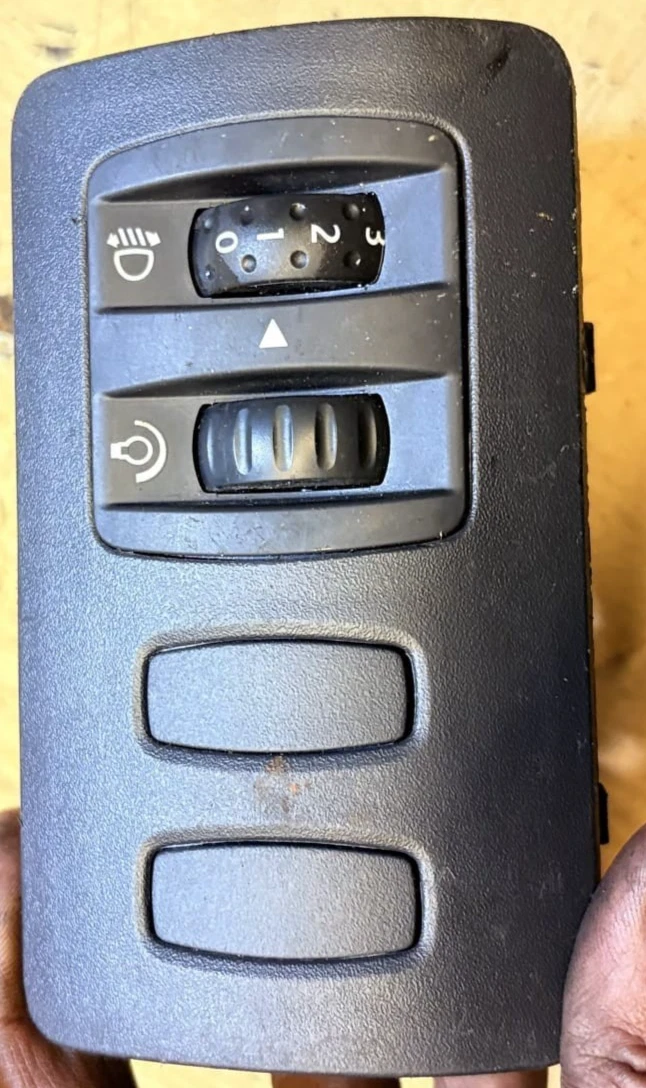

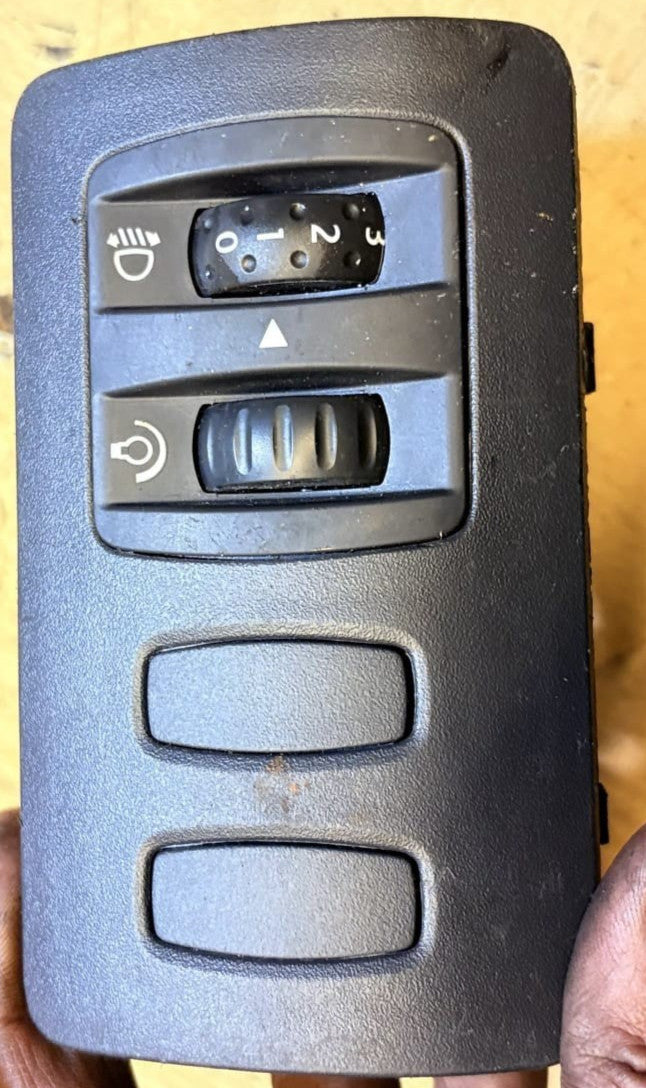

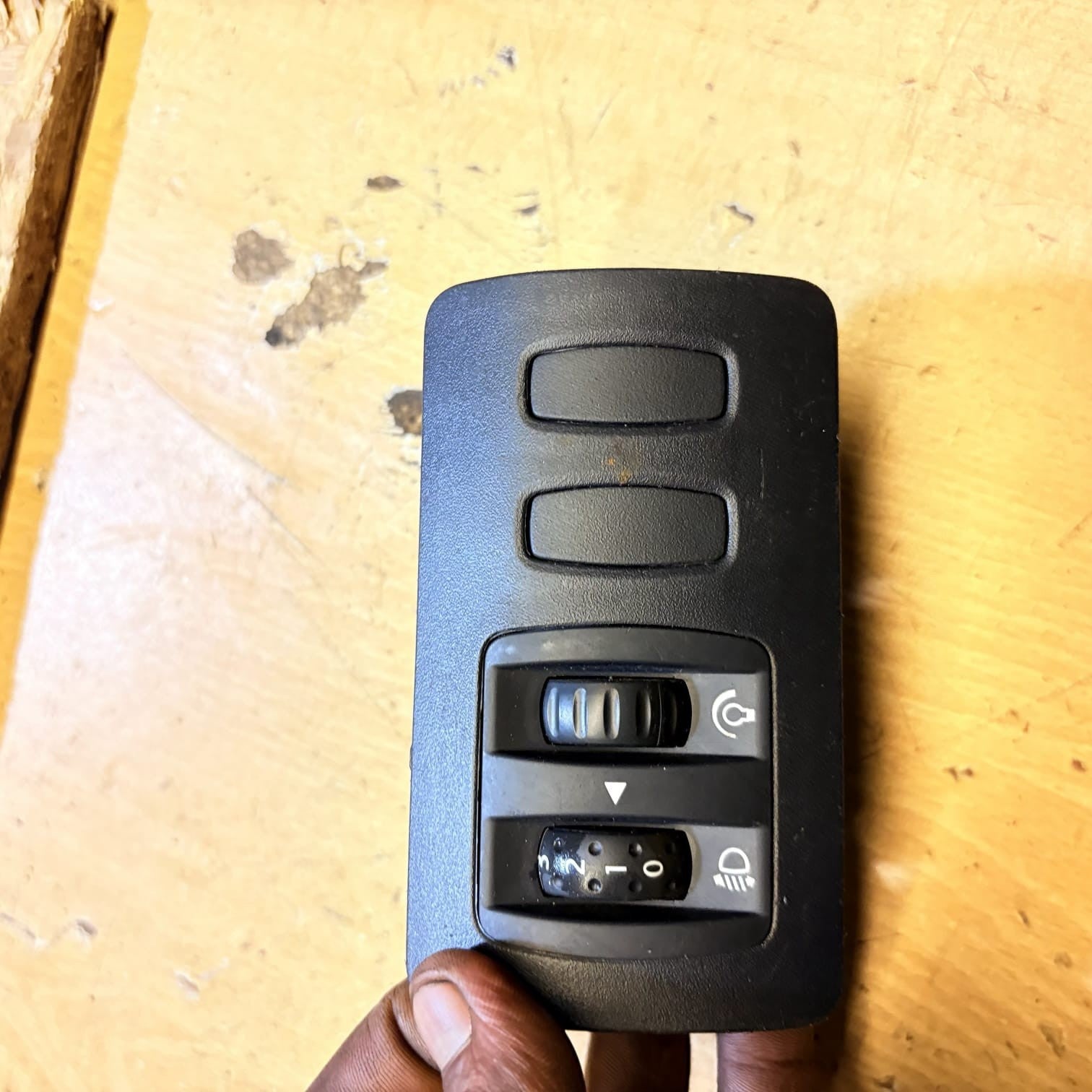

Renault Clio Mk3 headlight level and instrument illumination dimmer switch panel front view

THEPARTPILOT

Front view: headlamp-level wheel, dashboard-light dimmer and two blank positions.

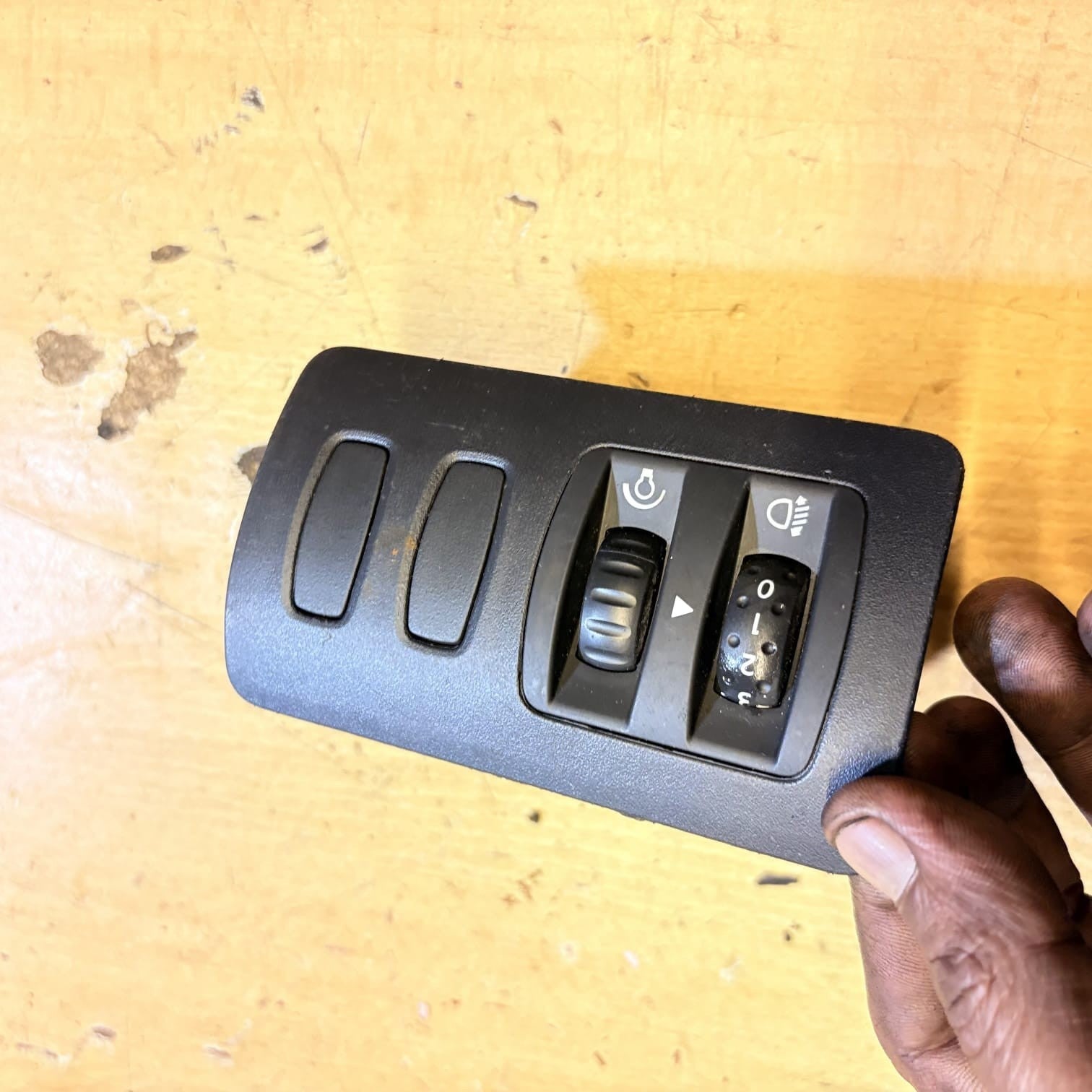

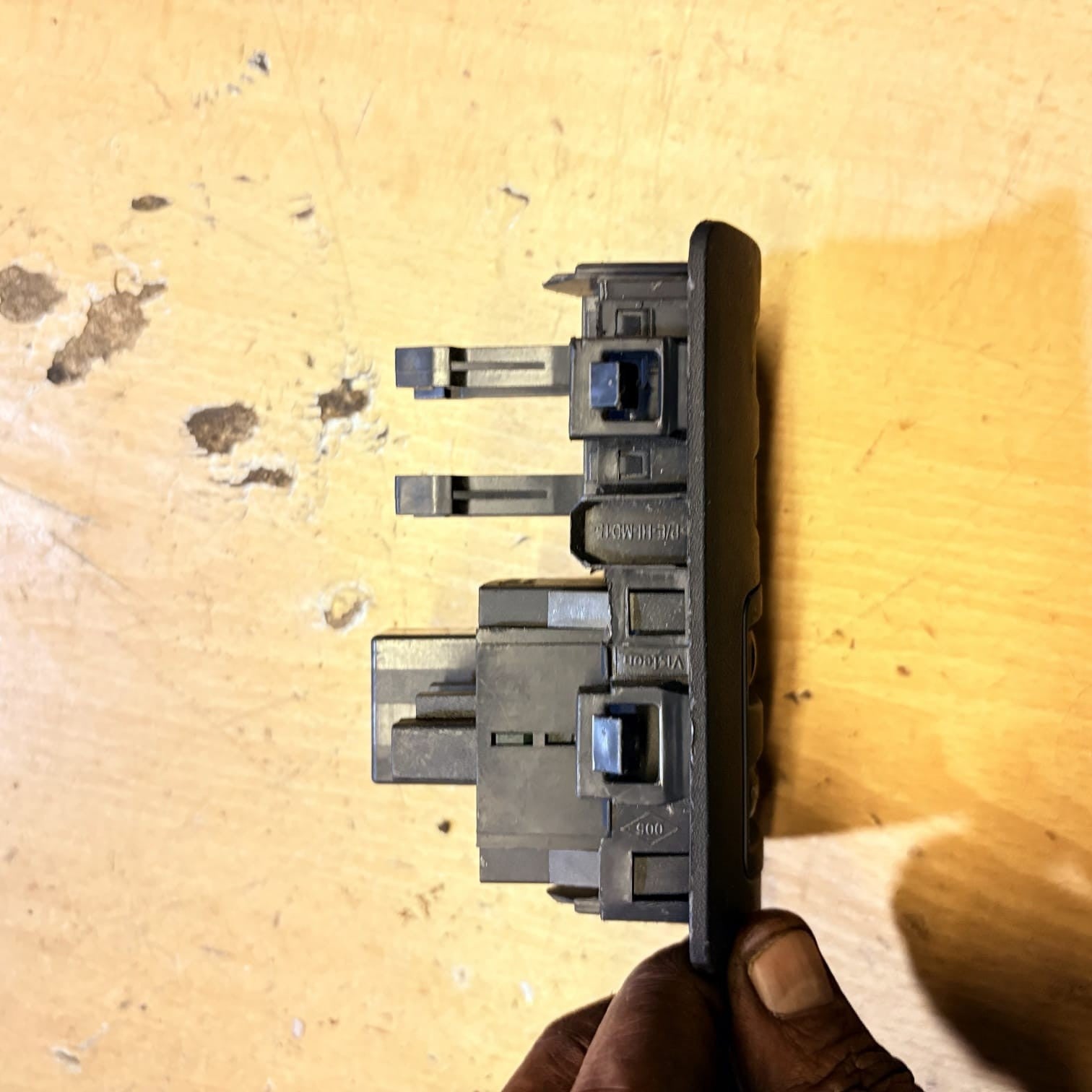

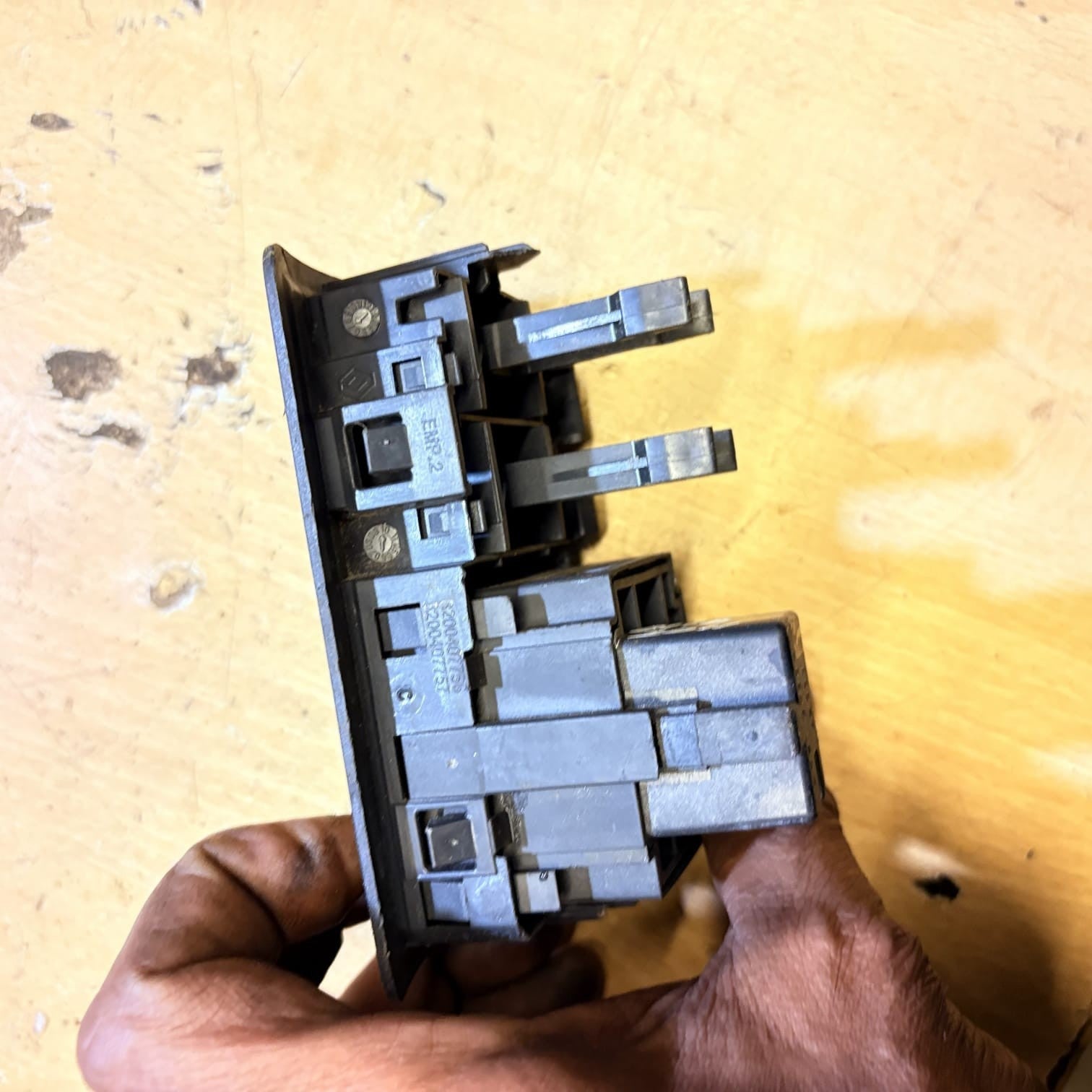

Renault Clio III dashboard headlight adjuster and dimmer switch angled view

THEPARTPILOT

Angled view: compare the trim colour, symbols, wheel positions and blank covers.

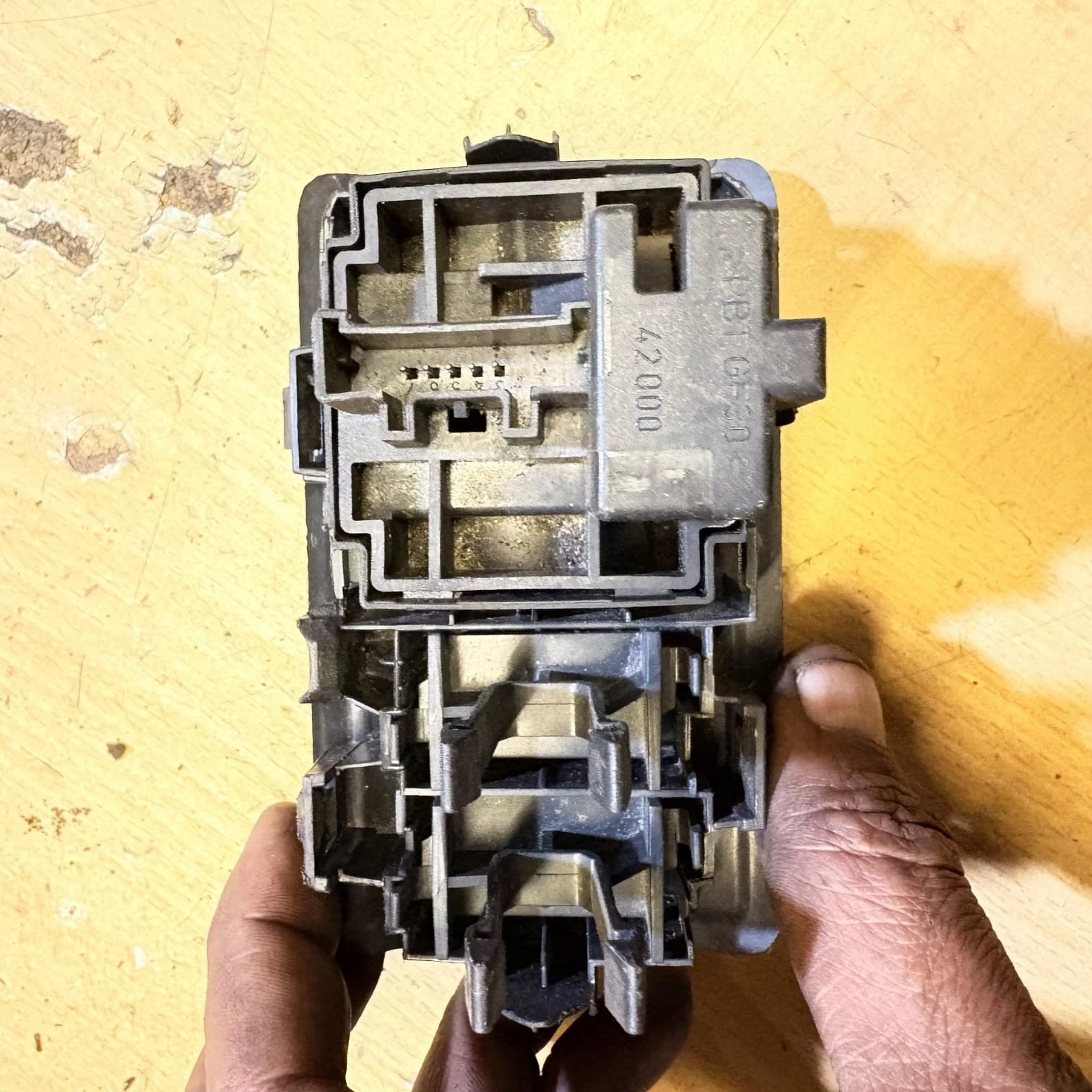

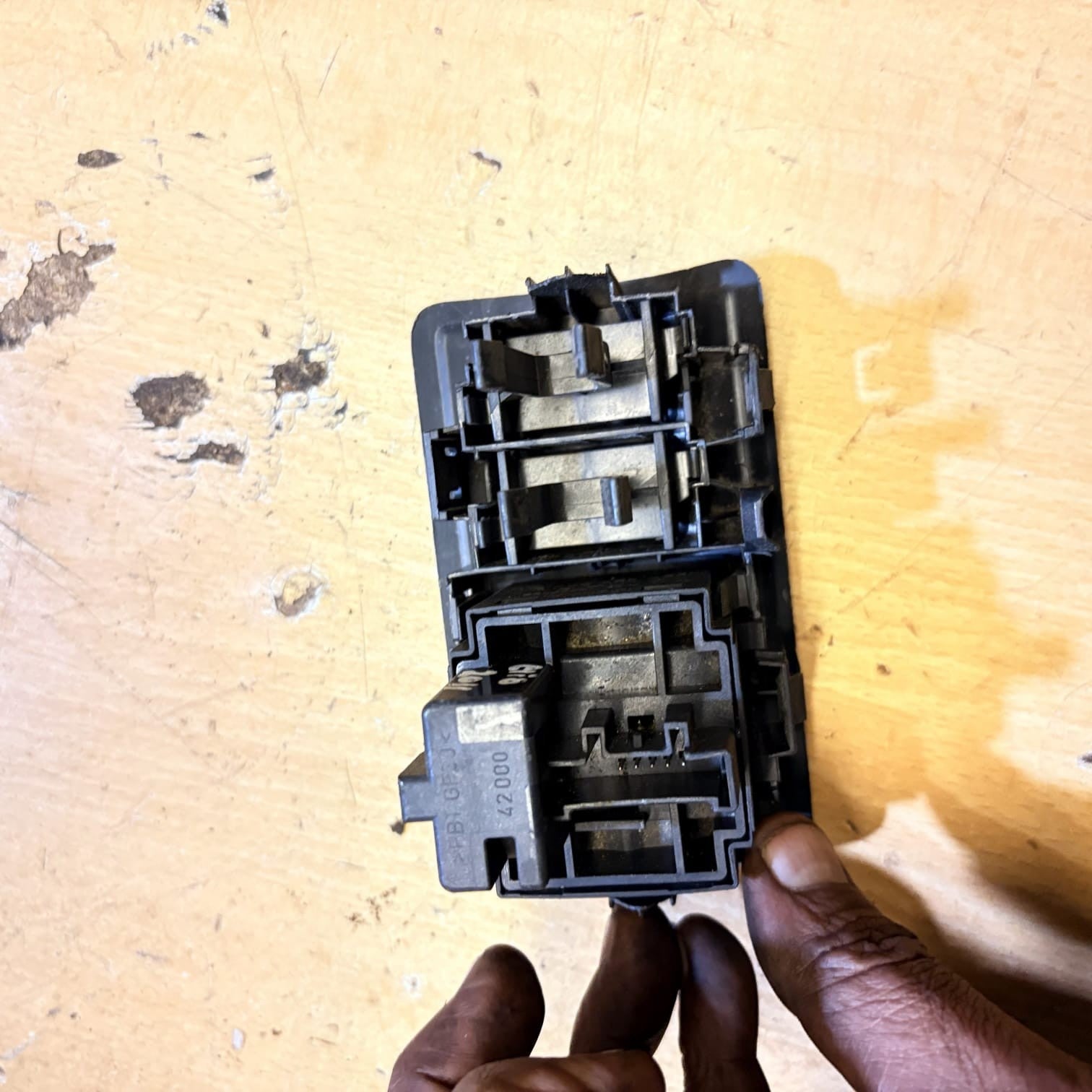

Renault Clio 3 switch panel rear connector and mounting clips

THEPARTPILOT

Rear view: compare the electrical connector keying, switch modules and retaining clips.

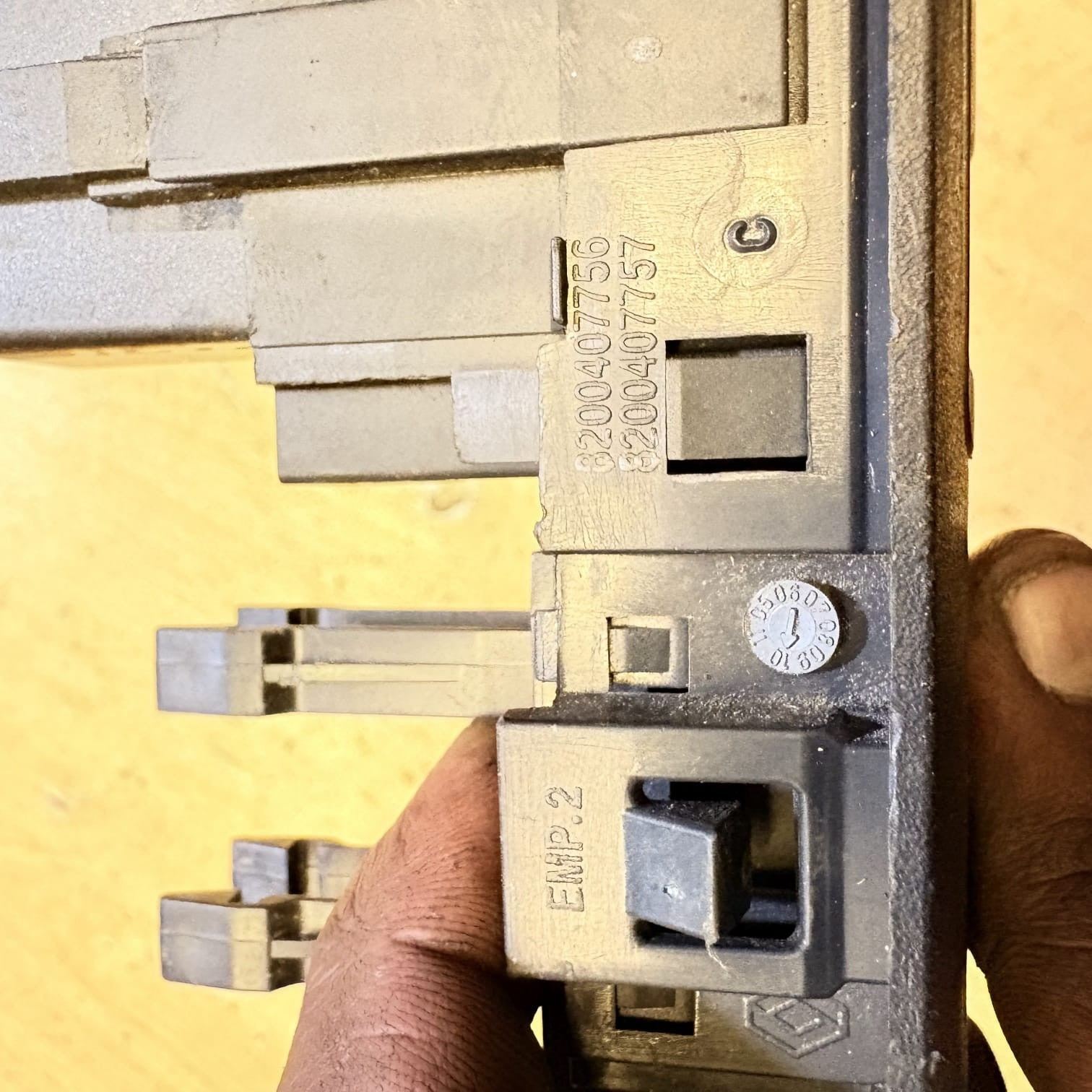

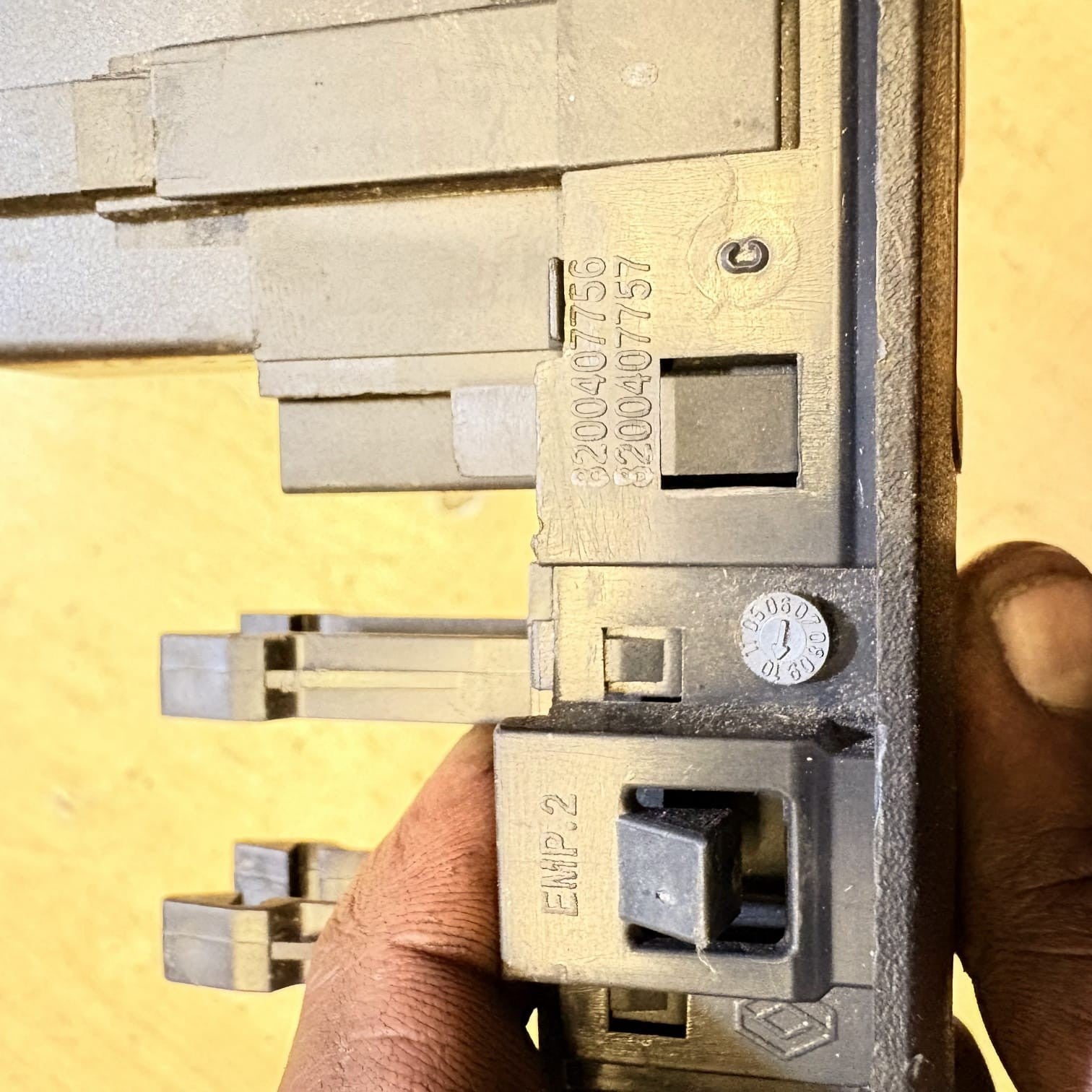

Renault Clio switch panel moulded part numbers 8200407756 and 8200407757

THEPARTPILOT

Close-up of moulded references 8200407756 and 8200407757.

Important: the two numbers are visible on the housing, but moulded references can identify different parts of an assembly. They must be used together with the photographs, connector and VIN—not treated as a universal cross-reference.

✅ Four-point first-time fitment check

1. Match the front layout

Your existing panel must have the same headlamp-level wheel, the same instrument-light dimmer wheel and the same two blank positions.

2. Match the identifiers

Look for 8200407756 and/or 8200407757 on your original panel. A similar-looking panel with another number must not be assumed compatible.

3. Match the rear connection

Compare the plug socket, locating keys, clip positions, rear housing and overall panel shape with the actual photographs above.

4. Use the full VIN when uncertain

Send the full 17-character VIN and clear photographs of your old panel and connector through eBay Messages. Do not rely on the registration alone.

Part description

Used Renault Clio III / Clio Mk3 X85 lower-dashboard headlight-level adjuster and instrument-panel illumination dimmer switch assembly. This configuration is intended for compatible Renault Clio Mk3 three-door and five-door hatchbacks within model years 2005, 2006, 2007, 2008, 2009, 2010, 2011 and 2012, only where the original number, switch arrangement and rear connector match.

The left rotary wheel shown in the photographs adjusts manual headlamp beam height to compensate for passenger or luggage loading. The second wheel controls the brightness of the dashboard and instrument illumination. The two remaining positions are blank covers on this specification.

This panel does not operate the main headlamp on/off function and does not add equipment that the vehicle did not originally have. Vehicle trim, lighting equipment and switch-panel specification are more important than engine size.

Condition: used component. Cosmetic marks, surface wear and signs of previous installation may be present. The exact unit photographed is supplied. No surrounding dashboard trim, wiring loom or unrelated switch is included unless visibly attached in the photographs.

🚘 Vehicle compatibility table

Vehicle	Body style	Model years	Fitment status	Required confirmation
Renault Clio III / Mk3 X85 BR0/1 or CR0/1 platform family	3-door hatchback	2005–2012	Conditional match	Existing number, two-wheel/two-blank layout, rear connector and mounting points must match.
Renault Clio III / Mk3 X85 BR0/1 or CR0/1 platform family	5-door hatchback	2005–2012	Conditional match	Existing number, two-wheel/two-blank layout, rear connector and mounting points must match.
Renault Clio III Phase I or Phase II	Hatchback	Within 2005–2012	Specification dependent	Facelift status alone does not confirm the switch pack. Match the physical part or request a VIN check.
Renault Clio III Estate / Sport Tourer	Estate	Any	Not confirmed	Do not order without a successful VIN, number, image and connector comparison.
Renault Clio III commercial/van or specialist trim	Commercial or specialist	Any	Not confirmed	Equipment and switch blanks may differ. VIN confirmation is required.
Clio III with automatic headlamp levelling, xenon lighting or a different option panel	Any	Any	Do not assume fitment	Compare the original panel. Vehicles without a manual level wheel require a different configuration.
Renault Clio II / Mk2	Any	Any	Does not fit	Different vehicle generation and switch-panel design.
Renault Clio IV / Mk4	Any	Any	Does not fit	Different vehicle generation and switch-panel design.
Other Renault models	Any	Any	No cross-model fitment confirmed	No additional model is advertised without a matching VIN, number, connector and photographic configuration.

UK registration years can overlap model generations. “2005–2012” identifies the Clio III generation range—it does not mean every Clio registered during those years uses this exact switch panel.

Reference vehicles and installation area

The following licensed photographs show the relevant Clio III generation, its three-door and five-door body forms, and a representative right-hand-drive dashboard. They are identification references only. The vehicles and dashboard shown are not included, and equipment may vary by trim.

Five-door Clio III reference. Confirm that your car is the same generation.

Three-door Clio III reference. Door count does not replace a part-number check.

Representative right-hand-drive Clio III interior. The switch panel sits in the lower driver-side dashboard area; trim and equipment vary.

Where the part is fitted and what it controls

Installation location

Fitted into the lower driver-side dashboard switch plate. The assembly clips into the dashboard trim and connects to the vehicle wiring loom through the rear electrical connector.

Control functions

Manual adjustment of headlamp beam height.
Adjustment of instrument and dashboard illumination brightness.
Retention of the original two blank switch locations.

⚠️ Possible symptoms of a faulty switch

Headlamp-level wheel sticks, feels loose or produces no response.
Headlamp beam height changes intermittently when the wheel is moved.
Instrument illumination will not brighten or dim.
Dashboard lighting flickers when the dimmer is touched.
Rotary wheel, printed symbol, panel face or retaining clips are damaged.
Panel does not remain securely clipped into the lower dashboard.
Rear connector or terminals show looseness, contamination or heat damage.

Diagnosis warning: identical symptoms can also be caused by a blown fuse, damaged wiring, poor earth, headlamp-level motor failure, lamp/instrument circuitry, connector corrosion or another control-system fault. Diagnose before ordering. Replacing the switch will not repair an unrelated electrical fault.

Construction and specification

Visible construction

Dark moulded automotive trim housing.
Integrated rotary electrical controls.
Moulded rear locating and retaining clips.
Integrated rear electrical connection.
Printed headlamp-level and illumination symbols.

Specification note

The exact polymer grade, electrical rating and internal-contact material are not marked in the listing photographs and are therefore not claimed. Match the physical assembly rather than relying on a generic material description.

🔧 Fitting guide

Installation information is a general guide for a competent technician. Follow the appropriate workshop manual and safe electrical procedures for the vehicle.

Suggested tools

Non-marring plastic trim-removal tool.
Small plastic pick or suitable clip-release tool.
Inspection lamp.
Protective cloth or masking tape for adjacent trim.
Multimeter or diagnostic equipment where fault investigation is required.

General removal and installation sequence

Step 1: park safely, switch off the ignition and exterior lighting, remove the key and allow the vehicle electronics to shut down.

Step 2: protect the surrounding dashboard trim. Use a non-marring tool to carefully unclip the switch plate.

Step 3: draw the panel forward only far enough to access the connector. Release the locking tab and disconnect the plug without pulling on the wires.

Step 4: press the rear retaining clips and remove the control assembly from the switch plate where required.

Step 5: compare the old and replacement parts side by side. Confirm number, layout, connector, locating keys and clips before installation.

Step 6: clip the replacement assembly into the plate, reconnect the plug and secure the panel back into the lower dashboard.

Step 7: test the instrument-light dimmer and manual beam-level control. Check that the panel is secure and that no warning or electrical fault remains.

Do not force the panel or connector. Damaged dashboard clips, terminals or wiring can increase repair time. Where headlamp alignment remains incorrect, have the lighting, levelling motors and beam aim professionally inspected.

Estimated replacement time: approximately 15–30 minutes or 0.25–0.50 labour hour for a competent technician, excluding diagnosis, damaged trim, wiring repairs or additional fault-finding.
