Skoda Fabia MK3 NJ 2017-2021 1.0 Petrol Brake Vacuum Pump Relay Module 008572-03
Skoda Fabia MK3 NJ 2017-2021 1.0 Petrol Brake Vacuum Pump Relay Module 008572-03
Skoda Fabia MK3 NJ 2017-2021 1.0 Petrol Brake Vacuum Pump Relay Module
PART NUMBER: 008572-03

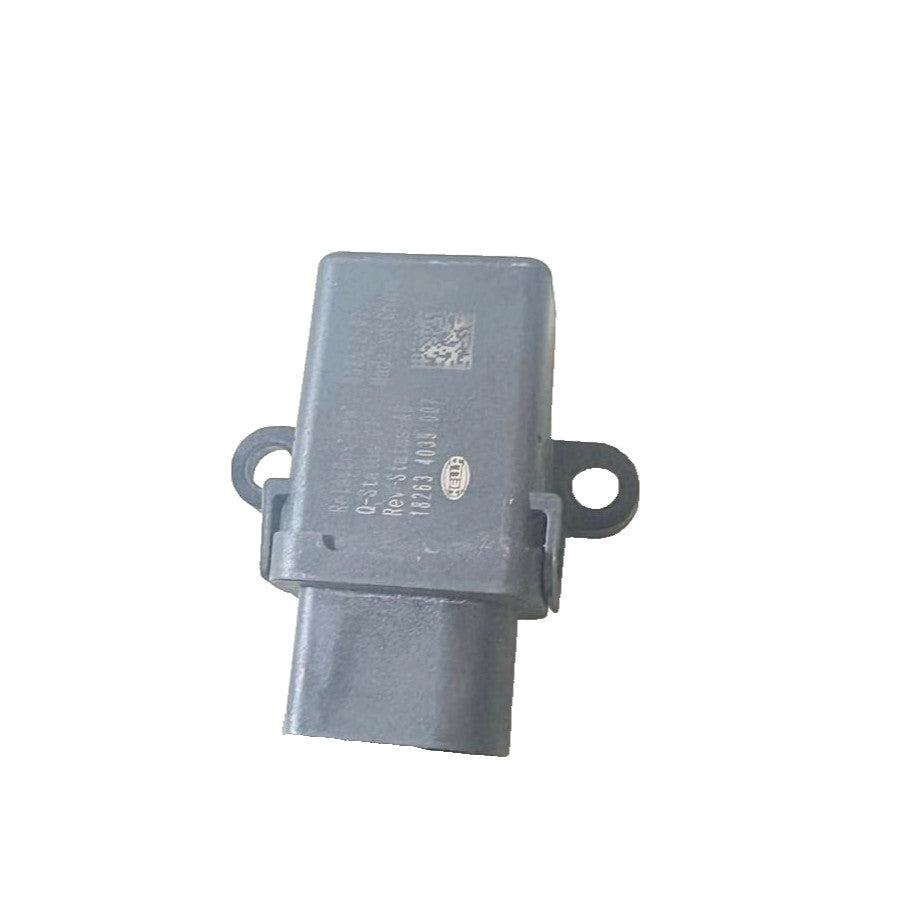

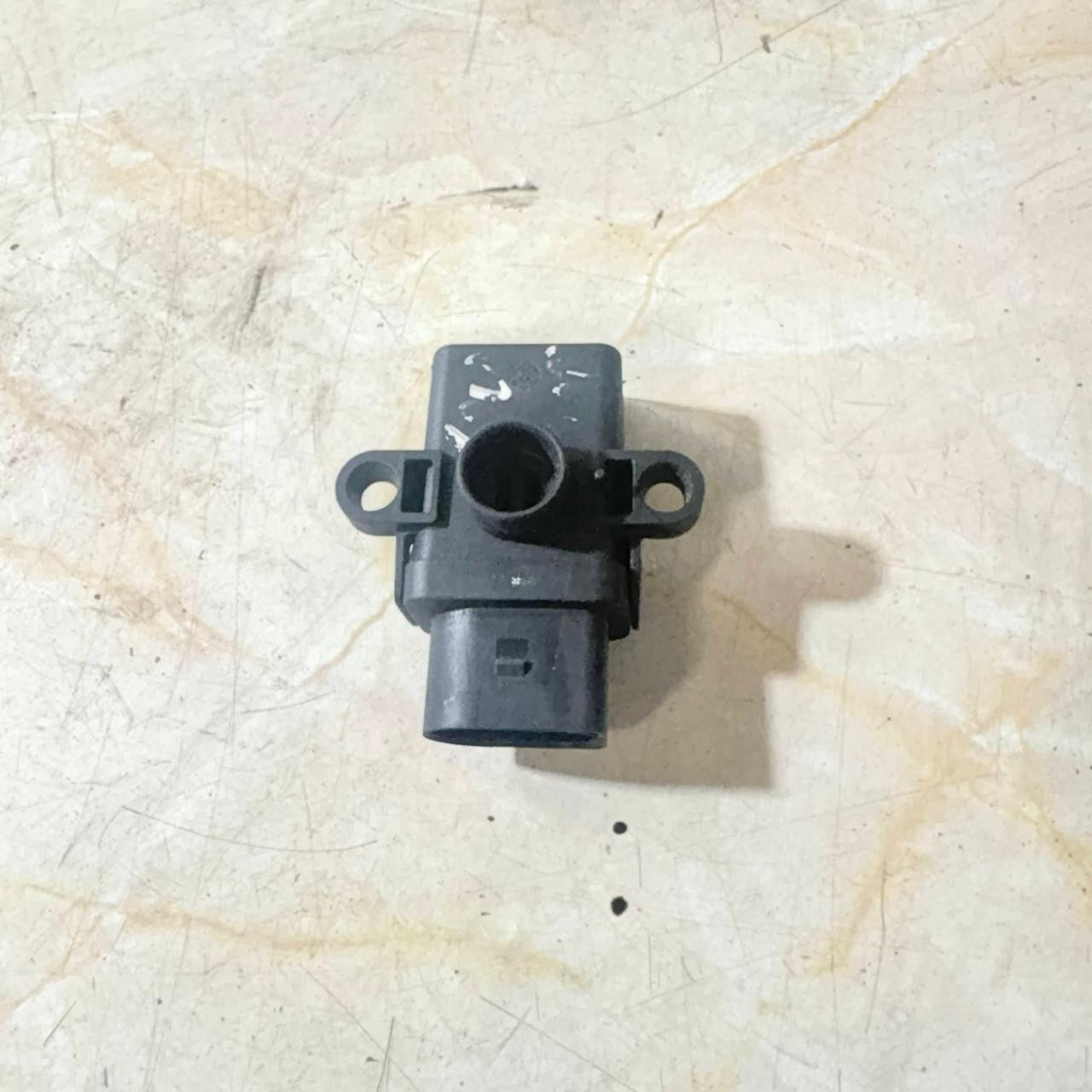

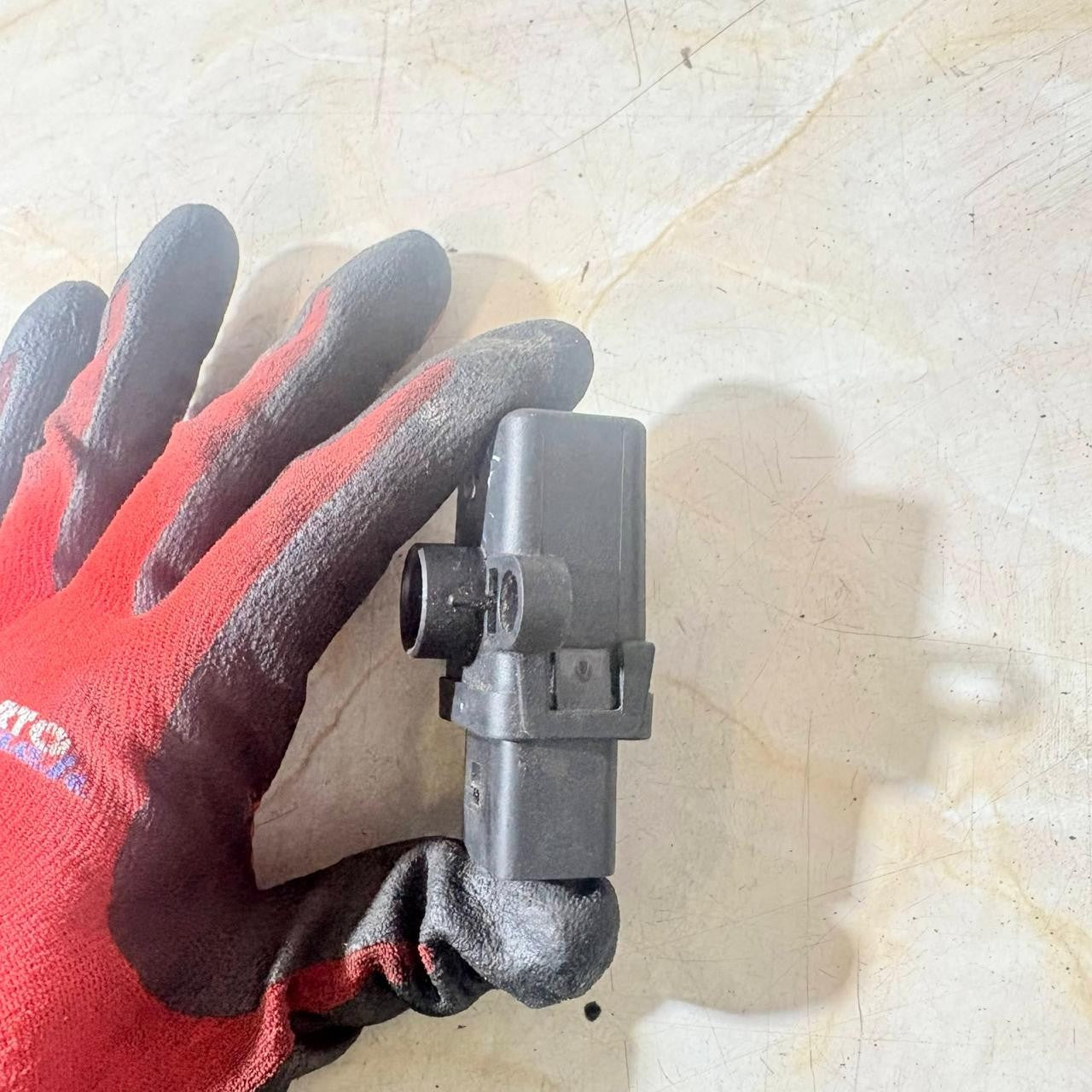

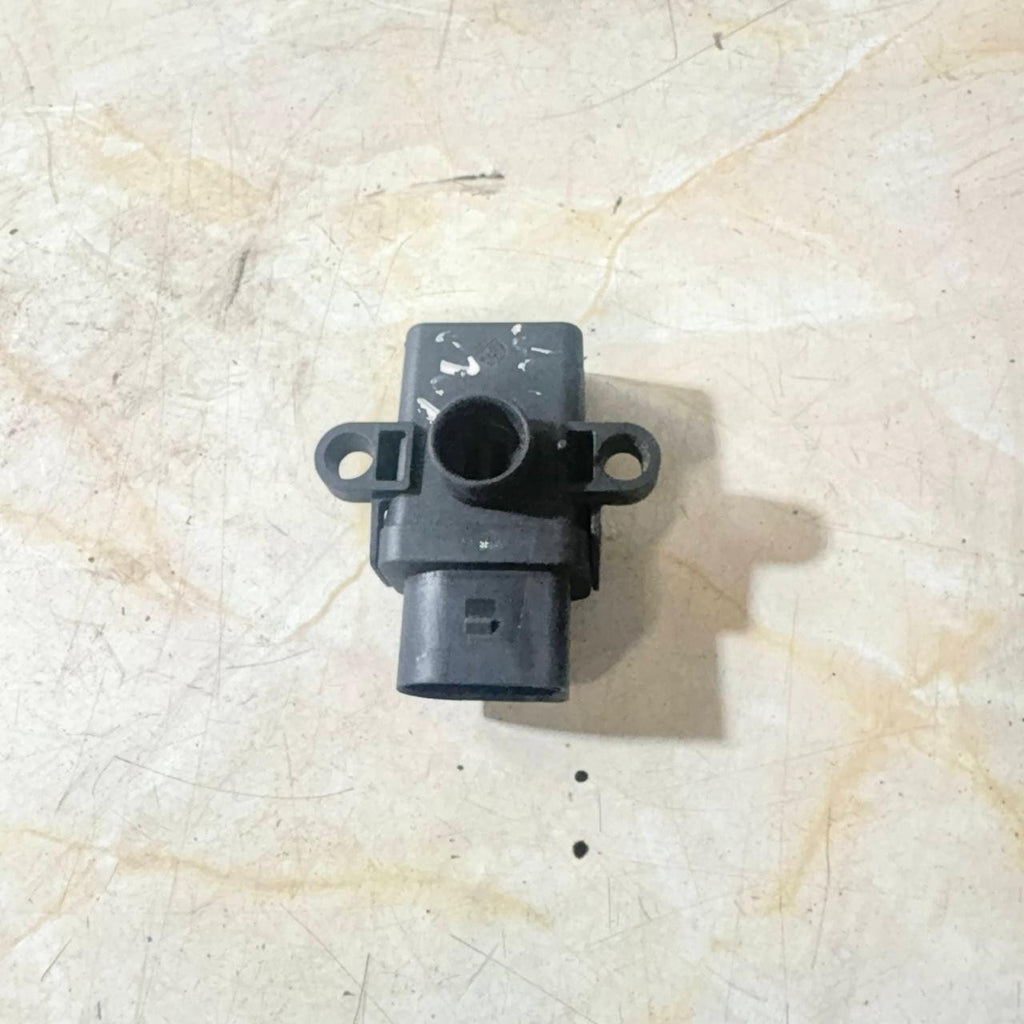

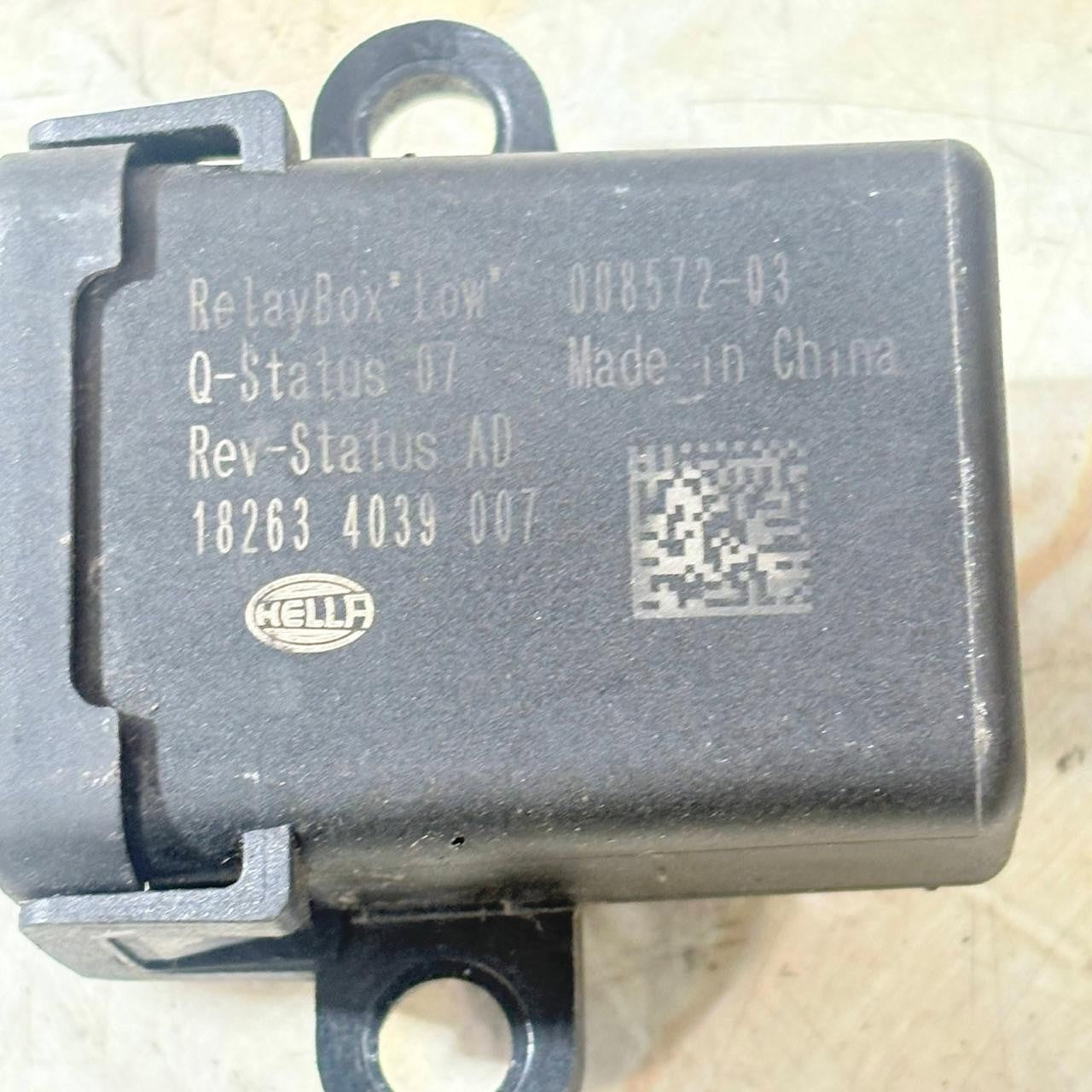

Actual Part Photographs
These photographs show the actual part type being identified in this listing. They are especially important because small changes to connector, revision, mounting and part-number suffix can affect compatibility.
Item Details & Identification

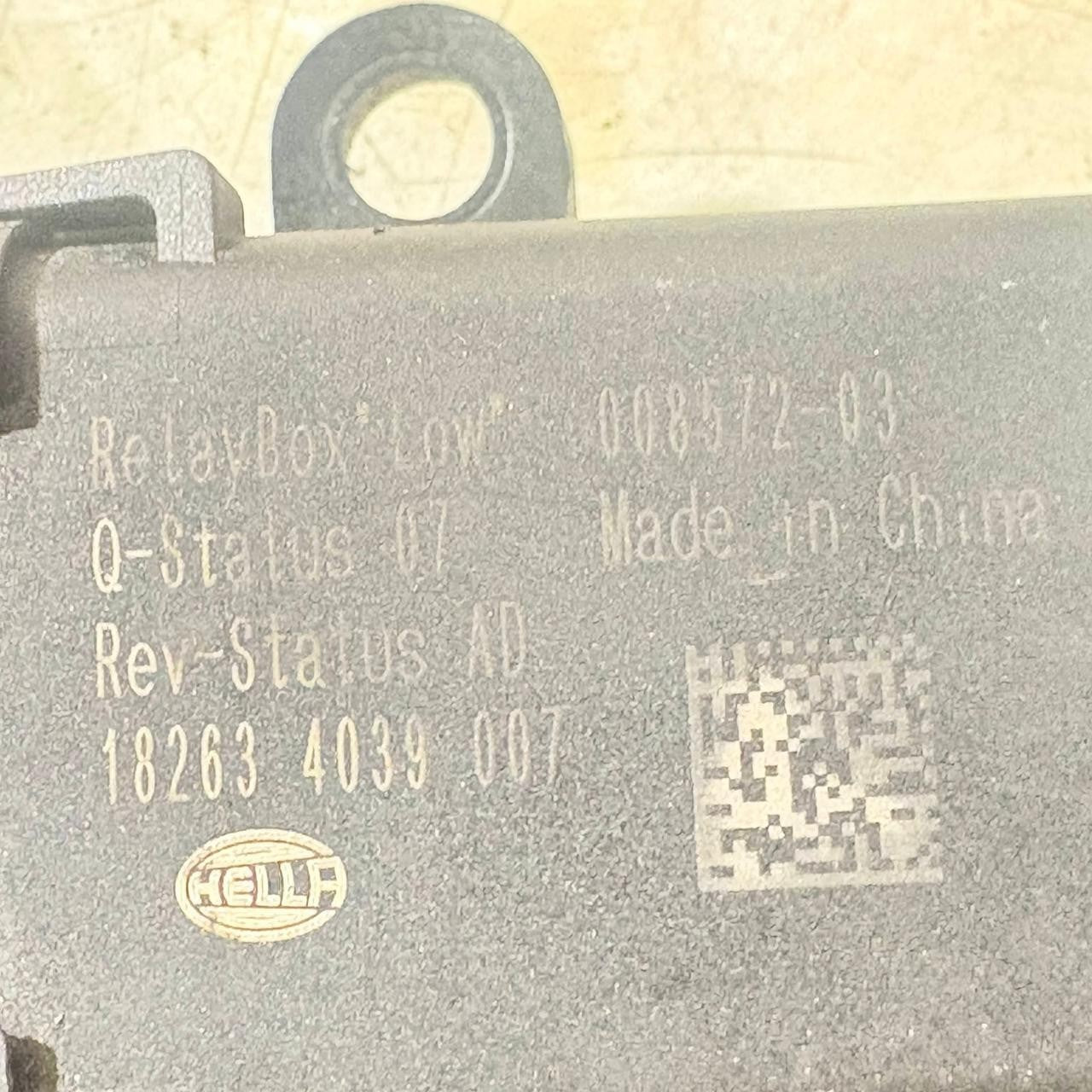

| Manufacturer shown on part | HELLA |
|---|---|
| Component description | RelayBox / control component used with the electric brake vacuum pump system |
| Manufacturer Part Number | 008572-03 |
| Visible secondary marking | 18263 4039 007 |
| Q-Status | 07 |
| Rev-Status | AD |
| Country marking visible on item | Made in China |
| Colour / finish | Black / charcoal moulded housing |
| Visible construction | Moulded polymer housing with metal electrical terminals / fasteners. Exact polymer formulation has not been independently verified. |
| Connector | Match the complete connector housing and locking arrangement in the photographs. Pin count is intentionally not stated because it has not been independently verified. |
| Interchange Part Number | No separate loose-module interchange number confidently verified. Use exact 008572-03 as the primary match. |
| Superseded Part Number | No confirmed superseded number verified for the loose 008572-03 RelayBox. |
| Associated complete pump reference | 1K0 612 181 F / 1K0612181F — associated complete electric brake vacuum pump family reference. This is not being represented as a direct loose-module interchange number. |
| Associated assembly reference | 11305126000 / 1.13.051.260.00 — assembly cross-reference only. |
| Placement | Engine bay — associated with the electric brake vacuum pump assembly |
| eBay Item Number | 147493783045 |
Correct-Generation Vehicle Reference
Reference images below show a Skoda Fabia III / MK3 5-door hatchback. They are provided so buyers can recognise the vehicle generation and body style. Vehicle appearance alone must never replace the 008572-03 part-number check.
Verified Compatibility Evidence
This table is deliberately narrower than a generic model/year catalogue. It is built around vehicles for which the 008572-03 number itself was found in donor, part or associated-pump records.
| Year | Vehicle / Chassis | Body | Engine / Power | Gearbox | Verification Level |
|---|---|---|---|---|---|
| 2017 | Skoda Fabia III / MK3 NJ | 5-door hatch | 1.0 TSI CHZ family, 95 PS | Manual | Direct 008572-03 donor evidence |
| 2018 | Skoda Fabia III NJ3 | Hatch | 1.0 petrol, 70 kW / approx. 95 PS | Check original vehicle | Direct exact-number part evidence |
| 2019 | Skoda Fabia III / MK3 NJ | 5-door hatch | 1.0 MPI, 60 PS | Manual | Direct 008572-03 donor evidence |
| 2019 | Skoda Fabia MK3 NJ / NJ5 | Estate | 1.0 TSI, 81 kW / 110 PS | Check original vehicle | 008572-03 recorded with complete pump assembly |
| 2020 | Skoda Fabia MK3 NJ | Check original vehicle | Engine not independently established from the exact-number record | Check original vehicle | Exact 008572-03 vehicle record — installed-number match mandatory |
| 2021 | Skoda Fabia III NJ3 | Check original vehicle | 1.0 TSI, 70 kW / approx. 95 PS | DSG | 008572-03 shown in associated 1K0612181F pump record |
Other Vehicle Cross-References Found
| Vehicle | Year / Engine Evidence | 008572-03 Evidence | Ordering Guidance |
|---|---|---|---|
| Skoda Rapid NH | 2017 • 1.0 TSI CHZ family • 95 PS • 5-door • manual | Direct exact 008572-03 donor / part evidence | Compare the installed module number, connector, mount and port layout. Do not buy from model name alone. |
| SEAT Ibiza V KJ1 / KJG | Associated electric-pump family reference | 1K0612181F assembly record references RelayBox 008572-03 | Cross-reference only. No broad year range is promised here. Installed 008572-03 and identical physical configuration are mandatory. |
Not Included In Our Verified Fitment
❌ 2015–2016 Fabia III
These years are not included in the exact-number evidence reviewed for this listing. We therefore do not advertise them as confirmed fitment.
❌ Unverified 1.4 TDI / 1.6 Entries
Broad 1.4 TDI CUSA and 1.6 CWVA applications were not independently verified to this exact loose 008572-03 RelayBox during our cross-check.
❌ Other Fabia Generations
Do not use this listing as compatibility confirmation for Fabia I, Fabia II or Fabia IV.
❌ Different Number or Physical Layout
Do not order if your unit carries a different part number, connector housing, port layout or mounting arrangement.
❌ Complete Pump Required
This listing identifies the RelayBox/control component shown. Do not order it as a substitute if your repair requires the complete electric brake vacuum pump assembly.
✅ Unsure?
Use eBay's Message seller function before purchase. Clear photographs of your existing label, plug, mount and surrounding assembly can help with identification.
Where The Part Is Fitted & What It Does
The electric brake vacuum pump system is used to provide or support the vacuum required by the brake booster when sufficient vacuum is not otherwise available. The HELLA RelayBox shown here forms part of the electric pump's switching/control arrangement.
008572-03
Why there is no generic “installed position” photograph: exact component position and surrounding hardware can vary with engine configuration. Rather than display a different engine bay and risk misleading buyers, use the route above and identify the original unit by its 008572-03 label before removal.
Possible Symptoms Of A Fault In This System
⚠️ Heavier Brake Pedal
Reduced or inconsistent brake-servo assistance may make the pedal feel noticeably harder than expected.
⚠️ Vacuum Pump Not Operating
The electric vacuum pump may fail to operate when requested if there is a control, power, wiring, pump or RelayBox fault.
⚠️ Abnormal Pump Operation
Unusual, intermittent or prolonged pump operation can indicate a fault elsewhere in the vacuum or electrical system.
⚠️ Warning Lamps / Stored Faults
Depending on the underlying failure, diagnostic trouble codes or warning indications may be stored.
Why Exact Factory-Fit Matching Matters
An exact-number HELLA 008572-03 component provides a known manufacturer number, physical connector reference, mounting layout and revision reference from the original vehicle system.
That gives buyers a much stronger basis for comparison than choosing an unverified substitute purely because it is advertised for the same model. Correct physical and electrical matching can help avoid unnecessary repeat work, incorrect orders and avoidable returns.
Choosing a quality pre-owned factory-fit component can also provide substantial savings compared with replacing a larger new assembly, depending on current market prices and the repair required.
Fitting Guide
The following is a general module-replacement guide only. Vehicle-specific workshop information, safe isolation procedures and manufacturer torque values should always take priority.
Suggested Tools
- Metric socket and ratchet set
- Torx bit set
- Small electrical connector pick or suitable trim tool
- Battery-terminal tool where disconnection is required
- Good work light
- Protective gloves and eye protection
- Diagnostic scan tool recommended
General Replacement Procedure
- Park securely on level ground, switch the ignition off and keep the key / remote away from the vehicle.
- Follow the vehicle-specific battery-isolation procedure. Disconnect the 12V negative terminal if required by the applicable repair instructions.
- Locate the electric brake vacuum pump assembly in the engine bay.
- Before removing anything, verify 008572-03 on the original RelayBox. Compare the connector housing, mounting ears, port position and overall shape with this listing.
- Release the electrical connector lock carefully. Never pull directly on the wiring.
- Remove the appropriate mounting fasteners or clips and retain any reusable fittings in their original positions.
- Install the replacement in the same orientation. Never force a connector, mounting point or port that does not align naturally.
- Reconnect the battery where applicable and restore any vehicle settings affected by isolation.
- Scan relevant control systems and clear fault codes where appropriate. Confirm correct electric vacuum pump / brake booster operation while stationary.
- If brake assistance remains abnormal or the pedal is unusually hard, do not drive the vehicle. Arrange further professional diagnosis.
Estimated Repair Time & Garage Labour Guide
A straightforward module-only replacement may typically be budgeted at approximately 0.5–1.0 labour hour as a planning guide. Access, diagnosis, seized fittings, additional faults or replacement of the complete pump can increase the time required.
| Booked Time | £50/hr | £70/hr | £90/hr | £110/hr | £130/hr | £150/hr |
|---|---|---|---|---|---|---|
| 0.50 hour | £25.00 | £35.00 | £45.00 | £55.00 | £65.00 | £75.00 |
| 0.75 hour | £37.50 | £52.50 | £67.50 | £82.50 | £97.50 | £112.50 |
| 1.00 hour | £50.00 | £70.00 | £90.00 | £110.00 | £130.00 | £150.00 |
Simple calculation: hourly labour rate × booked repair time = estimated labour charge. Parts, diagnostics, consumables, VAT treatment and additional repair work are not included in this table. It is a guide rather than a quotation.
Fitting Service Subject To Availability
🔧 Need The Part Fitted?
Fitting may be available subject to workshop capacity, vehicle condition and the repair required.
Please use eBay's Message seller feature before purchase if you would like to discuss fitting availability.
Diagnostic work may be recommended before fitting where symptoms could have more than one possible cause.
