Registration year alone is not enough. This loom is for compatible four-cylinder TDI PD / unit-injector engines using part number 038 971 600. Match the number, engine code, connector shape, rail layout and photographs. Send your registration or VIN and the number from your old part through eBay Messages when unsure.
Actual item photographs

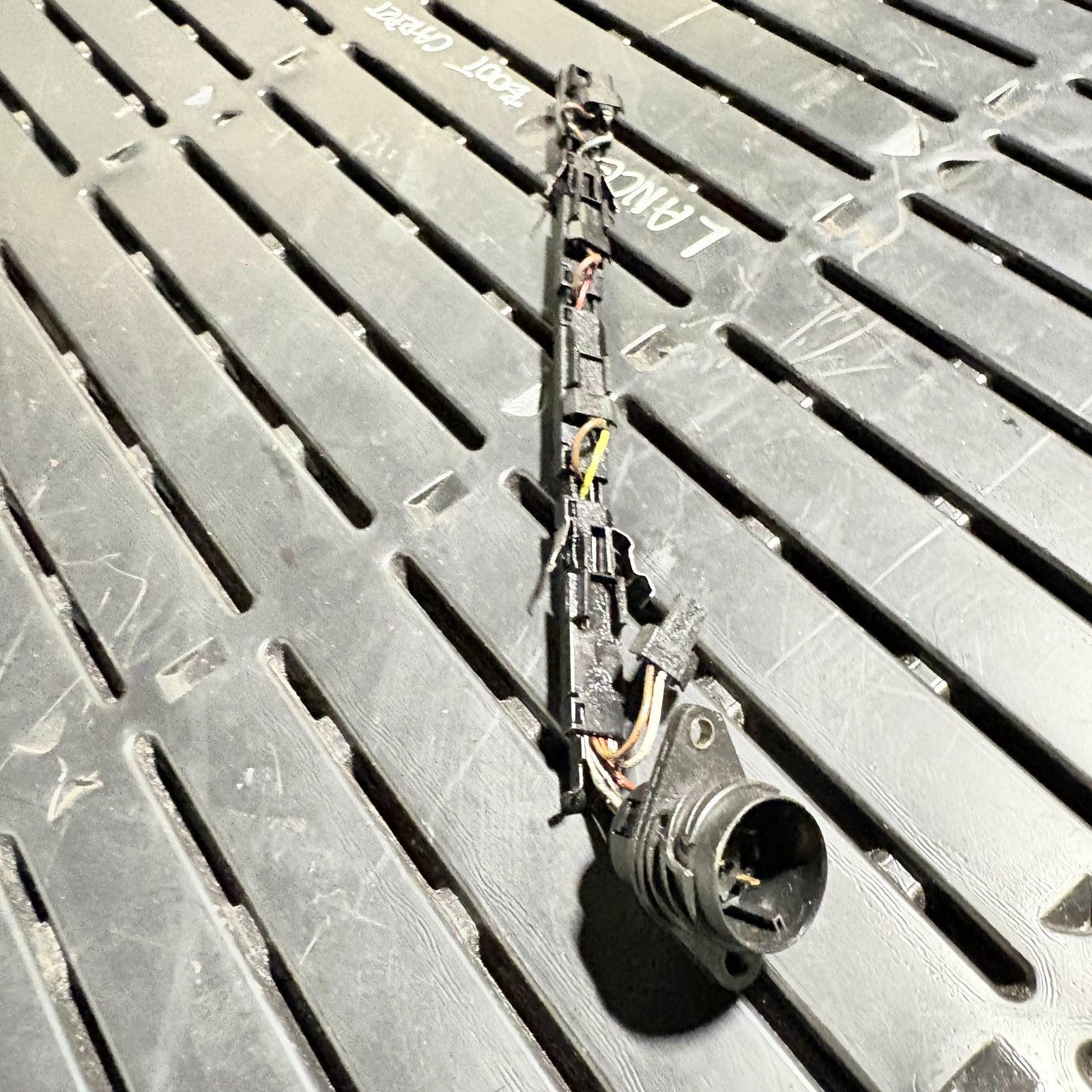

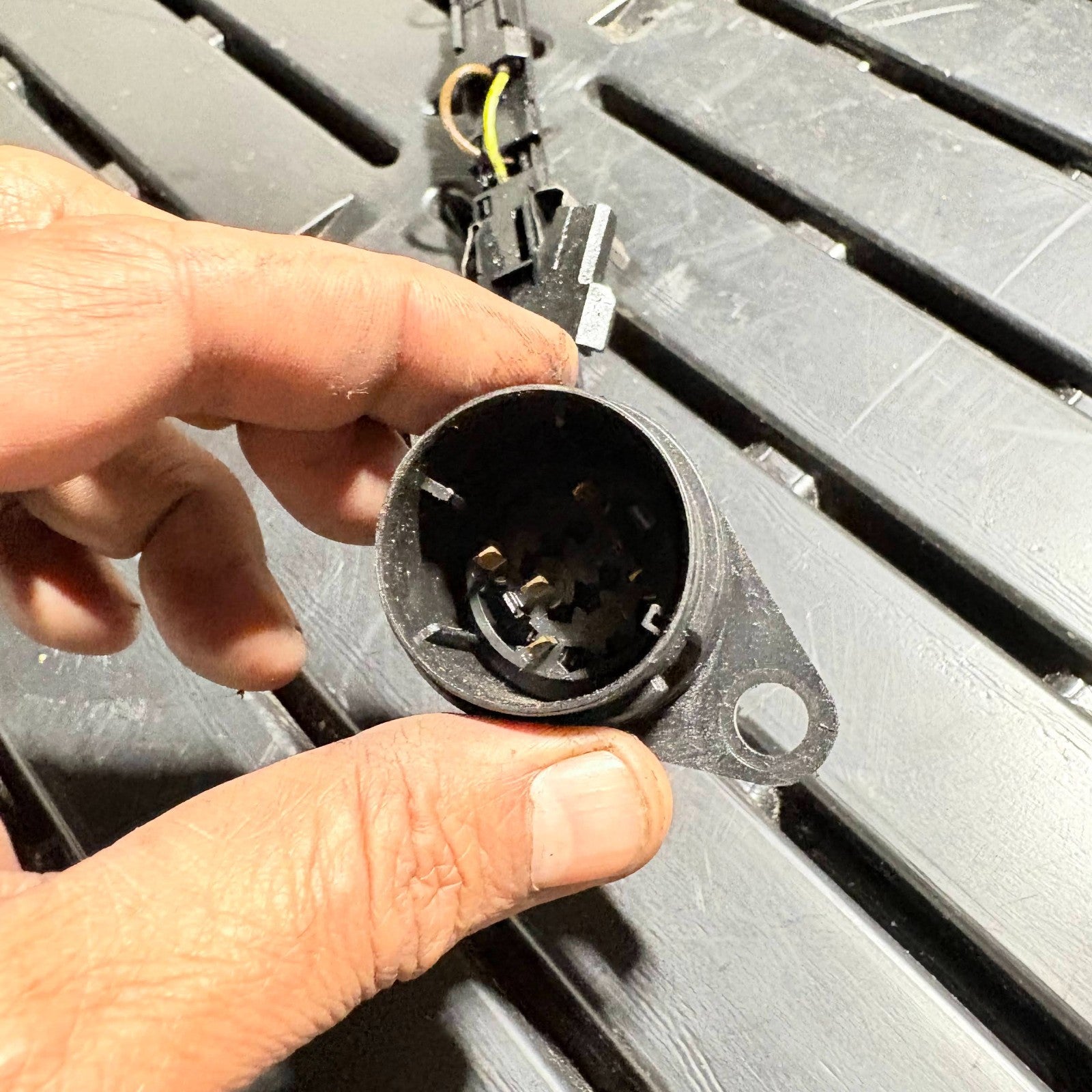

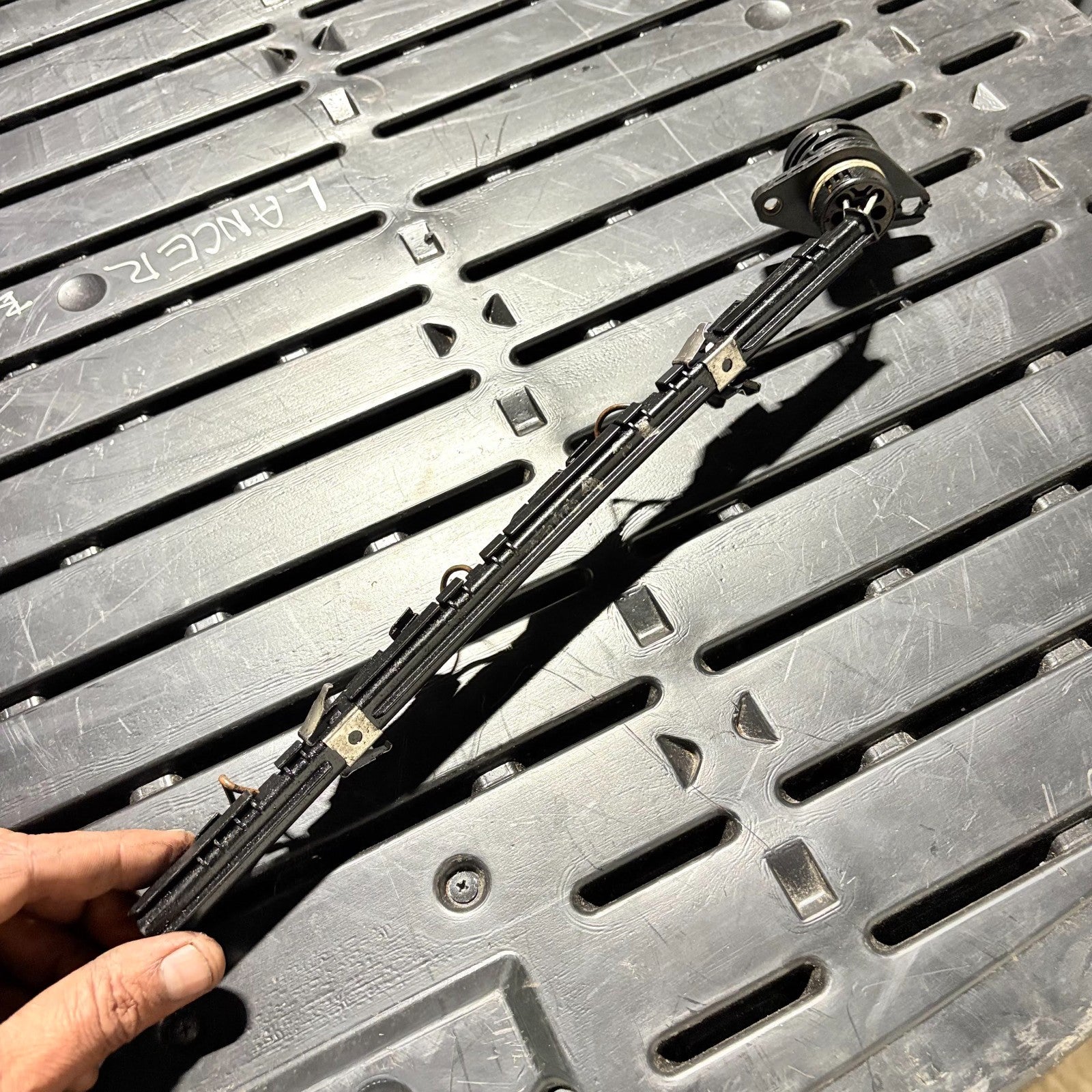

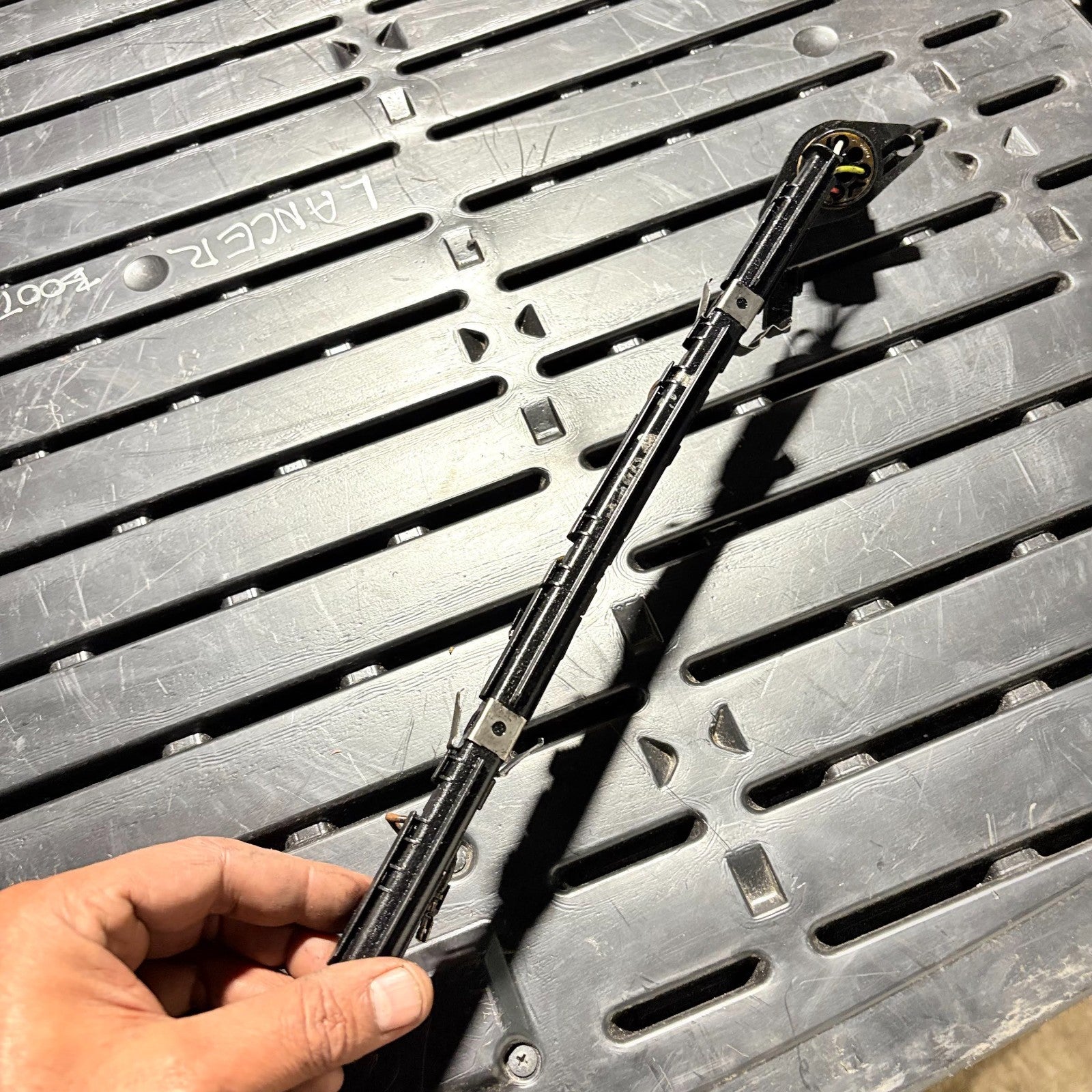

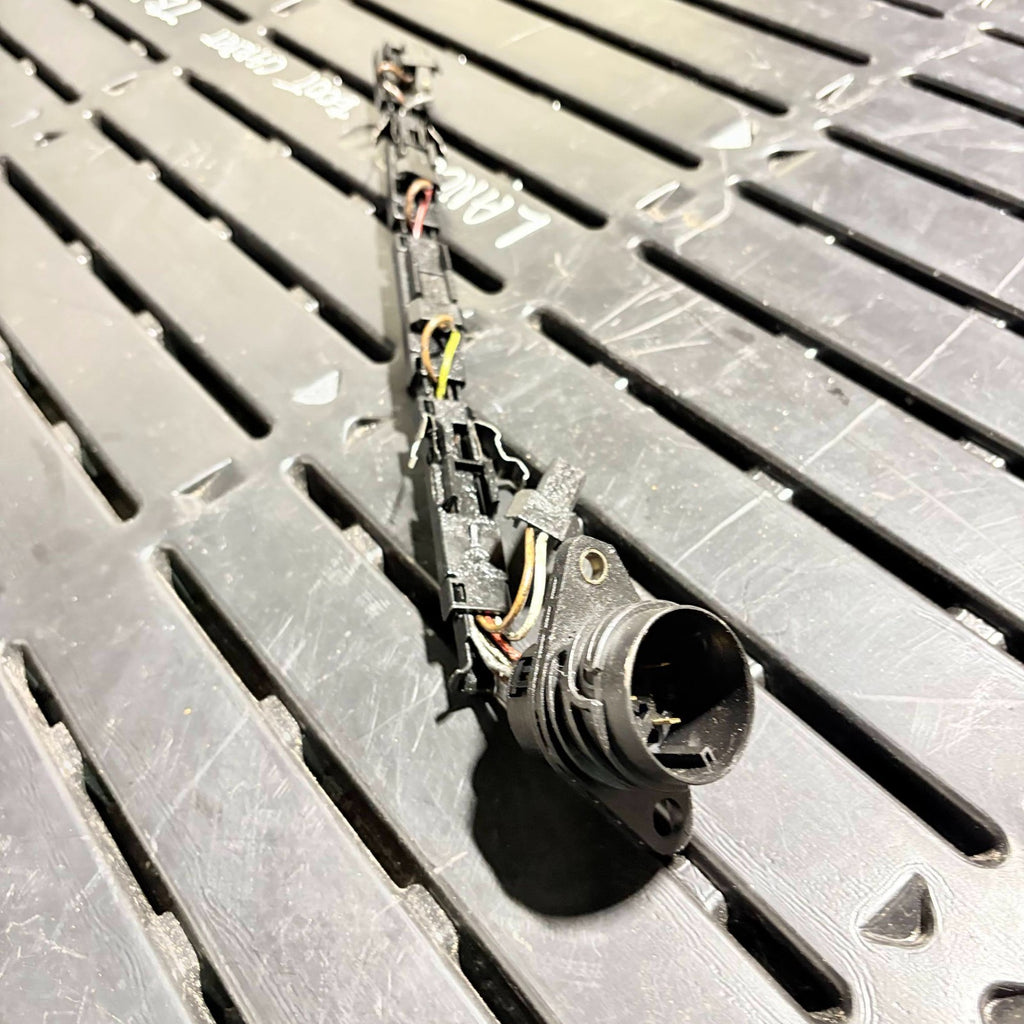

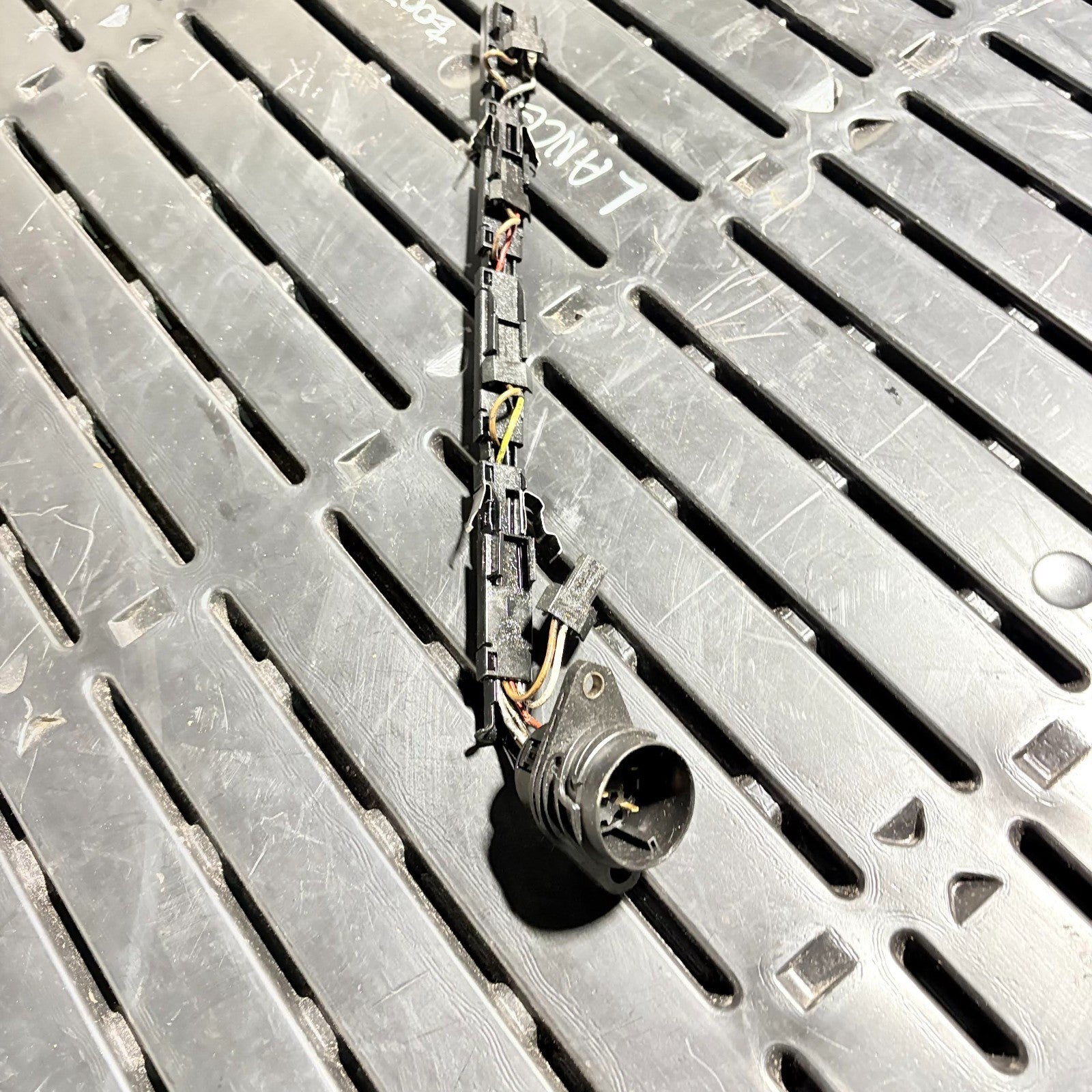

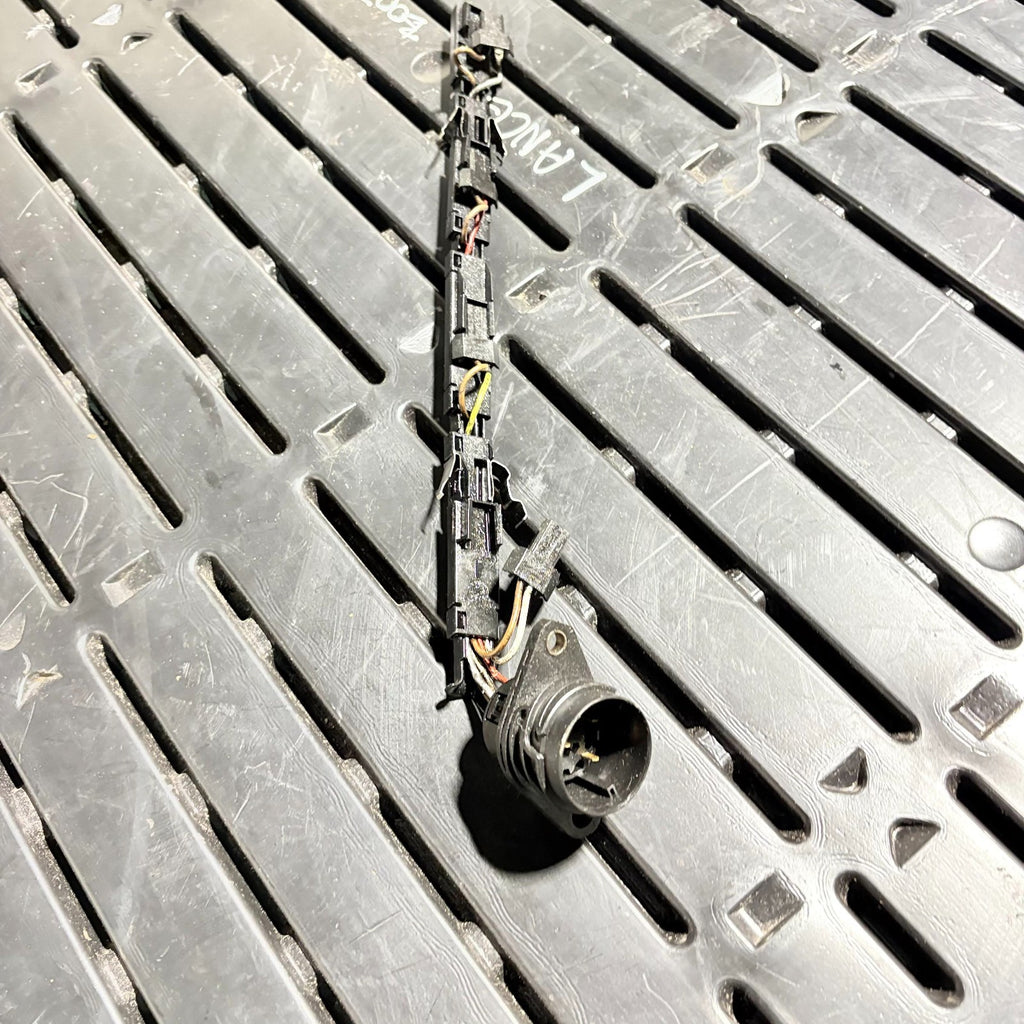

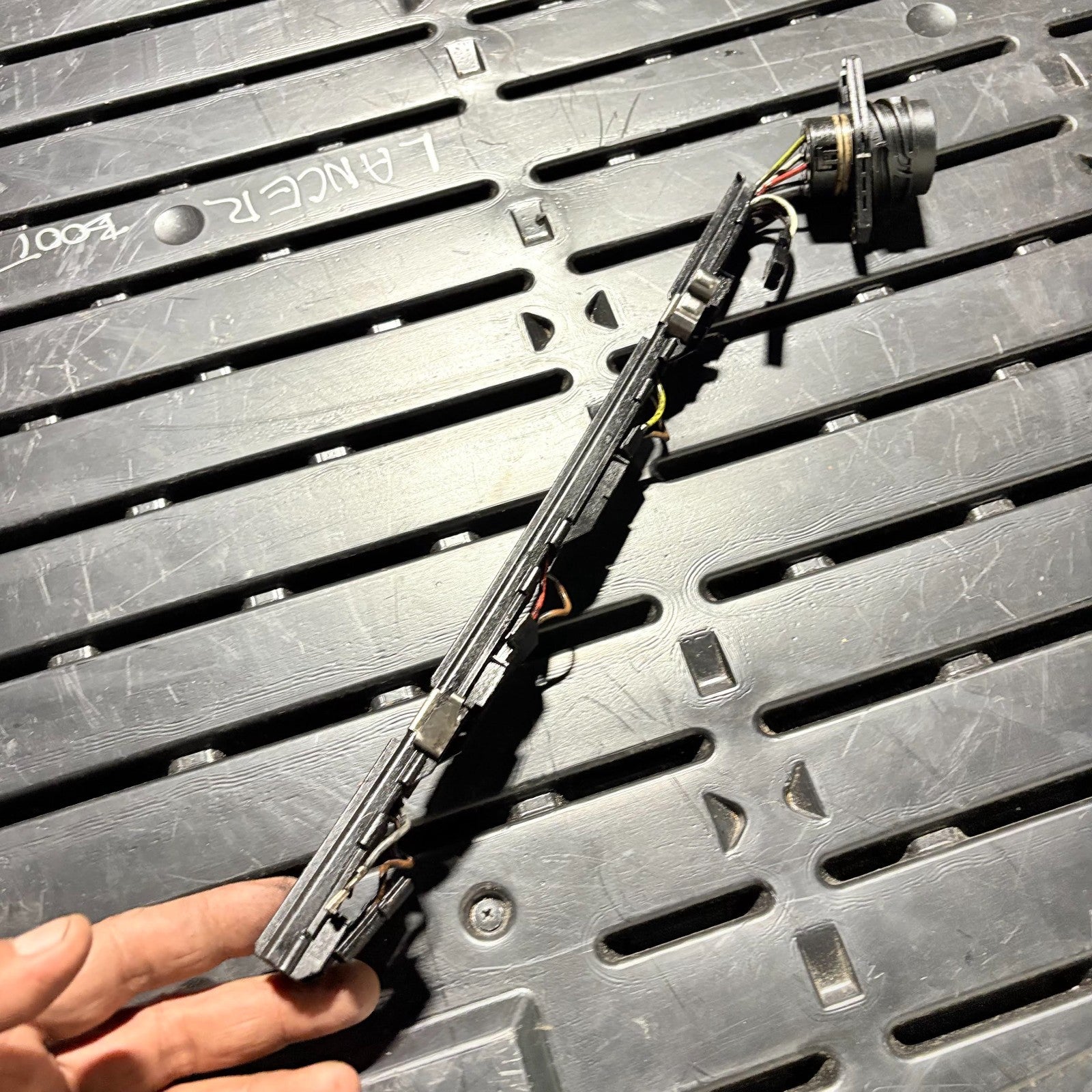

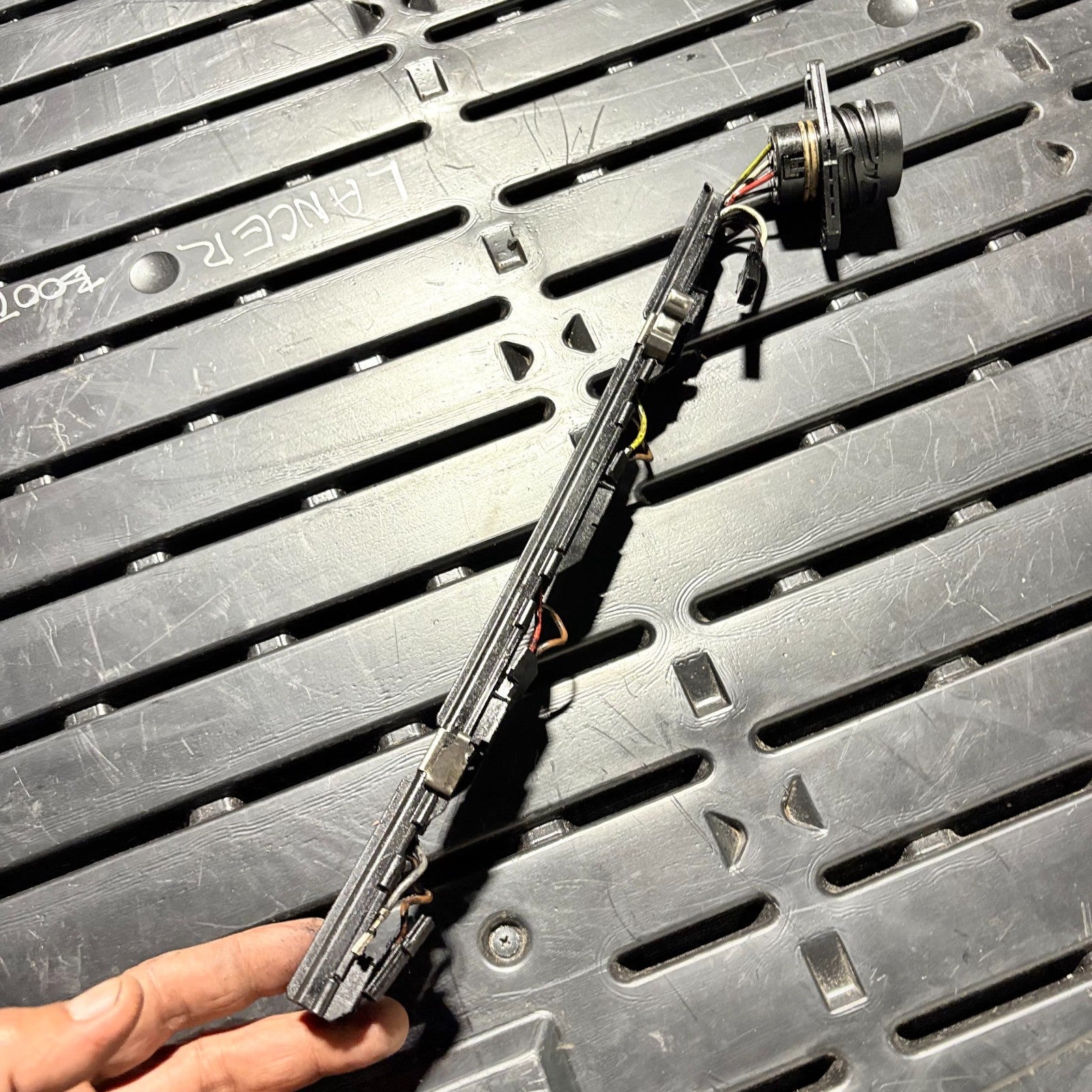

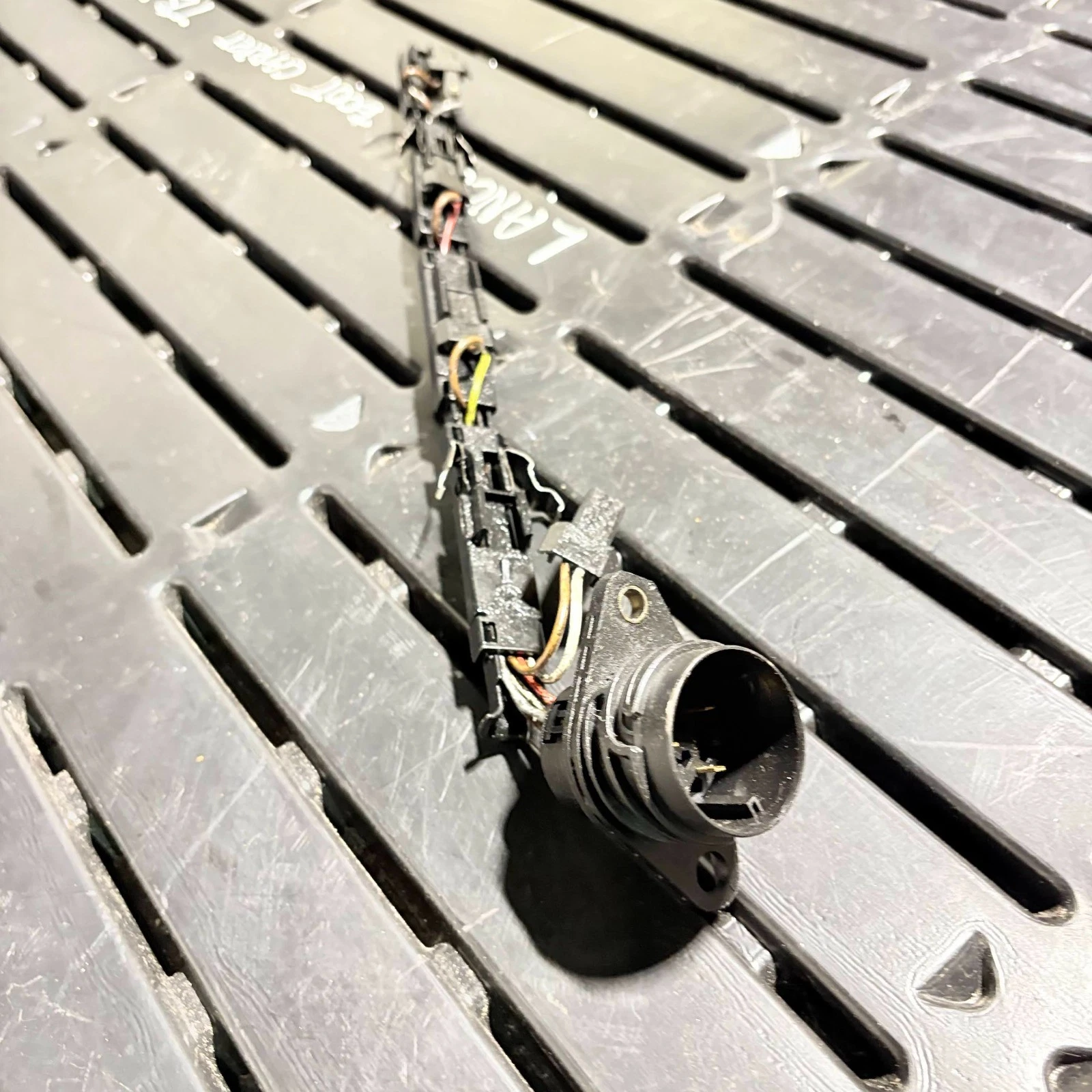

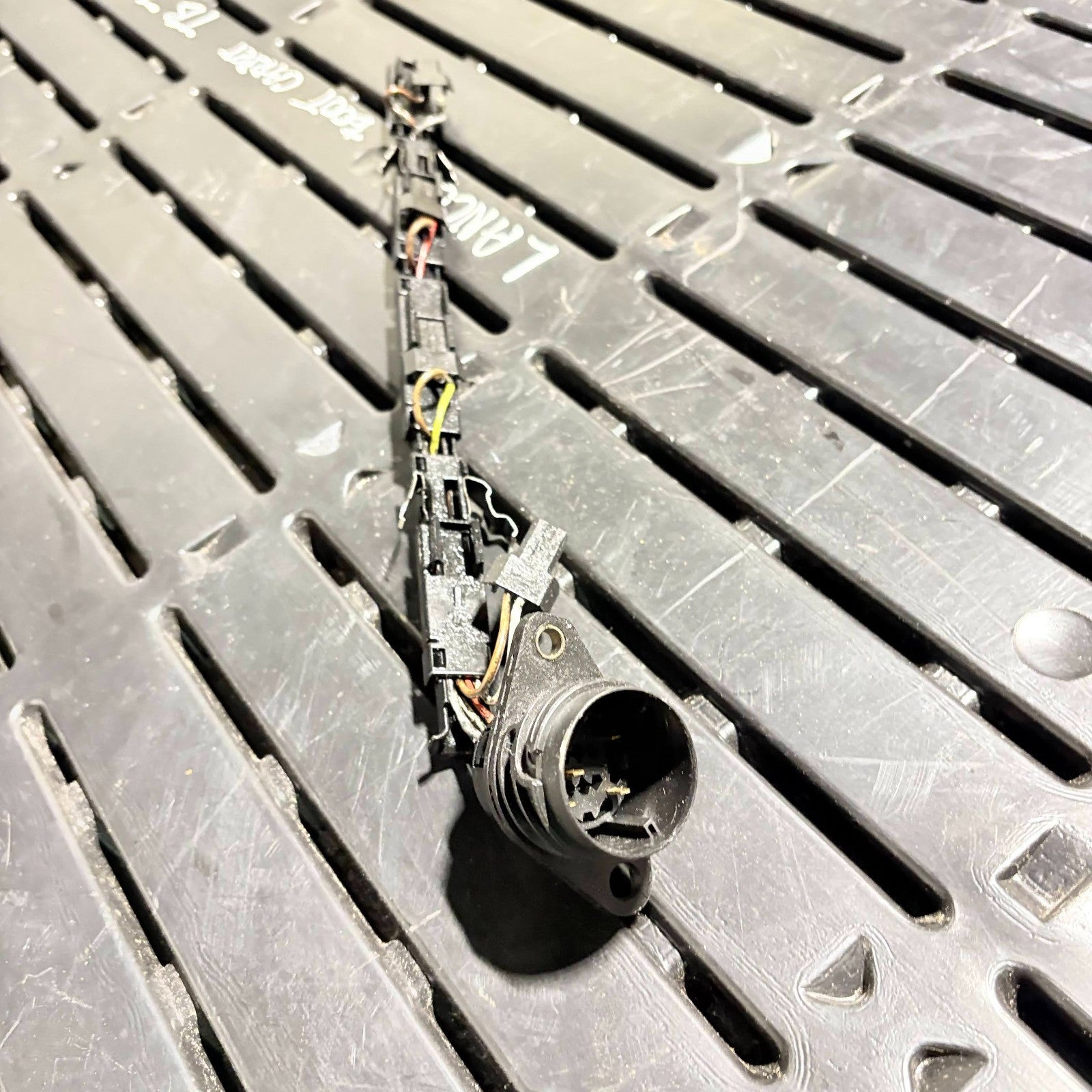

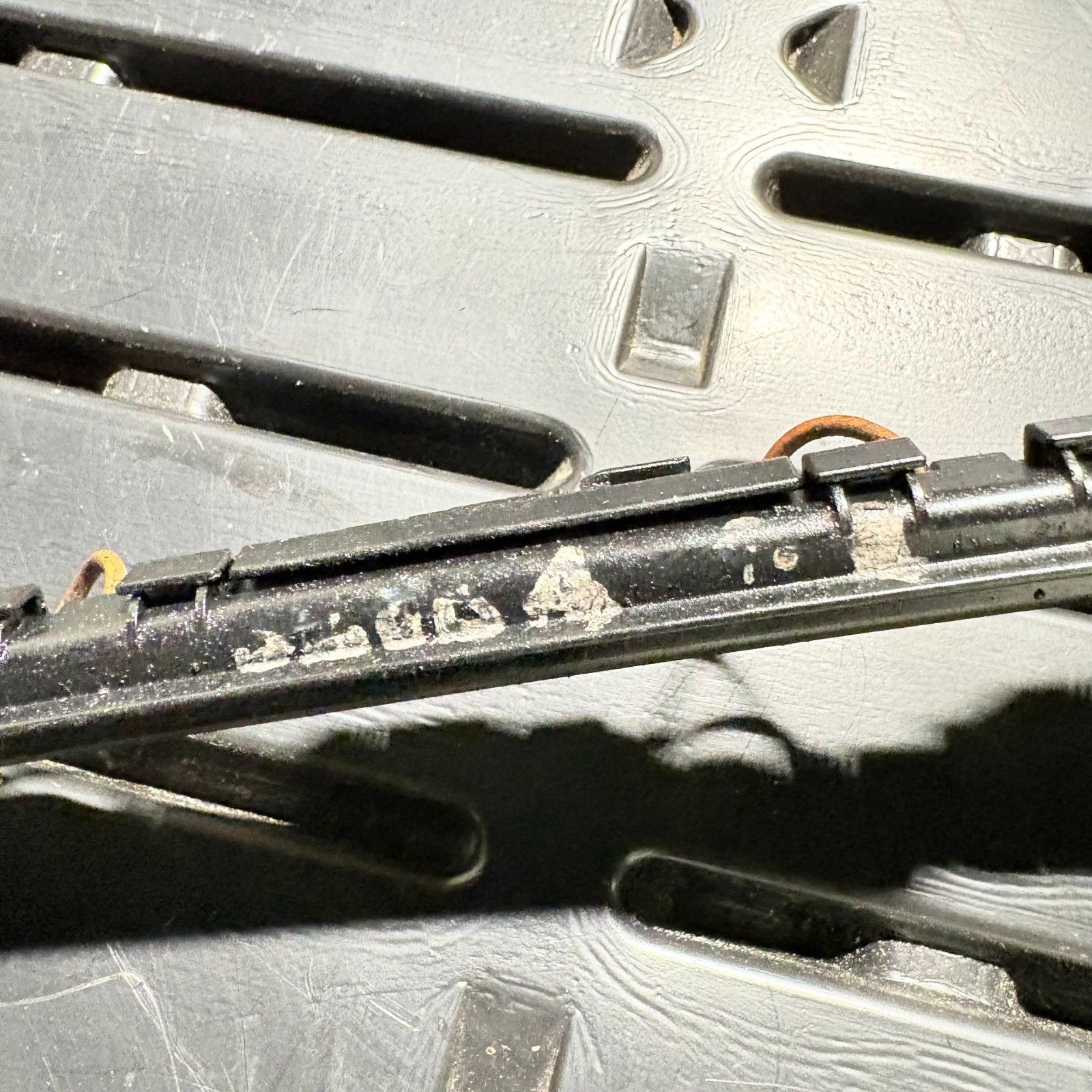

The photographed used loom is the item type supplied. Inspect the connector, rail, wire colours, locking tabs and visible condition before purchase.
Correct vehicle generation and body style
Where the part is fitted and what it controls
Location: inside the rocker/cam cover, on top of the cylinder head. The loom operates in a hot, oil-exposed environment.
Function: carries the electrical control signals between the main engine wiring and the four PD/unit injectors. Secure electrical contact is essential for correct injector actuation and smooth running.
Why it can fail: repeated heat cycles, engine vibration, oil exposure, age, brittle insulation, weak terminals or damaged locking tabs can produce intermittent electrical resistance or open-circuit faults.
Engine cover removed → rocker/cam cover removed → injector loom visible along the cylinder head → four injector plugs and one round external connector.
The replacement procedure opens the top of the engine. Clean working practices are essential to prevent dirt entering the cylinder-head area.
Item details and identification
Primary fitment — Skoda Superb Mk1 3U / 3U4
Fitment is engine-code and part-number dependent. The date ranges below identify the relevant vehicle/engine applications, but a VIN or old-part comparison remains the safest final check.
| Model / body | Engine | Power | Engine code | Production range | Decision |
|---|---|---|---|---|---|
| Superb Mk1 3U4, 4-door saloon | 1.9 TDI PD | 74 kW / 101 PS | AVB | 08/2002-10/2005 | Match 038 971 600 and connector |
| Superb Mk1 3U4, 4-door saloon | 1.9 TDI PD | 77 kW / 105 PS | BSV | 10/2005-05/2007 | Match 038 971 600 and connector |
| Superb Mk1 3U4, 4-door saloon | 1.9 TDI PD | 85 kW / 115-116 PS | BPZ | 01/2007-03/2008 | Match 038 971 600 and connector |
| Superb Mk1 3U4, 4-door saloon | 1.9 TDI PD | 96 kW / 130-131 PS | AWX / AVF | 12/2001-03/2008 | Match 038 971 600 and connector |
| Superb Mk1 3U4, 4-door saloon | 2.0 TDI PD | 91 kW / 124 PS | BWW | 02/2006-03/2008 | Match 038 971 600 and connector |
| Superb Mk1 3U4, 4-door saloon | 2.0 TDI PD | 103 kW / 140 PS | BSS | 10/2005-03/2008 | Match 038 971 600 and connector |
Model-year boundaries, registration dates and build dates can differ. Vehicles may also have had engines or looms changed previously. Confirm the stamped/printed number and connector before purchase.
Other confirmed Skoda applications using 038 971 600
This section is a cross-reference chart, not permission to order by model name alone. Each application still requires an identical part number, compatible engine code and matching physical connector.
| Model | Engine codes | Catalogue production range | Important check |
|---|---|---|---|
| Roomster 5J | AXR, BLS, BSW | 03/2006-03/2010, engine dependent | 1.9 TDI PD only; match number |
| Superb Mk2 3T — early PD engines only | BLS, BXE, BMP | 03/2008-11/2010, engine dependent | Does not cover later common-rail engines |
| Octavia Mk2 1Z | BJB, BKC, BLS, BXE, AZV | 02/2004-04/2013, engine/drive dependent | Match engine code, number and 2WD/4x4 application |
| Octavia Mk1 1U | ATD, AXR, ASZ | 08/2000-12/2010, engine dependent | PD diesel only; not every diesel version |
| Fabia Mk2 5J | BSW | 04/2007-03/2010 | 1.9 TDI PD only; match number |
| Fabia Mk1 6Y | ATD, AXR, ASZ, BLT | 01/2000-12/2007, engine dependent | Match number and injector-plug layout |
Will not fit
- Petrol engines, including Superb 1.8T, 2.0 petrol and 2.8 V6 petrol.
- 2.5 V6 TDI engines — this is a four-cylinder injector loom.
- Common-rail TDI systems or any vehicle without PD/unit injectors.
- Any engine with a different part number, connector keying, rail length, wire layout or mounting arrangement.
- Later Superb hatchback/estate generations merely because the registration search displays the same model name.
- Any vehicle where the old loom has been modified, repaired or replaced with a different-number assembly without further investigation.
Possible symptoms of a failing injector loom
Running faults
Rough idle, intermittent misfire, shaking, hesitation, surging or cutting out.
Starting faults
Extended cranking, poor hot or cold starting, or an intermittent no-start caused by a lost injector signal.
Electrical faults
Injector-circuit fault codes, warning light, reduced power or faults that change as the engine heats up.
Why a correct manufacturer-numbered used part matters
Cheap copy parts can vary in terminal tension, moulding quality, insulation and heat/oil resistance. Because this loom sits inside the engine and requires the rocker cover to be removed, buying the correct specification first time can avoid paying the labour twice.
Tools, fitting instructions and estimated repair time
Typical tools and materials
- Socket set, ratchet, extensions and the correct Torx/hex bits for the vehicle
- Small pick or connector-release tool used carefully
- Low-range torque wrench suitable for rocker-cover fasteners
- Lint-free cloths, suitable cleaner, gloves and eye protection
- Diagnostic scan tool for reading and clearing injector-circuit faults
- New rocker/cam-cover gasket where required by condition or workshop procedure
- Vehicle-specific workshop information for tightening sequence and torque values
High-level fitting sequence
Static garage labour calculator
eBay descriptions must not use JavaScript, so this policy-safe table replaces an interactive calculator. Formula: hourly labour rate × billed time = estimated labour.
| Garage rate | 1.0 hour | 1.5 hours | 2.0 hours | 3.0 hours |
|---|---|---|---|---|
| £60 per hour | £60 | £90 | £120 | £180 |
| £80 per hour | £80 | £120 | £160 | £240 |
| £100 per hour | £100 | £150 | £200 | £300 |
| £120 per hour | £120 | £180 | £240 | £360 |
| £150 per hour | £150 | £225 | £300 | £450 |
Diagnostics, consumables, gasket, additional repairs, taxes and recovery are not included. Ask the chosen garage for a written quotation.
Fitting and repair support
Fitting service may be available subject to workshop capacity, vehicle condition and prior diagnosis. Use eBay Messages to ask about availability before travelling or purchasing labour.
We also handle a wide range of vehicle repair and parts enquiries. No fitting appointment is included with the sale of this part unless separately agreed through the permitted eBay process.
