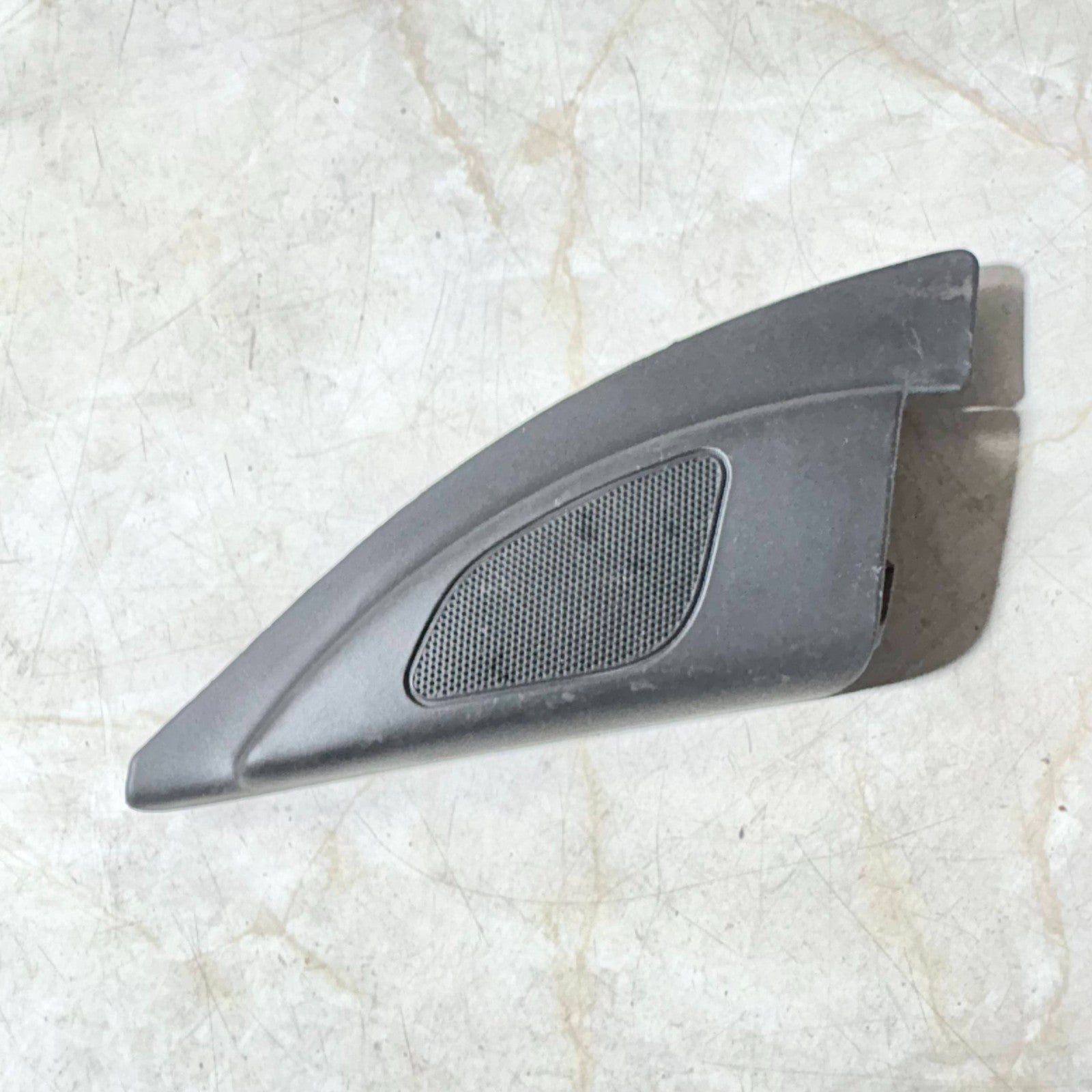

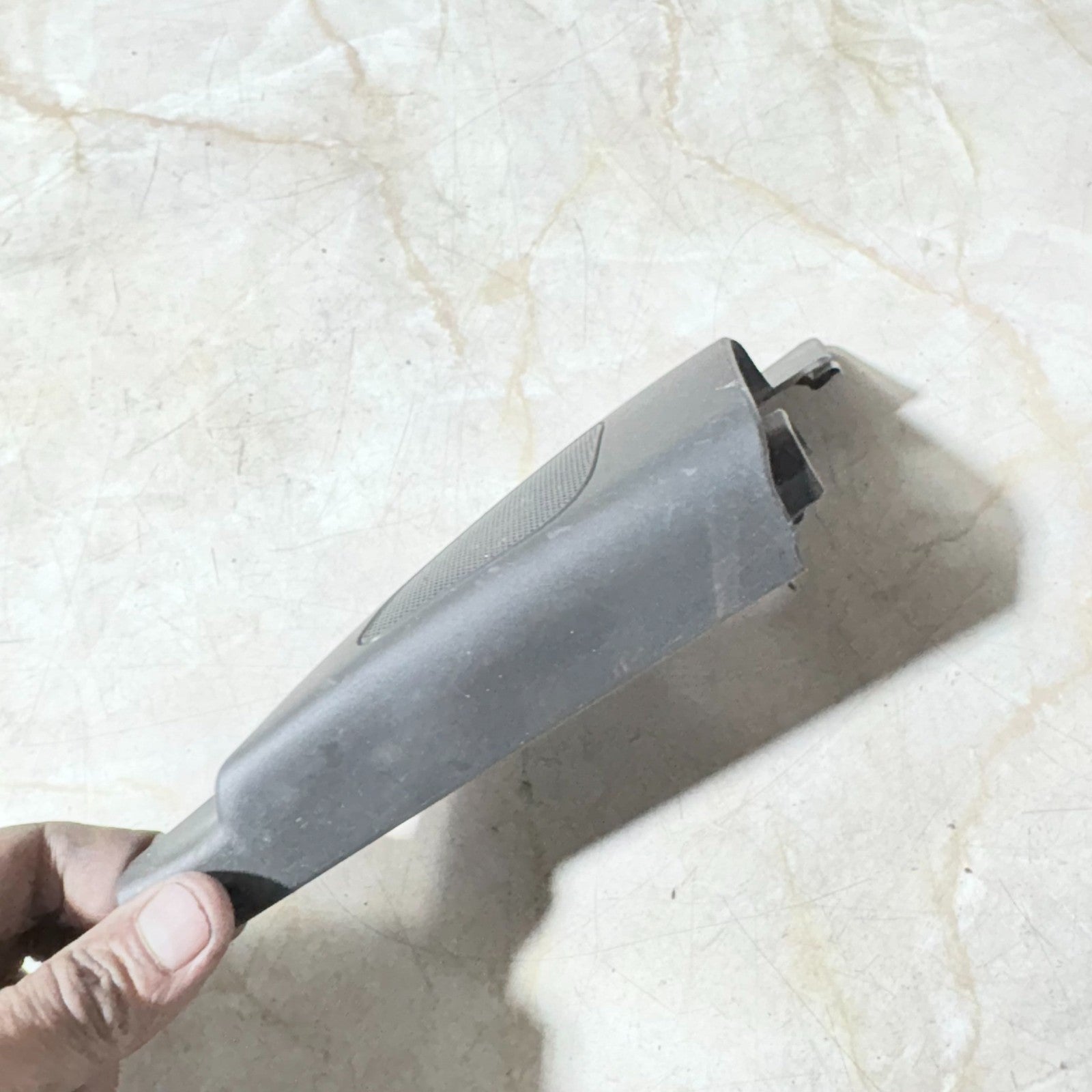

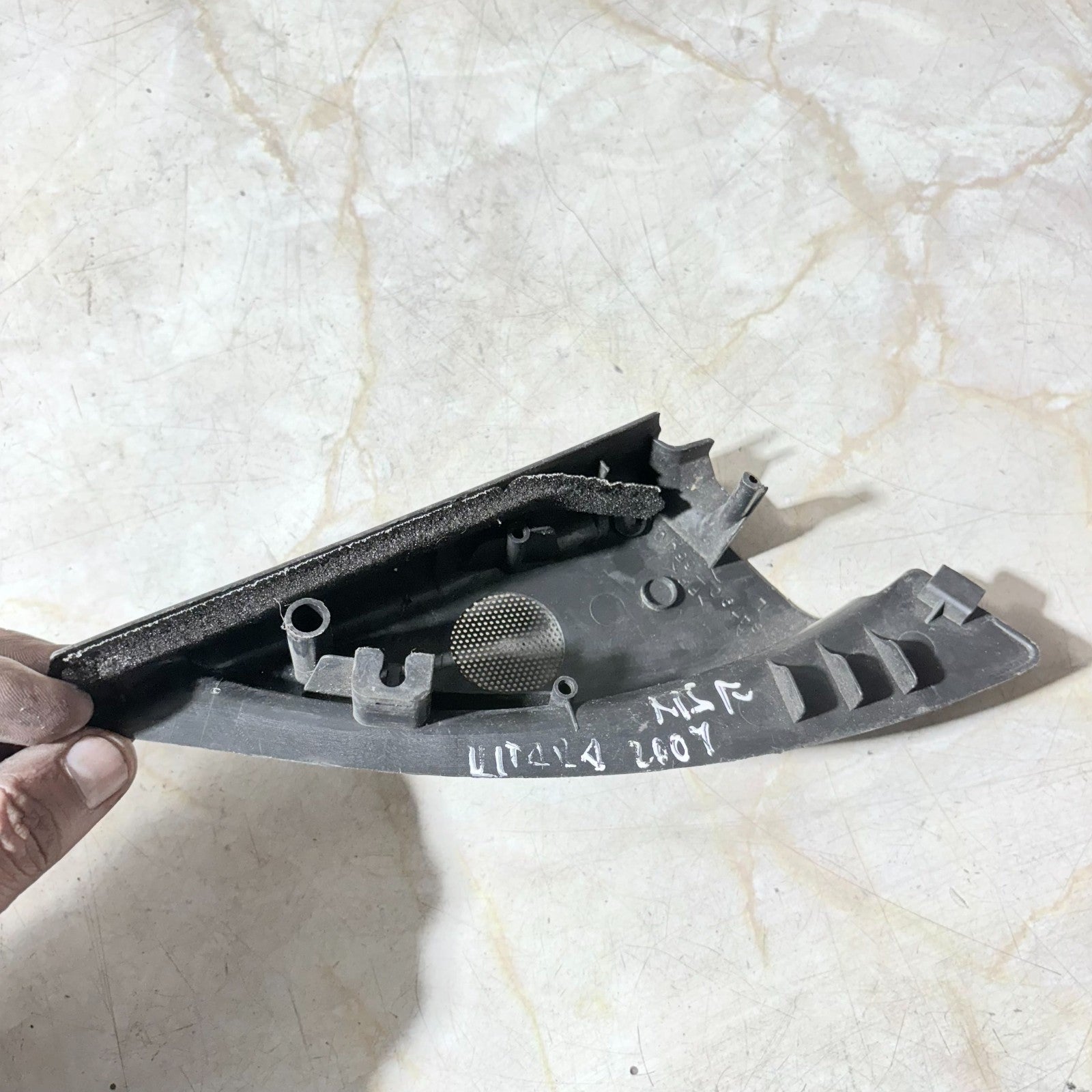

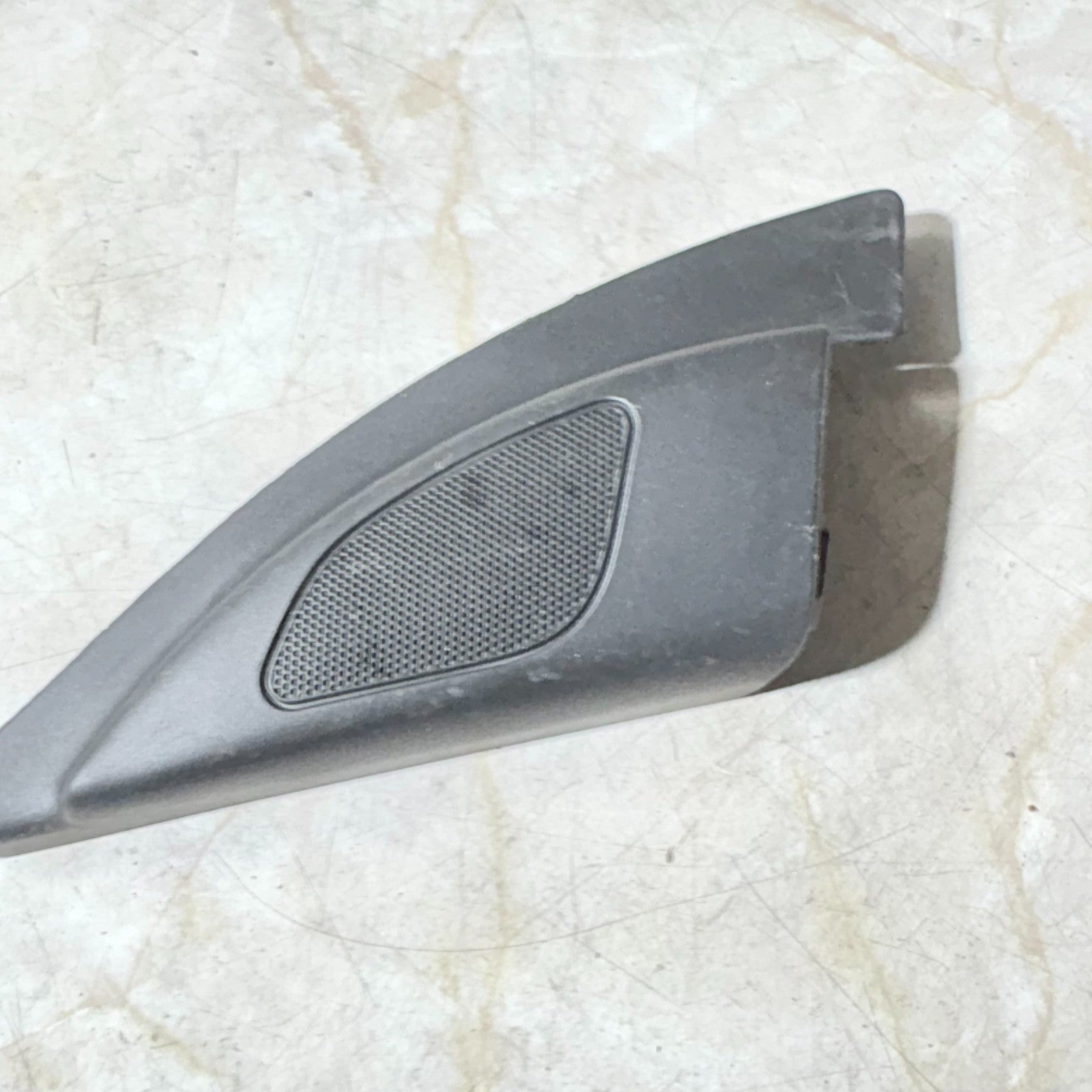

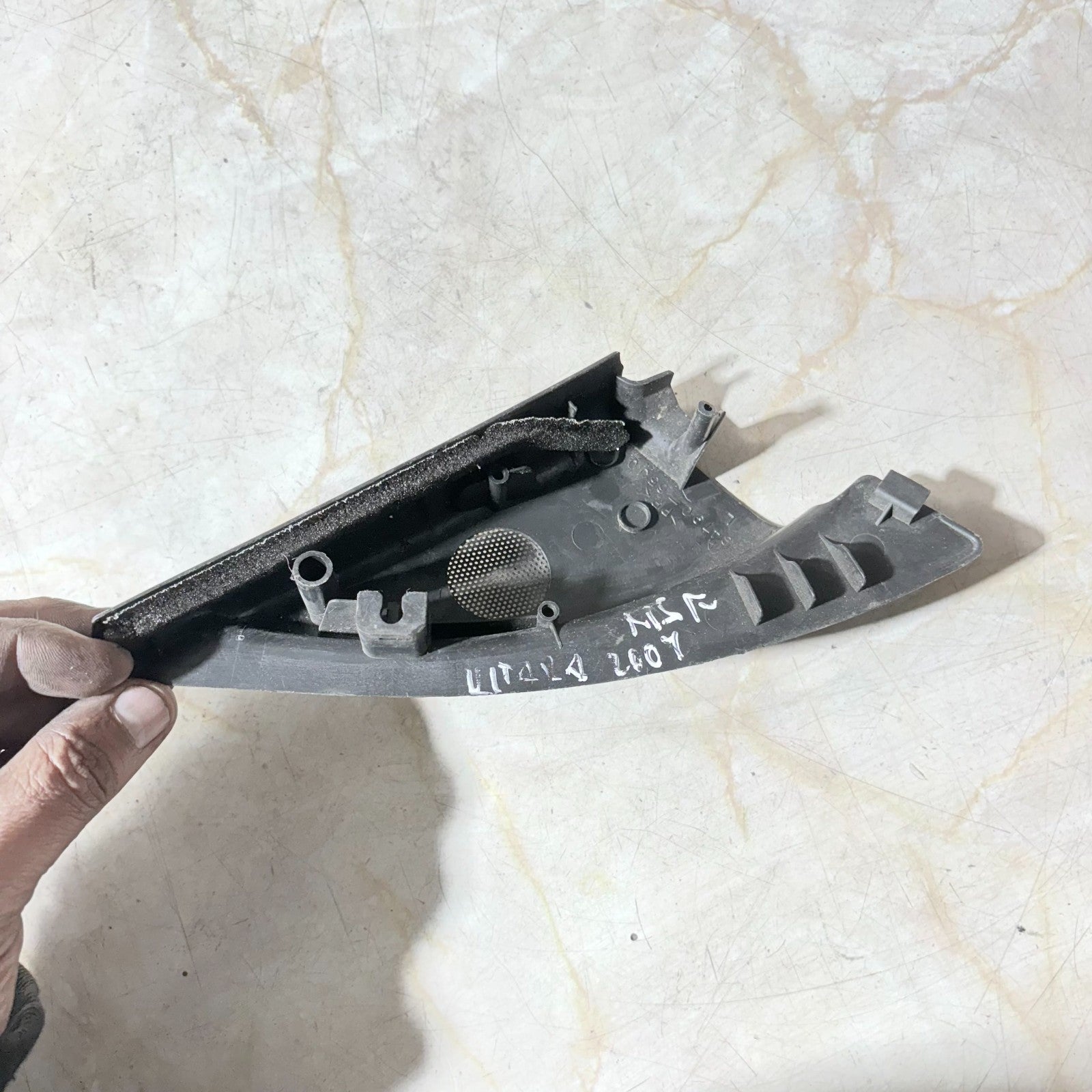

Suzuki Grand Vitara 2005-2008 Front Left A Pillar Tweeter Speaker Trim Panel
Suzuki Grand Vitara 2005-2008 Front Left A Pillar Tweeter Speaker Trim Panel
Suzuki Grand Vitara 2005–2008
Front Left A-Pillar Tweeter Speaker Trim Panel
Used original-equipment specification front left tweeter / speaker trim assembly for selected Suzuki Grand Vitara II vehicles. This component is positioned at the front-left corner of the cabin around the A-pillar / mirror-sail area and provides the high-frequency portion of the vehicle's factory audio system.
Please do not order using registration number, model name or appearance alone. Compare the supplied listing photographs, connector, mounting points, trim shape and any number printed on your existing component. If uncertain, contact us before ordering with your 17-digit VIN and photographs of your existing part. We can assist with verification.
Reference Vehicle
Vehicle photograph is a reference image to help identify the generation/body style. It is not the donor vehicle and colour/specification may differ.
✓ Confirmed Listing Compatibility
| Make | Model | Year | Engine | Drive | Chassis |
|---|---|---|---|---|---|
| Suzuki | Grand Vitara | 2005 | 2.7 H27A | AWD / RWD* | JT / TE / TD |
| Suzuki | Grand Vitara | 2006 | 2.7 H27A | AWD / RWD* | JT / TE / TD |
| Suzuki | Grand Vitara | 2007 | 2.7 H27A | AWD / RWD* | JT / TE / TD |
| Suzuki | Grand Vitara | 2008 | 2.7 H27A | AWD / RWD* | JT / TE / TD |
*Compatibility above reproduces the vehicle applications presently declared in the eBay compatibility catalogue. Final physical/part-number verification remains recommended.
Part Number Information
Listing MPN: Not currently specified
Catalogued Grand Vitara tweeter reference: 39102-65J20
IMPORTANT: 39102-65J20 is a researched Suzuki catalogue reference for a Grand Vitara tweeter assembly. It must NOT be treated as the number of the item supplied unless the number/connector is confirmed against the actual part.
✓ Will Fit / ✕ Do Not Assume Fitment
|
✓ CONFIRMED LISTING APPLICATION Suzuki Grand Vitara II 2005–2008 2.7 H27A applications listed above Front LEFT position Correct matching trim/audio specification |
✕ DO NOT ASSUME Right-hand component Different connector or mounting pattern Different trim/speaker specification Earlier-generation Grand Vitara Vitara models of a different generation Any unlisted vehicle solely because it looks similar |
Where Is This Part Fitted?
The tweeter is installed at the front-left upper door / A-pillar / mirror-sail area. It is positioned high in the cabin so high-frequency audio is directed towards the occupants rather than being produced solely by the lower door speakers.
Reference showing the construction and mounting arrangement of this generation's tweeter assembly. Side/specification must still be checked.
What Does The Tweeter Do?
A tweeter is the high-frequency loudspeaker in the factory audio system. It reproduces treble frequencies such as vocals, cymbals and fine musical detail. The high mounting position helps improve perceived sound staging and clarity for the front occupants.
Common Symptoms Of A Faulty Tweeter
- No sound from the front-left high-frequency speaker
- Crackling or intermittent audio
- Distorted treble at normal listening volume
- Noticeably dull audio on one side of the cabin
- Rattling from a damaged speaker or mounting
- Damaged, cracked or missing speaker trim
Why Choose An Original Used Component?
A correct original-specification used component can retain the vehicle's factory mounting arrangement, electrical connector, appearance and acoustic integration. Cheap pattern replacements may require modification or may differ in mounting geometry, impedance, connector design or appearance.
Buying a quality recycled used component can also represent a substantial saving compared with purchasing the equivalent component new. Depending on the component and current new-part pricing, savings can sometimes reach up to approximately 70%.
🔧 Fitting Guide
Estimated fitting time: approximately 15–30 minutes for an experienced technician, subject to vehicle condition.
Typical tools:
- Plastic automotive trim-removal tools
- Small Phillips screwdriver where applicable
- Small socket/driver set where applicable
- Protective tape or cloth for adjacent trim
General procedure:
- Switch the ignition off and remove the key.
- Protect the surrounding trim.
- Carefully release the existing speaker/sail trim using a plastic trim tool.
- Do not pull sharply — wiring will remain connected behind the trim.
- Release the electrical connector.
- Compare old and replacement components before installation.
- Connect the replacement speaker.
- Test the audio system before fully refitting the trim.
- Align all clips/mountings and gently refit.
If the vehicle has airbags or airbag components near the trim being removed, follow the manufacturer's workshop procedure. Professional installation is recommended whenever you are unsure.
💷 Estimated Garage Labour Calculator
No JavaScript is used in this listing. Use the table below to estimate labour. Calculation: hourly labour rate × time charged.
| Garage Rate | 15 Minutes | 30 Minutes | 1 Hour |
|---|---|---|---|
| £50/hr | £12.50 | £25 | £50 |
| £70/hr | £17.50 | £35 | £70 |
| £90/hr | £22.50 | £45 | £90 |
| £120/hr | £30 | £60 | £120 |
| £150/hr | £37.50 | £75 | £150 |
Labour figures are examples only. Diagnostic time, minimum labour charges, seized/damaged fasteners and additional work can alter the final cost.
THEPARTPILOT also offers a fitting and repair service subject to workshop availability and prior arrangement.
Workshop reference image.
25,000+ Parts In Stock
THEPARTPILOT carries more than 25,000 automotive parts in stock and on the shelf at any one time. Our objective is straightforward: identify the correct component, provide clear compatibility information and help customers get their vehicle repaired without unnecessary delays or avoidable returns.
Automotive parts warehouse reference image.
📋 Order The Correct Part First Time
Before ordering, check:
- Vehicle make and model
- Exact production year
- Body/generation
- LEFT versus RIGHT position
- Existing part shape
- Electrical connector
- Mounting clips and screw positions
- Any number moulded or printed on the existing part
- VIN where confirmation is required
If you are unsure, contact us BEFORE ordering. Send the 17-digit VIN plus clear photographs of your existing component and its identification numbers.
Returns & Fitment
Please use the compatibility information and photographs carefully before purchase. Returns are handled in accordance with the return terms displayed by eBay and applicable consumer law. Parts must not be ordered simply to experiment with compatibility where fitment has not been established.
Customers must ensure the delivery address selected during eBay checkout is complete and correct. We cannot simply redirect an order to an alternative address after checkout. Please check all delivery information before payment.
🌍 International Delivery
Eligible international orders can be supplied through eBay's managed international shipping programme. Availability depends on the destination, item eligibility and the shipping options eBay displays to the buyer at checkout.
Current GSP markets include EU destinations plus Australia, Canada, USA, Japan, New Zealand, Norway, Switzerland, Hong Kong, Singapore, South Korea, UAE and many other eligible international destinations. eBay controls final destination eligibility at checkout.
VAT Information
Where the sale falls under the applicable VAT margin scheme, VAT is not separately itemised or reclaimable on the purchase price.
📍 Collection Available
Collection is available 7 days a week until 8pm by prior appointment, including Bank Holidays where arranged in advance.
Scan with your phone camera to open WhatsApp.
Collection must be arranged before travelling.
Nationwide collection available with same-day payment subject to vehicle assessment, agreed purchase and collection arrangements.
♻️ Reuse Parts • Reduce Waste • Support Small Business
Choosing a serviceable used automotive component gives an existing part a second working life and can reduce demand for unnecessary replacement manufacturing and disposal. Reusing suitable components helps keep usable automotive materials in circulation for longer. 🌍♻️🚗
Every purchase also supports an independent UK automotive parts business. Thank you for choosing THEPARTPILOT and helping us continue to recover, identify, stock and supply useful vehicle components.
📦 Carefully Prepared For Dispatch
Automotive parts dispatch reference image.
Compare your existing component with the listing photographs. Check the side, connector, mountings and identification numbers. If anything differs, contact THEPARTPILOT with your VIN before ordering.
Correct identification before purchase is the best way to avoid downtime, unnecessary postage and returns.
