TOYOTA RAV4 MK2 / XA20 FACELIFT

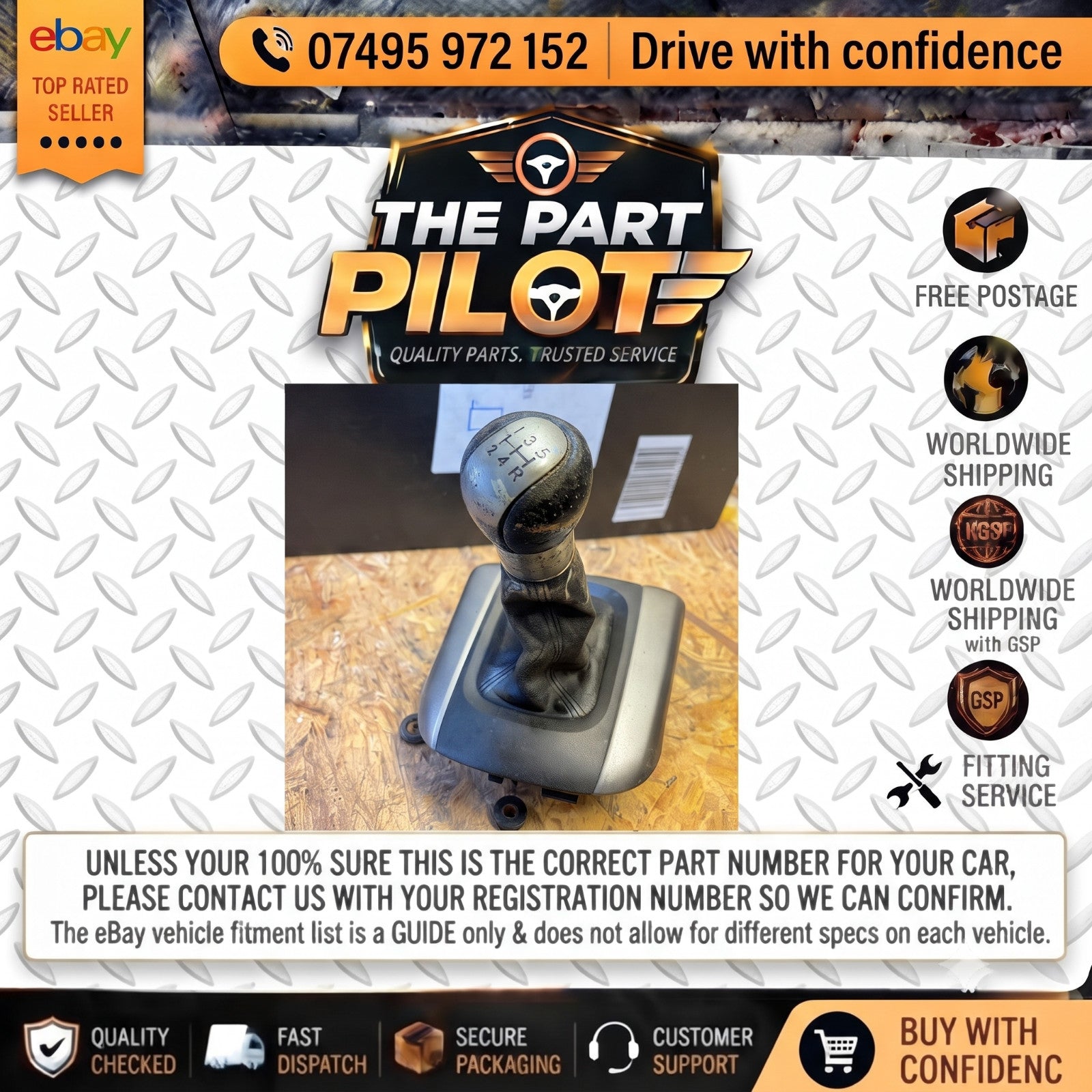

5-Speed Manual Gear Lever, Selector Base, Gaiter & Surround Trim
Complete floor-shift assembly removed from a 2004 right-hand-drive RAV4. Supplied exactly as shown in the item photographs.
⚠ CRITICAL FITMENT CHECK
This is for facelift vehicles built from July 2003 to November 2005, with right-hand drive and a 5-speed manual gearbox. Registration year alone is not enough. Match the chassis code, build date, gear pattern, silver/dark surround shape, white selector base, cable connections and mounting points to the photographs before ordering.
THEPARTPILOT
|
THEPARTPILOT
|
THEPARTPILOT
|
THEPARTPILOT
|

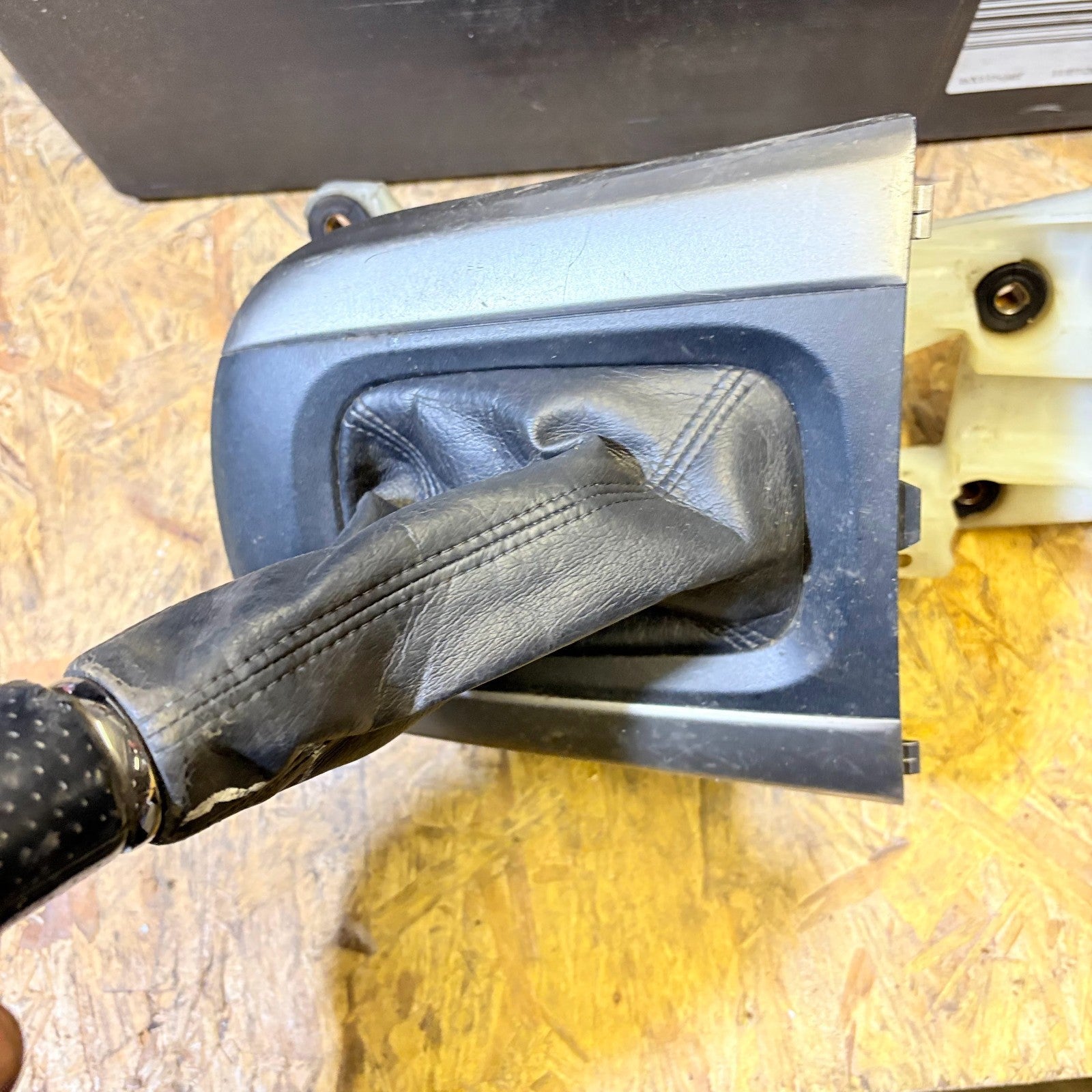

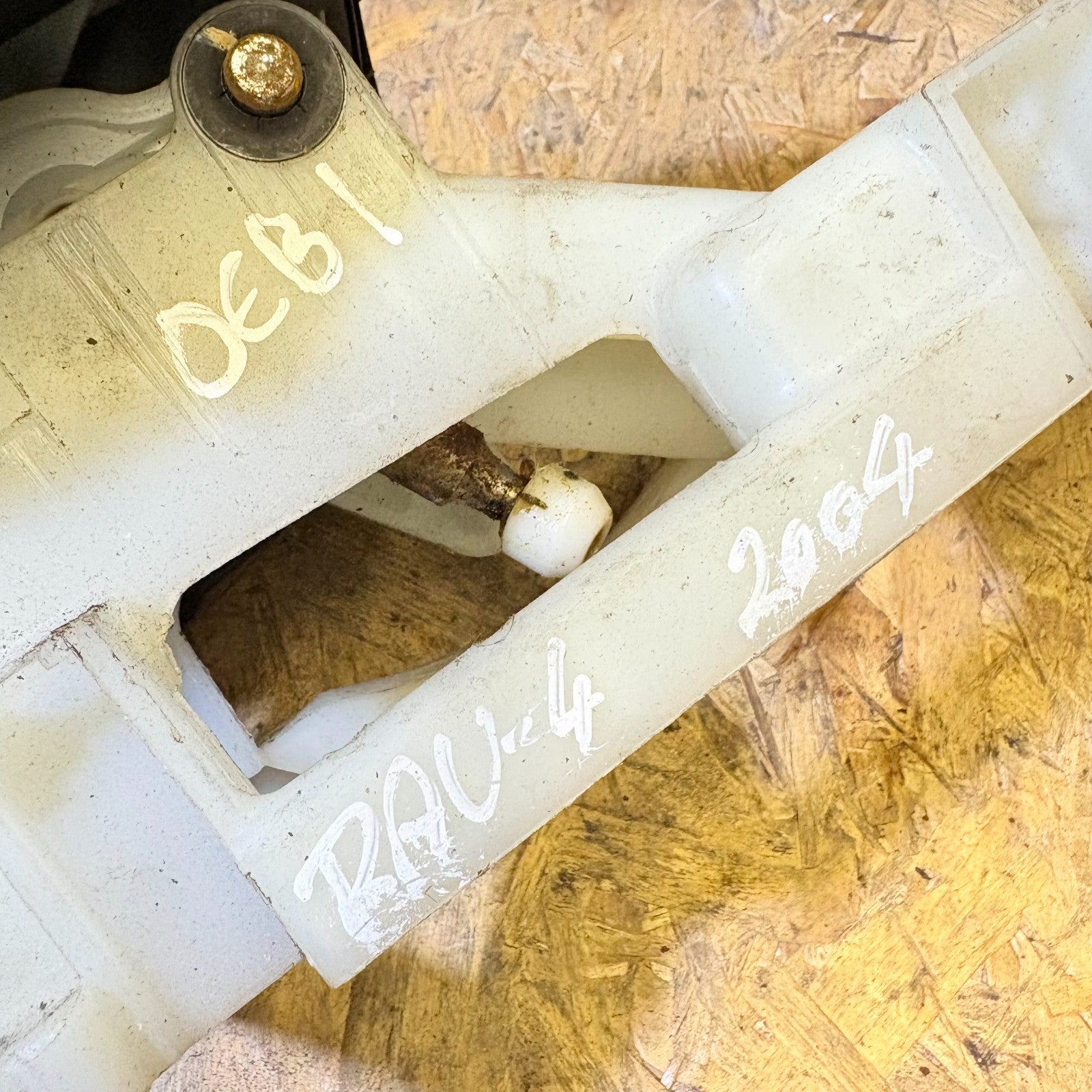

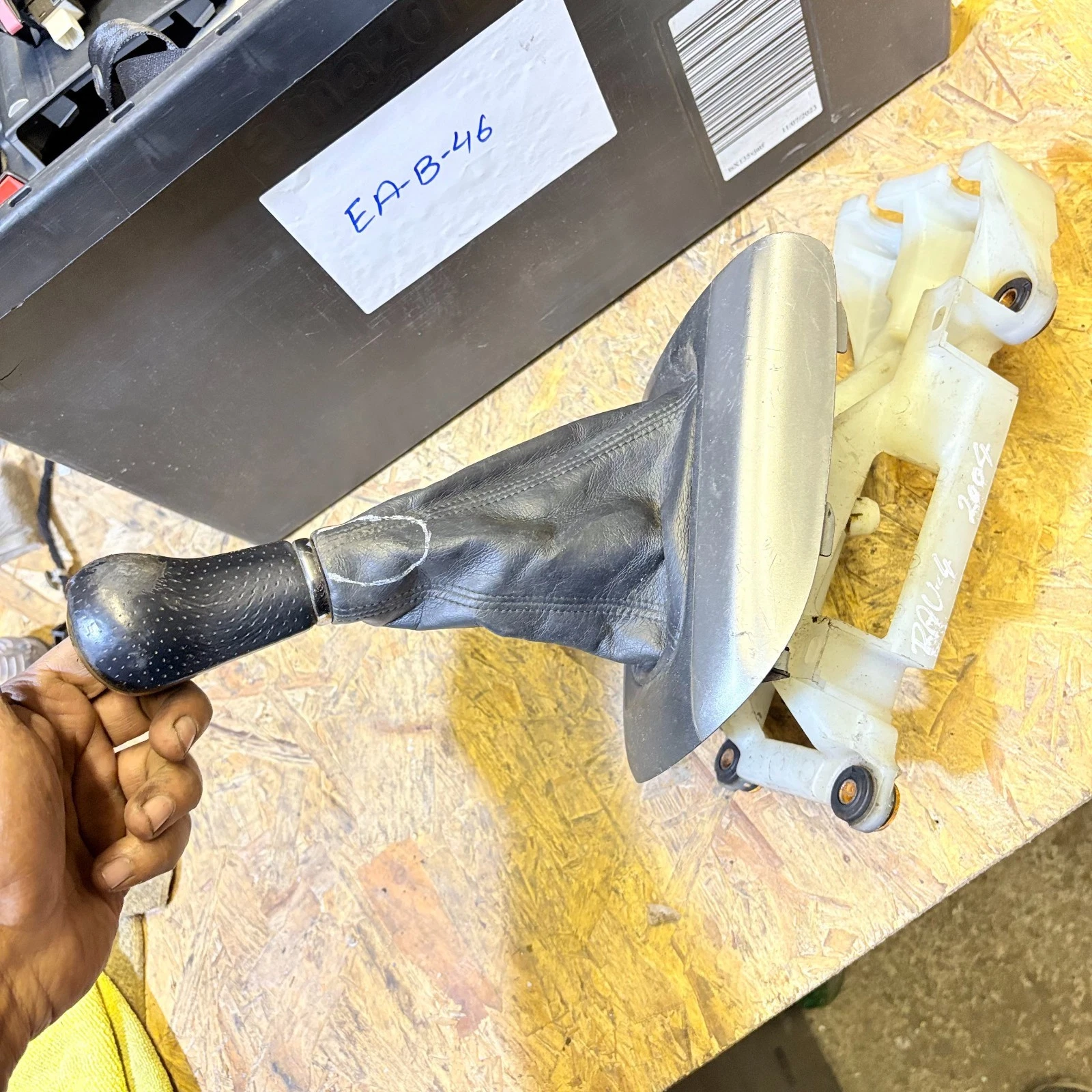

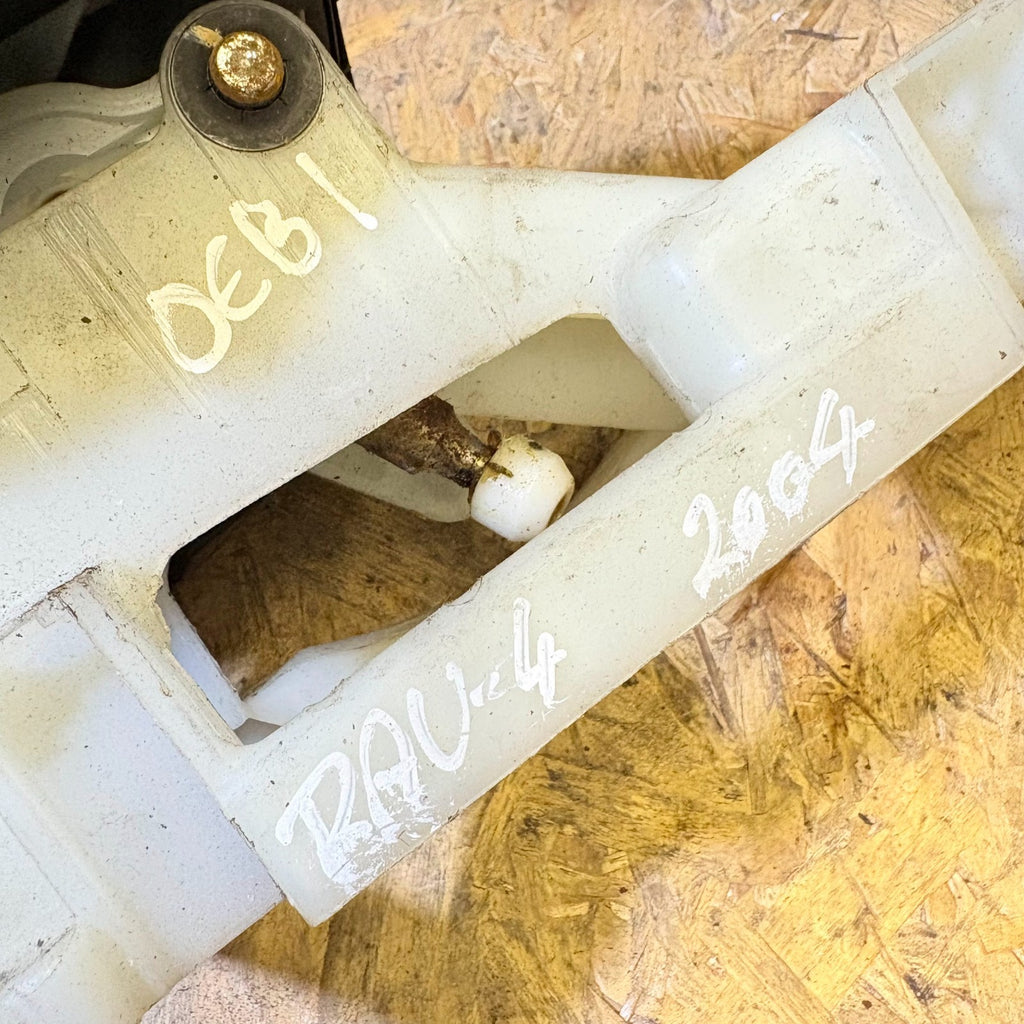

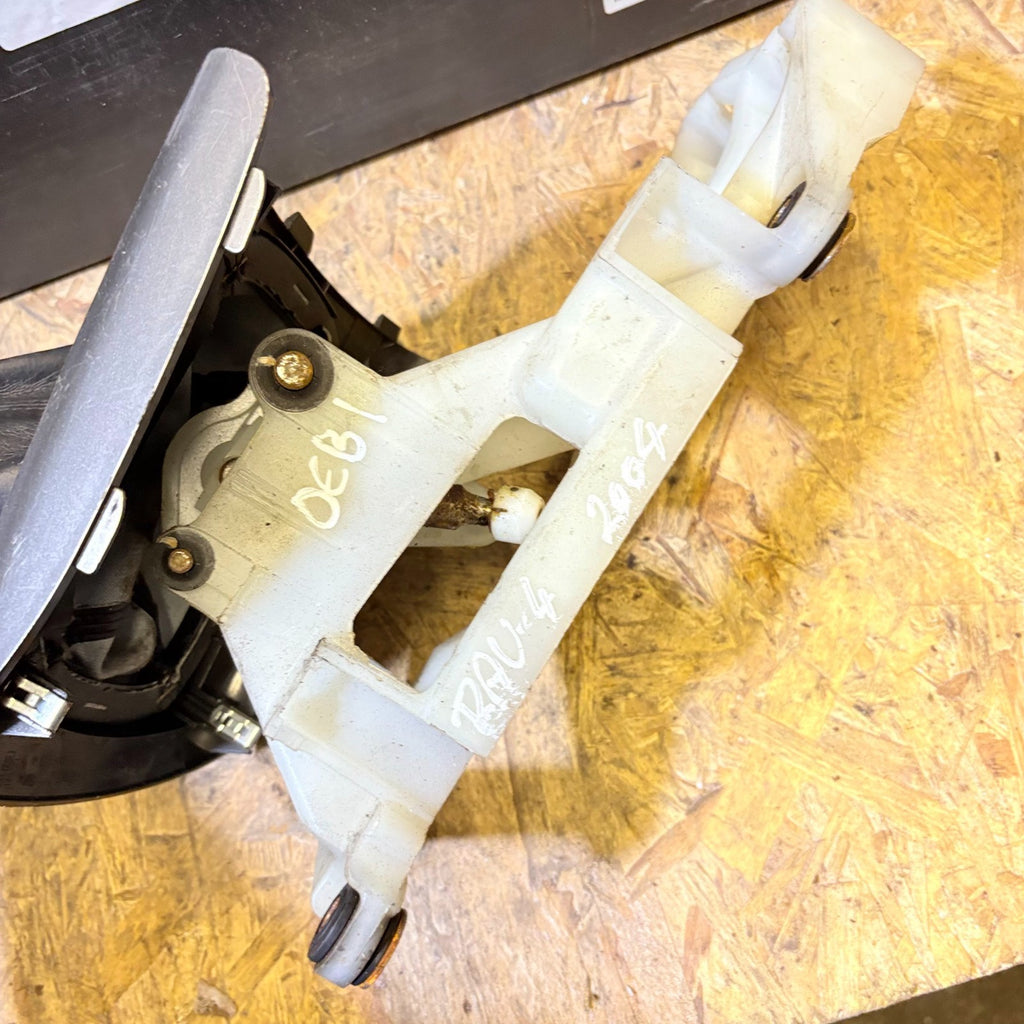

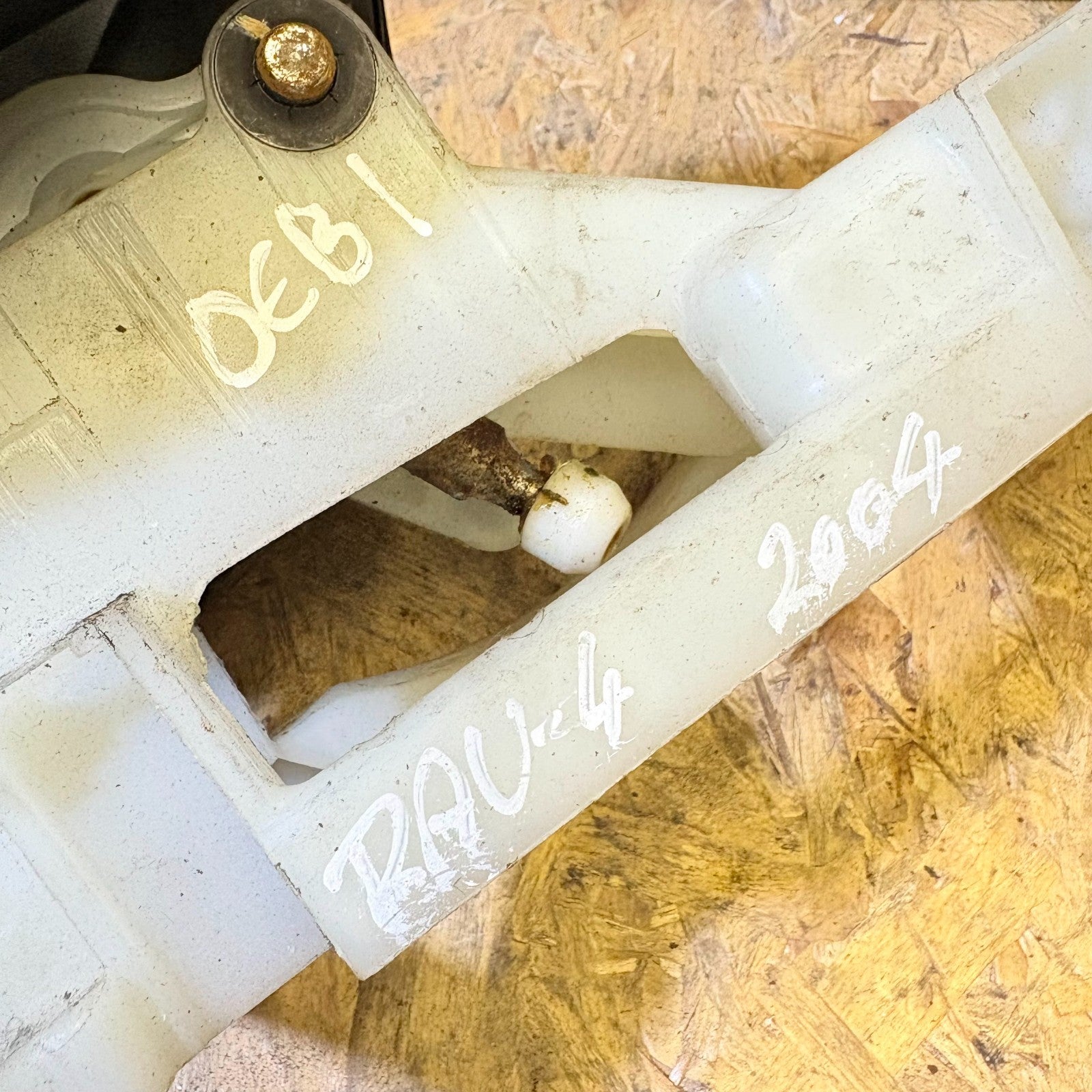

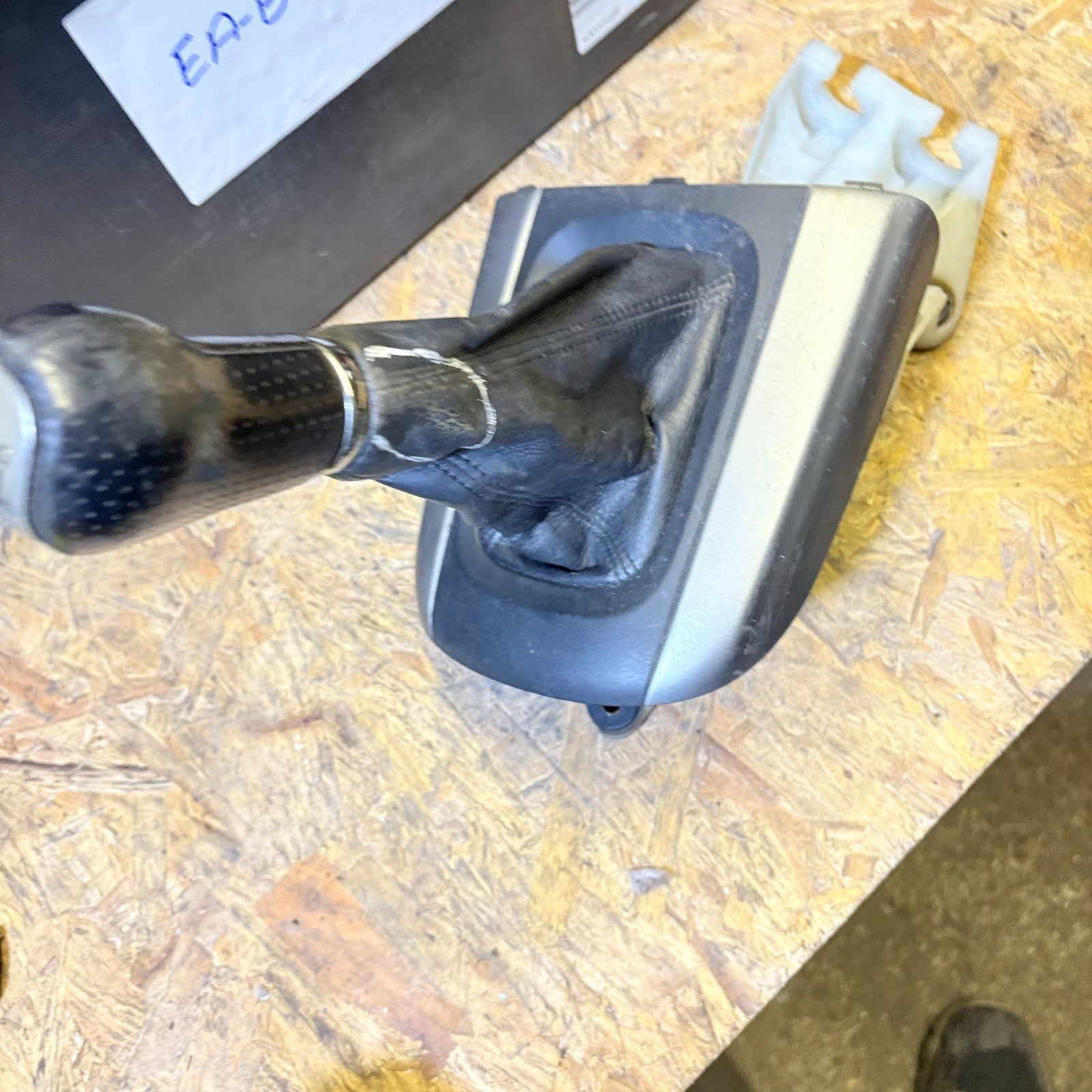

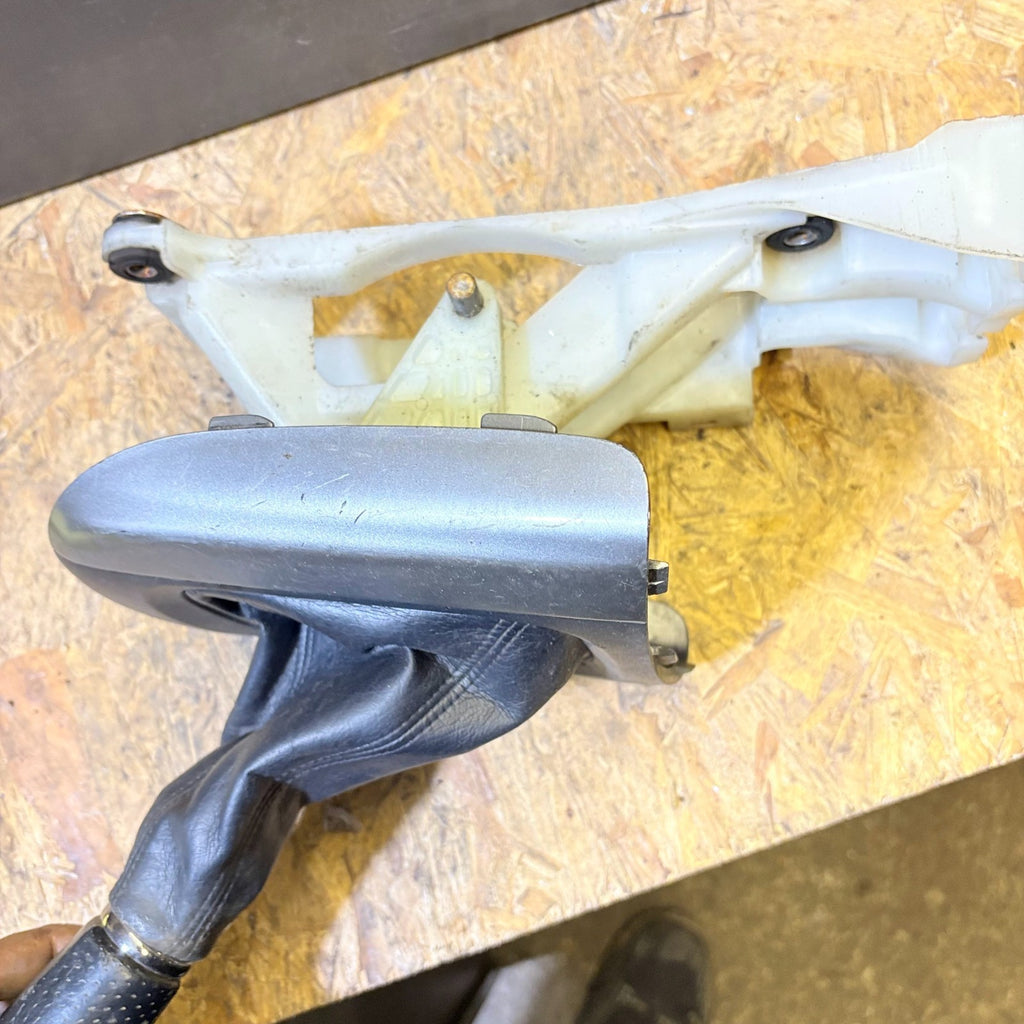

The photographs above show the actual item. Visible wear, marks and scuffs form part of the condition and should be reviewed before purchase.
ITEM DETAILS & SPECIFICS
| eBay Item Number |
147479020780 |
| Vehicle Make / Model |
Toyota RAV4 Mk2 / XA20 facelift |
| Exact Build Range |
07/2003 to 11/2005 |
| Driver Position |
Right-hand drive only |
| Transmission |
5-speed manual, floor shift |
| Part Type |
Gear lever / gearstick, selector mechanism and retainer base with knob, gaiter and upper surround |
| Placement |
Interior centre console, between the front seats |
| Colour / Finish |
Black knob and stitched gaiter, silver/dark-grey surround, white moulded selector base |
| Materials |
Steel lever and pivot hardware; moulded engineering-plastic base and trim; rubber/elastomer mounting bushes; flexible stitched gaiter. Exact gaiter covering material is not confirmed. |
| Condition |

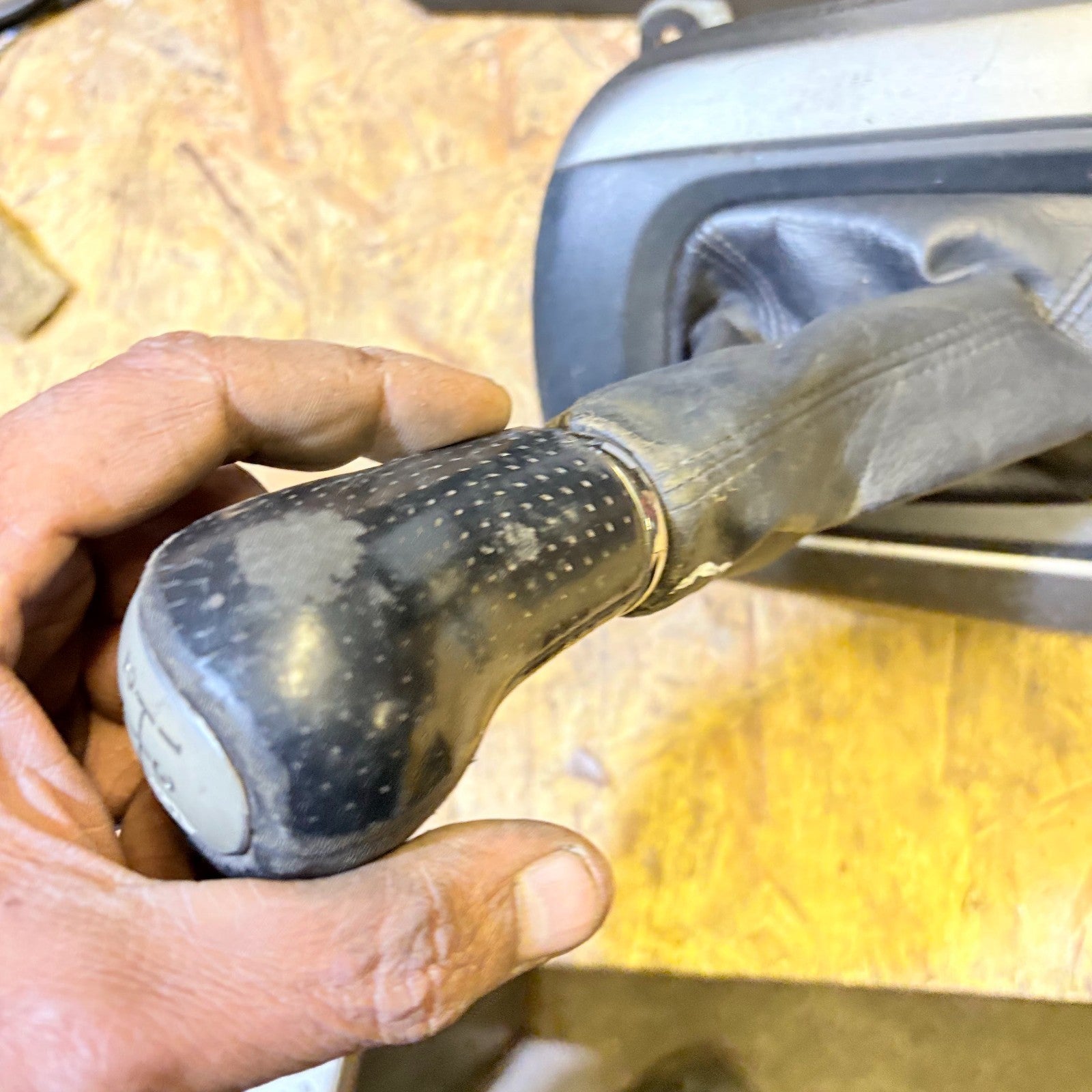

Used. Cosmetic wear, surface marks and scuffs are visible on the knob, gaiter and trim. Supplied as photographed. |

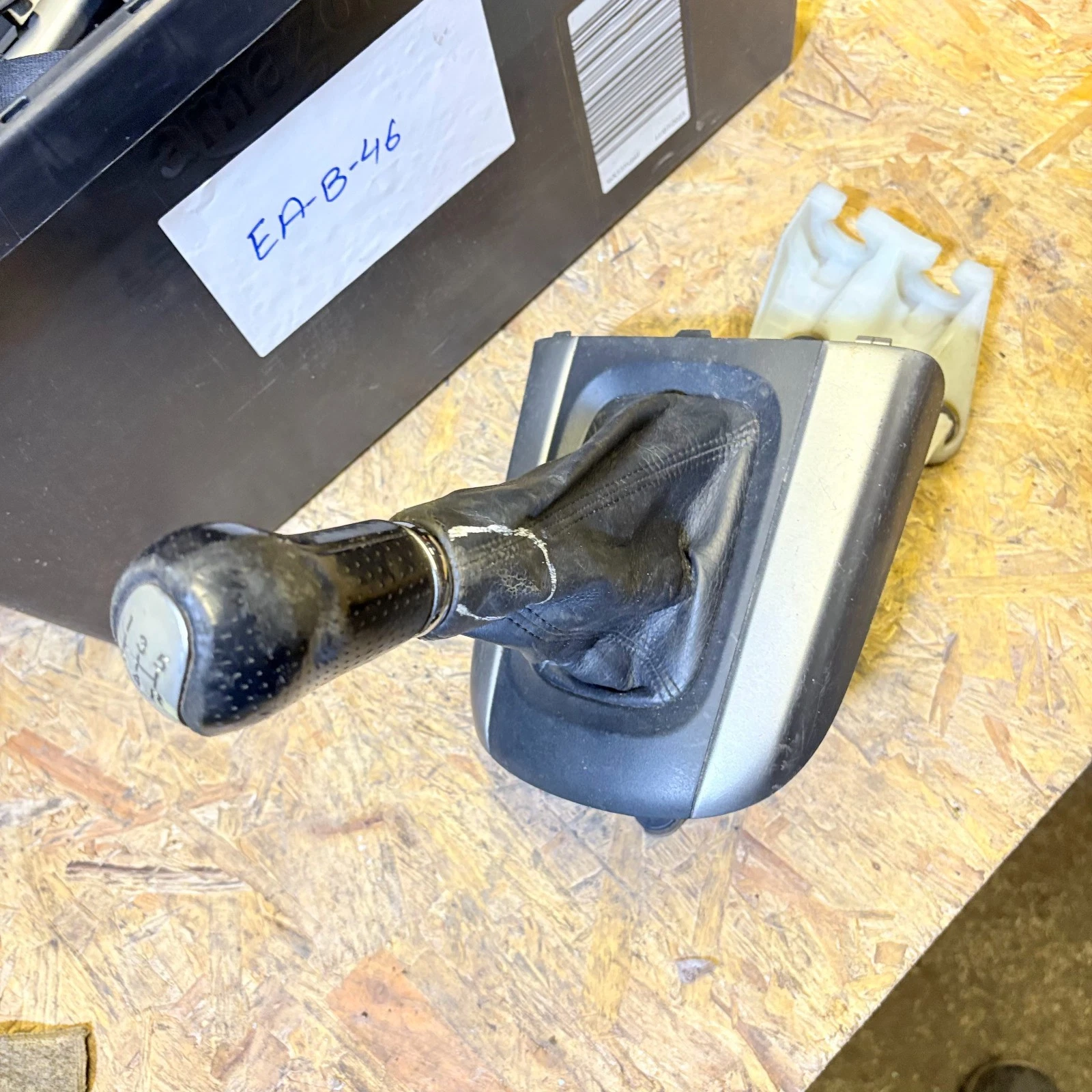

| Internal Stock Marking |
EA-B-46 |
| VAT Information |
VAT margin scheme / global accounting for second-hand goods. VAT is not shown separately and is not reclaimable. |
PART NUMBER & ENGINEERING REFERENCE GUIDE
| Component |
Toyota Catalogue Reference |
Verification Note |
| Floor shift lever assembly |
33530-42050 |
Catalogue reference for RHD manual ACA2#, CLA2# and ZCA2# vehicles from 07/2003. The number is not visibly stamped in the supplied photographs, so confirm by VIN and visual comparison. |
| Shifting-hole cover / gaiter section |
58808-42020 |
Catalogue reference from 07/2003 for the listed XA20 chassis families. |
| Upper console panel / surround |
58821-42020 |
Catalogue reference from 07/2003. Catalogue substitution shown as 58804-42020. |
| Black leather-style gear knob |
33504-42011-C0
Substitution: 33504-52060-B1 |
Visual/catalogue candidate for late-2003 to 2005 trim. Exact knob code is not readable in the photographs and must not be assumed without comparison. |
Buyer matching checklist: compare the complete base shape, mounting bushes, cable attachment positions, knob pattern, surround outline and interior colour. Message through eBay with the VIN or registration before purchase if uncertain.
EXACT VEHICLE COMPATIBILITY
The matching Toyota catalogue application covers the following RHD 5-speed manual XA20 facelift variants built from July 2003 to November 2005:
| Model |
Chassis |
Engine / Fuel |
Body |
Drive / Gearbox |
Exact Build Range |
| RAV4 Mk2 XA20 facelift |
ZCA25R |
1.8 VVT-i petrol, 1ZZ-FE |
3-door |
RHD, 2WD, 5-speed manual |
07/2003-11/2005 |
| RAV4 Mk2 XA20 facelift |
ZCA26R |
1.8 VVT-i petrol, 1ZZ-FE |
5-door |
RHD, 2WD, 5-speed manual |
07/2003-11/2005 |
| RAV4 Mk2 XA20 facelift |
ACA20R |
2.0 VVT-i petrol, 1AZ-FE |
3-door |
RHD, 4WD, 5-speed manual |
07/2003-11/2005 |
| RAV4 Mk2 XA20 facelift |
ACA21R |
2.0 VVT-i petrol, 1AZ-FE |
5-door |
RHD, 4WD, 5-speed manual |
07/2003-11/2005 |
| RAV4 Mk2 XA20 facelift |
CLA20R |
2.0 D-4D diesel, 1CD-FTV |
3-door |
RHD, 4WD, 5-speed manual |
07/2003-11/2005 |
| RAV4 Mk2 XA20 facelift |
CLA21R |
2.0 D-4D diesel, 1CD-FTV |
5-door |
RHD, 4WD, 5-speed manual |
07/2003-11/2005 |
✗ THIS PART WILL NOT FIT
| ✗ |
XA20 vehicles built before July 2003. Earlier RHD manual models use a different catalogue assembly reference. |
| ✗ |
Left-hand-drive vehicles. The facelift LHD assembly is a different catalogue reference and has a different application. |
| ✗ |
Automatic transmission vehicles or any gearbox with a different shift pattern. |
| ✗ |
First-generation XA10 or third-generation XA30 RAV4 models. |
| ✗ |
Any vehicle where the mounting bushes, cable ends, selector base, surrounding trim shape or interior colour do not match the photographs. |
REFERENCE VEHICLES: 3-DOOR & 5-DOOR FACELIFT
3-door XA20 reference vehicle
Reference photo: Bull-Doser, public domain, via Wikimedia Commons.
|
5-door XA20 facelift reference vehicle
Reference photo: M 93, attribution licence, via Wikimedia Commons.
|
Vehicle photographs are identification references only; the vehicles are not included. This assembly is mounted beneath the centre-console trim around the manual gear lever.
WHERE IT FITS & WHAT IT CONTROLS
The assembly is fitted in the interior centre console, directly below the gear knob and gaiter. Driver movement of the lever is transferred through the selector pivots to the transmission control cables. These cables convert fore-and-aft and side-to-side lever movement into selection of first to fifth gears and reverse at the manual transaxle.

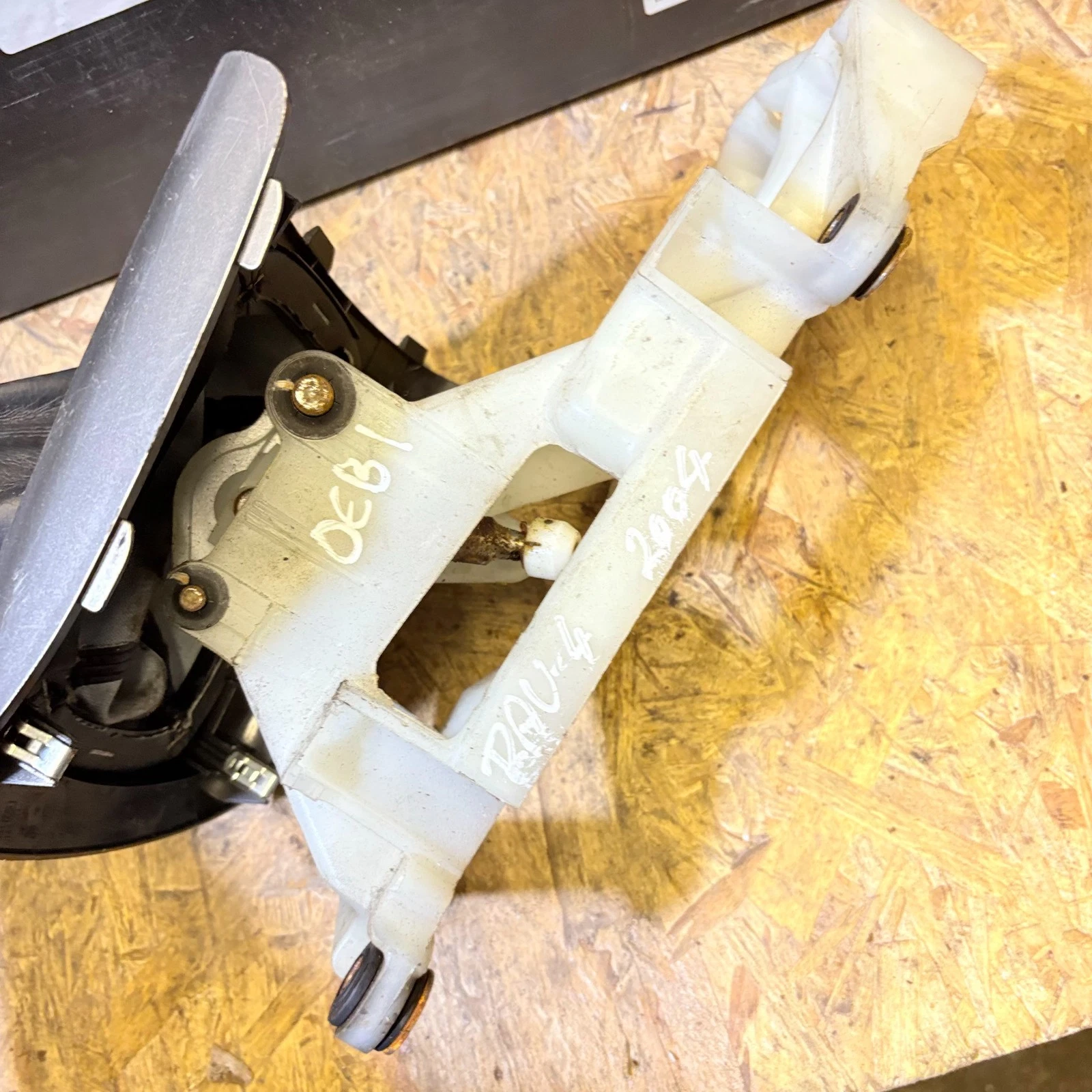

The moulded base locates the pivot points, bushes and cable attachments. The upper surround finishes the console opening, while the gaiter helps shield the mechanism from dust and interior debris.
WHAT IS INCLUDED
| ✓ |

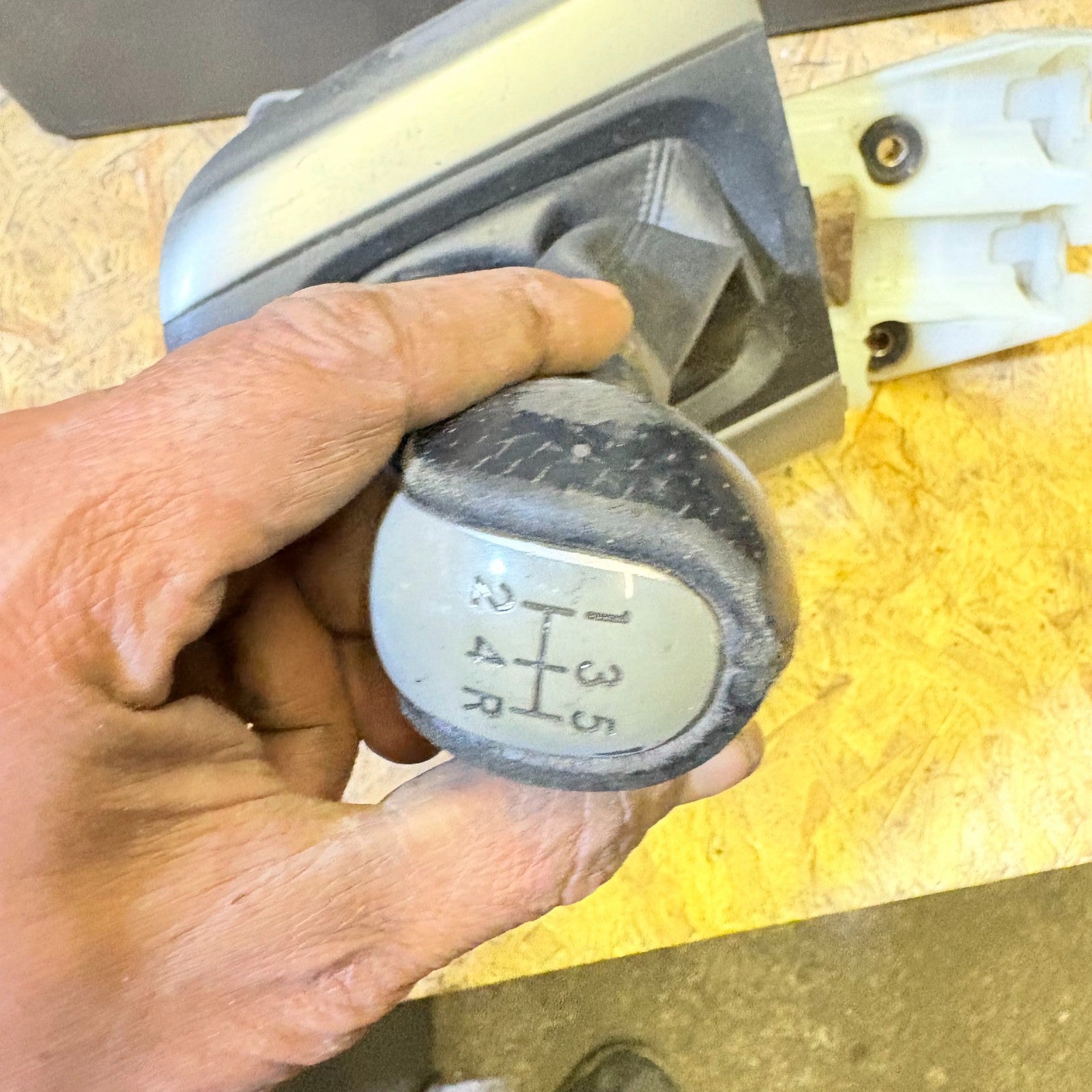

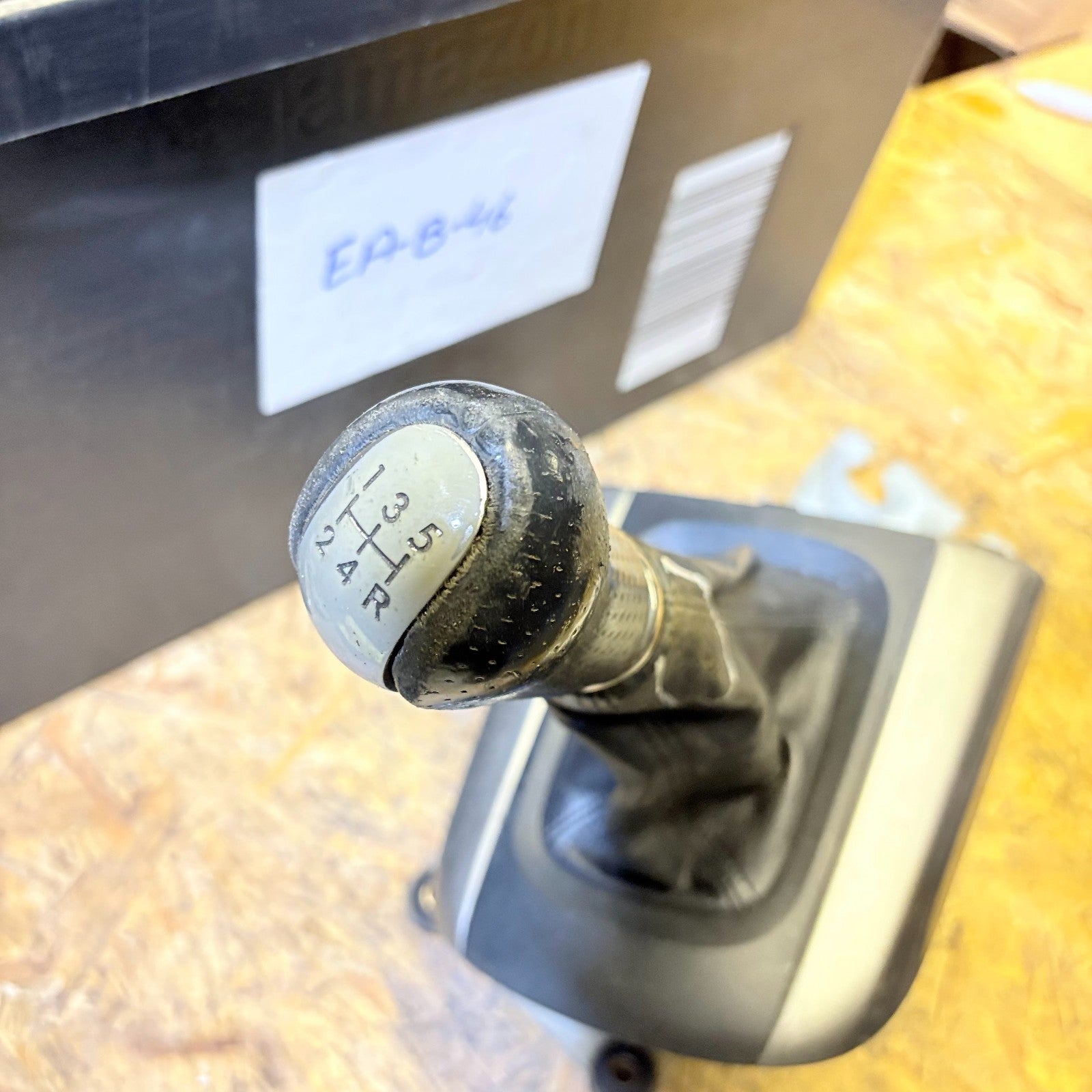

5-speed manual gear lever / gearstick with visible shift pattern |
| ✓ |

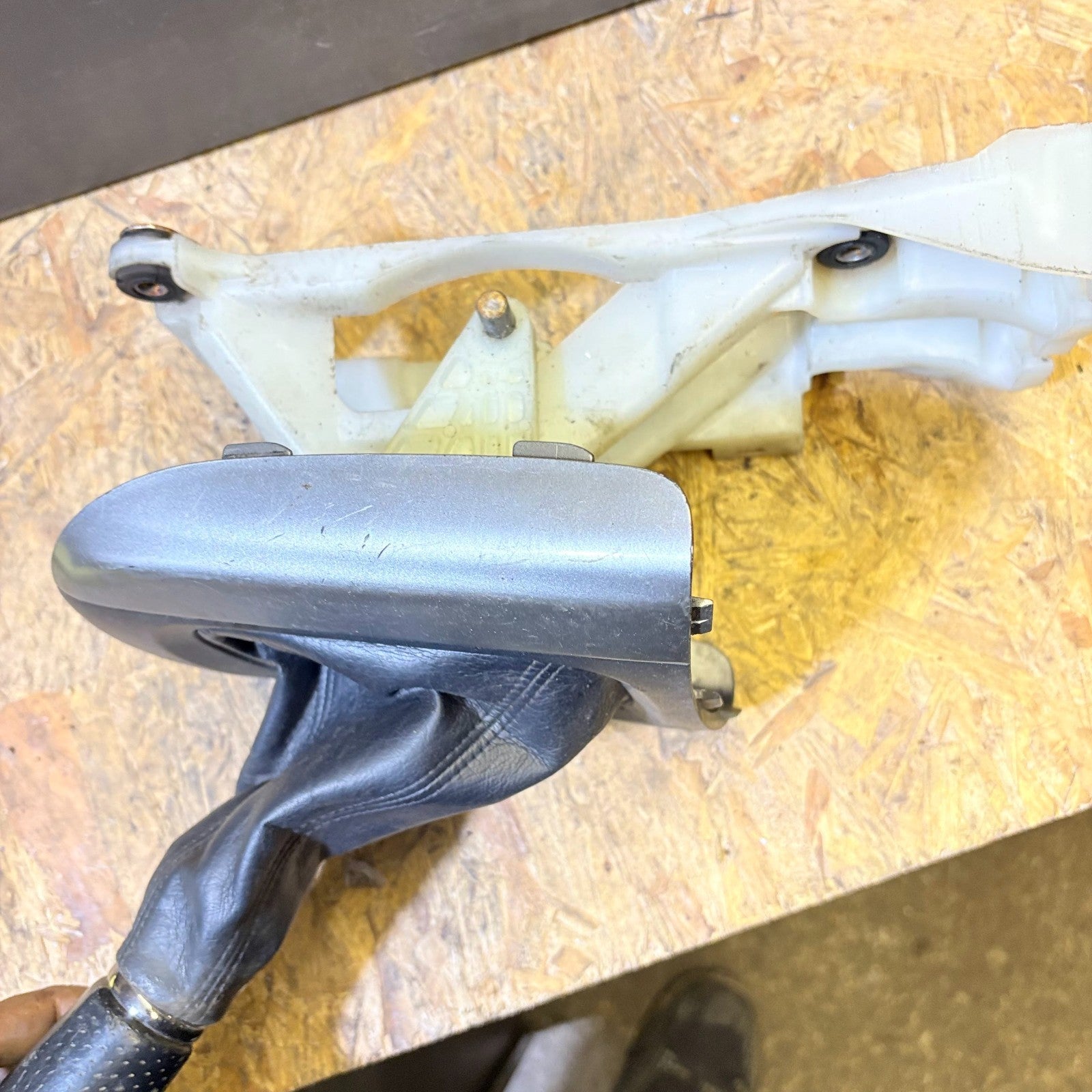

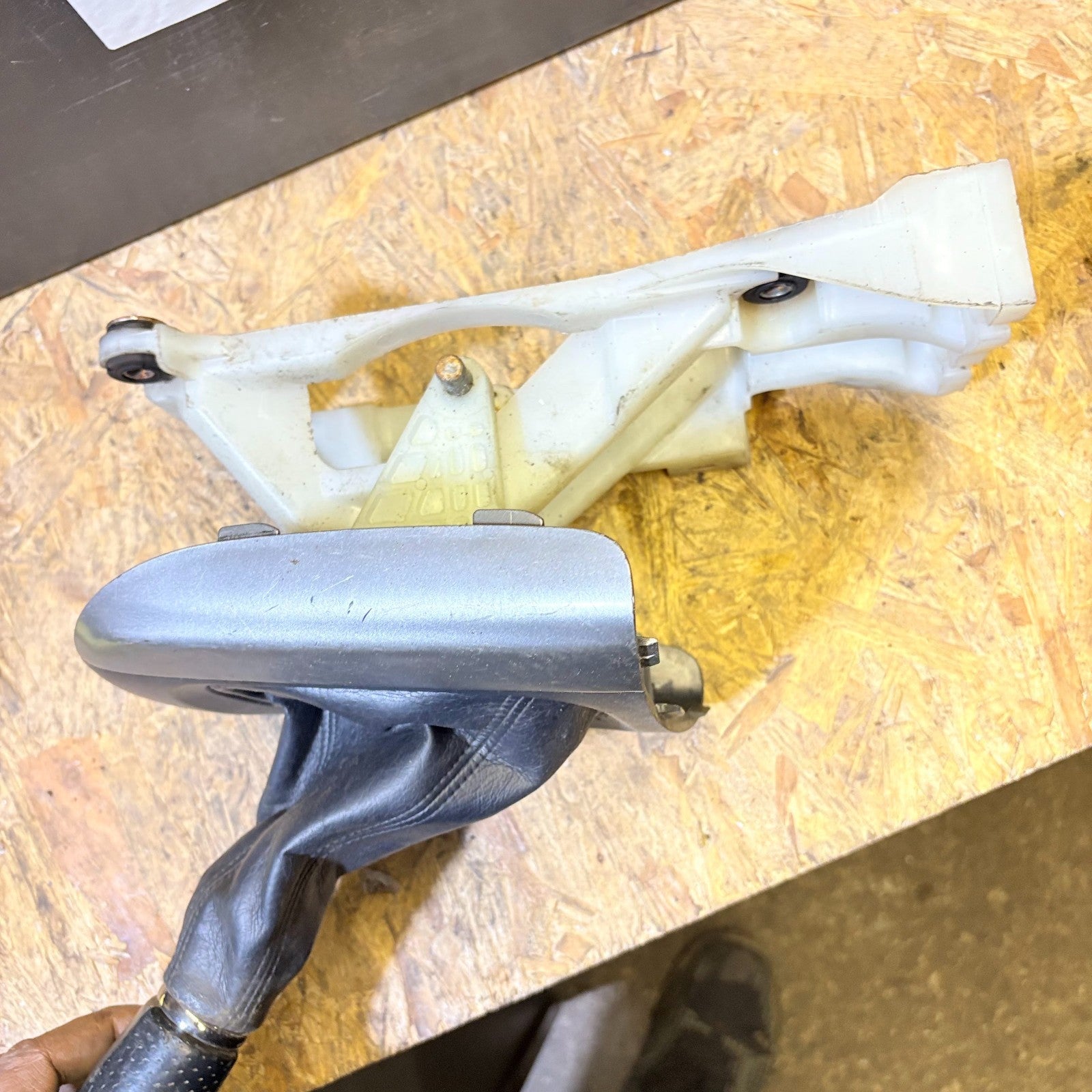

Selector and retainer base shown in the photographs |
| ✓ |
Black stitched gaiter and silver/dark-grey upper surround |
| ✓ |
Mounting bushes and attached pieces visible in the item images |
| ✗ |
Transmission control cables, centre console box, gearbox, extra fasteners or any item not shown are not included. |
COMMON SYMPTOMS OF A WORN OR DAMAGED SHIFTER ASSEMBLY
| • |
Excessive free play or a loose, vague gear lever. |
| • |
Difficulty finding one or more gears, including reverse. |
| • |
Lever does not centre correctly between gear gates. |
| • |
Rattling, clicking or movement from worn pivot points or mounting bushes. |
| • |
Cracked, split or badly worn gaiter, damaged surround or loose gear knob. |
Important: similar symptoms can also be caused by worn cables, cable-end bushes, clutch faults, engine or gearbox mounts, or an internal transmission issue. Diagnose the fault before ordering.
WHY CHOOSE A FACTORY-SUPPLIED USED PART?
A factory-supplied original-fit assembly is designed around the vehicle's exact cable travel, mounting geometry, console profile, bush locations and five-speed shift gate. This can provide a more predictable fit than an unverified low-cost pattern copy.
Buying a reusable part can also reduce the cost of keeping an older vehicle on the road. Depending on the component, availability and new-part pricing, savings can approach 70% in some cases. This is not a guaranteed saving, but it illustrates why carefully matched used parts can offer strong value.
FITTING GUIDE, TOOLS & ESTIMATED TIME
Suggested tools
Plastic trim-removal tools, cross-head screwdriver, 10 mm socket and ratchet, extension bar, long-nose pliers or a small pick for cable retainers, work light, gloves and a torque wrench where required.
General fitting sequence
| 1. |
Park on level ground, apply the handbrake, select neutral and chock the wheels. Disconnect the negative battery terminal if console electrical connectors will be disturbed. |
| 2. |
Check whether the knob is threaded, then carefully remove it without forcing. Release the upper surround with plastic trim tools. |
| 3. |
Remove the necessary centre-console screws and clips, labelling any electrical connectors before disconnection. |
| 4. |
Photograph the cable routing. Release the cable-end joints and retaining clips without bending or damaging them. |
| 5. |
Remove the selector-base mounting fasteners, lift out the old assembly and compare every mounting point and cable connection side by side. |
| 6. |
Install the replacement, secure it to the vehicle manufacturer's workshop specification, reconnect the cables and verify that all retainers are fully seated. |
| 7. |
Before refitting all trim, select every gear with the engine off. Reassemble the console, then perform a cautious operational check. |
Planning estimate: approximately 45-75 minutes for an experienced technician when fasteners and clips release normally. Allow longer for diagnosis, damaged trim clips, seized hardware or cable issues.
STATIC GARAGE LABOUR ESTIMATOR
No active content is used. Estimate formula: hourly rate x 0.75 to 1.25 labour hours. Figures below are labour only and exclude parts, clips, diagnosis and additional repairs.
| Garage Hourly Rate |
0.75 Hour |
1.00 Hour |
1.25 Hours |
| £50 / hour |
£37.50 |
£50.00 |
£62.50 |
| £60 / hour |
£45.00 |
£60.00 |
£75.00 |
| £75 / hour |
£56.25 |
£75.00 |
£93.75 |
| £90 / hour |
£67.50 |
£90.00 |
£112.50 |
| £100 / hour |
£75.00 |
£100.00 |
£125.00 |
| £120 / hour |
£90.00 |
£120.00 |
£150.00 |
Fitting service may be available subject to workshop capacity. Please contact us through eBay Messages before purchase for availability.
DELIVERY, CHECKOUT ADDRESS & RETURNS
UK and international delivery: International delivery may be available through eBay's Global Shipping Programme to eligible destinations. Availability, import charges and delivery cost are shown by eBay after the buyer enters the delivery address at checkout.
Checkout address: Please ensure the delivery address selected at checkout is complete and correct. Orders can only be sent to the address supplied with the eBay order and cannot be manually redirected after purchase.
Fitment support: We can help verify the VIN, registration, donor details and photographs through eBay Messages before purchase.
Returns: Returns are handled under the return policy displayed on this listing. Any permitted deduction is based on eBay's rules and the actual loss in value where an item is returned used, altered, damaged or incomplete; it is not an automatic fitment charge.
OUR STOCK, WORKSHOP & DISPATCH
25,000+ parts in stock and on the shelf
Representative stock image: Visitor7, CC BY-SA 3.0, via Wikimedia Commons.
|
Workshop fitting and repair support
Representative workshop image: Nenad Stojkovic, CC BY 2.0, via Wikimedia Commons.
|
Parts are selected from shelf stock, checked against the order, protected with suitable packaging and prepared for tracked dispatch. The photographs in this section are representative service images rather than photographs of this exact premises.
