Toyota Yaris Mk2 XP90 / NLP90 1.4 D-4D 5 Speed Manual Gearbox
Pre-owned front-wheel-drive manual transaxle for the 1ND-TV diesel powertrain. Exact stamped-code, mounting-point and connection matching is essential before purchase.

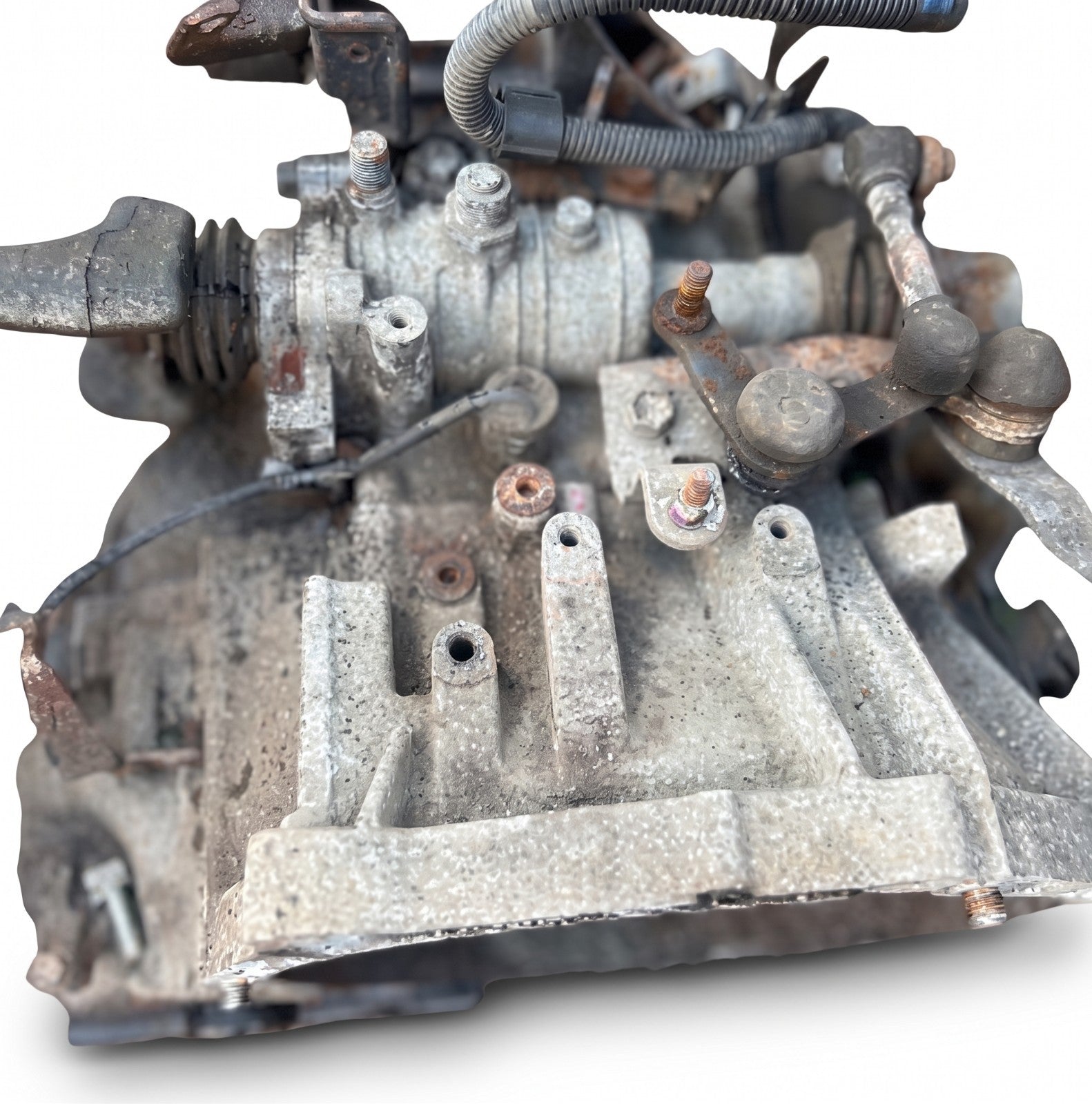

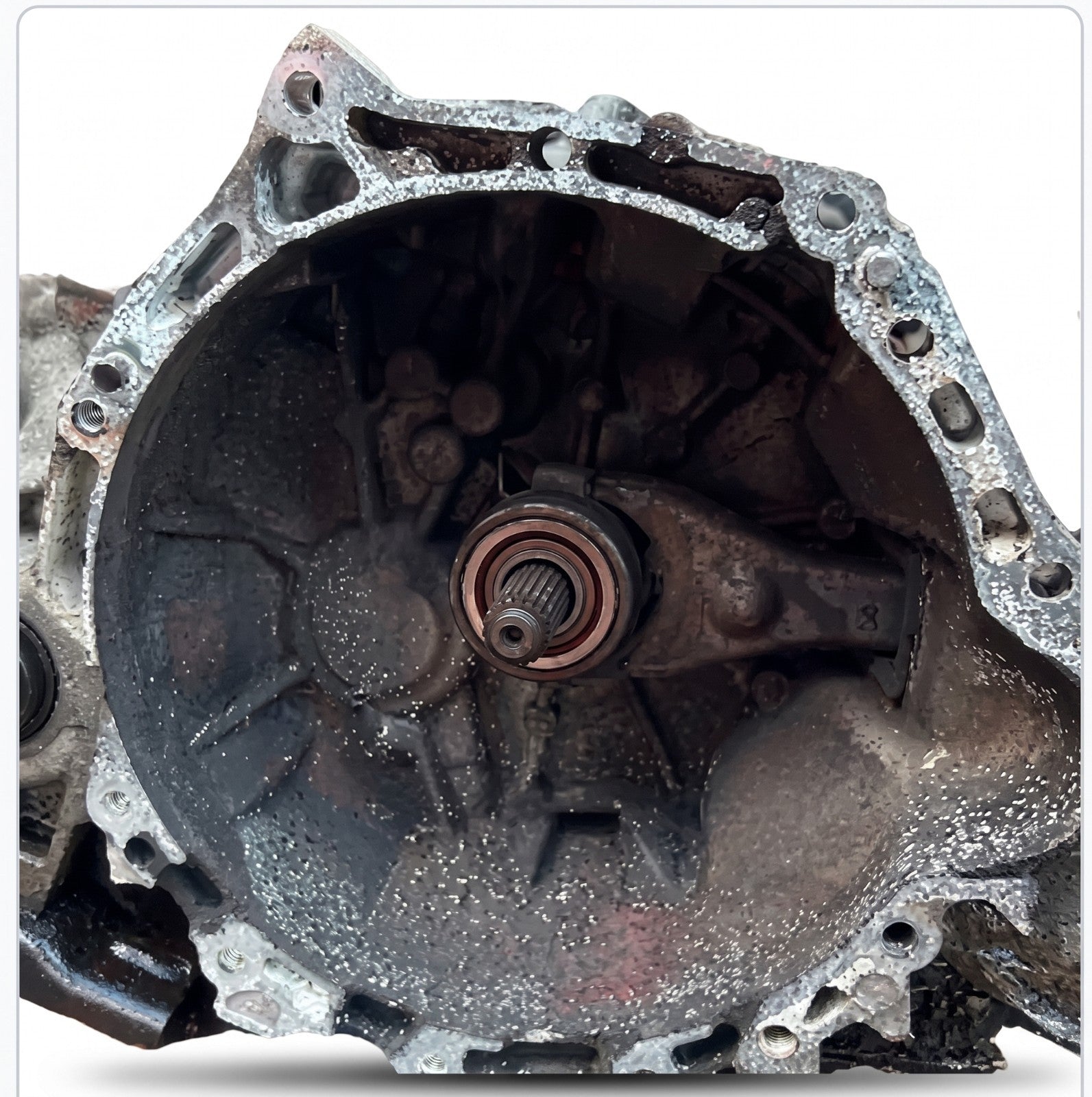

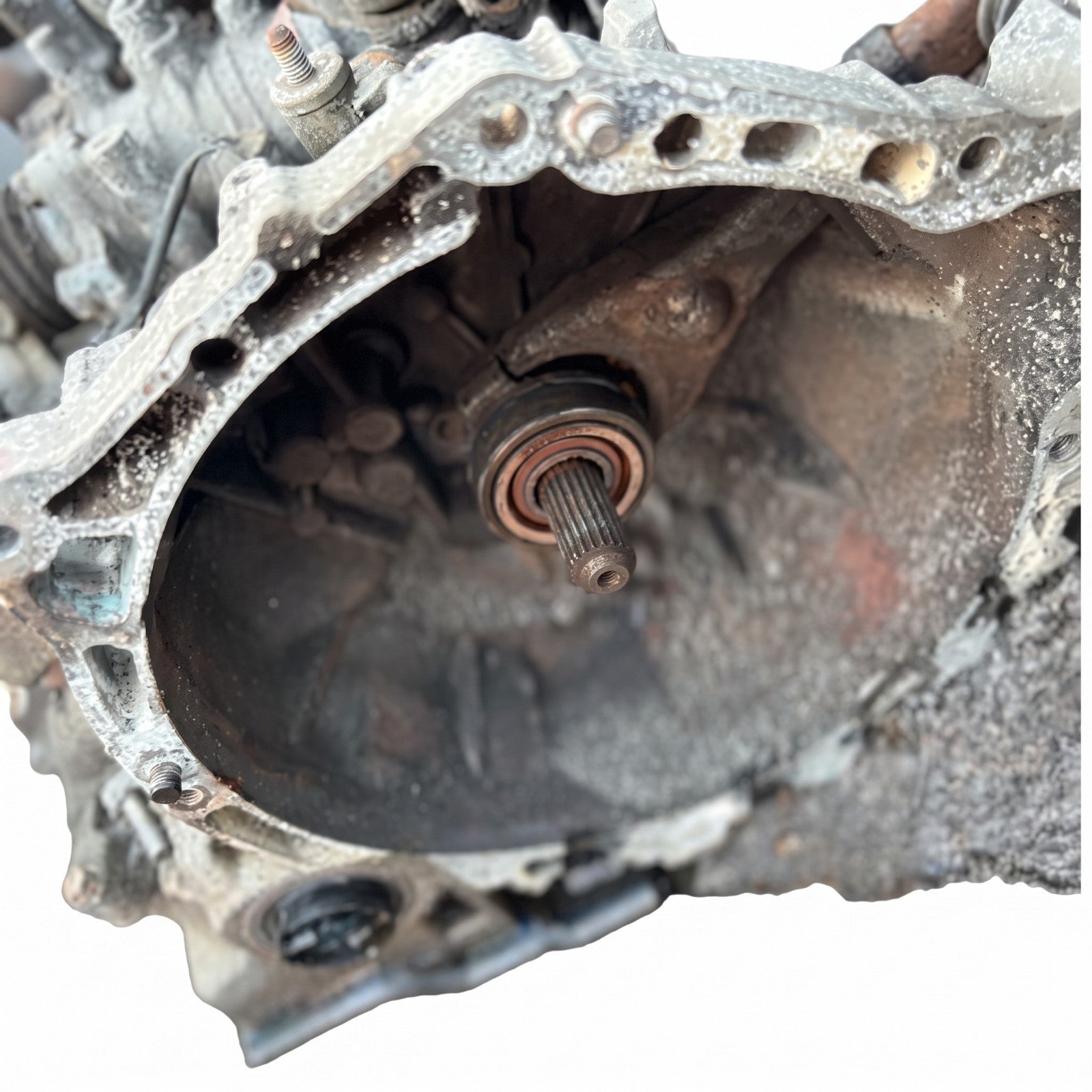

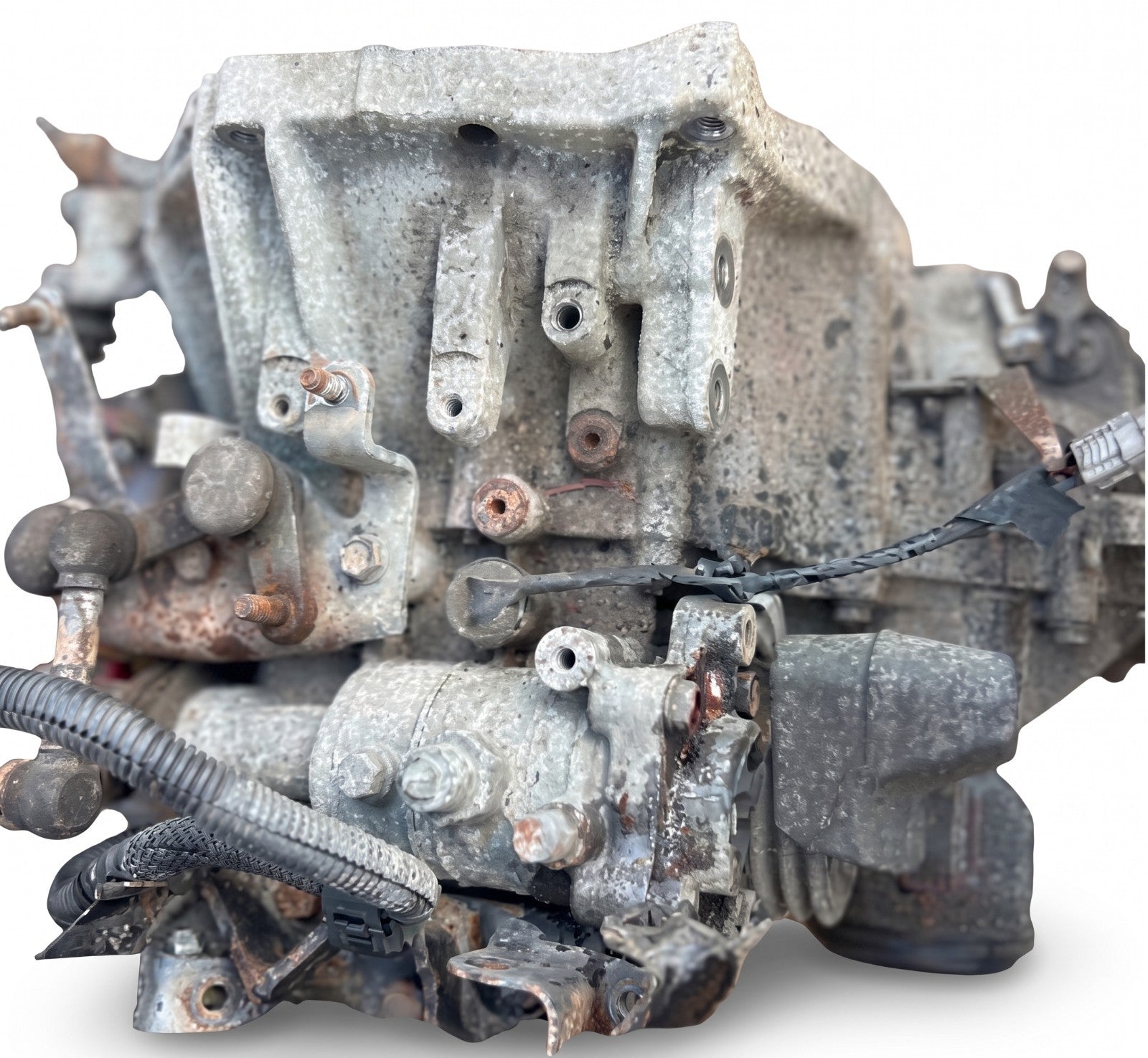

Actual Item Photographs
These are the source listing photographs for the gearbox being offered. Inspect every image carefully and compare the casing, bellhousing, selector arrangement, mounting points, driveshaft outputs and any stamped identification against the unit removed from your vehicle.

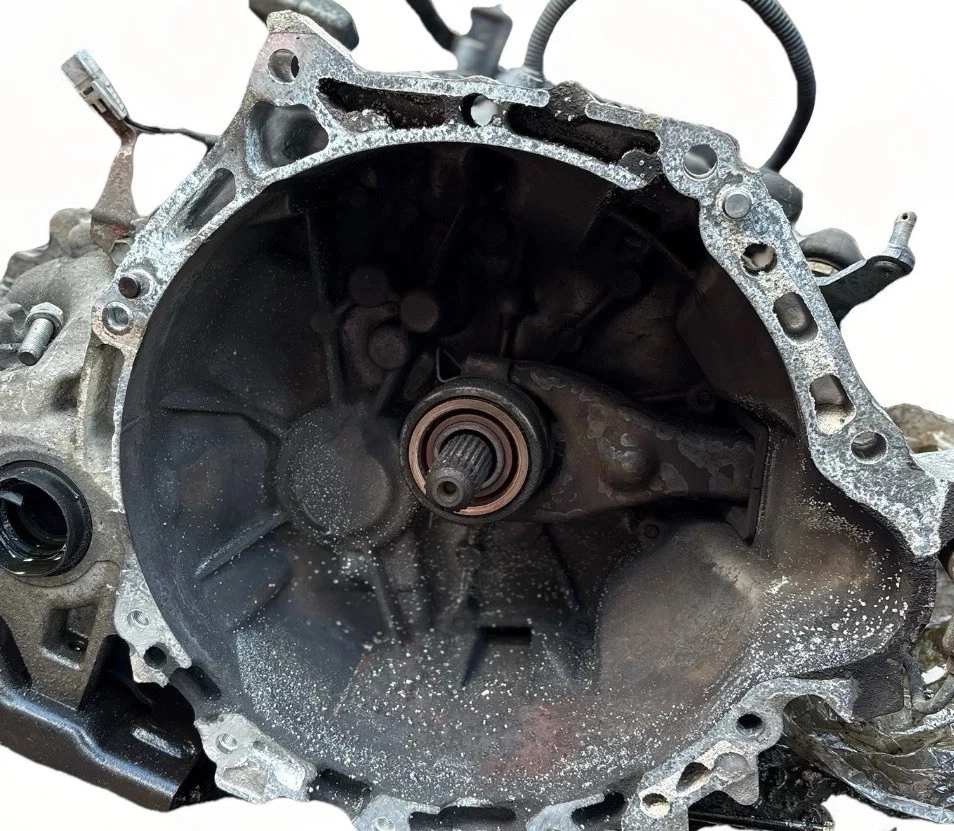

Actual item - view 1

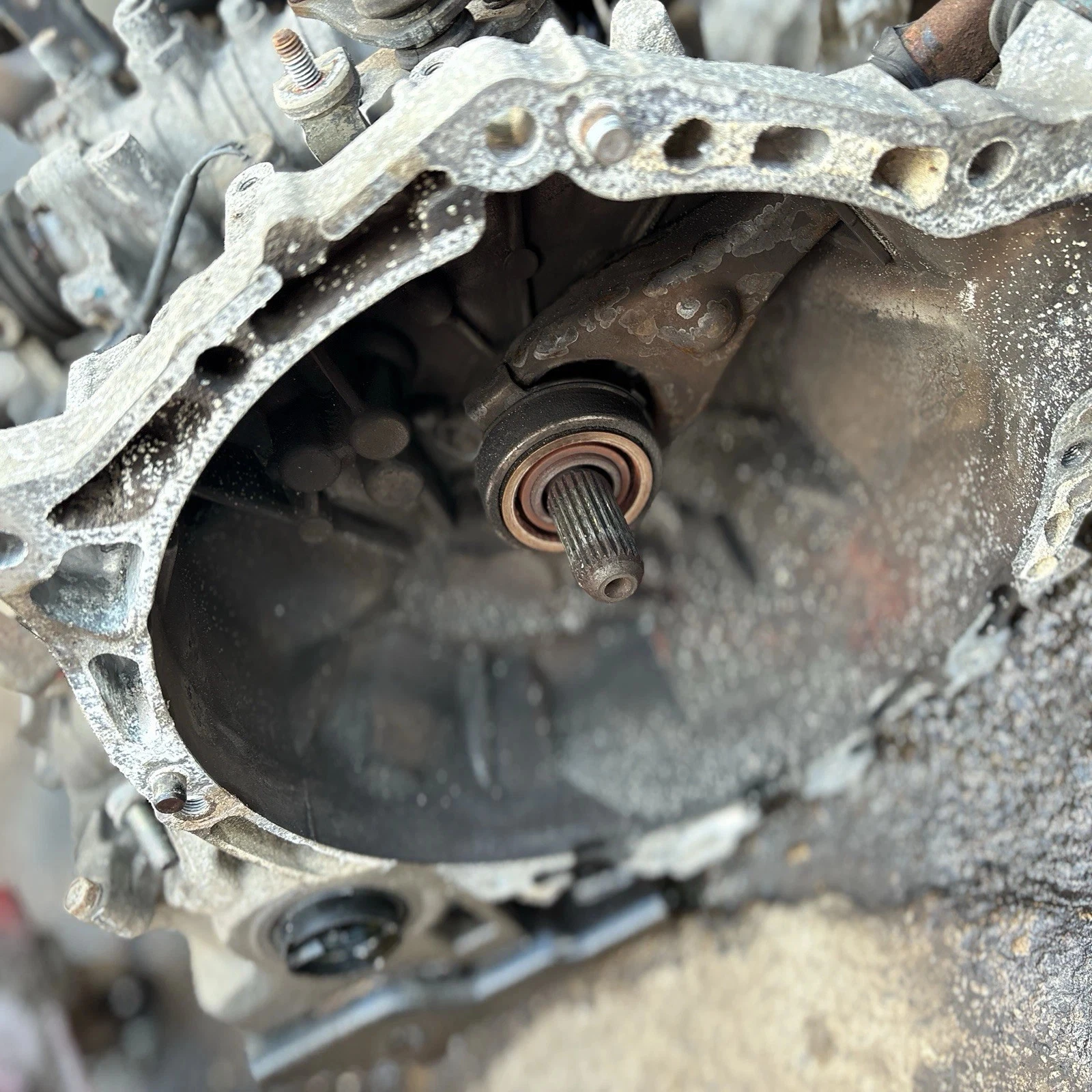

Actual item - view 2
Actual item - view 3
Actual item - view 4

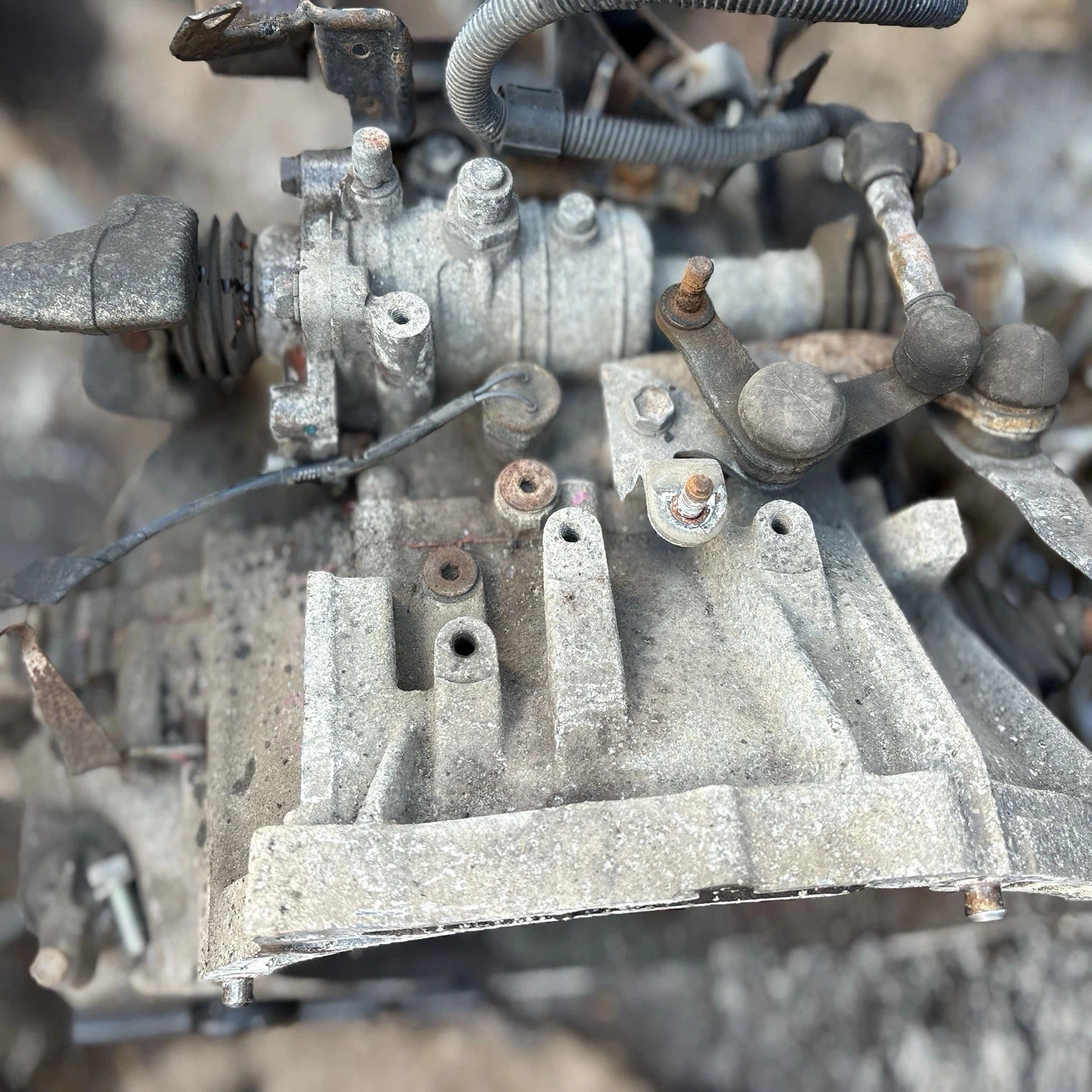

Actual item - view 5

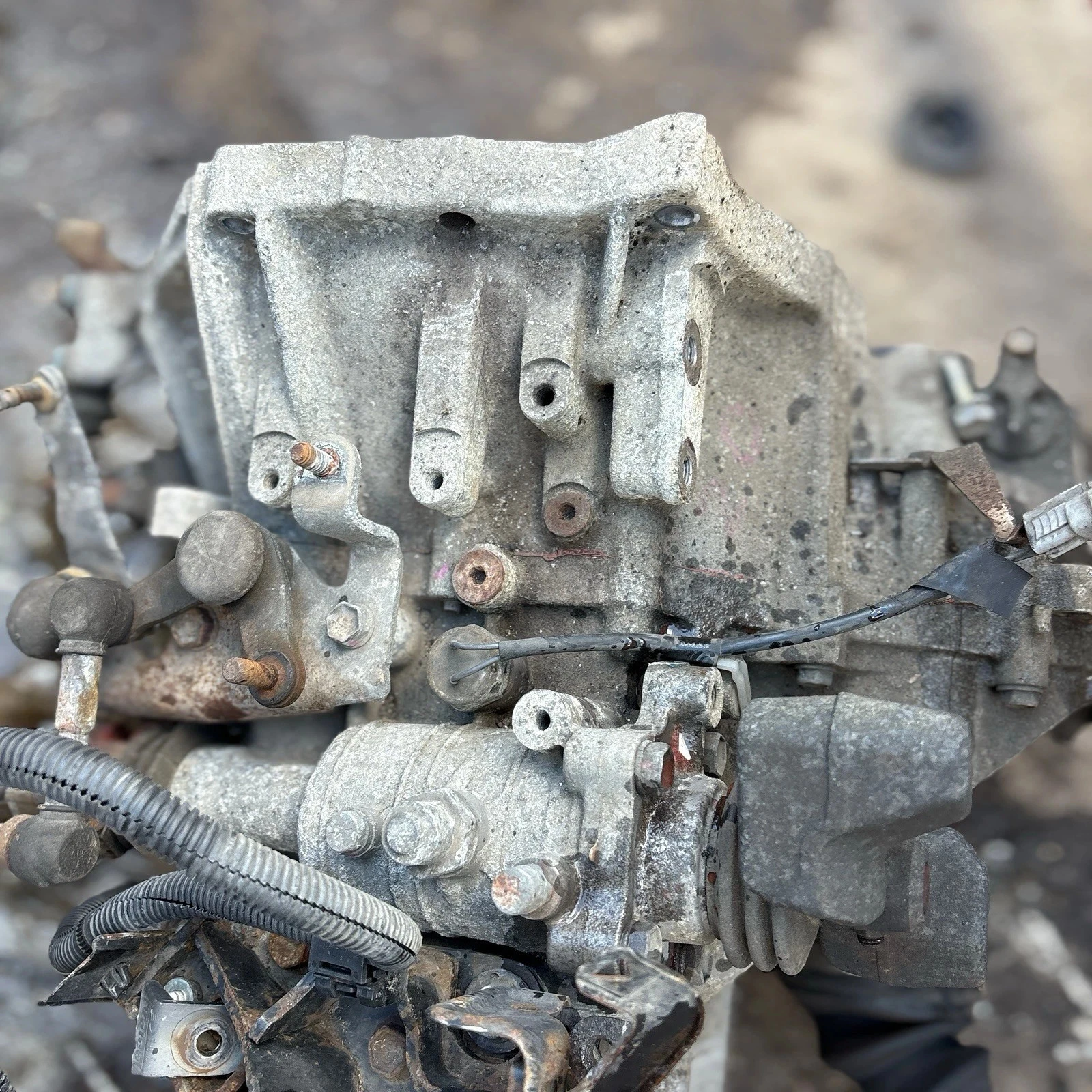

Actual item - view 6
Vehicle Compatibility
This compatibility guide is deliberately narrow. It uses the five-speed 1.4 D-4D specification from the source listing and excludes the later six-speed update. Registration date alone is not a sufficient fitment test.
| Years | Vehicle | Chassis / model code | Engine | Transmission | Body |
|---|---|---|---|---|---|
| 2006-2008 | Toyota Yaris Mk2 / second generation | XP90 family; NLP90 diesel model code - verify vehicle plate/VIN | 1.4 D-4D diesel, 1364 cc, 1ND-TV | 5-speed manual, front-wheel drive | 3-door or 5-door only when every drivetrain and gearbox identifier matches |
3-Door and 5-Door Body Identification
3-Door Hatch
Longer front-door profile. Door count does not prove gearbox fitment; confirm NLP90, 1ND-TV, five-speed manual specification and the gearbox code.
5-Door Hatch
Separate rear passenger doors. The same verification rules apply: engine, transmission type, model code, stamped unit code and connection layout must all match.
Technical Reference and Structural Location
Illustrated mounting reference only - not a workshop drawing and not to scale.
What This Part Is
- Part type: five-speed manual transaxle / gearbox assembly for a transverse front-engine, front-wheel-drive layout.
- Visible construction: cast aluminium-alloy outer casing designed to house the transmission shafts, gearsets, final drive and differential.
- Structural location: mounted in the front engine bay beside the 1ND-TV engine, with the bellhousing joining the engine and clutch assembly.
- Mechanical function: selects forward gear ratios and reverse, transfers engine torque, reduces speed/increases wheel torque and divides drive through the differential to the front driveshafts.
- Interfaces: clutch actuation, gear-selector mechanism, engine/gearbox mounts, driveshaft outputs, electrical connections and transmission oil system must all match the vehicle.
Item Details and Specifics
| Seller brand | THEPARTPILOT |
|---|---|
| eBay item number | 147504532241 |
| Vehicle make / model | Toyota Yaris Mk2 / second generation |
| Generation / chassis family | XP90 family; NLP90 diesel model code - confirm on VIN/model plate |
| Exact advertised engine | 1.4 D-4D diesel, engine code 1ND-TV, 1364 cc |
| Transmission | 5-speed manual gearbox / front-wheel-drive transaxle |
| Placement | Front engine bay, mounted transversely beside the engine |
| Body variants | 3-door and 5-door hatchback only where full drivetrain and gearbox identifiers match |
| Manufacturer Part Number | The source listing records "Does not apply"; no precise stamped gearbox code is confirmed |
| Interchange Part Number | No confirmed interchange number is provided in the source listing |
| Superseded Part Number | No confirmed superseded number is provided in the source listing |
| Condition | Pre-owned component with visible storage, handling and age-related cosmetic marks. Supplied as shown in the actual photographs. |
| Included items | The gearbox assembly and attached items visible in the photographs only. No unseen ancillary, fluid, clutch, flywheel, driveshaft, mounting or fastener is promised. |
| Warranty | 30 days, subject to the listing terms and without limiting statutory consumer rights |
Factory-Fitted Component Advantage
A correctly matched factory-fitted donor component is engineered around the vehicle's original casing geometry, mounting positions, drivetrain interfaces and packaging constraints. That makes precise code matching far more valuable than buying a similar-looking low-grade reproduction unit.
Correct Physical Integration
Designed around the original bellhousing pattern, mounts, selector layout and driveshaft relationship for the matching application.
Vehicle-Grade Construction
Factory production components are built for complete vehicle duty cycles, heat, vibration and long-term drivetrain loading.
High-Value Savings
On selected components, a premium pre-owned part may cost up to 70% less than an equivalent new dealer-supplied replacement. Actual savings vary by part, condition and market price.
Will Not Fit / Exclusion List
Do not order this gearbox for any of the following without written fitment confirmation through eBay Messages:
- Updated 2009-2011 Toyota Yaris 1.4 D-4D models specified with the later six-speed manual gearbox.
- Toyota Yaris Mk1 / first generation XP10 or Toyota Yaris Mk3 / third generation XP130.
- 1.0, 1.3, 1.33 or 1.8 petrol engines, even where the outer casing looks similar.
- MultiMode, automated manual, conventional automatic or six-speed manual transmission vehicles.
- Other Toyota models using a 1ND-TV engine unless the complete gearbox code, ratio set, mounts, selector, outputs and connections are confirmed identical.
- A unit with a different stamped code, bellhousing casting, starter position, mounting boss, selector mechanism, driveshaft output or electrical connection.
- A purchase based only on registration year, body colour, engine size, listing dropdown or visual similarity.
Buyer Matching Checklist
Match Before Paying
- Confirm Toyota Yaris Mk2 / XP90 family and NLP90 diesel model code.
- Confirm 1ND-TV 1.4 D-4D diesel engine.
- Confirm five-speed manual, not six-speed or MultiMode.
- Compare the exact stamped gearbox code on both units.
- Compare all casing shapes, mounts, selector mechanism and connector positions.
Send Through eBay Messages
- Your registration and full VIN.
- A clear photograph of the existing gearbox identification code.
- Photographs of the bellhousing, mounts and selector area.
- Confirmation of 3-door or 5-door body and registration date.
- Any part number or transmission code supplied by your technician.
Professional Fitting Service
Professional fitting is available directly at our repair facility, subject to workshop capacity, vehicle inspection, parts availability and advance booking through eBay Messages.
Gearbox replacement is a major drivetrain repair. Installation should be completed by a suitably qualified technician using manufacturer workshop information, correct torque settings, safe lifting equipment and the specified transmission fluid.
Required Tools and Workshop Equipment
Safe Support and Removal
- Two-post vehicle lift or approved axle stands on a level surface.
- Engine support beam and transmission jack.
- Socket, spanner, extension, breaker bar and pry-bar set.
- Hub, driveshaft and ball-joint separation tools appropriate to the vehicle.
- Drain tray, plugs/caps and suitable cleaning materials.
Assembly and Commissioning
- Calibrated torque wrench and manufacturer torque data.
- Clutch alignment equipment if clutch components are disturbed.
- Correct new gearbox oil and any required seals, clips, nuts or one-time fasteners.
- Clutch bleeding equipment where hydraulic lines are disconnected.
- Diagnostic scan equipment and road-test facilities for final checks.
Step-by-Step Fitting Overview
- Verify first: match the donor gearbox code, casing, bellhousing, mounts, selector, outputs and connections against the removed unit before dismantling the vehicle.
- Prepare safely: record radio/security settings where relevant, isolate the battery, raise and support the vehicle correctly, then remove undertrays and access components as required.
- Drain and disconnect: drain transmission oil, disconnect the gear-selector mechanism, wiring, earth straps and clutch actuation using clean plugs/caps where necessary.
- Release the driveline: remove the front driveshafts and any hub, suspension or subframe components required by the approved workshop procedure.
- Support assemblies: support the engine and gearbox independently before removing transmission mounts, brackets or crossmembers.
- Remove the gearbox: remove bellhousing fasteners, separate the gearbox squarely from the engine and clutch, then lower it on a transmission jack without loading the input shaft.
- Inspect related parts: inspect clutch, flywheel, release mechanism, crank/gearbox seals, mounts, driveshaft seals and starter engagement. Replace worn service items before reassembly.
- Install and torque: transfer only confirmed compatible ancillaries, align and install the replacement unit, then torque all fasteners in the correct sequence to manufacturer specifications.
- Refill and bleed: refit shafts, suspension, selector, electrics and mounts; fill with the specified oil and bleed the clutch circuit where disturbed.
- Quality control: check fluid level, leaks, mount security, clutch operation and all gears, clear relevant fault codes, road test and recheck for leaks/noise after the test.
This is a general professional overview, not a substitute for Toyota workshop instructions, vehicle-specific safety information or technician judgement.
Static Labour Cost Guide
The matrix below uses the 7.0-hour planning estimate. It shows labour only and excludes parts, fluids, recovery, diagnostics, clutch/flywheel work, seized-fastener time and any tax charged by the chosen garage.
| Estimated time | £40/hr | £60/hr | £80/hr | £100/hr |
|---|---|---|---|---|
| 7.0 hours | £280 | £420 | £560 | £700 |
Delivery and Secure Dispatch
Calculated Shipping
Buyers pay the calculated shipping fee shown at checkout. Heavy drivetrain components may require specialist courier or pallet handling, and the available service depends on destination, packed dimensions and weight.
UK and International Coverage
Secure UK delivery is available. International delivery may be offered through eBay's Global Shipping Programme where the item, packed weight, dimensions, category and destination are eligible. Supported destinations can include Europe, the USA, Canada, Australia and other markets shown by eBay at checkout.
Protective Packing
The unit will be drained as required for carriage, protected at vulnerable points, contained to reduce fluid residue risk and securely boxed or palletised for the selected carrier service.
Warranty and Returns
30-Day Warranty
The source listing specifies a 30-day warranty. The gearbox must be installed with the correct fluid and in accordance with professional workshop practice. Warranty terms do not limit statutory rights for goods that are faulty or not as described.
30-Day Returns
Returns are handled through the eBay order in line with the listing, eBay rules and applicable consumer law. Keep all packaging and return the same identifiable unit complete with every supplied component.
VAT Information
Global Accounting VAT Margin Scheme: where applicable to this pre-owned item, VAT is not separately itemised and no reclaimable VAT invoice is available. The transaction documentation should be read together with the order and Business Seller Information displayed by eBay.
How to Find Us / Customer Support
For fitment checks, fitting-service availability, delivery questions or post-purchase support, please use the Contact seller option and eBay Messages. This keeps your enquiry recorded within eBay and protected under the platform's communication rules.
Our complete registered business contact details are displayed by eBay in the Business Seller Information section below the listing.
