For verified UK/European right-hand-drive KSP130R 1.0 petrol, 5-speed manual applications. Actual item photos, exact production-date table, non-fit list and workshop guidance are provided below to help you order the correct part first time.
Primary Toyota catalogue reference associated with the mount/insulator in this assembly: 12372-0Q020 / 123720Q020.
A related Toyota catalogue reference for the KSP130 1KR-FE left mounting bracket is 12325-0Q030. No stamped engineering number is clearly readable in the listing photographs, so the sale should be matched using the actual item geometry, KSP130 vehicle code, 1KR-FE engine, 5-speed manual transmission and the photographs below.

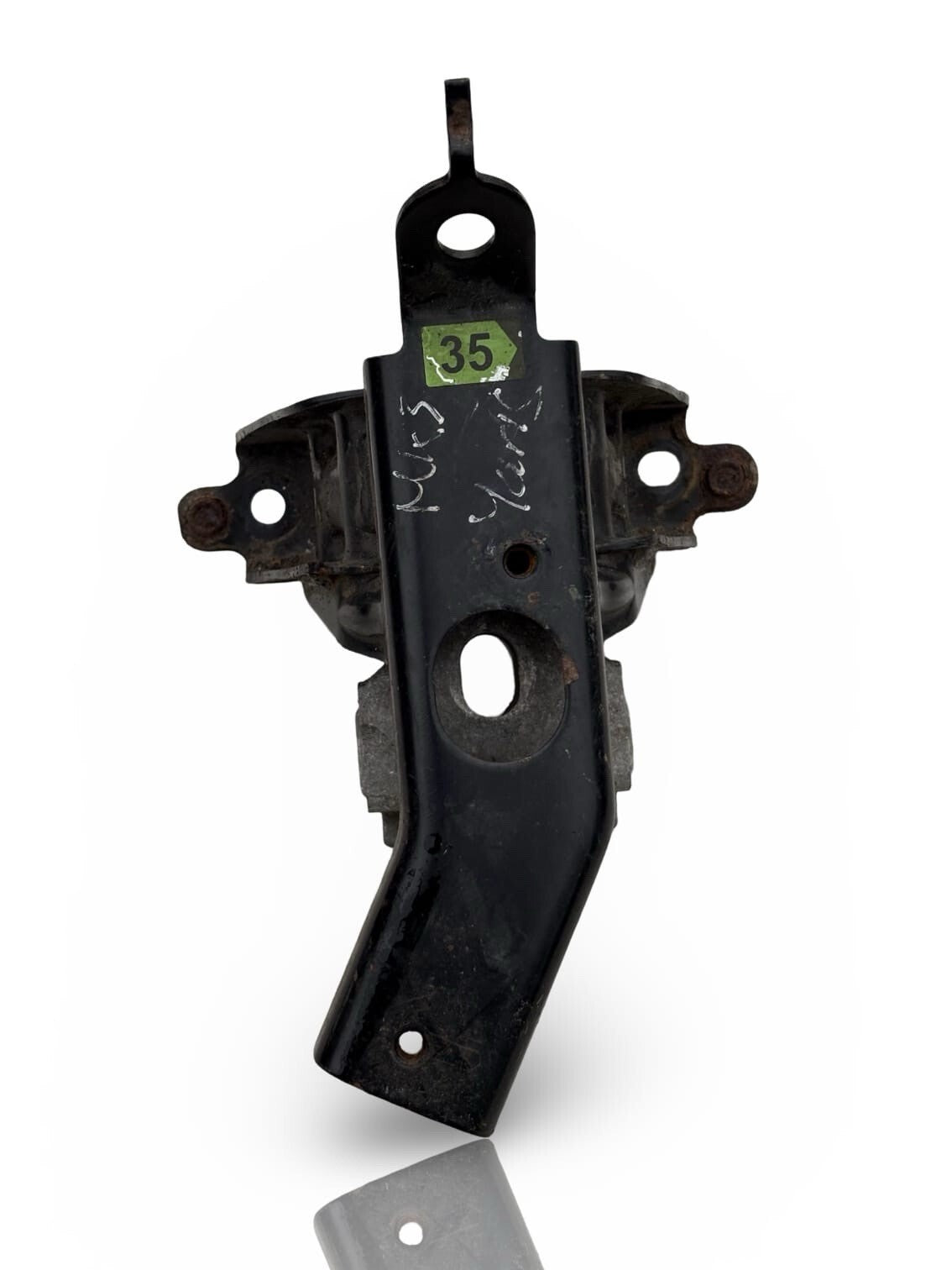

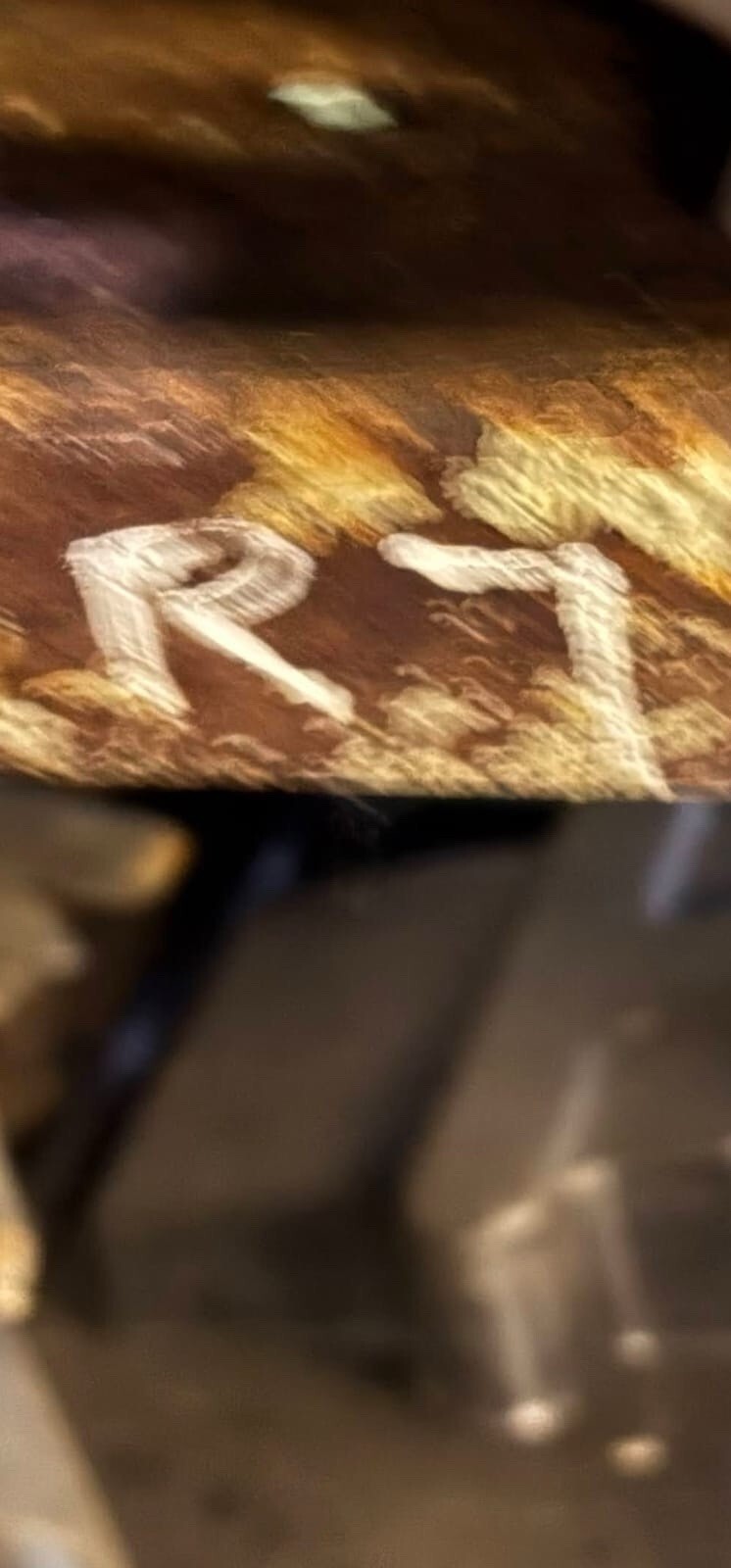

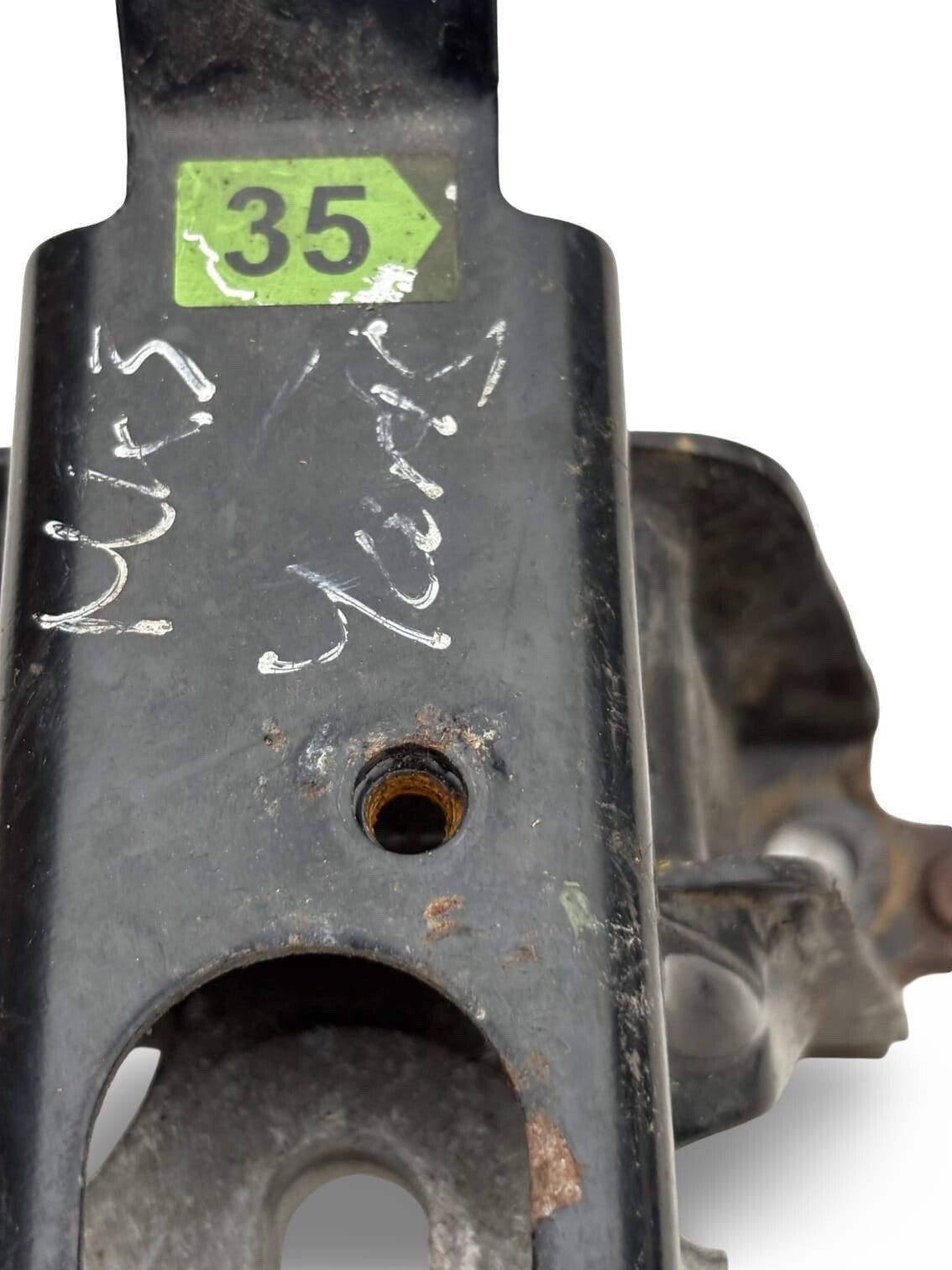

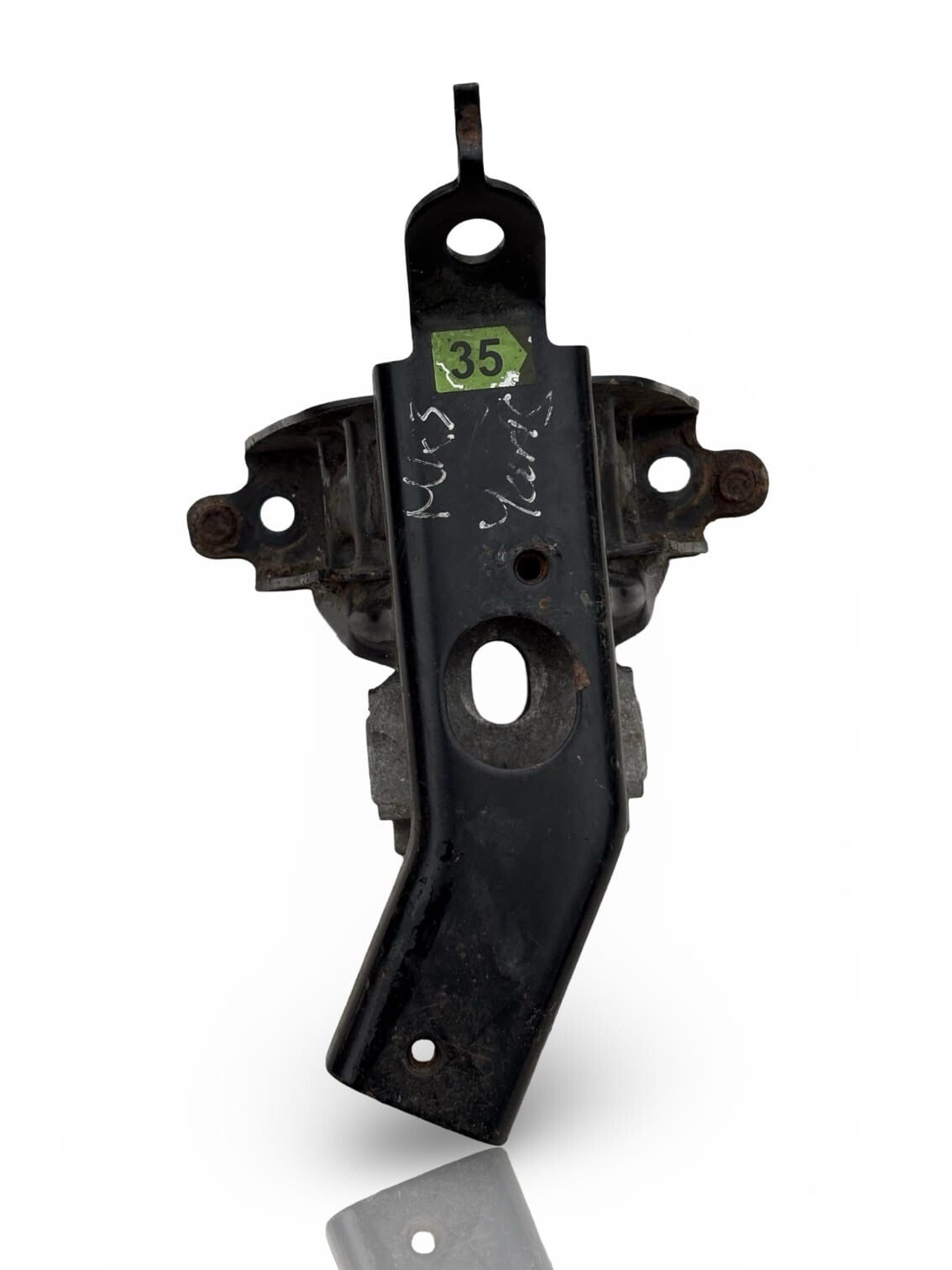

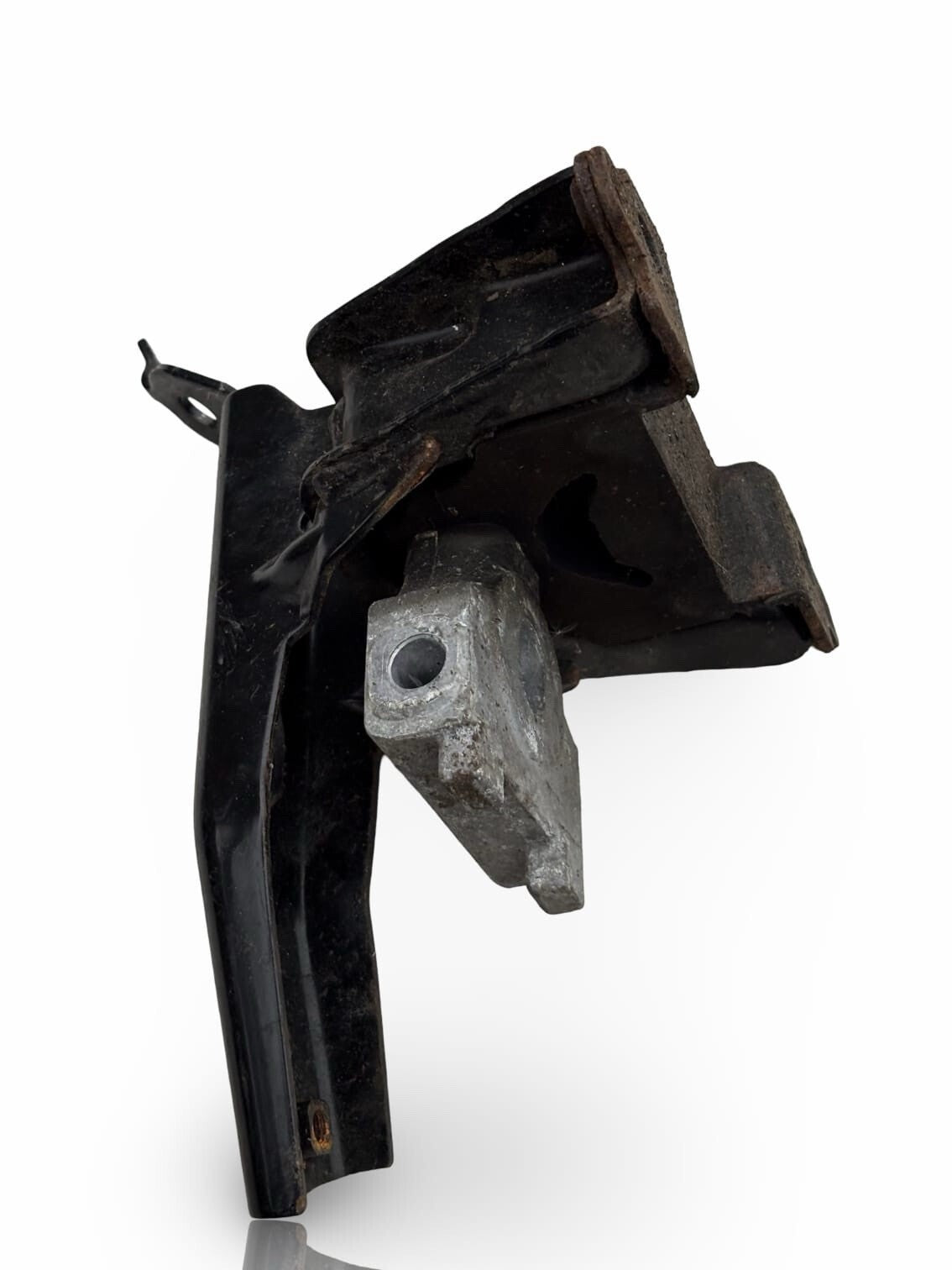

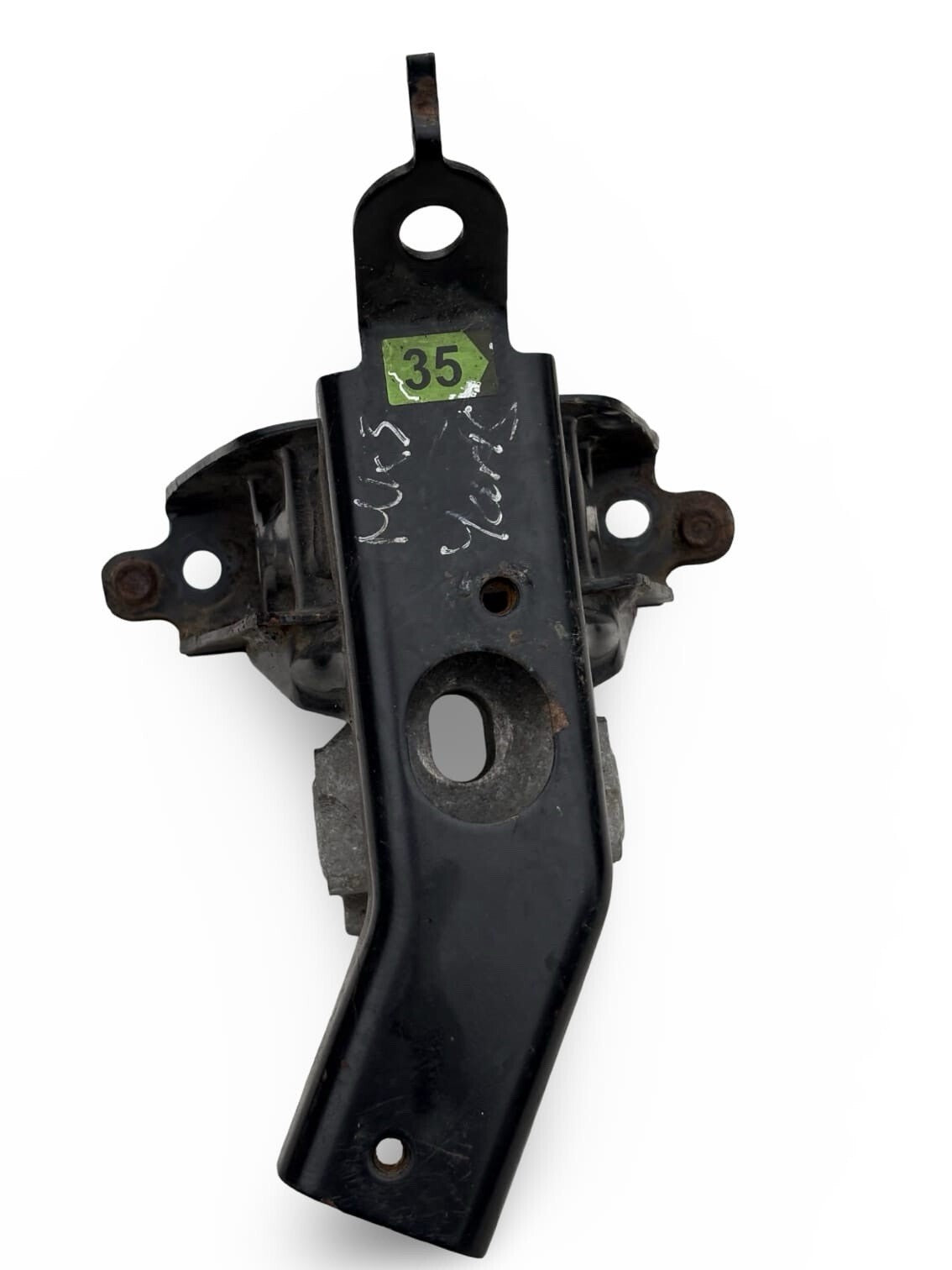

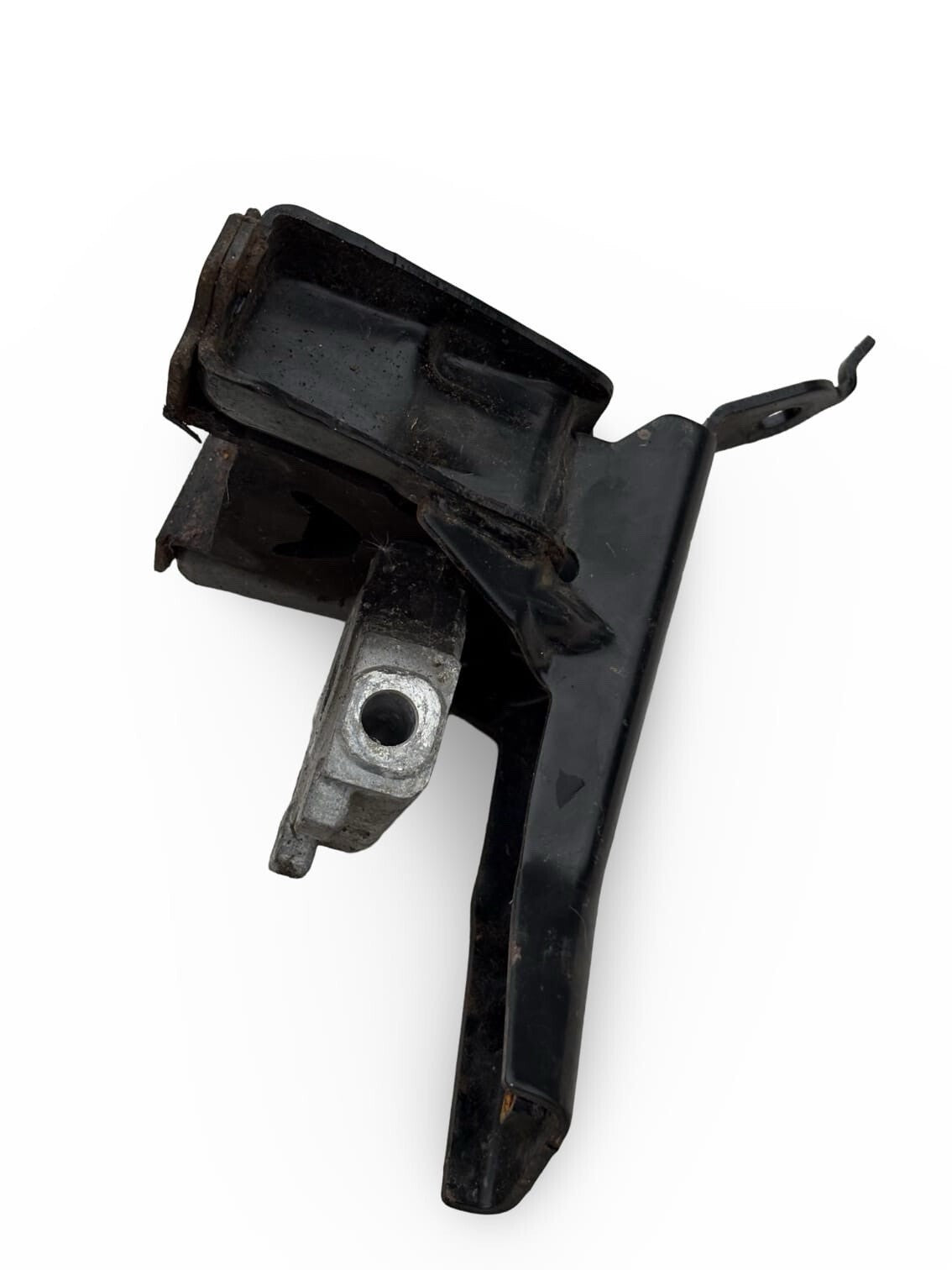

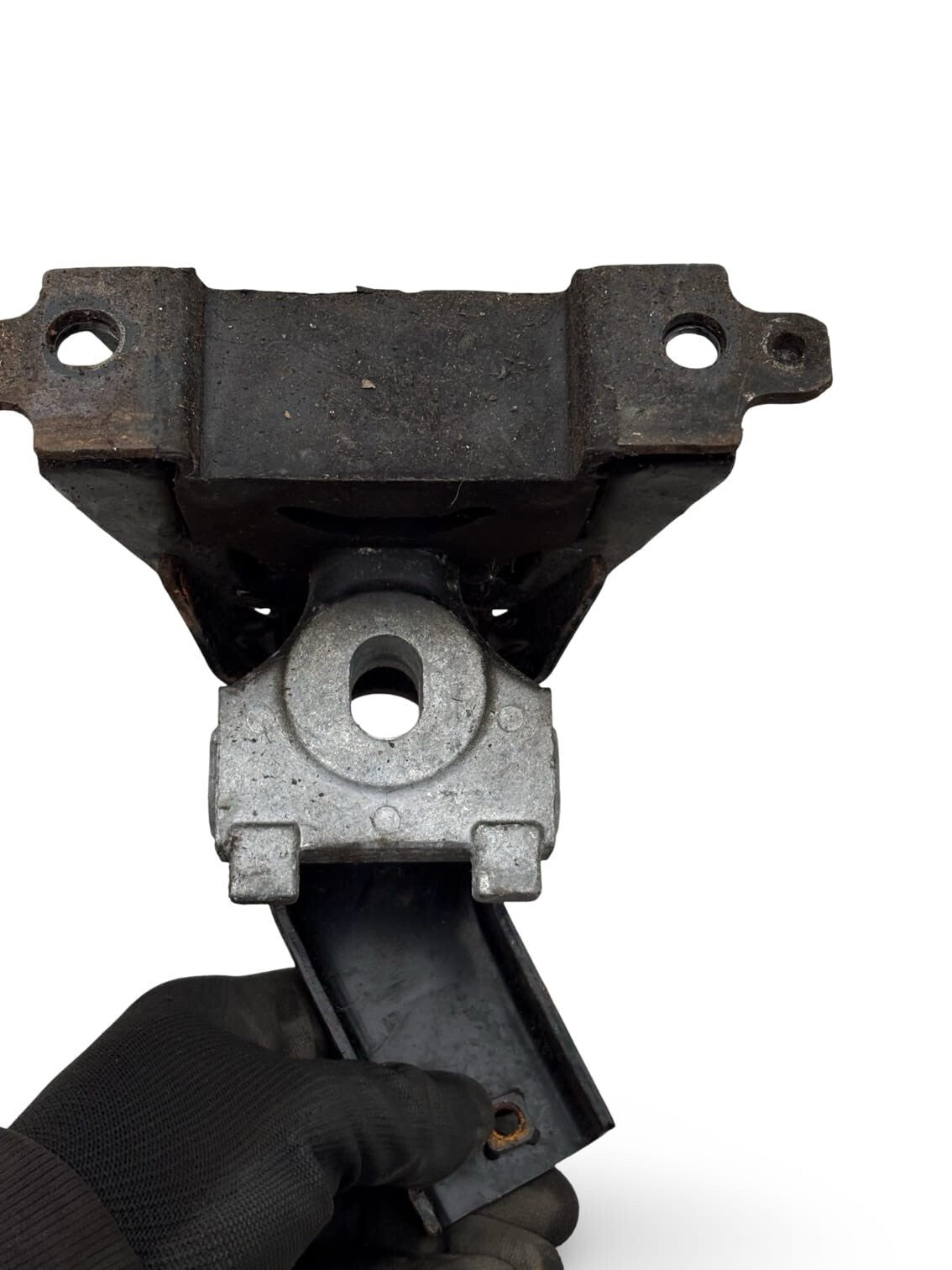

These are the actual listing images. Compare mounting holes, bracket curve, alloy insert and rubber mount before purchase.
| Status | Vehicle | Engine / Transmission | Body | Verified production period |
|---|---|---|---|---|
| FITS | Toyota Yaris Mk3 / XP130 / P13 KSP130R RHD |
1.0 VVT-i petrol 1KR-FE 5-speed manual, FWD |
5-door hatchback | 07/2011 - 06/2020 |
| FITS | Toyota Yaris Mk3 / XP130 / P13 KSP130R RHD |
1.0 VVT-i petrol 1KR-FE 5-speed manual, FWD |
3-door hatchback | 07/2011 - 12/2019 |
| DOES NOT FIT | Yaris Mk3 NSP130 | 1.3 / 1.33 petrol, 1NR-family | 3-door / 5-door | Different powertrain mounting application |
| DOES NOT FIT | Yaris Mk3 NLP130 | 1.4 D-4D diesel, 1ND-TV | 3-door / 5-door | Different powertrain mounting application |
| DOES NOT FIT | Yaris Mk3 NHP130 | 1.5 Hybrid, 1NZ-FXE | 5-door | Different hybrid mounting application |
| NOT VERIFIED FOR THIS COMPLETE ASSEMBLY | Yaris Mk2 / XP90 / KSP90 | 1.0 1KR-FE | 3-door / 5-door | The 12372-0Q020 insulator number also appears on some Mk2 catalogues, but that does not prove this complete pictured carrier/bracket assembly interchanges. Do not order for Mk2 without a full geometry/VIN match. |
| DOES NOT FIT | Yaris Mk4 / XP210 | 2020-on generation | Hatchback | Different platform and mounting arrangement |
| CHECK BEFORE BUYING | LHD / non-UK-market KSP130 or automatic/CVT variants | Any | Any | This listing is verified around the RHD 5-speed-manual KSP130R application. Ask us through eBay Messages for a VIN/part-photo check before ordering other-market variants. |
This is a mechanical powertrain mounting assembly. It supports and locates the engine/gearbox assembly at the left/transmission side and uses a rubber isolator to reduce vibration transfer into the body. It does not electronically control the engine; its job is to restrain physical powertrain movement while isolating noise, vibration and harshness.
TRANSMISSION-SIDE MOUNT
THIS PART
Support powertrain safely before mount removal
OTHER MOUNTING POINTS
- More vibration than normal at idle, especially felt through the body or cabin.
- Clunk, knock or thump as drive is taken up, during gear changes or when coming on/off the throttle.
- Excessive visible engine/gearbox movement when load changes.
- Harshness, shunt or movement during acceleration and deceleration.
- Visible split, cracked, collapsed or separated rubber around the mounting element.
- Metal-to-metal contact or abnormal movement around the mount/bracket area.
Diagnosis note: these symptoms are not unique to this mount. Other engine mounts, exhaust contact, suspension parts, driveshafts, clutch/gearbox faults and engine-running issues can create similar symptoms. Diagnose before buying where possible.
For a vibration-isolating mount, shape, rubber characteristics and alignment matter. The key advantage here is buying the correct factory-fit specification for the verified application, matched by vehicle code, engine, transmission, production period and physical geometry rather than appearance alone.
- Metric socket and ratchet set with extensions
- Breaker bar
- Calibrated torque wrench covering the required fastener range
- Suitable engine support bar or correctly rated trolley jack/support method with protective block
- Wheel chocks and correctly rated axle stands if the vehicle must be raised
- Trim tools/screwdrivers for access components where required
- Penetrating fluid for corroded fasteners where appropriate
- Gloves, eye protection and normal workshop PPE
- Park on level ground, secure the vehicle and allow the engine to cool.
- Remove only the access items needed for the mount area. Depending on vehicle specification, this may involve intake/battery-area components.
- Support the engine/gearbox securely before any mount fastener is loosened.
- Photograph the original mount orientation and note washer/spacer locations.
- Remove mount-to-body and mount-to-powertrain fasteners in a controlled sequence while the assembly remains supported.
- Compare the replacement with the removed part hole-for-hole, including the large oval aperture, top eye, side ears, alloy mounting lug and rubber orientation.
- Install fasteners loosely first. Settle the powertrain naturally into position; do not use bolts to force a misaligned mount into place.
- Tighten fasteners in the correct sequence and to the Toyota repair-manual torque values for the exact vehicle. Torque figures are deliberately not guessed in this listing.
- Remove the support only after the mount is fully secured, then refit access components.
- Start the engine, check abnormal movement/contact, then perform a careful road test for vibration or clunking.
Estimated workshop time: approximately 1.0-1.5 hours for a straightforward mount replacement with normal access. This is a practical estimate, not a Toyota flat-rate time; corrosion, seized fasteners, previous repairs or access problems can extend the job.
This is a static calculator so the eBay description contains no JavaScript. Use: hourly labour rate x 1.0-1.5 estimated hours.
| Garage labour rate | Estimated labour at 1.0 hour | Estimated labour at 1.5 hours |
|---|---|---|
| £50/hour | £50 | £75 |
| £60/hour | £60 | £90 |
| £70/hour | £70 | £105 |
| £80/hour | £80 | £120 |
| £90/hour | £90 | £135 |
| £100/hour | £100 | £150 |
| £120/hour | £120 | £180 |
Illustration only. Garage rates vary by region and business. Parts, diagnostics, additional repairs, fluids, consumables and any applicable VAT on fitting services are not included.
- Model code: KSP130R
- Engine: 1KR-FE 1.0 petrol
- Transmission: 5-speed manual
- Steering: UK/European right-hand drive application covered by this listing
- Body: 3-door or 5-door within the exact production-date cut-offs above
- Part location: LH / transmission side
- Geometry: compare every hole, ear, rubber section and alloy lug with your removed part
- Reference: check 12372-0Q020 / 123720Q020 where applicable
- Still unsure? Send your VIN/registration and a clear photo of the existing part through eBay Messages before ordering.
