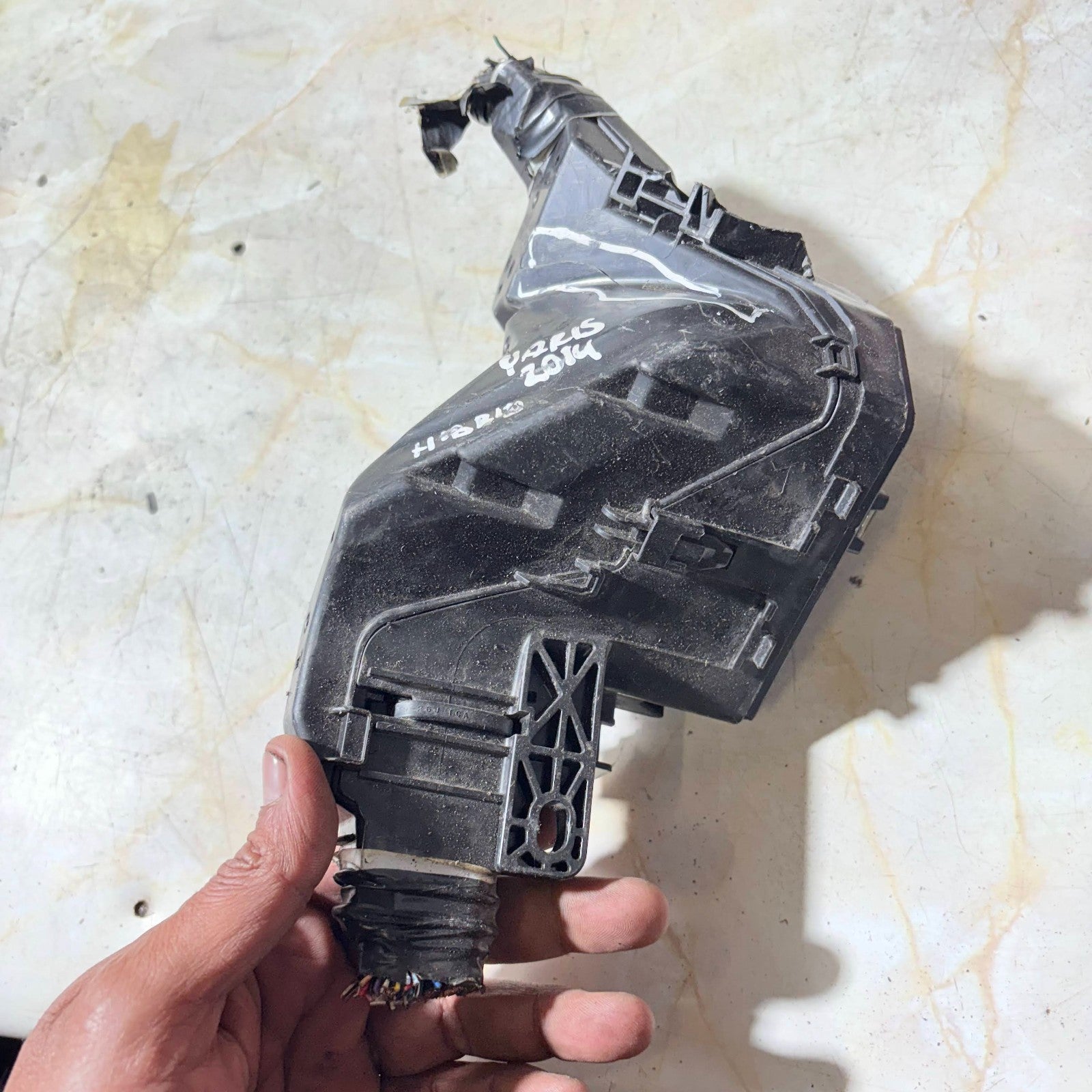

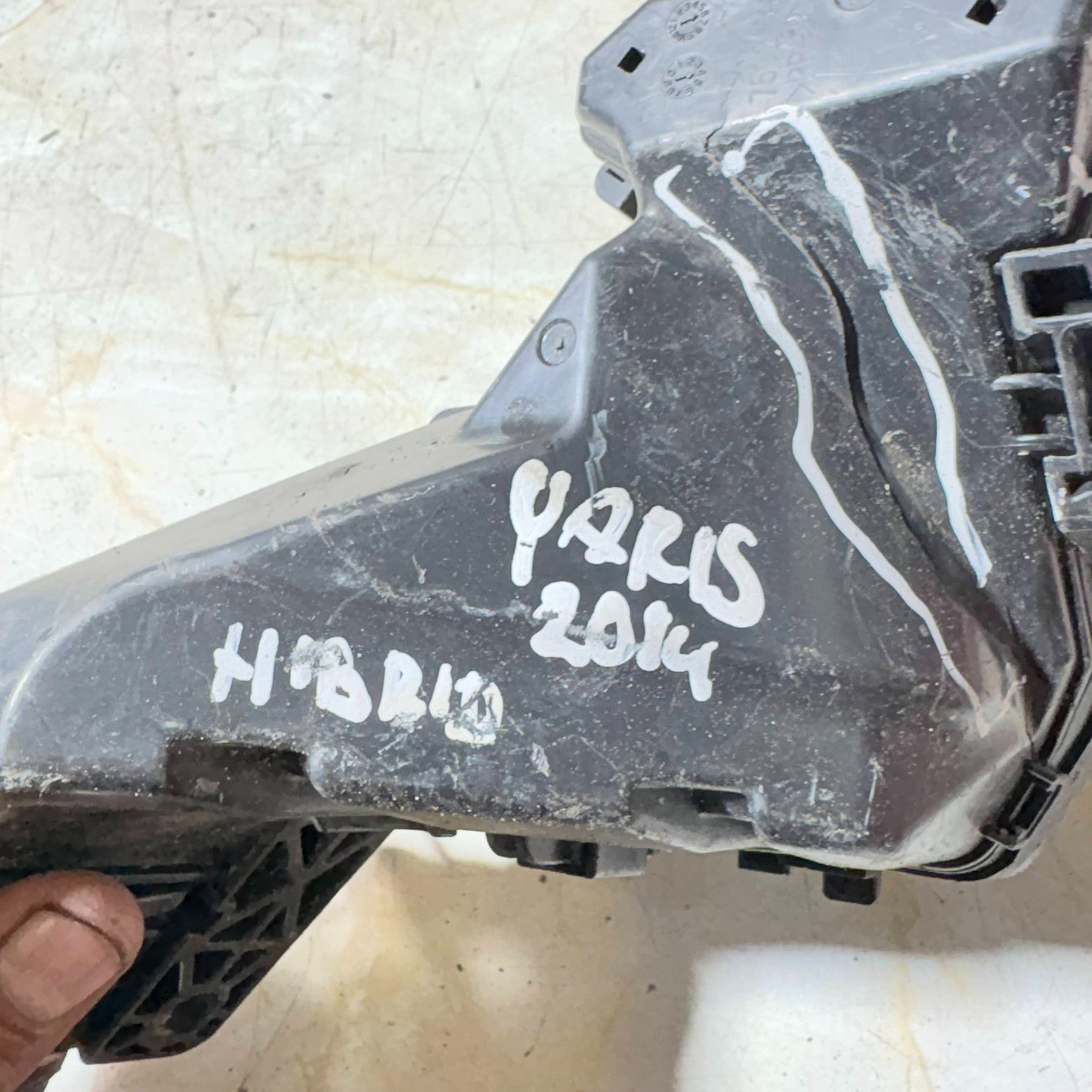

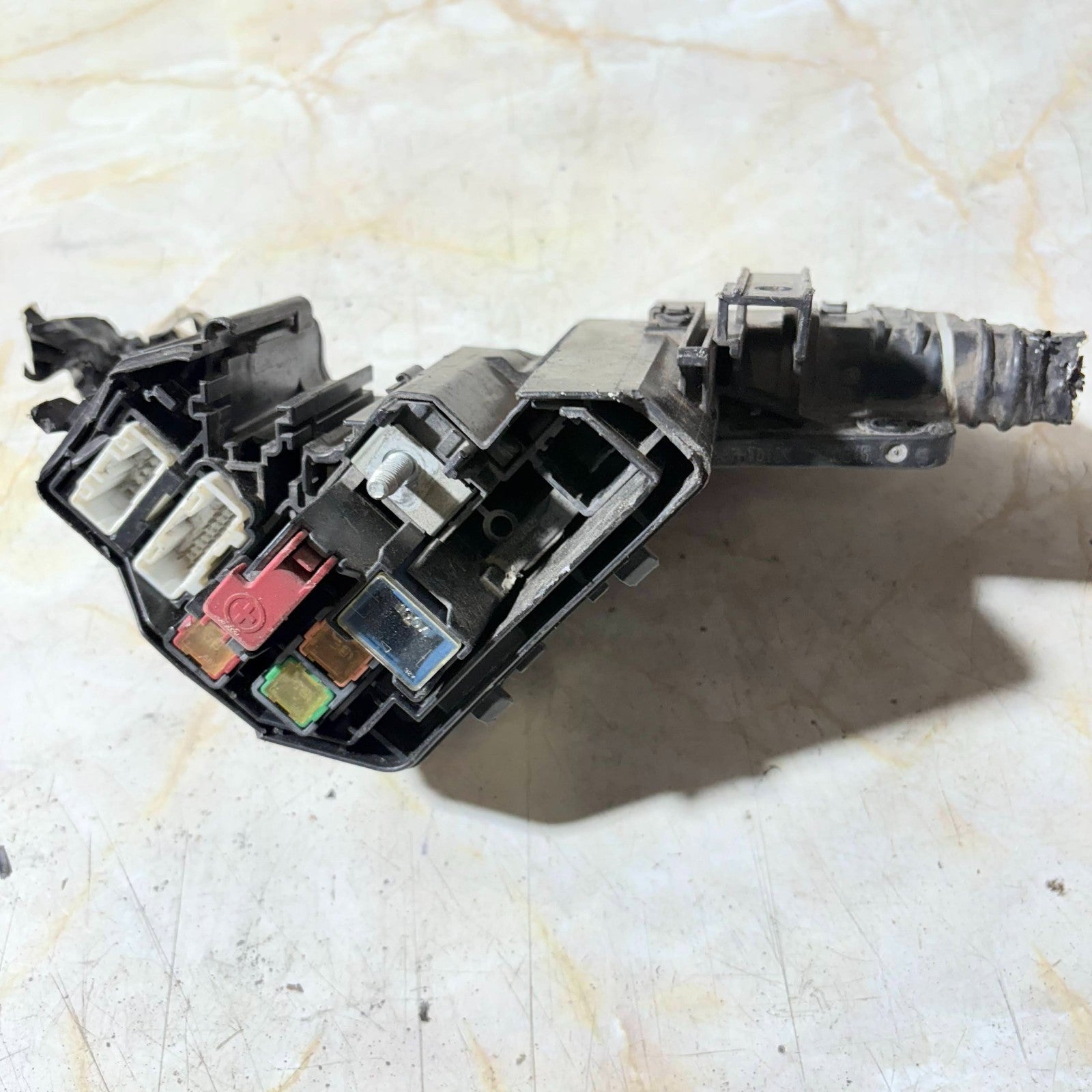

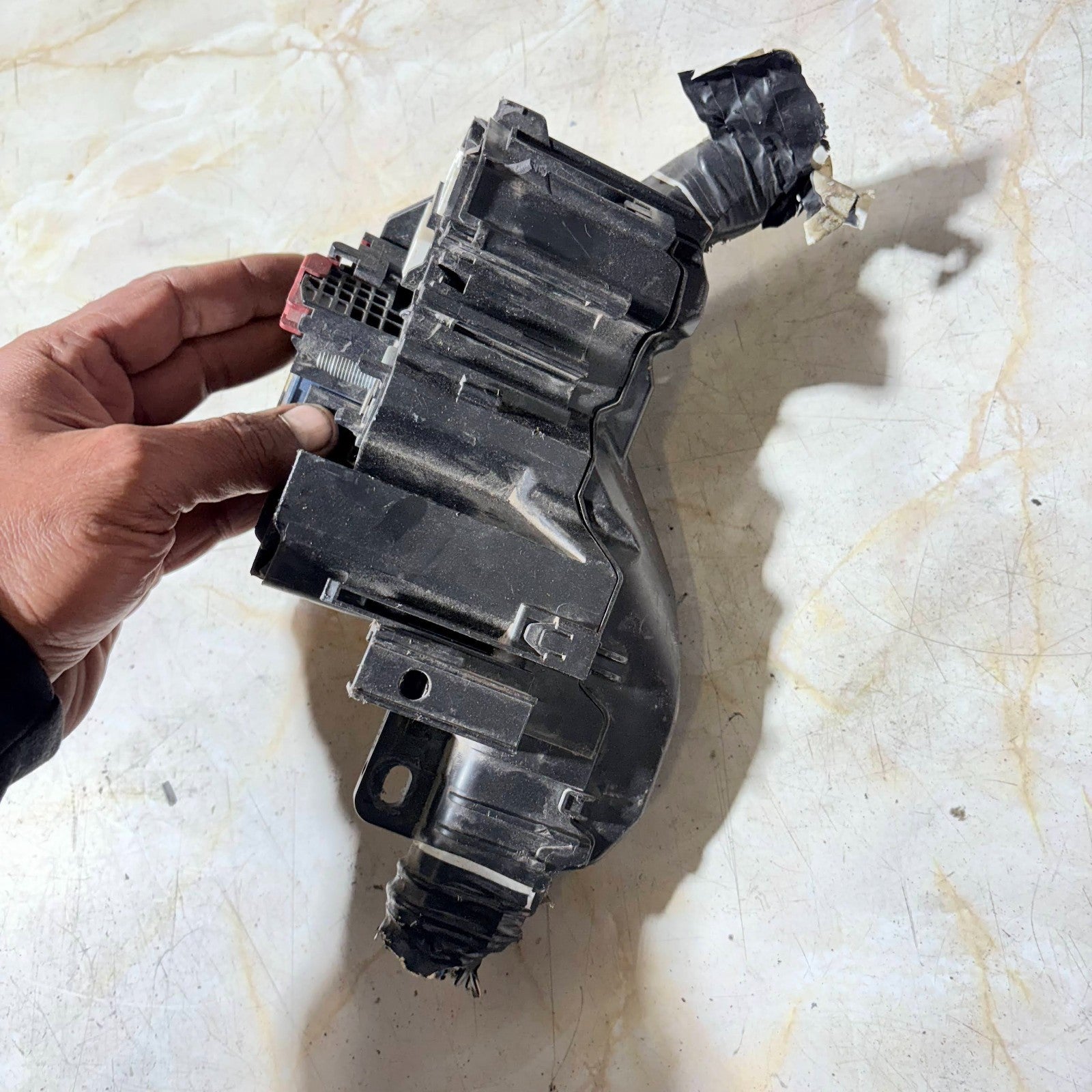

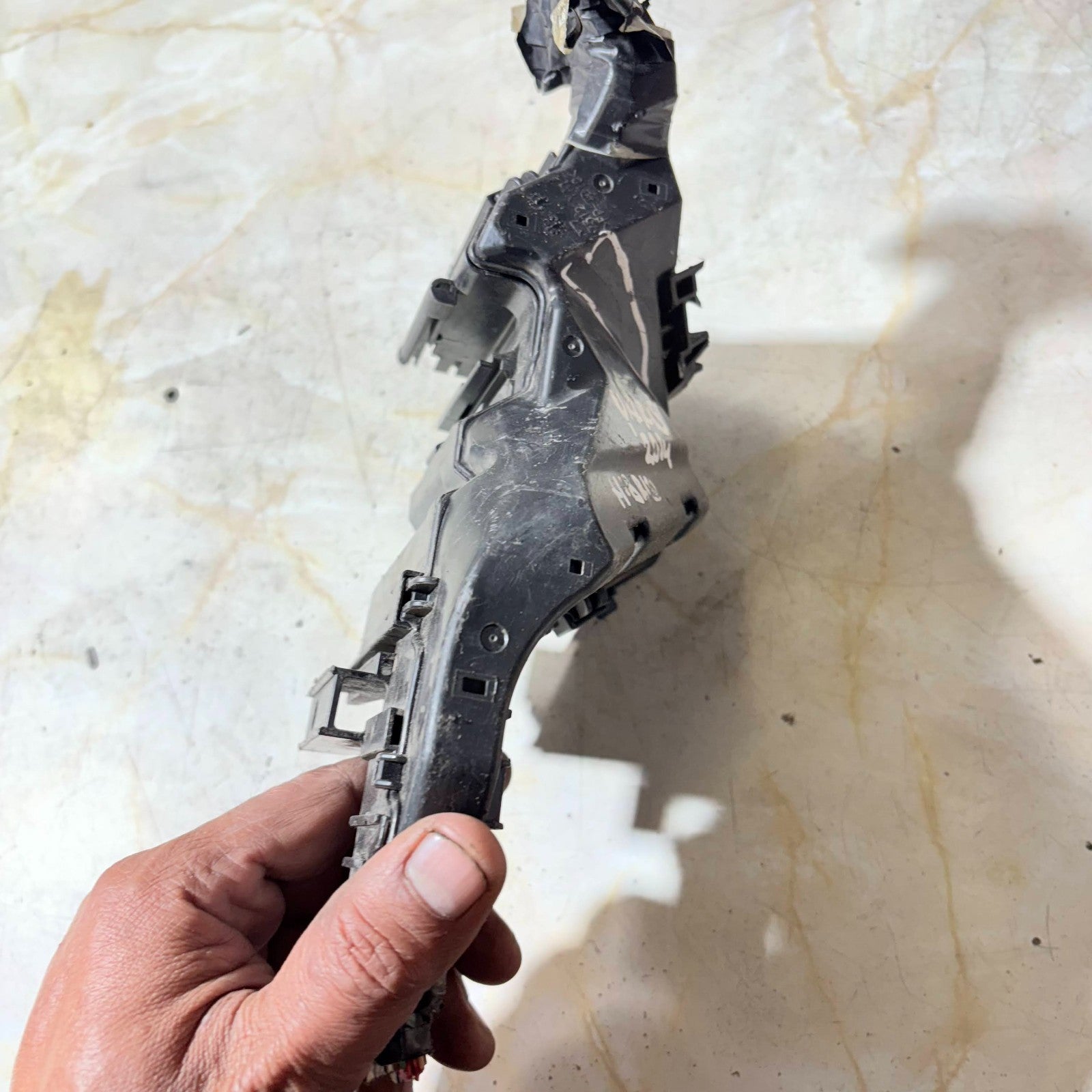

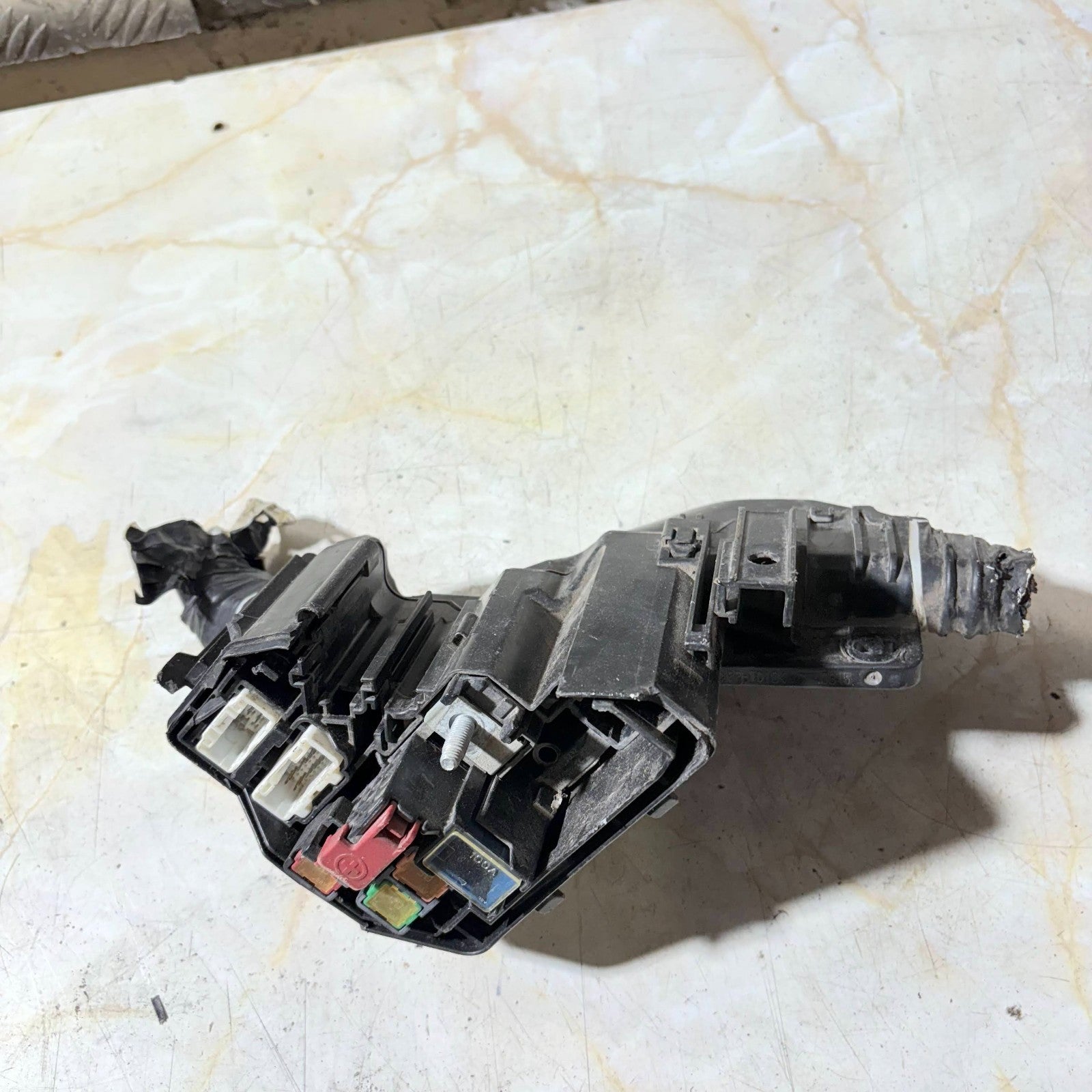

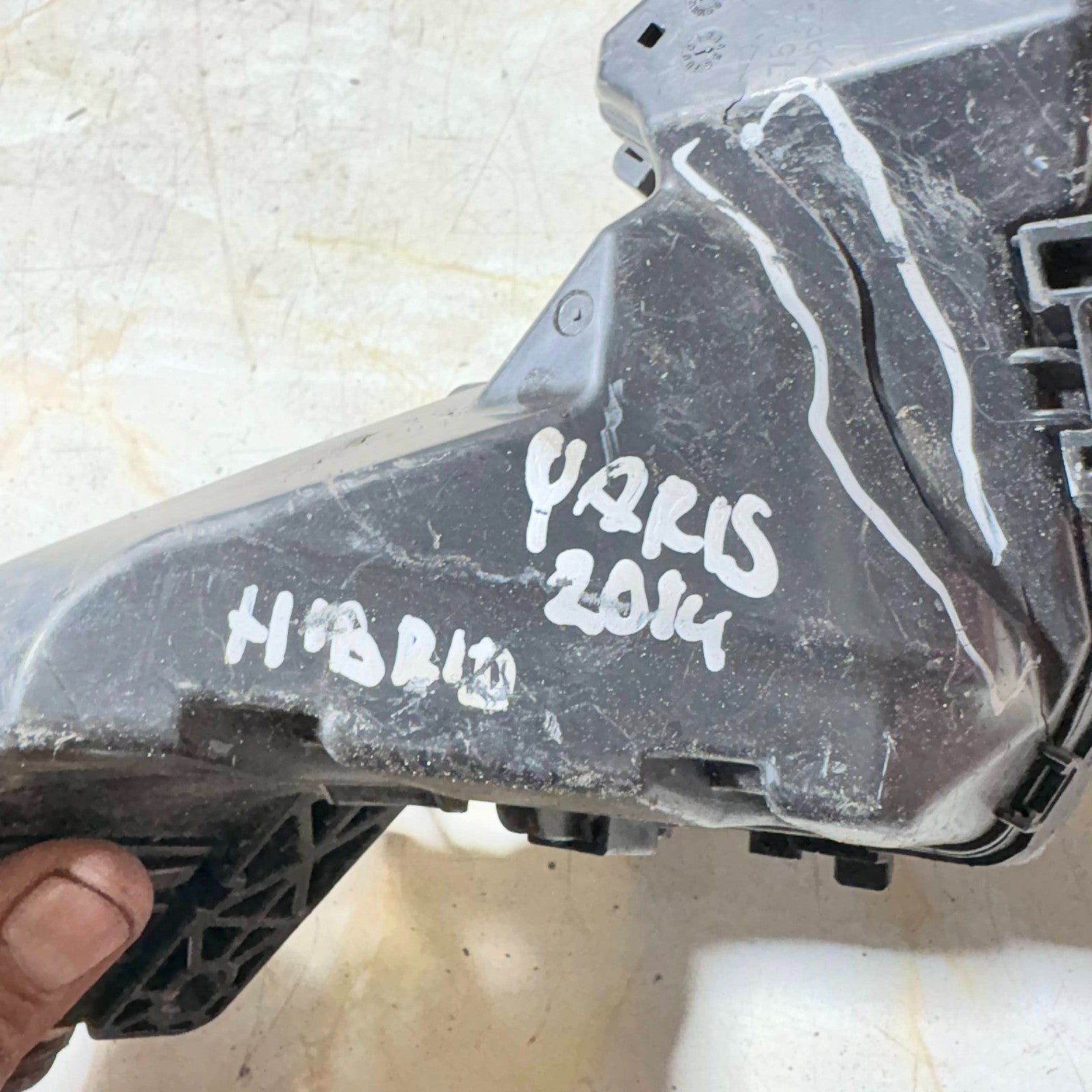

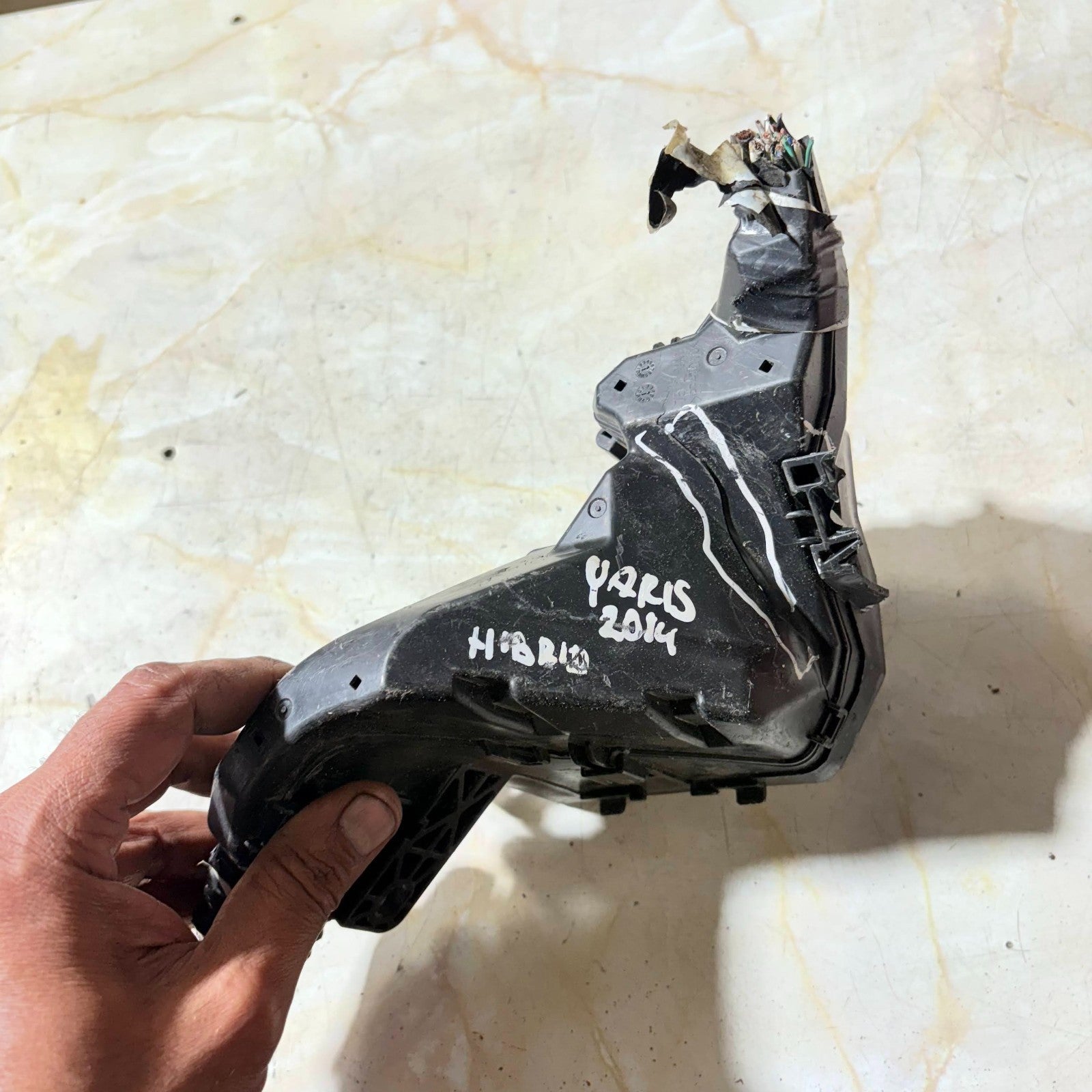

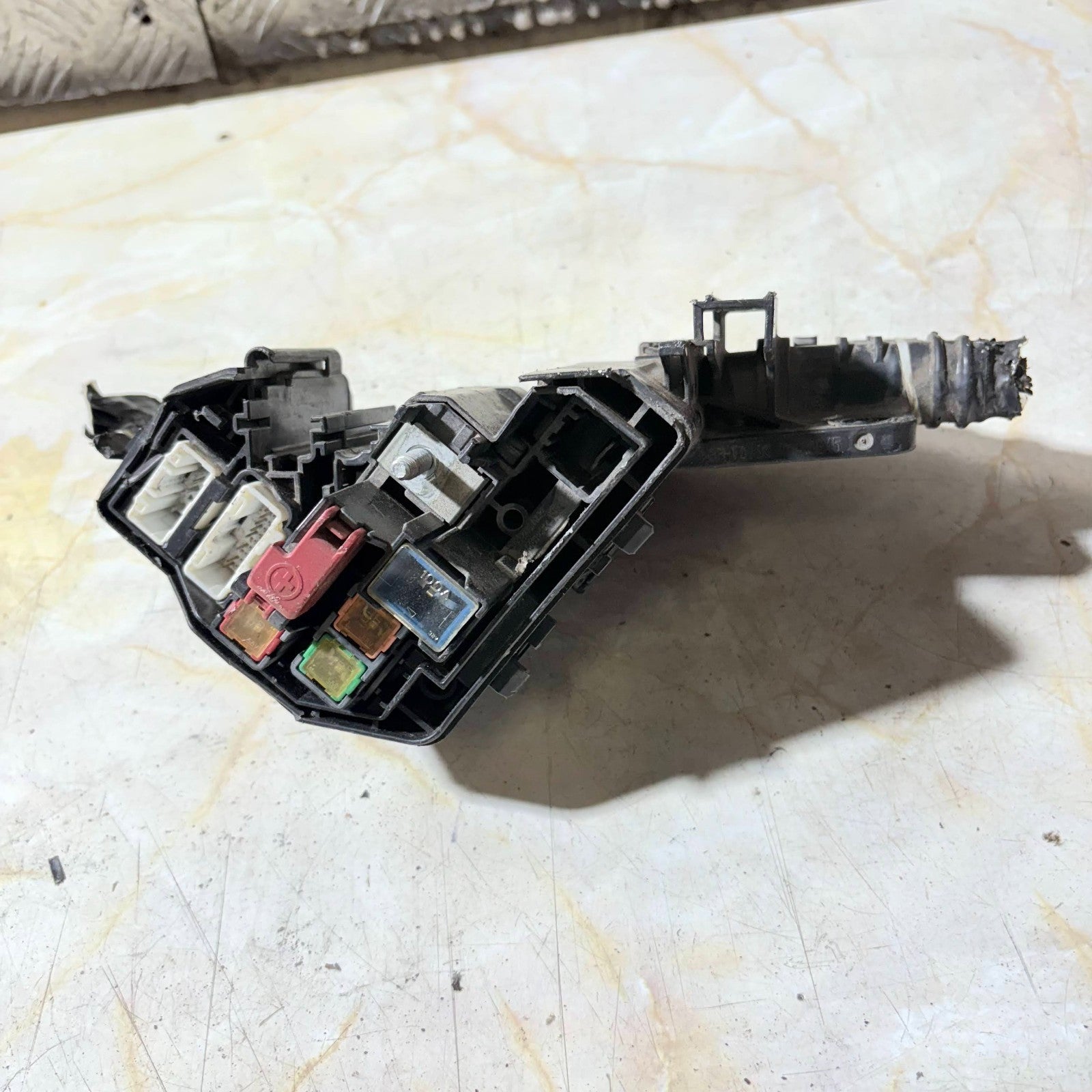

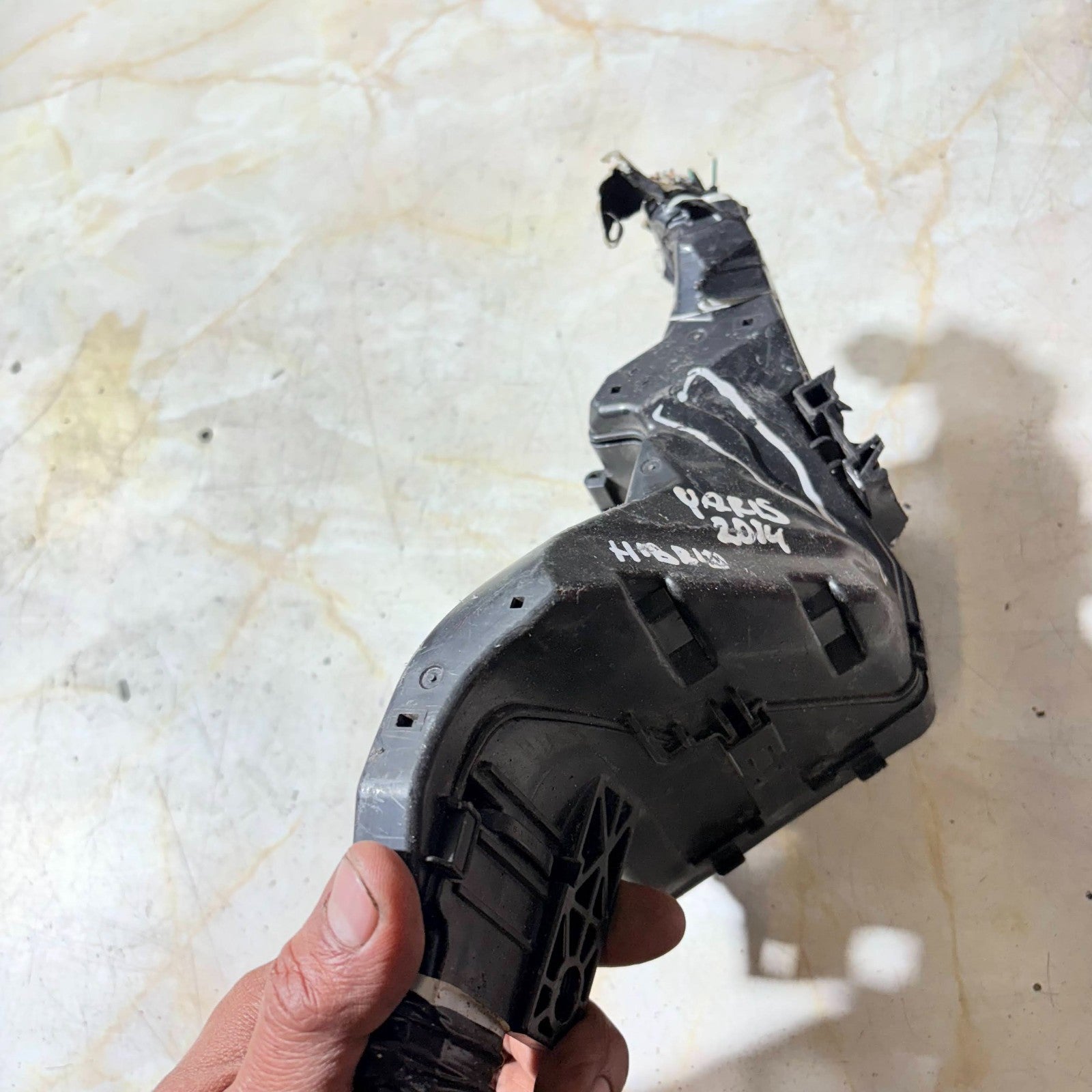

TOYOTA YARIS NHP130 2014 HYBRID 5DR ENGINE BAY FUSE RELAY BOX 1NZ-FXE CUT LOOM

This component forms part of the under-bonnet electrical distribution system. It provides protected electrical paths and mounting for high-current fusible links, fuses, relays, power connections and associated wiring.

NHP130 catalogue data includes engine-room electrical functions such as ignition-control, cooling-fan, lighting and Hybrid water-pump relay circuits. The exact circuits present depend on vehicle specification, production period and electrical configuration.

A correctly matched original Toyota-manufactured component was designed around the vehicle's connector keying, mounting geometry, electrical distribution architecture and fuse/relay configuration.

Replacement-component quality varies considerably. Correct specification and exact compatibility matter more than simply choosing the cheapest alternative.

Depending on the component and the current new replacement price, buying a serviceable reclaimed part can represent savings of up to 70% compared with purchasing new. The saving varies by part and is not guaranteed on every item.

1. Compare before removal. Match your original housing, connector positions, mounting tabs, power terminal, fuse layout and any identification numbers against the photographs.
2. Switch the vehicle fully off, remove the key from the working area and follow the manufacturer-approved 12V / hybrid-system isolation procedure.
3. Photograph and label the original fuse, relay, connector and wiring positions before dismantling.
4. Disconnect the appropriate electrical feeds and connectors according to workshop information for the exact vehicle.
5. Release the assembly mounting points without forcing brittle plastic clips or connector locks.
6. Account for the cut wiring tails on this supplied unit. It may be necessary to transfer housings/terminals or carry out a proper automotive loom repair. Do not repair high-current wiring by simply twisting conductors together and taping them.
7. Transfer only the correct-rated fuses or relays where required and only where confirmed against vehicle workshop information.
8. Secure all connections and mounting points correctly before restoring vehicle power.
9. Perform a diagnostic scan and functional check of READY operation and all affected circuits after repair.

Static estimate with no scripts or active content. Choose your garage's approximate hourly labour rate and compare it with the estimated repair time.

A fitting service may be available subject to workshop availability, vehicle inspection and exact part compatibility.

Fitting is not included in the item price. Please contact us through eBay Messages to enquire about availability and fitment verification.

This listing participates in eBay's Global Shipping Programme. International availability, charges, import requirements and final destination eligibility are controlled by eBay and are confirmed to the buyer at checkout.

Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain and Sweden.

Antigua and Barbuda, Aruba, Australia, Bahamas, Bahrain, Bangladesh, Barbados, Belize, Bermuda, Bolivia, Brazil, Brunei Darussalam, Cambodia, Canada, Cayman Islands, Chile, China, Colombia, Costa Rica, Dominica, Dominican Republic, Ecuador, Egypt, El Salvador, French Guiana, Grenada, Guadeloupe, Guatemala, Guernsey, Honduras, Hong Kong, Iceland, Indonesia, Israel, Jamaica, Japan, Jersey, Jordan, Kuwait, Liechtenstein, Macau, Malaysia, Maldives, Martinique, Mexico, Monaco, Montserrat, New Zealand, Nicaragua, Norway, Oman, Pakistan, Panama, Paraguay, Peru, Philippines, Qatar, Reunion, Saint Kitts and Nevis, Saint Lucia, Saudi Arabia, Singapore, South Africa, South Korea, Sri Lanka, Switzerland, Taiwan, Thailand, Trinidad and Tobago, Turks & Caicos Island, UAE, Ukraine, Uruguay, USA and Vietnam.

Please make sure the delivery address shown on your eBay checkout is complete and correct before placing the order.

Orders must be dispatched to the address associated with the eBay order. We cannot simply redirect an order to a different address after checkout.

This listing currently offers a 30-day return period. Returns are handled according to the return policy displayed on the eBay listing, eBay rules and applicable consumer rights.

Please perform the compatibility checks above before installation. Electrical components, connectors, wiring tails, mounting tabs and included items should be returned in the condition in which they were received.

Where this item is sold under the applicable second-hand Global Accounting / margin treatment, VAT is accounted for within the margin and is not separately itemised. A separately reclaimable VAT amount is therefore not shown on the item price.

Thank you for supporting ThePartPilot and an independent automotive-parts business. Every correctly matched serviceable reclaimed component has the opportunity to remain in useful service rather than being discarded unnecessarily.

Choosing a suitable reclaimed part can extend the useful life of an existing component, reduce demand for a newly manufactured replacement and help make vehicle repair more economical. 🌍♻️🔧

Our aim is simple: provide enough information, photographs and compatibility guidance for customers to order the correct part the first time.
