Reference vehicle only: 2013 Toyota Yaris 1.33 Dual VVT-i XP130 five-door. Image credit: M 93 / Wikimedia Commons, CC BY-SA 3.0 DE.

Reference engine bay only: 2016 Toyota Yaris Icon 1.33. Image credit: Lankyrider / Wikimedia Commons, CC BY-SA 4.0.

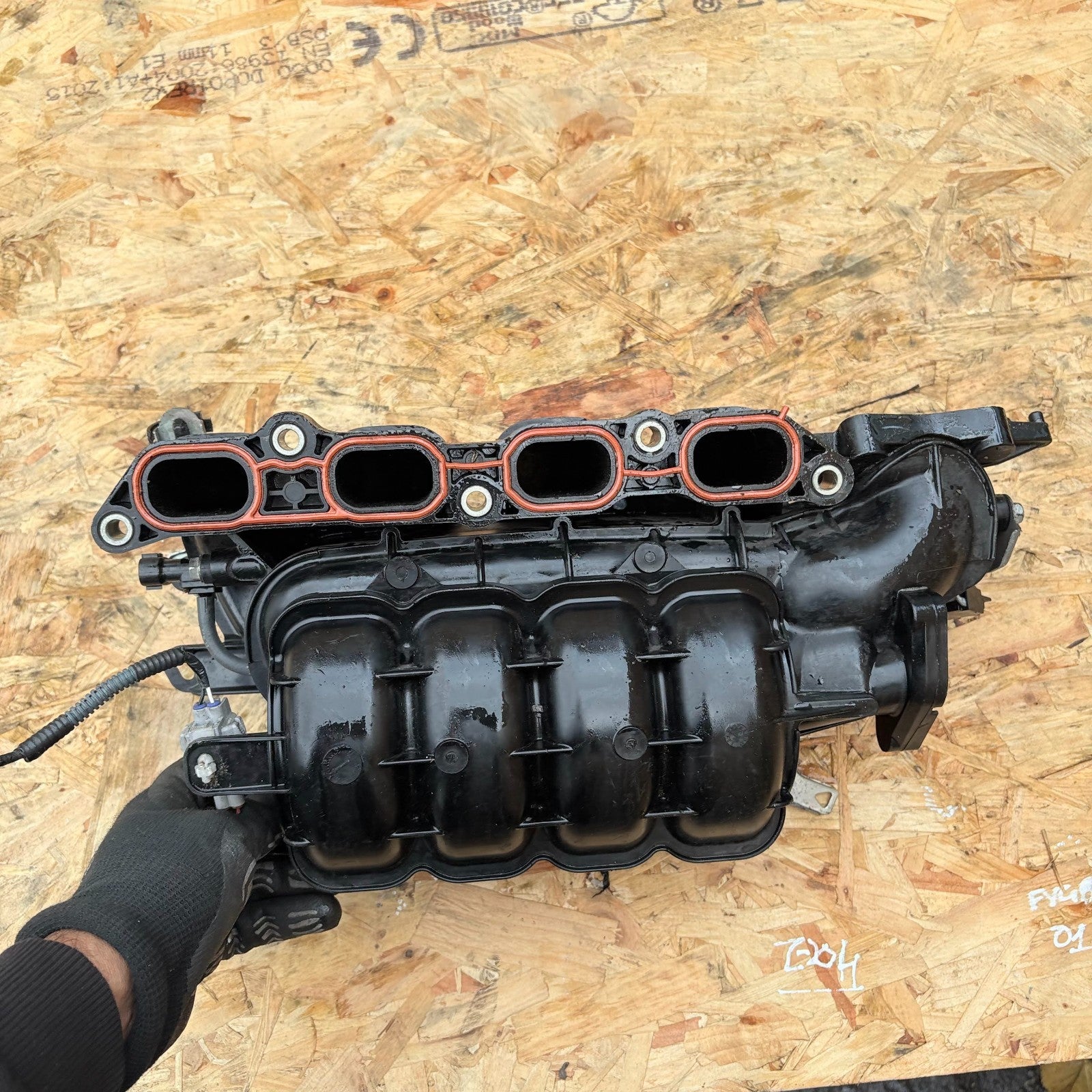

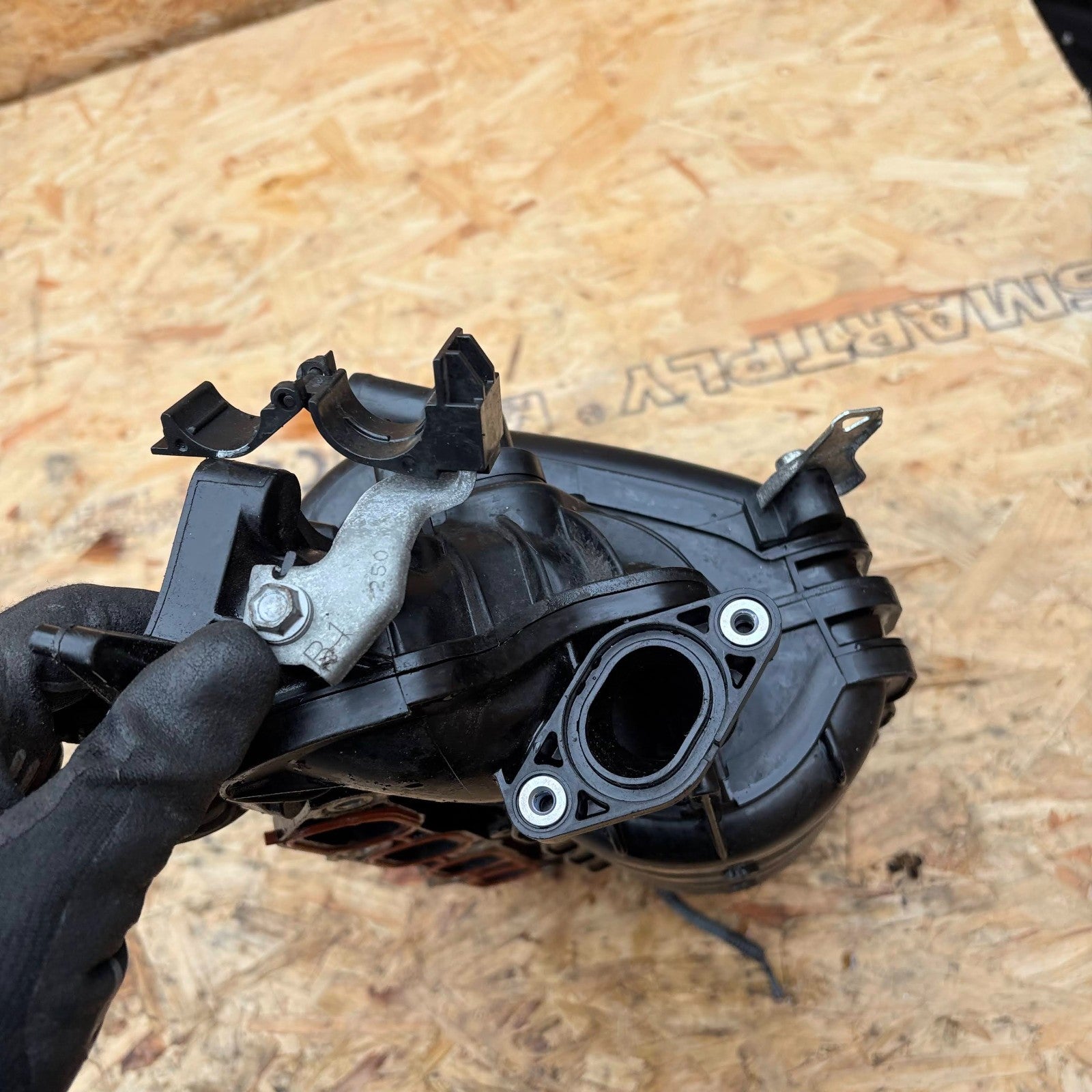

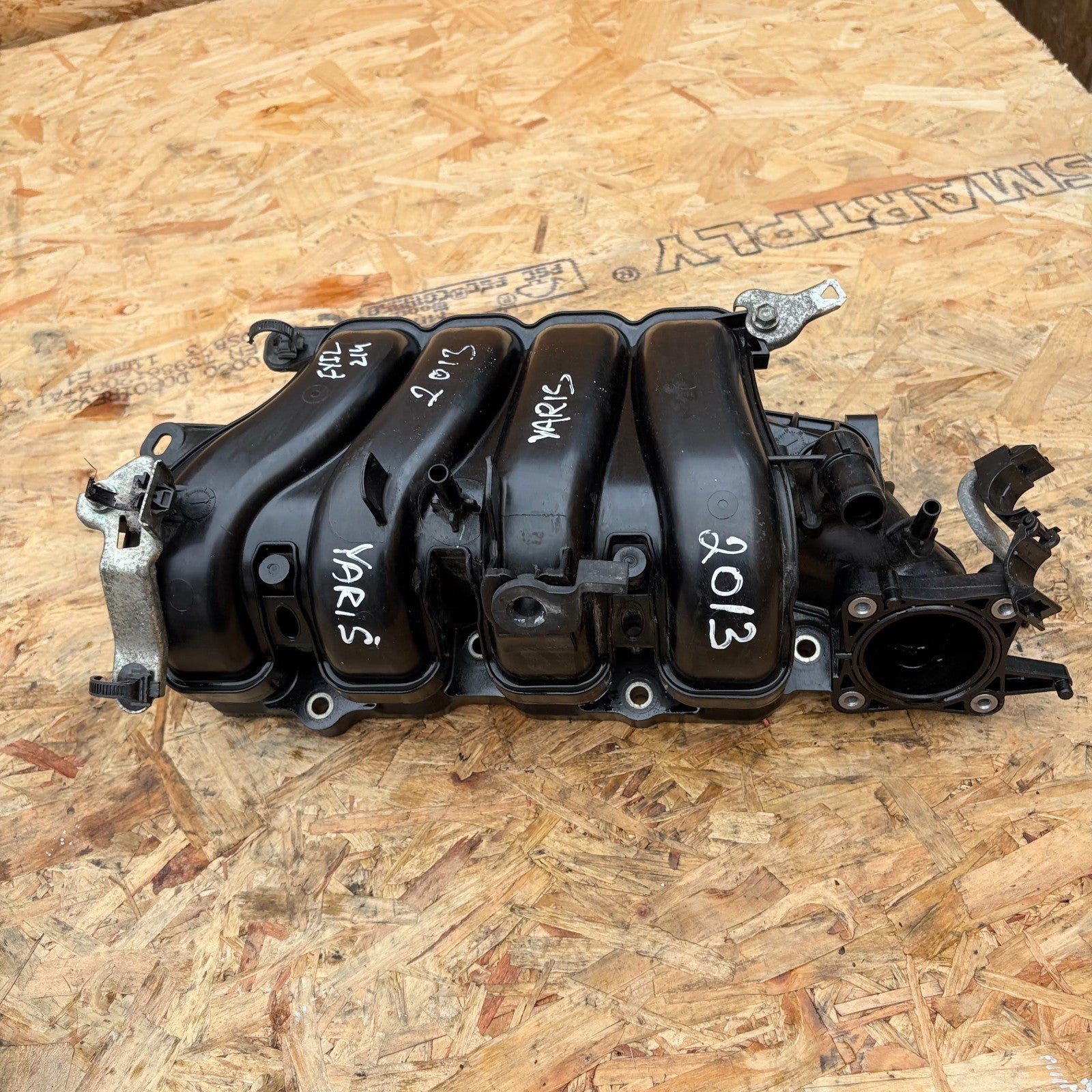

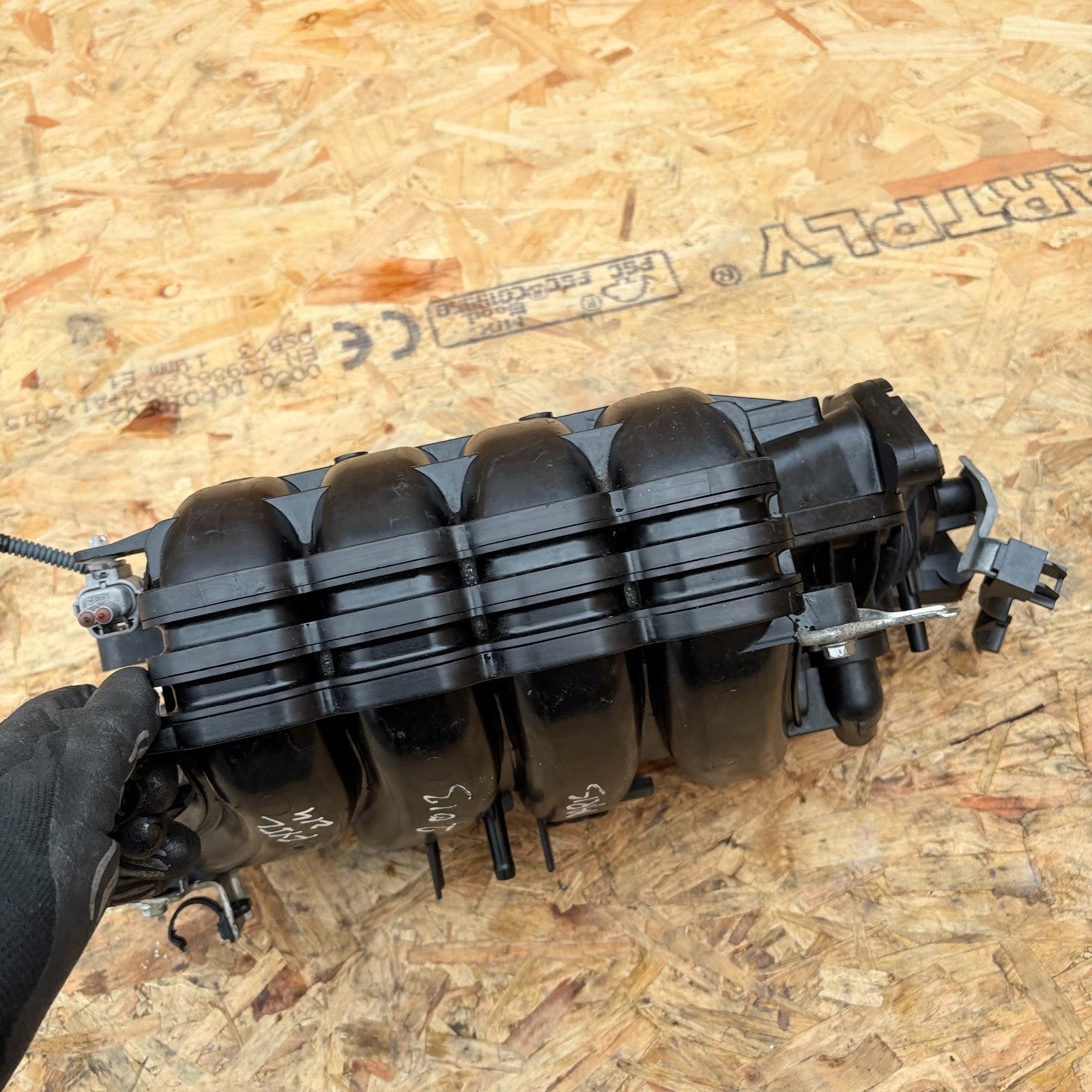

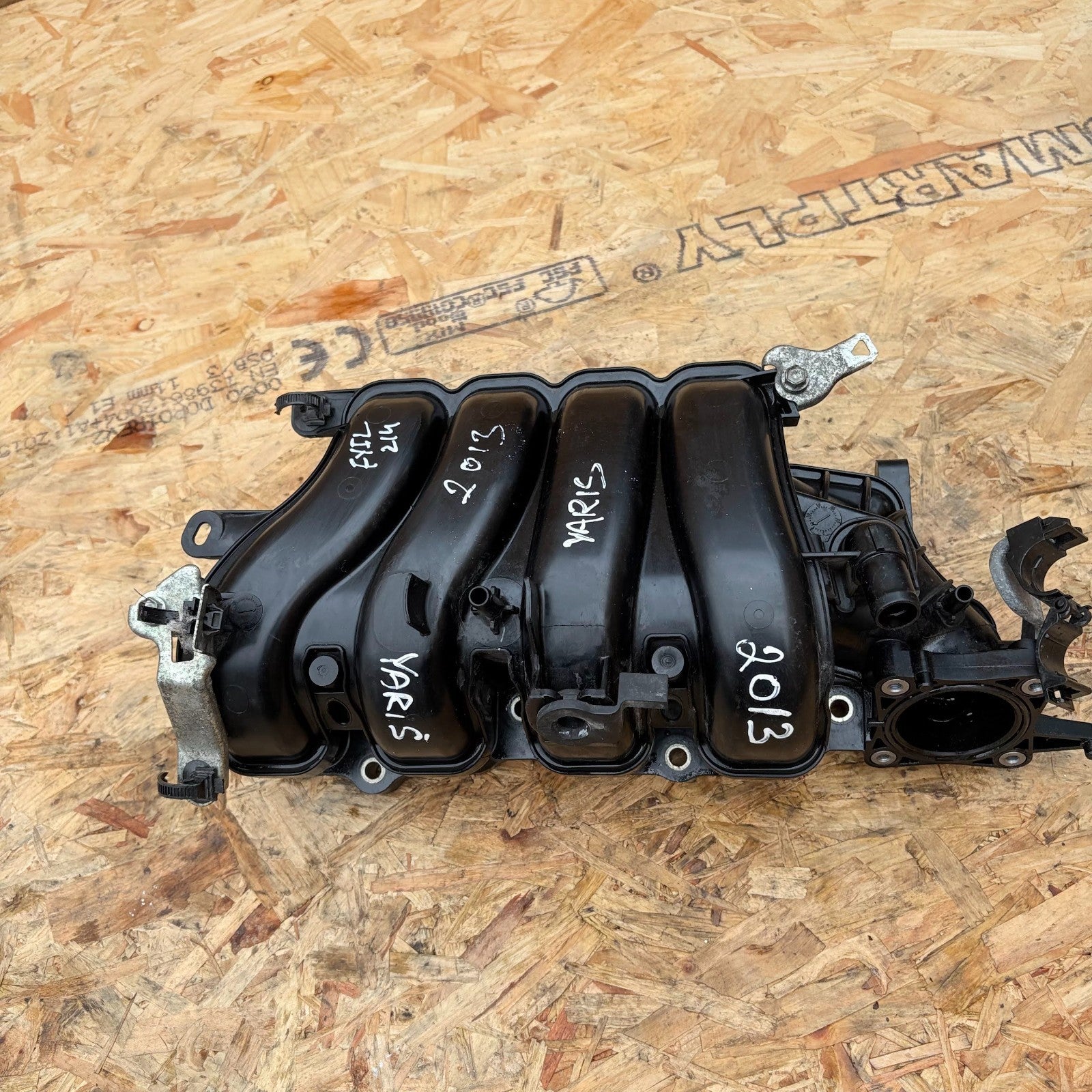

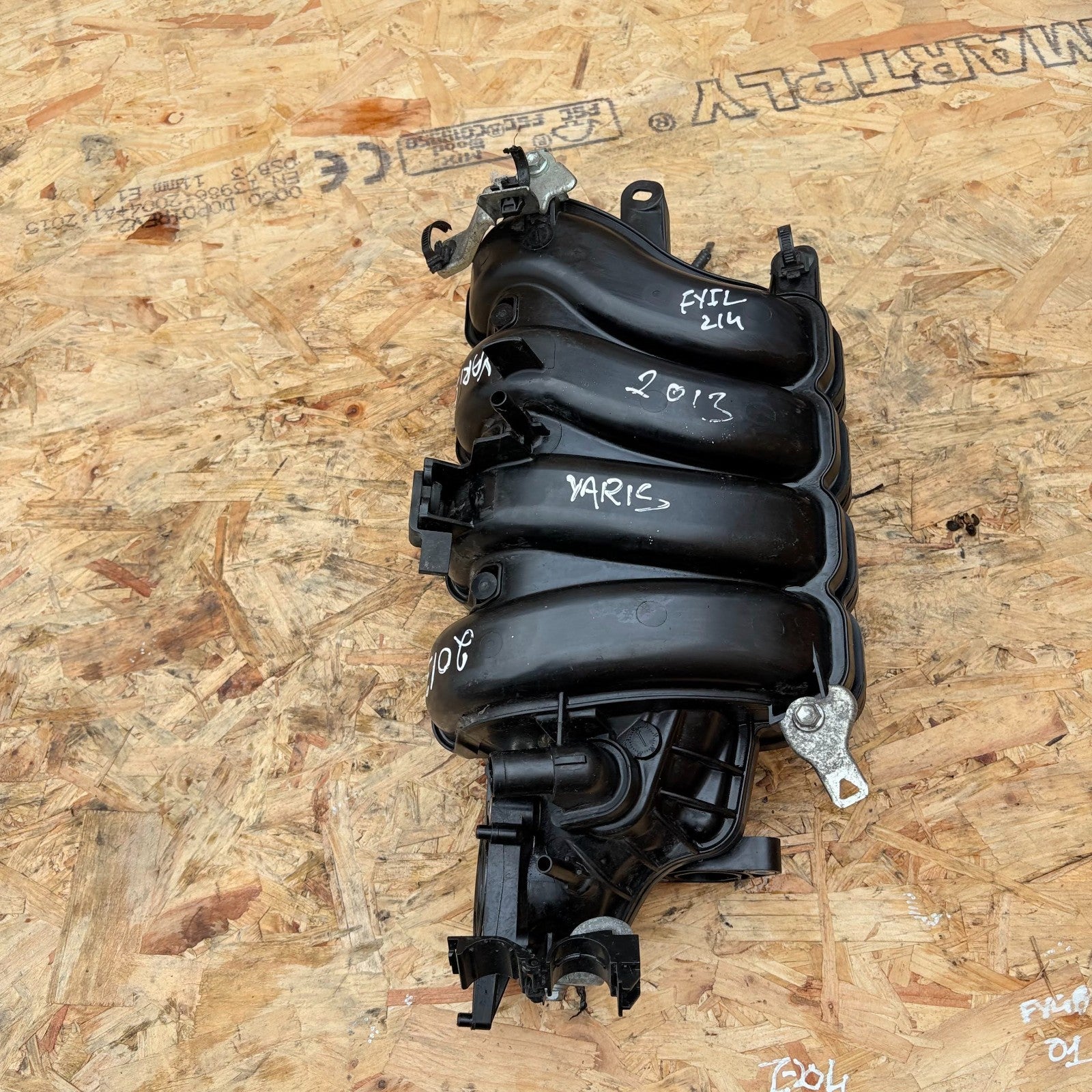

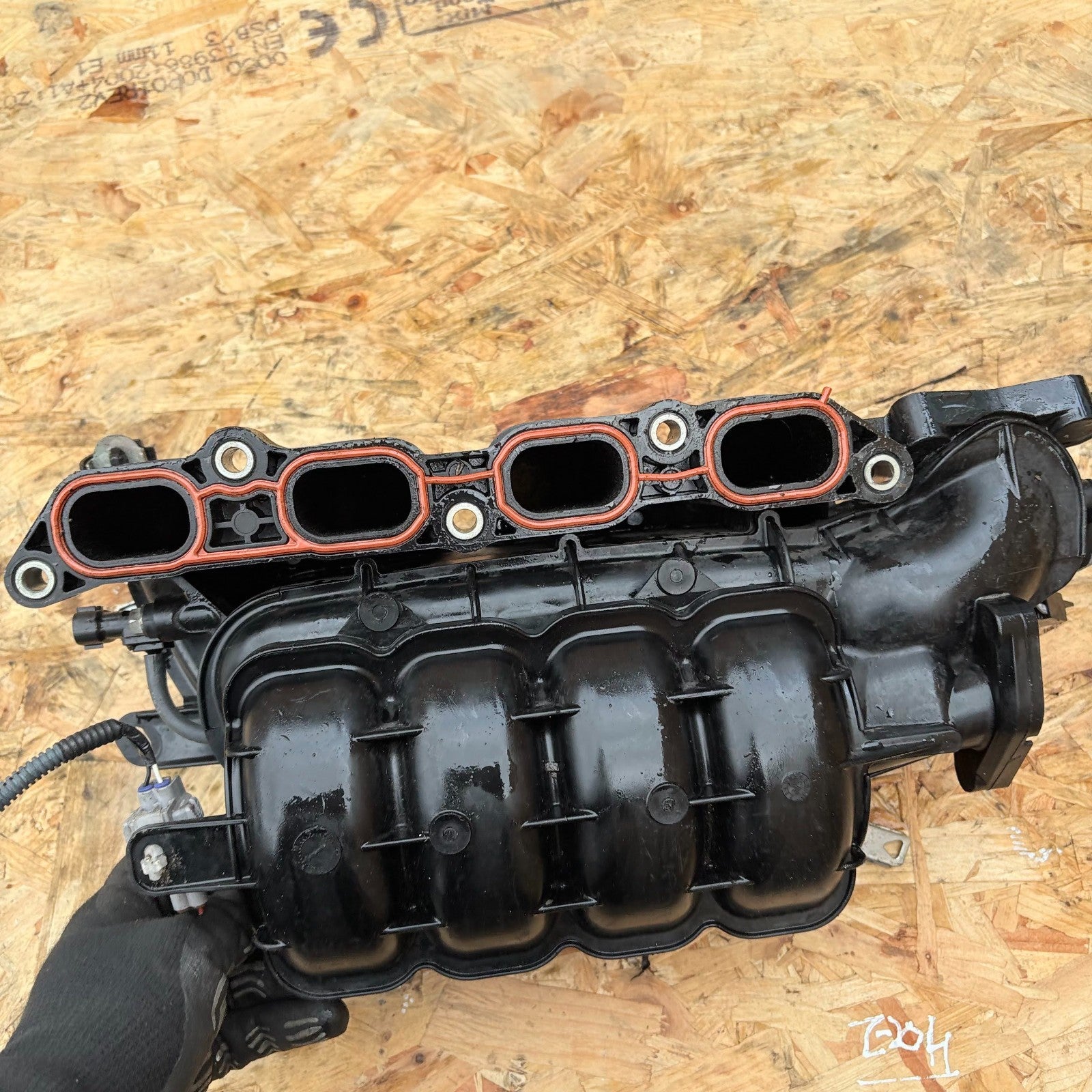

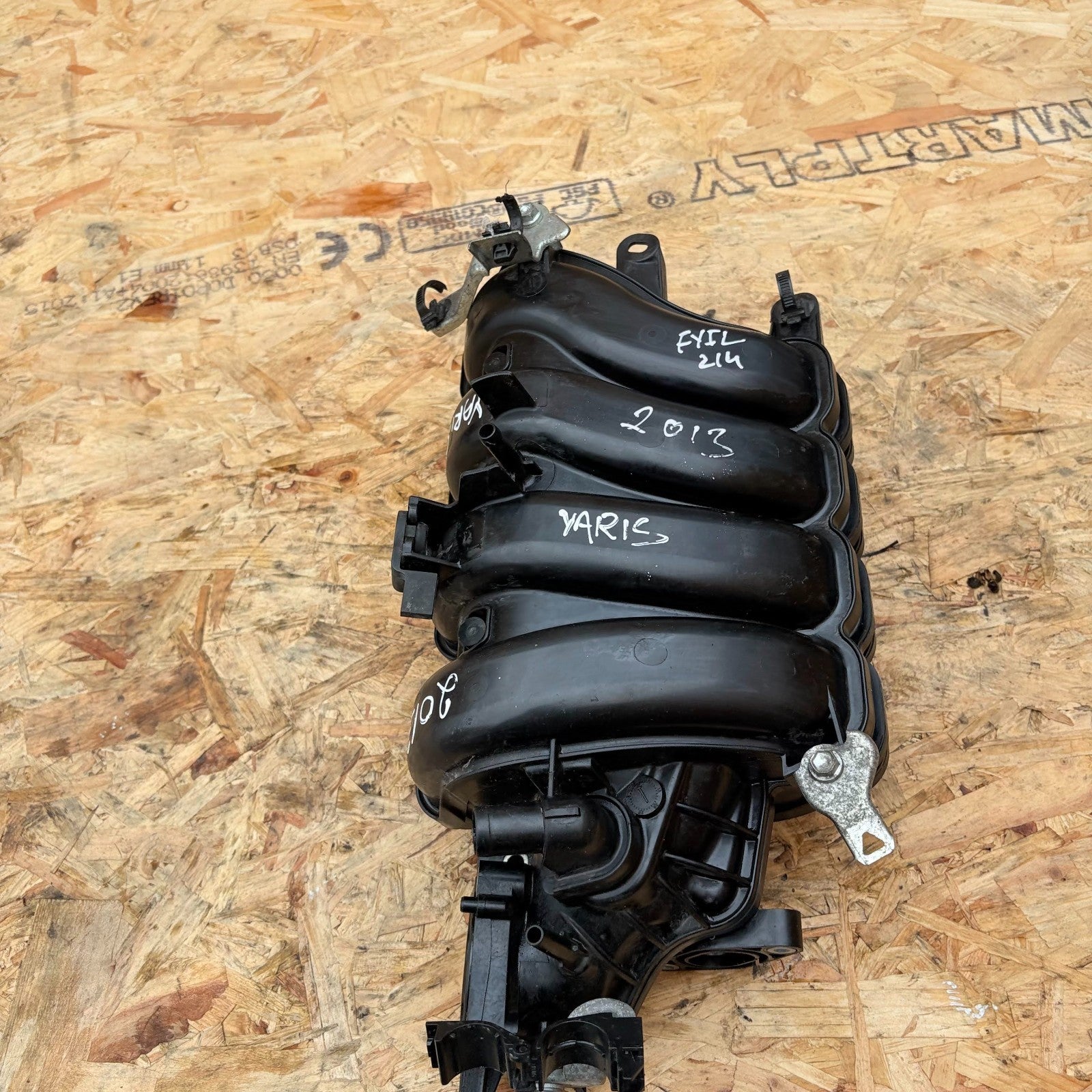

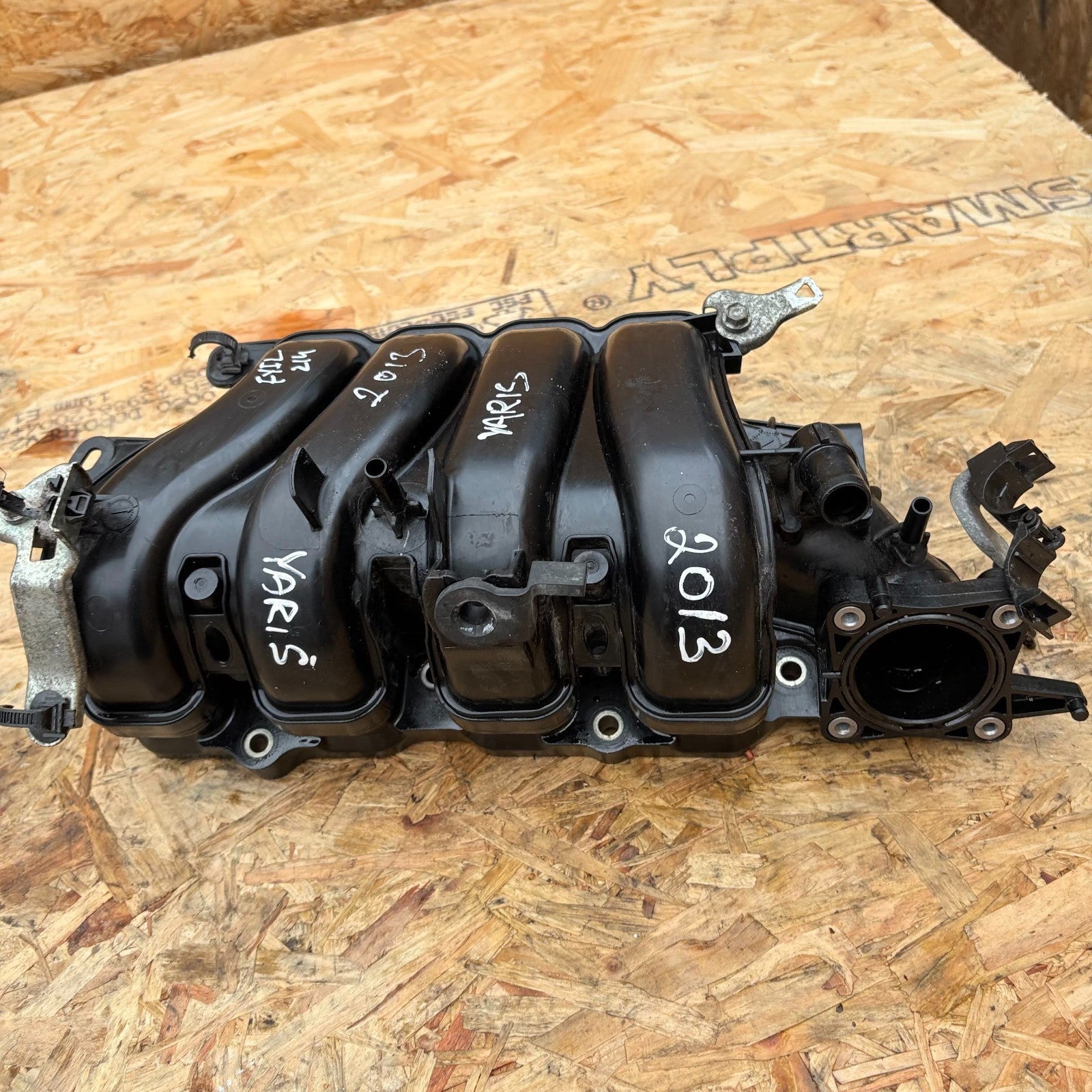

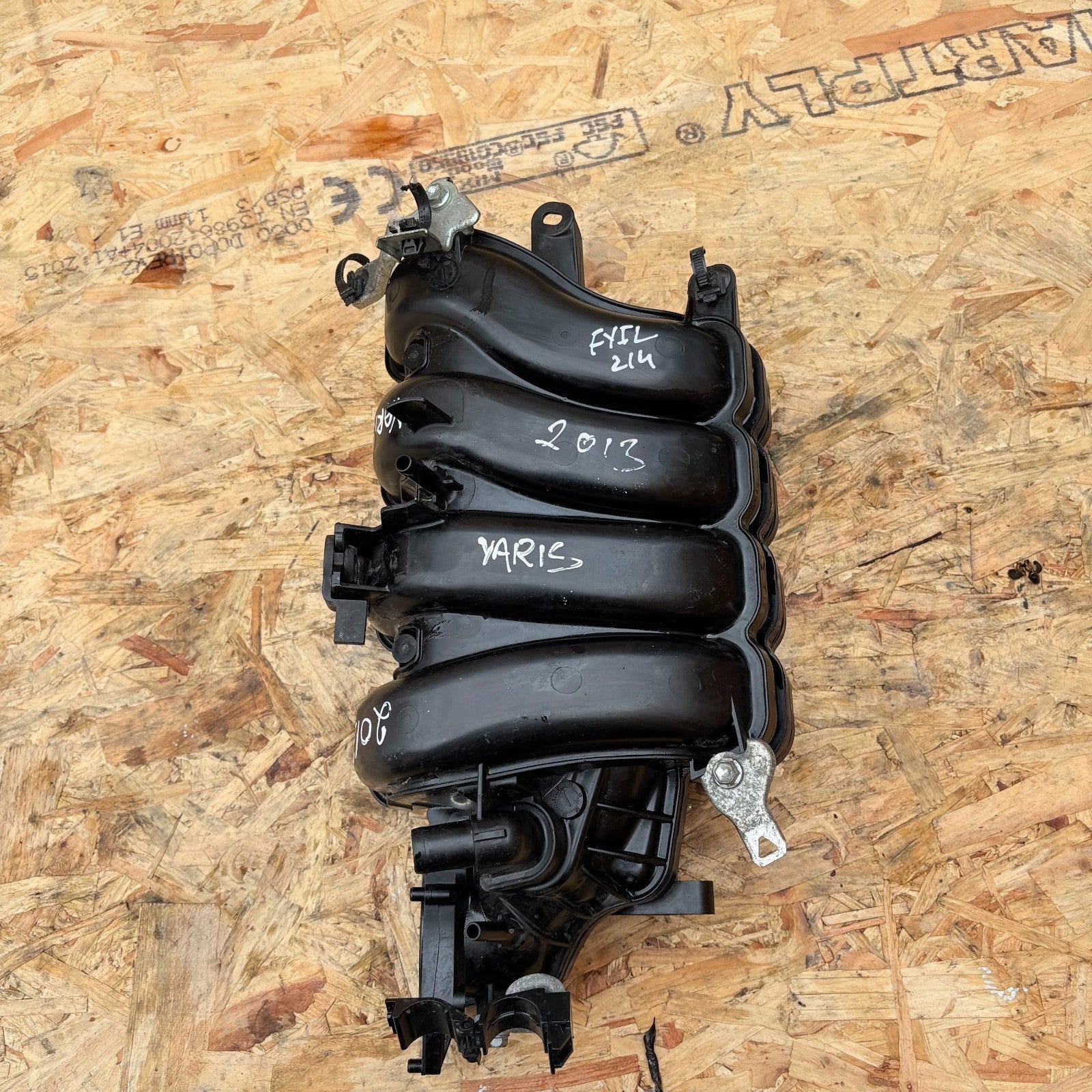

The manifold is fitted in the engine bay directly to the intake side of the cylinder head. It forms the air path between the throttle-body side of the intake system and the four cylinder inlet ports. Much of the manifold can be obscured by surrounding engine and intake components when viewed from above.

The five-door vehicle above is intentionally shown because it is a correct XP130 1.33 reference vehicle. Door count itself does not determine manifold compatibility: the important checks are the NSP130 model code, 1NR-FE engine, production date, manifold part number, port arrangement and connection layout.

Important early-car note: for 08/2011 to 11/2011, the catalogue records 17120-47031 and shows 17120-47032 as its substitute for this application. From 11/2011 the catalogue directly lists 17120-47032.

Important 2017 note: the checked European 1NR-FE NSP130 production record runs only to 03/2017. Do not buy solely because the vehicle is described as a "2017 Yaris".

The following applications use the same 17120-47032 catalogue number in the records checked. These are part-number cross-fits, not permission to order by vehicle name alone. VIN, engine code and original manifold layout should still be compared.

The intake manifold forms a controlled air passage from the throttle-body side of the engine to the four inlet ports in the cylinder head. Its runner and plenum geometry distributes metered intake air between the engine's four cylinders.

Correct port shape, mounting alignment, sealing surfaces, brackets and vacuum connections are important because unmetered air entering through a crack or failed seal can affect idle, mixture control and general engine operation.

A correctly matched original-manufacturer component retains the port geometry, runner volume, mounting positions and connection locations designed for the vehicle. Pattern replacement quality can vary between manufacturers, particularly in moulding tolerances, material, bracket positioning and sealing surfaces.

These symptoms can also be caused by ignition, fuel, sensor, hose, throttle-body or other engine faults. Diagnose the vehicle before replacing parts.

A serviceable recycled original-manufacturer manifold gives you the same basic factory-designed port layout, bolt positions, vacuum connection locations and engine interface as the corresponding vehicle application, while often costing substantially less than purchasing the equivalent component new.

Depending on the component, new-part availability and current market pricing, savings on recycled vehicle parts can in some cases approach 70 percent compared with buying new. Savings are not guaranteed, so compare current prices for the same part number when making your decision.

Reusing a serviceable component also keeps an existing part in circulation instead of discarding it prematurely and can reduce demand for an additional newly manufactured replacement.

For customer budgeting, allow approximately 1 to 2 hours as a planning estimate for a competent technician where access and fasteners are straightforward. This is not presented as a verified Toyota flat-rate time. Actual labour can change with corrosion, broken clips, additional diagnosis, cleaning, workshop procedure and vehicle condition.

Labour figures are simple estimates based only on hourly rate multiplied by time. They do not include parts, VAT where applicable, diagnosis, fluids, additional repairs or workshop fees.

This listing is configured for eBay's Global Shipping Programme. Destination eligibility is controlled by eBay and can vary by item, buyer location and current programme rules. The checkout screen is the final confirmation that this specific item can be delivered to a destination.

EU destinations currently listed by eBay:

Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain and Sweden.

Other destinations currently listed by eBay:

Antigua and Barbuda, Aruba, Australia, Bahamas, Bahrain, Bangladesh, Barbados, Belize, Bermuda, Bolivia, Brazil, Brunei Darussalam, Cambodia, Canada, Cayman Islands, Chile, China, Colombia, Costa Rica, Dominica, Dominican Republic, Ecuador, Egypt, El Salvador, French Guiana, Grenada, Guadeloupe, Guatemala, Guernsey, Honduras, Hong Kong, Iceland, Indonesia, Israel, Jamaica, Japan, Jersey, Jordan, Kuwait, Liechtenstein, Macau, Malaysia, Maldives, Martinique, Mexico, Monaco, Montserrat, New Zealand, Nicaragua, Norway, Oman, Pakistan, Panama, Paraguay, Peru, Philippines, Qatar, Reunion, Saint Kitts and Nevis, Saint Lucia, Saudi Arabia, Singapore, South Africa, South Korea, Sri Lanka, Switzerland, Taiwan, Thailand, Trinidad and Tobago, Turks & Caicos Island, UAE, Ukraine, Uruguay, USA and Vietnam.

International availability and import requirements can change. eBay checkout controls the destination, international postage, customs and applicable import charges for qualifying orders.

The current listing provides a 30-day return period. We strongly recommend carrying out the engine-code, part-number, VIN and photograph checks before installation.

A returned component should come back in the same condition in which it was supplied, with all included parts present and securely packaged. If a returned component has been installed, altered, contaminated, damaged, incompletely returned or otherwise suffers a loss in value, any refund adjustment will only be made where eBay's rules permit it and only to reflect the actual loss in value. Where the seller is eligible, eBay's rules can permit a deduction of up to 50 percent in qualifying circumstances.

ThePartPilot carries more than 25,000 vehicle parts in stock and on the shelf at any one time. Our aim is not simply to sell a part: it is to give buyers enough technical and fitment information to identify the correct component before ordering.

Components are handled as individual vehicle parts and packed with the aim of protecting vulnerable flanges, connectors, brackets and moulded sections during delivery.

Reusing serviceable vehicle components helps keep useful materials in circulation and can reduce the need to manufacture an additional replacement component. Thank you for supporting ThePartPilot and responsible parts reuse.
