TOYOTA YARIS XP90 3/5DR 2005-2011 REAR BOOT TAILGATE HINGES PAIR 68801-52010

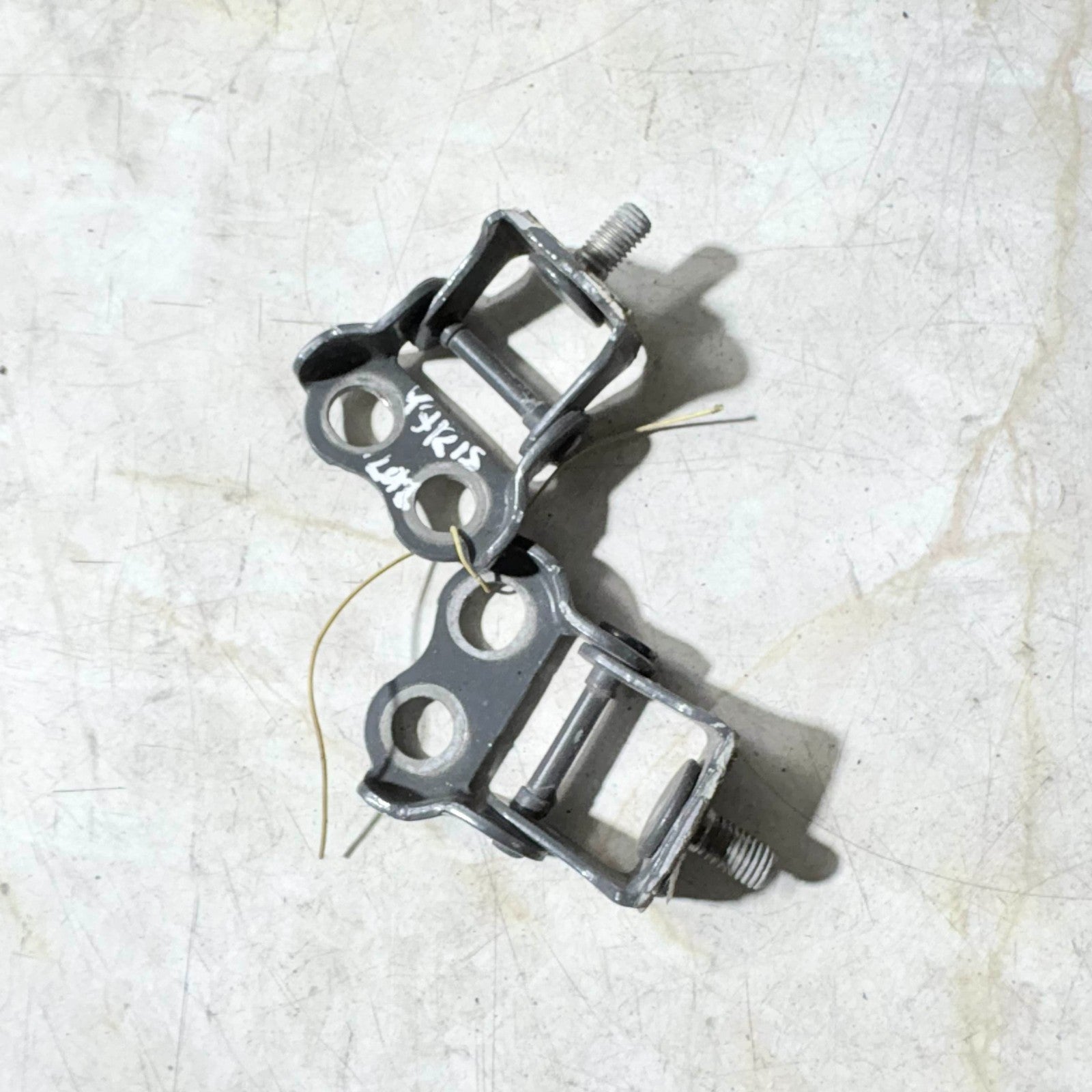

ACTUAL ITEM PHOTOS

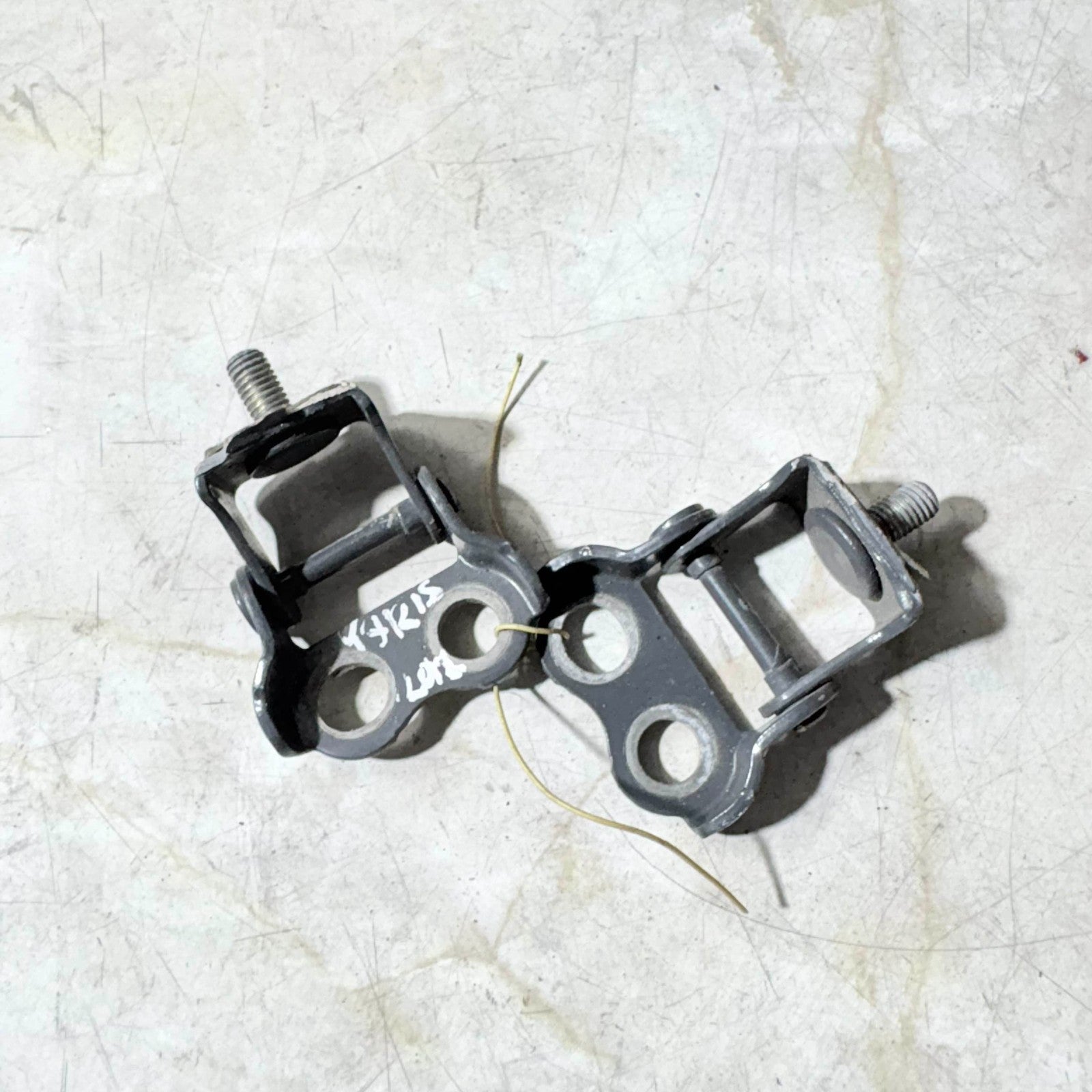

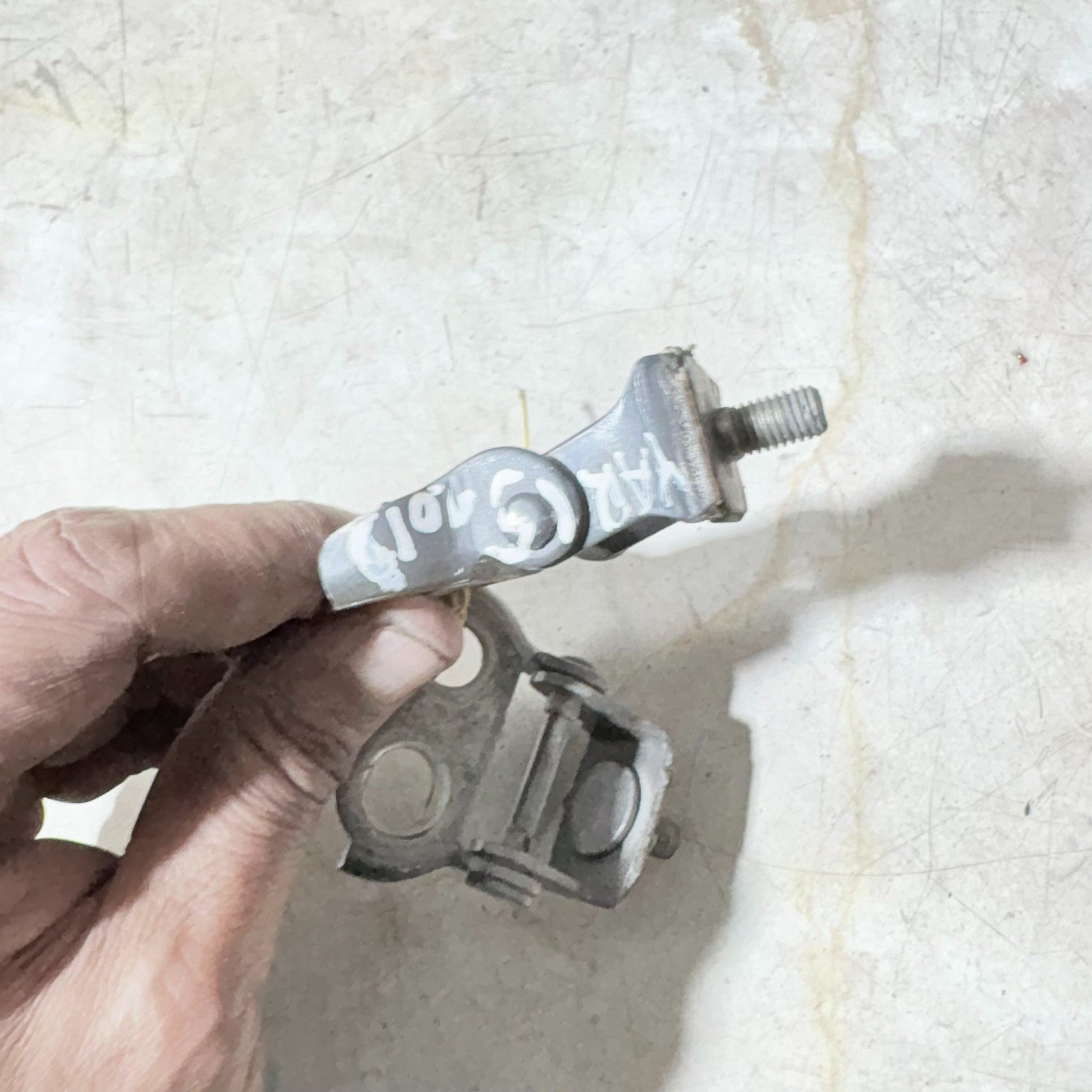

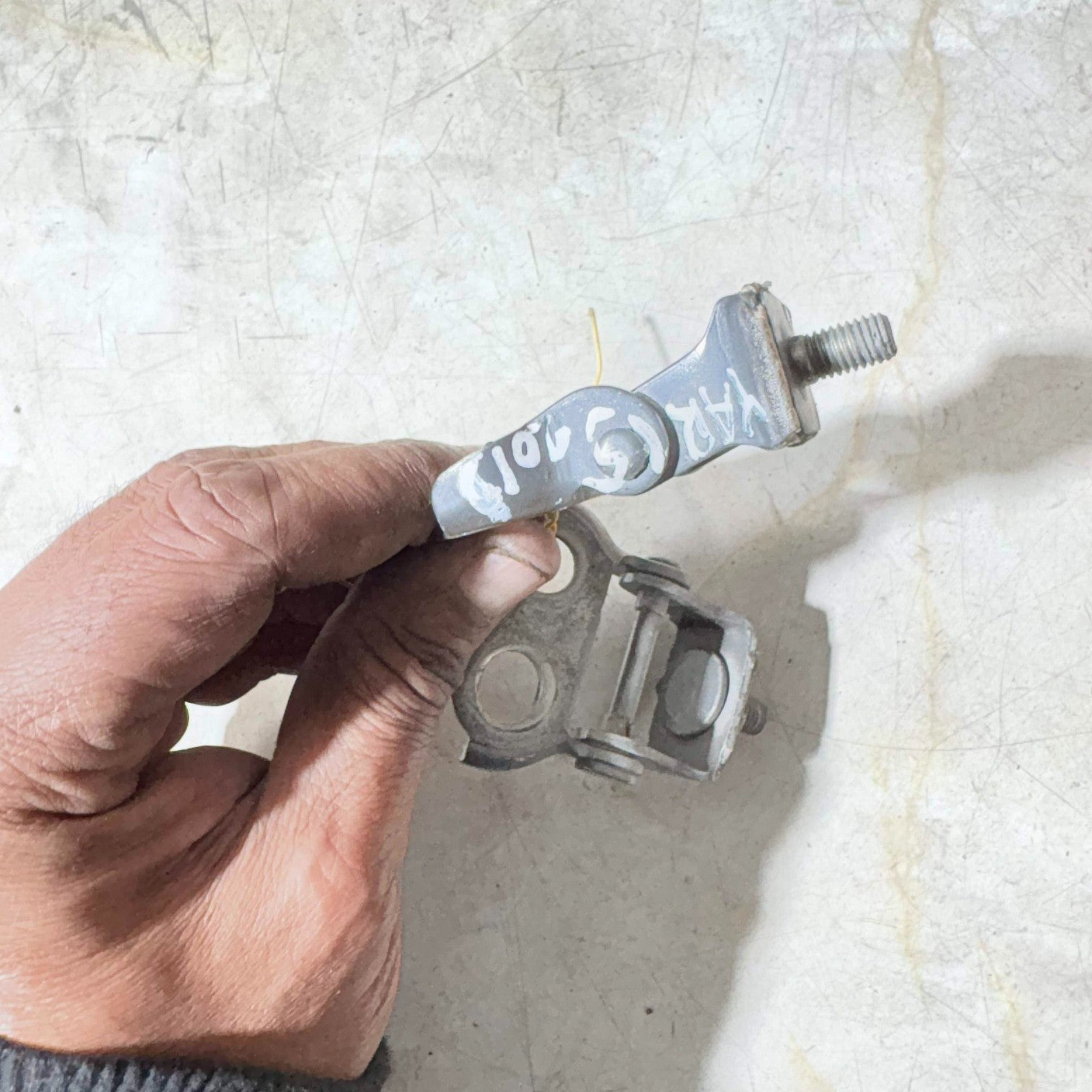

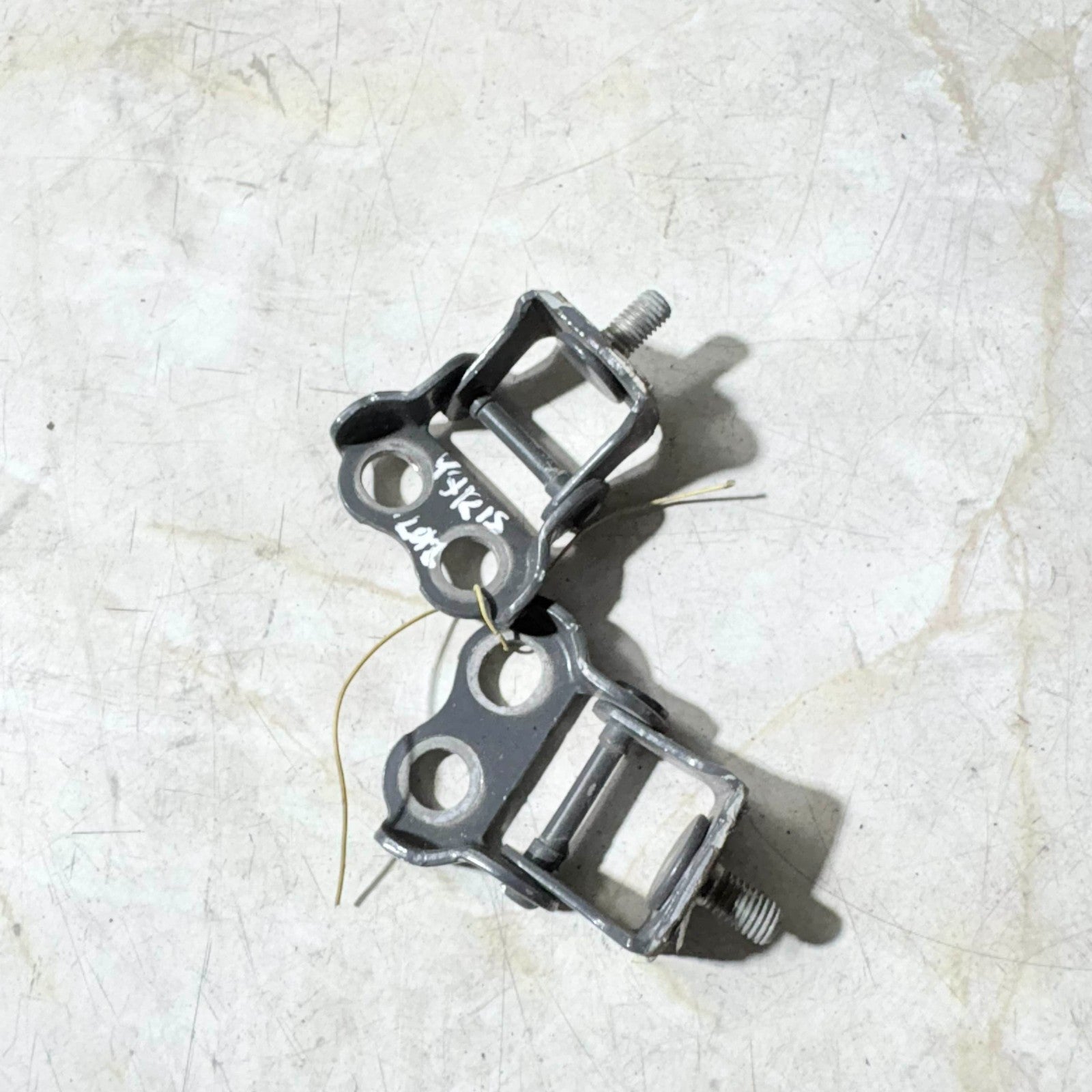

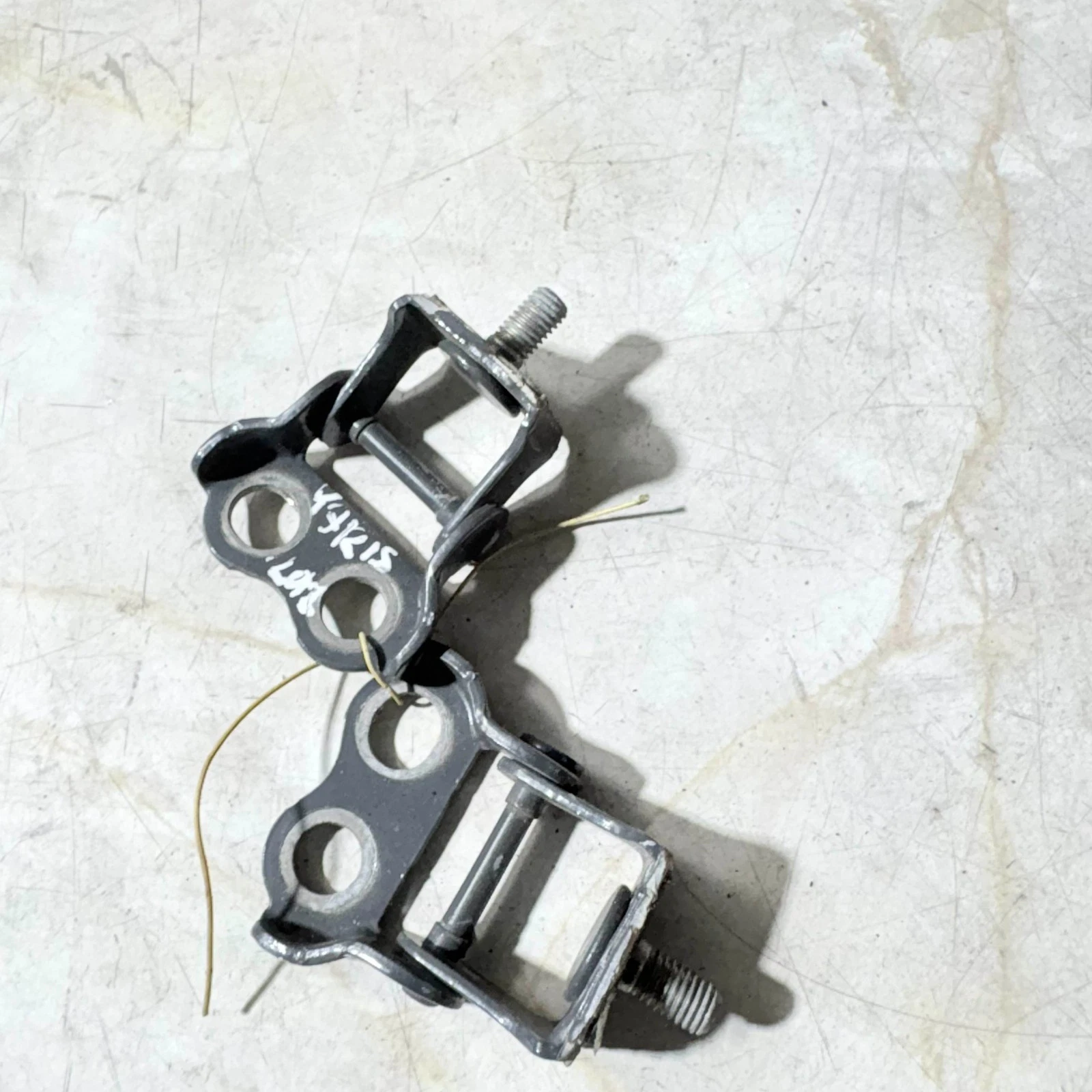

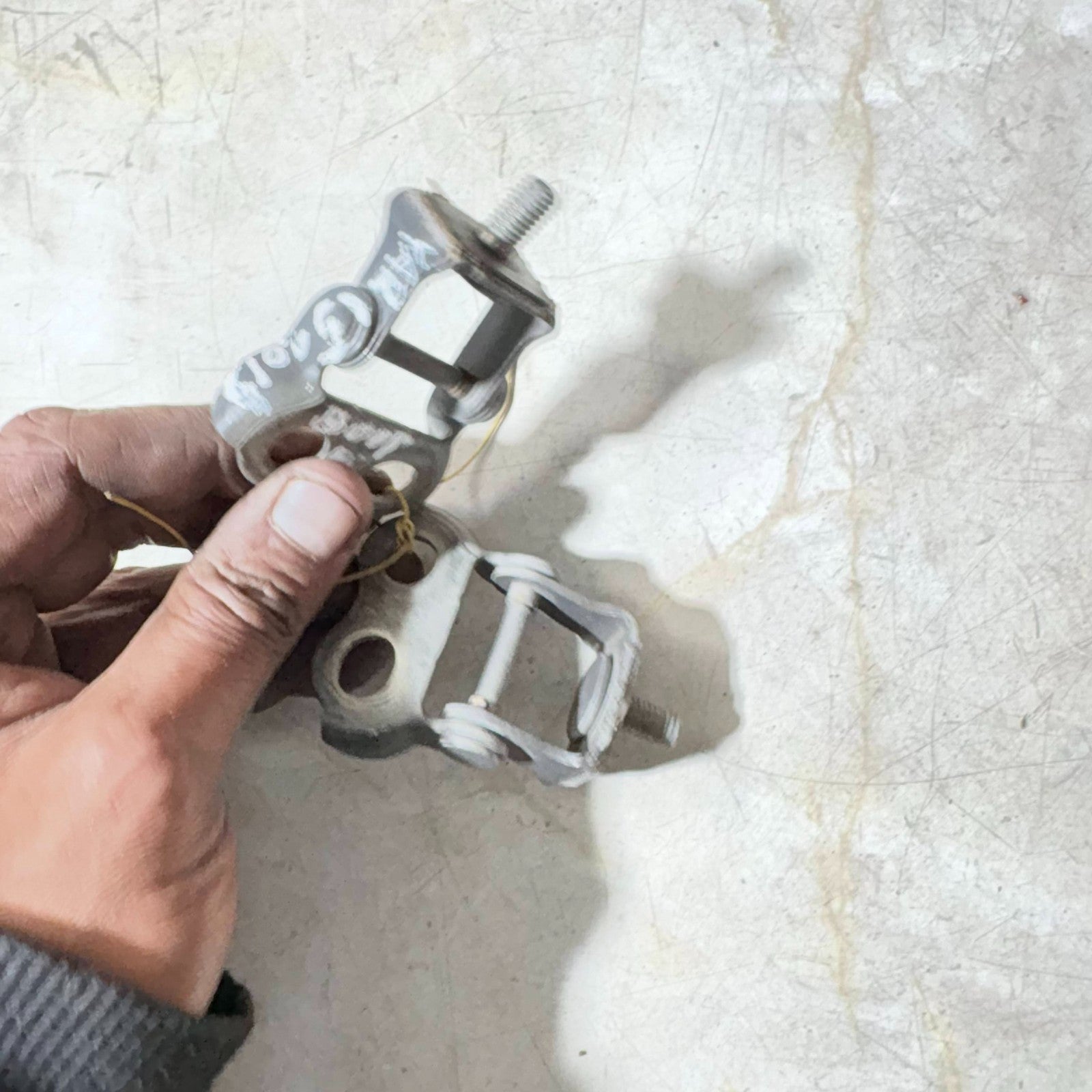

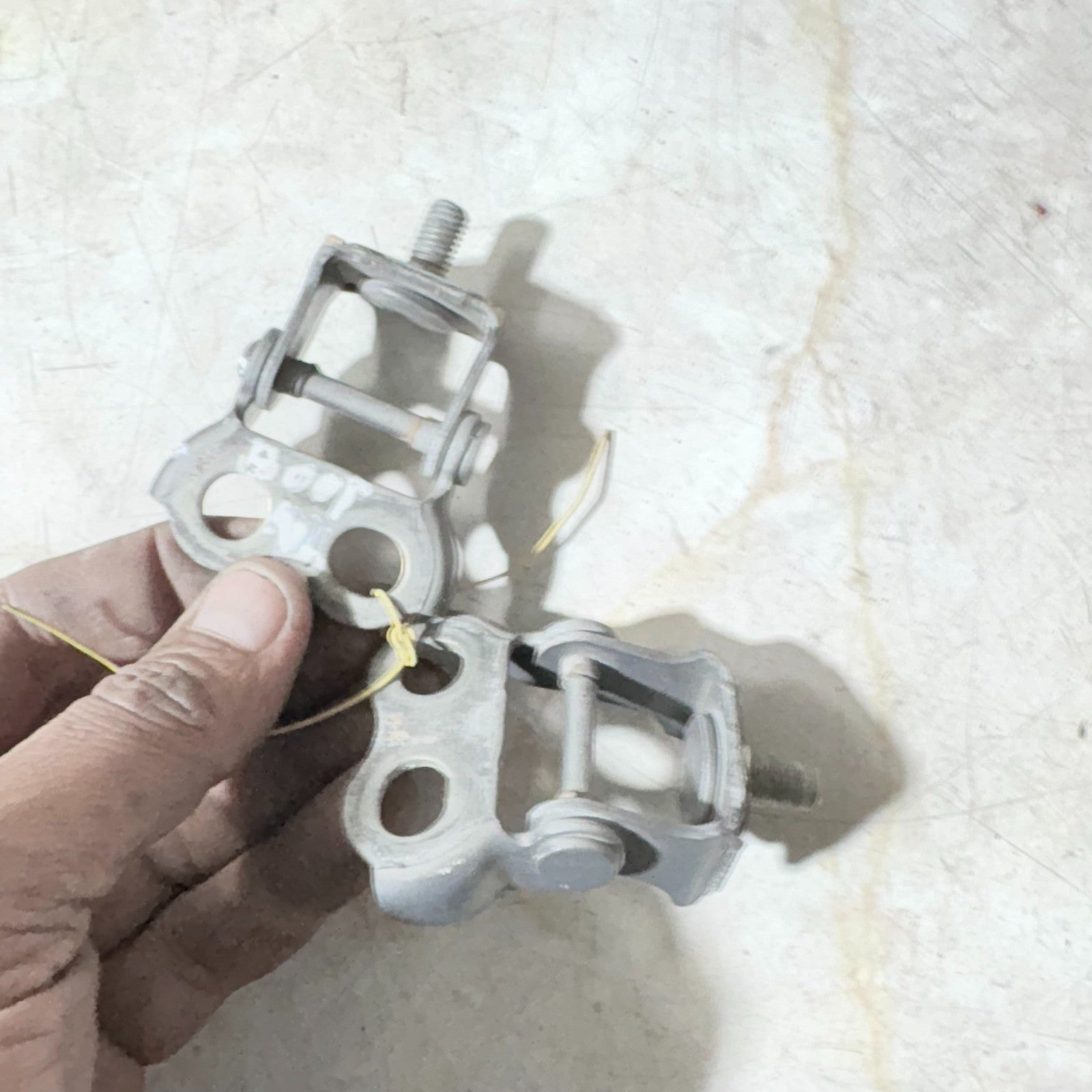

The photos below are from this eBay listing and show the actual used hinge pair. Please compare the shape, mounting holes, pivot form, studs and overall geometry with the part removed from your vehicle.

THEPARTPILOT

THEPARTPILOT

WHERE THIS PART FITS ON THE VEHICLE

These are the two upper rear hatch / back-door hinges. One hinge sits at each side of the top edge of the tailgate opening, mechanically joining the hatch to the roof/body structure. They provide the pivot point and help keep the hatch aligned with the aperture, latch and weather seal. They do not electronically control the locking system.

5-DOOR XP90 REFERENCE Hinges sit behind the top left and top right edge of the rear hatch.

3-DOOR XP90 REFERENCE Same upper hatch-hinge location; VIN and catalogue number still decide fitment.

Reference vehicle photographs are public-domain images and show XP90 body shape only. Colour, trim, market specification and wheel style may differ from the buyer's vehicle.

PART DETAILS

YARIS XP90 FITMENT CHART - READ BEFORE BUYING

OTHER VEHICLES THAT USE 68801-52010 IN PARTS CATALOGUES

The same Toyota part number appears in other vehicle catalogues. This is a part-number cross-reference, not permission to order from model/year alone. For any vehicle below, the VIN or Japanese frame number must resolve to 68801-52010 before purchase.

THIS PART WILL NOT BE SOLD AS A BLANKET FIT FOR

• Toyota Yaris XP130 / later new-shape Yaris simply because the registration year overlaps 2011. Different generation: VIN check required.
• Toyota iQ built from 12/2010 onward where the checked catalogue changes the upper hinge number to 68801-74020.
• Any saloon/sedan using a separate boot/trunk lid rather than the matching top-hinged back door, unless the VIN catalogue specifically returns 68801-52010.
• Any vehicle where the original hinge number, mounting geometry, stud position or VIN catalogue result does not match.
• A tailgate that only falls down or will not stay open while its alignment is otherwise correct: weak gas struts/damper stays may be the actual fault, not the hinges.

COMMON SIGNS OF WORN OR DAMAGED TAILGATE HINGES

WHY CHOOSE A FACTORY TOYOTA-MANUFACTURED USED PART?

A hinge is a geometry and alignment component. Correct pivot position, mounting-hole geometry, stud position and material thickness all affect how the hatch closes against the latch and weather seal. A used original Toyota-manufactured hinge gives you a known factory-form component rather than an unknown copy. It also lets you compare the casting/pressing shape directly with the original part removed from the vehicle.

Used parts can also offer a substantial saving versus buying a new-equivalent component. On selected stock, savings may be as much as 70 percent against a current new-equivalent retail price; actual savings vary by part, availability and current retail pricing. Reusing a serviceable component also keeps an existing part in circulation rather than immediately consuming another newly manufactured item.

FITTING GUIDE

1. Confirm VIN and part number before dismantling. Compare the new-to-you hinge pair with the existing hinges and photos.
2. Park on level ground, switch the ignition off and protect painted roof, hatch and quarter-panel edges with suitable non-damaging protection.
3. Securely support the tailgate in its normal open position. Use a second person or a properly rated support system.
4. Mark the existing hinge positions and record panel gaps before loosening anything. Photos are useful for alignment reference.
5. Replace one hinge at a time where practical while keeping the hatch fully supported. Do not allow wiring looms, washer hose or seals to take the weight of the hatch.
6. Start all fasteners by hand and leave sufficient movement for alignment. Centre the hatch so gaps are even and the latch approaches the striker without side load.
7. Tighten fasteners to the Toyota workshop-manual specification for the exact VIN/model. No torque figure is guessed in this listing.
8. Slowly test closing and opening. Check latch engagement, lock operation, weather-seal compression, roof/body clearance, wiring gaiter and washer hose.
9. After final alignment, check for movement, binding, unusual noise and water ingress. Stop and realign if the hatch contacts the body or needs excessive force to latch.

Typical tools and equipment

• Socket and ratchet set appropriate to the fasteners fitted to the vehicle
• Torque wrench covering the workshop-manual specification
• Suitable tailgate support / prop and ideally a second person
• Trim tools if access trim needs removal
• Masking tape or removable marker for hinge-position reference
• Paint/body protection, inspection light and basic gap-measuring tools
• Penetrating fluid only if required for seized/corroded hardware and used safely

Estimated repair time

Planning estimate: approximately 1.0 to 1.5 hours for a straightforward pair replacement and alignment by a competent technician. This is not a Toyota flat-rate time. Corrosion, seized fixings, previous accident repair, trim removal, wiring issues or extensive hatch realignment can increase labour time.

GARAGE LABOUR COST ESTIMATOR - STATIC, NO ACTIVE CONTENT

eBay descriptions do not permit JavaScript or active calculators. Use the table below as a quick estimate. Formula: hourly labour rate x repair time = estimated labour charge. It excludes parts, consumables, diagnostics, extra corrosion/alignment work and any taxes charged by the garage.

FITTING AND REPAIR SERVICE

Fitting may be available subject to workshop capacity. Ask through eBay Messages before purchase if you would like us to check fitting availability. Body alignment work can require extra time where the hatch, striker, roof edge or surrounding panels have previous impact damage.

Illustrative CC0 stock image. It does not depict ThePartPilot premises or this exact repair.

How to find us / WhatsApp

Scan the QR code to open a WhatsApp chat for collections and enquiries.

If the QR image needs refreshing, generate it again from the same WhatsApp link.

DELIVERY AND INTERNATIONAL POSTAGE

Current eBay Global Shipping Programme eligible destinations published for UK sellers

EU: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain and Sweden.

Non-EU: Antigua and Barbuda, Aruba, Australia, Bahamas, Bahrain, Bangladesh, Barbados, Belize, Bermuda, Bolivia, Brazil, Brunei Darussalam, Cambodia, Canada, Cayman Islands, Chile, China, Colombia, Costa Rica, Dominica, Dominican Republic, Ecuador, Egypt, El Salvador, French Guiana, Grenada, Guadeloupe, Guatemala, Guernsey, Honduras, Hong Kong, Iceland, Indonesia, Israel, Jamaica, Japan, Jersey, Jordan, Kuwait, Liechtenstein, Macau, Malaysia, Maldives, Martinique, Mexico, Monaco, Montserrat, New Zealand, Nicaragua, Norway, Oman, Pakistan, Panama, Paraguay, Peru, Philippines, Qatar, Reunion, Saint Kitts and Nevis, Saint Lucia, Saudi Arabia, Singapore, South Africa, South Korea, Sri Lanka, Switzerland, Taiwan, Thailand, Trinidad and Tobago, Turks and Caicos Island, UAE, Ukraine, Uruguay, USA and Vietnam.

Important: inclusion in eBay's published programme list does not guarantee this specific item is enabled for every destination. Size, weight, category restrictions, seller enrolment and the listing shipping policy can change what appears at checkout.

CHECKOUT ADDRESS

Please check your delivery address carefully before paying. We dispatch to the address supplied to us by eBay for the order. We cannot safely redirect an order to a different address after checkout. If the address is wrong, use the appropriate eBay cancellation/reorder process rather than asking for an off-address dispatch.

RETURNS, CONDITION AND FITMENT

This listing currently shows a 30-day return period. Please use the fitment chart, actual photographs and VIN verification service before ordering. For a change-of-mind/incorrect-order return, keep the part in the condition received and do not fit, modify, paint, weld, drill or damage it.

If a returned item has been used, altered or damaged and eBay permits a deduction for diminished value under its seller-protection rules, any deduction is limited to the actual loss in value and is handled through eBay. This is not a fixed restocking fee.

VAT MARGIN / GLOBAL ACCOUNTING

Where this sale is accounted for under the applicable second-hand-goods VAT margin/global accounting scheme, VAT is not shown separately and is not separately reclaimable by the buyer. The total eBay sale price is the amount payable, subject to any taxes or import charges that eBay may collect from the buyer at checkout where applicable.

DISPATCH

Careful packing for used vehicle parts Where appropriate, components are protected, boxed and prepared for tracked dispatch. Packaging method varies with the size, weight and shape of the part.

Illustrative CC0 stock image. It does not depict ThePartPilot premises or your exact parcel.

SUPPORT A LOCAL SMALL BUSINESS AND REUSE GOOD PARTS
