VAUXHALL ADAM M13 2013-2019 FRONT LEFT PASSENGER ELECTRIC WINDOW SWITCH
VAUXHALL ADAM M13 2013-2019 FRONT LEFT PASSENGER ELECTRIC WINDOW SWITCH
VAUXHALL ADAM M13 2013-2019 FRONT LEFT PASSENGER ELECTRIC WINDOW SWITCH

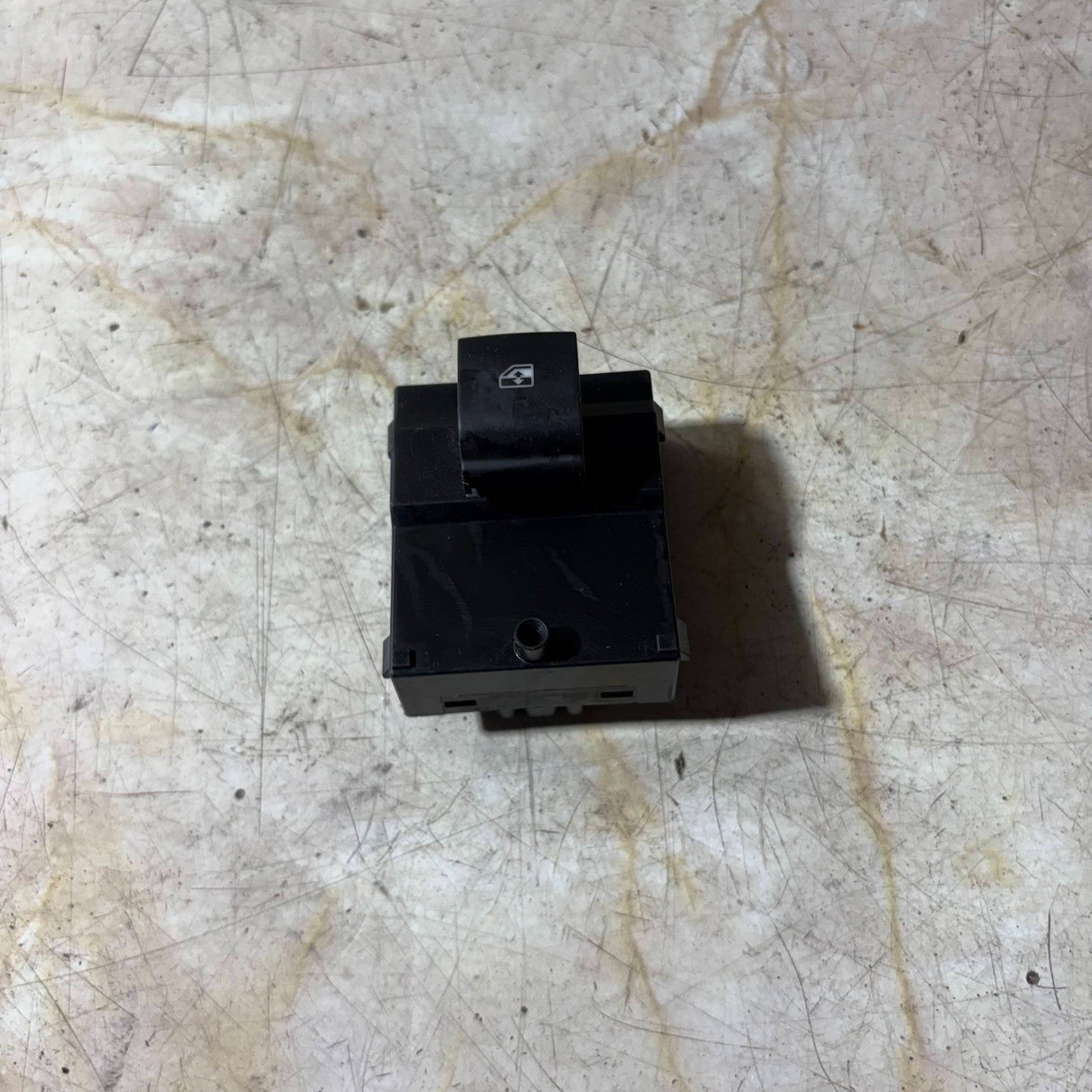

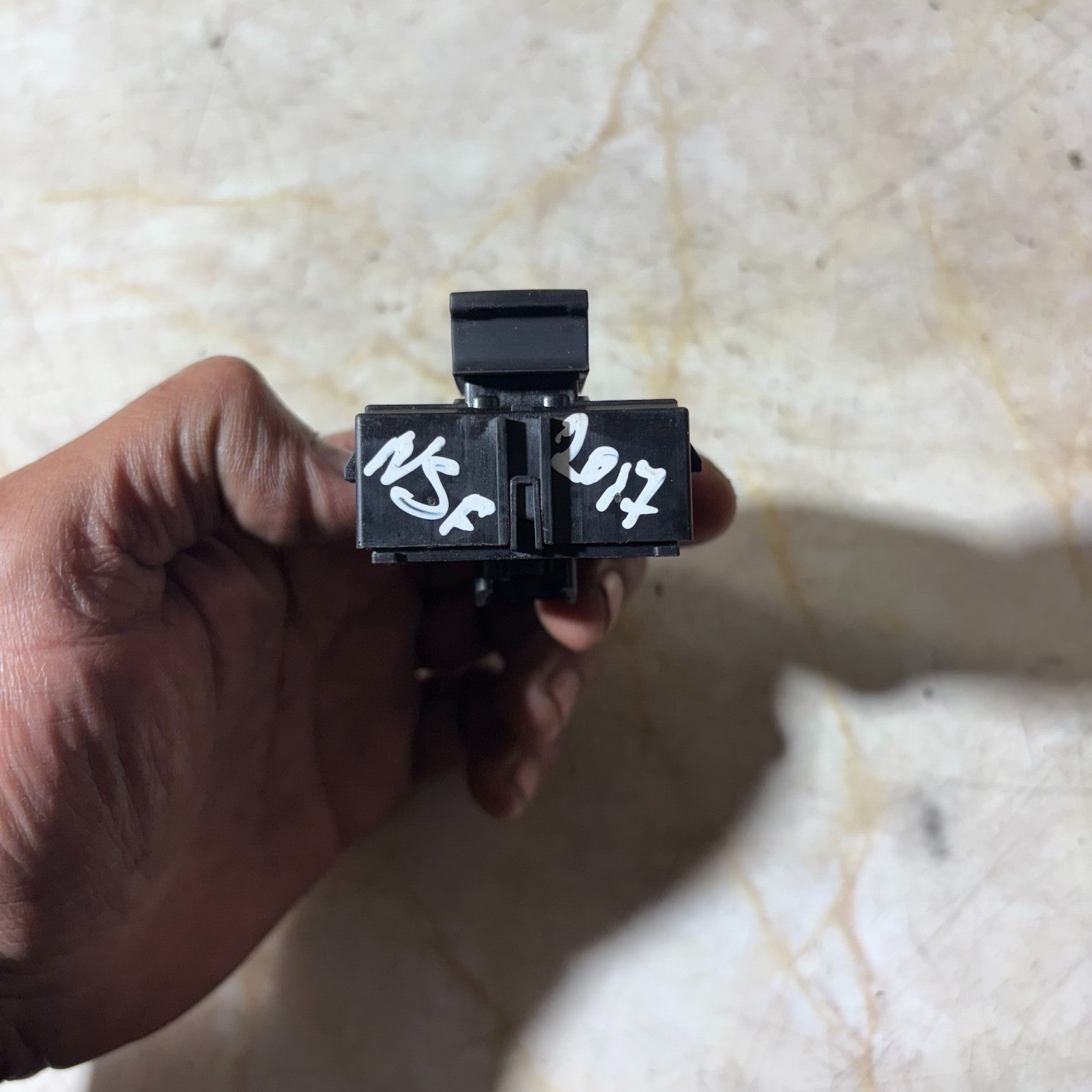

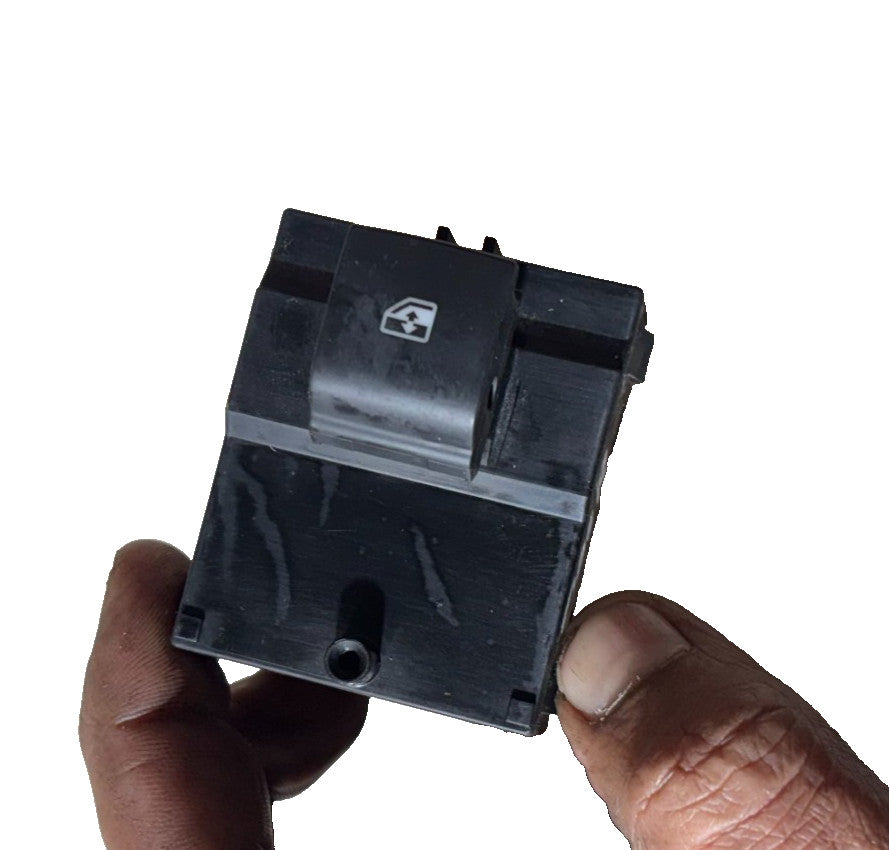

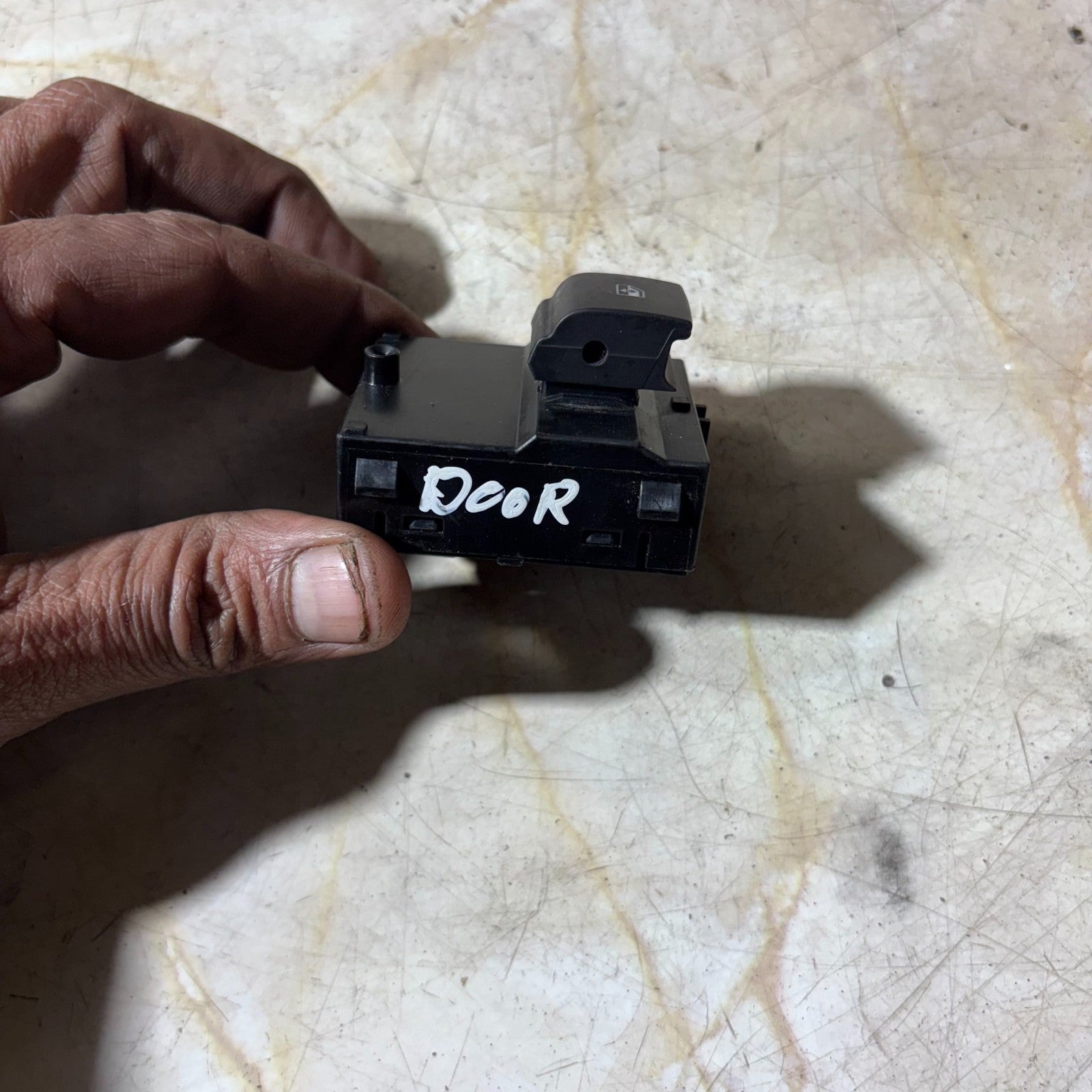

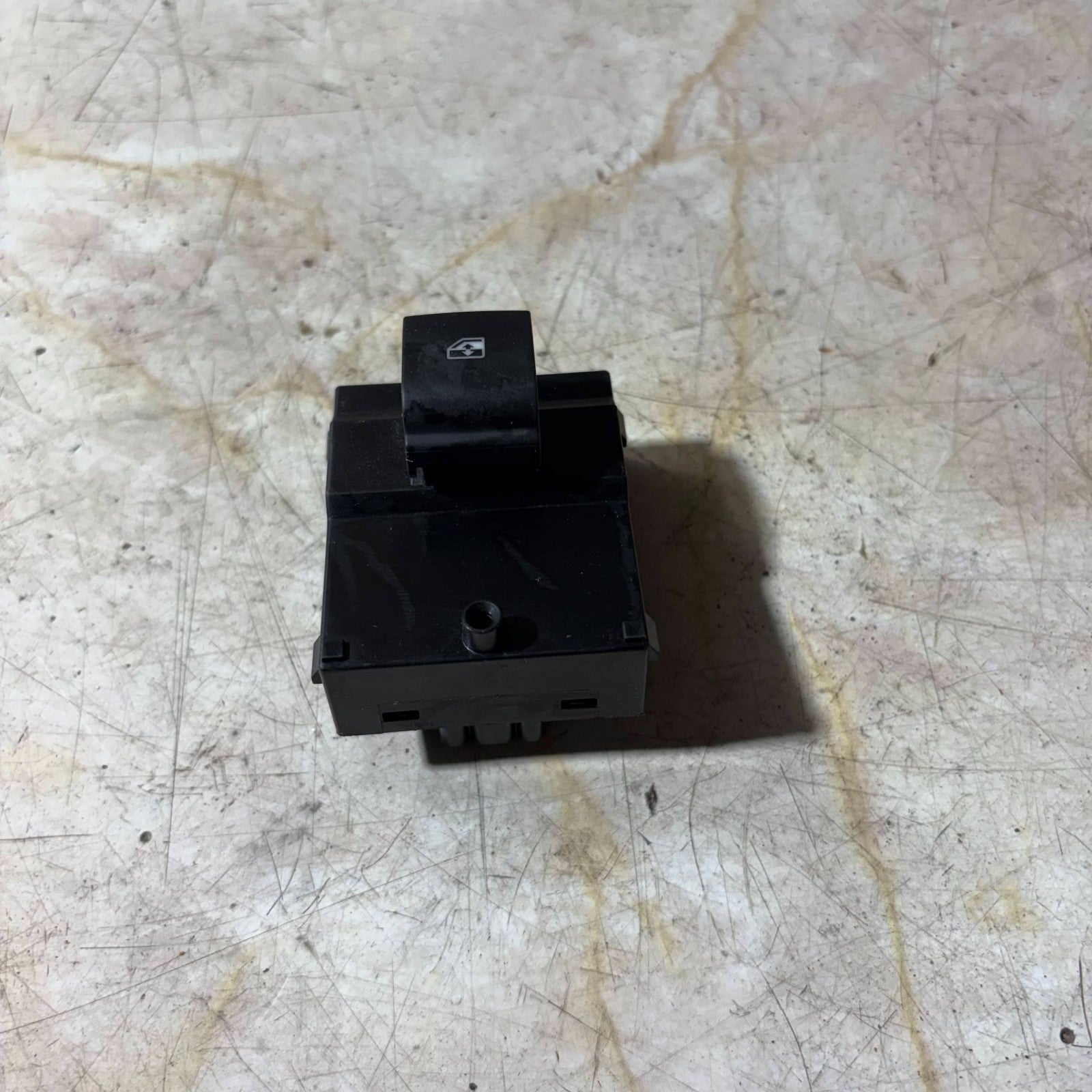

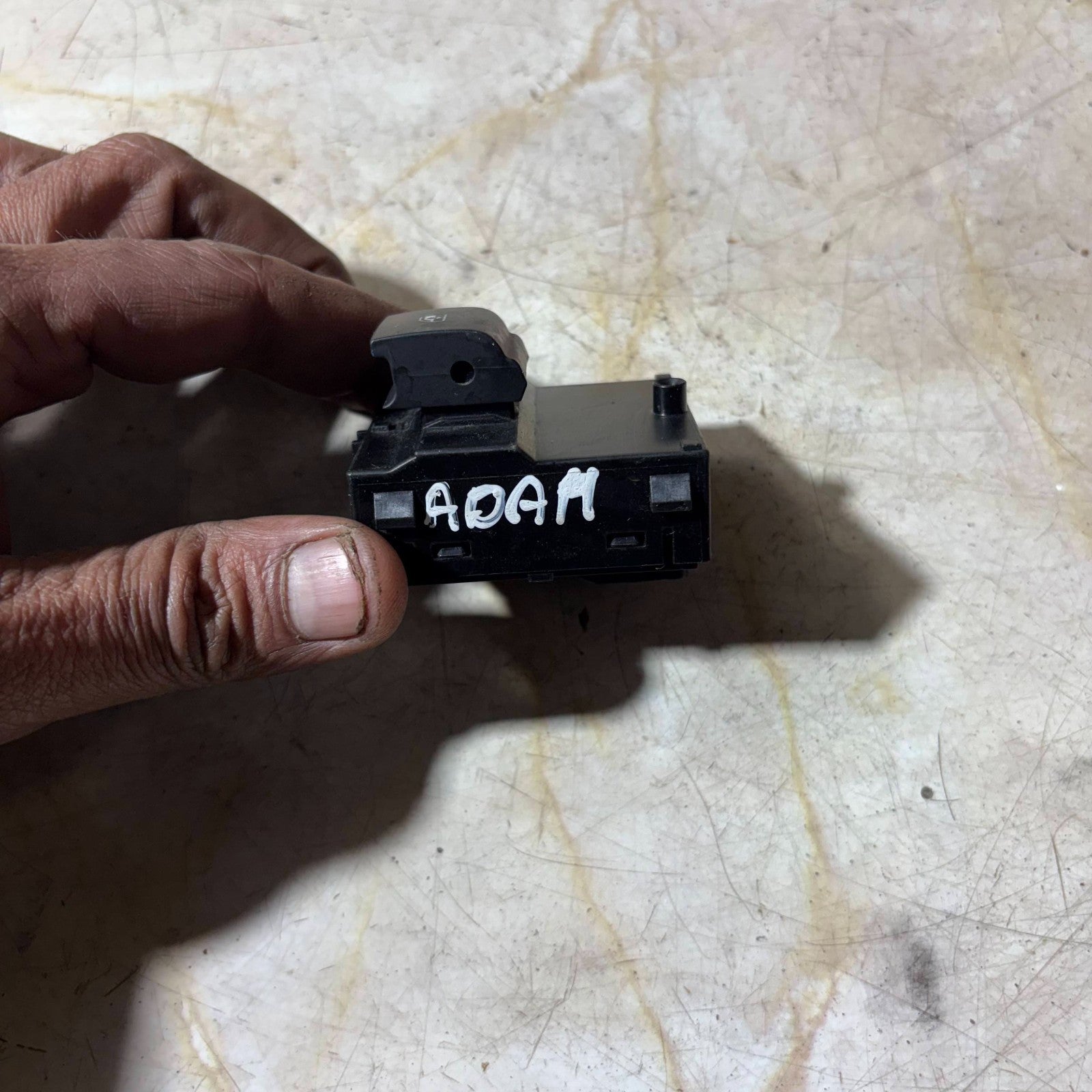

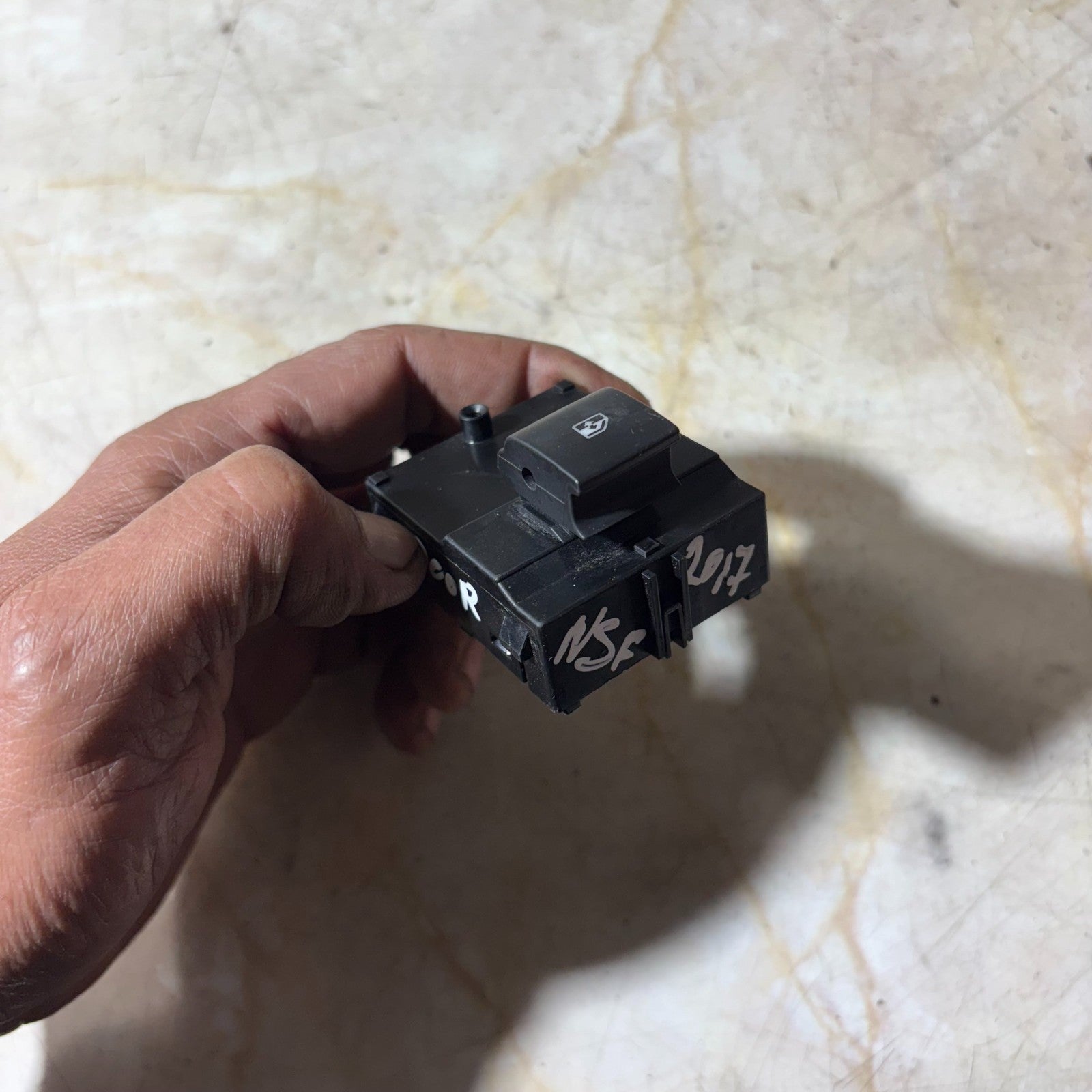

Front-left door mounted electric window control switch assembly for verified Vauxhall Adam M13 applications.
Actual Item — Buy From The Photos
What This Component Does
This electrical switch sits within the front-left door trim / armrest control area. When operated, the switch sends the driver's or passenger's raise/lower command through the vehicle's door electrical circuit so the electric window system can move the front-left door glass.
It is the electrical command switch and should not be confused with the window regulator mechanism or the electric window motor itself.
A worn or damaged switch can commonly present as an intermittent window, a window that responds only when the button is pressed at a certain angle, inconsistent up/down operation, or complete loss of response from that switch position. Always diagnose the circuit before replacing parts, because regulators, motors, wiring and connectors can create similar symptoms.
Why Choose A Factory Component?
Depending on the component and current new-part market price, premium recycled factory components can offer savings of up to 70% compared with purchasing an equivalent component brand new.
THEPARTPILOT carries more than 25,000 vehicle components in stock, allowing buyers to source hard-to-find replacement parts without automatically paying new-component prices.
A correctly matched factory-produced switch was designed around the vehicle's original trim aperture, electrical connector, mounting tabs and operating feel. Low-cost copies can vary in plastic rigidity, switch action, connector tolerance and finish. Correct identification remains essential: always match your removed component before purchase.
Body Style Reference — Check Before Ordering
The verified Vauxhall Adam body configuration is a 3-door hatchback. Do not select a switch merely because another Vauxhall door switch looks visually similar.
Technical Mounting Reference
Front-left door area, integrated into the passenger-side door switch/trim assembly on UK right-hand-drive applications.
BEFORE YOU BUYRemove or inspect your existing switch and compare the connector orientation, plug keying, housing profile, retaining tabs and button configuration. Do not rely solely on registration lookups or automated compatibility menus.
Verified Compatibility Guide
The following combinations are reproduced from compatibility information visible on the source listing. Chassis designation is M13 front-wheel drive.
| Years | Engine | Power | Verified Engine Codes |
|---|---|---|---|
| 2013 | 1.2 Petrol — 1229cc | 51kW / 69HP | A12XEL / B12XEL / D12XEL |
| 2013 | 1.4 Petrol — 1398cc | 64kW / 87HP | A14XEL / B14XEL / D14XEL |
| 2014-2019 | 1.2 Petrol — 1229cc | 51kW / 69HP | A12XEL / B12XEL / D12XEL |
| 2014-2019 | 1.4 Petrol — 1398cc | 64kW / 87HP | A14XEL / B14XEL / D14XEL |
| 2014-2019 | 1.4 Petrol — 1398cc | 74kW / 101HP | A14XER / B14XER |
Will Not Fit / Exclusion List
- Vehicles using a chassis designation other than the verified M13 application.
- 5-door vehicles selected merely because the switch appears visually similar.
- Right-front switch assemblies where a different housing or switch configuration is used.
- Multi-switch or master-control units that differ from the single-switch assembly shown.
- Any application with a different electrical connector, locating key, retaining clip or housing shape.
- Any component carrying a conflicting stamped or moulded identification number.
- 2012 vehicles unless you independently confirm an exact physical and electrical match before purchase.
Facelift note: no specific mid-year facelift exclusion has been verified from the supplied source, so one has not been invented. Physical and electrical matching remains mandatory.
Typical Fitting Procedure
Suggested Tools
- Non-marring plastic trim removal tools
- Small pick or fine flat-blade tool for connector release tabs
- Suitable Torx bits if trim fasteners require removal
- Protective cloth or masking material for painted/trim surfaces
- Basic multimeter if electrical diagnosis is required
Allow approximately 30 minutes as a sensible workshop budgeting allowance. Actual time varies with trim specification, access, seized clips, diagnosis and technician experience.
- Park safely, switch the ignition fully off and remove the key.
- Protect the surrounding door trim with a clean cloth or suitable masking protection.
- Use a plastic trim tool to carefully release the switch bezel or surrounding trim without marking it.
- If the switch cannot be accessed directly, remove only the necessary door-trim fasteners using the correct Torx bit.
- Lift the switch sufficiently to access the wiring connector.
- Depress the connector locking tab and unplug the electrical connector without pulling on the wiring.
- Compare the removed switch and replacement side-by-side: housing, connector keying, pin layout, retaining tabs and markings must agree.
- Connect the replacement switch securely until the connector lock engages.
- Before final reassembly, test window raise/lower operation in accordance with normal vehicle operation.
- Re-seat the switch and trim evenly, checking that every retaining clip is fully engaged.
Professional Fitting Available
A professional fitting service may be available directly through our repair facility, subject to workshop availability and the vehicle/repair required.
Please contact us using eBay Messages before purchase if you need to establish fitting availability.
Indicative Garage Labour Matrix
Based on a 0.5 hour workshop allowance for this switch replacement. Diagnostic time, VAT on workshop services, additional trim work and regional pricing may change the final labour charge.
| Estimated Time | £40/hr | £60/hr | £80/hr | £100/hr |
|---|---|---|---|---|
| 0.5 hour | £20 | £30 | £40 | £50 |
Secure Delivery & Worldwide Reach
Postage is not free. Buyers pay the calculated shipping charge shown by eBay for their delivery destination and selected service.
UK orders are securely packed for dispatch. Eligible international orders can be handled through the eBay Global Shipping Programme, with international tracking and destination eligibility determined by eBay at checkout.
Depending on current eBay programme eligibility, destinations can include Europe, USA, Australia, Canada and other supported international regions. Final postage, import costs and destination availability are shown during checkout.
Important: Customers must ensure their checkout address is correct prior to paying. Due to strict eBay Seller Protection regulations, we are entirely unable to alter or change your delivery address after purchase.
Prepared For Secure Dispatch
Components are prepared for transport with protection appropriate to the part type. Electrical switches are particularly vulnerable to crushed connectors, broken locating tabs and impact damage, so secure packaging matters from shelf to delivery.
VAT Margin Scheme Information
Returns — Protect The Part & Verify Before Fitting
Ordering the correct variation saves everyone time and transport. Buyers are strongly encouraged to verify their original switch against the high-resolution photographs, connector shape, mounting points, button configuration and stamped/moulded identification before ordering.
5 Checks Before You Click Buy
| Check | What To Confirm |
|---|---|
| 1. Vehicle | Vauxhall Adam, chassis M13. |
| 2. Side | Front Left — UK passenger / near-side position. |
| 3. Housing | Switch body and mounting tabs visually match your removed part. |
| 4. Electrical Plug | Connector shape, locking key and pin layout match exactly. |
| 5. Identification | Compare all visible stamped or moulded numbers before installation. |
WhatsApp QR for Fitment Help / Appointment Enquiries
Scan the QR code to contact ThePartPilot on WhatsApp for fitment checks, appointments or fitting service availability.For faster fitment help, send your vehicle registration, VIN if available, and clear photos of your existing part, connector and part number.
