Vauxhall Agila B Mk2 H08 2011-2014 1.0 K10B Rear Windscreen Wiper Arm 5 Door
£20.50
Skip to product information
Vauxhall Agila B Mk2 H08 2011-2014 1.0 K10B Rear Windscreen Wiper Arm 5 Door
£20.50
Premium used vehicle parts | Fitment-first listing
THEPARTPILOT
Vauxhall Agila B Mk2 H08 2011-2014 1.0 K10B Rear Windscreen Wiper Arm 5 Door
A detailed, fitment-led listing designed to help you compare the physical part, vehicle specification and installation location before ordering.
25,000+ parts in stock
30 day seller warranty
International eBay GSP
Fitting service subject to availability
Collection by prior appointment
Fitment check - read this first
Current eBay compatibility table: Vauxhall Agila Mk II (B) H08, 1.0i petrol, engine K10B, 996cc, 50kW / 68PS, model years 2011, 2012, 2013 and 2014. Vauxhall literature for this generation describes the Agila as a five-door vehicle.
Do not order from registration year alone. Match the generation, H08 chassis designation, engine, body style and the actual photographs. If anything differs, send your full VIN through eBay Messages before purchase so fitment can be checked.
Important physical-item limitation: the current photographs do not show a readable factory-stamped part number on this arm. Catalog numbers shown later in this description are research references for the Agila B rear-wiper application, not a claim that those numbers are visibly stamped on this exact item.
Actual item - reference photographs
THEPARTPILOT

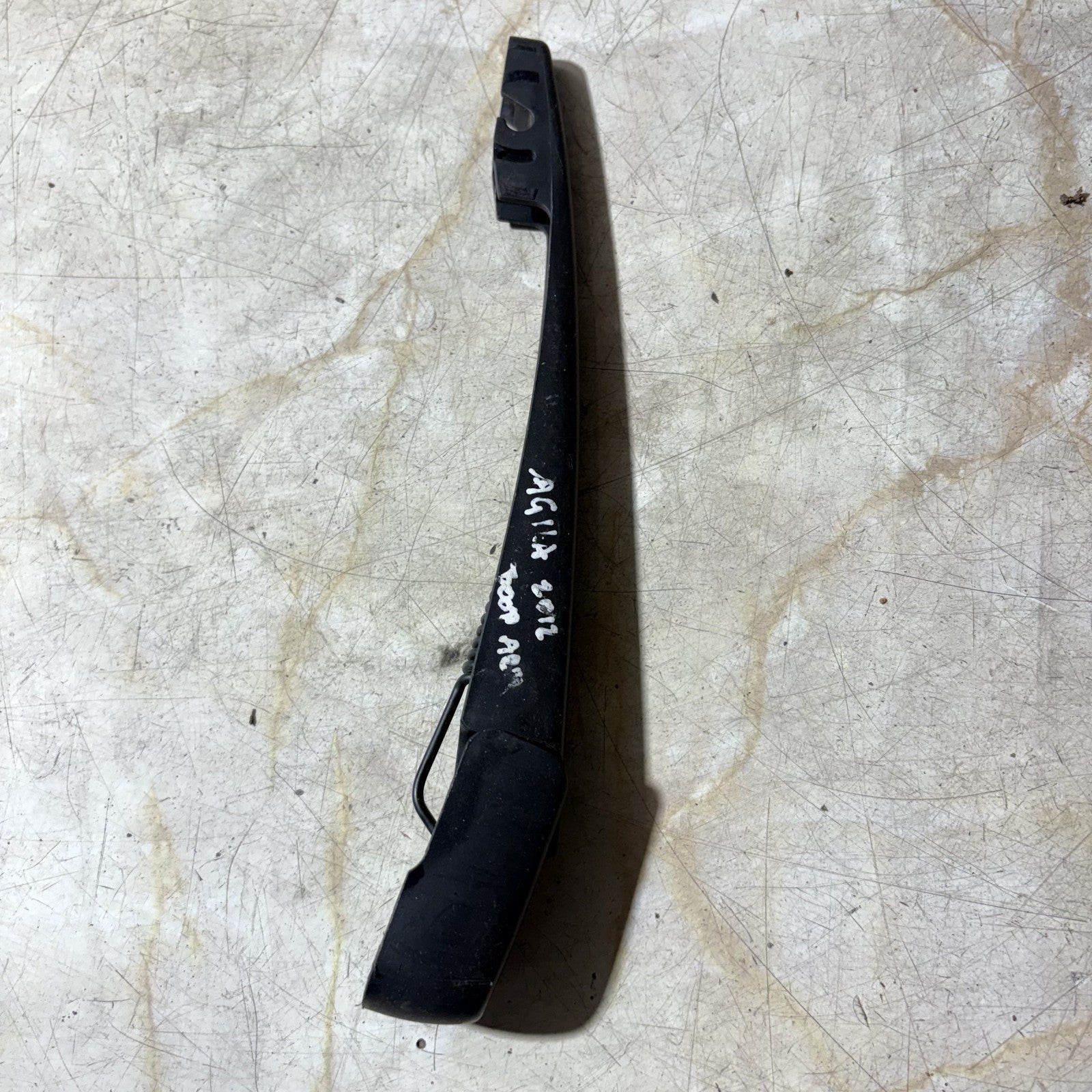

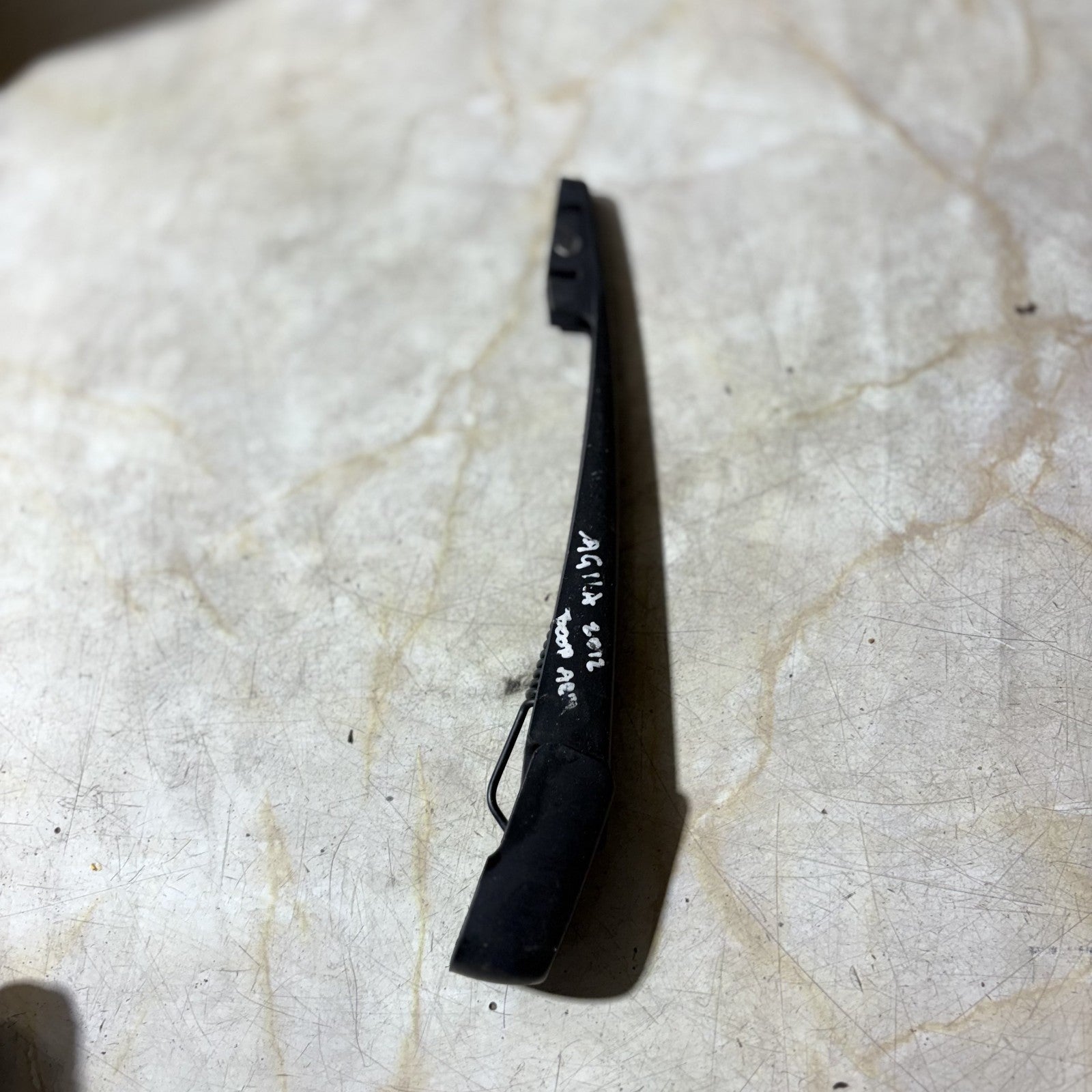

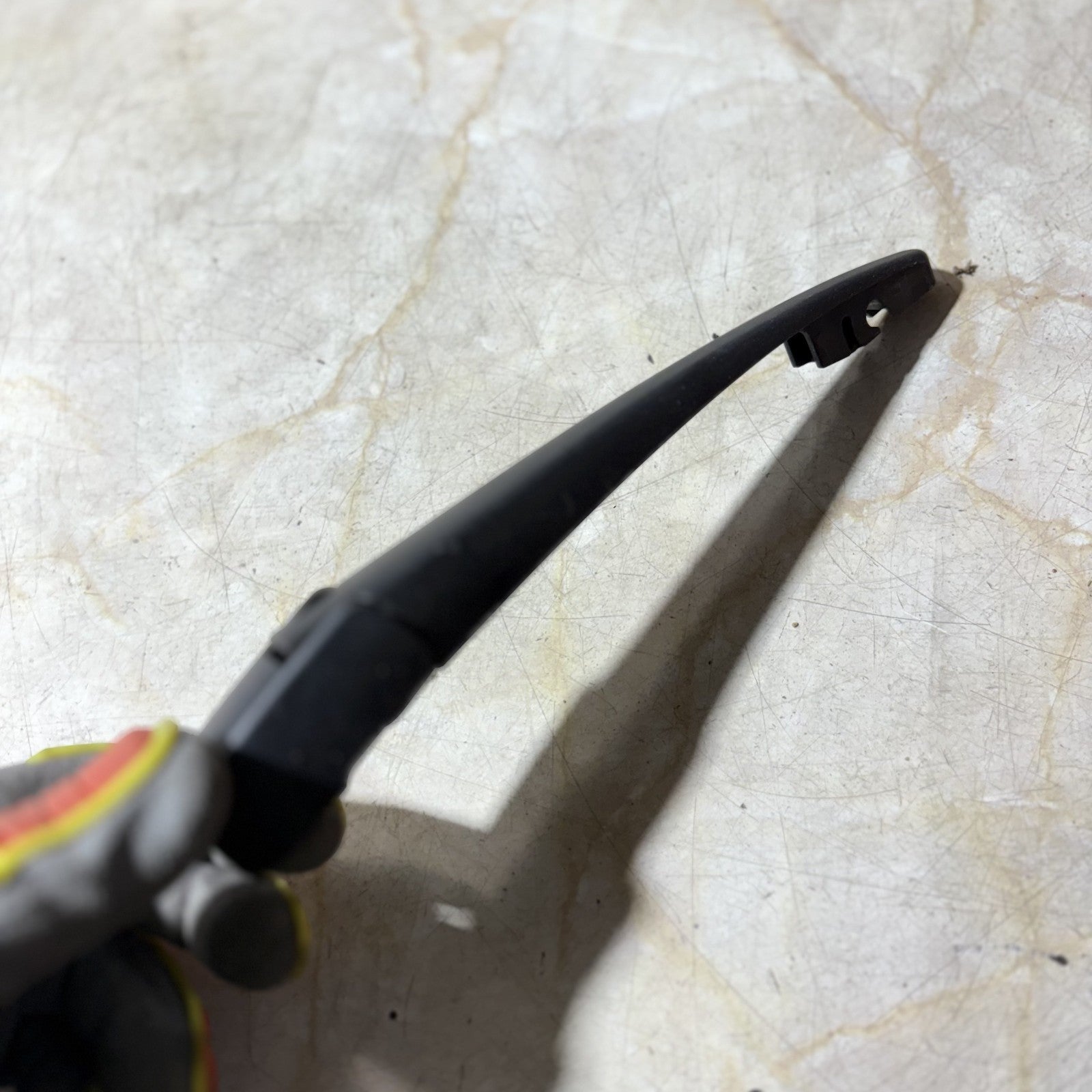

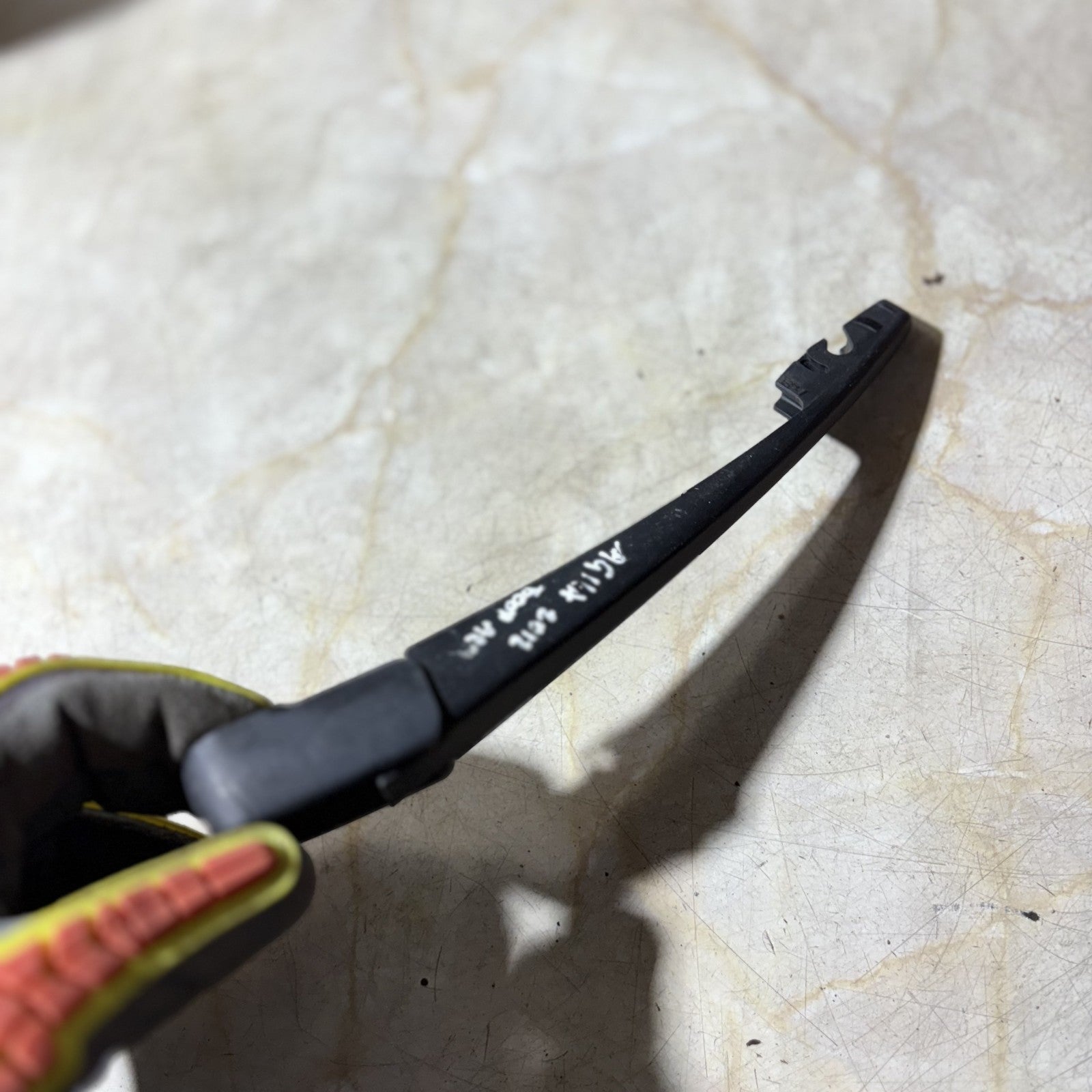

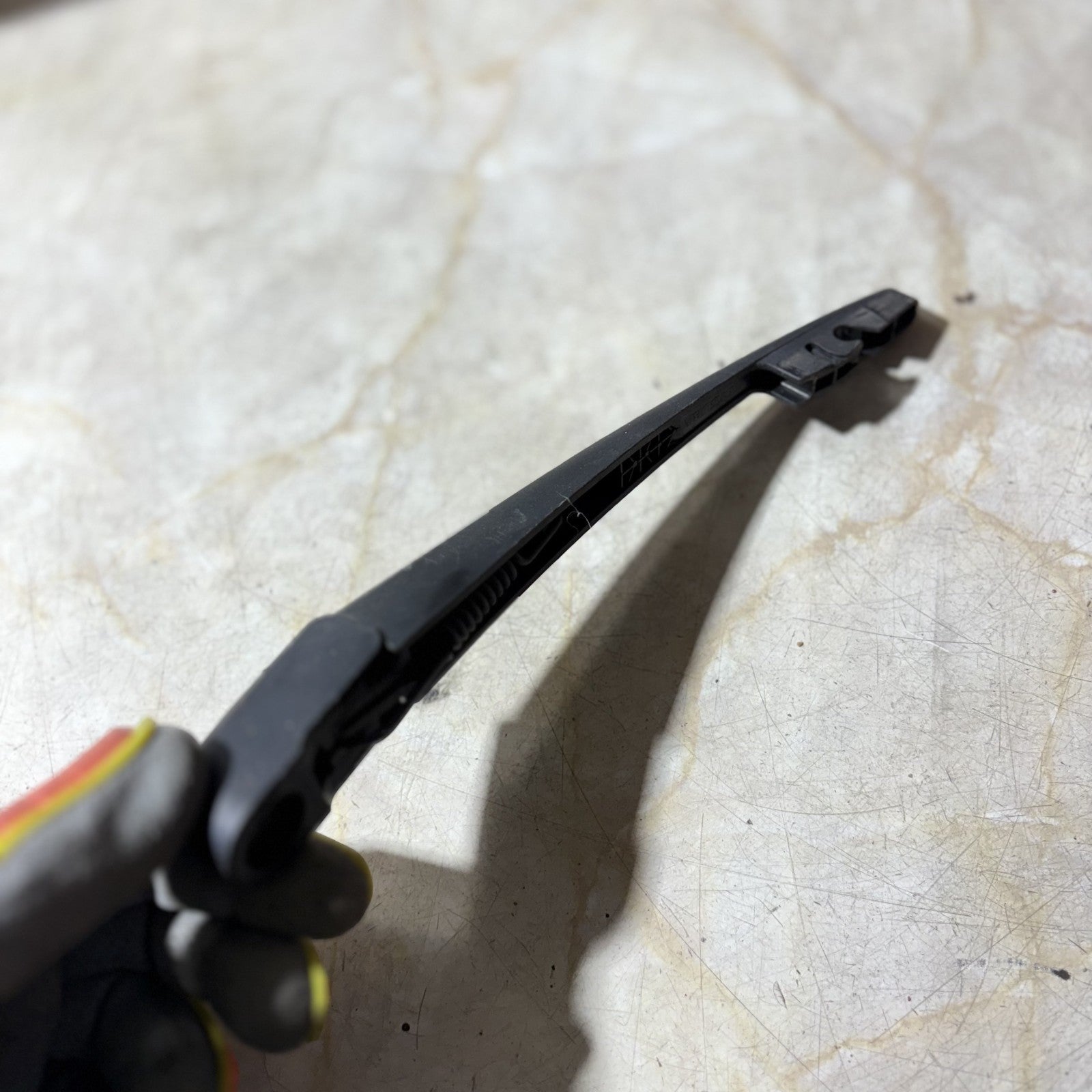

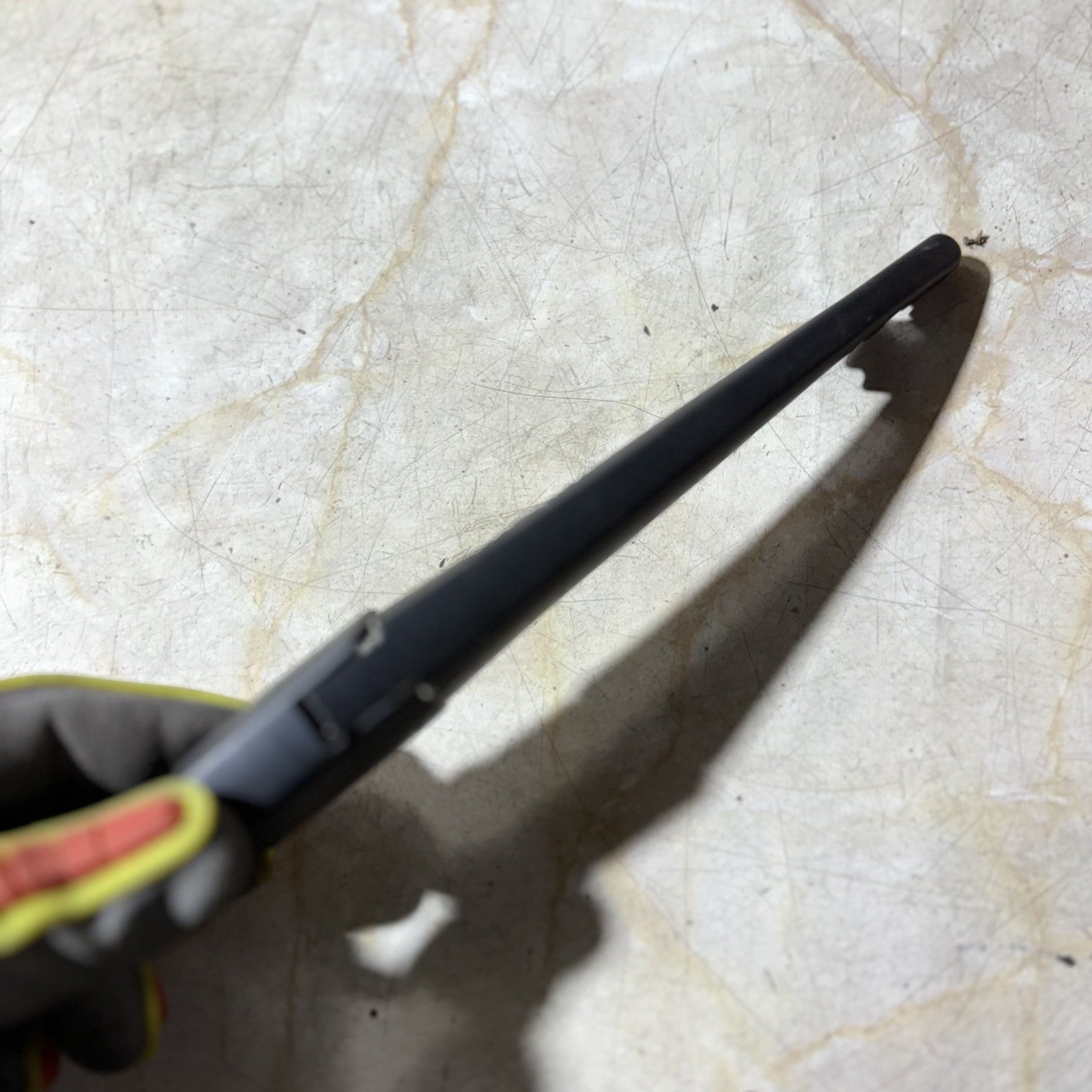

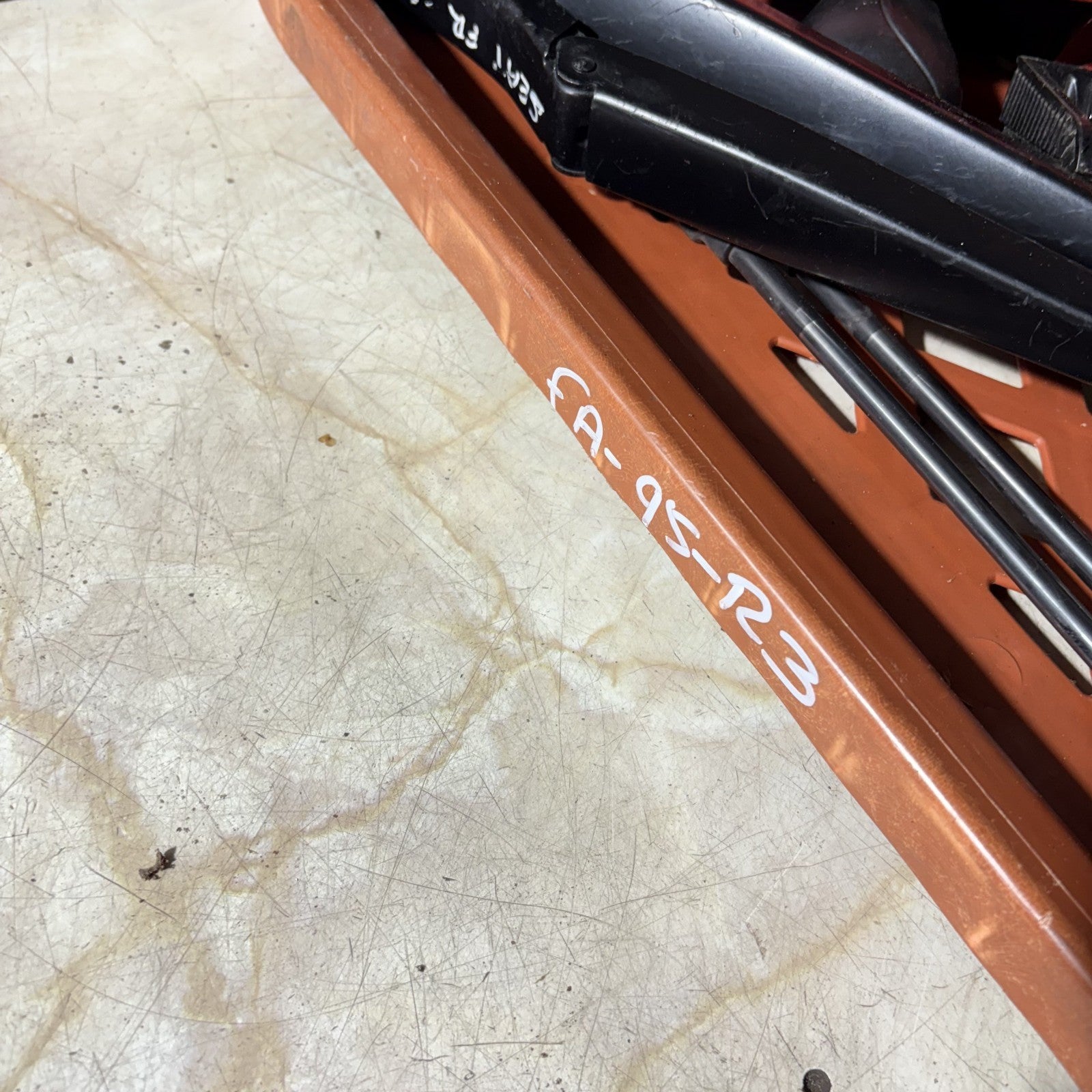

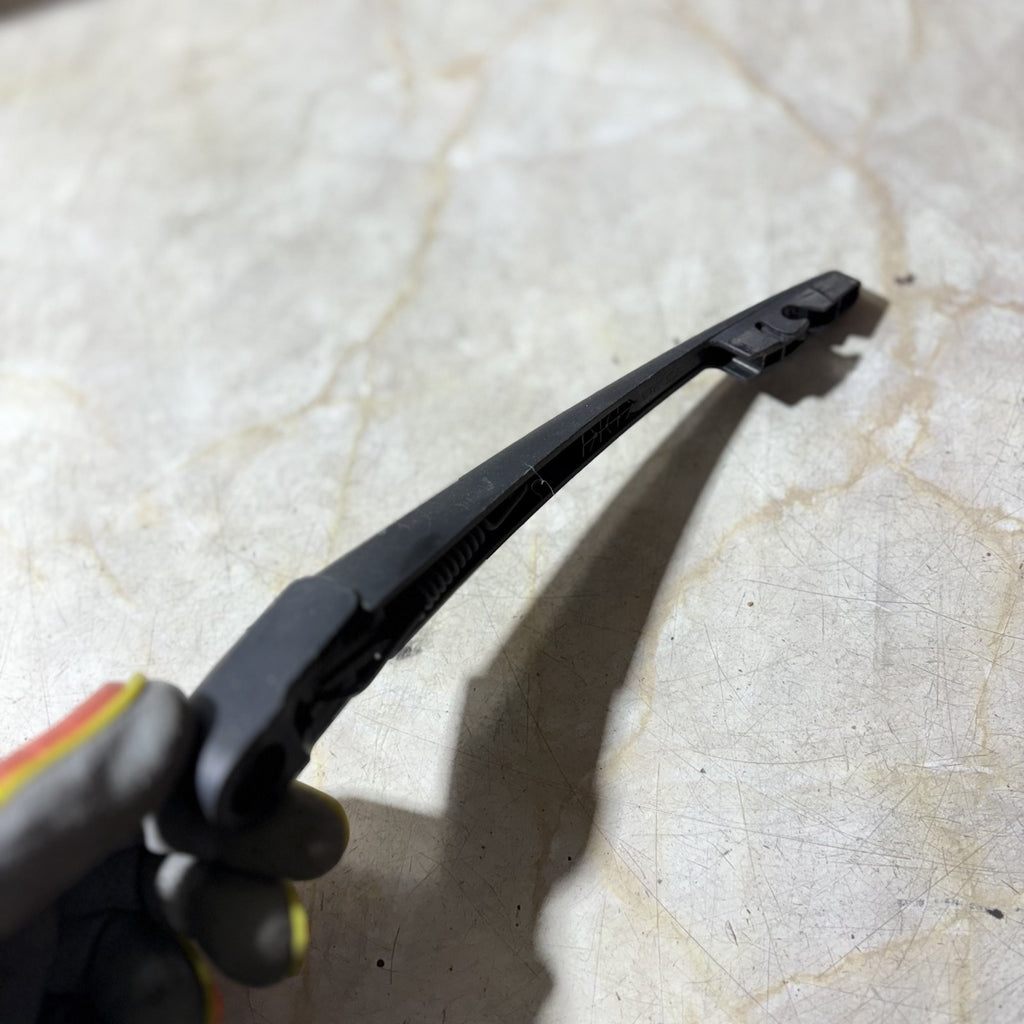

Actual listing photograph. Compare arm profile, spindle mounting eye and blade-end geometry before fitting.
THEPARTPILOT

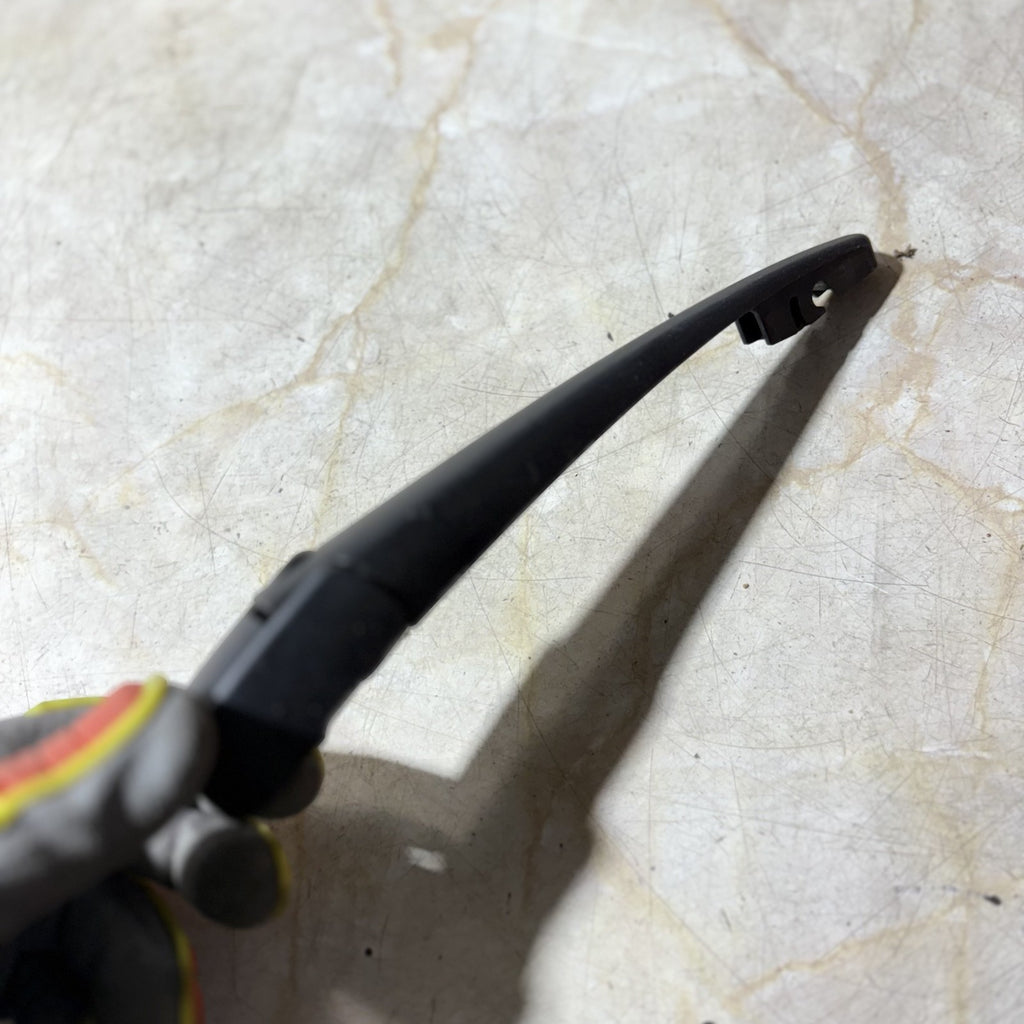

Actual listing photograph. Used parts may show age-related cosmetic marks; the pictured item is the primary visual reference.
Vehicle reference and where the part fits
REFERENCE VEHICLE
2014 Vauxhall Agila S AC ecoFLEX 1.0 - reference vehicle matching the current listing's 2014 / 1.0 application.
Reference image credit: Wikimedia Commons / Vauxford, CC BY-SA 4.0. Reference image is illustrative and is not the donor vehicle.
2014 BODY REFERENCE
Second 2014 Vauxhall Agila Mk2 five-door reference photograph. The file does not document its engine, so it is used only to confirm the 2014 body/generation appearance and is not used to extend engine fitment.
Reference image credit: Calreyn88 / Wikimedia Commons, CC BY-SA 4.0. Reference image is illustrative and is not the donor vehicle.
Where it is fitted
Rear tailgate / rear window: the arm fits onto the rear-wiper spindle at the tailgate glass area. The mounting eye at the base of the pictured arm sits on the spindle; the opposite end carries the rear wiper blade. This location statement describes the component function and does not expand the vehicle fitment table.
What the rear wiper arm does
The arm mounts on the rear tailgate wiper spindle and transfers the wiper motor's movement to the rear blade. Its geometry, spline interface and spring pressure keep the blade at the correct angle and pressure against the rear glass so the swept area is cleared consistently.
Current eBay compatibility table
| Make | Model | Year | Body / chassis | Engine | Status |
|---|---|---|---|---|---|
| Vauxhall | Agila | 2011 | Mk II (B) H08, 5-door hatch | 1.0i K10B, 996cc, 50kW / 68PS | CURRENT EBAY COMPATIBILITY ROW |
| Vauxhall | Agila | 2012 | Mk II (B) H08, 5-door hatch | 1.0i K10B, 996cc, 50kW / 68PS | CURRENT EBAY COMPATIBILITY ROW |
| Vauxhall | Agila | 2013 | Mk II (B) H08, 5-door hatch | 1.0i K10B, 996cc, 50kW / 68PS | CURRENT EBAY COMPATIBILITY ROW |
| Vauxhall | Agila | 2014 | Mk II (B) H08, 5-door hatch | 1.0i K10B, 996cc, 50kW / 68PS | CURRENT EBAY COMPATIBILITY ROW |
Do not assume compatibility with these vehicles
| Vehicle / variant | Listing status | Why |
|---|---|---|
| Vauxhall Agila B 2008-2010 | NOT CONFIRMED FOR THIS PHYSICAL ITEM | Broader catalog research exists, but the item itself has no readable factory number in the current photos. VIN/part-number verification required before claiming fitment. |
| Vauxhall Agila B 2015 | NOT CONFIRMED FOR THIS PHYSICAL ITEM | Same reason: do not expand the live compatibility table without VIN or a physically verified number. |
| Agila B 1.2 petrol / 1.3 CDTi | NOT CONFIRMED | The current eBay compatibility table identifies only the 1.0 K10B application; no broader physical-item fitment is claimed here. |
| Opel Agila B | NOT CONFIRMED IN THIS LISTING | Related model/catalog data is not enough to certify this exact used item without part-number or VIN confirmation. |
| Suzuki Splash / other Suzuki models | NOT CONFIRMED | Platform or visual similarity is not proof of interchange. Do not order unless exact cross-reference/VIN confirmation has been completed. |
| Vauxhall Agila A / Mk1 | DO NOT BUY ON THIS LISTING'S FITMENT CLAIM | Different generation from the confirmed Mk II (B) H08 application. |
Any vehicle outside the green current-table rows should be treated as unverified until checked against VIN and a manufacturer/catalog number physically confirmed on the part.
Part-number research - use with caution
95507670Catalog reference found for the Vauxhall / Opel Agila B rear wiper arm application.
4711542Cross-reference seen in Agila B rear-wiper catalog data.
93197034Cross-reference seen in Agila B rear-wiper catalog data.
Do not enter these as the verified Manufacturer Part Number for this physical item unless you confirm the number on the arm or donor VIN. They are included to help research and comparison, not to replace physical verification.
Common symptoms of a worn or damaged rear wiper arm
Loose or slipping armThe motor/spindle may move while the arm slips, especially if the mounting interface is worn or loose.
Poor contact with rear glassWeak spring pressure or a bent arm can cause missed areas, smearing or inconsistent wiping.
Chatter or skippingIncorrect blade angle, distorted arm geometry or poor pressure can cause noisy or uneven travel.
Visible cracking or damagePlastic/composite outer sections and hardware can deteriorate through age, impact or repeated loading.
Incorrect parking positionA loose arm on the spindle can park at the wrong angle after operation.
Important diagnostic noteIf the rear wiper motor is silent or has no power, also check fuse, switch, wiring, motor and related electrical faults. Replacing the arm will not repair an electrical failure.
Why choose a used manufacturer-specification part?
A correctly matched used original-manufacturer vehicle part can retain the intended mounting geometry, spindle interface, spring loading and blade position for the vehicle. Low-cost pattern copies can vary in moulding, spline fit, spring force and finish, so exact matching matters more than simply finding a part that looks similar.
Correct geometry mattersRear wiper arms are shaped to park and sweep in a specific position on the glass.
Reuse reduces wasteKeeping serviceable vehicle components in circulation reduces demand for unnecessary replacement production.
Potential savingSelected used parts can offer savings of up to 70% compared with current new-part pricing. Savings vary by part, availability and new retail price; compare current prices before purchase.
Fitting guide
Estimated fitting time: approximately 15-30 minutes for an experienced DIYer or technician where the spindle and retaining nut are not seized. This is a practical estimate, not a fixed labour time.
Suggested tools
- Small trim tool or flat-blade tool for the spindle-nut cap
- Ratchet and the correct socket for the retaining nut - verify the actual nut size before starting
- Torque wrench for final tightening to the vehicle manufacturer's specified torque
- Masking tape or removable marker to record the original parked blade position
- Penetrating fluid if the arm is corroded onto the spindle
- Optional wiper-arm puller if the taper/spline is seized
- Protective cloth to prevent accidental contact with the rear glass or paint
Basic procedure
- Park the rear wiper normally, switch the ignition off and make the vehicle safe.
- Mark the existing blade/arm parked position on the glass with removable tape.
- Lift or remove the protective cap over the rear-wiper retaining nut.
- Remove the retaining nut using the correctly sized socket.
- Work the arm carefully off the spindle. If seized, use an appropriate puller rather than levering hard against the glass.
- Clean the spindle interface and compare the replacement arm directly with the removed arm.
- Install the replacement at the recorded parked position and tighten the nut to the manufacturer-specified torque for the vehicle.
- Wet the rear glass and test the wipe/park operation before final use. Never test a dry blade aggressively on dirty glass.
If you are not confident with the work, use a competent technician. Fitting service may be available through ThePartPilot subject to availability; ask through eBay Messages before travelling.
Garage labour estimate - static calculator
Use the table below to estimate labour only. Formula: hourly labour rate x 0.25 to 0.50 hours. Diagnosis, parts, seized components, minimum labour charges and additional repairs are not included.
| Garage hourly rate | 15 minute estimate | 30 minute estimate |
|---|---|---|
| £60/hour | £15.00 | £30.00 |
| £80/hour | £20.00 | £40.00 |
| £100/hour | £25.00 | £50.00 |
| £120/hour | £30.00 | £60.00 |
| £150/hour | £37.50 | £75.00 |
No JavaScript, forms or active-content calculator is used in this listing.
Workshop and stock support
ILLUSTRATIVE WORKSHOP IMAGE
Fitting and repair support may be available subject to workload, part type and appointment availability. This is a licensed stock image and does not depict ThePartPilot premises.
ILLUSTRATIVE STOCK / DISPATCH IMAGE
ThePartPilot states that more than 25,000 parts are held in stock at any one time. Image is illustrative stock photography and does not depict ThePartPilot premises.
Condition, contents and ordering checks
ConditionUsed. Expect normal age-related cosmetic marks consistent with a previously fitted vehicle component. Study the actual item photographs before purchase.
Visible constructionFrom the actual photographs, the arm has a black moulded outer body with visible metal spring/retaining hardware. Exact polymer grade and internal metallurgy are not stated because no manufacturer material specification is visible on the item.
What you receiveThe pictured rear wiper arm. No motor, wiring, washer system or other components are included unless they are clearly shown as part of the item.
Fitment verificationIf unsure, send the full 17-character VIN through eBay Messages before ordering. Do not rely on registration year or visual similarity alone.
Delivery addressPlease make sure the delivery address shown at eBay checkout is correct before payment. Dispatch will be made to the address recorded on the eBay order.
