VW Beetle 5C 2012-2016 NSF Passenger Front Door Hinge Pair 7N0831401A 7N0831401

These photographs are loaded directly from the existing eBay-hosted listing imagery. Please study the photographs closely because the photographed component, markings, mounting points and cosmetic condition are important identification references.

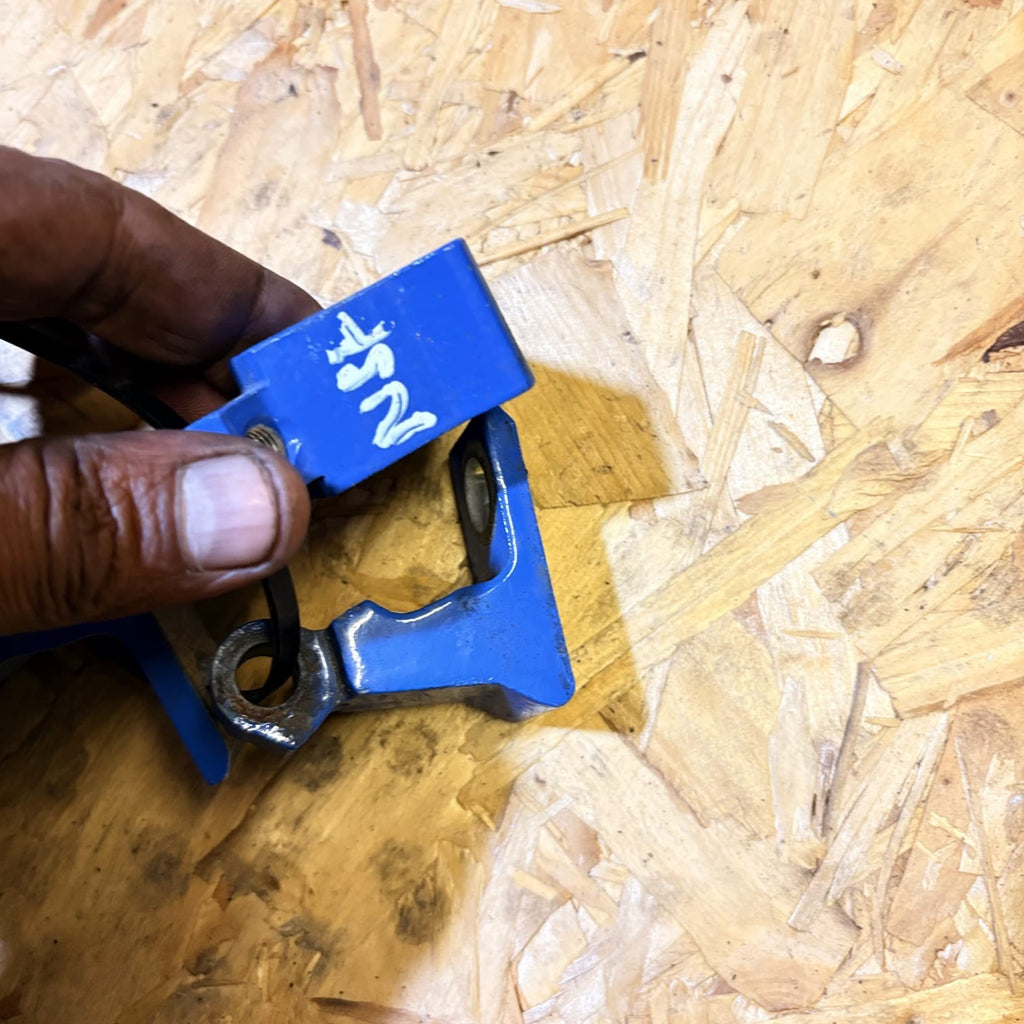

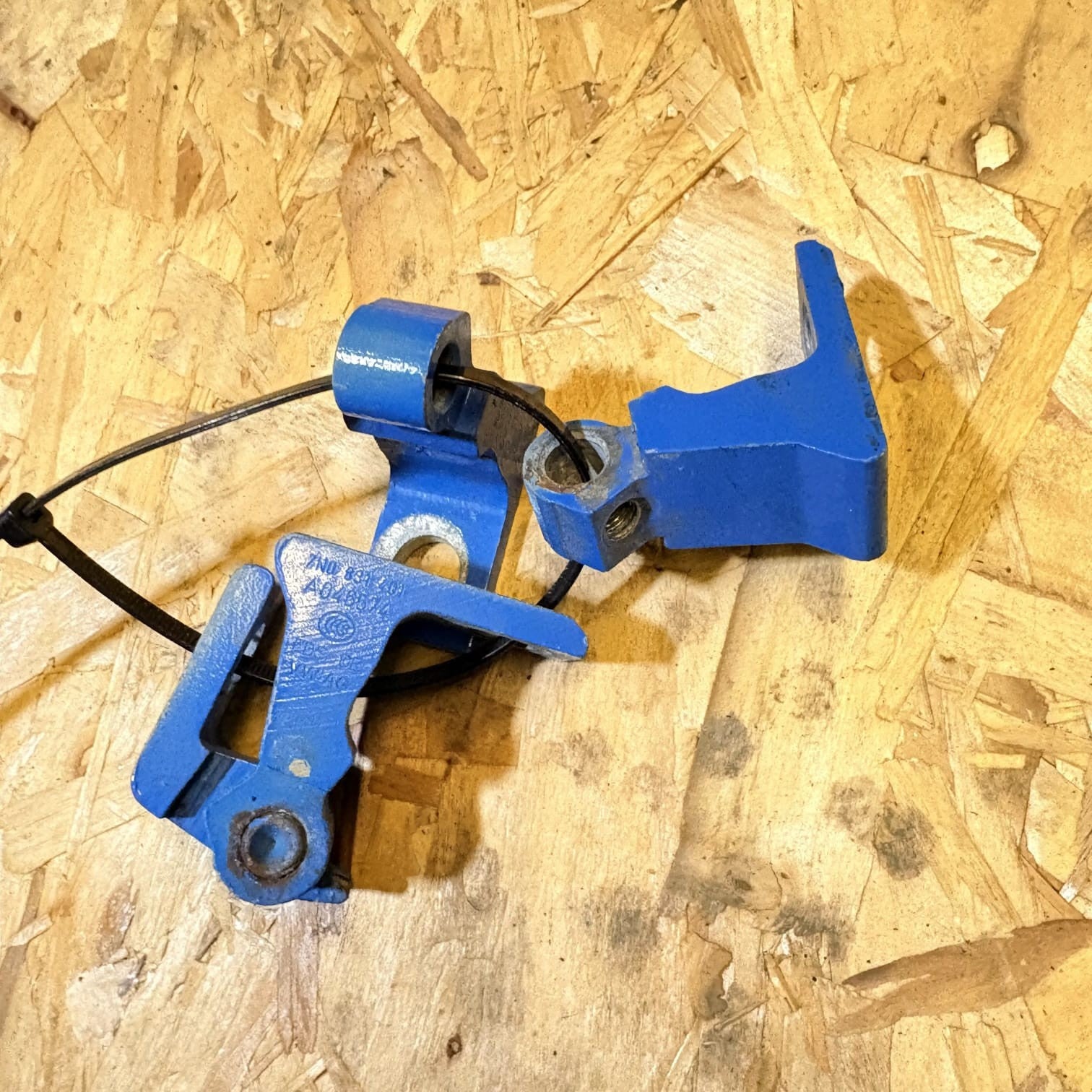

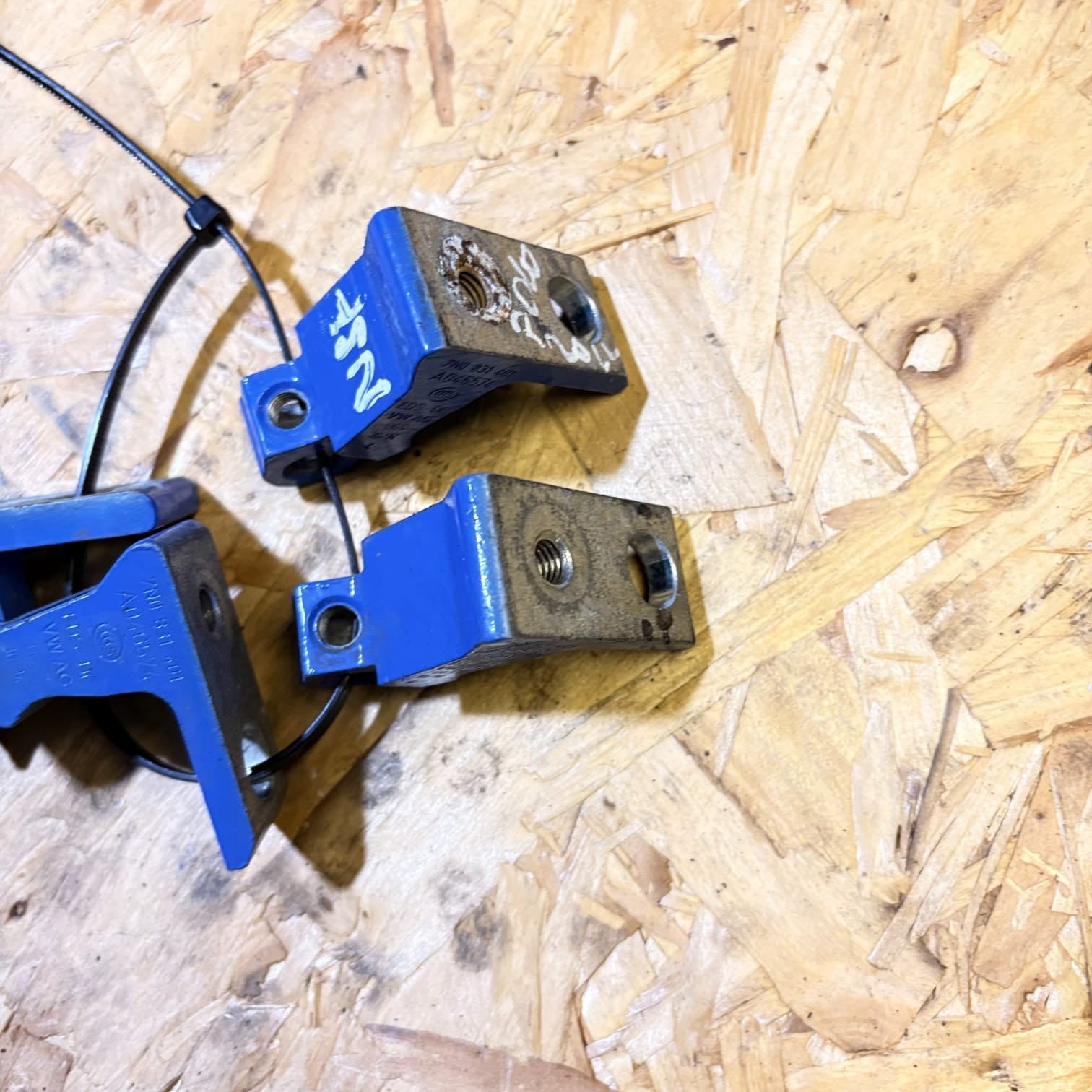

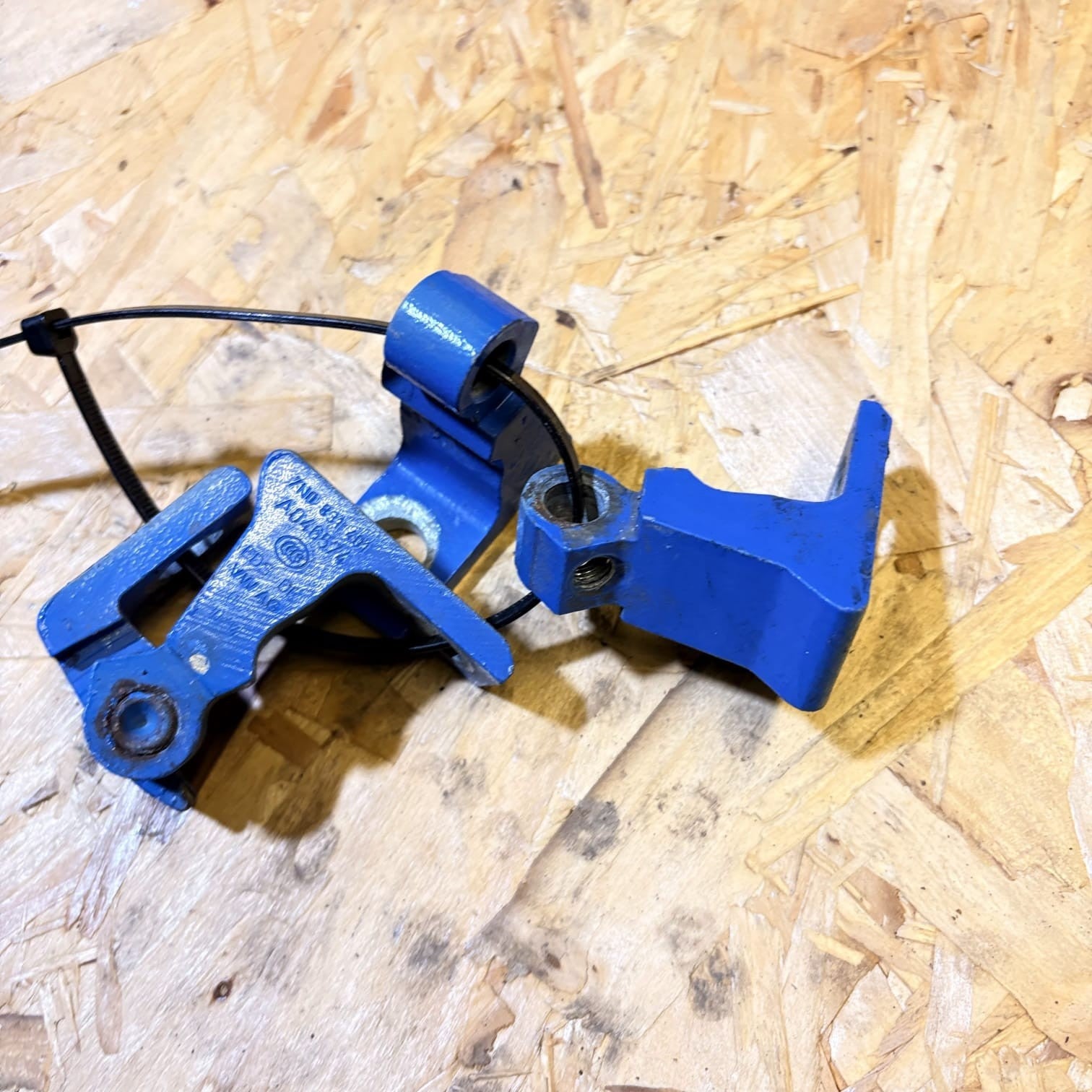

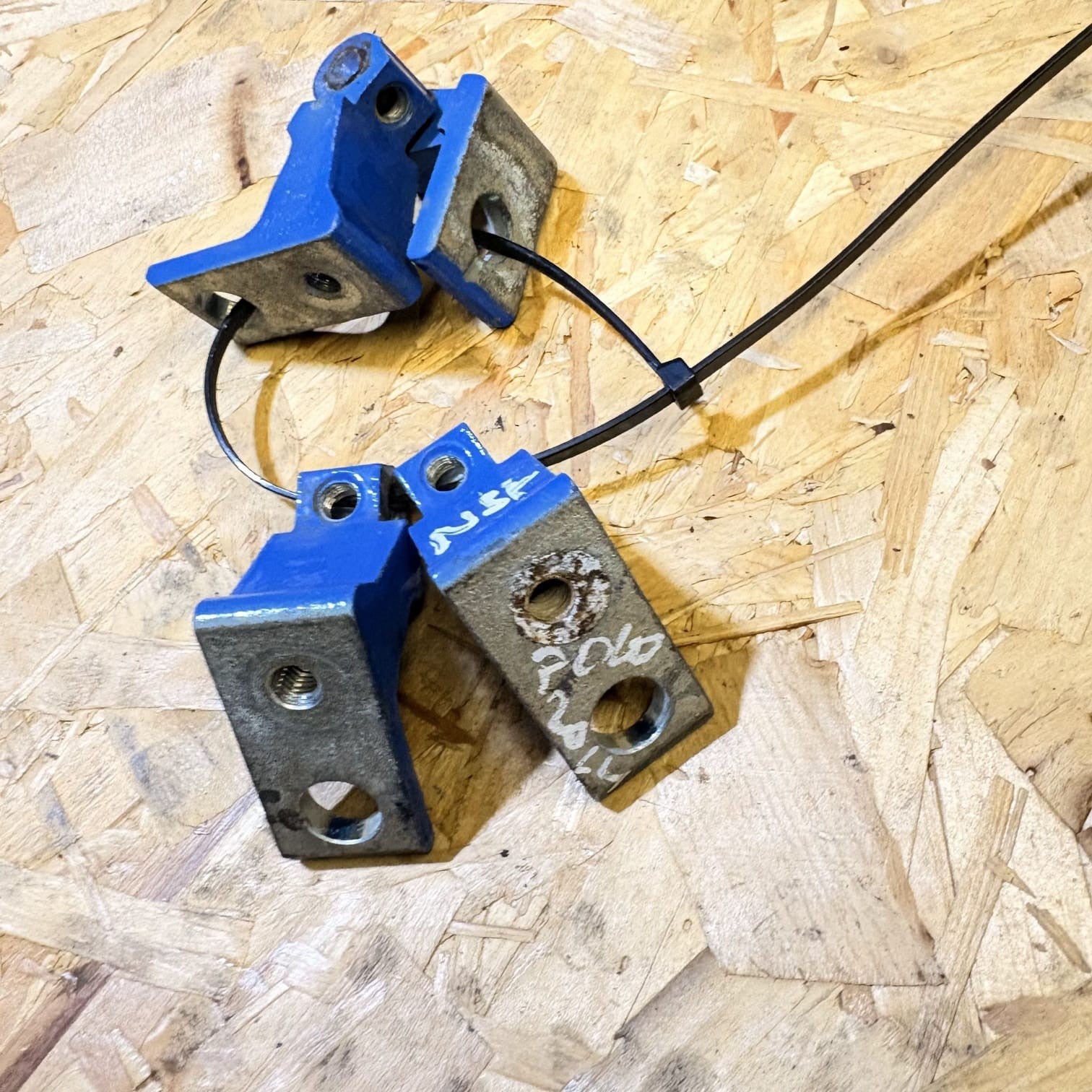

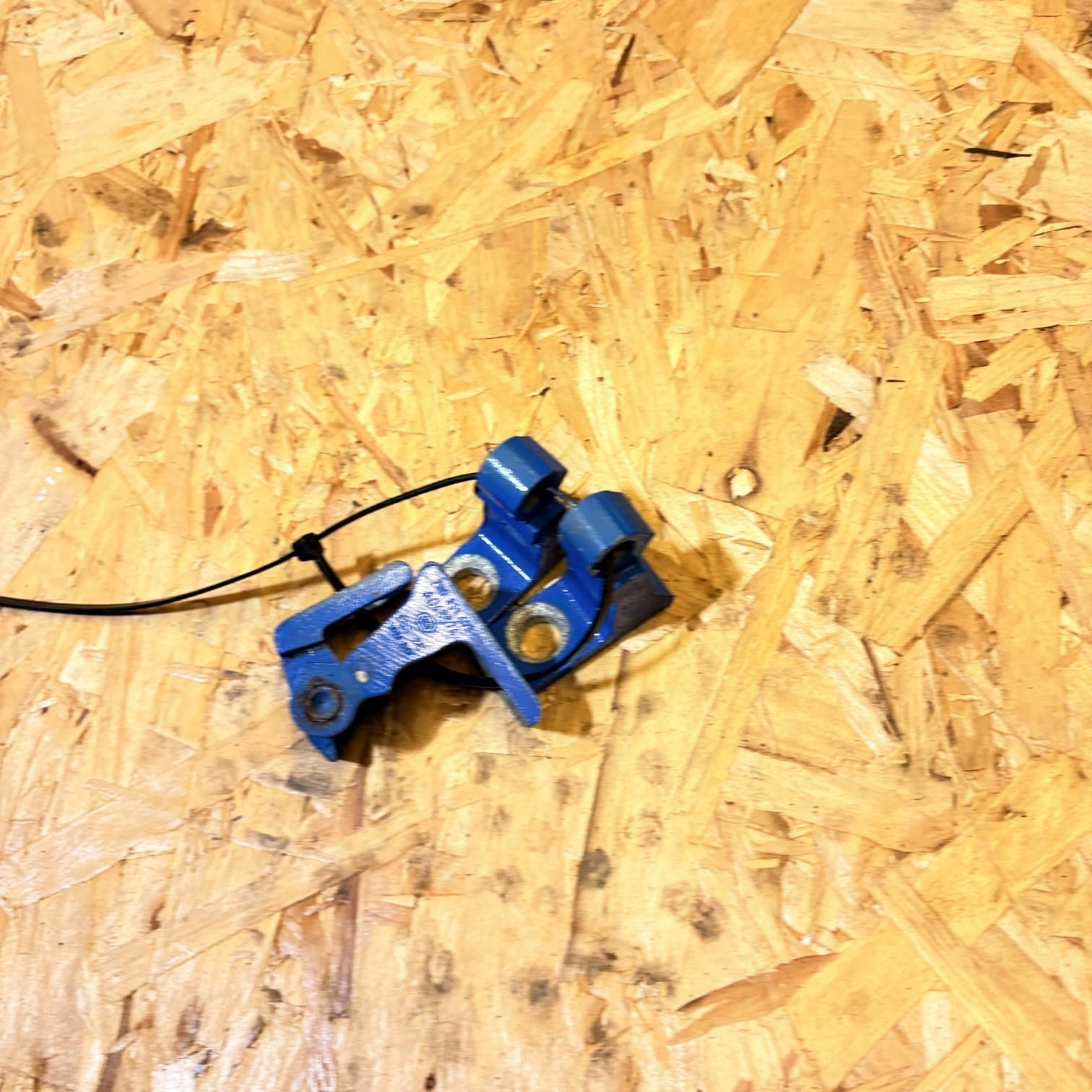

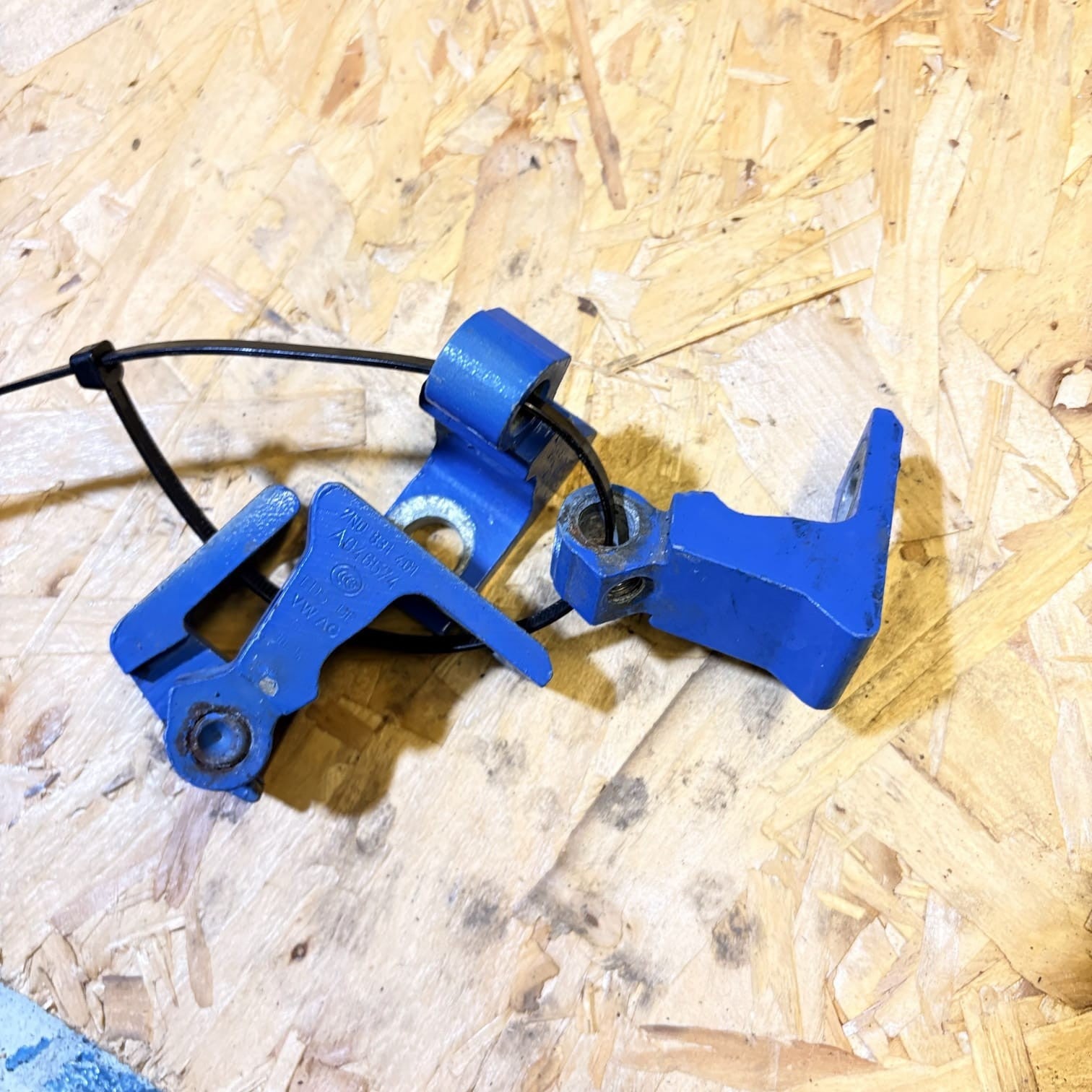

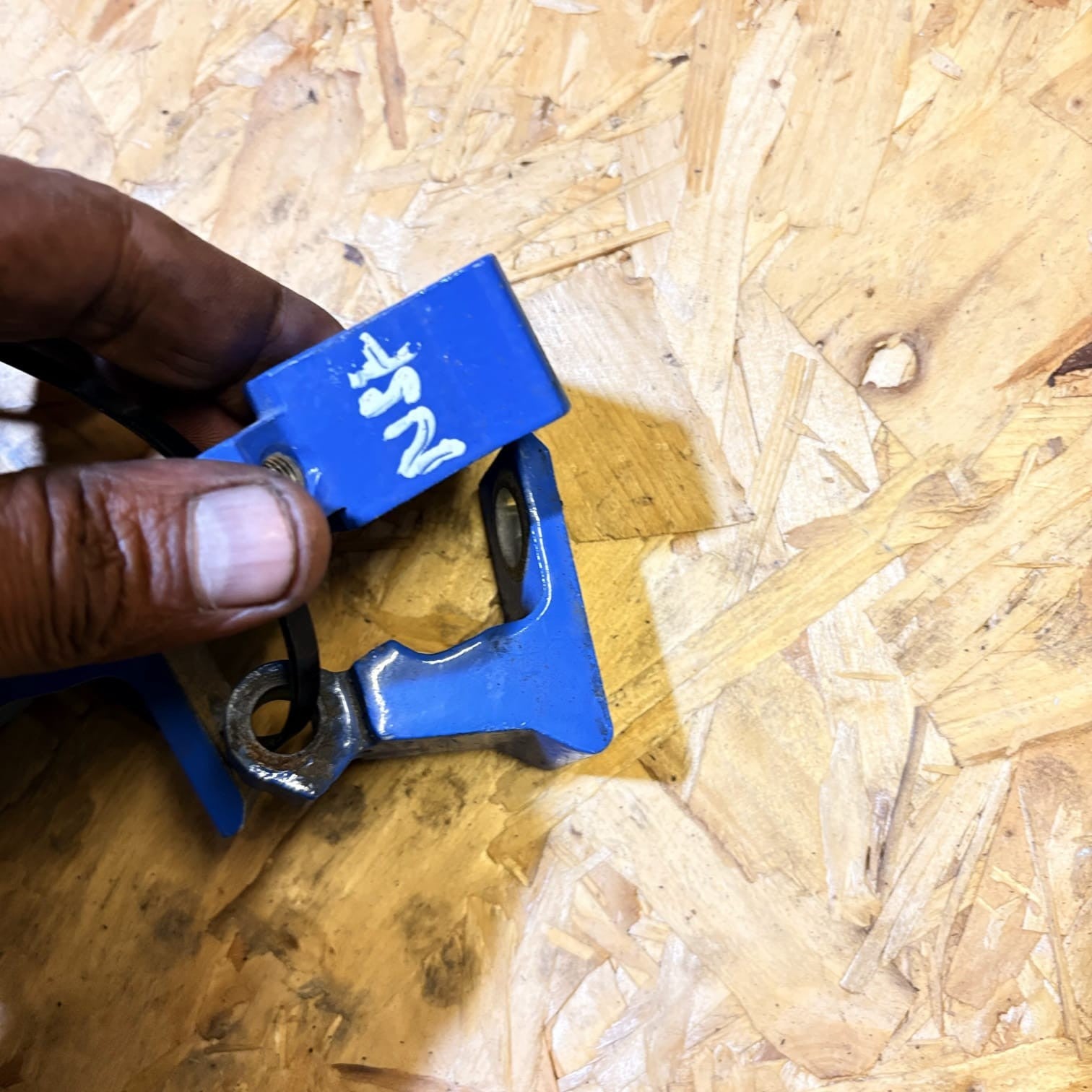

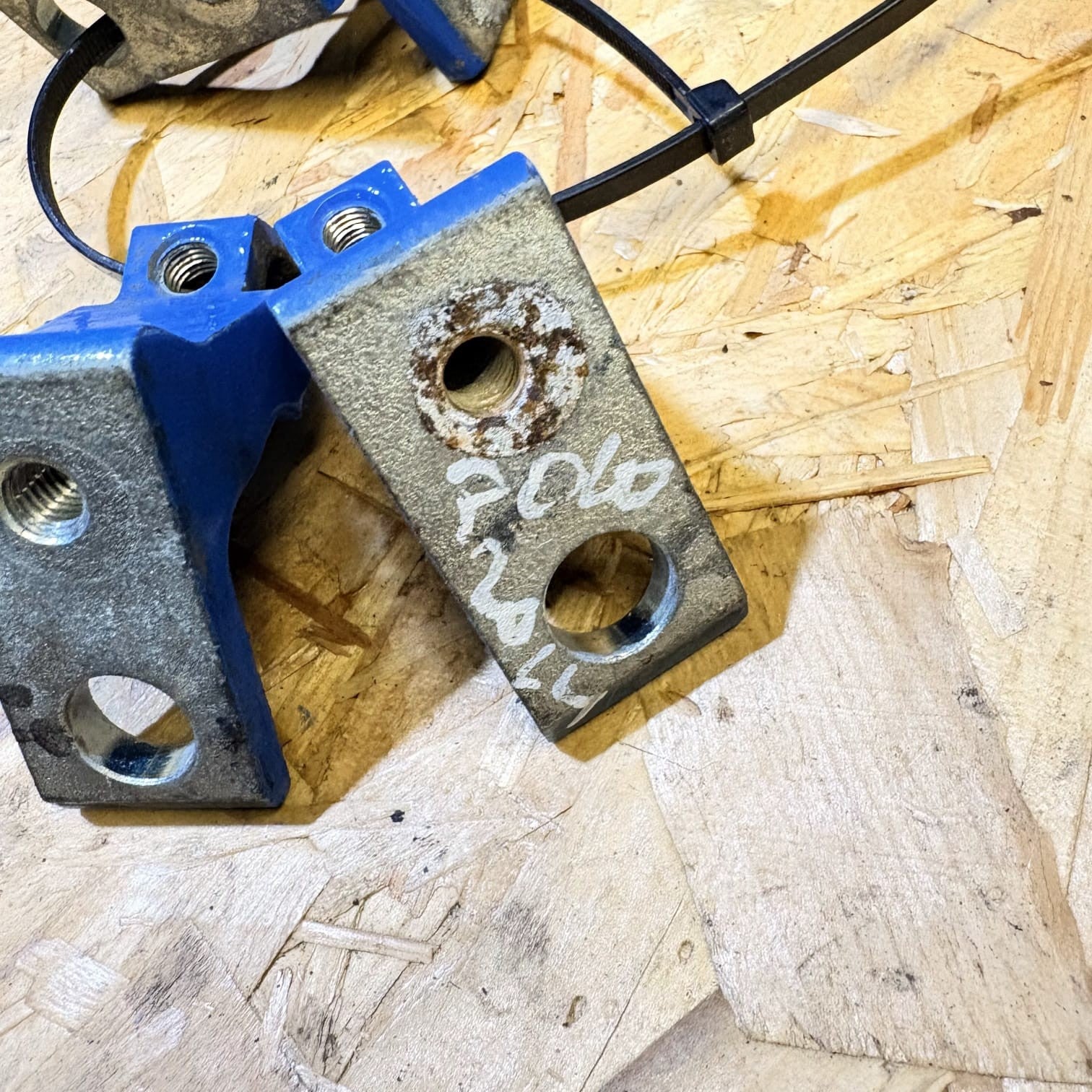

ACTUAL HINGE PAIR

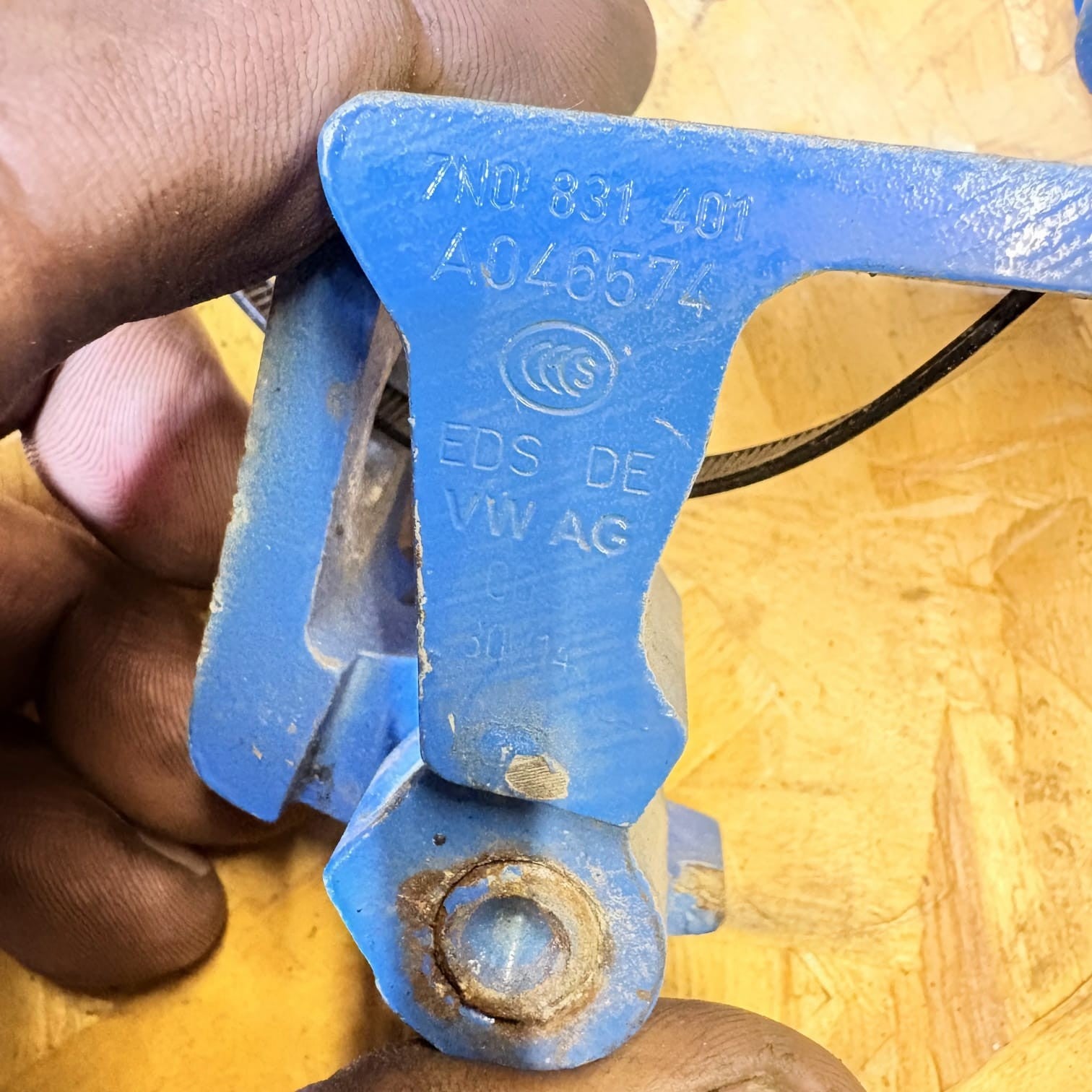

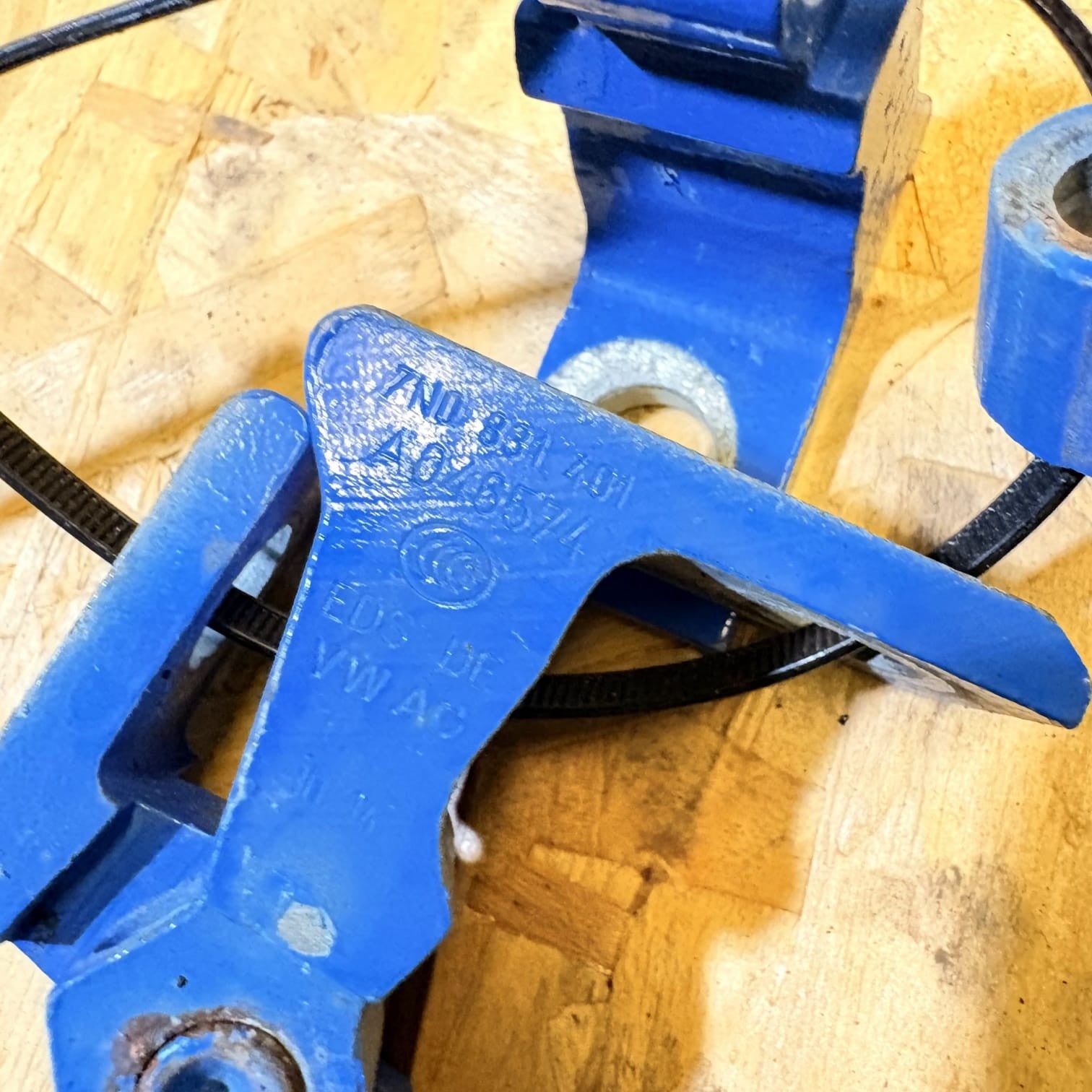

VISIBLE 7N0 831 401 MARKING

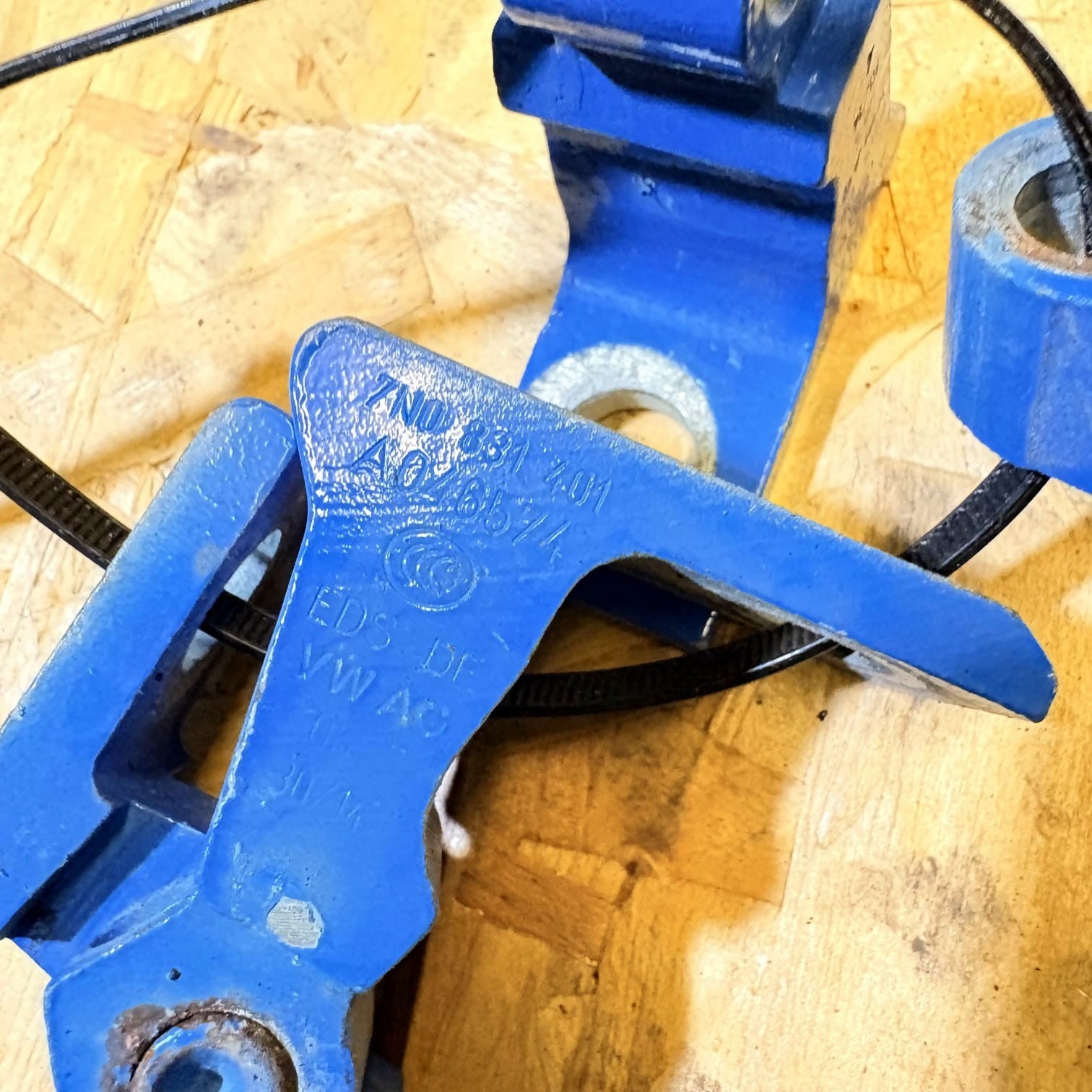

PART NUMBER CLOSE-UP

The hinge pair is mounted between the front-left A-pillar/body structure and the leading edge of the front-left door. The hinges carry the weight of the door and create the pivot around which the door opens and closes. Correct hinge geometry is also important to the door's panel gaps, latch position, weather seals and closing action.

The hinge itself does not electrically operate the window, central locking or speaker system. Its job is mechanical: supporting the door, defining the pivot path and maintaining alignment. A badly sagging or misaligned door can, however, affect the latch, seals and movement of the wiring loom between the body and door.

The 7N0831401A catalogue reference is shared across several Volkswagen Group platforms. The table below uses only finite catalogue year ranges rather than inventing an end year. Because build specification, body configuration and revision can vary, use this as a part-number cross-reference and confirm the removed component or VIN before buying it for a vehicle other than the Beetle listed above.

*The catalogue also contains an open-ended later Alhambra entry. Because no finite ending year is stated in that entry, it has not been converted into a guessed year range here.

Severe hinge wear should not simply be compensated for by repeatedly moving the latch striker. The source of the movement should be inspected first so the door can be supported and aligned correctly.

A door hinge is a structural alignment component, not merely a cosmetic bracket. Matching the factory-manufacturer number helps retain the intended mounting geometry, hole positions, pin arrangement and door movement rather than relying on an unknown low-cost pattern component with potentially different tolerances.

1. Park on firm, level ground and make the vehicle safe to work on.

2. Before dismantling anything, compare the replacement hinge number and mounting shape with the component fitted to the car.

3. Protect the door edges, front wing/fender and sill from accidental contact.

4. Fully support the weight of the front-left door with a padded door stand or suitable lifting support. Do not allow the hinge bolts to carry an unsupported door while being removed.

5. Mark the existing hinge positions and record the original panel gaps before loosening the fasteners.

6. Remove only the trim/access components required by the vehicle-specific workshop procedure. Take care around the door wiring loom.

7. Where practical, replace and establish one hinge position at a time. Start all fasteners by hand to avoid cross-threading.

8. Support and adjust the door until the body lines, sill clearance and surrounding panel gaps are even.

9. Tighten the hinge fasteners to the latest Volkswagen workshop specification for the exact vehicle. Torque values are deliberately not guessed in this listing.

10. Slowly test door movement and confirm that the latch meets the striker correctly without needing to lift, slam or force the door.

11. Recheck weather-seal contact, window/lock operation and the door wiring loom before returning the vehicle to service.

No JavaScript or active content is used. Use the table below as a quick static estimator. Formula: garage hourly rate × labour time = estimated labour cost. Parts, VAT treatment, consumables, diagnostic work and additional repairs are not included in these figures.

International availability, postage charges, customs processing and import charges are determined by the eBay delivery programme and destination shown to the buyer at checkout. The current listing is enrolled in eBay's Global Shipping Programme; eligible UK sellers are also being migrated to eBay International Shipping.

We put detailed part numbers, photographs, exact finite fitment years, placement information and compatibility guidance into our listings to help customers order the correct component first time.

Any return remains subject to the return terms shown by eBay, applicable statutory rights and eBay policy. Returned components should be securely packaged and returned in the same condition in which they were received. Where eBay permits an eligible seller to make a deduction because an item has suffered an actual loss in value through installation, alteration, damage, missing components or inadequate return packaging, any permitted deduction will reflect that loss in value and will be handled in accordance with eBay's applicable return policy.

Do not force-fit, drill, grind, weld, paint, modify or dismantle the component merely to test compatibility. Confirm fitment first.

Buying a serviceable pre-owned automotive component gives an existing part another useful life instead of automatically replacing it with a newly manufactured component. Reuse can reduce unnecessary material consumption, packaging and waste while also supporting an independent local automotive parts business. ♻️🌍

Unsure about compatibility? Contact us through eBay Messages before ordering. Correct identification first = fewer delays, fewer returns and a faster repair.
