VW Golf Mk4 Petrol Under-Dash Relay and Fuse Carrier

Factory-marked part number: 8L0 941 822 / 8L0941822

Used Factory-Marked Part Petrol Application Exact Layout Must Match

Important Fitment Warning

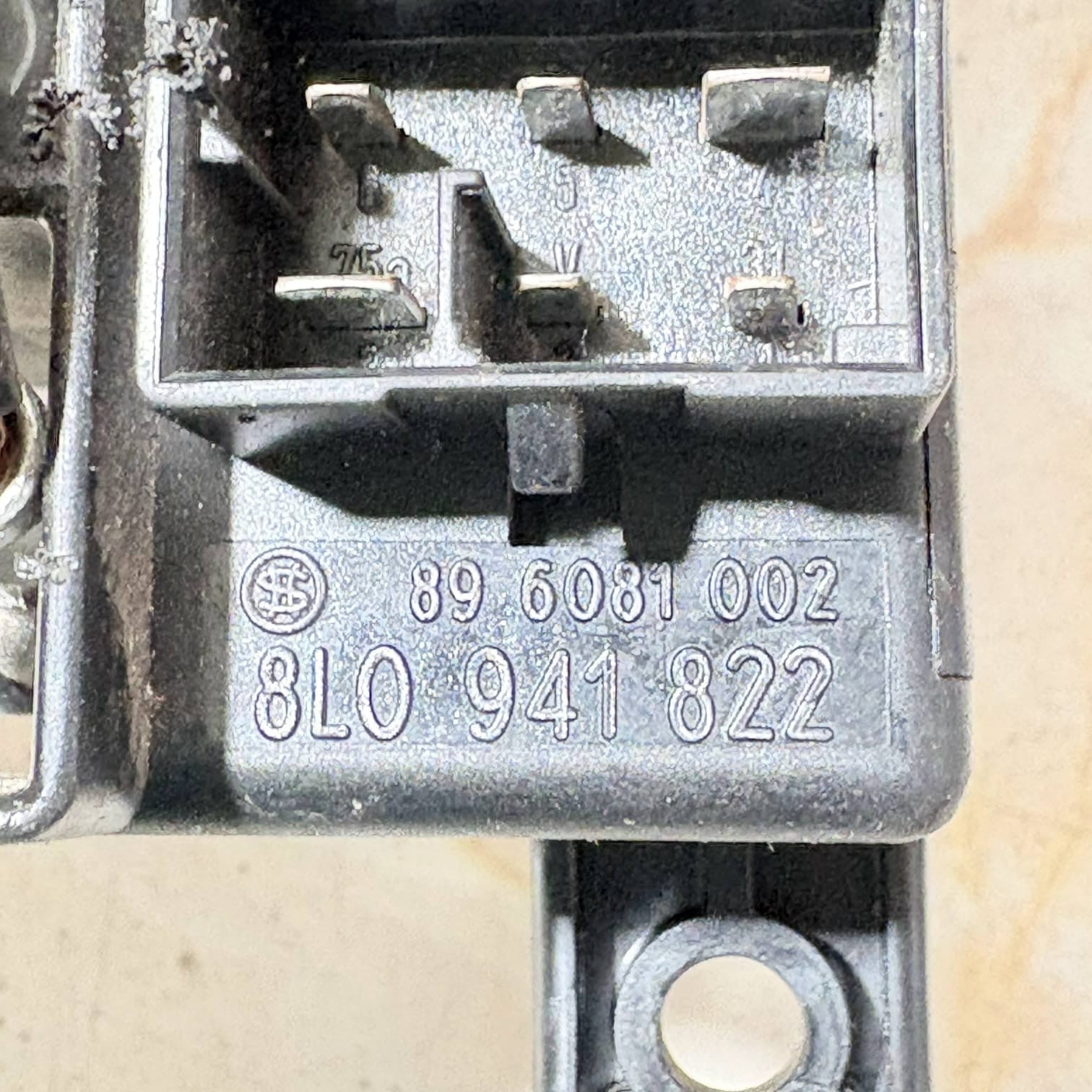

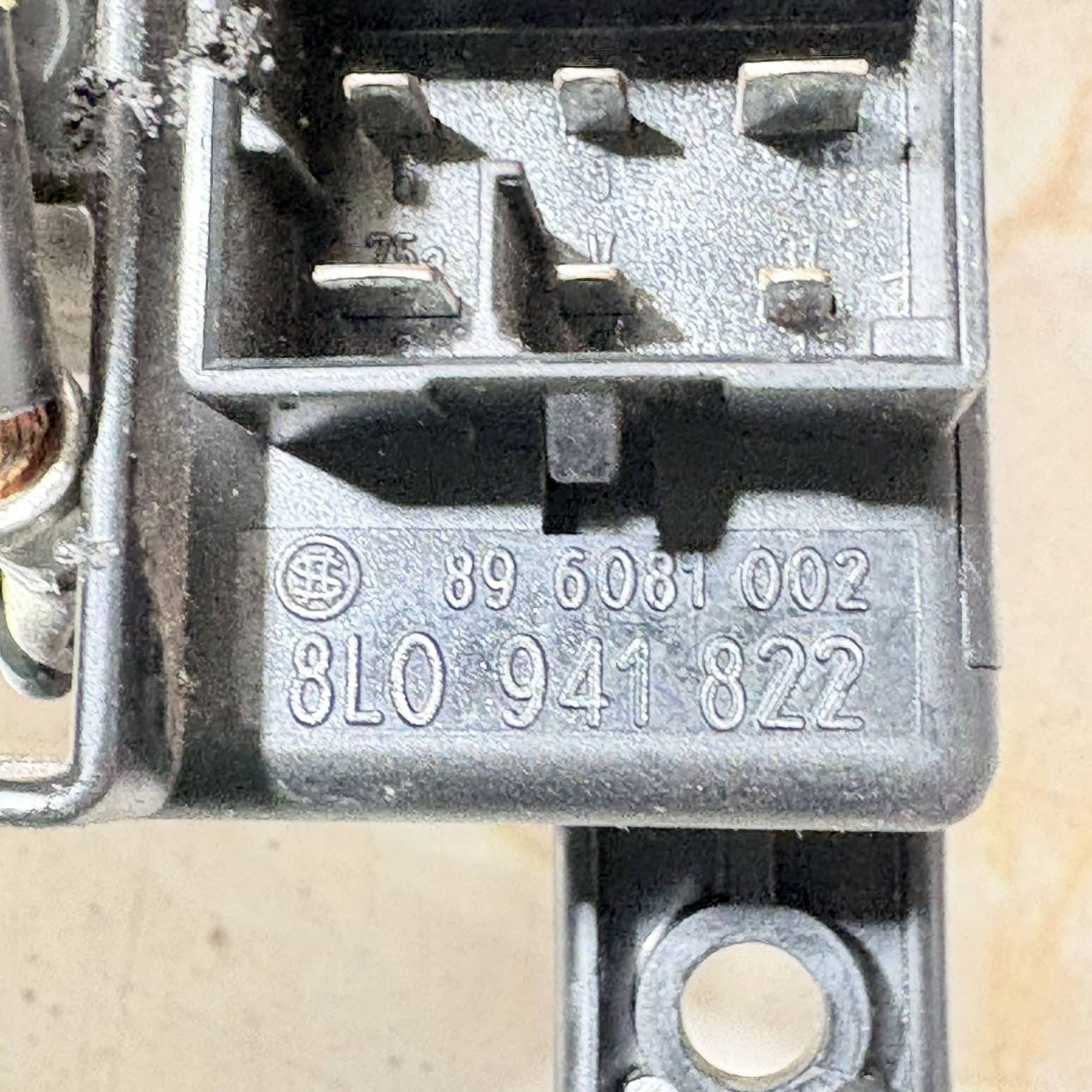

The number moulded into the part shown is 8L0 941 822, also written as 8L0941822. The complete loaded relay carrier can vary according to engine, gearbox, production date, electrical equipment and left-hand-drive or right-hand-drive specification.

Before ordering, compare the part number, relay numbers, relay positions, connector colours, wire colours, wire quantity, mounting points and power terminals with your original assembly. Do not order using appearance alone.

Actual Item Photographs

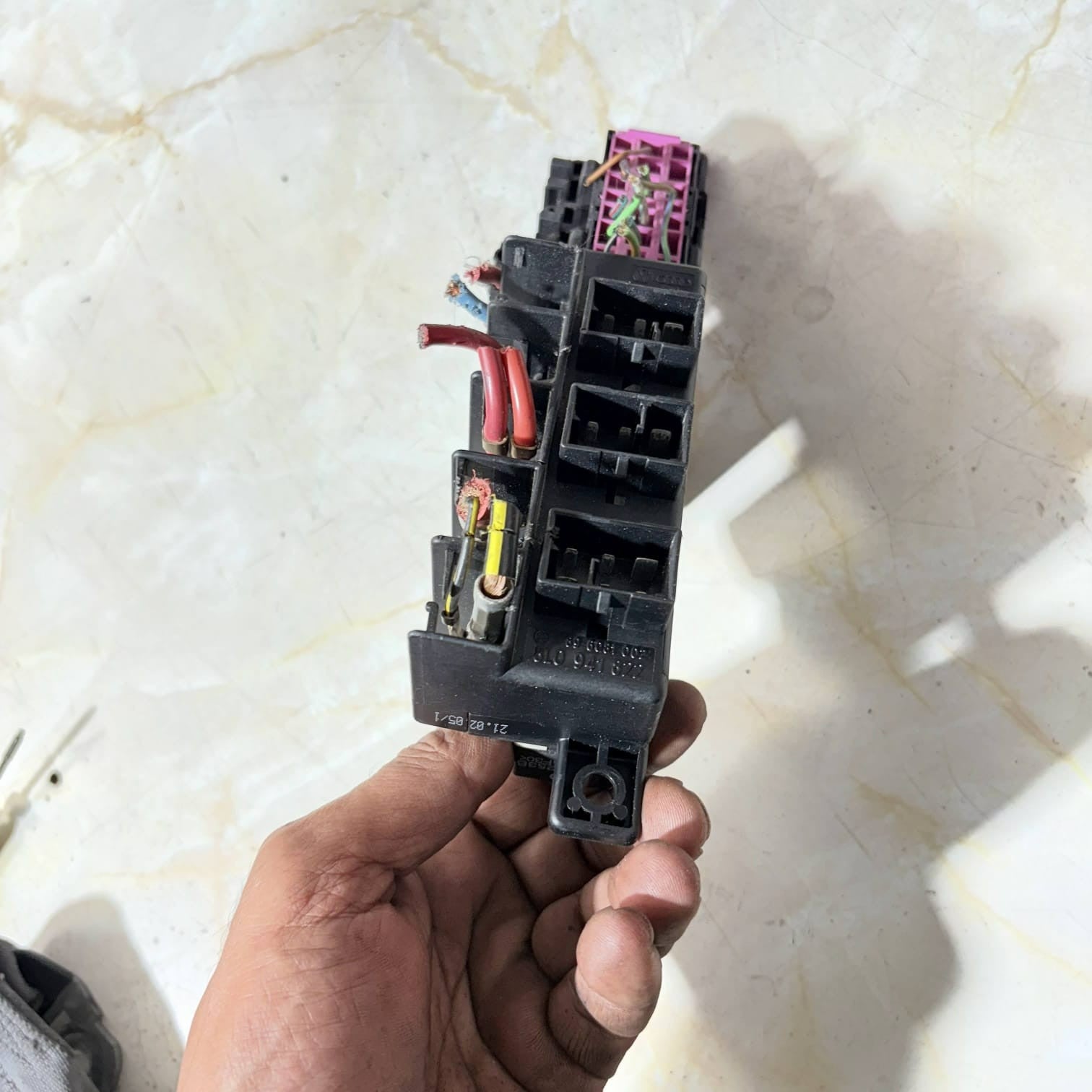

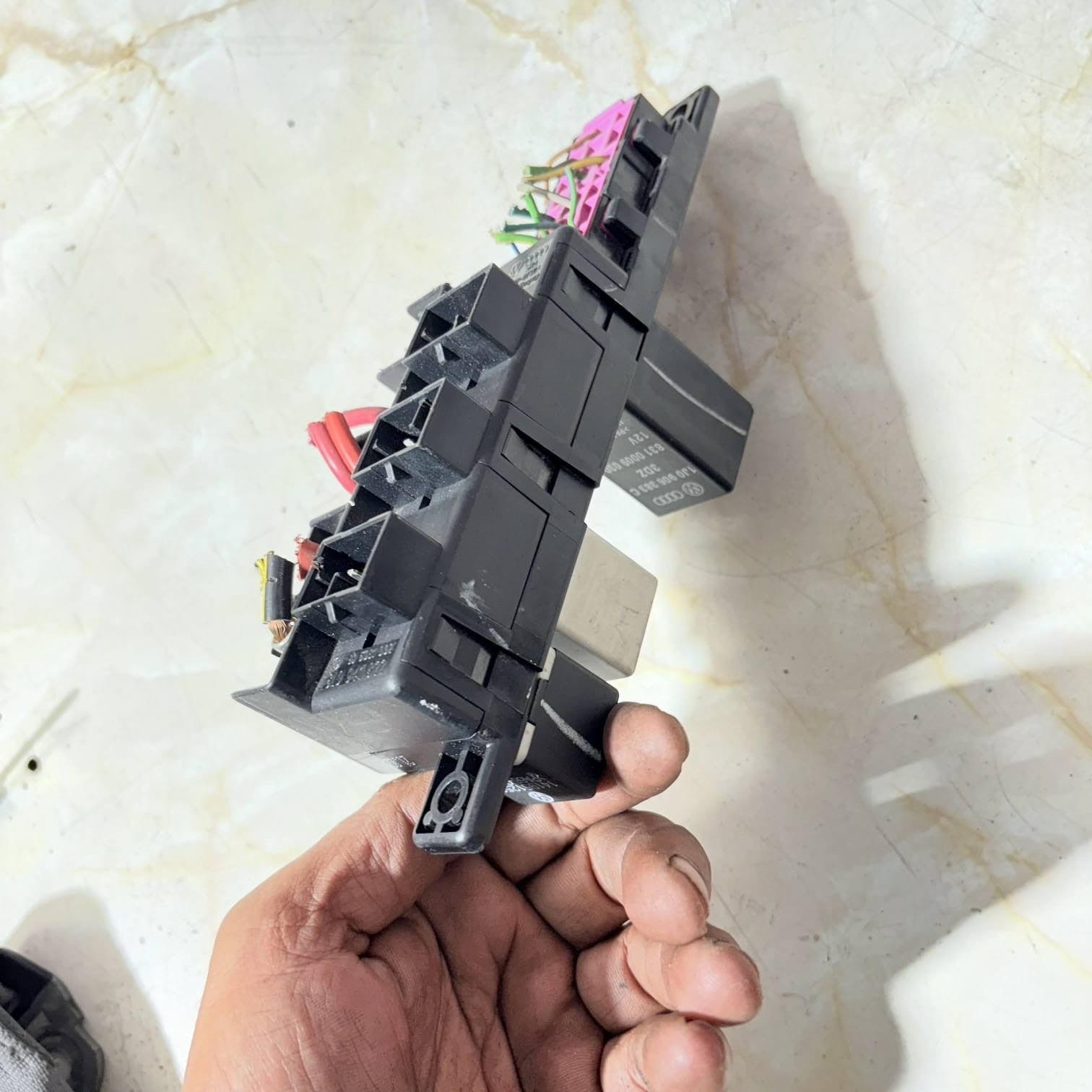

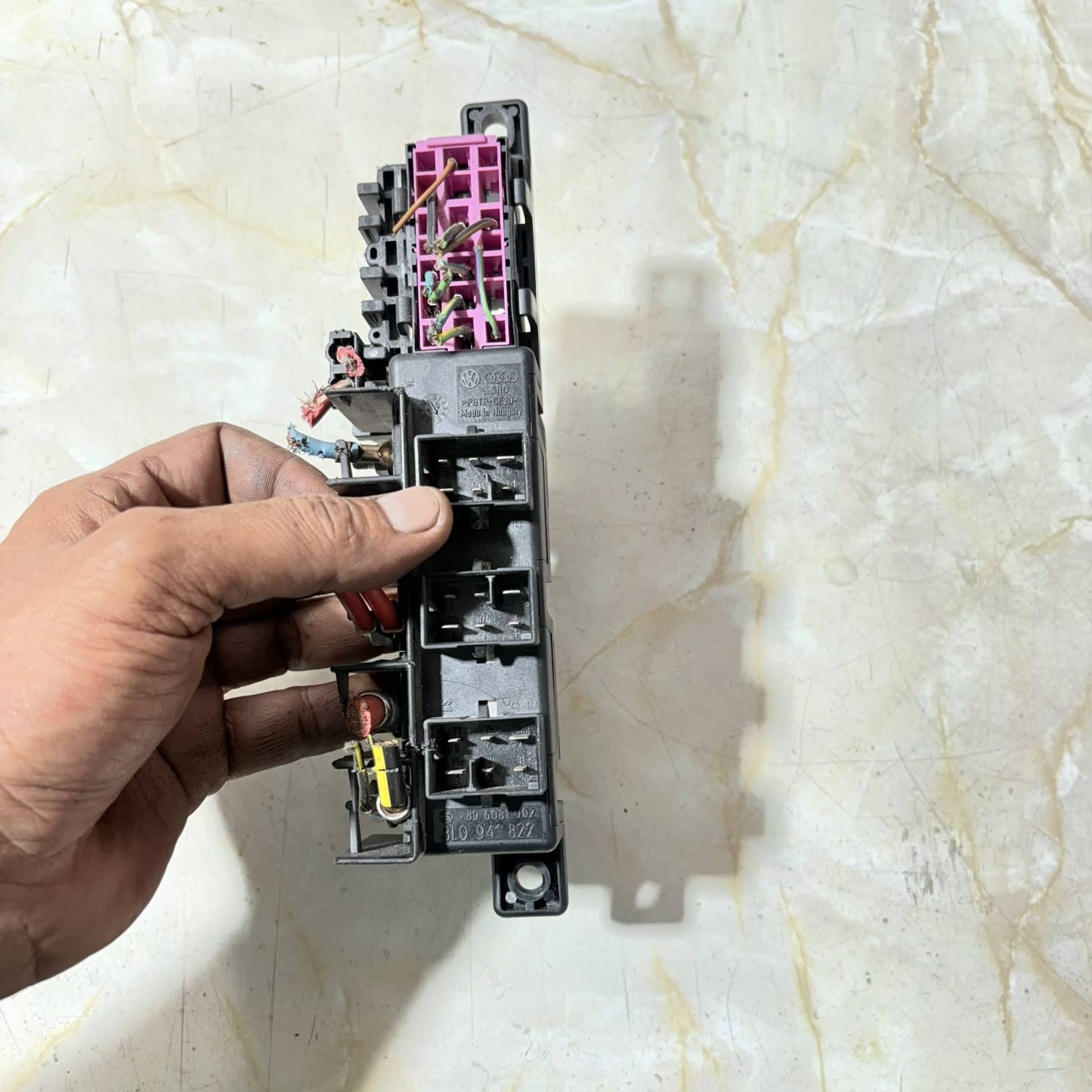

VW Golf Mk4 relay and fuse carrier 8L0941822 rear view
Actual item photograph: Rear view showing the power terminals, mounting carrier and cut wiring tails. The wiring condition shown forms part of the description.
THEPARTPILOT

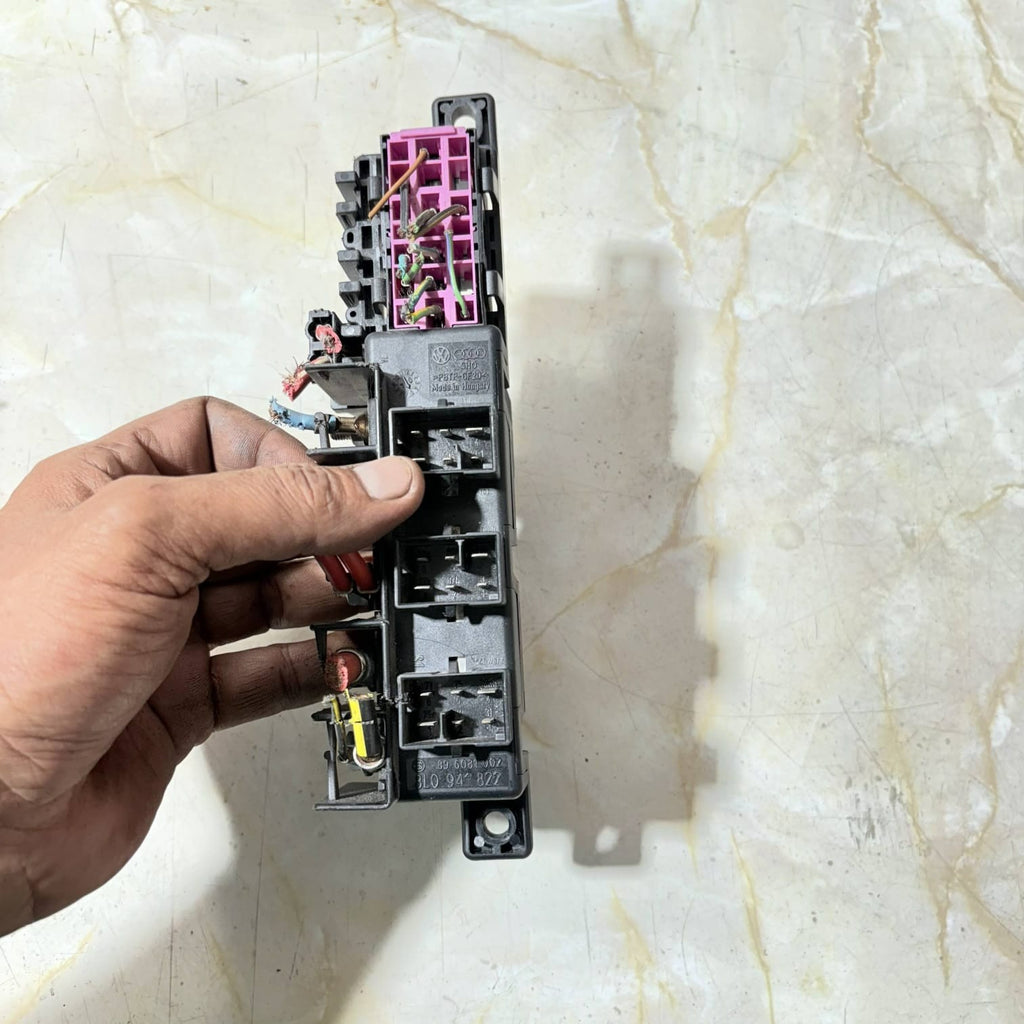

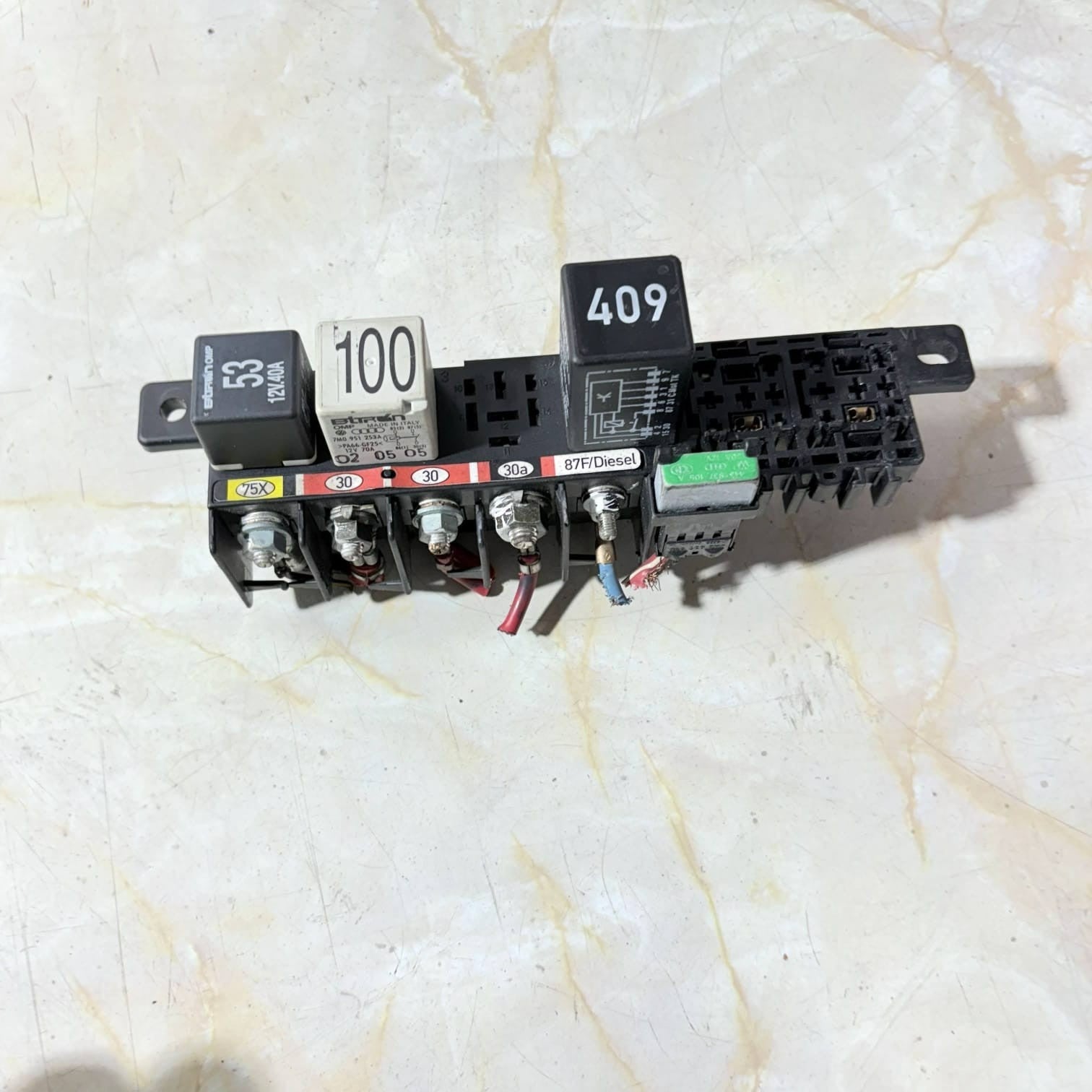

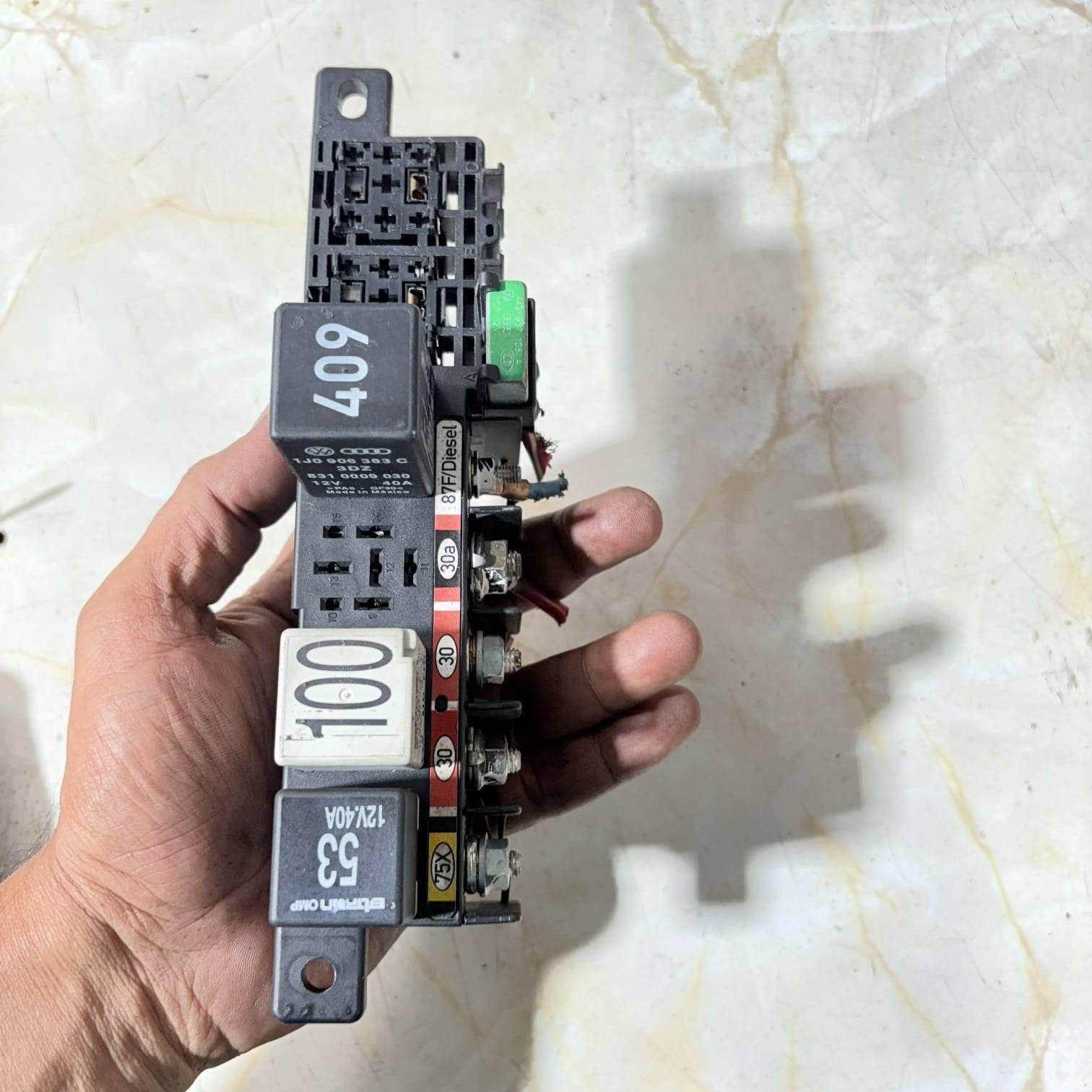

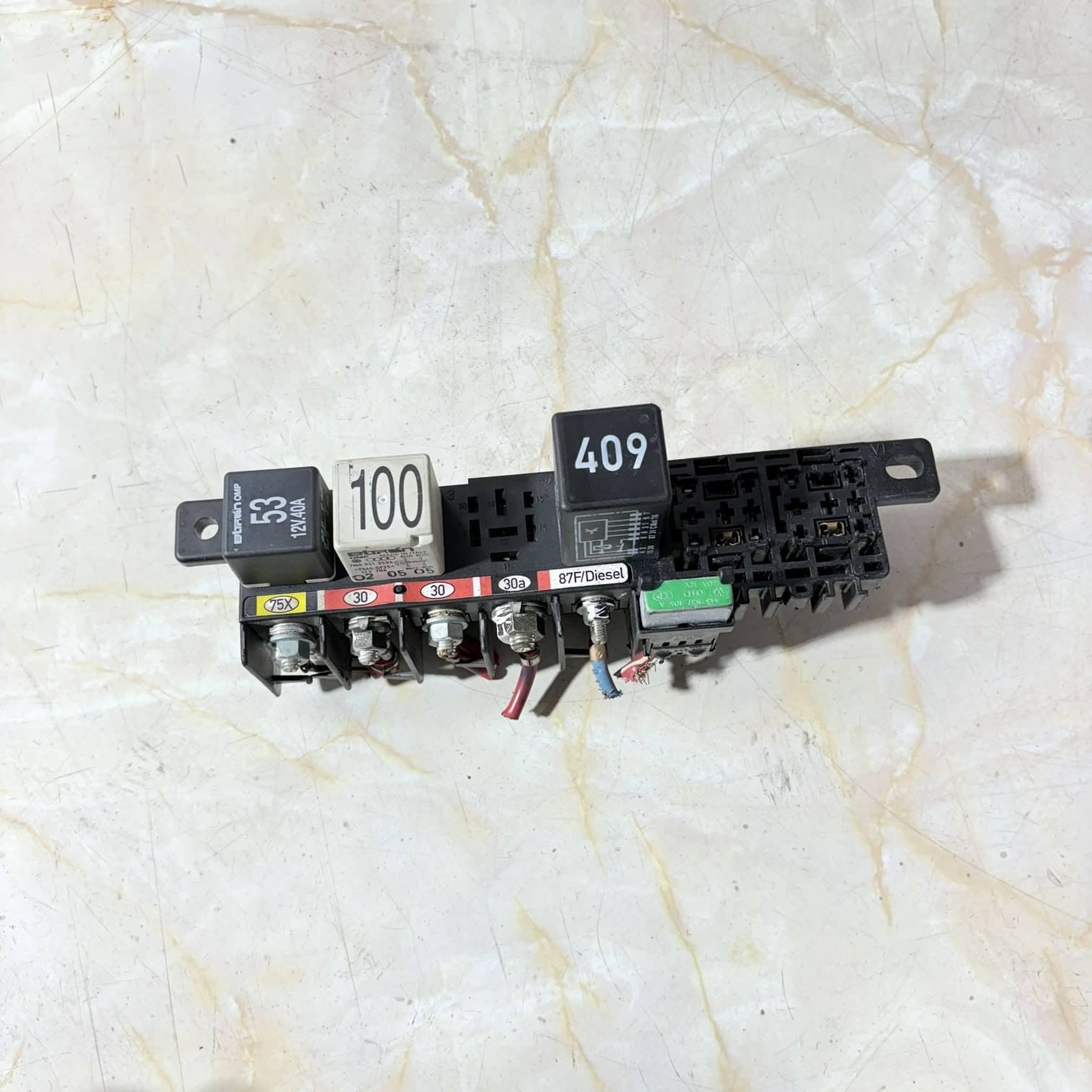

VW Golf Mk4 under dash relay panel front view
Actual item photograph: Relay-side view. Relays marked 53, 100 and 409 are visible. Compare the fitted relay positions against your original unit.
THEPARTPILOT

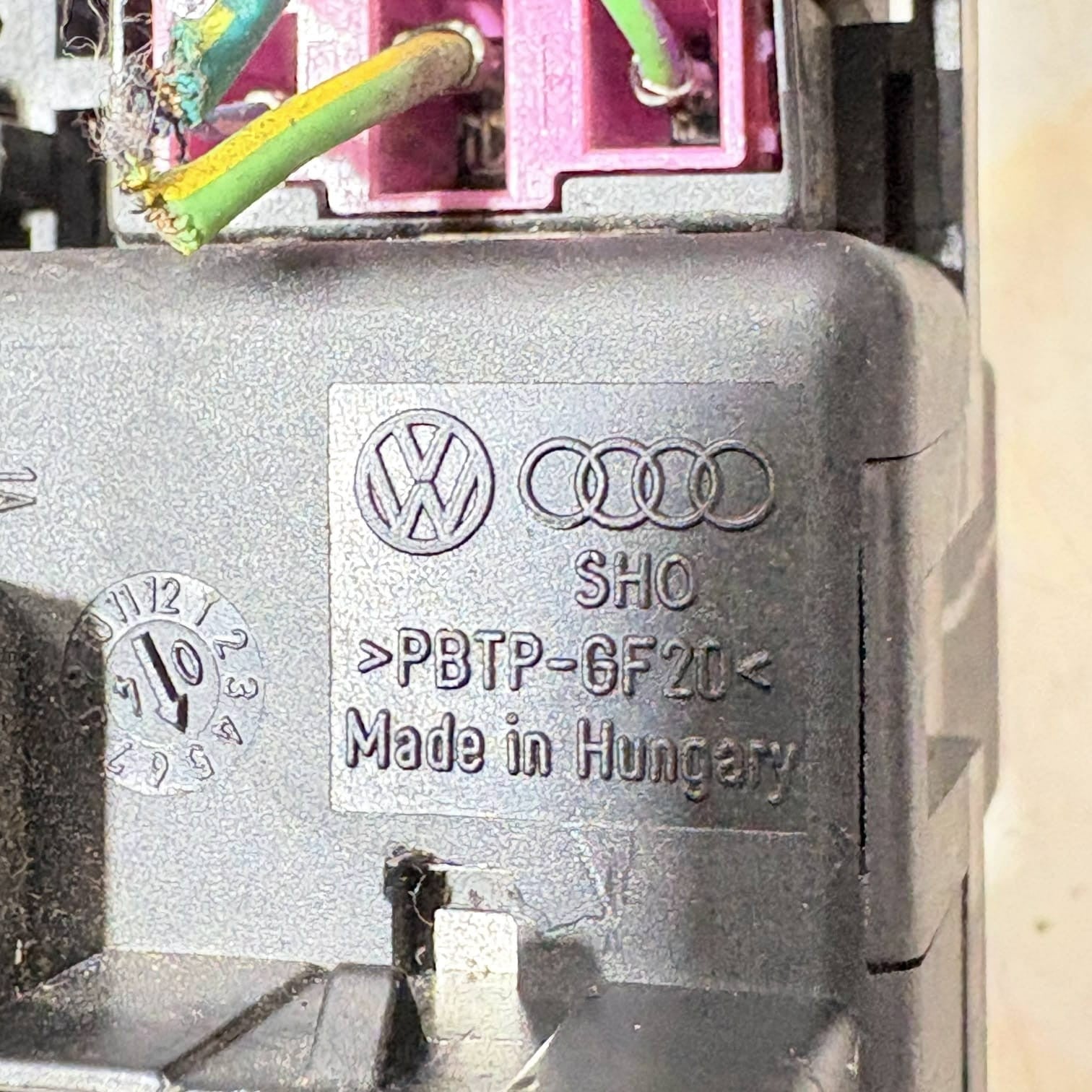

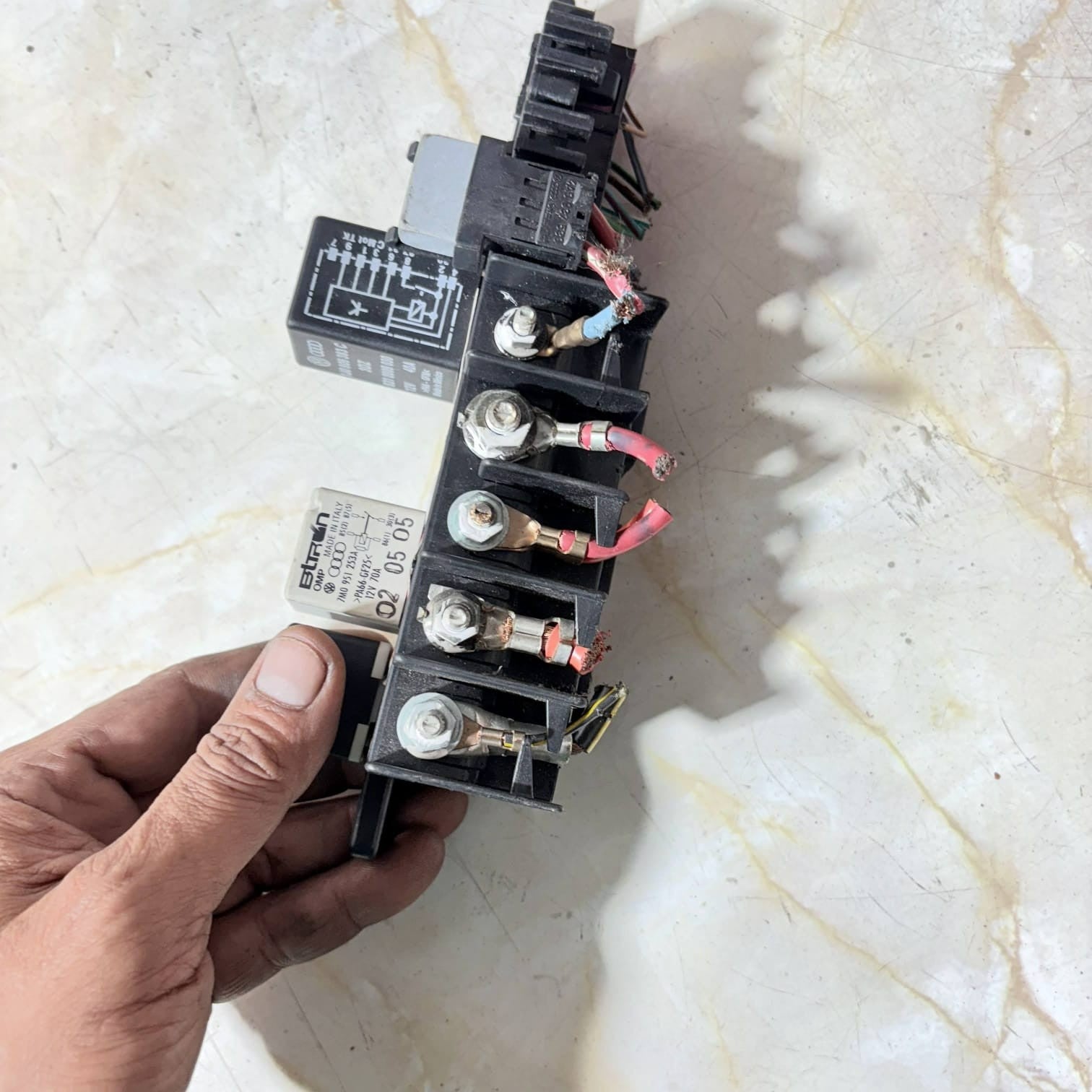

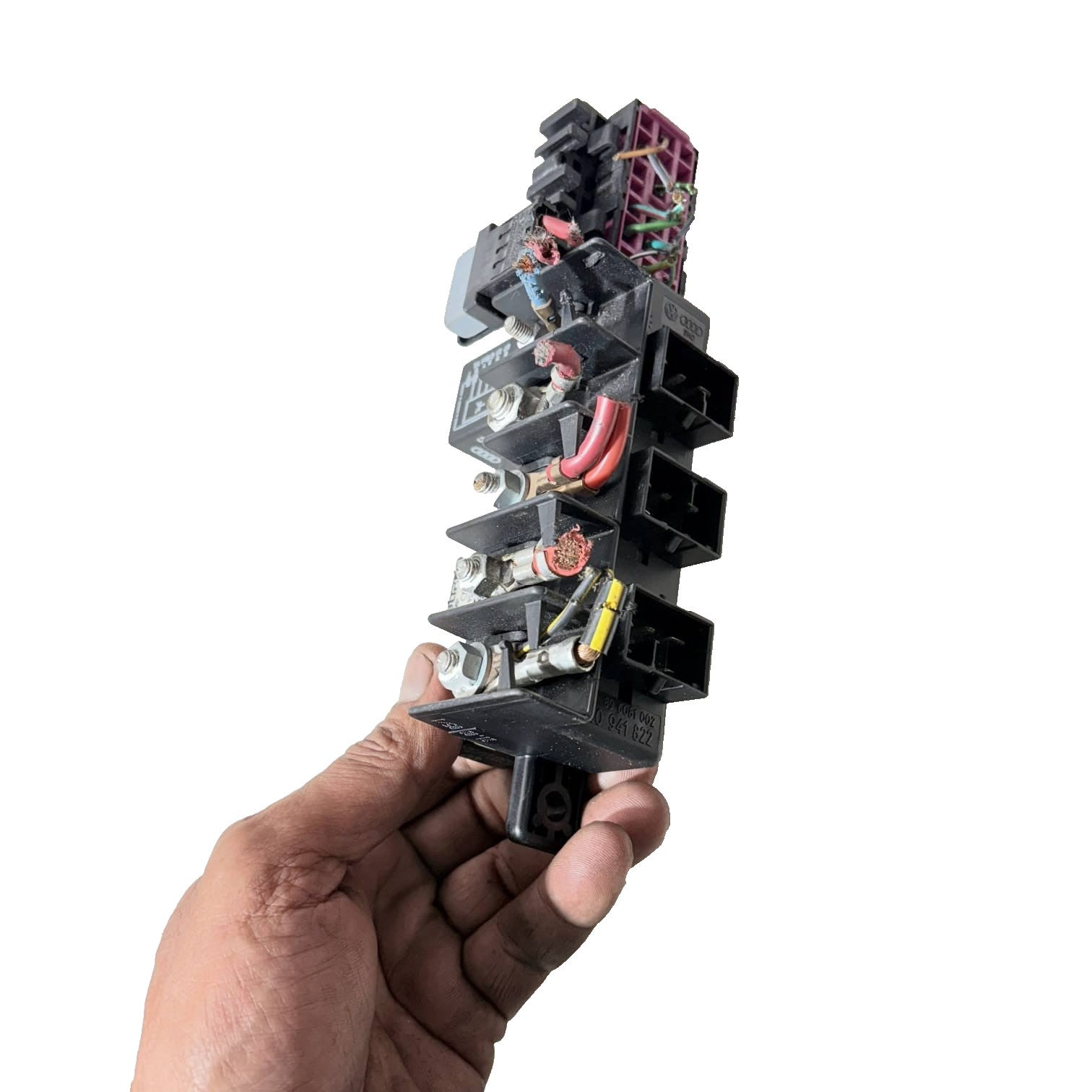

Volkswagen relay fuse carrier terminals and wiring detail
Actual item detail: Power-terminal, housing and wiring-tail condition. Inspect all photographs carefully before purchasing.
THEPARTPILOT

Vehicle Reference Photograph

Volkswagen Golf Mk4 1J five door vehicle reference
Vehicle-family reference: Volkswagen Golf Mk4 / 1J five-door hatchback. The relay carrier may also be found in other body styles, but body style alone does not confirm compatibility.

Part Identification

Part type Under-dash relay and fuse carrier with relays, fuse links, terminals and cut wiring tails as photographed
Manufacturer number 8L0 941 822 / 8L0941822
Visible relay numbers 53, 100 and 409 visible in the item photographs
Seller stock references 896081002 and UST127200
Vehicle position Front interior, beneath the lower driver-side dashboard trim on applicable vehicles
Material Moulded automotive plastic carrier, metal terminals, threaded power connections, relays and insulated automotive wiring
Condition Used. Cut wiring tails and exposed conductor ends are visible. Supplied in the condition shown.

Compatibility Table

The table identifies vehicle families associated with this carrier number. It does not mean that the complete loaded assembly fits every engine, gearbox or trim level. The original number and complete electrical layout must match.

Vehicle UK years Fitment guidance
Volkswagen Golf Mk4 / Golf IV 1J 1998-2004 Primary advertised vehicle family. Petrol applications only where the part number, relays, wiring and terminals match exactly.
Volkswagen Golf Mk4 Estate 1J 1999-2006 Carrier-number cross-reference. Compare the complete assembly before purchase.
Volkswagen Bora / Jetta Mk4 1J 1999-2005 Carrier-number cross-reference only. Engine, gearbox, relay map and wiring must match.
Volkswagen New Beetle 9C / 1C 1999-2005 Possible carrier-number application. Do not purchase solely from the vehicle model or appearance.
Audi TT Mk1 8N 1999-2006 Part-number cross-reference only. The complete vehicle wiring and relay configuration must be identical.

Do Not Purchase This Part For:

  • Volkswagen Golf Mk5 / 1K or later models.
  • The fuse box fitted on top of the vehicle battery.
  • The small blade-fuse panel at the side of the dashboard.
  • A carrier with a different final letter or suffix.
  • A unit with different relay positions or relay numbers.
  • A vehicle with different connector colours or terminal sizes.
  • A vehicle with a different quantity or colour of wiring.
  • Any vehicle based only on a similar-looking photograph.

How to Confirm Fitment

  1. Locate the original relay carrier beneath the lower dashboard trim.
  2. Confirm that the moulded number reads 8L0 941 822.
  3. Check for any final letter or suffix after the number.
  4. Compare every relay number and its fitted position.
  5. Compare connector shapes, colours and locking tabs.
  6. Compare power studs, fuse links and mounting points.
  7. Compare the quantity, colour, stripe and thickness of every wire.
  8. Confirm engine code, gearbox type, fuel type, production date and right-hand-drive or left-hand-drive specification.
  9. When uncertain, send your registration, VIN, engine code and clear photos of the original assembly through eBay Messages before purchase.

Where the Part Is Fitted

RIGHT-HAND-DRIVE VEHICLE LOCATION

Lower driver-side dashboard area, behind the knee panel and lower dashboard trim.

Exact access and mounting position can vary according to vehicle specification.

What the Relay Carrier Controls

The carrier supports a collection of electrical relays, fuse links and high-current power connections. Depending on the exact vehicle configuration, the circuits can include the fuel-pump supply, ignition load-relief supply, horn, wipers, heated equipment and other switched electrical systems.

Relay number 409 is commonly associated with the fuel-pump circuit on applicable Golf Mk4 petrol vehicles. Relay number 100 is commonly associated with the load-relief or X-contact circuit. Always confirm the circuit assignment using the correct vehicle wiring diagram.

Possible Fault Symptoms

Electrical Symptoms

  • Intermittent non-starting.
  • Engine cutting out unexpectedly.
  • Fuel pump not priming.
  • Accessories losing electrical power.
  • Intermittent relay-fed electrical equipment.
  • Repeated relay or fuse failure.

Physical Warning Signs

  • Melted or discoloured relay sockets.
  • Loose high-current connections.
  • Heat marks or burning smells.
  • Corroded terminals.
  • Water ingress.
  • Damaged mounting points.

These symptoms can also be caused by wiring faults, earth connections, individual relays, pumps, switches or control modules. Proper diagnosis is recommended before replacing electrical parts.

Condition and What Is Included

  • One used under-dash relay and fuse carrier assembly.
  • Relays, fuse links, terminals and wiring only where shown.
  • The wiring tails have been cut during vehicle dismantling.
  • Exposed conductor ends can be seen in the photographs.
  • Age-related marks, dust, scratches and signs of previous use should be expected.
  • No complete dashboard loom, battery fuse box, trim, control module or additional fitting hardware is included unless photographed.
  • The item photographs form an important part of the description.

Benefits of a Correctly Matched Used Part

Correct Factory Design
A correctly matched factory-marked carrier helps retain the original mounting shape, connector keying, terminal arrangement and relay layout.
Better Value
A suitable used component can provide a significant saving compared with purchasing a complete new replacement through a main dealer.
Reduced Waste
Reusing a serviceable vehicle component helps reduce demand for new materials, packaging and energy-intensive manufacturing.

Fitting Instructions

Electrical safety warning: This assembly includes high-current electrical connections. Installation should be completed by a competent automotive electrician or experienced technician. Incorrect wiring can cause short circuits, heat damage, electrical failure or fire risk.

  1. Switch off the ignition and allow the vehicle electrical systems to power down.
  2. Disconnect the battery negative terminal and secure it away from the battery post.
  3. Remove the appropriate lower dashboard and knee-panel trim.
  4. Photograph and label every connector, relay, fuse link and power cable.
  5. Compare the original and replacement carriers side by side.
  6. Confirm that every relay position and electrical connection matches.
  7. Repair cut wiring using correctly rated automotive terminals, professional crimping methods and insulated heat-shrink protection.
  8. Do not twist high-current wires together or rely only on insulation tape.
  9. Secure all cables and power terminals to the vehicle manufacturer's specified settings.
  10. Reconnect the battery and test every affected electrical circuit.
  11. Complete a diagnostic scan before refitting the dashboard trim.

Required Tools

Plastic trim-removal tools Torx T20 and T25 bits
8 mm, 10 mm and 13 mm sockets Insulated hand tools
Automotive multimeter Terminal-release tools
Professional automotive crimping tool Heat-shrink equipment
Diagnostic scanner Wiring diagram for the exact vehicle

Estimated Repair Time

Work required Estimated time
Access, direct comparison, transfer and refitting where no wiring repair is needed Approximately 1 to 2 hours
Cut-wire repair, terminal replacement, electrical tracing or fault diagnosis Approximately 2 to 4 hours or longer

Static Garage Labour Guide

Estimated labour charge equals the garage's hourly rate multiplied by the fitting time. Parts, diagnostic fees and additional wiring repairs may be charged separately.

Hourly rate 1 hour 1.5 hours 2 hours 4 hours
£50 £50 £75 £100 £200
£75 £75 £112.50 £150 £300
£100 £100 £150 £200 £400
£125 £125 £187.50 £250 £500

Fitting and repair services may be available subject to technician availability, vehicle condition and prior booking through eBay Messages.

Dispatch and Delivery

  • Tracked delivery service used.
  • Orders completed before the stated dispatch cut-off are prepared as quickly as possible.
  • Worldwide delivery is available to eligible countries through eBay's international shipping service.
  • Available countries, postage charges, import duties and estimated delivery dates are displayed by eBay at checkout.
  • Free postage is not included unless specifically shown in the postage section of this listing.

Checkout-address warning: The parcel will be sent to the delivery address selected during eBay checkout. We cannot change the delivery address after payment. When an incorrect address has been selected, request cancellation and place a new order using the correct address.

Warranty, Returns and VAT

Warranty The warranty period displayed in the live eBay item specifics applies. Identification and security markings must remain intact.
Fitment Complete all number, photograph and configuration checks before installation. Fitment support is available through eBay Messages.
Returns Returns are handled according to the return terms displayed on the listing and applicable eBay requirements.
Labour charges Removal, installation, diagnostics and third-party labour costs are not included unless expressly agreed through eBay.
VAT Sold under the VAT Global Accounting Scheme. VAT is not displayed separately and is not reclaimable.

Why Buy From THEPARTPILOT?

More Than 25,000 Parts in Stock
A substantial used-parts inventory stored and referenced for efficient order preparation.
Fitment Assistance
Send the registration, VIN, engine code, original part number and photographs through eBay Messages before purchase.
Collection by Appointment
Collection may be available subject to prior arrangement and confirmation through eBay Messages.
Fitting Service
Mechanical and electrical fitting services may be available subject to workshop availability.
We Buy Cars for Cash
Nationwide vehicle collection and same-day payment may be available, subject to vehicle assessment and agreed terms.

Support a Local Small Business

Repair. Reuse. Recycle.

Purchasing from a specialist small business helps support skilled local work and practical vehicle repair. Reusing a serviceable vehicle component helps reduce unnecessary manufacturing, packaging, raw-material use and automotive waste. Thank you for helping keep useful parts in circulation and vehicles on the road.

WhatsApp QR for Fitment Help / Appointment Enquiries
Scan the QR code to contact ThePartPilot on WhatsApp for fitment checks, appointments or fitting service availability.

For faster fitment help, send your vehicle registration, VIN if available, and clear photos of your existing part, connector and part number.

THEPARTPILOT

MATCH 8L0 941 822 AND THE COMPLETE ELECTRICAL LAYOUT BEFORE ORDERING
