Volkswagen Front Door Speaker Crossover / Frequency Junction

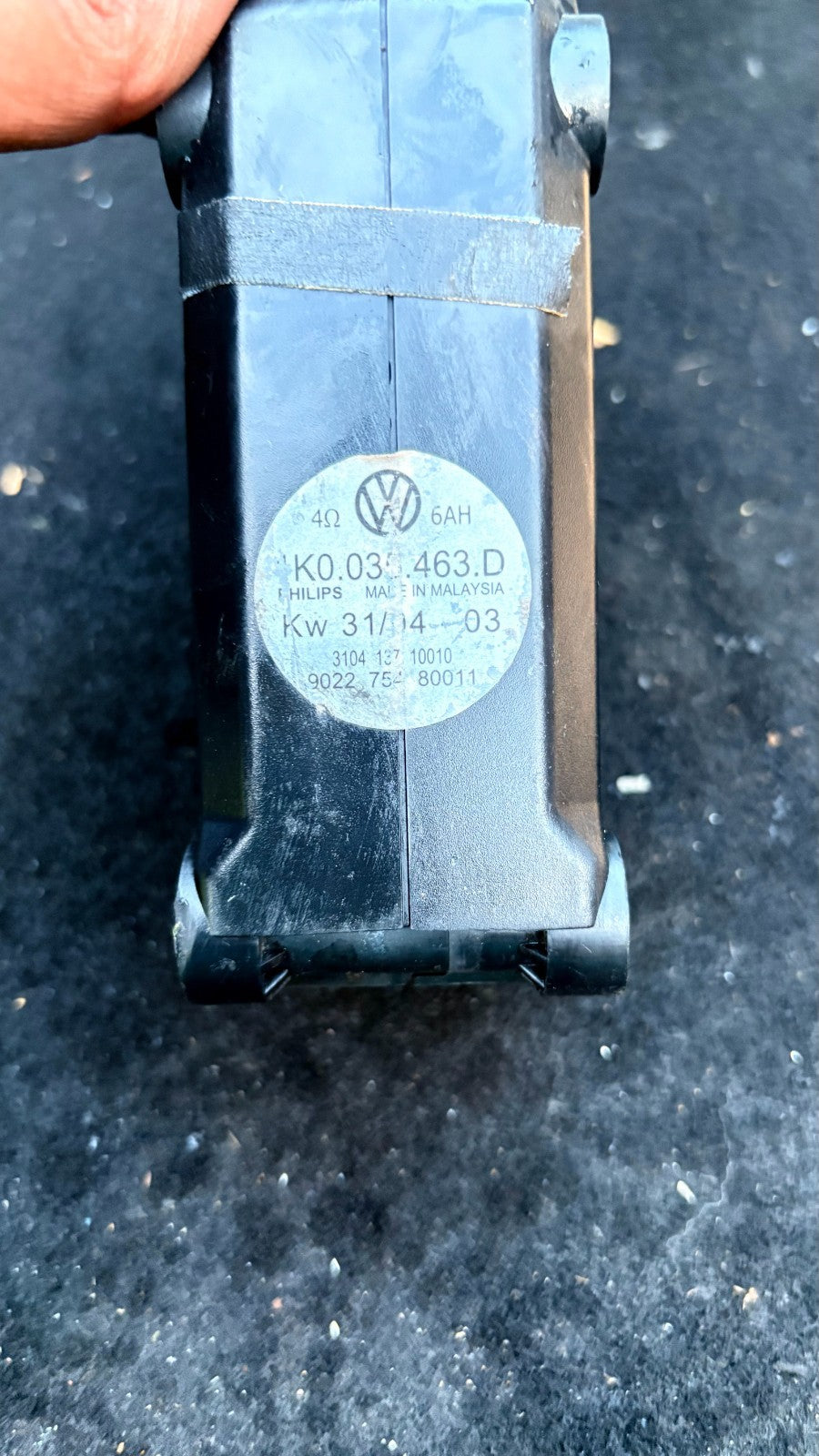

Used factory-original Philips unit, Volkswagen part number 1K0 035 463 D / 1K0035463D, marked 4 Ω. Designed for selected factory multi-speaker installations only.
Do not order from model and registration year alone. Before purchase, compare the complete number 1K0 035 463 D, the connector, pin arrangement and mounting points with the unit removed from your vehicle. Send the full 17-character VIN through eBay Messages if verification is required. The factory build code commonly associated with this frequency junction is 8RW — 10 speakers, passive.

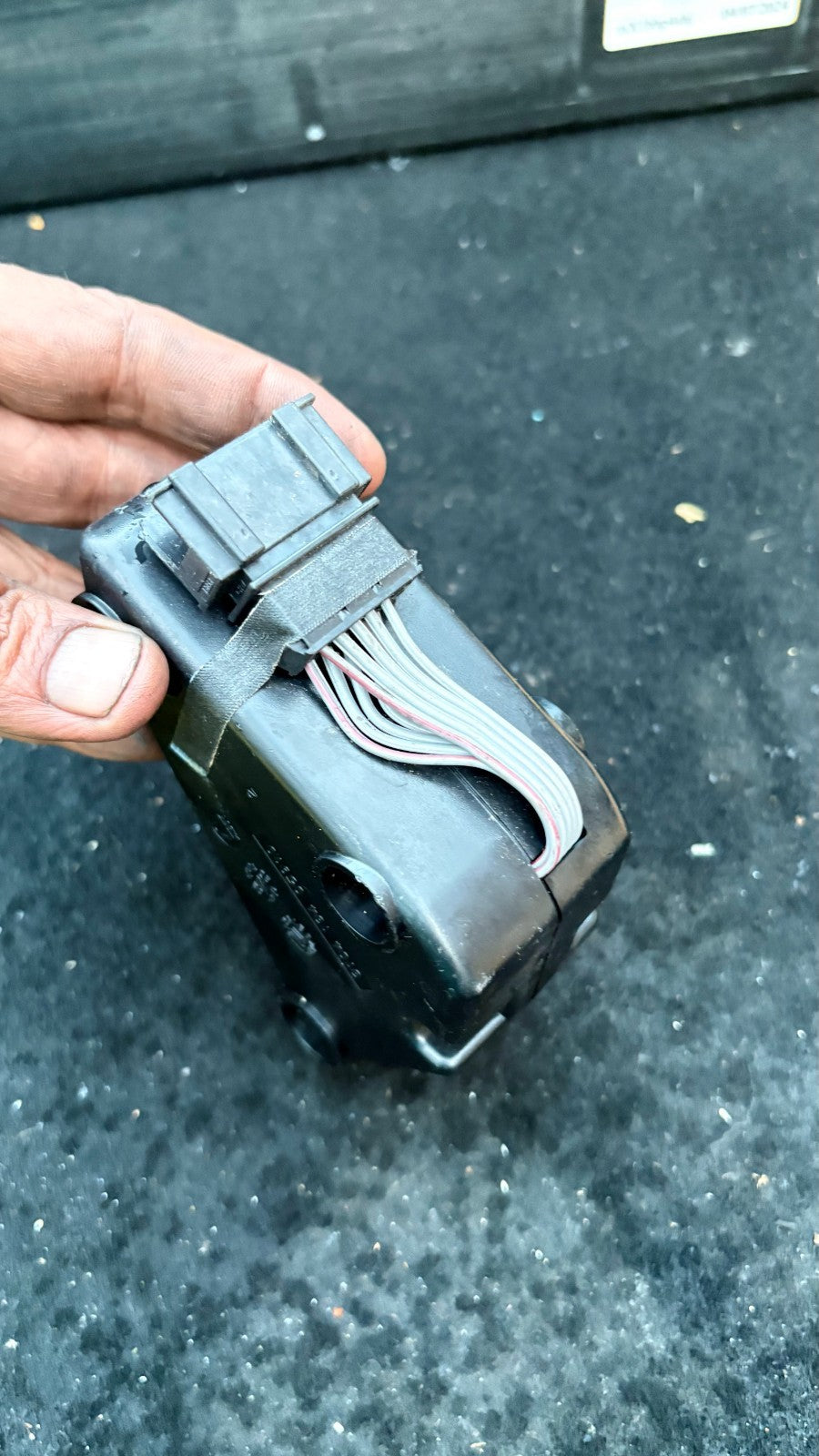

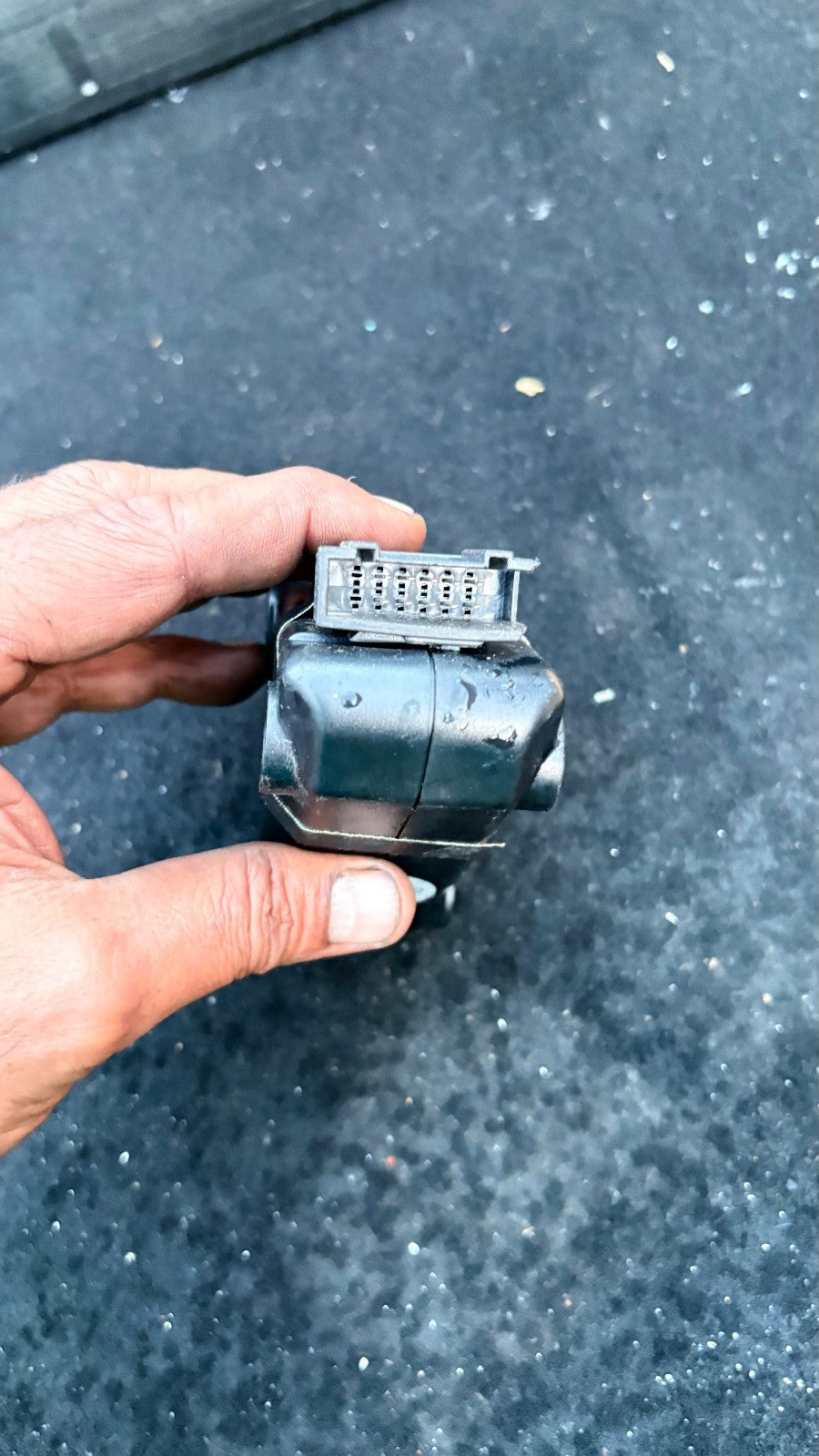

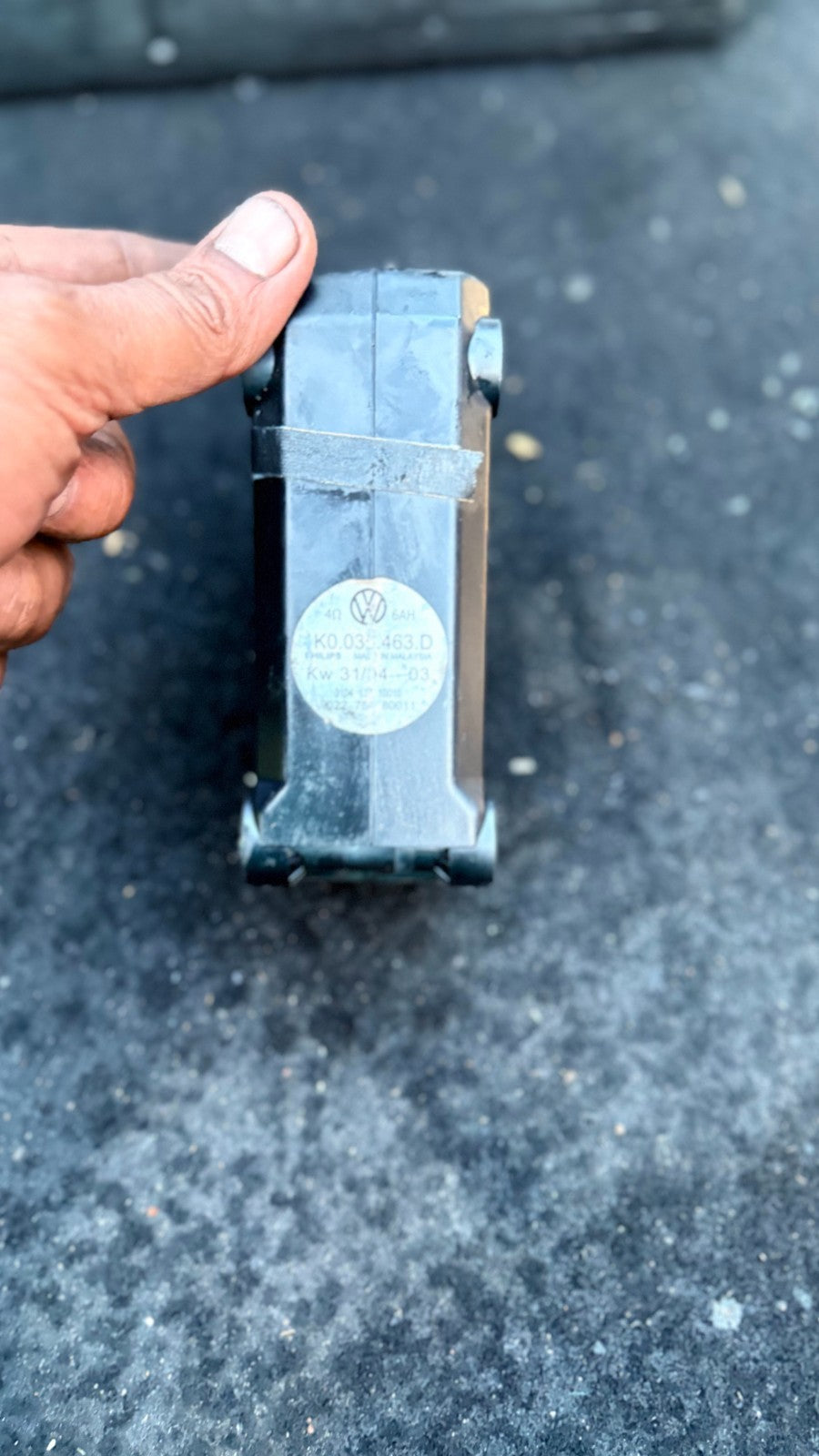

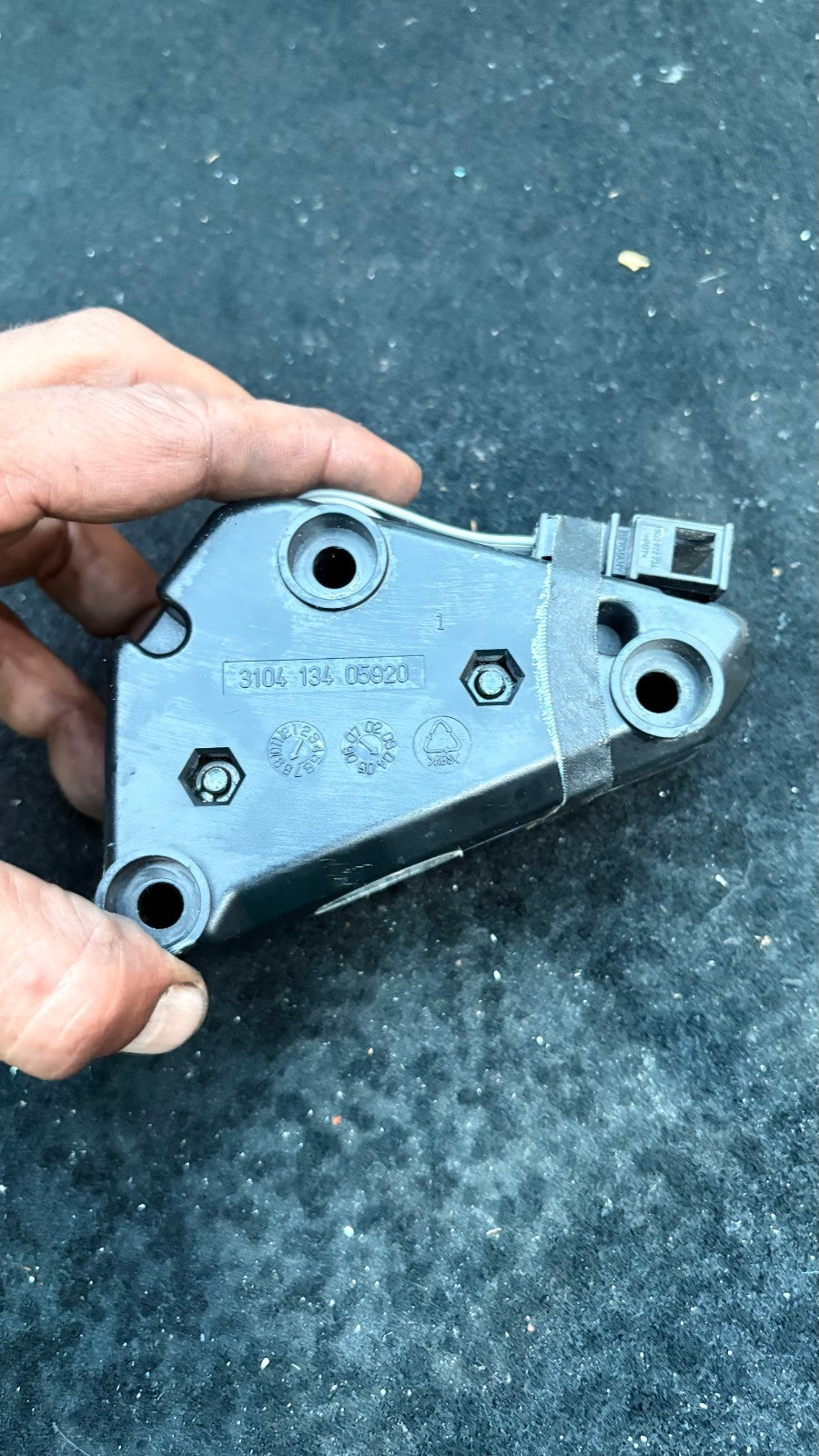

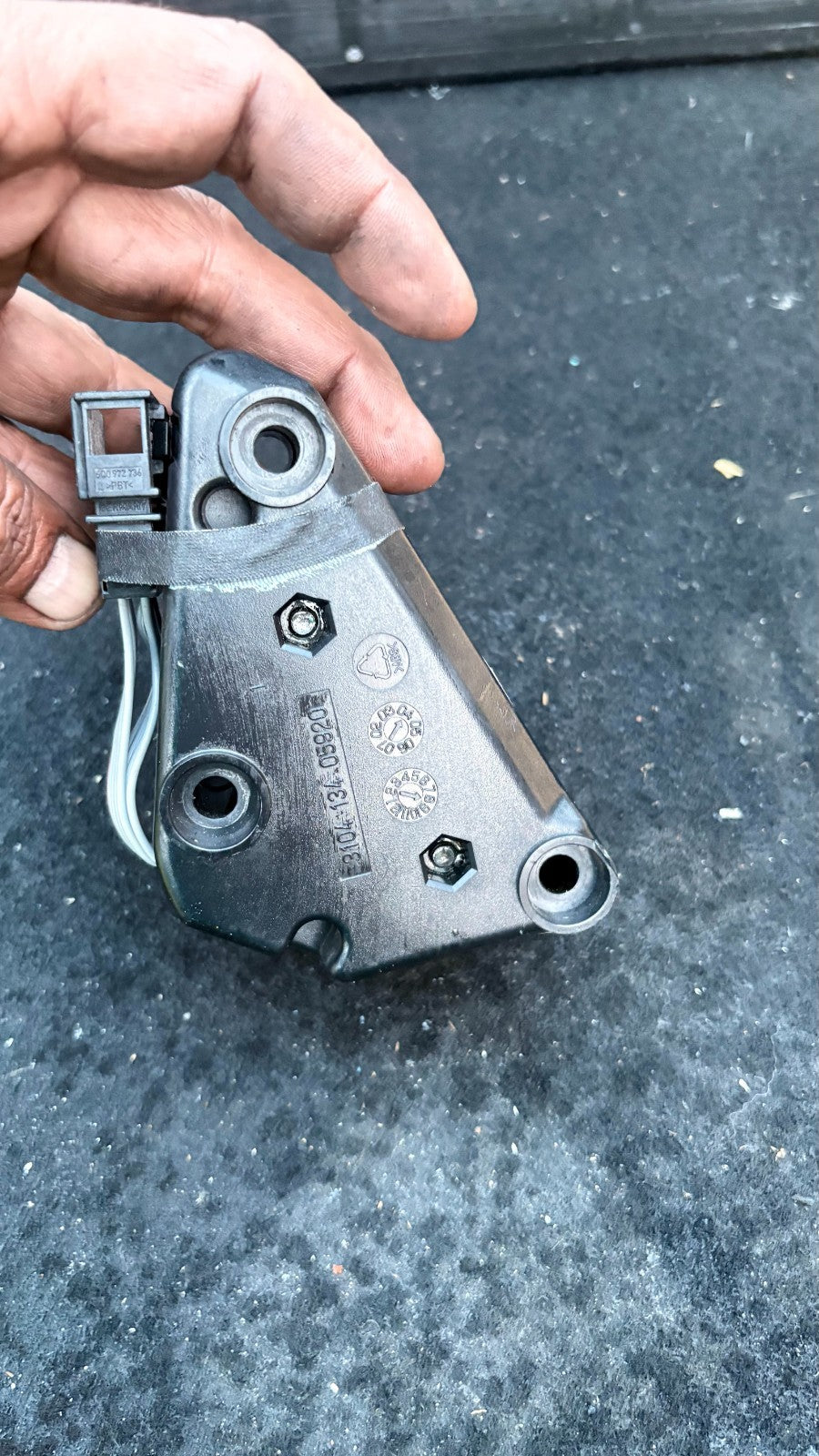

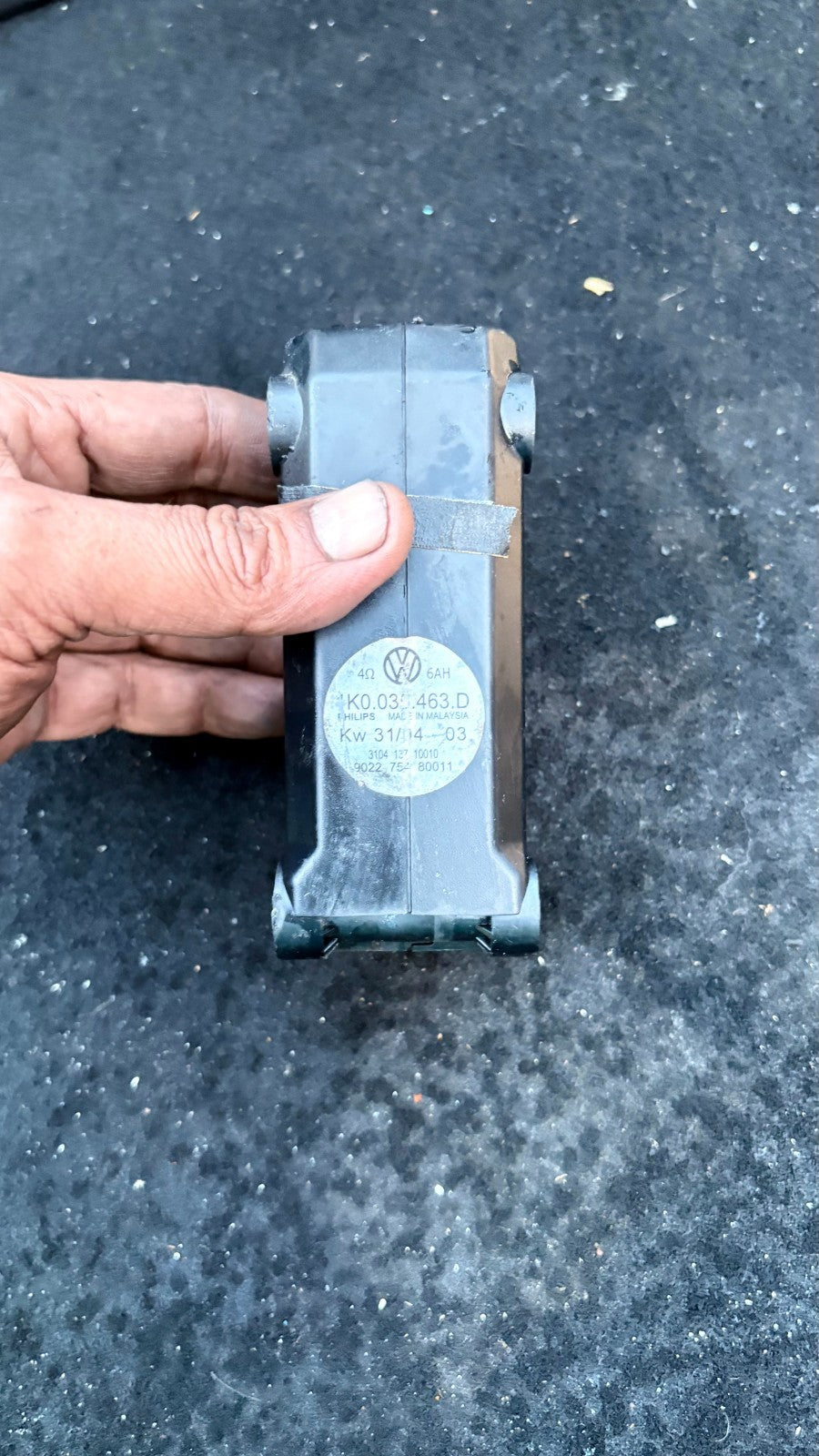

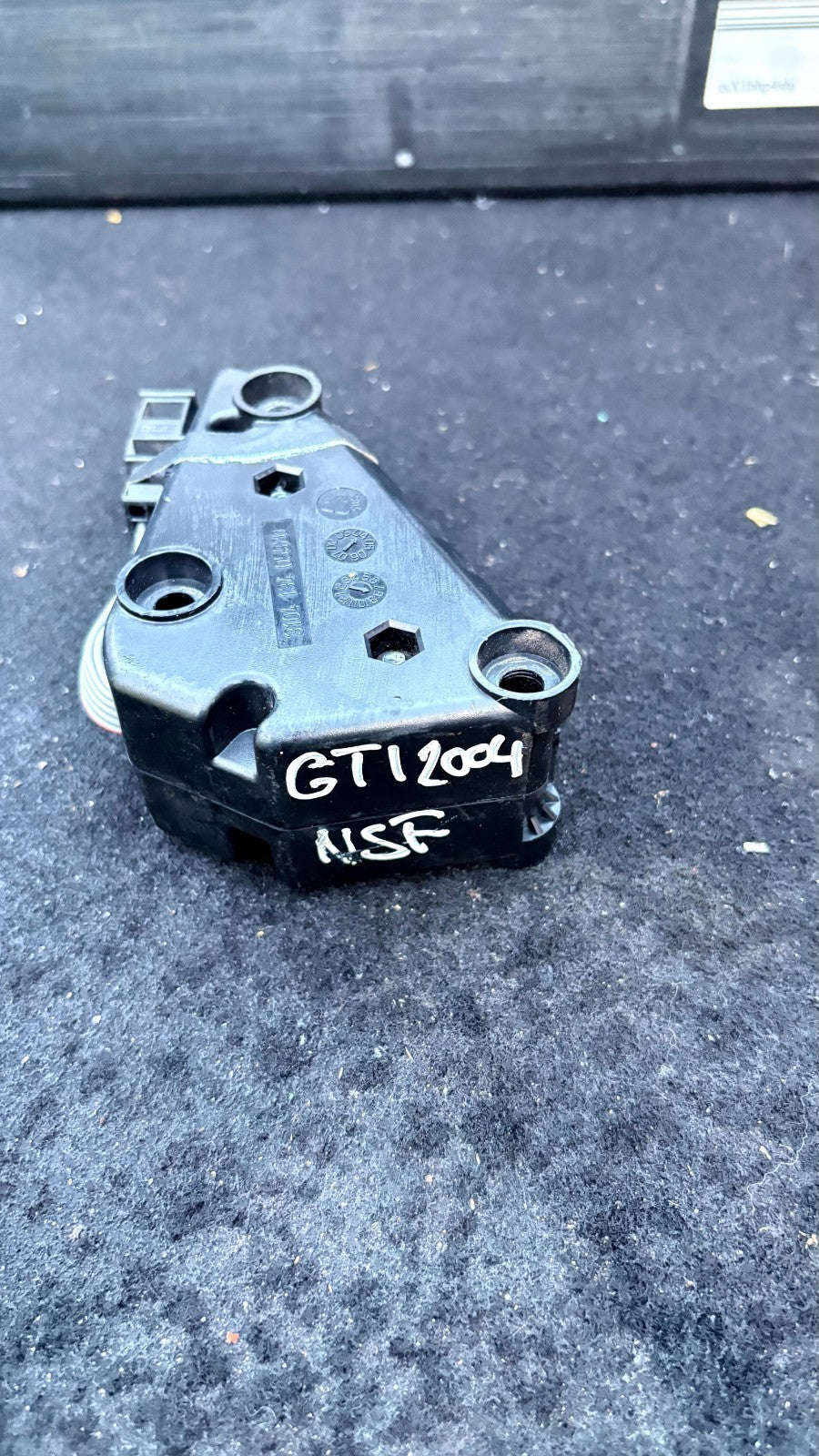

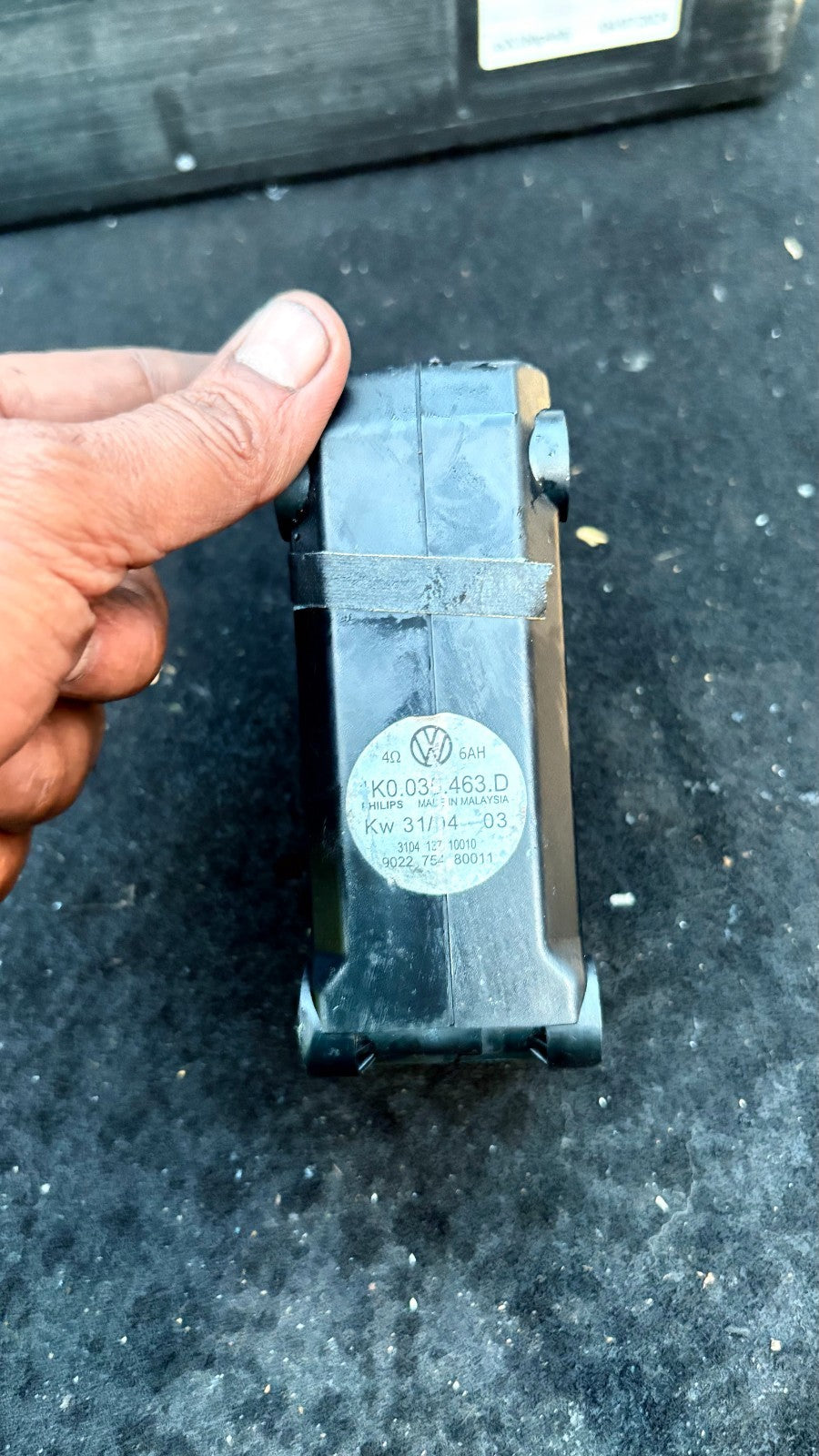

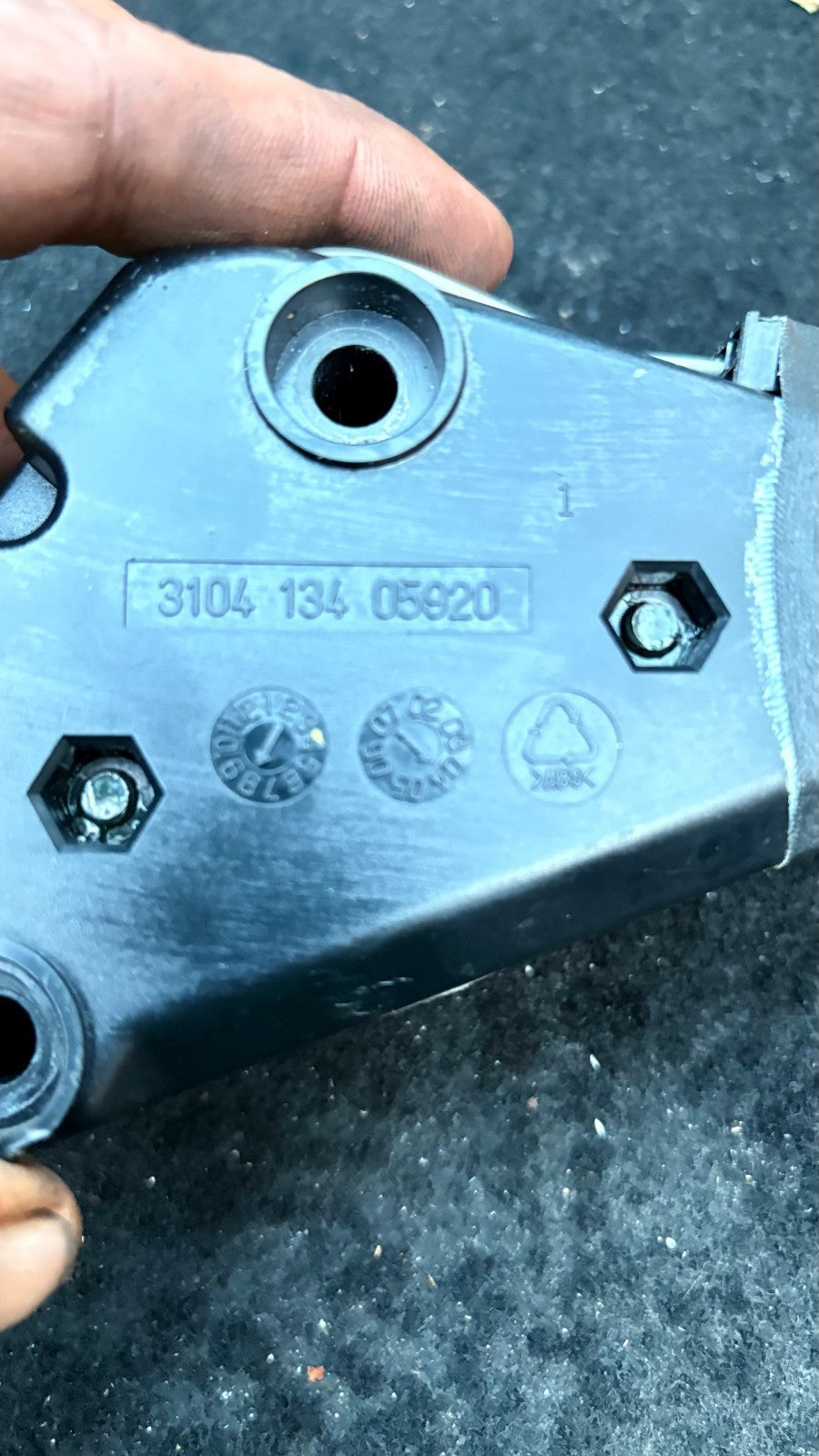

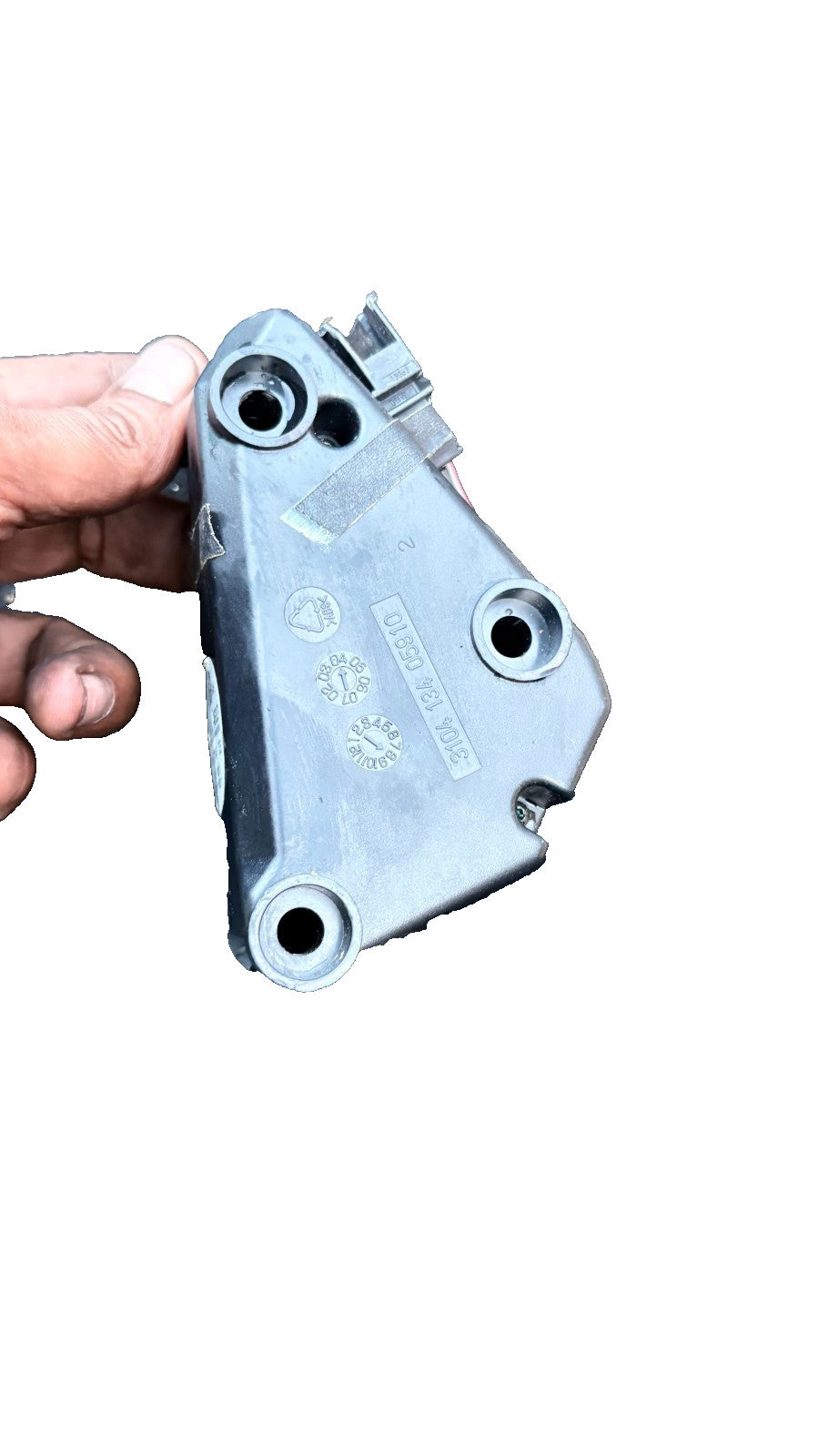

Actual Item Reference Photographs
These direct eBay image-host links show the listed used component. Cosmetic marks, dust, tape residue and handling marks may be present. Use the photographs as the primary condition and connector reference.
Part Specification
What This Part Does and Where It Is Fitted
Audio function
This is a passive frequency-management unit within the factory door-speaker circuit. It divides the audio signal into suitable frequency bands for the front-door woofer, mid-range driver and/or tweeter, helping the speaker system reproduce bass, mid-range and treble correctly.
It is not a universal aftermarket amplifier. Connector layout, impedance, speaker count and vehicle build specification must match.
Typical installation area
SPEAKER
1K0035463D
Static location guide: behind the front door card, near the speaker assembly and inner door carrier. Exact mounting position varies with door and trim specification.
Compatibility Chart — Read Every Condition
| Vehicle / market name | Years used for search | Body / generation | Fitment status | Mandatory confirmation |
|---|---|---|---|---|
| Volkswagen Golf Mk5 / Golf V | 2004–2009 | 1K platform hatchback; 3-door or 5-door cannot be confirmed from year alone | SELECTED VEHICLES ONLY | VIN/build data, 8RW 10-speaker passive system, old part marked 1K0 035 463 D, matching plug and mount |
| Volkswagen Jetta Mk5 / Jetta V | 2005–2010 | 1K platform saloon | SELECTED VEHICLES ONLY | VIN/build data, audio specification, exact old number, connector and mounting match |
| Volkswagen GTI — North American catalog naming | 2006–2009 | Mk5 / 1K | CATALOG CROSS-REFERENCE | Exact VIN and old component confirmation still required |
| Volkswagen Rabbit — North American catalog naming | 2006–2009 | Mk5 / 1K hatchback | CATALOG CROSS-REFERENCE | Exact VIN and old component confirmation still required |
| Volkswagen R32 — North American catalog naming | 2008 | Mk5 / 1K | CATALOG CROSS-REFERENCE | Exact VIN and old component confirmation still required |
| Volkswagen Jetta / Jetta Wagon / SportWagen — North American catalog naming | 2005–2014 catalog range | Saloon or estate name varies by market and year | VIN CHECK ESSENTIAL | Do not assume every 2005–2014 Jetta uses this part; confirm body, audio system and old label |
| Volkswagen Golf Plus | 2005–2014 model range | 5M platform | PART-NUMBER CROSS-REFERENCE ONLY | Buy only after VIN/build verification and an exact old-part, plug and mounting match |
Important: A model appearing in this table does not mean every trim or audio package is compatible. Volkswagen used several speaker arrangements within the same year. The 17-character VIN and the original component label take priority over registration data, generic compatibility checkers and visual similarity.
This Part Will Not Fit
- Cars with a different speaker count, amplified premium sound package or a different factory PR/build code.
- Cars whose original unit has a different final letter, connector, pin count, housing or mounting arrangement.
- Golf Mk4, Golf Mk7/MQB and unrelated Volkswagen generations.
- Any Audi, SEAT or Škoda application merely because it shares a platform; no cross-brand fit is claimed here.
- Any vehicle selected only by engine size, registration number, colour, trim badge or model year.
Correct-Part Checklist — Buy Right First Time
Best practice: remove the door trim and photograph the existing label and connector before ordering. A matching image and part number are stronger evidence than an auto-filled item-specific field.
Symptoms a Faulty Crossover May Cause
- Loss of treble, mid-range or bass from one front door.
- Muffled, thin or unbalanced sound.
- Crackling, distortion or intermittent output.
- One speaker channel silent while other doors operate normally.
These symptoms can also be caused by a damaged speaker, broken door-harness wiring, corroded terminals, head-unit coding or another audio component. Diagnose the circuit before ordering; replacing an untested part may not cure the fault.
Why Choose a Factory-Original Used Component?
Designed for the vehicle
A factory-original unit retains the intended plug, mounting geometry, electrical load and frequency filtering for the specified audio system. A low-cost universal copy may require adaptation and may alter sound balance or reliability.
Value and sustainability
A serviceable used component can deliver substantial savings compared with a new replacement while keeping an existing part in productive use. Actual savings vary by part, condition, availability and current new-part price.
Fitting Guide, Tools and Estimated Time
Typical tools
Plastic trim-removal set, Torx T20/T25/T30 drivers, small ratchet, 10 mm battery spanner/socket where required, pick or small flat driver, clip pliers, torch, protective tape and replacement trim clips.
Fastener sizes can vary by model, door and prior repairs.
Estimated workshop time
Approximately 0.5–1.0 labour hour per front door for a competent technician after diagnosis. Seized fasteners, broken clips, wiring faults, water damage or additional testing can increase time.
Static Garage Labour Cost Estimator
No active calculator or JavaScript is used. Estimate labour by multiplying the garage hourly rate by booked time.
| Garage rate | 0.5 hour | 0.75 hour | 1.0 hour |
|---|---|---|---|
| £50 per hour | £25.00 | £37.50 | £50.00 |
| £70 per hour | £35.00 | £52.50 | £70.00 |
| £90 per hour | £45.00 | £67.50 | £90.00 |
| £120 per hour | £60.00 | £90.00 | £120.00 |
Illustrative labour only. Excludes diagnosis, VAT charged by the garage, minimum booking fees, trim clips, wiring repairs and additional parts. Our own fitting service may be available by prior arrangement; request availability and a quotation through eBay Messages before purchase or travel.
