Name: VW Golf MK7 MK7.5 2013-2020 TDI Turbocharger Oil Feed Pipe 04L145771J
Brand: Volkswagen
SKU: 206283122365
Price: 24.84 GBP
Availability: InStock

⚠️ Please Check Fitment Before Ordering

Do not order this pipe using registration year, model name, engine size, door count or appearance alone.

The safest check is for your vehicle's VIN / engine application to specify 04L145771J. Then compare the bends, unions, fixing points and routing against the detailed photographs below.

If your existing pipe carries a different number or suffix, please contact us through eBay Messages with your 17-character VIN before ordering.

Actual Item Photographs

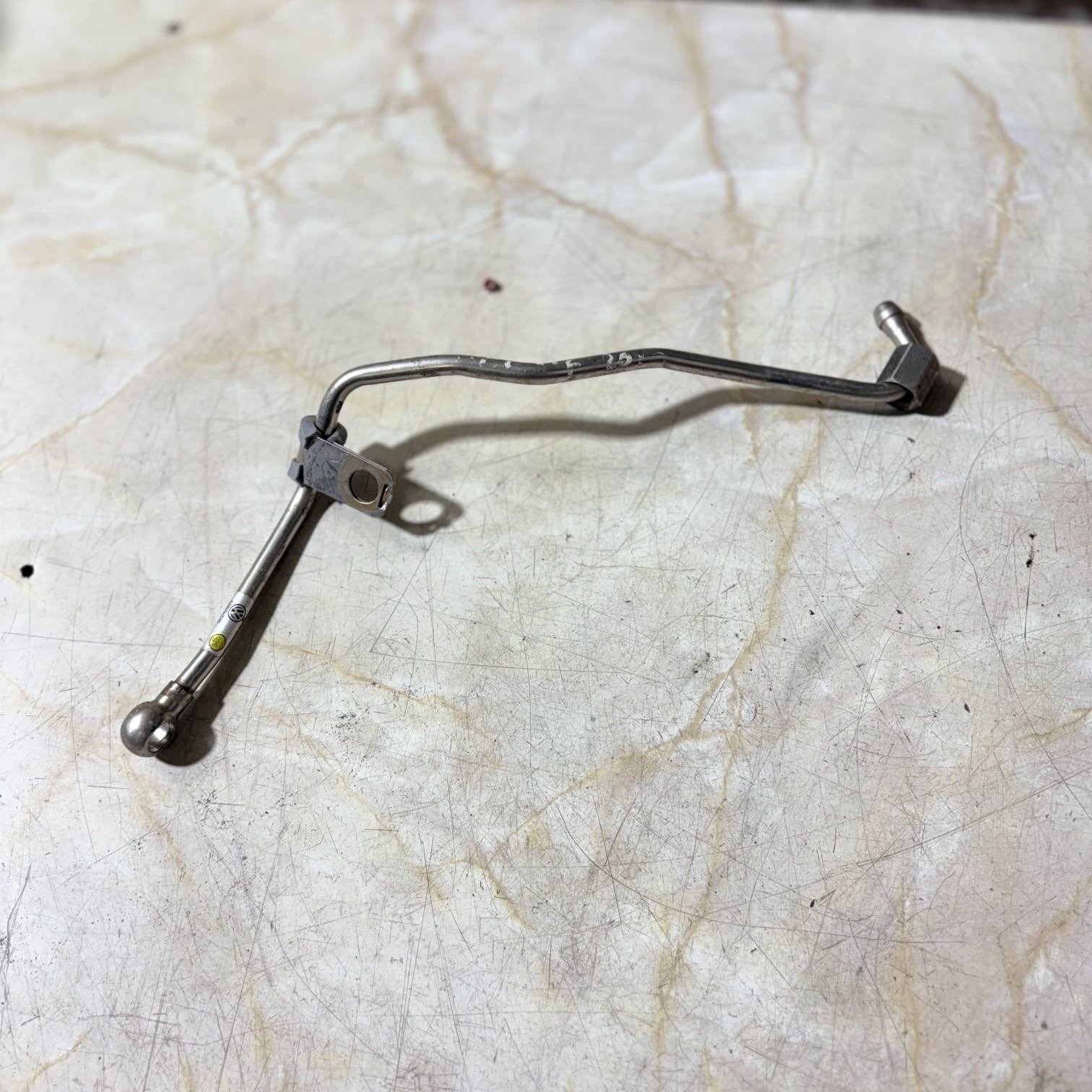

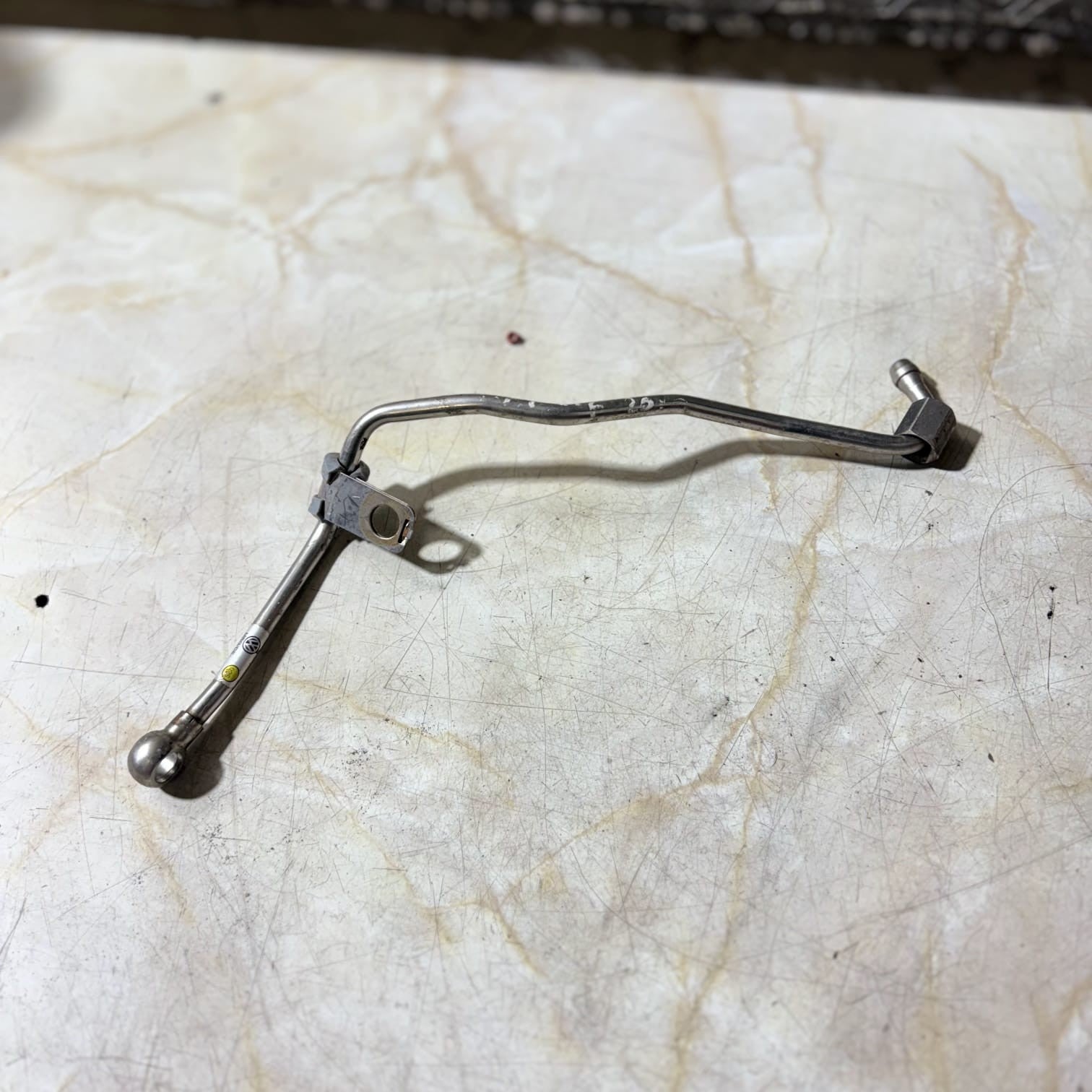

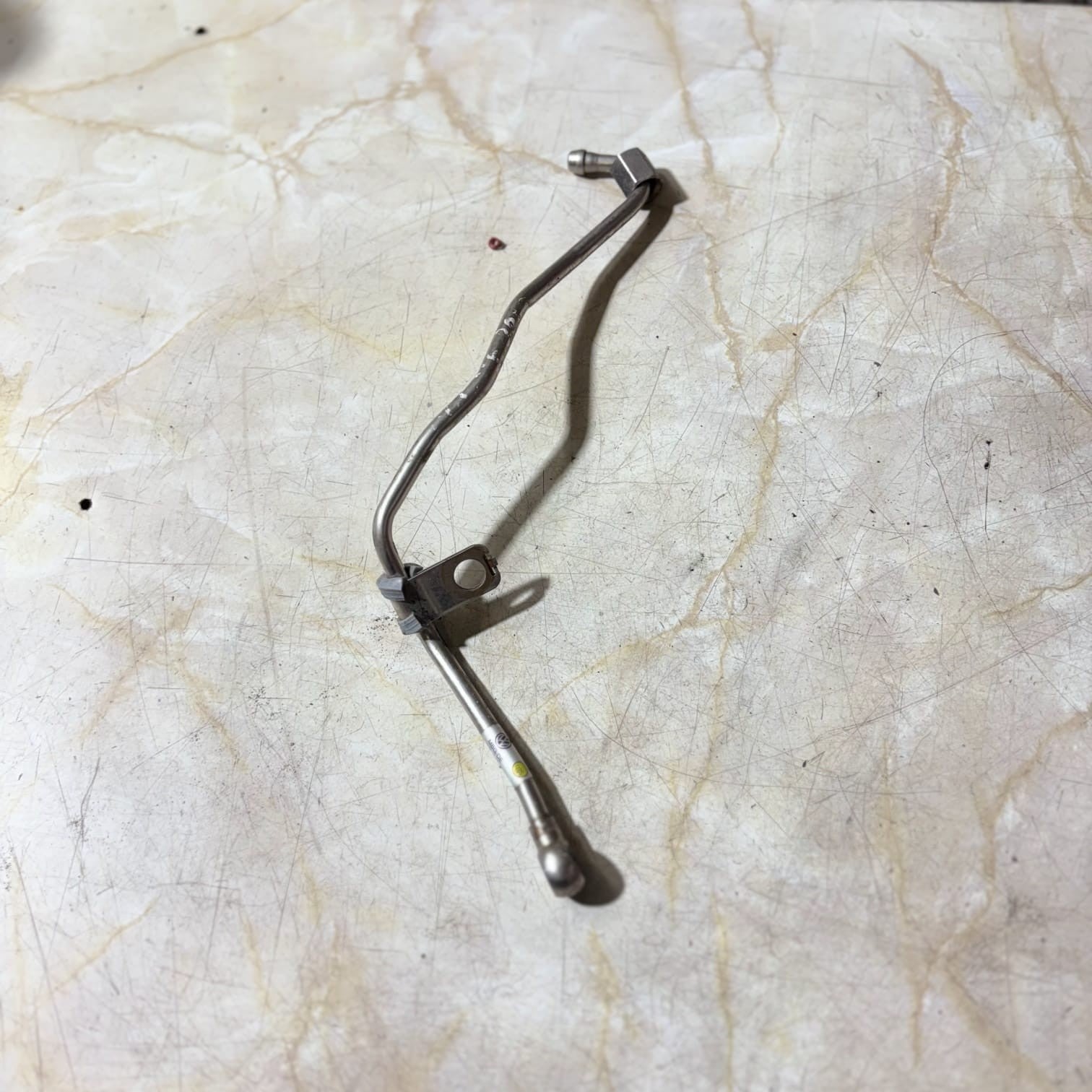

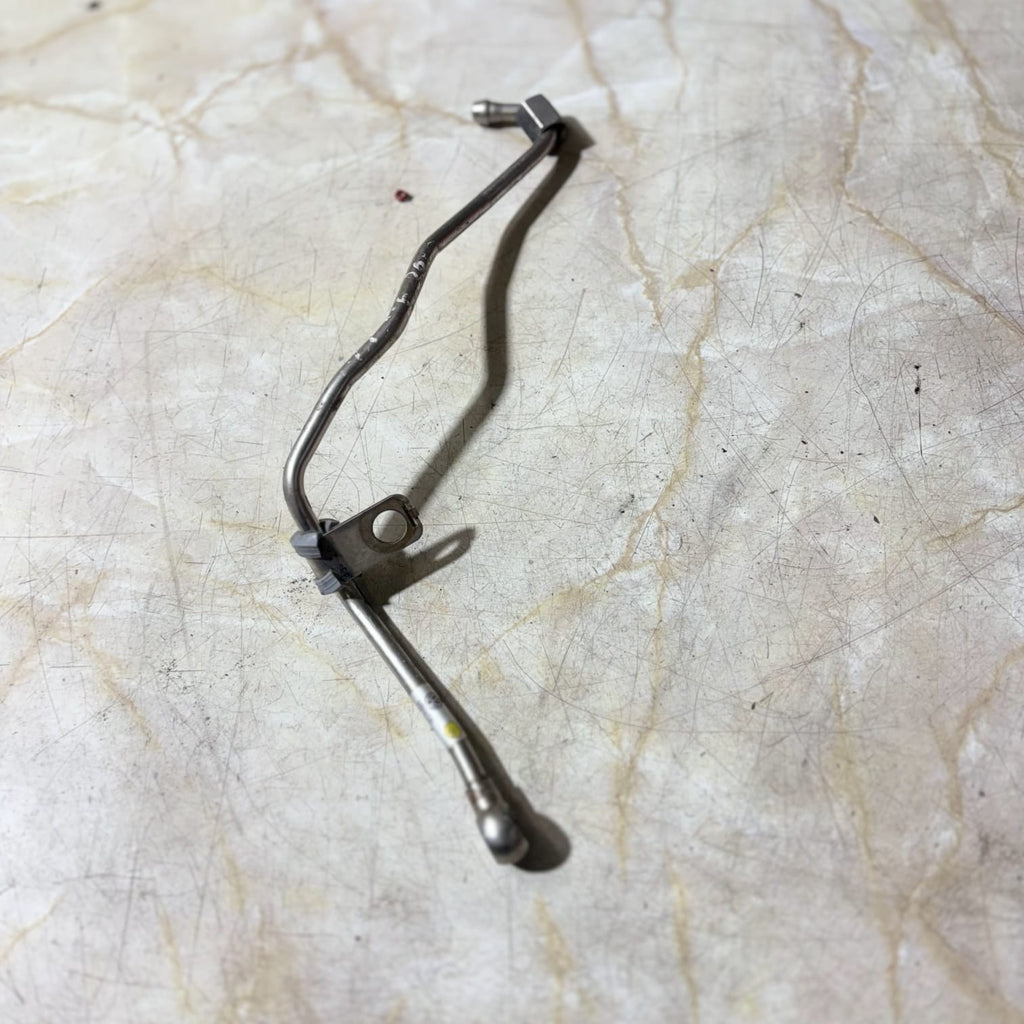

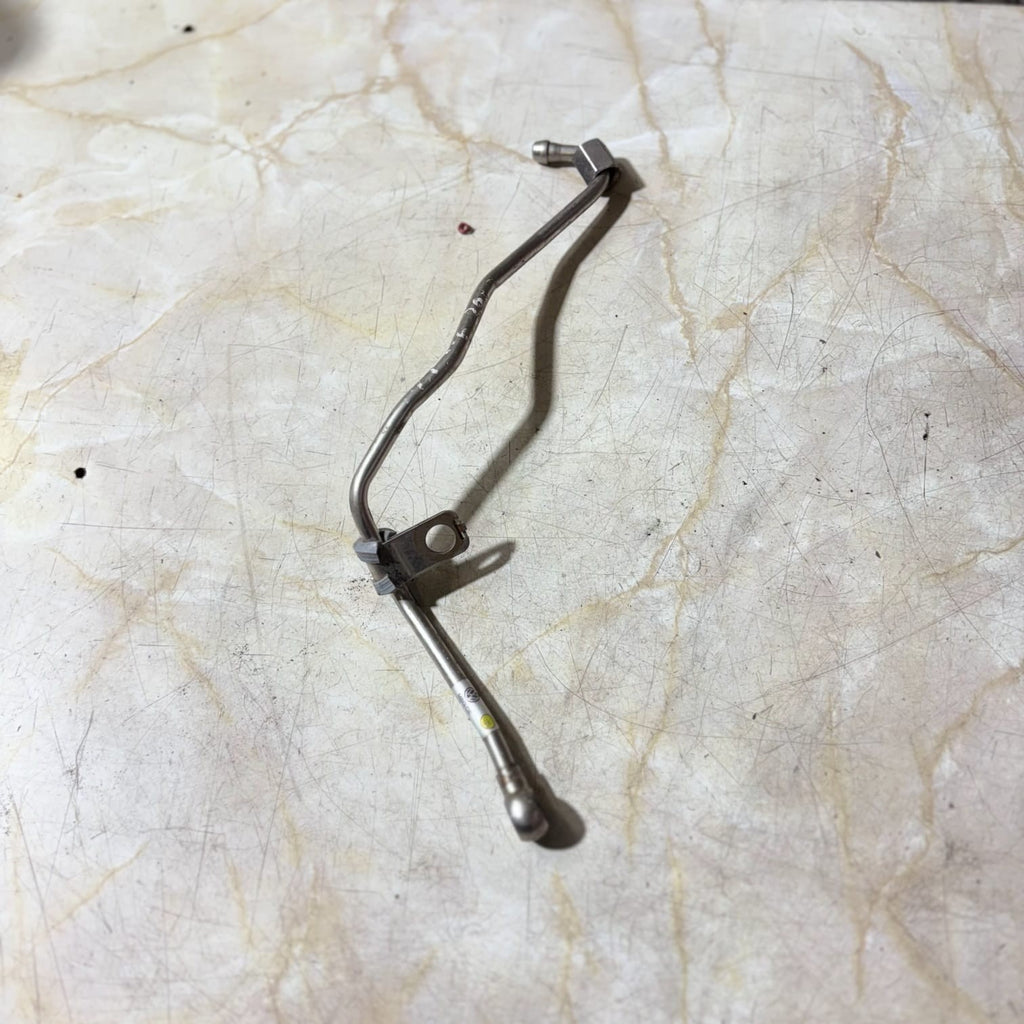

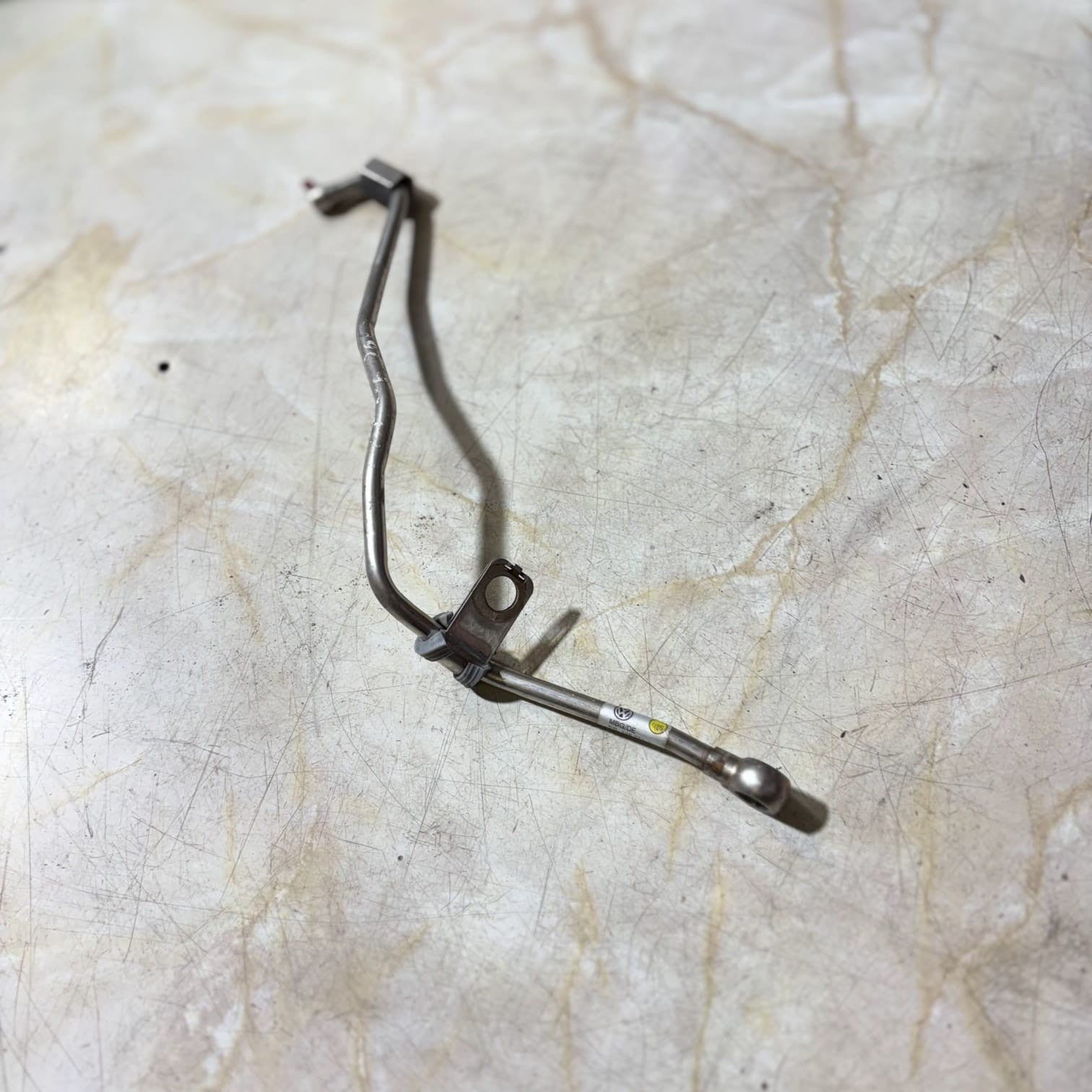

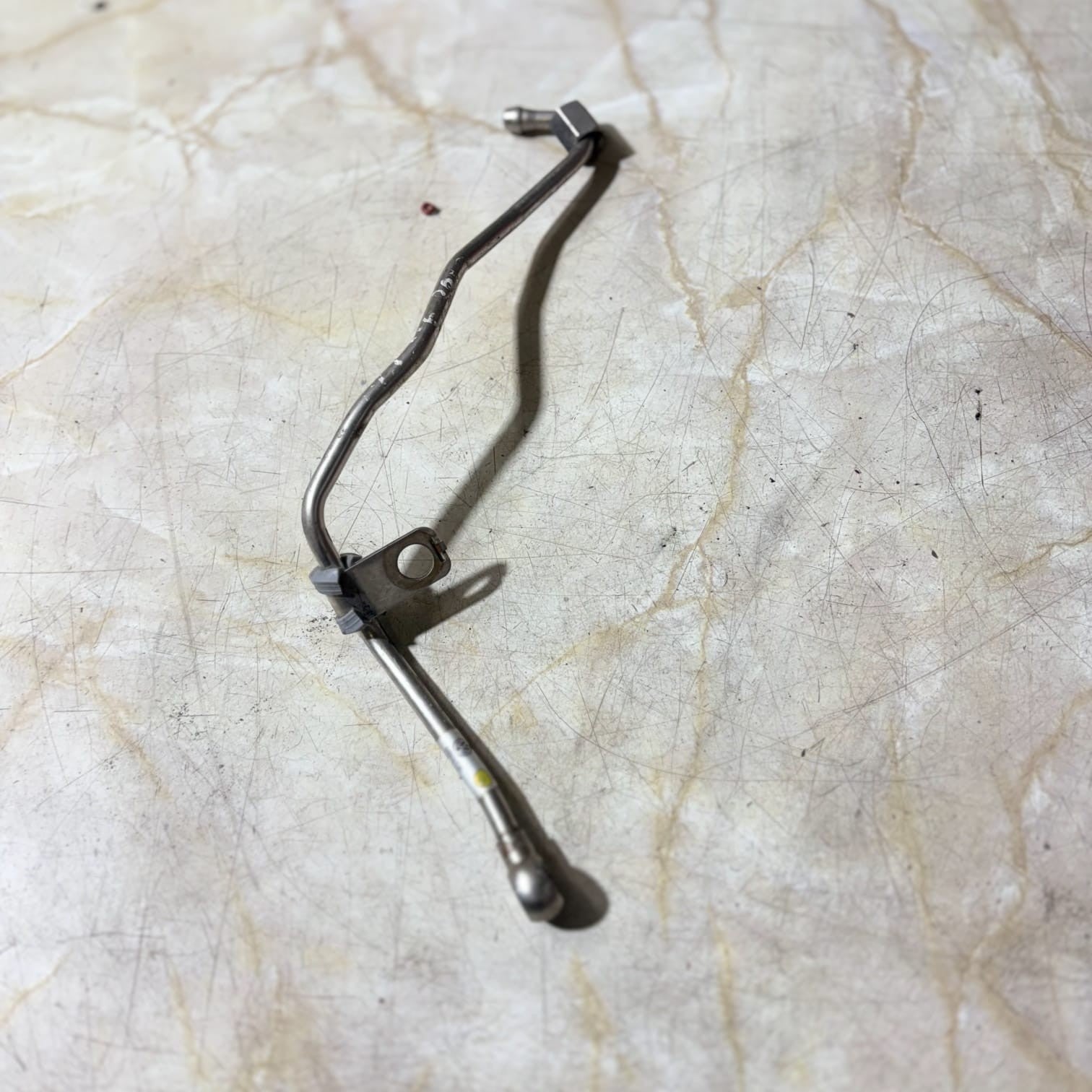

Actual VW turbocharger oil feed pipe 04L145771J

ACTUAL ITEM The pipe shown is the part being described. Use these photographs to compare physical routing, bends and mounting points.

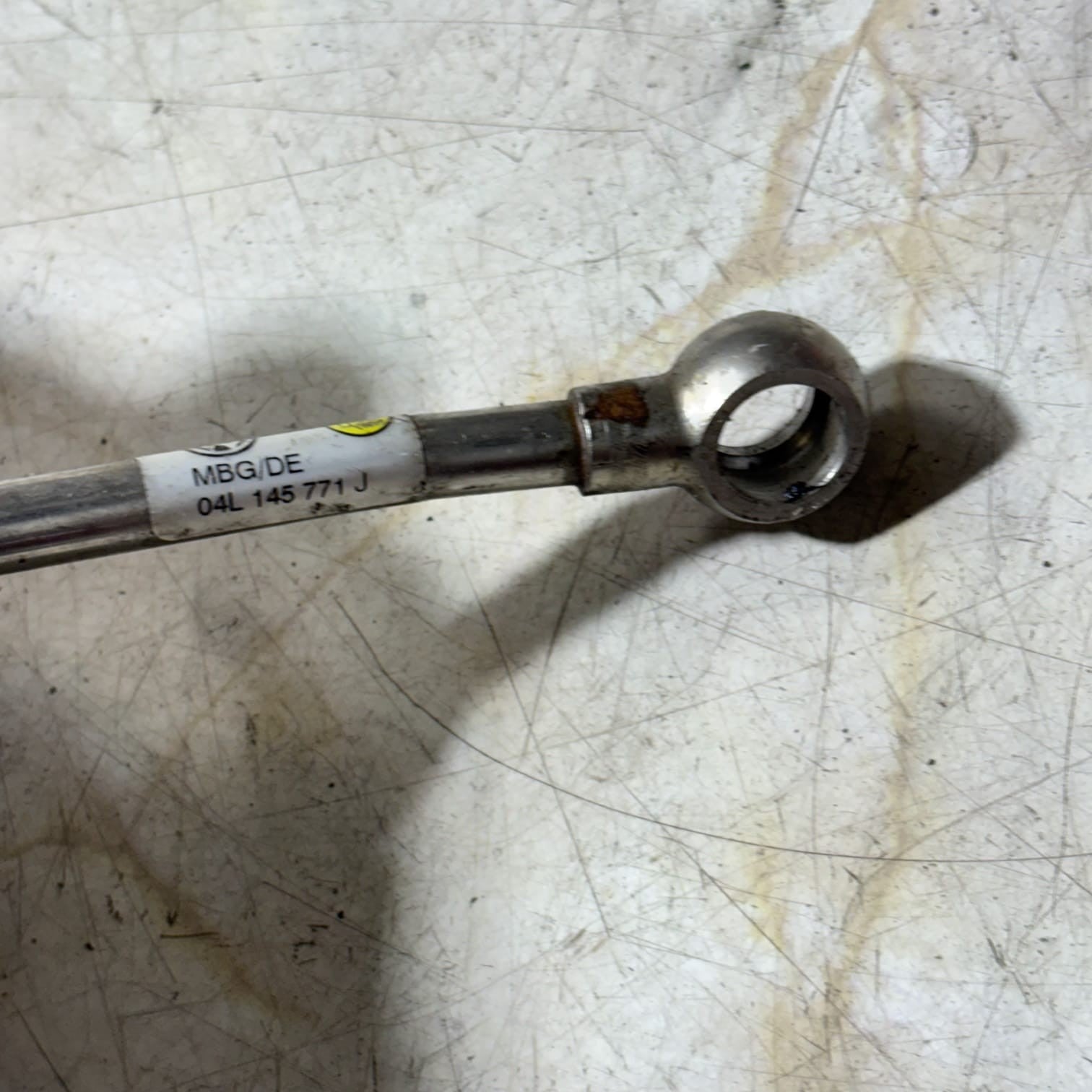

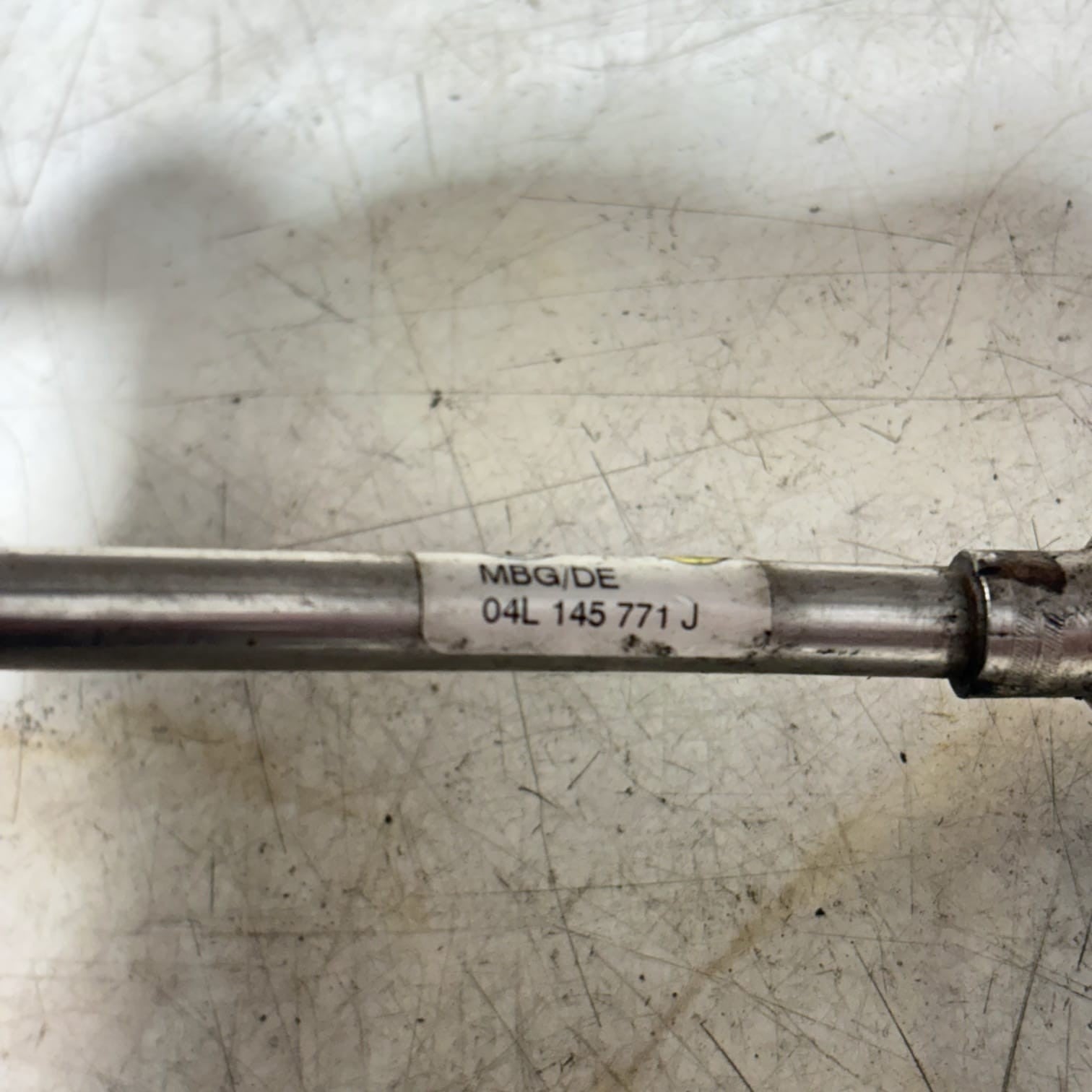

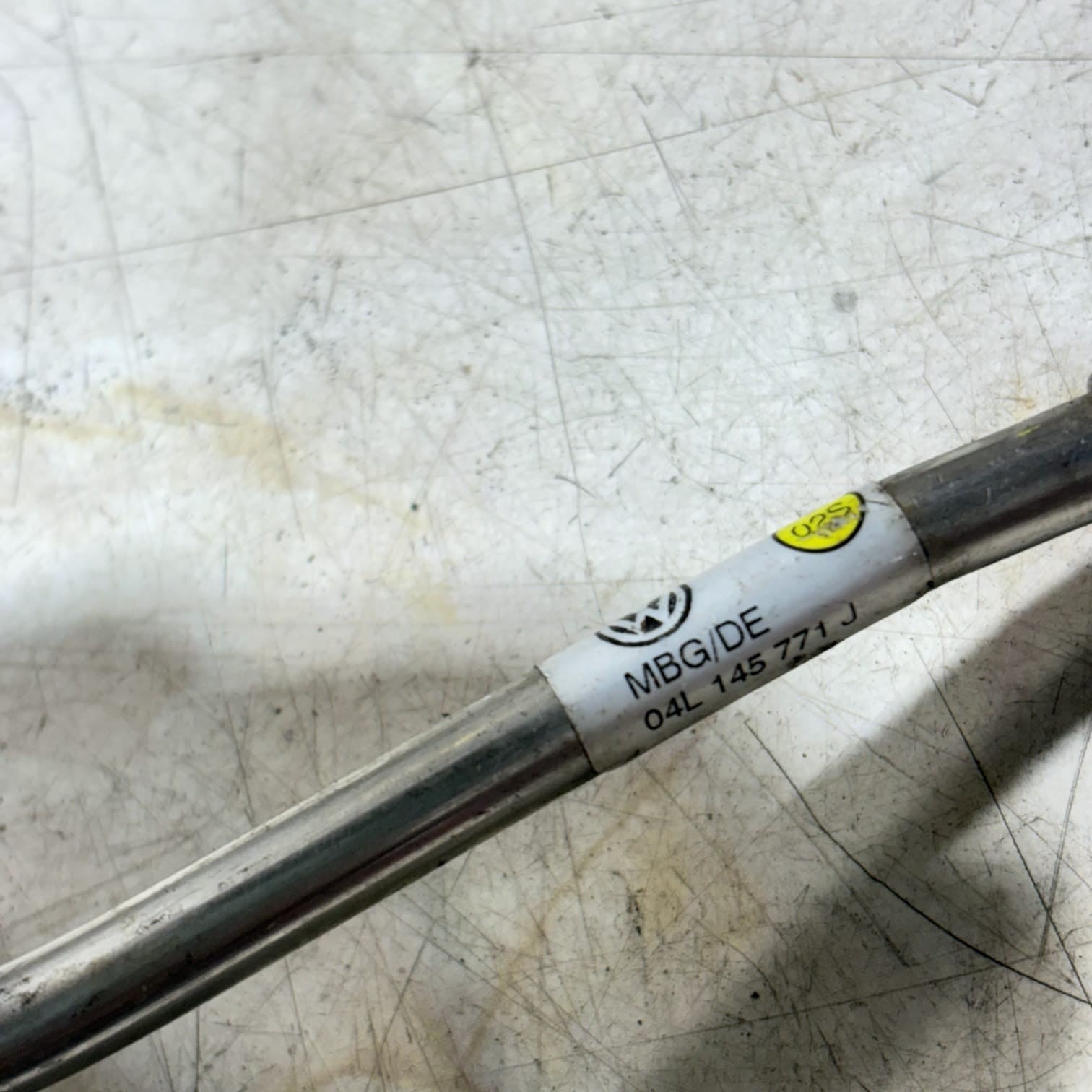

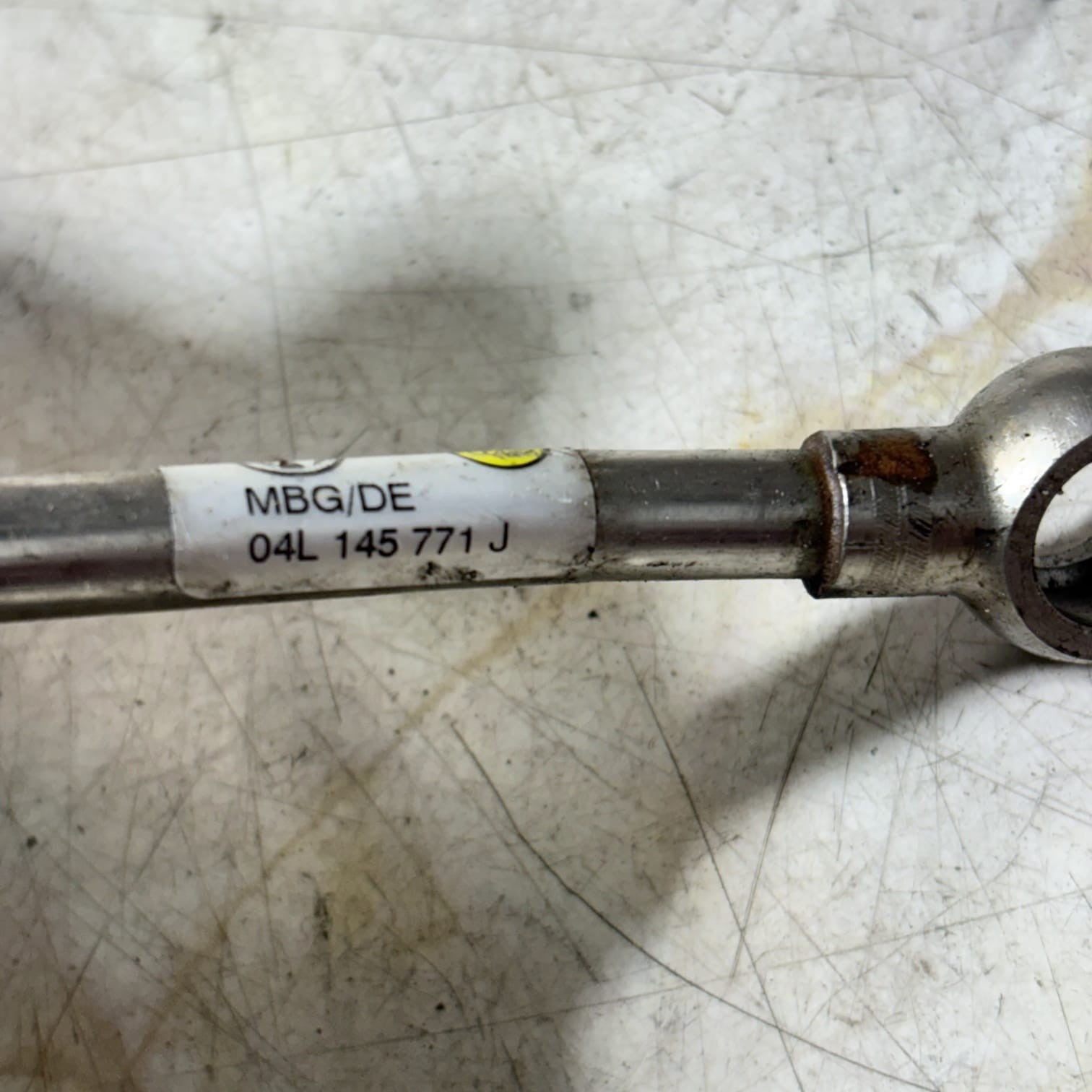

PART NUMBER VERIFICATION Close-up showing 04L 145 771 J. Matching the number is more reliable than relying on appearance alone.

Manufacturer Label Detail

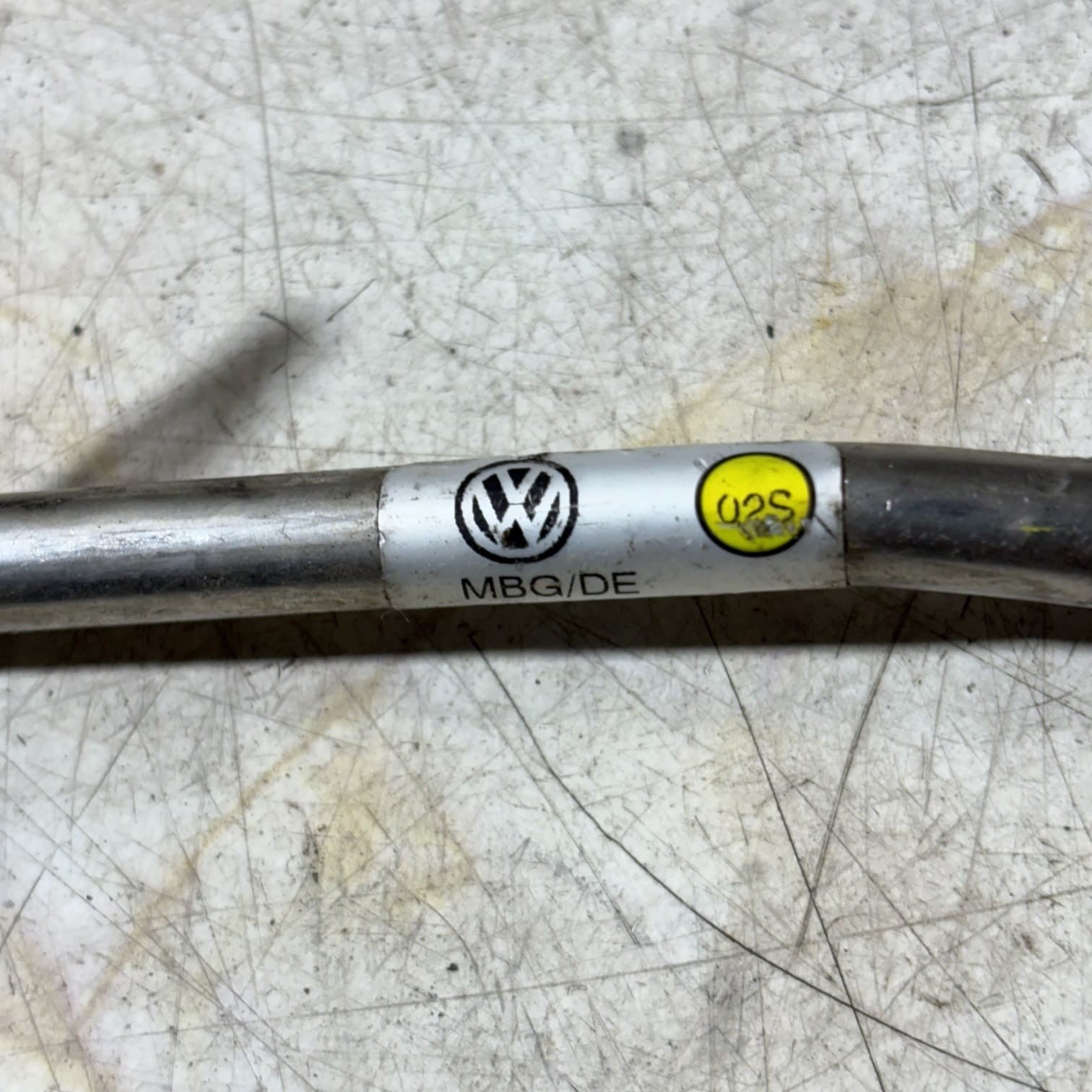

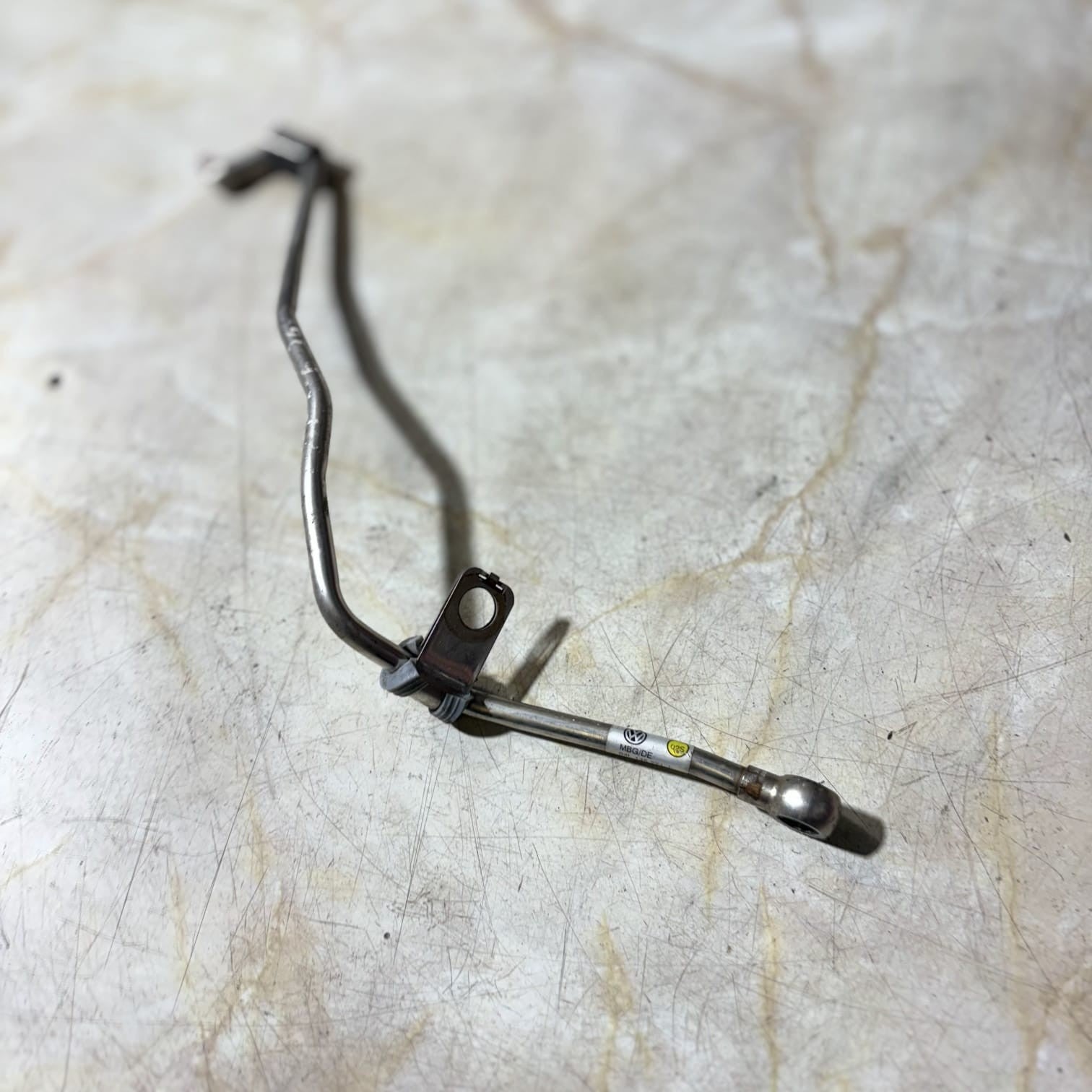

Actual manufacturer label on VW oil supply pipe

PHOTOGRAPHED BRAND IDENTIFICATION Manufacturer branding is visible on the actual component. No separate logo artwork has been added to this listing.

Reference Vehicle & Engine-Bay Context

Reference photographs only: the following vehicle is not the donor car and is not included in the sale. These photographs are provided only to help identify the Golf 7 body style and understand the engine-bay context. Exact pipe routing varies with engine code.

Volkswagen Golf 7 TDI 5 door reference vehicle

5-DOOR GOLF 7 TDI — REFERENCE ONLY This gives body-style context. For this engine-mounted component, door count itself is not the compatibility determinant.

Volkswagen Golf 7 TDI engine bay reference

GOLF 7 TDI ENGINE BAY — REFERENCE ONLY The pipe belongs to the turbocharger / engine-oil supply circuit. Exact turbo location, pipe route and access vary by engine code, so this image must not be used as VIN fitment proof.

Reference photography used for vehicle/context identification only. Photographs do not represent the condition of the item being sold.

Part Specification

Specification	Details
Part	Turbocharger oil feed / oil supply pipe
Manufacturer application	Volkswagen / VAG diesel applications
Manufacturer part number	04L145771J
Spaced number format	04L 145 771 J
Condition	Used — inspect all actual item photographs before purchase
Construction	Formed metal hard-line assembly. Exact alloy/coating grade has not been independently verified, so no unsupported material specification is being claimed.
Catalogue weight	Approximately 0.17 kg
Installation area	Engine / turbocharger oil-supply circuit
Function	Carries pressurised engine oil to the turbocharger bearing assembly for lubrication and thermal management.
What is supplied	The photographed pipe/component. Do not assume unrelated seals, bolts, clips or brackets are included unless clearly pictured with the item.

Primary VW Golf MK7 / MK7.5 Compatibility

Important: the years below are catalogue application ranges for part number 04L145771J. They do not mean every engine sold in that model/year uses this pipe.

Vehicle	Platform	Catalogue Years	Fitment Rule
VW Golf VII / MK7 Hatchback	5G	2013–2017	Selected TDI applications only — VIN catalogue must call for 04L145771J
VW Golf VII / MK7.5 Hatchback	BQ	2017–2020	Selected TDI applications only — VIN catalogue must call for 04L145771J
VW Golf VII Estate	BA	2014–2017	Selected diesel applications only — VIN check required

Catalogue data for this part includes both 1.6-litre and 2.0-litre diesel engine families, but there are multiple engine codes and oil-line variations. Engine capacity alone is therefore insufficient proof of fitment.

Which Golf Applications Should NOT Be Assumed to Fit?

DO NOT ASSUME FITMENT for petrol TSI, GTI or R engines, e-Golf electric vehicles, GTE hybrid applications, or any vehicle whose VIN catalogue specifies a different turbocharger oil-supply line.

A similar-looking line, the same engine capacity, the same model year, the same body shape, or the same number of doors is not sufficient evidence of compatibility.

If the number on your original line is different from 04L145771J, stop and obtain a VIN check before ordering.

Additional VAG Catalogue Applications

Part number 04L145771J also appears in the manufacturer parts catalogue against the vehicle families below. These are catalogue application ranges, not blanket engine fitment claims. Your VIN must resolve to this exact part number before purchase.

Make / Model	Platform	Catalogue Range	Requirement
Audi A1 / S1	GB	2015–2018	VIN must specify 04L145771J
Audi A3 Cabriolet	8V	2015–2021	VIN must specify 04L145771J
Audi A3 Saloon / Sportback	8V	2013–2020	VIN must specify 04L145771J
Audi Q2	GA	2017–	Catalogue range open-ended; VIN check essential
SEAT Arona	KJ	2018–	VIN check essential
SEAT Ateca	KH	2016–	VIN check essential
SEAT Ibiza	KJ	2018–	VIN check essential
SEAT Leon	5F	2013–2020	VIN check essential
SEAT / CUPRA Leon	5FA / KL	2020–	VIN check essential
SEAT Toledo	KG	2013–2019	VIN check essential
Skoda Kamiq	NW	2019–	VIN check essential
Skoda Karoq	ND	2018–	VIN check essential
Skoda Octavia	5E	2014–2021	VIN check essential
Skoda Octavia	NN	2020–	VIN check essential
Skoda Rapid	NH	2013–2022	VIN check essential
Skoda Scala	NW	2019–	VIN check essential
Skoda Superb Saloon / Estate	3V	2015–2024	VIN check essential
Skoda Yeti	5L	2014–2018	VIN check essential
VW Beetle	5C	2012–2019	VIN check essential
VW Beetle Cabriolet	5C	2013–2019	VIN check essential
VW Caddy	SA	2016–2020	VIN check essential
VW Caddy	SB	2021–	VIN check essential
VW Golf	5G	2013–2017	VIN check essential
VW Golf Estate	BA	2014–2017	VIN check essential
VW Golf	BQ	2017–2020	VIN check essential
VW Golf	CD	2020–	VIN check essential
VW Golf Cabriolet	51 / 5K	2012–	VIN check essential
VW Golf Sportsvan	AM	2014–2020	VIN check essential
VW Jetta / Syncro	16	2015–2018	VIN check essential
VW Passat	3G	2018–2024	VIN check essential
VW Polo	AE / AW	2018–	VIN check essential
VW Scirocco	13	2015–2018	VIN check essential
VW T-Cross	C1	2019–	VIN check essential
VW T-Roc	A1	2018–2026	VIN check essential
VW Tiguan	AD	2016–2024	VIN check essential
VW Touran	5T	2016–	VIN check essential

Catalogue Engine-Code Examples

The catalogue associates part number 04L145771J with multiple diesel engine applications. Examples appearing in catalogue data include:

DFFA

CRVC

CYKB

CRVA

CRMB

CKFC

CRGA

This engine-code list is not exhaustive and does not mean every vehicle carrying one of these codes necessarily has identical surrounding hardware. VIN / manufacturer catalogue verification remains the final check.

Aftermarket Catalogue Cross-Reference Examples

Catalogue Brand	Reference	Use
FA1	611-830 / 611-830Z	Search/reference only
Nissens	935260	Search/reference only
Febi Bilstein	187884	Search/reference only
NRF	90100014	Search/reference only
Ajusa	OP10629	Search/reference only

These references are provided to assist catalogue searching only. They are not the items supplied and must not override a VIN check.

What Does This Pipe Do?

🛢️ Oil Supply

Delivers pressurised engine oil into the turbocharger lubrication circuit.

⚙️ Bearing Protection

Correct oil delivery is critical to turbocharger bearing lubrication and heat management.

📍 Installation

Fitted in the engine/turbocharger area between the engine oil supply circuit and turbocharger assembly.

This is principally a fluid-supply component; it does not electronically control the turbocharger. Exact routing, connections, shields and access depend on the specific engine installation.

Possible Symptoms of a Faulty Oil Feed Pipe

Visible Oil Leakage

Oil staining or wetness around the pipe, unions or turbocharger connection can indicate a leaking line or sealing interface.

Burning Oil Smell / Smoke

Escaping oil contacting hot exhaust or turbocharger surfaces can create a burning-oil smell or visible smoke.

Falling Engine Oil Level

A significant external leak can contribute to unexplained oil loss. The source should be diagnosed before parts are replaced.

Turbocharger Distress

Restricted oil supply can contribute to excessive heat, bearing noise and turbocharger damage.

If the vehicle has a low-oil-pressure warning or a substantial oil leak, do not continue driving simply because a replacement pipe has been ordered. The lubrication system should be diagnosed promptly.

Why Choose an Original Manufacturer-Branded Used Part?

📐 Correct Geometry

Factory-designed bends, mounting points and union orientation reduce the risk of forcing an incorrectly shaped replacement into position.

🔩 Correct Mounting Layout

Bracket positioning and connection geometry were designed around the relevant engine/turbo installation rather than a universal approximation.

♻️ Cost & Reuse

A serviceable used manufacturer part can reduce waste and may cost substantially less than buying the equivalent new component.

Depending on the component and current new price, buying used can save up to around 70% in some cases. Actual savings vary by part, condition and current market price.

Fitting Guide

This is general fitting guidance, not a substitute for the workshop procedure for your exact VIN/engine code. No torque setting is being guessed in this listing. Fasteners must be tightened to the manufacturer specification for the specific vehicle.

Confirm the replacement number 04L145771J against the VIN/engine application before dismantling the vehicle.

Work with the engine cold. Disconnect or isolate components only as directed by the relevant workshop procedure.

Safely raise/support the vehicle if underbody access is required. Never work beneath a vehicle supported only by a jack.

Remove the engine covers, intake components or heat shields required for access without damaging adjacent hoses or wiring.

Thoroughly clean the area around the oil-line connections before opening the lubrication circuit to reduce contamination risk.

Position a suitable drain tray/absorbent material and remove the old feed line, noting its exact routing and bracket locations.

Inspect the mating surfaces and connection points. Replace sealing washers, O-rings, one-time-use fasteners or other sealing components wherever the VIN-specific workshop information requires them.

Install the replacement line in the original routing. It must not be forced, twisted, rubbing against another component or incorrectly positioned near excessive heat.

Tighten all unions and retaining fasteners to the VIN/engine-specific manufacturer torque specification.

Check engine-oil level and follow the prescribed turbocharger lubrication/priming procedure whenever the oil circuit has been opened or the turbocharger has been replaced.

Start the engine according to the workshop procedure, allow it to idle, and inspect every disturbed connection carefully for leakage.

Recheck oil level and inspect again after the appropriate heat cycle. Any leakage must be rectified before normal road use.

Typical Tools & Consumables

Socket & spanner set

Suitable line / flare spanners

Calibrated torque wrench

Trim / cover tools

Workshop lift or jack & axle stands

Drain tray

Absorbent material

Parts-safe cleaner

Inspection light

Protective gloves / eyewear

Correct engine oil if required

New specified seals / washers

Exact socket/spanner sizes and replacement sealing hardware vary by vehicle installation and should be confirmed from the VIN-specific workshop information rather than guessed.

Repair Time & Garage Labour Calculator

Estimated installation time is VIN / engine-code dependent. Access can vary substantially, so we will not publish a made-up fixed job time without knowing the exact vehicle. The table below is a static eBay-safe labour calculator: choose the billed hours quoted by your garage and multiply them by its hourly labour rate.

Formula: Garage labour estimate = hourly labour rate × billed labour hours.

Billed Time	£50/hr	£75/hr	£100/hr	£125/hr	£150/hr
0.5 hour	£25.00	£37.50	£50.00	£62.50	£75.00
1.0 hour	£50.00	£75.00	£100.00	£125.00	£150.00
1.5 hours	£75.00	£112.50	£150.00	£187.50	£225.00
2.0 hours	£100.00	£150.00	£200.00	£250.00	£300.00
2.5 hours	£125.00	£187.50	£250.00	£312.50	£375.00
3.0 hours	£150.00	£225.00	£300.00	£375.00	£450.00

Labour examples are mathematical illustrations only and are not a quotation or stated book time. Diagnostics, fluids, seals, additional repairs and applicable garage taxes/charges are not included.
