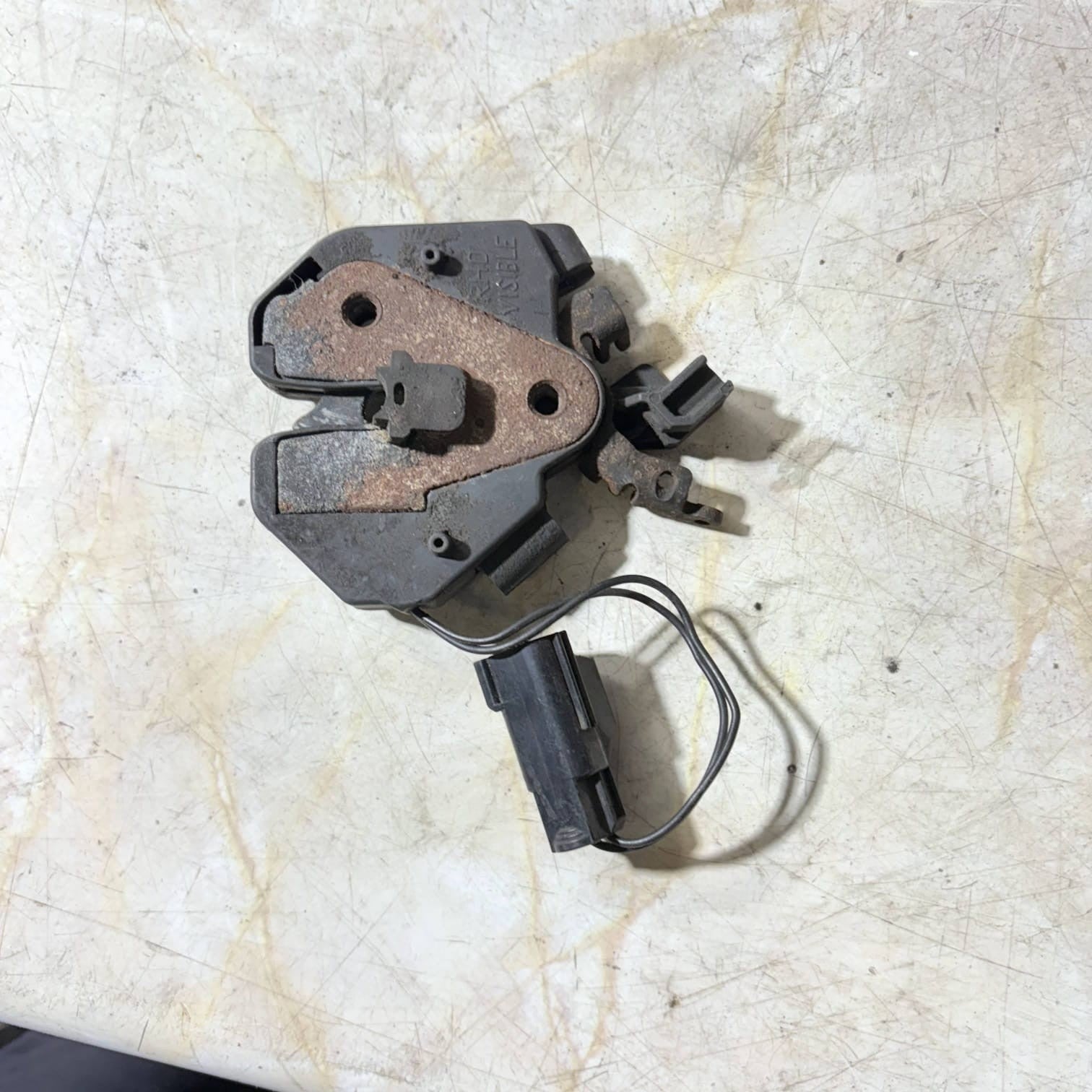

VOLVO RIGHT-HAND FRONT BONNET LOCK LATCH CATCH
✓ Electrical connector and wiring layout
✓ Cable attachment position
✓ Mounting-hole spacing and body shape
✓ Correct side of the vehicle
✓ Vehicle generation and production year

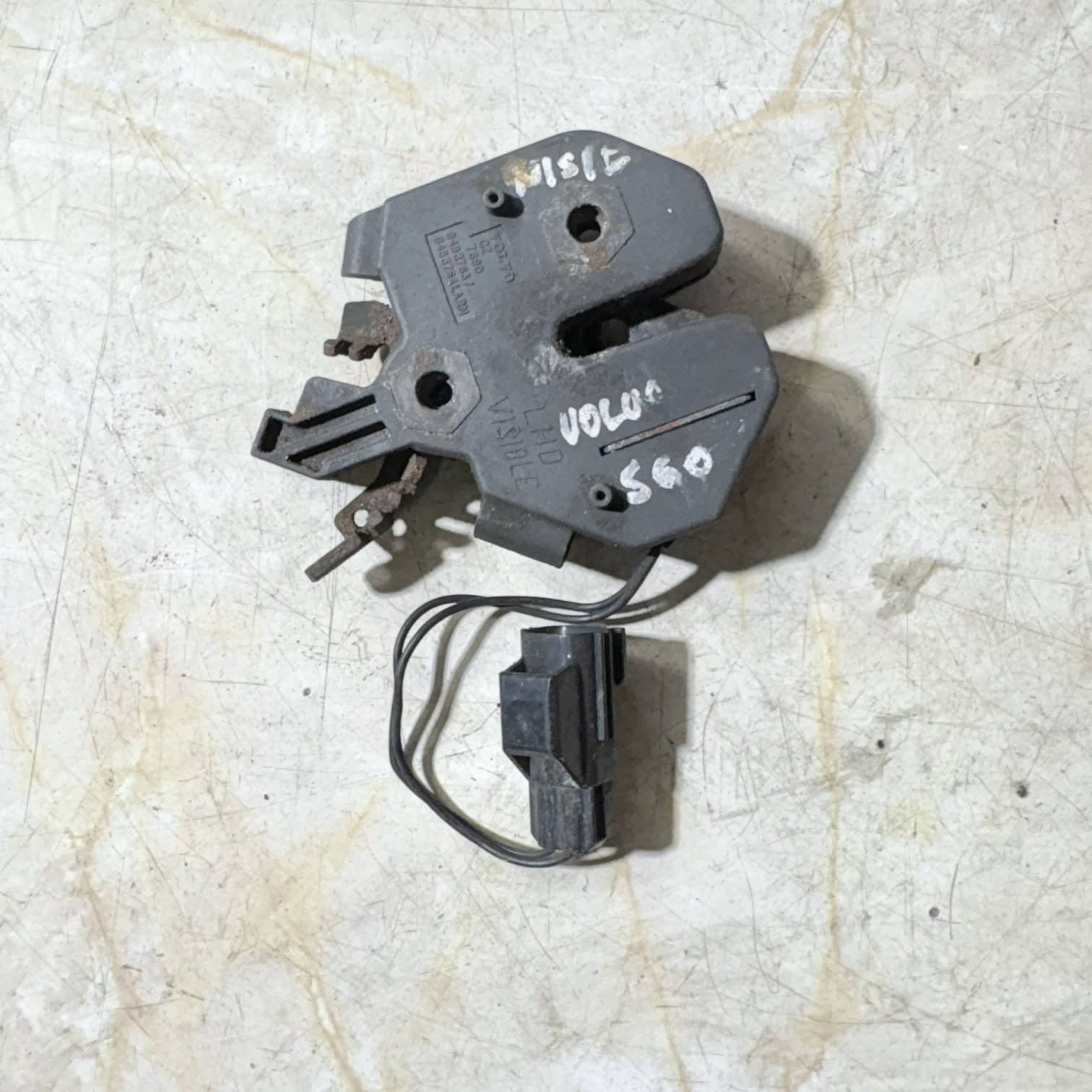

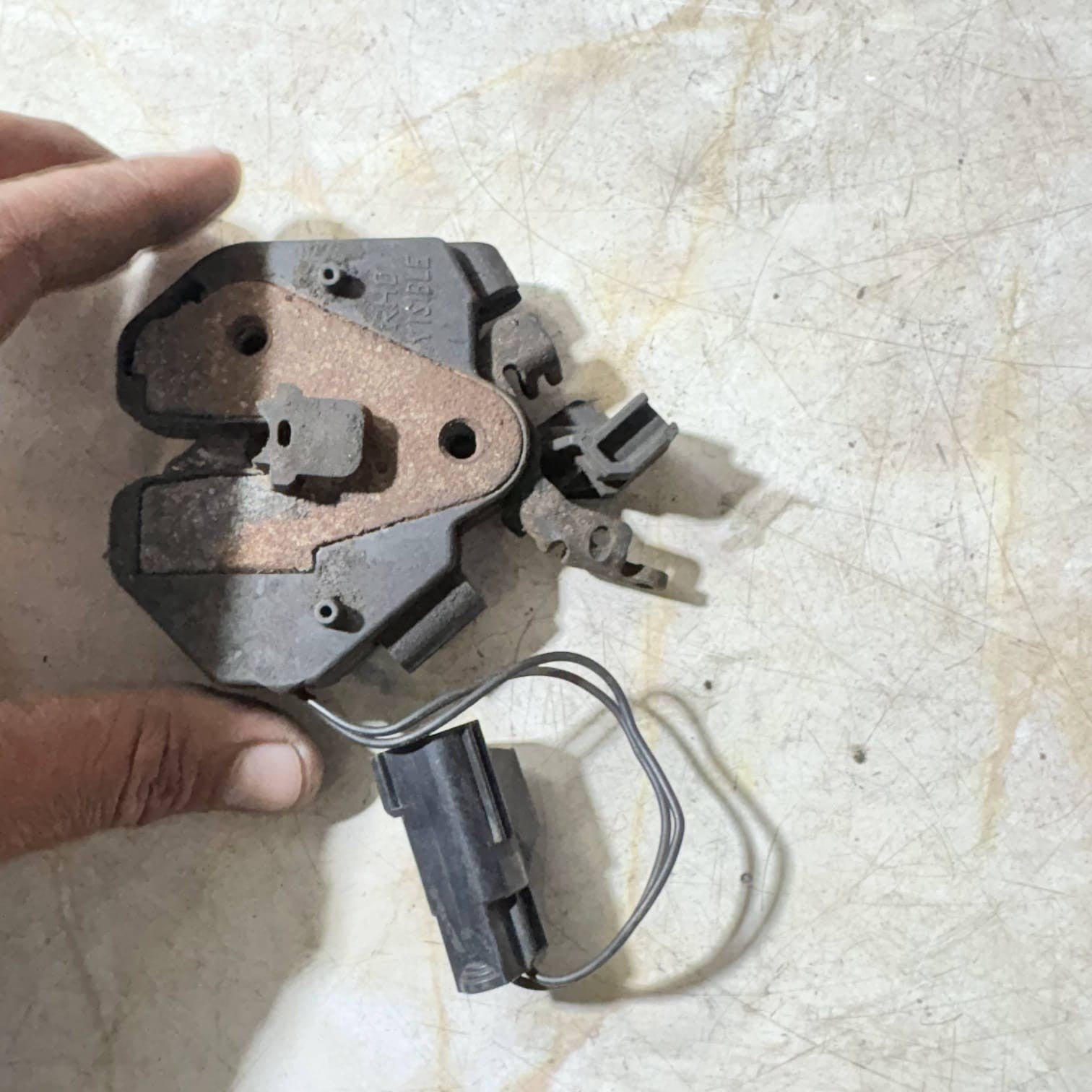

ACTUAL PART — REFERENCE VIEW 2
|

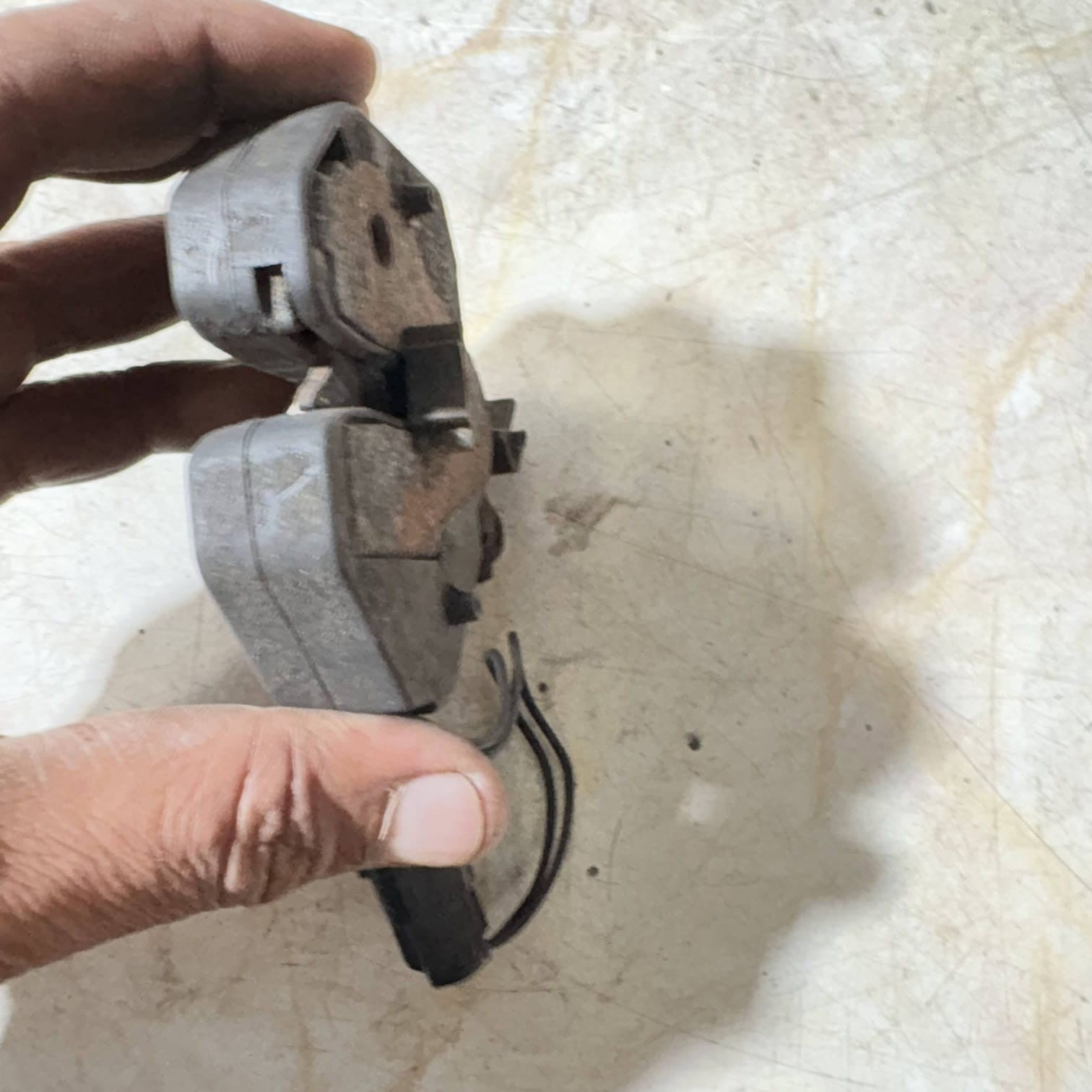

ACTUAL PART — REFERENCE VIEW 3
|
ITEM DETAILS & ENGINEERING REFERENCES
| Vehicle Manufacturer | Volvo |
| Component | Front bonnet / hood locking latch and catch assembly |
| Primary Part Number | 9483765 |
| Superseded / Replacement Reference | 31218474 |
| Interchange References | 30799689 • 9187048 |
| Catalogue Position | Right-hand bonnet lock |
| Placement | Front of vehicle / upper front panel / bonnet slam-panel area |
| Connector | Photographed unit includes electrical wiring / connector — compare directly with your original |
| Visible Construction | Composite housing with steel latch mechanism, spring components, cable interface and electrical connection |
| Condition | Pre-owned recycled component. Normal age-related cosmetic marks / surface oxidation may be present. Refer to actual photographs. |
| Warranty | 30 days, subject to the terms shown on this eBay listing |
✅ VERIFIED COMPATIBILITY GUIDE
Catalogue cross-referencing for 9483765 / 31218474 supports the following vehicles. Fitment still requires your original lock to match the photographed component.
| MODEL | GENERATION / BODY | EXACT CATALOGUE YEARS | BODY STYLE | FITMENT STATUS |
|---|---|---|---|---|
| Volvo S60 | S60 I / P2 / 384 | 2001–2009 | 4-door saloon | ✓ Match 9483765 and connector |
| Volvo S80 | S80 I / 184 | 1999–2006 | 4-door saloon | ✓ Match 9483765 and connector |
| Volvo V70 | V70 II / P26 / 285 | 2001–2007 | 5-door estate | ✓ Match 9483765 and connector |
| Volvo XC70 | XC70 P2 / 295 | 2001–2007 | 5-door crossover estate | ✓ Part-number verification essential on early cars |
| Volvo XC90 | XC90 I / P2 / 275 | 2003–2014 | 5-door SUV | ✓ Match 9483765 and connector |
❌ IMPORTANT — VEHICLES / VERSIONS THIS SHOULD NOT BE ASSUMED TO FIT
| Volvo S60 II | 2011-on generation | NO — different generation |
| Volvo S80 II | 2007-on generation | NO — different generation |
| Volvo V70 III | 2008-on generation | NO — different generation |
| Volvo XC70 II | 2008-on generation | NO — different generation |
| Volvo XC90 II | 2015-on generation | NO — different generation |
| Opposite-side / alternative latch | 9483764 / 31218475 | NOT the same reference as this item |
⚠️ RIGHT / LEFT terminology can cause confusion when comparing markets and diagrams. The safest method is to match the stamped part number, electrical connector, mounting points and physical shape against the part already removed from your vehicle.
BUY THE CORRECT PART FIRST TIME
2. Confirm it matches 9483765 or a verified cross-reference above.
3. Compare the electrical plug / wire arrangement.
4. Compare the cable connection and mounting holes.
5. Confirm the vehicle generation and year in the table.
6. If anything differs, contact us through eBay Messages before ordering.
We would rather verify your fitment before dispatch than have you lose time fitting the wrong component.
